Abstract

Considering that quadrotor unmanned aerial vehicles (UAVs) often encounter unknown disturbance caused by model parameter perturbations and environmental changes, a novel hybrid controller based on feedforward compensation and particle swarm optimization-aided self-coupling proportional-integral-derivative (FC-PSO-SCPID) is proposed for quadrotor UAVs through the outer loop (position) control and the inner loop (attitude) control. In the proposed controller, feedforward compensator is introduced to compensate for the hysteresis effect on a certain independent variable (disturbance) using the inverse model. Hence, the tracking speed and accuracy are dramatically improved, and the output can reach the preset value instantly. In SCPID controller, the speed factor is difficult to obtain automatically, and thus the particle swarm optimization (PSO) is introduced to adjust the parameters by using the integrated time absolute error (ITAE). Moreover, the stability analysis for the closed-loop systems of both the position and attitude of the quadrotor UAV system was proved by Hurwitz stability criterion. Extensive simulations conducted in MATLAB/Simulink show that the FC-PSO-SCPID controller outperforms conventional methods in terms of response speed, steady-state accuracy, and anti-disturbance ability. Specifically, the convergence time and steady-state error of the proposed controller are less than 1.5 s and 1%, respectively. In addition, the situation of stability failure has also been discussed.

Keywords

quadrotor unmanned aerial vehicles feedforward compensation the self-coupling PID particle swarm optimization disturbance

Introduction

Recently, quadrotor UAVs (unmanned aerial vehicles) have been widely used in various fields due to the unique ability to perform a variety of task-based unmanned.^1,2 For example, In Guo et al.,³ UAVs are applied to the field of building inspection. In Ikeda et al.,⁴ a nonlinear control method is proposeed using in UAV transportation field.

However, the controller design for quadrotor UAVs faces many difficulties, such as complex environmental disturbance, strong coupling and the underactuated characteristics (6 degrees of freedom and 4 actuators).⁵ Thus, many researchers have carried out work using various control methods for stabilizing quadrotor UAVs, which mainly include PID (proportional-integral-derivative) control,⁶ LQR (linear quadratic) control,⁷ H-infinity control,⁸ SMC (sliding mode control),⁹ backstepping control,¹⁰ adaptive control,¹¹ robust control.¹² In addition, some typical controllers have been proposed in other application areas, such as the H–infinity controller and μ-controllers which are used in active suspension systems of electric vehicle.¹³ In Gopi,¹⁴ a novel approach is proposed for stability analysis of DC drive.

Among these control methods, most of them overly rely on the accuracy of the model. However, it is very difficult to accurately model the system due to uncertain disturbances. Thus, the control system cannot achieve good performance. Instead, PID has many advantages like model-free and simple design.¹⁵ Thus, it is the most widely used in the control tasks of quadrotor UAVs.

In Li and Li,¹⁶ a PID controller is applied to control both position and orientation of the quadrotor UAVs. However, the classical PID controllers has some limitations: (1) obtain the linearized mathematical model of the controlled object by ignoring the nonlinear part; (2) adjust some parameters depending on the experience for good performance. Aiming at the first limitation, many nonlinear PID controllers have been studied for quadrotor UAVs. In González-Vázquez and Moreno-Valenzuela,¹⁷ a nonlinear PI/PID controller has been proposed to control the motion of a quadrotor UAV. In Yasser et al.,¹⁸ a sliding-mode based nonlinear PID controller is designed, in which the controller parameters are tuned to minimize a multi-objective function using GA (genetic algorithm). In Ortiz et al.,¹⁹ a nonlinear robust PID controller is proposed for attitude regulation of a quadrotor. In Alkhoori et al.,²⁰ the gain scheduling PID control strategy approach is designed for quadrotor UAVs. In Najm et al.,²¹ a nonlinear PID controller is proposed to stabilize the translational and rotational motion of a quadrotor and to track a given trajectory with minimum energy and error. On the other hand, to get optimum control parameters, some optimization algorithms are used in PID. In Erkol,²² four PID controllers, in which the optimum parameters are determined by the artificial bee colony algorithm, particle swarm optimization, and genetic algorithm, are designed to control attitude and hover. In Chen et al.,²³ the large amount of decentralized $H_{\infty}$ PID controller parameters can be efficiently obtained via the current convex optimization technique. Although these improved PID-based control algorithms can overcome defects to a certain extent, they are very difﬁcult to achieve simultaneous disturbance rejection and faster settling time capabilities for quadrotor system.

Obviously, a single controller does not have it all. Thus, some hybrid controllers by merging more control algorithms are proposed for tackle this. In Alajmi et al.,²⁴ a novel tracking hybrid controller, which combines the robust adaptive neuro-fuzzy inference system (ANFIS) and particle swarm optimization (PSO) algorithm, is proposed for a quadrotor UAV. In Giernacki et al.,²⁵ a new hybrid control system for a quadrotor UAV based on PID and finite-time state-dependent riccati equation (SDRE) control is proposed for precise control and stabilization. Although these hybrid control methods have been improved, they are complicated for implementation. Instead, the feedforward compensator has the clear theory, flexible tuning, and remarkable effect, and is suitable for high-precision motion control systems (such as UAVs) with strict dynamic performance. In Dai et al.,²⁶ the performance of the model-based feedforward controller is analyzed and verified. In Chen et al.,²⁷ The feedforward compensation and sliding mode controller are combined to improve the control accuracy of soft robots.

Recently, aiming at tuning problem for PID controller, the self-coupling PID (SCPID) control method was proposed by Zeng and Liu.²⁸ The key characteristic of SCPID is the introduction of coupling speed factor, and the three components of proportion, integral and differentiation are tightly coupled together by the speed factor to form a control signal. Thus, the speed factor directly determines the response speed, control accuracy and anti-disturbance ability of the controller. The traditional PID require adjusting three gain parameters, while SCPID has only the speed factor to adjust. Theoretically, it is more convenient for the single-parameter controller than the multi-parameter controllers. Thus, the SCPID control method has been used for various systems,²⁸ such as non-affine pure-feedback nonlinear system, uncertain chaotic systems, nonlinear underactuated systems and large time delays systems. Aiming at selection of speed factor, adaptive speed factor (ASF) model and minimum speed factor model are successively proposed for optimize the speed factor.²⁹ However, these two optimization models only provide the range of values for the speed factor, the determination of specific value for the speed factor still needs to be manually obtained through repeated experiments. Aiming at parameter selection, some algorithms are used to optimize the controller parameters automaticly. In Feng et al.,³⁰ an improved PSO algorithm is proposed to optimize the coefficients of the PID controller. In He et al.,³¹ a multi-strategy enhanced PSO algorithm is used to optimize the fuzzy-PID controller. In Gopi et al.,³² the tree-seed algorithm is used for tuning PID coefficients.

In addition, the speed factor should be tuned as big as possible to improve the response speed of the control system, but this will cause overshot and oscillations due to the integral saturation problem at the initial stage of response. Compared with the traditional PID controller, SCPID is more difficult to eliminate steady-state errors.

Aiming at these deficiencies, a novel hybrid controller based on feedforward compensation and PSO-aided SCPID (FC-PSO-SCPID) is proposed for quadrotor UAVs under unknown disturbance. The main contributions of this paper are as follows:

(1) To adjust the speed factor adaptively, the particle swarm optimization (PSO) algorithm is introduced to optimize the SCPID controller parameter, which can improve the response speed and tracking accuracy.

(2) The feedforward compensation controller is proposed to cancel out the hysteresis effect on a certain independent change, which can greatly reduce or even eliminate steady-state errors.

(3) The stability analysis for the closed-loop systems of both the position and attitude of the 6-DOF UAV system was proved by Hurwitz stability criterion, and good anti-disturbance robustness of the two control systems have been theoretically proven.

Thus, the application of the hybrid controller based on FC-PSO-SCPID for quadrotor UAV control can achieve fast dynamic responsiveness and good steady-state accuracy.

The rest of this paper is organized as follows. Section 2 introduces the complete mathematical model of the quadrotor UAV. Then, the FC-PSO-SCPID is presented, and the subsystem controller based on FC-PSO-SCPID are designed in Section 3. Section 4 gives the simulation results and analysis. Finally, conclusions are given in Section 5.

Mathematical model

In this paper, “X” type quadrotor UAV was chosen, and its diagonal propellers can rotate in opposite directions. In the quadrotor UAV, the lift force generated by the propellers can be changed with changing speed of four motors, and then the control of the lift, roll, pitch and yaw will be realized.

Euler angle and rotation matrix

To model the quadrotor UAV dynamic, two reference frames including inertial frame $I (x, y, z)$ and body frame $B (x_{B}, y_{B}, z_{B})$ are introduced, and the origin of body frame is set at the center of the quadrotor UAV. Figure 1 depicts free body diagram of the quadrotor UAV, and its attitude is denoted by the three Euler angles, namely roll angle $ϕ$ , pitch angle $θ$ , and yaw angle $ψ$ . Figure 2 shows the process of rotational motions. For the first rotation, the yaw angle $ψ$ is defined between the x axis and the $x^{'}$ axis after rotation while z coordinate is kept unchanged, and it is the same with the second rotation and the third rotation, and then the pitch angle $θ$ and the roll angle $ϕ$ are obtained.³³

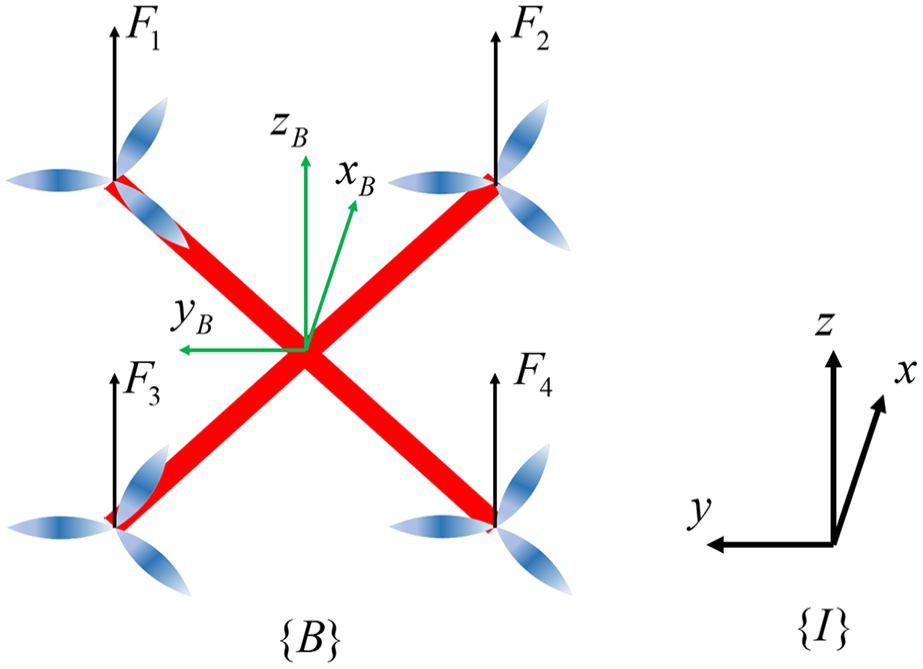

Figure 1.

UAV quadrotor system.

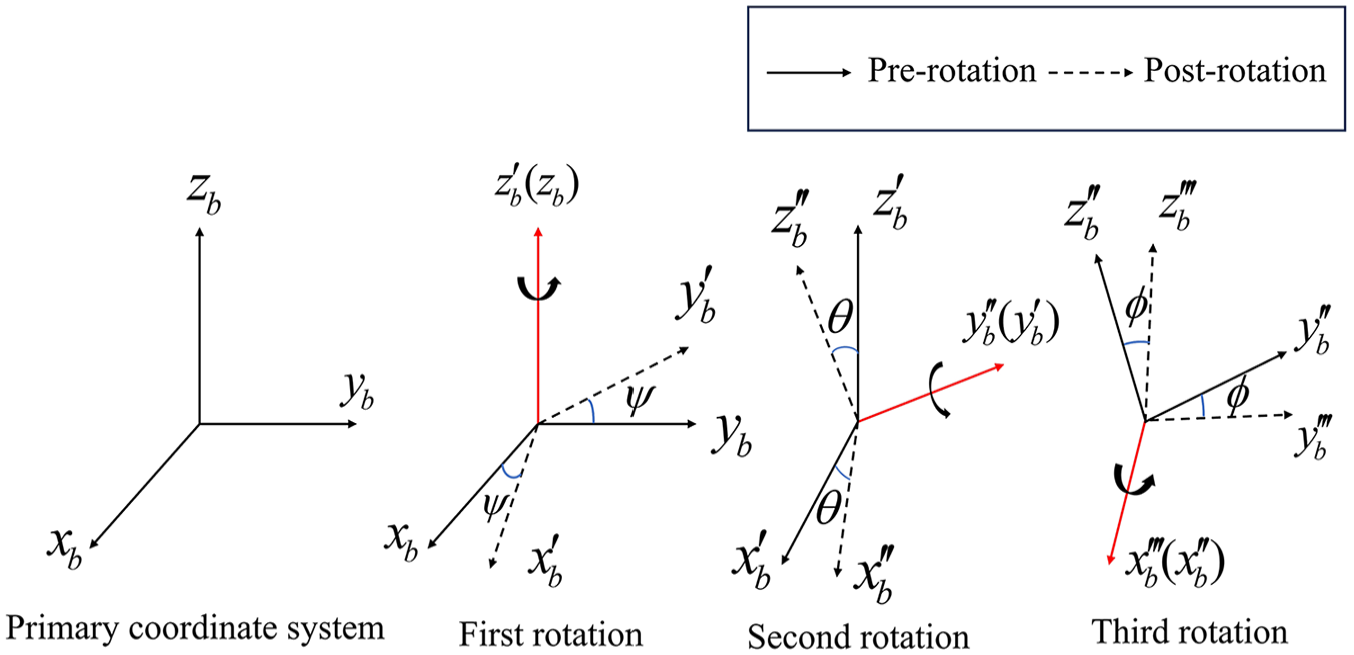

Figure 2.

The process of rotation.

During position control, it is necessary to compensate the orientation of the quadrotor’s body, and thus the rotation matrix T from I to B is represented as follows:

T = T_{1} (z_{B}, ψ) T_{2} (y_{B}, θ) T_{3} (x_{B}, ϕ)

(1)

where $T_{1} (z_{B}, ψ)$ , $T_{2} (y_{B}, θ)$ and $T_{3} (x_{B}, ϕ)$ are the rotation matrices, and they are defined as:

T_{1} (z_{B}, ψ) = (\begin{matrix} c ψ & s ψ & 0 \\ - s ψ & c ψ & 0 \\ 0 & 0 & 1 \end{matrix})

(2)

T_{2} (y_{B}, θ) = (\begin{matrix} c θ & 0 & - s θ \\ 0 & 1 & 0 \\ s θ & 0 & c θ \end{matrix})

(3)

T_{3} (x_{B}, ϕ) = (\begin{matrix} 1 & 0 & 0 \\ 0 & c ϕ & s ϕ \\ 0 & - s ϕ & c ϕ \end{matrix})

(4)

where the $s (.)$ and $c (.)$ denote $\sin (.)$ and $\cos (.)$ , respectively.

Hence, the compensation is attained using the transpose of the rotation matrix, that is, the transformation equation from the body frame to the inertial frame can be written as

\begin{matrix} = (\begin{matrix} c ψ c θ & - s ψ c ϕ + c ψ s θ s ϕ & c ψ s θ c ϕ + s ψ s ϕ \\ s ψ c θ & c ψ c ϕ + s ψ s θ c ϕ & s ψ s θ c ϕ - s ϕ c ψ \\ - s θ & c θ s ϕ & c θ c ϕ \end{matrix}) \end{matrix}

(5)

where ${[T_{1} (z_{B}, ψ)]}^{T}$ , ${[T_{2} (y_{B}, θ)]}^{T}$ , and ${[T_{3} (x_{B}, ϕ)]}^{T}$ are the transposes of the matrices $T_{1} (z_{B}, ψ)$ , $T_{2} (y_{B}, θ)$ , and $T_{3} (x_{B}, ϕ)$ , respectively.

Dynamical modeling of the quadrotor UAV

In order to simplify the modeling of the quadrotor UAV, the following assumptions are made: (1) The structure of quadrotor UAV is rigid and symmetrical; (2) The geometric center of the quadrotor UAV is the same with the center of the gravity; (3) The gravity and moment of inertia are unchanged.

Dynamic model of position subsystem

The lifts generated by the four rotors in the body frame are defined as $F_{i}$ ( $i = 1, 2, 3, 4$ ), so the total lift F of the quadrotor UAV can be represented by

F = \sum_{i = 1}^{4} F_{i}

(6)

Also, the total lift can be decomposed into three components $F_{X}$ , $F_{Y}$ , $F_{Z}$ along the three axes of the inertial frame, that is:

\begin{matrix} (\begin{matrix} F_{X} \\ F_{Y} \\ F_{Z} \end{matrix}) = \\ (\begin{matrix} c ψ c θ & - s ψ c ϕ + c ψ s θ s ϕ & c ψ s θ c ϕ + s ψ s ϕ \\ s ψ c θ & c ψ c ϕ + s ψ s θ s ϕ & s ψ s θ c ϕ - c ψ s ϕ \\ - s θ & c θ s ϕ & c θ c ϕ \end{matrix}) (\begin{matrix} 0 \\ 0 \\ F \end{matrix}) \end{matrix}

(7)

According to Newton’s law of motion, the position subsystem of the quadrotor UAV can be modeled as follows

{\begin{matrix} m x ″ = F_{X} - K_{1} x' + d_{x} \\ = F (c ψ s θ c ϕ + s ψ s ϕ) - K_{1} x' + d_{x} \\ m y ″ = F_{Y} - K_{2} y' + d_{y} \\ = F (s ψ s θ c ϕ - c ψ s ϕ) - K_{2} y' + d_{y} \\ m z ″ = F_{Z} - mg - K_{3} z' + d_{z} \\ = Fc θ c ϕ - mg - K_{3} z' + d_{z} \end{matrix}

(8)

where x, y, and z denote the positions of the quadrotor UAV with respect to the inertial frame, m is the mass of the quadrotor UAV, g is acceleration of gravity, $d_{x}$ , $d_{y}$ , and $d_{z}$ are the external disturbance, and the constant $K_{i} (i = 1, 2, 3)$ represents the air damping coefficient.

Dynamic model of attitude subsystem

According to Newton’s formula of motion, the attitude subsystem of the quadrotor UAV is modeled as follows

{\begin{matrix} ϕ ″ = \frac{1}{J_{x}} (l u_{2} - θ' ψ' (J_{z} - J_{y})) + d_{ϕ} \\ θ ″ = \frac{1}{J_{y}} (l u_{3} - ϕ' ψ' (J_{x} - J_{z})) + d_{θ} \\ ψ ″ = \frac{1}{J_{z}} (l u_{4} - ϕ' θ' (J_{y} - J_{x})) + d_{ψ} \end{matrix}

(9)

where $u_{2}$ , $u_{3}$ , and $u_{4}$ are control variables of roll channel, pitch channel and yaw channel, respectively. $J_{x}$ , $J_{y}$ , and $J_{z}$ denote the axial inertia moment of the quadrotor in the three axes directions of the body frame. l represents the distance between the center of the quadrotor UAV and the axis of the propeller. $d_{ϕ}$ , $d_{θ}$ , and $d_{ψ}$ are the external disturbances of system in different attitude channel, respectively.

By combining the equations (8) and (9), the overall dynamic model yields in the form of equation (10)

{\begin{matrix} m x ″ = u_{1} (c ψ s θ c ϕ + s ψ s ϕ) - K_{1} x' + d_{x} \\ m y ″ = u_{1} (s ψ s θ c ϕ - c ψ s ϕ) - K_{2} y' + d_{y} \\ m z ″ = u_{1} c θ c ϕ - mg - K_{3} z' + d_{z} \\ ϕ ″ = \frac{1}{J_{x}} (l u_{2} - θ' ψ' (J_{z} - J_{y})) + d_{ϕ} \\ θ ″ = \frac{1}{J_{y}} (l u_{3} - ϕ' ψ' (J_{x} - J_{z})) + d_{θ} \\ ψ ″ = \frac{1}{J_{z}} (l u_{4} - ϕ' θ' (J_{y} - J_{x})) + d_{ψ} \end{matrix}

(10)

where $U = [u_{1} u_{2} u_{3} u_{4}]^{T}$ are defined as the control input vector of the system. $u_{1}$ is equivalent to the total lift F in equation (5), and $u_{2}$ , $u_{3}$ , $u_{4}$ represent the forces, which are determined by the lifts of the four rotors, and thus they lead to the roll, pitch and yaw torque, respectively.

Control scheme and controller design

The hybrid controller based on FC-PSO-SCPID

The FC-SCPID controller

Aiming at the independent weighted summation of the error, the error integral and the error derivative in the traditional PID controller, the SCPID controller can make the three different units be linked by the speed factor, which not only reflects coordinated control mechanism, but also overcomes the difficulty of multi-parameter adjustment.

The coordinated control law of the SCPID is defined as follows

u = \frac{3 z_{c}^{2} e_{p} + z_{c}^{3} e_{i} + 3 z_{c} e_{d}}{b_{0}}

(11)

where $e_{p}$ , $e_{i}$ , $e_{d}$ represent the tracking error, the integration and differentiation of the error, respectively, $b_{0}$ ( $b_{0} \neq 0$ ) is the control coefficient, and $z_{c}$ is the speed factor. Obviously, the error, the integration and differentiation of the error can be determined by adjusting the speed factor only.

To improve the response speed of the control system, the speed factor $z_{c}$ should be tuned as large as possible, but this will cause overshot and oscillations due to the integral saturation problem at the initial stage of response. Thus, feedforward compensator is introduced to the SCPID controller, which can compensate for the hysteresis effect on a certain independent variable (disturbance) using the inverse model.³⁴ As a result, the feedforward compensator can improve the tracking speed and accuracy. Figure 3 depicts the SCPID controller with feedforward compensator, and the composite controller consists of the feedforward compensator $G_{f} (s)$ , the controlled object $G_{p} (s)$ and the SCPID controller. Let the error transfer function $G_{e} (s)$ is defined as

G_{e} (s) = \frac{E (s)}{R (s)}

(12)

where $E (s)$ and $R (s)$ represent the Laplace transform of the error and the setpoint.

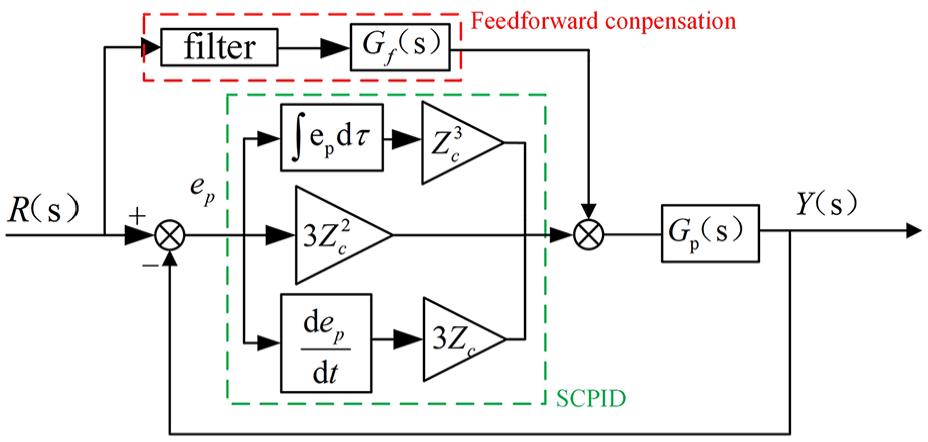

Figure 3.

The SCPID controller with feedforward compensation.

The closed-loop transfer function from $R (s)$ to $Y (s)$ is

\frac{Y (s)}{R (s)} = \frac{G_{f} (s) G_{p} (s) + G_{c} (s) G_{p} (s)}{1 + G_{c} (s) G_{p} (s)}

(13)

here, $G_{c} (s)$ is the transfer function of the SCPID controller.

Also

E (s) = R (s) - Y (s)

(14)

Substituting equations (13) and (14) into equation (12) yields

G_{e} (s) = \frac{1 - G_{f} (s) G_{p} (s)}{1 + G_{c} (s) G_{p} (s)}

(15)

Assuming that the steady-state error of the system is canceled by the feedforward compensator, thus:

1 - G_{f} (s) G_{p} (s) = 0

(16)

So, we can obtain the feedforward compensator $G_{f} (s)$ as follow:

G_{f} (s) = \frac{1}{G_{p} (s)}

(17)

Hence, the feedforward compensator is constructed using the inverse model.

From Figure 5, the control variable $U (s)$ based on the FC-SCPID controller can be described as follow

U (s) = \frac{R (S)}{G_{p} (s)} + E (s) G_{c} (s)

(18)

Theoretically, the feedforward compensator can achieve perfect control performance, and make the output instantly reach the preset value. However, when there is a sudden change in the setpoint, for example, a step signal, the control variable signal is an impulse signal with an infinite amplitude. Therefore, the filtering operation is introduced for limiting the control variable to be large.

The controller parameter optimization with PSO

In the SCPID, the speed factor is the key for obtaining satisfactory control effects. In addition, some control channel parameters are mutually coupled in the controllers of the quadrotor UAV. Although the adjustment rules based on manual has been given in Zeng and Liu,²⁸ the appropriate value of the speed factor is difficult to automatically obtain. Therefore, PSO algorithm is used to adjust the parameters of SCPID controllers.

PSO is an evolutionary computing method proposed by Kennedy and Eberhart,³⁵ and the key idea is to use the principle of information sharing to simulate a group search process. To find the best solution, a particle updates its velocity and adjusts its position by tracking its own best experience and the whole population’s best memory. The velocity updating and position adjusting strategies in a D dimensional search space are defined as follows:

{\begin{matrix} v_{i, d}^{k + 1} = {wv}_{i, d}^{k} + c_{1} r_{1} (p_{i, d}^{k} - x_{i, d}^{k}) + c_{2} r_{2} (g_{d}^{k} - x_{i, d}^{k}) \\ x_{i, d}^{k + 1} = x_{i, d}^{k} + v_{i . d}^{k + 1} \end{matrix}

(19)

where, $v_{i, d}$ , $x_{i, d}$ , and $p_{i, d}$ $(i = 1, 2 . . . N; d = 1, 2 . . . D)$ denote the velocity, the position and the best position of the particle i in the dth dimension, respectively, $g_{d}$ is the global best position experienced by all particles, w, $c_{1}$ , $c_{2}$ are the inertia weight and the acceleration constants, $r_{1}$ , $r_{2}$ are random values used to ensure the diversity of the population, and k is the iteration number.

Firstly, particles are randomly distributed into the entire search space, and then the particle qualities can be judged according to their fitness values. In this paper, the index of integrated time absolute error (ITAE) is selected as the fitness function, and it comprehensively considers the time response and absolute error of the system, which can better reflect the dynamic response of the system. The ITAE index is defined as follow:

E = \int_{0}^{\infty} t | e (t) | dt

(20)

The smaller the value, the better the convergence accuracy and control speed of the control system.

To optimize the speed factor of the SCPID using PSO, the speed factor $z_{c}$ is taken as the particle position, and thus the parameter adjusting is changed into the function optimization problem with one dimensional particle. Thus, the structure of FC-PSO-SCPID is shown in Figure 4.

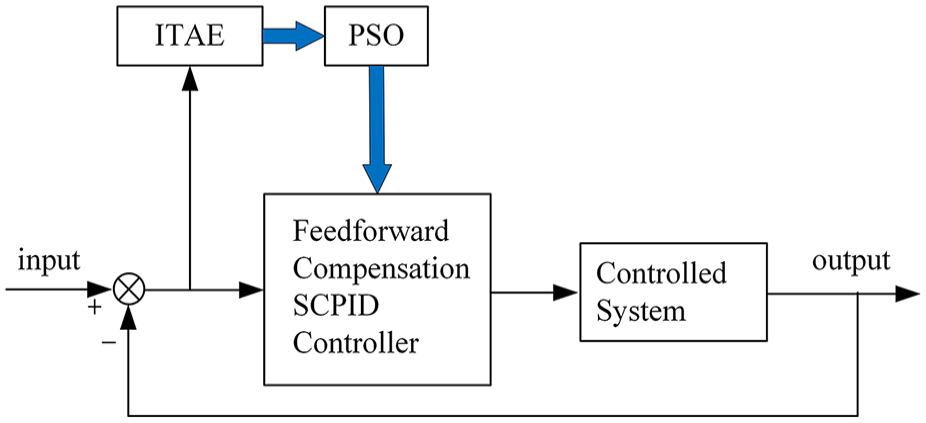

Figure 4.

The FC-PSO-SCPID control system.

The design of the PF-PSO-SCPID controller for quadrotor UAV

The quadrotor UAV is controlled using double-loop serial control method. As shown in Figure 5, the controller includes for outer-loop subsystem for position and inner-loop subsystem attitude. The stability of the controller for the quadrotor UAV greatly depends on the response speed of the inner-loop control system. Thus, the inner-loop control system is the FC-PSO-SCPID controller, while the outer-loop control system is the PSO- SCPID controller. It is worth noting that, as shown in Figure 5, the reference input of the system is $[x^{*}, y^{*}, z^{*}, ψ^{*}]$ , and the control objective is to design the actual control input $U = [u_{1} u_{2} u_{3} u_{4}]^{T}$ to achieve desired position and attitude (roll angle $ϕ$ , pitch angle $θ$ , and yaw angle $ψ$ ). Therefore, it is necessary to provide virtual control variables and design an attitude calculation module for decoupling.

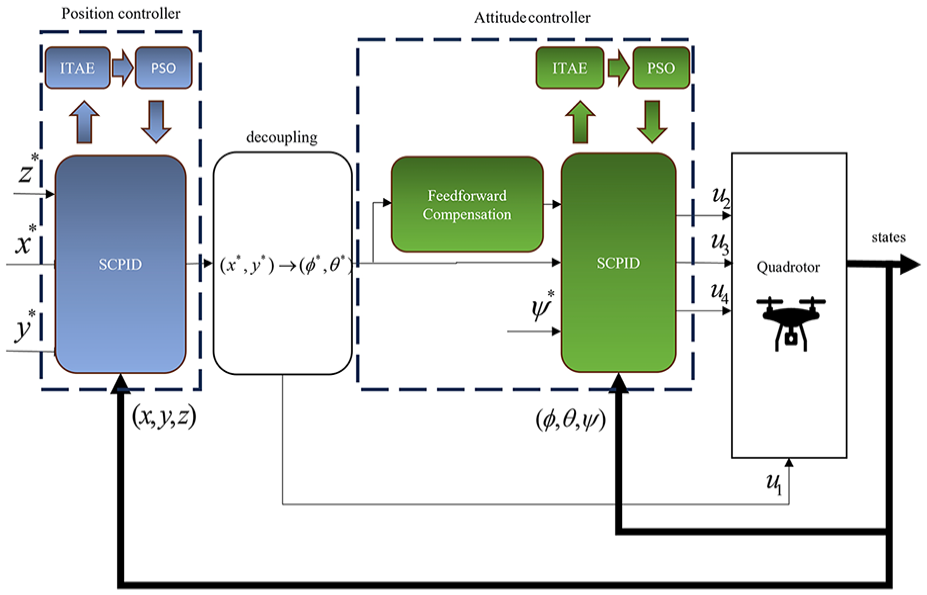

Figure 5.

The FC-PSO-SCPID controller for quadrotor UAV.

Let $u_{x}$ , $u_{y}$ , and $u_{z}$ be the virtual control variable for the channels x, y, z, respectively, and they can be expressed as follows:

{\begin{matrix} u_{x} = u_{1} (c ψ s θ c φ + s ψ s φ) \\ u_{y} = u_{1} (s ψ s θ c φ - c ψ s φ) \\ u_{z} = u_{1} c θ c φ \end{matrix}

(21)

By solving the above equations, the total lift, the desired angle signals $φ$ and $θ$ can be depicted as

{\begin{matrix} u_{1} = \sqrt{u_{x}^{2} + u_{y}^{2} + u_{z}^{2}} \\ ϕ = \arcsin (\frac{u_{x} s ψ - u_{y} c ψ}{u_{1}}) \\ θ = \arcsin (\frac{u_{x} c ψ + u_{y} s ψ}{u_{1} c ϕ}) \end{matrix}

(22)

Thus, the system can be regarded as a full-driven control system, and the reference of position system is given directly, and the reference of pitch and roll angles are calculated through equation (22).

Position subsystem controller design

By substituting equation (21) into equation (8), the sub-model of the position can be simplified as:

{\begin{matrix} x ″ = \frac{u_{x}}{m} + \frac{- K_{1} x' + d_{x}}{m} \\ y ″ = \frac{u_{y}}{m} + \frac{- K_{2} y' + d_{y}}{m} \\ z ″ = \frac{u_{z}}{m} - g + \frac{- K_{3} z' + d_{z}}{m} \end{matrix}

(23)

According to the control law of the SCPID, the virtual control variables can be described as:

{\begin{matrix} u_{x} = \frac{z_{cx}^{3} e_{x 0} + 3 z_{cx}^{2} e_{x 1} + 3 z_{cx} e_{x 2}}{b_{x 0}} \\ u_{y} = \frac{z_{cy}^{3} e_{y 0} + 3 z_{cy}^{2} e_{y 1} + 3 z_{cy} e_{y 2}}{b_{y 0}} \\ u_{z} = \frac{z_{cz}^{3} e_{z 0} + 3 z_{cy}^{2} e_{z 1} + 3 z_{cy} e_{z 2}}{b_{z 0}} \end{matrix}

(24)

here, $z_{cx}$ , $z_{cy}$ , and $z_{cz}$ are the speed factors in the x, y, z channels, respectively, $(e_{x 1}, e_{y 1}, e_{z 1})$ , $(e_{x 0}, e_{y 0}, e_{z 0})$ , and $(e_{x 2}, e_{y 2}, e_{z 2})$ represent the error, the integration and differentiation of the error in the x, y, z channels, respectively, and $b_{x 0}$ , $b_{y 0}$ , and $b_{z 0}$ are the control coefficients in the x, y, z channels, respectively.

Therefore, the block diagram of the position controllers based on the PSO-SCPID is shown in Figure 6.

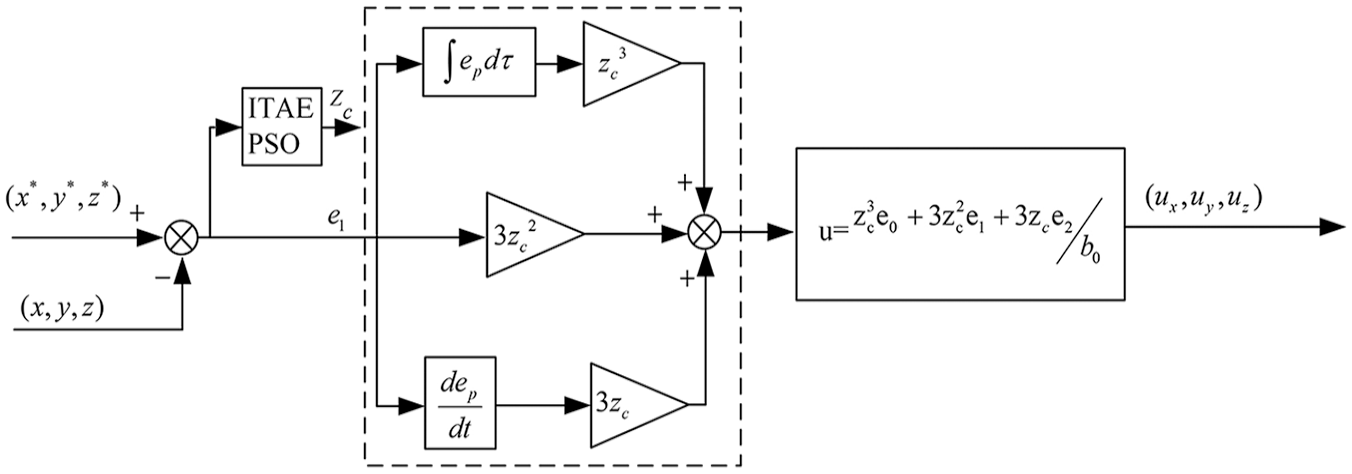

Figure 6.

The position controllers based on the PSO-SCPID.

Stability proof of the position subsystem

To demonstrate the effectiveness of the position subsystem controller, this paper conducts the theoretical proving for two theorems.

Theorem 1: The closed-loop control system satisfies bounded input and bounded output stability when $z_{c} > 0$

Theorem 2: The control system has good anti-disturbance robustness, when the total disturbances is bounded and $z_{c} > 0$ .

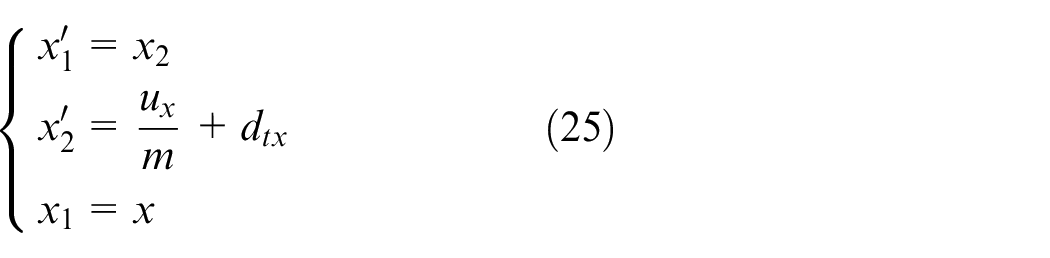

Prove 1: Taking x channel as an example, the x sub-system model based on states can be rewritten as follows

{\begin{matrix} x_{1}' = x_{2} \\ x_{2}' = \frac{u_{x}}{m} + d_{tx} \\ x_{1} = x \end{matrix}

(25)

where the $d_{tx}$ represents the total disturbance which includes internal disturbance (coupled disturbance) and external disturbance, and $d_{tx}$ can be expressed as

d_{tx} = \frac{d_{x} - K_{1} x'}{m}

(26)

Assume that the expected output of the system is $x^{*}$ , the error and its integral and differential are represented as follows

{\begin{matrix} e_{x 1} = x^{*} - x \\ e_{x 0} = \int_{0}^{t} e_{x 1} d τ \\ e_{x 2} = e_{x 1}' = x^{' *} - x_{2} \end{matrix}

(27)

Thus, the controlled error system can be obtained as

{\begin{matrix} e_{x 0}' = e_{x 1} \\ e_{x 1}' = e_{x 2} \\ e_{x 2}' = {\hat{d}}_{x} - b_{x 0} u_{x} \end{matrix}

(28)

where ${\hat{d}}_{x} = x^{'' *} - d_{tx}$ is the composite total disturbance.

Substituting equation (21) into equation (28), the following equation can be obtained

{\begin{matrix} e_{x 0}' = e_{x 1} \\ e_{x 1}' = e_{x 2} \\ e_{x 2}' = {\hat{d}}_{x} - (z_{cx}^{3} e_{x 0} + 3 z_{cx}^{2} e_{x 1} + 3 z_{cx} e_{x 2}) \end{matrix}

(29)

Obviously, the system shown in equation (29) is actually an error perception system under the excitation of composite total disturbance ${\hat{d}}_{x}$ . Considering the initial states $e_{x 0}^{-} = 0$ , $e_{x 1}^{-} \neq 0$ , $e_{x 2}^{-} \neq 0$ , the one-sided Laplace transform of equation (29) can be written as follows

E_{x 1} (s) = \frac{s}{{(s + z_{cx})}^{3}} \hat{d} (s) + \frac{e_{1}^{-} s^{2} + (e_{x 2}^{-} + 3 e_{x 1}^{-} z_{cx}) s}{{(s + z_{cx})}^{3}}

(30)

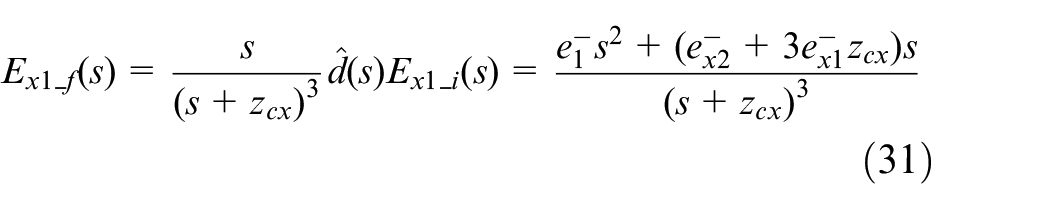

Thus, the zero status response $E_{x 1_f}$ and the zero input response $E_{x 1_i}$ can be described as follow, respectively

E_{x 1_f} (s) = \frac{s}{{(s + z_{cx})}^{3}} \hat{d} (s) E_{x 1_i} (s) = \frac{e_{1}^{-} s^{2} + (e_{x 2}^{-} + 3 e_{x 1}^{-} z_{cx}) s}{{(s + z_{cx})}^{3}}

(31)

Therefore, the transfer function can be expressed as

H_{x} (s) = \frac{E_{x 1_f} (s)}{{\hat{d}}_{x} (s)} = \frac{s}{{(s + z_{cx})}^{3}}

(32)

when $z_{cx} > 0$ , $H_{x} (s)$ has a unique triple real pole, which is located in the left half plane of the complex frequency domain, so the system is a stable system with bounded input and bounded output.

Prove 2: According to the system transfer function shown in equation (32), the closed-loop system shown in equation (29) can be rewritten as

E_{x 1} (s) = H_{x} (s) {\hat{d}}_{x} (s) + e_{x 1}^{-} s H_{x} (s) + (e_{x 2}^{-} + 3 z_{cx} e_{x 1}^{-}) H_{x} (s)

(33)

Hence, equation (33) can be transformed into the time domain as follow

e_{x 1} (t) = h_{x} (t) * {\hat{d}}_{x} (t) + e_{x 1}^{-} h_{x}' (t) + (e_{x 2}^{-} + 3 z_{cx} e_{x 1}^{-}) h_{x} (t)

(34)

where the symbol * represents the convolution operation, and $h_{x} (t)$ is the unit impulse response, which can be expressed as follow

h_{x} (t) = (t - 0.5 z_{cx} t^{2}) \exp (- z_{cx} t) t > 0

(35)

Also, the differentiation $e_{x 2} (t)$ of the error can be obtained as follow

e_{x 2} (t) = h_{x}' (t) * {\hat{d}}_{x} (t) + e_{x 1}^{-} h_{x} ″ (t) + (e_{x 2}^{-} + 3 Z_{cx} e_{x 1}^{-}) h_{x}' (t)

(36)

When $| x^{'' *} | < \infty$ and $| d_{tx} | < \infty$ , the following inequality must be satisfied

| {\hat{d}}_{x} | = | x^{'' *} - d_{tx} | < | x^{'' *} | + | d_{tx} | < \infty

(37)

According to equation (35), the following formulas can be obtained

{\begin{matrix} \lim_{t \to \infty} h_{x} (t) = 0 \\ \lim_{t \to \infty} h_{x}' (t) = 0 \\ \lim_{t \to \infty} h_{x} ″ (t) = 0 \end{matrix}

(38)

Therefore, we can conclude

{\begin{matrix} \lim_{t \to \infty} e_{x 1} (t) = 0 \\ \lim_{t \to \infty} e_{x 2} (t) = 0 \end{matrix}

(39)

Obviously, when $z_{cx} > 0$ and $| d_{tx} | < \infty$ , $e_{x 1} (\infty)$ and $e_{x 2} (\infty)$ converge to 0. Thus, the closed-loop system shown in equation (28) can approach the stable equilibrium point (0, 0) from any non-zero initial error state. Under the condition of $z_{cx} > 0$ , because $e_{x 1} (\infty) \to 0$ and $e_{x 2} (\infty) \to 0$ only need to satisfy $| d_{tx} | < \infty$ , and are independent of the specific model of $d_{tx}$ , the position control subsystem has good robustness against total disturbances.

Attitude subsystem controller design

The attitude control subsystem is based on FC-PSO-SCPID controller. To obtain the control variables, we should find the model of the control object. According to equation (9), the models of roll, pitch and yaw can be obtained as follow

{\begin{matrix} H_{ϕ} (s) = \frac{ϕ (s)}{U_{2} (s)} = \frac{l}{J_{x}} \frac{1}{s^{2}} \\ H_{θ} (s) = \frac{θ (s)}{U_{3} (s)} = \frac{l}{J_{y}} \frac{1}{s^{2}} \\ H_{ψ} (s) = \frac{ψ (s)}{U_{4} (s)} = \frac{l}{J_{z}} \frac{1}{s^{2}} \end{matrix}

(40)

According to the control law of the FC-SCPID controller, the control variables can be obtained by substituting equation (40) into equation (17):

{\begin{matrix} u_{2} (s) = \frac{J_{x}}{l} s^{2} ϕ^{*} (s) + E_{ϕ} (s) G_{c ϕ} (s) \\ u_{3} (s) = \frac{J_{y}}{l} s^{2} θ^{*} (s) + E_{θ} (s) G_{c θ} (s) \\ u_{4} (s) = \frac{J_{z}}{l} s^{2} ψ^{*} (s) + E_{ψ} (s) G_{c ψ} (s) \end{matrix}

(41)

Thus, the control variables of roll, pitch and yaw can be expressed as follow

{\begin{matrix} b_{0 ϕ} u_{2} = z_{c ϕ}^{3} e_{ϕ 0} + 3 z_{c ϕ}^{2} e_{ϕ 1} + 3 z_{c ϕ} e_{ϕ 2} + \frac{J_{x}}{l} ϕ^{'' *} \\ b_{0 θ} u_{3} = z_{c θ}^{3} e_{θ 0} + 3 z_{c θ}^{2} e_{θ 1} + 3 z_{c θ} e_{θ 2} + \frac{J_{y}}{l} θ^{'' *} \\ b_{0 ψ} u_{4} = z_{c ψ}^{3} e_{ψ 0} + 3 z_{c ψ}^{2} e_{ψ 1} + 3 z_{c ψ} e_{ψ 2} + \frac{J_{z}}{l} ψ^{'' *} \end{matrix}

(42)

where $z_{c ϕ}$ , $z_{c θ}$ , and $z_{c ψ}$ are the speed factors of roll, pitch and yaw controllers, respectively, $(e_{ϕ 1}, e_{θ 1}, e_{ψ 1})$ , $(e_{ϕ 0}, e_{θ 0}, e_{ψ 0})$ , and $(e_{ϕ 2}, e_{θ 2}, e_{ψ 2})$ represent the error, the integration and differentiation of the error in the roll, pitch and yaw channels, respectively, and $b_{ϕ 0}$ , $b_{θ 0}$ , and $b_{ψ 0}$ are the control coefficients.

Therefore, the structure diagram of the attitude controller for the quadrotor UAV is shown in Figure 7.

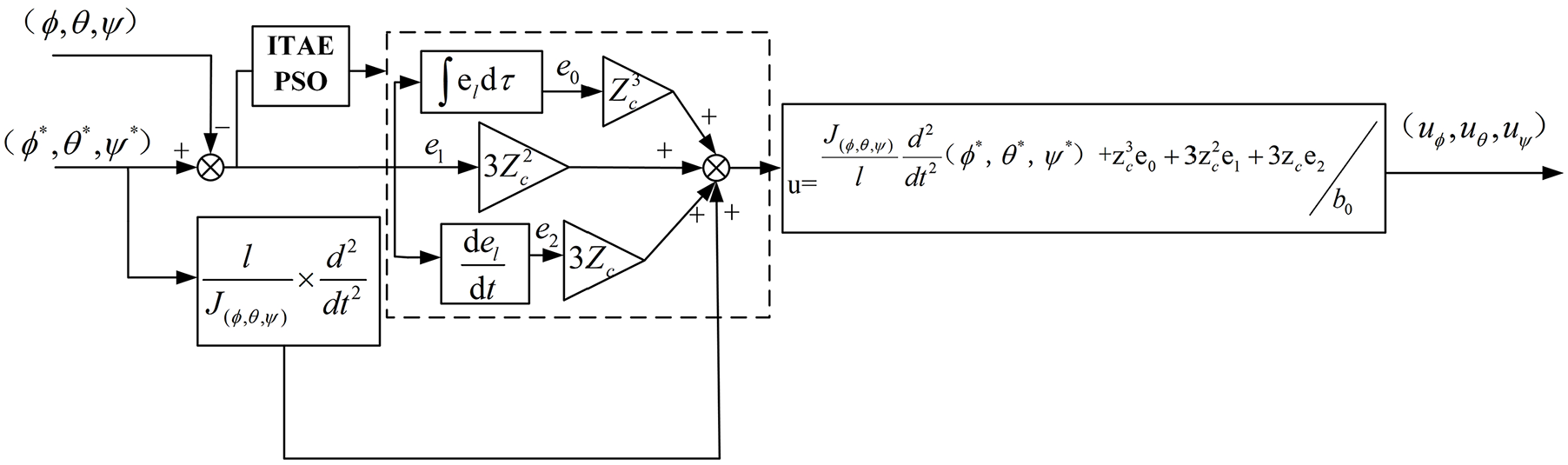

Figure 7.

The attitude controller based on FC-PSO-PID.

Stability proof of the attitude subsystem

Similarly, the attitude control subsystem satisfies the stability and has good anti-disturbance robustness when the speed factor is greater than zero and the total disturbances is bounded. The two theorems can be described as follow:

Theorem 3: The closed-loop attitude control system satisfies bounded input and bounded output stability when $z_{c} > 0$ .

Theorem 4: The control system has good anti-disturbance robustness when the total disturbances is bounded and $z_{c} > 0$ .

Prove 3: Taking $ϕ$ (roll) channel as an example, the $ϕ$ sub-system model based on states can be rewritten as follows

{\begin{matrix} ϕ_{1}' = ϕ_{2} \\ ϕ_{2}' = \frac{l}{J_{x}} u_{2} + d_{t ϕ} \\ ϕ = ϕ_{1} \end{matrix}

(43)

where the $d_{t ϕ}$ represents the total disturbance, which can be expressed as follow

d_{t ϕ} = d_{ϕ} - \frac{θ' ψ' (J_{z} - J_{y})}{J_{x}}

(44)

Equally, the controlled error system of the attitude can be obtained

{\begin{matrix} e_{ϕ 0}' = e_{ϕ 1} \\ e_{ϕ 1}' = e_{ϕ 2} \\ e_{ϕ 2}' = {\hat{d}}_{ϕ} - (z_{c ϕ}^{3} e_{ϕ 0} + 3 z_{c ϕ}^{2} e_{ϕ 1} + 3 z_{c ϕ} e_{ϕ 2} + \frac{J_{x}}{l} ϕ^{'' *}) \end{matrix}

(45)

where $e_{ϕ 1}$ is the error and $e_{ϕ 0}$ , $e_{ϕ 2}$ are the integral and differential of the error, and ${\hat{d}}_{ϕ}$ is the composite total disturbance, which can be expressed as follow

{\hat{d}}_{ϕ} = ϕ^{'' *} - d_{t ϕ}

(46)

Assuming that ${\hat{d}}_{ϕ}^{'} = {\hat{d}}_{ϕ} - \frac{J_{x}}{l} ϕ^{'' *}$ , equation (45) can be rewritten as follow

{\begin{matrix} e_{ϕ 0}' = e_{ϕ 1} \\ e_{ϕ 1}' = e_{ϕ 2} \\ e_{ϕ 2}' = {\hat{d}}_{ϕ}' - (z_{c ϕ}^{3} e_{ϕ 0} + 3 z_{c ϕ}^{2} e_{ϕ 1} + 3 z_{c ϕ} e_{ϕ 2}) \end{matrix}

(47)

Also, the system transfer function shown in equation (43) can be expressed as

H_{ϕ} (s) = \frac{s}{{(s + z_{c ϕ})}^{3}}

(48)

Thus, when $z_{c ϕ} > 0$ , $H_{ϕ} (s)$ has a unique triple real pole, which is located in the left half plane of the complex frequency domain, so the system is a stable system with bounded input and bounded output.

Prove 4: In equation (47), the full response in the time domain can be expressed as

e_{ϕ 1} (t) = h_{ϕ} (t) * {\hat{d}}_{ϕ}' (t) + e_{ϕ 1}^{-} h_{ϕ} (t) + (e_{ϕ 2}^{-} + 3 z_{c ϕ} e_{ϕ 1}^{-}) h_{ϕ} (t)

(49)

where the unit impulse response $h_{ϕ} (t)$ can be express as

h_{ϕ} (t) = (t - 0.5 z_{c ϕ} t^{2}) \exp (- z_{c ϕ} t) t > 0

(50)

e_{ϕ 2} (t) = h_{ϕ}' (t) * {\hat{d}}_{ϕ}' (t) + e_{ϕ 1}^{-} h_{ϕ} ″ (t) + (e_{ϕ 2}^{-} + 3 z_{c ϕ} e_{ϕ 1}^{-}) h_{ϕ}' (t)

(51)

When $| ϕ^{'' *} | < \infty$ and $| d_{t ϕ} | < \infty$ , the following inequality must be satisfied

| {\hat{d}}_{ϕ}' | = | ϕ^{'' *} - d_{t ϕ} - \frac{J_{x}}{l} ϕ^{'' *} | < | ϕ^{'' *} | + | d_{t ϕ} | < \infty

(52)

Therefore, we can conclude

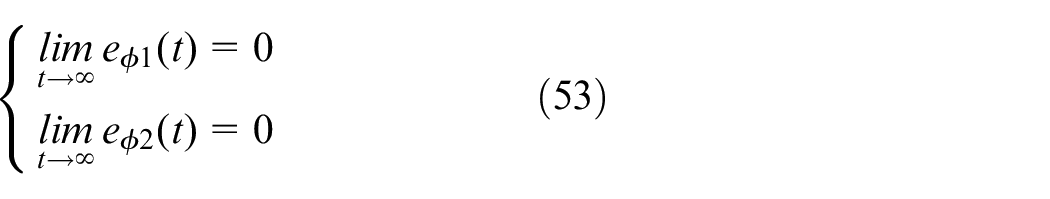

{\begin{matrix} \lim_{t \to \infty} e_{ϕ 1} (t) = 0 \\ \lim_{t \to \infty} e_{ϕ 2} (t) = 0 \end{matrix}

(53)

As a result, under the condition of $z_{c ϕ} > 0$ , $e_{ϕ 1} (\infty) \to 0$ and $e_{ϕ 2} (\infty) \to 0$ only need to satisfy $| d_{t ϕ} | < \infty$ , and are independent of the specific model of $d_{t ϕ}$ . Thus, the attitude control subsystem has good robustness against total disturbances.

Although the controller’s stability is theoretically guaranteed, the assumed stability conditions may fail under extreme practical scenarios. For instance, in the case of sudden vertical gusts, if the change rate of gust velocity exceeds the dynamic response capability of the flight control system, it will trigger a transient mismatch between aerodynamic forces and control forces. This mismatch can cause the UAV to lose control, such as tumbling or diving.

Simulation verification

In order to verify the control effectiveness of the proposed scheme above, two simulation experiments are conducted with the quadrotor UAV. One is to track the reference attitude, and the other is to track desired trajectory. The parameters setting of the UAV and simulation are given in Tables 1 and 2, respectively.

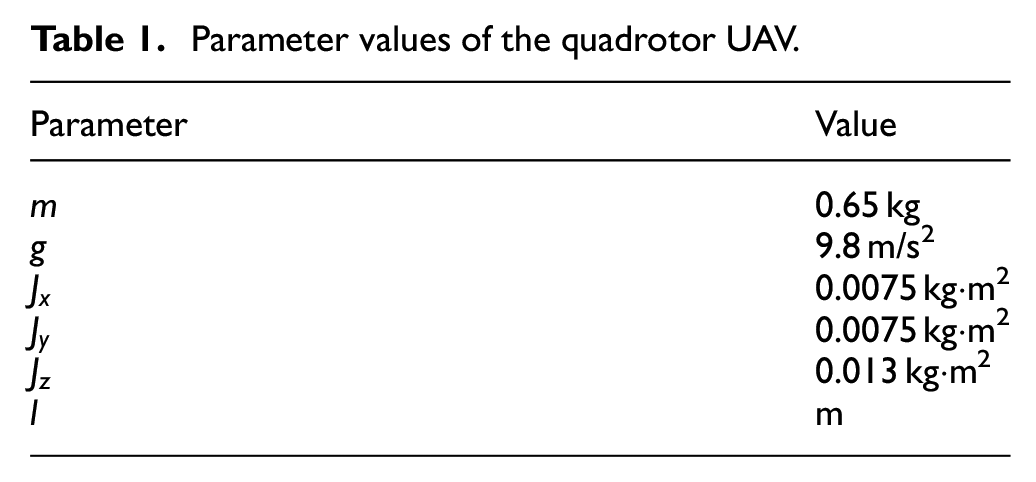

Table 1.

Parameter values of the quadrotor UAV.

Parameter	Value
m	0.65 kg
g	9.8 m/s²
$J_{x}$	0.0075 kg·m²
$J_{y}$	0.0075 kg·m²
$J_{z}$	0.013 kg·m²
l	m

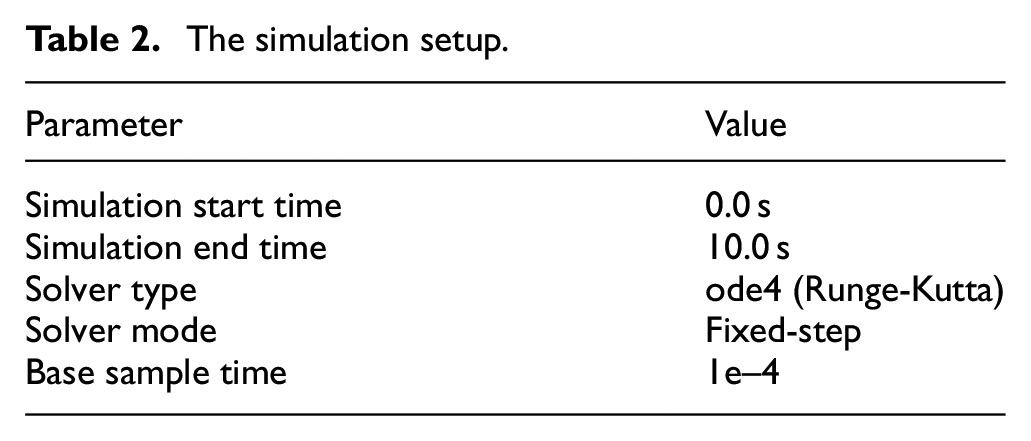

Table 2.

The simulation setup.

Parameter	Value
Simulation start time	0.0 s
Simulation end time	10.0 s
Solver type	ode4 (Runge-Kutta)
Solver mode	Fixed-step
Base sample time	1e–4

The attitude tracking

In this section, tracking the desired attitude angles is employed to verify the control effectiveness of the attitude controller. The reference of the attitude angle was set as

{\begin{matrix} ϕ^{*} = θ^{*} = \frac{π}{3} [ε (t - 2) - ε (t - 4) + ε (t - 9) - ε (t - 7)] \\ ψ^{*} = \sin t \end{matrix}

(54)

where $ε (\cdot)$ represents step signal.

To simulate the external disturbance, sinusoidal disturbance $d_{ϕ} = d_{θ} = d_{ψ} = 0.1 \sin (t)$ or white noise with 20 dB are added. The efficiency of the proposed control scheme is verified by comparing it with different controller.

The parameters setings of PSO algorithm in attitude and position subsystems are shown in Table 3. To ensure the stability of quadrotor UAVs, the response speed of the attitude control loop must be significantly faster than that of the position control loop. Thus, the speed factor of the attitude subsystem is larger than that of the position subsystem. According to this, the ranges of particle motion in the PSO algorithm are set different ( $[0, 40]$ for position, $[0, 80]$ for attitude). In addition, the inertia weight (w) is set to 0.8 which is helpful to global searching. Meantime, to prevent the algorithm from trapping in local optimum, the cognitive coefficient ( $c_{1}$ ) and social coefficient ( $c_{2}$ ) are both set to 0.5. Thus, the parameters setting of PSO algorithm can help it to balance global and local search capabilities and promote algorithm convergence. Table 4 listed the parameters including speed factors $z_{c}$ and $k_{P}$ , $k_{I}$ , $k_{D}$ . It is worth mentioning that these parameters are set by experience except for the proposed scheme, in which the speed factor is optimized by PSO.

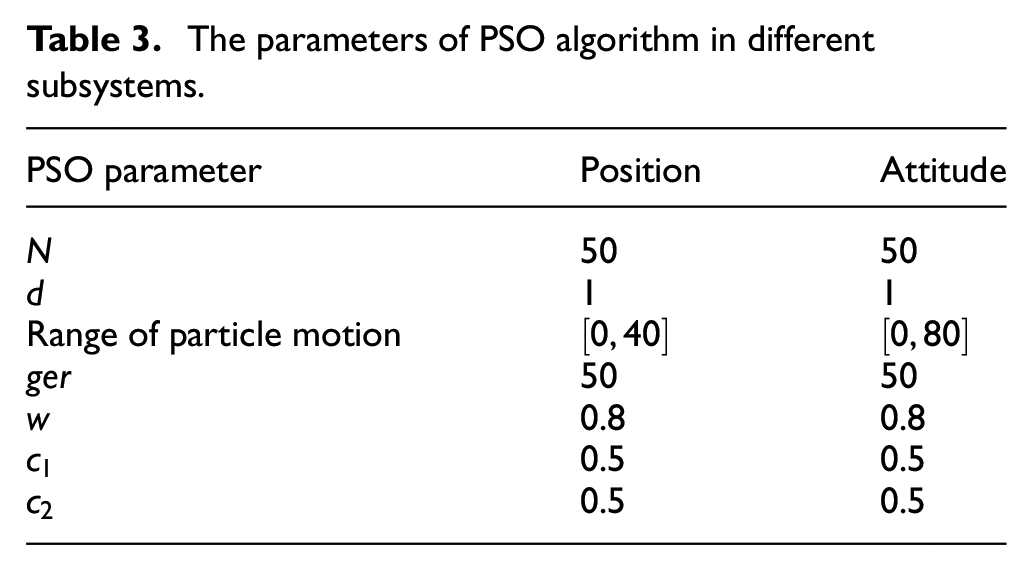

Table 3.

The parameters of PSO algorithm in different subsystems.

PSO parameter	Position	Attitude
N	50	50
d	1	1
Range of particle motion	$[0, 40]$	$[0, 80]$
ger	50	50
w	0.8	0.8
$c_{1}$	0.5	0.5
$c_{2}$	0.5	0.5

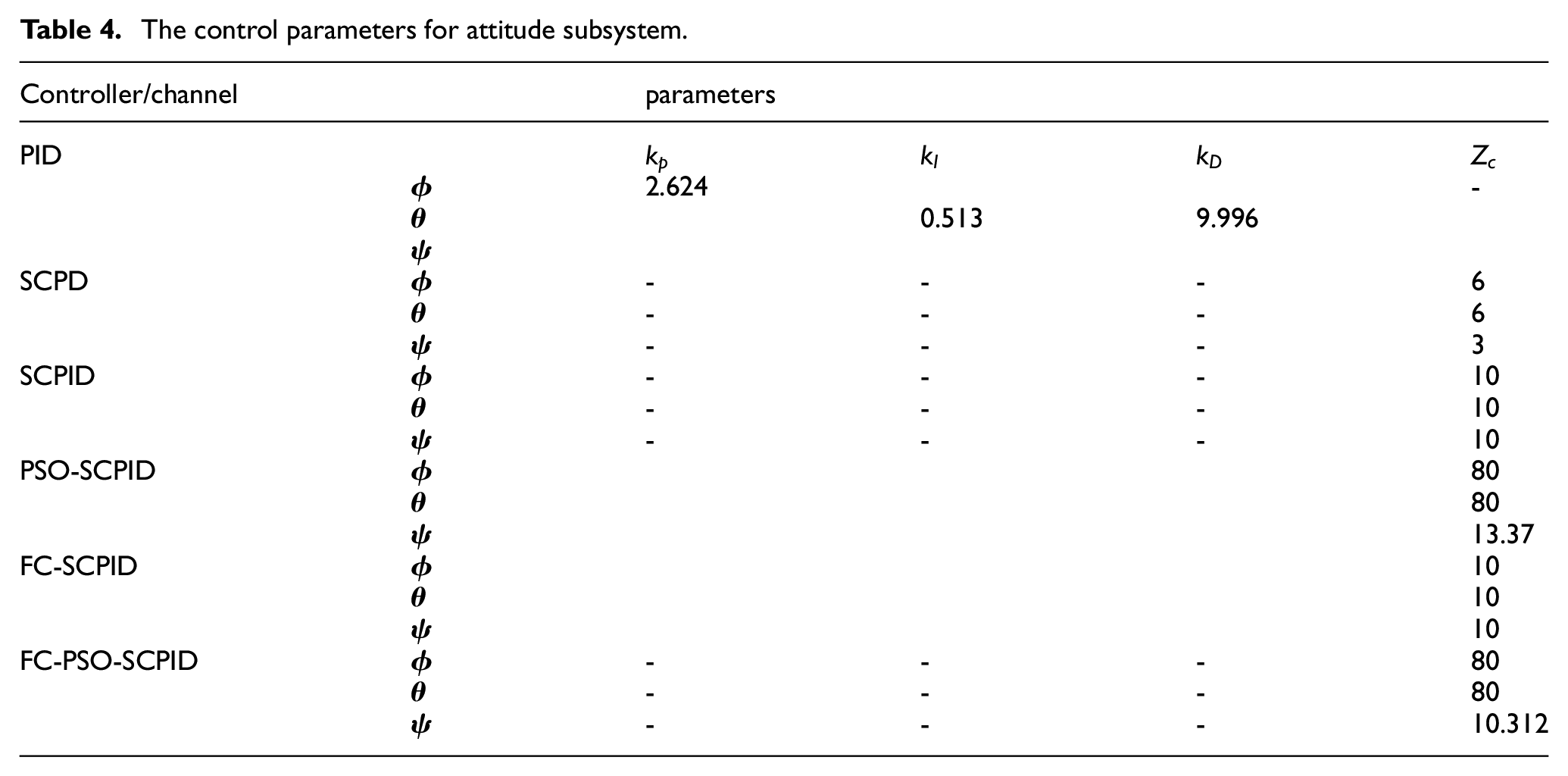

Table 4.

The control parameters for attitude subsystem.

Controller/channel		parameters
PID		$k_{p}$	$k_{I}$	$k_{D}$	$Z_{c}$
	$ϕ$	2.624			-
	$θ$		0.513	9.996
	$ψ$
SCPD	$ϕ$	-	-	-	6
	$θ$	-	-	-	6
	$ψ$	-	-	-	3
SCPID	$ϕ$	-	-	-	10
	$θ$	-	-	-	10
	$ψ$	-	-	-	10
PSO-SCPID	$ϕ$				80
	$θ$				80
	$ψ$				13.37
FC-SCPID	$ϕ$				10
	$θ$				10
	$ψ$				10
FC-PSO-SCPID	$ϕ$	-	-	-	80
	$θ$	-	-	-	80
	$ψ$	-	-	-	10.312

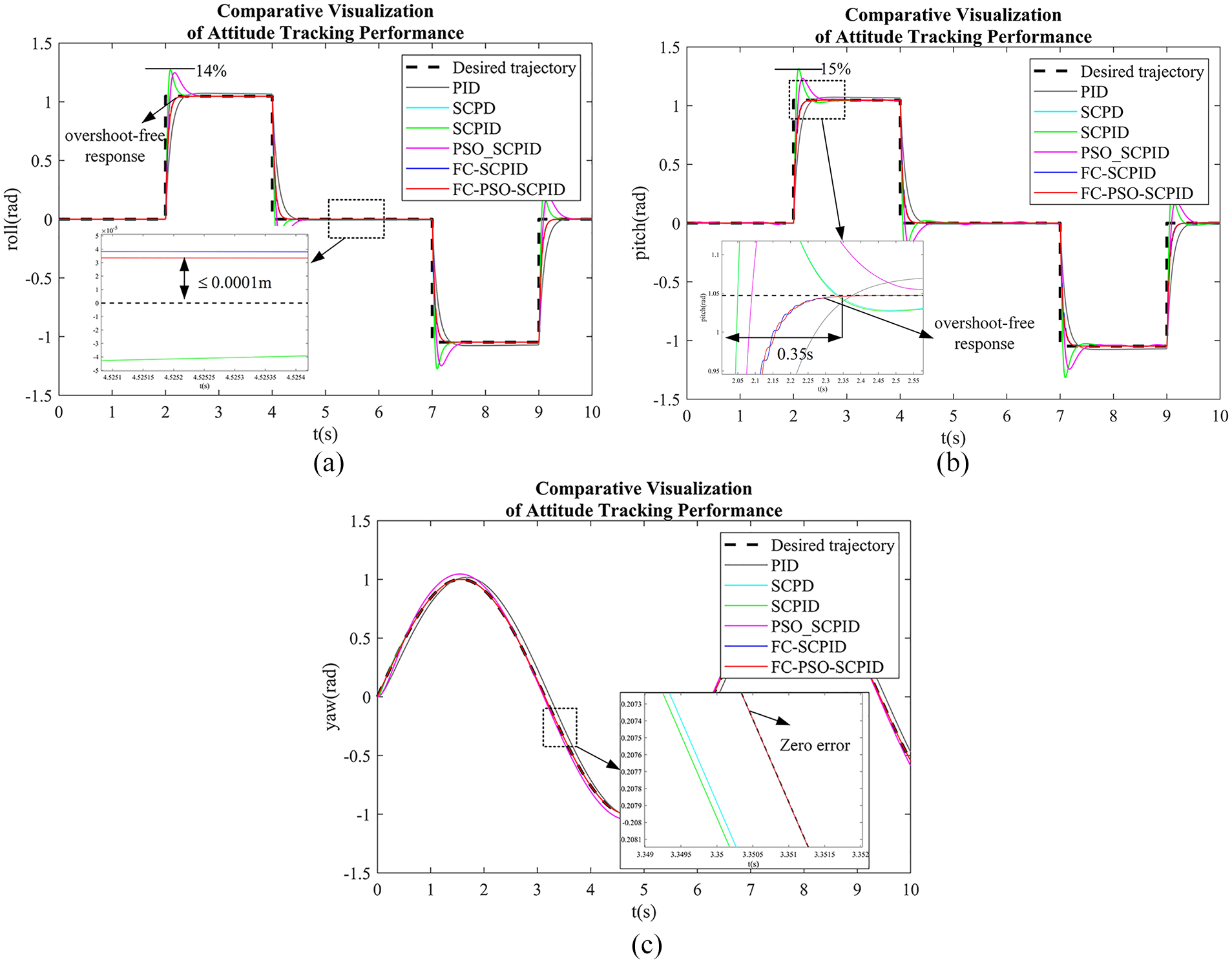

Figure 8 shows the attitude control results for three channels without external disturbance. Six controllers all achieve relatively good tracking effects. For the roll and pitch channel, when the expected value changes suddenly, SCPD, SCPID, and PSO-SCPID experience obvious overshoot, and SCPID has largest overshoot of 14% and 15% for the roll and pitch, respectively. In contrast, there is no overshoot for PID, FC-SCPID, and FC-PSO-SCPID. The convergence time of the proposed FC-PSO-SCPID controller is about 0.35 and 0.35 s for the roll and pitch, while FC-SCPID and PID have about 0.6 and 0.5 s, and 0.6 and 0.6 s, respectively. Also, the FC-PSO-SCPID has the lowest steady-state error, which is less than 0.0001 m. For the yaw channel, it can be seen from the local magnification diagram that the FC-PSO-SCPID cotroller can achieve almost error-free tracking performance for the attitude tracking, and has the best control ability than the other control schemes.

Figure 8.

Attitude tracking effect without disturbance: (a) roll channel, (b) pitch channel, and (c) yaw channel.

To simulate the UAV under regular wind disturbance, the external disturbances $d_{ϕ} = d_{θ} = d_{ψ} = 0.1 \sin (t)$ is applied. Figure 9 shows the tracking effect of different controllers. Obviously, the other five controllers can achieve relatively good tracking effects except for PID. When there are sudden changes in the desired roll and pitch, SCPD, SCPID, and PSO-SCPID experience overshoot. The maximum overshoots of SCPD are up to 22.21% and 31.8% in the roll and pitch channel. The convergence time of the proposed FC-PSO-SCPID controller are 0.2 and 0.35 s for the roll and pitch, respectively, while the convergence time of FC-SCPID controllers are 0.23 and 0.35 s respectively. For the yaw channel, the FC-SCPID and FC-PSO-SCPID can achieve stable tracking with about zero error, while the PID has largest tracking error about 9.55%. The FC-SCPID and FC-PSO-SCPID have nearly the same convergence time (about 0.1 s). In contrast, the other controllers have larger convergence time.

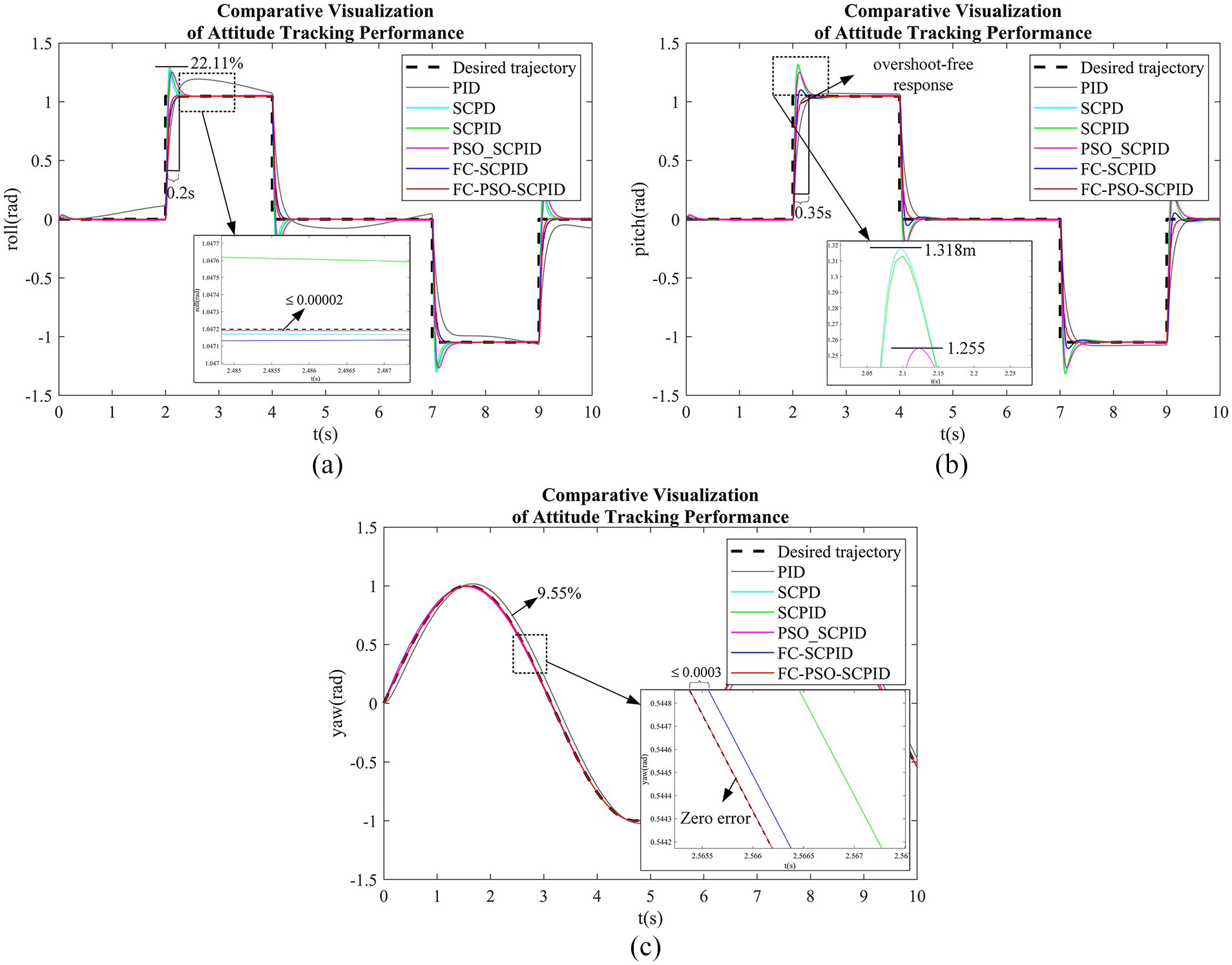

Figure 9.

Attitude tracking effect under sinusoidal disturbance: (a) roll channel, (b) pitch channel, and (c) yaw channel.

To simulate the random wind disturbance for the quadrotor UAV during flight, white noise with 20 dB is added. Figure 10 shows the tracking results. For roll and pitch channel, all controller can almost track the reference curve except for slight oscillation. Specifically, the FC-PSO-SCPID has the smallest oscillation amplitude (about 1%), and the PID has the largest oscillation amplitude (about 15%). In addition, SCPD, SCPID and PSO-SCPID have obvious overshoot (about 30%). In contrast, the FC-SCPID and FC-PSO-SCPID do not exhibit overshoot. As for yaw channels, the FC-PSO-SCPID has the smallest oscillation amplitude (about 1%), and the PSO-SCPID have the largest oscillation amplitude (about 8%). All controller do not exhibit overshoot.

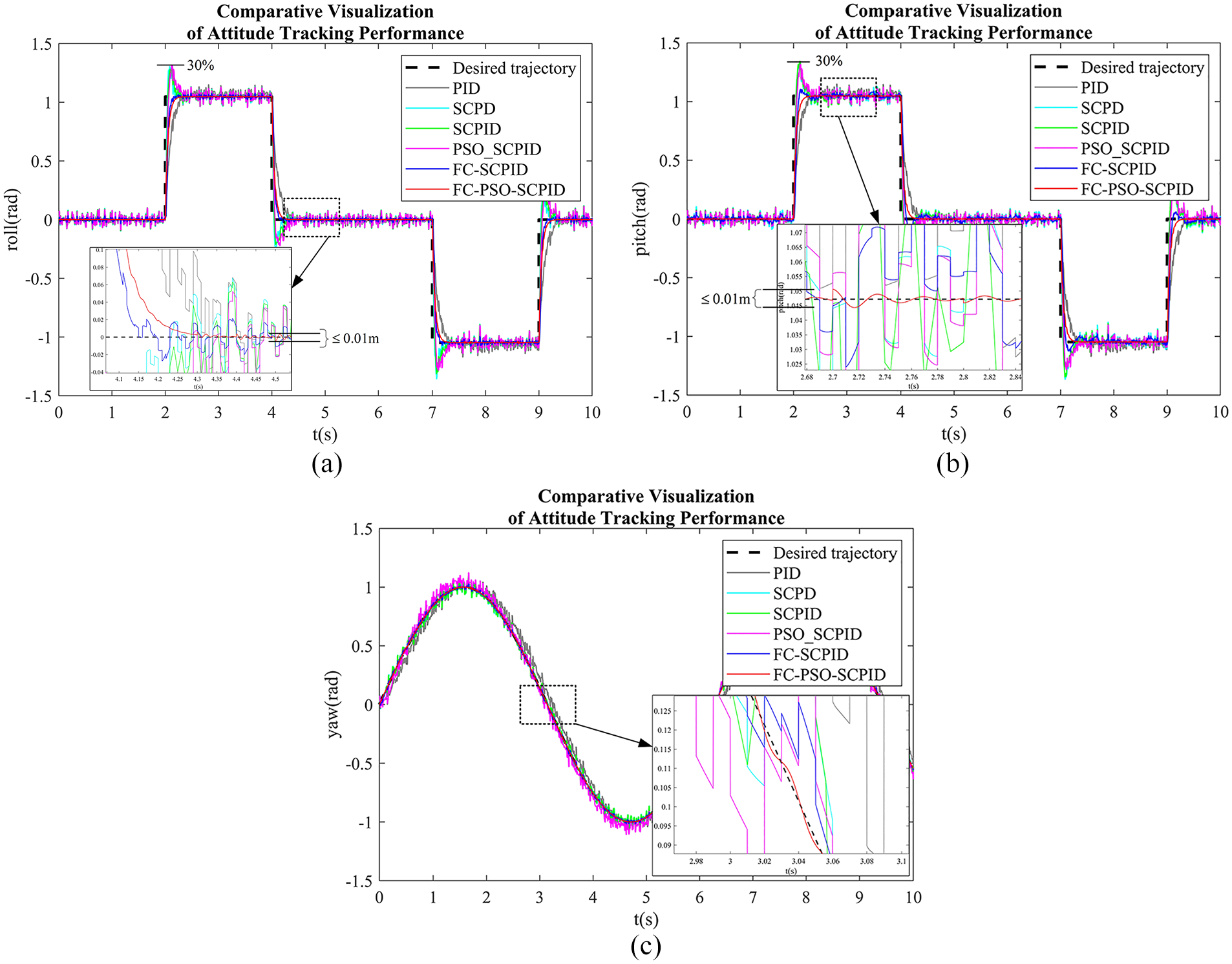

Figure 10.

Attitude tracking effect under white noise disturbance: (a) roll channel, (b) pitch channel, and (c) yaw channel.

Table 5 shows the ITAE values of different controllers under conditions of different disturbances. It is obvious that the proposed FC-PSO-SCPID has the least ITAE values for three channels, and especially for the yaw channel, the ITAE is close to zero, which indicates that it has good tracking effect.

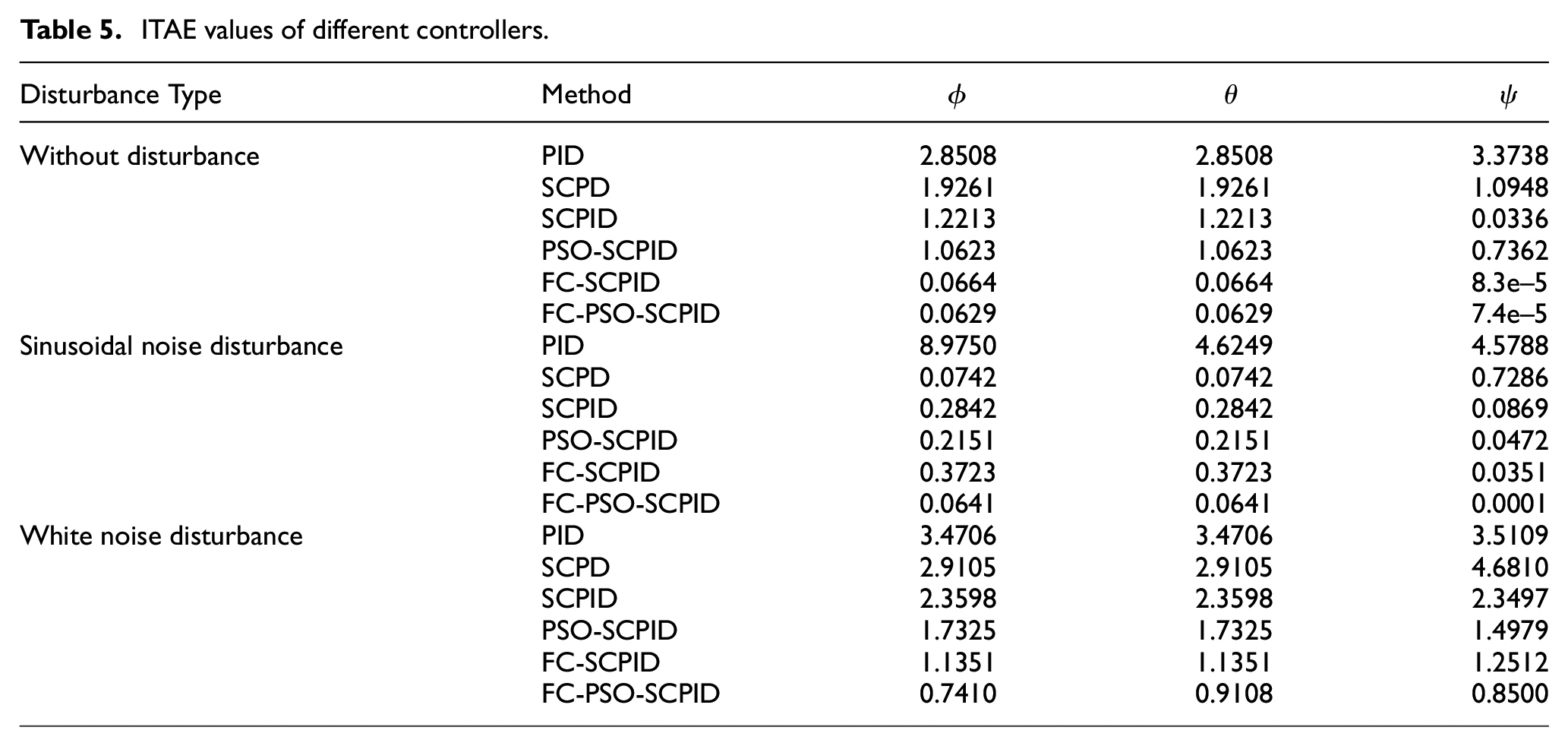

Table 5.

ITAE values of different controllers.

Disturbance Type	Method	$ϕ$	$θ$	$ψ$
Without disturbance	PID	2.8508	2.8508	3.3738
	SCPD	1.9261	1.9261	1.0948
	SCPID	1.2213	1.2213	0.0336
	PSO-SCPID	1.0623	1.0623	0.7362
	FC-SCPID	0.0664	0.0664	8.3e–5
	FC-PSO-SCPID	0.0629	0.0629	7.4e–5
Sinusoidal noise disturbance	PID	8.9750	4.6249	4.5788
	SCPD	0.0742	0.0742	0.7286
	SCPID	0.2842	0.2842	0.0869
	PSO-SCPID	0.2151	0.2151	0.0472
	FC-SCPID	0.3723	0.3723	0.0351
	FC-PSO-SCPID	0.0641	0.0641	0.0001
White noise disturbance	PID	3.4706	3.4706	3.5109
	SCPD	2.9105	2.9105	4.6810
	SCPID	2.3598	2.3598	2.3497
	PSO-SCPID	1.7325	1.7325	1.4979
	FC-SCPID	1.1351	1.1351	1.2512
	FC-PSO-SCPID	0.7410	0.9108	0.8500

In conclusion, all controllers can achieve good attitude control in the case of no disturbance. When the disturbance was added, PID has large tracking error, and SCPID has a large overshoot in roll and pitch channel. In contrast, FC-PSO-SCPID demonstrates superior performance over other controllers in terms of steady-state error, overshoot, response time, and other metrics, whether under no disturbance conditions or in the presence of disturbances.

The trajectory tracking

In this simulation, to validate the trajectory tracking effect based on the proposed controller, a planar circle-shaped trajectory is chosen as desired trajectory, and the reference trajectory $P_{d} = [x_{d}, y_{d}, z_{d}]^{T} \in R^{3}$ of the quadrotor UAV is set as:

{\begin{matrix} x = \sin (t) \\ y = \cos (t) \\ z = 1 \end{matrix}

(55)

The initial position of the quadrotor UAV is set to the origin, namely $x_{0} = y_{0} = z_{0} = 0$ .

To simulate different external disturbances, the random wind or the horizontal time-varying gust disturbance are applied. The time-varying gust is generated with a white noise signal through a filter to simulate the impact of atmospheric turbulence on UAV flight.³⁶ The gust disturbance waveforms in x and y directions are shown in Figure 11. It is worth mentioning that the random wind is added to three channels, while the time-varying gust disturbance is only added to x and y channels. Tables 6 and 7 list the parameters of speed factors $z_{c}$ and $k_{P}$ , $k_{I}$ , $k_{D}$ . The efficiency of the proposed control scheme is verified by comparing it with PID, SCPD, SCPID, PSO-SCPID, and FC-SCPID.

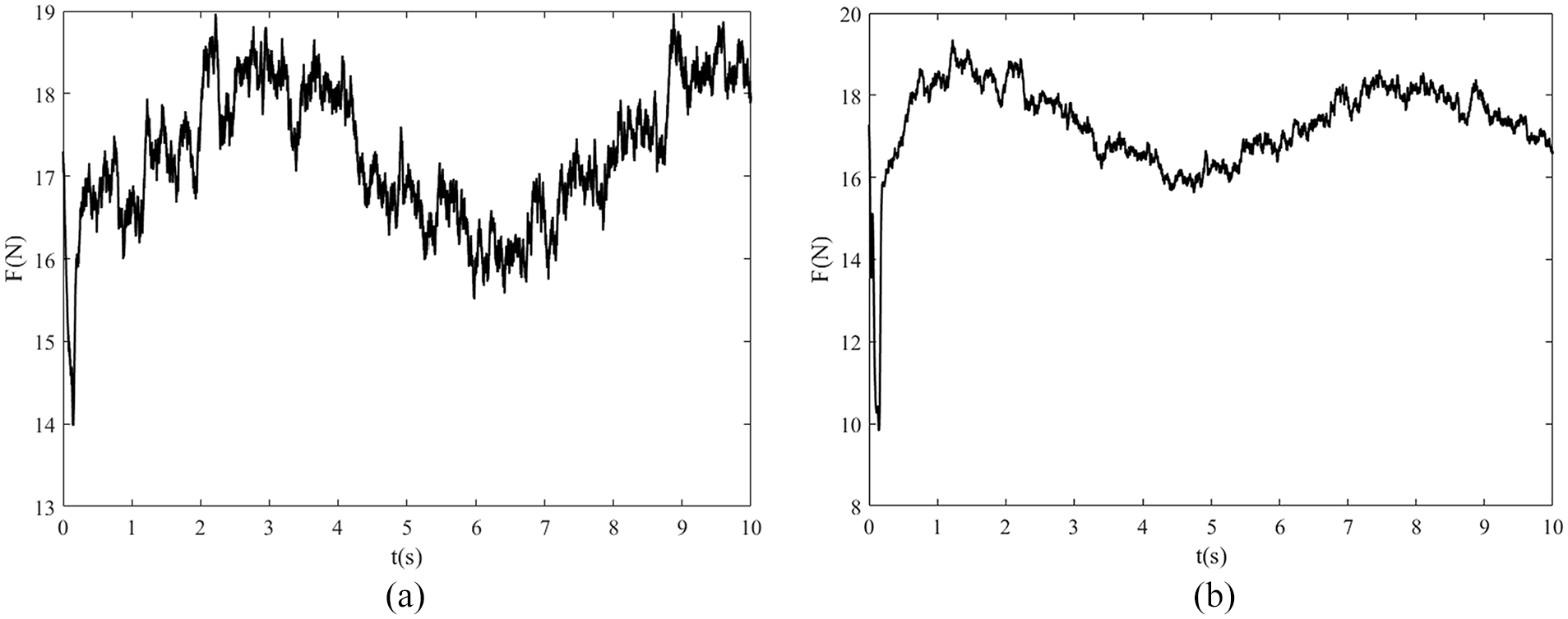

Figure 11.

The gust disturbance in x (up) and y (down) directions.

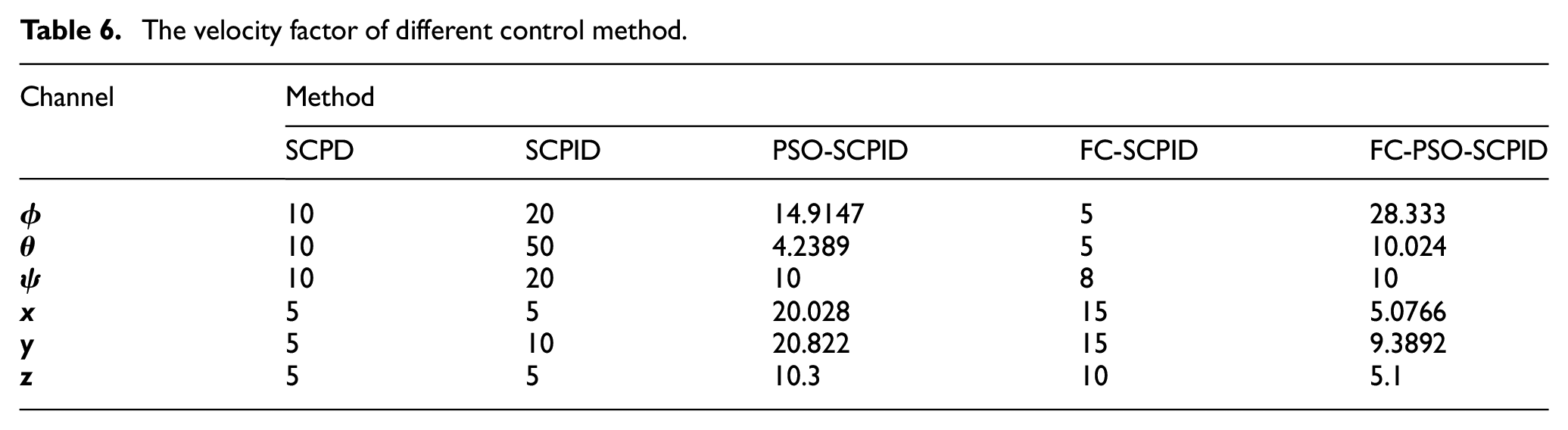

Table 6.

The velocity factor of different control method.

Channel	Method
Channel	SCPD	SCPID	PSO-SCPID	FC-SCPID	FC-PSO-SCPID
$ϕ$	10	20	14.9147	5	28.333
$θ$	10	50	4.2389	5	10.024
$ψ$	10	20	10	8	10
$x$	5	5	20.028	15	5.0766
$y$	5	10	20.822	15	9.3892
$z$	5	5	10.3	10	5.1

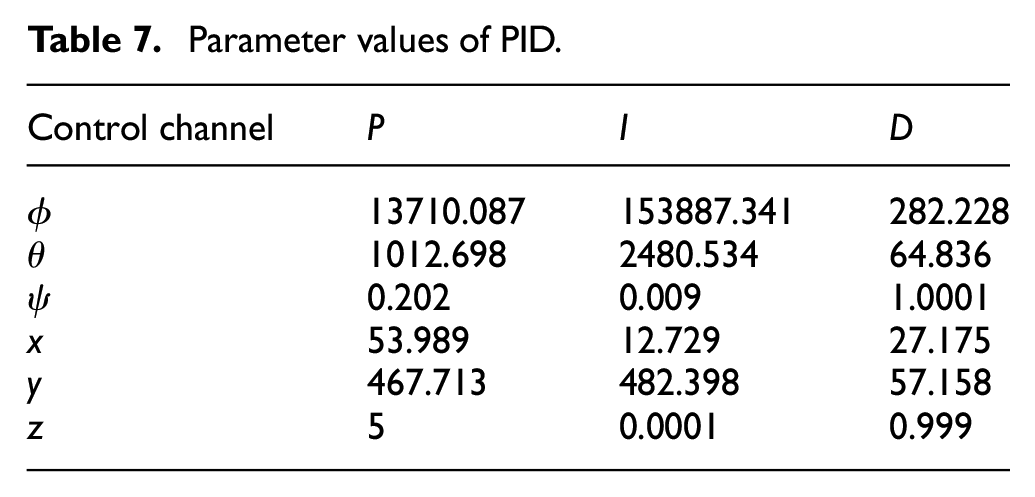

Table 7.

Parameter values of PID.

Control channel	P	I	D
$ϕ$	13710.087	153887.341	282.228
$θ$	1012.698	2480.534	64.836
$ψ$	0.202	0.009	1.0001
x	53.989	12.729	27.175
y	467.713	482.398	57.158
z	5	0.0001	0.999

Figure 12 shows the tracking trajectory under conditions of without disturbance, time-varying gust disturbance and random wind. As shown in Figure 12, the quadrotor UAV can eventually reach stability by using the six control methods. However, the PID has the obvious trajectory tracking deviation at the start and the SCPD has the largest steady-state error. When the horizontal time-varying gust disturbance is added, most controllers produce overshoot in the horizontal direction, and the PID spends more time to reach stability compared with other controllers. In the case of random wind, all controllers exhibit oscillatory, and the PID has the largest oscillation amplitude in z direction compared. Overall, the controllers perform best in the case of free-disturbance, and they do relatively better in the case of gust disturbance than random wind disturbance. Maybe this is because that the three channels are disturbed in the case of random wind disturbance. In contrast, only x and y channels are disturbed in the case of gust disturbance. Among all controllers, the proposed FC-PSO-SCPID exhibits excellent trajectory tracking effect, and can quickly achieve stability with less steady-state error.

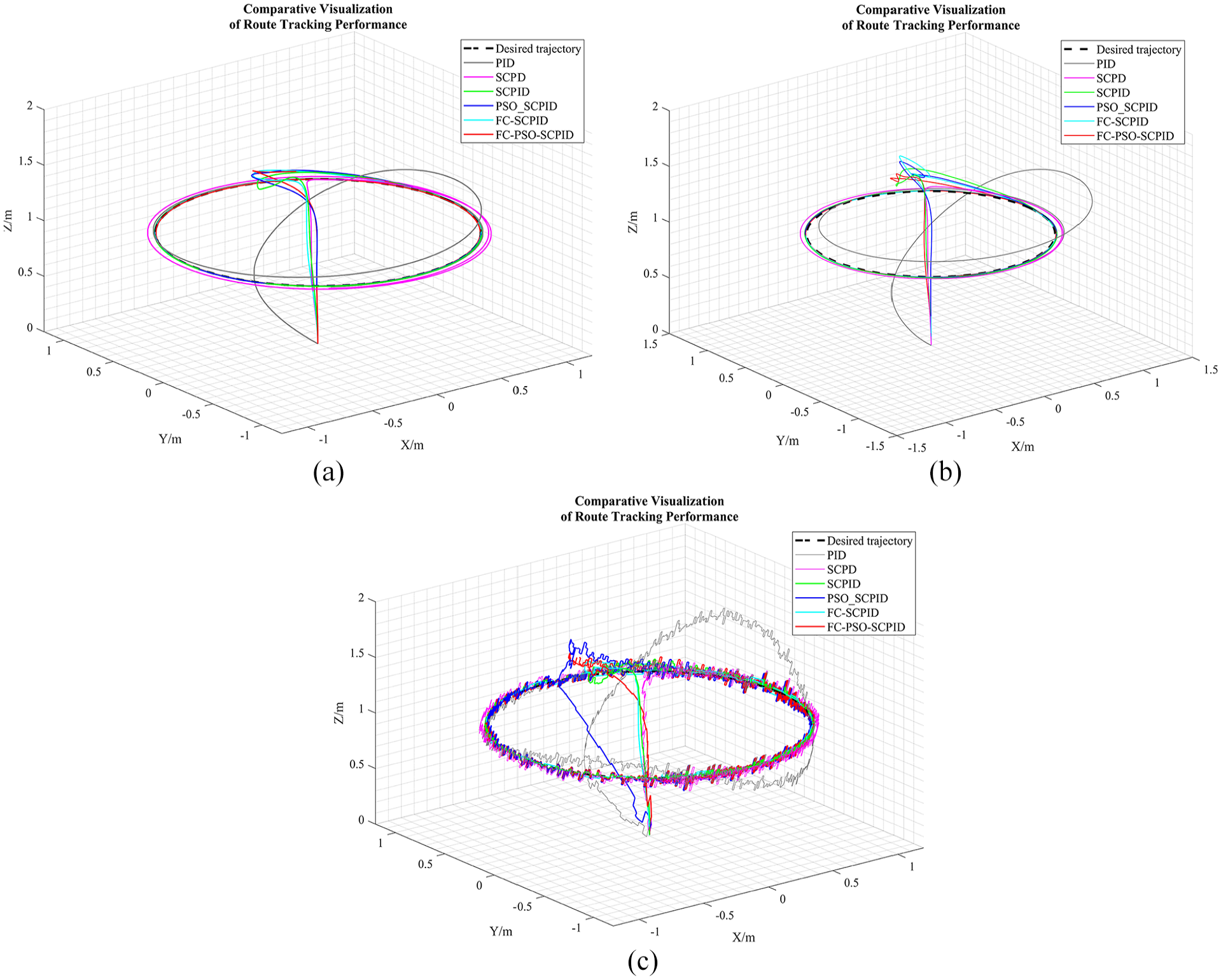

Figure 12.

The tracking trajectory under different conditions: (a) without disturbance, (b) gust disturbance, and (c) random wind disturbance.

To show the tracking effect more specifically, Figures 13 –15 give the tracking results in x,y,z channels under different conditions, respectively. As shown in Figure 13, for x channel, all controller can achieve good tracking effect, especially the proposed FC-PSO-SCPID which has the lowest steady-state error ( $\leq 0.001 m$ ). For y channel, all controllers have overshoot except for the SCPD, and the maximum overshoot is close to 20%. Although the SCPD has no overshoot, the steady-state error is larger than other controllers. In all controllers, the FC-PSO-SCPID has the least steady-state error that is less than 0.001 m. For z channel, all controller experience large overshoot reletive to x and y channels. Specifically, the SCPID have the maximum overshoot (about 39%) and the SCPD have the minimum overshoot (about 15%).

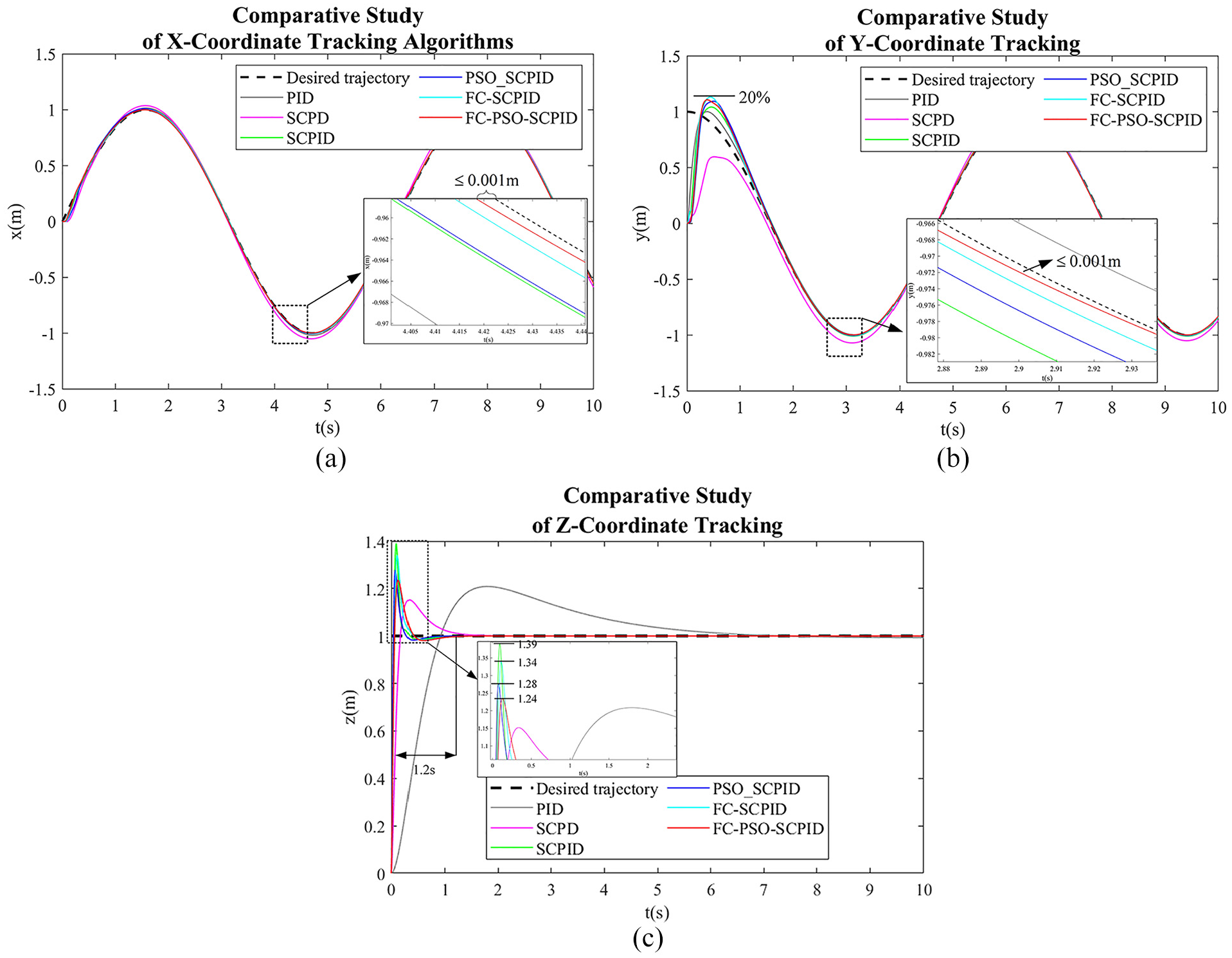

Figure 13.

Trajectory tracking effect without disturbance: (a) x channel, (b) y channel, and (c) z channel.

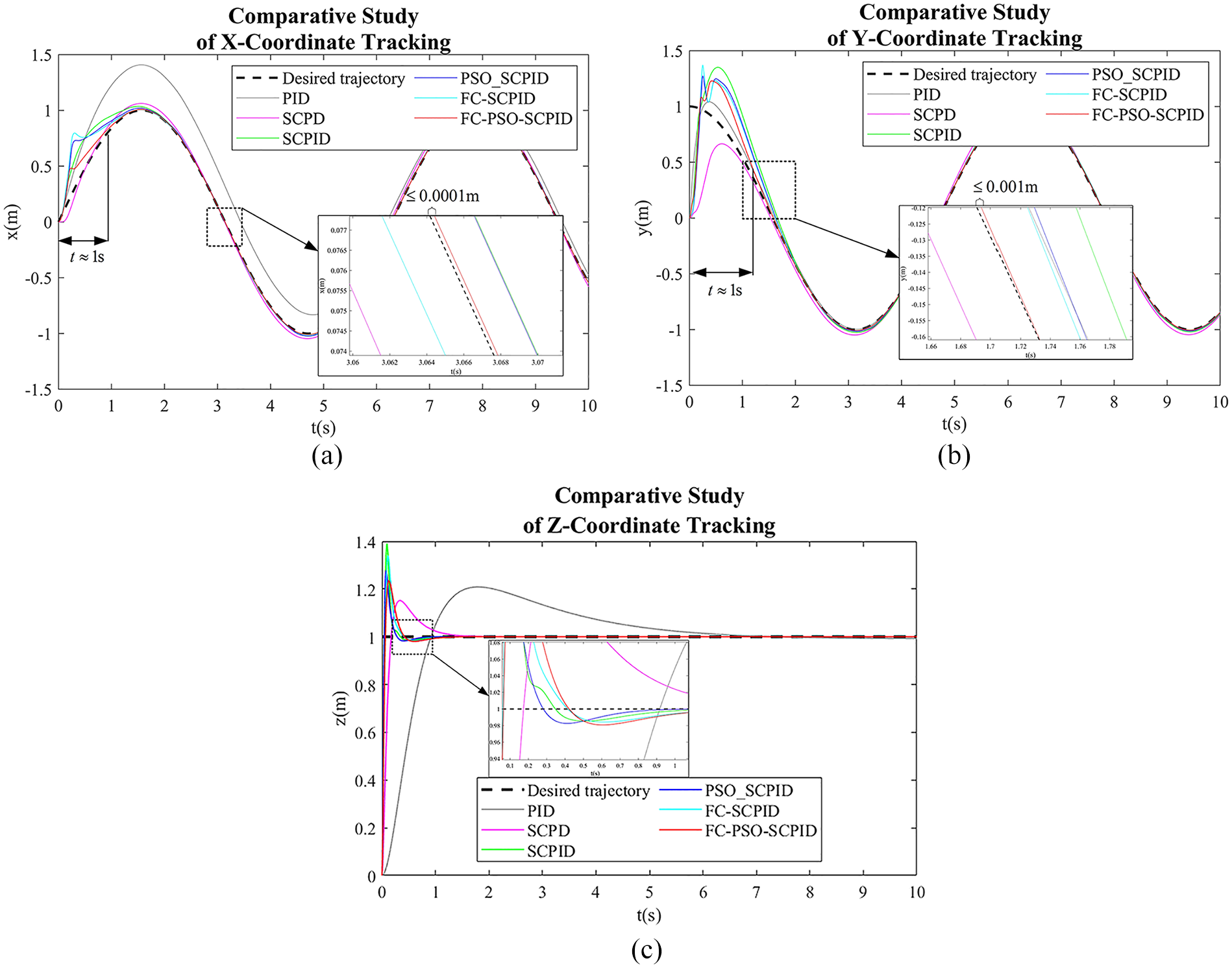

Figure 14.

Trajectory tracking effect under horizontal time-varying gust disturbance: (a)x channel, (b)y channel, and (c)z channel.

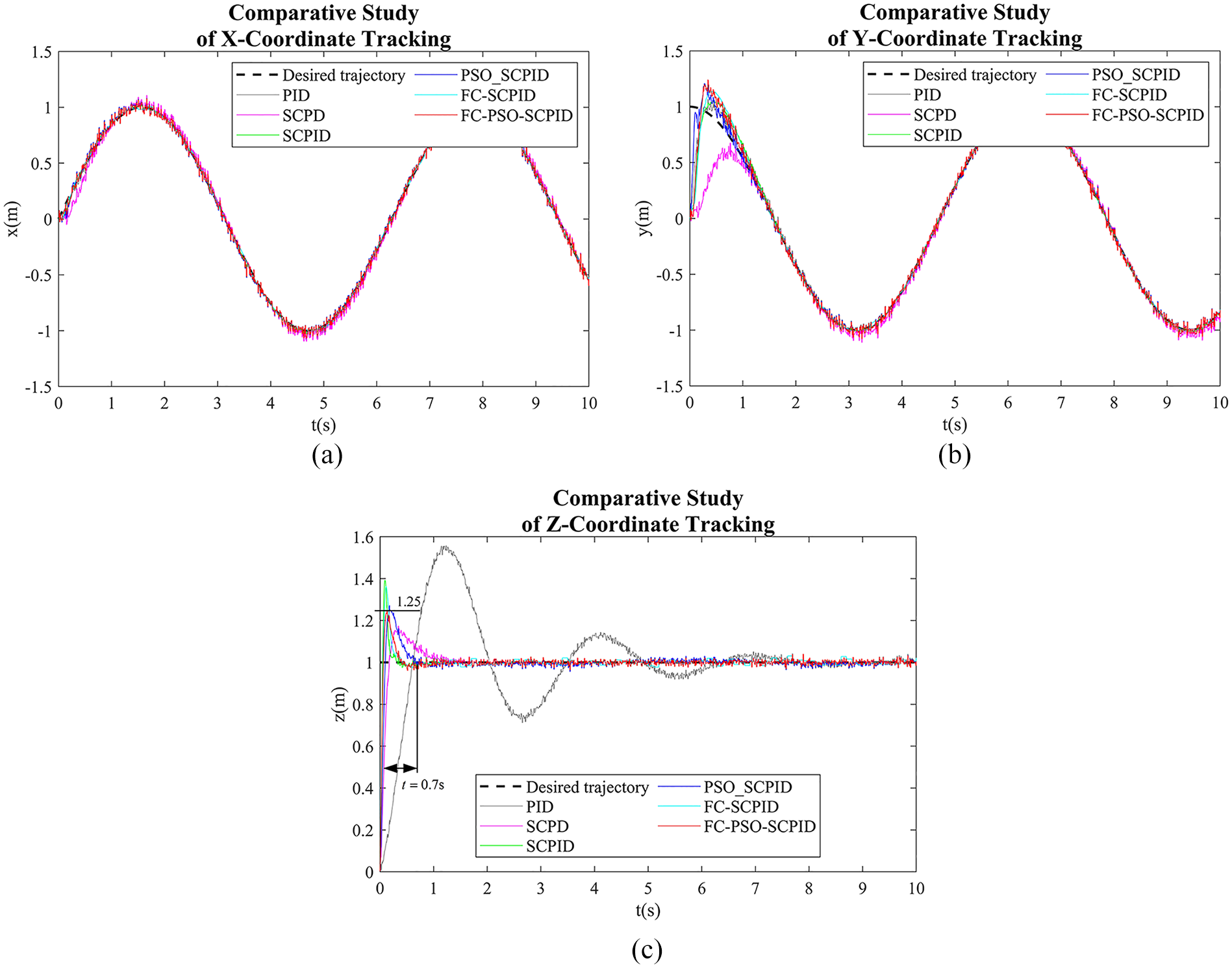

Figure 15.

Trajectory tracking effect under random wind disturbance: (a)x channel, (b)y channel, and (c)z channel.

In the case of horizontal time-varying gust disturbance (shown in Figure 14), for the x and y channels, the six controllers generate the undulate, and they can rapidly achieve stability except the PID. Among them, the FC-PSO-SCPID has the best performance, and it reaches stability within 1 s, and steady-state errors are less than 0.0001 m (x channel) and 0.001 m (y channel), respectively. Since the gust disturbance is added to the horizontal direction, the vertical (z) response remains the same with free-disturbance case.

As shown in Figure 15, the proposed FC-PSO-SCPID controller can track the desired trajectory rapidly but exhibits larger oscillation. This may be because that the feedforward compensator is designed under the assumption of delay-free case and it ignores the delay of practical systems.

In addition, when the gust disturbance is added to the vertical channel, we find that the FC-PSO-SCPID-based UAV system experiences instability, as shown in Figure 16. Obviously, the UAV will loss control (diving) when the disturbance is excessive. In comparison with x and y channel, the z channel is more sensitive to disturbances.

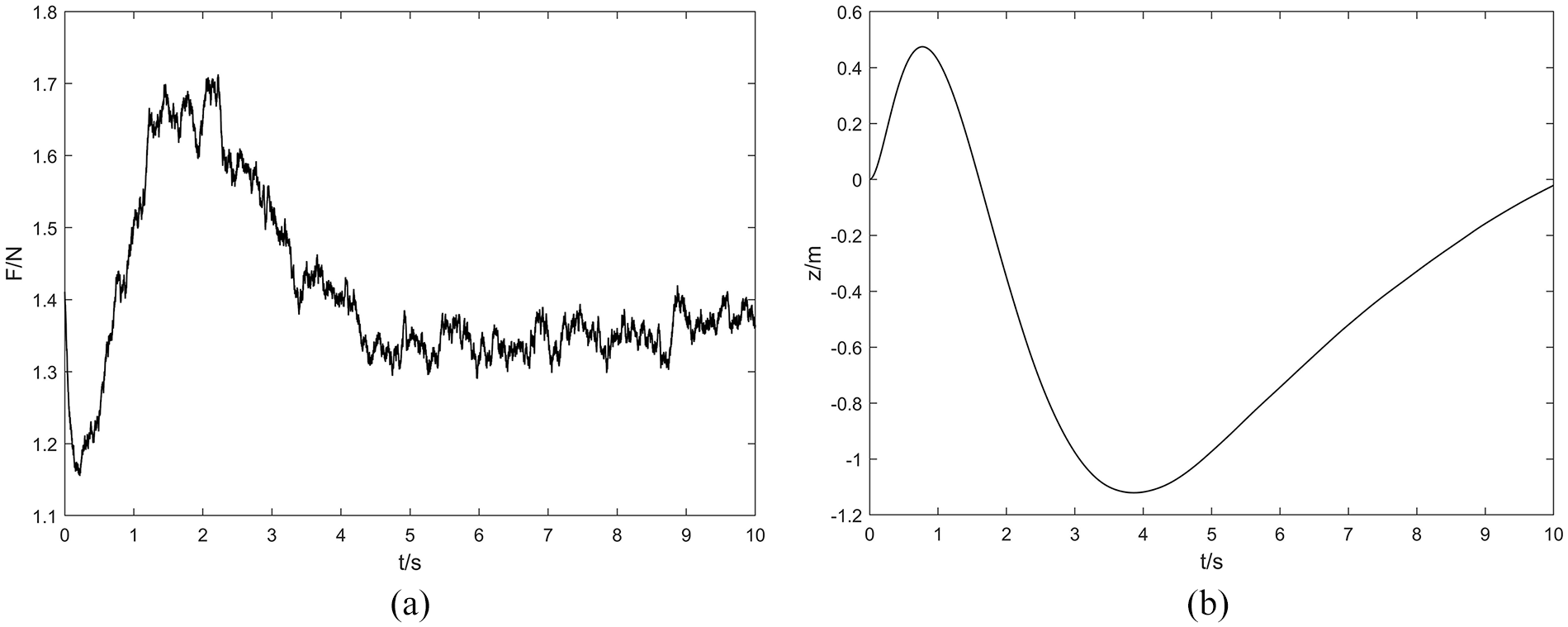

Figure 16.

Vertical gust disturbance applied to the z channel and corresponding response curves: (a) gust disturbance applied in z channel and (b) the response curves of z channel.

Table 8 shows the ITAE values of different controllers with/without disturbance. Obviously, the proposed FC-PSO-SCPID has the least ITAE values for three channels in most cases.

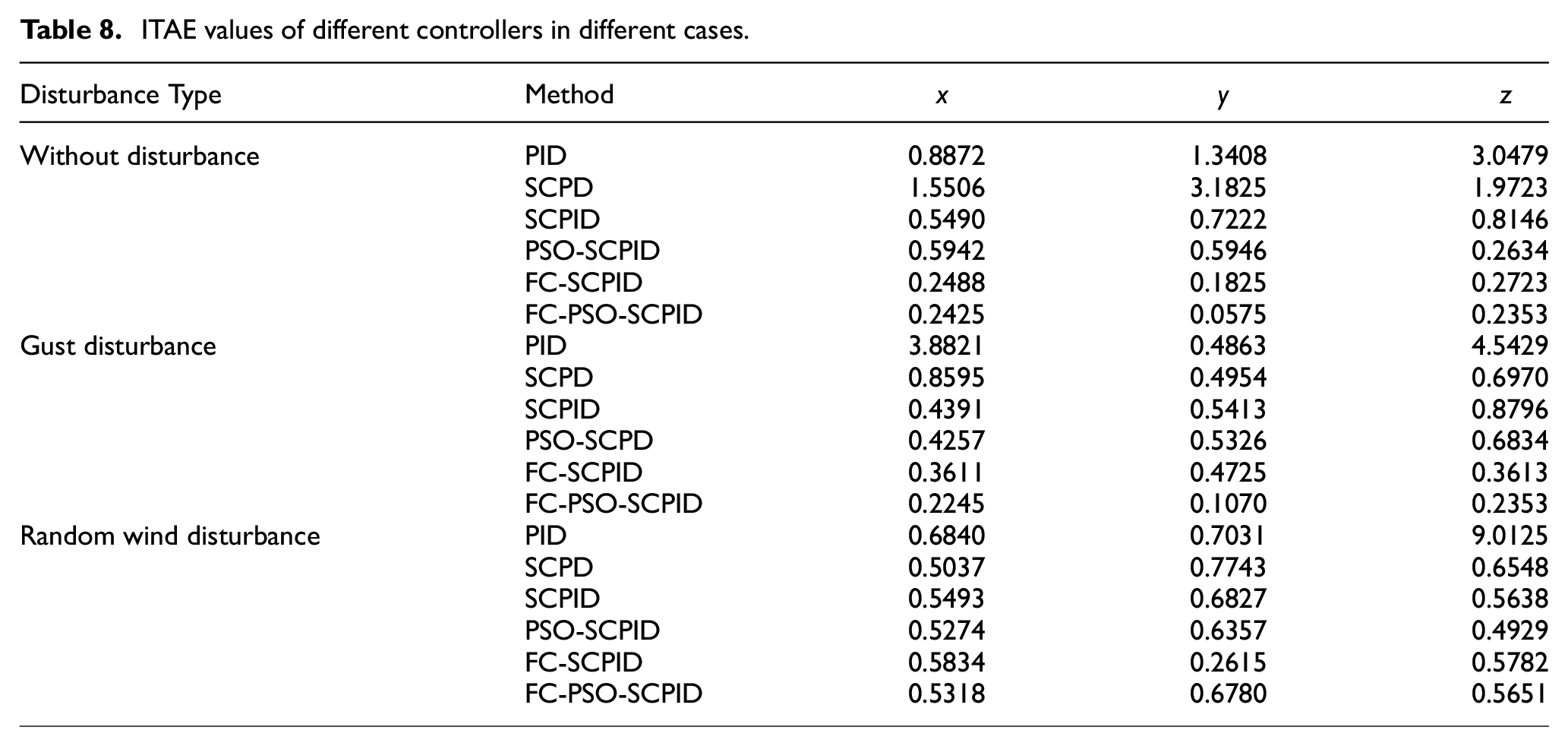

Table 8.

ITAE values of different controllers in different cases.

Disturbance Type	Method	x	y	z
Without disturbance	PID	0.8872	1.3408	3.0479
	SCPD	1.5506	3.1825	1.9723
	SCPID	0.5490	0.7222	0.8146
	PSO-SCPID	0.5942	0.5946	0.2634
	FC-SCPID	0.2488	0.1825	0.2723
	FC-PSO-SCPID	0.2425	0.0575	0.2353
Gust disturbance	PID	3.8821	0.4863	4.5429
	SCPD	0.8595	0.4954	0.6970
	SCPID	0.4391	0.5413	0.8796
	PSO-SCPD	0.4257	0.5326	0.6834
	FC-SCPID	0.3611	0.4725	0.3613
	FC-PSO-SCPID	0.2245	0.1070	0.2353
Random wind disturbance	PID	0.6840	0.7031	9.0125
	SCPD	0.5037	0.7743	0.6548
	SCPID	0.5493	0.6827	0.5638
	PSO-SCPID	0.5274	0.6357	0.4929
	FC-SCPID	0.5834	0.2615	0.5782
	FC-PSO-SCPID	0.5318	0.6780	0.5651

Conclusions

This paper proposes FC-PSO-SCPID controller for the quadrotor UAV. The stability analysis for the closed-loop systems of both the position and attitude of the quadrotor UAV system was proved by Hurwitz stability criterion. Experimental results demonstrated its remarkable capability to not only improve the response speed and reduce the steady-state error but also to achieve good tracking effect and have good anti-interference robustness by comparison with the PID, SCPD, SCPID, FC-SCPID, and PSO-SCPID controllers. However, the proposed method also has some shortcomings: (1) The proposed method have the significant oscillation in the case of random wind disturbance. Maybe this is because the feedforward compensator ignores the delay of practical systems. (2) The proposed method may exhibit sensitivity to vertical wind, which could cause the instability.

In future work, we will improve the algorithm and establish a systematic experimental framework to validate the proposed controller. Firstly, the proposed control method will be embedded within the PX4 autopilot ecosystem for hardware-in-the-loop (HIL) simulation. Secondly, physical flight tests will be conducted on a customized quadrotor platform equipped with RTK-GPS.

Footnotes

ORCID iD

Yanhui Xi

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Science Foundation of China (52277078, 52377168, 61903049, 51977013), Natural Science Foundation of Hunan Province of China (2022JJ30609, 2021JJ30186), and the Project of Education Bureau of Hunan Province, China (21A0210, 18C1599).

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Data availability statement

Data sharing not applicable to this article as no datasets were generated or analyzed during the current study.

References

Bai

Luo

Zhang

, et al. L2-gain robust trajectory tracking control for quadrotor UAV with unknown disturbance. Asian J Control 2022; 24(6): 3043–3055.

Colomina

Molina

. Unmanned aerial systems for photogrammetry and remote sensing: a review. ISPRS J Photogramm Remote Sens 2014; 92: 79–97.

Guo

Niu

Zhao

, et al. Model-free controls of manipulator quadrotor UAV under grasping operation and environmental disturbance. Int J Control Autom Syst 2022; 20(11): 3689–3705.

Ikeda

Yasui

Minamiyama

, et al. Stable impact and contact force control by UAV for inspection of floor slab of bridge. Adv Robot 2018; 32(19): 1061–1076.

Lim

Cho

Lee

, et al. A study on control system design method for payload stabilization of a UAV with suspended payload. J Power Syst Eng 2024; 27(3): 28–39.

Ziquan

Youmin

Bin

, et al. PID-type fault-tolerant prescribed performance control of fixed-wing UAV. J Syst Eng Electronics 2021; 32(5): 1053–1061.

Sir Elkhatem

Naci Engin

Engin

. Robust LQR and LQR-pi control strategies based on adaptive weighting matrix selection for a UAV position and attitude tracking control. Alex Eng J 2022; 61(8): 6275–6292.

Chen

. Robust H∞ observer-based reference tracking control design of nonlinear stochastic systems: HJIE-embedded deep learning approach. IEEE Access 2022; 10: 39889–39911.

Bingöl

Güzey

. Neuro sliding mode control of quadrotor UAVs carrying suspended payload. Adv Robot 2021; 35(3–4): 255–266.

10.

Sharma

Kar

. Control of a quadrotor with network induced time delay. ISA Trans 2021; 111: 132–143.

11.

Zheng

, et al. Adaptive sliding mode attitude control of quadrotor UAVs based on the delta operator framework. Symmetry 2022; 14(3): 498–515.

12.

Zhang

Yang

Fei

, et al. Control of UAV quadrotor using reinforcement learning and robust controller. IET Control Theory Appl 2023; 17(12): 1599–1610.

13.

Venkat Rao

Kimiyaghalam

ALI

. Design of μ-controller for quarter electric vehicle with actuator uncertainties. Mater Today Proc 2022; 60(3): 1927–1933.

14.

Gopi

. Novel approach to stability analysis of DC drive with parameter uncertainty and perturbation in feedback system. COMPEL 2022; 42(6): 1263–1284.

15.

Zhou

. A summary of PID control algorithms based on AI-enabled embedded systems. Secur Commun Netw 2022; 2022: 1–7.

16.

. Dynamic analysis and PID control for a quadrotor. In: 2011 IEEE international conference on mechatronics and automation, Beijing, China, 2011, pp.573–578.

17.

González-Vázquez

Moreno-Valenzuela

. A new nonlinear PI/PID controller for quadrotor posture regulation. In: 2010 IEEE electronics, robotics and automotive mechanics conference, Cuernavaca, Mexico, 2010, pp.642–647.

18.

Yasser

Houria

Yasmina

. Sliding modes based nonlinear PID controller for quadrotor: theory and experiment. In: The 14th international conference on informatics in control, automation and robotics, 2017, pp.286–294.

19.

Ortiz

Minchala

Reinoso

, et al. Nonlinear robust H-infinity PID controller for the multivariable system quadrotor. IEEE Lat Am Trans 2016; 14(3): 1176–1183.

20.

Alkhoori

Zweiri

Younes

, et al. Fault tolerance control for quad-rotor UAV using gain-scheduling in Matlab/Gazebo. In: The 4th international conference on systems and informatics (ICSAI), Hangzhou, China, 2017, pp.104–109.

21.

Najm

Ibraheem

. Nonlinear PID controller design for a 6-DOF UAV quadrotor system. Eng Sci Technol Int J 2019; 22(4): 1087–1109.

22.

Erkol

. Attitude controller optimization of four-rotor unmanned air vehicle. Int J Micro Air Veh 2018; 10(1): 42–49.

23.

Chen

Liu

Lee

, et al. Decentralized H_∞ PID team formation tracking control of large-scale quadrotor UAVs under external disturbance and vortex coupling. IEEE Access 2022; 10: 108169–108184.

24.

Alajmi

Almeshal

. Prediction and optimization of surface roughness in a turning process using the ANFIS-QPSO method. Materials 2020; 13(13): 2986–3008.

25.

Giernacki

Stępień

Chodnicki

, et al. Hybrid quasi-optimal PID-SDRE quadrotor control. Energies 2022; 15(12): 4312–4324.

26.

Dai

Zhu

, et al. Quantitative tracking error analysis and feedforward compensation under different model-based feedforward controllers in different control architectures. IRE Trans Ind Electron 2021; 68(1): 381–390.

27.

Chen

Sun

Wang

, et al. Sliding mode control with feedforward compensation for a soft manipulator that considers environment contact constraints. J Mar Sci Eng 2023; 11(7): 1–20.

28.

Zeng

Liu

. Self-coupling PID controllers. Zidonghua Xuebao 2021; 47(2): 404–422.

29.

Zeng

Chen

. On control theory of PID and auto-coupling PID. Control Theory Technol 2020; 37(12): 2654–2662.

30.

Feng

Yin

, et al. Trajectory control of electro-hydraulic position servo system using improved PSO-PID controller. Autom Constr 2021; 127: 1–14.

31.

Zhou

Sheng

, et al. Fuzzy-PID controller design for RGV speed track based on improved PSO algorithm. J Braz Soc Mech Sci Eng 2024; 46(11): 1–13.

32.

Gopi

Srinivasan

Krishnamoorthy

. Disk margin based robust stability analysis of a DC motor drive. Eng Sci Technol Int J 2022; 32: 101074–101085.

33.

Ning

Wang

, et al. Adaptive feedforward and feedback compensation method for real-time hybrid simulation based on a discrete physical testing system model. J Earthq Eng 2020; 26(8): 3841–3863.

34.

Xiong

Zeng

Wang

. Auto coupling PID control method for nonlinear underactuated unstable systems. Aerosp Control Appl 2023; 49(1): 82–89.

35.

Shami

El-Saleh

Alswaitti

, et al. Particle swarm optimization: a comprehensive survey. IEEE Access 2022; 10: 10031–10061.

36.

Geronel

Botez

Bueno

, et al. Dynamic responses due to the Dryden gust of an autonomous quadrotor UAV carrying a payload. Aeronaut J 2022; 127(1307): 116–138.

A hybrid controller based on feedforward compensator and PSO-aided SCPID for quadrotor UAV

Abstract

Keywords

Introduction

Mathematical model

Euler angle and rotation matrix

Dynamical modeling of the quadrotor UAV

Dynamic model of position subsystem

Dynamic model of attitude subsystem

Control scheme and controller design

The hybrid controller based on FC-PSO-SCPID

The FC-SCPID controller

The controller parameter optimization with PSO

The design of the PF-PSO-SCPID controller for quadrotor UAV

Position subsystem controller design

Stability proof of the position subsystem

Attitude subsystem controller design

Stability proof of the attitude subsystem

Simulation verification

The attitude tracking

The trajectory tracking

Conclusions

Footnotes

ORCID iD

Funding

Declaration of conflicting interests

Data availability statement

References
