A fast-response active disturbance rejection control for a class of nonlinear uncertain systems

Abstract

The nonlinear system control is a classical problem in control engineering. In this paper, rather than try to get accurate nonlinear dynamics, the nonlinear and uncertain dynamics are viewed as a signal. It can be estimated by an extended state observer, and compensated by a control law. Accordingly, the nonlinear uncertain system is linearized. Based on the linearized system and the key point of the U-model control, a controller can be designed to obtain predetermined closed-loop system dynamics. To get a more satisfactory performance, a compensation signal of the total disturbance estimation (CSTDE) is designed. Based on the CSTDE, a compensation of the total disturbance estimation based extended state observer (CTDESO) and a fast-response active disturbance rejection control (FRADRC) are proposed. Convergence of the CTDESO and the closed-loop stability of the FRADRC are analyzed. Four nonlinear systems are considered to testify the proposed approaches. Numerical results show that, no matter disturbances exist or not, the proposed CTDESO can linearize a nonlinear system better, and the predetermined closed-loop responses can also be achieved more satisfactorily by the FRADRC.

Keywords

Extended state observer fast-response active disturbance rejection control nonlinear systems compensation of the total disturbance estimation

Introduction

For the nonlinear system control, classical approaches, such as the exact feedback linearization approach, the differential geometry approach, and the control Lyapunov approach, depend largely on the system model. However, external disturbances and internal uncertainties are ubiquitous. How to effectively deal with those nonlinearities and the uncertainties is always a fundamental and crucial work in nonlinear system control.¹ Generally, the robust control² is introduced to enhance the robustness of the closed-loop system. Nevertheless, it is somewhat conservative for it sacrificing the nominal performance.¹

To get a desired nonlinear control, kinds of approaches have been proposed. For instance, an extended PID control has been proposed to semi-globally stabilize nonlinear uncertain systems.³ Error-driven nonlinear feedback technique has been designed to improve a class of uncertain multiple-input-multiple-output nonlinear systems with prescribed tracking performance.⁴ Finite-time adaptive fuzzy controller and event-triggering mechanism (ETM) are proposed to control a class of non-strict-feedback uncertain nonlinear systems.⁵ A robust adaptive control is introduced for multi-input multi-output nonlinear stochastic Poisson jump diffusion systems.⁶ A high-precision formation control of nonlinear multi-agent systems has been discussed in Meng et al.⁷

In recent years, another effective way to deal with nonlinearities and uncertainties is based on the disturbance estimation and compensation/attenuation. Various techniques, such as disturbance observer-based control (DOBC), composite hierarchical anti-disturbance control (CHADC), uncertainty and disturbance estimator (UDE), unknown input observer (UIO), and active disturbance rejection control (ADRC), have been proposed.⁸ For the ADRC, its key idea is to estimate the internal uncertainties and external disturbances, that is, the total disturbance, via an extended state observer (ESO). Then, the nonlinear system can be linearized to be a pure-integrator chain, and the closed-loop performance can be predetermined. Since the ADRC is practical and effective in engineering, and it has been applied in kinds of fields.^9–13

In this paper, the ESO is also utilized to estimate the total disturbance. However, given that the classical ESO is only able to estimate the constant type total disturbance without steady-state error,¹⁴ some improvements should be considered in the design of a classical ESO. In addition, to speed up the system response, minimize the phase delay of the forward path is also helpful. In 2002, a U-model control (UC)¹⁵ is proposed for nonlinear systems. Its key point is to get a dynamical inversion, so that the nonlinear plant can be dynamically transformed to be “1.” Then, the phase delay of the controlled plant is minimized. Based on UC, some new results have been proposed. For example, U-model based fuzzy PID control,¹⁶ U-model based adaptive control,¹⁷ and U-model based predictive control¹⁸ have been proposed and satisfied system responses have been obtained. However, the robustness of the closed-loop systems should be paid more attention.

Therefore, in this paper, an improved ESO is proposed to linearize the controlled nonlinear system to be a pure-integrator chain better. Then, the inversion of any nonlinear system becomes a pure-differentiator chain. It greatly reduces the difficulties in obtaining an inversion of a nonlinear system, and the UC can be realized more conveniently, if the ESO works more effectively. Accordingly, the phase delay of the system response is also minimized. Then, based on the proposed ESO, a fast-response active disturbance rejection control (FRADRC) can be proposed to control the nonlinear uncertain systems. In addition, the robustness of the closed-loop system is enhanced vastly as a result of the proposed ESO. In short, contributions of this work can be summarized as:

(1) Based on a compensation signal of the total disturbance estimation, a compensation of the total disturbance estimation based extended state observer (CTDESO) is proposed. Then, the total disturbance estimation becomes much more accurate.

(2) A fast-response active disturbance rejection control is proposed based on the proposed CTDESO, and a much more satisfactory predetermined closed-loop system performance can be achieved.

(3) Instead of identifying an accurate system model, based on the FRADRC and the CTDESO, a more practical, effective, and common solution to the nonlinear uncertain system control is provided. Simultaneously, other advanced control strategies can also be incorporated seamlessly.

The paper is organized as follows. Problem formulation is described in Section 2. In Section 3, the UC and the ADRC are introduced, the CTDESO and the FRADRC are designed and analyzed. Numerical results are presented in Section 4. Finally, conclusions are drawn in Section 5.

Problem formulation

In this paper, a class of nonlinear system subjected to external disturbances is considered,

{\begin{matrix} \overset{\cdot}{x} = f (x) + g (x) u + d \\ y = x_{1} \end{matrix}

(1)

where $x = [x_{1}, x_{2}, \dots, x_{n}]^{T} \in R^{n}$ is the system state vector, $u \in R$ is the control input, $d \in R$ denotes the external disturbance. $f (x)$ and $g (x)$ are unknown nonlinear functions, b is an unknown control gain, and

f (x) = [\begin{matrix} x_{2} \\ x_{3} \\ ⋮ \\ f_{n} (x_{1}, x_{2}, \dots, x_{n}) \end{matrix}] \in R^{n}, g (x) = [\begin{matrix} 0 \\ ⋮ \\ 0 \\ b \end{matrix}] \in R^{n}

(2)

Assumption 1. System (1) exists an inversion.

Remark 1. It should be noted that, although an inversion exists, in this paper, it is not necessary to get an accurate inversion for system (1) to design a suitable control law.

We aim to develop an effective and easy to be implemented control approach for system (1) to achieve satisfactory tracking performance in presence of nonlinear uncertainties and external disturbances.

The fast-response active disturbance rejection control

In order to get an effective and practical control approach, advantages of the UC and the active disturbance rejection control (ADRC) are integrated. Then, a fast-response active disturbance rejection control (FRADRC) can be proposed and designed for system (1).

The U-model control

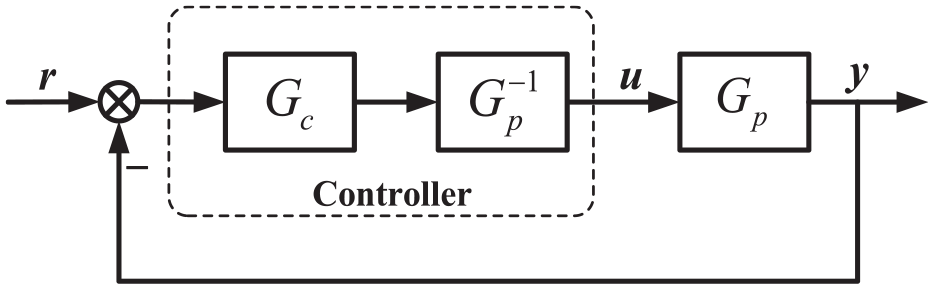

Structure of the U-model control is shown in Figure 1. Here, $G_{p}$ and $G_{p}^{- 1}$ represent the controlled plant and its inversion, respectively. It is clearly that the controller includes two parts. One is $G_{c}$ , and the other is the inversion of controlled plant.

Figure 1.

Structure of the U-model control.

Since $G_{p} G_{p}^{- 1} = 1$ , for an ideal case, an equivalent structure of Figure 1 can be shown in Figure 2. Obviously, the closed-loop performance is decided by $G_{c}$ . One can get desired performance by designing a proper $G_{c}$ .

Figure 2.

An equivalent structure of Figure 1.

However, it is based on the fact that an inversion of the controlled plant exists and it is available. When the inversion exists, a consequent question is how to get an available inversion. Generally, it is difficult to obtain an inversion for a complex nonlinear uncertain plant. Fortunately, the ADRC provides an effective tool to dynamically linearize a complex nonlinear uncertain system to be a pure-integrator chain. It lays a solid basis for getting an attainable inversion. Therefore, the ADRC is introduced in Section 3.2.

The active disturbance rejection control

To illustrate the ADRC more clearly, a second-order nonlinear system (1) is considered,

{\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} \\ {\overset{\cdot}{x}}_{2} = f (x_{1}, x_{2}) + bu + d \\ y = x_{1} \end{matrix}

(3)

where y is the system output, u is the control signal, b is an unknown control gain and $f (\cdot)$ is also an unknown nonlinear function.

In the viewpoint of the ADRC, all factors that differ from the pure-integrator chain are taken as the total disturbance. By an ESO, the total disturbance can be estimated, and the total disturbance estimation can be utilized in the control law. Then, the controlled nonlinear uncertain system can be dynamically linearized to be a pure-integrator chain. It provides a solid foundation for gaining an inversion of a complex nonlinear uncertain system.

For system (3), considering that the control gain b is unavailable in advance, one can take a proper value b₀ first. Then, the difference between b₀ and b can be viewed as a part of the total disturbance. That is,

\overset{\cdot\cdot}{y} = f + bu + d = f + (b - b_{0}) u + b_{0} u + d \overset{Δ}{=} F + b_{0} u

(4)

here, $F \overset{Δ}{=} f + (b - b_{0}) u + d$ is defined as the total disturbance.

A third-order linear ESO (LESO) can be designed as

{\begin{matrix} {\overset{\cdot}{z}}_{1} = z_{2} + β_{1} (y - z_{1}) \\ {\overset{\cdot}{z}}_{2} = z_{3} + β_{2} (y - z_{1}) + b_{0} u \\ {\overset{\cdot}{z}}_{3} = β_{3} (y - z_{1}) \end{matrix}

(5)

where $z_{1}, z_{2}$ and $z_{3}$ estimate $y, \overset{\cdot}{y}$ and F, respectively. $β_{1}, β_{2}, β_{3}$ are adjustable observer gains, and $b_{0}$ is an adjustable control gain.

According to the bandwidth-parameterized approach,¹⁹ one can let $β_{1} = 3 ω_{o}, β_{2} = 3 ω_{o}^{2}, β_{3} = ω_{o}^{3}$ . Here $ω_{o}$ is the adjustable observer bandwidth. Based on the ESO (5), one has a control law

u = \frac{u_{0} - z_{3}}{b_{0}}

(6)

where $u_{0}$ is a controller that needs to be designed.

Substituting (6) into system (4), one has

\overset{\cdot\cdot}{y} = F + u_{0} - z_{3} \overset{Δ}{=} u_{0} + e_{3}

(7)

where $e_{3} \overset{Δ}{=} F - z_{3}$ , and it is defined as the total disturbance estimation error. Taking the Laplace transformation for both sides of the closed-loop system (7), one has Figure 3.

Figure 3.

Structure of system (7).

Obviously, if the LESO (5) works perfectly, that is, the total disturbance estimation error $e_{3} = 0$ , the closed-loop system (7) becomes

\overset{\cdot\cdot}{y} = u_{0}

(8)

In other words, the nonlinear system (3) is linearized to be a pure-integrator chain, and its transfer function is $s^{- 2}$ . Accordingly, its inversion becomes $(s^{- 2})^{- 1} = s^{2}$ . It is much more practical and attainable than getting an inversion of nonlinear system (3) directly.

However, in practice, $e_{3} \neq 0$ . It means that, for nonlinear system (3), degree of the linearization depends on the total disturbance estimation. More accurate total disturbance estimation brings better linearization. It is also of great importance to realize the idea of the UC for a complex nonlinear uncertain system.

Remark 2. To make nonlinear system (3) to be closer to a pure-integrator chain, one must minimize the total disturbance estimation error $e_{3}$ . A LESO is somewhat weak in estimating the time-varying total disturbance. Thus, some improvements on a classical ESO are indispensable.

A total disturbance estimation compensation signal

To make the LESO be more powerful, a compensation signal of the total disturbance estimation (CSTDE) is necessary to minimize the total disturbance estimation error $e_{3}$ . Here, the CSTDE $u_{co}$ is designed for system (7), then

\overset{\cdot\cdot}{y} = u_{0} + e_{3} - u_{co}

(9)

After taking Laplace transformation for both sides of system (9), one has Figure 4.

Figure 4.

Structure of system (7) with a CSTDE.

From system (9), the CSTDE $u_{co}$ is utilized to cancel out the total disturbance estimation error $e_{3}$ . Obviously, if $u_{co} = e_{3}$ , system (9) becomes system (8). Therefore, if the total disturbance F is known, one can let

u_{co} = e_{3} = F - z_{3}

(10)

However, generally, F is unavailable in practice. Fortunately, on one hand, from system (4), one has

F = \overset{\cdot\cdot}{y} - b_{0} u

(11)

On the other hand, although $\overset{\cdot\cdot}{y}$ is not available, from the LESO (5), one has $z_{2} \approx \overset{\cdot}{y}$ . Then, ${\overset{\cdot}{z}}_{2} \approx \overset{\cdot\cdot}{y}$ . Accordingly, from system (11), one has

F \approx {\overset{\cdot}{z}}_{2} - b_{0} u

(12)

Similarly, from (5), one also has ${\overset{\cdot}{z}}_{2} = z_{3} + β_{2} (y - z_{1}) + b_{0} u$ . Then, the compensation signal (10) can be rewritten as $u_{co} \approx {\overset{\cdot}{z}}_{2} - b_{0} u - z_{3} = z_{3} + β_{2} (y - z_{1}) + b_{0} u - b_{0} u - z_{3} = β_{2} (y - z_{1})$ , that is,

u_{co} \approx β_{2} (y - z_{1})

(13)

For convenience, the compensation signal $u_{co}$ can be defined directly as

u_{co} = β_{2} (y - z_{1})

(14)

Fast-response active disturbance rejection control design

Based on the compensation signal (14), an improved total disturbance estimation can be defined as $z_{3 s} = z_{3} + u_{co}$ . Then, a compensation of the total disturbance estimation based extended state observer (CTDESO) can be constructed as

{\begin{matrix} {\overset{\cdot}{z}}_{1} = z_{2} + β_{1} (y - z_{1}) \\ {\overset{\cdot}{z}}_{2} = z_{3} + β_{2} (y - z_{1}) + b_{0} u \\ {\overset{\cdot}{z}}_{3} = β_{3} (y - z_{1}) \\ z_{3 s} = z_{3} + β_{2} (y - z_{1}) \end{matrix}

(15)

and the control law u can also be updated from (6) to (16)

u = \frac{u_{0} - z_{3} - u_{co}}{b_{0}} \overset{Δ}{=} \frac{u_{0} - z_{3 s}}{b_{0}}

(16)

As to $u_{0}$ in (16), it should be designed to minimize the phase delay of the forward path to speed up the system response and guarantee the comprehensive closed-loop performance. Structure of the fast-response active disturbance rejection control (FRADRC) is shown in Figure 5.

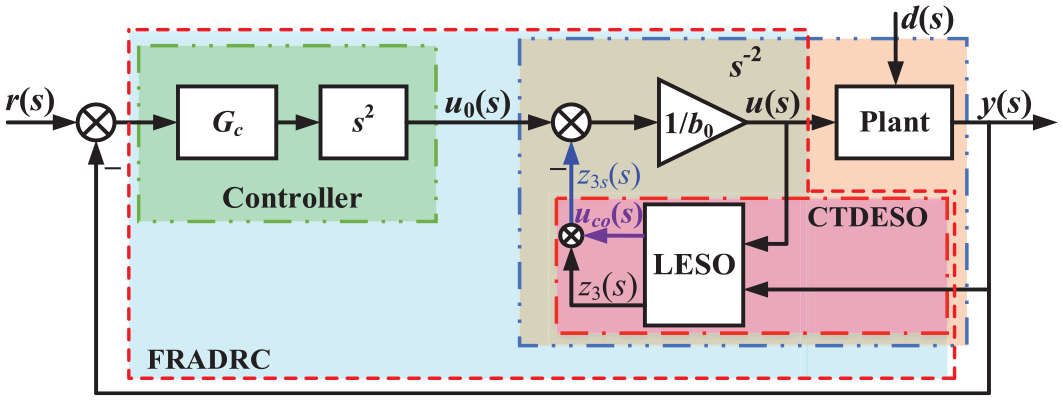

Figure 5.

A nonlinear control structure of the FRADRC.

Figure 5 shows that the FRADRC is composed of a controller and a CTDESO. In addition, one can also find that the controller includes two parts. One is $G_{c}$ , and the other is $s^{2}$ , which is the inversion of the inner loop. If the inner closed-loop works better, in other words, the total disturbance estimation is more accurate, the nonlinear plant will be closer to the pure integrator chain $s^{- 2}$ . Accordingly, the phase delay of the forward path will be minimized, and the closed-loop response will be faster. Based on above fact, $G_{c}$ can be designed according to the desired closed-loop dynamics.

For a second-order system, its standard transfer function is $\frac{ω_{n}^{2}}{s^{2} + 2 ζ ω_{n} s + ω_{n}^{2}}$ . Then, G_c can be designed as $\frac{ω_{n}^{2}}{s^{2} + 2 ζ ω_{n} s}$ , and the transfer function of the controller $u_{0}$ is

u_{0} (s) = \frac{ω_{n}^{2} s^{2}}{s^{2} + 2 ζ ω_{n} s}

(17)

where $ζ, ω_{n}$ are adjustable control parameters, and they can be set according to the desired closed-loop response.

Remark 3. Generally, a pure differentiator is not available in practice. However, there is no problem in realizing u₀(s), even if pure differentiators $s^{2}$ exist. Since $s^{2}$ is included in $G_{c}$ , if $(s^{2} G_{c})$ is realizable, u₀(s) is also available.

Accordingly, the FRADRC comprises the CTDESO (15), the updated control law (16) and (17).

Remark 4. In this paper, a second-order nonlinear system with a third-order LESO is taken for an example. However, it is not only suitable for a second-order nonlinear system, but for other order nonlinear systems as well. For a different order system, one just needs to design a corresponding CTDESO and $u_{0}$ . Then, the FRADRC can be constructed as shown in Figure 5.

Convergence of the CTDESO

Let the total disturbance $F \overset{Δ}{=} f + (b - b_{0}) u + d = x_{3}$ . System (3) can be rewritten as

{\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} \\ {\overset{\cdot}{x}}_{2} = x_{3} + b_{0} u \\ {\overset{\cdot}{x}}_{3} = h \end{matrix}

(18)

Assumption 2. The change rate h of the total disturbance satisfies $| h | \leq h_{max}$ , $h_{max}$ is a constant.

Remark 5. It is impossible for any state in a physical system or an engineering system to change abruptly. Therefore, it is reasonable to assume that the change rate of the total disturbance is bounded.

Theorem. Based on a bounded change rate h of the total disturbance, estimation errors of the CTDESO (15) are also bounded.

Proof. Define the estimation error vector $e = [e_{1}, e_{2}, e_{3 s}]^{T}$ , and $e_{1} = x_{1} - z_{1}, e_{2} = x_{2} - z_{2}, e_{3 s} = x_{3} - z_{3 s}$ . According to system (18) and the CTDESO (15), one has dynamics of the estimation errors

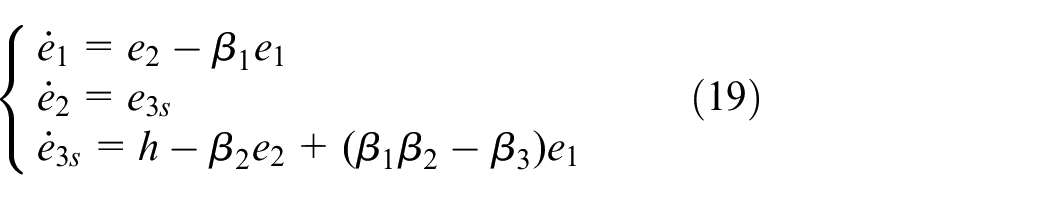

{\begin{matrix} {\overset{\cdot}{e}}_{1} = e_{2} - β_{1} e_{1} \\ {\overset{\cdot}{e}}_{2} = e_{3 s} \\ {\overset{\cdot}{e}}_{3 s} = h - β_{2} e_{2} + (β_{1} β_{2} - β_{3}) e_{1} \end{matrix}

(19)

Let $ε_{i} = \frac{e_{i}}{ω_{o}^{i - 1}}$ (i = 1,2), $ε_{3 s} = \frac{e_{3 s}}{ω_{o}^{2}}$ , and based on the bandwidth-parameterized approach, estimation error dynamical system (19) can be rewritten as

\overset{\cdot}{ε} = ω_{o} A_{ε} ε + B_{ε} \frac{h}{ω_{o}^{2}}

(20)

where $ε = [\begin{matrix} ε_{1} \\ ε_{2} \\ ε_{3 s} \end{matrix}], A_{ε} = [\begin{matrix} - 3 & 1 & 0 \\ 0 & 0 & 1 \\ 8 & - 3 & 0 \end{matrix}], B_{ε} = [\begin{matrix} 0 \\ 0 \\ 1 \end{matrix}]$ .

Solving system (20), one has

ε (t) = \exp (ω_{o} A_{ε} t) ε (0) + \int_{0}^{t} \exp [ω_{o} A_{ε} (t - τ)] B_{ε} \frac{h}{ω_{o}^{2}} d τ

(21)

Let $I_{1} = \exp (ω_{o} A_{ε} t) ε (0)$ and $I_{2} = \int_{0}^{t} \exp [ω_{o} A_{ε} (t - τ)] B_{ε} \frac{h}{ω_{o}^{2}} d τ$ , solution (21) becomes $ε (t) = I_{1} + I_{2}$ .

Since $A_{ε}$ is Hurwitz, there exists a finite time $T_{1} > 0$ , such that $| [\exp (ω_{o} A_{ε} t)]_{ij} | \leq ω_{o}^{- 3}, i, j = 1, 2, 3$ , $\forall t \geq T_{1}$ . Then, for each component of $I_{1}$ , one has

| I_{1} |_{i 1} \leq δ_{0} ω_{o}^{- 3}, δ_{0} = ε_{1} (0) + ε_{2} (0) + ε_{3 s} (0), i = 1, 2, 3

(22)

For $I_{2}$ , considering that $| h | \leq h_{max}$ , one has $I_{2} \leq h_{max} ω_{o}^{- 2} \int_{0}^{t} \exp [ω_{o} A_{ε} (t - τ)] B_{ε} d τ$ . Thus, each component of $I_{2}$ satisfies $[| I_{2} |]_{i 1} \leq h_{max} ω_{o}^{- 3} (| A_{ε}^{- 1} B_{ε} | + | A_{ε}^{- 1} \exp (ω_{o} A_{ε} t) B_{ε} |), i = 1, 2, 3$ . For $A_{ε}, B_{ε}$ , one has $| [\exp (ω_{o} A_{ε} t) B_{ε}]_{i 1} | \leq ω_{o}^{- 3}, i = 1, 2, 3$ . Accordingly,

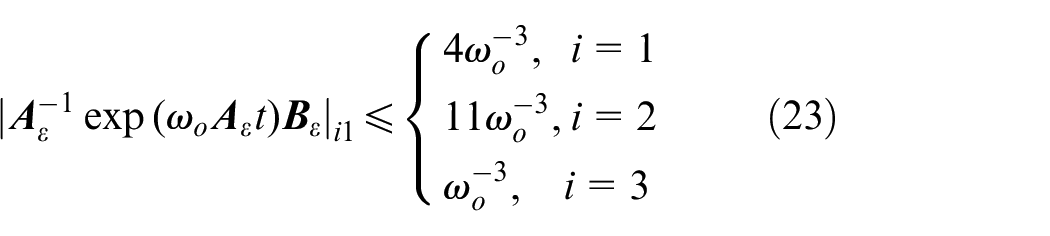

| A_{ε}^{- 1} \exp (ω_{o} A_{ε} t) B_{ε} |_{i 1} \leq {\begin{matrix} 4 ω_{o}^{- 3}, i = 1 \\ 11 ω_{o}^{- 3}, i = 2 \\ ω_{o}^{- 3}, i = 3 \end{matrix}

(23)

For $A_{ε}^{- 1} B_{ε} = [1, 3, 0]^{T}$ , then

[| I_{2} |]_{i 1} \leq {\begin{matrix} h_{max} ω_{o}^{- 3} + 4 h_{max} ω_{o}^{- 6}, i = 1 \\ 3 h_{max} ω_{o}^{- 3} + 11 h_{max} ω_{o}^{- 6}, i = 2 \\ h_{max} ω_{o}^{- 6}, i = 3 \end{matrix}

(24)

Combining (21), (22), and (24), one has

[| ε |]_{i} \leq {\begin{matrix} δ_{0} ω_{o}^{- 3} + h_{max} ω_{o}^{- 3} + 4 h_{max} ω_{o}^{- 6}, i = 1 \\ δ_{0} ω_{o}^{- 3} + 3 h_{max} ω_{o}^{- 3} + 11 h_{max} ω_{o}^{- 6}, i = 2 \\ δ_{0} ω_{o}^{- 3} + h_{max} ω_{o}^{- 6}, i = 3 \end{matrix}

(25)

Since $ε_{1} = \frac{e_{1}}{ω_{o}^{0}}, ε_{2} = \frac{e_{2}}{ω_{o}}, ε_{3 s} = \frac{e_{3 s}}{ω_{o}^{2}}$

{\begin{matrix} | e_{1} | \leq δ_{0} ω_{o}^{- 3} + h_{max} ω_{o}^{- 3} + 4 h_{max} ω_{o}^{- 6} \\ | e_{2} | \leq δ_{0} ω_{o}^{- 2} + 3 h_{max} ω_{o}^{- 2} + 11 h_{max} ω_{o}^{- 5} \\ | e_{3 s} | \leq δ_{0} ω_{o}^{- 1} + h_{max} ω_{o}^{- 4} \end{matrix}

(26)

Therefore, the CTDESO is convergent.

To make a comparison, like,²⁰ one has the total disturbance estimation error of a LESO, that is $e_{3} = x_{3} - z_{3}$ , satisfying $| e_{3} | \leq δ_{0} ω_{o}^{- 1} + 4 h_{max} ω_{o}^{- 4} + 3 h_{max} ω_{o}^{- 1}$ . In other words, the upper bound of $e_{3}$ is larger than the one of $e_{3 s}$ . It means that, as a result of the CSTDE, the total disturbance estimation of the CTDESO is better than the one of the LESO.

Stability of the FRADRC

Based on the convergence of the CTDESO, the FRADRC can be constructed. From Figure 5, one can find that the closed-loop system performance depends on the controller and the CTDESO. As long as the CTDESO works as expected, even if there exists an estimation error, the controlled nonlinear system with external disturbance and internal uncertainties is dynamically transferred to be an approximate pure-integrator chain. Substituting control law (16) into system (4), one has $\overset{\cdot\cdot}{y} = u_{0} + e_{3 s}$ . Therefore, by taking the Laplace transformation, an equivalent structure of the closed-loop nonlinear control system shown in Figure 5 can be described in Figure 6.

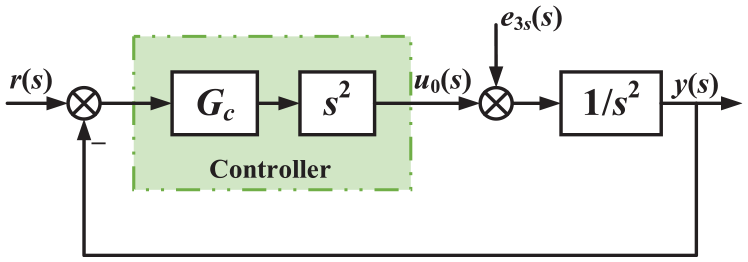

Figure 6.

An equivalent structure of Figure 5.

Apparently, the transfer function of the closed-loop system is $Φ_{FR} (s) = ω_{n}^{2} (s^{2} + 2 ζ ω_{n} s + ω_{n}^{2})^{- 1}$ . Therefore, by selecting proper damping ratio $ζ$ and natural frequency $ω_{n}$ , one can guarantee the stability of the close-loop system and achieve prescribed closed-loop performance.

Phase analysis

In this section, the phase advantage of the FRADRC is analyzed. On one hand, from Figure 6, one can find that the closed-loop transfer function is $Φ_{FR} (s) = ω_{n}^{2} (s^{2} + 2 ζ ω_{n} s + ω_{n}^{2})^{- 1}$ . On the other hand, a linear active disturbance rejection control (LADRC) with controller $G_{c} (s)$ and LESO (5) is designed to control the nonlinear system (3). For the LADRC, its controller does not include the inversion of the linearized plant, that is, the pure-differentiator chain. Then, the closed-loop transfer function of LADRC is $Φ_{L} (s) = G_{c} (s) s^{- 2} [1 + G_{c} (s) s^{- 2}]^{- 1} = ω_{n}^{2} (s^{4} + 2 ζ ω_{n} s^{3} + ω_{n}^{2})^{- 1}$ . Accordingly, the relationship between system outputs phases $φ_{FR}$ and $φ_{L}$ is

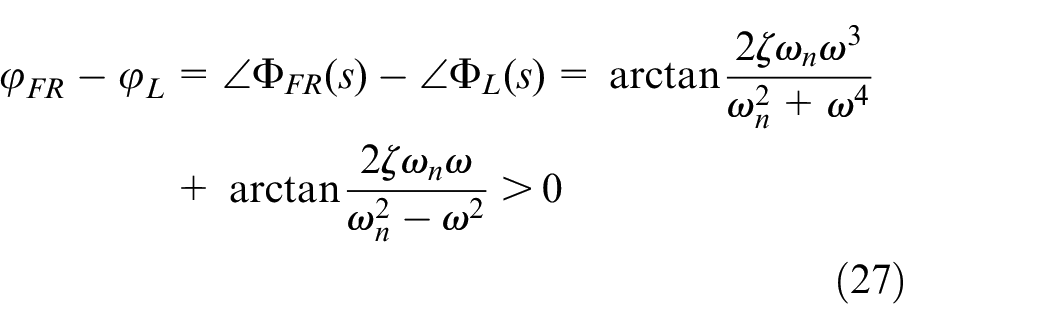

\begin{matrix} φ_{FR} - φ_{L} = ∠ Φ_{FR} (s) - ∠ Φ_{L} (s) = \arctan \frac{2 ζ ω_{n} ω^{3}}{ω_{n}^{2} + ω^{4}} \\ + \arctan \frac{2 ζ ω_{n} ω}{ω_{n}^{2} - ω^{2}} > 0 \end{matrix}

(27)

Therefore, for the same $ζ$ and $ω_{n}$ , the output of the FRADRC leads the output of the LADRC. It means that the response of the FRADRC is faster than the one of the LADRC. Thus, compared with the LADRC, the fast response of the FRADRC is confirmed as a result of taking the idea of the UC in the controller design.

Besides the system output phase, the phase margin is also calculated. Let open-loop transfer functions, cutting frequencies, and the phase margins of the FRADRC and the LADRC are $G_{FR}$ , $G_{L}$ , $ω_{FRc}$ , $ω_{Lc}$ , $γ_{FR}$ , and $γ_{L}$ , respectively. Furthermore, one has $ω_{n}^{4} = (ω_{FRc}^{2} + 4 ζ^{2} ω_{n}^{2}) ω_{FRc}^{2}$ and $ω_{n}^{4} = (ω_{Lc}^{2} + 4 ζ^{2} ω_{n}^{2}) ω_{Lc}^{6}$ . Then, $ω_{FRc} > ω_{Lc}$ . It also confirms that the response of the FRADRC is faster than the one of the LADRC. Nevertheless, the phase margin of the FRADRC is smaller than the one of the LADRC, since $γ_{L} - γ_{FR} = π + \arctan [2 ζ ω_{n} (ω_{Lc}^{- 1} - ω_{FRc}^{- 1})] (1 + 4 ζ^{2} ω_{n}^{2} ω_{Lc}^{- 1} ω_{FRc}^{- 1})^{- 1} > 0$ . In other words, the FRADRC gets faster response at the cost of phase margin.

Parameter tuning

In this section, adjustable parameters of the FRADRC have been discussed to make a guidance to fix them. Two cases are considered.

(1) Case 1 Overshoot is allowed

Step (1) Since $σ = \exp (- \frac{ζ π}{\sqrt{1 - ζ^{2}}})$ , then $ζ = \frac{\ln σ}{\sqrt{{(\ln σ)}^{2} + π^{2}}}$ . If an expected overshoot is not larger than $σ %$ , then $ζ$ satisfies $\frac{\ln σ}{\sqrt{{(\ln σ)}^{2} + π^{2}}} \leq ζ < 1$ .

Step (2) Since the peak time $t_{p} = \frac{π}{ω_{n} \sqrt{1 - ζ^{2}}}$ , then $ω_{n} = \frac{π}{t_{p} \sqrt{1 - ζ^{2}}}$ . If an expected peak time should be no longer than $t_{p}$ , then based on $t_{p}$ and the $ζ$ obtained in Step (1), parameter $ω_{n}$ should satisfy $ω_{n} \geq \frac{π}{t_{p} \sqrt{1 - ζ^{2}}}$ .

Step (3) Determine the control gain $b_{0}$ based on known model information. If there is no more available model information, one can try a relatively bigger value, and based on the system response to choose a proper value.

Step (4) Getting a suitable $ω_{o}$ to get better disturbance rejection. In general, from the experience, $ω_{o} > ω_{n}$ .

(2) Case 2 Overshoot is not allowed

Step (1) Let $ζ = 1$ , then the expected closed-loop transfer function of the system shown in Figure 6 becomes $Φ_{d} (s) = \frac{ω_{n}^{2}}{{(s + ω_{n})}^{2}}$ , and its step response is $y (t) = 1 - e^{- ω_{n} t} (1 + ω_{n} t), t \geq 0$ .

Step (2) Supposing that the system response is required to rise to $y_{1}$ within time $t_{1}$ , one can get the parameter $ω_{n}$ via $1 - y_{1} = (1 + ω_{n} t_{1}) e^{- ω_{n} t_{1}}$ , and according to the first-order Padé approximation, there exists $1 - y_{1} \approx (1 + ω_{n} t_{1}) \frac{1 - \frac{ω_{n} t_{1}}{2}}{1 + \frac{ω_{n} t_{1}}{2}}$ . Then, $ω_{n}$ can be obtained.

Step (3) $b_{0}$ and $ω_{o}$ can be determined as similar as the approaches described in Case 1.

Simulation results

In this section, four nonlinear plants are considered. Linearization of a nonlinear plant, closed-loop performance with/without external disturbances are presented to highlight the CTDESO and the FRADRC. For all plants, constant, sloping, parabolic, and sinusoidal disturbances are utilized (see Figure 7). They are introduced into the system from the fifth second, and all simulations last 10 s.

\begin{matrix} d_{1} (t) = {\begin{matrix} 10 5 \leq t \leq 10 \\ 0 0 \leq t < 5 \end{matrix}, d_{2} (t) = {\begin{matrix} 10 t 5 \leq t \leq 10 \\ 0 0 \leq t < 5 \end{matrix}, \\ d_{3} (t) = {\begin{matrix} 10 t^{2} 5 \leq t \leq 10 \\ 0 0 \leq t < 5 \end{matrix}, d_{4} (t) = {\begin{matrix} 10 \sin (10 π t) 5 \leq t \leq 10 \\ 0 0 \leq t < 5 \end{matrix} \end{matrix}

(28)

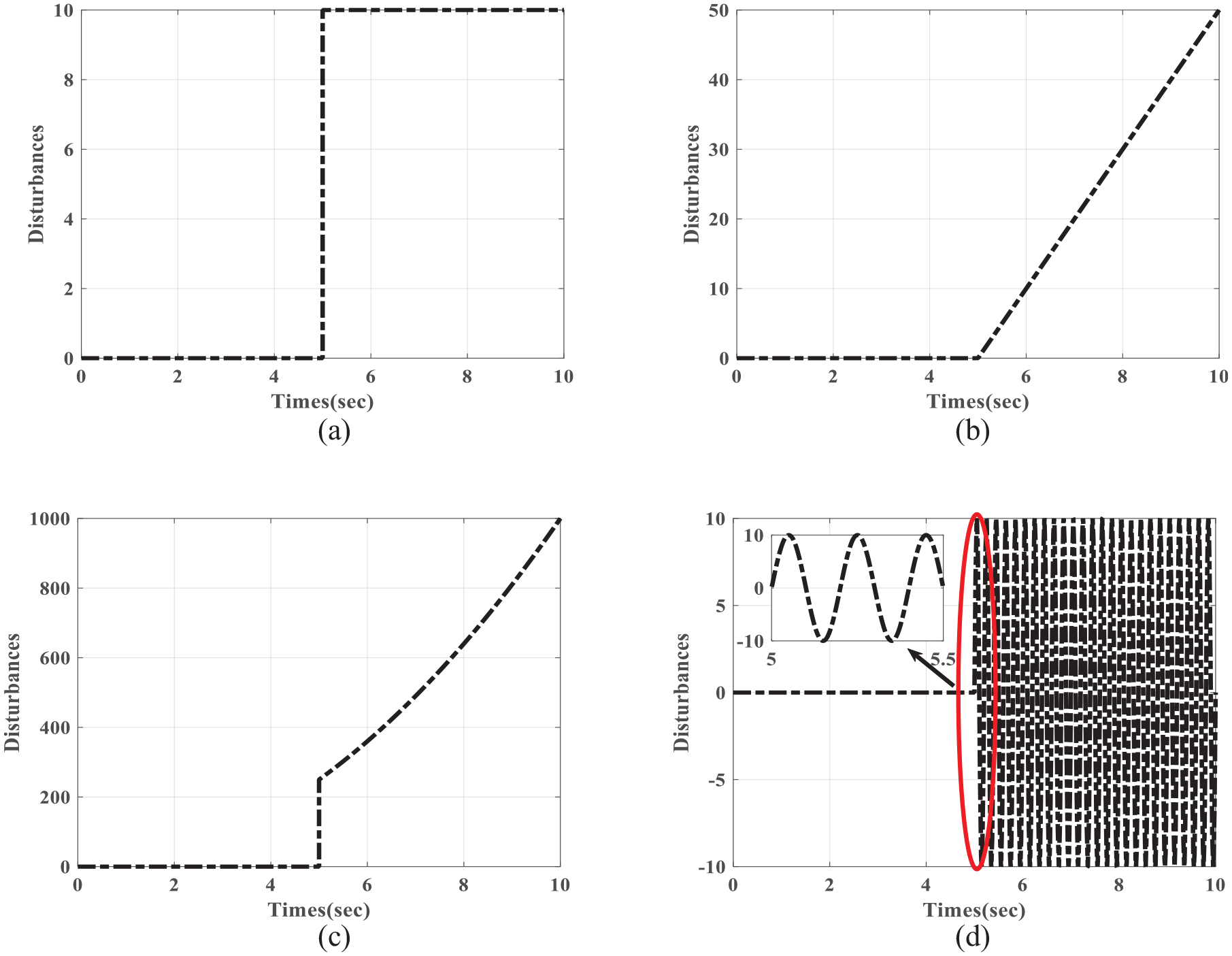

Figure 7.

Disturbances utilized in simulations: (a) d₁(t), (b) d₂(t), (c) d₃(t), and (d) d₄(t).

In examples 4.1–4.3, adjustable parameters are listed in Table 1. To make a comparison, the LADRC with $G_{c} (s)$ and the LESO (5) is also designed. In addition, to make a fair comparison, same $ζ, ω_{n}, ω_{o}, b_{0}$ are chosen. Then, with the same observer and controller parameters, advantage of the CTDESO with the CSTDE can be highlighted.

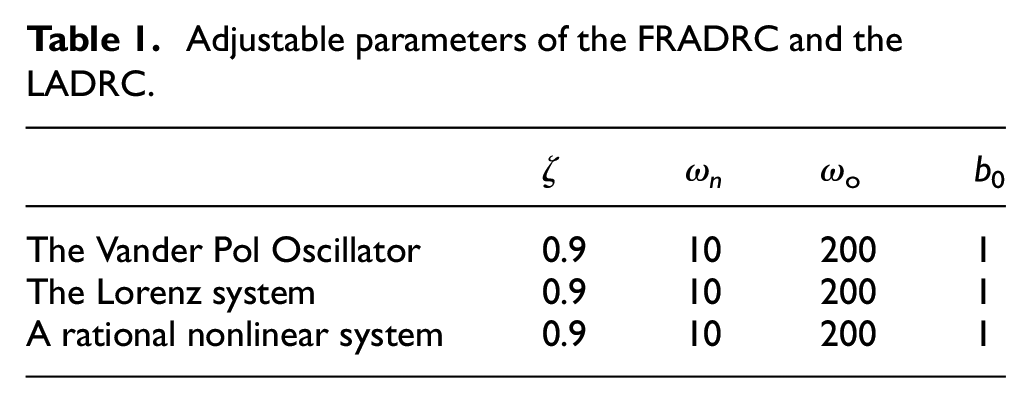

Table 1.

Adjustable parameters of the FRADRC and the LADRC.

	ζ	ω_n	ω_o	b ₀
The Vander Pol Oscillator	0.9	10	200	1
The Lorenz system	0.9	10	200	1
A rational nonlinear system	0.9	10	200	1

Vander Pol Oscillator

Consider a Vander Pol Oscillator (VPO)²¹

\overset{\cdot\cdot}{x} + η_{1} x^{2} \overset{\cdot}{x} - η_{2} \overset{\cdot}{x} + η_{3} x = u

(29)

where $[η_{1}, η_{2}, η_{3}] = [1.5, 1.5, 1.0]^{T}$ and the initial conditions are $\overset{\cdot}{x} (0) = x (0) = 0$ . In this example, the Euler method is employed to solve the system with the time step size 0.0001.

(1) The linearized system

From the design of the FRADRC, one can find that the key point of the FRADRC is to transfer the controlled nonlinear system to be a pure-integrator chain. Here, the dynamical linearization is confirmed first. Then, the ideal and the practical closed-loop responses have been compared.

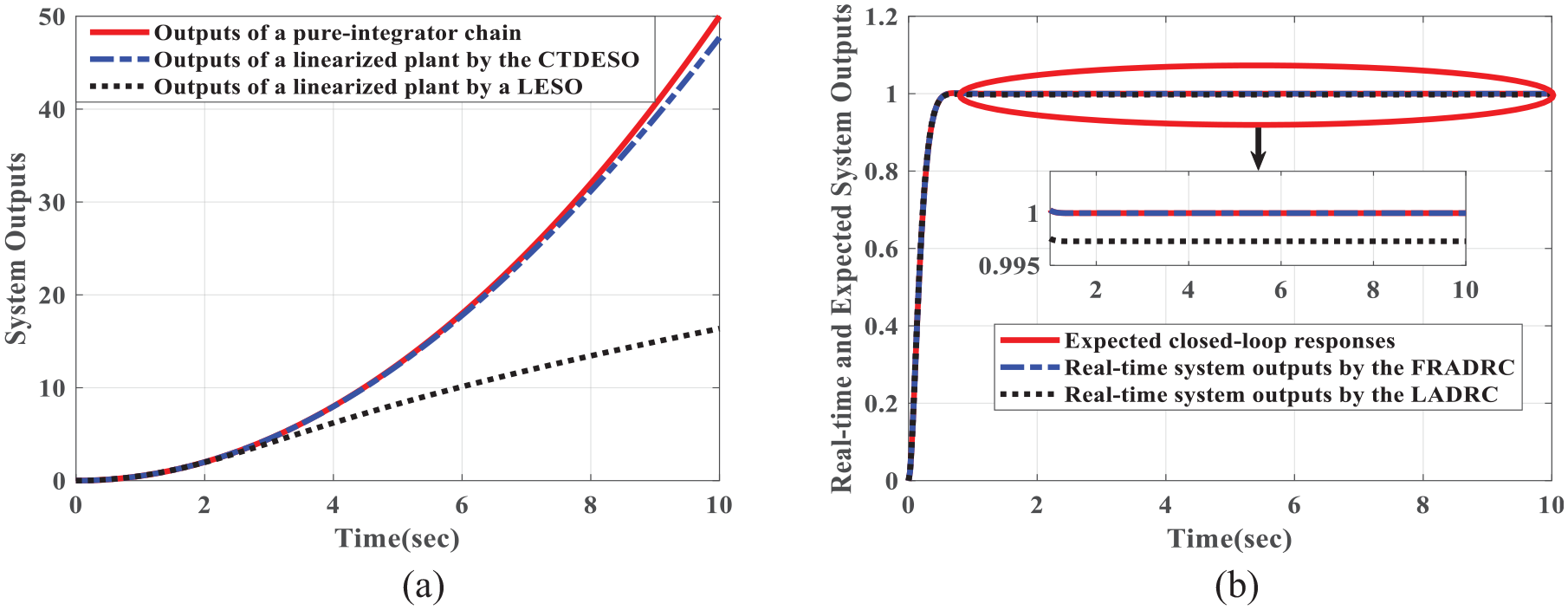

Figure 8(a) compares the outputs of a linearized VPO and a pure-integrator chain when a step function is input. One can find that, with the help of the CTDESO, the VPO is linearized satisfactorily. Comparatively, without the CSTDE, the LESO is much weaker in linearization. Figure 8(b) depicts the expected step responses and the real-time system outputs. It shows that the desired closed-loop system dynamics described by $ω_{n}^{2} (s^{2} + 2 ζ ω_{n} s + ω_{n}^{2})^{- 1}$ (i.e. $100 (s^{2} + 18 s + 100)^{- 1}$ from the fixed adjustable parameters in this example) and the real-time system outputs of the FRADRC are overlapped. It also means that the VPO is well linearized by the CTDESO and the predetermined closed-loop system performance can be achieved more satisfactorily by the FRADRC.

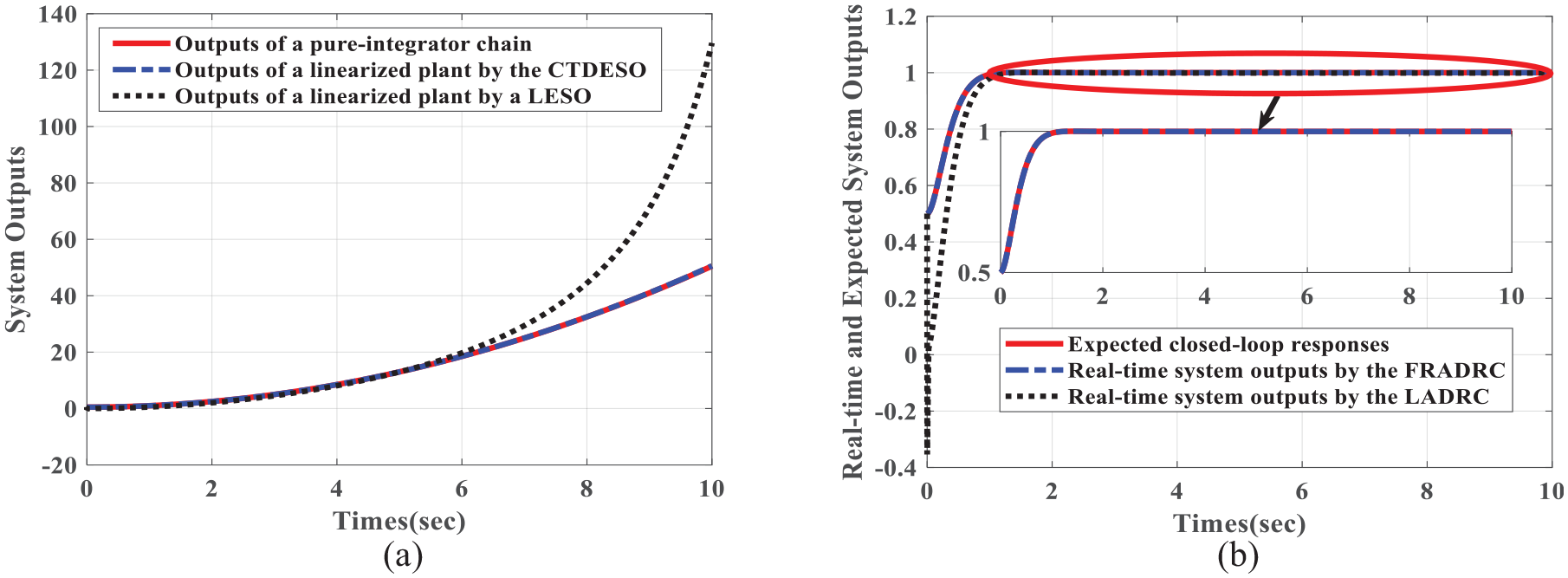

Figure 8.

System responses after linearization (I): (a) System outputs of the linearization plants, (b) Step responses.

(2) Closed-loop system responses without external disturbances

In this section, step responses in absence of external disturbance are presented and analyzed. To make a comparison, an improved nonlinear proportional-integral-differential controller (NLIOPID) utilized in Shi et al.²¹ is also employed. Its control law is²¹

100 e | \overset{\cdot}{e} |^{0.4174} + 40 \int e dt | \int e dt |^{0.7589} + 20 \overset{\cdot}{e} | e |^{- 0.0262}

(30)

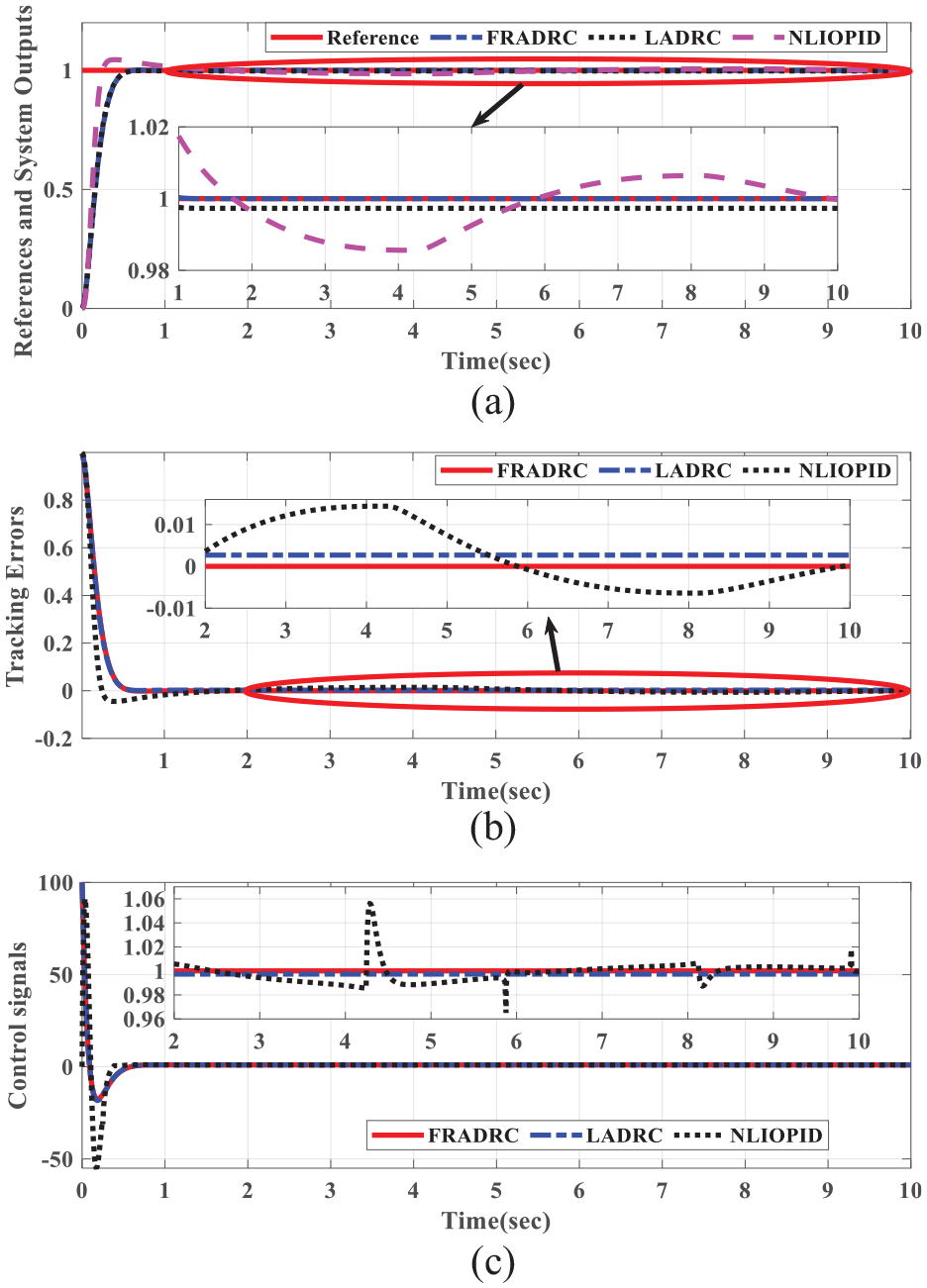

Figure 9 compares step responses, tracking errors and control signals of the NLIOPID, the LADRC, and the FRADRC. It can be found that, with similar control signal (Figure 9(c)), the FRADRC is able to obtain a much more stable and more accurate step response (Figure 9(a)). Tracking errors presented in Figure 9(b) also confirm the FRADRC.

Figure 9.

System responses and control signals without external disturbances (I): (a) step responses, (b) tracking errors, and (c) control signals.

To describe the advantage of the FRADRC, integral of time-multiplied absolute-value of error (ITAE) and control energy (E) are calculated and listed in Table 2. The ITAE and E can be obtained by

ITAE = \int_{0}^{t} t | e | dt, E = \int_{0}^{t} u^{2} dt

(31)

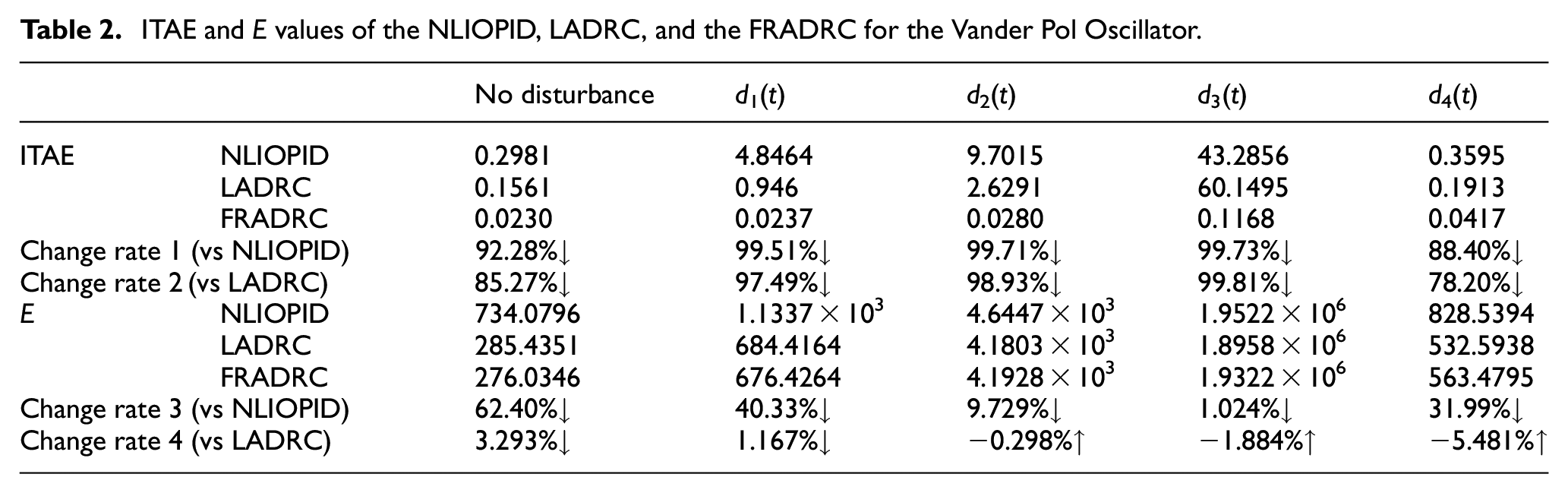

Table 2.

ITAE and E values of the NLIOPID, LADRC, and the FRADRC for the Vander Pol Oscillator.

		No disturbance	d ₁(t)	d ₂(t)	d ₃(t)	d ₄(t)
ITAE	NLIOPID	0.2981	4.8464	9.7015	43.2856	0.3595
	LADRC	0.1561	0.946	2.6291	60.1495	0.1913
	FRADRC	0.0230	0.0237	0.0280	0.1168	0.0417
Change rate 1 (vs NLIOPID)		92.28%↓	99.51%↓	99.71%↓	99.73%↓	88.40%↓
Change rate 2 (vs LADRC)		85.27%↓	97.49%↓	98.93%↓	99.81%↓	78.20%↓
E	NLIOPID	734.0796	1.1337 × 10³	4.6447 × 10³	1.9522 × 10⁶	828.5394
	LADRC	285.4351	684.4164	4.1803 × 10³	1.8958 × 10⁶	532.5938
	FRADRC	276.0346	676.4264	4.1928 × 10³	1.9322 × 10⁶	563.4795
Change rate 3 (vs NLIOPID)		62.40%↓	40.33%↓	9.729%↓	1.024%↓	31.99%↓
Change rate 4 (vs LADRC)		3.293%↓	1.167%↓	−0.298%↑	−1.884%↑	−5.481%↑

From the data filled in Table 2, it is easy to get a conclusion that the FRADRC behaves much better than the LADRC and the NLIOPID utilized in Shi et al.²¹ in absence of external disturbances.

(3) External disturbance rejection

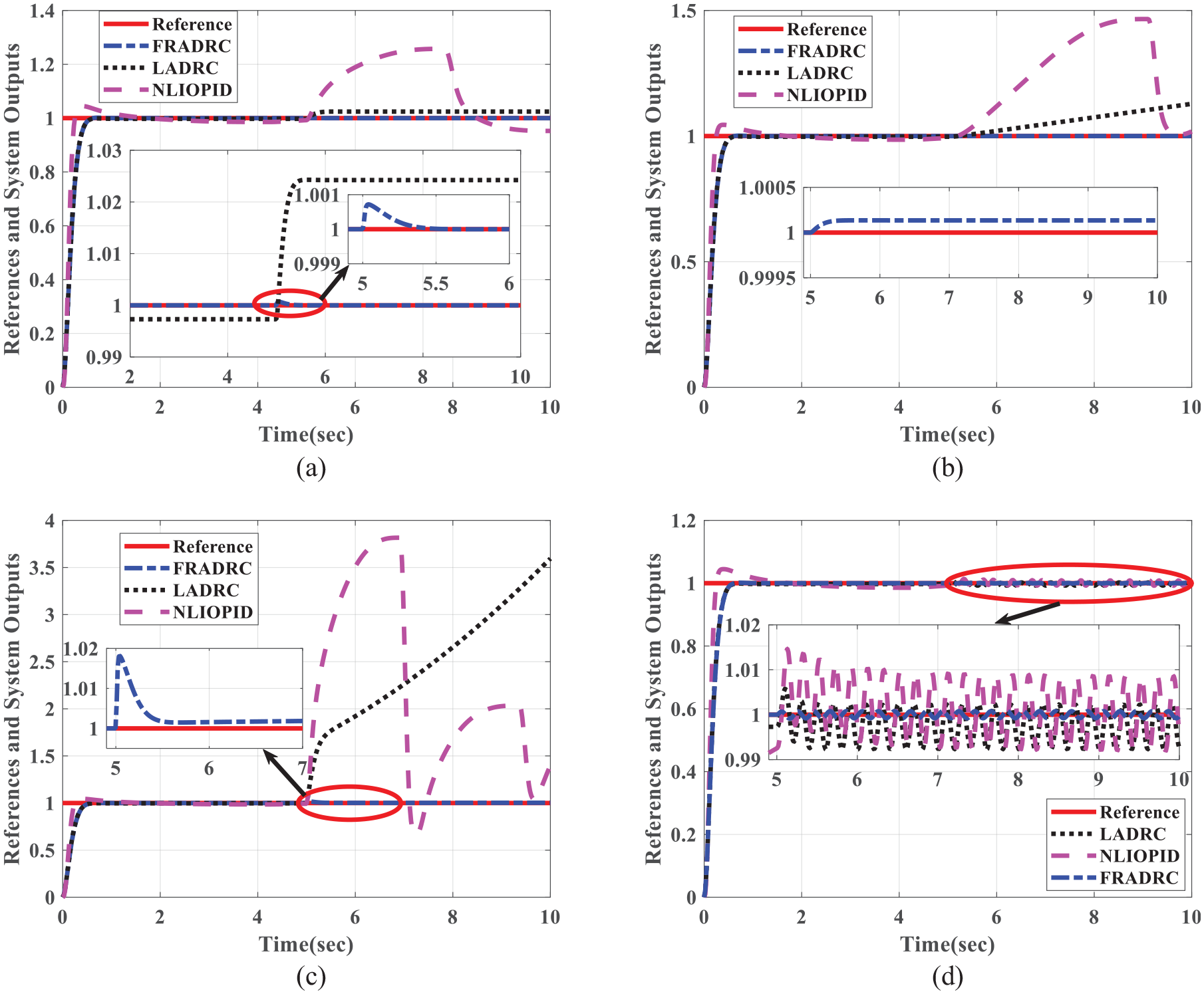

To verify the external disturbance rejection ability, in this section, constant, sloping, parabolic, and sinusoidal disturbances presented in Figure 7 are introduced into the closed-loop system from the fifth second to the end of the simulation. Numerical simulation results are given in Figure 10. ITAE and E values can also be found from Table 2. Both system responses and performance indexes show a fact that the FRADRC can overcome the external disturbances much better than the LADRC and the NLIOPID. It coincides with the analysis that the total disturbance estimation of the CTDESO is much more effective than the one of the LESO. It also highlights the fact that the linearization and the closed-loop performance can be guaranteed by the CTDESO.

Figure 10.

Step responses in presence of external disturbances d₁–d₄: (a) step responses in presence of d₁(t), (b) step responses in presence of d₂(t), (c) step responses in presence of d₃(t), and (d) step responses in presence of d₄(t).

The Lorenz system

The Lorenz system is described by²²

{\begin{matrix} \overset{\cdot}{x} = a (y - x) \\ \overset{\cdot}{y} = dx - y - xz + u \\ \overset{\cdot}{z} = - bz + xy \end{matrix}

(32)

where $a = 10, b = 8 / 3, d = 8$ and the initial states are $[x (0), y (0), z (0)]^{T} = [4, 4, 10]^{T}$ . Besides the trivial solution, there still exist another two equilibrium solutions, and they are given by

[x_{e}, y_{e}, z_{e}]^{T} = [\pm \sqrt{b (d - 1)}, \pm \sqrt{b (d - 1)}, d - 1]^{T}, d > 1

(33)

In this example, one of the equilibrium solutions is $[4.32, 4.32, 7]^{T}$ . Therefore, in following parts, our aim is to design controllers to drive the system state y to be 4.32. In other words, the reference signal is set to be 4.32, and the state y is taken to be the system output. In this example, the Euler method is also employed to solve the system, and the time step size is fixed to be 0.00001.

(1) The linearized system

In this example, controller parameters are still chosen from Table 1. The linearized Lorenz system is given in Figure 11(a). It reveals that, with the same observer bandwidth, the CTDESO is much superior to the LESO as a result of the CSTDE. In this case, compared with the CTDESO based FRADRC, the LESO based LADRC cannot achieve the expected closed-loop performance, and it is confirmed by the real-time system outputs described in Figure 11(b). Although the CTDESO behaves better, its performance limits by its bandwidth. Figure 12 shows another group of step response of the CTDESO and the LESO, when the observer bandwidth $ω_{o} = 800$ and the time step size is taken to be 0.000001. It depicts that the CTDESO behaves much better when the observer bandwidth is increased. However, from Figure 11(b), one can find that the real-time system responses by the FRADRC greatly coincide with the expected closed-loop responses. It means that the observer bandwidth listed in Table 1 is enough. Therefore, in this case, the LESO and the CTDESO takes the bandwidth given in Table 1.

(2) Closed-loop system responses without external disturbances

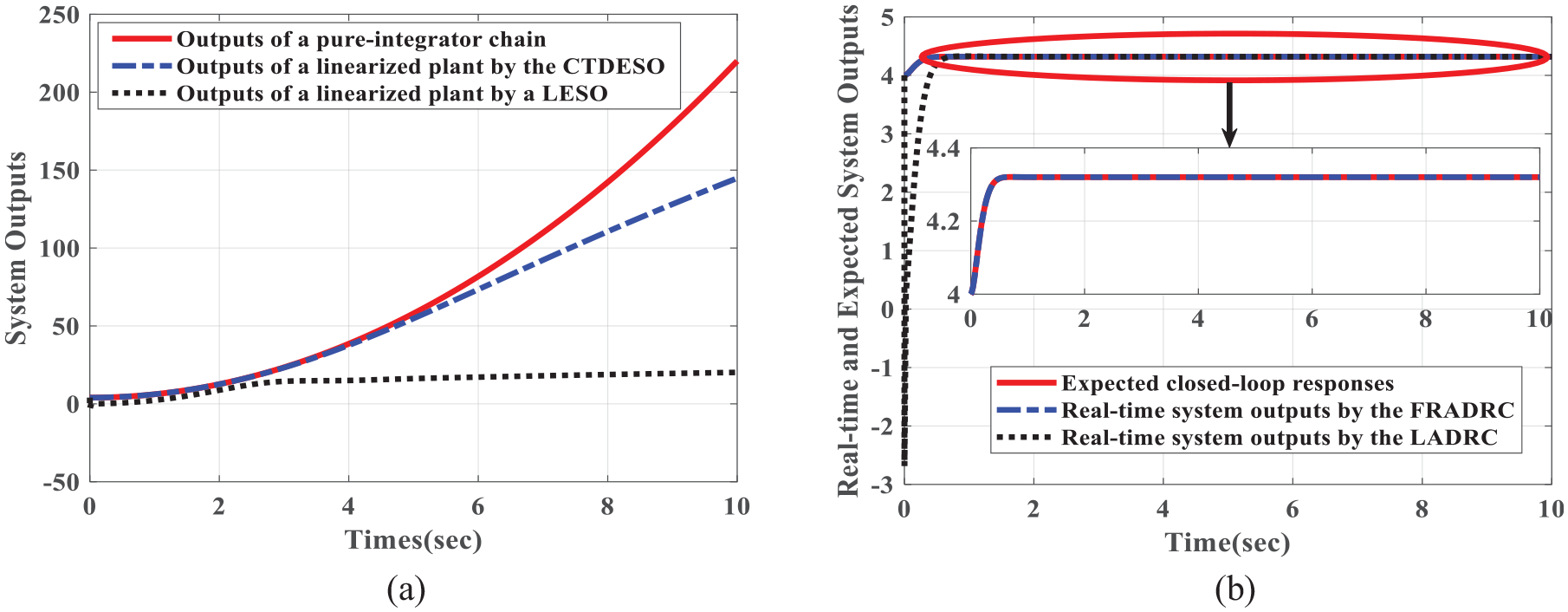

Figure 11.

System responses after linearization (II): (a) System outputs of the linearization plants and (b) Step responses.

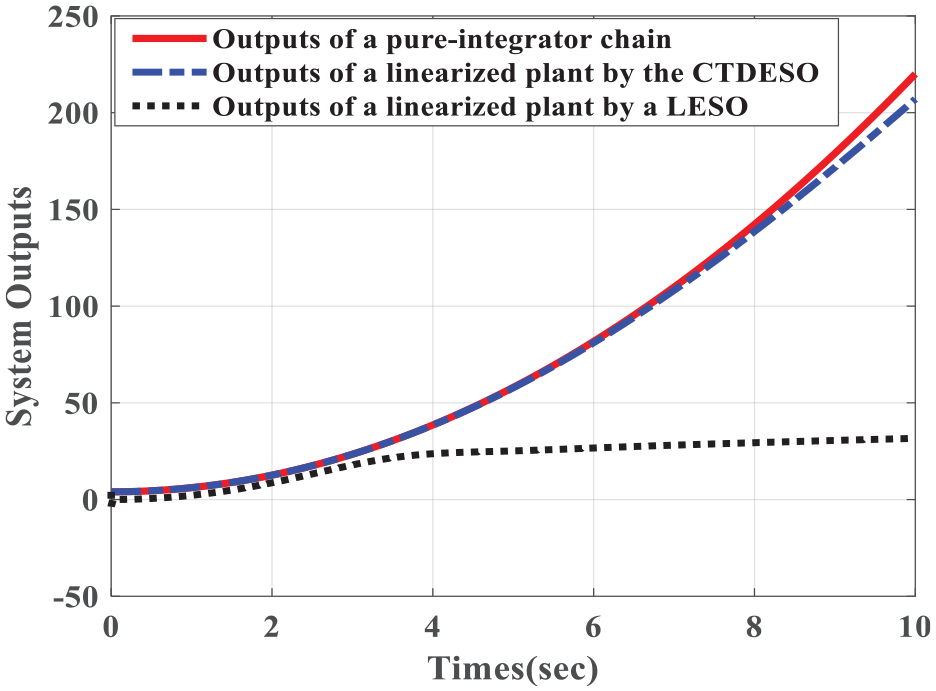

Figure 12.

Linearization verification when observer bandwidth is increased.

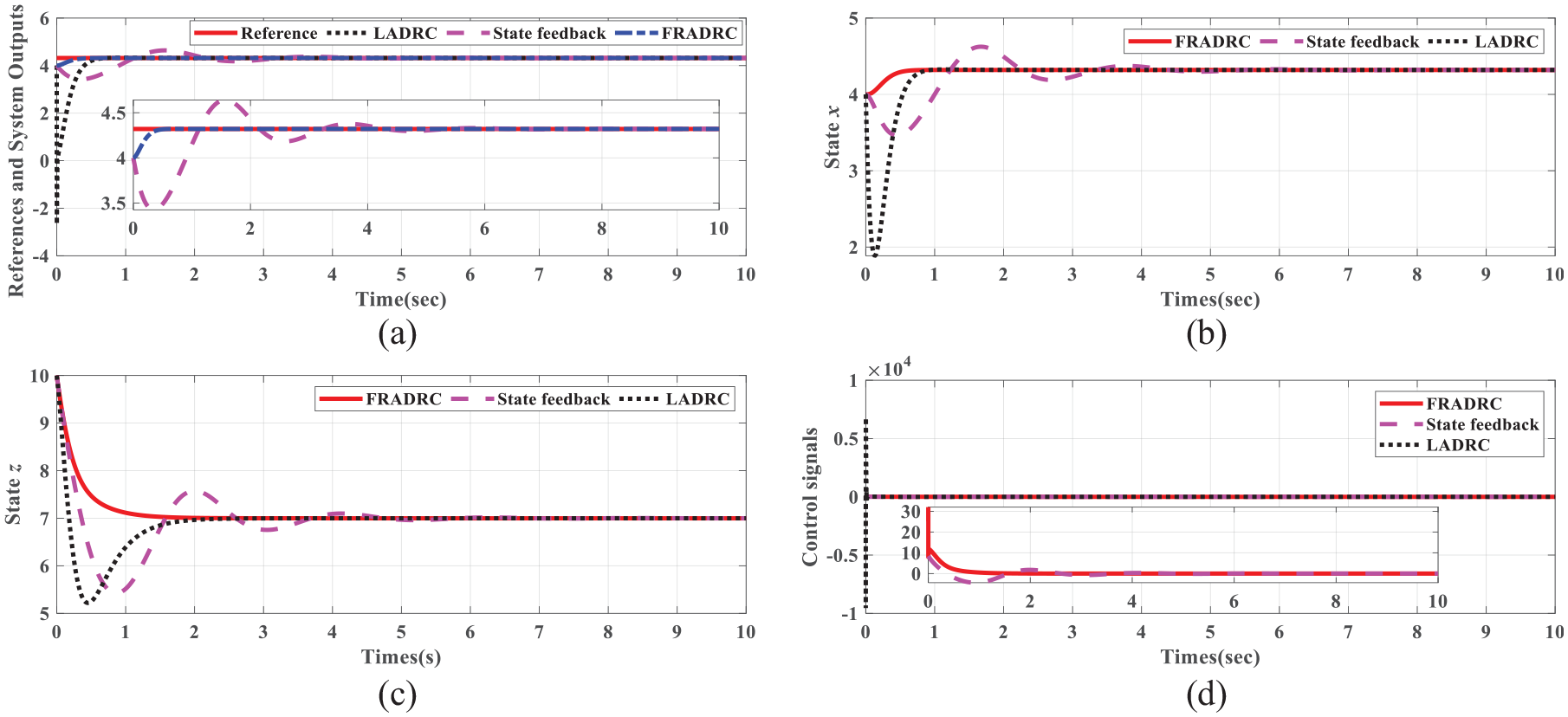

In this section, step responses without external disturbances are analyzed. State feedback control designed in Yu and Lü²² is taken to make a comparison, and it is given by²²

- ky (z - d + 1)

(34)

According to Yu and Lü,²² $k = - 0.7$ . Similarly, the LADRC is also utilized. Its parameters are taken from Table 1.

Figure 13 gives out the state responses and control signals of the state feedback control, the LADRC and the FRADRC, respectively. Similar to Figure 11, since the LESO cannot linearize the Lorenz system satisfactorily, the LADRC is not able to get an expected closed-loop performance as the FRADRC. Simultaneously, Figure 13 also presents that the step response of the state feedback control designed in Yu and Lü²² is not as fast and stable as the one of the FRADRC. Table 3 lists the ITAE and E values with and without external disturbances. Data given in Table 3 still confirm the advantage of the CTDESO and the FRADRC.

Figure 13.

System responses and control signals without external disturbances (II): (a) state y, (b) state x, (c) state z, and (d) control signals.

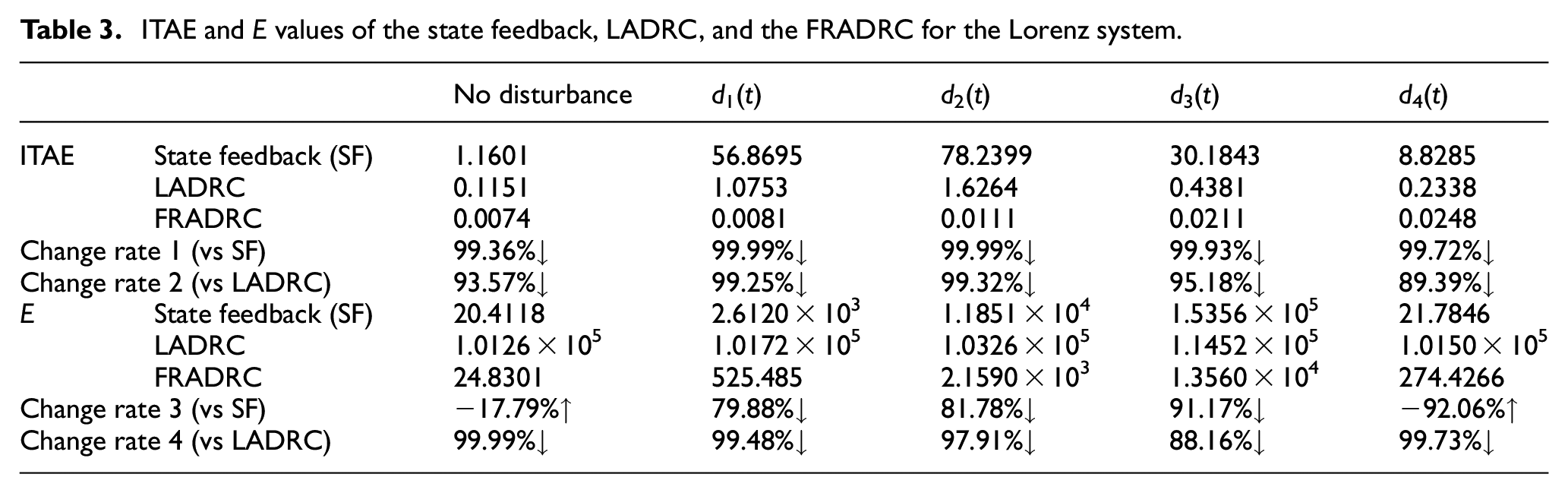

Table 3.

ITAE and E values of the state feedback, LADRC, and the FRADRC for the Lorenz system.

		No disturbance	d ₁(t)	d ₂(t)	d ₃(t)	d ₄(t)
ITAE	State feedback (SF)	1.1601	56.8695	78.2399	30.1843	8.8285
	LADRC	0.1151	1.0753	1.6264	0.4381	0.2338
	FRADRC	0.0074	0.0081	0.0111	0.0211	0.0248
Change rate 1 (vs SF)		99.36%↓	99.99%↓	99.99%↓	99.93%↓	99.72%↓
Change rate 2 (vs LADRC)		93.57%↓	99.25%↓	99.32%↓	95.18%↓	89.39%↓
E	State feedback (SF)	20.4118	2.6120 × 10³	1.1851 × 10⁴	1.5356 × 10⁵	21.7846
	LADRC	1.0126 × 10⁵	1.0172 × 10⁵	1.0326 × 10⁵	1.1452 × 10⁵	1.0150 × 10⁵
	FRADRC	24.8301	525.485	2.1590 × 10³	1.3560 × 10⁴	274.4266
Change rate 3 (vs SF)		−17.79%↑	79.88%↓	81.78%↓	91.17%↓	−92.06%↑
Change rate 4 (vs LADRC)		99.99%↓	99.48%↓	97.91%↓	88.16%↓	99.73%↓

(3) External disturbance rejection

Similarly, the external disturbances listed in (27) have been introduced. Numerical results on the system states have been given in Figure 14. The ITAE and E values listed in Table 3 are in agree with the responses described in Figure 14.

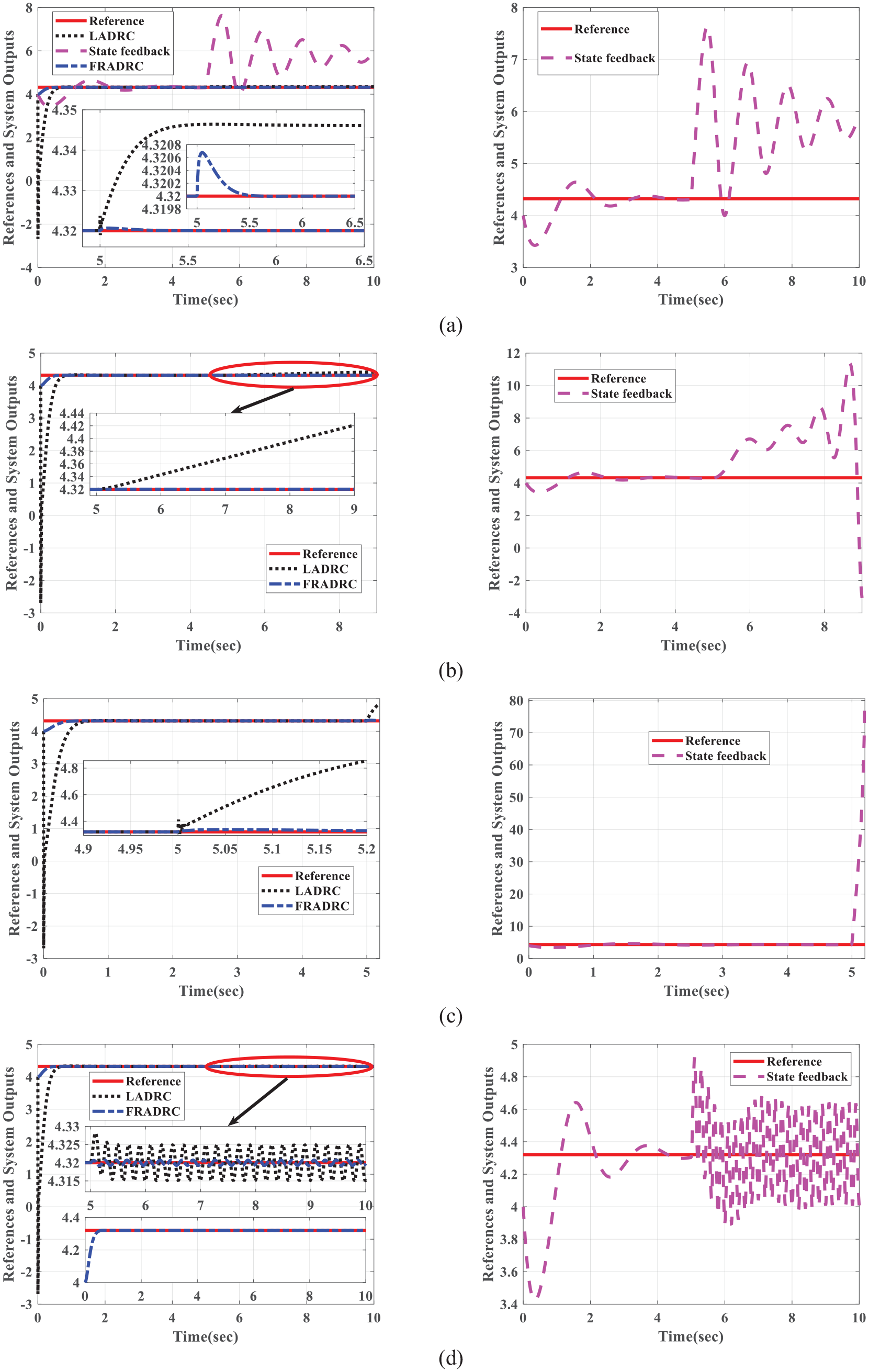

Figure 14.

System state y in presence of external disturbances d₁–d₄: (a) system state y in presence of d₁(t), (b) system state y in presence of d₂(t), (c) system state y in presence of d₃(t), and (d) system state y in presence of d₄(t).

A rational nonlinear system

Consider a rational nonlinear system²³

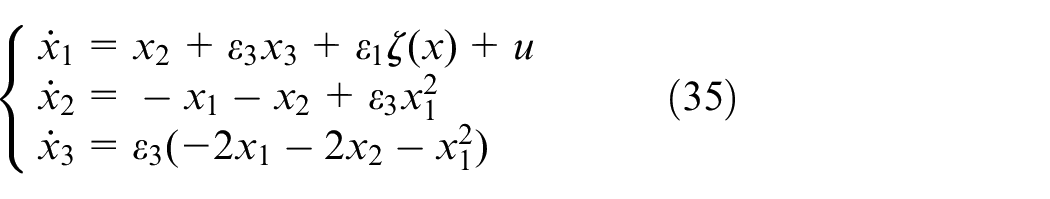

{\begin{matrix} {\overset{\cdot}{x}}_{1} = x_{2} + ε_{3} x_{3} + ε_{1} ζ (x) + u \\ {\overset{\cdot}{x}}_{2} = - x_{1} - x_{2} + ε_{3} x_{1}^{2} \\ {\overset{\cdot}{x}}_{3} = ε_{3} (- 2 x_{1} - 2 x_{2} - x_{1}^{2}) \end{matrix}

(35)

where $ζ (x) = \frac{x_{1}}{x_{2}^{2} + 1}, ε_{1} = ε_{2} = ε_{3} = 0.5$ and the initial conditions $x_{1} (0) = x_{2} (0) = x_{3} (0) = 0.5$ . In this example, the Euler method is still employed to solve the system, and the time step size is also 0.00001.

(1) The linearized system

Linearization is realized based on the observer bandwidth listed in Table 1. Figure 15 shows that outputs of the linearized rational system by the CTDESO always overlap with the outputs of a pure-integrator chain. It also confirms that the real-time outputs of the FRADRC is much more satisfactory.

Figure 15.

System responses after linearization (III).

(2) Closed-loop system responses without external disturbances

Let reference signal be a unit step signal, and let the system output be state x₁. Figure 16 shows system state responses and control signals. System output x₁ tracks the reference satisfactorily. States x₂ and x₃ also converge to stable constant values. Obviously, with the same control parameters, the FRADRC behaves much better than the LADRC. Table 4 also shows a fact that, no matter whether external disturbance exists or not, the FRADRC get much smaller ITAE values with smaller control energies. Both Figure 16 and Table 4 confirm the advantage of the CSTDE and the CTDESO.

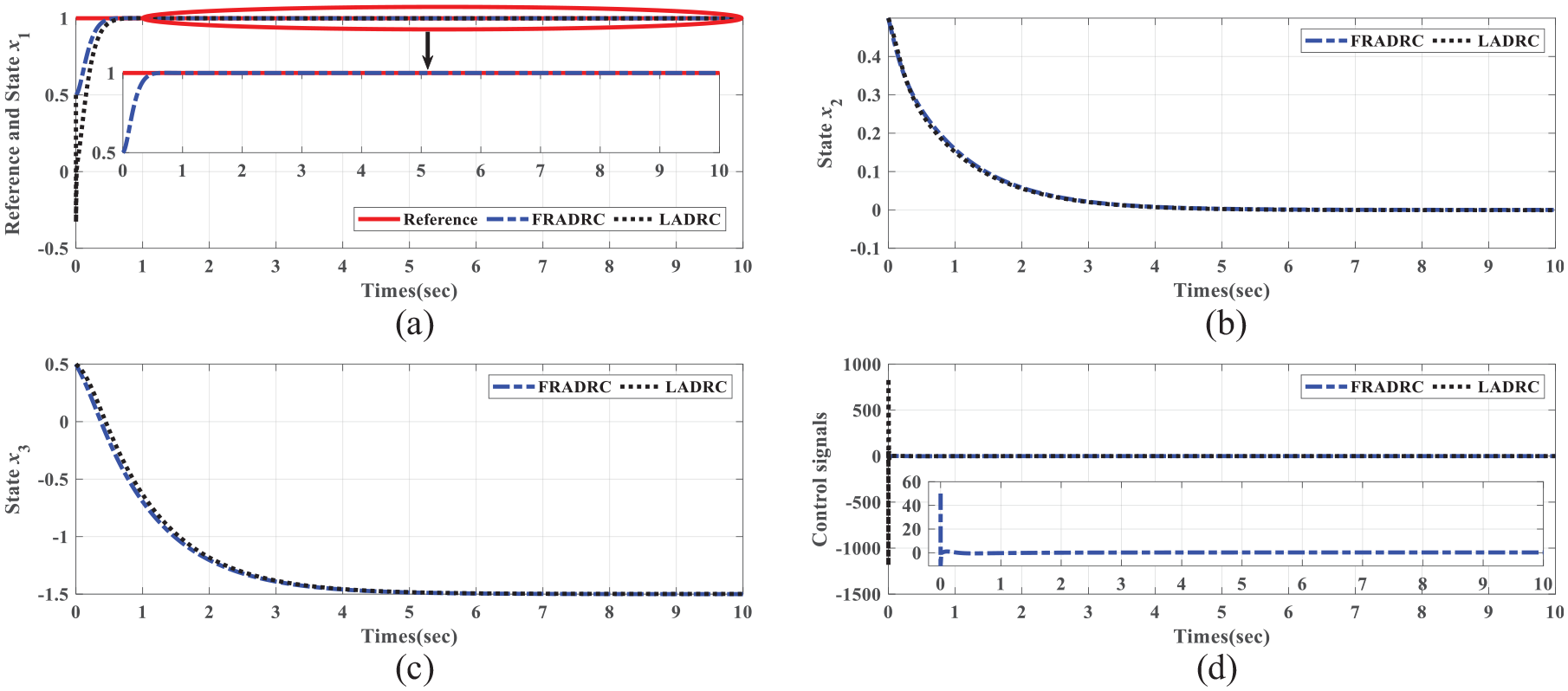

Figure 16.

System responses and control signals without external disturbances (III): (a) state x₁, (b) state x₂, (c) state x₃, and (d) control signals.

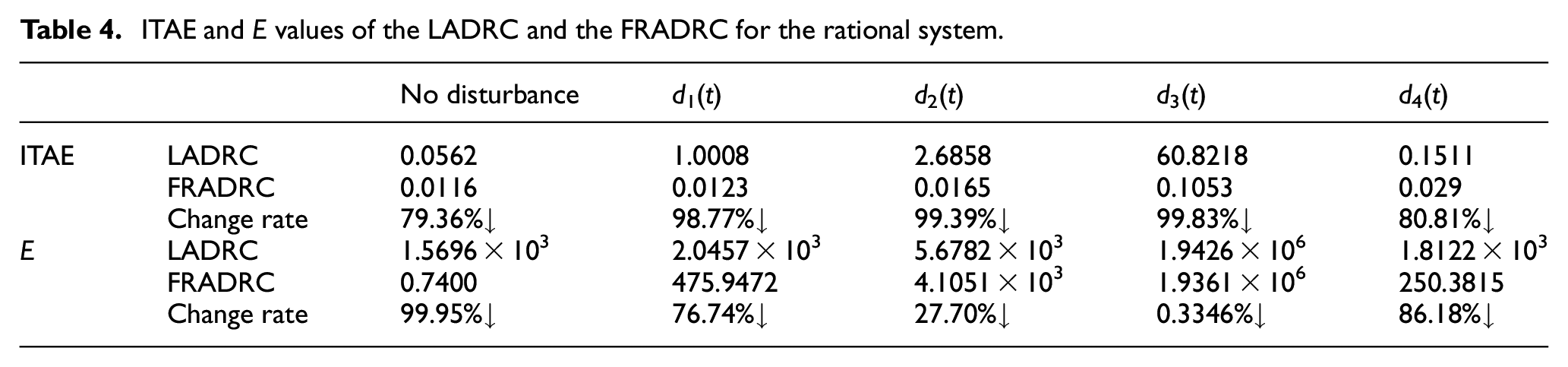

Table 4.

ITAE and E values of the LADRC and the FRADRC for the rational system.

		No disturbance	d ₁(t)	d ₂(t)	d ₃(t)	d ₄(t)
ITAE	LADRC	0.0562	1.0008	2.6858	60.8218	0.1511
	FRADRC	0.0116	0.0123	0.0165	0.1053	0.029
	Change rate	79.36%↓	98.77%↓	99.39%↓	99.83%↓	80.81%↓
E	LADRC	1.5696 × 10³	2.0457 × 10³	5.6782 × 10³	1.9426 × 10⁶	1.8122 × 10³
	FRADRC	0.7400	475.9472	4.1051 × 10³	1.9361 × 10⁶	250.3815
	Change rate	99.95%↓	76.74%↓	27.70%↓	0.3346%↓	86.18%↓

(3) External disturbance rejection

The FRADRC realizes the desired closed-loop performance in absence of external disturbance. In this section, disturbance rejection ability is verified by introducing kinds of external disturbances given in Figure 7. System outputs are presented in Figure 17 to highlight the advantage of the CTDESO and the FRADRC.

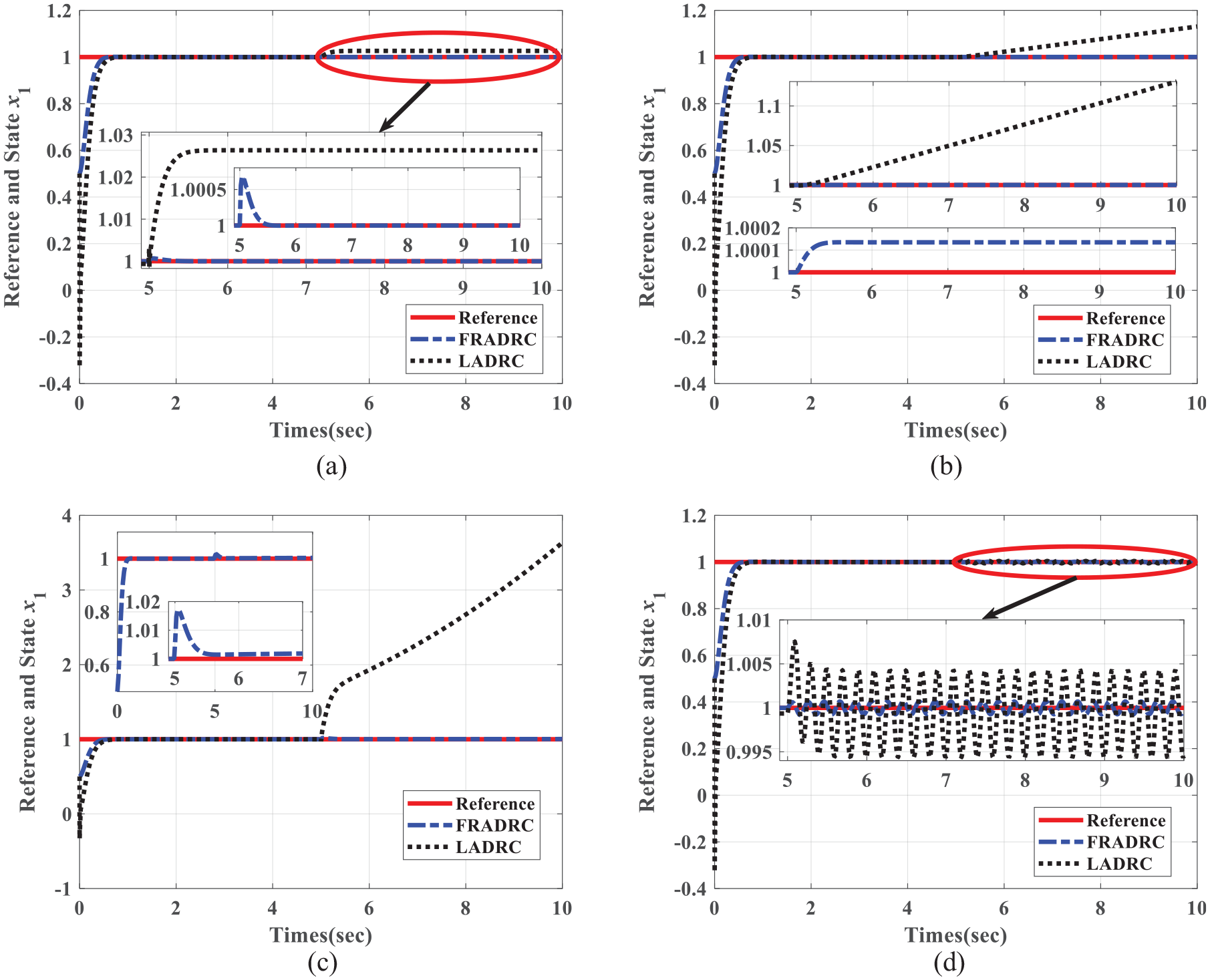

Figure 17.

System outputs in presence of external disturbances d₁–d₄: (a) step responses in presence of d₁(t), (b) Step responses in presence of d₂(t), (c) step responses in presence of d₃(t), and (d) step responses in presence of d₄(t).

In can be found that, as a result of the more effective total disturbance estimation, the FRADRC is able to get more satisfactory performance. Specially, for the sloping and parabolic type external disturbances, the CTDESO shows its power and the FRADRC achieves more acceptable responses. ITAE and E values listed in Table 4 also depict above facts.

A nanopositioning stage

In this example, a nanopositioning stage is considered, and its structure is given in Figure 18. Here, u is the control signal (input voltage) of the stage, and y is the displacement of the stage.

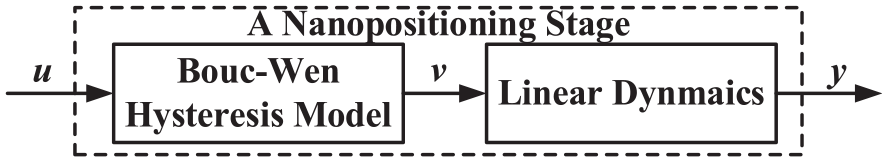

Figure 18.

Structure of a nanopositioning stage.

System model of the nanopositioning stage can be described as²⁴

{\begin{matrix} \overset{\cdot\cdot}{y} (t) + 2 ξ ω \overset{\cdot}{y} (t) + ω^{2} y (t) = K ω^{2} v \\ v = H (u) \end{matrix}

(36)

where v = H(u) is the hysteresis model, ξ is the damping ratio of the stage, ω is the natural frequency, and K is the nominal gain. The Bouc-Wen hysteresis model can be described as a first-order model²⁴

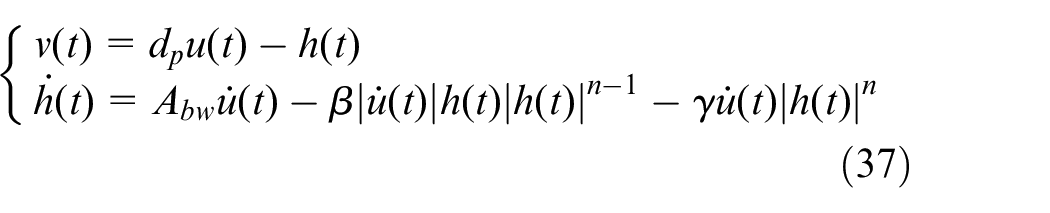

{\begin{matrix} v (t) = d_{p} u (t) - h (t) \\ \overset{\cdot}{h} (t) = A_{bw} \overset{\cdot}{u} (t) - β | \overset{\cdot}{u} (t) | h (t) | h (t) |^{n - 1} - γ \overset{\cdot}{u} (t) | h (t) |^{n} \end{matrix}

(37)

where u(t) is the input of the stage, v(t) is the output of the hysteresis, h is a state variable that represents the hysteretic phenomena, d_p is a stiffness coefficient, A_bw controls amplitudes of the hysteresis, parameters β, γ, and n decide the shape of the hysteresis. Parameter values are listed in Table 5.

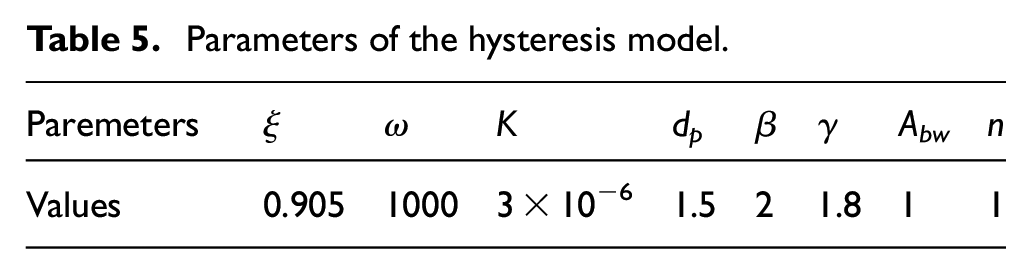

Table 5.

Parameters of the hysteresis model.

Paremeters	ξ	ω	K	d_p	β	γ	A_bw	n
Values	0.905	1000	3 × 10⁻⁶	1.5	2	1.8	1	1

Here, a step signal is set to be a reference signal. In following parts, our aim is to design controllers to drive the positioning system to track the set-value. The Euler method is also employed to solve the system, and the time step size is still fixed to be 0.00001.

(1) The linearized system

For this example, adjustable parameters are taken from Table 6. Responses of the linearized positioning stage are given in Figure 19. From Figure 19 and Table 6, one can find that the CTDESO outperforms the LESO in linearization since the compensation signal of the total disturbance estimation is utilized.

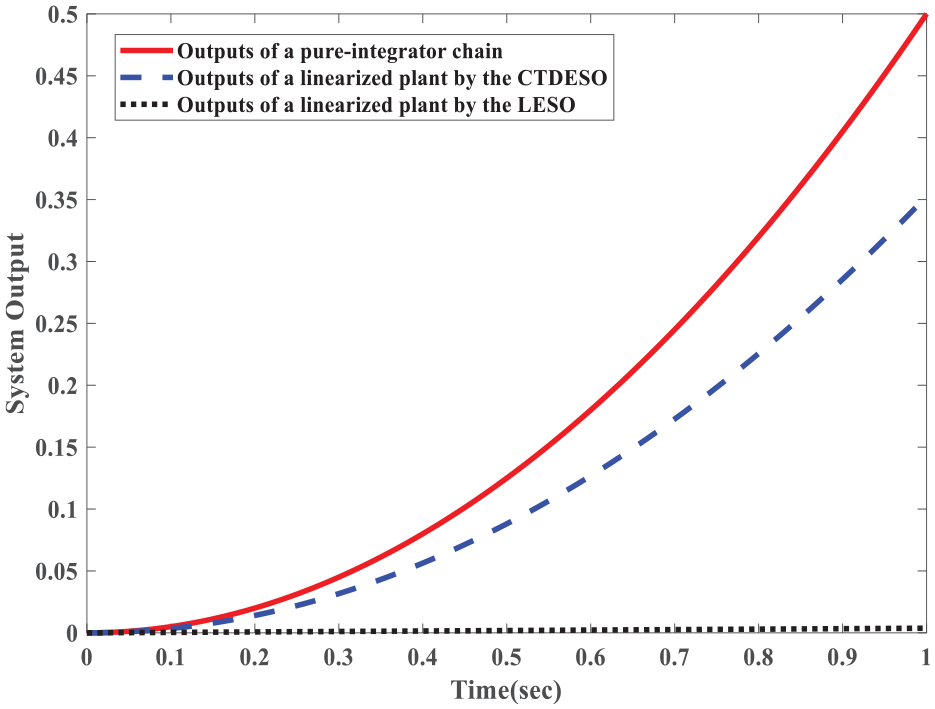

Figure 19.

System responses after linearization (IV).

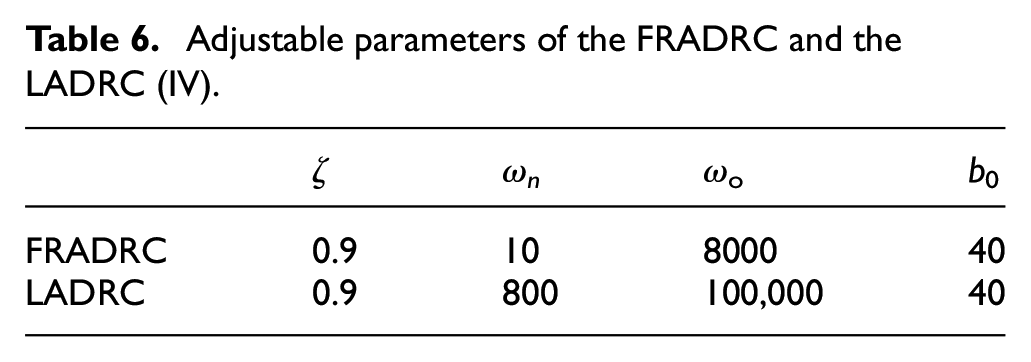

Table 6.

Adjustable parameters of the FRADRC and the LADRC (IV).

	ζ	ω_n	ω_o	b ₀
FRADRC	0.9	10	8000	40
LADRC	0.9	800	100,000	40

(2) Closed-loop system responses without external disturbances

In absence of any external disturbance, system step responses are described in Figure 20. It is easy to get a conclusion that, with similar control energies, the FRADRC can get much faster step response and shorter convergence time of the tracking errors. Data listed in Table 7 also confirm the facts shown in Figure 20.

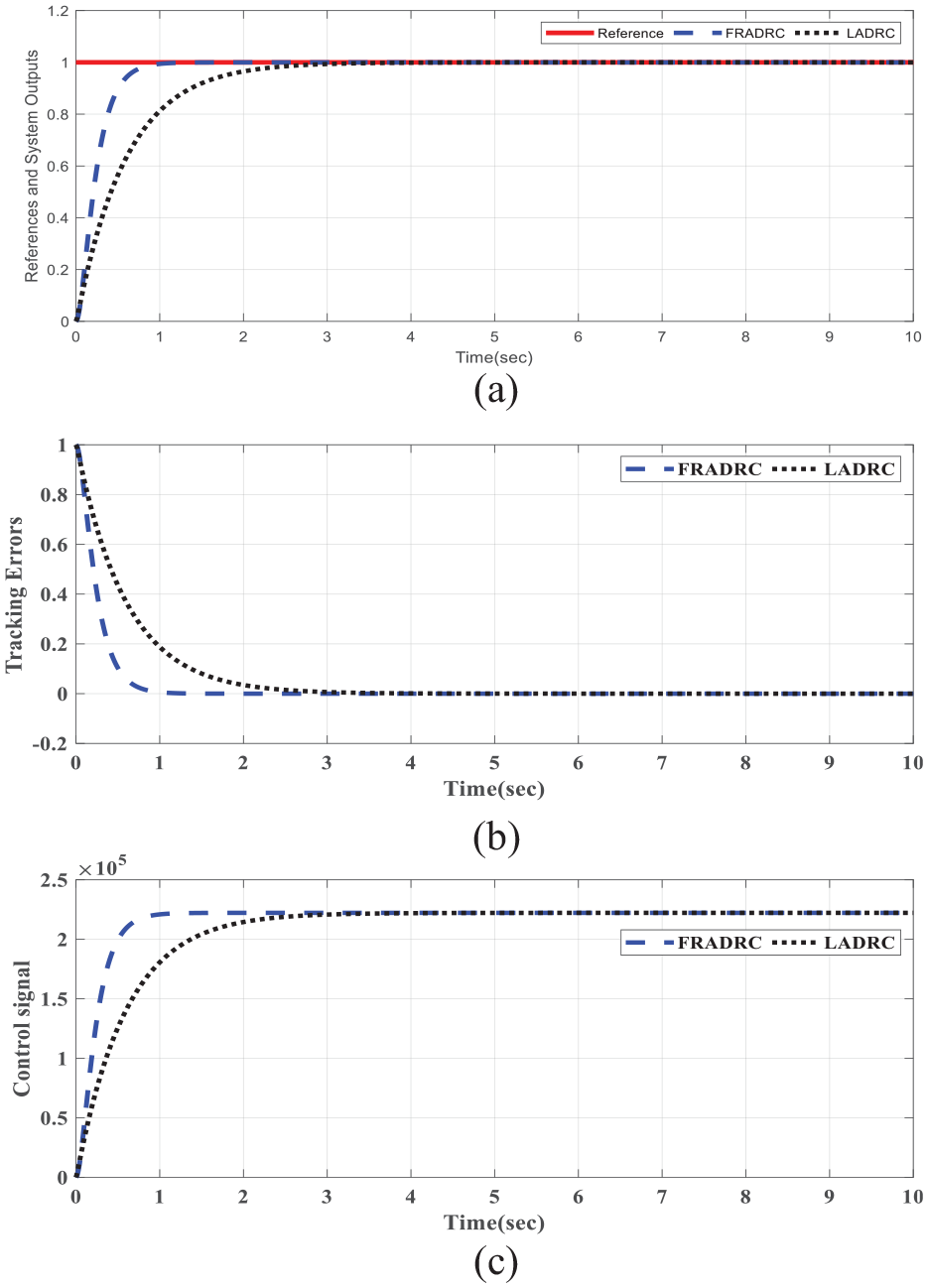

Figure 20.

System responses and control signals without external disturbances (IV): (a) step responses, (b) tracking errors, and (c) control signals.

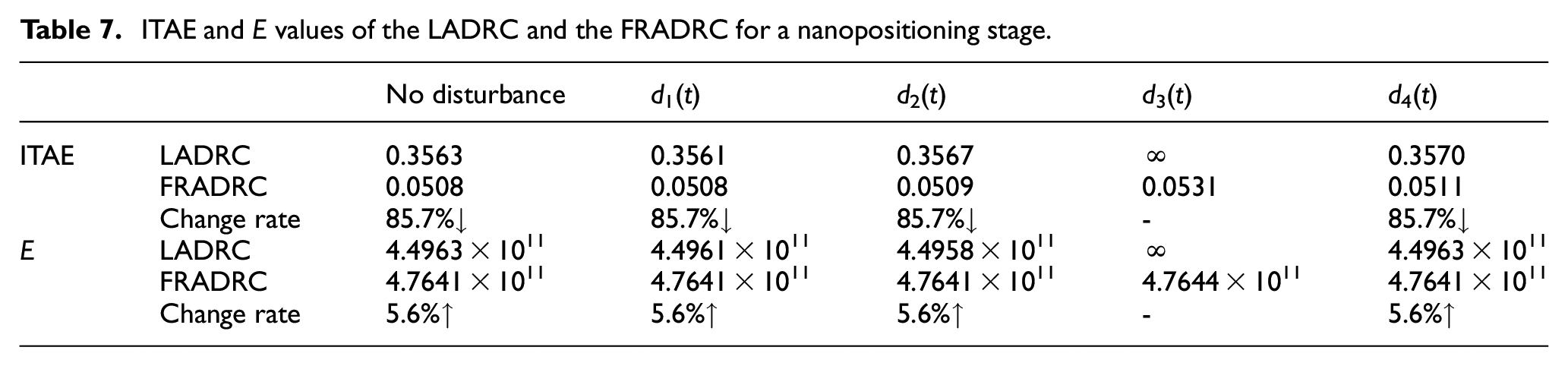

Table 7.

ITAE and E values of the LADRC and the FRADRC for a nanopositioning stage.

		No disturbance	d ₁(t)	d ₂(t)	d ₃(t)	d ₄(t)
ITAE	LADRC	0.3563	0.3561	0.3567	∞	0.3570
	FRADRC	0.0508	0.0508	0.0509	0.0531	0.0511
	Change rate	85.7%↓	85.7%↓	85.7%↓	-	85.7%↓
E	LADRC	4.4963 × 10¹¹	4.4961 × 10¹¹	4.4958 × 10¹¹	∞	4.4963 × 10¹¹
	FRADRC	4.7641 × 10¹¹	4.7641 × 10¹¹	4.7641 × 10¹¹	4.7644 × 10¹¹	4.7641 × 10¹¹
	Change rate	5.6%↑	5.6%↑	5.6%↑	-	5.6%↑

(3) External disturbance rejection

In this part, disturbance rejection ability of the proposed FRADRC and the LADRC is compared. To verify the disturbance rejection ability, the introduced disturbances are defined in (28). From data listed in Table 7 and Figure 21(a)–(d), one can find that, for the step disturbance, the slope disturbance, the parabolic disturbance and the sinusoidal disturbance, the FRADRC is superior to the LADRC in terms of ITAE values. It means that the proposed CTDESO in the FRADRC outperforms the LESO in the LADRC. Moreover, from Figure 21(c) and the sixth column of Table 7, it is easy to get a conclusion that, when it comes to the parabolic disturbance d₃(t), the LESO is weak and the LESO based LADRC fails. However, the CTDESO is powerful and the closed-loop performance by the FRADRC is still satisfactory in presence of the parabolic disturbance.

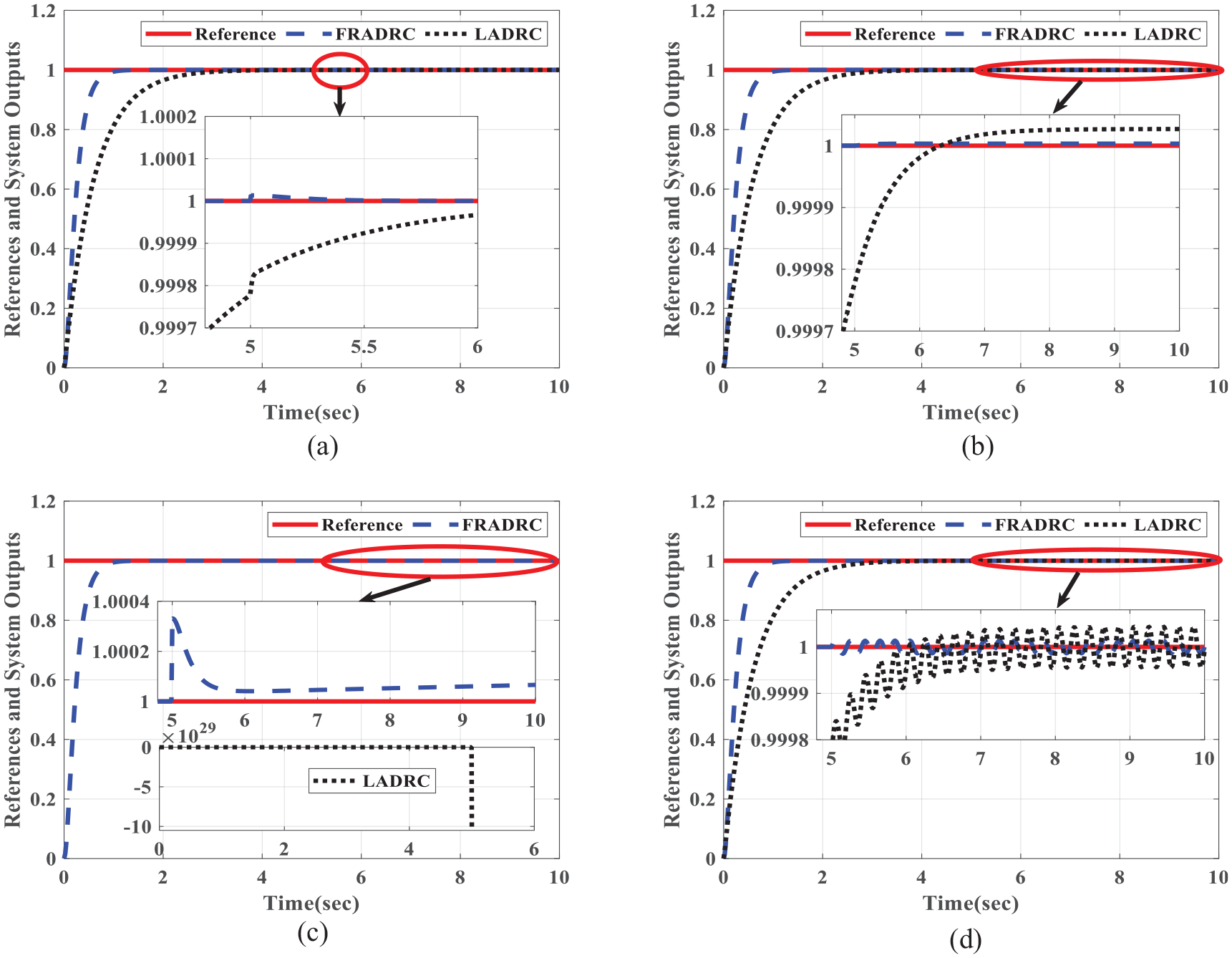

Figure 21.

Displacements of the positioning stage in presence of external disturbances d₁~d₄: (a) step responses in presence of d₁(t), (b) Step responses in presence of d₂(t), (c) step responses in presence of d₃(t), and (d) step responses in presence of d₄(t).

Discussions

In this paper, four examples have been taken to make a confirmation of the FRADRC. Both system responses and performance indexes show that the CTDESO is more effective, and the CTDESO based FRADRC can obtain more satisfactory closed-loop performance. In this section, the third example is considered, and some discussions have been made on those adjustable parameters to make their influence clearer.

Table 8 gives out parameters. For Case I–Case III, one can find the influence of the damping ratio $ζ$ , when the nonlinear system is linearized to be an approximate integrator chain. Figure 22(a) presents the responses for different damping ratios. For Case IV–Case VI, when the damping ratio $ζ = 1$ , there is no overshoot. The observer bandwidth is increased from 200 to 250 rad/s. Accordingly, the linearization becomes better. One can find $ω_{n}$ decides the response speed. Figure 22(b) shows dynamics of Case IV–Case VI.

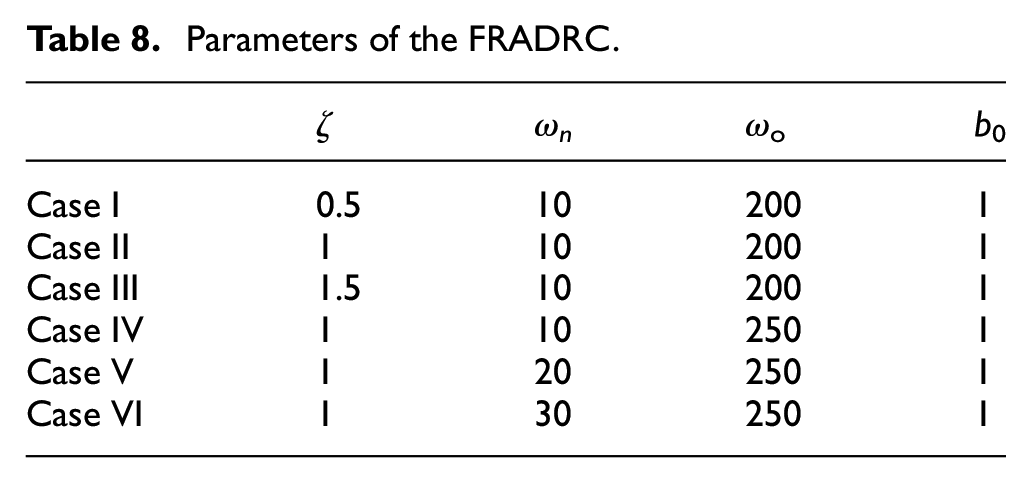

Table 8.

Parameters of the FRADRC.

	ζ	ω_n	ω_o	b ₀
Case I	0.5	10	200	1
Case II	1	10	200	1
Case III	1.5	10	200	1
Case IV	1	10	250	1
Case V	1	20	250	1
Case VI	1	30	250	1

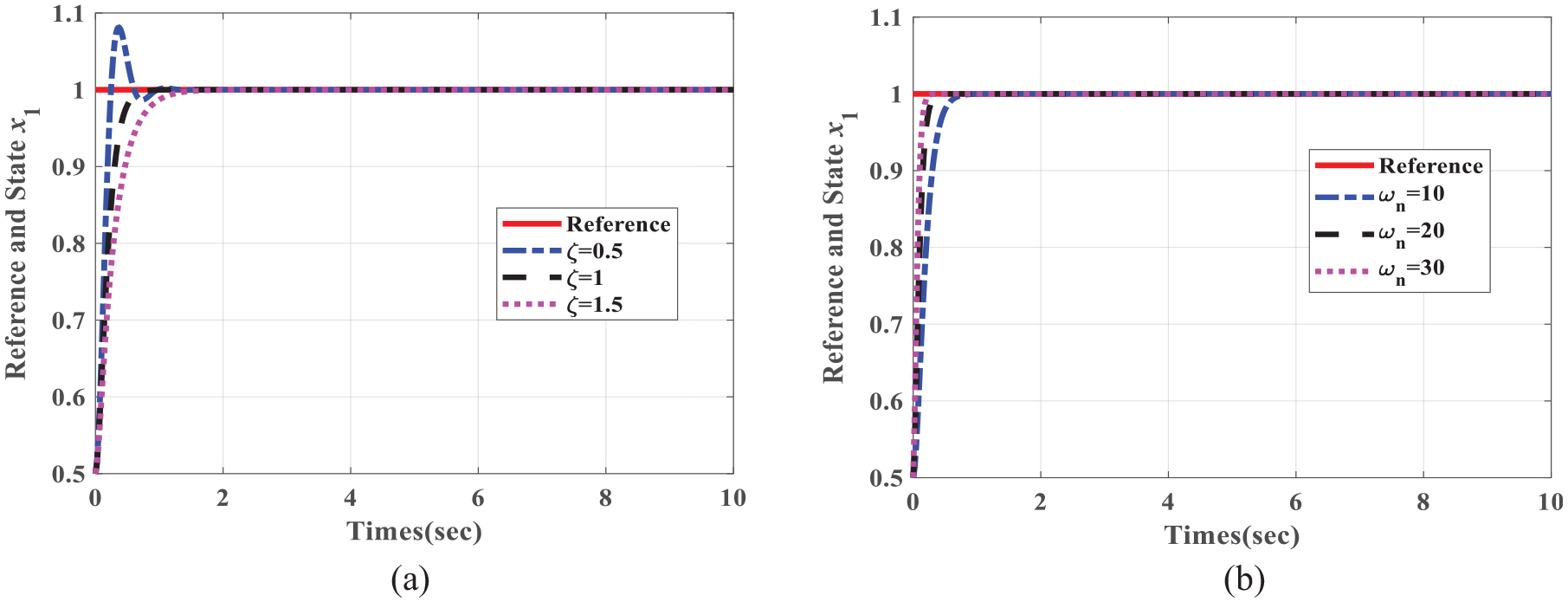

Figure 22.

Step responses of Case I–Case VI: (a) Step responses of different damping ratios and (b) Step responses of different ω_n s.

From Figure 22(a), one can see that, in Case I, when $ζ = 0.5$ , there exists overshoots in the closed-loop response. In Case II, $ζ = 1$ , one can see that there is no overshoot in system response. Finally, when $ζ = 1.5$ , the response becomes slow. In other words, system response becomes slow when damping ratio increases, and the overshoot reduces. Moreover, the overshoot disappears when $ζ \geq 1$ . Figure 22(b) presents responses with different nature frequencies $ω_{n}$ . Obviously, by increasing $ω_{n}$ , system responses become faster.

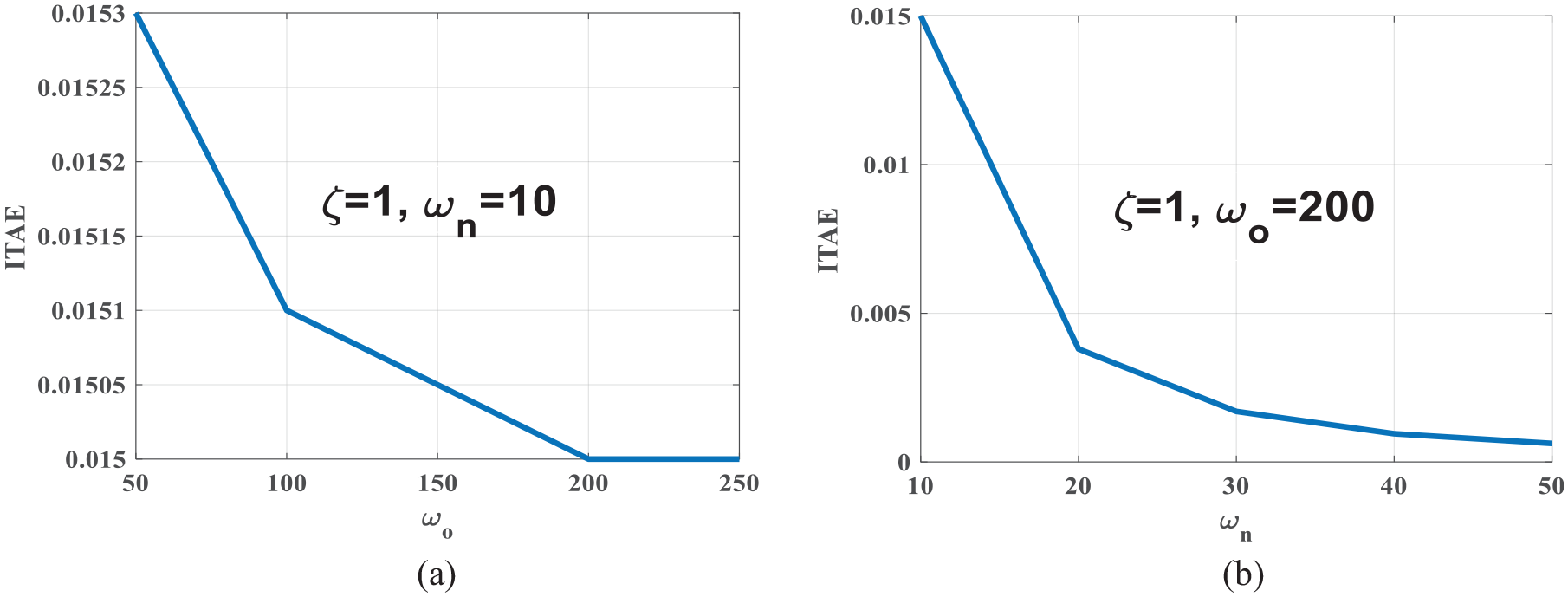

Figure 23 shows ITAE values when different observer bandwidths and natural frequencies are taken. Figure 23(a) describes that, when ζ and ω_n are fixed, if the observer bandwidth is increased, the ITAE values is reduced. However, when the observer bandwidth is increased from 200 to 250 rad/s, the ITAE value keeps the same. Furtherly, the observer bandwidth is fixed at 200 rad/s, and the nature frequency ω_n is increased from 10 to 50. System response becomes faster, and Figure 23(b) depicts the decreasing tendency of the ITAE when the nature frequency is increased. From Figure 23, one can find that both the observer bandwidth and nature frequency are helpful to improve the speed and accuracy of the system response. However, when the observer bandwidth is large enough, it will not affect the ITAE values, and then the nature frequency plays a great role in determining the system performance.

Figure 23.

ITAE values for different ω_o and ω_n: (a) ITAE values when ω_o changes and (b) ITAE values when ω_n changes.

In short, the CTDESO is powerful in linearizing a nonlinear system with/without external disturbance. Based on the CTDESO, the FRADRC is effective in nonlinear system control. Furthermore, based on the CTDESO, one can design a closed-loop nonlinear control system via a sophisticated linear control technique, and the system performance can be analyzed via linear system theory. It makes the nonlinear system control become easier and more practical.

Conclusion

In this paper, based on the CTDESO, a nonlinear system control technique is proposed. By linearizing a nonlinear system, a prescribed closed-loop system dynamic can be realized. There is no need to identify the nonlinear system dynamics. Thus, it simplifies the nonlinear system control design. Numerical results also confirm the proposed FRADRC is much more effective in face of four typical nonlinear systems. In addition, based on the linearized plant, any linear system control approach can be introduced to the nonlinear control system design seamlessly. Therefore, it provides a more effective and inclusive approach to deal with the control problem of a nonlinear system. Nevertheless, the proposed approach is an observer-based way. It needs a more powerful observer to make a more effective linearization. Simultaneously, if a model of the controlled nonlinear system is available, one can incorporate the model information into the observer design, which will also improve the estimation ability of an observer. Therefore, it is an alternative way to enhance an observer. Moreover, an advanced observer also deserves more attention.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work is supported by the Fundamental Research Funds for the Central Universities (2022RC22), and National Natural Science Foundation of China (No. 61873005).

ORCID iDs

Wei Wei

Weicun Zhang

Min Zuo

References

Yang

Liu

, et al. Nonlinearity estimator-based control of a class of uncertain nonlinear systems. IEEE Trans Autom Control 2020; 65(5): 2230–2236.

Zhou

Doyle

JC.

Essentials of robust control. Upper Saddle River, NJ: Prentice-Hall, 1998.

Zhao

Guo

Control of nonlinear uncertain systems by extended PID. IEEE Trans Autom Control 2021; 66(8): 3840–3847.

Dong

Gao

Ning

, et al. Error-driven nonlinear feedback design for fuzzy adaptive dynamic surface control of nonlinear systems with prescribed tracking performance. IEEE Trans Syst Man Cybern 2020; 50(3): 1013–1023.

Wang

Liu

Qiu

, et al. Finite-time adaptive fuzzy control for nonstrict-feedback nonlinear systems via an event-triggered strategy. IEEE Trans Fuzzy Syst 2020; 28(9): 2164–2174.

Lin

Chen

BS.

Robust H_∞ adaptive fuzzy tracking controlfor MIMO nonlinear stochastic Poisson jump diffusion systems. IEEE Trans Cybern 2019; 49(8): 3116–3130.

Meng

Jia

, et al. High-precision formation control of nonlinear multi-agent systems with switching topologies: a learning approach. Int J Rob Nonlinear Control 2015; 25(13): 1993–2018.

Chen

Yang

Guo

, et al. Disturbance-observer-based control and related methods—an overview. IEEE Trans Ind Electron 2016; 63(2): 1083–1095.

Gao

Chen

Sun

, et al. An efficient fast altitude control for hypersonic vehicle. Control Eng Pract 2020; 100: 10442613.

10.

Wei

Zhang

Chen

, et al. On disturbance rejection control of the epileptiform spikes. Cogn Neurodyn 2022; 16: 425–441.

11.

Cheng

Chen

Sun

, et al. Cascade active disturbance rejection control of a high-purity distillation column with measurement noise. Ind Eng Chem Res 2018; 57(13): 4623–4631.

12.

Zheng

Chen

Gao

A practical approach to disturbance decoupling control. Control Eng Pract 2009; 17(9): 1016–1025.

13.

, et al. Superheated steam temperature control based on modified active disturbance rejection control. Control Eng Pract 2019; 83: 83–97.

14.

Madoński

Herman

Survey on methods of increasing the efficiency of extended state disturbance observers. ISA Trans 2015; 56: 18–27.

15.

Zhu

Guo

LZ.

A pole placement controller for non-linear dynamic plants. Proc IMechE, Part I: J Journal of Systems and Control Engineering 2002; 21(6): 467–476.

16.

Wang

Song

, et al. The fuzzy PID controller design base on nonlinear U-model. In: Proceedings of the CCDC, 2018, pp.5378–5383. Shenyang, Liaoning: IEEE.

17.

Zhang

Zhu

, et al. A general U-model based adaptive control design procedure for nonlinear non-affine systems. In: Proceedings of the CCC, 2018, pp.2860–2864. Wuhan, Hubei: IEEE.

18.

Geng

Zhu

Liu

, et al. U-model based predictive control for nonlinear processes with input delay. J Process Control 2019; 75: 156–170.

19.

Gao

ZQ.

Scaling and bandwidth-parameterization based controller tuning. In: Proceedings of the ACC, 2003, pp.4989–4996. Denver, Colorado: IEEE.

20.

Jiang

Sun

Zhang

, et al. Pressure regulation for oxygen mask based on active disturbance rejection control. IEEE Trans Ind Electron 2017; 64(8): 6402–6411.

21.

Shi

Miao

Wang

An improved nonlinear proportional-integral-differential controller combined with fractional operator and symbolic adaptation algorithm. Meas Control 2020; 42(5): 927–941.

22.

Lü

JH.

Bifurcation control for A class of Lorenz-like systems. Int J Bifurcat Chaos 2011; 21(9): 2647–2664.

23.

Trofino

Dezuo

TJM

. LMI stability conditions for uncertain rational nonlinear systems. Int J Rob Nonlinear Control 2014; 24(18): 3124–3169.

24.

Adaptive sliding mode control with perturbation estimation and PID sliding surface for motion tracking of a piezo-driven micromanipulator. IEEE Trans Control Syst Technol 2010; 18(4): 798–810.
