Abstract

This paper proposes a new integral-synergetic controller for direct reactive and active powers control (DARPC) for a grid-connected doubly-fed induction generators (DFIGs) in dual-rotor wind power generation applications. The proposed DARPC strategy employs integral-synergetic control (ISC) to regulate the reactive and active powers of the DFIG-based variable speed dual-rotor wind turbine systems. The proposed ISC technique is the contribution of this work, where this strategy is a development of synergetic control and simplicity and robustness are the most prominent features. The main advantages of the proposed ISC-DARPC technique are ease of implement, good dynamic response, simple structure, and constant switching frequency operation. The Matlab software is used to validate the design of the ISC-DARPC technique, and the obtained results are compared with traditional DARPC. In addition, the ISC-DARPC technique is able to fully minimize ripples in both torque and active power during grid voltage imbalance or parametric changes on the DFIG.

Keywords

Dual-rotor wind power generation direct reactive and active powers control doubly-fed induction generator integral-synergetic control

Introduction

Direct active and reactive powers control (DARPC) is one of the most and largest existing methods of control for wind powers because it is a simple technique, easy and robust control compared to a field-oriented control (FOC) technique.¹ This strategy belongs to the family of linear strategies that depend on switching tables in order to generate control pulses in the inverter. The DARPC strategy produces fewer ripples for torque, current, and active power than both the direct and indirect FOC strategy.² Moreover, this strategy offers high performance with great efficacy in improving systems advantages much more than in the case of FOC strategy.³ The DARPC strategy does not need to know the mathematical form of the system under study, which makes it provide a fast dynamic response and high performance compared to FOC and vector control, as this strategy was proposed as one of the best reliable solutions in systems that work with wind power (WP).⁴ In general, the DARPC strategy is among the best strategies available at the moment with direct torque control (DTC). This strategy in principle and idea has the same principle as in the DTC strategy, where in the DARPC strategy both active and reactive power (Ps and Qs) are used as references.^2,3 On the other hand, the traditional DARPC strategy with a lookup table is introduced to the power control of the doubly-fed induction generator (DFIG), which decouples good performances in the WP systems.⁵ However, the lookup table may not give satisfactory performances against parameter variations of the DFIG. The DARPC strategy with a lookup table gives more total harmonic distortion (THD) of voltage/current and more Ps and Qs ripples as a result of using two hysteresis comparators to control the power of generators. In Nafar and Mansouri,⁶ the authors proposed the use of the DARPC technique applied to the DFIG-based WP system. However, applying this technique leads to large Ps and Qs ripples, THD of current, and variable switching frequency due to hysteresis controllers.⁷ The DARPC strategy was designed to control the Ps and Qs of the permanent magnet synchronous generator.⁸

Recently, several DARPC strategies law based on a DFIG are presented in literature such as neural DARPC strategy,⁹ fuzzy DARPC control,¹⁰ neuro-fuzzy DARPC strategy,¹¹ sliding mode-DARPC control,¹² DARPC strategy with classical space vector modulation (CSVM),¹³ DARPC control with super-twisting sliding mode (STSM) controllers,¹⁴ DARPC strategy with neural STSM controllers,¹⁵ DARPC strategy based on genetic algorithm (GA),¹⁶ DARPC strategy based on backstepping controller,¹⁷ DARPC strategy based on terminal synergetic controller,¹⁸ DARPC strategy based on third-order sliding mode controller,¹⁹ DARPC strategy based on sliding mode controller (SMC),²⁰ and the DARPC control with neuro-fuzzy STSM controllers.²¹ These proposed strategies to improve the performance of DARPC are multiple and differ from each other in terms of complexity, simplicity, and ease of implementation. Also, in terms of durability and results obtained. In all of the above strategies, all dispense with two hysteresis comparators and switching table with the aim of increasing the robustness of the strategy and overcoming the defects of the traditional strategy. But the use of these strategies increases the degree of complexity, as is the case in the case of using backstepping control and passivity control, and this is not desirable. In addition, some of these strategies used are related to the mathematical form of the system, which creates problems and defects in case the system parameters change, and this is undesirable. However, the synergetic control (SC) theory remains one of the best nonlinear controls that can be proposed as the best solution to overcome the disadvantages of the DARPC, as shown in the work done in Habib.²² Compared to the SMC technique, SC technique is simple, uncluttered, and reduces chatter significantly. In Abdesselem et al.,²³ the authors propose a new strategy of SC technique based on the derivative and integral of macro-variable. This new design is based on double-loop control to improve the effectiveness and robustness of the DFIG controlled by a FOC strategy. Due to the importance of the DARPC strategy, it has seen great interest among researchers, especially in the field of renewable energies, where they have tried to overcome its problems by using several strategies such as the use of nonlinear controls, smart methods, and hybrid strategies. In Habib and Nicu,²⁴ DARPC with SC technique has been introduced for DFIG-based dual-rotor wind turbines (DRWTs) because of its simple algorithm, robustness, and easy implementation. In Habib and Hamza,²⁵ the author designed the use of a DARPC strategy with a GA technique applied to the DFIG-DRWT system. Simulation shows the superiority of the designed technique. In Benbouhenni,²⁶ five-level neural DARPC was designed to command the DFIG-based classical wind turbine. In all, 12 sectors DARPC control structure reduced the THD of current compared to the conventional DARPC strategy. In Lin et al.,²⁷ the DARPC control scheme was designed based on integral SMC to control a three-level inverter, where the traditional integral-proportional (IP) controllers were replaced by an integral SMC technique. The result shows the superiority of the designed technique. In Han and Ma,²⁸ a new adaptive-gain second-order SMC was proposed to improve the performance of the DARPC strategy of DFIG. The numerical results verified the robustness, effectiveness, and superiority of the proposed strategy. In Habib et al.,²⁹ the author combined the SC and SMC strategies to overcome the disadvantage of the DARPC, where the combination of the two strategies showed high efficiency in improving the robustness of the DARPC of the DFIG-DRWT system, especially in reducing the Ps and Qs ripples. In addition, super twisting algorithm (STA) and SC technique in Habib and Lemdani³⁰ have been combined to improve current quality and overcome Ps and Qs ripples. The results showed the effectiveness of the combination of the two methods to overcome the disadvantage and problems of the DARPC of the DFIG-DRWT system.

In this paper, the focus will be on the SC strategy and an attempt to give it a new form to increase its efficiency and ability to improve the characteristics and advantages of the DARPC. So, this paper is a development and modification of the works done in Habib et al.,²⁹ Habib and Lemdani.³⁰ To reduce the Ps and Qs ripples of the DARPC strategy, the use of a novel nonlinear technique is suggested in this work. In this work, a nonlinear technique based on the proposed integral-SC (ISC) is used to improve the quality of both the Ps and Qs of a DFIG-DRWT systems. The proposed control scheme takes into account the nonlinear nature of the variable-speed DRWT behavior, the flexibility of the drive train, and the turbulent nature of the variable-speed DRWT system. Moreover, the designed ISC-DARPC strategy law is robust against the DFIG parameter variations in the system.

This work presents the fundamental aspects of the ISC-DARPC strategy and presents pertinent simulation results for variable-speed DFIG-DRWT systems. The designed ISC-DARPC is compared with a classical DARPC strategy. In this work, by applying a proposed integral-SC theorem law for a DFIG system with pulse width modulation (PWM), the inherent complexity of designing the controller is removed. The original contribution of this work is the application of the designed ISC technique to regulate the Ps and Qs of the DFIG-based variable-speed DRWT system using the two-level classical PWM technique. The numerical results validate that the ISC-DARPC strategy has very robust control and gives a minimum THD of voltage and power ripple compared to the classical DARPC strategy. This represents a new robust and ripple-free DARPC strategy for DFIG-based variable-speed DRWT. However, the work carried out in this paper is completely different from several research works such as the work done in [29]29 in terms of the strategy used, the idea, the principle, and even the results obtained, which makes the technique suggested in this paper have future horizons as a solution among the solutions that it can be used in the field of the wind power.

The proposed ISC-DARPC technique controls the Ps and Qs of the variable-speed DFIG-DRWT to improve the characteristics and performance of the traditional DARPC technique and achieve the following results:

Improving the dynamic response of the variable-speed DFIG-DRWT system.

Improving the quality of Ps and Qs by minimizing the ripples of the current produced by the generator.

Minimizing the THD value of the stator current of the variable-speed DFIG-DRWT.

Increasing the robustness of the traditional DARPC technique.

Increasing the power gained from the wind.

This paper contains the following main sections: Section “Introduction” gives an introduction to this work, mentioning the contribution and the goal of this study. In section “Model of DRWT,” the mathematical form of the DRWT is briefly presented followed by the section “Model of the DFIG.” In section “Proposed ISC controller,” the designed integral SC theory is discussed. Section “Proposed DARPC-ISC strategy” dealt with in minutes the designed DARPC based on the ISC technique used in the power control. In section “Analysis and results,” the simulated results of the designed DARPC technique based on the ISC technique were presented and then compared with those obtained by the traditional DARPC technique, and finally all the conclusions reached from this work were collected in section “Conclusion.”

Model of DRWT

The use of wind power conversion systems has increased significantly in recent years. The applied systems of the WP can be classified into fixed-speed and variable-speed turbines. The variable-speed WP are as follows: the ability to achieve maximum power conversion efficiency which ultimately increases WP production and a significant reduction in mechanical stresses. In Yahdou et al.,³¹ a new WP is presented, where two wind turbines are used to produce mechanical energy from wind. This new technology is called DRWT or counter-rotating wind turbine. This new technology is the use of two turbines of different capacities and is located on the same axis and one turbine formation to convert WP into mechanical energy. However, this technology gives more mechanical energy than traditional wind turbines. In Habib et al.,³² the DRWT system provides about 20% to 30% more mechanical power compared to the mechanical power output of a traditional WP system. This technology has efficiency in the case of weak winds compared to the old technology.³³ DRWT system is not affected by the wind generated by the turbines in the case of wind farms compared to the classic turbines. But the disadvantage of this technology is that it is expensive, difficult to control, and contains many mechanical parts compared to traditional technology.³⁴ To control the DRWT the main turbine is used for this purpose, where the same strategy is followed as used in the classic turbines. So, maximum power point tracking (MPPT) is the strategy used to control the DRWT. The MPPT strategy depends on the use of a PI controller, and to implement this strategy, you must first know the mathematical form of the DRWT. The proposed generation system in this work, which is based on the use of DRWT, is shown in Figure 1, where DFIG is used to convert the acquired mechanical power into electrical power. In general, this proposed system greatly helps to protect the environment and greatly reduces the area of wind farms. The total aerodynamic torque obtained is the sum of the torques for each of the secondary and main rotors.

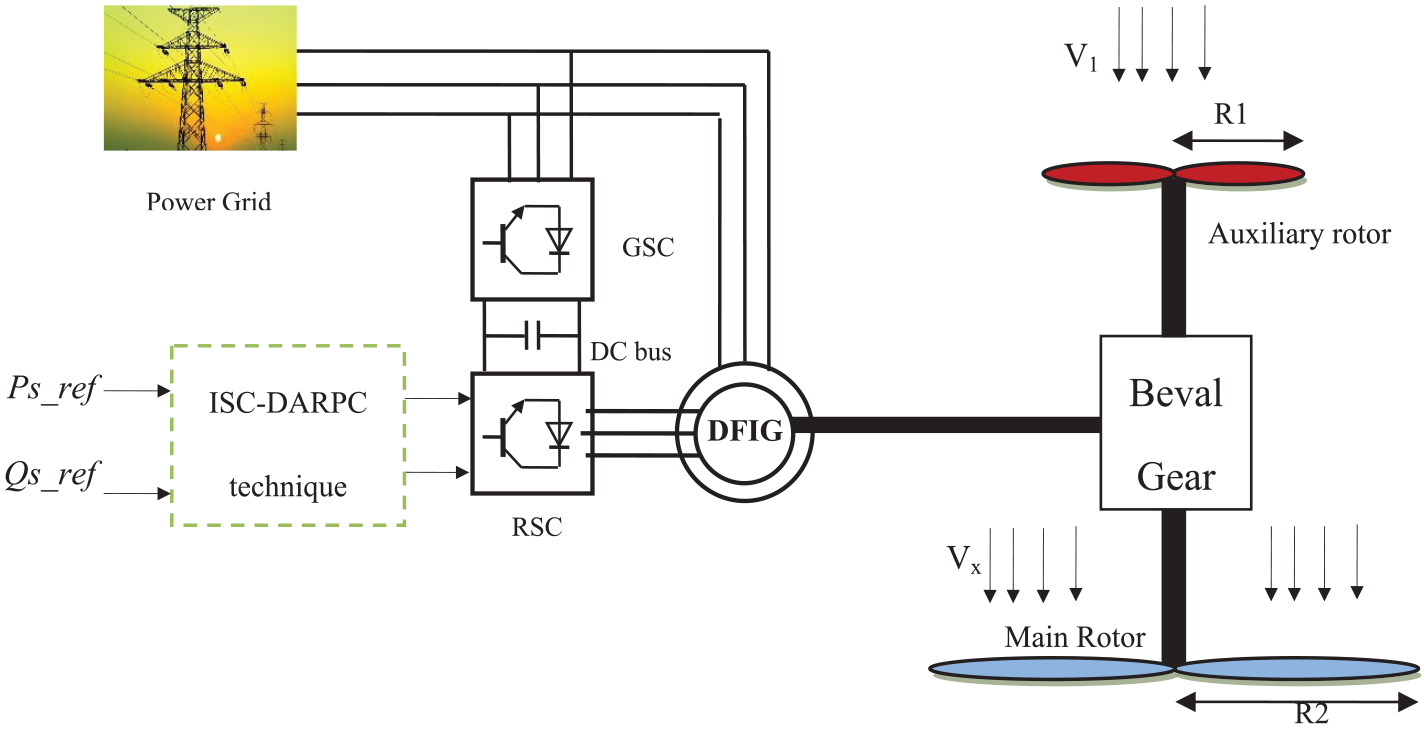

Figure 1.

DFIG-DRWT system.

The aerodynamic torque of the auxiliary rotor (AR) is given:³¹

T_{AR} = \frac{1}{2 λ_{AR}^{3}} . A . ρ ▪ π ▪ R_{AR}^{5} ▪ C_{p} w_{AR}^{2}

(1)

The torque of the main rotor (MR) is given:

T_{MR} = \frac{1}{2 λ_{MR}^{3}} . A . ρ ▪ π ▪ R_{MR}^{5} ▪ C_{p} w_{MR}^{2}

(2)

where λ_AR and λ_MR are the tip speed ration of the AR and MR, R_MR and R_AR are the blade radius of the AR and MR, ρ is the air density, and w_AR and w_MR are the mechanical speed of the AR and MR.

Equations (3) and (4) represent the tip speed ratios of the AR and MR, respectively:

λ_{AR} = \frac{w_{AR} ▪ R_{AR}}{V_{1}}

(3)

λ_{MR} = \frac{w_{MR} ▪ R_{MR}}{V_{MR}}

(4)

where V_MR is the speed of the unified wind on MR and V₁ is the wind speed on an auxiliary rotor.

Equation (5) represents the total torque of DRWT system:

T_{T} = T_{MR} + T_{AR}

(5)

where T_MR is the MR torque, T_T is the total torque, T_AR is the AR torque.

The essential element for calculating the tip speed ratio is wind speed on the auxiliary and main turbines. Obtaining the wind speed on the AR is straight forward. The wind speed on the MR is given:³¹

V_{x} = V_{1} (1 - \frac{1 - \sqrt{(1 - C_{T})}}{2} (1 + \frac{2 x}{\sqrt{1 + 4 x^{2}}}))

(6)

where Vx is the velocity of the disturbed wind between rotors at point x and C_T the trust coefficient, which is taken to be 0.9; x is the non-dimensional distance from the auxiliary rotor disk. So, with respect to x=15 m, the value of the Vx close to the main rotor is computable (rotors are located 15 meters apart from each other).³⁵

Equation (7) represents the power coefficient of the wind turbine, where the power coefficient is related to the pitch angle (β):

C_{p} (β, λ) = \frac{1}{0.08 β + λ} + \frac{0.035}{β^{3} + 1}

(7)

Model of DFIG

DFIG is among the most popular generator types in the field of WP system due to its many advantages such as durability, ease of control, and low cost.^36,37 To accomplish the proposed work in this paper, the mathematical form of the DFIG must be given. To do this, the Park transform is used to give the DFIG a mathematical form. The stator and rotor voltages equation of the DFIG can be written in the reference frame of Park in the following form:^38-42

\begin{matrix} {\begin{matrix} V_{dr} = R_{r} I_{dr} + \frac{d}{dt} φ_{dr} - w_{r} φ_{qr} \\ V_{qr} = R_{r} I_{qr} + \frac{d}{dt} Ψ_{qr} + w_{r} Ψ_{dr} \end{matrix} \end{matrix}

(8)

\begin{matrix} {\begin{matrix} φ_{dr} = L_{r} I_{dr} + M I_{ds} \\ φ_{qr} = L_{r} I_{qr} + M I_{qs} \end{matrix} \end{matrix}

(9)

Stator voltage and flux components:

\begin{matrix} {\begin{matrix} V_{ds} = R_{s} I_{ds} + \frac{d}{dt} φ_{sd} - w_{s} φ_{qs} \\ V_{qs} = R_{s} I_{qs} + \frac{d}{dt} φ_{qs} + w_{s} φ_{ds} \end{matrix} \end{matrix}

(10)

\begin{matrix} {\begin{matrix} φ_{ds} = L_{s} I_{ds} + M I_{dr} \\ φ_{qs} = L_{s} I_{qs} + M I_{qr} \end{matrix} \end{matrix}

(11)

Equation (12) represents the torque of the DFIG:

T_{e} = 1.5 p \frac{M}{L_{s}} (- φ_{sd} I_{rq} + φ_{sq} I_{rd})

(12)

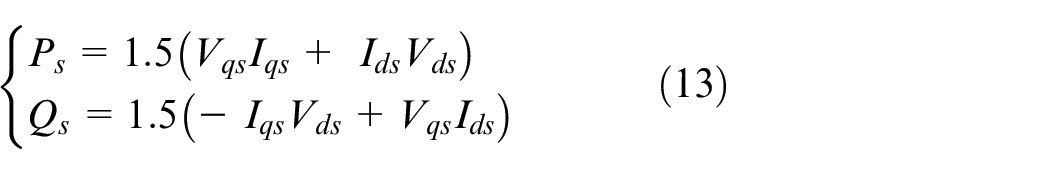

The power of DFIG is shown in Equation (13):

\begin{matrix} {\begin{matrix} P_{s} = 1.5 (V_{qs} I_{qs} + I_{ds} V_{ds}) \\ Q_{s} = 1.5 (- I_{qs} V_{ds} + V_{qs} I_{ds}) \end{matrix} \end{matrix}

(13)

Equation (14) represents the mechanical model of the DFIG:

T_{e} - T_{r} = J \frac{d Ω}{dt} + f Ω

(14)

where J is the inertia, f is the viscous friction coefficient, Ω is the mechanical rotor speed, and T_r is the load torque.

Proposed ISC controller

During the last few years, several nonlinear strategies have been proposed to control electrical machines. The SC strategy is one of the novel techniques of nonlinear controller. It is characterized by its simplicity of design, external disturbance rejection capabilities, and the global stability assurance of the system. The SC is a technique quite close to the SMC in the sense that it forces the system to evolve with a dynamic pre-chosen by the designer.²² This new strategy does not require the linearization of the model and explicitly uses a nonlinear model for the synthesis of the control. In Moati and Kouzi,⁴³ the authors suggested the use of a direct flux and torque control with the SC strategy applied to the dual stator induction motor drive, where the classical PI of speed was replaced by the SC strategy. In Qian et al.,⁴⁴ the photovoltaic system was designed based on the SC strategy theory. In Ademoye,⁴⁵ the electric power system is designed based on the SC theory. SC theory and genetic algorithm are combined to control the wind turbine systems.⁴⁶ A power system with a superconducting magnetic power storage system was proposed based on the SC theory.⁴⁷ Yahi et al.⁴⁸ developed a speed controller for an induction motor based on the SC theory. In Zhao and Wang,⁴⁹ the authors proposed the use of SMC and SC theory to control the permanent magnet synchronous motor. The use of SC technique in the field of controlling electrical machines does not eliminate the ripples of torque and current, as the problem of current quality remains low and this is undesirable.

In this section, a novel idea of SC technique is presented, whereby an integral technique is used to improve the response of the SC technique. The designed integral-SC theory is different from the traditional SC technique used in papers.^44–49 In works,^44–49 the classic SC technique was used to control the photovoltaic system, power system, and wind turbine system, respectively.

The first step in designing an SC strategy is the formation of surfaces defined in terms of system state variables as the algebraic relationships between those variables that reflect the performances of the requirements of the system design. The equation of the surface for the SC strategy is given by:

ϕ (Ψ) = Ψ

(15)

The control will make the system to operate on the manifold Ψ(0)=0 and the dynamic evolution of the surfaces according to the equation is given by:

T ▪ Ψ + \overset{\cdot}{Ψ} = 0

(16)

where T is the parameter of convergence speed of surfaces.

To ensure the stability of this functional equation, the function φ must satisfy φ(Ψ)Ψ > 0 for all Ψ ≠ 0.

Equation (17) represent the solution of Equation (16):

Ψ (t) = Ψ_{0} ▪ e^{t / T}

(17)

where T is the parameter of convergence speed of surfaces in the cas Ψ=0.

The integral-SC technique is a modified SC technique to improve the characteristics and robustness of the classical SC technique, where integration is added to the classical SC strategy in this way, the increase in efficiency and strategic effectiveness is ensured in improving the performance of systems, and in particular in improving the characteristics of the DARPC. The control law of the designed ISC strategy can be defined as follows:²⁴

Ψ + T_{1} \frac{d Ψ}{dt} + T_{2} \int_{0}^{t} Ψ \cdot dt = 0

(18)

where T₁ and T₂ are time coefficients for derivative and integration parts, respectively.

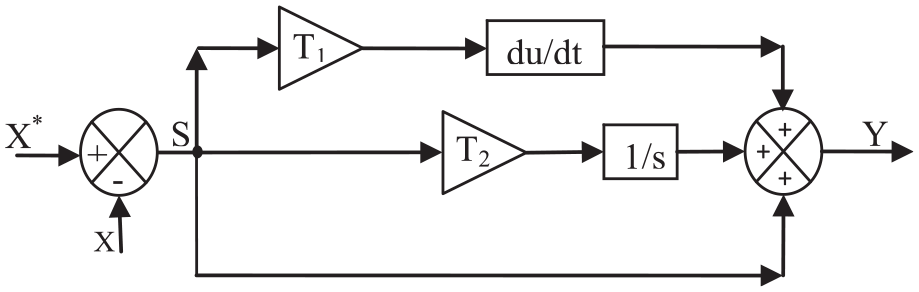

Figure 2 shows the proposed ISC technique. Through this figure, it can be said that the designed ISC is very simple and can be easily achieved compared to the rest of the nonlinear controls such as SMC or backstepping control. Also, this strategy does not require the mathematical form of the studied system, as it is applied directly without knowing the mathematical form or resorting to complex calculations, but only the surfaces must be known. This controller proposed in this work differs from several scientific works in terms of principle, idea, simplicity, and ease of practical implementation.^50–55

Figure 2.

Structure of the ISC controller.

In this work, the designed ISC technique is applied to improve the quality of the output current from a generator placed in a DRWT system. But also to reduce the ripples for torque, current, and powers Ps and Qs of the DFIG-DRWT system.

The designed controller in this section is different from the proposed strategy in work,²⁹ where the designed controller in Habib et al.²⁹ is a combination of SC and SMC techniques. So, the work done in this paper and the work done in Habib et al.²⁹ are different in principle, idea, and methods used for control. Table 1 represents a comparison between the strategy suggested in this work and the strategy implemented in the work.²⁹ This table was filed based on the results of this paper and the work performed in Habib et al.²⁹

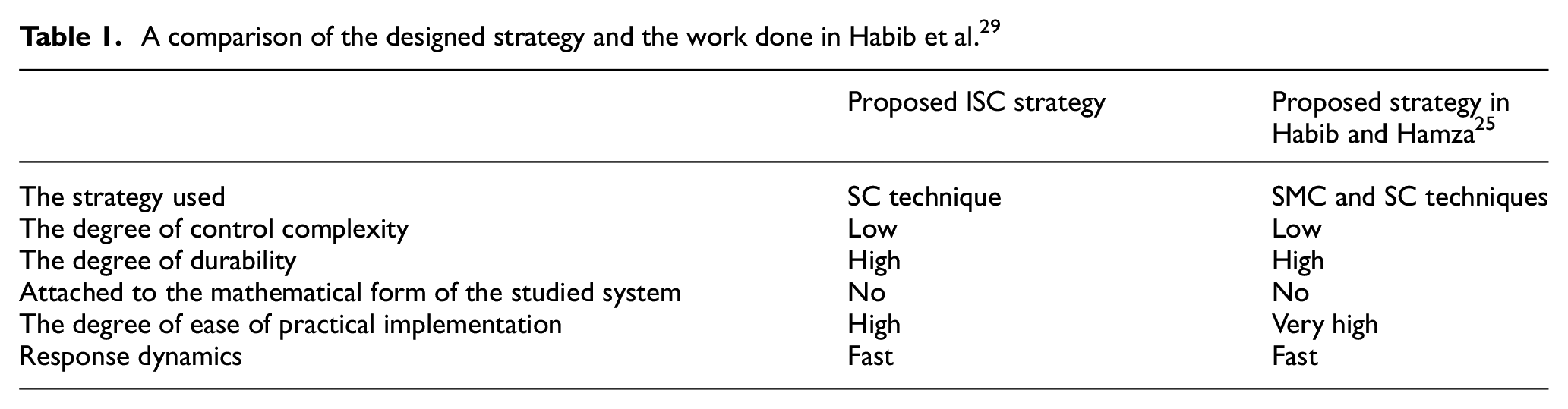

Table 1.

A comparison of the designed strategy and the work done in Habib et al.²⁹

	Proposed ISC strategy	Proposed strategy in Habib and Hamza²⁵
The strategy used	SC technique	SMC and SC techniques
The degree of control complexity	Low	Low
The degree of durability	High	High
Attached to the mathematical form of the studied system	No	No
The degree of ease of practical implementation	High	Very high
Response dynamics	Fast	Fast

Proposed DARPC-ISC strategy

The DARPC technique of the variable-speed DFIG-DRWT system with the application of the designed ISC theory is shown in Figure 3. In this proposed DARPC, the Ps and Qs are regulated by the ISC controllers. However, the ISC-DARPC is a nonlinear control, robust, easy to implement, and simple algorithm. The suggested technique is a modification of the traditional DARPC, where the ISC controller is used instead of the hysteresis comparators and to control the inverter the PWM is used instead of using the switching table. The PWM strategy was discussed in detail in the work,⁵⁶ where the pros and cons of using this strategy in the field of control were given. In this proposed technique, the estimation of both Ps and Qs is used, as is the case in the traditional strategy. Therefore, high-quality voltage and current measuring devices must be used. Besides, the suggested DARPC with ISC controllers minimized the Ps and Qs ripples and give the minimum THD value of stator voltage compared to the conventional DARPC. However, the proposed ISC-DARPC minimizes the value of overshoot, steady-state error (SSE), and rise time compared to many methods such as the DARPC and FOC strategies. Also, durability is among the advantages of the ISC-DARPC compared to the DARPC, as when the parameters of the machine change, the proposed ISC-DARPC technique provides better results than the DARPC. Moreover, the proposed ISC-DARPC technique offers a fast dynamic response compared to the DARPC strategy.

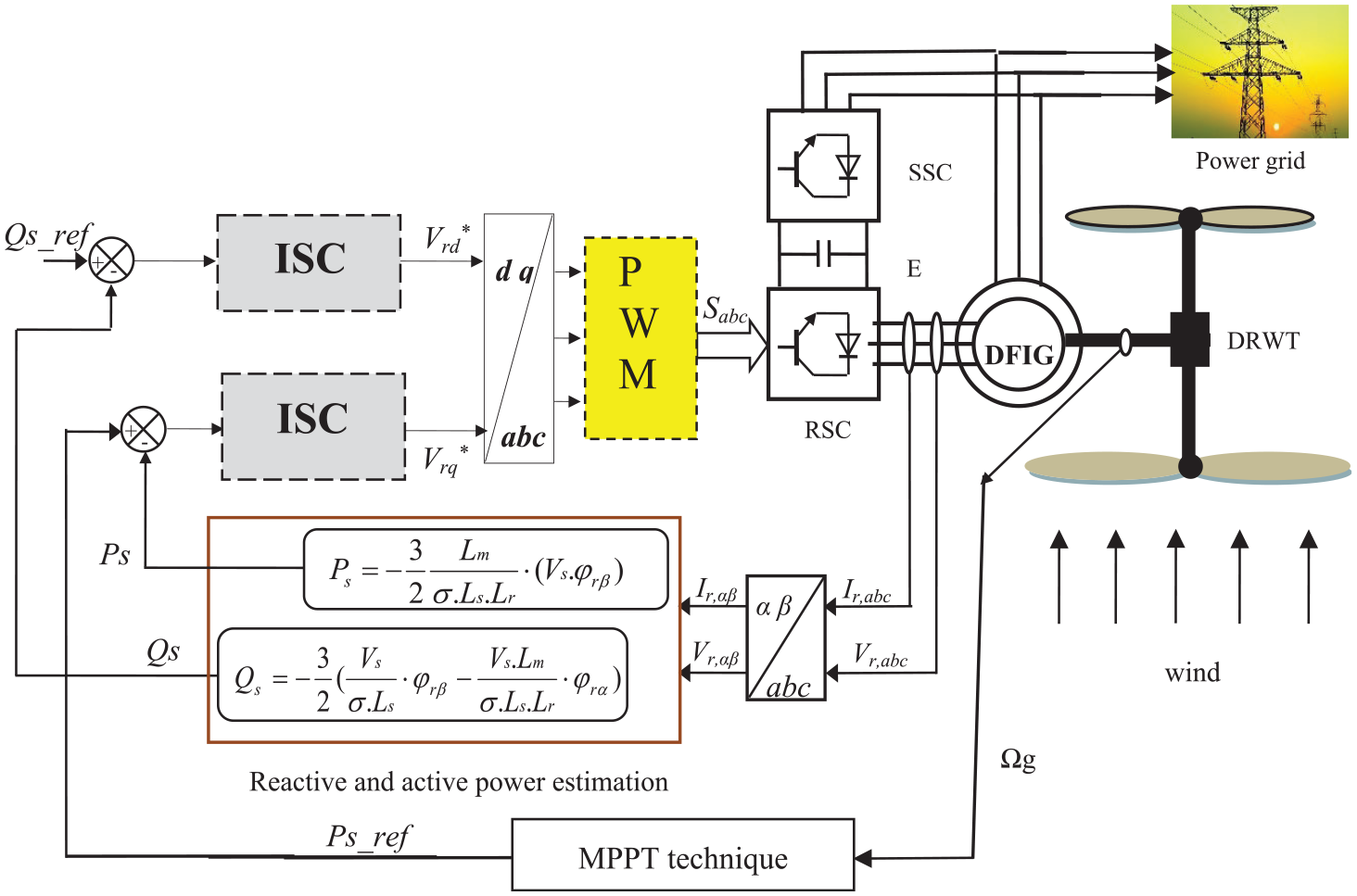

Figure 3.

The ISC-DARPC technique of the DFIG-DRWT system.

In this proposed strategy, the MPPT strategy is used to obtain the reference value of Ps using wind speed, and a traditional MPPT based on the use of a PI regulator is used. In addition, the reference value of the Qs is set to 0 VAR.

The designed ISC-DARPC in this work is a development of the classical DARPC technique to improve the quality of the power and the Ps generated by the DFIG-DRWT. In the ISC-DARPC, the PWM technique is used to simplify the system, reduce cost, and facilitate control. The proposed ISC technique is used instead of the traditional hysteresis comparators. The proposed ISC-DARPC technique preserved simplicity, robustness, and ease of implementation. Also, the ISC-DARPC improves the characteristics of the DFI-DRWT system compared to the DARPC and some other controls such as the FOC strategy.

In the ISC-DARPC technique, the capacities are estimated to calculate the error in the Ps and Qs, as these errors are inputs to the ISC strategies. In addition, the equations used in estimating the Ps and Qs are the same equations used in Benbouhenni²⁶ and Lin et al.²⁷ In Table 2, the proposed ISC-DARPC technique is compared with some of the work done in Benbouhenni,²⁶ Lin et al.,²⁷ Han and Ma,²⁸ Habib et al.,²⁹ and Habib and Lemdani.³⁰ In this proposed strategy, the ISC technique is used to improve the current quality and Ps/Qs ripples of the DFIG-based DRWT system and the PWM is used to control the DFIG converter. Thus, the proposed ISC-DARPC technique is different from the techniques proposed in works Benbouhenni,²⁶ Lin et al.,²⁷ Han and Ma,²⁸ Habib et al.,²⁹ and Habib and Lemdani.³⁰

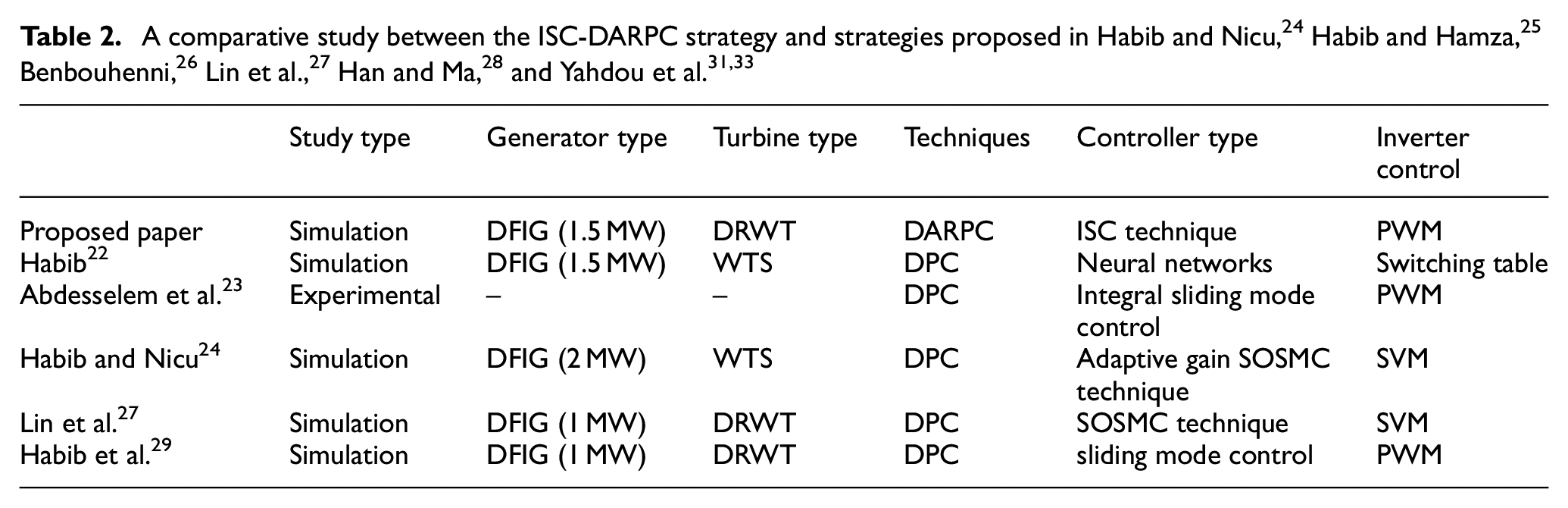

Table 2.

A comparative study between the ISC-DARPC strategy and strategies proposed in Habib and Nicu,²⁴ Habib and Hamza,²⁵ Benbouhenni,²⁶ Lin et al.,²⁷ Han and Ma,²⁸ and Yahdou et al.^31,33

	Study type	Generator type	Turbine type	Techniques	Controller type	Inverter control
Proposed paper	Simulation	DFIG (1.5 MW)	DRWT	DARPC	ISC technique	PWM
Habib²²	Simulation	DFIG (1.5 MW)	WTS	DPC	Neural networks	Switching table
Abdesselem et al.²³	Experimental	–	–	DPC	Integral sliding mode control	PWM
Habib and Nicu²⁴	Simulation	DFIG (2 MW)	WTS	DPC	Adaptive gain SOSMC technique	SVM
Lin et al.²⁷	Simulation	DFIG (1 MW)	DRWT	DPC	SOSMC technique	SVM
Habib et al.²⁹	Simulation	DFIG (1 MW)	DRWT	DPC	sliding mode control	PWM

Regarding references Yahdou et al.,^31,33 even though the same type of turbine is used, the strategy used to control the generator inverter in Yahdou et al.,^31,33 is that of second-order sliding mode control (SOSMC), respectively SMC strategy, which completely different from the control scheme proposed in this paper.

To estimate the Ps and Qs, Equations (19) and (20) are used:

Q_{s} = - \frac{3}{2} (\frac{V_{s}}{σ L_{s}} φ_{β r} - \frac{V_{s} L_{m}}{σ L_{r} L_{s}})

(19)

P_{s} = - \frac{3}{2} V_{s} φ_{r β} \frac{L_{m}}{σ \cdot L_{r} \cdot L_{s}}

(20)

with:

φ_{s β} = σ I_{r β} L_{r}

(21)

φ_{s α} = σ I_{r α} L_{r} + φ_{s} \frac{M}{L_{s}}

(22)

σ = 1 - \frac{M^{2}}{L_{s} L_{r}}

(23)

The proposed strategy aims to control the Ps and Qs using the ISC strategy. Therefore, two ISC techniques are used to control the Ps and Qs, as there is one output and one input for each ISC controller. In addition, the input is represented by the error in the Ps and Qs, and the output is a statement of the reference value of the rotor voltage.

ISC-Ps control design

In the DGASPC strategy, a regulator PI is usually used in the outer loop P_s to generate reference V_qr^*. In this work, we designed a novel nonlinear Ps regulator based on the proposed ISC controller.

The Ps regulator generates the reference rotor voltage (V_qr^*). The macro-variable will be chosen as:

Ψ_{Ps} = P_{sref} - P_{s}

(24)

Then the derivative of it is given by:

{\overset{\cdot}{Ψ}}_{Ps} = {\overset{\cdot}{P}}_{sref} - {\overset{\cdot}{P}}_{s}

(25)

Using Equation (18), the mathematical form of the ISC-Ps controller can be written as:

V_{qr}^{*} = Ψ_{Ps} + T_{1} \frac{d Ψ_{Ps}}{dt} + T_{2} \int_{0}^{t} Ψ_{Ps} . dt = 0

(26)

The ISC theory law must fulfil the Lyapunov technique to construct Ps controller stability. We can use the Lyapunov strategy to ensure a synoptic stability:

V = \frac{1}{2} Ψ (e)^{2}

(27)

After differentiation one gets:

\overset{\cdot}{V} = \overset{\cdot}{Ψ} (e) ▪ Ψ (e)

(28)

\overset{\cdot}{V} = - \frac{1}{T_{1}} Ψ^{2} (e) \leq 0

(29)

Thus, the inequality Equation (29) will ensure the stability of the closed Ps control loop.

The graphical representation of the control law of the ISC-Ps controller is shown in Figure 4.

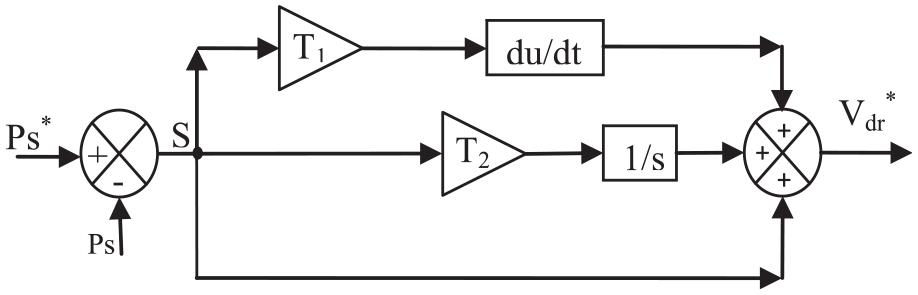

Figure 4.

Structure of the ISC-Ps controller.

ISC-Qs control design

The Qs controller generates the reference rotor voltage V_dr^*. The macro-variable will be chosen as:

Ψ_{Qs} = Q_{sref} - Q_{s}

(30)

Then the derivative of it is given by:

{\overset{\cdot}{Ψ}}_{Qs} = {\overset{\cdot}{Q}}_{sref} - {\overset{\cdot}{Q}}_{s}

(31)

Using equation (18), the mathematical form of the ISC-Qs controller can be written as:

V_{dr}^{*} = Ψ_{Qs} + T_{1} \frac{d Ψ_{Qs}}{dt} + T_{2} \int_{0}^{t} Ψ_{Qs} . dt = 0

(32)

The structure of the control law of the ISC-Qs regulator is shown in Figure 5.

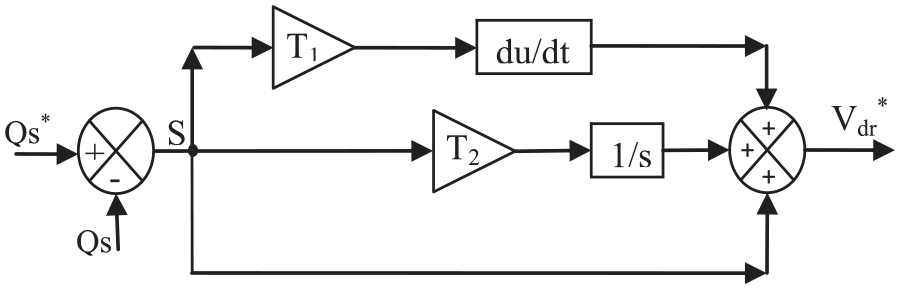

Figure 5.

Structure of the ISC-Qs control.

The proposed ISC-DARPC strategy reduces ripples for Ps/Qs, torque, and current of the DFIG-DRWT compared to the conventional DARPC technique and some other methods such as the direct and indirect FOC strategies. Moreover, the proposed ISC-DARPC strategy gives a lower value for THD compared to the conventional DARPC technique and with some published work. Also, this proposed ISC-DARPC strategy improves the dynamic response of the Ps and Qs of the generator compared to the DARPC and this is what we will discover in the next part of the article.

Table 3 shows this comparative study between the proposed and traditional DARPC strategies in terms of type controller used, degree of complexity, ease, simplicity of implementation, etc. Table 3 was completed using the simulation results obtained in this paper and those reported in other scientific works dedicated to the analysis of the DARPC strategy. Based on this table, it can be said that the designed nonlinear DARPC technique is more efficient and performant than the traditional DARPC technique, despite the difficulty of implementation that is medium for both strategies.

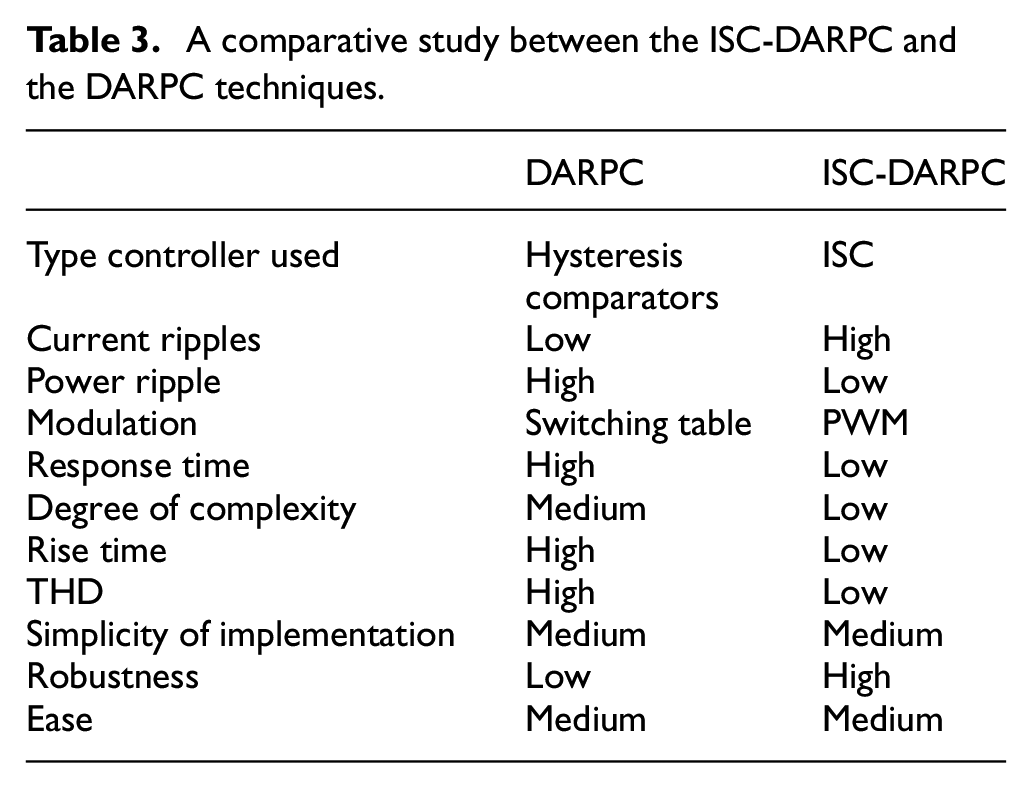

Table 3.

A comparative study between the ISC-DARPC and the DARPC techniques.

	DARPC	ISC-DARPC
Type controller used	Hysteresis comparators	ISC
Current ripples	Low	High
Power ripple	High	Low
Modulation	Switching table	PWM
Response time	High	Low
Degree of complexity	Medium	Low
Rise time	High	Low
THD	High	Low
Simplicity of implementation	Medium	Medium
Robustness	Low	High
Ease	Medium	Medium

Analysis and results

The numerical results of the ISC-DARPC strategy of the variable-speed DFIG-DRWT system are compared with the conventional DARPC with a lookup table. Both strategies were tested under different tests.

The DFIG parameters are: P_sn = 1.5 MW, p = 2, R_s = 0.012Ω, 50 Hz, 380/696 V, R_r = 0.021Ω, L_s =0.0137 H, J = 1000 kg.m², f_r = 0.0024 Nm/s, L_r =0.0136 H, and L_m = 0.0135 H.⁵⁷

First test

Figures 6 and 7 show the THD value of current for the conventional DARPC strategy with a lookup table and ISC-DARPC strategy, respectively. It can be observed that the THD is reduced for the ISC-DARPC (THD = 0.24%) when compared to the classical DARPC strategy with a lookup table (THD = 0.42%). So, the reduction ratio was about 42.85% compared to the DARPC, as this ratio indicates that the ISC-DARPC is better than the DARPC in terms of the quality of the current produced by the DFIG-DRWT system. In addition, the proposed strategy gave a value of the fundamental amplitude (50 Hz) of current equal to the amplitude in the case of conventional control, where the value was 1173 A and this is desirable.

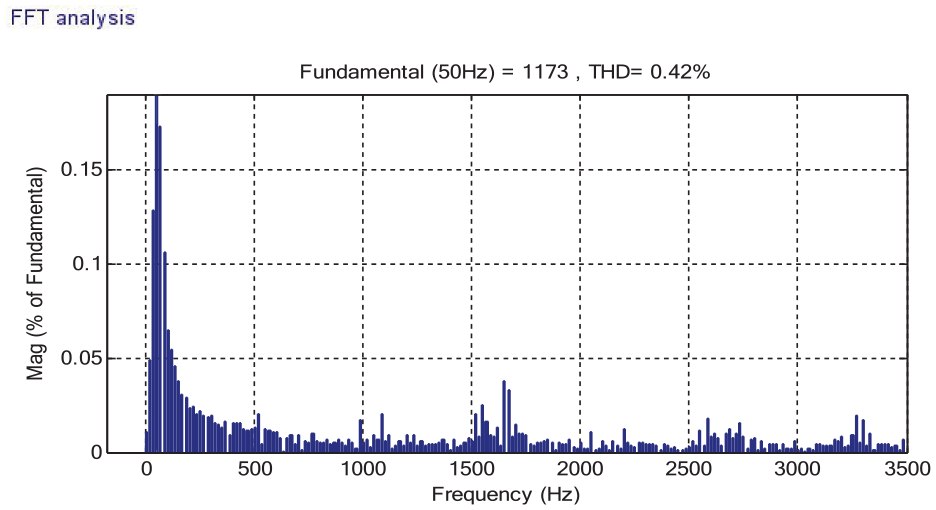

Figure 6.

THD of current (DARPC).

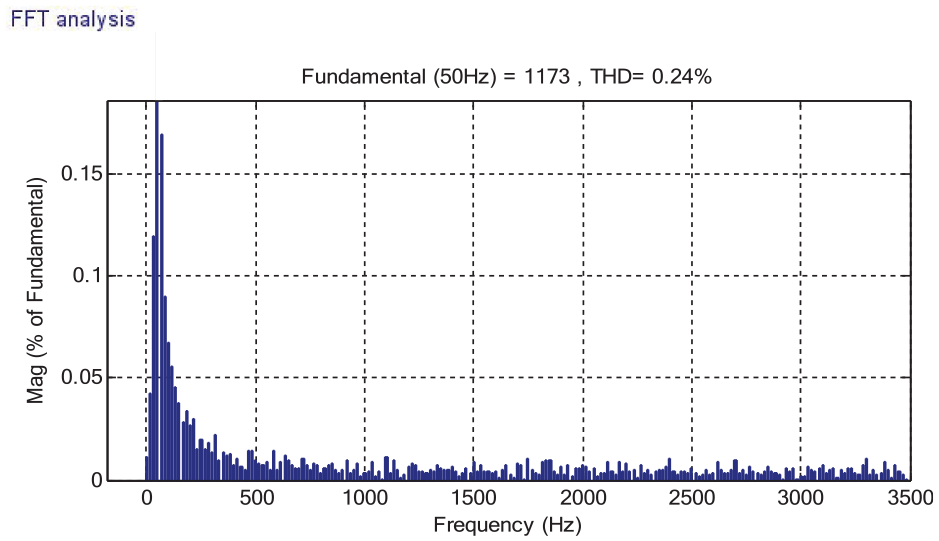

Figure 7.

THD of current (ISC-DARPC).

The simulation waveforms of the measured and reference Ps of the DFIG-DRWT system are shown in Figure 8 to compare the effectiveness of the ISC-DARPC strategy with the effectiveness of the conventional DARPC strategy with hysteresis controllers. The Ps tracks almost perfectly their reference value (P_s-ref ). The amplitudes of the oscillations of the Ps are smaller and occur in a shorter period time in comparison with the oscillations obtained for the ISC-DARPC strategy (Figure 9). On the other hand, the proposed ISC-DARPC strategy provided a fast dynamic response to the Ps compared with the DARPC.

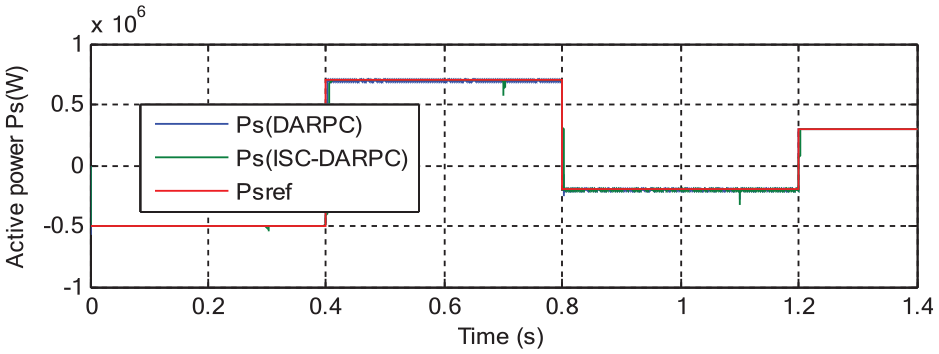

Figure 8.

Ps.

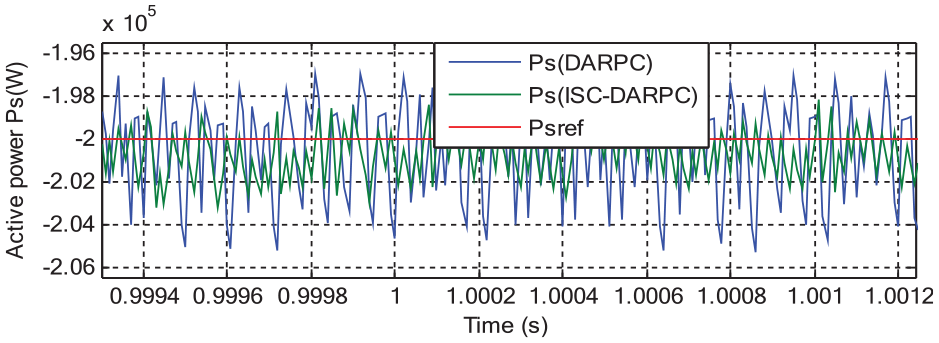

Figure 9.

Zoom in the Ps.

For the proposed ISC-DARPC strategy and conventional DARPC strategy with a lookup table, the Qs track almost perfectly their reference value (Figure 10). Moreover, the ISC-DARPC reduced the Qs ripple compared to the DARPC with a lookup table (Figure 11). Also, with a preference for the ISC-DARPC in the dynamic response compared to the classical DARPC strategy.

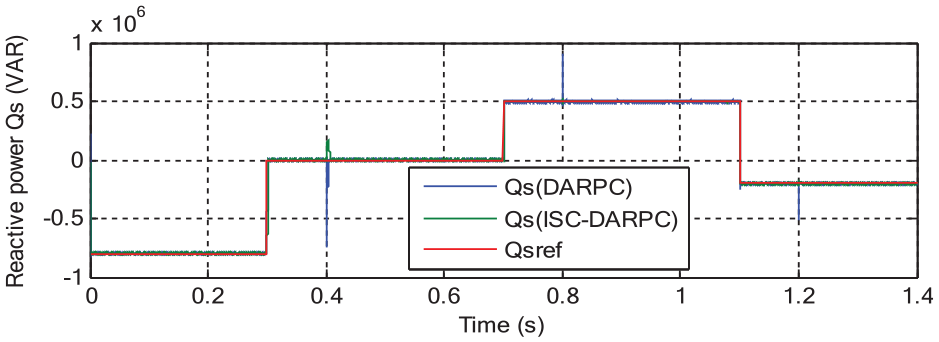

Figure 10.

Qs.

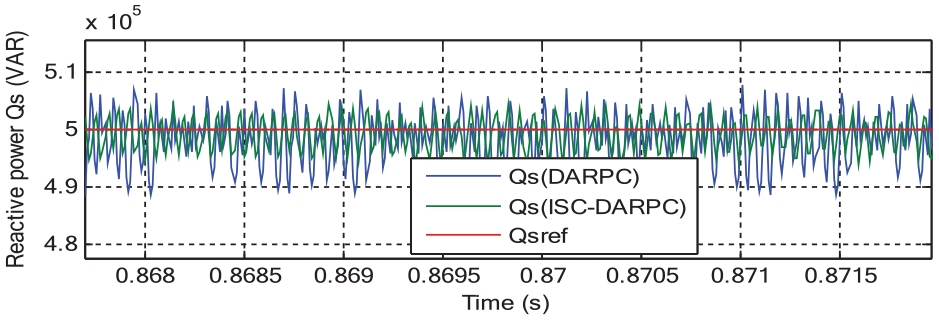

Figure 11.

Zoom in the Qs.

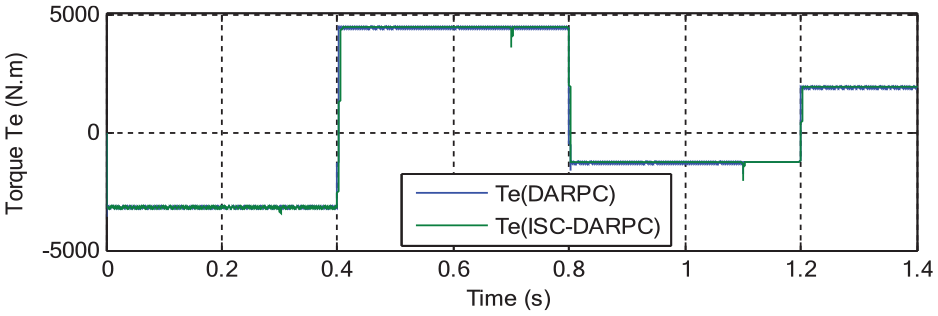

The waveforms of the torque of both techniques are shown in Figure 12. The amplitudes of the torque depending on the value of the load Ps and the state of the drive system. The ISC-DARPC minimized the torque compared to the conventional DARPC with a lookup table (Figure 13).

Figure 12.

Torque.

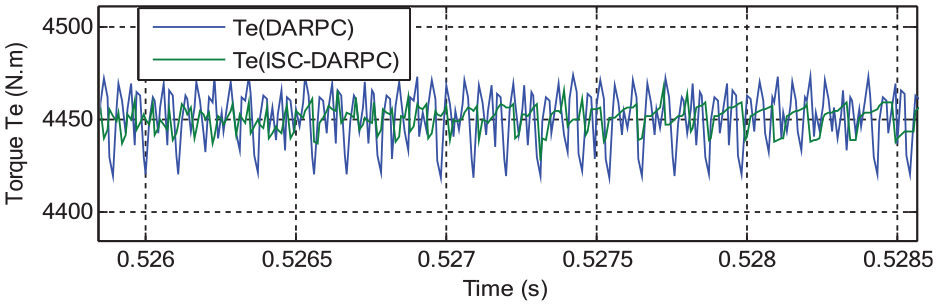

Figure 13.

Zoom in the torque.

The trajectory of the measured magnitude of the current is shown in Figure 14. It can be seen that the amplitudes of the currents depend on the value of the load Ps/Qs and the state of the drive system. In addition, the conventional DARPC strategy with a lookup table gives more ripple in current compared to the ISC-DARPC technique (Figure 15).

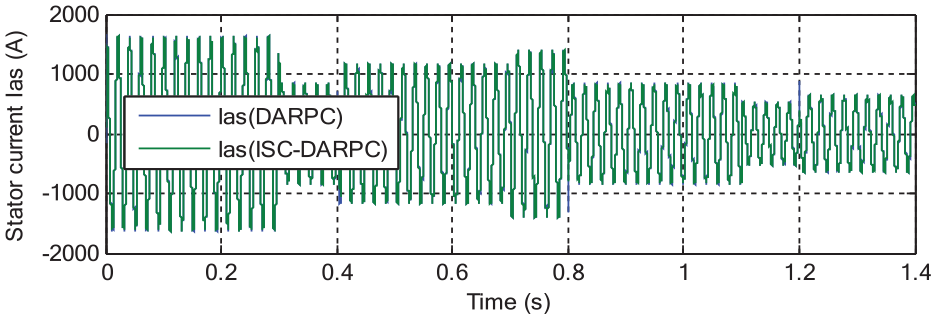

Figure 14.

Current.

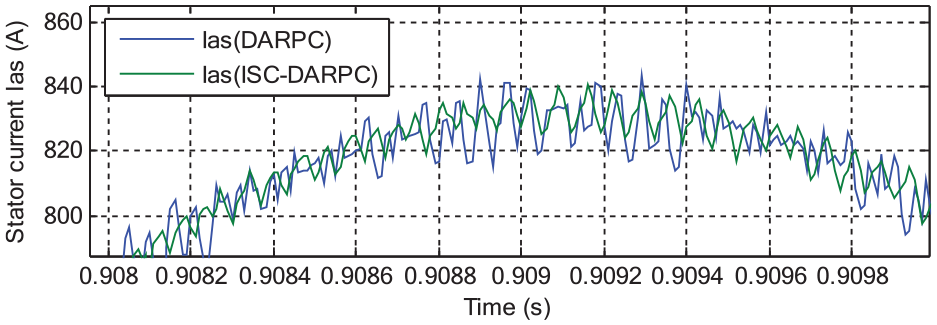

Figure 15.

Zoom in the current.

The results obtained from this test are summarized in Table 4. Table 4 is a comparative study between the ISC-DARPC strategy and the DARPC strategy in terms of the ratio of ripples and dynamic response. Through this table, the ISC-DARPC reduces the ripple ratio of Qs, current, torque, and Ps by about 47.05%, 46.42%, 45.65%, and 69.33%, respectively. Moreover, the proposed ISC-DARPC strategy provided a better dynamic response than the classical DARPC technique, which indicates the robustness of the ISC-DARPC strategy compared to the DARPC strategy. Also, the proposed ISC-DARPC minimized the THD value of the current by about 42.85% compared to the classical DARPC. In the next test, we will verify the robustness of the proposed strategy, and this is if the machine parameters are changed compared to the behavior of the classical strategy.

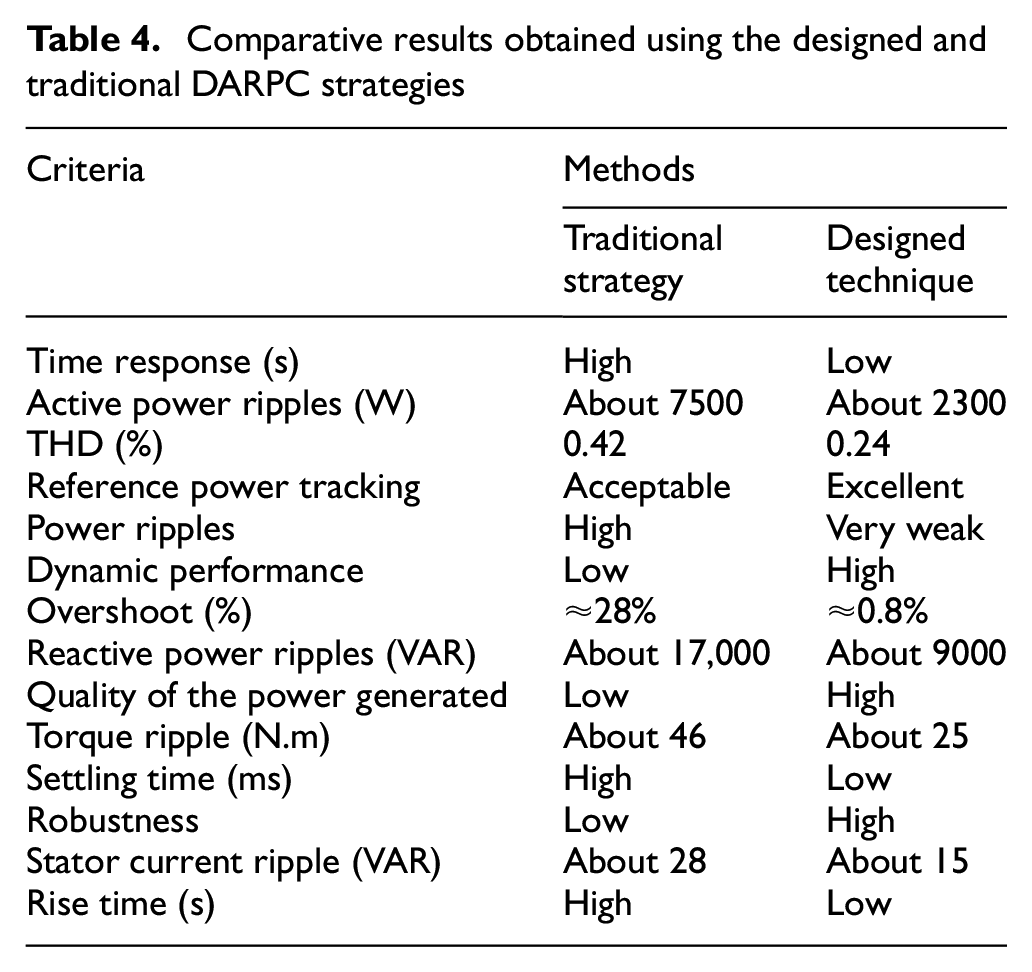

Table 4.

Comparative results obtained using the designed and traditional DARPC strategies

Criteria	Methods
Criteria	Traditional strategy	Designed technique
Time response (s)	High	Low
Active power ripples (W)	About 7500	About 2300
THD (%)	0.42	0.24
Reference power tracking	Acceptable	Excellent
Power ripples	High	Very weak
Dynamic performance	Low	High
Overshoot (%)	≈28%	≈0.8%
Reactive power ripples (VAR)	About 17,000	About 9000
Quality of the power generated	Low	High
Torque ripple (N.m)	About 46	About 25
Settling time (ms)	High	Low
Robustness	Low	High
Stator current ripple (VAR)	About 28	About 15
Rise time (s)	High	Low

Robustness test

In this part, the nominal values of R_r and R_s are multiplied by 2, and L_r and L_s are multiplied by 0.5. Simulation results are presented in Figures 16 to 25. As it is shown by these figures, these variations present an apparent effect on stator current, torque, Ps, and Qs such as the effect appears more significant for the conventional DARPC strategy with lookup table compared to ISC-DARPC strategy (Figures 22 –25). The ISC-DARPC strategy reduced the THD of current compared to the conventional DARPC strategy with a lookup table (Figures 16 and 17). Table 5 shows the comparative analysis of the THD of the current. It can be concluded that the ISC-DARPC strategy is more robust than the classical DARPC technique with a lookup table. Also, the designed ISC-DARPC technique minimized the THD value of the current by about 41.89% compared to the DARPC technique (Table 5). It is noticed from Figures 16 and 17 that the proposed strategy provided a lower amplitude for the signal of fundamental (50 Hz) of current compared to the traditional control, where the value of the amplitude was 1174 A and 1178 A for the traditional control and the proposed one, respectively.

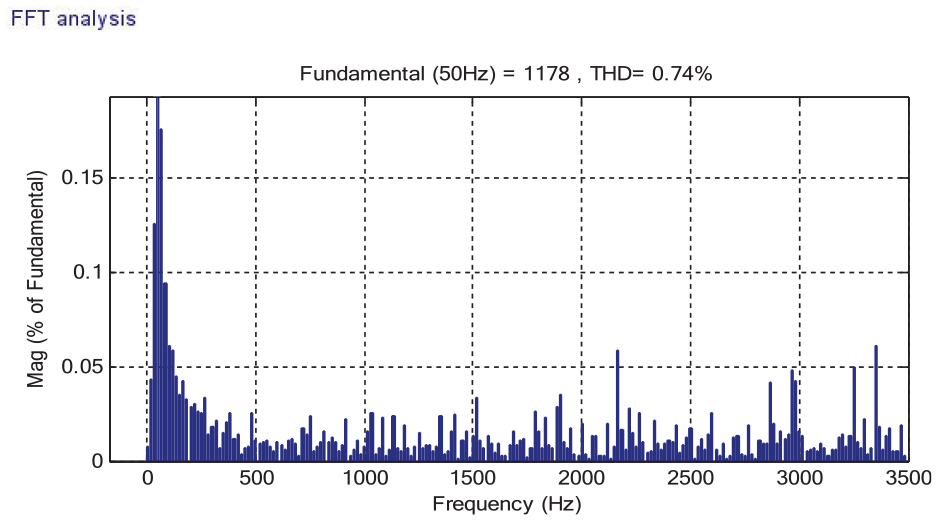

Figure 16.

THD of current (DARPC).

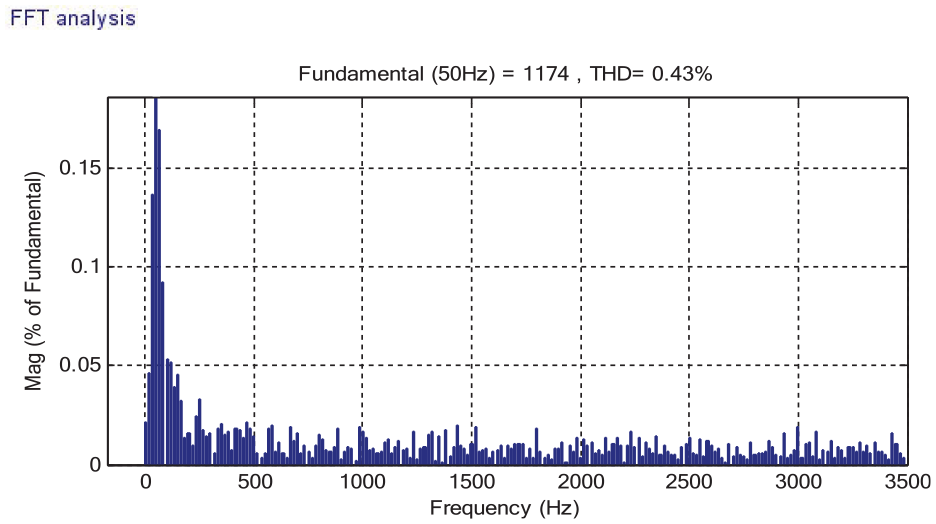

Figure 17.

THD of current (ISC-DARPC).

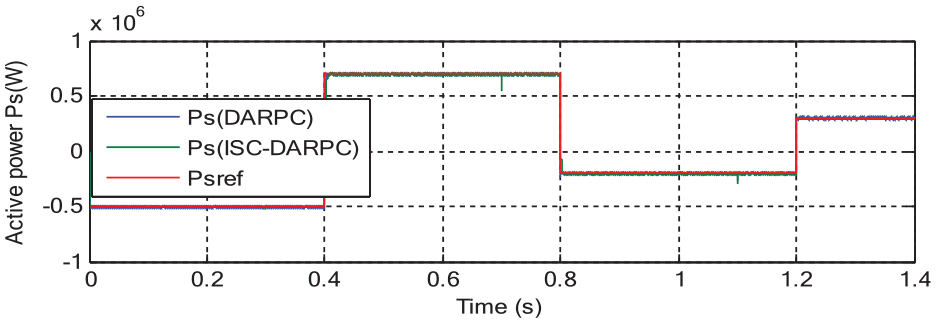

Figure 18.

Ps.

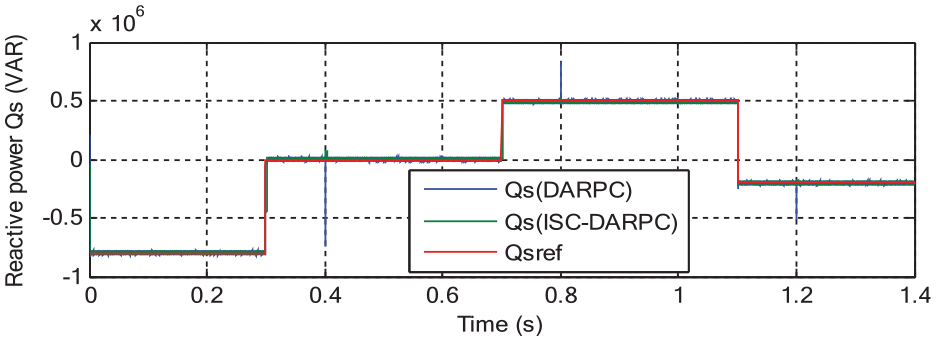

Figure 19.

Qs.

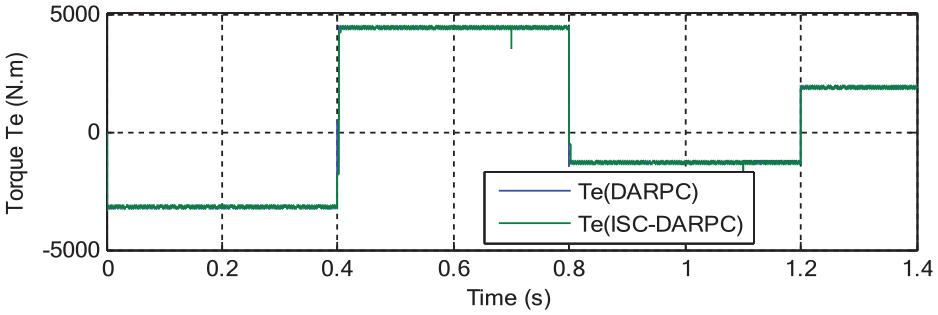

Figure 20.

Torque.

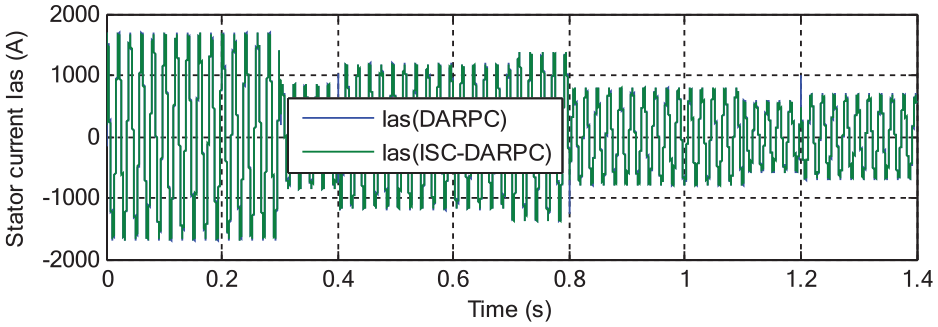

Figure 21.

Current.

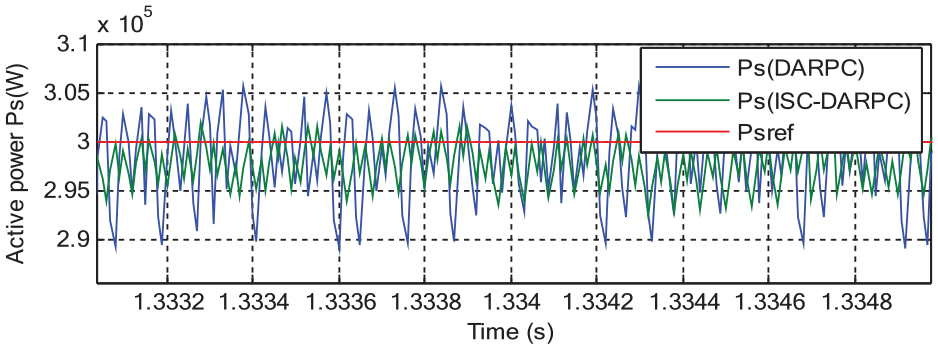

Figure 22.

Zoom in the Ps.

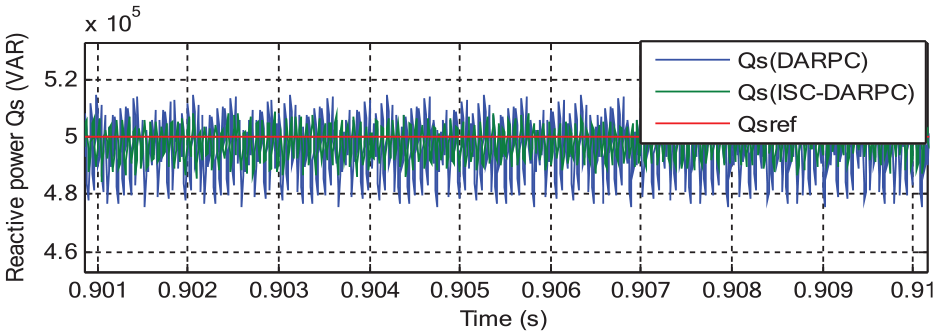

Figure 23.

Zoom in the Qs.

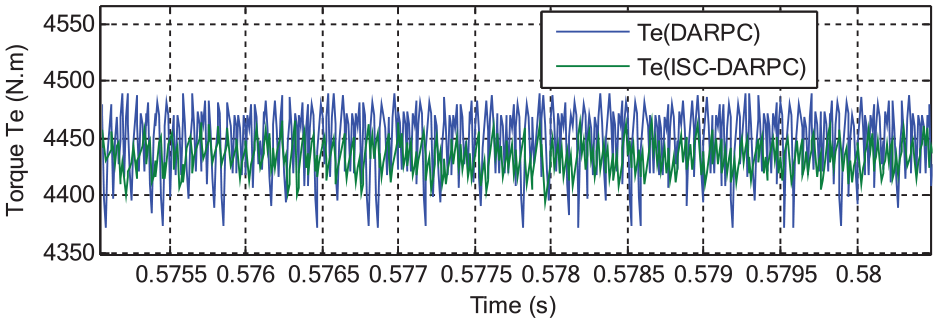

Figure 24.

Zoom in the torque.

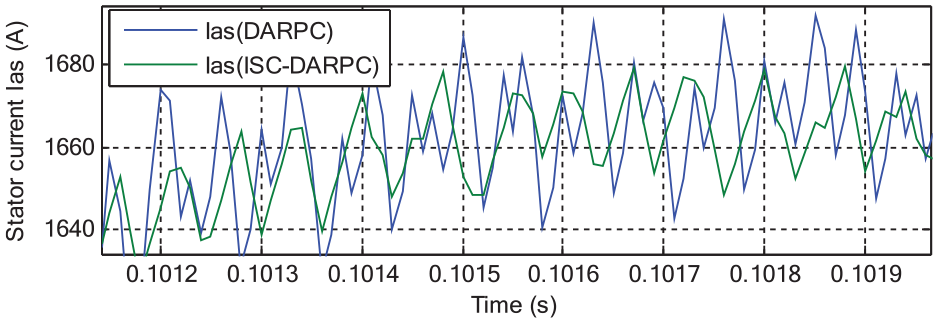

Figure 25.

Zoom in the current.

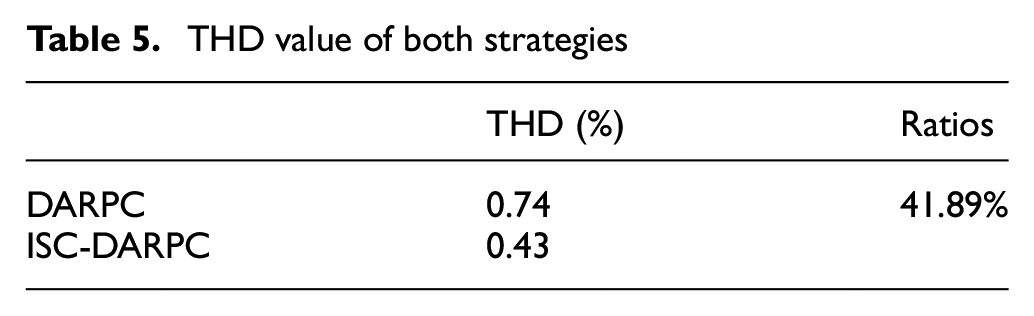

Table 5.

THD value of both strategies

	THD (%)	Ratios
DARPC	0.74	41.89%
ISC-DARPC	0.43	41.89%

The results obtained from this test are summarized in Table 6, where Table 6 is a comparative study between the designed and the traditional DARPC technique in terms of the ratio of ripples of torque, current, Ps, and Qs. The ISC-DARPC provided good results and this is shown by the high ratios, where we find that the proposed ISC-DARPC technique minimized ripples compared to the classical DARPC strategy by rates ranging from 67.08%, 47.99%, 50%, and 65.07% for torque, Qs, current and Ps, respectively.

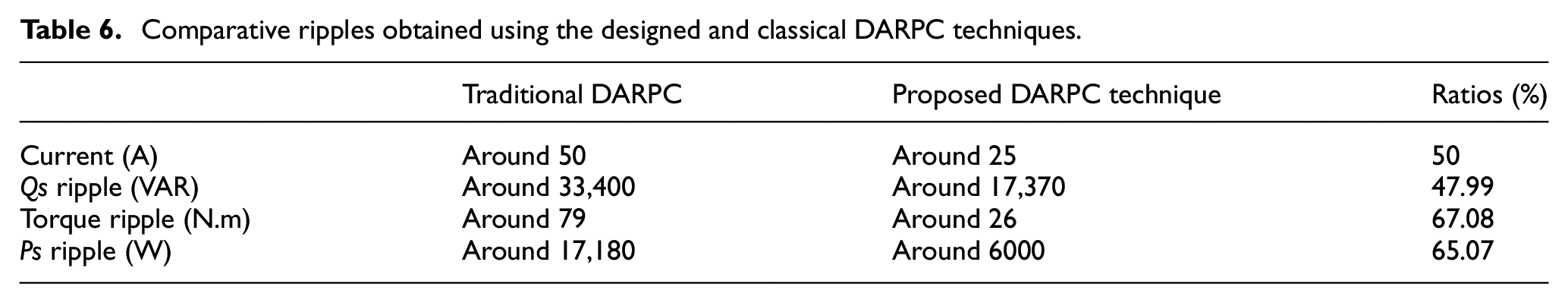

Table 6.

Comparative ripples obtained using the designed and classical DARPC techniques.

	Traditional DARPC	Proposed DARPC technique	Ratios (%)
Current (A)	Around 50	Around 25	50
Qs ripple (VAR)	Around 33,400	Around 17,370	47.99
Torque ripple (N.m)	Around 79	Around 26	67.08
Ps ripple (W)	Around 17,180	Around 6000	65.07

Variable-speed wind test

In this test, the MPPT technique is used to obtain the reference value of the Ps. Also, the reference value of the Qs is set at 0 VAR. This test aims to study the behavior of the ISC-DARPC in the case of variable wind speed compared to the classical DARPC technique. The wind speed profile used in this test in order to study the behavior of the proposed strategy is represented in Figure 26. The results of this test are shown in Figures 27 to 32. The Ps and Qs are shown in Figures 27 and 28, respectively. Through the two figures, the Ps and Qs follow the references excellently for the classical and ISC-DARPC technique, with a preference for the ISC-DARPC technique in the dynamic response. Also, the proposed ISC-DARPC technique reduced the ripples of both the Ps and Qs compared with the classical DARPC technique (Figures 33 and 34).

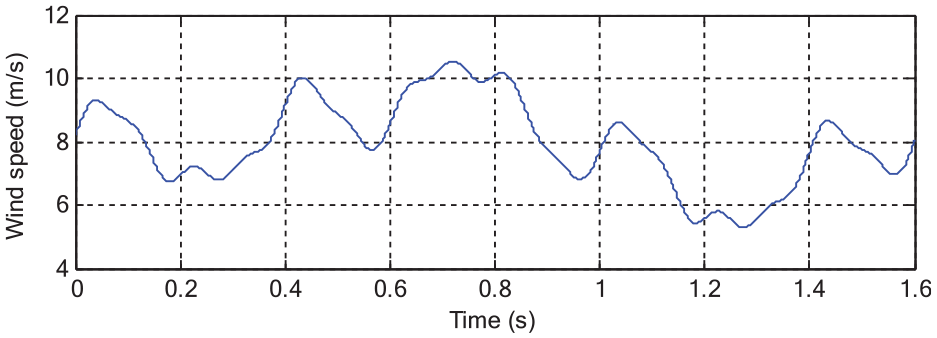

Figure 26.

Wind speed profile.

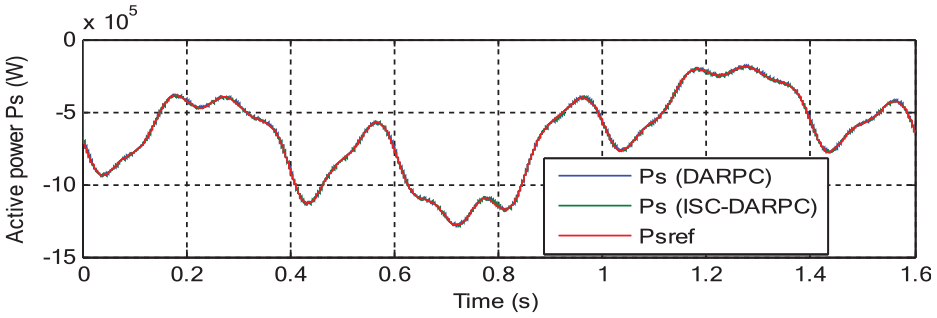

Figure 27.

Ps.

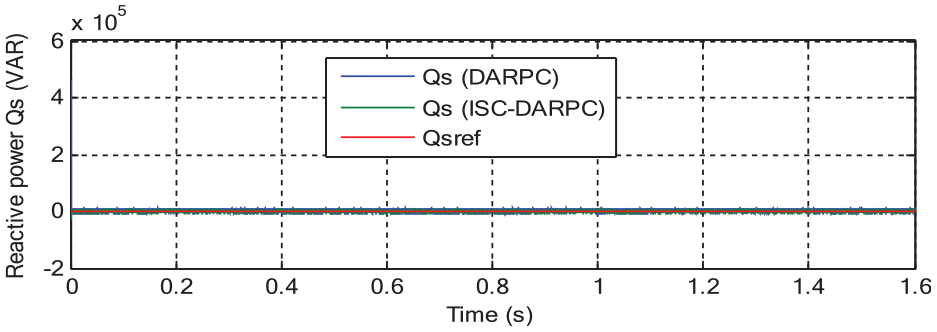

Figure 28.

Qs.

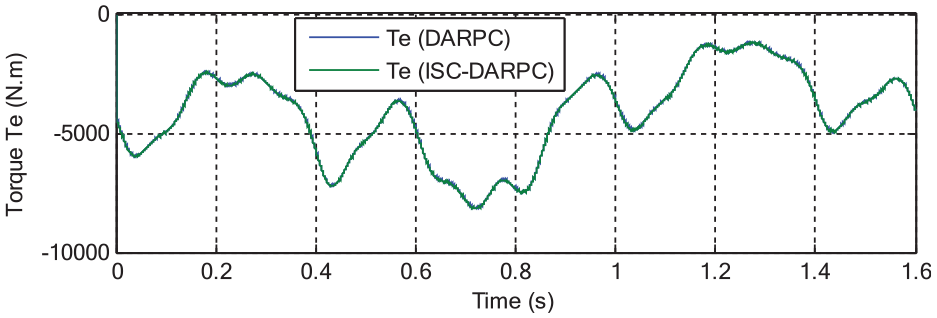

Figure 29.

Torque.

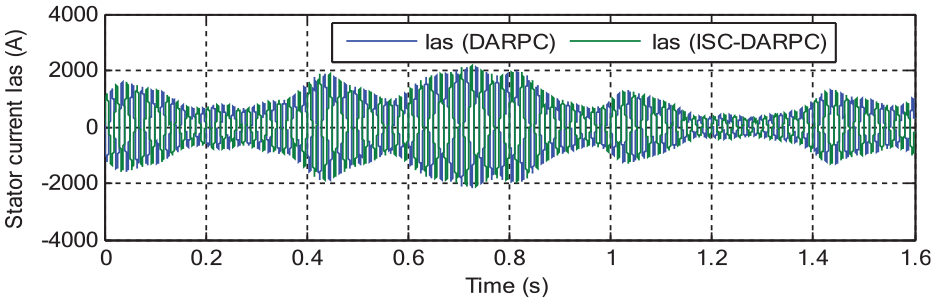

Figure 30.

Current.

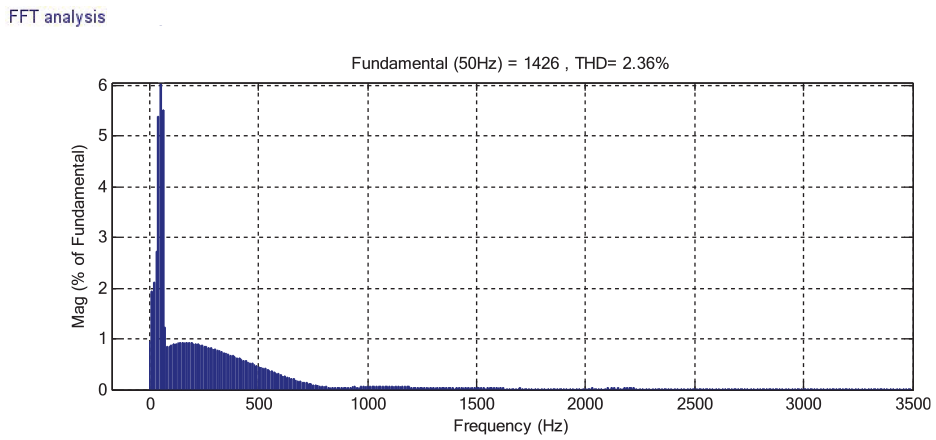

Figure 31.

THD of current (DARPC).

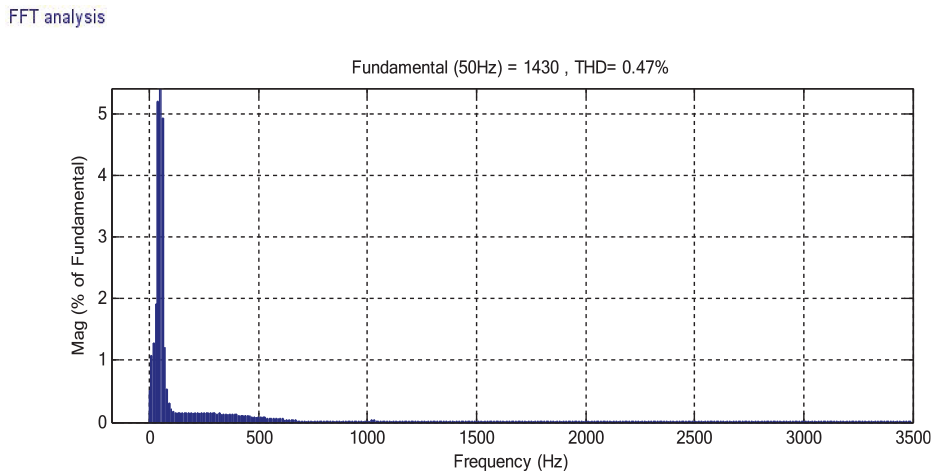

Figure 32.

THD of current (ISC-DARPC).

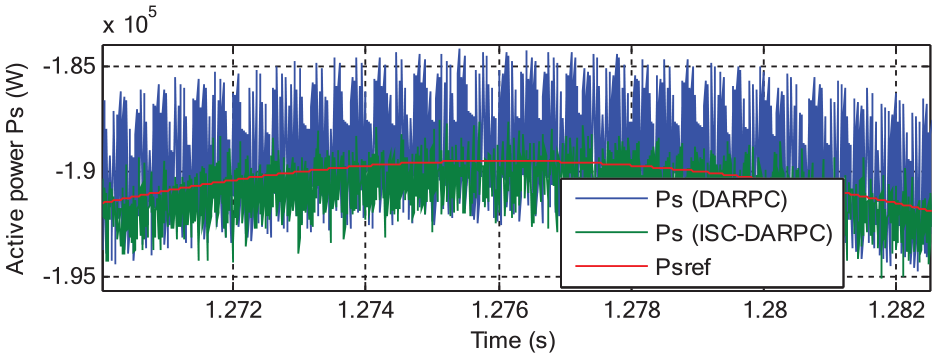

Figure 33.

Zoom in the Ps.

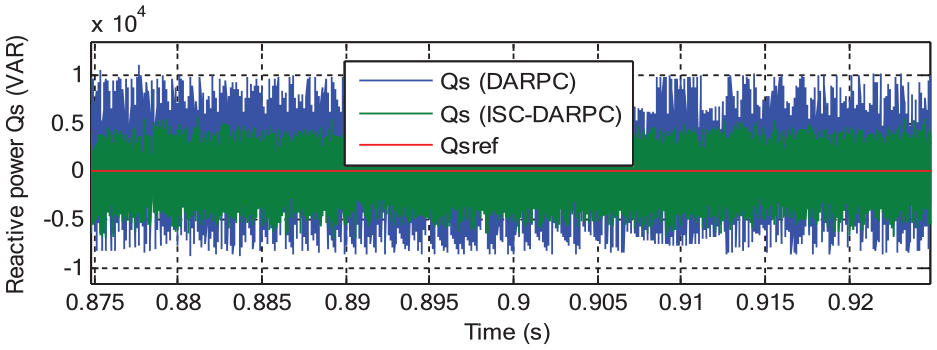

Figure 34.

Zoom in the Qs.

The generator torque and current are shown in Figures 29 and 30, respectively. By the two figures, the form of torque and current is the same as the form of the Ps. The higher the value of the Ps, the higher the value of the torque and the current, and the lower the value of the Ps, the lower the value of both the current and torque. This is because the torque and current are related to the value of the Ps. Also, the ISC-DARPC reduced the ripples of both current and torque compared with the DARPC technique (Figures 31 –33).

The THD of the current is shown in Figures 34 and 35 for the classical and ISC-DARPC techniques, respectively. Through the two figures, the proposed ISC-DARPC technique reduced this value compared to the DARPC technique, and the reduction ratio was about 80.08 %. Note that the proposed strategy gave a value of the fundamental amplitude (50 Hz) of the current slightly higher than in the case of the conventional control.

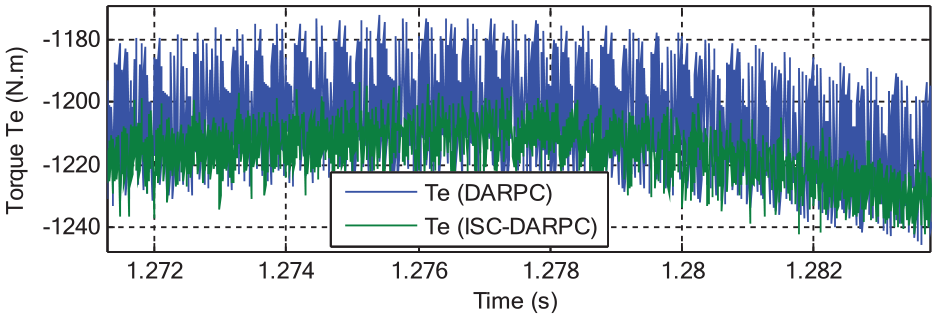

Figure 35.

Zoom in the torque.

The value of the ripples of the current, torque, the Ps, and Qs are shown in Table 7 for both the classical and the proposed ISC-DARPC techniques. Through the table, the proposed ISC-DARPC technique minimized these ripples compared to the traditional DARPC, where the reduction ratio was 42.96%, 53.37%, 61.53%, and 88.42% for torque, Ps, current and Qs, respectively.

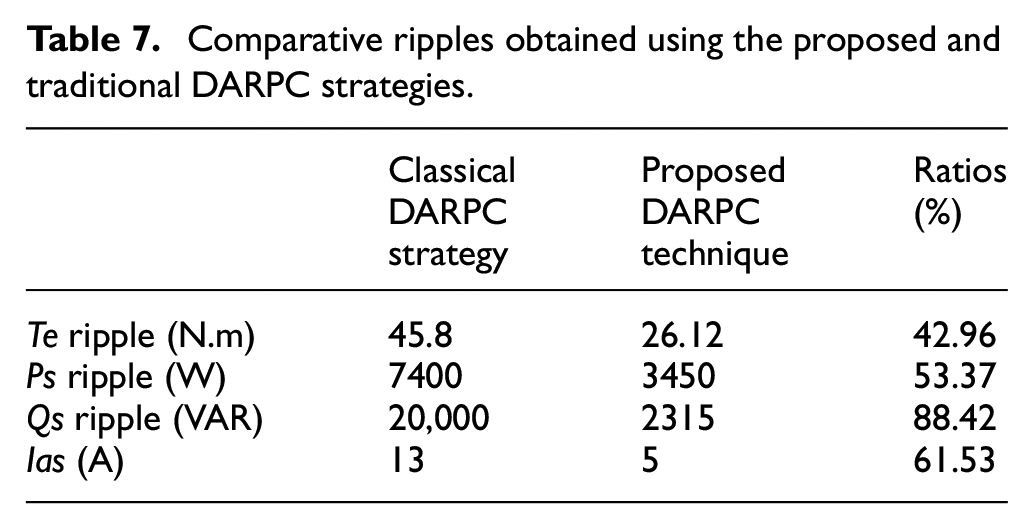

Table 7.

Comparative ripples obtained using the proposed and traditional DARPC strategies.

	Classical DARPC strategy	Proposed DARPC technique	Ratios (%)
Te ripple (N.m)	45.8	26.12	42.96
Ps ripple (W)	7400	3450	53.37
Qs ripple (VAR)	20,000	2315	88.42
Ias (A)	13	5	61.53

It is necessary to compare the proposed DARPC strategy with some published works around the world, and this is in terms of the value of THD and the quality of the current obtained in the electrical network. Table 8 represents the comparison between the proposed ISC-DARPC strategy in this paper with some published works. From Table 8, we find that the proposed ISC-DARPC gave a lower value for THD compared to some of the implemented controls. Accordingly, it can be concluded that the proposed ISC-DARPC is robust compared to some techniques due to the use of the designed ISC technique.

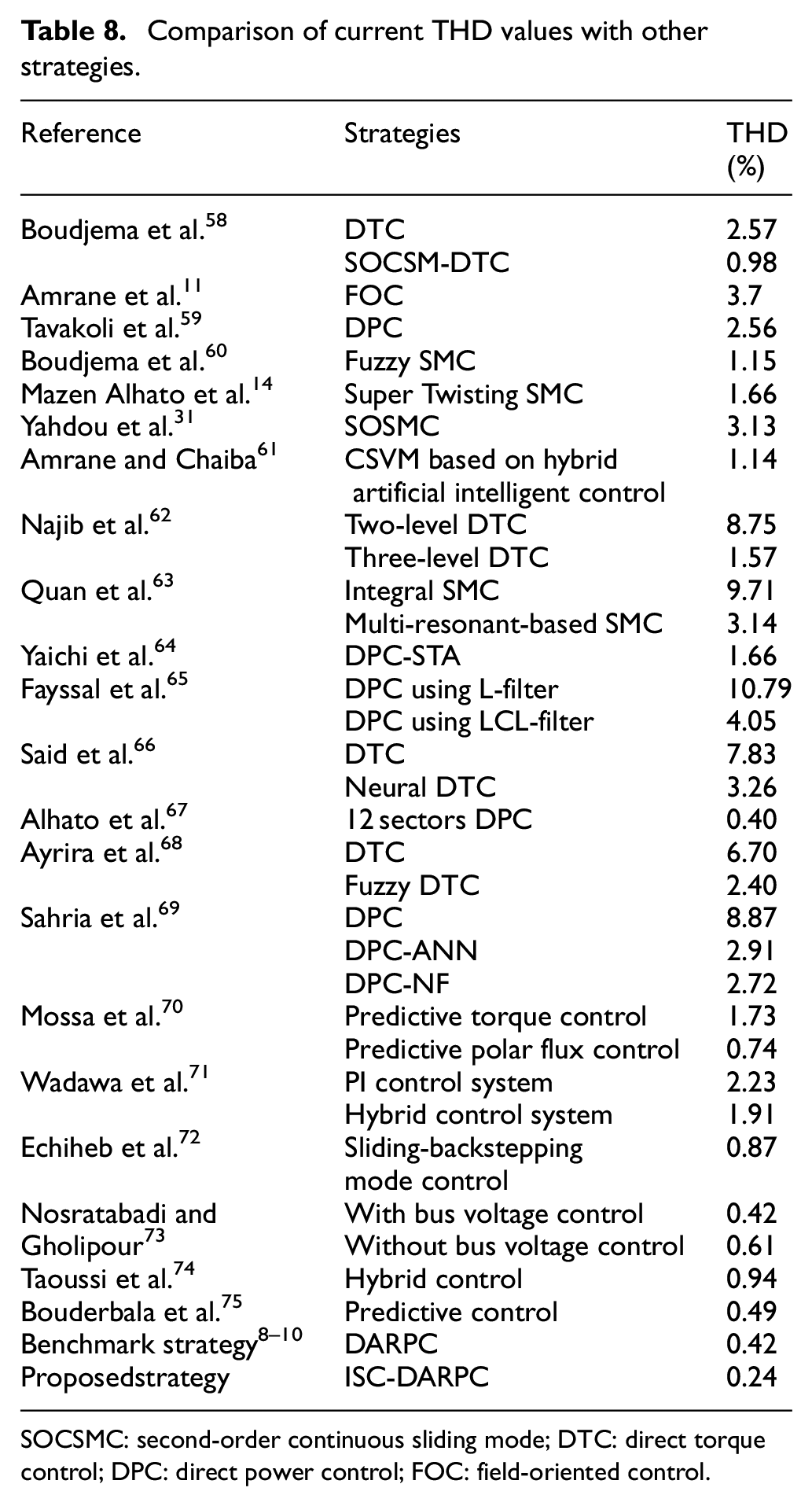

Table 8.

Comparison of current THD values with other strategies.

Reference	Strategies	THD (%)
Boudjema et al.⁵⁸	DTC	2.57
Boudjema et al.⁵⁸	SOCSM-DTC	0.98
Amrane et al.¹¹	FOC	3.7
Tavakoli et al.⁵⁹	DPC	2.56
Boudjema et al.⁶⁰	Fuzzy SMC	1.15
Mazen Alhato et al.¹⁴	Super Twisting SMC	1.66
Yahdou et al.³¹	SOSMC	3.13
Amrane and Chaiba⁶¹	CSVM based on hybrid artificial intelligent control	1.14
Najib et al.⁶²	Two-level DTC	8.75
Najib et al.⁶²	Three-level DTC	1.57
Quan et al.⁶³	Integral SMC	9.71
Quan et al.⁶³	Multi-resonant-based SMC	3.14
Yaichi et al.⁶⁴	DPC-STA	1.66
Fayssal et al.⁶⁵	DPC using L-filter	10.79
Fayssal et al.⁶⁵	DPC using LCL-filter	4.05
Said et al.⁶⁶	DTC	7.83
Said et al.⁶⁶	Neural DTC	3.26
Alhato et al.⁶⁷	12 sectors DPC	0.40
Ayrira et al.⁶⁸	DTC	6.70
Ayrira et al.⁶⁸	Fuzzy DTC	2.40
Sahria et al.⁶⁹	DPC	8.87
	DPC-ANN	2.91
	DPC-NF	2.72
Mossa et al.⁷⁰	Predictive torque control	1.73
Mossa et al.⁷⁰	Predictive polar flux control	0.74
Wadawa et al.⁷¹	PI control system	2.23
Wadawa et al.⁷¹	Hybrid control system	1.91
Echiheb et al.⁷²	Sliding-backstepping mode control	0.87
Nosratabadi and Gholipour⁷³	With bus voltage control	0.42
Nosratabadi and Gholipour⁷³	Without bus voltage control	0.61
Taoussi et al.⁷⁴	Hybrid control	0.94
Bouderbala et al.⁷⁵	Predictive control	0.49
Benchmark strategy^8–10	DARPC	0.42
Proposedstrategy	ISC-DARPC	0.24

SOCSMC: second-order continuous sliding mode; DTC: direct torque control; DPC: direct power control; FOC: field-oriented control.

In Table 9, a comparative study is carried out between the work done and published scientific works in terms of the ratios of ripple reduction, current, Ps, torque, and Qs, to find out the efficiency of the proposed strategy in improving energy quality. Through this table, the ISC-DARPC has high reduction rates compared to several proposed strategies in research work published in reportable scientific journals due to the use of proposed ISC controller, which we can say that the proposed strategy can be relied upon in controlling electric generators.

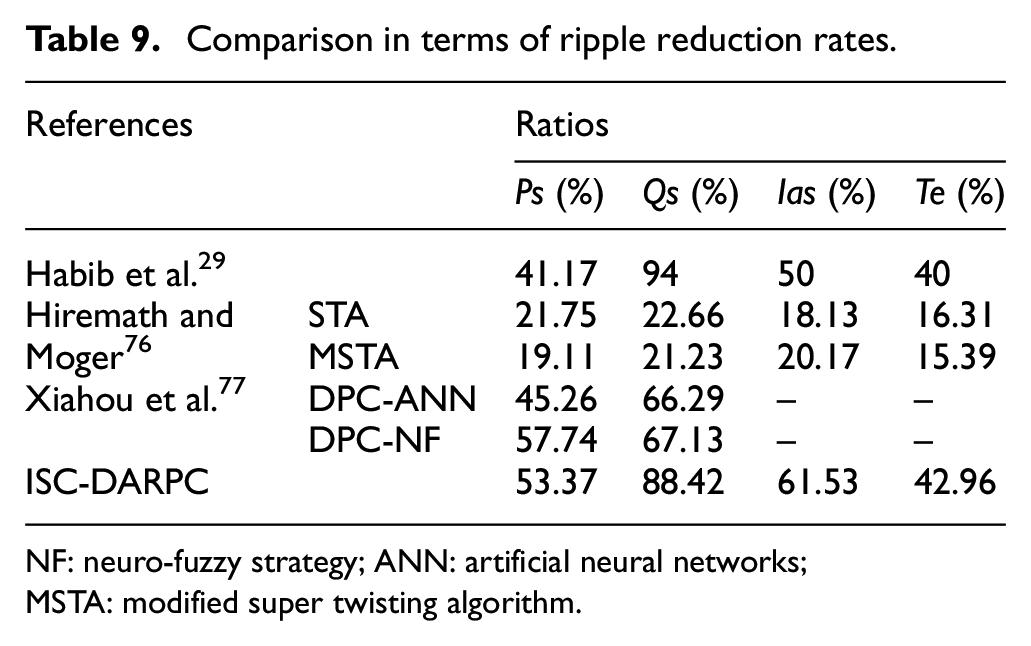

Table 9.

Comparison in terms of ripple reduction rates.

References		Ratios
		Ps (%)	Qs (%)	Ias (%)	Te (%)
Habib et al.²⁹		41.17	94	50	40
Hiremath and Moger⁷⁶	STA	21.75	22.66	18.13	16.31
Hiremath and Moger⁷⁶	MSTA	19.11	21.23	20.17	15.39
Xiahou et al.⁷⁷	DPC-ANN	45.26	66.29	–	–
Xiahou et al.⁷⁷	DPC-NF	57.74	67.13	–	–
ISC-DARPC		53.37	88.42	61.53	42.96

NF: neuro-fuzzy strategy; ANN: artificial neural networks; MSTA: modified super twisting algorithm.

Conclusion

In this paper, a DARPC based on suggested ISC controllers of the DFIG fed by a PWM inverter is designed. A simple integral-synergetic active and reactive powers controller is synthesized instead of using the classical hysteresis comparators. The designed technique overcame the major disadvantages of the traditional DARPC strategy such as the high oscillations of the reactive and active powers caused by the variable switching frequency. Thanks to the designed ISC-DARPC, the reactive and active power ripples are improved and the THD value of the current is reduced. Moreover, with the introduction of the proposed ISC strategy, the robustness of the reactive and active power controllers against load disturbances is enhanced. The numerical results showed a significant improvement in dynamic characteristics (torque, reactive, and active powers). Also, the results obtained from this work are indicated in the following points:

ISC-DARPC improves the effectiveness of the DARPC of the variable-speed DFIG-DRWT system.

ISC-DARPC decreases the THD values of the current.

ISC-DARPC is more robust compared to the traditional DARPC technique.

ISC-DARPC minimizes the ripples of active power, torque, reactive power, and current compared to the traditional DARPC technique and other strategies proposed in the literature.

In future work, the ISC-DARPC technique proposed in this paper will be experimentally implemented on an asynchronous generator in a wind turbine system. This strategy can also be applied to other generators, such as the multi-phase asynchronous generator.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported in part by the Framework Agreement between the University of Pitesti (Romania) and King Mongkut’s University of Technology North Bangkok (Thailand), in part by an International Research Partnership “Electrical Engineering–Thai French Research Center (EE-TFRC)” under the project framework Lorraine Université d’Excellence (LUE) in cooperation with Université de Lorraine and King Mongkut’s University of Technology North Bangkok and in part by the National Research Council of Thailand (NRCT) under Senior Research Scholar Program, Grant No. N42A640328, and in part by King Mongkut’s University of Technology North Bangkok under Grant no. KMUTNB-64-KNOW-20.

ORCID iD

Habib Benbouhenni

References

Fan

Wang

X-B

Yang

Z-X

, et al. Direct power control in pulse-width modulation rectifier based on virtual flux estimation. Adv Mech Eng 2017; 9(5): 1–15.

Kadri

Marzougui

Bacha

Implementation of direct power control based on stator flux estimation using low-pass filter estimator for doubly fed induction generator–wind energy conversion system. Proc IMechE, Part I: J Systems and Control Engineering 2019; 233(7): 764–778.

Yessef

Bossoufi

Taoussi

, et al. Enhancement of the direct power control by using backstepping approach for a doubly fed induction generator. Wind Eng 2022; 46(5): 1511–1525.

Fan

Michels

, et al. Coordinate strategy of dual-pulse-width-modulation converter based on direct power control with load power feed-forward. Meas Control 2020; 53(5–6): 859–869.

Mahmoud

Hamdi

Diab

AAZ

, et al. Effective direct power control for a sensor-less doubly fed induction generator with a losses minimization criterion. Electronics 2019; 9(8): 1269.

Nafar

Mansouri

MR.

A study on the power control of wind energy conversion system. Int J Energy Power Eng 2016; 100(3): 1-8.

Abazari

Dehkordi

SF.

Sliding-mode control for a DFIG-based wind-power generation system with series grid-side converter under unbalanced grid voltage conditions. Trans Comput Sci Eng Electr Eng (D) 2018; 25(3): 1507–1522.

Jain

Shankar

Vanitha

Power generation using permanent magnet synchronous generator (PMSG) based variable speed wind energy conversion system (WECS): an overview. J Green Eng 2018; 7(4): 477–504.

Dzung

Anh Nguyen

Hong

. New artificial neural network based direct virtual torque control and direct power control for DFIG in wind energy systems. In: 2011 IEEE ninth international conference on power electronics and drive systems, Singapore, 5–8 December 2011, pp.219–227. NewYork, NY: IEEE.

10.

Heydari

Rafiee

Pichan

Fuzzy-genetic algorithm-based direct power control strategy for DFIG. Iran J Electr Electr Eng 2018; 14(4): 353–361.

11.

Amrane

Chaiba

BadrEddine

, et al. Design and implementation of high performance field oriented control for grid-connected doubly fed induction generator via hysteresis rotor current controller. Rev Roum Sci Tech Electrotechn Et Energ 2016; 61(4): 319–324.

12.

Shehata

EG.

Sliding mode direct power control of RSC for DFIGs driven by variable speed wind turbines. Alex Eng J 2015; 54: 1067–1075.

13.

Massoum

Meroufel

Massoum

, et al. A direct power control of the doubly-fed induction generator based on the SVM strategy. Elektroteh Vestn 2019; 45(5):235-240.

14.

Mazen Alhato

Bouallègue

Rezk

. Modeling and performance improvement of direct power control of doubly-fed induction generator based wind turbine through second-order sliding mode control approach. Mathematics 2020; 8: 2012.

15.

Benbouhenni

Boudjema

Belaidi

Direct power control with NSTSM algorithm for DFIG using SVPWM technique. Iran J Electr Electr Eng 2021; 17(1): 1–11.

16.

Habib

Application of DPC and DPC-GA to the dual-rotor wind turbine system with DFIG. Int J Rob Autom 2021; 10(3): 224–234.

17.

Wang

Sun

Zhu

ZQ.

Resonant-based backstepping direct power control strategy for DFIG under both balanced and unbalanced grid conditions. IEEE Trans Ind Appl 2017; 53(5): 4821–4830.

18.

Habib

Nicu

Terminal synergetic control for direct active and reactive powers in asynchronous generator-based dual-rotor wind power systems. Electronics 2021; 10(16): 1–23.

19.

Habib

Direct active and reactive powers command with third-order sliding mode theory for DFIG-based dual-rotor wind power systems. Int J Nat Eng Sci 2021; 15(1): 17–34.

20.

Wei

Qiao

Zhao

. Sliding-mode observer-based sensorless direct power control of DFIGs for wind power applications. In: 2015 IEEE power & energy society general meeting, Denver, CO, 20–30 July 2015, pp.1–5. New York, NY: IEEE.

21.

Benbouhenni

Boudjema

Belaidi

DPC based on ANFIS super-twisting sliding mode algorithm of a doubly-fed induction generator for wind energy system. J Eur Syst Autom 2020; 53(1): 69–80.

22.

Habib

Synergetic control theory scheme for asynchronous generator based dual-rotor wind power. J Electr Eng Electr Control Comput Sci 2021; 7(3) :19–28.

23.

Abdesselem

Cherif

Othmane

Cascade synergetic robust control power for wind speed variation based-on doubly-fed induction generator. J Electr Electr Eng 2020; 13(2): 39–44.

24.

Habib

Nicu

A synergetic sliding mode controller applied to direct field-oriented control of induction generator-based variable speed dual-rotor wind turbines. Energies 2021; 14(15): 1–17.

25.

Habib

Hamza

. Genetic algorithm for control the power of the DFIG. In: The 1th national conference on electrical engineering and its applications (NCEEA’01), Guelma, Algeria, 15 November 2022.

26.

Benbouhenni

Application of five-level NPC inverter in DPC-ANN of doubly fed induction generator for wind power generation systems. Int J Smart Grid 2019; 3(3): 128–137.

27.

Lin

Leon

Luo

, et al. Integral sliding-mode control-based direct power control for three-level NPC converters. Energies 2020; 13(1): 227.

28.

Han

Adaptive-gain second-order sliding mode direct power control for wind-turbine-driven DFIG under balanced and unbalanced grid voltage. Energies 2019; 12(20): 3886.

29.

Habib

Fayçal

Lemdani

New direct power synergetic-SMC technique based PWM for DFIG integrated to a variable speed dual-rotor wind power. Automatika 2022; 63(4): 718–731.

30.

Habib

Lemdani

Combining synergetic control and super twisting algorithm to reduce the active power undulations of doubly fed induction generator for dual-rotor wind turbine system. Electr Eng Electromech 2021; 2021(3): 8–17.

31.

Yahdou

Hemici

Boudjema

Second order sliding mode control of a dual-rotor wind turbine system by employing a matrix converter. J Electr Eng 2016; 16(3): 1–11.

32.

Habib

Elhadj

Hamza

, et al. A new PD(1+PI) direct power controller for the variable-speed multi-rotor wind power system driven doubly-fed asynchronous generator. Energy Rep 2022; 8: 15584–15594.

33.

Yahdou

Hemici

Boudjema

Sliding mode control of dual rotor wind turbine system. Mediterr J Meas Control 2015; 11(2): 412–419.

34.

Sara

Khoukha

El Madjid

, et al. A direct vector control based on modified SMC theory to control the double-powered induction generator-based variable-speed contra-rotating wind turbine systems. Energy Rep 2022; 8: 15057–15066.

35.

Yahdou

Djilali

Boudjema

, et al. Improved vector control of a counter-rotating wind turbine system using adaptive backstepping sliding mode. J Eur Syst Autom 2020; 53(5): 645–651.

36.

Nian

Ding

, et al. Direct power control of DFIG system without phase-locked loop under unbalanced and harmonically distorted voltage. IEEE Trans Energy Convers 2018; 33(1): 395–405.

37.

Nian

Song

Direct power control of doubly fed induction generator under distorted grid voltage. IEEE Trans Power Electr 2014; 29(2): 894–905.

38.

Faa-Jeng

Jonq-Chin

Kuang-Hsiung

, et al. Intelligent control of doubly-fed induction generator systems using PIDNNs. Asian J Control 2012; 14(3): 768–783.

39.

Nasrin

Mohammad

Asghar

GS.

Direct power control of Dfig by using nonlinear model predictive controller. Asian J Control 2016; 18(3): 985–999.

40.

Ansari

Dyanamina

Fault ride-through operation analysis of doubly fed induction generator-based wind energy conversion systems: a comparative review. Energies 2022; 15: 8026.

41.

Vali

Hassan

HSM

Olamaei

Control of doubly-fed induction generator with extended state observer under unbalanced grid conditions. Trans Comput Sci Eng Electr Eng (D) 2022; 29: 2498–2514.

42.

Xia

Chen

, et al. Optimal intelligent control for doubly fed induction generators. Mathematics 2023; 11: 20.

43.

Moati

Kouzi

An efficient of direct torque control of indirect three level matrix converter fed dual stator induction motor based on synergetic controller. J Eur Syst Autom 2020; 53(5): 617–627.

44.

Qian

, et al. Synergetic control of grid-connected photovoltaic systems. Int J Photoenergy 2017; 2017: 5051489.

45.

Ademoye

Decentralized synergetic control of power systems. These de Doctorate, College of Engineering and Mineral Resources at West Virginia University, USA, 2012.

46.

Ettouil

Chabir

Abdelkrim

MN.

Optimal synergetic control for wind turbine system. Int J Eng Sci 2018; 7(5): 44–48.

47.

Kanchanahruthai

Mujjalinvimut

Application of Adaptive synergetic control to power systems with super conducting magnetic energy storage system. Int J Innov Comput Inform Control 2017; 13(6): 1873–1885.

48.

Yahi

Barazane

Improving speed performances of induction motor by using synergetic control theory. IJST, Trans Electr Eng 2015; 39(E2): 183–192.

49.

Zhao

Wang

A sliding mode and synergetic control approaches applied to permanent magnet synchronous motor. J Phys Conf Ser 2018; 1087: 042012.

50.

Gang

Xin

Zhi

, et al. Kinematic coupling-based trajectory planning for rotary crane system with double-pendulum effects and output constraints. J Field Rob 2023; 40(2): 289–305.

51.

Gang

Xin

Zhi

, et al. Time-polynomial-based optimal trajectory planning for double-pendulum tower crane with full-state constraints and obstacle avoidance. IEEE/ASME Trans Mechatron 2023; 28(2): 919–932.

52.

Wang

, et al. Novel direction-adaptive based reduced-rank beamforming algorithm. In: ISWCS 2013; the tenth international symposium on wireless communication systems, Ilmenau, Germany, 27–30 August 2013, pp.1–4. New York, NY: IEEE.

53.

Wang

, et al. Multiple shrinkage factors (MSF) based MC MU-MIMO channel estimation algorithm. In: ISWCS 2013; The tenth international symposium on wireless communication systems, Ilmenau, Germany, 27-30 August 2013, pp.1–4. New York, NY: IEEE.

54.

Niu

, et al. Riemannian optimization with subspace tracking for low-rank recovery. In: 2016 international joint conference on neural networks (IJCNN), Vancouver, BC, Canada, 24–29 July 2016, pp.3280–3287. New York, NY: IEEE.

55.

Chen

Liu

Optimal policy for a time consistent mean–variance model with regime switching. IMA J Manag Math 2016; 27(2): 211–234.

56.

Zhang

Cai

, et al. A novel gang SPWM control method for six-phase induction motor. In: 2011 international conference on electrical machines and systems, Beijing, China, 20–23 August 2011, pp.1–4. New York, NY: IEEE.

57.

Chojaa

Derouich

Taoussi

, et al. Nonlinear control strategies for enhancing the performance of DFIG-based WECS under a real wind profile. Energies 2022; 15: 6650.

58.

Boudjema

Taleb

Djerriri

, et al. A novel direct torque control using second order continuous sliding mode of a doubly fed induction generator for a wind energy conversion system. Turk J Electr Eng Comput Sci 2017; 25(2): 965–975.

59.

Tavakoli

Pourmina

Zolghadri

MR.

Comparison between different DPC methods applied to DFIG wind turbines. Int J Renew Energy Res 2013; 3(2): 446–452.

60.

Boudjema

Meroufel

Djerriri

, et al. Fuzzy sliding mode control of a doubly fed induction generator for energy conversion. Carpathian J Electr Comput Eng 2013; 6(2): 7–14.

61.

Amrane

Chaiba

A novel direct power control for grid-connected doubly fed induction generator based on hybrid artificial intelligent control with space vector modulation. Rev Sci Techni Electrotechn Et Energ 2016; 61(3): 263–268.

62.

Najib

Aziz

Abdelaziz

, et al. Direct torque control of doubly fed induction motor using three-level NPC inverter. Protect Control Modern Power Syst 2019; 4(17): 1–9.

63.

Quan

Hang

, et al. Multi-resonant-based sliding mode control of DFIG-based wind system under unbal-anced and harmonic network conditions. Appl. Sci. 2019; 9, 1124.

64.

Yaichi

Semmah

Wira

, et al. Super-twisting sliding mode control of a doubly-fed induction generator based on the SVM strategy. Period Polytech Electr Eng Comput Sci 2019; 63(3): 178–190.

65.

Fayssal

Bruno

Azeddine

Experimental investigation of efficient and simple wind-turbine based on DFIG-direct power control using LCL-filter for stand-alone mode. ISA Trans 2022; 125: 631–664 .

66.

Said

Derouich

El Ouanjli

, et al. Enhancement of the direct torque control by using artificial neuron network for a doubly fed induction motor. Intell Syst Appl 2022; 13: 1–18.

67.

Alhato

Bouallègue

Direct power control optimization for doubly fed induction generator based wind turbine systems.Math Comput Appl 2019; 24: 77.

68.

Ayrira

Ourahoua

El Hassounia

, et al. Direct torque control improvement of a variable speed DFIG based on a fuzzy inference system. Math Comput Simul 2020; 167: 308–324.

69.

Sahria

Tamalouzt

Hamoudi

, et al. New intelligent direct power control of DFIG-based wind conversion system by using machine learning under variations of all operating and compensation modes. Energy Rep 2021; 7: 6394–6412.

70.

Mossa

Echeikh

Iqbal

Enhanced control technique for a sensor-less wind driven doubly fed induction generator for energy conversion purpose. Energy Rep 2021; 7: 5815–5833.

71.

Wadawa

Errami

Obbadi

, et al. Robustification of the H controller combined with fuzzy logic and PI&PID-F for hybrid control of wind energy conversion system connected to the power grid based on DFIG. Energy Rep 2021; 7: 7539–7571.

72.

Echiheb

Ihedrane

Bossoufi

, et al. Robust sliding-Backstepping mode control of a wind system based on the DFIG generator. Sci Rep 2022; 12: 11782.

73.

Nosratabadi

Gholipour

Power system harmonic reduction and voltage control using DFIG converters as an active filter. Turk J Electr Eng Comput Sci 2016; 24(4): 3105–3122.

74.

Taoussi

Bossoufi

Bouderbala

, et al. Implementation and validation of hybrid control for a DFIG wind turbine using an FPGA controller board. Electronics 2021; 10: 3154.

75.

Bouderbala

Bossoufi

Deblecker

, et al. Experimental validation of predictive current control for DFIG: FPGA implementation. Electronics 2021; 10: 2670.

76.

Hiremath

Moger

Modified Super Twisting algorithm based sliding mode control for LVRT enhancement of DFIG driven wind system. Energy Rep 2022; 8: 3600–3613.

77.

Xiahou

Liu

, et al. Sensor fault tolerance enhancement of DFIG-WTs via perturbation Ob-server-based DPC and two-stage Kalman filters. IEEE Trans Energy Convers 2018; 33(2): 483–495.

A new integral-synergetic controller for direct reactive and active powers control of a dual-rotor wind system

Abstract

Keywords

Introduction

Model of DRWT

Model of DFIG

Proposed ISC controller

Proposed DARPC-ISC strategy

ISC-Ps control design

ISC-Qs control design

Analysis and results

First test

Robustness test

Variable-speed wind test

Conclusion

Footnotes

Declaration of conflicting interests

Funding

ORCID iD

References
