Abstract

Aiming at the mechanical equipment in the fault diagnosis process, the traditional Shannon–Nyquist sampling theorem is used for data collection, which faces main problems of storage, transmission, and processing of mechanical vibration signals. This paper presents a novel method of compressed sensing reconstruction for axial piston pump bearing vibration signals based on the adaptive sparse dictionary model. First, vibration signals were divided into blocks, and an energy sequence was produced in accordance with the energy of each signal block. Second, the energy sequence of each signal block was classified by the quantum particle swarm optimization algorithm. Finally, the reconstruction of machinery vibration signals was carried out using the K-SVD dictionary algorithm. The average relative error of the reconstructed signal obtained by the proposed algorithm is 4.25%, and the reconstruction time decreases by 43.6% when the compression ratio is 1.6.

Keywords

Vibration signal axial piston pump bearing compressed sensing reconstruction adaptive sparse dictionary model

Introduction

Swashplate-type axial piston pumps are one of the power-dense types of hydraulic units and are widely used in industrial fields.¹ Figure 1 presents the schematic sketch of a swashplate-type axial piston pump. Each piston produces a reciprocation motion along with the cylinder block as the shaft rotates, and then the volume of the sealing chamber can be changed to achieve oil suction and oil delivery. The spindle contains two rolling bearings, which ensure the normal operation of the spindle at different working conditions.² In practice, this rotation motion of the spindle may cause bearing faults at harsh working conditions of heavy external load and high rotating speed, which directly affects the normal operation of the machine.^3,4 Therefore, it is urgent to put forward a new bearing signal reconstruction method to improve the effectiveness of fault bearing diagnosis.

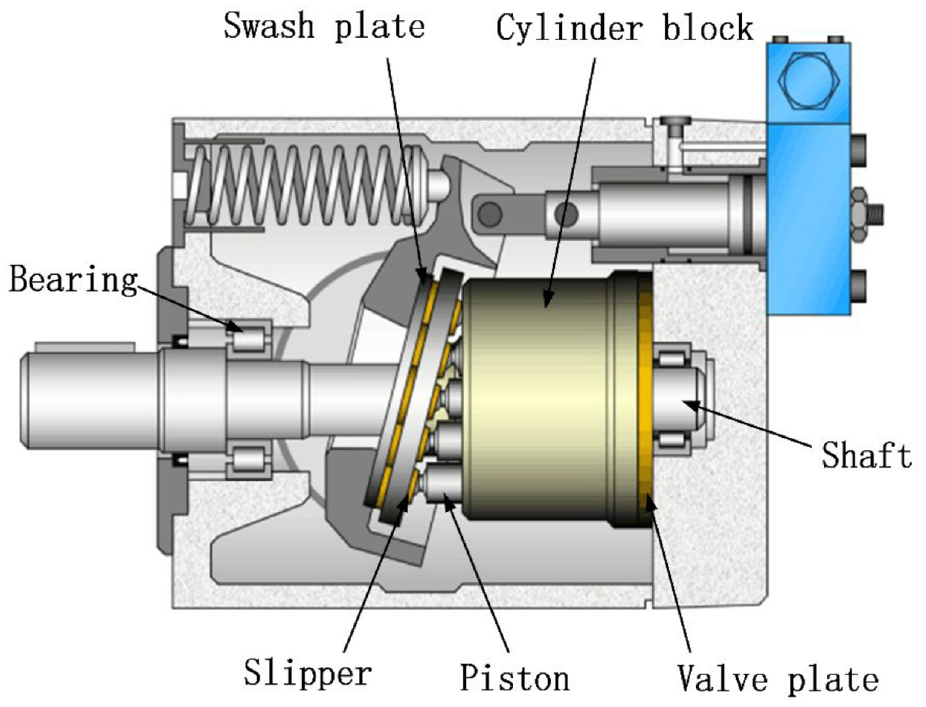

Figure 1.

Schematic diagram of a swashplate-type axial piston pump.

In recent years, research on rolling bearing fault diagnosis has become very popular. Lu et al.⁵ proposed a new fault feature extraction method to extract periodic impulse component from vibration signal. The adaptive Kurtogram method was proposed by Xu et al.⁶ to diagnose bearing faults using an order statistics filter. Feng et al.⁷ proposed the concentration of frequency and time method to improve the effectiveness of fault bearing time-varying feature extraction. Borghesani et al.⁸ proposed a new fault diagnosis method to detect the impulse component of the bearing signal. The experimental results are compared with previous kurtosis-based indexes. Pang et al.⁹ proposed a new combined fault diagnosis method to identify the fault pattern of rolling bearings. At present, some methods of time–frequency analysis are used to detect fault vibration signal as it changes over time, such as variational mode decomposition,¹⁰ stochastic resonance method,¹¹ and wavelet analysis.¹² Nevertheless, these methods mostly meet the requirements of the Nyquist–Shannon sampling theory. In this case, a great deal of sampling signals fault diagnosis will be collected to detect fault in the swashplate axial piston pump under different conditions.^13–15 Therefore, the big data acquisition will face main problems of storage, transmission, and processing of mechanical vibration signals. In practice, vibration signals of axial piston pump are one of the important information sources for fault diagnosis of the mechanical state.^16,17 To minimize the storage and transmission volume, compressive sensing (CS) is an effective method that can simultaneously sense and reduce the dimension of the signal.¹⁸ The literature on CS shows various methods of reconstructing signals from these fewer measurements in medical image¹⁹ and audio equipments.²⁰ Although several studies have indicated that CS construction is a very effective method for vibration signal, little attention has been paid to its applications in industrial machines. Wang et al.²¹ proposed a new improved fast iterative thresholding algorithm (IFISTA) to improve the CS reconstruction effect of vibration signals. Wang et al.²² established a reconstruction model to detect faults of the diesel engine. Ganesan et al.²³ demonstrated that CS algorithm is used in fault diagnostics for structural components to reduce sampling data and sensors. Shao et al.²⁴ constructed a new convolutional deep belief network to improve feature learning effectiveness of rolling bearing. Tang et al.²⁵ proposed a sparse classification algorithm to improve the classification accuracy of rotating machinery faults. A new sparse extraction of impulse by adaptive dictionary (SpaEIAD) algorithm based on CS was presented by Chen et al.²⁶ for extracting impulse components. Sun et al.²⁷ argued that the compressed sensing technique is applied for monitoring bearing conditions via wireless sensor network and that it helps to improve the memory and operational capability. A novel multidictionary framework was proposed by Ding et al.²⁸ for CS system to improve the superior performance.

In generally, most vibration signals present nonsparse features. The nonsparse signals can convert to sparse signals based on transformations, for example, Fourier transform (FT), wavelet transform (WT),²⁹ and discrete cosine transform (DCT).³⁰ Then, the signal can be reconstructed by appropriate recovery algorithms that can solve unconstrained optimization problems.^31–33 Wang et al.³⁴ proposed a new sparsity empirical WT method to detect bearing faults. Zhang et al.³⁵ proposed a new orthogonal matching pursuit (OMP) algorithm to improve the reconstruction accuracy of the bearing signal.

According to the above literature, the purpose of CS is to develop the signal sparsity. Due to low Nyquist sampling rate, the vibration signal is reconstructed perfectly by the nonlinear reconstruction algorithm. The compressed sensing has attracted wide attention from academia and industry. However, application of the traditional CS in fault diagnosis of axial piston pump is lacking. Under the working conditions of heavy load and high rotating speed, the vibration signal of the pump is complex nonsparse in time domain and the correlation between the data is not obvious.^36,37 The common transformation methods cannot guarantee a good sparseness of the converted signal, and some data compression methods based on time domain statistics or prediction are not suitable to process this kind of vibration signal.^38,39 Therefore, CS reconstruction for mechanical vibration signals is a necessary way to identify the fault types of axial piston pump based on the sparse dictionary model. Furthermore, the traditional sparse dictionary has some shortcomings, such as poor structural properties and great computational complexity, which affect CS reconstruction for vibration signal.

In this paper, adaptive CS algorithm with optimal classification is proposed for bearing signal construction in axial piston pump. First, vibration signals are divided into different blocks and an energy sequence is obtained in accordance with the energy of each signal block. The energy sequence is classified by the quantum particle swarm optimization (QPSO) algorithm to obtain the largest variance of the sequence between. Second, the reconstruction of vibration signals is carried out by using the method of K-SVD dictionary algorithm. Experiments and analyses showed that the proposed method solves the problem that the traditional algorithm could not deal with complex nonsparse signals. It improves the accuracy of the reconstruction signal significantly and enhances the efficiency of the reconstruction process.

Adaptive CS framework

Figure 2 presents the general framework of the proposed adaptive CS method based on optimal classification. The proposed framework mainly involves three processes as follows: (1) vibration signal compression acquisition, (2) adaptive sparse dictionary model, and (3) signal reconstruction.

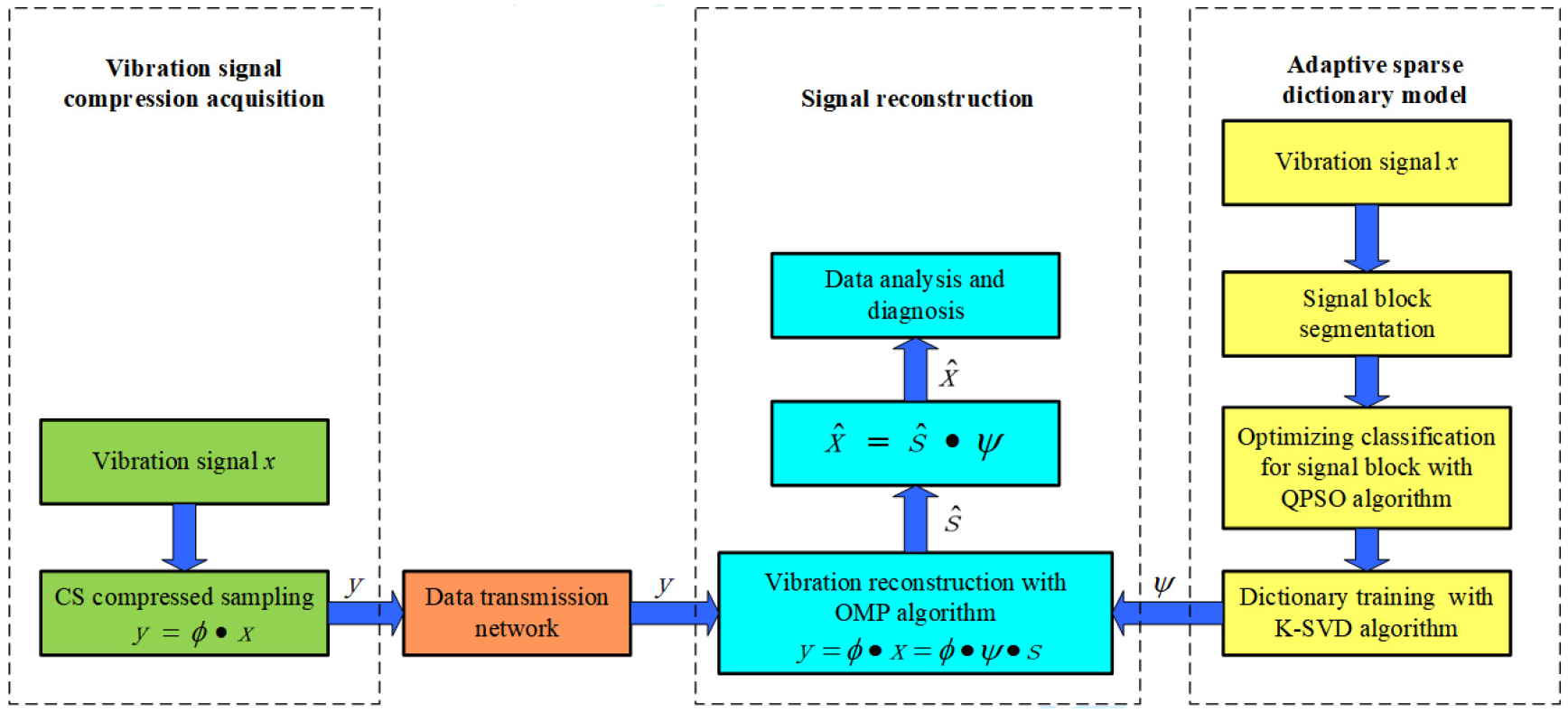

Figure 2.

General framework of adaptive compressive sensing method based on optimal classification.

During the vibration data acquisition, the compressed sampling signal y is obtained by downsampling the acquired vibration signal x through measurement matrix ф. We choose the random Gauss measurement matrix as the measurement matrix. Then, the measured value y from the data sampling part is transmitted to the remote monitoring center through a wireless data transmission network. Finally, the process of data measuring mainly completes the reconstruction of vibration signal based on adaptive sparse dictionary Ψ. Before training adaptive dictionary with the K-SVD algorithm, the classification of vibration signal with the QPSO algorithm is used based on energy sequence. In addition, the reconstructed vibration signal $\hat{X}$ is obtained by the OMP algorithm.

CS theory

The CS theory was proposed to guarantee the accurate reconstruction of the original signal with downsampling, which has received wide attention. According to the CS theoretical framework, the process of signal compression sensing includes three parts as follows: sparse decomposition, compression observation, and signal reconstruction.

Sparse decomposition of mechanical vibration signal is the first step to realize signal compression sensing, and it directly influences the effect of original signal reconstruction. Assuming that the vibration signal is x (x∈R^N), the signal is sparsely decomposed in an orthogonal dictionary. Thus, the vibration signal is depicted as

x = \sum_{i = 1}^{N} s_{i} ψ_{i}

(1)

where x is the original signal, s is the sparse coefficient vector, and Ψ is the adaptive sparse dictionary.

Then, equation (1) can be also written as

y = ϕ \cdot x

(2)

where y is the measurement vector and Φ is the matrix of the sparsity basis.

For cases where x can be sparsified through a transform $ψ \in C^{N \times N}$ , the CS encode still takes place without the knowledge of $ψ$ . The sparsification of x is given by s = ψx. CS forms the underdetermined linear system of equations, which can search for a solution by the following optimization

\min_{s} ‖ s ‖_{0} s . t . y = Φ x = (Φ ψ^{- 1}) s

(3)

This is a familiar l₀-regularized regression problem, which is known as intractable. One possible approach is to rely on convex relaxation that regularizes the l₀-norm of s

\min_{s} ‖ s ‖_{1} s . t . y = Φ x = (Φ ψ^{- 1}) s

(4)

Once s is recovered, we can restore x from the reverse sparsification $x = ψ^{- 1} s$ . Restricted isometry property (RIP) of $Φ$ can guarantee a unique solution with high probability through the l₁-minimum decoding of s. The product $Φ ψ^{- 1}$ satisfies RIP with a high probability if $Φ$ satisfies RIP, and $ψ$ is orthogonal.

Design of adaptive sparse dictionary

Signal block segmentation

When the length of the measured signal is too long, it is divided into several signal blocks. The complexity of the measurement matrix construction is reduced to meet the structural requirements of the original signal with the K-SVD algorithm. The signal block can be expressed as

x \to X = {x_{1}, x_{2}, . . ., x_{T}}

(5)

where T is the number of signal block and x_i is the ith signal block.

The energy sequence of the signal block is given by

E = {e_{1}, e_{2}, . . ., e_{T}}

(6)

e_{i} = \sum_{j = 1}^{t} x_{ij}^{2}

(7)

where E is the energy sequence of the signal block, e_i is the energy value of the ith signal block, and t is the signal length.

Optimal classification of signal block with the QPSO algorithm

In this paper, the classification process of signal block is optimized by using the QPSO algorithm, which improves the efficiency of signal classification. The QPSO algorithm is an improvement of the particle swarm optimization (PSO) algorithm. By introducing quantum theory, the QPSO algorithm avoids the premature problem of the traditional PSO algorithm. In addition, the optimization efficiency of the QPSO algorithm is high because of the few operators and simple calculations in the QPSO algorithm. Thus, the QPSO algorithm is depicted as follows

mbest = \frac{1}{M} \sum_{j = 1}^{M} P_{j}

(8)

P = μ P_{j} + (1 - μ) P_{g}

(9)

X_{j} (n + 1) = P + a | mbest - X_{j} (n) | \ln (\frac{1}{μ})

(10)

where M is the population size, μ is the random number, mbest is the mean point at the best position of each particle, a is the compression expansion factor, P_j and P_g are the best positions of particle number j and g, respectively, under iterative computation conditions of individual and global optimization, and n is the iteration number.

In this simulation, the number of signal classification is set to n and the number of position parameter is optimized as n – 1. The energy sequence is divided into the number of blocks (n) by the number of position parameters (n − 1). Therefore, the single particle in QPSO is expressed as P_i(H₁, H₂, …, H_n_− 1). H_i represents the classification position between the i − 1th signal block and the ith signal block. The optimization objective function of the QPSO algorithm is the variance of energy mean between different kinds of signals so as to ensure the discrimination between different kinds of signal blocks. Thus, the objective function is given by

q = \sum_{i = 1}^{n} w_{i} \times {({\bar{e}}_{i} - \bar{e})}^{2}

(11)

{\bar{e}}_{i} = mean (e_{i}), i \in (1, n), \bar{e} = \sum_{i = 1}^{n} {\bar{e}}_{i}

(12)

w_{i} = \frac{numel ({\bar{e}}_{i})}{T}

(13)

where q is the variance and ${\bar{e}}_{i}$ is the average energy sequence.

Dictionary training with the K-SVD algorithm

Dictionary learning is essential for sparse coding. Like sparse coding, the K-SVD algorithm is applied for dictionary learning. The main idea of the K-SVD algorithm is to find the random dictionary and yield sparse representations for the training signals. In this study, the high sparseness representation of the same type of signal is based on an optimized dictionary which combines the characteristics of the signal itself. The objectives of the K-SVD algorithm are as follows

\min {‖ x_{i} - ψ \cdot x_{i} ‖_{2}^{2}} s . t . ‖ s_{i} ‖_{0} ⩽ ε_{0}, i = 1, 2, . . ., N

(14)

where ε₀ is the sparse coefficient vector.

In the second stage, we update the dictionary column by column and train the dictionary iteratively. We assume that $ψ_{i}$ is the ith column vector of the dictionary.

If the dictionary is updated, equation (14) can be rewritten as

\begin{matrix} ‖ X - ψ \cdot s ‖_{F}^{2} & = ‖ (X - \sum_{j \neq k} ψ_{k} \cdot s_{T}^{k}) - ψ_{k} \cdot s_{T}^{k} ‖_{F}^{2} \\ = ‖ E_{k} - ψ_{k} \cdot s_{T}^{k} ‖_{F}^{2} \end{matrix}

(15)

where $s_{T}^{k}$ is the kth row vector in the sparse coefficient matrix and $E_{k}$ is the decomposition error of signal.

In the process of the K-SVD training algorithm, dictionary atoms are trained one by one, because s_i usually contains zero elements. It is necessary to deal with zero-removal shrinkage in order to ensure sparsity. Thus

ω_{k} = {s_{T}^{k} (i) \neq 0, 1 ⩽ i ⩽ k}

(16)

s_{R}^{k} = s_{T}^{k} \cdot Ω_{k}; X_{k} = X \cdot Ω_{k}; E_{k}^{R} = E_{k} \cdot Ω_{k}

(17)

where $ω_{k}$ is the index set of the samples with atoms $ψ_{k}$ , $Ω_{k}$ is the matrix, $X_{k}$ is the subset of the samples with the atom $ψ_{k}$ , and $E_{k}^{R}$ is Rth error column. Thus, equation (15) is equivalent to the minimization form as follows

‖ E_{k} \cdot Ω_{k} - ψ_{k} \cdot s_{T}^{k} \cdot Ω_{k} ‖_{F}^{2} = ‖ E_{k}^{R} - ψ_{k} \cdot s_{T}^{k} ‖_{F}^{2}

(18)

The dictionary obtained by this method has strong adaptability, and the signal block can obtain a good sparse decomposition effect. In the process of compressed sensing reconstruction, compressed sensing factor is constructed by dictionary and measurement matrix, which improve the reconstruction effect of the vibration signal.

General procedure of the proposed method

In this study, sparse dictionary design is the main step in the vibration signal compression sensing process. Figure 3 presents the diagram of the signal compressed sensing algorithm. In the process of sparse dictionary design, OMP is the greedy iterative algorithm that works well for sparse data modeling. The general procedure is summarized as follows:

Step 1: The vibration signal is divided into several signal blocks, and then the energy sequence of the signal block construction (e) is obtained.

Step 2: According to the magnitude of the energy block, the rearranged energy sequence (e′) is obtained.

Step 3: The signal classification process is realized by the QPSO algorithm.

Step 4: Sparse dictionary of different signal blocks training using the K-SVD algorithm.

Step 5: The one-dimensional measurement value y is obtained by projecting the one-dimensional vibration signal based on Gauss random matrix and input signal.

Step 6: The measured value y is transmitted to the remote monitoring center through the data transmission network, and then the vibration signal is processed with the OMP algorithm based on related parameters, such as the measured value y, the measurement matrix, adaptive dictionary, and reconstruction coefficient.

Step 7: Reconstruction of vibration signal using sparse coefficient.

Step 8: Judge whether the relative error is the minimum value. When the relative error is less than the certain value, the procedure is complete. Otherwise, the proposed algorithm returns to Step 2.

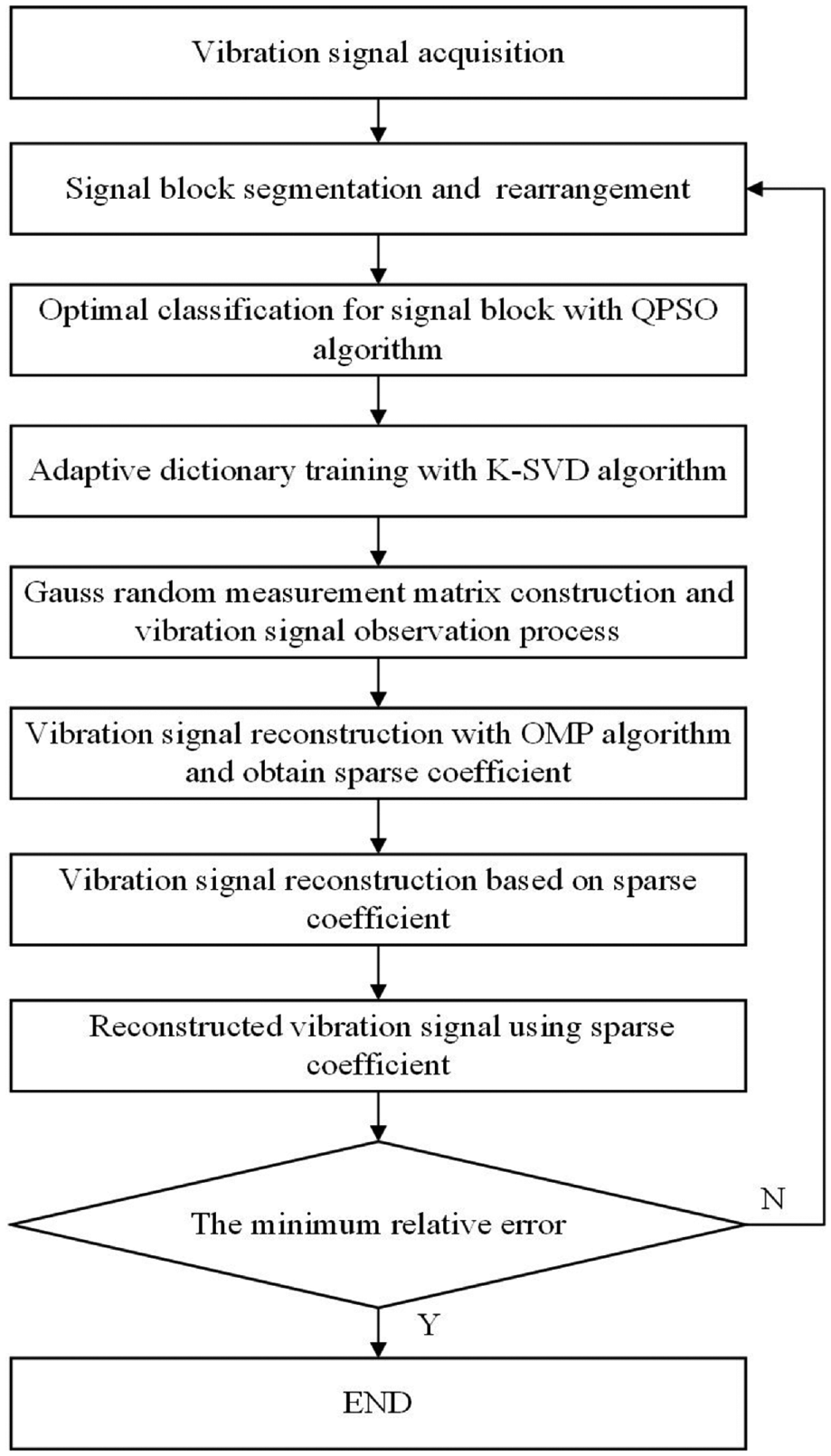

Figure 3.

Adaptive compressive sensing algorithm.

Experimental verification

Signal acquisition

The study of compressed sensing reconstruction for axial piston pump bearing vibration signal is carried out using a testing rig as shown in Figure 4. The test rig consists of an LC-AD-DN20 flow meter, a DBW20B-1-50 relief valve, an HDA4445 pressure transducer, a ZJ-500A rotating speed transducer, a QABP-225M4A-45KW electric motor, AKE398 acceleration transducers, a tested axial piston pump, and a laptop. During the vibration tests, four sets of fault bearing are used: a healthy bearing and three bearings with three different damage profiles. The motor operating speed was set at 1000 r/min, and vibration signals were obtained using a set of accelerometers mounted on bearing housings. The vibration data were sampled at 48,000 Hz, which is approximately 2880 samples per revolution.

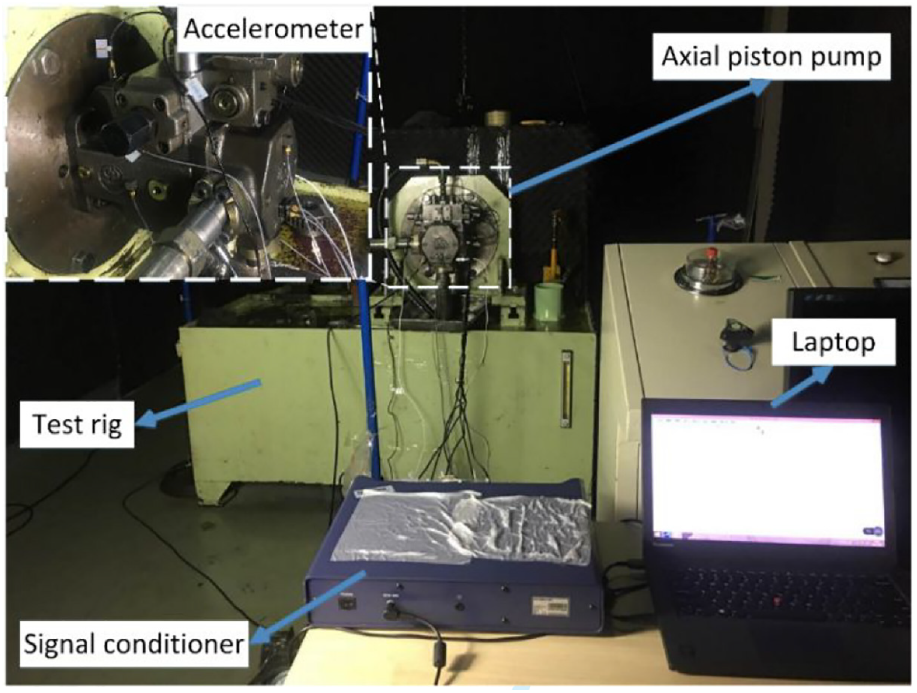

Figure 4.

Photograph of the axial piston pump test rig.

The rolling bearings with three different damages are used in the experiment shown in Figure 5. The structural parameters of the bearings are described as follows: (a) bearing inner diameter is 35 mm; (b) bearing outer diameter is 62 mm; (c) bearing length is 20 mm; (d) ball diameter is 8.56 mm; and (e) pitch diameter is 48.5 mm

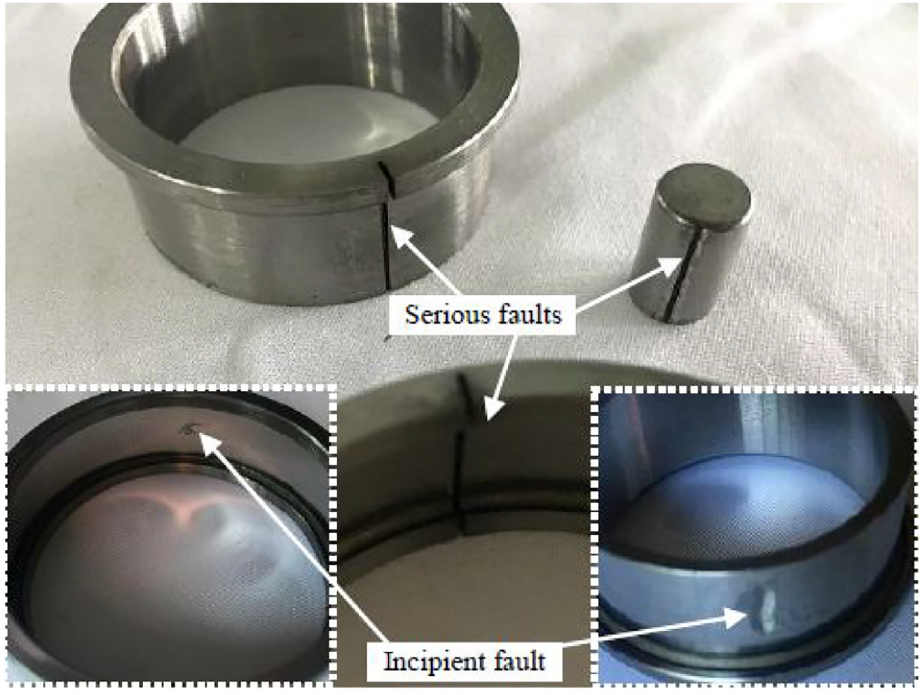

Figure 5.

Photograph of the damaged rolling bearing.

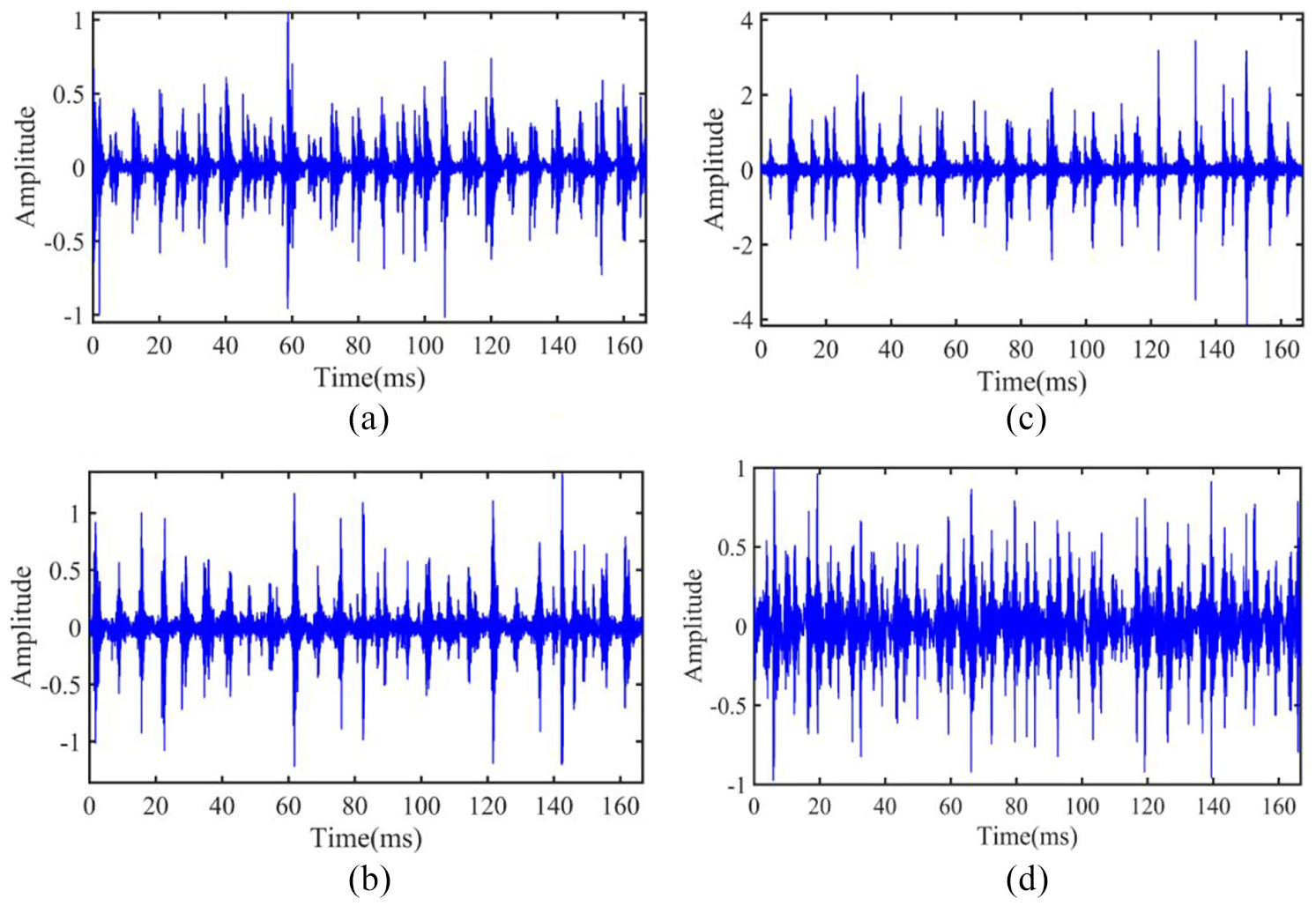

Figure 6 presents experimental vibration signals of fault bearing. For all cases, it is observed that the amplitude in time domain shows impulse components. Compared with undamaged case, only the increases in the amplitude spectra are noticeable for damaged cases. Although the change in amplitude spectra verifies the presence of the damage, it still cannot identify which bearing is more severe.

Figure 6.

Experimental vibration signals of fault bearing: (a) outer race damage, (b) inner race damage, (c) rolling element damage, and (d) normal condition.

Comparison of the proposed method with some traditional methods

To evaluate the data compression method, two critical issues need to be considered: the compression volume and the distortion measurement of the reconstruction signal. Usually, the compression ratio is an important index to measure compression volume. Thus, the compression ratio is depicted as

CR = \frac{t_{0}}{t_{c}}

(19)

where CR is compression ratio, t₀ is the original signal length, and t_c is the compressed signal length.

The peak signal-to-noise ratio (PSNR) is one of the most popular signal reconstruction methods that measures the similarity between reconstruction and original signals. Thus, the PSNR is depicted as

PSNR = 10 \log_{10} (\frac{x_{\max}^{2}}{\sqrt{\frac{1}{M} \sum_{i = 1}^{N} {[\hat{x} (i) - x (i)]}^{2}}})

(20)

where x_max is the maximum value and M is the sampling number.

To verify the compressed sensing effect of vibration signal with the proposed algorithm, the length of signal segmentation (L) is determined, and then the number of signal block is set to 8000/L. The smaller the length of signal segmentation, the larger the number of signal blocks, resulting in a higher computation time.

Figure 7 shows the effect of signal length on computation time of the proposed algorithm for rolling bearing with four fault states. For the rolling bearing with four different fault states, the computation time of the proposed algorithm decreases with increasing the signal length and then tends to be stable. When the length of signal segmentation is set to 16, the time consumption shows a minimum value. This result can be explained by the fact that the complexity of measurement matrix will increase the consumption time in the compression and reconstruction of a single signal block. Therefore, when the length of signal segmentation is set to 16, the computation efficiency for the proposed algorithm is the highest.

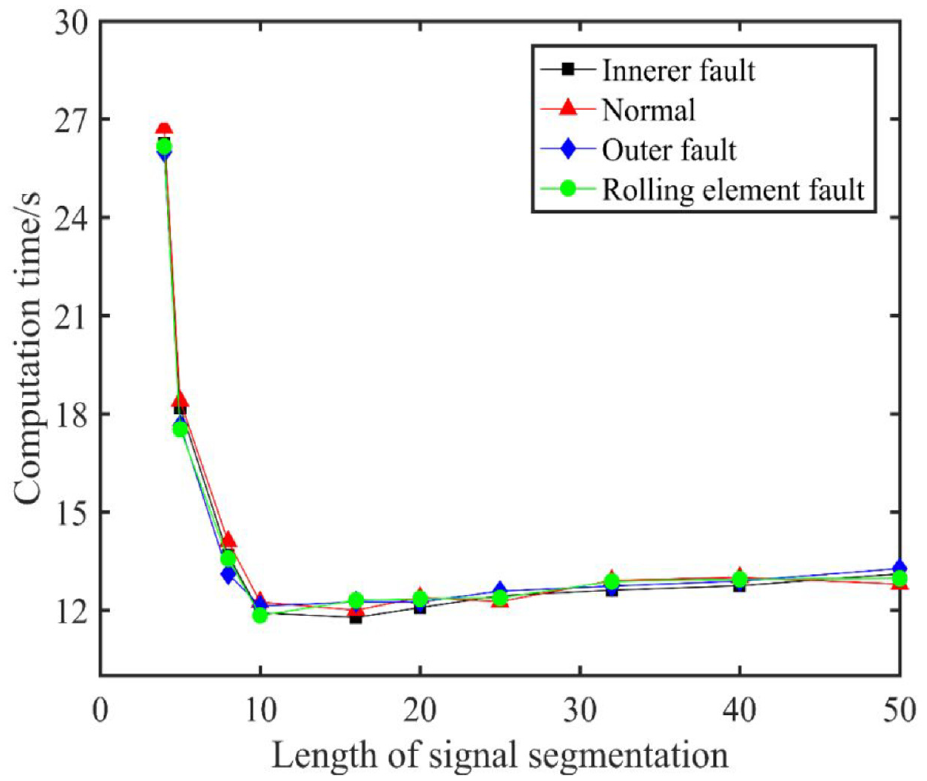

Figure 7.

Effect of signal length on computation time of the proposed algorithm for rolling bearing with four fault states.

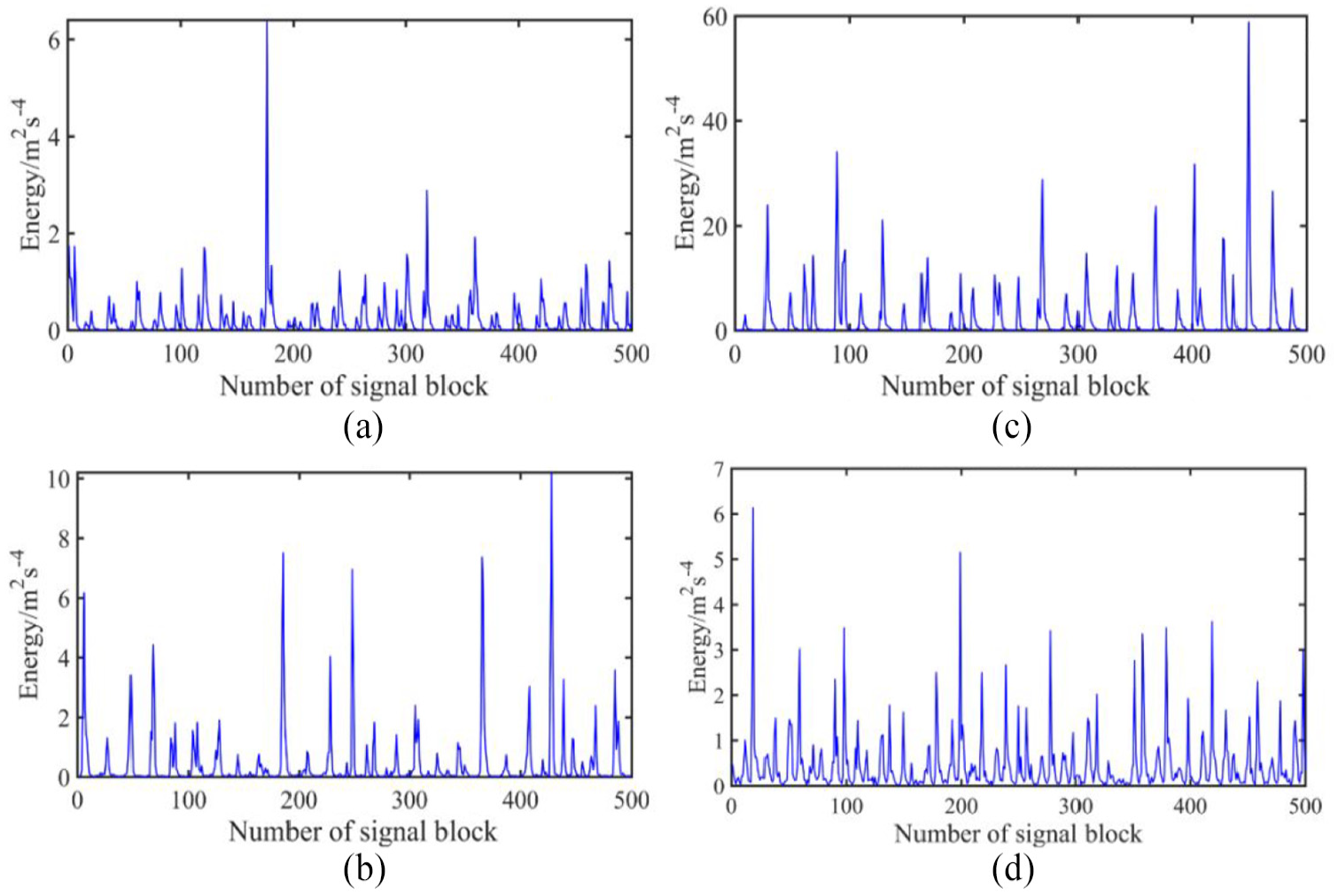

Figure 8 presents the energy sequences of vibration signal blocks for different fault bearings. For fault bearing with four fault states, when the number of signal blocks is set to 500, the rearranged energy sequence is obtained according to the magnitude of the energy block.

Figure 8.

Energy sequences of vibration signal blocks for fault bearing: (a) outer race damage, (b) inner race damage, (c) rolling element damage, and (d) normal condition.

The QPSO algorithm is used to classify different kinds of signal blocks based on the energy sequence. In the QPSO algorithm, the size of the particle population is set to 100. The optimal adaptive value of each iteration in the PSO computation process is shown in Figure 9. With the increase in iteration time, the adaptive value shows an upward trend. When the number of iterations is more than 20, the optimal adaptive value does not converge and changes slowly. If the number of iterations is more than 30, the optimal adaptive values for the four different conditions almost do not change significantly. To guarantee the classification effect for different kinds of signal blocks, the number of iterations is set to 30 and finally results in a high classification efficiency and computation time reduction.

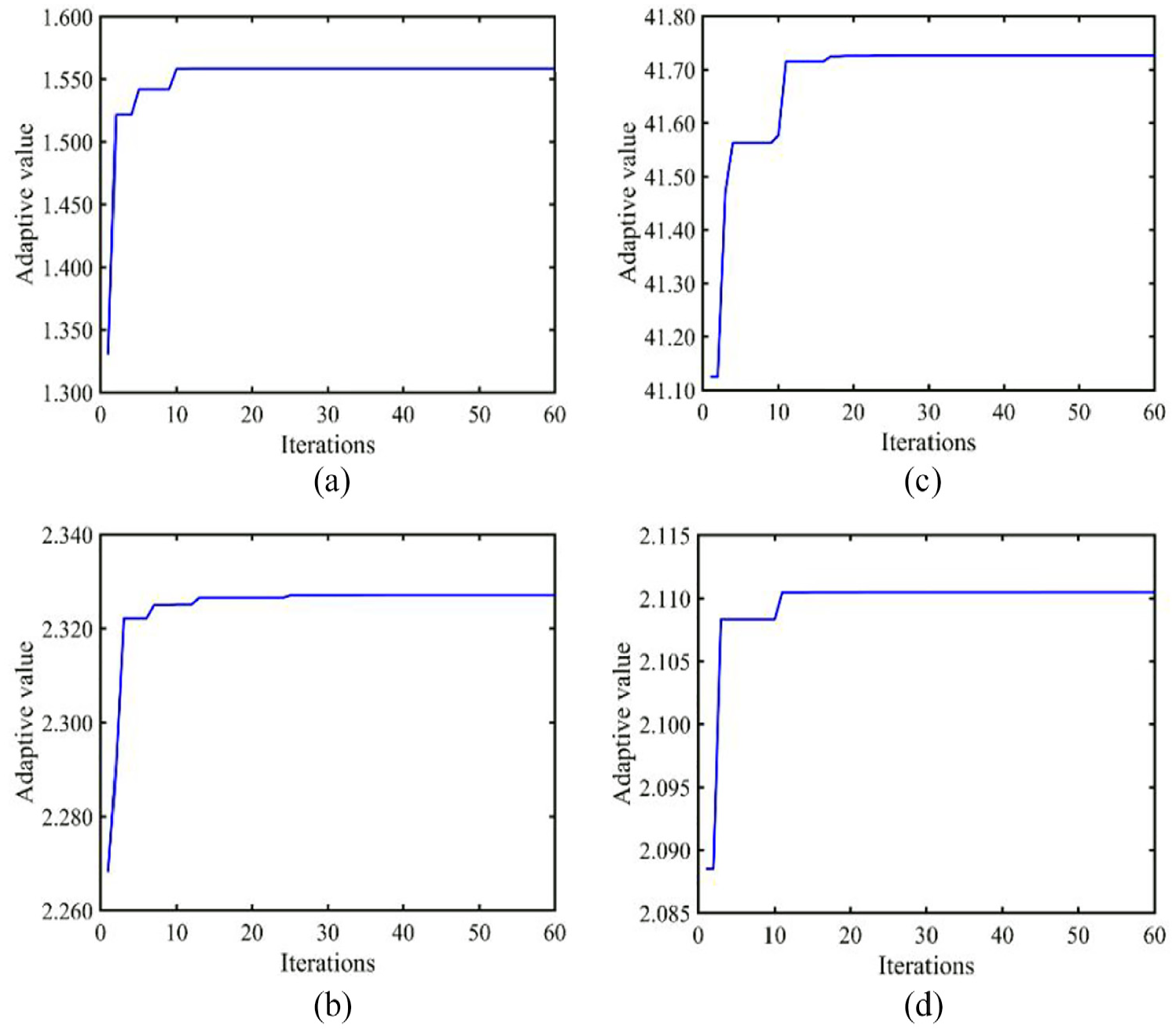

Figure 9.

Convergence effect of iteration for fault bearing signal classification: (a) outer race damage, (b) inner race damage, (c) rolling element damage, and (d) normal condition.

Combining Figures 6, 8, and 9, it can be found that the classification effect of the QPSO algorithm is closely related to the amplitude and energy of signal block in the time domain. The amplitude of energy sequence in the signal block becomes larger by increasing the amplitude of the sampling signal, resulting in a higher adaptive value of each iteration in the PSO computation process. When the bearing is in normal condition, mechanical equipment is easily affected by the noise signal. The structural characteristics and sparsity of mechanical vibration signals are poor. The regularity of energy sequence of vibration signals is poor after signal segmentation. If the bearing runs in the fault state, the fault signal shows different structural characteristics. The fault signal is mixed with normal signal and noise signal and becomes more complex in time domain, and then the structural characteristics and sparsity of fault signal are worse. If the fault signal is strong, the signal in time domain shows a high amplitude, and then the energy sequence shows a strong regularity after signal segmentation. In this case, the structural characteristics and sparsity of fault signal are improved by the proposed algorithm, which is useful to reduce background noise.

Figure 10 shows the effect of signal classification number on the PSNR index of signal block for rolling bearing with four fault states. In the process of dictionary training, due to large data sets of signal block, the small samples cannot guarantee the quality of sparse dictionary. For different kinds of signal block, the optimal values of classification number for the four fault states are 8, 10, 4, and 5, respectively. When the classification number of signal block is set to 10, the PSNR value from the rolling bearing with inner race damage shows a minimum value. Compared with rolling bearing with other fault states, the PSNR value from rolling bearing with inner race damage is lower, about 2.9–10.7, than the PSNR value from other fault bearings. The results implied that the lowest signal-to-noise ratio has a positive effect on the compressed sensing reconstruction of vibration signal.

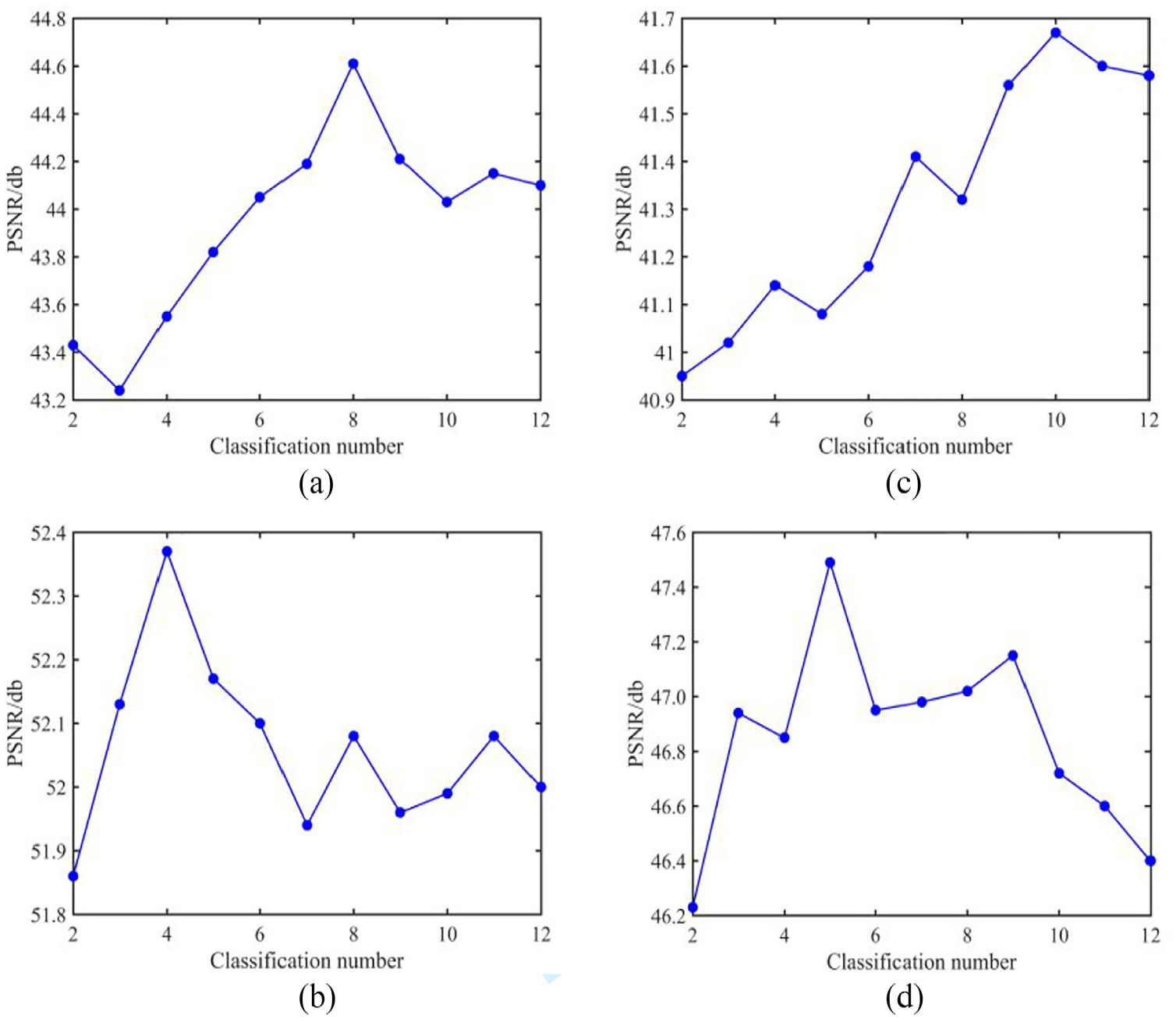

Figure 10.

Effect of classification number of signal block on the PSNR index of signal block for rolling bearing with four fault states: (a) outer race damage, (b) inner race damage, (c) rolling element damage, and (d) normal condition.

Table 1 shows the compressed sensing effect of vibration signal under different classification methods. Note that △PSNR is defined as the PSNR of vibration signal difference between the proposed algorithm and other classification methods. From Table 1, the PSNR of vibration signal based on the proposed algorithm is the highest, which is better than that of other classification methods. The results can also illustrate the effectiveness of the compressed sensing algorithm based on the optimized classification. It can be deduced that the proposed algorithm can improve the compressed sensing reconstruction effect of signal with poor structural characteristics.

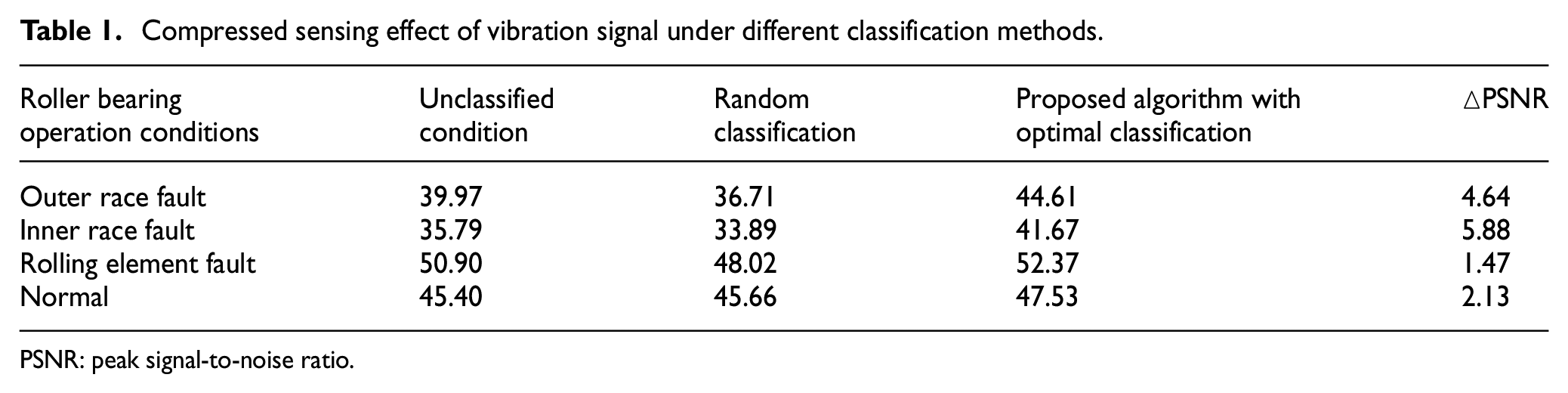

Table 1.

Compressed sensing effect of vibration signal under different classification methods.

Roller bearing operation conditions	Unclassified condition	Random classification	Proposed algorithm with optimal classification	△PSNR
Outer race fault	39.97	36.71	44.61	4.64
Inner race fault	35.79	33.89	41.67	5.88
Rolling element fault	50.90	48.02	52.37	1.47
Normal	45.40	45.66	47.53	2.13

PSNR: peak signal-to-noise ratio.

Although the proposed algorithm improves the reconstructed compressed sensing ratio for signal block, it reduces the computation efficiency. Under the same hardware conditions, the complexity of the algorithm is evaluated by calculating he computation time. Therefore, the variable rate of PSNR and computation time are given by

λ = \frac{Δ PSN R_{c} - Δ PSN R_{u}}{Δ PSN R_{u}} \times 100 %

(21)

γ = \frac{Δ t_{c} - Δ t_{u}}{Δ t_{u}} \times 100 %

(22)

where λ is the variable rate of PSNR, △PSNR_c is the difference value of PSNR from classified signal block, △PSNR_u is the difference value of PSNR from unclassified signal block, γ is the variable rate of computation time, △t_c is the computation time for classified signal, and △t_u is the computation time for unclassified signal.

Figure 11 presents the effect of signal length on the PSNR and computation time. With the increase in signal length, the fluctuation range for the PSNR is small, and the average value is 15.2%. The computation time ratio decreases continuously with the increase in signal length until it is reduced to reach 8%. However, the relative change rate of computation time decreases with the increase in the signal length. Therefore, if the length of original signal is very long, the proposed algorithm can greatly improve the effect of compressed sensing algorithm at the expense of a small amount of computational efficiency.

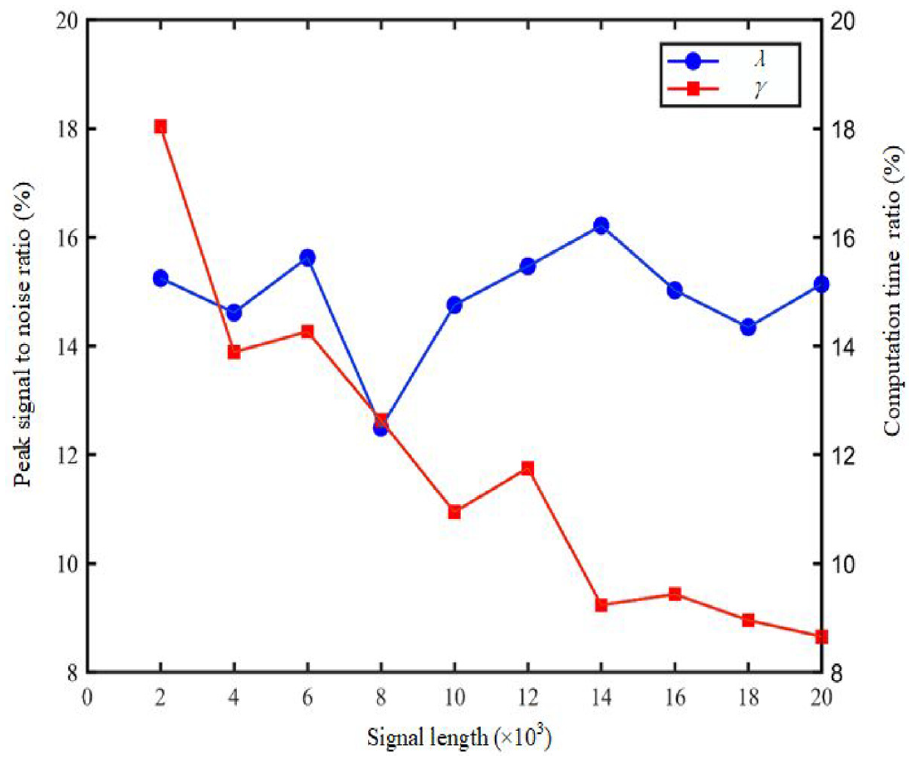

Figure 11.

Effect of signal length on the peak signal-to-noise ratio and computation time.

In this study, the three different algorithms are used to analyze the compressed sensing effect of reconstructed signal, including wavelet basis algorithm, the K-SVD algorithm, and the proposed algorithm. The PSNR index of reconstructed signal with different algorithms is shown in Table 2. Note that △PSNR1 and △PSNR2 are different values between the PSNR values of reconstruction signals with different algorithms. Thus, the formulas are

Δ PSNR 1 = PSNR - PSN R_{W}

(23)

Δ PSNR 2 = PSNR - PSN R_{k}

(24)

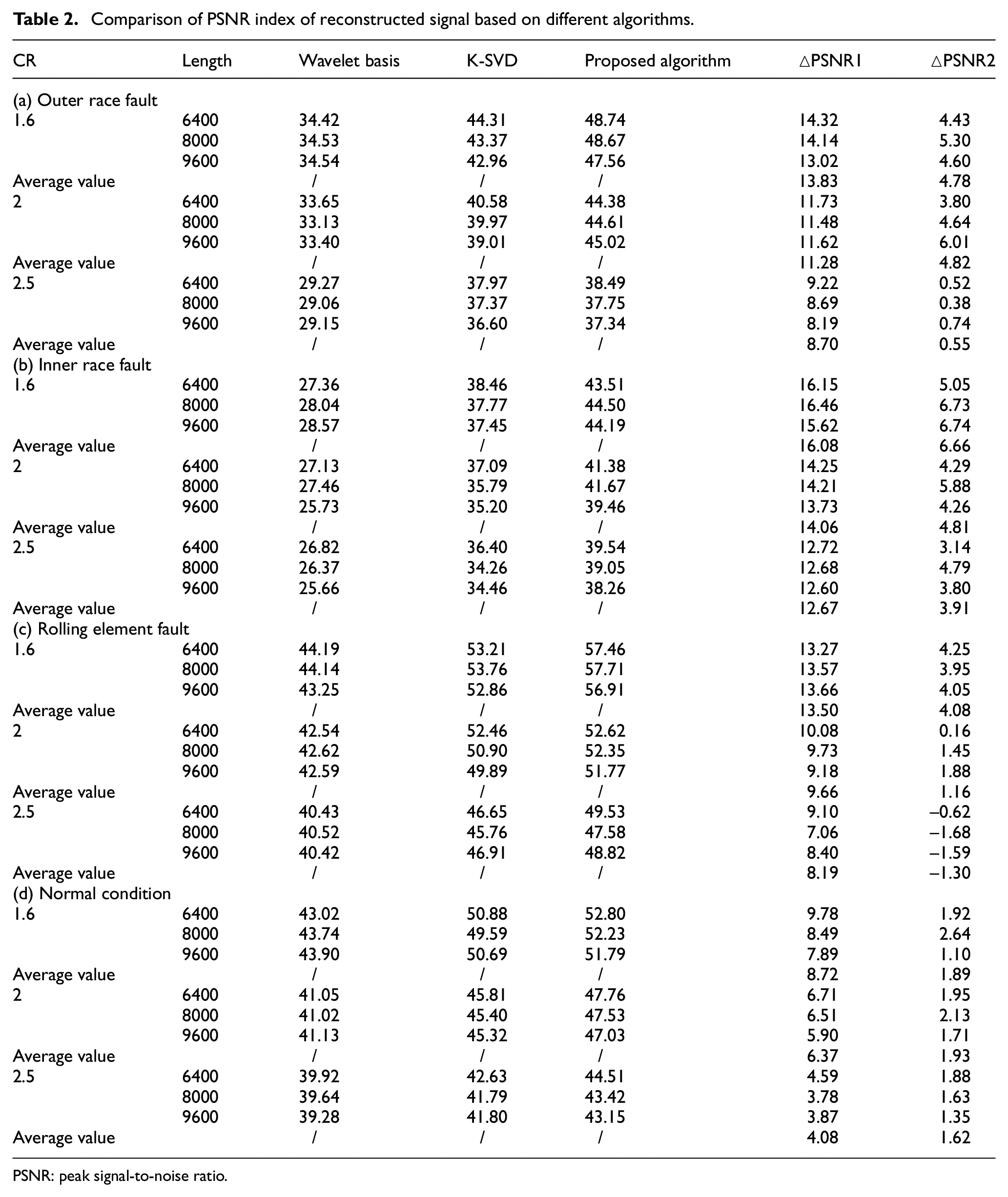

Table 2.

Comparison of PSNR index of reconstructed signal based on different algorithms.

CR	Length	Wavelet basis	K-SVD	Proposed algorithm	△PSNR1	△PSNR2
(a) Outer race fault
1.6	6400	34.42	44.31	48.74	14.32	4.43
	8000	34.53	43.37	48.67	14.14	5.30
	9600	34.54	42.96	47.56	13.02	4.60
Average value		/	/	/	13.83	4.78
2	6400	33.65	40.58	44.38	11.73	3.80
	8000	33.13	39.97	44.61	11.48	4.64
	9600	33.40	39.01	45.02	11.62	6.01
Average value		/	/	/	11.28	4.82
2.5	6400	29.27	37.97	38.49	9.22	0.52
	8000	29.06	37.37	37.75	8.69	0.38
	9600	29.15	36.60	37.34	8.19	0.74
Average value		/	/	/	8.70	0.55
(b) Inner race fault
1.6	6400	27.36	38.46	43.51	16.15	5.05
	8000	28.04	37.77	44.50	16.46	6.73
	9600	28.57	37.45	44.19	15.62	6.74
Average value		/	/	/	16.08	6.66
2	6400	27.13	37.09	41.38	14.25	4.29
	8000	27.46	35.79	41.67	14.21	5.88
	9600	25.73	35.20	39.46	13.73	4.26
Average value		/	/	/	14.06	4.81
2.5	6400	26.82	36.40	39.54	12.72	3.14
	8000	26.37	34.26	39.05	12.68	4.79
	9600	25.66	34.46	38.26	12.60	3.80
Average value		/	/	/	12.67	3.91
(c) Rolling element fault
1.6	6400	44.19	53.21	57.46	13.27	4.25
	8000	44.14	53.76	57.71	13.57	3.95
	9600	43.25	52.86	56.91	13.66	4.05
Average value		/	/	/	13.50	4.08
2	6400	42.54	52.46	52.62	10.08	0.16
	8000	42.62	50.90	52.35	9.73	1.45
	9600	42.59	49.89	51.77	9.18	1.88
Average value		/	/	/	9.66	1.16
2.5	6400	40.43	46.65	49.53	9.10	−0.62
	8000	40.52	45.76	47.58	7.06	−1.68
	9600	40.42	46.91	48.82	8.40	−1.59
Average value		/	/	/	8.19	−1.30
(d) Normal condition
1.6	6400	43.02	50.88	52.80	9.78	1.92
	8000	43.74	49.59	52.23	8.49	2.64
	9600	43.90	50.69	51.79	7.89	1.10
Average value		/	/	/	8.72	1.89
2	6400	41.05	45.81	47.76	6.71	1.95
	8000	41.02	45.40	47.53	6.51	2.13
	9600	41.13	45.32	47.03	5.90	1.71
Average value		/	/	/	6.37	1.93
2.5	6400	39.92	42.63	44.51	4.59	1.88
	8000	39.64	41.79	43.42	3.78	1.63
	9600	39.28	41.80	43.15	3.87	1.35
Average value		/	/	/	4.08	1.62

PSNR: peak signal-to-noise ratio.

where △PSNR1 is the difference value between the PSNR of vibration signals with the proposed algorithm and wavelet basis algorithm, △PSNR2 is the difference value between the PSNR of vibration signals with the proposed algorithm and the K-SVD algorithm, PSNR is the PSNR of vibration signal with the proposed algorithm, PSNR_W is the PSNR of vibration signal with wavelet basis algorithm, and PSNR_k is the PSNR of vibration signal with the K-SVD algorithm.

For the same compression ratio of vibration signal, the signal length has little effect on the compressed sensing reconstruction. When the signal length is the same, the compressed sensing reconstruction effect decreases by increasing the compression ratio. The structural characteristics of the signal have a great influence on the compressed sensing reconstruction effect. For weak fault signals (rolling element damage and outer ring damage), as shown in Table 2(a) and (c), the signal reconstruction effect is poor under different compression ratios. For strong fault signals (inner ring fault) or the normal signal, as shown in Table 2(b) and (d), the signal reconstruction effect is obvious and the conclusion is consistent with the previous research. It can also be found that the PSNR index of reconstructed signal for rolling bearing with four fault states obtained by the proposed algorithm is significantly higher than that of the wavelet basis algorithm. Especially, for a strong fault signal, if the compression ratio of vibration signal is low, the PSNR value of reconstructed signal is obvious. For rolling element failure signal with a compression ratio of 1.6, as shown in Table 2(c), the PSNR index of the reconstructed signal obtained by the proposed algorithm is higher, about 6.67 dB, than that of the K-SVD algorithm without signal classification function. In summary, for vibration signal with low compression ratio, the compression reconstruction effect obtained by the proposed algorithm is more obvious.

In this study, the relative error and Pearson correlation coefficient are used to evaluate the reconstruction performance and waveform similarity of vibration signals. Therefore, the calculation formula of relative reconstruction error is written as

σ = \frac{{‖ \hat{x} (i) - x (i) ‖}_{2}}{{‖ x (i) ‖}_{2}} \times 100 %

(25)

where σ is relative reconstruction error.

The Pearson correlation coefficient is defined as

r = \frac{n \sum x (i) \hat{x} (i) - \sum x (i) \sum \hat{x} (i)}{\sqrt{n \sum x {(i)}^{2} - {[x (i)]}^{2}} \sqrt{n \hat{x} {(i)}^{2} - {[\hat{x} (i)]}^{2}}} \times 100 %

(26)

where r is the Pearson correlation coefficient.

Table 3 shows a comparison of the relative reconstruction error, waveform similarity, and calculation time for vibration signal segments by using different algorithms. In this case, the CR is set to 1.6, and then the compressed sensing reconstruction performances of vibration signal under different algorithms are discussed. For different bearing fault signals, the relative reconstruction error of the outer race fault signal is lowest, and the relative reconstruction error of the inner race fault signal is highest. Especially, if CR is set to 1.6, the average relative reconstruction error of the vibration signal obtained by the proposed adaptive compressed sensing algorithm is 4.25%. For different bearing fault signals, the Pearson correlation coefficient of vibration signal obtained by the proposed algorithm is higher than that of the K-SVD algorithm without signal classification function. This result also fully demonstrates that the waveform of reconstructed signal is very similar to the waveform of original signal. To ensure high reconstruction accuracy, the classification number of signal blocks is optimized before a new sparse dictionary is used to train the vibration signal by the proposed algorithm. The reconstruction time of the proposed algorithm is shorter than that of the K-SVD algorithm without signal classification function. The main reason can be that the adaptive sparse dictionary model reduces the training time of samples. Therefore, this result also verifies the effectiveness of the adaptive sparse dictionary model with optimized classification of signal block. Therefore, the reconstruction accuracy is further improved and the reconstruction time is shortened by nearly 43.6%.

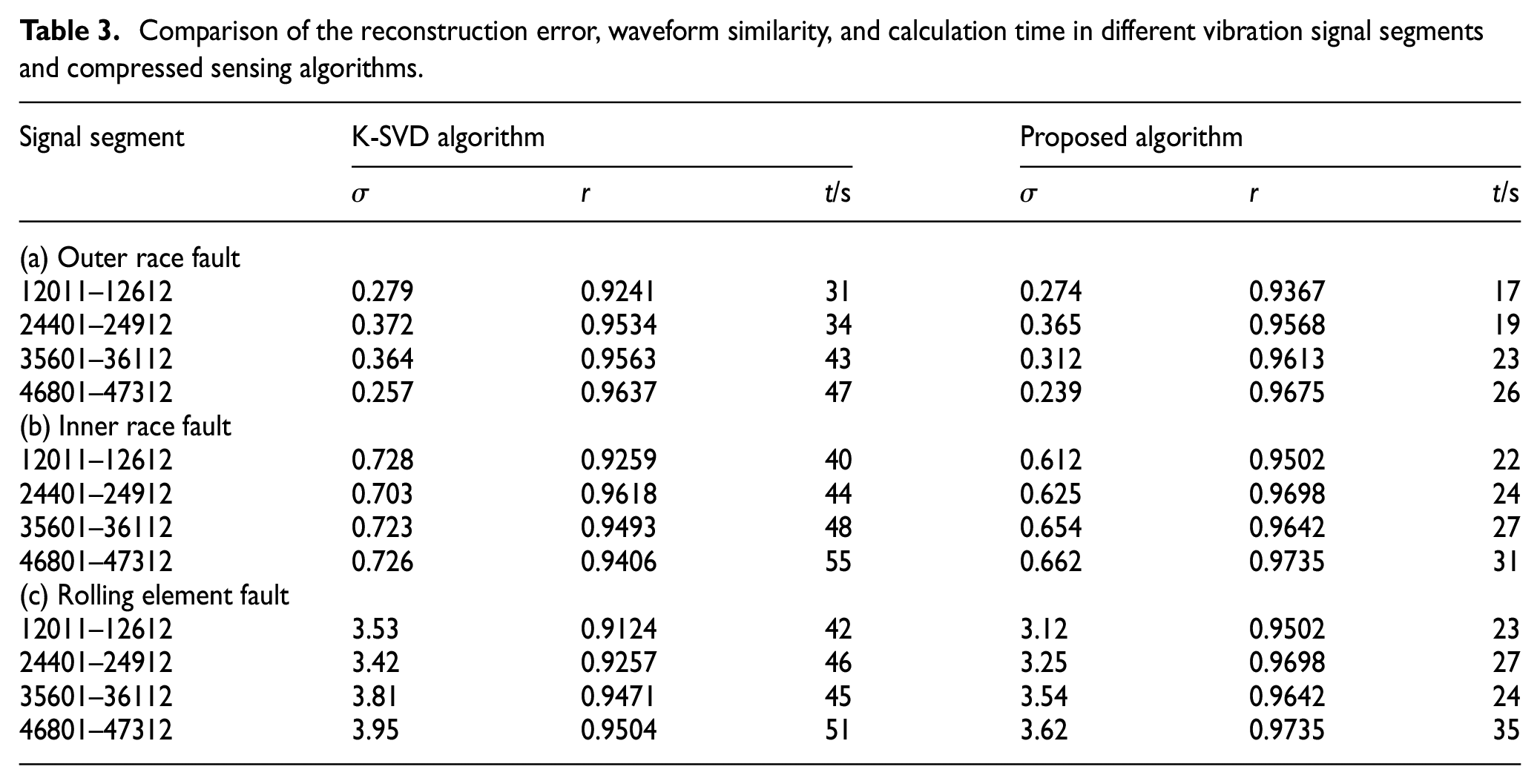

Table 3.

Comparison of the reconstruction error, waveform similarity, and calculation time in different vibration signal segments and compressed sensing algorithms.

Signal segment	K-SVD algorithm			Proposed algorithm
	σ	r	t/s	σ	r	t/s
(a) Outer race fault
12011–12612	0.279	0.9241	31	0.274	0.9367	17
24401–24912	0.372	0.9534	34	0.365	0.9568	19
35601–36112	0.364	0.9563	43	0.312	0.9613	23
46801–47312	0.257	0.9637	47	0.239	0.9675	26
(b) Inner race fault
12011–12612	0.728	0.9259	40	0.612	0.9502	22
24401–24912	0.703	0.9618	44	0.625	0.9698	24
35601–36112	0.723	0.9493	48	0.654	0.9642	27
46801–47312	0.726	0.9406	55	0.662	0.9735	31
(c) Rolling element fault
12011–12612	3.53	0.9124	42	3.12	0.9502	23
24401–24912	3.42	0.9257	46	3.25	0.9698	27
35601–36112	3.81	0.9471	45	3.54	0.9642	24
46801–47312	3.95	0.9504	51	3.62	0.9735	35

Conclusion

To improve the reconstruction effect of vibration signal, a new method of compressed sensing reconstruction for axial piston pump bearing vibration signals based on adaptive sparse dictionary model is proposed in this study. First, vibration signals are divided into blocks, and an energy sequence was produced in accordance with the energy of each signal block. Second, the energy sequence of each signal block was classified by the QPSO algorithm. Finally, the reconstruction of machinery vibration signals was constructed using the method of K-SVD dictionary-training algorithm. Compared with some traditional methods, the effectiveness of the adaptive compressed sensing algorithm is validated. The experimental results show that the relative reconstruction error of vibration signal with the proposed algorithm is 4.25% and reconstruction time decreases by 43.6% when the compression ratio is 1.6.

Research Data

original_data-Inner_race_damage – Supplemental material for Compressed sensing reconstruction for axial piston pump bearing vibration signals based on adaptive sparse dictionary model

Supplemental material, original_data-Inner_race_damage for Compressed sensing reconstruction for axial piston pump bearing vibration signals based on adaptive sparse dictionary model by Xiao Chaoang, Tang Hesheng and Ren Yan in Measurement and Control

This article is distributed under the terms of the Creative Commons Attribution 4.0 License (https://creativecommons.org/licenses/by/4.0/) which permits any use, reproduction and distribution of the work without further permission provided the original work is attributed as specified on the SAGE and Open Access pages (https://us.sagepub.com/en-us/nam/open-access-at-sage).

Research Data

original_data-Normal_condition – Supplemental material for Compressed sensing reconstruction for axial piston pump bearing vibration signals based on adaptive sparse dictionary model

Supplemental material, original_data-Normal_condition for Compressed sensing reconstruction for axial piston pump bearing vibration signals based on adaptive sparse dictionary model by Xiao Chaoang, Tang Hesheng and Ren Yan in Measurement and Control

Research Data

original_data-Rolling_element_damage – Supplemental material for Compressed sensing reconstruction for axial piston pump bearing vibration signals based on adaptive sparse dictionary model

Supplemental material, original_data-Rolling_element_damage for Compressed sensing reconstruction for axial piston pump bearing vibration signals based on adaptive sparse dictionary model by Xiao Chaoang, Tang Hesheng and Ren Yan in Measurement and Control

Research Data

original__data-Outer_race_damage – Supplemental material for Compressed sensing reconstruction for axial piston pump bearing vibration signals based on adaptive sparse dictionary model

Supplemental material, original__data-Outer_race_damage for Compressed sensing reconstruction for axial piston pump bearing vibration signals based on adaptive sparse dictionary model by Xiao Chaoang, Tang Hesheng and Ren Yan in Measurement and Control

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

The author(s) disclosed receipt of the following financial support for the research, authorship, and/or publication of this article: This work was supported by the National Natural Science Foundation of China (Grant Nos. 51805376 and 51505338), Zhejiang Provincial Natural Science Foundation of China (No. LQ17E050003), Open Foundation of the State Key Laboratory of Fluid Power and Mechatronic Systems (GZKF-201719), and Basic Scientific Research Projects Foundation of Wen Zhou (G20180019).

ORCID iD

Tang Hesheng

References

Chao

Zhang

, et al. Multi-position measurement of oil film thickness within the slipper bearing in axial piston pumps. Measurement 2018; 122(6): 66–72.

Gao

Tang

Xiang

, et al. A Walsh transform-based Teager energy operator demodulation method to detect faults in axial piston pumps. Measurement 2019; 134(2): 293–306.

Zhang

Xia

, et al. Experimental investigation on the noise reduction of an axial piston pump using free-layer damping material treatment. Appl Acoust 2018; 139: 1–7.

Zhang

, et al. Theoretical investigation of the contributions of the excitation forces to the vibration of an axial piston pump. Mech Syst Sig Process 2019; 129: 201–217.

Tao

Fault diagnosis of rolling bearing based on resonance-based sparse signal decomposition with optimal Q-factor. Meas Control 2019; 52(6): 1–11.

Zhang

, et al. Adaptive Kurtogram and its applications in rolling bearing fault diagnosis. Mech Syst Sig Process 2019; 130(1): 87–107.

Feng

Chen

Wang

Time-varying demodulation analysis for rolling bearing fault diagnosis under variable speed conditions. J Sound Vib 2017; 400(7): 71–85.

Borghesani

Pennacchi

Chatterton

The relationship between kurtosis- and envelope-based indexes for the diagnostic of rolling element bearings. Mech Syst Sig Process 2014; 43(1–2): 25–43.

Pang

Tang

Tian

, et al. Rolling bearing fault diagnosis based on an improved HTT transform. Sensors 2018; 18(4): 120313–120312.

10.

Wan

Zhang

Dou

LJ.

Compound fault diagnosis of bearings using improved fast spectral kurtosis with VMD. J Mech Sci Technol 2018; 32(11): 5189–5199.

11.

Zhang

Yang

Grzegorz

, et al. Feature extraction under bounded noise background and its application in low speed bearing fault diagnosis. J Mech Sci Technol 2019; 33(7): 3193–3204.

12.

Peng

Chu

FL.

Application of the wavelet transform in machine condition monitoring and fault diagnostics: a review with bibliography. Mech Syst Sig Process 2004; 18(2): 199–221.

13.

Wang

Zhang

Wang

, et al. Compressed sensing algorithm for machinery vibration signals based on optimal classification. J Vib Shock 2018; 37(14): 86–93.

14.

Wang

Xiang

Tang

, et al. Minimum entropy deconvolution based on simulation-determined band pass filter to detect faults in axial piston pump bearings. ISA Trans 2019; 88(5): 186–198.

15.

Wang

Xiang

Zhong

, et al. A data indicator-based deep belief networks to detect multiple faults in axial piston pumps. Mech Syst Sig Process 2018; 112(11): 154–170.

16.

Lan

Huang

, et al. Fault diagnosis on slipper abrasion of axial piston pump based on extreme learning machine. Measurement 2018; 124(4): 378–385.

17.

Wang

XJ.

A multi-source information fusion fault diagnosis for aviation hydraulic pump based on the new evidence similarity distance. Aerosp Sci Technol 2017; 71(11): 392–401.

18.

Huai

, et al. A self-adaptive proximal point algorithm for signal reconstruction in compressive sensing. In: Proceedings of the IEEE international conference on signal and image processing, Beijing, China, 13–15 August 2016, pp. 1–10. New York: IEEE.

19.

Graff

Sidky

EY.

Compressive sensing in medical imaging. Appl Opt 2015; 54(8): 23–44.

20.

Ciaramella

Giunta

Packet loss recovery in audio multimedia streaming by using compressive sensing. IET Commun 2016; 10(4): 387–392.

21.

Wang

Meng

, et al. Compressive sensing reconstruction for vibration signals based on the improved fast iterative shrinkage-thresholding algorithm. Measurement 2019; 142(8): 68–78.

22.

Wang

Zhang

Meng

, et al. Multi-task Bayesian compressive sensing for vibration signals in diesel engine health monitoring. Measurement 2019; 136(3): 625–635.

23.

Ganesan

Das

Rahnavard

, et al. Vibration-based monitoring and diagnostics using compressive sensing. J Sound Vib 2017; 394(4): 612–630.

24.

Shao

Jiang

Zhang

, et al. Rolling bearing fault feature learning using improved convolutional deep belief network with compressed sensing. Mech Syst Sig Process 2018; 100(2): 743–765.

25.

Tang

Yang

Wang

, et al. Sparse classification of rotating machinery faults based on compressive sensing strategy. Mechatronics 2015; 31(10): 60–67.

26.

Chen

, et al. Compressed sensing based on dictionary learning for extracting impulse components. Sig Process 2014; 96(3): 94–109.

27.

Sun

Wen

JT.

Compressed-sensing reconstruction based on block sparse Bayesian learning in bearing-condition monitoring. Sensors 2017; 17(7): 1454–1474.

28.

Ding

Bao

Wang

, et al. A novel multi-dictionary framework with global sensing matrix design for compressed sensing. Sig Process 2018; 152(11): 69–78.

29.

, et al. An enhanced empirical wavelet transform for noisy and non-stationary signal processing. Dig Sig Process 2017; 60(1): 220–229.

30.

Fracastoro

Fosson

Magli

Steerable discrete cosine transform. IEEE Trans Imag Process 2017; 26(1): 303–314.

31.

Tropp

Gilbert

AC.

Signal recovery from random measurements via orthogonal matching pursuit. IEEE Trans Inform Theor 2007; 53(12): 4655–4666.

32.

Wen

Zhou

Wang

, et al. A sharp condition for exact support recovery with orthogonal matching pursuit. IEEE Trans Sig Process 2017; 65(16): 1370–1382.

33.

Moshtaghpour

Jacques

Cambareri

, et al. Consistent basis pursuit for signal and matrix estimates in quantized compressed sensing. IEEE Sig Process Lett 2016; 23(1): 25–29.

34.

Wang

Zhao

Cai

, et al. Sparsity guided empirical wavelet transform for fault diagnosis of rolling element bearings. Mech Syst Sig Process 2014; 101(15): 292–308.

35.

Zhang

Liu

Miao

, et al. Bearing fault diagnosis using a whale optimization algorithm-optimized orthogonal matching pursuit with a combined time–frequency atom dictionary. Mech Syst Sig Process 2018; 107(6): 29–42.

36.

Yuan

, et al. Fault diagnosis on slipper abrasion of axial piston pump based on extreme learning machine. Measurement 2018; 124: 378–385.

37.

Siano

Panza

MA.

Diagnostic method by using vibration analysis for pump fault detection. Energy Proc 2018; 148: 10–17.

38.

Adcock

Hansen

Roman

A note on compressed sensing of structured sparse wavelet coefficients from subsampled Fourier measurements. IEEE Sig Process Lett 2016; 23(5): 732–736.

39.

Ouyang

Huang

Liang

, et al. Test data compression of system-on-chip (SoC) using few relevant bits. J Electron Meas Instrum 2013; 27(1): 76–82.

Supplementary Material

Please find the following supplemental material available below.

For Open Access articles published under a Creative Commons License, all supplemental material carries the same license as the article it is associated with.

For non-Open Access articles published, all supplemental material carries a non-exclusive license, and permission requests for re-use of supplemental material or any part of supplemental material shall be sent directly to the copyright owner as specified in the copyright notice associated with the article.

0.00 MB

8.64 MB

9.77 MB

6.94 MB

9.77 MB
