Abstract

Earth pressure in sealed chamber is affected by multisystem and multifield coupling during shield tunneling process, so it is difficult to establish a mechanism earth pressure control model. Therefore, a data-driven modeling method of earth pressure in sealed chamber is proposed, which is based on parallel least squares support vector machine optimized by parallel cooperative particle swarm (parallel cooperative particle swarm optimization-partial least squares support vector machine). The vectors are parallel studied according to different hierarchies firstly, then the initial classifiers are updated by using cross-feedback method to retrain the vectors, and finally the vectors are merged to obtain the support vectors. The parameters of least squares support vector machine are optimized by the parallel cooperative particle swarm optimization, so as to predict quickly for large-scale data. Finally, the simulation experiment is carried out based on in-site measured data, and the results show that the method has high computing efficiency and prediction accuracy. The method has directive significance for engineering application.

Keywords

Shield machine earth pressure balance control predict least squares support vector machine parallel cooperative particle swarm optimization

Introduction

With the acceleration of industrialization and the needs of national significant strategies, the number of underground engineering projects is increasing. The earth pressure balance (EPB) shield machines are more and more widely applied to the construction under various soft soils. The EPB shield machine must maintain the excavation face stable during the tunneling process. Otherwise, it will cause earth surface deformation or even catastrophic accident.¹ Therefore, it is necessary to establish a prediction model of earth pressure to accurately predict the pressure in real time which can provide a basis for making control decision. Because the pressure in the sealed chamber is not only related to the multiple subsystems of shield machine, but also related to multifield coupling of the tunneling process, multi-phase medium components in chamber, geological conditions, and so on. It is difficult to establish a mechanism model of the earth pressure. Therefore, some scholars began to study modeling methods based on in-site construction data. Yeh² proposed to establish an earth pressure control model using back propagation (BP) neural network, which is first proposed to establish the model based on data. Alvarez et al.³ established a control model for shield machine based on fuzzy neural system. Manuel and Luis⁴ used the discrete element method to establish a discrete numerical model of the pressure. In Liu et al.,⁵ the pressure model was proposed based on mechanism analysis and least squares support vector machine (LS-SVM). In Liu et al.,⁶ using the basic LS-SVM theory, the earth pressure prediction model was established, and based on it, an optimization model was established, and then the optimal advance speed and screw conveyor speed were solved through particle swarm optimization (PSO) algorithm. In Li et al.,⁷ the model was established by the autoregressive moving average model (ARMA). In the above studies, the influence of the distribution difference of initial training samples on the classifier performance was not considered, as well as the efficiency and real-time performance for large-scale calculation. Therefore, the practicality of the model will be greatly affected.

Since the LS-SVM follows the structural risk minimization criterion, the structural parameters are determined according to the sample data during the training process, and the learning problem is transformed into the solution of linear equations, which speeds up the solution process.⁸ In order to accurately and quickly predict the earth pressure in chamber based on large-scale data, a data-driven modeling method of earth pressure is proposed in this paper, which is based on parallel LS-SVM and the key model parameters are optimized by parallel cooperative particle swarm optimization (PCPSO). The support vectors are learned in parallel hierarchically, and the parameters C and σ are optimized by cooperative particle swarm, so as to complete fast prediction for large-scale data. Finally, the effectiveness of the method is verified through simulation.

LS-SVM regression algorithm

LS-SVM is an extension of the standard support vector regression machine.^9,10 The optimization index uses the square term and it replaces the inequality constraint of the standard support vector machine with the equality constraint. Therefore, the quadratic programming problem is transformed into solving linear equations, the model is

\begin{matrix} min_{ω, b, e} J (ω, b, e) = \frac{1}{2} ω^{T} ω + \frac{C}{2} \sum_{i = 1}^{l} e_{i}^{2} \\ s . t . y_{i} = ω^{T} φ (x_{i}) + b + e_{i} i = 1, \dots, l \end{matrix}

(1)

where $φ (x_{i})$ is a nonlinear mapping function, $ω$ is a coefficient vector, b is an offset term, $e_{i}$ is error, l is the number of samples and C is structural parameter.

Lagrangian function is established for the above optimization problem

L (ω, b, e, α) = J (ω, b, e) - \sum_{i = 1}^{l} α_{i} [ω^{T} φ (x_{i}) + b + e_{i} - y_{i}]

(2)

where $α_{i}$ is Lagrange multiplier.

K is defined as the kernel function, $K (x_{i}, x) = φ (x_{i})^{T} φ (x)$ . Therefore, the original regression problem can be solved and the regression function is

f (x) = \sum_{i = 1}^{l} α_{i} K (x_{i}, x) + b

(3)

The RBF ( Radial Basis Function) kernel function is a linear feedforward network learning algorithm with the characteristics of global convergence, fast learning speed. Therefore, this paper uses the RBF kernel function

K (x_{i}, x) = \exp (\frac{- {‖ x_{i} - x ‖}^{2}}{2 σ^{2}})

(4)

where $σ$ is the kernel width, which reflects the distribution characteristics of the training sample data. The parameter C can affect the generalization ability of the model. Therefore, the optimality of both parameters will greatly improve the performance of LS-SVM.

Cooperative particle swarm algorithm

Particle swarm algorithm is an optimization method based on evolutionary computation technology. The basic idea is to find the optimal solution through information transmission and information sharing among individuals in the group. It has the advantages of fast convergence, few parameters, easy implementation, and small influence by dimensions. Particles update themselves by tracking two “extreme values.”¹¹ In order to avoid that particles oscillate around the local optimal solution, in this paper, the velocity calculation formula of particle swarm is established¹²

{\begin{matrix} v_{i}^{k + 1} = ω_{i} \cdot v_{i}^{k} + 2 (1 - k_{2 i}) \cdot ϕ \cdot r_{1 i} \cdot (p_{i} Bes t_{i} - x_{i}^{k}) \\ + 2 k_{2 i} \cdot ϕ \cdot r_{2 i} \cdot (gBest - p_{i} Bes t_{i}) \\ x_{i}^{k + 1} = x_{i}^{k} + v_{i}^{k + 1} \end{matrix}

(5)

where $ϕ = ω_{i} + 1 - 2 \sqrt{ω_{i}} + 4 k_{1 i} \sqrt{ω_{i}} k_{2 i}$ , $ω_{i}$ is the extent of closing to the local optimal solution, $k_{2 i}$ is the extent of closing to the global optimal solution, $k_{1 i}$ is the extent of divergence of convergence, and $r_{1 i}$ and $r_{2 i}$ are random numbers between [0, 1].

The global extremum of the algorithm is defined as gBest and the local extremum is $p_{i} Best$ . The particle swarms move close to the gBest under the action of equation (5), and the individual extremum is constantly updated during this process. In the initial stage, the difference between $p_{i} Best$ and the individual x_i is generally large, and the inertia factor $ω_{i}$ is close to l. Similarly, the difference between gBest and $p_{i} Best$ is generally large, and $k_{2 i}$ is close to 0. For each particle in a particle swarm, the final convergence position will be the global extremum found by the entire particle swarm, and $k_{1 i}$ decreases exponentially as the number of iterations n increases. When the algorithm closes to convergence position, the difference between the local extremum and the global extremum gradually decreases and it tends to 0. The inertia factor $ω_{i}$ automatically adjusts to approach 0 and $k_{2 i}$ gradually approaches 1. Based on the above analysis, the parameters are designed as follows

ω_{i} = ω_{max} - (ω_{max} - ω_{min}) T_{max} / T_{i}

(6)

k_{1 i} = k_{0} \exp (- α i)

(7)

k_{2 i} = \exp (- \frac{{‖ p_{i} Best - gBest ‖}^{2}}{2})

(8)

Parameters optimization of LS-SVM model based on PCPSO

For the cooperative particle swarm, the population has to experience time-consuming secondary optimization calculations during every optimization process and the calculation efficiency is not high, so the cooperative particle swarm is group-optimized in parallel in this paper. The tracking process of particle swarms is done in a relatively independent parallel process, which not only improves the speedup but also ensures the diversity of the population in each process, and it is not easy to fall into the local minimum.^13,14 Different parameters $ω_{i}$ , $k_{1 i}$ , $k_{2 i}$ will be gotten through different motion modes of the particle swarms. Finally, the groups are brought together to the main process, and the global optimal parameters C and $σ$ are obtained. The algorithm is as follows:

Initialize the particle swarm algorithm parameters. Each process is assigned a group of particles for parallel computing. The structure of particle swarm on the $j th$ optimized is $X_{j} = (x_{1 j}, \dots, x_{pj})^{T}$ , p is the number of processes, j is the times of optimization; $X_{ij} = (x_{ij 1}, \dots, x_{ijk})^{T}$ , $x_{ijk}$ represents the $k th$ particle of the $j th$ time optimization of the $i th$ process, which is a two-dimensional variable representing C and $σ$ , respectively.

Get training set $T = {(x_{1}, y_{1}), \dots, (x_{k}, y_{k})} \in (X, Y)^{k}$ , $x_{i} \in X = R^{n}$ , $y_{i} \in Y = R^{n}$ , $i = 1, \dots, k$ . Give the initialization model parameters and establish the LS-SVM earth pressure prediction model, so the predicted value of earth pressure $y'$ is obtained.

Take the mean square error as the fitness function that can reflect the performance of the LS-SVM prediction model directly

fitness = \frac{1}{n} \sum_{i = 1}^{n} ({y'}_{i} - y_{i})^{2}

(9)

Minimizing the fitness function can evaluate whether the optimization algorithm is convergence based on the parallel cooperative particle swarm. If the fitness value exceeds the allowable value, the cyclic calculation is continued; otherwise exit.

The local preferable solution is selected from the particle swarm of each process as follows

p_{Besti, j} = {(max {f_{ij 1}, f_{ij 2}, \dots, f_{ijk}})}^{- 1}

(10)

In the mean time, gather them into the main process, then the global optimal solution is selected from the particle swarm in main process as follows

g_{Best j} = {(max [\begin{matrix} f_{1 j 1} f_{1 j 2} \dots f_{1 jk} \\ ⋮ \\ f_{ij 1} f_{ij 2} \dots f_{ijk} \end{matrix}])}^{- 1}

(11)

where $f_{ijk}$ represents the fitness value of the $k th$ particle optimized at the $j th$ time of the $i th$ process; $(\cdot)^{- 1}$ represents the corresponding centers which are found by the adaptation value in the reverse direction.

Receive the global optimal solution $g_{Best j}$ for this cycle, update the particle velocity and position using equation (5), and modify the parameters using equations (6)–(8).

The main process judges whether the training times reach the maximum value or the fitness value reaches the requirement. When the condition is satisfied, the optimization finishes; meanwhile, the optimal parameters C and σ are obtained; otherwise, then go to step 2.

Establishment of earth pressure prediction model based on parallel LS-SVM

Parallel learning method is to decompose the original problem into several sub-problems and then integrate them. The advantage for this method is that it can shorten the training time and it has good scalability.^15,16 Therefore, a parallel learning algorithm of LS-SVM is proposed in this paper, which divides all features into several feature subsets according to different abstract levels, then process them in parallel using multiple classifiers, in the meantime update the initial classifiers using feedback method. The structure of the parallel LS-SVM algorithm is shown in Figure 1. The first layer: the original training sample set T is decomposed into four training subsets $T D_{1}$ , $T D_{2}$ , $T D_{3}$ , $T D_{4}$ ( $TD$ represents the training set). These four subsets are trained in parallel in accordance with the usual training method of LS-SVM. In the second layer, instead of merging the support vectors, the initial samples are adjusted and updated by means of cross-feedback, and finally are merged into support vectors. This method can avoid potential impact on the performance of the classifier influenced by the excessive distribution difference of the initial training samples. It can greatly reduce the training time, improve the learning efficiency, and make the model have stronger generalization ability and higher prediction accuracy.

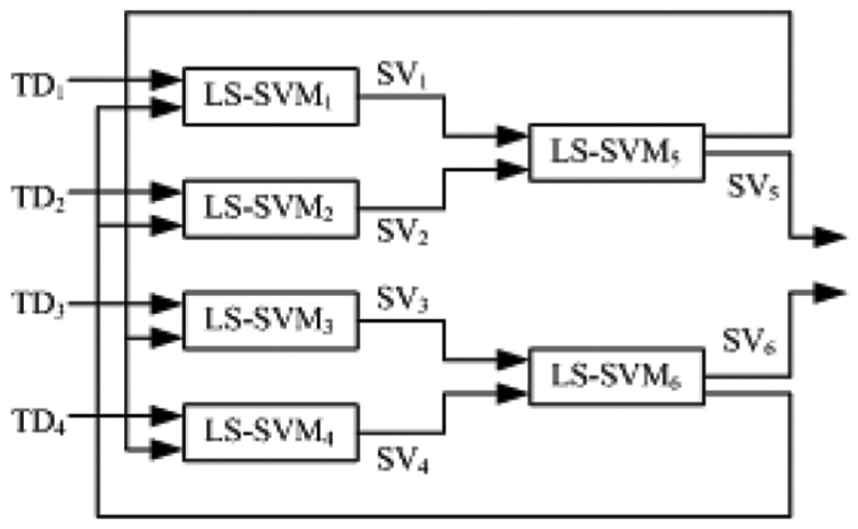

Figure 1.

Structure of the three-layer parallel LS-SVM.

The steps of the algorithm are summarized as follows:

Decompose the original training sample set T into four training subsets: $T D_{1}, T D_{2}, T D_{3}, T D_{4}$ . Based on the optimized parameters in section “Parameters optimization of LS-SVM model based on PCPSO,” the four subsets are trained in parallel, and the four least squares support vector sets are obtained as: $S V_{1}$ , $S V_{2}$ , $S V_{3}$ , and $S V_{4}$ .

Combine $S V_{1}$ with $S V_{2}$ , $S V_{3}$ with $S V_{4}$ respectively to generate two new training sample sets and then train them in parallel separately. Finally, two support vector sets $S V_{5}$ and $S V_{6}$ are obtained.

Cross-feedback $S V_{5}$ and $S V_{6}$ , namely $S V_{5}$ is added to $T D_{3}$ and $T D_{4}$ , $S V_{6}$ is added to $T D_{1}$ and $T D_{2}$ . Then go to step 1 to retrain them, $S {V'}_{5}$ and $S {V'}_{6}$ are obtained.

If $S {V'}_{5} - S V_{5} = ϕ$ and $S {V'}_{6} - S V_{6} = ϕ$ , or the difference between $S V_{5}$ and $S {V'}_{5}$ , $S V_{6}$ and $S {V'}_{6}$ are some fixed training sample, then combine $S {V'}_{5}$ and $S {V'}_{6}$ . Add the difference set between $S V_{5}$ and $S {V'}_{5}$ , $S V_{6}$ and $S {V'}_{6}$ .

After training, the support vector set is merged, and the earth pressure prediction model $f (x)$ is obtained finally. The algorithm is finished.

Simulation experiments and analysis

Project overview

The relevant data of simulation experiments were collected from No.10 line of Beijing Metro, and the ring numbers of the segments are 360–390 in one section. The soil texture mainly was mixed filling, sandy clay, silty clay, fine sand, and pebbles. The depth of tunnel is 12.6 m and the groundwater depth is 7.1 m. The project adopts the EPB shield construction method. The diameter of shield machine is 6.25 m and the excavation diameter is 6.28 m. There are four earth pressure sensors in chamber which are respectively located on the horizontal and vertical diagonal lines perpendicular to each other at the center of the pressure-bearing plate. The distance to the circumference is 0.9 m. The distribution of the sensors is shown in Figure 2, and all pressure data for the experiment were collected from them.

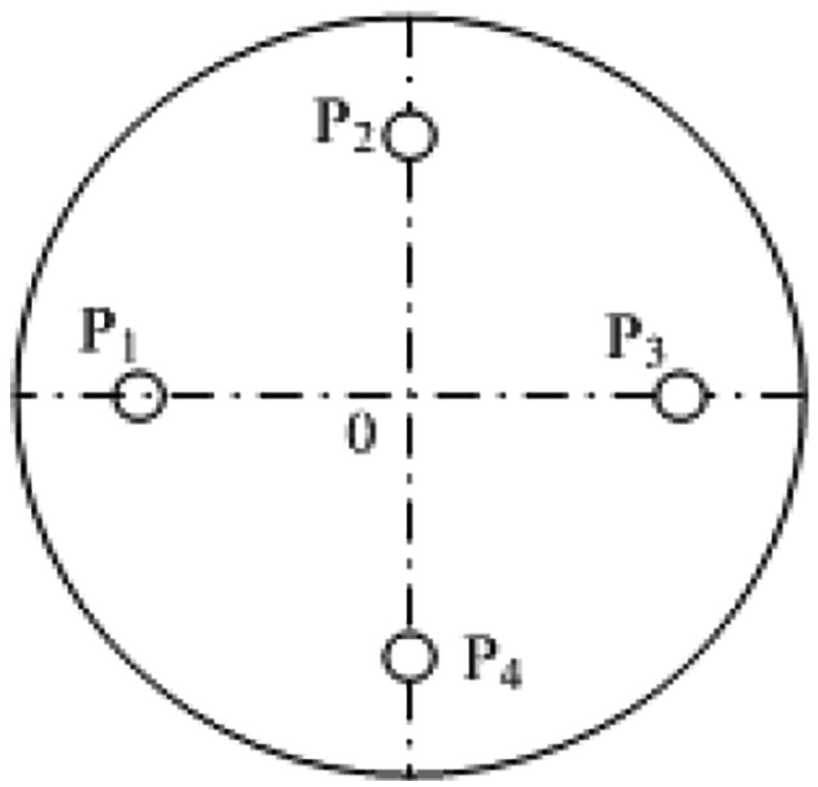

Figure 2.

Distribution of the sensors in soil chamber.

Data acquisition and parameters setting

According to actual tunneling control experience of the shield machine, the main control parameters affecting the earth pressure $p (k)$ in sealed chamber are the screw conveyor speed $V_{s} (k)$ , propulsion speed $V_{a} (k)$ , total thrust $F (k)$ , and cutterhead rotation speed $V_{c} (k)$ . Therefore, take $x (k) = (V_{s} (k), V_{a} (k), F (k), V_{c} (k))^{'}$ as the input of the prediction model, the earth pressure $p (k)$ is the output. The sample data set $T = {x (k), p (k)}$ , $k = 1, \dots, 1500$ was obtained after removing the abnormal data from the in-site data. Among them, 1300 sets were used as the training data and 200 sets were the test set.

The simulations are carried out using MATLAB software. Based on multiple experiments repeatedly, the best initial parameters are obtained as follows: the particle population size is 240, which is random equally divided into four processes for calculation. The number of dimensions of each particle is 2, inertia factor $ω_{max} = 2$ , $ω_{min} = 0.1$ , coefficient $α = 0.9$ , $k_{0} = 1.1$ , maximum number of iterations $T_{max} = 200$ . On this basis, according to the algorithm shown in Figure 3, the parameters of the LS-SVM model are optimized through training experiments; then the prediction model of earth pressure will be established.

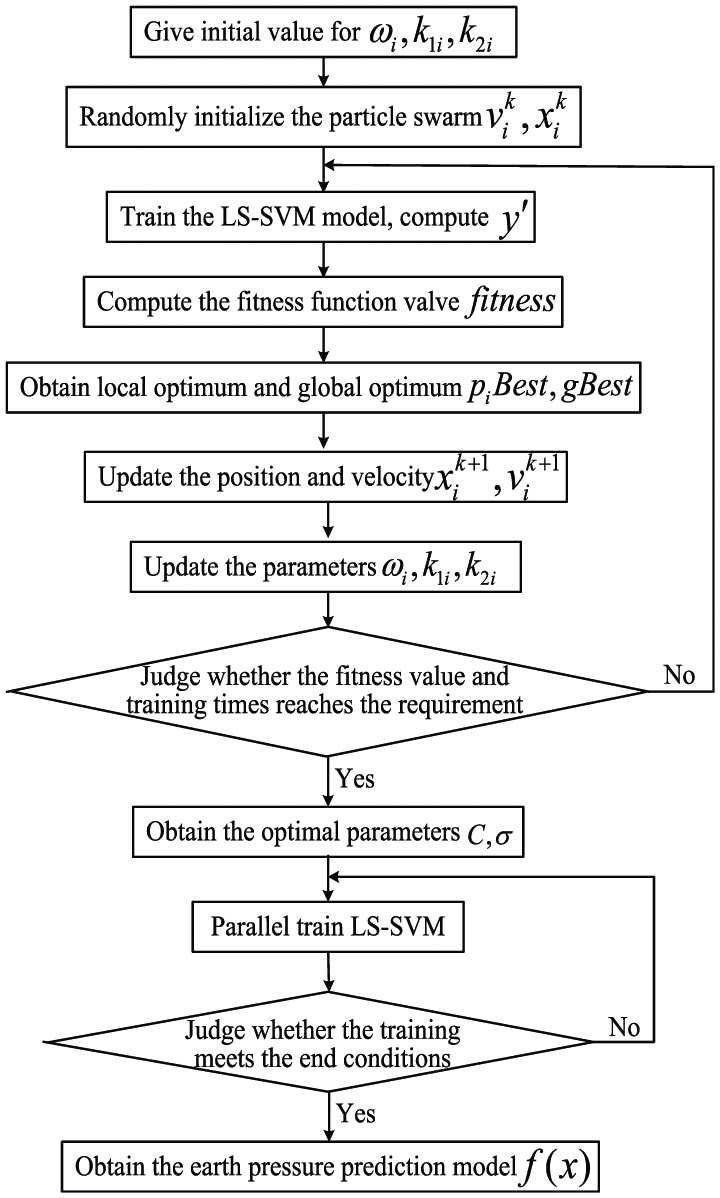

Figure 3.

Flow chart of PCPSO-PLSSVM algorithm.

The experimental computer is ThinkPad X1 Carbon, Intel(R) Core(TM)i5-4210U CPU at 1.7 GHz.

Experimental results and analysis

Validation of the prediction model

In order to reflect the pressure change of the entire excavation face, we predict the earth pressure of the four monitoring points $p_{1}$ , $p_{2}$ , $p_{3}$ , and $p_{4}$ using 200 samples, respectively. The predicted results are shown in Figure 4.

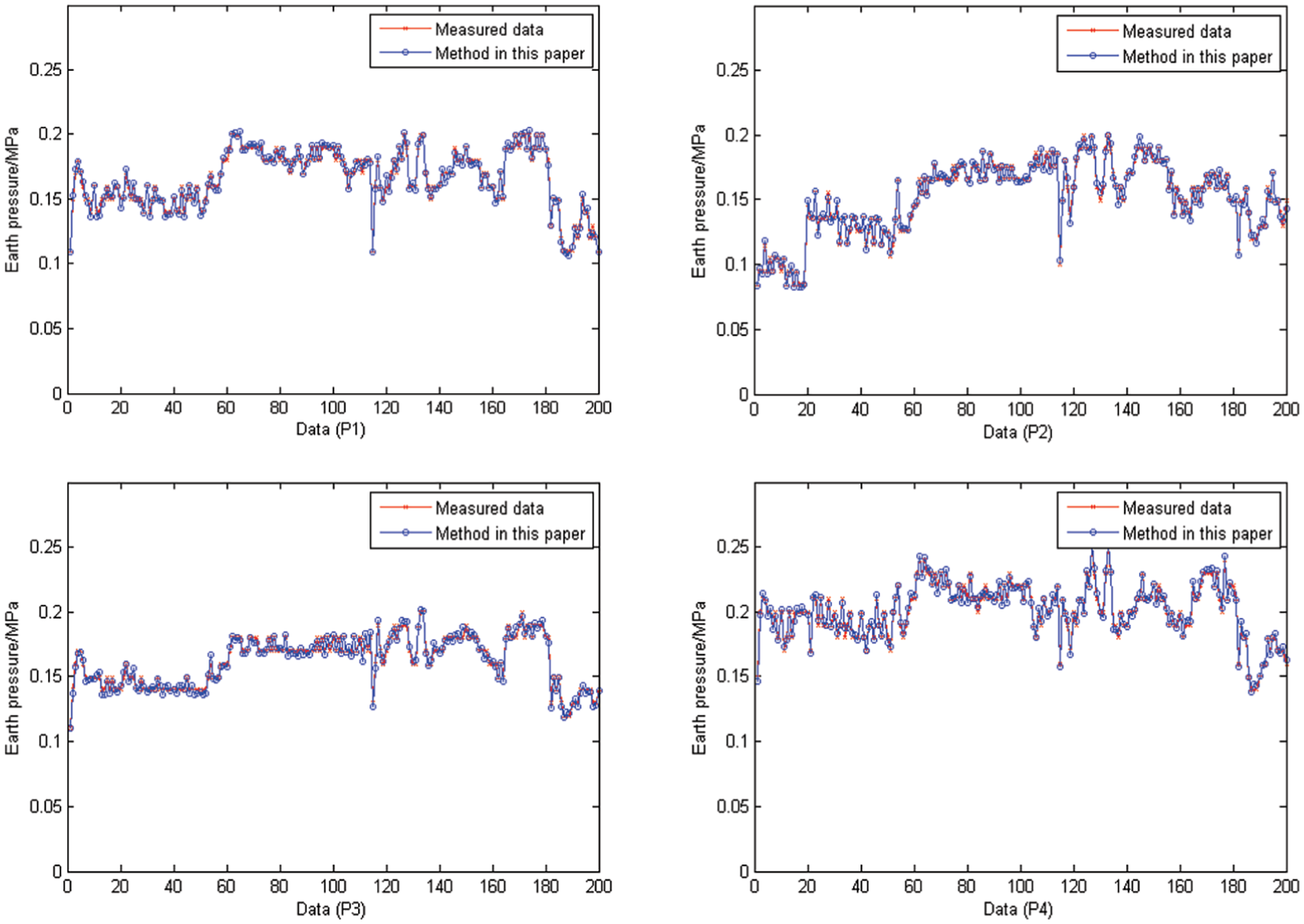

Figure 4.

Prediction results of the four monitoring points $p_{1}$ , $p_{2}$ , $p_{3}$ , and $p_{4}$ .

In Figure 4, the red line is the measured value of earth pressure, and the blue one is the predicted value of earth pressure. It can be seen that for the four monitoring points $p_{1}$ , $p_{2}$ , $p_{3}$ , and $p_{4}$ , the predicted values of each point are basically consistent with the measured values, which indicates that the method has higher prediction accuracy. Because the point $p_{4}$ is close to the port of screw conveyor and at the bottom of sealed chamber, the pressure values are bigger than other points. The real-time muck discharge will have uncertain influence on the pressure of the point. Therefore, the earth pressure of this point fluctuates greatly which conforms to the actual working conditions, but the pressure prediction accuracy is higher and they are basically consistent with the measured values. The prediction error is small, basically within 8.9%, which is less than 0.0171 MPa. Therefore, it is completely feasible that the earth pressure of the entire excavation face can be predicted through these pressure monitoring sensors, so as to provide early warning of the pressure imbalance in the sealed chamber.

Comparative analysis of prediction results

In order to verify the effectiveness of the proposed method, it is compared with standard LS-SVM algorithm. In order to make the effect more obvious and intuitive, only 100 data samples are used for prediction. The comparison prediction results are shown in Figure 5 and the corresponding prediction errors are shown in Figure 6.

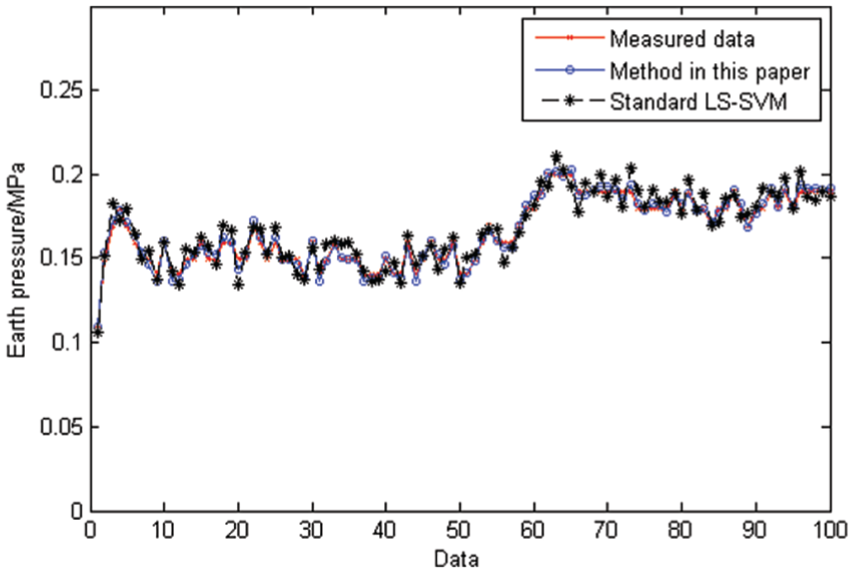

Figure 5.

Prediction results contrast of the two methods.

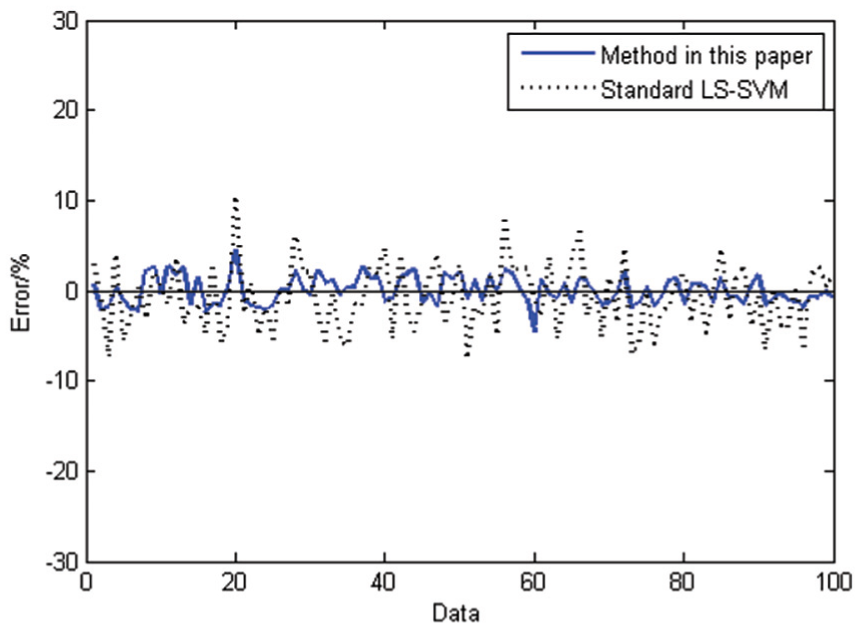

Figure 6.

Error contrast of the two methods.

In Figure 5, the red line is the measured value of earth pressure, the blue line is the predicted value by proposed method, and the black line is the predicted result of the standard LS-SVM. It can be seen that the prediction results of this paper are closer to the measured values than the standard LS-SVM method, and the prediction effect is better. The error comparison is shown in Figure 6, the blue line is the prediction error in this paper, and the black line is the LS-SVM prediction error. It can be seen that the prediction error in this paper is significantly smaller than that of LS-SVM, and the prediction accuracy is higher. In addition, in order to fully demonstrate the characteristics of the proposed method, it is also compared for the compute time and the root mean square error (RMSE), and the results are shown in Table 1. It can be seen from Table 1 that the RMSE of each monitoring point is significantly smaller than the LS-SVM method, and the compute time is also shorter. The compute accuracy and efficiency of this method are improved.

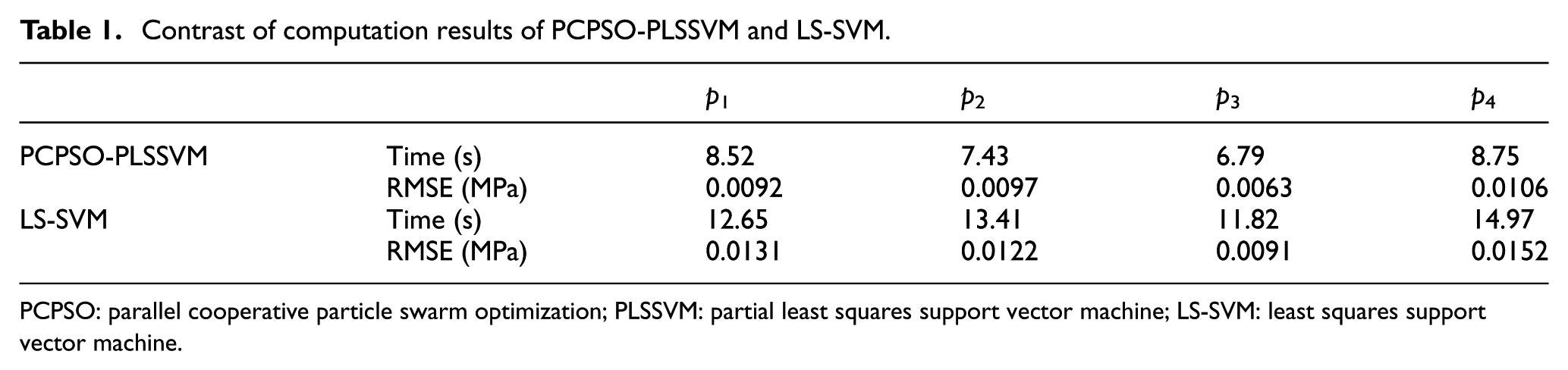

Table 1.

Contrast of computation results of PCPSO-PLSSVM and LS-SVM.

		p ₁	p ₂	p ₃	p ₄
PCPSO-PLSSVM	Time (s)	8.52	7.43	6.79	8.75
PCPSO-PLSSVM	RMSE (MPa)	0.0092	0.0097	0.0063	0.0106
LS-SVM	Time (s)	12.65	13.41	11.82	14.97
LS-SVM	RMSE (MPa)	0.0131	0.0122	0.0091	0.0152

PCPSO: parallel cooperative particle swarm optimization; PLSSVM: partial least squares support vector machine; LS-SVM: least squares support vector machine.

Conclusion

In order to predict the earth pressure in sealed chamber accurately, a data-driven modeling method based on parallel LS-SVM optimized by multiple cooperative particle swarm is proposed. The support vectors are hierarchically parallel learned, and then they are cross-feedback retrained to obtain the support vectors for establishing the prediction model. The simulation results based on field data show that the method can significantly improve the modeling efficiency and accuracy.

In the future, as an important part of the automatic control system of shield machine, the method can be used to monitor the earth pressure change of entire soil chamber in real time, and it can provide basis for quick decision-making about the EPB control. It can be widely used in underground engineering to ensure the construction safety, especially in soft soil stratum.

Footnotes

Declaration of conflicting interests

The author(s) declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Funding

This work is supported by the national natural science foundation of China (grant no. 61773190) and the Doctor Start-up Scientific research foundation of Liaoning province (grant no. 201501104).

ORCID iD

Xuanyu Liu

References

Liu

Shao

Present status and prospect of shield machine automatic control technology. J Mech Eng 2010; 46(20): 152–160.

Yeh

I-C.

Application of neural networks to automatic soil pressure balance control for shield tunneling. Automat Construct 1997; 5(5): 421–426.

Alvarez

Bruines

Verhoef

PNW

. Modeling tunnel boring machine performance by Neuro-Fuzzy methods. Tunnel Underground Space Technol 2000; 15(3): 259–269.

Manuel

Luis

. Discrete numerical model for analysis of earth pressure balance tunnel excavation. J Geotech Geoenviron Eng 2005(10): 1234–1242.

Liu

Shao

Liu

RX.

Modeling and simulation on earth pressure control for shield tunneling. J China Coal Soc 2010; 35(4): 575–579.

Liu

Shao

, et al. Optimal earth pressure balance control for shield tunneling based on LS-SVM and PSO. Automat Construct 2011; 20: 321–327.

Huo

Cao

LJ.

Autoregressive moving average model and its parameter estimation for earth pressure balance system of shield. J China Coal Soc 2014; 39(11): 2201–2205.

Suykens

JAK

Vandewalle

. Least squares support vector machine. Neu Process Lett 1999; 9(3): 293–300.

Suykens

JAK

Brabanter

Lukas

Weighted least squares support vector machines: robustness and sparse approximation. Neuro Comput 2002; 48(1): 85–105.

10.

Yasin

Zakaria

Razak

MHSK

, et al. Medium team load forecasting using evolutionary programming-least square support vector machine. ARPN J Eng Appl Sci 2015; 10(21): 9899–9905.

11.

Dorigo

Blum

Ant colony optimization theory: a survey. Theor Comput Sci 2005; 344(2–3): 243–278.

12.

Wang

Liao

XF.

Prediction model of support vector machine based on parallel cooperative particle swarm optimization. Control Theor Appl 2006; 23(6): 934–940.

13.

Collobert

Bengio

, et al. A parallel mixture of SVMs for very large scale problems. Neu Comutat 2002; 14(7): 1105–1114.

14.

Ngyen

Poulet

, et al. GPU-based parallel SVM algorithm. J Front Comput Sci Technol 2009; 3(4): 368–377.

15.

Coello

CAC

Pulido

Lechuga

MS.

Handling multiple objectives with particle swarm optimization. IEEE Trans Evolut Comput 2004; 8(3): 256–279.

16.

Cooren

Clerc

Siarry

PM.

An adaptive multi objective particle swarm optimization algorithm. Comput Optimiz Appl 2011; 49(2): 379–400.
