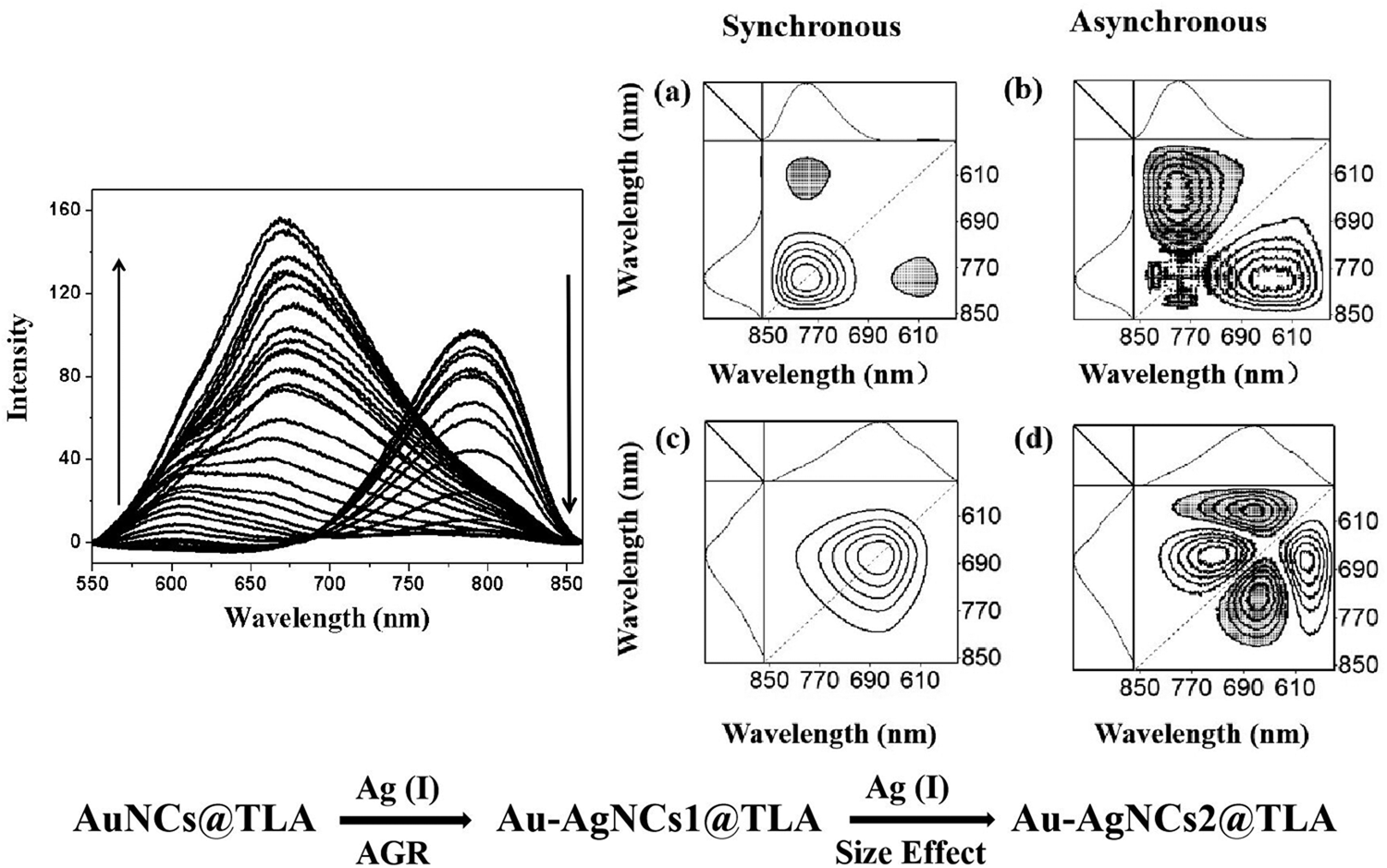

Based on fluorescence spectroscopy, being combined with several spectral analysis techniques including principal component analysis (PCA), two-dimensional correlation spectroscopy (2D-COS), and moving window 2D-COS, the study disclosed the structural variations of gold nanoclusters capped by thiolactic acid (AuNCs@TLA) induced by Ag(I) ions. Transmission electron microscopy (TEM) and X-ray photoelectron spectroscopy (XPS) were applied to monitor the morphology evolution of the surface and composition of the nanoclusters induced by Ag(I) ions. Several spectral components, centered at (790, 607) nm, (670, 590) nm, and (740, 670) nm were revealed by 2D-COS analysis, suggesting new luminescent species or groups were generated with the introduction of Ag(I) ions. A two-stage mechanism was revealed for the photoluminescence variations of AuNCs@TLA induced by Ag(I) ion. The first stage was characterized by the emission quench of 790 nm followed by the emerging emission of 607 nm, which was attributed to the anti-galvanic reaction; and the second stage featured by the noticeable growth of the emission's intensity around 670 nm as result of the AuNCs’ size effect. The present study will attract more focuses on near-infrared (NIR)-emitted metal nanoclusters and promote their synthesis and utilities.
Van de LooijS.M.HebelsE.R.ViolaM.HemburyM., et al. “Gold Nanoclusters: Imaging, Therapy, and Theranostic Roles in Biomedical Applications”. Bioconjugate Chem. 2022. 33(1): 4–23.
2.
ChengD.LiuR.HuK.. “Gold Nanoclusters: Photophysical Properties and Photocatalytic Applications”. Front Chem. 2022. 10: 958626.
3.
ZhuS.WangX.CongY.LiL.. “Regulating the Optical Properties of Gold Nanoclusters for Biological Applications”. ACS Omega. 2020. 5(36): 22702–22707.
4.
LiY.KimH.K.McGillicuddyR.D.ZhengS.L., et al. “A Double Open-Shelled Au43 Nanocluster with Increased Catalytic Activity and Stability”. J. Am. Chem. Soc. 2023. 145(16): 9304–9312.
5.
MordiniD.Mavridi-PrinteziA.MenichettiA.CantelliA., et al. “Luminescent Gold Nanoclusters for Bioimaging: Increasing the Ligand Complexity”. Nanomaterials (Basel). 2023. 13(4): 648.
6.
LinC.C.ChangW.H.ChengT.M.ChiuL.H., et al. “Two New, Near-Infrared, Fluorescent Probes as Potential Tools for Imaging Bone Repair”. Sci Rep. 2020. 10(1): 2580.
WuZ.. ““Anti-Galvanic Reduction of Thiolate-Protected Gold and Silver Nanoparticles”. Angew. Chem. Int. Ed. 2012. 51(12): 2934–2938.
9.
KangH.KimB.-G.NaH.B.HwangS.. “Anti-Galvanic Reduction of Silver Ion on Gold and Its Role in Anisotropic Growth of Gold Nanomaterials”. J. Phys. Chem. C. 2015. 119(46): 25974–25982.
10.
LiQ.WangS.KirschbaumK.LambrightK., et al. “Heavily Doped Au25−xAgx(SC6H11)18-Nanoclusters: Silver Goes From the Core to the Surface”. Chem. Commun. 2016. 52(29): 5194–5197.
11.
LiuX.AstrucD.. “From Galvanic to Anti-Galvanic Synthesis of Bimetallic Nanoparticles and Applications in Catalysis, Sensing, and Materials Science”. Adv. Mater. 2017. 29(16): 1605305.
12.
Z.GanXiaN.WuZ.. “Discovery, Mechanism, and Application of Antigalvanic Reaction”. Acc. Chem. Res. 2018. 51(11): 2774–2783.
13.
ZhuM.WangP.YanN.ChaiX., et al. “The Fourth Alloying Mode by Way of Anti-Galvanic Reaction”. Angew. Chem. Int. Ed. 2018. 57(17): 4500–4504.
14.
WangY.LiuL.GongL.ChenY., et al. “Reactivity Toward Ag(I) Ions: A General Strategy to Generate a New Emissive Center from NIR-Emitting Gold Nanoparticles”. J. Phys. Chem. Lett. 2018. 9(3): 557–562.
15.
LiangQ.Y.WangC.LiH.W.QiD.Y., et al. “Controlled-Fabrication and Assembly-Induced Emission Enhancement (AIEE) of Near-Infrared Emitted Gold Nanoclusters Capped by Thiolactic Acid”. J. Mol. Liq. 2023. 377: 121516.
16.
LiangQ.Y.WangC.LiH.W.WuY.. “A Ratiometric Luminescence Probe for Selective Detection of Ag(I) Ions Based on Thiolactic Acid-Capped Gold Nanoclusters with Near-Infrared Emission and Employing Bovine Serum Albumin as a Signal Amplifier”. Mikrochim. Acta. 2023. 190(9): 374.
17.
QiD.-Y.WangC.LiangQ.-Y.LiH.W., et al. “Silver Ions-Regulated Two-Stage Photoluminescence Transformations of Glutathione-Capped Gold Nanoclusters from Near-Infrared (NIR) to Visible Region: Anti-Galvanic Reaction and Ag Deposition”. Colloids Surf., A. 2023. 672: 131725–131729.
18.
NodaI.. “Generalized Two-Dimensional Correlation Method Applicable to Infrared, Raman, and Other Types of Spectroscopy”. Appl. Spectrosc. 1993. 47(9): 1329–1336.
19.
ParkY.JinS.NodaI.JungY.M.. “Continuing Progress in the Field of Two-Dimensional Correlation Spectroscopy (2D-COS), Part I. Yesterday and Today”. Spectrochim. Acta, Part A. 2022. 281: 121573–121578.
20.
ParkY.JinS.NodaI.JungY.M.. “Emerging Developments in Two-Dimensional Correlation Spectroscopy (2D-COS)”. J. Mol. Struct. 2020. 1217: 128405.
21.
Y.ParkNodaI.JungY.M.. “Two-Dimensional Correlation Spectroscopy of Proteins”. In: OzakiY.BaranskaM.LednevI.K.WoodB.R., editors. Vibrational Spectroscopy in Protein Research. New York: Academic Press, 2020. Pp. 337–373.
22.
HniopekJ.BocklitzT.SchmittM.PoppJ.. “Probing Protein Secondary Structure Influence on Active Centers with Hetero Two-Dimensional Correlation (Resonance) Raman Spectroscopy: A Demonstration on Cytochrome C”. Appl. Spectrosc. 2021. 75(8): 1043–1052.
23.
TianW.ZangL.NieL.LiL., et al. “Structural Analysis and Classification of Low-Molecular-Weight Hyaluronic Acid by Near-Infrared Spectroscopy: A Comparison Between Traditional Machine Learning and Deep Learning”. Molecules. 2023. 28(2): 809.
24.
LiangW.WeiS.LanL.ChenJ., et al. “Effect of Microplastics on the Binding Properties of Pb(II) onto Dissolved Organic Matter: Insights From Fluorescence Spectra and FTIR Combined with Two-Dimensional Correlation Spectroscopy”. RSC Adv. 2023. 13(35): 24201–24210.
25.
StancanelliR.. “Temperature-Dependent Dynamical Evolution in Coum/SBE-β-CD Inclusion Complexes Revealed by Two-Dimensional FTIR Correlation Spectroscopy (2D-COS)”. Molecules. 2021. 26(12): 3749.
26.
DomesR.FroschT.. “Molecular Interactions Identified by Two-Dimensional Analysis-Detailed Insight into the Molecular Interactions of the Antimalarial Artesunate with the Target Structure β-Hematin by Means of 2D Raman Correlation Spectroscopy”. Anal. Chem. 2023. 95(34): 12719–12731.
27.
HniopekJ.MeurerJ.ZechelS.SchmittM., et al. “Molecular in Situ Monitoring of the pH-Triggered Response in Adaptive Polymers by Two-Dimensional Raman Micro-Correlation-Spectroscopy”. Chem. Sci. 2023. 14(26): 7248–7255.
28.
ZhangL.WangW.-X.LiA.LiuJ., et al. “Influence of Pressure on the Structure and Luminescence Properties of AMP-Protected Gold Nanoparticles as Revealed by Fluorescence Spectra and 2D Correlation Analysis”. J. Mol. Struct. 2020. 1214: 128173.
29.
WuJ.TuW.LiC.HeF.. “Binding Characteristics of Copper onto Biochar-Derived DOM Using General, Heterospectral, and Moving-Window Two-Dimensional Correlation Analyses”. J. Hazard. Mater. 2022. 435(8): 129021.
30.
HeC.HeX.YuanR.LiN., et al. “Binding Characteristics of Pb and Zn to Low-Temperature Feces-Based Biochar-Derived DOM Revealed by EEM-PARAFAC Combined with General and Moving-Window Two-Dimensional Correlation Analyses”. Environ. Sci. Pollut. R. 2023. 30(10): 27525–72538.
31.
EomW.ShinH.HanT.H.. “Tracking the Thermal Dynamics of Ti3C2Tx MXene with XPS and Two-Dimensional Correlation Spectroscopy”. Appl. Phys. Lett. 2023. 122(21): 211601.
JungY.M.ShinH.S.KimS.B.NodaI.. “New Approach to Generalized Two-Dimensional Correlation Spectroscopy. 1: Combination of Principal Component Analysis and Two-Dimensional Correlation Spectroscopy”. Appl. Spectrosc. 2002. 56(12): 1562–1567.
34.
WatanabeA.MoritaS.KokotS.MatsubaraM., et al. “Drying Process of Microcrystalline Cellulose Studied by Attenuated Total Reflection IR Spectroscopy with Two-Dimensional Correlation Spectroscopy and Principal Component Analysis”. J. Mol. Struct. 2006. 799(1–3): 102–110.
35.
AzlahM.A.F.ChuaL.S.AbdullahF.I.YamM.F.. “A Fast and Reliable 2D-IR Spectroscopic Technique for Herbal Leaves Classification”. Vib. Spectrosc. 2020. 106(1): 103014.
36.
LiL.LiZ.M.WangY.Z.. “A Method of Two-Dimensional Correlation Spectroscopy Combined with Residual Neural Network for Comparison and Differentiation of Medicinal Plants Raw Materials Superior to Traditional Machine Learning: A Case Study on Eucommia ulmoides Leaves”. Plant Methods. 2022. 18(1): 102.
37.
DevadasM.S.KimJ.SinnE.LeeD., et al. “Unique Ultrafast Visible Luminescence in Monolayer-Protected Au25 Clusters”. J. Phys. Chem. C. 2010. 114(51): 22417–22423.
38.
JiangJ.ConroyC.V.KyetnyM.M.. “Oxidation at the Core-Ligand Interface of Au Lipoic Acid Nanoclusters that Enhances the Near-IR Luminescence”. J. Phys. Chem. C. 2014. 118(35): 20680–20687.
39.
SunJ.WuH.JinY.. “Synthesis of Thiolated Ag/Au Bimetallic Nanoclusters Exhibiting an Anti-Galvanic Reduction Mechanism and Composition-Dependent Fluorescence”. Nanoscale. 2014. 6(10): 5449–5457.
40.
KawasakiH.HamaguchiK.ArakawaR.. “pH-Dependent Synthesis of Pepsin-Mediated Gold Nanoclusters with Blue Green and Red Fluorescent Emission”. Adv. Funct. Mat. 2011. 21(18): 3508–3515.
41.
RoyS.BaralA.BhattacharjeeR.JanaB., et al. “Preparation of Multi-Coloured Different Sized Fluorescent Gold Clusters from Blue to NIR, Structural Analysis of the Blue Emitting Au7 Cluster, and Cell-Imaging by the NIR Gold Cluster”. Nanoscale. 2015. 7(5): 1912–1920.
42.
DouX.YuanX.YuY.. “Lighting Up Thiolated Au@Ag Nanoclusters via Aggregation-Induced Emission”. Nanoscale. 2014. 6(1): 157–161.
