Determination of Aminophylline in Human Serum Using Hydrogel Microspheres for Coupled Surface-Enhanced Raman Spectroscopy (SERS) and Solid-Phase Extraction
Restricted accessResearch articleFirst published online May, 2024
Determination of Aminophylline in Human Serum Using Hydrogel Microspheres for Coupled Surface-Enhanced Raman Spectroscopy (SERS) and Solid-Phase Extraction

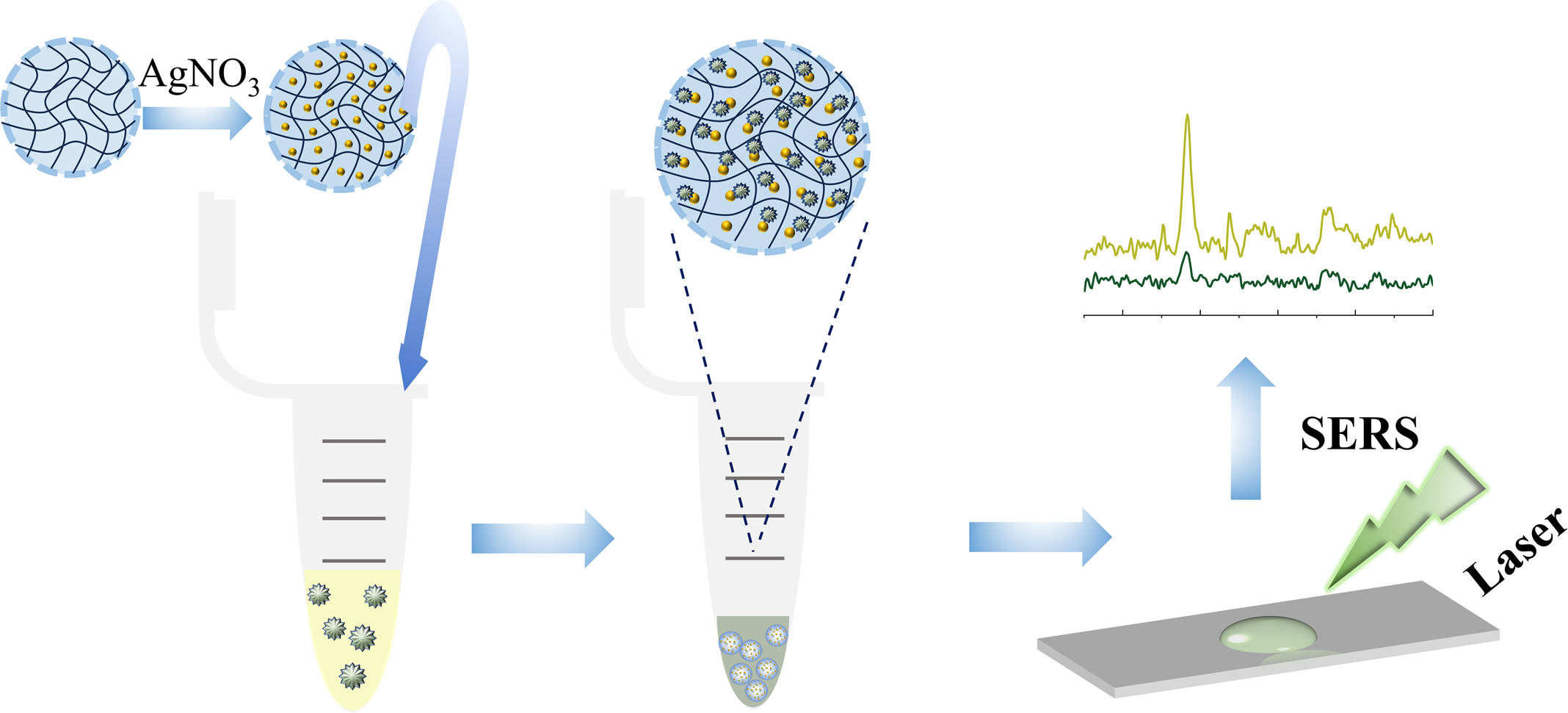

Aminophylline (AMP) is a bronchodilator. The therapeutic and toxic doses are very close. Therefore, therapeutic drug monitoring (TDM) of AMP is essential in clinical practice. Microgels were synthesized by free radical precipitation polymerization. Silver@poly(N-isopropyl acrylamide) (Ag@PNIPAM) hybrid microgels were obtained by loading silver (Ag) nanoparticles into the three-dimensional network of the microgels by in situ reduction. The microgel is a three-dimensional reticular structure with tunable pore size, large specific surface area, and good biocompatibility, which can be used as a sorbent for solid-phase extraction (SPE) of target molecules in complex matrices and as a surface-enhanced Raman spectroscopy (SERS) substrate. We optimized the conditions affecting SERS enhancement, such as silver nitrate (AgNO3) concentration and SPE time, according to the SERS strategy of Ag@PNIPAM hybrid microgels to achieve label-free TDM for trace AMP in human serum. The results showed good linearity between the logarithmic concentration of AMP and its SERS intensity in the range of 1–1.1 × 102 µg/mL, with a correlation coefficient (R2) of 0.9947 and a low detection limit of 0.61 µg/mL. The assay accuracy was demonstrated by spiking experiments, with recoveries ranging from 93.0 to 101.8%. The method is rapid, sensitive, reproducible, requires simple sample pretreatment, and has good potential for use in clinical treatment drug monitoring.
WangM.TianB.XueY.LiR., et al. “Determination of Aminophylline Based on Fluorescence Quenching of Amino-Functionalized Graphene Quantum Dots Induced by Photoilluminated Riboflavin-Aminophylline System”. Spectrochim. Acta, Part A. 2020. 235: 118306. https://doi.org/10.1016/j.saa.2020.118306
2.
YokobaM.KatagiriM.IchikawaT.TakakuraA., et al. “Corrigendum to ‘Aminophylline Increases Respiratory Muscle Activity During Hypercapnia in Humans’ [Pulm. Pharmacol. Ther. (2015) 96–101]”. Pulm. Pharmacol. Ther. 2016. 41: 103. https://doi.org/10.1016/j.pupt.2016.09.009
3.
CooneyL.McBrideA.LilleyA.SinhaI., et al. “Using Pharmacokinetic Modelling to Improve Prescribing Practices of Intravenous Aminophylline in Childhood Asthma Exacerbations”. Pulm. Pharmacol. Ther. 2017. 43: 6–11. https://doi.org/10.1016/j.pupt.2017.01.007
4.
VogeserM.. “From Therapeutic Drug Monitoring to Total Drug Monitoring and Drug-Omics”. Clin. Chem. Lab. Med. 2021. 59(2): 287–290. https://doi.org/10.1515/cclm-2020-0339
5.
KuhlinJ.SturkenboomM.G.G.GhimireS.MargineanuI., et al. “Corrigendum to ‘Mass Spectrometry for Therapeutic Drug Monitoring of Anti-Tuberculosis Drugs’ [Clin. Mass Spectrom. 14(Part A) (2019) 34-45]”. J. Mass Spectrom. Adv. Clin. Lab. 2022. 25: 72–72. https://doi.org/10.1016/j.jmsacl.2022.08.001
6.
ChenF.FangB.WangS.. “A Fast and Validated HPLC Method for Simultaneous Determination of Dopamine, Dobutamine, Phentolamine, Furosemide, and Aminophylline in Infusion Samples and Injection Formulations”. J. Anal. Methods Chem. 2021. 2021: 8821126. https://doi.org/10.1155/2021/8821126
7.
WuX.SuryoprabowoS.KuangH.LiuL.. “Detection of Aminophylline in Serum Using an Immunochromatographic Strip Test”. Food Agric. Immunol. 2020. 31(1): 33–44. https://doi.org/10.1080/09540105.2019.1691508
8.
LiQ.ZhangH.. “A Novel Spectrophotometric Method for the Determination of Aminophylline in Pharmaceutical Samples in the Presence of Methanol”. Spectrochim. Acta, Part A. 2008. 70(2): 284–289. https://doi.org/10.1016/j.saa.2007.07.056
9.
AzharuddinM.ZhuG.H.DasD.OzgurE., et al. “A Repertoire of Biomedical Applications of Noble Metal Nanoparticles”. Chem. Commun. 2019. 55(49): 6964–6996. https://doi.org/10.1039/c9cc01741k
10.
ZhaoX.SunD.YuM.XuY., et al. “Label-Free and Ultrasensitive SERS Detection of Pesticide Residues Using 3D Hot-Junction of a Raman Enhancing Montmorillonite/Silver Nanoparticles Nanocomposite”. Anal. Methods. 2022. 14(11): 1134–1139. https://doi.org/10.1039/D2ay00090c
11.
OngT.T.X.BlanchE.W.JonesO.A.H.. “Surface Enhanced Raman Spectroscopy in Environmental Analysis, Monitoring and Assessment”. Sci. Total Environ. 2020. 720: 137601. https://doi.org/10.1016/j.scitotenv.2020.137601
12.
ChenM.ZhangJ.ZhuX.LiuZ., et al. “Hybridizing Silver Nanoparticles in Hydrogel for High-Performance Flexible SERS Chips”. ACS Appl. Mater. Interfaces. 2022. 14(22): 26216–26224. https://doi.org/10.1021/acsami.2c04087
13.
KellerT.TrinksN.BrandJ.TrippmacherS., et al. “Design of Nanohydrogels for Targeted Intracellular Drug Transport to the Trans-Golgi Network”. Adv. Healthcare Mater. 2023. 12(13): 2201794. https://doi.org/10.1002/adhm.202201794
14.
Al-TikritiY.HanssonP.. “Drug-Eluting Polyacrylate Microgels: Loading and Release of Amitriptyline”. J. Phys. Chem. B. 2020. 124(11): 2289–2304. https://doi.org/10.1021/acs.jpcb.0c00030
15.
LeiB.ZhangY.ChenM.XuS., et al. “Intracellular Transport of Biomacromolecular Drugs by a Designed Microgel Capsule with pH/Redox Stimulus-Responsiveness”. Colloids Surf., A. 2022. 648: 129269. https://doi.org/10.1016/j.colsurfa.2022.129269
16.
EtchenausiaL.Villar-AlvarezE.ForcadaJ.SaveM., et al. “Evaluation of Cationic Core-Shell Thermoresponsive Poly(N-vinylcaprolactam)-Based Microgels as Potential Drug Delivery Nanocarriers”. Mater. Sci. Eng. C. 2019. 104: 109871. https://doi.org/10.1016/j.msec.2019.109871
17.
BogdanovaL.R.RogovA.M.ZuevaO.S.ZuevY.F.. “Lipase Enzymatic Microreactor in Polysaccharide Hydrogel: Structure and Properties”. Russ. Chem. Bull. 2019. 68(2): 400–404. https://doi.org/10.1007/S11172-019-2399-1
18.
CutrightC.C.HarrisJ.L.RameshS.KhanS.A., et al. “Surface-Bound Microgels for Separation, Sensing, and Biomedical Applications”. Adv. Funct. Mater. 2021. 31(47): 2104164. https://doi.org/10.1002/Adfm.202104164
19.
BegumR.FarooqiZ.H.AbooA.H.AhmedE., et al. “Reduction of Nitroarenes Catalyzed by Microgel-Stabilized Silver Nanoparticles”. J. Hazard. Mater. 2019. 377: 399–408. https://doi.org/10.1016/j.jhazmat.2019.05.080
20.
WuC.LiF.LvF.YaoP., et al. “Fabrication of Hydrogels with Nanoparticles as Surface-Enhanced Raman Scattered (SERS) Substrates and Their Application in Raman Imaging”. Mater. Res. Express. 2021. 8(1): 015008. https://doi.org/10.1088/2053-1591/abd5d0
21.
LinB.WangY.YaoY.ChenL., et al. “Oil-Free Gold Nanobipyramid@Ag Microgels as a Functional SERS Substrate for Direct Detection of Small Molecules in a Complex Sample Matrix”. Anal. Chem. 2021. 93(49): 16727–16733. https://doi.org/10.1021/acs.analchem.1c04797
22.
SunD.CaoF.WangH.GuanS., et al. “SERS Hydrogel Pellets for Highly Repeatable and Reliable Detections of Significant Small Biomolecules in Complex Samples Without Pretreatment”. Sens. Actuators B. 2021. 327: 128943. https://doi.org/10.1016/j.snb.2020.128943
23.
BegumR.NaseemK.FarooqiZ.H.. “A Review of Responsive Hybrid Microgels Fabricated with Silver Nanoparticles: Synthesis, Classification, Characterization, and Applications”. J. Sol-Gel Sci. Technol. 2016. 77(2): 497–515. https://doi.org/10.1007/S10971-015-3896-9
24.
DutraM.A.L.MarquesN.D.N.FernandesR.D.S.De Souza FilhoM.D.S.M., et al. “Eco-Friendly Hybrid Hydrogels for Detection of Phenolic Residues in Water Using SERS”. Ecotoxicol. Environ. Saf. 2020. 200: 110771. https://doi.org/10.1016/j.ecoenv.2020.110771
25.
DongY.MaY.ZhaiT.ShenF., et al. “Silver Nanoparticles Stabilized by Thermoresponsive Microgel Particles: Synthesis and Evidence of an Electron Donor-Acceptor Effect”. Macromol. Rapid Commun. 2007. 28(24): 2339–2345. https://doi.org/10.1002/marc.200700483
26.
SatapathyS.S.BholP.ChakkarambathA.MohantaJ., et al. “Thermo-Responsive PNIPAM-Metal Hybrids: An Efficient Nanocatalyst for the Reduction of 4-Nitrophenol”. Applied Surface Science. 2017. 420: 753–763. https://doi.org/10.1016/j.apsusc.2017.05.172
27.
KhanA.AlhoshanM.. “Preparation and Characterization of pH-Responsive and Thermoresponsive Hybrid Microgel Particles with Gold Nanorods”. J. Polym. Sci. Part A: Polym. Chem. 2013. 51(1): 39–46. https://doi.org/10.1002/pola.26372
28.
LiuY.-Y.LiuX.-Y.YangJ.-M.LinD.-L., et al. “Investigation of Ag Nanoparticles Loading Temperature Responsive Hybrid Microgels and Their Temperature Controlled Catalytic Activity”. Colloids Surf. A. 2012. 393: 105–110. https://doi.org/10.1016/j.colsurfa.2011.11.007
29.
HenschelC.SchanzenbachD.LaschewskyA.KoC.-H., et al. “Thermoresponsive and Co-Nonsolvency Behavior of Poly(N-vinyl isobutyramide) and Poly(N-isopropyl methacrylamide) as Poly(N-isopropyl acrylamide) Analogs in Aqueous Media”. Colloid. Polym. Sci. 2023. 301(7): 703–720. https://doi.org/10.1007/S00396-023-05083-4
30.
SharmaT.MadrasG.. “Effect of Crosslinker on the Swelling and Adsorption Properties of Cationic Superabsorbent”. Bull. Mater. Sci. 2016. 39(3): 613–626. https://doi.org/10.1007/S12034-016-1220-0
31.
GaoY.LiuK.KanR.XiaJ., et al. “A Comparative Study of Rigid and Flexible MOFs for the Adsorption of Pharmaceuticals: Kinetics, Isotherms and Mechanisms”. J. Hazard. Mater. 2018. 359: 248–257. https://doi.org/10.1016/j.jhazmat.2018.07.054
32.
ChenR.ChenQ.WangY.FengZ., et al. “Ultrasensitive SERS Substrate for Label-Free Therapeutic Drug Monitoring of Chlorpromazine Hydrochloride and Aminophylline in Human Serum”. Anal. Bioanal. Chem. 2023. 45(10): 1803–1815. https://doi.org/10.1007/s00216-023-04621-x
33.
KimD.J.JeonT.Y.BaekY.-K.ParkS.-G., et al. “Metal Nanoparticle-Loaded Microgels with Selective Permeability for Direct Detection of Small Molecules in Biological Fluids”. Chem. Mater. 2016. 28(5): 1559–1565. https://doi.org/10.1021/acs.chemmater.6b00115
34.
YeZ.YaoH.ZhangY.SuA., et al. “Pretreatment-Free, On-Site Separation and Sensitive Identification of Methamphetamine in Biological Specimens by SERS-Active Hydrogel Microbeads”. Anal. Chim. Acta. 2023. 1263: 341285. https://doi.org/10.1016/j.aca.2023.341285
