Abstract

Background:

Cutaneous warts are small skin lesions formed as a result of infection by the human papilloma virus (HPV). In the lesion, viral manipulation creates a microenvironment that favors virus survival and reproduction. Most lesions eventually regress, probably as a result of a Th1-mediated immune response. However, some warts fail to regress and become persistent.

Objective:

The efficacy of treatment of persistent HPV-caused warts with Energetics of Living Systems acupuncture and monitored immune system involvement was tested.

Methods:

Eighteen patients with persistent warts were recruited for the study; 9 received acupuncture treatment and 9 received placebo. Each patient was treated 4 times.

Results:

Clinical success was defined as total clearance of all lesions with no recurrence for 3 months. In the treatment group, clinical success was 36.6% versus 0% in the placebo group. In the treatment group, the level of interleukin (IL)–10 decreased. In a comparison of patients with cleared warts and overall patients with nonresponding warts, different expression levels of IL-8, IL-10, tumor necrosis factor–α, IL-6, and interferon-γ were found, although these differences were not always statistically significant. Trends of differences (not significant) were observed in leukocyte levels. Acupuncture eliminated persistent warts in some of the patients, along with inducing changes in immunologic parameters.

Conclusions:

Taking the clinical and immunologic outcomes together, clearance of persistent warts following acupuncture might be due to a shift toward a Th1 immune response, or an anti-inflammatory effect against the lesion-induced microenvironment.

Introduction

To date, more than 120 types of human papilloma virus (HPV) that cause warts in humans have been identified. It is estimated that 20% of the population will develop symptoms, more commonly during childhood. Most lesions regress spontaneously without treatment as a result of a Th1–cell-mediated immune response,¹ followed by immune memory that protects the host from future infection. Chronic persistent warts caused by high-risk HPV types pose a threat of developing into malignancies, especially in the genital tract. Moreover, non–high-risk HPV types, which, until recently were thought to generate benign lesions, have been found in cancer tumors that are not conventionally associated with HPV infection.² There is an armamentarium of wart treatments, most of which are aimed to eliminate signs and symptoms. However, some warts fail to regress, and there is a tendency toward recurrence even after treatment that has been considered successful.

Efficient wart treatment should be able to resolve a large array of warts painlessly in 1–3 treatment sessions. There should be no need to treat each lesion separately, nor should there be any scarring. The treatment should offer HPV immunity, and be cost-efficient and available to all patients.³ One treatment that might meet all of these criteria is acupuncture, and two such treatments have been reported: one as a case report of 1 patient using traditional acupuncture,⁴ and the other using auricular acupuncture.⁵

Acupuncture involves the insertion of thin needles through a patient's skin at precise points (acupuncture points) to achieve biologic changes that are meant to improve health and well-being. There are numerous approaches in acupuncture.⁶ The approach used in the present study was the Energetics of Living Systems (ELS) approach. ELS is a form of systems theory developed in the West by Dr. Maurice Mussat that incorporates knowledge of ancient texts and a contemporary understanding of mathematics and biology.^7,8 Scientific reports of the implementation of acupuncture for clinical conditions include back pain,⁹ migraine,¹⁰ recovery from stroke,¹¹ anxiety and depression,¹² insomnia,¹³ schizophrenia,¹⁴ and gynecologic complications.¹⁵

The efficacy of acupuncture for the treatment of conditions that involve the immune system has been reported for allergies,¹⁶ pain relief,¹⁷ arthritis,¹⁷ allergic rhinitis,¹⁸ asthma,¹⁹ and inflammation.²⁰ Immune responses could be influenced by acupuncture treatment, mainly via induction of an anti-inflammatory effect.²¹ Acupuncture treatment has shown clinical benefits in patients with pathologies associated with Th1/Th2 responses,^22–24 Th1 along with a reduction in tumor necrosis factor–α (TNF-α) as in rheumatoid arthritis,²² and Th2 along with a reduction in interleukin (IL)–10 and IL-4, such as in allergy and asthma.²⁵ In addition, similar techniques have shown clinical efficacy in immunologically opposite TH1/TH2 conditions.²⁶

HPV infection, and in particular chronic persistent infection, involves viral modulation of the immune microenvironment within the lesion (wart).^27,28 This viral immune manipulation includes primarily a shift toward a Th2 response with an increase in cytokines such as IL-10, which is inefficient at clearing the infection.^28,29

It is logical to assume that, if acupuncture treatment can restore the balance of the Th1/Th2 response in Th2-related diseases as noted, it may be possible to do so in the case of chronic HPV infection. The objectives of this study were to test the efficacy of ELS acupuncture as a treatment for persistent HPV warts and to determine the immune response following the treatment.

Materials and Methods

The research protocol was approved by the Hadassah local ethics committee (File Number 0199-12-HMO). Written informed consent, according to the Declaration of Helsinki, was obtained from all participants.

Patients

Criteria for inclusion were as follows: adults older than 18 years in the range of 20–70 years, with a median of 40 years. All patients had chronic cutaneous warts for 2 years or more and had tried unsuccessfully noninvasive conventional treatments. Patients had no known psychiatric or life-threatening conditions. Eighteen participants were randomly assigned to 2 groups: one group received acupuncture treatment and the other placebo treatment in a single-blinded, crossover study protocol. Participants were informed about the study protocol but not about the groups that they would be assigned to. Participants were allowed to cross over to the acupuncture group after four sessions of placebo.

Treatment

Acupuncture and placebo groups received four 30-minutes treatment sessions, given at 1-week intervals.

Acupuncture treatment

Acupuncture was performed with the use of 25/30-mm, steel-shaft copper-handled needles (Best™), at a transverse angle of insertion of ∼15°. Acupuncture points SP 6 (Sanyinjiao), LR 13 (Zhang Men or Zhangmen), LU 6 (Kongzui), ST 36 (Zusanli), LI 10 (Shousanli), GV 3 (Yao Yang Guan), and CV 12 (Zhong Wan) were treated bilaterally (Fig. 1). This formula of points is the ELS method of reseating the Tai Yin system that, according to Traditional Chinese Medicine, controls immunologic and skin functions.

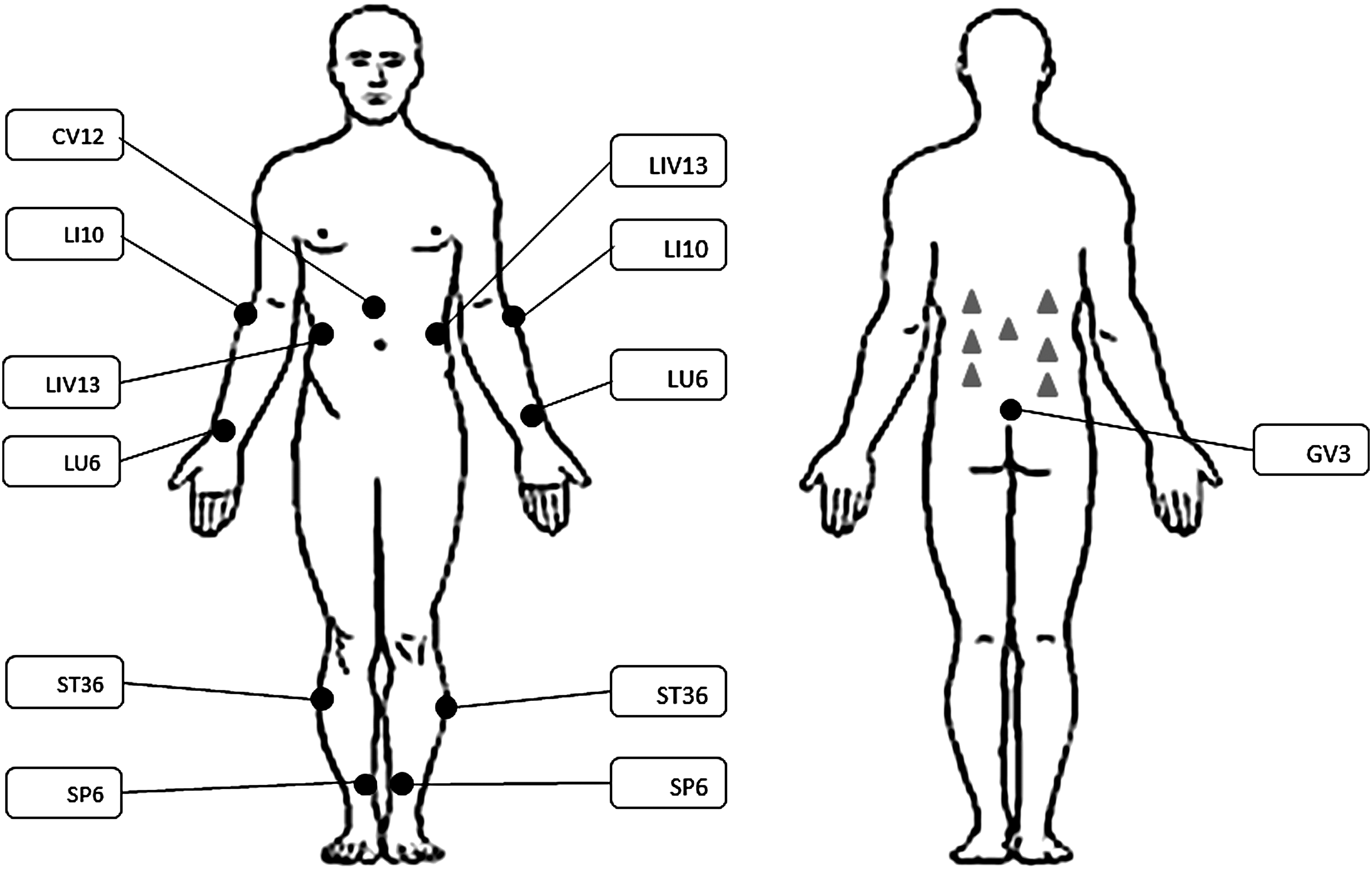

FIG. 1.

Acupuncture points and placebo points used in the experiment. Acupuncture points (•). Placebo points (▲).

Placebo treatment

The placebo treatment was performed on the participant's back at seven points in the central trunk while the participant was lying on his/her stomach, unable to see the treatment. An acupuncture needle was used to create a prick sensation, but no needle was actually inserted (Fig. 1).

Treatment efficacy

Clinical efficacy of the treatment or placebo acupuncture was evaluated by a dermatologist ∼1 week after the last session. Final efficacy was determined 3 months after the last session by telephone follow-up. (Fig. 1)

Immunologic Tests

Blood samples

Blood samples were collected before each treatment. Part of the blood was centrifuged and the serum was separated out. Blood (5 mL) was added to a mixture of 5 mL of phosphate buffered saline (PBS) and 5 mL of Ficoll.^® Samples were centrifuged at 1000g for 5 minutes. Leukocytes were separated, 10 mL of PBS was added, and samples were centrifuged at 1000g for 5 minutes. Supernatant was discarded, and the cells were suspended in 5 mL of PBS. Cells were kept overnight on ice before analysis was performed. Serum samples were stored at −20°C until analysis.

Enzyme-linked immunosorbent assay

The serum values of IL-1, interferon (IFN)-γ, TNF-α, IL-6, IL-8, and IL-10 were determined by enzyme-linked immunosorbent assay (ELISA) using a commercial kit (Mini ELISA Development Kit, PeproTech™), according to the manufacturer's instructions. Color development was monitored with the use of an ELISA reader at 405 nm with wavelength correction set at 650 nm. Results were analyzed by Excel software.

Fluorescence-activated cell sorting

One million cells were added to each of five test tubes, and 1 mL of fluorescence-activated cell-sorting buffer (PBS, 0.5%–1% w/v bovine serum albumin, 0.1% w/v sodium azide) was added. Samples were centrifuged at 1000g for 5 minutes, the supernatant was discarded, and the procedure was repeated twice. A mix of antibodies (PE/Cy7 anti-human CD45, PE anti-human CD4, FITC anti-human CD8, and PerCP-Cy5.5 anti-human CD25; Biolegend™) was added according to the manufacturer's instructions. Samples were incubated for 1 hour on ice, washed and suspended in 1 mL of PBS. Cells were run in a BD FACSAria™ II flow cytometer. Results were analyzed by FCS Express software (De Novo™).

Statistical Analysis

Statistical analysis was performed by MediStat with the use of SAP^® software.

Results

Clinical Results

A positive result was defined as complete clinical clearance of all lesions 3 months after the last therapeutic session. In 36% of the acupuncture-treated patients, chronic warts disappeared, compared to 0% in the placebo group (Table 1). This was a significant difference between the groups.

Table 1.

Clinical Results

Group	Positive clinical result ^a	%
Acupuncture	4/11	36.3
Placebo	0/9	0

Note: Chi-squared test p = 0.007.

Number of patients in which the lesions totally cleared/number of patients participating in the treatment. Two patients crossed over to the acupuncture group, bringing this group number to 11 patients.

Serum Cytokines

To determine the immune response induced by the treatment, concentrations of the cytokines IL-1, IL-6, IL-8, IL-10, INF-γ, and TNF-α were measured following each of the 4 clinical sessions. Six of the participants refused or were unable to have their blood drawn, and, therefore, some of the data are limited. Table 2 summarizes the changes in cytokine concentrations determined before the first session and after the fourth session.

Table 2.

Changes in Cytokine Concentrations Between Baseline and the End of the Experiment (Fourth Session)

Marker	Group	Average change (pg/mL ± STD) ^a	Range of 95% scores ^b	P-value for changes within the group^c	P-value for changes between groups^d
IL-1	Acupuncture	−1.30 ± 3.78	−4.21 to 1.60	0.2500	0.8960
	Placebo	−0.98 ± 0.98	−2.20 to 0.23	0.1250
IL-6	Acupuncture	−3.73 ± 9.81	−11.27 to 3.80	0.2500	0.2516
	Placebo	5.14 ± 10.35	−7.71 to 18.00	0.8125
IL-8	Acupuncture	−0.37 ± 1.52	−1.54 to 0.80	0.4258	0.4381
	Placebo	0.32 ± 0.79	−0.66 to 1.30	0.6250
IL-10	Acupuncture	−2.98 ± 11.96	−12.18 to 6.21	0.3594	0.0847
	Placebo	7.77 ± 10.70	−5.52 to 21.06	0.3125
IFN-γ	Acupuncture	−1.55 ± 4.8	−4.95 to 1.86	0.3828	1.0000
	Placebo	−1.43 ± 3.43	−5.69 to 2.82	0.3125
TNF-α	Acupuncture	−0.55 ± 6.78	−5.76 to 4.67	0.5703	0.3055
	Placebo	1.79 ± 4.01	−3.19 to 6.77	0.6250

Average change: The average increase (+) or decrease (–) in cytokine concentration picograms per milliliter (pg/mL) between baseline and after fourth session ± standard deviation (STD).

Range 95% of scores: The range where 95% of the group scores can be found.

P-value for changes within the group: The level of significance of change within a group between the first and last sessions (signed-rank test).

P-value for changes between groups: The level of significance of change between acupuncture and placebo (Wilcoxon nonparametric test).

IL, interleukin; IFN, interferon; TNF, tumor necrosis factor.

For the cytokines IL-1, IL-6, IL-8, IL-10, and TNF-α, a decrease was observed in the acupuncture versus the placebo group, but variability within and between groups was too high to establish significance. For the cytokine IFN-γ, there was no difference between the acupuncture and placebo group. For IL-10, the decreasing trend was close to significance. The greatest change in concentration was observed after the first session, with no elevation thereafter (Fig. 2).

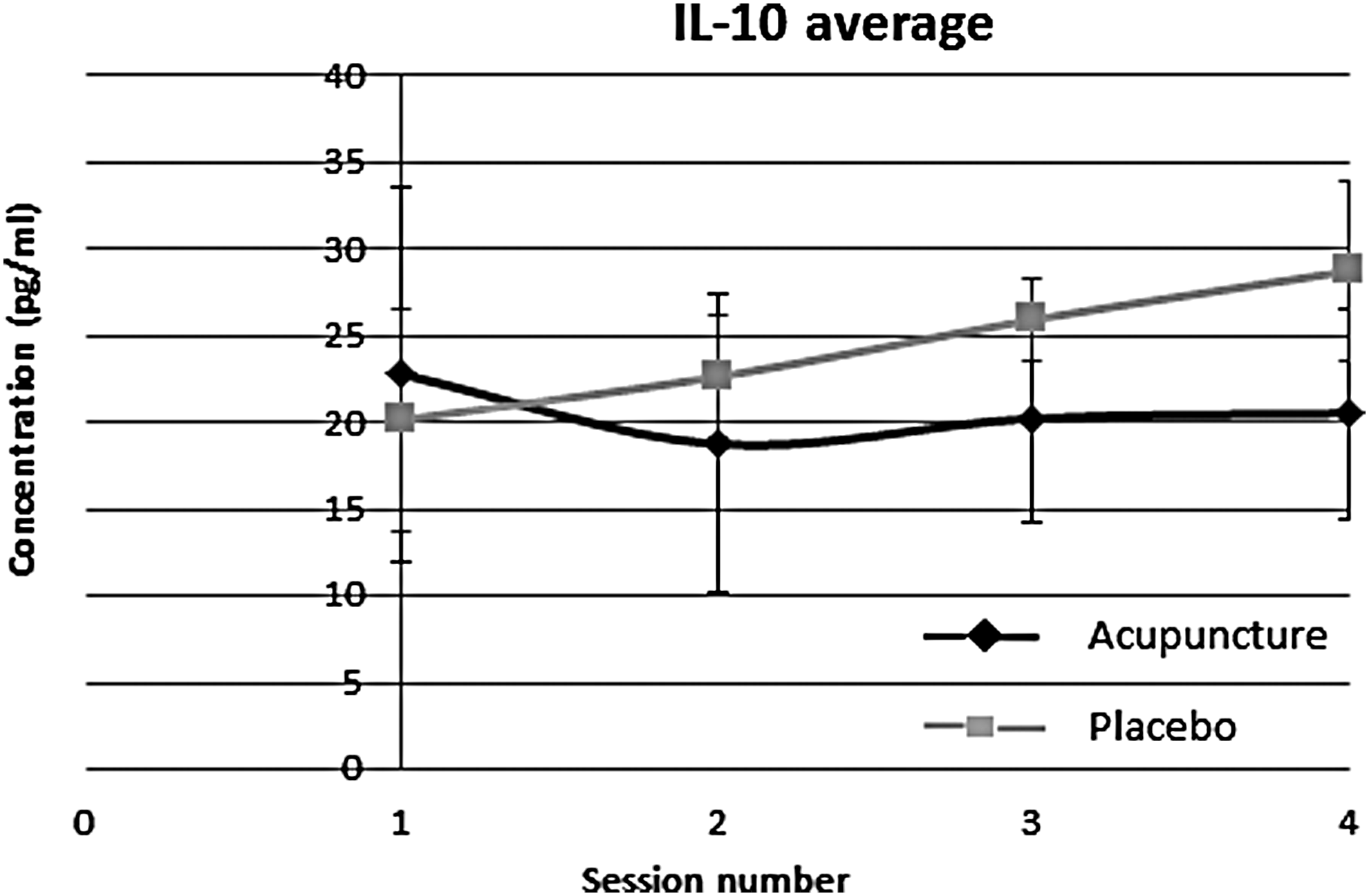

FIG. 2.

Average changes in interleukin (IL)–10 blood concentrations throughout the experiment.

T-Cell Subpopulations

Distribution of CD4, CD8, and CD25 T-cells was measured after each of the 4 clinical sessions. The changes in immune-to-cell ratios of CD45:CD4, CD45:CD8, and CD4:CD25 between baseline in the first session and level after the fourth session are summarized in Table 3.

Table 3.

Changes in T-Cell Ratios Between Baseline and End of the Experiment (Fourth Session)

Marker	Group	Average change (% ± STD) ^a	Range 95% of scores ^b	P-value for change within the group^c	P-value for changes between groups^d
CD4	Acupuncture	5.85 ± 10.7	−3.11 to 14.81	0.2500	0.5225
	Placebo	6.10 ± 10.7	−7.24 to 19.44	0.1875
CD25	Acupuncture	−1.91 ± 3.54	−4.87 to 1.05	0.1953	1.0000
	Placebo	−1.06 ± 1.99	−3.53 to 1.41	0.3750
CD8	Acupuncture	0.83 ± 4.83	−3.20 to 4.87	0.7422	0.6177
	Placebo	1.20 ± 9.94	−11.14 to 13.54	0.6250

Average increase or decrease in T-cell subpopulation between baseline and fourth session ± standard deviation (STD).

Range in which 95% of the group scores can be found.

Level of significance of change within a group (signed-rank test).

Level of significance of change between acupuncture and placebo groups (Wilcoxon nonparametric test).

There was no observable difference between the acupuncture and placebo groups in the ratios between CD45:CD4, CD4:CD25, or CD45:CD8 subpopulations (Table 3).

Evaluation of Link Between Clinical Results and Immunologic Findings

To investigate the correlation between clinical outcomes and immunologic results, immunologic profiles of patients with clinical lesion clearance (LC; n = 4 in acupuncture group) and nonclearance (non-LC; n = 9 in acupuncture and placebo groups) were compared (Table 4). Figures 3A, 3B, and 3C present the average changes in concentration of cytokines IL-10, IL-8, and TNF-α, respectively, in both groups.

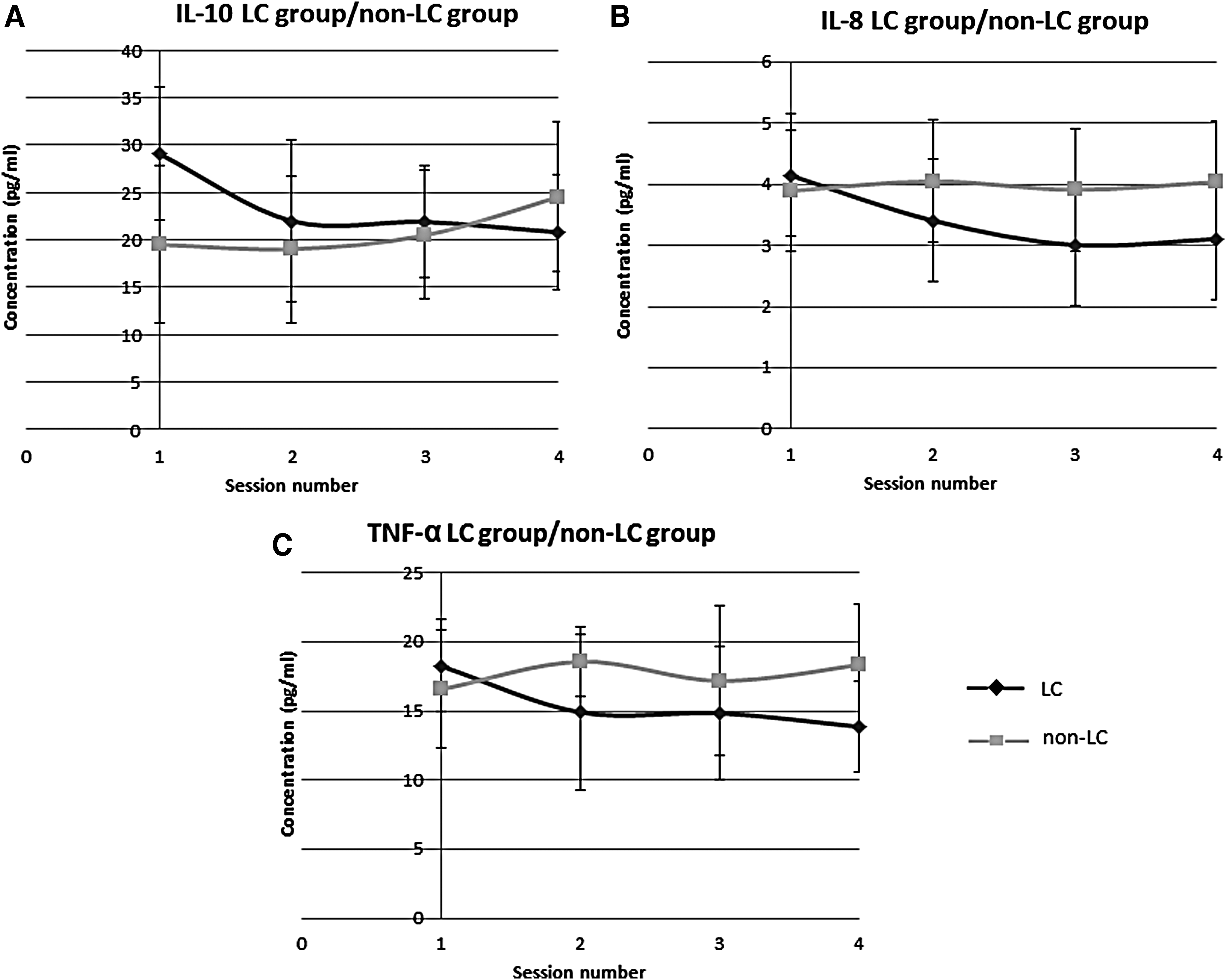

FIG. 3.

(A) Average changes in concentrations of cytokine interleukin (IL)–10 in lesion-clearance (LC) and non-LC groups. (B) Average changes in concentration of cytokine IL-8 in LC and non-LC groups. (C) Average changes in concentration of cytokine tumor necrosis factor (TNF)–α in lesion clearance (LC). Error bars indicate standard deviation in each part.

Table 4.

Changes in Immunologic Markers and Clinical Efficacy

Immunologic marker	Clinical results	Average change (pg/mL, % ± STD) ^a	Range 95% of scores ^b	P-value for changes within the group^c	P-value for changes between groups^d
IL-1	Non-LC	−1.09 ± 3.72	−3.94 to 1.77	0.2031	0.5007
	LC	−1.60 ± 1.49	−3.97 to 0.76	0.2500
IL-6	Non-LC	1.38 ± 11.25	−7.27 to 10.03	1.0000	0.3357
	LC	−7.18 ± 7.05	−18.40 to 4.04	0.2500
IL-8	Non-LC	0.35 ± 0.47	−0.69 to 1.39	0.3594	0.0593
	LC	−1.26 ± 0.47	−2.00 to −0.51	0.1250
IL-10	Non-LC	4.69 ± 10.27	−3.21 to 12.5	0.4961	0.0777
	LC	−11.29 ± 8.34	−24.57 to 1.99	0.2500
IFN-γ	Non-LC	0.04 ± 3.88	−3.20 to 3.29	1.0000	0.1767
	LC	−3.76 ± 1.57	−6.25 to −1.2	0.1250
TNF-α	Non-LC	2.08 ± 5.37	−2.05 to 6.21	0.5703	0.0193
	LC	−5.42 ± 2.26	−9.02 to −1.82	0.1250
CD4	Non-LC	5.79 ± 11.09	−2.74 to 14.32	0.2500	1.0000
	LC	7.57 ± 11.42	−20.81 to 35.94	0.5000
CD25	Non-LC	−2.00 ± 3.44	−4.64 to 0.64	0.1055	0.8567
	LC	−0.83 ± 1.68	−5.01 to 3.3	0.5000
CD8	Non-LC	1.91 ± 7.70	−4.01 to 7.83	0.9102	0.4750
	LC	−1.44 ± 5.34	−14.71 to 11.8	0.7500

Average increase or decrease in cytokine concentration picograms per milliliter (pg/mL), or T-cell subpopulation (%) between baseline and fourth session ± standard deviation (STD).

Range in which 95% of the group scores can be found.

Level of significance of change within a group (signed-rank test).

Level of significance of change between lesion clearance (LC) and nonclearance (non-LC) groups (Wilcoxon nonparametric test). Statistical significance between the first and last session.

IL, interleukin; IFN, interferon; TNF, tumor necrosis factor.

For the cytokines IL-10, IL-8, and TNF-α, there was a significant decrease in concentration in the LC versus the non-LC group despite variability within and between the groups. The greatest change in concentration was after the first session, and it was relatively stable thereafter (Fig. 3).

For the cytokines IL-6 and IFN-γ, a similar trend was observed but variability within and between groups was too high to establish significance. For the cytokine IL-1 and for the T-cell subpopulations, there were no differences between the LC and non-LC groups (Fig. 3).

A reduction in the concentrations of IL-10, IL-8, and TNF-α in the LC versus the non-LC group was observed, with the greatest change in concentration after the first session, and relative stability thereafter.

Immunologic Profile of the LC Group

The relationship between clinical results and immunologic findings (changes in cytokine profiles of the LC group, n = 4) was evaluated. Figures 4A, 4B, and 4C represent changes in concentrations of IL-10, TNF-α, and IL-8, respectively, in participants 1, 11, 14, and 17.

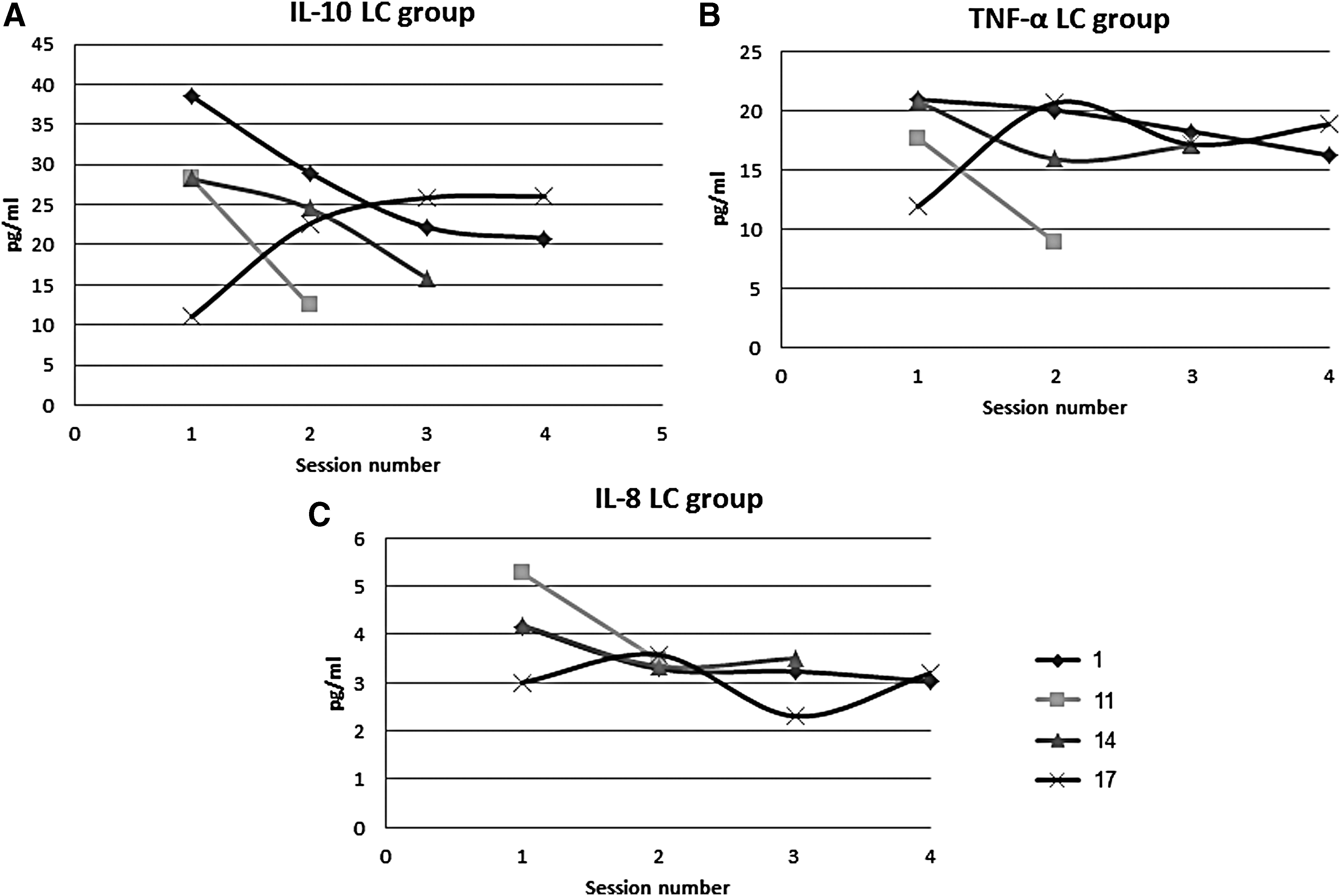

FIG. 4.

Changes in cytokine concentrations (pg/mL) in the 4 participants (1, 11, 14, and 17) with lesion clearance (LC). Participants are presented separately. Only 2 samples were obtained from participant 11 (in the first and second sessions); 3 samples were obtained from participant 14 (in the first, second, and third sessions). (A) Interleukin (IL)–10 LC group. (B) Tumor necrosis factor (TNF)–α LC group. (C) IL-8 LC group.

A reduction in concentration of all three cytokines was observed in participants 1, 11, and 14. In participant 17, the opposite trend was seen for cytokines IL-10 and TNF-α, and the trend was inconsistent for IL-8.

In general, in the acupuncture versus the placebo group, there was a decrease in TNF-α, IL-6, IL-8, and IL-1 concentrations. In the case of IL-10, this trend was close to statistical significance, and for INF-γ, no difference was observed (Table 2). With respect to LC, there was a statistically significant decrease in the concentrations of TNF-α, IL-10, and IL-8 (Table 4, Fig. 3). A similar trend with no statistical significance was observed for IL-6 and INF-γ, and no trend was observed for IL-1 (Table 4). It is possible that, in a larger and more homogeneous group of participants, the findings would have shown more significance.

Discussion

HPV infection has become a major public health concern, and recent research has detailed the virus–host interactions. It has been established that chronic HPV infection involves viral manipulation of the lesion's immunologic microenvironment, including a change in the Th1/Th2 balance toward a decrease in Th1 cells and an increase in Th2 cells, as well as induction of secretion of cytokines that promote regulatory T-cells, a Th2 response, and angiogenesis.^30–32These facilitate a decline in efficacy of the key response for clearing the HPV infection.^28,33,34The hypothesis of the current study was that acupuncture treatment could help resolve chronic HPV infection via manipulation of the lesion's immunologic microenvironment by inducing activation of innate immunity, followed by activation of the acquired immune system, including modulation of Th1/Th2 ratio toward enhanced Th1. Very few studies have been published on the treatment of HPV with acupuncture,^4,5 and no work has been published on the treatment of chronic HPV cases with acupuncture or, in particular, ELS acupuncture.

The current authors determined the influence of ELS acupuncture by comparing levels of leukocytes and blood cytokines before and after treatment. The choice of cytokines for observation was based on reports of their involvement in the Th1/Th2 response, HPV infection, and a possible influence of acupuncture treatment on their levels according to the literature.

It is important to note that the group of participants in the study was relatively small (N = 18) and also widely heterogeneous in age, gender, and medical background. Therefore, the conclusions are based on trends of changes following treatments rather than absolute levels of cytokines and cells. Whereas serum concentrations of cytokines IL-1, IL-6, IL-8, IL-10, INF-γ, and TNF-α were similar for the treatment and placebo groups, a significant difference was found in a comparison of these parameters in patients with clinically successful (LC) versus unsuccessful (non-LC) outcomes.

INF-γ and IL-1 are key components in keratinocyte defense and are able to induce acquired immunity against HPV.^1,29 It has been previously shown that acupuncture could influence IL-1^34,35 but not INF-γ concentrations. However, in the current study, the concentrations of these cytokines were not significantly affected by acupuncture treatment or in relation to LC. IL-6 and IL-8 secreted in the early stages of the immune response downstream of IL-1 and INF-γ act as proinflammatory cytokines. In advanced stages of the immune response, they have a regenerative, angiogenic effect.^36,37

In this current study, the concentrations of these cytokines were reduced (significantly for IL-8) following acupuncture, and in correlation with LC. Other studies have shown that acupuncture might alter IL-8 and IL-6 concentrations.^35,38,39 It has been shown that HPV-infected cells within non-HPV tumors, such as skin and breast cancer, secrete IL-6 and IL-8, possibly supporting the tumor microenvironment.^2,40

The reduction in TNF-α in relation to LC may be viewed as paradoxical, as TNF-α is a quintessential Th1 cytokine that is important in the body's defense against HPV. In contrast to IL-10, IL-8, and IL-6, TNF-α is not known to be involved in the HPV-induced lesion microenvironment. However, its involvement has been hypothesized in some types of cancer.^31,41 Furthermore, chronic exposure to low levels of TNF-α may result in an antiapoptotic TNF-mediated prosurvival pathway and angiogenesis.⁴¹ IL-10 has an anti-inflammatory effect in the Th1 immune response and a proinflammatory effect in the Th2 immune response.⁴² Increased levels of IL-10 might contribute to the establishment of chronic HPV infection by inhibiting the response of cytotoxic T-lymphocytes, the host's main tool for clearing HPV infection.²⁸ Individuals with chronic HPV infection have been known to have high levels of IL-10 both locally and in the serum. Furthermore, high levels of IL-10 have been correlated with a higher risk of developing HPV-related malignancy.³⁴

In this work, a reduction in IL-10 concentration, close to statistical significance, was observed following acupuncture treatment (Table 2 and Fig. 2); this reduction was statistically significant in relation to LC (Table 4 and Fig. 3A). To investigate the relationship further between the clinical results and immunologic findings, profiles of cytokines IL-10, IL-8, and TNF-α in the LC group were evaluated. For 3 participants, there was a reduction in all three cytokines, whereas 1 participant had the opposite response (Fig. 4). However, this latter participant's cytokine levels were initially lower than the rest. The possibility of a particular acupuncture treatment resulting in opposite reactions in different individuals has rarely been documented and may be considered an inconsistency.⁴³ However, such a phenomenon is quite likely according to ELS theory, as therapeutic intervention is considered a form of nondeterministic system reset.^44,45 The influence of acupuncture on IL-10 concentrations has been shown in other studies as well. The effect of acupuncture treatment on clinical reduction of symptoms of allergic diseases has been correlated with a decrease in IL-10 concentrations.³⁵ Similar results have been reported in acupuncture treatment of rheumatoid arthritis.³⁶

On the one hand, the involvement of T-cells in the elimination of HPV-related lesions has been found to be the result of a cytotoxic CD8 T-cell response^1,27,46; on the other hand, an important mechanism of immune evasion by HPV is the recruitment of CD25 regulatory T-cells.^1,47 Other studies have reported that acupuncture treatment influences the CD4 subpopulation,⁴³ and CD4:CD8 ratio.⁴⁸ In this current study, no statistically significant changes were observed in CD4, CD8, or CD25 cell populations between the acupuncture and placebo groups (Table 3) or in relation to LC (Table 4).

Conclusions

This study investigated acupuncture treatment against chronic HPV lesions and the related immune modulation. The treatment seemed to have an anti-inflammatory effect. In relation to cytokines IL-1 and INF-γ, it is important to note that the participants in the study all had chronic persistent HPV infections, and, in this advanced stage of infection, the innate response may not be relevant. However, the immune microenvironment of HPV lesions can be characterized as a weak chronic inflammation with chronic levels of IL-6, IL-8, and IL-10.^28,32 Thus, it is possible that the acupuncture treatment acted to counter the lesions' immunologic microenvironments. More research, with a greater number and a more-homogeneous group of participants is needed.

To summarize, this study shows the feasibility of treating chronic HPV lesions with acupuncture with a limited rate of success. As acupuncture did not involve direct assault on the lesions, as is usually the case with other treatments, it can be combined with other, more-conventional methods. Therefore, these results, although moderate, should be sufficient to justify further research. The study found a correlation between lesion regression following acupuncture treatment and immune characteristics, suggesting a mechanism for acupuncture's effect.

Footnotes

Author Disclosure Statement

No competing financial interests exist.
