Abstract

Congenital heart disease (CHD) is a frequent cause of pediatric pulmonary arterial hypertension (PAH), with diverse etiology and outcome. We aimed to describe phenotypic heterogeneity in pediatric PAH associated with CHD (PAH-CHD), assess the applicability of the Nice CHD classification, and explore whether this classification accurately reflects patient/disease characteristics and survival. All children with CHD from a contemporary cohort of consecutive pediatric PAH patients followed in three major referral centers (Denver, New York, the Netherlands) were characterized and classified on the basis of the latest proposed clinical classification for PAH-CHD (World Symposium on Pulmonary Hypertension, Nice, 2013). According to this classification, 24% of 134 children were classified into group 1, 14% into group 2, 19% into group 3, and 30% into group 4; 11% could not be classified. Types of CHD and hemodynamic profile differed between groups, with the highest right atrial pressure in group 4 (P < 0.040). Group 3 children had Down syndrome less frequently (P = 0.011) but other (un)defined syndromes most frequently (P = 0.063) and received most intense PAH-targeted therapy (P = 0.003). With 15 deaths and one lung transplant (12%; median follow-up: 4.3 years), survival differences could not be demonstrated between the groups in the Nice CHD classification. Pediatric PAH-CHD is a heterogeneous condition frequently associated with extracardiac, developmental factors that are believed to affect disease development. The Nice CHD classification identifies groups with specific patient/disease characteristics. However, a substantial proportion of children could not be classified. Group 3 forms a distinct disease entity. Its prognostic value could not be determined because of the low number of events. The Nice CHD classification supports clinical characterization of PAH-CHD; however, further refinement is needed to classify all children with PAH-CHD.

Keywords

pulmonary hypertension congenital heart disease pediatrics Nice congenital heart disease classification survival

Congenital heart disease (CHD) is the most common birth defect and comprises a broad spectrum of defects, varying from simple septal defects to complex cardiac malformations.¹ Pulmonary arterial hypertension (PAH), a progressive disease of the pulmonary vasculature, is an important determinant of morbidity and mortality in CHD patients.

PAH associated with CHD (PAH-CHD) is a heterogeneous disease. Increased pulmonary blood flow, through a left-to-right shunt, has been recognized to trigger molecular and cellular changes in the pulmonary vasculature, leading to progressive PAH.² The risk of developing PAH and its pace of progression highly depend on the anatomical location and size of the shunt defect.^3–5 In patients with CHD and early-stage pulmonary vascular disease (PVD), shunt closure can reverse and resolve PAH.^6,7 In time, PAH will pass a point of no return and become irreversible. Shunt closure is then contraindicated, as it is believed to worsen prognosis. PAH has also been reported in nonshunt CHD, such as aortic stenosis or coarctation.^7–9

In some children, advanced PAH concurs with CHD that is considered not sufficient to explain the PAH.¹⁰ For example, pretricuspid shunts usually cause PAH from the third decade of life. Sometimes, severe PAH may be observed already in young children with such a shunt. In children with CHD, coexisting extracardiac factors may not only complicate clinical presentation but also increase susceptibility for developing PAH and thus play a modifying role.¹⁰ These include chromosomal or syndromal abnormalities but also developmental lung/airway anomalies and metabolic diseases.

Consequently, there is a need for adequate risk assessment and stratification in the individual child, which might be provided by a clinical classification for PAH-CHD. Such a classification would be most useful when it allows for identification of patient groups with specific disease characteristics, risks, or outcomes that allow tailored treatment approaches. Recently, an updated shunt-related classification was proposed for both adults and children at the Fifth World Symposium on Pulmonary Hypertension in Nice, France, in 2013 (the Nice CHD classification).^11,12

Survival of both adults and children with PAH-CHD has been reported to be associated with the type of CHD.^7,13,14 In adults, the value of the Nice CHD classification regarding differences in disease severity and survival between groups was recently reported.¹⁵ Although pediatric PAH-CHD has been evaluated with classifications based on hemodynamic relevance or anatomical location of the shunt defect, data regarding the Nice CHD classification in children are currently not available. We aimed to describe phenotypic heterogeneity in children with PAH-CHD, to assess the applicability of the Nice CHD classification, and to explore whether this classification accurately reflects patient/disease characteristics and survival.

METHODS

Patients

For this study, all children with PAH and CHD were selected from a recently described⁹ contemporary cohort of consecutive pediatric PAH patients from the Children's Hospital Colorado in Aurora, the Columbia University Medical Center in New York, and the Dutch National Referral Center for Pediatric Pulmonary Hypertension at the University Medical Center Groningen/Beatrix Children's Hospital in the Netherlands. This cohort includes all children with PAH who visited these centers between 2000 and 2010 and had a diagnosis of PAH confirmed by a cardiac catheterization after 1997 at the age of ≥3 months and <18 years. PAH was defined as mean pulmonary artery pressure (mPAP) of ≥25 mmHg, mean pulmonary capillary wedge pressure of ≤15 mmHg, and indexed pulmonary vascular resistance (PVRi) of ≥3 Wood units·m².

Children with other forms of pulmonary hypertension (PH), such as PH due to left heart disease, lung disease and/or hypoxia, or chronic thromboembolic disease, were not included in this cohort. In the event of mixed disease, meaning CHD and one of these conditions, it was at the discretion of the treating physician in the referral center, using the information from the cardiac catheterization, to define which was the most explanatory component for the PH: PAH-CHD or PH due to the coexistent condition. Only patients in the former group were included.

In this cohort, children with nonrepaired CHD were included only if the CHD was considered inoperable because of advanced PAH. In children with repaired CHD, diagnostic cardiac catheterization was performed more than 1 year after corrective surgery.

During cardiac catheterization, all three centers used the Fick principle to calculate cardiac output and pulmonary blood flow, using either measured or assumed oxygen consumption. In the latter case, oxygen consumption was assumed according to LaFarge and Miettinen¹⁶ (Aurora and New York) or Bergstra et al.¹⁷ (Netherlands). In patients with a nonrepaired patent arterial duct with right-to-left shunting, cardiac output calculations using Fick were not possible, and such patients are excluded from any analysis.

CHD

The anatomy, physiology, and repair status of the CHD were described. Children were classified according to the Nice CHD classification (Fig. 1).^11,12

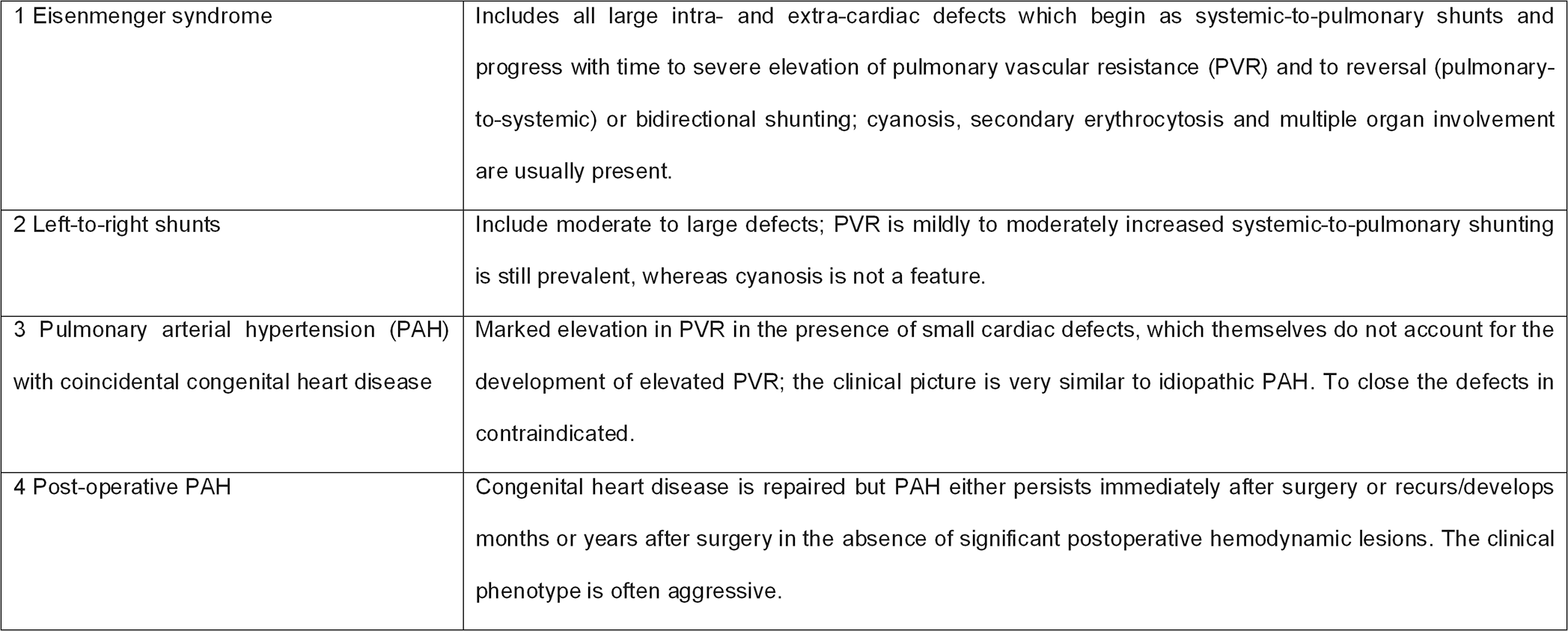

Figure 1.

Updated clinical classification for pulmonary arterial hypertension associated with congenital heart disease, Nice, France, 2013.

Cyanosis, required for group 1 of the Nice CHD classification, was defined as transcutaneous oxygen saturation of <90% at rest. If transcutaneous oxygen saturation was not available, systemic arterial oxygen saturation obtained during cardiac catheterization was used. Also, transcutaneous oxygen saturation of 90%–95% with systemic arterial oxygen saturation of <90% was considered cyanosis. Postductal saturations were used in children with patent arterial duct.

The distinction between CHD causal for the PAH and PAH with coincidental CHD was based on the expert opinion of the treating physician in the referral center and, for this study, was reviewed and agreed upon by two separate investigators (WMHZ and RMFB). In case of a residual shunt defect after corrective surgery, the patient was assigned to group 4, postoperative PAH-CHD, only if this shunt defect was considered not hemodynamically relevant. Otherwise, the patient was classified into group 1 or 2.

Assessments

Patient characteristics included age at PAH diagnosis, sex, and comorbidities. The moment of diagnostic cardiac catheterization, at either the referring or the referral center, was defined as baseline. Disease characteristics at baseline were collected and included both clinical and hemodynamic parameters. Ratios of mean pulmonary to systolic artery pressure (mPAP/mSAP) and pulmonary to systemic vascular resistance (PVR/SVR) were calculated.

During their disease course, children could receive PAH-specific therapies: calcium channel blocker (CCB) therapy or PAH-targeted therapy consisting of prostanoids, endothelin receptor antagonists, and/or phosphodiesterase 5 inhibitors. Treatment strategy was defined as previously described: CCB monotherapy if CCBs were the only PAH-specific drug used and otherwise the maximum number of PAH-targeted drugs used for at least 3 months or until end of follow-up (PAH-targeted mono-, dual, or triple therapy).⁹

Statistical analyses

Data are presented as mean ± SD, median (interquartile range), or number (percentage) as appropriate. One-way analysis of variance was used to compare normally distributed continuous variables. Non-normally distributed continuous variables and ordinal variables were compared with the Kruskal-Wallis test. The χ² and Fisher exact tests were used to compare categorical variables. Post hoc Bonferroni was used to correct for multiple comparisons, as appropriate.

Lung transplantation and death were defined as the primary end points. Children who did not die or undergo lung transplantation were censored at the last follow-up visit. Transplantation-free survival from diagnosis was depicted with Kaplan-Meier curves. To address potential survival bias due to the inclusion of prevalent patients, that is, patients receiving diagnoses between 1997 and 2000, data were left truncated. These patients entered the risk set at their truncation time, which was defined as the time between diagnosis and start of the study. Differences were explored with log-rank tests. A P value of <0.05 was considered significant.

RESULTS

Patients

In total, 134 children had PAH and CHD (Table 1). Most of these children (77%) had simple pre- or posttricuspid shunt defects. Fourteen children (11%) had complex shunt defects (complete atrioventricular septal defect or nonrepaired functional univentricular heart). Seventeen children (13%) had miscellaneous CHD. Thirty-eight percent of the defects were repaired: 31% (n = 32) of the simple shunt defects and 62% (n = 8) of the complete atrioventricular septal defects. Most (70%) were repaired within 2 years after birth.

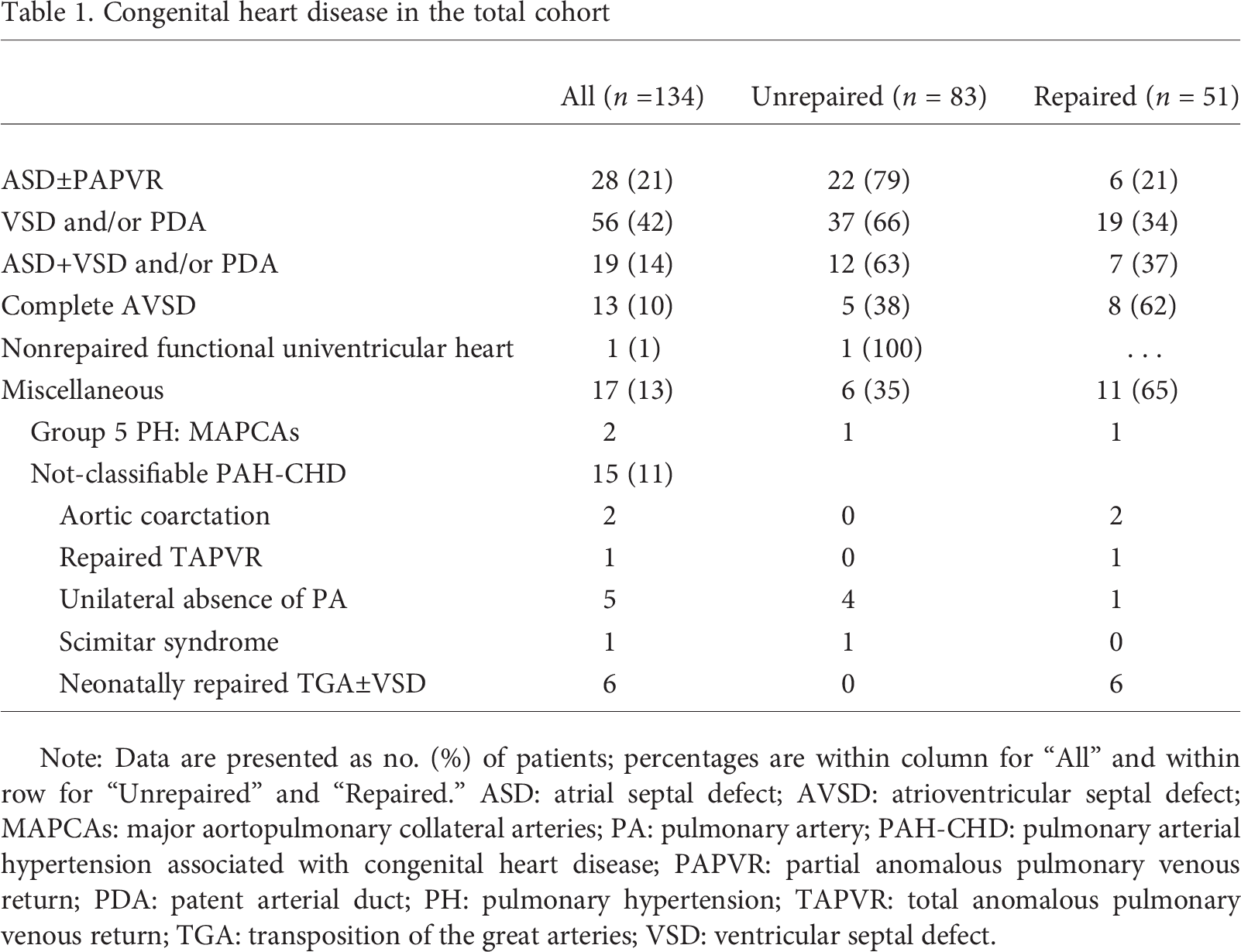

Table 1.

Congenital heart disease in the total cohort

	All (n =134)	Unrepaired (n = 83)	Repaired (n = 51)
ASD±PAPVR	28 (21)	22 (79)	6 (21)
VSD and/or PDA	56 (42)	37 (66)	19 (34)
ASD+VSD and/or PDA	19 (14)	12 (63)	7 (37)
Complete AVSD	13 (10)	5 (38)	8 (62)
Nonrepaired functional univentricular heart	1 (1)	1 (100)	…
Miscellaneous	17 (13)	6 (35)	11 (65)
Group 5 PH: MAPCAs	2	1	1
Not-classifiable PAH-CHD	15 (11)
Aortic coarctation	2	0	2
Repaired TAPVR	1	0	1
Unilateral absence of PA	5	4	1
Scimitar syndrome	1	1	0
Neonatally repaired TGA±VSD	6	0	6

Note: Data are presented as no. (%) of patients; percentages are within column for “All” and within row for “Unrepaired” and “Repaired.” ASD: atrial septal defect; AVSD: atrioventricular septal defect; MAPCAs: major aortopulmonary collateral arteries; PA: pulmonary artery; PAH-CHD: pulmonary arterial hypertension associated with congenital heart disease; PAPVR: partial anomalous pulmonary venous return; PDA: patent arterial duct; PH: pulmonary hypertension; TAPVR: total anomalous pulmonary venous return; TGA: transposition of the great arteries; VSD: ventricular septal defect.

In 60 children (45%), comorbidities were described, most often Down syndrome (n = 30). Also, other syndromal abnormalities were reported: Noonan syndrome (n = 3), Di George syndrome (n = 1), Turner syndrome (n = 1), Robinow syndrome (n = 1), and undefined syndromes with dysmorphic features, psychomotor retardation, and/or developmental delay of unknown origin (3 children). Coexisting lung abnormalities were reported in 11 children (8%) and included (repaired) congenital diaphragmatic hernia, bronchopulmonary dysplasia, and chronic lung disease. Other described comorbidities were arteriovenous malformations in the lungs, hereditary telangiectasia, hyperthyroidism, glycogen storage disease 3A, ABCA3 gene mutation, ACTA2 gene mutation, Raynaud's phenomenon, rheumatoid arthritis, VACTERL association, and Von Willebrand's disease.

Nice CHD classification

Thirty-two children were classified as having Eisenmenger syndrome (ES; group 1), 19 as having PAH associated with left-to-right shunt (group 2), 26 as having PAH with coincidental CHD (group 3), and 40 as having postoperative PAH (group 4; Fig. 2). Of the 17 children (13%) with miscellaneous CHD, 2 children with major aortopulmonary collateral arteries could be classified as group 5 PH. The 15 remaining children (11%) could not be classified according to the Nice CHD classification.

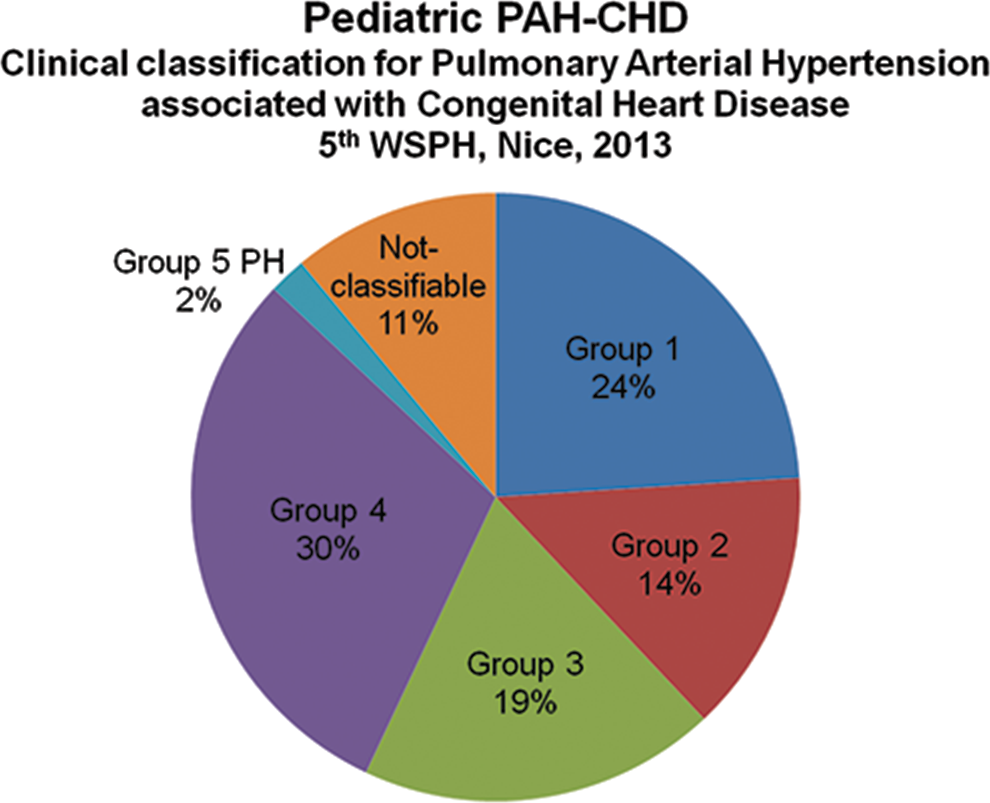

Figure 2.

All children classified according to the Nice congenital heart disease classification. PAH-CHD: pulmonary arterial hypertension associated with congenital heart disease; WSPH: World Symposium on Pulmonary Hypertension; PH: pulmonary hypertension.

Within the four groups of the Nice CHD classification, age and sex were comparable (Table 2). In contrast, World Health Organization functional class (WHO FC) tended to differ between the four groups (P = 0.066): children with ES had most unfavorable WHO FC. Also, children with ES had hemodynamic profiles with the highest mPAP/mSAP and PVR/SVR. Cardiac index did not differ between the four groups (P = 0.270). Mean right atrial pressure (mRAP) differed between the four groups (P = 0.038) and was highest in postoperative PAH. In contrast to children in the other groups, children in group 3 most often had pretricuspid shunt defects (54% vs. 13%–21%, P = 0.001). Furthermore, while Down syndrome was less frequent in group 3 (P = 0.011), other (un)defined syndromes tended to be more frequent (19% vs. 0%–5%, P = 0.063).

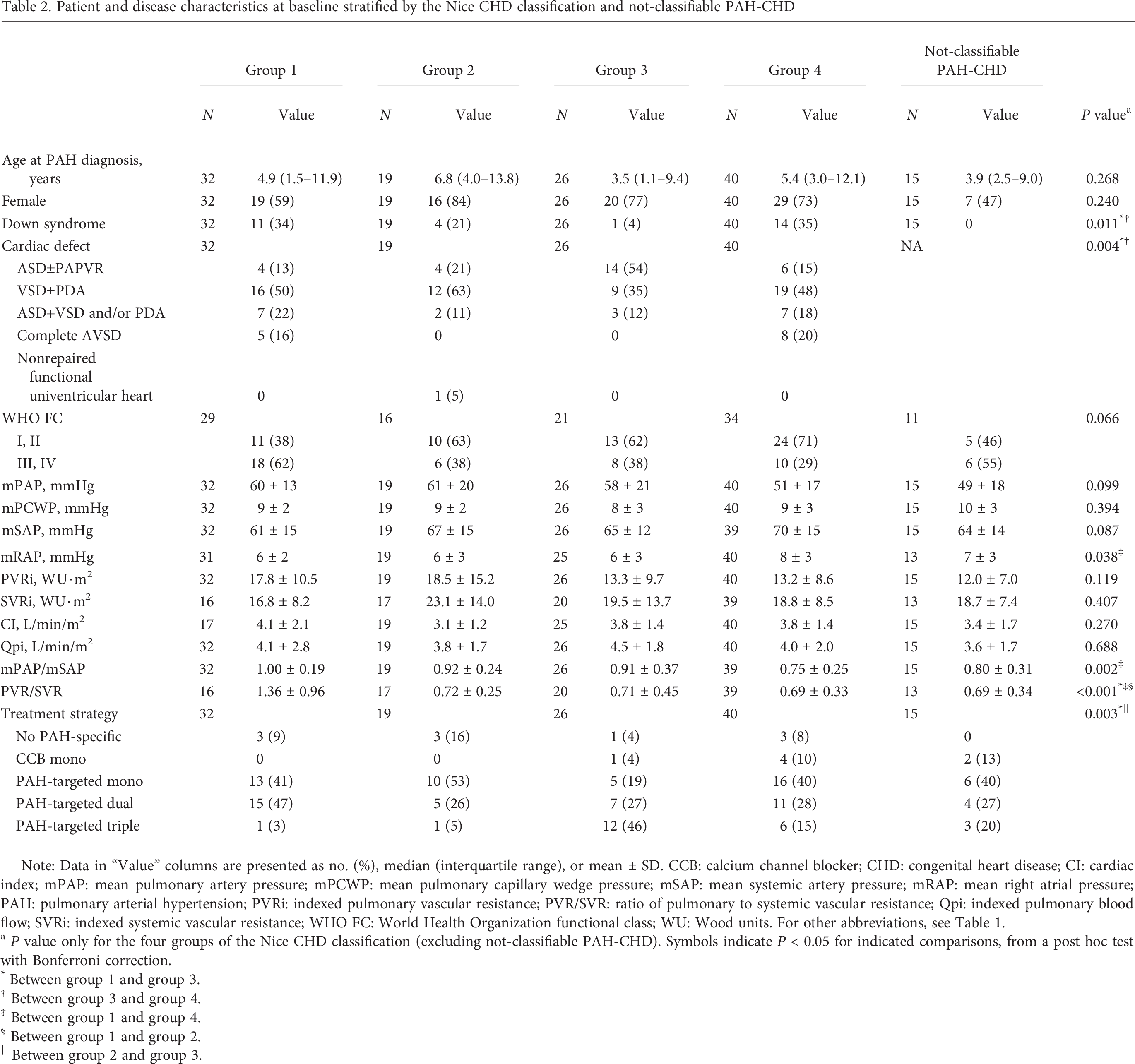

Table 2.

Patient and disease characteristics at baseline stratified by the Nice CHD classification and not-classifiable PAH-CHD

	Group 1		Group 2		Group 3		Group 4		Not-classifiable PAH-CHD

	N	Value	N	Value	N	Value	N	Value	N	Value	P valuea
Age at PAH diagnosis, years	32	4.9 (1.5–11.9)	19	6.8 (4.0–13.8)	26	3.5 (1.1–9.4)	40	5.4 (3.0–12.1)	15	3.9 (2.5–9.0)	0.268
Female	32	19 (59)	19	16 (84)	26	20 (77)	40	29 (73)	15	7 (47)	0.240
Down syndrome	32	11 (34)	19	4 (21)	26	1 (4)	40	14 (35)	15	0	0.011*†
Cardiac defect	32		19		26		40		NA		0.004*†
ASD±PAPVR		4 (13)		4 (21)		14 (54)		6 (15)
VSD±PDA		16 (50)		12 (63)		9 (35)		19 (48)
ASD+VSD and/or PDA		7 (22)		2 (11)		3 (12)		7 (18)
Complete AVSD		5 (16)		0		0		8 (20)
Nonrepaired functional univentricular heart		0		1 (5)		0		0
WHO FC	29		16		21		34		11		0.066
I, II		11 (38)		10 (63)		13 (62)		24 (71)		5 (46)
III, IV		18 (62)		6 (38)		8 (38)		10 (29)		6 (55)
mPAP, mmHg	32	60 ± 13	19	61 ± 20	26	58 ± 21	40	51 ± 17	15	49 ± 18	0.099
mPCWP, mmHg	32	9 ± 2	19	9 ± 2	26	8 ± 3	40	9 ± 3	15	10 ± 3	0.394
mSAP, mmHg	32	61 ± 15	19	67 ± 15	26	65 ± 12	39	70 ± 15	15	64 ± 14	0.087
mRAP, mmHg	31	6 ± 2	19	6 ± 3	25	6 ± 3	40	8 ± 3	13	7 ± 3	0.038*
PVRi, WU·m²	32	17.8 ± 10.5	19	18.5 ± 15.2	26	13.3 ± 9.7	40	13.2 ± 8.6	15	12.0 ± 7.0	0.119
SVRi, WU·m²	16	16.8 ± 8.2	17	23.1 ± 14.0	20	19.5 ± 13.7	39	18.8 ± 8.5	13	18.7 ± 7.4	0.407
CI, L/min/m²	17	4.1 ± 2.1	19	3.1 ± 1.2	25	3.8 ± 1.4	40	3.8 ± 1.4	15	3.4 ± 1.7	0.270
Qpi, L/min/m²	32	4.1 ± 2.8	19	3.8 ± 1.7	26	4.5 ± 1.8	40	4.0 ± 2.0	15	3.6 ± 1.7	0.688
mPAP/mSAP	32	1.00 ± 0.19	19	0.92 ± 0.24	26	0.91 ± 0.37	39	0.75 ± 0.25	15	0.80 ± 0.31	0.002*
PVR/SVR	16	1.36 ± 0.96	17	0.72 ± 0.25	20	0.71 ± 0.45	39	0.69 ± 0.33	13	0.69 ± 0.34	<0.001*‡§
Treatment strategy	32		19		26		40		15		0.003*‖
No PAH-specific		3 (9)		3 (16)		1 (4)		3 (8)		0
CCB mono		0		0		1 (4)		4 (10)		2 (13)
PAH-targeted mono		13 (41)		10 (53)		5 (19)		16 (40)		6 (40)
PAH-targeted dual		15 (47)		5 (26)		7 (27)		11 (28)		4 (27)
PAH-targeted triple		1 (3)		1 (5)		12 (46)		6 (15)		3 (20)

Note: Data in “Value” columns are presented as no. (%), median (interquartile range), or mean ± SD. CCB: calcium channel blocker; CHD: congenital heart disease; CI: cardiac index; mPAP: mean pulmonary artery pressure; mPCWP: mean pulmonary capillary wedge pressure; mSAP: mean systemic artery pressure; mRAP: mean right atrial pressure; PAH: pulmonary arterial hypertension; PVRi: indexed pulmonary vascular resistance; PVR/SVR: ratio of pulmonary to systemic vascular resistance; Qpi: indexed pulmonary blood flow; SVRi: indexed systemic vascular resistance; WHO FC: World Health Organization functional class; WU: Wood units. For other abbreviations, see Table 1.

P value only for the four groups of the Nice CHD classification (excluding not-classifiable PAH-CHD). Symbols indicate P < 0.05 for indicated comparisons, from a post hoc test with Bonferroni correction.

Between group 1 and group 3.

†

Between group 3 and group 4.

‡

Between group 1 and group 4.

Between group 1 and group 2.

‖

Between group 2 and group 3.

In a separate secondary analysis, we compared patients with hemodynamically relevant shunt defects (groups 1 and 2 combined) with those without such defects (groups 3 and 4 and not-classifiable PAH-CHD; Table 3). Children with hemodynamically relevant shunt defects tended to have worse WHO FC (P = 0.076) than children without such defects. Furthermore, children with relevant shunt defects had unfavorable hemodynamics (higher mPAP, PVRi, mPAP/mSAP, and PVR/SVR; P < 0.020 for these parameters), whereas mRAP was higher in children without a hemodynamically relevant shunt defect (P = 0.031).

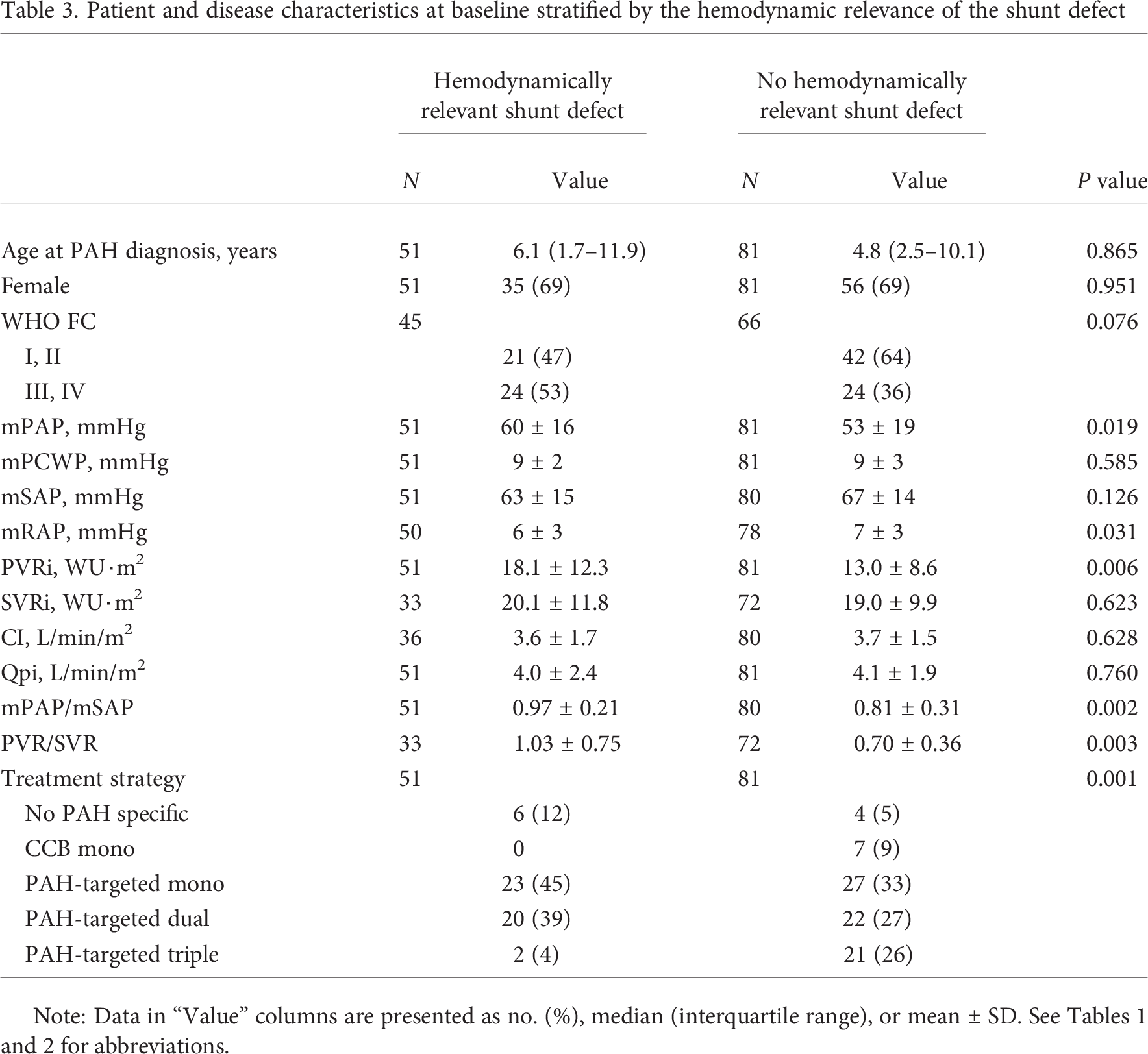

Table 3.

Patient and disease characteristics at baseline stratified by the hemodynamic relevance of the shunt defect

	Hemodynamically relevant shunt defect		No hemodynamically relevant shunt defect

	N	Value	N	Value	P value
Age at PAH diagnosis, years	51	6.1 (1.7–11.9)	81	4.8 (2.5–10.1)	0.865
Female	51	35 (69)	81	56 (69)	0.951
WHO FC	45		66		0.076
I, II		21 (47)		42 (64)
III, IV		24 (53)		24 (36)
mPAP, mmHg	51	60 ± 16	81	53 ± 19	0.019
mPCWP, mmHg	51	9 ± 2	81	9 ± 3	0.585
mSAP, mmHg	51	63 ± 15	80	67 ± 14	0.126
mRAP, mmHg	50	6 ± 3	78	7 ± 3	0.031
PVRi, WU·m²	51	18.1 ± 12.3	81	13.0 ± 8.6	0.006
SVRi, WU·m²	33	20.1 ± 11.8	72	19.0 ± 9.9	0.623
CI, L/min/m²	36	3.6 ± 1.7	80	3.7 ± 1.5	0.628
Qpi, L/min/m²	51	4.0 ± 2.4	81	4.1 ± 1.9	0.760
mPAP/mSAP	51	0.97 ± 0.21	80	0.81 ± 0.31	0.002
PVR/SVR	33	1.03 ± 0.75	72	0.70 ± 0.36	0.003
Treatment strategy	51		81		0.001
No PAH specific		6 (12)		4 (5)
CCB mono		0		7 (9)
PAH-targeted mono		23 (45)		27 (33)
PAH-targeted dual		20 (39)		22 (27)
PAH-targeted triple		2 (4)		21 (26)

Note: Data in “Value” columns are presented as no. (%), median (interquartile range), or mean ± SD. See Tables 1 and 2 for abbreviations.

Therapy

In total, 117 children (87%) received PAH-targeted therapies during the study period: 51 monotherapy, 43 dual therapy, and 23 triple therapy. Ten children did not receive PAH-specific therapy. Seven children without hemodynamically relevant shunt defects received CCB monotherapy (1 in group 3, 4 in group 4, and 2 with not-classifiable PAH-CHD).

Treatment intensity differed significantly between the four groups of the Nice CHD classification (Table 2; P = 0.003). In particular, children in group 3 received PAH-targeted triple therapy more frequently than children in the other groups. Children without a hemodynamically relevant shunt defect received PAH-targeted triple therapy more frequently than those with a hemodynamically relevant shunt defect (Table 3; P = 0.001).

Not-classifiable PAH-CHD

Fifteen children (11%) could not be classified according to the Nice CHD classification. This was due to either the absence of a shunt defect (repaired aortic coarctation [n = 2] or corrected transposition of the great arteries with neonatal switch operation [n = 6]) or the presence of developmental anomalies of the pulmonary vasculature (including repaired total anomalous pulmonary venous return, absent pulmonary artery, or Scimitar syndrome [n = 7]). All children had normal pulmonary capillary wedge pressure (≤15 mmHg).

Transplantation-free survival

During a median follow-up of 4.3 years, 15 children died and 1 child underwent lung transplantation (Fig. 3). The cause of death was directly PAH related in 10 children and not directly PAH related in the remaining 5 children, although the condition causing death might have been poorly tolerated because of the presence of PAH.

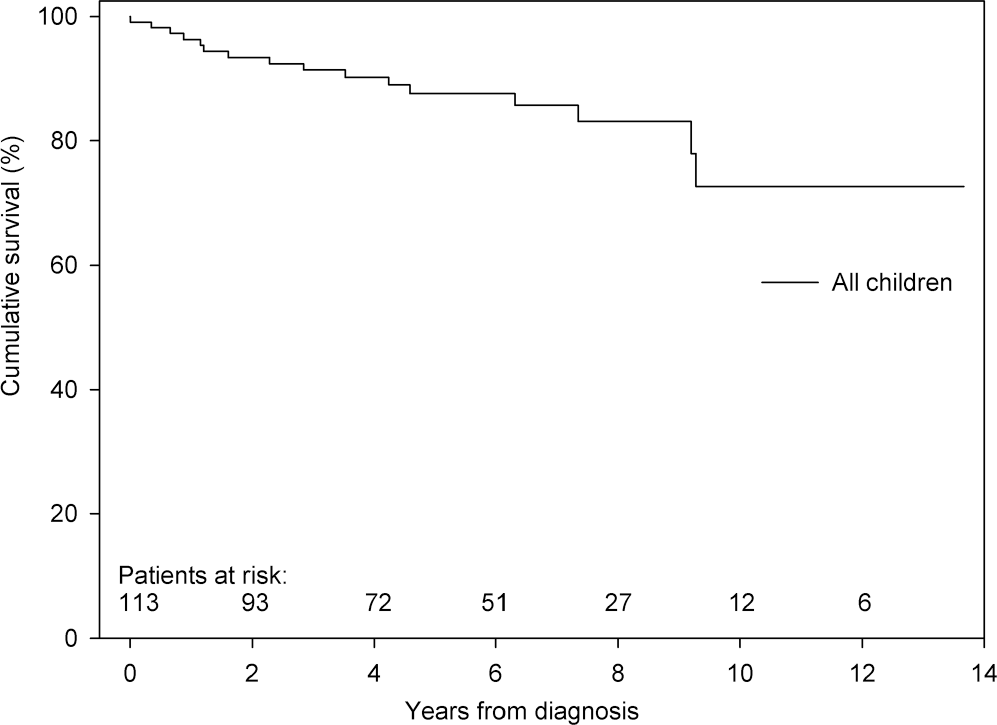

Figure 3.

Transplantation-free survival of all children with pulmonary arterial hypertension associated with congenital heart disease. Survival at 1, 3, and 5 years was 96%, 91%, and 88%, respectively.

In group 1, 3 children died. Of interest, all three children were diagnosed with advanced PAH within 6 months after birth.

With the relatively low number of 16 events, an exploratory survival analysis could not demonstrate a significant survival difference between the four groups of the Nice CHD classification (Fig. 4A). Also, despite the fact that all three deceased children with not-classifiable PAH-CHD died within 3 years after diagnosis, no survival differences could be observed between this group and the four groups of the Nice CHD classification (P = 0.32). Finally, no survival differences between children with a hemodynamically relevant shunt defect (groups 1 and 2 combined) and those without such a shunt defect (groups 3 and 4 and not-classifiable PAH-CHD) could be demonstrated (Fig. 4B).

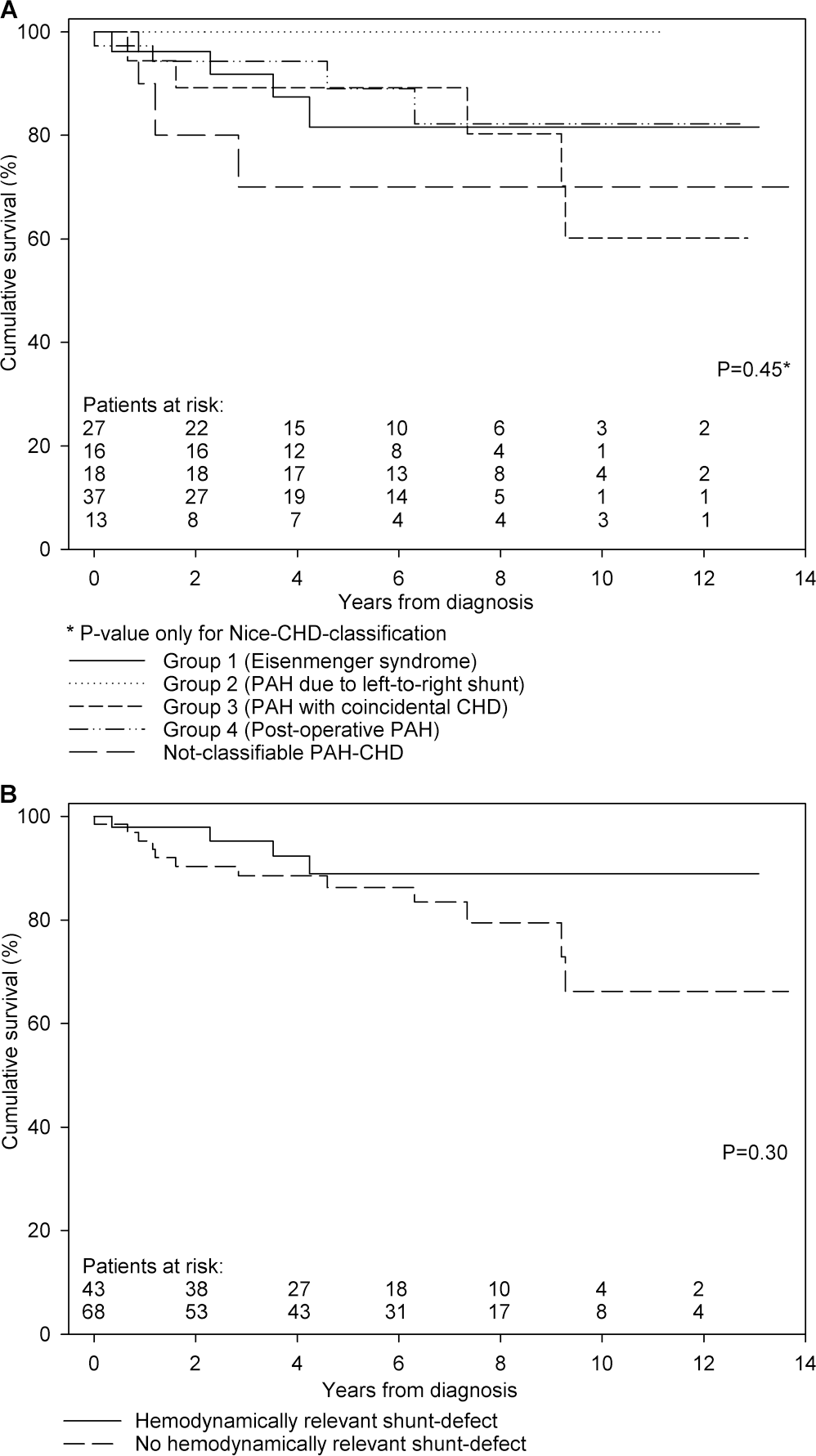

Figure 4.

Transplantation-free survival. A, Stratified by the Nice CHD classification. Survival at 1, 3, and 5 years was 96%, 92% and 82% for children in group 1, 100%, 100%, and 100% for children in group 2, 94%, 89%, and 89% for children in group 3, and 97%, 94%, and 89% for children in group 4, respectively (P = 0.45). Also shown is survival for children with not-classifiable PAH-CHD, with 1-, 3-, and 5-year survival of 90%, 70%, and 70%, respectively. B, Stratified by the hemodynamic relevance of the shunt defect. Survival at 1, 3, and 5 years was 98%, 95%, and 89% for children with a hemodynamically relevant shunt defect (groups 1+2) and 95%, 89%, and 86% for children without a hemodynamically relevant shunt defect (groups 3+4 and not-classifiable PAH-CHD), respectively (P = 0.30). CHD: congenital heart disease; PAH: pulmonary arterial hypertension.

DISCUSSION

This study is the first to assess the applicability and value of the recently proposed Nice CHD classification in children with PAH-CHD. In our study, this classification identified clinically relevant differences in patient and disease characteristics between groups, especially regarding comorbidities, hemodynamic profile, and treatment intensity. However, a substantial proportion of children (11%) could not be classified, as their CHD did not fit in the predefined groups, which are based on congenital shunt defects. In this exploratory study with a relatively low event rate, no differences in transplantation-free survival between the four groups of the Nice CHD classification could be observed.

Nice CHD classification

ES, group 1, is the advanced stage of PAH associated with congenital shunt defects, with reversed or bidirectional shunting and the occurrence of cyanosis. This condition is distinguished from shunt defects with left-to-right shunting, group 2. However, this distinction is artificial, since a gradual progression of patients from the latter group to group 1 over time is to be expected (as we observed in 6 patients in this study), complicating group-specific outcome analyses. Furthermore, children in groups 1 and 2 had similar underlying CHD: predominantly posttricuspid shunt defects. Patients with ES had most advanced PAH, characterized by unfavorable pulmonary-to-systemic hemodynamics. However, cardiac index and mRAP seemed preserved in these children. This is likely to be associated with the hemodynamically relevant shunt defect that may function as “pop-off” for the right ventricle, preserving left ventricular filling and cardiac output. Despite this, children in group 1 were in higher WHO FCs, which might be explained by the accompanying cyanosis that aggravates during exercise.¹⁸

Objective criteria are lacking for “coincidental CHD,” in which the presence of a (small) shunt defect itself is not considered to account for the development of PAH. In our study, this was addressed by independent review of the treating physician's assessment. Nevertheless, children in group 3 indeed seemed to form a distinct disease entity, with a preponderance of pretricuspid shunt defects and no complex CHD. Although comorbidities are frequent in all forms of pediatric PAH-CHD, as shown in this and other studies,^10,19,20 children in group 3 showed a different pattern of extracardiac comorbidities, characterized by lower frequency of Down syndrome and greater frequency of other (un)defined syndromes. These features are in line with those found in children with idiopathic PAH, justifying previous reports that classified this condition as “idiopathic-like PAH.”¹⁰ It seems that, in children, extracardiac comorbidities, such as undefined syndromes or certain genetic traits, are associated with the development of PAH. Increased genetic susceptibility for a normally nonpathogenic “hit” may be the mechanism, where in these group 3 children the small heart defect and normally nonrelevant shunt may form this second hit and initiate or accelerate the pulmonary vascular remodeling of PAH.

Remarkably, in this contemporary cohort, group 4 (postoperative PAH) was the largest group. This is in line with earlier data from the Spanish Registry for Pulmonary Hypertension and the Tracking Outcomes and Practice in Pediatric Pulmonary Hypertension (TOPP) registry.^20,21 Shunt closure in early stages of PVD can reverse and resolve PAH.⁶ Therefore, it is generally advised to close shunt defects early in life, usually within the first 1–2 years of life, depending on the defect, as was done in most of the children in this study. However, this study shows that early closure does not always prevent the development of progressive PAH. This is in line with epidemiological data on pediatric PAH showing that 1%–2% of children with PAH-CHD developed PAH despite early closure of their shunt defect.⁷ Also, in our study extracardiac factors were frequent in the group with postoperative PAH: one-third had Down syndrome, and 22% had other comorbidities. These factors may affect susceptibility for PVD and play a role in progression of PAH after shunt closure. Therefore, next to young age and hemodynamics, such factors should also be taken into account when determining eligibility for shunt closure.^4,6,22

Therapy

Remarkably, although there is no evidence supporting the use of CCBs in PAH-CHD, 7 children without hemodynamically relevant shunt defects received CCB monotherapy in this study.

Most children received PAH-targeted therapies, confirming previous current-era reports.^9,23,24 Interestingly, children in group 3 received more intense PAH-targeted therapy than children in other groups, although they did not have more advanced disease, according to WHO FC or hemodynamic profile. This suggests that these children were considered more similar to patients with idiopathic PAH and different from the other children with PAH-CHD.

In the original cohort, we have shown that children with PAH-CHD were treated less intensely than children with idiopathic/hereditary PAH.^9,25 In the current study, about half of the children did not receive PAH-targeted dual or triple therapy. In light of the unfavorable prognosis for these children, with a 3-year mortality rate of approximately 10%, it should be questioned whether this less intense treatment is justified and whether more intense treatment might improve survival in these children. Further research is required to answer these questions.

Survival

Overall 5-year survival in this study was 88%, which was within the range of previously reported survival rates in pediatric PAH-CHD.^{7,20,24,26–29} In contrast to the recent report of Manes et al.¹⁵ describing outcomes in adult PAH-CHD, we could not demonstrate survival differences within the Nice CHD classification. The relatively low number of patients and end points and the relatively short follow-up time in this study, resulting in lack of power, hampered conclusions from the exploratory survival analysis in the current study.

In this study, ES was diagnosed in three infants within the first 6 months of life, and all died during follow-up. Rather than the classic disease evolution into ES, these infants probably had a failure of postnatal adaptation with remodeling of the pulmonary vascular bed. These observations are in line with the statement of the Pulmonary Vascular Research Institute (PVRI) task force that perinatal and in-utero factors affecting the pulmonary vascular bed are important in determining postnatal outcome.³⁰ This maladaptation may contribute to a rapid progression of PAH, and such infants presenting with “accelerated PAH” have been shown to have a very poor prognosis.^4,7,31 In fact, these children may represent a form of persistent pulmonary hypertension of the newborn with associated CHD or coinciding with CHD.

None of the children in group 2 died or underwent lung transplantation. This could very well be due to the artificial distinction between group 1 and group 2, as children in group 2 will first progress into group 1 before they die or undergo lung transplantation.

In this study, survival of children in group 3 seemed better than that reported for children with idiopathic PAH.^27,32 Although not sufficient to explain the PAH, their shunt defect may contribute to preservation of cardiac output despite progression of PVD.¹⁵

While children and adults in group 4 have been reported to have worse survival than children with other CHD, this could not be demonstrated in this study.^7,23 This may be due to patient selection and inclusion. Only children with PAH confirmed during cardiac catheterization at least 1 year after cardiac surgery were included in this study. Therefore, the sickest patients may not have been included, as they might have been too sick to undergo cardiac catheterization or died within the first year after cardiac surgery. Also, it may be that the worse survival of children with postoperative PAH occurs only after a longer period of follow-up.

It is important to notice that the inclusion criteria of this study were designed to study a contemporary cohort with predominantly incident patients but also allowed the inclusion of a small subset of prevalent patients (n = 18). Prevalent patients were seen in the referral centers between 2000 and 2010 but had diagnostic cardiac catheterization between 1997 and 2000. To avoid immortal-time bias, data of these patients were left truncated. For patients with PAH after repaired CHD, the inclusion criteria required a diagnostic cardiac catheterization performed more than 1 year after corrective surgery. Children who died within 1 year after surgery were thus not included in this cohort. This might have introduced a limited form of immortal-time bias.

Not-classifiable PAH-CHD

The Nice CHD classification is based on the presence or history of shunt defects. However, a significant number of children (13%) had CHD other than shunt defects. Only two of these children, with major aortopulmonary collateral arteries, could be classified as group 5 PH, according to the Nice classification, whereas the remaining children could not be classified. The heterogeneity of CHD associated with PH and the difficulties and limitations of simple classification have been repeatedly raised and are at odds with the advantages of stratification for risk or treatment effect that may be associated with such classification.³³ The Panama classification, as proposed by the PVRI task force, aims to address this heterogeneity in pediatric PAH but awaits validation with respect to its value for risk stratification, prognostication, or treatment consequences.³⁰ More research is needed to further characterize children with not-classifiable PAH-CHD.

Strengths and limitations

Bringing together the consecutive, contemporary cohorts of three major pediatric PAH referral centers has led to one of the largest contemporary cohorts in the field of pediatric PAH and provided the opportunity to assess the applicability of the Nice CHD classification in children. Nevertheless, this study was limited by the relatively low number of events, resulting in lack of power and thereby hampering definitive conclusions regarding survival. Also, its retrospective nature can be regarded a limitation. However, the standardized diagnostic and treatment strategies of three dedicated pediatric PH centers and a dedicated review at the level of individual patient data for this study allowed for a meticulous characterization of the patients and minimized differences in definitions or data inconsistencies. In our cohort, only children who had a diagnosis of PAH confirmed during cardiac catheterization were included, which strengthened disease definition but also introduced a selection bias by exclusion of children with PAH-CHD without cardiac catheterization. Furthermore, baseline was defined as the moment of diagnostic cardiac catheterization, which also strengthened disease definition but may have postponed time of diagnosis, affecting survival analyses.

Conclusions

Pediatric PAH-CHD is a heterogeneous condition frequently associated with extracardiac, syndromal, and developmental factors that are believed to affect PAH evolution and progression. The recently proposed Nice CHD classification identifies groups with specific patient and disease characteristics, also in children. However, the fact that a substantial proportion of children with PAH-CHD, 11%, could not be classified within this classification forms a serious limitation. Group 3, PAH with coincidental CHD, forms a distinct disease entity similar to idiopathic PAH. The prognostic value of the Nice CHD classification in children with PAH-CHD could not be determined by this study because of the relatively low number of events during a median follow-up of 4.3 years. The proposed Nice CHD classification supports clinical characterization of PAH-CHD; however, further refinement is needed in order to adequately classify all children with PAH-CHD.

Footnotes

ACKNOWLEDGMENTS

We wish to thank Theresia Vissia-Kazemier, Kathleen Miller-Reed, and Beth Coleman for their contribution to this study.

Source of Support: This study was supported by the Sebald Foundation, the Frederick and Margaret L Weyerhaeuser Foundation, the Jayden de Luca Foundation, and grant UL TR001082 from the National Center for Advancing Translational Sciences/National Institutes of Health.

Conflict of Interest: EBR has received honoraria from Actelion, Gilead, and United Therapeutics for consultation on scientific advisory boards and is a consultant for Ikaria on a clinical trial. The University of Colorado has received consultancy fees for DDI from Actelion, Bayer, Gilead, Lilly, Pfizer, and United Therapeutics. The University Medical Center Groningen contracts with Actelion, Bayer, Glaxo-SmithKline, Lilly, Novartis, and Pfizer for consultant and steering committee activities of RMFB. All other authors declare no conflicts of interest.
