Effects of microalloying on the microstructure,tribological and electrochemical properties of novel Ti-Mo based biomedical alloys in simulated physiological solution
Restricted accessResearch articleFirst published online December, 2022
Effects of microalloying on the microstructure,tribological and electrochemical properties of novel Ti-Mo based biomedical alloys in simulated physiological solution

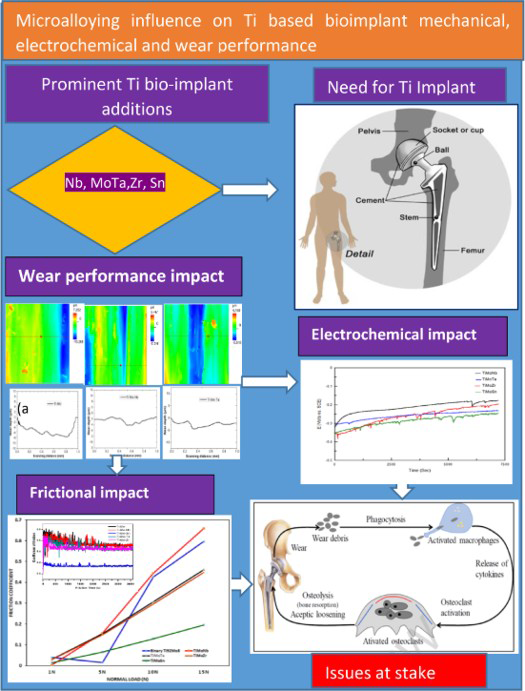

The tribological characteristics of Ti alloys containing beta stabilisers such as Mo, Nb, Ta, Zr, and Sn have seldom been explored despite their applicability for metallic biomaterials requiring good wear and surface degradation resistance. Using sliding wear contact, the influence of these alloying components on Ti-Mo biomedical alloys in simulated physiological fluid was examined. Microalloying influences microstructure, hardness, and wear. Nb-microalloyed samples with metastable -phase increased anti-wear and frictional resistance while keeping frictional resistance. Orthorhombic α′′phase-rich samples were the least wear resistance. The findings contribute to a better understanding of the interaction between Ti-based biomaterials’ micro-alloying and their tribological properties. The stabilised TiMo (Nb,Ta, Zr, or Sn) alloys outperformed CP-Ti, the original Ti92Mo8, and the regularly used biomedical Ti6Al-4V alloys in terms of corrosion resistance. This indicates that alloying tuning may be used to enhance biomedical prosthesis and increase the service life of bio-implants and components.
KontisV, BennettJE, MathersCD, . Future life expectancy in 35 industrialised countries: projections with a Bayesian model ensemble. Lancet. 2017;389(10076):1323–1335.
2.
Gonzalez-ChicaDA, VanlintS, HoonE, . Epidemiology of arthritis, chronic back pain, gout, osteoporosis, spondyloarthropathies and rheumatoid arthritis among 1.5 million patients in Australian general practice: NPS MedicineWise MedicineInsight dataset. BMC Muscoskel Disord. 2018;19(1):1–10.
3.
NiinomiM.Recent research and development in titanium alloys for biomedical applications and healthcare goods science and technology. Adv Mater. 2003;4:445–454.
4.
GeethaM, SinghA, AsokamaniR, . Ti based biomaterials, the ultimate choice for orthopaedic implants – a review. Prog Mater Sci. 2009;54(3):397–425.
5.
WangW, PohCK.Titanium alloys in orthopaedics, titanium alloys – advances in properties control, Jan Sieniawski and Waldemar Ziaja. IntechOpen. 2013. DOI:10.5772/55353. Available from: https://www.intechopen.com/chapters/41974
MojakiSC, MishraSB, MishraAK.Synthesis, characterization and material properties of titanium carbide nanocomposite derived from biochar. Mater Lett. 2020;264:127317.
8.
XieL, GuoH, SongY, . Effects of electroshock treatment on microstructure evolution and texture distribution of near-β titanium alloy manufactured by directed energy deposition. Mater Charact. 2020;161:110137.
9.
WuH, ZhangS.Effects of cutting conditions on the milling process of titanium alloy Ti6Al4V. Int J Adv Manuf Technol. 2015;77(9–12):2235–2240.
10.
KurtzS, OngK, LauE, . Projections of primary and revision hip and knee arthroplasty in the United States from 2005 to 2030. J Bone Jt Surg. 2007;89(4):780–785. DOI:10.2106/00004623-200704000-00012.
11.
HoWF, JuCP, ChL.Structure and properties of cast binary Ti-Mo alloy. Biomaterials. 1999;20(22):2115–2122.
12.
NnamchiPS, ObayiCS, ToddI, . Mechanical and electrochemical characterisation of new Ti–Mo–Nb–Zr alloys for biomedical applications. J Mech Behav Biomed Mater. 2016;60:68–77.
13.
OliveiraNTC, GuastaldiAC.Electrochemical stability and corrosion resistance of Ti–Mo alloys for biomedical applications. Acta Biomater. 2009;5(1):399–405.
14.
AhmedT, LongM, SlivestriJ, . In: BlenkinsopPA, EvansWJ, FlowerHM, editors. Titanium’95: Science and Technology. London: Institute of Metals; 1996, 1760–1767.
YuZ, ZhangM, TianY, . Designation and development of biomedical Ti alloys with finer biomechanical compatibility in long-term surgical implants. Front Mater Sci. 2014;8(3):219–229.
17.
NiinomiM.Mechanical biocompatibilities of titanium alloys for biomedical applications. J Mech Behav Biomed Mater. 2008;1(1):30–42.
18.
XuLJ, ChenYY, LiuZG, . The microstructure and properties of Ti–Mo–Nb alloys for biomedical application. J Alloys Compd. 2008;453(1–2):320–324.
19.
NaritaK, NiinomiM, NakaiM, . Development of thermo-mechanical processing for fabricating highly durable β-type Ti–Nb–Ta–Zr rod for use in spinal fixation devices. J Mech Behav Biomed Mater. 2012;9:207–216.
20.
SajiVS, ChoeHC.Electrochemical corrosion behaviour of nanotubular Ti-13Nb-13Zr alloy in Ringer's solution. Corros Sci. 2009;51(8):1658–1663.
LiY, WongC, XiongJ, . Cytotoxicity of titanium and titanium alloying elements. J Dent Res. 2010;89(5):493–497. DOI:10.1177/0022034510363675
25.
AlfonsoMV, . J Mater Sci: Mater Med. 2013;24:1327–1332. DOI:10.1007/s10856-013-4887-4.
26.
KusyRP.Orthodontic biomechanics: vistas from the top of a new century. Am J Orthod Dentofac Orthop. 2000;117(5):589–591.
27.
QuJ, . Friction and wear of titanium alloys sliding against metal, polymer, and ceramic counterfaces. Wear. 2005;258(9):1348–1356.
28.
LongWT.The clinical performance of metal-on-metal as an articulation surface in total hip replacement. Iowa Orthop J. 2005;25:10–16. PMID: 16089065; PMCID: PMC1888778].
29.
HaoYL, LiSJ, SunSY, . Super-elastic titanium alloy with unstable plastic deformation. Appl Phys Lett. 2005;87(9):091906.
30.
BaniaPJ. In: EylonD, BoyerR, KossD, editors. Beta titanium alloy in the 1990s. Warrendale (PA): TMS; 1993.
31.
TrentaniL, PelilloF, PavesiFC, . Evaluation of the TiMo12Zr6Fe2 alloy for orthopaedic implants: in vitro biocompatibility study by using primary human fibroblasts and osteoblasts. Biomaterials. 2002;23(14):2863–2869.
32.
GordinDM, GloriantT, TexierG, . J Mater Sci Mater Med. 2004;15(8):885–891.
ShawGA, StoneDS, JohnsonAD, . Mechanical properties of nanostructured materials and nanocomposites, MRS Symposia Proceedings No. 791 (Materials Research Society, Pittsburgh, 2004), 7–11. Appl Phys Lett2003;83:257–259.
38.
DavisR, FlowerHM, WestDRF.Martensitic transformations in Ti-Mo alloys. J Mater Sci. 1979;14(3):22–28.
39.
ArciniegasM, ManeroJ, PeñaJ, . Study of new multifunctional shape memory and low elastic modulus Ni-free Ti alloys. Metall Mater Trans A. 2008;39(4):742–751. DOI:10.1007/s11661-008-9478-5.
40.
NiinomiM.Mechanical properties of biomedical titanium alloys. Mater Sci Eng A. 1998;243(1–2):231–236.
41.
GabrielSB, PanainoJVP, NunesCA.Characterization of a new beta titanium alloy, Ti-12Mo-3Nb, for biomedical applications. J Alloy Compoun. 2012;536:208–210.
42.
KhanMA, WilliamsRL, WilliamsDF.The corrosion behaviour of Ti–6Al–4V, Ti–6Al–7Nb and Ti–13Nb–13Zr in protein solutions. Biomaterials. 1999;20(7):631–637.
43.
CollingsEW. In: SoboyejoW, SrivatsanTS, editors. Advanced structural materials. Metals Park (OH): ASM; 1984, p. 261.
44.
KurodaD, NiinomiM, MorinagaM, . Design and mechanical properties of new b type titanium alloys for implant materials. Mater Sci Eng A. 1998;243(1–2):244–249.
45.
KerosuoH, KullaaA, KerosuoE, . Nickel allergy in adolescents in relation to orthodontic treatment and piercing of ears. Am J Orthod Dentofac Orthop. 1996;109(2):148–154.
46.
NnamchiPS, ToddI, RainforthMW. [PhD Thesis]. UK: Department of Materials Science and Eng., University of Sheffield; 2014.
KerosuoH, KullaaA, KerosuoE, . Nickel allergy in adolescents in relation to orthodontic treatment and piercing of ears. Am J Orthod Dentofac Orthop. 1996;109(2):148–154.
55.
LinJ, OzanS, LiY, . Novel Ti-Ta-Hf-Zr alloys with promising mechanical properties for prospective stent applications. Sci Rep. 2016;6(1):37901.
56.
NiinomiM.Biomedical implant devices fabricated from low Young's modulus titanium alloys demonstrating high mechanical biocompatibility. Mater Matters. 2014;9:39–46.
57.
HaoYL, LiSJ, SunSY, . Super elastic titanium alloy with unstable plastic deformation. Appl Phys Lett. 2005;87(9):091906.
58.
SahooR, JhaBB, SahooTK.Dry sliding wear behaviour of Ti–6Al–4V alloy consisting of bimodal microstructure. Trans Indian Inst Met. 2014;67(2):239–245.
59.
InjetiVSY, NuneKC, ReyesE, . A comparative study on the tribological behavior of Ti-6Al-4V and Ti-24Nb-4Zr-8Sn alloys in simulated body fluid. Mater Technol. 2018;536:1–15.
60.
MajumdarP, SinghSB, ChakrabortyM.Wear response of heat-treated Ti-13Zr-13Nb alloy in dry condition and simulated body fluid. Wear. 2008;264(11–12):1015–1025.
61.
WangBL, ZhengYF, ZhaoLC.Effects of Hf content and immersion timeon electrochemical behavior of biomedical Ti-22Nb-xHf alloys in 0.9% NaClsolution. Mater Corros. 2009;60(5):330–335.
62.
ShuklaAK, BalasubramaniamR, BhargavaS.Effect of replacement of V by Fe and Nb on passive film behavior of Ti–6Al–4V in simulated body fluid conditions. J Alloys Compd. 2005;389(1–2):144–152.
63.
MajumdarP, SinghSB, ChatterjeeUK, . Corrosion behaviour of heat treated boron free and boron containing Ti–13Zr–13Nb (wt%) alloy in simulated body fluid. J Mater Sci Mater Med. 2011;22(4):797–807.
64.
OliveiraNTC, BiaggioSR, Rocha-FilhoRC, . Electrochemical studies on zirconium and its biocompatible alloys Ti–50Zr at.% and Zr–2.5Nb wt% in simulated physiologic media. J Biomed Mater Res. 2005;74(3):397–407.
65.
KuhnH, MedlinD.Mechanical testing and evaluation, Metals Handbook, Vol. 8. Materials Park (OH): ASM International; 1972.
66.
NewmanJR, EylonD, ThorneJK.Titanium and titanium alloys, metals handbook. Metals Park (OH): ASM International; 1988.
67.
BoyerR, WelschG, CollingsEW.Materials Properties Hand book: titanium alloys. 1st ed.Materials Park (OH): ASM International; 1994.
68.
Degarmo PaulE, BlackJT, Kohser RonaldA.Materials and processes in manufacturing. German: Wiley; 2003.
69.
RobinA, CarvalhoOAS, SchneiderSG, . Corrosion behavior of Ti–xNb–13Zr alloys in Ringer's solution. Mater Corros. 2008;59(12):929–933.
70.
MantaniY, TajimaM.Phase transformation of quenched α′′ Martensite by aging in Ti–Nb alloys. Mater Sci Eng A. 2006;438–440:315–319.
71.
AssisSL, CostaI.Electrochemical evaluation of Ti–13Nb–13Zr, Ti–6Al–4V and Ti–6Al– 7Nb alloys for biomedical application by long-term immersion tests. Mater Corros. 2007;58(5):329–333.
72.
YuSY, ScullyJR.Corrosion and passivity of Ti–13Nb–13Zr in comparison to other biomedical implant alloys. Corrosion. 1997;53(12):965–976.
73.
LeeT, HeoY-U, LeeCS.Microstructure tailoring to enhance strength and ductility in Ti-13Nb-13Zr for biomedical application. Scr Mater. 2013;69(11–12):785–788.
74.
YuSY, ScullyJR.Corrosion and passivity of Ti–13Nb–13Zr in comparison to other biomedical implant alloys. Corrosion. 1997;53(12):965–976.
75.
TamilselviS, RamanV, RajendranN.Corrosion behaviour of Ti–6Al–7Nb andTi–6Al–4 V ELI alloys in the simulated body fluid solution by electrochemicalimpedance spectroscopy. Electrochim Acta. 2006;52(3):839–846.
76.
BolatG, MareciD, ChelariuR, . Investiga-tion of the electrochemical behaviour of TiMo alloys in simulated physiologicalsolutions. Electrochim Acta. 2013;113:470–480.
77.
NormandoD, de AraújoAM, da Silva VieiraIS, . Archwire cleaning after intraoral ageing: the effects on debris, roughness, and friction. Eur J Orthod Adv. 2011;19:201–217.
