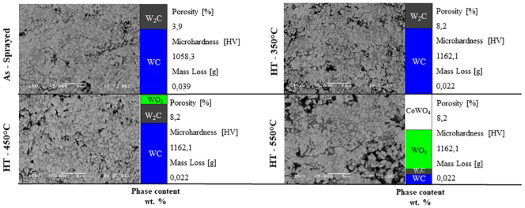

Heat treatments were carried out at 350, 450, 550 and 650°C on WC-10Co4Cr coatings deposited by High-Velocity Oxy-Fuel (HVOF) onto AISI 420 stainless steel substrate in order to study their influence on the abrasive wear resistance of the coatings. The thickness and microhardness of the coatings were measured while the microstructure was analysed with the aid of OM, SEM and XRD techniques. The X-ray diffraction results revealed the presence of W2C phase in the as-sprayed coatings, and WO3 and CoWO4 phases after the heat treatments. No significant degradation of the microstructure was observed in coatings treated at 350°C compared with the as-sprayed coatings. Coatings treated at temperatures above 450°C, on the other hand, showed significant changes related to density, microstructure and surface hardness. The coatings treated at 350°C showed the best wear resistance, while the coatings treated at 550°C presented the worst performance due to microstructural defects related to oxidation processes.
SongB, MurrayJW, WellmanRG, . Dry sliding wear behaviour of HVOF thermal sprayed WC-Co-Cr and WC-CrxCy-Ni coatings. Wear. 2020;442-443:203114.
4.
GuangjieP, ZhengweiW, YexiangX, . Abrasion predictions for Francis turbines based on liquid-solid two-phase fluid simulations. Eng Fail Anal. 2013;33:327–335.
5.
FervelV, NormandB, LiaoH, . Friction and wear mechanisms of thermally sprayed ceramic and cermet coatings. Surf Coat Technol. 1999;111(2–3):255–262.
6.
LiaoH, NormandB, CoddetC.Influence of coating microstructure on the abrasive wear resistance of WC/Co cermet coatings. Surf Coat Technol. 2000;124(2–3):235–242.
7.
JiaK, FischerTE, GalloisB.Microstructure, hardness and toughness of nanostructured and conventional WC-Co composites. Nanostruct Mater. 1998;10(5):875–891.
8.
WangH, QiuQ, GeeM, . Wear resistance enhancement of HVOF-sprayed WC-Co coating by complete densification of starting powder. Mater Des. 2020;191:1–13.
9.
KumarH, ChittosiyaC, ShuklaVN.HVOF sprayed WC based cermet coating for mitigation of cavitation, erosion & abrasion in hydro turbine blade. Mater Today Proc.2018;5(2):6413–6420.
10.
MiP, YeF.Structure and wear performance of the atmospheric heat-treated HVOF sprayed bimodal WC-Co coating. Int J Refract Met Hard Mater. 2018;76:185–191.
11.
VashishthaN, KhatirkarRK, SapateSG.Tribological behaviour of HVOF sprayed WC-12Co, WC-10Co-4Cr and Cr3C2−25NiCr coatings. Tribiol Int. 2017;105:55–68.
12.
StewartDA, ShipwayPH, MccartneyDG.Abrasive wear behaviour of conventional and nanocomposite HVOF-sprayed WC–Co coatings. Wear. 1999;225-229:789–798.
13.
GeeMG, GantA, RoebuckB.Wear mechanisms in abrasion and erosion of WC/Co and related hardmetals. Wear. 2007;263:137–148.
14.
StewartDA, ShipwayPH, MccartneyDG.Influence of heat treatment on the abrasive wear behaviour of HVOF sprayed WC–Co coatings. Surf. Coat. Technol. 1998;105:13–24.
15.
KimJH, BaikKH, SeongBG, . Effects of post-spraying heat treatment on wear resistance of WC–Co nanocomposite coatings. Mater Sci Eng A. 2007;449-451:876–879.
16.
FiedlerT, SinningHR, RöslerJ, . Temperature dependent mechanical properties of metallic HVOF coatings. Surf Coat Technol. 2018;349(April):32–36.
17.
WangT, YeF.The elevated-temperature wear behavior evolution of HVOF sprayed tungsten carbide coatings: respond to heat treatment. Int J Refract Met Hard Mater. 2018;71(October):92–100.
FuW, ChenQ-Y, YangC, . Microstructure and properties of high velocity oxygen fuel sprayed (WC-Co)-Ni coatings. Ceram Int2020;46(10):14940–14948.
20.
PicasJA, PunsetM, BaileMT, . Effect of oxygen/fuel ratio on the in-flight particle parameters and properties of HVOF WC-CoCr coatings. Surf Coat Technol.2011;205:S364–S368.
21.
PunsetM.Desarrollo y optimización de recubrimientos HVOF base WC-CoCr para aplicaciones aeronáuticas [Doctoral thesis.]. Universitat Politècnica de Catalunya; 2018.
22.
Jalali AzizpourM, Tolouei-RadM.The effect of spraying temperature on the corrosion and wear behavior of HVOF thermal sprayed WC-Co coatings. Ceram Int2019;45(11):13934–13941.
23.
ChoTY, YoonJH, ChoJY, . Surface properties and tensile bond strength of HVOF thermal spray coatings of WC-Co powder onto the surface of 420J2 steel and the bond coats of Ni, NiCr, and Ni/NiCr. Surf Coat Technol.2009;203(20–21):3250–3253.
24.
BaumannI, HagenL, TillmannW, . Process characteristics, particle behavior and coating properties during HVOF spraying of conventional, fine and nanostructured WC-12Co powders. Surf Coat Technol. 2021;405(December 2020):126716.
25.
QiaoL, WuY, HongS, . Wet abrasive wear behavior of WC-based cermet coatings prepared by HVOF spraying. Ceram Int2021;47(2):1829–1836.
26.
KhamenehS, SohiMH, HokamotoK, . Effect of heat treatment on wear behavior of HVOF thermally sprayed WC-Co coatings. Wear. 2006;260:1203–1208.
27.
OladijoOP, SacksN, CornishLA, . Effect of substrate on the 3 body abrasion wear of HVOF WC-17wt.% Co coatings. Int J Refract Met Hard Mater. 2012;35:288–294.
28.
GengZ, HouS, ShiG, . Tribological behaviour at various temperatures of WC-Co coatings prepared using different thermal spraying techniques. Tribol Int. 2016;104:36–44.
29.
GengZ, LiS, DuanDL, . Wear behaviour of WC-Co HVOF coatings at different temperatures in air and argon. Wear. 2015;330-331:348–353.
30.
KumariK, AnandK, BellacciM, . Effect of microstructure on abrasive wear behavior of thermally sprayed WC-10Co-4Cr coatings. Wear. 2010;268(11–12):1309–1319.
