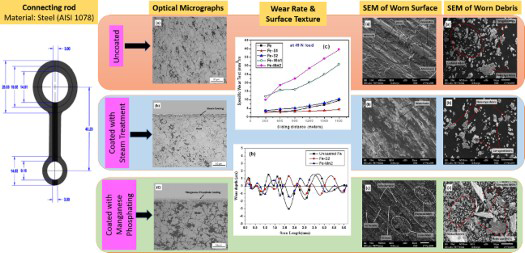

Coating on a connecting rod of steel (AISI 1078) may be used to reduce the friction and improve the wear resistance to enhance the durability. In this study, the tribological behaviour of uncoated, steam-coated and manganese phosphate-coated steel (AISI 1078) specimens was investigated. Wear tests were carried out by using a pin on disc apparatus operating at a constant velocity of 1.6 m/s under the normal load from 9.8 to 49 N at room temperature. Increment in wear rate was observed by increasing the applied load. However, steam-coated specimen shows better wear resistance than all other specimens at both low and high loads. For a better understanding of the involved wear mechanism, worn surfaces and collected debris were analysed under a scanning electron microscope, which point out that both adhesive and abrasive mechanism were involved during wear testing of specimens.
UddinGM, KhanAA, GhufranM, . Experimental study of tribological and mechanical properties of TiN coating on AISI 52100 bearing steel. Adv Mech Eng. 2018;10(9):1–10.
PodgornikBJ, VižintinO, WänstrandM, . Tribological properties of plasma nitrided and hard coated AISI 4140 steel. Wear. 2001;249:254–259.
4.
LückmannAJ, AlvesMV, BarbosaJR.Analysis of oil pumping in a reciprocating compressor. Appl Therm Eng. 2009;29:3118–3123.
5.
PhilomenP, Anand RajD, PalaniradjaK, . Friction and wear behavior of steam-oxidized ferrous PM compacts. J Mech Sci Technol. 2016;30(10):4535–4541.
6.
DearnleyPA.Introduction to surface engineering. Cambridge (UK): Cambridge University Press; 2017. 242–243.
7.
De MelloJBD, CostaHL, BinderR, . Friction and wear behavior of steam-oxidized sintered iron components coated with manganese phosphate. Wear. 2007;263:842–848.
8.
Galvan-ReyesC, Fuentes-AceitunoJC, Salinas-RodríguezA, . The role of alkalizing agent on the manganese phosphating of a high strength steel part 1: the individual effect of NaOH and NH4OH. Surf Coat Technol. 2016;291:179–188.
9.
HosseiniMR, SarabiAA, MohammadlooEE, . The performance improvement of Zr conversion coating through Mn incorporation: with and without organic coating. Surf Coat Technol. 2016;258:437–446.
10.
MohammadlooEE, SarabiAA, SabbaghAA, . Nano-ceramic hexafluorozirconic acid based conversion thin film: surface characterization and electrochemical study. Surf Coat Technol. 2016;206:4132–4139.
11.
LostakT, MaljuschA, KlinkB, . Zr-based conversion layer Zn-Al-Mg alloy coated steel sheets: insights into the formation mechanism. Electrochemistry Acta. 2014;137:65–74.
12.
FouladiM, AmadehA.Comparative study between novel magnesium phosphate and traditional zinc phosphate coatings. Mater Lett. 2013;98:1–4.
13.
PopícJP, JegdícBV.The effect on deposition temperature on the surface coverage and morphology of iron-phosphate coatings on low carbon steel. Appl Surf Sci. 2011;257:10855–10862.
14.
WengD, JokielP, UebleisA, . Corrosion and protection characteristics of zinc and manganese phosphate coatings. Surf Coat Technol. 1996;88:147–156.
15.
HivartP, HauwB, BrincoutJP, . Seizure behaviour of manganese phosphate coatings according to the process conditions. Tribol Int. 1997;30:561–570.
16.
IaiyavelSI, VenkatesanA.Experimental investigation of wear characteristics on manganese phosphate coated AISI D2 steel. Int J Prec Eng Manuf. 2012;13:581–586.
17.
Alvarado-MacíasG, Fuentes-AceitunoJC, RodríguezAS, . Understanding the nature of the manganese hot dip phosphatizing process of steel. J Mex Chem Soc. 2013;57:328–336.
18.
KhaleghiM, GabeDR, RichardsonMOW, . Characteristics of manganese phosphate coatings for wear resistance applications. Wear. 1979;55(2):277–287.
19.
TungSC, SmolenskiDJ, WangSCS, . Determination of differences in tribological behavior and surface morphology between electrodeposited and traditional phosphate coatings. Thin Solid Films. 1991;200(2):247–261.
RazavizadehK, DaviesBL.The effect of steam treatment on the wear resistance of sintered iron and Fe–Cu alloys. Wear. 1981;69:355–367.
22.
GalloA, GalloSA, VitielloA, . Steam oxidation of ferrous sintered parts contribution to study. Powder Metall. 2003;46(3):271–276.
23.
De MelloJDB, BinderR, KleinAN, . Effect of compaction pressure and powder grade on microstructure and hardness of steam oxidized sintered iron. Powder Metall. 2001;44(1):53–61.
24.
MohanS, PrakashV, PathakJP.Wear characteristics of HSLA steel. Wear. 2002;252(1):16–25.
25.
PanwarRS, PandeyOP.Analysis of wear track and debris of stir cast LM13/Zr composite at elevated temperatures. Mater Charact. 2013;75:200–213.
26.
WilsonS, AlpasAT.Effect of temperature on the sliding wear performance of Al alloys and Al matrix composites. Wear. 1996;196:270–278.
