Abstract

Copper-coated steel containers are part of the engineered barrier system to permanently store Canadian nuclear fuel waste in a deep geological repository. This work models the dose rates (D _Rs) at the container surfaces as a function of fuel age. It also utilises a humid-air radiolysis model to study the effects of D _R and humidity on radiolytic oxidant production for conditions where unexpected early water intrusion reaches clay seal materials. Radiolysis of humid air produces HNO₃. The HNO₃ production rate in a condensed water droplet formed on a container surface was conservatively estimated by assuming that every •OH produced by primary radiolytic processes was immediately converted to HNO₃ in the gas phase and that all of the HNO₃ was absorbed in the water droplet. Also assuming that all of the nitric acid absorbed in the water droplet is consumed in corroding copper and using a hemispherical water droplet geometry, the corrosion depth of the copper coating induced by humid-air radiolysis is conservatively estimated to be 9.4 μm over the permanent storage time.

This paper is part of a supplement on the 6th International Workshop on Long-Term Prediction of Corrosion Damage in Nuclear Waste Systems.

Keywords

Humid-air radiolysis nitric acid radiolytic oxidants kinetic model analysis used fuel container dose rates

Introduction

Canada's long-term plan for used nuclear fuel includes storage in a deep geological repository (DGR) using a multiple-barrier system [1]. A key barrier is the used fuel container (UFC), which was recently redesigned. The current UFC design consists of an inner vessel made of carbon steel (CS) for structural strength and an outer Cu coating as an external corrosion barrier [2]. Compared to the previous design, the CS vessel thickness is reduced considerably (from 10 to 4.6 cm) and the 25-mm-thick outer copper shell is replaced with a 3-4-mm thick integrally applied copper coating [1,2]. The use of a pressure-grade CS vessel and copper coating improves the mechanical integrity by eliminating many fabrication issues associated with the previous design. However, the possibility of localised CS corrosion near the weld region and the general corrosion of the copper coating of the new design must be assessed carefully to ensure the integrity of the inner vessel and the adequacy of the copper coating for corrosion protection.

Concerns arise about whether moisture trapped inside a UFC could condense on the internal surface, particularly near the CS weld regions. Corrosion within the gap between the hemispherical head and the body of the container assembly or in the stressed regions near the welds could lead to localised corrosion and potential failure of the container. The local environment (liquid water, water vapour, and humid air) and the UFC metal components will be exposed to the ionising radiation (particularly γ-radiation) emitted by decay of radionuclides in the used fuel. The radiation energy absorbed by metal is dissipated mainly as heat but it can induce ionisation and decomposition of water and gas-phase molecules to yield redox active species [3,4]. For example, γ-irradiation of water droplets would produce oxidants such as H₂O₂, while humid-air radiolysis would produce NO_x and HNO₃ that can dissolve in the water droplets. Since the thinner container design will provide less shielding for γ-radiation, the effect of γ-radiation on copper corrosion must be evaluated to ensure that the coating provides corrosion protection.

In this paper, the effects of radiation on container corrosion during long-term disposal in the anticipated DGR environments are evaluated. Model calculations are used to determine the concentrations of radiolytically produced oxidants that may potentially contact the container. The evolution of γ-radiation dose rates (D _Rs) with time for both internal and external surfaces of the current container design is calculated in the different aqueous environments (aerated and deaerated water, waters with impurity levels of solutes, saline water, water vapour) a container may experience under DGR conditions. This paper presents model calculations with a focus on the radiolytic production of HNO₃.

Dose rates at the internal and external surfaces of a UFC

In these calculations, only the γ-radiation from used Canada Deuterium Uranium fuel inside a container was considered since the emitted α- and β-particles will be adsorbed within the fuel and the fuel cladding and, hence, will not contribute to either internal or external surface D _Rs.

Internal and external UFC surface γ-radiation D _Rs as a function of storage time were estimated for a base case involving used fuel with a burnup of 220 MWh kgU⁻¹ using Microshield v9.05 and appropriate fluence to D _R conversion factors [5]. Because the software is not designed to model non-homogeneities in the shielding materials, the source was represented as a single cylinder of used fuel (UO₂) encapsulated in a layer of Zircaloy (modelled as zirconium) and the UFC was modelled as a layer of steel [6–8]. Moreover, MicroShield does not allow backscatter calculations (i.e. all dose points must be on the exterior of the modelled geometry). Therefore, the D _Rs on the internal surface of the container were modelled without the steel vessel and copper coating. As a conservative measure, these internal surface D _Rs were then multiplied by 1.3 to account for secondary electrons backscattering [9,10]. The full details of the radiation dose model, including the UFC and source geometries, with further details on the calculation assumptions and accuracy, and the results of three case that assess the sensitivity of the results to key assumptions, are provided in the supplementary information (SI-1). In general, the calculated D _Rs are very sensitive to the source parameterisation and should therefore be interpreted with an appropriate level of uncertainty.

The D _Rs calculated at the internal and external UFC surfaces, expressed as absorbed D _Rs in air, are presented in Table 1 and Figure 1. For the first 500 y, the γ-D _R is dominated by the decay of the fission products in the fuel and, hence, it decreases nearly exponentially with time. The D _R is subsequently dominated by the decay of the actinides present and decreases nearly linearly from 500 to 1,000,000 y. The accumulated dose on the container surfaces is also provided for reference, although there is no simple relationship between accumulated dose and the extent of corrosion damage in a changing radiation field as claimed elsewhere [11], see further discussion later. To approximate the accumulated dose on each surface, the D _R curves were fitted to mathematical functions (see supplementary information) and then integrated. The accumulated doses are shown in Figure 1.

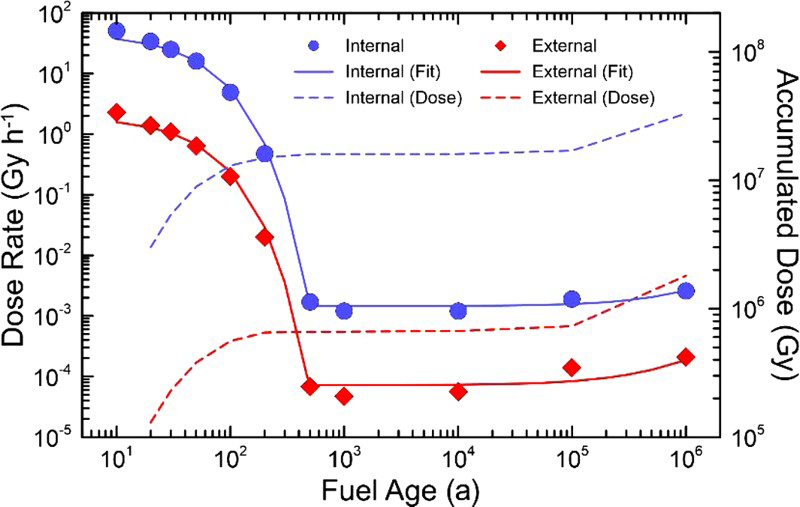

Figure 1

Calculated D _Rs and accumulated doses at the internal and external surfaces of the Canadian UFC, starting with 10-year-old fuel.

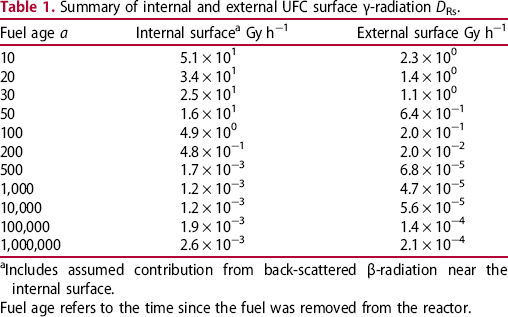

Table 1

Summary of internal and external UFC surface γ-radiation D _Rs.

Fuel age a	Internal surface^a Gy h⁻¹	External surface Gy h⁻¹
10	5.1 × 10¹	2.3 × 10⁰
20	3.4 × 10¹	1.4 × 10⁰
30	2.5 × 10¹	1.1 × 10⁰
50	1.6 × 10¹	6.4 × 10⁻¹
100	4.9 × 10⁰	2.0 × 10⁻¹
200	4.8 × 10⁻¹	2.0 × 10⁻²
500	1.7 × 10⁻³	6.8 × 10⁻⁵
1,000	1.2 × 10⁻³	4.7 × 10⁻⁵
10,000	1.2 × 10⁻³	5.6 × 10⁻⁵
100,000	1.9 × 10⁻³	1.4 × 10⁻⁴
1,000,000	2.6 × 10⁻³	2.1 × 10⁻⁴

^aIncludes assumed contribution from back-scattered β-radiation near the internal surface.

Fuel age refers to the time since the fuel was removed from the reactor.

The D _Rs anticipated at the internal surface would be 20-25 times greater than those on the external surface of the container in the first 10,000 years and then only about 10 times greater thereafter, owing to the time-dependent change in the γ-radiation spectrum, as described above. The D _R to the external surface of a thin-walled container would decay from ∼2.3 to ∼0.02 Gy h⁻¹ after 200 years. This is a significant (>20-fold) increase in the external fields compared to those anticipated in the previous thick-walled container [2].

Modelling approach for γ-radiolytic production of oxidants

The main objective of γ-radiolysis modelling is to determine the radiolytic oxidant concentrations that may affect the localised corrosion of the weld inside a UFC or the general/localised corrosion of the external copper coating. The initial environment inside a sealed UFC could be humid due to the combination of the ambient humidity of the air at the time of container sealing and that due to trapped water in the fuel bundles before encapsulation. For the localised corrosion of the CS weld region, γ-radiolysis of humid air and water droplets is the main concern. For the external copper coating, the DGR environment will evolve through a sequence of possible stages: (1) an initial aerated period with no condensed H₂O on the Cu surface, (2) a period of aerated vapour in equilibrium with a condensed H₂O layer on the surface, (3) a transition period to fully water-saturated air and potentially oxidising aqueous conditions, and (4) a final aqueous anoxic period after container corrosion and reactions with minerals and organic matter in the surrounding clay has consumed all of the available O₂ [2].

To address the different corrosion exposure environments, calculations using three different radiolysis kinetic models have been performed: (1) water radiolysis, (2) humid-air radiolysis, and (3) radiolysis of highly saline water. Each calculation determines the changes in radiolysis product concentrations ([i]_t) as a function of time by solving the rate equations of all the strongly coupled reactions that describe the chemistry of the environment. The processes that control the concentration of primary radiolysis product i under a continuous flux of radiation are as follows:

the primary radiolysis process that produces i; and

the chemical reactions of i with itself and other chemical species, j, including other radiolysis products, and dissolved chemical or reactive surface species present in the corresponding water phase.

The primary radiolysis processes that ionise and dissociate molecules act nearly instantly upon absorption of radiation energy [12–15]. This leads to radiolysis decomposition products uniformly distributed within an irradiated volume within ∼100 ns following a radiation pulse input. The radiolysis products formed on this timescale are commonly referred to as primary radiolysis products whose chemical yields depend primarily on the total absorbed radiation energy and hence the primary radiolysis product yields are expressed per unit of absorbed radiation energy and are commonly known as g-values in units of μmol·J⁻¹. Because the rate of radiation energy absorption by an interacting medium (D _R) depends primarily on the density of the medium, the D _R is typically expressed per unit mass in units of Gy (J kg⁻¹)). For example, the g-values for liquid water radiolysis at room temperature (T) are given in brackets in reaction (R.1) [12,16]

For the analysis of the radiolysis product concentrations on the timescale of corrosion reactions (>1 ms), modelling of the detailed kinetics of the radiolysis processes at very short timescales (<1 μs) is not necessary. Thus, the production rates of primary radiolysis products can be simplified to a rate proportional to its g-value (g_i), D _R, and the density of the medium, ρ_W (1) where [i] is the concentration of species, i, in units of M (mol dm⁻³).

However, the primary radiolysis products are reactive and rapidly undergo chemical reactions with each other, with water and its acid and base ions, and with solute species, producing secondary radiolysis products (such as O₂, and ). Owing to the long penetration depth of a typical γ-ray (∼20 cm for a half reduction in intensity in liquid water), the radiolysis products are created uniformly within a reasonably large volume of water. A consequence is that the concentration of a reactive species in the bulk phase is determined by a combination of the rates of primary radiolysis production and the chemical reactions of the species in solution (2) where represents the rate constant of the chemical reaction between species i and j. Note that for a primary radiolysis product, the rate of any secondary production of this species via chemical reactions is typically negligible compared to the rate of the primary radiolysis process. The complex chemical kinetics involving many chemical species with strongly coupled reactions are solved numerically using commercially available software.

Specific models and the model calculation results that address the γ-radiolysis kinetics of liquid water containing dissolved oxygen, nitrate/nitrate, organic compounds (e.g. methyl ethyl ketone) and dissolved ferrous ions at a concentration level below <0.01 M have been reported elsewhere [17–19]. This paper focuses on the HNO₃ production by humid-air radiolysis.

Nitric acid production by humid-air radiolysis

Homogeneous radiolytic production of HNO₃ in the gas phase

Humid-air radiolysis produces nitric acid [20–22]. The HNO₃ formed in the gas phase will be continually absorbed in the condensed water droplets in contact with the humid air. This will lower the pH of the water in the droplet and increase the concentration of nitrate, a potential oxidant for CS and copper. The homogeneous radiolytic production of HNO₃ in the gas phase (HNO₃(g)) is described first. The section ‘Aqueous concentrations of HNO₃ in water droplets’ describes how the production rate in the gas phase may be used to estimate the production rate of HNO₃ in a water droplet (HNO₃(aq)). The section ‘Bounding estimates for corrosion extents by radiolytically produced HNO₃’ describes how it may be used in obtaining the upper bounding estimate for the extent of corrosion that can occur due to the radiolytic production of HNO₃ over the disposal period, and how the radiolytic production rate of HNO₃ could be incorporated in a corrosion model are discussed.

To calculate the production rate of HNO₃(g) by humid-air radiolysis and its rate of accumulation in condensed water droplets, a humid-air radiolysis model (HARM) has been constructed. The model is primarily based on the reaction set initially reported by Matzing and later modified by others [23–25]. For humid-air radiolysis, the absorption of radiation energy by the three main components of air (N₂, O₂, and H₂O) results in the formation of a range of primary products that include electronically excited and ionised molecules, ions and free radicals [26].

The current version of HARM consists of the primary radiolytic production processes and about 730 chemical reactions involving 25 primary radiolysis products and 95 secondary species.

The HARM model was used to calculate the radiolytic production rate of HNO₃ in the gas phase as a function of D _R, relative humidity (RH), and T. The calculation results obtained as a function of RH at 75°C and at D _R 1 Gy h⁻¹ are presented in Figure 2. At a given T and D _R, the main radiolysis product of dry air (0% RH) is O₃(g) at very short irradiation times, but this changes to NO₂(g) at longer times. When water vapour is present (as little as 10% RH), the main products are •OH(g), •HO₂(g) at very short times, and HNO₃(g) at longer times.

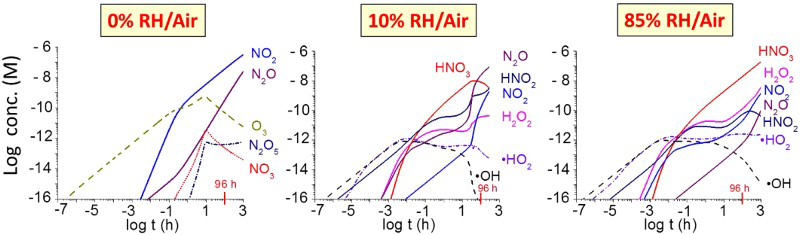

Figure 2

Time evolution of the concentrations of key radiolysis products formed during γ-radiolysis of 0, 10%, and 85% RH air at 75°C and a D _R of 1 Gy h⁻¹.

Detailed kinetic analysis of the modelling results suggests that the precursors for HNO₃(g) production are •OH(g) and NO₂(g), where NO₂(g) is a secondary product of the γ-radiolysis of air. The computational calculation results show that at a given D _R and a given RH at T, the concentration of •OH(g) at times shorter than a second (or <10⁻³ h) increases linearly with time (i.e. the slope of the log [•OH(g)] vs. log t plot is 1.0). This linear increase in [•OH(g)]_t with time is expected, because the main process controlling [•OH(g)]_t at times shorter than 1 s is the primary radiolytic production (3) (4) The overall production rate for the secondary radiolysis product, •NO₂, is initially slow, but rapidly increases and [•NO₂(g)]_t becomes comparable with those of other radiolysis products in 10⁻³ h or ∼4 s. The rate of •NO₂(g) reaction with •OH(g) becomes significant and can compete with other •OH(g) reactions, particularly that of H₂O₂(g). Note that H₂O₂(g) is also a secondary product of humid-air radiolysis (formed by multi-step reactions of •OH(g) and •HO₂(g) [23–25]). When the concentrations of secondary products (•NO₂(g) and H₂O₂(g)) reach high levels, they can react with •OH(g) at substantial rates. The overall production rates of H₂O₂(g) and NO₂(g) slow down and that of •OH(g) becomes approximately zero. These kinetic progressions of [•OH(g)]_t, [H₂O₂(g)]_t and [NO₂(g)]_t can be appreciated from Figure 2. As [H₂O₂(g)]_t and [NO₂(g)]_t reach about 10⁻¹³ M, [•OH(g)]_t starts to deviate from the linear dependence on time and reaches near steady state.

The full model calculation results (Figure 2) show that the overall production rate for HNO₃(g) at times longer than a minute is mainly determined by the primary radiolytic production of •OH(g) and the competition rates for •OH(g) between •NO₂(g) and H₂O₂(g). That is, the overall radiolytic production of HNO₃(g) at times longer than a minute can be approximated as (5) (6) (7) for t > 1minwhere is the fraction of •OH(g) reactions leading to the formation of HNO₃(g), and represents the rate constant of the chemical reaction between species j and •OH(g).

The fraction, , changes rapidly with time at early times, but the change becomes much slower. Thus, for a given D _R, RH, and T, Equation (7) shows that the overall production rate of [HNO₃(g)]_t can be approximated as (8) Because of the competitions between the reactions of •OH(g) with •NO₂(g) and H₂O₂(g), the overall production rate of HNO₃(g) has a small dependence on RH at a given T and D _R. The model calculations performed as a function of RH at 75°C show that the at times longer than 1 min is nearly one at 10% RH. As the humidity level ([H₂O(g)]) increases while the concentrations of air molecules ([N₂(g)] and [O₂(g)]) remain constant, the primary radiolytic production of •OH(g) increases due to an increase in . However, the production of H₂O₂(g) also increases due to higher production of •OH(g) and •HO₂(g) (via •H + O₂). On the other hand, [H₂O(g)] has a negligible effect on •NO₂(g) production.

The overall effect of RH on at times >1 min is thus relatively small. The plot of log [HNO₃(g)]_t vs. log t (Figure 3) is shifted by log (½ RH), showing that the overall production rate of HNO₃(g) decreases by about a factor of ½ RH.

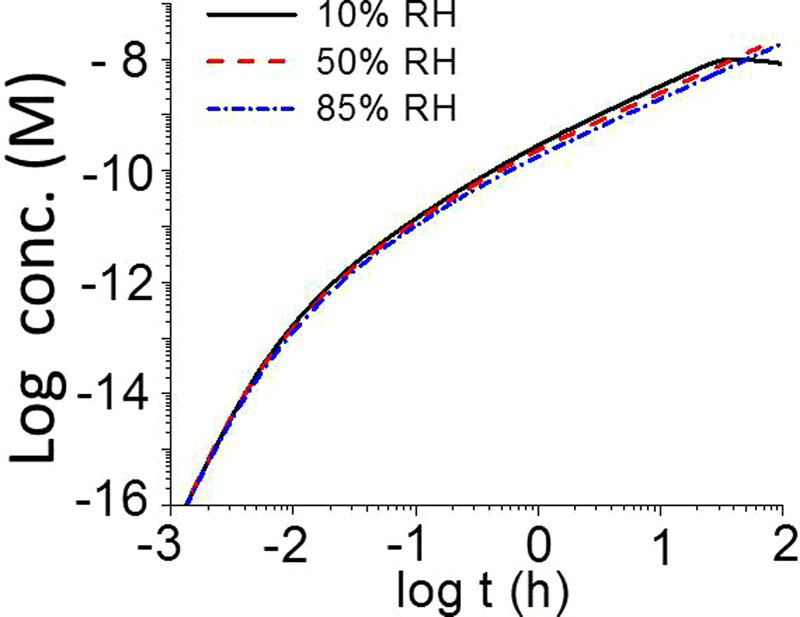

Figure 3

Time evolutions of [HNO₃(g)] produced by γ-radiolysis of air for different RHs at 75°C and at D _R of 1 Gy h⁻¹.

Equation (8) shows that the overall production rate of [HNO₃(g)]_t is proportional to D _R for a given RH and T which is consistent with computational modelling results. The time evolutions of [HNO₃(g)]_t calculated for γ-radiolysis of 85% RH air at 75°C and different D _Rs (0.01 to 10 Gy h⁻¹) are compared in Figure 4. The computational modelling results show that the linear plot of log [HNO₃(g)]_t vs. log t also shifts to a higher [HNO₃(g)]_t proportionally to log (D _R), confirming the linear dependence of [HNO₃(g)]_t on D _R as defined in Equation (8). That is, the rate of production of HNO₃(g), and [HNO₃(g)]_t at a given t, increase proportionally with D _R.

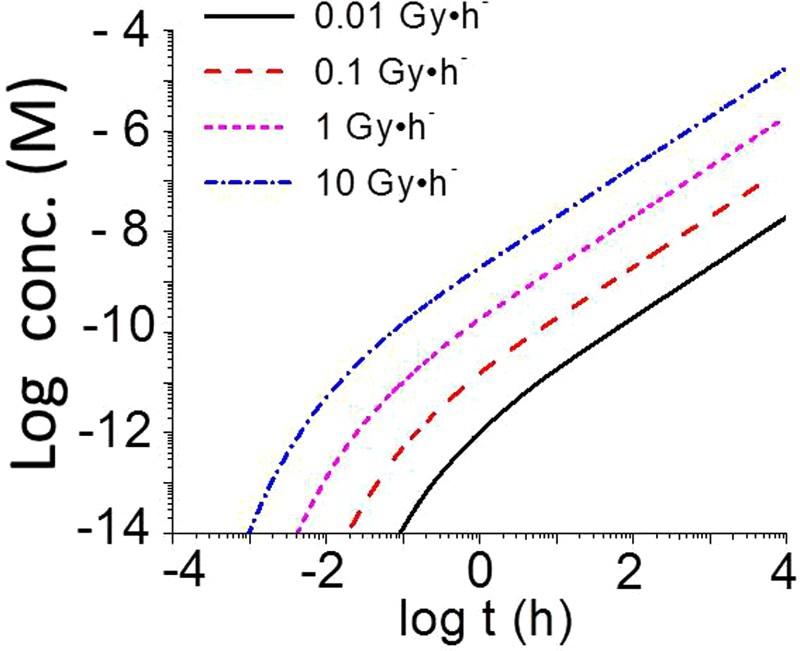

Figure 4

Time evolutions of [HNO₃(g)] produced by γ-radiolysis of 85% RH air at 75°C at different D _Rs.

Aqueous concentrations of HNO₃ in water droplets

As noted earlier, the calculations presented in Figures 2 –4 do not take into account any adsorption or surface reactions involving the radiolysis products. Furthermore, the calculated concentrations are those in the gas phase. For the degradation of metal, aqueous corrosion is the main concern. Thus, for the corrosion of the CS inner vessel and the copper coating of the container, the main concern is the HNO₃ that condenses in water droplets on the container surfaces which can then participate in the electrochemical reactions associated with aqueous corrosion. The water in the droplets will also be subject to radiolysis, but γ-radiolysis of liquid water does not produce HNO₃. Thus, the main route for the production of HNO₃(aq) in a water droplet in contact with humid air in the presence of continuous flux of γ-radiation is the deposition of HNO₃(g) formed in the gas phase by the humid-air radiolysis.

The accurate modelling of [HNO₃(aq)]_t in water droplets will require solving the kinetics of liquid water radiolysis coupled with humid-air radiolysis via gas–liquid interfacial transfer of radiolysis products and its consumption due to corrosion. The accurate modelling of [HNO₃(aq)]_t in the water droplets that may form on the Cu-coated container surface under the DGR conditions is futile and impractical because of an infinite combinations of water droplet and the headspace geometries. However, we can obtain the bounding estimates for [HNO₃(aq)]_t in a water droplet to assess the corrosion behaviour of a waste container. This section explores these bounding estimates.

The production rate of [HNO₃(aq)]_t in a water droplet is determined by the deposition rate of HNO₃(g) formed by humid-air radiolysis onto the water droplet surface. This deposition rate increases with [HNO₃(g)]_t. The maximum [HNO₃(g)]_t can be achieved when the removal rate of HNO₃(g) by the gas-phase chemical reactions of HNO₃(g) is negligible, i.e. (9) The rate equation for [HNO₃(g)]_t when the deposition rate becomes significant can then be approximated as (10) (11) where k _ad represents the first-order adsorption rate constant in unit of s⁻¹ and it depends on the ratio of water–gas interfacial surface area (A _aq−g) to gas volume (V_g). Owing to the near infinite solubility of HNO₃ in water, the deposition velocity (ν _ad) is expected to be constant with time. However, the water droplet may grow with time and, hence, A _aq−g and V_g may vary with time.

The corresponding rate equation for [HNO₃(aq)]_t, when the aqueous-phase and surface reactions of HNO₃(aq) is negligible, is (12) where V _aq represents the water droplet volume. Equation (10) shows that the maximum HNO₃(g) deposition rate that can be achieved is the rate of radiolytic production of HNO₃(g), i.e. (13) The maximum production rate for [HNO₃(aq)]_t in a water droplet is then further simplified to (14) Assuming D _R and RH change at much slower rates than [HNO₃(aq)]_t does (15) Thus, at a given D _R, RH, and T, [HNO₃(aq)]_t in a water droplet will increase proportionally with the ratio of gas volume to water droplet volume. Note that depends on .

The current version of HARM calculates that the production rate of HNO₃(g) in the gas phase at 85% RH and 75°C would be about 2.0 × 10⁻¹⁰ M h⁻¹ at a D _R of 1 Gy h⁻¹. To determine the corresponding production rate of HNO₃(aq) in a water droplet, we need to determine the effective ratio of V _g/V _aq. This ratio is estimated to be 100 based on the different diffusion coefficients of a compound in the gas and solution phases. The diffusion coefficient of a compound in the gas phase (D _g) is about 10,000 times greater than that in the solution phase (D _aq) [27]. Because HNO₃ can adsorb on any surface equally easily, the diffusion of HNO₃ from the gas phase to the container surface would be one dimensional. The ratio of one-dimensional diffusion length () in the gas phase to that in the water droplet is 100.

For the volume ratio of air to a droplet of 100, this results in a [HNO₃(aq)]_t production rate in the water droplet of about 2.0 × 10⁻⁸ M h⁻¹. If [HNO₃(aq)]_t continues to accumulate at this rate (without being consumed), the [HNO₃(aq)]_t in the water droplet could reach up to about 0.5 μM in a day, 0.18 mM in a year or 18 mM in 100 years at a constant D _R of 1 Gy h⁻¹. The D _R at the external surface of the container is calculated to decrease from 2.3 to 0.2 Gy h⁻¹ in 100 years (Figure 1). After 100 years, the D _R decreases more rapidly and decreases to a value below 0.1 mGy h⁻¹ in 400 years, and the radiolytic production of HNO₃(aq) after 100 years would be significantly less. The simple analysis suggests that the [HNO₃(aq)]_∞ that would accumulate over the full waste disposal period would be less than 100 mM, assuming that all of the HNO₃(g) produced radiolytically within a gas volume 100 times larger than the volume of a water droplet is absorbed in the water droplet.

Bounding estimates for corrosion extents by radiolytically produced HNO₃

The rate of metal corrosion depends on many environmental parameters including the solution pH, T, and redox conditions. The rate of corrosion also tends to evolve with time, even under constant exposure conditions, because the metal surface changes as corrosion progresses. Efforts are under way to develop detailed models of the corrosion of the container materials, although the present use of these models to predict an exact corrosion allowance would be premature. However, the upper limit for the extent of copper corrosion due to radiolytically produced HNO₃ can be estimated. Corrosion of copper produces two possible copper cations The maximum concentration of dissolved metal ions in the water droplet would occur if corrosion resulted exclusively in the formation of Cu⁺ (R.6). This concentration would be twice the [HNO₃(aq)]_t accumulated in the water droplet if HNO₃(aq) did not undergo any solution or corrosion reactions.

Assuming the volume ratio of air to droplet is about 100, the maximum cumulative nitric acid concentration over the permanent disposal period, [HNO_3(aq)]_∞, would be less than 100 mM. Using this concentration and a hemispherical droplet geometry illustrated in Figure 5, the upper limit to the depth of copper corrosion, d _Cu, can be calculated as follows: (16) where is the atomic mass of Cu (63.55 g mol⁻¹), is the density of copper metal (8.96 g cm⁻³), and is the interfacial surface area covered by a droplet.

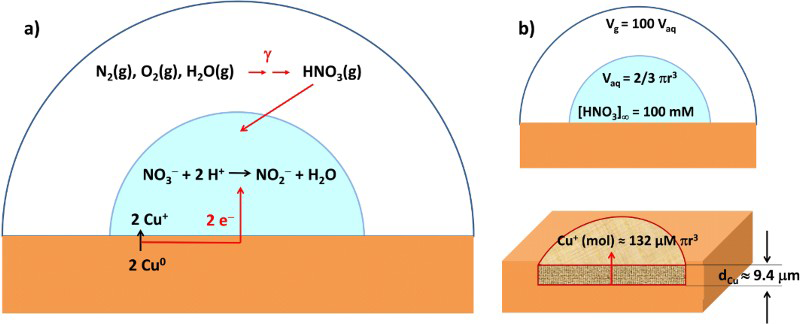

Figure 5

Schematics of (a) radiolytic and overall corrosion reactions, and (b) geometric parameters used in calculating corrosion depth.

For a droplet with a radius of 1 cm and the [HNO_3(aq)]_∞ of 100 mM, the depth of copper corrosion by radiolytically produced HNO₃ over the permanent disposal period would be (17)

This value was obtained assuming that all of the HNO₃(g) produced radiolytically within a gas volume 100 times larger than the volume of a water droplet is absorbed in the droplet. For a given volume ratio, the corrosion depth would increase with water droplet radius. If the air volume is fixed, the [HNO₃(aq)]_∞ would increase with decreasing water droplet radius. However, decreasing the water droplet radius also decreases the water droplet volume. The net effect of water droplet radius, r, on corrosion depth is that d _Cu is inversely proportional to r ².

It is often suggested that the extent of corrosion damage depends on accumulated dose and not on D _R [11]. There are cases in which the overall corrosion may be determined by accumulated dose rather than D _R but that is more of a coincidence than fundamentally determined. Any chemical or electrochemical reaction rate depends on the concentration of a reactant and not on the total amount of the reactant introduced into the reaction system over the entire reaction time. For chemical or electrochemical reactions (such as corrosion) induced by radiation, accumulated dose is not a fundamental parameter [16]. The concept that total dose rather than D _R determines the effect of radiation on any chemical processes is only applicable for very short irradiation times when bulk phase chemical reactions of radiolysis products are not occurring at any substantial rates.

It has been also suggested that it is •OH and not HNO₃ that is the dominant species that causes copper corrosion in the presence of radiation [28]. The mechanism by which humid-air radiolysis affects copper corrosion requires in-depth discussion that is beyond the scope of this paper. Irrespective of whether •OH or HNO₃ is the dominant species driving corrosion, the estimate that we obtained for corrosion depth should still be bounding because it assumes that every •OH produced by the primary radiolysis process would eventually produce HNO₃ and that all of the HNO₃ produced that way would be consumed in corroding copper. However, it should be emphasised that the corrosion estimate does not take into account any radiolysis of water droplets. Radiolysis of liquid water produces H₂O₂ and O₂ that will more effectively contribute to copper corrosion than •OH.

Conclusions

The γ-radiation D _Rs at the internal and external surfaces of a Canadian copper-coated UFC were calculated using MicroShieldv9.05. As the used fuel ages from 10 to 10⁶ a, the internal and external surface D _Rs decay from 51 to 2.6 mGy h^–1 and from 2.3 to 0.21 mGy h^–1, respectively. Radiolysis of dry air initially produces O_3(g) and later NO _x _(g) at longer irradiation times. In humid air, radiolysis produces initially •OH which can then react with air molecules and their decomposition products to produce nitric acid. The RH (10-80%) has no significant effect on the rate of HNO₃ production. The HNO₃ production rate in a condensed water droplet formed on a container surface was conservatively estimated by assuming that every •OH produced by primary radiolytic processes was immediately converted to HNO₃ in the gas phase and that all of the HNO₃ was absorbed in the water droplet. Also assuming that all of the HNO₃ absorbed in the water droplet is consumed in corroding copper and using a hemispherical water droplet geometry, the corrosion depth of the copper coating induced by humid-air radiolysis is conservatively estimated to be 9.4 μm over the permanent storage time.

Footnotes

Disclosure statement

No potential conflict of interest was reported by the authors.
