Abstract

In the frame of conceptual design for the long-term management of high level radioactive waste defined by Andra (France), it is assumed that carbon steel (C-Steel) overpack would be mainly affected by general corrosion. As it is widely accepted that precipitation of a corrosion product layer (CPL) can limit the corrosion rate, the aim of this work is to simulate the growth of a thick FeCO₃ CPL and its impact on the evolution of the corrosion rate. We use a 1D finite element method numerical model based on the resolution of Nernst–Planck equation in free potential conditions. Two numerical models of the evolution of the corrosion rate of low alloy steel in anoxic conditions are developed. These models take into account the growth of a porous CPL assuming either a constant and homogeneous porosity or a varying and heterogeneous porosity and results are compared to experimental data.

This paper is part of a supplement on the 6th International Workshop on Long-Term Prediction of Corrosion Damage in Nuclear Waste Systems.

Keywords

Numerical simulation corrosion rate carbon steel high level radioactive waste management geological disposal

Introduction

Owing to their long-term activities, French high level radioactive waste will be stored in a deep Callovo-Oxfordian (Cox) argillite during several thousand years. The COx was identified as a suitable rock in terms of stability, low permeability and good mechanical resistance. The waste plant dimensioning and its durability are managed by the French national radioactive waste management agency (Andra). In this context, experimental and modelling studies are carried out to assess the behaviour of carbon steel overpacks containing the primary waste packages, more especially in terms of corrosion rate evolution during the disposal period [1]. Thus, modelling approach is used not only to simulate short-term (underground laboratory tests) experiments, but also to predict the long-term behaviour of the steel overpacks.

Since about nearly three decades, some studies using numerical simulation have been proposed in the literature to predict the general corrosion rate evolution of carbon steels. Because most of these studies were related to oil and gas industry, acidic CO₂ (and/or H₂S) environments were considered in flowing conditions [2 -10]. Other studies are referred to basic or neutral porous environments such as concrete or clays in the context of radioactive waste disposal [11–16]. In some of these studies, numerical simulation was implemented to predict the behaviour of carbon steels using either a semi-empirical [2,3,11,12] or a mechanistic [4–10] approach.

In a previous study carried out in the context of radioactive waste disposal, the estimation of the corrosion rate evolution of carbon steel has been performed based on a numerical approach in which the corrosion product layer (CPL) growth was taken into account in terms of a porosity decrease [17]. This study also permitted to identify the suitable kinetics parameters to be used in this context. In fact, the role of the CPL has been highlighted and implemented in their models by other authors [18–20]. For instance, F. King used a fixed porosity coefficient, characteristic of the CPL, in the transport equations [16,21,22]. Van Hunnik used the concept of scaling tendency (ST) to account for the effect of the CPL in a time-dependent model [19]. In a modelling study relative to the corrosion of carbon steel [20], this ST factor depends on the ratio of corrosion rate and precipitation rate of corrosion products and then evolves during the simulation. Then, the ST factor is supposed to be an indicator of whether CPL is protective or not. Furthermore, the chemical nature of the CPL has also been considered to carry out the effect of the CPL on the corrosion rate of carbon steel [23,24].

Nesic also defined a porosity coefficient for the CPL function of time and distance from the steel surface [20,25]. A similar approach leading to a heterogeneous distribution of the CPL will be presented in this paper.

Actually, the purpose of this paper is to demonstrate that the definition of the porosity of the CPL influences strongly the results in terms of corrosion rate evolution calculated with a mechanistic corrosion model. Two approaches will be presented in this work. The first one considers that the CPL behaves like a diffusion barrier with a constant and homogeneous porosity. On the contrary, in a second approach the porosity of the CPL is function of time and distance from the metal surface.

The simulation results will be compared with experimental measurements over several months of the corrosion rate of carbon steel coupons in a closed deaerated porous medium.

Experimental feedback

The suitability (size of the simulated domain, initial-boundary conditions … ) and the validity of the mechanistic models developed further were tested in the light of experimental feedback of corrosion tests in an anaerobic medium [26]. In these experiments, carbon steel coupons were pressed between 2 cm thick argillite discs in a closed stainless steel vessel. Then, the argillite was saturated with a deaerated synthetic solution (pH = 7,2) with composition similar to that of the Cox argillite. Reference [1] provides additional information about the Cox. The nature of the argillite might influence the corrosion process. In fact, this experiment has been performed with two kinds of argillite: the Cox and the bentonite MX-80 [26]. In this study, only results of carbon steel in contact with the Cox will be considered. These corrosion tests were conducted at T = 50°C and T = 90°C. Steel samples were extracted and weighed periodically over several months. In Table 1 are reported all the key parameters and the main results of this experiment.

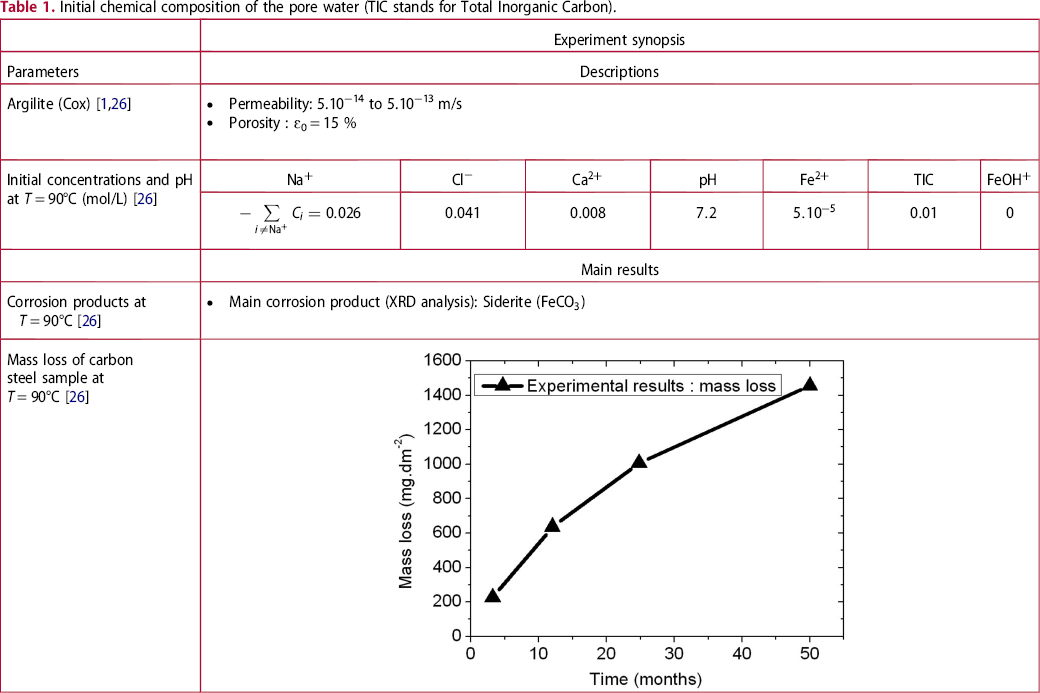

Table 1

Initial chemical composition of the pore water (TIC stands for Total Inorganic Carbon).

	Experiment synopsis
Parameters	Descriptions
Argilite (Cox) [1,26]	Permeability: 5.10⁻¹⁴ to 5.10⁻¹³ m/s Porosity : ϵ₀ = 15 %
Initial concentrations and pH at T = 90°C (mol/L) [26]

	Main results
Corrosion products at T = 90°C [26]	Main corrosion product (XRD analysis): Siderite ()
Mass loss of carbon steel sample at T = 90°C [26]

In the following section, we present the numerical model that will be used to simulate this experiment. Simulation will be conducted only for T = 90°C.

Model and governing equations

The mass conservation for any chemical species considered in the medium is given by (1)N_i stands for the flux of species i (), C_i the concentration () and R_i the production/consumption rate of species i due to chemical reactions.

Excluding the convection term, in dilute solutions, the flux is expressed as follows: (2) And consequently the governing equation dealing with transport by diffusion, migration and reaction, called Nernst–Planck equation can be written as follows: (3) where D_i, z_i, u_i, represent respectively the diffusion coefficient (), the charge number and the ionic mobility () of species i. φ is the electric potential in the solution (V), F the Faraday constant (F = 96485 ). The ionic mobility u_i can be expressed through the Nernst–Einstein equation: , where T is the absolute temperature (K) and R the universal gas constant (R = 8.314 ).

Then, the electroneutrality condition is assumed in order to get as many equations as varying (i.e. the concentrations and the potential): (4) This system of partial differential equations describing the transport phenomena inside the subdomain is solved using the finite element method. As shown in Figure 1 (a) 1-D model is considered with a first node N1 corresponding to the metal-subdomain (electrolyte) interface and a second node N2 corresponding to the end of the system. As in the experiment, the length of the subdomain (distance between nodes N1 and N2) is 2 cm. An optimised progressive meshing is used for the subdomain: near to the interface metal-subdomain, the mesh is very tiny (1 µm width) and then grows up to 10 µm at the end of system. Using a growth factor of 1.01, we obtain 2100 meshes. The subdomain corresponds to the porous Cox clay filled with pore water. The porosity of the clay, noted , is equal to 0.15 [1,26]. The pore water contains the following chemical species: . Siderite () is assumed to be the only solid that can precipitate forming the CPL [26,27]. According to the experimental results, is the main mineral expected to precipitate [26]; however, our numerical model could be adapted to integrate other minerals. The initial composition of the pore water is summarised in Table 1. The electrochemical reactions occurring at node N1 (metal surface), i.e. oxidation, and reductions, are reported in Table 2 with their corresponding kinetics law.

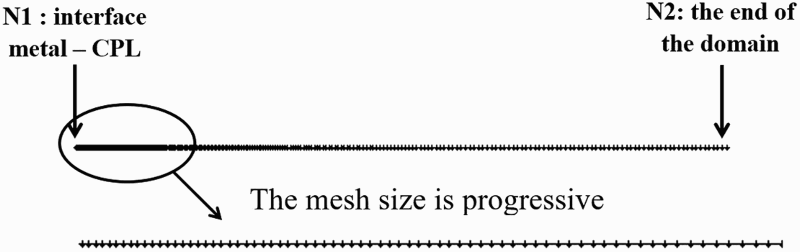

Figure 1

Progressive meshing. Meshing of subdomain of 2 cm.

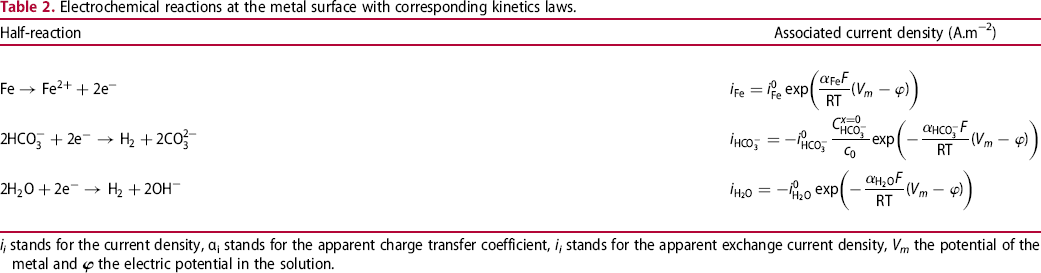

Table 2

Electrochemical reactions at the metal surface with corresponding kinetics laws.

Half-reaction	Associated current density (A.m⁻²)

i_i stands for the current density, α_i stands for the apparent charge transfer coefficient, i_i stands for the apparent exchange current density, V_m the potential of the metal and the electric potential in the solution.

The chemical species are involved in four homogeneous chemical reactions (assumed at equilibrium) and one precipitation reaction. These reactions are given in Table 3 with their thermodynamic constants.

Table 3

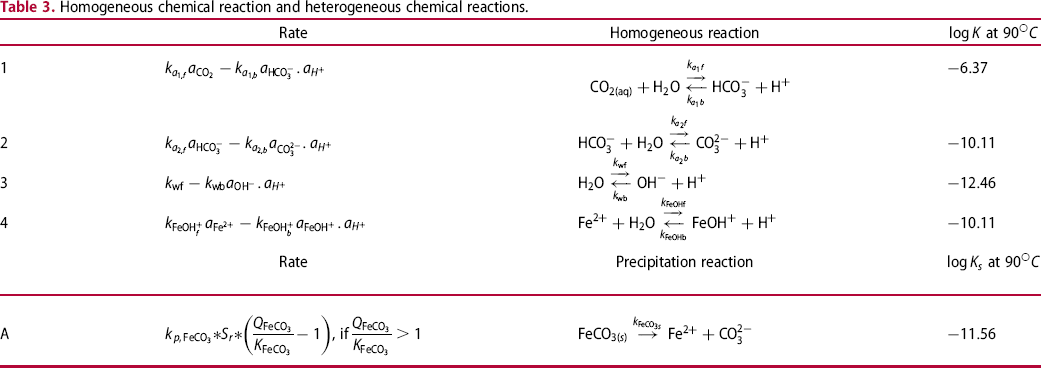

Homogeneous chemical reaction and heterogeneous chemical reactions.

	Rate	Homogeneous reaction	at
1
2
3
4
	Rate	Precipitation reaction	at
A

Kinetic and thermodynamic parameters used in this paper have been selected in a previous study [17] based on a well-documented literature [28–31]. All these parameters are summarised in Table 4.

Table 4

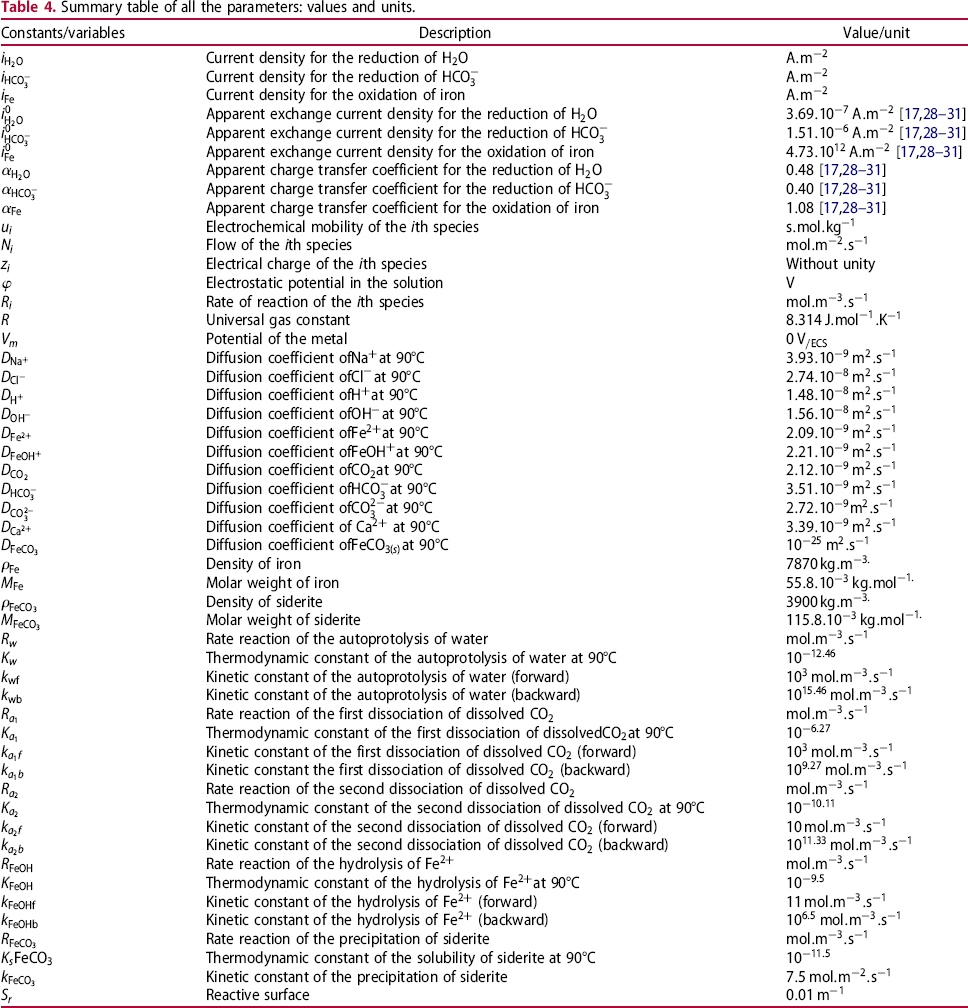

Summary table of all the parameters: values and units.

Constants/variables	Description	Value/unit
	Current density for the reduction of
	Current density for the reduction of
	Current density for the oxidation of iron
	Apparent exchange current density for the reduction of	[17,28–31]
	Apparent exchange current density for the reduction of	[17,28–31]
	Apparent exchange current density for the oxidation of iron	[17,28–31]
	Apparent charge transfer coefficient for the reduction of	[17,28–31]
	Apparent charge transfer coefficient for the reduction of	[17,28–31]
	Apparent charge transfer coefficient for the oxidation of iron	[17,28–31]
	Electrochemical mobility of the ith species
	Flow of the ith species
	Electrical charge of the ith species	Without unity
	Electrostatic potential in the solution
	Rate of reaction of the ith species
	Universal gas constant
	Potential of the metal
	Diffusion coefficient of at 90°C
	Diffusion coefficient of at 90°C
	Diffusion coefficient of at 90°C
	Diffusion coefficient of at 90°C
	Diffusion coefficient of at 90°C
	Diffusion coefficient of at 90°C
	Diffusion coefficient of at 90°C
	Diffusion coefficient of at 90°C
	Diffusion coefficient of at 90°C
	Diffusion coefficient of at 90°C
	Diffusion coefficient of at 90°C
	Density of iron
	Molar weight of iron
	Density of siderite
	Molar weight of siderite
	Rate reaction of the autoprotolysis of water
	Thermodynamic constant of the autoprotolysis of water at 90°C
	Kinetic constant of the autoprotolysis of water (forward)
	Kinetic constant of the autoprotolysis of water (backward)
	Rate reaction of the first dissociation of dissolved
	Thermodynamic constant of the first dissociation of dissolved at 90°C
	Kinetic constant of the first dissociation of dissolved (forward)
	Kinetic constant the first dissociation of dissolved (backward)
	Rate reaction of the second dissociation of dissolved
	Thermodynamic constant of the second dissociation of dissolved at 90°C
	Kinetic constant of the second dissociation of dissolved (forward)
	Kinetic constant of the second dissociation of dissolved (backward)
	Rate reaction of the hydrolysis of
	Thermodynamic constant of the hydrolysis of at 90°C
	Kinetic constant of the hydrolysis of (forward)
	Kinetic constant of the hydrolysis of (backward)
	Rate reaction of the precipitation of siderite
	Thermodynamic constant of the solubility of siderite at 90°C
	Kinetic constant of the precipitation of siderite
	Reactive surface

The boundary conditions at both nodes (Figure 1) are imposed as follows: a flux condition at node N1 for electroactive species, and a zero-flux for the others (see Table 5), and a zero-flux for all chemical species at node N2, supposing a closed system as for the experiment.

Table 5

Flux for electroactive species at node N1.

				Others species

Two methods are used to simulate the effect of the CPL on the corrosion rate. In a first step, a homogeneous CPL with a fixed porosity grows on a steel surface in contact with a Cox argillite. In the second approach, porosity is supposed to evolve during the CPL growth, resulting from the amount of precipitated siderite (CPL grows in density as well as thickness).

It must be noted that a minimal CPL thickness has been fixed at t = 0 s to allow the simulation to start. We suppose, in fact, in both models that the nucleation period of the CPL is fast (non-limiting) in comparison with the growth period.

In numerical simulation, for each time step, when the siderite becomes under-saturated at the external face of the CPL, the following x-coordinate is assumed to be the clay environment. Hence, for each time step we obtain two domains: the CPL and the clay environment. Thus, the thickness of the CPL is obtained by calculating the saturation level all along the x-coordinate.

We define the total porosity by (5) with and the porosity due to the argillite.

Finally, (6) With the porosity due to the precipitated siderite in a medium of porosity equal to 1.

is the molar weight of siderite , its density () and its concentration.

This coefficient takes into account the Cox porosity () and the porosity resulting from the precipitation of siderite . It is constant in the first case, and is function of the amount of precipitated siderite in the second case. Fluxes at the metal surface and diffusion coefficients are function of the total porosity according to (7) (8)First approach – homogeneous CPL with a fixed porosity: a constant porosity equal to 10⁻³ was assumed for the CPL according to the experimental data reported elsewhere [29]. Inside the CPL and outside of the CPL i.e. in the external porous domain corresponding to argillite (). The precipitation term is assumed to contribute to the growth of the CPL.

Second approach – heterogeneous CPL with a varying porosity: In this case, the expression of the porosity coefficient is obtained with Equation (9) [20,25]. (9) Porosity inside the CPL depends on the amount of precipitated siderite during the simulation. The term contributes to the growth of the CPL and the evolution of porosity inside the CPL.

All the values of the parameters used in the numerical model are summarised in Table 6.

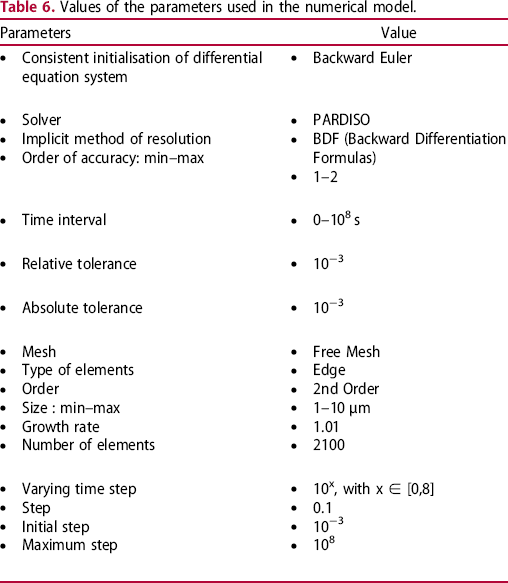

Table 6

Values of the parameters used in the numerical model.

Parameters	Value
Consistent initialisation of differential equation system	Backward Euler
Solver Implicit method of resolution Order of accuracy: min–max	PARDISO BDF (Backward Differentiation Formulas) 1-2
Time interval	0-10⁸s
Relative tolerance	10⁻³
Absolute tolerance	10⁻³
Mesh Type of elements Order Size : min–max Growth rate Number of elements	Free Mesh Edge 2nd Order 1-10 µm 1.01 2100
Varying time step Step Initial step Maximum step	10^x, with x [0,8] 0.1 10⁻³ 10⁸

Result and discussion

Homogeneous CPL with constant porosity

In Figure 2 is given the total porosity profile for four different times. It can be observed that the CPL starts to grow at t = 1.25.10⁵s corresponding to approximately 1, 45 days.

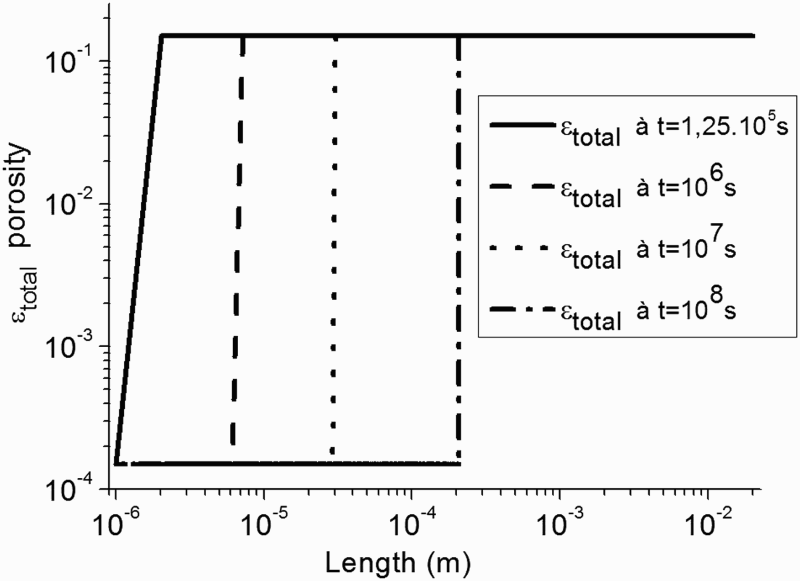

Figure 2

Profile of the total porosity for four times. First approach – homogeneous CPL with constant porosity.

It is worth noting that at t = 1.25.10⁵s, the slope is imputed to the transition from a mesh to another mesh. As shown in Figure 2, the thickness of the CPL is equal to 200 µm at t = 10⁸s (deduced from the transition of porosity value observed at t = 10⁸s).

In Figure 3, the evolution of the corrosion rate and mass loss of the metal are given.

Figure 3

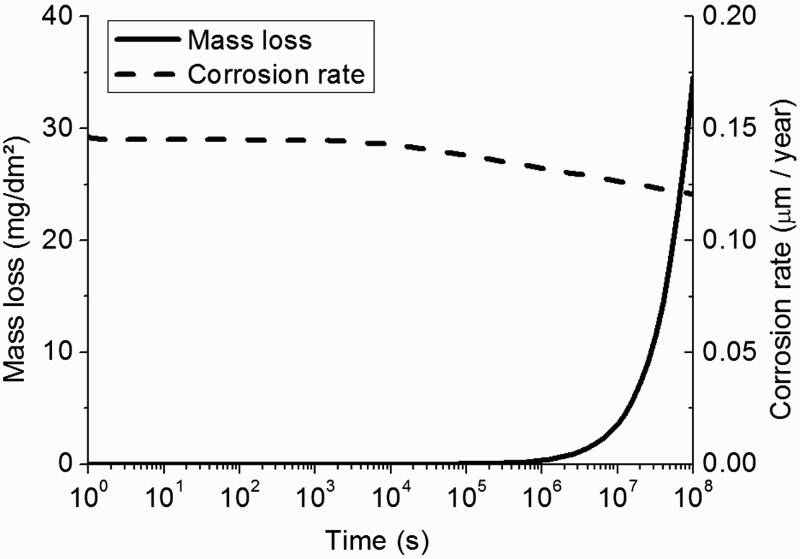

Evolution of the corrosion rate and mass loss of the metal assuming a homogeneous CPL with constant porosity.

As soon as precipitation starts, the corrosion rate is quite constant and is function solely of the porosity at short time. However at long time, the increase of the calculated pH in the CPL next to the metal surface (quite constant at short time, and then increase from t = 2.10⁶s to t = 10⁸s) leads to a slight decrease of the corrosion rate.

Heterogeneous CPL with varying porosity

As shown in Figure 4 when the porosity is assumed to be dependent on the amount of precipitated siderite (Equation 9), we observe obviously that the value of porosity inside the CPL is not constant.

Figure 4

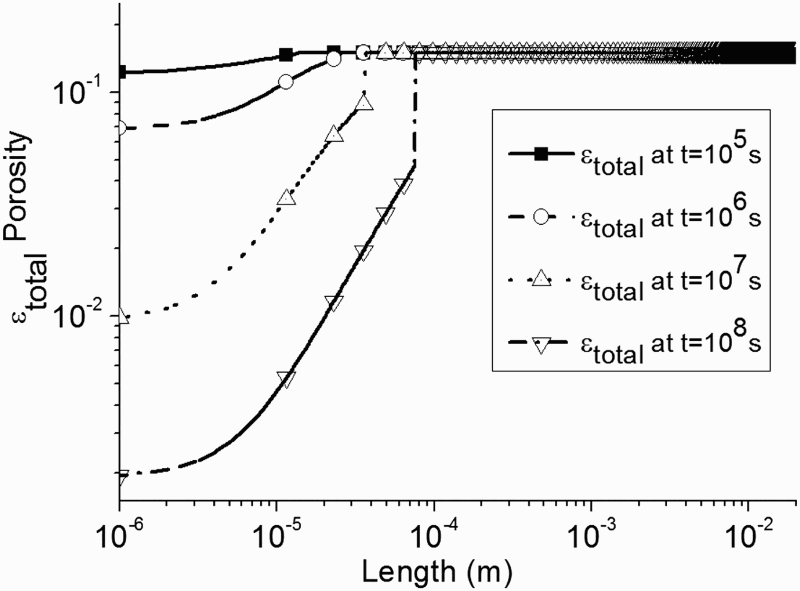

Porosity profile due to precipitation of FeCO_3(s) for four different times assuming a heterogeneous CPL with a varying porosity.

In Figure 5 are given the evolution of the corrosion rate (µm/year) and mass loss (mg/dm²).

Figure 5

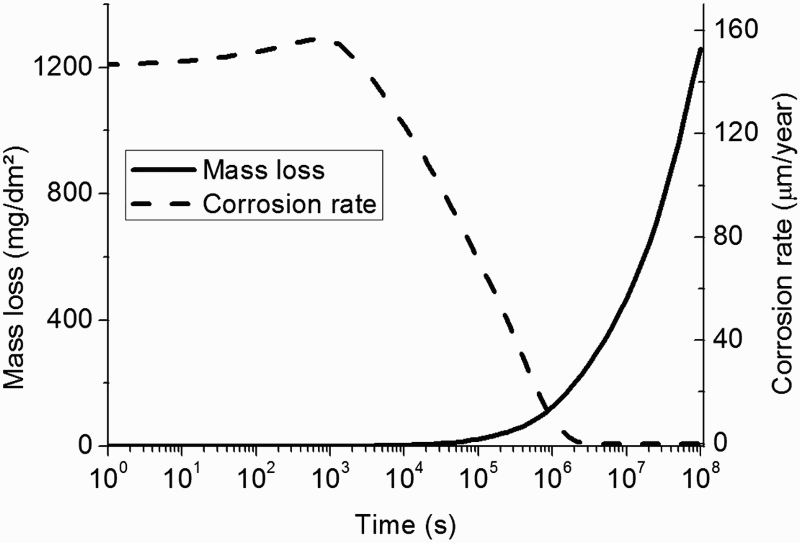

Evolution of corrosion rate in µm year⁻¹ and mass loss of metal in mg dm⁻² assuming a heterogeneous CPL with a varying porosity.

The corrosion rate varies from 150 µm.year⁻¹ to 3 µm.year⁻¹. In fact, initially the porosity at the metal surface is close to 0.15; hence, the transport of species is not affected by the precipitation of siderite. Then, the porosity decreases resulting from the formation of corrosion product, with the effect to decrease both the active metal surface and the transport of aqueous species, and consequently the corrosion rate.

In Figure 6 the evolution of the experimental and simulated mass loss at T = 90°C is compared.

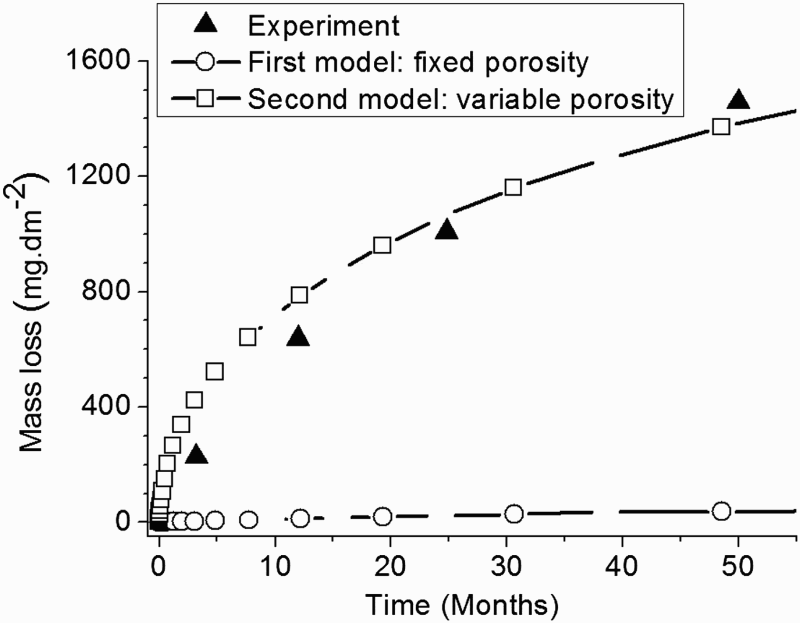

Figure 6

Mass loss of low alloy steel coupons in contact with saturated argillite in anoxic conditions. Results are given for temperature T = 90°C up to 50 months. Comparison of numerical results at 90°C with experimental data [26].

The simulated curves are referred to the different approaches developed previously, i.e. accounting for i) a CPL with a fixed and homogeneous porosity, ii) a CPL with a varying and heterogeneous porosity.

As shown in Figure 6, there is a good agreement between the second approach and the experiment [26]. In fact, the mass loss at t = 24 months and at t = 50 months are respectively equal to 1024 mg/dm² and 1400 mg/dm². These values are close to the experimental data, i.e. 1006 mg/dm² after 24 months and 1456 mg/dm² after 50 months.

In contrast, with the first model where a fixed and homogeneous porosity is considered, a steady state is observed and this leads to a constant corrosion rate. This behaviour does not reflect the experimental data showing a significant decrease of the corrosion rate.

In both cases, the corrosion rate is function of the fraction coverage of FeCO₃ on the metal surface. In the first case, the fraction coverage is constant because the porosity is constant (and uniform) within the CPL. In this condition, a low decrease of the corrosion rate can be observed most probably due to the increase of the pH. In the second case, the porosity (and then the fraction coverage on the metal surface) varies in a large extent but remains larger in comparison with the previous case. In this condition, the saturation of FeCO₃ is higher near to the metal surface leading to a thinner CPL.

In the following section, a parametric study is performed in order to understand what controls under both assumptions (varying and fixed porosity) the evolution of the corrosion rate, and thus the mass loss of the metal. In Figure 7 are summarised the results obtained for two additional cases of fixed porosity, considering and .

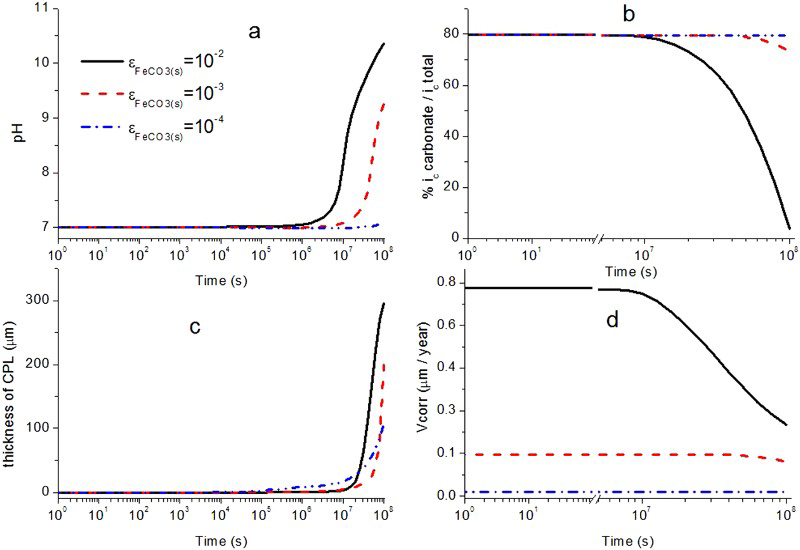

Figure 7

(a) Evolution of the pH at metal surface (b) contribution of the reduction of bicarbonate (c) evolution of CPL's thickness and (d) evolution of the corrosion rate (homogeneous CPL with fixed porosity).

When the porosity of the CPL is very low (), the change in pH is weak, then the corrosion rate is limited solely by the porosity of the CPL at the metal surface. For and , the pH of the solution at the surface increases to basic values for t > 10⁶s. In these conditions, the corrosion rate is controlled by the porosity of the CPL only at short times (t < 10⁶s). Afterwards, the contribution of the reduction of is decreasing (Figure 7(b) indicates that water reduction becomes the main cathodic contribution when the pH increases) causing the decrease of the corrosion rate.

Results obtained using the second approach (varying porosity), by multiplying the precipitation rate constant of siderite () by 10² and 10⁻², are summarised in Figure 8. The value of this rate constant influences the porosity in the CPL, more especially at the metal surface. The first inflexion corresponds to the beginning of the precipitation of siderite. The second one corresponds to the establishment of steady state: no more precipitation is observed.

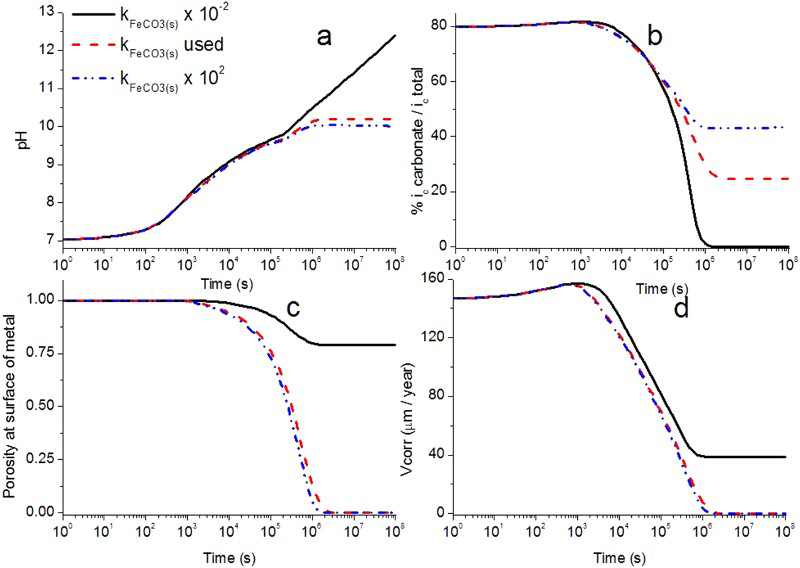

Figure 8

(a) Evolution of the pH at the metal surface, (b) contribution of the reduction of bicarbonate, (c) evolution of porosityat the metal surface and (d) evolution of the corrosion rate (heterogeneous CPL with a varying porosity).

This effect can be seen in Figure 8(c), where the porosity at the metal surface is decreasing to very low values for higher precipitation rate constants. The evolution of the corrosion rate is controlled by the porosity at the metal surface (Figure 8(c,d)). When the precipitation rate is very high (10²× ), then a very thin (ca. 32 µm thick at t = 10⁸s) and dense CPL is formed. In contrast, when the precipitation rate is low (10⁻²× ) a porous and thick CPL is formed (ca. 295 µm thick at t = 10⁸s). In this latter condition, like in the previous case (Figure 7), a higher corrosion rate is obtained at long term due to a less protective CPL.

Conclusion

The evolution of the corrosion rate of carbon steel in anoxic conditions has been simulated using two numerical models. These models take into account the growth of a porous CPL assuming either a constant and homogeneous porosity or a varying and heterogeneous porosity.

The numerical results have been compared to experimental data. The second approach (varying porosity) better reflects the experimental evolution of the corrosion rate. Assuming porosity is varying during the corrosion process and, during the CPL growth, allows the system to evolve in a larger extent leading to a significant decrease of the corrosion rate.

When the porosity is supposed fixed inside the CPL (regardless of the value of the porosity), the system reaches a steady state and hence a quite constant corrosion rate. However at long time, as shown by the parametric study, the pH controls the corrosion rate. Hence, the corrosion rate is controlled mainly by the surface porosity at short times and by the pH evolution at long time.

Finally, the parametric study allows establishing a relation between the precipitation rate of the siderite and the protectiveness of the CPL: for a high precipitation rate, a dense and thin CPL is observed leading to a low corrosion rate.

This approach is being adapted for other environments (aqueous medium, a room temperature and different chemical compositions) considering also the possibility for the CPL to be dissolved when under saturated.
