Numerical simulation of slag entrapment process during the end of casting in tundish

Abstract

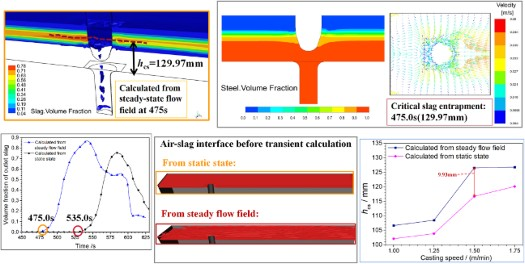

The slag entrapment process under two different initial conditions during the end of casting in tundish is studied. A 3D multiphase mathematical model was developed to simulate the slag entrapment behaviour. The critical slag entrapment time (t _s) and the corresponding critical slag entrapment height (h _cs) were predicted. The results show the h _cs increases, the t _s decreases as the casting speed increases, but their relationships are not linear. The influence of casting speed on the h _cs in the range of 1.25–1.5 m min⁻¹ is higher than other ranges. The h _cs simulated from the steady flow field is higher than that from the static state. When the casting speed is 1.50 m min⁻¹, the difference between the h _cs calculated from two different initial conditions is the largest, reaching 9.83 mm (8.42%). The numerical simulation results are verified by a 1:2 scaled water model.
