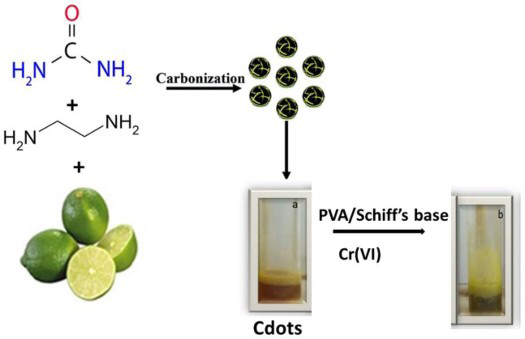

A novel molecular probe was fabricated by the integration of a smart carbon dot and a Schiff's base viz 4-amino -N-[(2-hydroxyphenyl)methylidene] benzoic acid. The synthesised carbon dot composite was well characterised, and a colorimetric molecular probe derived from ecologically sound carbon dot composite materials was explored for the colorimetric sensing of Cr (VI) in aqueous solutions. The results demonstrated that the developed colorimetric sensor can effectively sense Cr (VI) in aqueous solutions even below the picomolar concentration range. Also, the method's practical applicability was checked by the recovery of Cr(VI) from real tap water samples by the standard addition method and was found to be in the range of 99–109%.
Highlights
Chromium (VI) is considered as a severe environmental pollutant, due to its highly toxic and carcinogenic properties.
Low cost, highly sensitive sensors for the determination of Cr(VI) are highly demanded.
We have demonstrated a colorimetric molecular probe for detecting Cr(VI) based on the inner filter effect (IFE).
This CD-based nano sensor provides obvious advantages of simplicity, convenience, rapid response, high selectivity, and sensitivity, which have potential application for the detection of Cr(VI) in the environmental industry.
The developed colorimetric sensor can be effectively adopted for the sensing of Cr(VI) in aqueous solutions even below the picomolar concentration range.
Based on the colorimetric observation we can qualitatively determine the presence of Cr(VI) without the aid of any sophisticated analytical instruments.
Santos-FigueroaLEMoraguesMEClimentEChromogenic, and fluorogenic chemosensors and reagents for anions. A comprehensive review of the years 2010–2011. Chem Soc Rev. 2013; 42:3489.
2.
KadoSOtaniHNakaharaYHighly selective recognition of acetate and bicarbonate by thiourea-functionalized inverse opal hydrogel in aqueous solution. Chem Commun. 2013; 49:886.
3.
HuangWLiYYangZA novel acetate selective chromogenic chemosensor based on phenanthroline. Spectrochimacta A. 2011; 79:471.
4.
ShaoJLinHCaiZSA simple colorimetric and ON-OFF fluorescent chemosensor for biologically important anions based on amide moieties. J Photochem Photobiol B. 2009; 95:1.
5.
CaoYWBaninU.Growth and properties of semiconductor core/ shell nanocrystals with InAs cores. J Am Chem Soc. 2000; 122:9692.
6.
JaiswalJKMattoussiHMauroJMLong-term multiple color imaging of live cells using quantum dot bioconjugates. Nat Biotechnol. 2003; 21:47.
7.
DerfusAMChanWCWBhatiaSN.Probing the cytotoxicity of semiconductor quantum dots. Nano Lett. 2004; 4:11–18.
8.
OnchokeKKSasuAS.Determination of hexavalent chromium (Cr(VI)) concentrations via ion chromatography and UV-Vis spectrophotometry in samples collected from nacogdoches wastewater treatment plant. Adv Environ Chem. 2016; 2016:Article ID 3468635.
9.
SharmaAKapoorDWangJChromium bioaccumulation and Its impacts on plants: an overview. Plants. 2020; 9(1):100. DOI:10.3390/plants9010100.
10.
MadihaZRashidAYAyeshaAHealth and environmental effects of heavy metals. J King Saud Univ Sci. 2022; 34:101653.
11.
AnnijaLDavidRMarkBChromium monitoring in water by colorimetry using optimised 1, 5-diphenylcarbazide method. Int J Environ Res Public Health. 2019; 16:1803.
LiHKangZLiuYCarbon nanodots: synthesis, properties, and applications. J Mater Chem. 2012; 22:24230.
14.
ZhuSJMengQNWangLHighly photoluminescent carbon dots for multicolor patterning, sensors, and bioimaging. Angew Chem Int Ed. 2013; 52:3953.
15.
LiuSTianJQWangLHydrothermal treatment of grass: a low-cost, green route to nitrogen-doped, carbon-rich, photoluminescent polymer nanodots as an effective fluorescent sensing platform for label-free detection of Cu(II) ions. Adv Mater. 2012; 24:2037.
16.
WangXCaoLYangSTBandgap-like strong fluorescence in functionalized carbon nanoparticles. Angew Chem Int Ed. 2010; 49:5310.
17.
AnilkumarPCaoLYuJJCrosslinked carbon dots as ultrabright fluorescence probes. Small. 2013; 9:545.
18.
BarmanSSadhukhanM.Facile bulk production of highly blue fluorescent graphitic carbon nitride quantum dots and their application as highly selective and sensitive sensors for the detection of mercuric and iodide ions in aqueous media. J Mater Chem. 2012; 22:21832.
19.
YanFYZouYWangMHighly photoluminescent carbon dots-based fluorescent chemosensors for sensitive and selective detection of mercury ions and application of imaging in living cells. Sens Actuators B. 2014; 192:488.
20.
DongYQWangRXLiGLPolyamine-functionalized carbon quantum dots as fluorescent probes for selective and sensitive detection of copper ions. Anal Chem. 2012; 84:6220.
21.
ZhangSRWangQTianGHA fluorescent turn-off/on method for detection of Cu2+ and oxalate using carbon dots as fluorescent probes in aqueous solution. Mater Lett. 2014; 115:233.
22.
ShiJXLuCYanDHigh selectivity sensing of cobalt in HepG2 cells based on necklace model microenvironment-modulated carbon dot-improved chemiluminescence in fenton-like system. Biosens Bioelectron. 2013; 45:58.
23.
QuKGWangJSRenJSCarbon dots prepared by hydrothermal treatment of dopamine as an effective fluorescent sensing platform for the label-free detection of iron(III) ions and dopamine. Chem Eur J. 2013; 19:7243.
24.
WeeSSNgYHNgSM.Synthesis of fluorescent carbon dots via simple acid hydrolysis of bovine serum albumin and its potential as sensitive sensing probe for lead (II) ions. Talanta. 2013; 116:71.
25.
YazidSNAMChinSFPangSCDetection of Sn(II) ions via quenching of the fluorescence of carbon nanodots. Microchim Acta. 2013; 180:137.
26.
AnandSRBhatiASainiDAntibacterial nitrogen-doped carbon dots as a reversible ‘fluorescent nano switch’ and fluorescent ink. ACS Omega. 2019; 4:1581.
27.
AggarwalRAnandSRSainiDSurface-passivated, soluble and non-toxic graphene nano-sheets for the selective sensing of toxic Cr(VI) and Hg(II) metal ions and as a blue fluorescent ink. Nanoscale Adv. 2019; 1:4481.
28.
TripathiKMSinghABhatiASustainable feasibility of the environmental pollutant soot to few-layer photoluminescent graphene nanosheets for multifunctional applications. ACS Sustain Chem Eng. 2016; 4:6399.
29.
LiPHongYFengHAn efficient ‘off–on’ carbon nanoparticle-based fluorescent sensor for recognition of chromium(vi) and ascorbic acid based on the inner filter effect. J Mater Chem B. 2017; 5:2979.
30.
ChauhanNAnandSRAggarwalRSoluble non-toxic carbon nano-rods for the selective sensing of iron(iii) and chromium(vi). New J Chem. 2019; 43:10726.
31.
FangL-YZhengJ-TCheZ-Z.High-performance polymer carbon dots for detection of chromium (VI) ions in water. AIP Conf Proc. 2017; 1829:020045.
32.
LiHLZhaiJFSunXP.Sensitive and selective detection of silver(I) ion in aqueous solution using carbon nanoparticles as a cheap, effective fluorescent sensing platform. Langmuir. 2011; 27:4305.
33.
RoySBardhanSMondalDPolymeric carbon dot/boehmite nanocomposite made portable sensing device (Kavach) for non-invasive and selective detection of Cr(VI) in wastewater and living cells. Sens Actuators B. 2021; 348:130662.
34.
BabazadehSBisauriyaRCarboneMColorimetric detection of chromium(VI) ions in water using unfolded-fullerene carbon nanoparticles. Sensors. 2021; 21:6353.
35.
AnilAGRamachandranSKumarVChromium (VI) detection by microbial carbon dots: microwave synthesis and mechanistic study. J Basic Microbiol. 2022:455–464. doi:10.1002/jobm.202100394.
36.
ZhangYFangXZhaoHA highly sensitive and selective detection of Cr(VI) and ascorbic acid. Talanta. 2018; 181:318.
37.
ZhengMXieZGQuDOn–Off–On fluorescent carbon dot nano sensor for recognition of chromium (VI) and ascorbic acid based on the inner filter effect. ACS Appl Mater Interfaces. 2013; 5:13242.
38.
BuLPengJPengHFluorescent carbon dots for the sensitive detection of Cr(vi) in aqueous media and their application in test papers. RSC Adv. 2016; 6:95469.
39.
GargAKKaushikJSaini1DDoped carbon dots for the selective sensing of hexavalent chromium in water. J Inst Eng India Ser E. 2020. doi:10.1007/s40034-020-00188-9.
40.
WangYHuXLiWPreparation of boron nitrogen co-doped carbon quantum dots for rapid detection of Cr(VI). Spectrochim Acta A Mol Biomol Spectrosc. 2020; 243:118807.
41.
MingFHouJHouCOne-step synthesized fluorescent nitrogen doped carbon dots from thymidine for Cr (VI) detection in water. Spectrochim Acta Part A. 2019; 222:117165.
42.
WuJLiuWGeJNew sensing mechanisms for design of fluorescent chemosensors emerging in recent years. Chem Soc Rev. 2011; 40:3483.
43.
DanielS.Colorimetric molecular receptors for the sensing of acetate, fluoride and mercury based on Schiff's bases. Bull Mater Sci. 2020; 43:157.
FernandezMMariaDSunishKSGreen synthesis of nitrogen and sulfur doped carbon dot composites for the sensing of glucose. Materi Today Proc. 2019; 9:54.
46.
HachairASHofmannA.Hexavalent chromium quantification in solution: comparing direct UV–visible spectrometry with 1,5-diphenylcarbazide colorimetry. C R Chim. 2018; 21:890.
47.
NiuSXuYHLiuJXControllable electrochemical/electroanalytical approach to generate nitrogen-doped carbon quantum dots from varied amino acids: pinpointing the utmost quantum yield and the versatile photoluminescent and electrochemiluminescent applications. Electrochim Acta. 2017; 236:239.
48.
GuptaANandiCK.PC12 live cell ultrasensitive neurotransmitter signaling using high quantum yield sulphur doped carbon dots and its extracellular Ca2+ ion dependence. Sens Actuators B. 2017; 245:137.
49.
MaYChenYLiuJRatiometric fluorescent detection of chromium(VI) in real samples based on dual emissive carbon dots. Talanta. 2018; 2018:185. doi:10.1016/j.talanta..03.081.
50.
HuangSYangEYaoJNitrogen, phosphorus and sulfur tri-doped carbon dots are specific and sensitive fluorescent probes for determination of chromium(VI) in water samples and in living cells. Michrochim Acta. 2019; 186:851.
51.
Al-HashimiBOmerKMRahmanHS.Inner filter effect (IFE) as a simple and selective sensing platform for detection of tetracycline using milk-based nitrogen-doped carbon nanodots as fluorescence probe. Arab J Chem. 2020; 13:5151.
52.
ParkYYooJLimBImproving functionality of carbon nanodots: doping and surface functionalization. J Mater Chem A. 2016; 4:11582.
