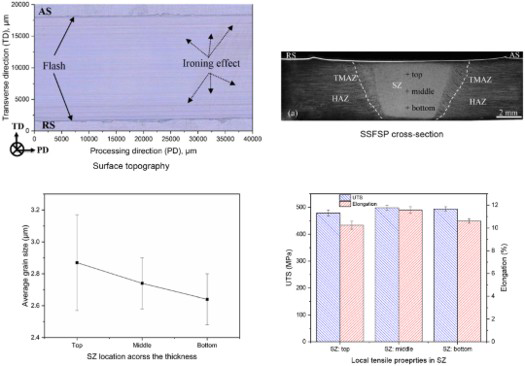

Stationary shoulder friction stir processing of high strength thick AA7075 aluminium alloy demonstrated tiny gradient in the microstructure refinement across the thickness, which was attributed to the less heat input and small temperature gradient by the stationary shoulder. Stationary shoulder produced a very smooth surface finish with a little amount of flash throughout the processing area. Probe-dominated stir zone (SZ) resulted in uniform grain refinement as well as hardness distribution across the SZ thickness. The ductility in SZ increased by 48% in comparison to the unprocessed material without costing tensile strength. This tensile behaviour trend maintained throughout the thickness in SZ.
MishraRS, MaZ.Friction stir welding and processing. Mater Sci Eng: R: Reports. 2005;50(1):1–78.
2.
MaZY, FengAH, ChenDL, Recent advances in friction stir Welding/processing of aluminum alloys: microstructural evolution and mechanical properties. Crit Rev Solid State Mater Sci. 2018;43(4):269–333.
3.
GerlichAP.Critical assessment 25: friction stir processing, potential and problems. Mater Sci Technol. 2017;33(10):1139–1144.
4.
PatelVV, LiWY, VairisA, Recent development in friction stir processing as a solid-state grain refinement technique: microstructural Evolution and property enhancement. Crit Rev Solid State Mater Sci. 2019;44:377–425. Just Accepted.
5.
GaoJ, CuiX, LiuC, Application and exploration of friction stir welding/processing in plastics industry. Mater Sci Technol. 2017;33(10):1145–1158.
6.
ChenY, JiangY, DingH, Effects of friction-stir processing with water cooling on the properties of an Al–Zn–Mg–Cu alloy. Mater Sci Technol. 2017;34:153–160.
7.
XuN, SongQ, BaoY.Structure–properties’ modification of 70/30 brass by large-load and low-speed friction stir processing. Mater Sci Technol. 2018;34(14):1768–1772.
8.
JiangH-J, ZhangB, LiuC-Y, Mechanical and damping behavior of age-hardened and non-age-hardened Al alloys after friction stir processing. Acta Metall Sin. 2019.
9.
KumarA, SharmaSK, PalK, Effect of process parameters on microstructural evolution, mechanical properties and corrosion behavior of friction stir processed Al 7075 alloy. J Mater Eng Perform. 2017;26(3):1122–1134.
10.
YangW, DingH, MuY, Achieving high strength and ductility in double-sided friction stir processing 7050-T7451 aluminum alloy. Mater Sci Eng: A. 2017;707:193–198.
11.
PatelV, BadhekaV, KumarA.Influence of friction stir processed parameters on superplasticity of Al-Zn-Mg-Cu alloy. Mater Manuf Process. 2016;31(12):1573–1582.
12.
Orozco-CaballeroA, Álvarez-LealM, Hidalgo-ManriqueP, Grain size versus microstructural stability in the high strain rate superplastic response of a severely friction stir processed Al-Zn-Mg-Cu alloy. Mater Sci Eng: A. 2017;680:329–337.
13.
MishraRS, MaZY.Friction stir welding and processing. Mater Sci Eng: R: Reports. 2005;50(1):1–78.
14.
SunT, ReynoldsAP, RoyMJ, The effect of shoulder coupling on the residual stress and hardness distribution in AA7050 friction stir butt welds. Mater Sci Eng: A. 2018;735:218–227.
15.
LiD, YangX, CuiL, Investigation of stationary shoulder friction stir welding of aluminum alloy 7075-T651. J Mater Process Technol. 2015;222:391–398.
16.
SunT, RoyMJ, StrongD, Weld zone and residual stress development in AA7050 stationary shoulder friction stir T-joint weld. J Mater Process Technol. 2019;263:256–265.
17.
SunT, TremsinAS, RoyMJ, Investigation of residual stress distribution and texture evolution in AA7050 stationary shoulder friction stir welded joints. Mater Sci Eng: A. 2018;712:531–538.
18.
LiWY, NiuPL, YanSR, Improving microstructural and tensile properties of AZ31B magnesium alloy joints by stationary shoulder friction stir welding. J Manuf Process. 2019;37:159–167.
19.
PatelV, LiWY, XuY.Stationary shoulder tool in friction stir processing: a novel low heat input tooling system for magnesium alloy. Mater Manuf Process. 2019;34(2):177–182.
20.
ZhouZ, YueY, JiS, Effect of rotating speed on joint morphology and lap shear properties of stationary shoulder friction stir lap welded 6061-T6 aluminum alloy. Int J Adv Manuf Technol. 2017;88(5–8):2135–2141.
21.
PatelV, LiW, XuY.Stationary shoulder tool in friction stir processing: a novel low heat input tooling system for magnesium alloy. Mater Manuf Process. 2018;34:177–182.
22.
PatelV, LiWY, WenQ.Surface analysis of stationary shoulder friction stir processed AZ31B magnesium alloy. Mater Sci Technol. 2019;35(5):628–631.
23.
MishraRS, MahoneyM, McFaddenS, High strain rate superplasticity in a friction stir processed 7075 Al alloy. Scripta Mater. 1999;42(2):163–168.
JohannesL, MishraR.Multiple passes of friction stir processing for the creation of superplastic 7075 aluminum. Mater Sci Eng: A. 2007;464(1):255–260.
26.
MaZ, MishraRS, LiuF.Superplastic behavior of micro-regions in two-pass friction stir processed 7075Al alloy. Mater Sci Eng: A. 2009;505(1):70–78.
27.
WangK, LiuF, MaZ, Realization of exceptionally high elongation at high strain rate in a friction stir processed Al–Zn–Mg–Cu alloy with the presence of liquid phase. Scripta Mater. 2011;64(6):572–575.
28.
BurgueñoA, DieguezT, SvobodaH.Effect of processing parameters on superplastic and corrosion behavior of aluminum alloy friction stir processed. Materials Science Forum; 2012 August 1–5, 2011; Quebec City, Canada: Trans Tech Publ.
29.
PasebaniS, CharitI, MishraRS.Effect of tool rotation rate on constituent particles in a friction stir processed 2024Al alloy. Mater Lett. 2015;160:64–67.
30.
YangB, YanJ, SuttonMA, Banded microstructure in AA2024-T351 and AA2524-T351 aluminum friction stir welds: Part I. Metallurgical studies. Mater Sci Eng: A. 2004;364(1):55–65.
