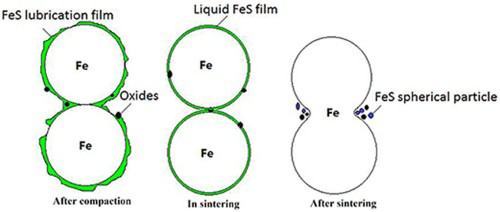

This article provides a new kind of P/M processing by designing thin-layered FeS film coated on the surface of iron powder particles for preparing high density Fe–Cu–C materials. Experimental results showed that FeS lubricating coating on the surface of iron powder particles was significant as a means of reducing friction in the pressing process of Fe–Cu–C alloys. After being pressed, the green density increased from 7.18 to 7.42 g cm−3. The sintered density increased from 7.10 to 7.37 g cm−3. In the sintering process, the FeS was liquid, and useful in purifying particle surface and strengthening grain boundaries to improve the mechanical properties. The hardness and tensile strength of the Fe–2.0Cu–0.9C–0.5FeS2 material were 80.5 HRB and 590 MPa. Analysis of fracture showed the main fracture was transgranular fracture. And FeS spherical particles gathered in the pores of the Fe–Cu–C alloys.
NarasimhanK. S.: ‘Sintering of powder mixtures and the growth of ferrous powder metallurgy’, Mater. Chem. Phys., 2001, 67, 56–65.
2.
SudhakarK. V.: ‘Fatigue behavior of a high density powder metallurgy steel’, Int. J. Fatigue, 2000, 22, 729–734.
3.
XiaoZ. Y., ShenY. X., WenL. P., ZhangW. and LiY. Y.: ‘Study on the sinter-hardening properties of Fe-Cu-Ni-Mo-C materials by warm compaction with wall lubricated die’, Powder Metall. Ind., 2007, 17, 9–13.
4.
FleckN. A. and SmithR. A.: ‘Effect of density on tensile strength, fracture toughness, and fatigue crack propagation behaviour of sintered steel’, Powder Metall., 1981, 24 (3), 121–125.
5.
DhanasekaranS. and GnanamoorthyR.: ‘Dry sliding friction and wear characteristics of Fe-C-Cu alloy containing molybdenum di sulphid’, Mater. Des., 2007, 28, 1135–1141.
6.
YeT. M., YiJ. H. and PengY. D.: ‘New technique of increasing the compact density of powder metallurgy parts’, Powder Metall. Ind., 2003, 13, 32–36.
7.
XiaoZ. Y., KeM. Y., FangL., ShaoM. and LiY. Y.: ‘Die wall lubricated warm compacting and sintering behaviors of pre-mixed Fe-Ni-Cu-Mo-C powders’, J. Mater. Process. Technol., 2009, 209, 4527–4530.
8.
CaoS. H., YiJ. H., QuX. H., HuangB. Y. and JiangH. Z.: ‘Design of high density powder mixtures for warm compaction’, PM MS&E, 2000, 5, 259–263.
9.
SimchiA.: ‘Effects of lubrication procedure on the consolidation, sintering and microstructural features of powder compacts’, Mater. Des., 2003, 24, 585–594.
10.
BabakhaniA., HaerianA. and GhambariM.: ‘On the combined effect of lubrication and compaction temperature on properties of iron-based P/M parts’, Mater. Sci. Eng. A, 2006, 437, 360–365.
11.
LiY. Y., NgaiT. L., ZhangD. T., LongY. and XiaW.: ‘Effect of die wall lubrication on warm compaction powder metallurgy’, J. Mater. Process. Technol., 2002, 129, 354–358.
12.
SlineyH. E.: Solid and Liquid Lubricants for Extreme Environments, a compilation of papers presented at the Symposium on Lubricants for Extreme Environment at the ASME/ASLE Lubrication Conference, 1982, pp. 1–6.
13.
ZhuL.-N., LiG.-L., WangH.-D., XuB.-S. and LiuJ.-J.: ‘Comparative characterization to the three kinds of solid-shape FeS’, Mater. Lett., 2008, 62, 163–166.
14.
WangH. D., XuB. S. and LiuJ. J.: ‘Micro and nanosulfide solid lubrication’, 43–44, 2011, Beijing, Science Press.
15.
HanF. L.: ‘Analysis and control of the dimensional change of PM Fe-2Cu-0.8C steels’, Powder Metall. Ind., 2011, 21, 58–69.
16.
KremelS., DanningerH. and YuY.: ‘Effect of sintering conditions on particle contacts and mechanical properties of PM steels prepared from 3% Cr pre-alloyed powder’, Powder Metall. Prog., 2002, 2, 211–221.
17.
OrtizP. and CastroF.: ‘Thermodynamic and experimental study of role of sintering atmospheres and graphite additions on oxide reduction in Astaloy CrM powder compacts’, Powder Metall., 2004, 47, 291–298.
18.
GautamR. and SeiderW. D.: ‘Computation of phase and chemical equilibrium: Part I. Local and constrained minima in Gibbs free energy’, AlChE J., 1979, 25, 991–999.
19.
TandonR. and JohnsonJ.: ‘Liquid-Phase Sintering’, Powder Metall. Technol. Appl., 1990, 7, 565–573.
McMahonC. J.Jr.: ‘Intergranular fracture in steels, Materials Science and Engineering’, Mater. Sci. Eng., 1976, 25, 233–239.
22.
KraussG.: ‘The microstructure and fracture of a carburized steel’, Metall. Mater. Trans. A, 1978, 9, 1527–1535.
23.
DoganB. and DaviesT. J.: ‘Fracture behavior of powder-forged steels’, Ind. Eng. Chem. Prod. Res. Dev., 1986, 25, 72–77.
24.
SharmaR. C. and ChangY. A.: ‘Thermodynamics properties of the Fe-S liquid phase and the calculation of the Fe-S phase diagram’, Metall. Trans. B, 1979, 10, 103–108.
25.
KuczynskiG. C.: ‘Sintering processes’, 142–146, 1980, New York, NY, Plenum Press.
