Amyloid β-Peptide Directly Induces Spontaneous Calcium Transients,Delayed Intercellular Calcium Waves and Gliosis in Rat Cortical Astrocytes

Abstract

The contribution of astrocytes to the pathophysiology of AD (Alzheimer's disease) and the molecular and signalling mechanisms that potentially underlie them are still very poorly understood. However, there is mounting evidence that calcium dysregulation in astrocytes may be playing a key role. Intercellular calcium waves in astrocyte networks in vitro can be mechanically induced after Aβ (amyloid β-peptide) treatment, and spontaneously forming intercellular calcium waves have recently been shown in vivo in an APP (amyloid precursor protein)/PS1 (presenilin 1) Alzheimer's transgenic mouse model. However, spontaneous intercellular calcium transients and waves have not been observed in vitro in isolated astrocyte cultures in response to direct Aβ stimulation in the absence of potentially confounding signalling from other cell types. Here, we show that Aβ alone at relatively low concentrations is directly able to induce intracellular calcium transients and spontaneous intercellular calcium waves in isolated astrocytes in purified cultures, raising the possibility of a potential direct effect of Aβ exposure on astrocytes in vivo in the Alzheimer's brain. Waves did not occur immediately after Aβ treatment, but were delayed by many minutes before spontaneously forming, suggesting that intracellular signalling mechanisms required sufficient time to activate before intercellular effects at the network level become evident. Furthermore, the dynamics of intercellular calcium waves were heterogeneous, with distinct radial or longitudinal propagation orientations. Lastly, we also show that changes in the expression levels of the intermediate filament proteins GFAP (glial fibrillary acidic protein) and S100B are affected by Aβ-induced calcium changes differently, with GFAP being more dependent on calcium levels than S100B.

Keywords

Alzheimer's disease (AD)amyloid β-peptide (Aβ)astrocyte network calcium signalling intercellular calcium wave intermediate filament protein

INTRODUCTION

AD (Alzheimer's disease) is a devastating age-related neurodegenerative disorder. Neuropathological hallmarks of AD include loss of neurons, deposition of neuritic plaques and reactive astrogliosis in affected brain regions, particularly the hippocampus and neocortex (Masliah, 2008). Accumulation of Aβ (amyloid β-peptide) fragments and sustained disruption of intracellular calcium concentration ([Ca²⁺]_i) homoeostasis are prevailing hypotheses for the pathogenesis of AD (Hardy and Selkoe, 2002; Stutzmann et al., 2004).

The role and contribution of astrocytes to the pathophysiology of AD and the molecular and signalling mechanisms that potentially underlie them are still very poorly understood. Calcium signalling in astrocytes in the form of intracellular calcium transients and intercellular calcium waves putatively play critical roles in neuronal–astrocytic bidirectional communication (Pasti et al., 1997; Scemes and Giaume, 2006; Fellin, 2009), and potentially modulate neuronal activity and survival (Parri et al., 2001; Takano et al., 2006). There is mounting evidence that [Ca²⁺]_i dysregulation in astrocytes contributes to the pathophysiology of AD. Intracellular calcium transients associated with Aβ exposure in astrocytes result in calcium-dependent glutathione depletion in neurons and the formation of reactive oxygen species in astrocytes that directly produce neuronal death (Abramov et al., 2003, 2004). Cytoplasmic calcium transient changes in presenilin-transfected astrocytes induced by pharmacological treatment with ATP or glutamate in the presence of Aβ required lower concentrations of these agonists for responses to manifest themselves (Johnston et al., 2006). Intercellular calcium waves in astrocyte networks in vitro can be mechanically induced after Aβ treatment, and they travel further and faster than comparable waves induced in the absence of Aβ (Haughey and Mattson, 2003). Importantly, spontaneously forming intercellular calcium waves have recently been shown in vivo in the APP (amyloid precursor protein)/PS1 (presenilin 1) Alzheimer's transgenic mouse model independent of neuronal hyperactivity (Kuchibhotla et al., 2009), although the nature of the experiments did not allow testing whether Aβ itself was responsible and sufficient for the observed waves or whether there was a signalling effect from other cell types (e.g. microglia). Spontaneous intercellular calcium waves have not been observed in vitro in isolated astrocyte cultures in response to direct Aβ stimulation. The consequences of these waves on neuronal physiology or the clinical manifestation of AD are not yet known.

Changes in intracellular calcium levels have also been implicated in the regulation of gene expression in both neurons and astrocytes (Dolmetsch et al., 1998; Morita et al., 2003). Hence it is possible that changes in astrocytic calcium dynamics induced by Aβ may molecularly contribute to the pathogenesis of AD. Reactive astrogliosis in AD characterized by up-regulation of GFAP (glial fibrillary acidic protein) and S100B (Peskind et al., 2001; Pamplona et al., 2005) is associated with Aβ plaques and the formation of abnormal neurites that contribute to the formation of neuritic plaques and neurofibrillary tangles (Casas et al., 2004). The molecular and cellular consequences of intracellular calcium dysregulation in neurons in AD and its effects on neurotoxicity are well documented (LaFerla, 2002), but little is known regarding the molecular response of astrocyte calcium signalling to Aβ exposure and its effects on the cell.

In the present study, we show that Aβ alone at relatively low concentrations is directly able to induce intracellular calcium transients and spontaneous intercellular calcium waves in isolated astrocytes in purified cultures, raising the possibility of a potential direct effect of Aβ exposure on astrocytes in vivo in the Alzheimer's brain. Waves did not occur immediately after Aβ treatment, but were delayed by many minutes before spontaneously forming, suggesting that intracellular signalling mechanisms required sufficient time to activate before intercellular effects at the network level become evident. Furthermore, the dynamics of intercellular calcium waves were heterogeneous, with distinct radial or longitudinal propagation orientations. Lastly, we also show that changes in GFAP and S100B expression levels are affected by Aβ-induced calcium changes differently, with GFAP being more dependent on calcium levels than S100B, which was up-regulated after exposure to Aβ independent of calcium levels.

MATERIALS AND METHODS

Astrocyte cell culture

All experiments were carried out in accordance with approved protocols from the Institutional Animal Care and Use Committee of the University of California (San Diego, CA, U.S.A.). Primary cortical cultures were prepared from postnatal day 1 Sprague–Dawley rats (Harlan Sprague Dawley, Indianapolis, IN, U.S.A.) as previously described (Haughey and Mattson, 2003). Briefly, 1-day-old Sprague–Dawley rat pups were sacrificed by anaesthesia overdose. Their brains were removed and the cerebral cortices dissected in sterile KHB (Krebs Hepes buffer; 10 mM Hepes, 4.2 mM NaHCO₃, 10 mM dextrose, 1.18 mM MgSO₄·2H₂O, 1.18 mM KH₂PO₄, 4.69 mM KCl, 118 mM NaCl and 1.29 mM CaCl₂; pH 7.3). Cells were mechanically dissociated in KHB through a 70 μm cell strainer (BD Biosciences, San Jose, CA, U.S.A.) and cultured in Modified Eagle's Medium (Cellgro/Fisher, Herndon, VA, U.S.A.) with 10% (v/v) heat-inactivated horse serum (Omega Scientific, Tarzana, CA, U.S.A.), 1% penicillin–streptomycin (Gibco/Invitrogen, Carlsbad, CA, U.S.A.) and 1% Glut-Max (Gibco/Invitrogen). Before trypsinizing the cell cultures, they were hand shaken for 5 min, resulting in the detachment of contaminating cell types such as oligodendrocytes and microglia sitting on top of the astroglial monolayer. Manual shaking resulted in microglia-free cultures similar to plates purified by shaking in an orbital shaker for at least 12 h. For both approaches, we tested for microglia using immunocytochemistry and saw no significant differences (results not shown). Astroglial cultures were trypsinized and subcultured once to obtain highly enriched astroglial cultures (>95% astrocytes) (Saura, 2007). Culture medium was changed twice per week, and all cultures were used within 2 passages. Astrocytes were trypsinized and plated on to PDL (poly-D-lysine)-coated 35 mm glass bottom dishes (MakTek, Ashland, MA, U.S.A.) at a density of 1 × 10⁵ cells per well. Cells were allowed to grow at 37°C and 5% CO₂/95% atmospheric air to confluency (∼90%) prior to performing calcium imaging studies and immunocytochemistry.

Calcium imaging

Cortical astrocyte cultures of ∼90% confluency were washed twice with KHB and incubated with 8 μM Fluo-4AM (Fluo-4 acetoxymethyl ester; Molecular Probes/Invitrogen, Carlsbad, CA, U.S.A.) in KHB for 40 min at room temperature (25°C). Excess dye was removed by washing twice with KHB, and an additional incubation of 20 min at room temperature was performed to equilibrate intracellular dye concentration. Under specific experimental conditions, cells were pretreated for 30 min in 10 μM thapsigargin (T9033; Sigma) or 10 μM BAPTA/AM [1, 2-bis-(o-aminophenoxy)ethane-N, N, N′,N′-tetra-acetic acid tetrakis(acetoxymethyl ester); A1076; Sigma]. Calcium-free KHB with 1.5 mM BAPTA (A4926; Sigma) was also used in certain experiments. Typically, 5 μM of Aβ fragment 1–40 (A1075; Sigma), an amyloid fragment known to be neurotoxic in vivo and in vitro (Emre et al., 1992; Kowall et al., 1992), was used in the experiment, and the time point of Aβ dosing was regarded as zero time. We did nine intercellular calcium experiments, with 8–10 randomly selected fields of view observed for each, during which real-time movies of 4.5 min were taken of primary astrocyte cultures at three time points (0, 15 and 30 min) under five conditions (control, Aβ, Aβ+thapsigargin, Aβ+BAPTA/AM and Aβ+BAPTA). In each experiment, 5 μM of Aβ was bath applied and 4.5 min movies were recorded at randomly chosen fields for 1.5 h and seven time points (0, 15, 30, 45, 60, 75 and 90 min post-administration of Aβ). All movies were acquired at 5 Hz using a Hamamatsu ORCA-ER digital camera (Hamamatsu Photonics, Hamamatsu City, Japan). Visualization of Ca²⁺ indicator dye fluorescence was done using a 488 nm (FITC) filter on an Olympus IX81 inverted fluorescence confocal microscope (Olympus Optical, Tokyo, Japan) using a × 20 UPlanFLN objective (NA=0.5; Olympus Optical). Images were acquired with custom-written LabVIEW (National Instruments, Austin, TX, U.S.A.) software developed in our laboratory. Similar experiments were performed with the non-bioactive control of Aβ 1–40, where we used a reverse 40–1 Aβ (A2326; Sigma). Images were subsequently processed in ImageJ (http://rsbweb.nih.gov/ij/) and Matlab (Mathworks, Natick, MA, U.S.A.).

Quantification of Ca²⁺ transients

Quantification of Ca²⁺ transients was performed using methods similar to those described previously (Yu et al., 2009). Briefly, using ImageJ [an NIH (National Institutes of Health; Bethesda, MD, U.S.A.)-funded open source JAVA-based morphometric application], individual cell fluorescence intensity versus time was extracted. The fluorescence intensity of Fluo-4AM is assumed to be proportional to calcium concentration. The data were run through a low pass filter and a running average filter of 10 frames implemented in Matlab. In order to identify individual [Ca²⁺]_i transients, we identified periods of sustained increase in fluorescence intensity for each centroid. A first-derivative filter was used to distinguish significant and sustained increases in calcium (i.e. 10 or more consecutive frames or 2 s at 5 Hz, with positive derivative values). Cells with sustained calcium increases were considered to have transient responses. The percentage of active cells was the ratio of the number of cells that displayed calcium transients to the total number of cells in the field of view, while the average transient frequency (in Hz) was the ratio of the total number of transients to the number of active cells acquired per movie. For the observed calcium waves, the average speed of calcium wave propagation was calculated by plotting the radius from the centre of the wave against activation time of the cell involved and fitting the slope of the line through the scatter plot. All calculations and graphs were done using Matlab and SigmaPlot (Systat, San Jose, CA, U.S.A.), and the results were expressed as means ± S.E.M. In all the cases, consistent imaging settings were used across experimental conditions and individual experiments (e.g. frame rates, exposure times etc.).

GFAP and S100B immunocytochemistry

Cultures grown on PDL-coated dishes were fixed with 4% (w/v) paraformaldehyde in PBS for 15 min. Cells were permeabilized in 0.2% (v/v) Triton X-100 and incubated for 2 h with mouse monoclonal anti-S100B antibody (S2657; Sigma) or mouse anti-glial fibrillary acidic protein (anti-GFAP;556330; BD Biosciences), diluted 1:100 and 1:400 respectively with 10% (v/v) FBS (foetal bovine serum). Goat anti-mouse IgG (whole antibody)–FITC (F0257; Sigma) was diluted 1:100 in PBS with 5% FBS and applied for 1 h. Cells were mounted with ProLong Gold antifade reagent counter-stained with DAPI (4′, 6-diamidino-2-phenylindole; Molecular Probes/Invitrogen). Images were acquired using the same hardware as described previously and a × 40 LUCPlanFLN objective (NA=0.6; Olympus Optical), with filters for FITC, TRITC (tetramethylrhodamine β-isothiocyanate) and DAPI using the same customized LabVIEW software used for calcium imaging.

RESULTS

Aβ increases the frequency of intracellular calcium transients and the number of activated astrocytes

In cultured cortical astrocytes, 5 μM of Aβ 1–42 is sufficient to alter evoked intercellular calcium waves and to result in increased amplitude, velocity and travelling distance compared with untreated controls (Haughey and Mattson, 2003). Dosing levels of Aβ 1–40, 25–35 and 1–42 at 10 μM have been reported to increase the expression of GFAP and S100B in cultured astrocytes (Meske et al., 1998). In both studies, astrocytic toxicity from Aβ at these concentrations was not observed. We began by doing a number of experiments using a range of Aβ 1–40 up to a concentration of 10 μM, and did not observe differences in the results compared with the use of 5 μM (results not shown). Given the previous work by these other investigators and our own preliminary experiments, we used 5 μM as the working concentration of Aβ in all our subsequent experiments.

Compared with untreated controls, Aβ-treated cultures had a significantly larger percentage of cells that displayed intracellular calcium transients (92 ± 3.5% versus 81 ± 5.3%, P<0.05; Figure 1A). Furthermore, active cells under Aβ-treated conditions that showed transient responses had on average a higher frequency of responses relative to active cells in controls (0.05 ± 0.003 Hz versus 0.033 ± 0.001 Hz, P<0.001; Figure 1B). In all cases, we measured baseline levels of calcium transient response frequencies before exposure to Aβ for 90 s, and with results statistically similar to untreated Aβ controls. The quality and signal-to-noise ratio of measured transient responses for both experimental and control conditions were comparable (Figure 1C). Aβ-induced increases were significantly reduced by the perturbation of intracellular and extracellular calcium sources, suggesting that the observed changes were directly due to calcium-dependent mechanisms. Pretreatment with thapsigargin, which raises cytosolic calcium levels by preventing the pumping of calcium back into the endoplasmic reticulum, diminished both the number of active cells and the transient response frequency increase evoked by Aβ (39 ± 14% in thapsigargin-treated cells versus 92 ± 3.5% for Aβ-treated cells alone, P<0.01; and 0.011 ± 0.001 Hz in thapsigargin-treated cells versus 0.05 ± 0.003 Hz for Aβ-treated cells alone, P<0.001). BAPTA/AM, which is a calcium chelator, completely abolished the increase in response frequency induced by Aβ (0.033 Hz in Aβ-BAPTA/AM versus 0.033 Hz in controls), whereas removal of extracellular Ca²⁺ ([Ca²⁺]_e) caused a 2-fold decrease in the increased frequency response. In addition, a lack of [Ca²⁺]_e sharply reduced the number of active cells that displayed calcium transients at 15 min after Aβ dosing from 99 ± 1.6% to 1.5 ± 0.9% (P<0.001), suggesting an important role for the influx of extracellular Ca²⁺ on the effects of Aβ. Control experiments using the biologically inactive reverse 40–1 Aβ did not show any changes in the frequency of calcium transient responses in individual cells or the fraction of active cells relative to untreated controls (results not shown). The effects of Aβ on calcium transients lasted for at least 45 min after dosing. We did not use data beyond 45 min in order to avoid potential confounding effects due to unrelated changes in the cultures, such as decreasing cell viability with time, even though we routinely confirmed good cell viability after the 45 min experimental window by using a calcein/ethidium live/dead cell cytotoxicity assay.

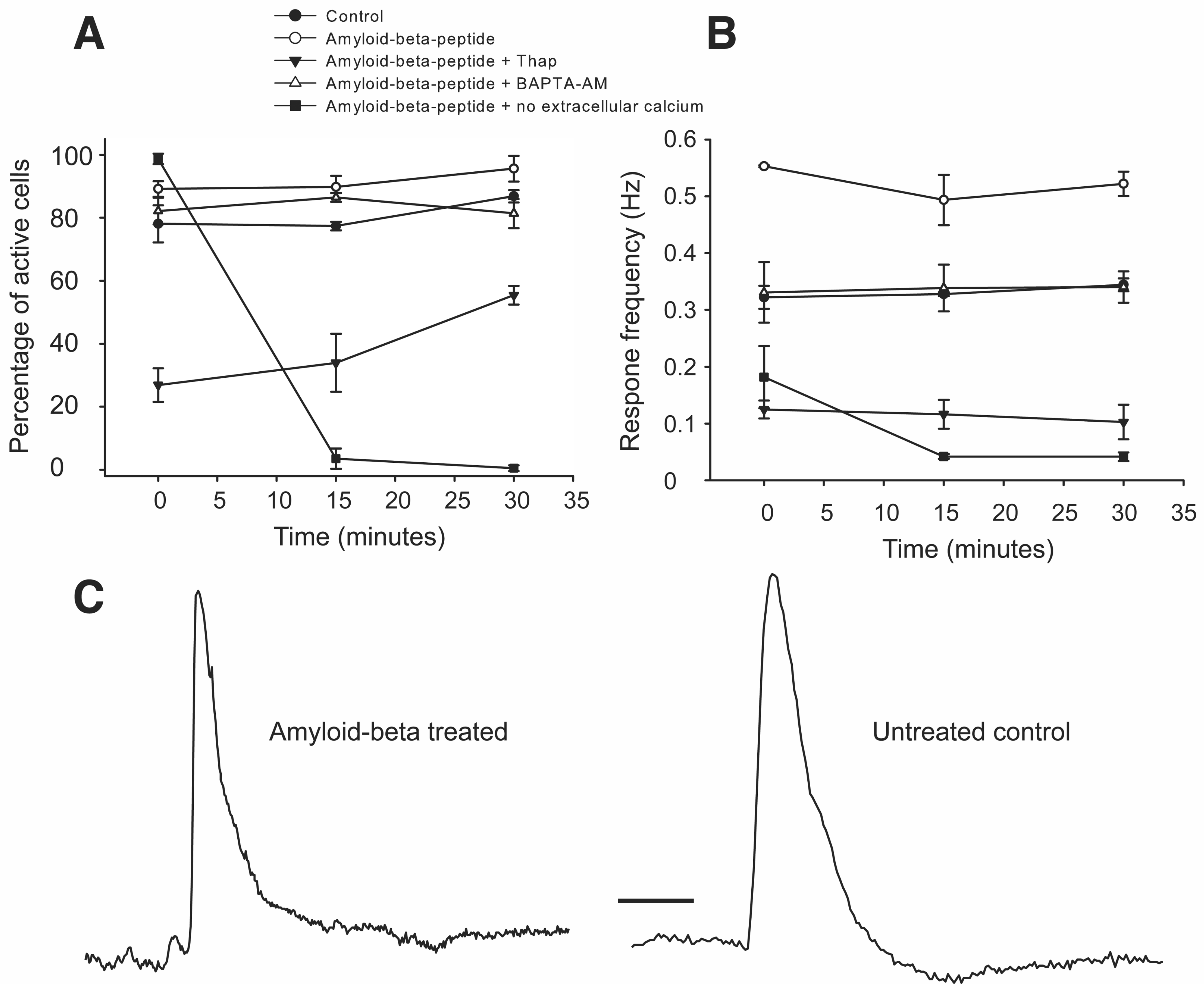

Figure 1

(A) The fraction of activated responding cells for the population of each experimental condition expressed as a percentage. (B) Average calcium transient response frequency per activated cell. (C) Representative examples of measured calcium transient responses in individual astrocytes for both Aβ-treated and untreated control conditions. Scale bar, 5 s. Thap, thapsigargin.

Aβ induces spontaneous time-delayed intercellular calcium waves in astrocytes

Previous work has shown that mechanically induced intercellular calcium waves in astrocyte cultures pretreated with Aβ travel longer distances and at greater speeds than induced waves in control cultures not treated with Aβ (Haughey and Mattson, 2003). In vivo in the APP/SP1 transgenic mouse model of AD, spontaneous waves in astrocyte networks have been seen (Kuchibhotla et al., 2009). We examined whether Aβ by itself is sufficient to directly induce spontaneous waves in culture in isolated astrocytes. We bath applied Aβ and recorded movies of randomly chosen fields of view in 15 min intervals for 90 min after Aβ treatment. In contrast with untreated control cultures, which never showed any responses, all of the 8–10 randomly chosen fields in eight of the nine Aβ-treated independent experiments displayed spontaneous time-delayed waves. Interestingly, two distinct patterns of calcium waves were observed: Seven experiments displayed waves that propagated radially from an initial focal locus (Figures 2A and 2B), consistent with patterns of induced waves reported in most studies (Cornell-Bell et al., 1990; Newman and Zahs, 1997; Arcuino et al., 2002; Schipke et al., 2002), whereas one experiment exhibited waves that propagated linearly (Figures 2C and 2D). This is similar to in vivo waves seen in the cerebellum (Hoogland et al., 2009). The distances travelled by radial and linear waves were 75 ± 21 and 80.5 ± 11.3 μm respectively, with speeds of 7.8 ± 2.6 and 4.66 ± 0.48 μm/s respectively (Figure 2E). Both types of waves occurred not earlier than 10 min and no later than 75 min after Aβ dosing. The significant delay between the application of Aβ and the initiation of waves suggests that metabotropic signalling mechanisms may underlie the initiation of wave events in astrocyte networks, and excludes the possibility that they were the result of experimental artefacts (e.g. mechanical disruption of cells during bath application of Aβ). We also checked for and confirmed good cell viability after the 90 min recording period. Interestingly, some cells in the path of the wave front were not activated and did not display intracellular calcium transients, resulting in spatially heterogeneous activation patterns. This is consistent with previous results from our laboratory (Macdonald et al., 2008). It is possible that the absence of observed waves in the one experiment could have been due to chance if they occurred outside our randomly chosen fields of view or during intervals between successive recordings, since we did not selectively induce them in any way. Control experiments using the reverse 40–1 Aβ never showed spontaneous calcium waves, similar to untreated controls (results not shown).

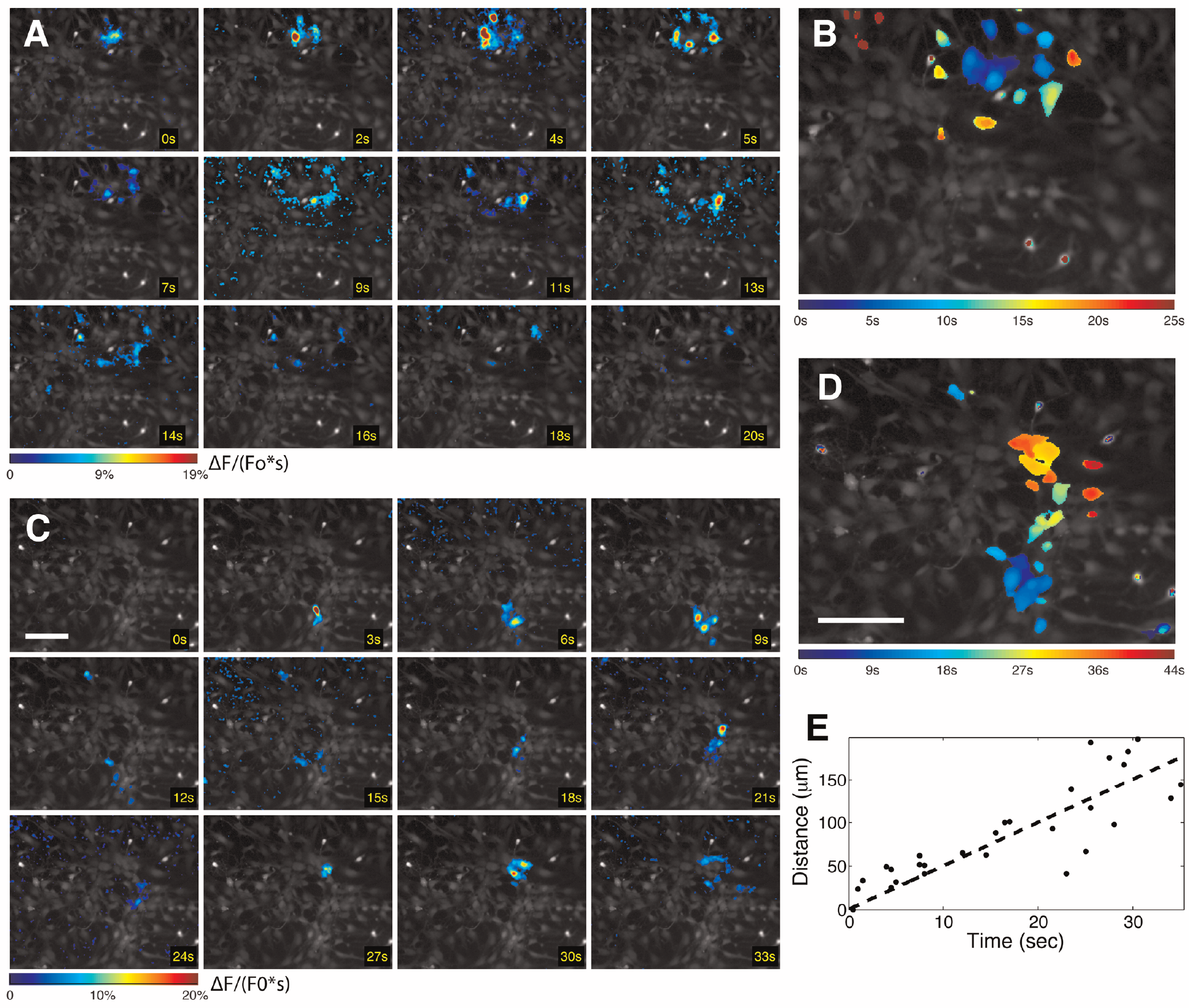

Figure 2

In most cases, waves propagated radially from an initiating focal locus (A, B). In some cases, however, waves travelled linearly in a specific direction across the field of view (C, D). (A, C) These figures show sequential frames from recorded movies as a function of time (with a time stamp in the lower right corner of each frame). Pseudo-colouring encodes the normalized relative concentration of the fluorescence signal displayed by the calcium indicator dye. (B, D) These figures are temporal projections for the propagating waves for the entire movies collapsed on to one frame overlaid on fields of view for each one. Pseudo-colouring in these figures encodes time in seconds. (E) A plot of the distance travelled by waves in microns against time in seconds for several representative experiments. Scale bars, 50 μm.

Aβ induces changes in S100B and GFAP expression in astrocytes by 12 h

Finally, we also looked at the relationship between Aβ-induced intracellular Ca²⁺ transients and reactive gliosis by measuring GFAP and S100B expression levels after Aβ dosing using immunocytochemistry (Figure 3). Elevated levels of S100B and GFAP have been shown to occur in astrocytes associated with neuritic AD plaques (Pike et al., 1994; Simpson et al., 2008). Two previous studies have looked at changes in the immunocytochemical expression of GFAP, S100B, vimentin, as well as other putative markers of reactive gliosis (Salinero et al., 1997; Meske et al., 1998), although the nature of the analyses and experimental preparations make a comparison of those studies to our own results difficult: In the former study, the authors claimed that GFAP and S100B were up-regulated at 72 h after exposure to a number of Aβ sequences, whereas the latter study claimed that GFAP and vimentin but not S100B were up-regulated in a subpopulation of cultured cells at 24 h after exposure to the 25–35 peptide. However, both studies used astrocytes that had been maintained in culture for very long periods of time prior to experiments, 21 and 14 days respectively, and in both cases they based their results on qualitative observations from micrographs without any quantification or image analysis. Interestingly, Meske and colleagues did not observe any changes in calcium signalling (Meske et al., 1998).

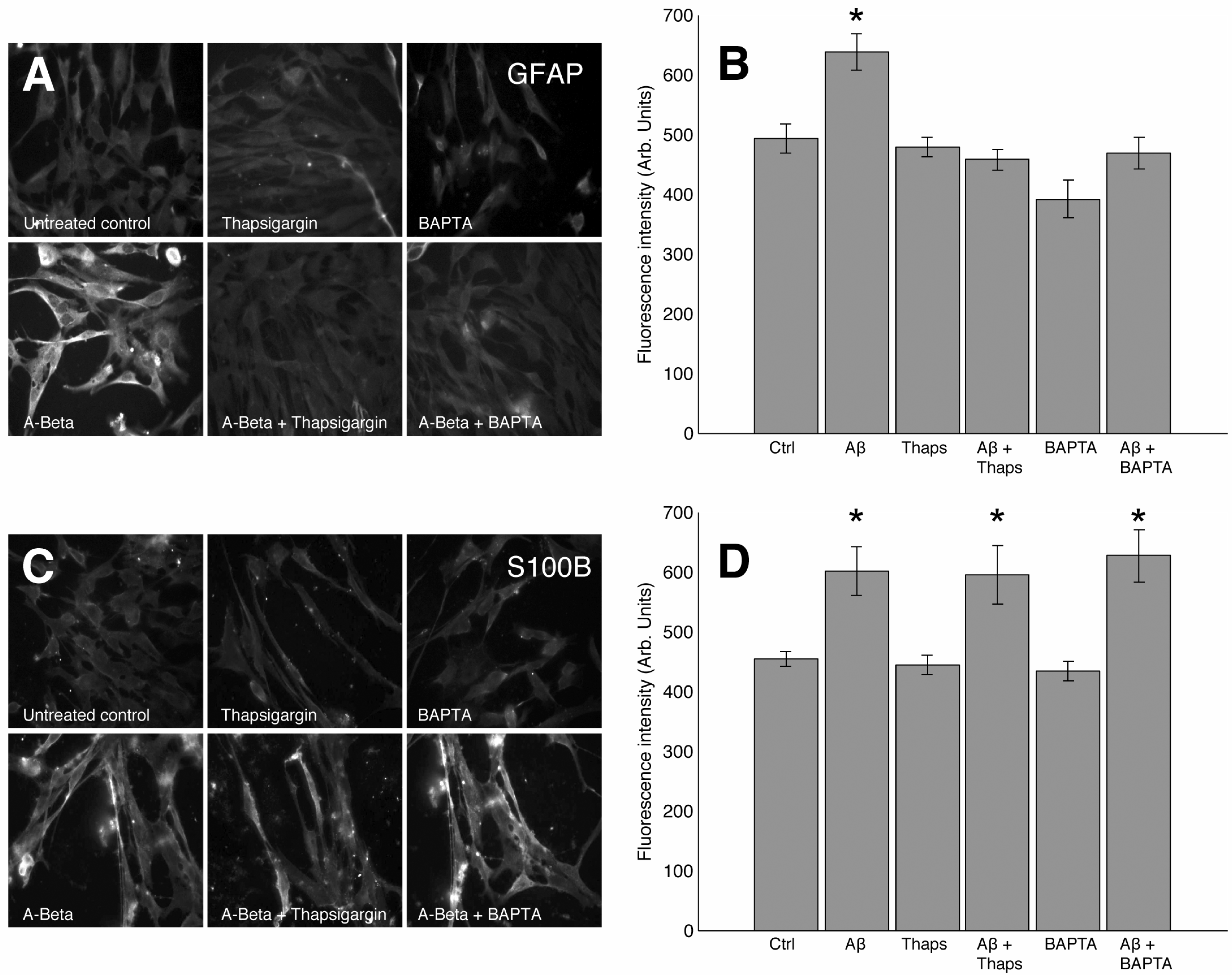

Figure 3

(B, D) Shown are mean fluorescence values, with the error bars representing 95% confidence bounds in A.U. based on image analysis of the micrographs (see the Materials and methods section). Western blot gels were done to confirm protein expression for the different conditions but we did not optimize for or quantify protein levels using this method. Fluorescence data were acquired using the same exposure and gain setting in every case, and the mean fluorescence intensities of the cells were extracted as recorded on the camera for each image. The camera sensor recorded intensity values on a 12-bit scale in A.U., from 0 to 4095. The results shown are means ± S.E.M. ^* P<0.001.

Images of 10 randomly chosen fields (× 40) were taken at three time points after Aβ dosing (12, 24 and 48 h) under six conditions (control, Aβ, Aβ+thapsigargin, thapsigargin, Aβ+BAPTA/AM and BAPTA/AM) in three experiments. Differences in fluorescent intensities between experimental conditions were similar at different time points, so we evaluated the data for statistical significance at the earliest time point in which we observed changes (Figure 3). We found significant changes in S100B and GFAP expression by 12 h after Aβ exposure. The average fluorescence intensity of GFAP at this time point was 492 ± 12 A.U. (arbitrary units) for controls and 637 ± 16 for Aβ-incubated cells (P<0.001, n=10 images per sample; see the legend to Figure 3), whereas for S100B the intensity level for Aβ treated cells was 602 ± 21 compared with 435 ± 6 for controls. Thapsigargin and BAPTA by themselves had no effect on either GFAP or S100B expression levels relative to controls. For GFAP, the application of Aβ in combination with thapsigargin or BAPTA significantly decreased the effects measured with Aβ by itself and brought fluorescence levels back to those observed for untreated controls (458 ± 9 for Aβ and thapsigargin and 468 ± 13 for Aβ and BAPTA, P<0.001 for both). On the other hand, S100B expression levels did not change relative to Aβ levels when challenged with Aβ in combination with thapsigargin or BAPTA, which measured 595 ± 25 and 627 ± 22 A.U. respectively.

DISCUSSION

We examined the effects of Aβ on the dynamics of spontaneous intracellular calcium transients and intercellular calcium waves in networks of primary cortical astrocytes in vitro, and explored Aβ-induced changes in the expression of GFAP and S100B. Aβ increased the frequency of intracellular calcium transients in individual cells and the total number of activated astrocytes. It also induced delayed spontaneous intercellular calcium waves. The recruitment of participating cells and the dynamics of observed waves were spatially heterogeneous, in the sense that not all cells within the area affected by the wave were necessarily activated, and waves displayed distinct radial or longitudinal directional propagation patterns. We also showed that changes in GFAP and S100B expression levels are affected by Aβ calcium levels (Inoue, 2008; Small et al., 2009; Smith et al., 2009).

Our present results are the first to demonstrate that Aβ is able to produce temporally delayed spontaneous intercellular calcium waves in isolated astrocytes independent of the contribution of other putative signalling cues. Astrocytic intercellular calcium waves have previously been associated with neuropathological phenomena such as spreading depression (Haughey and Mattson, 2003; Peters et al., 2003). Aβ-induced waves in our experiments exhibited propagation distances and speeds similar to previously reported values in the range of 20–100 μm and 5–20 μm/s (Dani et al., 1992; Zanotti and Charles, 1997; Hamilton et al., 2008). The spatial heterogeneity of advancing wave fronts observed in both radial and longitudinal waves, in which not all astrocytes within the range of a passing wave were necessarily activated or displayed intracellular calcium transients, suggests that functional signalling through astrocyte networks is not a passive phenomenon but spatially and functionally complex (Sul et al., 2004; Macdonald et al., 2008). This is consistent with previous experimental and theoretical work from our laboratory (Macdonald et al., 2008; Yu et al., 2009). Mechanistically, the generation and modulation of these waves is not clear and will require further investigation. For example, ATP release from astrocytes is enhanced in the presence of calcium and is stored and released from dense core granules independent of gap junctional release (Coco et al., 2003), which could putatively play a role in modulating Aβ-induced calcium waves. Indeed, ATP vesicular release has been implicated as the principal mechanism underlying intercellular calcium waves in astrocyte networks, with a minimal contribution through gap junctions (Coco et al., 2003; Bowser and Khakh, 2007; Pangrsic et al., 2007; Zhang et al., 2007).

These results complement the work by Kuchibhotla and colleagues (Kuchibhotla et al., 2009). These authors eliminated putative effects of Aβ-induced neuronal hyperactivity on astrocytic calcium signalling by blocking neuronal activity with TTX (tetrodotoxin), concluding that the resultant observed astrocytic calcium waves were due to the direct effect of Aβ on the astrocyte network. However, microglia could also modulate astrocytic calcium signalling independent of any neuronal contribution, and have been shown to migrate and cluster near Aβ plaque-forming areas in the hippocampus and neocortex (Frautschy et al., 1998; Stalder et al., 1999; Hasegawa et al., 2001). Microglia internalize microaggregates of Aβ and secret pro-inflammatory factors including IL-1β (interleukin-1β), TNF (tumour necrosis factor) and nitric oxide, which in turn affect calcium homoeostasis and transients in surrounding neurons and astrocytes (Meda et al., 1995; Weldon et al., 1998; Colton et al., 2000; Benveniste et al., 2001; Lee et al., 2002; Morita et al., 2003). Furthermore, microglia derived from AD patients show significantly higher basal [Ca²⁺]_i (McLarnon et al., 2005), and can also cause calcium elevations in neighbouring cells by regulating the amount of extracellular calcium (Barger and Basile, 2001; McLarnon et al., 2006). Our results here show that astrocytes by themselves are capable of spontaneously forming signalling networks by initiating and propagating intercellular calcium waves under stress conditions similar to those present in AD in the absence of signalling factors and cues from other cell types. The shorter distance and lower speed of the waves in our experiments compared with those reported by Kuchibhotla et al. (2009) may be due to an augmented effect caused by other cell types or signalling factors in vivo missing from the reduced in vitro preparations we studied. The molecular and cellular mechanisms that produce these waves and any effects on the pathophysiology of AD are yet to be confirmed in vivo and will require much further investigation.

Lastly, in our experiments, Aβ induced changes in the protein expression of both S100B and GFAP by 12 h after exposure to the peptide. Measured relative changes of normalized fluorescence intensity levels of anti-GFAP and anti-S100B signals in immunocytochemistry have been used as reliable markers associated with reactive gliosis (Dyer and Cepko, 2000; Wu et al., 2003; Pathak et al., 2009). We also observed a dependency between [Ca²⁺]_i and the expression levels of GFAP after exposure to Aβ. Reducing [Ca²⁺]_i by chelating with BAPTA or applying thapsigargin reduced GFAP levels to those measured under control conditions. Thus it appears that changes in GFAP expression are dependent on changes in calcium homoeostasis induced by Aβ, rather than a direct effect of Aβ itself. S100B levels, on the other hand, were not affected by application of BAPTA or thapsigargin, suggesting a potentially more direct effect of Aβ on S100B up-regulation. Interestingly, GFAP plays a role in trafficking of dense core vesicles containing ANF (atrial natriuretic factor) (Pangrsic et al., 2007); and since intercellular calcium waves in astrocytes are mediated primarily by vesicular ATP, this could play a role in the pathological propagation of signals throughout the astrocytic network.

The pathophysiology of AD is multidimensional and complex. While previous efforts have focused on the effects of Aβ on neurons, the results we present here add to other work implicating a potential, but as yet poorly understood, role for astrocytes in the pathogenesis of AD. The picture that is emerging, however, is one where astrocytes directly and robustly respond to the presence of Aβ in a number of ways known to affect the health and function of neurons. It is likely that a complete understanding of the pathology of AD will require an understanding of the metabolic and functional responses and effects that astrocytes have. Such an understanding may suggest novel pharmacological targets to either slow down or reverse the resultant neuronal death.

Footnotes

Funding

This work was supported by funds from the NINDS (National Institute of Neurological Disorders and Stroke) at the NIH [National Institutes of Health; NS054736].

Abbreviations

References

Abramov

Canevari

Duchen

(2003) Changes in intracellular calcium and glutathione in astrocytes as the primary mechanism of amyloid neurotoxicity. J Neurosci 23:5088–5095.

Abramov

Canevari

Duchen

(2004) Calcium signals induced by amyloid β peptide and their consequences in neurons and astrocytes in culture. Biochim Biophys Acta 1742:81–87.

Arcuino

Lin

Takano

Liu

Jiang

Gao

Kang

Nedergaard

(2002) Intercellular calcium signaling mediated by point-source burst release of ATP. Proc Natl Acad Sci USA 99:9840–9845.

Barger

Basile

(2001) Activation of microglia by secreted amyloid precursor protein evokes release of glutamate by cystine exchange and attenuates synaptic function. J Neurochem 76:846–854.

Benveniste

Nguyen

O'Keefe

(2001) Immunological aspects of microglia: Relevance to Alzheimer's disease. Neurochem Int 39:381–391.

Bowser

Khakh

(2007) Vesicular ATP is the predominant cause of intercellular calcium waves in astrocytes. J Gen Physiol 129:485–491.

Casas

Sergeant

Itier

Blanchard

Wirths

van der Kolk

Vingtdeux

van de Steeg

Ret

Canton

Drobecq

Clark

Bonici

Delacourte

Benavides

Schmitz

Tremp

Bayer

Benoit

Pradier

(2004) Massive CA1/2 neuronal loss with intraneuronal and N-terminal truncated Aβ42 accumulation in a novel Alzheimer transgenic model. Am J Pathol 165:1289–1300.

Coco

Calegari

Pravettoni

Pozzi

Taverna

Rosa

Matteoli

Verderio

(2003) Storage and release of ATP from astrocytes in culture. J Biol Chem 278:1354–1362.

Colton

Chernyshev

Gilbert

Vitek

(2000) Microglial contribution to oxidative stress in Alzheimer's disease. Ann NY Acad Sci 899:292–307.

10.

Cornell-Bell

Finkbeiner

Cooper

Smith

(1990) Glutamate induces calcium waves in cultured astrocytes: Long-range glial signaling. Science 247:470–473.

11.

Dani

Chernjavsky

Smith

(1992) Neuronal activity triggers calcium waves in hippocampal astrocyte networks. Neuron 8:429–440.

12.

Dolmetsch

Lewis

(1998) Calcium oscillations increase the efficiency and specificity of gene expression. Nature 392:933–936.

13.

Dyer

Cepko

(2000) Control of Muller glial cell proliferation and activation following retinal injury. Nat Neurosci 3:873–880.

14.

Emre

Geula

Ransil

Mesulam

(1992) The acute neurotoxicity and effects upon cholinergic axons of intracerebrally injected β-amyloid in the rat brain. Neurobiol Aging 13:553–559.

15.

Fellin

(2009) Communication between neurons and astrocytes: Relevance to the modulation of synaptic and network activity. J Neurochem 108:533–544.

16.

Frautschy

Yang

Irrizarry

Hyman

Saido

Hsiao

Cole

(1998) Microglial response to amyloid plaques in APPsw transgenic mice. Am J Pathol 152:307–317.

17.

Hamilton

Vayro

Kirchhoff

Verkhratsky

Robbins

Gorecki

Butt

(2008) Mechanisms of ATP- and glutamate-mediated calcium signaling in white matter astrocytes. Glia 56:734–749.

18.

Hardy

Selkoe

(2002) The amyloid hypothesis of Alzheimer's disease: Progress and problems on the road to therapeutics. Science 297:353–356.

19.

Hasegawa

Nakai

Tanimukai

Taniguchi

Terashima

Kawamata

Fukunaga

Miyamoto

Misaki

Mukai

Tanaka

(2001) Microglial signaling by amyloid β protein through mitogen-activated protein kinase mediating phosphorylation of MARCKS. Neuroreport 12:2567–2571.

20.

Haughey

Mattson

(2003) Alzheimer's amyloid β-peptide enhances ATP/gap junction-mediated calcium-wave propagation in astrocytes. Neuromolecular Med 3:173–180.

21.

Hoogland

Kuhn

Gobel

Huang

Nakai

Helmchen

Flint

Wang

(2009) Radially expanding transglial calcium waves in the intact cerebellum. Proc Natl Acad Sci USA 106:3496–3501.

22.

Inoue

(2008) In situ Aβ pores in AD brain are cylindrical assembly of Aβ protofilaments. Amyloid 15:223–233.

23.

Johnston

Burnett

Thomas

Tezapsidis

(2006) Calcium oscillations in type-1 astrocytes, the effect of a presenilin 1 (PS1) mutation. Neurosci Lett 395:159–164.

24.

Kowall

McKee

Yankner

Beal

(1992) In vivo neurotoxicity of β-amyloid [β(1-40)] and the β(25-35) fragment. Neurobiol Aging 13:537–542.

25.

Kuchibhotla

Lattarulo

Hyman

Bacskai

(2009) Synchronous hyperactivity and intercellular calcium waves in astrocytes in Alzheimer mice. Science 323:1211–1215.

26.

LaFerla

(2002) Calcium dyshomeostasis and intracellular signalling in Alzheimer's disease. Nat Rev Neurosci 3:862–872.

27.

Lee

Chan

Mattson

(2002) Adverse effect of a presenilin-1 mutation in microglia results in enhanced nitric oxide and inflammatory cytokine responses to immune challenge in the brain. Neuromolecular Med 2:29–45.

28.

Macdonald

Buibas

Silva

(2008) Diffusion modeling of ATP signaling suggests a partially regenerative mechanism underlies astrocyte intercellular calcium waves. Front Neuroeng 1:1–13.

29.

Masliah

(2008) Neuropathology: Alzheimer's in real time. Nature 451:638–639.

30.

McLarnon

Choi

Lue

Walker

Kim

(2005) Perturbations in calcium-mediated signal transduction in microglia from Alzheimer's disease patients. J Neurosci Res 81:426–435.

31.

McLarnon

Ryu

Walker

Choi

(2006) Upregulated expression of purinergic P2X(7) receptor in Alzheimer disease and amyloid-β peptidetreated microglia and in peptide-injected rat hippocampus. J Neuropathol Exp Neurol 65:1090–1097.

32.

Meda

Cassatella

Szendrei

Otvos

Jr Baron

Villalba

Ferrari

Rossi

(1995) Activation of microglial cells by β-amyloid protein and interferon-γ . Nature 374:647–650.

33.

Meske

Hamker

Albert

Ohm

(1998) The effects of β/A4-amyloid and its fragments on calcium homeostasis, glial fibrillary acidic protein and S100β staining, morphology and survival of cultured hippocampal astrocytes. Neuroscience 85:1151–1160.

34.

Morita

Higuchi

Moto

Kozuka

Susuki

Itofusa

Yamashita

Kudo

(2003) Dual regulation of calcium oscillation in astrocytes by growth factors and pro-inflammatory cytokines via the mitogen-activated protein kinase cascade. J Neurosci 23:10944–10952.

35.

Newman

Zahs

(1997) Calcium waves in retinal glial cells. Science 275:844–847.

36.

Pamplona

Dalfo

Ayala

Bellmunt

Prat

Ferrer

Portero-Otin

(2005) Proteins in human brain cortex are modified by oxidation, glycoxidation, and lipoxidation. Effects of Alzheimer disease and identification of lipoxidation targets. J Biol Chem 280:21522–21530.

37.

Pangrsic

Potokar

Stenovec

Kreft

Fabbretti

Nistri

Pryazhnikov

Khiroug

Giniatullin

Zorec

(2007) Exocytotic release of ATP from cultured astrocytes. J Biol Chem 282:28749–28758.

38.

Parri

Gould

Crunelli

(2001) Spontaneous astrocytic Ca²⁺ oscillations in situ drive NMDAR-mediated neuronal excitation. Nat Neurosci 4:803–812.

39.

Pasti

Volterra

Pozzan

Carmignoto

(1997) Intracellular calcium oscillations in astrocytes: A highly plastic, bidirectional form of communication between neurons and astrocytes in situ . J Neurosci 17:7817–7830.

40.

Pathak

Tolentino

Kim

D'Amico

Barron

Cheng

Freeman

Silva

(2009) Quantum dot labeling and imaging of glial fribrillary acidic protein intermediate filaments and gliosis in the rat neural retina and dissociated astrocytes. J Nanosci Nanotech 9:5047–5054.

41.

Peskind

Griffin

Akama

Raskind

Van Eldik

(2001) Cerebrospinal fluid S100B is elevated in the earlier stages of Alzheimer's disease. Neurochem Int 39:409–413.

42.

Peters

Schipke

Hashimoto

Kettenmann

(2003) Different mechanisms promote astrocyte Ca²⁺ waves and spreading depression in the mouse neocortex. J Neurosci 23:9888–9896.

43.

Pike

Cummings

Monzavi

Cotman

(1994) β-Amyloid-induced changes in cultured astrocytes parallel reactive astrocytosis associated with senile plaques in Alzheimer's disease. Neuroscience 63:517–531.

44.

Salinero

Moreno-Flores

Ceballos

Wandosell

(1997) β-Amyloid peptide induced cytoskeletal reorganization in cultured astrocytes. J Neurosci Res 47:216–223.

45.

Saura

(2007) Microglial cells in astroglial cultures: A cautionary note. J Neuroinflammation 4:26.

46.

Scemes

Giaume

(2006) Astrocyte calcium waves: What they are and what they do. Glia 54:716–725.

47.

Schipke

Boucsein

Ohlemeyer

Kirchhoff

Kettenmann

(2002) Astrocyte Ca²⁺ waves trigger responses in microglial cells in brain slices. FASEB J 16:255–257.

48.

Simpson

Ince

Lace

Forster

Shaw

Matthews

Savva

Brayne

Wharton

(2008) Astrocyte phenotype in relation to Alzheimer-type pathology in the ageing brain. Neurobiol Aging, doi:10.1016/j.neurobiolaging.2008.05.015.

49.

Small

Gasperini

Vincent

Hung

Foa

(2009) The role of Aβ-induced calcium dysregulation in the pathogenesis of Alzheimer's disease. J Alzheimers Dis 16:225–233.

50.

Smith

Brender

Ramamoorthy

(2009) Induction of negative curvature as a mechanism of cell toxicity by amyloidogenic peptides: The case of islet amyloid polypeptide. J Am Chem Soc 131:4470–4478.

51.

Stalder

Phinney

Probst

Sommer

Staufenbiel

Jucker

(1999) Association of microglia with amyloid plaques in brains of APP23 transgenic mice. Am J Pathol 154:1673–1684.

52.

Stutzmann

Caccamo

LaFerla

Parker

(2004) Dysregulated IP3 signaling in cortical neurons of knock-in mice expressing an Alzheimer's-linked mutation in presenilin1 results in exaggerated Ca²⁺ signals and altered membrane excitability. J Neurosci 24:508–513.

53.

Sul

Orosz

Givens

Haydon

(2004) Astrocytic connectivity in the hippocampus. Neuron Glia Biol 1:3–11.

54.

Takano

Tian

Peng

Lou

Libionka

Han

Nedergaard

(2006) Astrocyte-mediated control of cerebral blood flow. Nat Neurosci 9:260–267.

55.

Weldon

Rogers

Ghilardi

Finke

Cleary

O'Hare

Esler

Maggio

Mantyh

(1998) Fibrillar β-amyloid induces microglial phagocytosis, expression of inducible nitric oxide synthase, and loss of a select population of neurons in the rat CNS in vivo . J Neurosci 18:2161–2173.

56.

Madigan

Billson

Penfold

(2003) Differential expression of GFAP in early v late AMD: A quantitative analysis. Br J Ophthalmol 87:1159–1166.

57.

Buibas

Chow

Lee

Singer

Silva

(2009) Characterization of calcium-mediated intracellular and intercellular signaling in the rMC-1 glial cell line. Cell Mol Bioeng 2:144–155.

58.

Zanotti

Charles

(1997) Extracellular calcium sensing by glial cells: Low extracellular calcium induces intracellular calcium release and intercellular signaling. J Neurochem 69:594–602.

59.

Zhang

Chen

Zhou

Song

Luo

Wang

Duan

(2007) Regulated ATP release from astrocytes through lysosome exocytosis. Nat Cell Biol 9:945–953.
