Abstract

Objective

To compare the effectiveness of a single-layered polyethylene survival bag (P), a single-layered polyethylene survival bag with a hot drink (P+HD), a multi-layered metalized plastic sheeting survival bag (MPS: Blizzard Survival), and a multi-layered MPS survival bag with 4 large chemical heat pads (MPS+HP: Blizzard Heat) to treat cold casualties.

Methods

Portable cold casualty treatment methods were compared by examining core and skin temperature, metabolic heat production, and thermal comfort during a 3-hour, 0°C cold air exposure in 7 shivering, near-hypothermic men (35.4°C). The hot drink (70°C, ∼400ml, ∼28kJ) was consumed at 0, 1, and 2 hours during the cold air exposure.

Results

During the cold air exposure, core rewarming and thermal comfort were similar on all trials (P = .45 and P = .36, respectively). However, skin temperature was higher (10%–13%; P < .001; large effect sizes d > 2.7) and metabolic heat production lower (15%–39%; P < .05; large effect sizes d > .9) on MPS and MPS+HP than P and P+HD. The addition of heat pads further lowered metabolic heat production by 15% (MPS+HP vs MPS; P = .05; large effect size d = .9). The addition of the hot drink to polyethylene survival bag did not increase skin temperature or lower metabolic heat production.

Conclusions

Near-hypothermic cold casualties are rewarmed with less peripheral cold stress and shivering thermogenesis using a multi-layered MPS survival bag compared with a polyethylene survival bag. Prehospital rewarming is further aided by large chemical heat pads but not by hot drinks.

Keywords

rewarming hypothermia thermogenesis multiple trauma frostbite wilderness medicine

Introduction

To prevent hypothermia-related mortality, it is vital to develop portable methods to attenuate heat loss that casualties and first responders can use as part of prehospital care while they await more sophisticated medical facilities.^1,2 Multiple layering that includes a vapor-proof barrier and insulation has recently been highlighted as important for cold protection.^3,4 Unfortunately, being cumbersome and heavy (2.5 kg), the methods used in these studies have limited portability. A more portable cold protection method option is a survival bag constructed of multiple layers of metalized plastic sheeting (MPS: Blizzard Survival weight 0.4 kg). The effectiveness of this survival bag to protect shivering human cold casualties compared with other vapor-proof barriers remains unknown. Portable heat sources that may benefit cold casualties are limited to chemical heat pads and the ingestion of hot drinks, as body-to-body contact is ineffective in rewarming shivering cold casualties.⁵ Although a recommended practice to support shivering,¹ no study has investigated whether hot drink ingestion has thermally beneficial effects for cold casualties. As cold drinks reduce core temperature and subjective thermal discomfort during exercise-induced hyperthermia, it might be hypothesized that hot drinks may increase core temperature and thermal comfort in shivering cold casualties.⁶ Large chemical heat pads are more effective than spontaneous thermogenesis to rewarm persons with inhibited shivering⁷; however, it remains unclear if they are effective in rewarming shivering cold casualties. This study’s objective was therefore to compare the effectiveness to treat cold casualties of a single-layered polyethylene survival bag, a single-layered polyethylene survival bag with a hot drink, a multi-layered metalized plastic sheeting survival bag, and a multi-layered MPS survival bag with 4 large chemical heat pads.

Methods

Study Design

A crossover study was performed where participants completed all trials in a random order. Randomization was completed by SJO (www.randomizer.org). The study received University Ethics Committee approval.

Participants

Seven healthy men (mean ± SD: age 21 ± 3 years; height 178 ± 5 cm; nude body mass 70.5 ± 5.2 kg; body fat 10 ± 3%) volunteered for the study after giving written informed consent. Participants reported no infection and did not take medication or nutritional supplements 6 weeks before or during the study. To standardize nutritional status and physical activity, participants completed a food and activity diary for the 24 hours before the first trial, which they then repeated before each subsequent trial. In the 24 hours before each trial, participants also consumed water equal to 35 ml per kilogram body mass and refrained from alcohol and exhaustive exercise.

Experimental Procedures

In 4 trials, participants were made near-hypothermic by cold water immersion, after which they completed a 3-hour 0°C cold air exposure in an environmental chamber using 1 of 4 cold casualty treatments: a single-layered polyethylene survival bag (P: 3-mil [∼0.08 mm thick] polyethylene, weight 0.25 kg, packed size 24 × 15 × 1 cm; Figure 1A), a single-layered polyethylene survival bag with a hot drink (P+HD), a multi-layered MPS survival bag (MPS: Blizzard Survival bag, weight 0.39 kg, packed size 21 × 11 × 4 cm; Figure 1B), and a multi-layered MPS survival bag with 4 large chemical heat pads (MPS+HP: Blizzard Survival Heat bag, weight 1.90 kg, packed size 30 × 25 × 7 cm; surface area of each large chemical heat pad 24 × 30 cm). The fifth trial was a control (CON) where participants remained seated in an ambient temperature 20°C (relative humidity [RH] 41%).

Figure 1

Polyethylene survival bag (A) and a multi-layered metallized plastic sheeting survival bag (B: Blizzard Survival bag).

After an overnight fast, participants arrived at 0800 hours. After voiding, anthropometric and body composition measures of height, body mass, and body fat were obtained (InBody230; Biospace, Seoul, South Korea). Urine was analyzed for specific gravity (Atago, Tokyo, Japan). Participants then fitted a rectal thermistor 12 cm beyond the anal sphincter (2020 Series; Grant Instruments, Cambridgeshire, UK) and began a 30-minute seated rest dressed in a tracksuit, swim shorts, t-shirt, socks, and shoes. On the cold stress trials, participants were then immersed up to the axilla in 13.0 ± 0.1°C stirred water wearing swim shorts until core temperature reached 36°C. After, participants were carefully dried, dressed in dry shorts, socks, and gloves, and fitted with skin thermistors. Participants then entered an environmental chamber and after 5 minutes seated were given, and instructed how to use, 1 of the portable cold casualty field methods. Participants remained seated for the 3 hours in the environmental chamber (0°C, RH 40%, and wind velocity 0.2 m/s; Delta Environmental Systems, West Yorkshire, UK). On CON, participants were fitted with rectal and skin thermistors and sat for the same duration as in the cold air exposure trials but were free to choose their attire. During all trials participants consumed flavored water from an insulated container equal to 6 mL per kg of body mass at 0, 60, and 120 minutes. The flavored water contained negligible energy content (∼7 kJ per 100 mL). Pilot testing confirmed that the 15-minute drinking period meant the average drink temperature consumed was 70°C on P+HD and 36°C on all other trials. During the trials, core and skin temperature was measured continuously via thermometry. Mean skin temperature was calculated by an equation adjusted for regional proportions.⁸ Metabolic heat production and energy expenditure were determined by indirect calorimetry techniques and equations^9,10 as described in detail previously.¹¹ Thermal discomfort was determined by perceived thermal comfort (McGinnis 13-point scale: 1 = so cold I am helpless, 7 = comfortable, 13 = so hot I am sick and nauseated),¹² and pain sensation to cold (10-point scale: 1 = barely cool to 10 = unbearable pain).¹³ After cold air exposure, participants were rewarmed in 40°C water and monitored for 2 hours.

Statistical Analyses

Based on the typical standard deviation of 0.6°C and 9 W/m² (co-efficient of variation ∼3% and 7%, respectively),¹¹ and using standard alpha (.05) and beta values (.8), a sample size of 7 was estimated (G*Power, Version 3.1.2) to have adequate statistical precision to detect a 0.8°C and 12 W/m² difference in skin temperature and metabolic heat production between any 2 conditions during the cold air exposure (2-tailed). The main outcome measures, skin temperature and metabolic heat production, were averaged using the arithmetic mean for each hour and compared between trials by 2-way fully repeated-measures analyses of variance (ANOVA). Significant main effects and interactions were explored by 1-way repeated measures ANOVA, uncorrected Fisher’s LSD, and Tukey’s post hoc tests. The meaningfulness of the differences between cold casualty treatment methods were quantified by Cohen’s d effect sizes, which can be interpreted as small (0.2), medium (0.5), and large (0.8).¹⁴ A 1-way repeated measures ANOVA was also used to compare baseline, cold water immersion time, and physiological responses at the start of the cold air exposure. Thermal discomfort was analyzed by Friedman test. Statistical significance was accepted at P < .05. All statistical analyses were completed using a computerized statistical software package (GraphPad Prism version 6; GraphPad Software, La Jolla, CA).

Results

Baseline Physiological Responses And Cold Water Immersion Times

At the start of the trials, body mass, body fat, urine-specific gravity, resting core temperature, and metabolic heat production were similar (70.5 ± 5.2 kg, P = .41; 10 ± 3%, P = .55; 1.023 ± 1.004, P = .69; 36.7 ± 0.2°C, P = .73; 52 ± 14 W/m², P = .88). Cold water immersion time was similar on all the cold stress trials (32 ± 17 min, P = .55).

Cold Air Exposure Thermal Responses

At the start of the cold air exposure, core and skin temperature and metabolic heat production were similar (P = .12, P = .38, and P = .69, respectively). Irrespective of the cold casualty treatment method employed, core temperature was similar during the 3-hour cold air exposures (P = .33). Core temperature declined to a low of 35.4 ± 0.3°C within the first 20 minutes and then returned to within normal control core temperatures by the third hour of cold air exposure (P = .38).

Core temperature rewarming was achieved by different thermal and metabolic effects that suggest lower cold stress with MPS and MPS+HP than P and P+HD (Figure 2, Table 1). Lower peripheral cold stress was clear from the 2.5 to 3.1°C higher skin temperature with MPS and MPS+HP than P and P+HD (10%–13%, P < .001, large effect sizes d > 2.7; Figure 2A, Table 1). Throughout the cold air exposure skin temperature was higher on MPS and MPS+HP than P and P+HD in the first (P < .05), second (P < .01), and third hours (P < .01). Skin temperature was lower than CON throughout all cold air exposures trials (P < .01).

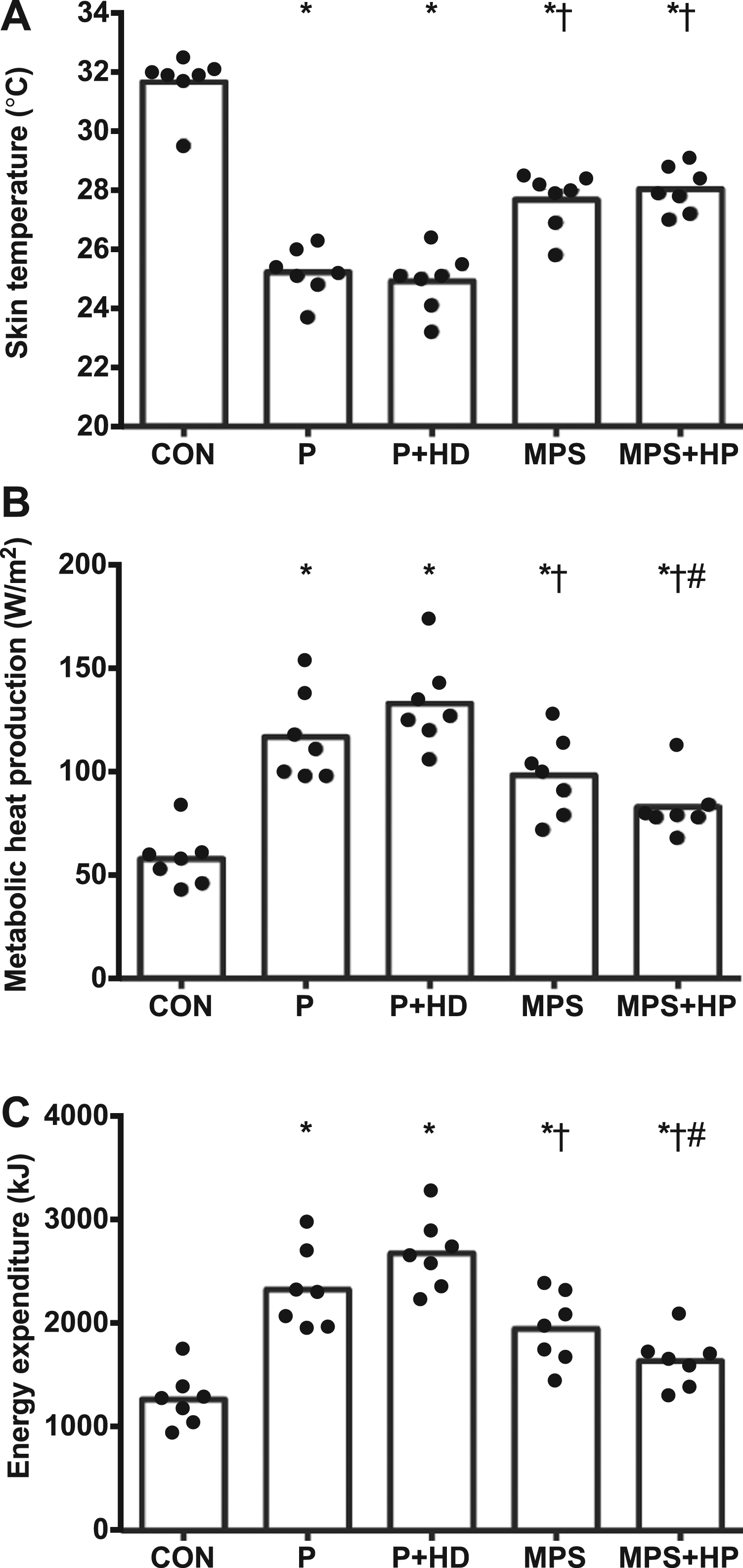

Figure 2

Mean thermal responses to a 3-hour cold air exposure (0°C) when shivering cold casualties use a single-layered polyethylene survival bag (P), a single-layered polyethylene survival bag with a hot drink (P+HD), a multi-layered MPS survival bag (MPS: Blizzard Survival bag), and a multi-layered MPS survival bag with 4 large chemical heat pads (MPS+HP: Blizzard Survival Heat bag). The fifth trial was a control (CON) where participants remained seated in an ambient temperature 20.2 ± 1.7°C, relative humidity (RH) 41 ± 6%. Data are presented as individual responses (displayed as dot plots) and mean (as boxes). Statistical annotation are from post hoc multiple comparison tests to examine differences between treatment methods.^* indicates difference to CON (P < .05). † indicates difference to P and P+HD (P < .05). # indicates difference to MPS (P < .05).

Table 1

Differences in thermal responses and energy expenditure to a 3-h cold air exposure (0°C) when shivering cold casualties use a single-layered polyethylene survival bag (P), a single-layered polyethylene survival bag with a hot drink (P+HD), a multi-layered MPS survival bag (MPS: Blizzard Survival bag), and a multi-layered MPS survival bag with 4 large chemical heat pads (MPS+HP: Blizzard Survival Heat bag)

	Mean absolute difference	95% confidence interval of difference	Relative difference (%)	Cohen’s d effect size
Skin temperature (°C)
P+HD vs. P	-0.3	-0.7 to 1.3	-1	-0.3 (small)
^*MPS vs. P	2.5	1.4 to 3.5	10	2.7 (large)
^*MPS+HP vs. P	2.8	1.2 to 4.4	11	3.4 (large)
^*MPS vs. P+HD	2.8	1.6 to 3.9	11	2.8 (large)
^*MPS+HP vs. P+HD	3.1	1.8 to 4.4	13	3.4 (large)
MPS+HP vs. MPS	0.4	-1.3 to 2.0	1	0.3 (small)
Metabolic heat production (W/m²)
P+HD vs. P	16	-10 to 42	14	0.7 (medium)
^*MPS vs. P	-18	-42 to 5	-15	-0.9 (large)
^*MPS+HP vs. P	-34	-63 to -5	-29	-1.8 (large)
^*MPS vs. P+HD	-35	-48 to -21	-26	-1.7 (large)
^*MPS+HP vs. P+HD	-50	-69 to -31	-38	-2.7 (large)
^*MPS+HP vs. MPS	-15	-37 to 6	-15	-0.9 (large)
Energy expenditure (kJ)
^*P+HD vs. P	349	-105 to 803	15	1.0 (large)
^*MPS vs. P	-380	-871 to 110	-16	-1.0 (large)
^*MPS+HP vs. P	-34	-1204 to -179	-30	-2.1 (large)
^*MPS vs. P+HD	-35	-1013 to -445	-27	-2.1 (large)
^*MPS+HP vs. P+HD	-50	-1379 to -684	-39	-3.4 (large)
^*MPS+HP vs. MPS	-15	-729 to 108	-16	-1.0 (large)

⁎

indicates statistical difference (P < 0.05) determined by uncorrected Fisher’s LSD post hoc test. The 95% confidence interval of difference is from Tukey’s post hoc test.

Metabolic heat production was lower when cold casualties used MPS and MPS+HP than P and P+HD (15%–38%, P < .05, large effect sizes d > .9; Figure 2B, Table 1). Further, when participants used MPS and MPS+HP, metabolic heat production was not different to CON in the second and third hour of the cold air exposure (P = .21 and .80, respectively; Figure 1C). In contrast, metabolic heat production was greater than CON in the third hour of the cold air exposure when participants used P and P+HD (P = .01 and < .001, respectively).

The addition of heat pads further lowered metabolic heat production by 15% (MPS+HP vs. MPS, P = 0.05, large effect size d = 0.9). Energy expenditure responses were similar to metabolic heat production (Figure 2C, Table 1). The addition of the hot drink to polyethylene survival bag did not increase skin temperature or lower metabolic heat production.

Subjective thermal discomfort was not statistically different between cold casualty treatments (thermal comfort P = .36, pain sensation to cold P = .14; Figure 3); however, MPS+HP was the only treatment where thermal discomfort was not greater than CON.

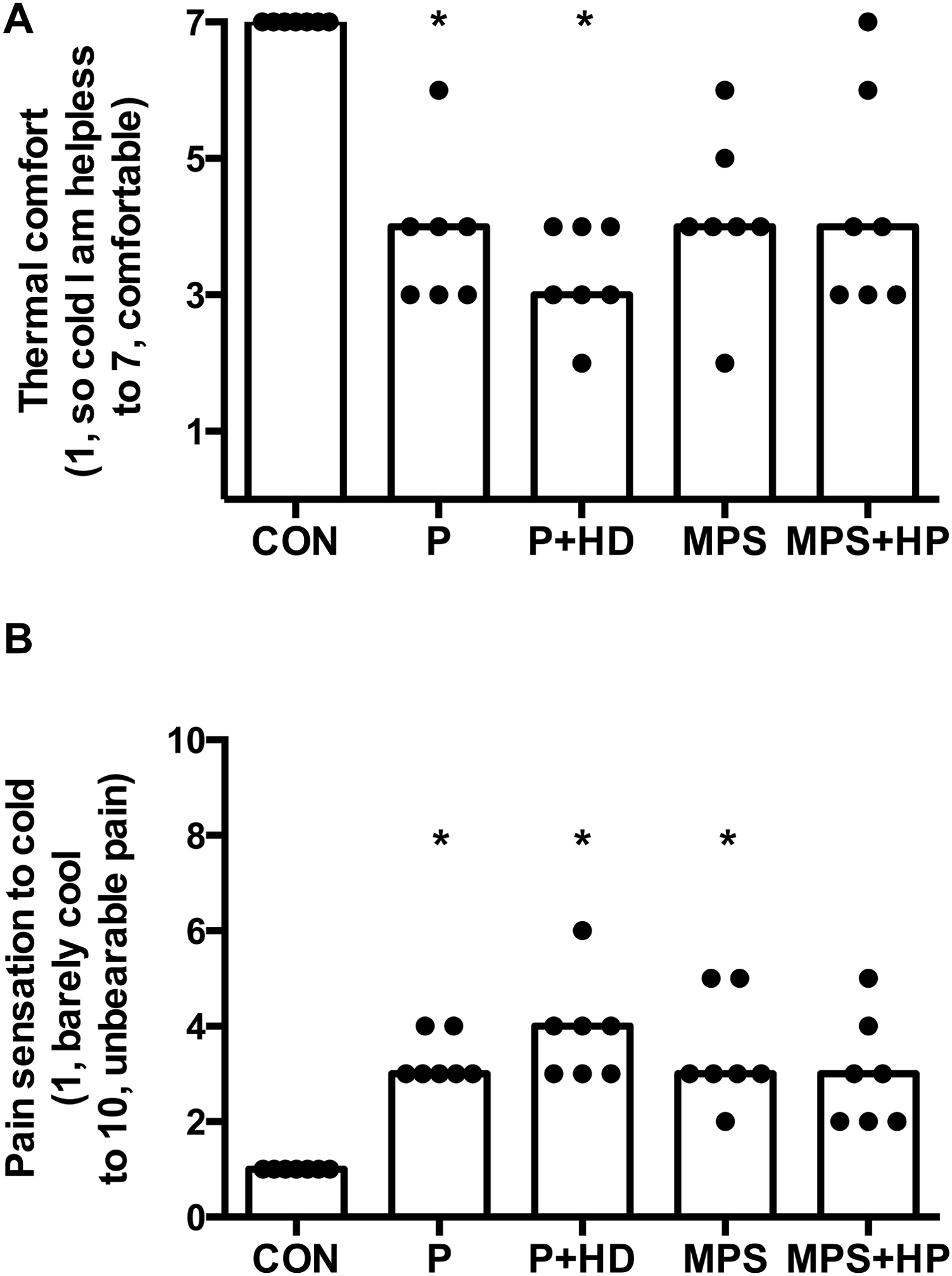

Figure 3

Mean thermal discomfort responses to a 3-hour cold air exposure (0°C) when shivering cold casualties use a single-layered polyethylene survival bag (P), a single-layered polyethylene survival bag with a hot drink (P+HD), a multi-layered MPS survival bag (MPS: Blizzard Survival bag), and a multi-layered MPS survival bag with 4 large chemical heat pads (MPS+HP: Blizzard Survival Heat bag). The fifth trial was a control (CON) where participants remained seated in an ambient temperature 20.2 ± 1.7°C, relative humidity (RH) 41 ± 6%. Data are presented as individual responses (displayed as dot plots) and median (as boxes). Statistical annotations are from post hoc multiple comparison tests to examine differences between treatment methods. * indicates difference to CON (P < .05).

Discussion

This study compared the effectiveness of portable prehospital field methods to treat near-hypothermic (35.4°C) shivering cold casualties in 0°C environment. Core temperature rewarming was accomplished (∼1°C) by all methods within 3 hours. The prehospital methods, however, accomplished rewarming with a different peripheral cold stress and shivering thermogenesis. Near hypothermic cold casualties were rewarmed with less peripheral cold stress and shivering thermogenesis using a multi-layered, MPS survival bag compared with a polyethylene survival bag. Prehospital rewarming was further aided by large chemical heat pads. The differences in skin temperature and metabolic heat production observed between the prehospital methods should be considered meaningful and clinically relevant based on the observed large or very large effect size statistics. The differences between methods in the present study are also relatively large, 2- to 3-fold greater, when compared with another recent cold casualty study that evaluated the benefit of wet clothing removal or the addition of a vapor barrier.⁴

To the authors’ knowledge, this is the first study to provide empirical evidence that a hot drink provides no rewarming benefit to a shivering cold casualty. As participants consumed approximately 1.3 L of 70°C flavored water, which likely represents the upper limits of what is practically portable, this study highlights that hot drinks have limited application for the treatment of cold casualties, and does not support prehospital accidental hypothermia guidelines to administer hot drinks to hypothermic patients. Instead guidelines should emphasize the consumption of sugary drinks irrespective of temperature.¹

Limitations

In this study, participants were not blind to each prehospital method, which may have influenced their reports of thermal discomfort. Rectal core temperature assessment has received recent criticism for monitoring cold casualties during rewarming because it is slower at responding than the esophageal method.¹ The choice of a rectal thermistor in this study is less problematic because the interest was not to determine the precise temperature but to compare differences between prehospital methods. Further, skin temperature and metabolic heat production were the main outcome measures and not rewarming determined by core temperature. The performance of prehospital methods used in this study remains unclear in persons other than uninjured healthy young men (eg, women, children, elderly or injured persons). Encouragingly, it is likely that the differences between prehospital methods observed in uninjured healthy young men would be similar or even greater in persons other than uninjured healthy young men as they are at greater cold injury risk because of thermoregulatory disadvantages (ie, greater surface area, smaller total body mass and musculature, and impaired peripheral vasoconstriction and thermogenesis in older and injured persons).¹⁵

Practical Implications

The multi-layered MPS survival bag with heat pads should be the first choice to treat all casualties. Where it is not possible to carry the MPS survival bag with heat pads, the multi-layered MPS survival bag without heat pads should be chosen because of its superior performance compared with the single-layered, vapor-proof polyethylene survival bag.

Conclusions

In conclusion, near-hypothermic cold casualties are rewarmed with less peripheral cold stress and shivering thermogenesis using a multi-layered MPS survival bag compared with a polyethylene survival bag. Prehospital rewarming is further aided by large chemical heat pads but not by hot drinks.

Footnotes

Acknowledgments

The authors would like to thank the study participants for their efforts, Kevin Williams for his technical expertise, and Dr. Zoe Hoare for her statistical advice (Senior Statistician, North Wales Organisation for Randomised Trials in Health). The authors declare they have no financial relationships that may pose a conflict of interest.

JLB’s PhD studies were supported by European Social Funding. Blizzard Protection Systems Ltd., Gwynedd, United Kingdom supplied all products gratis.

This research was previously presented in part as an abstract at the American College of Sports Medicine annual meeting on June 2, 2012 in San Francisco, CA.

The opinions and assertions herein are the private views of the authors and do not construe official views of Bangor University or Blizzard Protection Systems Ltd.

References

Zafren

Giesbrecht

G.G.

Danzl

D.F.

et al. Wilderness Medical Society Practice Guidelines for the Out-of-Hospital Evaluation and Treatment of Accidental Hypothermia. Wilderness Environ Med 2014; 25, S66–S85.

Langhelle

Lockey

Harris

Davies

Body temperature of trauma patients on admission to hospital: a comparison of anaesthetised and non-anaesthetised patients. Emerg Med J 2012; 29, 239–242.

Thomassen

Ø.

Færevik

Østerås

Ø.

et al. Comparison of three different prehospital wrapping methods for preventing hypothermia--a crossover study in humans. Scand J Trauma Resusc Emerg Med 2011; 19, 41.

Henriksson

Lundgren

Kuklane

et al. Protection against cold in prehospital care: wet clothing removal or the addition of a vapor Barrier. Wilderness Env Med 2015; 26, 11–20.

Giesbrecht

Sessler

Mekjavic

Schroeder

Bristow

Treatment of mild immersion hypothermia by direct body-to-body contact. J Appl Physio 1994; 76, 2373–2379.

Lee

Shirreffs

Maughan

Cold drink ingestion improves exercise endurance capacity in the heat. Med Sci Sport Exerc 2008; 40, 1637–1644.

Lundgren

J.P.

Henriksson

Pretorius

et al. Field torso-warming modalities: a comparative study using a human model. Prehosp Emerg Care 2009; 13, 371–378.

ISO 9886

Ergonomics—Evaluation of Thermal Strain by Physiological Measurements . 2nd ed. Geneva, Switzerland: International Standards Organisation, 2004 1–21.

Gagge

A.P.

Gonzalez

Mechanisms of heat exchange: biophysics and physiology. In: Fregly

M.J.

Blatteis

C.M.

eds. Handbook of Physiology, Section 4, Environmental Physiology. , New York: Oxford University Press, 1996, 45–85.

10.

Weir

J.B.

New methods for calculating metabolic rate with special reference to protein metabolism. J Physiol 1949; 109, 1–9.

11.

Oliver

S.J.

Harper Smith

A.D.

Costa

R.J.S.

Maassen

Bilzon

J.L.J.

Walsh

N.P.

Two nights of sleep deprivation with or without energy restriction does not impair the thermal response to cold. Eur J Appl Physiol 2015; 115, 2059–2068.

12.

Hollies

Goldman

Clothing Comfort: Interaction of Thermal, Ventilation, Construction, and Assessment Factors . Science, Ann Arbor, MI, 1977 112.

13.

Chen

A.C.

Rappelsberger

Filz

Topology of EEG coherence changes may reflect differential neural network activation in cold and pain perception. Brian Topogr 1998; 11, 125–132.

14.

Cohen

The t test for means. In: Statistical Power Analysis for the Behavioral Sciences . 2nd ed. Hillsdale, New Jersey: Lawrence Erlbaum Associates, 1988 19–26.

15.

Castellani

J.W.

Young

A.J.

Ducharme

M.B.

Giesbrecht

G.G.

Glickman

E.L.

Sallis

R.E.

American College of Sports Medicine position stand: prevention of cold injuries during exercise. Med Sci Sport Exerc 2006; 38, 2012–2029.
