Two Cooperating Manipulators with Fractional Controllers

Abstract

This paper analyzes the dynamic performance of two cooperative robot manipulators. It is studied the implementation of fractional-order algorithms in the position/force control of two cooperating robotic manipulators holding an object. The simulations reveal that fractional algorithms lead to performances superior to classical integer-order controllers.

1. Introduction

Two robots carrying a common object are a logical alternative for the case in which a single robot is not able to handle the load. The choice of a robotic mechanism depends on the task or the type of work to be performed and, consequently, is determined by the position of the robots and by their dimensions and structure. In general, the selection is done through experience and intuition; nevertheless, it is important to measure the manipulation capability of the robotic system (Y. C. Tsai & A.H Soni., 1981) that can be useful in the robot operation. In this perspective it was proposed the concept of kinematic manipulability measure (T. Yoshikawa, 1985) and its generalization to dynamical manipulability (H. Asada, 1983) or, alternatively, the statistical evaluation of manipulation (J. A. Tenreiro. Machado & A. M. Galhano, 1997). Other related aspects such as the coordination of two robots handling objects, collision avoidance and free path planning have been also investigated (Y. Nakamura, K. Nagai, T. Yoshikawa, 1989) but they still require further study.

With two cooperative robots the resulting interaction forces have to be accommodated and consequently, in addition to position feedback, force control is also required to accomplish adequate performances (T. J. Tarn, A. K. Bejczy, P. K., 1996) and (N. M. Fonseca Ferreira, J. A. Tenreiro Machado, 2000) and (A. K. Bejczy and T. Jonhg Tarn, 2000). There are two basic methods for force control, namely the hybrid position/force and the impedance schemes. The first method (M. H. Raibert and J. J. Craig, 1981) separates the task into two orthogonal sub-spaces corresponding to the force and the position controlled variables. Once established the subspace decomposition two independent controllers are designed. The second method (N. Hogan, 1985) requires the definition of the arm mechanical impedance. The impedance accommodates the interaction forces that can be controlled to obtain an adequate response. Others authors (Kumar, Manish; Garg, Devendra 2005, Ahin Yildirim, 2005, Jufeng Peng, Srinivas Akella, 2005) present advance methodologies to optimize the control of two cooperating robots using the neural network architecture and learning mechanism to train this architecture online. This paper analyzes the manipulation and the payload capability of two arm systems and we study the position/force control of two cooperative manipulators, using fractional-order (FO) algorithms (J. A. Tenreiro Machado, 1997) and (N. M. Fonseca Ferreira & J. A. Tenreiro Machado 2003, 2004 and 2005).

Bearing these facts in mind this article is organized as follows. Section two presents the controller architecture for the position/force control of two robotic arms. Based on these concepts, section three develops several simulations for the statistical analysis and the performance evaluation of FO and classical PID controllers, for robots having several types of dynamic phenomena at the joints. Finally, section four outlines the main conclusions.

2. Control of Two Arms

The dynamics of a robot with n links interacting with the environment is modelled as:

$$\mathit{\tau }=\mathbf{H}(\mathbf{q})\ddot{\mathbf{q}}+\mathbf{C}(\mathbf{q},\dot{\mathbf{q}})+\mathbf{G}(\mathbf{q})-{\mathbf{J}}^{\mathbf{T}}(\mathbf{q})\mathbf{F}$$

(1)

where τ is the n × 1 vector of actuator torques, q is the n × 1 vector of joint coordinates, H(q) is the n × n inertia matrix, $\mathbf{C}(\mathbf{q},\dot{\mathbf{q}})$ is the n × 1 vector of centrifugal/Coriolis terms and G(q) is the n × 1 vector of gravitational effects. The n × m matrix J^T(q) is the transpose of the Jacobian of the robot and F is the m × 1 vector of the force that the (m-dimensional) environment exerts in the gripper.

We consider two robots with identical dimensions (Fig. 1). The contact of the robot gripper with the load is modelled through a linear system with a mass M, a damping B and a stiffness K (Fig. 2). The numerical values adopted for the RR (where R denote rotational joints) robots and the object are m₁ = m₂ = 1.0 kg, l₁ = l₂ = l_b = l₀ = 1.0 m, α₀ = 0 deg, B₁ = B₂ = 1 Nsm⁻¹ and K₁ = K₂ = 104 Nm⁻¹.

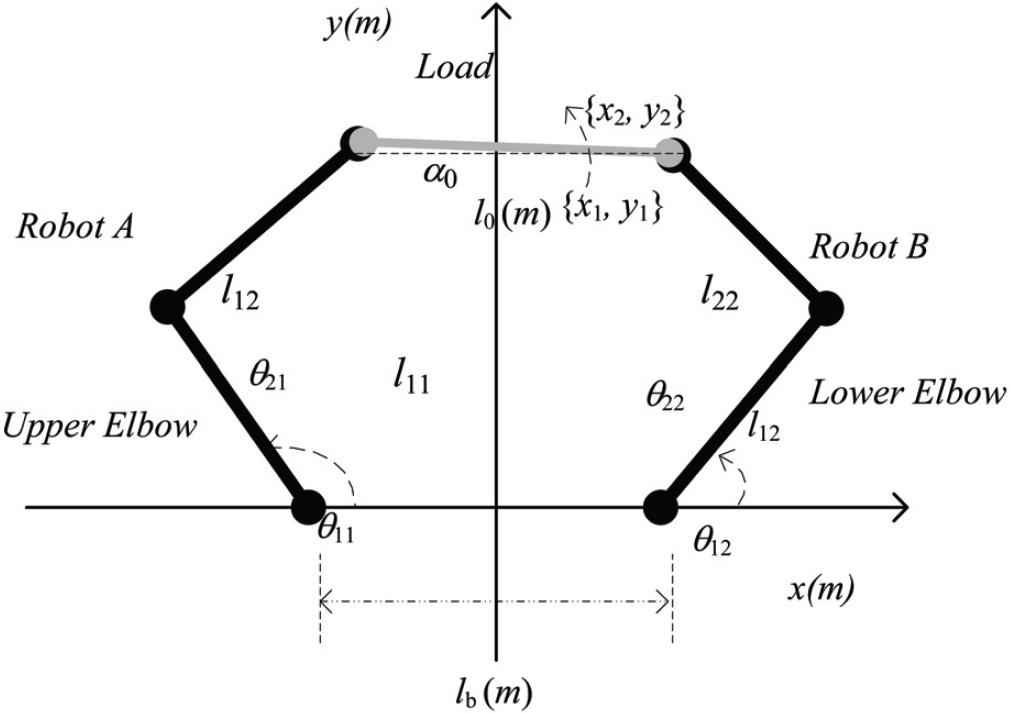

Fig. 1.

Two RR robots working cooperation for the manipulation of an object with length l₀ and orientation α₀.

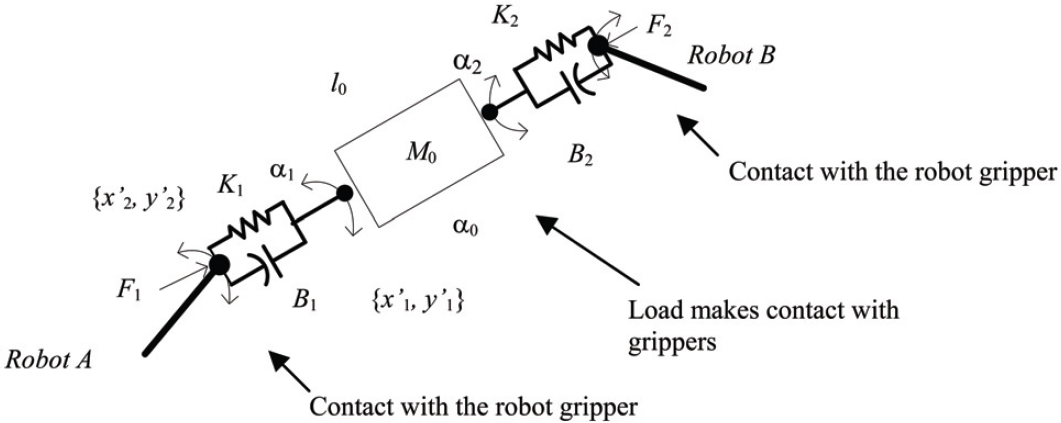

Fig. 2.

The contact between the robot gripper and the object.

The controller architecture (Fig. 3), is inspired on the impedance and compliance schemes. Therefore, we establish a cascade of force and position algorithms as internal an external feedback loops, respectively, where x_d and F_d are the payload desired position coordinates and contact forces.

Fig. 3.

The position/force cascade controller.

In the position and force control loops we consider FO controllers of the type $C(s)=K_{\mathrm{p}}+K_{\alpha }{s}^{\alpha },-1<\alpha <1$ , that are approximated by 4^th order discrete-time Pade expressions ( $a_{\mathrm{i}},b_{\mathrm{i}},\mathrm{\Re },k=4$ ):

$$C(z)\approx K_p+K_{\alpha }\frac{\sum _{k=0}^4{a}_k{z}^{4-k}}{\sum _{k=0}^4{b}_k{z}^{4-k}}$$

(2)

We compare the response with the classical PD–PI algorithms therefore, in the position and force loops we consider, respectively.

$$\begin{gathered} C(s)=K_p+K_{d}s \\ C(z)=K_p+K_d(1-z^{-1}) \end{gathered}$$

(3)

$$\begin{gathered} C(s)=K_p+K_i\frac{1}{s} \\ C(z)=K_p+K_i\frac{z}{z-1} \end{gathered}$$

(4)

Both algorithms were tuned by trial and error, having in mind getting a similar performance in the two cases (Tables 1 and 2).

Table 1.

The parameters of the position and force FO controllers.

i	K p	K α	α	K p	K α	α
1	0.1259	1.555 10−3	½	10.59	2.0 10−3	−⅕
2	0.1259	1.555 10−3	½	10.59	2.0 10−3	−⅕

• (a)

Position controller

(b)

Force controller

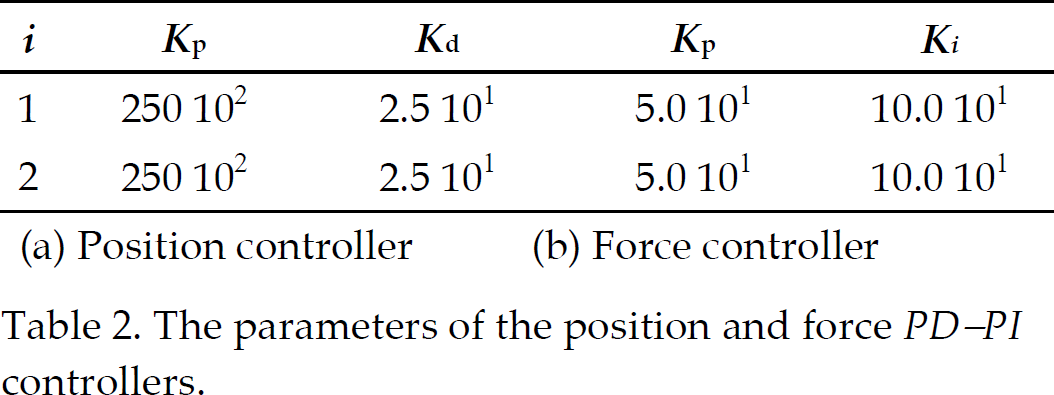

Table 2.

The parameters of the position and force PD-PI controllers.

i	K p	K d	K p	K i
1	250 102	2.5 101	5.0 101	10.0 101
2	250 102	2.5 101	5.0 101	10.0 101

• (a)

Position controller

(b)

Force controller

3. Analysis of the system performance

In order to study the system dynamics we apply a small amplitude rectangular pulse δyd at the position reference and we analyze the system response.

The simulations adopt a controller sampling frequency f_c = 10 kHz, contact forces of the grippers {Fx_j, Fy_j} ≡ {0.5, 5} Nm, a operating point of the center of the object A ≡ {x, y} ≡ {0, 1} and a load orientation of $\alpha =0^{\underset{\_}{\mathrm{o}}}$ .

In a first phase we consider robots with ideal transmissions at the joints. Figure 4 depicts the time response of robot A under the action of the FO and PD-PI algorithms.

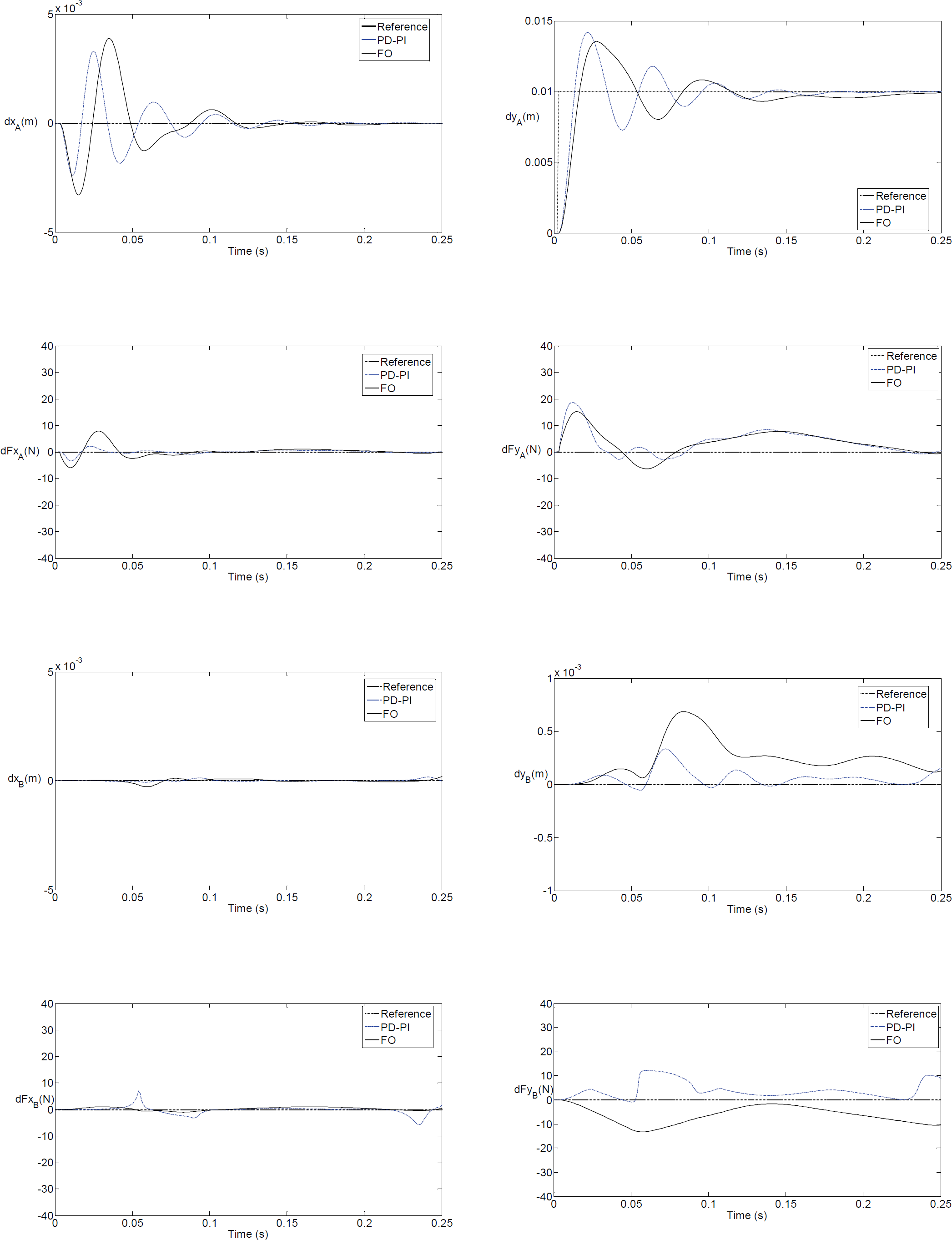

Fig. 4.

Time response for robots A and B with ideal joints under the action of the FO and the PD-PI algorithms for a pulse perturbation at the robot A position reference δy_d = 10⁻³ m and a payload with M = 1 kg, B_i = 10 Nsm⁻¹ and K_i = 10³ Nm⁻¹.

In a second phase (figure 5) we analyze the response of robots with dynamic backlash at the joints. For the i^th joint (i = 1, 2), with gear clearance h _i , the backlash reveals impact phenomena between the inertias, which obey the principle of conservation of momentum and the Newton law:

$${\dot{q}}_i^{\mathrm{\prime }}=\frac{{\dot{q}}_i(j_{ii}-\epsilon J_{im})+{\dot{q}}_{im}{J}_{im}(1+\epsilon )}{j_{ii}+j_{im}}$$

(5)

$${\dot{q}}_{im}^{\mathrm{\prime }}=\frac{{\dot{q}}_i{J}_i(1+\epsilon )+{\dot{q}}_{im}(J_{im}+\epsilon J_{ii})}{j_{ii}+j_{im}}$$

(6)

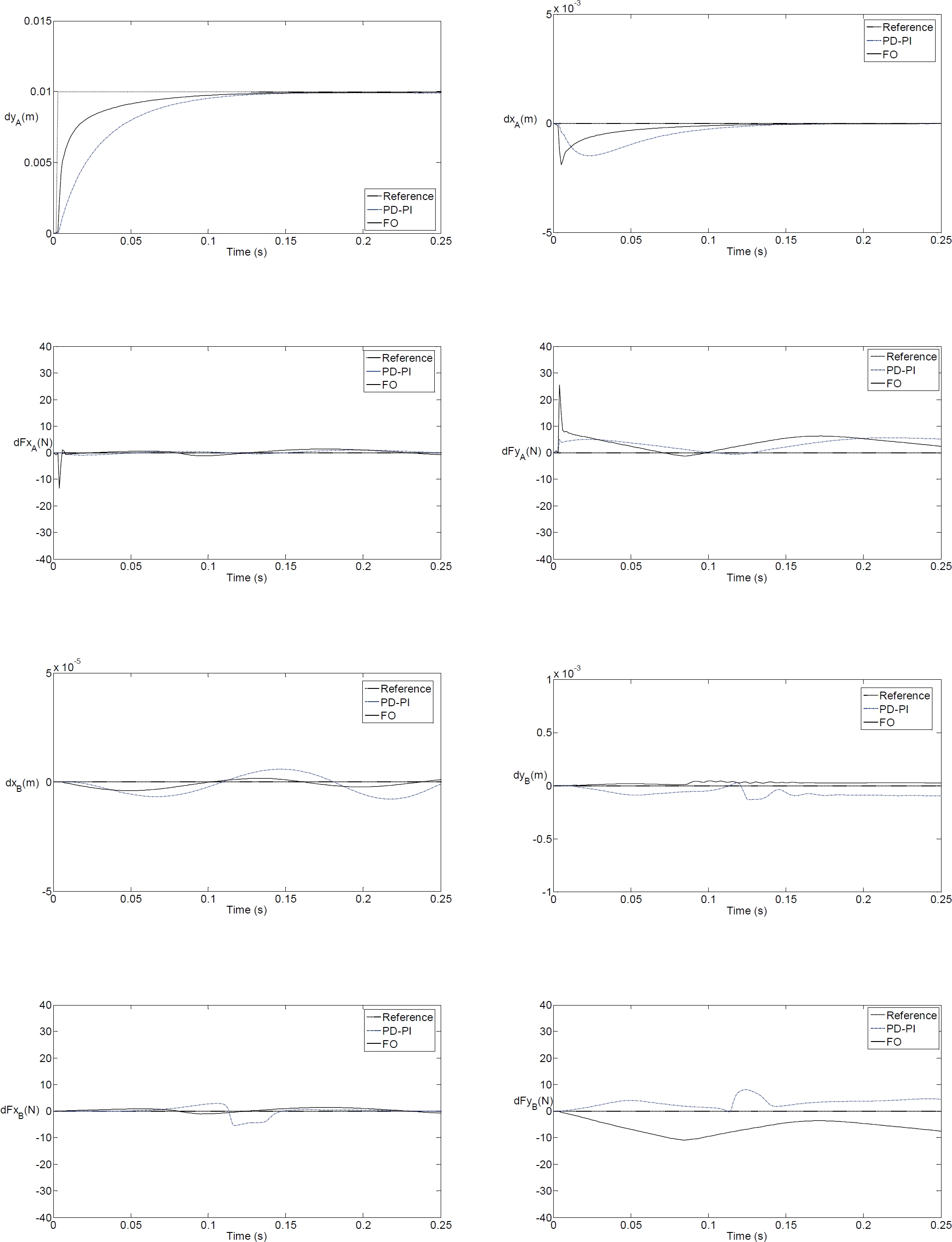

Fig. 5.

Time response for robots A and B with joints having backlash under the action of the FO and the PD-PI algorithms for a pulse perturbation at the robot A position reference δy_d = 0.1 m and a payload with M = 1 kg, B_i = 10 Nsm⁻¹ and K_i = 10³ Nm⁻¹.

where 0 ⩽ ɛ ⩽ 1 is a constant that defines the type of impact (ɛ = 0 inelastic impact, ɛ = 1 elastic impact) and ${\dot{q}}_{im}$ and ${\dot{q}}_i^{\mathrm{\prime }}$ and ${\dot{q}}_{im}^{\mathrm{\prime }}$ ) are the velocities of the i^th joint and motor before (after) the collision, respectively. The parameter J _ii (J _im ) stands for the link (motor) inertias of joint i. The numerical values adopted are h _i = 1.8 10⁻⁴ rad and ɛ₁ = 0.8 (i = 1, 2).

In a third phase (figure 6) we study the RR robot with compliant joints. For this case the dynamic model corresponds to model (1) augmented by the equations:

$$\mathbf{T}={\mathbf{J}}_{\mathbf{m}}{\ddot{\mathbf{q}}}_{\mathbf{m}}+{\mathbf{B}}_{\mathbf{m}}{\dot{\mathbf{q}}}_{\mathbf{m}}+{\mathbf{K}}_{\mathbf{m}}({\mathbf{q}}_{\mathbf{m}}-\mathbf{q})$$

(7)

$${\mathbf{K}}_{\mathbf{m}}({\mathbf{q}}_{\mathbf{m}}-\mathbf{q})=\mathbf{J}(\mathbf{q})\ddot{\mathbf{q}}+\mathit{C}(\mathbf{q},\dot{\mathbf{q}})+\mathbf{G}(\mathbf{q})$$

(8)

Fig. 6.

Time response for robots A and B with joints having flexibility under the action of the FO and the PD-PI algorithms for a pulse perturbation at the robot A position reference δy_d = 0.1 m and a payload with M = 1 kg B_i = 10 Nsm⁻¹ and K_i = 10³ Nm⁻¹.

where J_m, B_m and K_m are the n × n diagonal matrices of the motor and transmission inertias, damping and stiffness, respectively. In the simulations we adopt K_mi = 2 10⁶ Nm rad⁻¹ and B_mi = 10⁴ Nms rad⁻¹ (i = 1, 2). The time response characteristics (Tables 3 and 4), namely the percent overshoot PO%, the steady-state error e_ss, the peak time T_p and the settling time T_s reveal that, if we consider similar performances for robots with ideal transmissions at the joints, the FO is superior to the PD-PI algorithms at the cases of robots with joint dynamic phenomena. I conclusion the FO have good dynamic response for position and force perturbations.

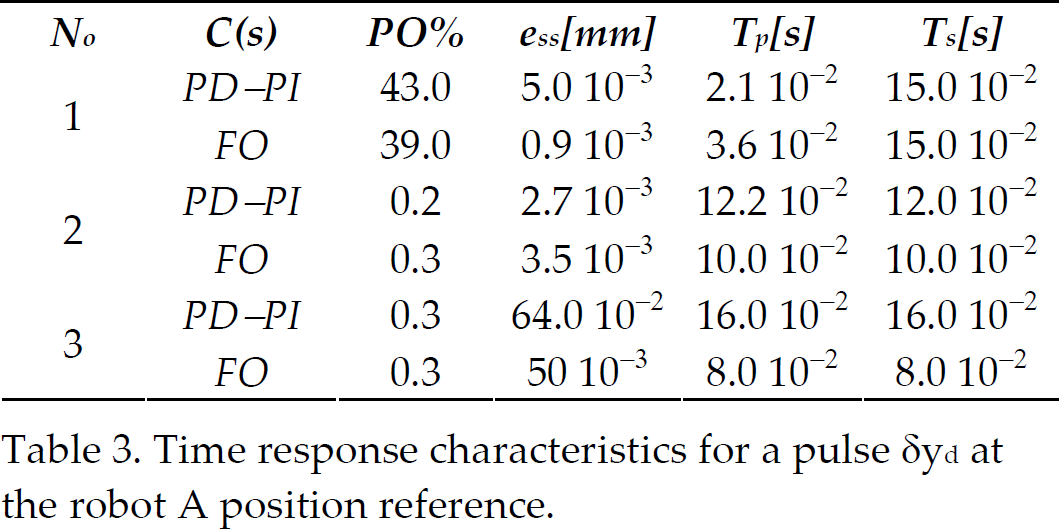

Table 3.

Time response characteristics for a pulse δy_d at the robot A position reference.

No	C(s)	PO%	e ss [mm]	T p [s]	T s [s]
1	PD-PI	43.0	5.0 10−3	2.1 10−2	15.0 10−2
	FO	39.0	0.9 10−3	3.6 10−2	15.0 10−2
2	PD-PI	0.2	2.7 10−3	12.2 10−2	12.0 10−2
	FO	0.3	3.5 10−3	10.0 10−2	10.0 10−2
3	PD-PI	0.3	64.0 10−2	16.0 10−2	16.0 10−2
	FO	0.3	50 10−3	8.0 10−2	8.0 10−2

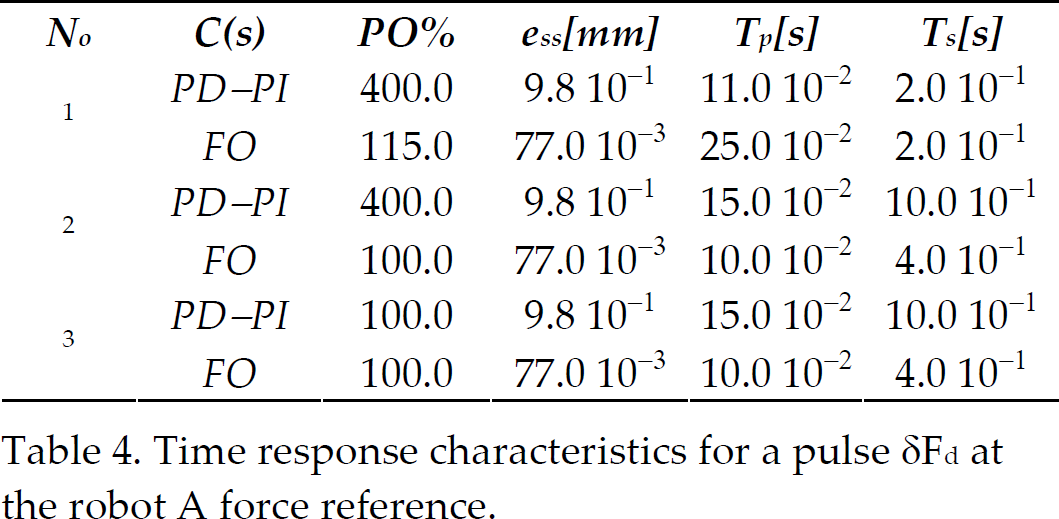

Table 4.

Time response characteristics for a pulse δF_d at the robot A force reference.

No	C(s)	PO%	e ss [mm]	T p [s]	T s [s]
1	PD-PI	400.0	9.8 10−1	11.0 10−2	2.0 10−1
	FO	115.0	77.0 10−3	25.0 10−2	2.0 10−1
2	PD-PI	400.0	9.8 10−1	15.0 10−2	10.0 10−1
	FO	100.0	77.0 10−3	10.0 10−2	4.0 10−1
3	PD-PI	100.0	9.8 10−1	15.0 10−2	10.0 10−1
	FO	100.0	77.0 10−3	10.0 10−2	4.0 10−1

4. Conclusion

This paper studied the position/force control of two robots working in cooperation using fractional and integer order control algorithms. The system time response was analyzed for manipulators having several types of dynamical phenomena at the joints. The transient response of the system shows the superior performance of the FO controller.
