Abstract

A new design of a robust impedance controller for constrained robotic manipulators is presented. The main objective is to stabilize asymptotically, in the task space, the robotic manipulator's end effectors into a desired position, via a desired contact force under model uncertainties and measurement noise. In this work, the proposed approach is enough straightforward for application without force and position control separation. Robust asymptotic stability in the approach is proved using a Hamiltonian-Lyapunov approach. Besides this, a state/parameter observer and an acceleration estimator are proposed to handle the problems of force estimation, disturbance rejection and acceleration measurement. To ensure high performance, a Particle Swarm Optimization (PSO) algorithm is used finally as an efficient and fast method for the offline fine-tuning of the controller's parameters. In designing the PSO method, the Mean of Root Squared Error (MRSE) is considered as a cost function in the Cartesian space. Finally, the example of the ABB-IRB 140 industrial robot with 6DOFs is used to validate the performances of the proposed approach.

Keywords

Robust Impedance Control Lyapunov Theory Particle Swarm Optimization (PSO)Constrained Robot Model Uncertainties State/Parameter Observer

1. Introduction

Control of constrained robotic manipulators that are subject to uncertainties is currently considered to be one of the most challenging problems in the field of robotics [1]. Uncertainties can include the environment model [2 –5], the robotic model [6] or both [7, 8]. To solve such complex problems, there is an increasing requirement for robust asymptotic stability of the nonlinear system, taking account of coupling effects between multiple joints and considering position/force interaction between the manipulator and the constrained environment.

The difficult problem of position/force control of constrained robotic manipulators was discussed, without considering such uncertainties, in several books [9, 10] and survey papers [11 –15], in which different solutions are provided. Evidently, this problem becomes more difficult when uncertainties occur. One of the most popular approaches used in this field is that of impedance control [16 –18]. The advantage of impedance control is that it can regulate the environmental forces according to the specified mechanical impedance, such as mass, stiffness coefficient and damping coefficient. Impedance control can reduce the damaging of end-effectors by assigning the proper damping coefficient. However, such an approach needs force measurements that are rendered by the constrained robot, which complicates the experimental implementation of the control law. Indeed, the generation and sensing of force is one of the most crucial theoretical and experimental issues facing researchers in the robotics field, since it is not always possible in practice to measure forces rendered by the environment using a force sensor. Moreover, it is well known that force and torque sensors are very sensitive to noise and disturbances. Therefore, to overcome this problem, some solutions using force observers have been deployed [19 –21]. On the one hand, it is well recognized in the robotics literature that acceleration measurement is not a reasonable solution. Some techniques have also been proposed to avoid such a problem [22–23].

On the other hand, tuning the controller parameters to ensure high-accuracy and high-speed performances [24] has remained, until now, a very expensive and time-consuming process. Soft computing techniques [25] have been widely used in order to reach such objectives and were well justified for solving the control problems for hard nonlinear problems [26]. Alternatively, an extensive range of new, biologically inspired optimization methods [27] has emerged. These methods use random elements iteratively in order to transform one candidate solution into a new and better solution with regard to a given fitness function. The main nature-inspired optimization approaches are Genetic Algorithms (GA), Simulated Annealing (SA), Tabu Search, Ant Colony Optimization (ACO) and Particle Swarm Optimization (PSO) algorithms. Among the variety of evolution algorithms, the Particle Swarm Optimization (PSO) algorithm [28, 29] seems to be one of the most promising techniques, since it requires less computational complexity and gives better performances. In particular, PSO algorithms were applied successfully in many robotic applications [30 –34]. Nevertheless, only a few research papers were devoted to solving the control problem of constrained robotic manipulators [35, 36] using PSO. In competition with them were a few research papers proposing use of neurofuzzy controllers in order to solve the robust control problem for constrained robotic arms [37 –40].

Based on the lack of results within this framework, the most important contribution of this paper is its proposal of a new design for a PSO-robust controller of constrained robotic systems with model uncertainties and measurement noise. Furthermore, new robust stability conditions of constrained robotic manipulators are proved to be effective using a Lyapunov-Hamiltonian approach. In addition, a state/parameter observer and an acceleration estimator are proposed to handle the problems of force estimation, disturbance rejection and acceleration measurement.

The remainder of this paper is organized as follows. In Section 2, the robust control problem is stated. The state/parameter observer is then described in Section 3. Section 4 presents the acceleration estimator. The robust asymptotic stability conditions, using the Lyapunov-Hamiltonian-based impedance controller for constrained robotic systems, are given and proved in Section 5. Section 6 details how a PSO algorithm was used to optimize the controller parameters. Finally, in Section 7, the example of the 6DOF ABB-IRB140 robotic manipulators used in order to demonstrate the performance of the proposed approach.

2. Problem Formulation

Consider a constrained robotic manipulator with n degrees of freedom described by its uncertain dynamical model, a forward kinematical model and a differential kinematical model defined, respectively, by:

\begin{array}{l} (M (θ, α_{0}) + Δ M) \ddot{θ} + H (θ, \dot{θ}, α_{0}) + \\ + Δ H + G (θ, α_{0}) + Δ G = U - J {(θ)}^{T} F \end{array}

(1)

X (θ) = h (θ)

(2)

\dot{X} (θ, \dot{θ}) = J (θ) \dot{θ}

(3)

where θ, θ, θ̈ ɛ Rⁿ are the joint position, the joint velocity and the joint acceleration vectors, respectively; M ɛ R^nxn and ΔM ɛ R^nxn are the inertia matrix and its related matrix uncertainty, respectively; H (θ, θ, α₀) ɛ Rⁿ and ΔH ɛ Rⁿ^x1 are the vector of centrifugal and Coriolis forces and its related vector uncertainty, respectively; G(θ, α₀) ɛ Rⁿ and ΔG ɛ Rⁿ^x1 are the vector of gravity terms and its related vector uncertainty; α₀ is the vector of the nominal inertial parameters of the robot, assumed to be constant; U ɛ Rⁿ is the control vector and F ɛ R^p is the vector of contact forces exerted by the robot on the environment where the task-space dimension is p; X, Ẋ ɛ R^p are the Cartesian position vector and the Cartesian velocity vectors, respectively; $h (θ) : R^{n} \to R^{p}$ is a vector of nonlinear functions describing the forward kinematic model and J (θ) ɛ R^pxn is the Jacobian matrix.

Given a desired constant Cartesian position X_d ɛ R^p, a desired force F_d ɛ R^p of the robotic manipulator's end-effector, the control problem aims to ensure that:

\lim_{t \to \infty} X - X_{d} = 0

(4)

and

\lim_{t \to \infty} F - F_{d} = 0

(5)

under the following assumptions:

A _i: The vectors of angular position θ and angular velocity θ are assumed to be measured via physical sensors.

A ₂: The vectors of force F and inertial parameters α are assumed to be estimated via a state/parameter observer with disturbance rejection. These factors are denoted by F̂ and ̂α, respectively.

A ₃: The vector of angular acceleration $\ddot{θ}$ is assumed to be estimated using an acceleration estimator. It is noted by $\ddot{\hat{θ}}$ .

A _4: The vector of the inertial parameters α is assumed to be uncertain but constant where α₀ is the vector of the nominal parameters.

A₅: The Jacobian matrix J (θ) is of full rank and bounded for all θ ɛ Rⁿ.

A ₆: M and ΔM are symmetric and positive matrices.

A ₇: A desired impedance model for the contact point between the end-effector of the robotic arm and the constrained environment is imposed, such that [41, 42]:

Z_{d} = \frac{F_{d} - F}{X_{d} - X} = K_{d} + B_{d} s + M_{d} s^{2}

(6)

where K_d, B_d, M_d ɛ R^pxp are stiffness, damping and inertia matrices, respectively, and s is the Laplace operator.

A _8:. The vector of uncertainties related the gravity vector is assumed to be bounded such that:

‖ Δ G ‖ \leq γ ‖ \dot{θ} ‖ < β

(7)

where γ and β are two small constants.

A ₉: The control-feedback gain matrices K_p, K_v, K_f ɛ R^pxp are all diagonal.

Notation:

In the following, the sign function is defined by:

s i g n (σ) = {\begin{cases} 1 ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ i f ​ ​ ​ σ > 0 \\ - 1 ​ ​ ​ ​ ​ ​ i f ​ ​ σ < 0 \\ 0 ​ ​ ​ ​ ​ ​ ​ ​ ​ i f ​ ​ ​ σ = 0 \end{cases}

Furthermore, we define the integral of a real vector function f = (f₁ …, f_n) on the interval [a, b] as the integral of each of its components, as in [43]:

\int_{a}^{b} f ​ d s = {[\begin{matrix} \int_{a}^{b} f_{1} ​ d s & … & \int_{a}^{b} f_{n} ​ d s \end{matrix}]}^{T}

3. The State/Parameter Observer Design

Consider, now, the robotic model (1). It can be written, without any restriction, as follows:

M (θ, α) \ddot{θ} + H (θ, \dot{θ}, α) + G (θ, α) = U - J {(θ)}^{T} F

(8)

By defining the state vector as x =[θ θ F α] ^T , the dynamic model (8) of the robot manipulator can be written in the state space as:

\begin{array}{l} \dot{x} = f (x, U) + C ξ_{x} \\ ​ ​ ​ ​ = [\begin{matrix} \dot{θ} \\ M {(θ, α)}^{- 1} (- H (θ, \dot{θ}, α) - G (θ, α) + U - J {(θ)}^{T} F) \\ 0 \\ 0 \end{matrix}] + C \cdot [\begin{matrix} ξ_{θ} \\ ξ_{\dot{θ}} \\ ξ_{F} \\ ξ_{α} \end{matrix}] \end{array}

(9)

Y = N \cdot x + η_{x} ​

(10)

where Y is the output of the system; C is a unit matrix; N =[I I I I] is the state observation matrix; $η_{x}$ and $ξ_{θ}, ξ_{\dot{θ}}$ represent the process and measurement noises, respectively, and $ξ_{F}$ and $ξ_{α}$ represent the rates at which the vectors of forces/torques and inertial robot parameters are estimated to vary.

Theorem [19]

Assume that the linearized model of the nonlinear system (9)- (10) is:

uniformly completely observable

uniformly completely controllable

α₁ ≤ Q(t)≤α₂

α₃ ≤R(t) ≤α₄

$\frac{\partial f}{\partial \hat{x}} \leq α_{5}, C (t) \leq α_{6}, N (t) \leq α_{7}$

then the optimal filter is described by $(\tilde{x} = x - \hat{x})$ :

\dot{\hat{x}} = \frac{\partial f (\hat{x}, U)}{\partial \hat{x}} \hat{x} + P (t) N^{T} (t) R^{- 1} (t) N (t) \tilde{x}

(11)

\dot{\tilde{x}} = [\frac{\partial f (\hat{x}, U)}{\partial \hat{x}} - P (t) N^{T} (t) R^{- 1} (t) N (t)] ​ ​ \tilde{x}

(12)

is uniformly asymptotically stable where:

\begin{array}{l} f (\hat{x}, U) = [\begin{matrix} \dot{\hat{θ}} \\ \ddot{\hat{θ}} \\ \dot{\hat{F}} \\ \dot{\hat{α}} \end{matrix}] = [\begin{matrix} \dot{\hat{θ}} \\ M {(\hat{θ}, \hat{α})}^{- 1} (- H (\hat{θ}, \dot{\hat{θ}}, \hat{α}) - G (\hat{θ}, \hat{α}) + U - J {(\hat{θ})}^{T} \hat{F}) \\ 0 \\ 0 \end{matrix}] \\ \dot{P} = \frac{\partial f}{\partial \hat{x}} P + P \frac{\partial f^{T}}{\partial \hat{x}} + C Q C^{T} - P N^{T} R^{- 1} N P \end{array}

\begin{matrix} R = cov (η_{x}) \\ Q = [\begin{matrix} cov (ξ_{θ}) & 0 & 0 & 0 \\ 0 & cov (ξ_{\dot{θ}}) & 0 & 0 \\ 0 & 0 & cov (ξ_{F}) & 0 \\ 0 & 0 & 0 & cov (ξ_{α}) \end{matrix}] \\ \frac{\partial f (\hat{x}, U)}{\partial \hat{x}} = [\begin{matrix} 0 & I & 0 & 0 \\ F_{21} (t) & F_{22} (t) & F_{23} (t) & F_{24} (t) \\ 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 \end{matrix}] \end{matrix}

\begin{array}{l} F_{21} (t) = - M (\hat{θ}, \hat{α})^{- 1} (\frac{\partial M (\hat{θ}, \hat{α})}{\partial \hat{θ}} \ddot{\hat{θ}} + \frac{\partial H (\hat{θ}, \dot{\hat{θ}}; \hat{α})}{\partial \hat{θ}} + \frac{\partial G (\hat{θ}, \hat{α})}{\partial \hat{θ}} - \frac{\partial J {(\hat{θ})}^{T}}{\partial \hat{θ}} \hat{F}) \\ F_{22} (t) = - M (\hat{θ}, \hat{α})^{- 1} \frac{\partial H (\hat{θ}, \dot{\hat{θ}}, \hat{α})}{\partial \dot{\hat{θ}}} \\ F_{23} (t) = - M (\hat{θ}, \hat{α})^{- 1} ​ ​ ​ J (\hat{θ})^{T} \\ F_{24} (t) = - M^{- 1} (\frac{\partial M (\hat{θ}, \hat{α})}{\partial \hat{α}} \ddot{\hat{θ}} + \frac{\partial H (\hat{θ}, \dot{\hat{θ}}, \hat{α})}{\partial \hat{α}} + \frac{\partial \hat{G} (\hat{θ}, \hat{α})}{\partial \hat{α}}) \end{array}

α₁, α₂, α₃, α₄, α₅, α₆, α₇ are positive constants; cov(ζθ), cov(ζθ), cov(ζ _F ), cov(ζ _x ) and cov(η _x ) are the covariance matrices of the input noises ζ_θ, ζ_θ, ζ _F , ζ_α and the output noise η _x , respectively.

4. Angular acceleration estimation

Using (3) for the estimated position and velocity vectors, we can write:

\ddot{X} (\hat{θ}, \dot{\hat{θ}}, \ddot{\hat{θ}}) = \dot{J} (\hat{θ}) \dot{\hat{θ}} + J (\hat{θ}) \ddot{\hat{θ}}

(13)

From equation (6), we can write the following using estimated variables:

F_{d} - \hat{F} = K_{d} (X_{d} - X (\hat{θ})) - B_{d} \dot{X} (\hat{θ}, \dot{\hat{θ}}) - M_{d} \ddot{X} (\hat{θ}, \dot{\hat{θ}}, \ddot{\hat{θ}})

(14)

From equations (13) and (14), the expression of $\ddot{\hat{θ}}$ can be deduced as follows:

\ddot{\hat{θ}} = J^{- 1} (\hat{θ}) M_{d}^{-1} [K_{d} (X_{d} - X (\hat{θ})) - B_{d} \dot{X} (\hat{θ}, \dot{\hat{θ}}) + F_{d} - \hat{F} - M_{d} \dot{J} (\hat{θ}) \dot{\hat{θ}}]

(15)

5. Robust Control-based Lyapunov-Hamiltonian Approach

Theorem

The constrained robotic system described by the uncertain dynamical model (1), the forward kinematical model (2) and the differential kinematical model (3) is asymptotically stable for the contact force model:

F = F_{d} - K_{d} (X_{d} - X (θ)) + B_{d} \dot{X} (θ, \dot{θ}) + M_{d} \ddot{X} (θ, \dot{θ}, \ddot{θ})

(16)

via the robust control law described by:

\begin{array}{l} U = M (θ, α) ​ J^{- 1} (θ) [​ K_{p} (X_{d} - X (θ)) - K_{v} ​ \dot{X} (θ, \dot{θ}) + (I + K_{f}) (F_{d} - F)] \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ + J {(θ)}^{T} F - J {(θ)}^{- 1} \dot{X} (θ, \dot{θ}) ​ K ​ σ ​ s i g n (σ) + G ​ (θ) \end{array}

(17)

where σ is a linear function defined by:

σ = C [- \dot{X} (θ, \dot{θ}) + Λ_{1} (X_{d} - X (θ)) + Λ_{2} (F_{d} - F)]

(18)

for a positive constant gain K, a constant vector C ɛ R¹ ^xp and the positive constant matrices $Λ_{1} \in R^{p x p}$ and $Λ_{2} \in R^{p x p}$ , if the diagonal gain matrices K_p, K_v, K_f ɛ R^pxp exist, satisfying the following conditions:

{\begin{cases} K_{p} > 0 \\ K_{v} > 0 \\ K_{f} = - I \end{cases}

(19)

{\begin{cases} K_{p} + K_{d} + K_{f} K_{d} > 0 \\ K_{v} + B_{d} + K_{f} B_{d} > 0 \\ M_{d} = 0 \end{cases}

(20)

Proof:

Considering the uncertain robotic manipulator described by the uncertain dynamical model (1) for the force model (16) and the nonlinear control law (17), we have:

\begin{array}{l} (M (θ, α) + Δ M) \ddot{θ} + H (θ, \dot{θ}, α) + Δ H + Δ G \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ - M (θ, α) ​ J {(θ)}^{- 1} (K_{p} + K_{d} + K_{f} K_{d}) (X_{d} - X (θ)) \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ + M (θ, α) J {(θ)}^{- 1} (K_{v} + B_{d} + K_{f} B_{d}) \dot{X} (θ, \dot{θ}) \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ + M (θ, α) ​ J {(θ)}^{- 1} (I + K_{f}) M_{d} \ddot{X} (θ, \dot{θ}, \ddot{θ}) \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ + J^{- 1} ​ ​ \dot{X} (θ, \dot{θ}) ​ ​ ​ K ​ σ ​ s i g n ​ (σ) = 0 \end{array}

(21)

In addition, denoting by $Φ = θ - θ_{d}$ and $Y (Φ) = X (θ) - X_{d}$ , the error vectors defined in the joint and task spaces, respectively, we can write:

\begin{array}{l} (M (Φ) + Δ M) \ddot{Φ} + H (Φ, \dot{Φ}) + Δ H + Δ G \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ + M (Φ) J^{- 1} (Φ) (K_{p} + K_{d} + K_{f} K_{d}) Y (Φ) \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ + M (Φ) J^{- 1} (Φ) (K_{v} + B_{d} + K_{f} B_{d}) \dot{Y} (Φ) ​ \\ ​ ​ ​ ​ ​ ​ ​ ​ + M (Φ) ​ J^{- 1} (Φ) (I + K_{f}) M_{d} \ddot{Y} (Φ) ​ + J^{- 1} \dot{Y} (Φ) ​ K ​ σ ​ s i g n (σ) = 0 \end{array}

(22)

In order to alleviate the notation and tacking in account of the assumption A₄ , we have adopted, in (22) and in the next, the following notations:

\begin{matrix} M (Φ, α) : = M (Φ); \\ H (Φ, α) : = H (Φ), \\ G (Φ, α) : = G (Φ) . \end{matrix}

Following the same developments presented in [44] and for a kinetic energy defined by:

T (Φ, \dot{Φ}) = \frac{1}{2} {\dot{Φ}}^{T} (M (Φ) + Δ M) \dot{Φ}

(23)

while taking into account the assumption A ₆ , we can prove that:

H (Φ, \dot{Φ}) + Δ H = \sum_{i = 1}^{n} (\frac{d Φ_{i}}{d t} \frac{\partial (M (Φ) + Δ M)}{\partial Φ_{i}}) \frac{\dot{Φ}}{2}

(24)

\frac{\partial P (Φ)}{\partial Φ} = M (Φ) J^{- 1} (Φ) (K_{p} + K_{d} + K_{f} K_{d}) Y (Φ)

(25)

\begin{array}{l} \frac{\partial D (Φ, \dot{Φ})}{\partial \dot{Φ}} = M (Φ ​) J^{- 1} (Φ ​) [(K_{v} + B_{d} + K_{f} B_{d}) \dot{Y} (Φ ​) + \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ + (I + K_{f}) M_{d} \ddot{Y} (Φ ​)] \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ + J^{- 1} (Φ) \dot{Y} (Φ ​) ​ K ​ ​ σ ​ s i g n ​ (σ) + Δ G \end{array}

(26)

Impose, now, on the system (22) a Lyapunov-Hamiltonian function defined by [44]:

V (Φ, \dot{Φ}) = T (Φ, \dot{Φ}) + V_{p} (Φ)

(27)

where:

V_{p} (Φ) = P (Φ) - P (0)

(28)

and following the developments presented in [44], the first Lyapunov condition is always satisfied. Furthermore, since M (Φ) is positive-definite and since the following condition is satisfied:

{[\frac{\partial V_{p} (Φ)}{\partial Φ}]}_{Φ = 0} = M (0) J^{- 1} (0) (K_{p} + K_{d} + K_{f} K_{d}) Y (0) = 0

(29)

we can then prove that the second Lyapunov condition is well satisfied if (K_p + K_d + K_f K_d) is positive-definite.

To prove the third Lyapunov condition, let us give the derivative of the Lyapunov function (28) as:

\frac{\partial V_{p} (Φ)}{d t} = \frac{d T (Φ, \dot{Φ})}{d t} + \frac{d P (Φ)}{d t}

(30)

From (23) and (24) we can write:

\frac{d T (Φ, \dot{Φ})}{d t} = {\dot{Φ}}^{T} (M (Φ) + Δ M) \ddot{Φ} + {\dot{Φ}}^{T} (H (Φ) + Δ H)

(31)

From (25) we can write that:

\frac{d P (Φ)}{d t} = {\dot{Φ}}^{T} M (Φ) J^{- 1} (Φ) (K_{p} + K_{d} + K_{f} K_{d}) Y (Φ)

(32)

Using (31) and (32), we can write for (30):

\begin{array}{l} \frac{d V (Φ, \dot{Φ})}{d t} = {\dot{Φ}}^{T} (M (Φ) + Δ M) \ddot{Φ} + {\dot{Φ}}^{T} (H (Φ) + Δ H) \\ + {\dot{Φ}}^{T} M (Φ) J^{- 1} (Φ) (K_{p} + K_{d} + K_{f} K_{d}) Y (Φ) \end{array}

(33)

Using (22) and (33), we have:

\begin{array}{l} \frac{d V (Φ, \dot{Φ})}{d t} = - {\dot{Φ}}^{T} M (Φ) J^{- 1} (Φ) (K_{v} + B_{d} + K_{f} B_{d}) \dot{Y} (Φ) \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ - {\dot{Φ}}^{T} M (Φ) J^{- 1} (Φ) (I + K_{f}) M_{d}) \ddot{Y} (Φ) \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ - {\dot{Φ}}^{T} M (Φ) \dot{Y} (Φ) K σ s i g n (σ) - {\dot{Φ}}^{T} Δ G \end{array}

(34)

Using the kinematic model for the error dynamics, (34) gives:

\begin{array}{l} \frac{d V (Φ, \dot{Φ})}{d t} = ​ - {\dot{Y}}^{T} (Φ ​) M (Φ ​) J^{- 1} (Φ ​) (K_{v} + B_{d} + K_{f} B_{d}) \dot{Y} (Φ) ​ \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ - {\dot{Y}}^{T} (Φ ​) M (Φ ​) J^{- 1} (Φ ​) ((I + K_{f}) M_{d}) \ddot{Y} (Φ ​) ​ ​ \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ - {\dot{Y}}^{T} (Φ ​) (J J^{T})^{- 1} (Φ) \dot{Y} (Φ ​) ​ K ​ σ ​ s i g n ​ ​ (σ) - {\dot{Φ}}^{T} Δ G \end{array}

(35)

Considering assumption A ₈ the third Lyapunov condition is satisfied for positive-definite K if (K_v + B _d + K_f B_d) is positive-definite and (I + K_f)M_d = 0, which is equivalent to conditions (19) and (20).

6. PSO Controller Design

Inspired by the study of swarms, the Particle Swarm Optimization (PSO) method is considered to be one of the fastest evolutionary algorithms. During flight, each particle adjusts its position according to its own experience and the experience of other particles, making use of the best positions encountered by itself and its neighbours. The best previous position of the ith particle is recorded and represented as p_best,i. The best particle among all the particles in the group is represented as g_best. The PSO concept consists of changing, at each time step, the velocity of each particle i toward its best positions and g_best. For each iteration of k(k = 1, 2, …, N), the ith particle (i = 1, 2, …, M) updated its velocity and position as [28]:

\begin{array}{l} V_{i}^{(k + 1)} = w^{(k)} ​ V_{i}^{(k)} + c_{1} ​ r a n d (.) ​ (p b e s t_{i}^{(k)} - p_{i}^{(k)}) \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ + c_{2} ​ R a n d (.) ​ (g b e s t^{(k)} - p_{i}^{(k)}) \end{array}

(36)

p_{i}^{(k + 1)} = p_{i}^{(k)} + V_{i}^{(k + 1)}

(37)

where the inertia weight w⁽ ^k ⁾ is calculated according to the following equation:

w^{(k)} = k \frac{w_{\max} - w_{\min}}{N}

(38)

where:

M number of particles in a group

N maximum number of iterations

V_i(k) velocity of the ith particle at iteration k

p_i(k) position of the ith individual at iteration k

pbest_i(k) best position of the ith individual at iteration k

gbest⁽ ^k ⁾ best position of the group until iteration k

w( ^k ⁾ inertia weight factor at iteration k

c₁, c₂ acceleration factors

rand (.) random number between 0 and 1

Rand (.) random number between 0 and 1

The PSO algorithm for the controller parameter's design is shown in Figure 1.

Figure 1.

PSO algorithm for the tuning of the controller parameter

7. Application

7.1 The robot arm with model uncertainties

Consider the 6DOF industrial robotic manipulator ABB-IRB140 (see Figure 2). Its D-H parameters are given in Table 1. The numerical values of its nominal physical parameters (mass, length, position of its centre of gravity and inertia parameter) for each rigid body are given in [45].

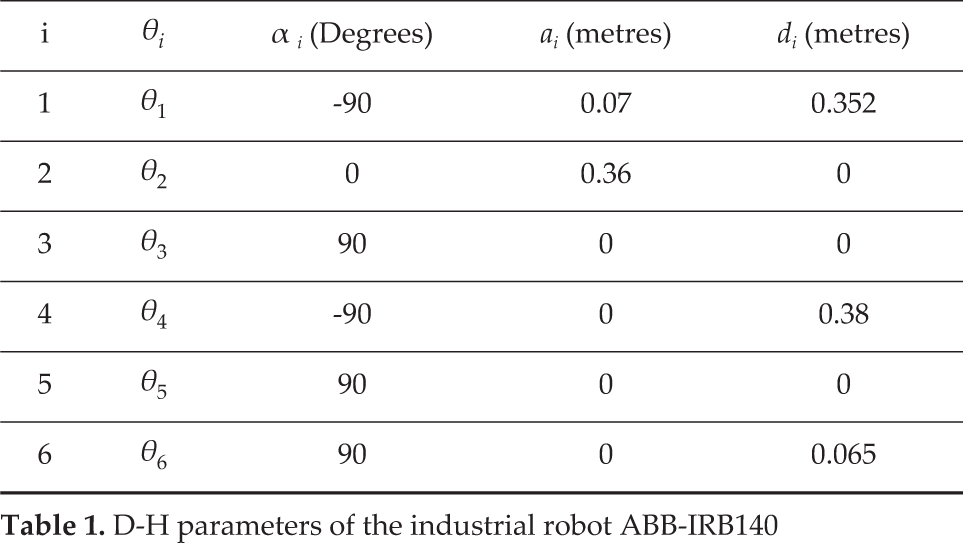

Table 1.

D-H parameters of the industrial robot ABB-IRB140

i	θ_i	α_i (Degrees)	a_i (metres)	d_i (metres)
1	θ ₁	−90	0.07	0.352
2	θ ₂	0	0.36	0
3	θ ₃	90	0	0
4	θ ₄	−90	0	0.38
5	θ ₅	90	0	0
6	θ ₆	90	0	0.065

Figure 2.

The industrial robot ABB-IRB140 [46]

7.2 The constrained optimization problem via PSO

A fundamental step in applying the PSO algorithm is the choice of the cost function or the performance index used to evaluate the fitness function of each particle. Based on the control objectives (4) and (5), we have chosen to solve a constrained multi-object optimization problem, where the two objectives to be reached are really in conflict and the stability conditions (19) and (20) are considered as constraints. We propose, therefore, using the Mean Root Squared Error (MRSE) cost function defined by [36]:

\begin{array}{l} M R S E = \frac{1}{N} \sum_{k = 1}^{N} \sqrt{{(X_{d} (k) - X (k))}^{T} (X_{d} (k) - X (k))} \\ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ + \frac{1}{N} \sum_{k = 1}^{N} \sqrt{{(F_{d} (k) - \hat{F} (k))}^{T} (F_{d} (k) - \hat{F} (k))} \end{array}

(39)

For the first case in which the stability conditions (19) are satisfied, the individual member of the swarm comprises the elements of the following vector ${[\begin{matrix} k_{p_{1}} & k_{p_{2}} & k_{v_{1}} & k_{v_{2}} \begin{matrix} Λ_{1} & Λ_{2} & k \end{matrix} \end{matrix}]}^{T}$ . For the second case in which the stability conditions (20) are satisfied, the individual member of the swarm comprises the elements of the following vector ${[\begin{matrix} k_{p_{1}} & k_{p_{2}} & k_{v_{1}} & k_{v_{2}} \begin{matrix} \begin{matrix} k_{f_{1}} & k_{f_{2}} \end{matrix} Λ_{1} & Λ_{2} & k \end{matrix} \end{matrix}]}^{T}$ .

Let the desired stiffness, damping and inertia matrices be defined by components in the Cartesian space:

\begin{matrix} K_{d} = d i a g [\begin{matrix} K_{d, x} & K_{d, x} \end{matrix}] \\ B_{d} = d i a g [\begin{matrix} B_{d, x} & B_{d, y} \end{matrix}] \\ ​ M_{d} = d i a g [\begin{matrix} M_{d, x} & M_{d, y} \end{matrix}] \end{matrix}

Case1: For the decision vector z, defined by ${[\begin{matrix} k_{p_{1}} & k_{p_{2}} & k_{v_{1}} & k_{v_{2}} \begin{matrix} Λ_{1} & Λ_{2} & k \end{matrix} \end{matrix}]}^{T}$ , the following dynamic, constrained optimization problem is solved via PSO as follows:

Minimize

MRSE

subject to:

M (θ) \ddot{θ} + H (θ, \dot{θ}) + G (θ) = U - J^{T} (θ)

(40)

\dot{X} (θ, \dot{θ}) = J (θ) \dot{θ}

(41)

I_{(7 \times 7)} z ​ > 0_{(7 \times 1)}

(42)

1 \leq K \leq 5

(43)

and for i=1,2

100 \leq k_{p i} \leq 10000

(44)

50 \leq k_{v i} \leq 5000

(45)

1 \leq Λ_{i} \leq 10

(46)

and:

\begin{array}{l} K_{d} = d i a g [\begin{matrix} 50 & 50 \end{matrix}] \\ B_{d} = d i a g [\begin{matrix} 20 & 20 \end{matrix}] \\ ​ M_{d} = d i a g [\begin{matrix} 0.1 & 0.1 \end{matrix}] \end{array}

(47)

The relations (40) and (41) represent the dynamic and the kinematic constraints of the optimization problem, whereas the inequality constraint (42) is equivalent to the stability condition (19). The inequalities (43)- (46) define a set of lower and upper bounds of the decision variables chosen with regard to practical implementation. The equality constraint (47) is equivalent to the chosen impedance dynamics (6).

Case2: For the decision vector z, defined by ${[\begin{matrix} k_{p_{1}} & k_{p_{2}} & k_{v_{1}} & k_{v_{2}} \begin{matrix} \begin{matrix} k_{f_{1}} & k_{f_{2}} \end{matrix} Λ_{1} & Λ_{2} & k \end{matrix} \end{matrix}]}^{T}$ , the following dynamic constrained optimization problem is solved via PSO as follows:

Minimize

MRSE

subject to (40), (41), (43), (44), (45), (46) and:

[\begin{matrix} 1 & 0 & 0 & 0 & K_{d, x} & 0 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 & 0 & K_{d, y} & 0 & 0 & 0 \\ 0 & 0 & 1 & 0 & B_{d, x} & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 1 & 0 & B_{d, y} & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 1 & 0 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 0 & 0 & 0 & 1 \end{matrix}] ​ z > [\begin{matrix} - K_{d, x} \\ - K_{d, y} \\ - B_{d, x} \\ - B_{d, y} \\ 0 \\ 0 \\ 0 \\ 0 \\ 0 \end{matrix}]

(48)

and:

\begin{array}{l} K_{d} = d i a g [\begin{matrix} 50 & 50 \end{matrix}] \\ B_{d} = d i a g [\begin{matrix} 10 & 10 \end{matrix}] \\ M_{d} = d i a g [\begin{matrix} 0 & 0 \end{matrix}] \end{array}

(49)

The inequality constraint (48) and equality constraint (49) are equivalent to the stability conditions (20) for some chosen impedance dynamics (6).

7.3 PSO-robust controller's simulation results

Simulation results are carried out considering the stability conditions (19) and (20) as two case studies. The robustness of the proposed approach is proved, considering sensory noises in the joint position and joint velocity measurements (Gaussian noise of 0.2° mean and 0.2° standard deviation for the joint position measurements, and 0.2°s⁻¹ mean and 0.2°s⁻¹ for the joint velocity measurements), and for uncertainties of each link mass (20% of each nominal mass parameter of the robotic system). The desired contact forces, stiffness, damping and inertia parameters for the two case studies are given in Table 2, whereas the PSO algorithm's parameters are given in Table 3.

Table 2.

Desired impedance parameters

	Case 1	Case 2
F_d	[6 6]^T	[6 6]^T
M_d	diag[0.01 0.01]	diag[0 0]
B_d	diag[10 10]	diag[20 20]
K_d	diag[40 40]	diag[50 50]

Table 3.

Parameters of PSO algorithm

Designation	Variable	Value
Number of particles in a group	M	40
Maximum number of iterations	N	50
Minimum inertia weight factor	w _min	0.4
Maximum inertia weight factor	w _max	0.9
Search interval for k_p	[k_{p _min}k_{p _max}]	[100 10000]
Search interval for k_v	[k_{v _min}k_{v _max}]	[50 5000]
Search interval for k_f	[k_{f _min}k_{f _max}]	[1 20]
Search interval for Λ₁, Λ₂	[Λ_min Λ_max]	[1 10]
Search interval for K	[k_min k_max]	[1 5]
Search interval for the velocity of k_p	[0 k_{p _max}/2]	[0 5000]
Search interval for the velocity of k_v	[0 k_{v _max}/2]	[0 2500]
Search interval for the velocity of k_f	[0 k_{f _max}/2]	[0 10]
Search interval for the velocity of Λ₁, Λ₂	[0 Λ_max/2]	[0 5]
Search interval for the velocity of K	[0 k_max/2]	[0 2.5]
Acceleration constants	c₁, c₂	2

For C = [1 1], the optimal solutions for the controller parameters are reported in Table 4.

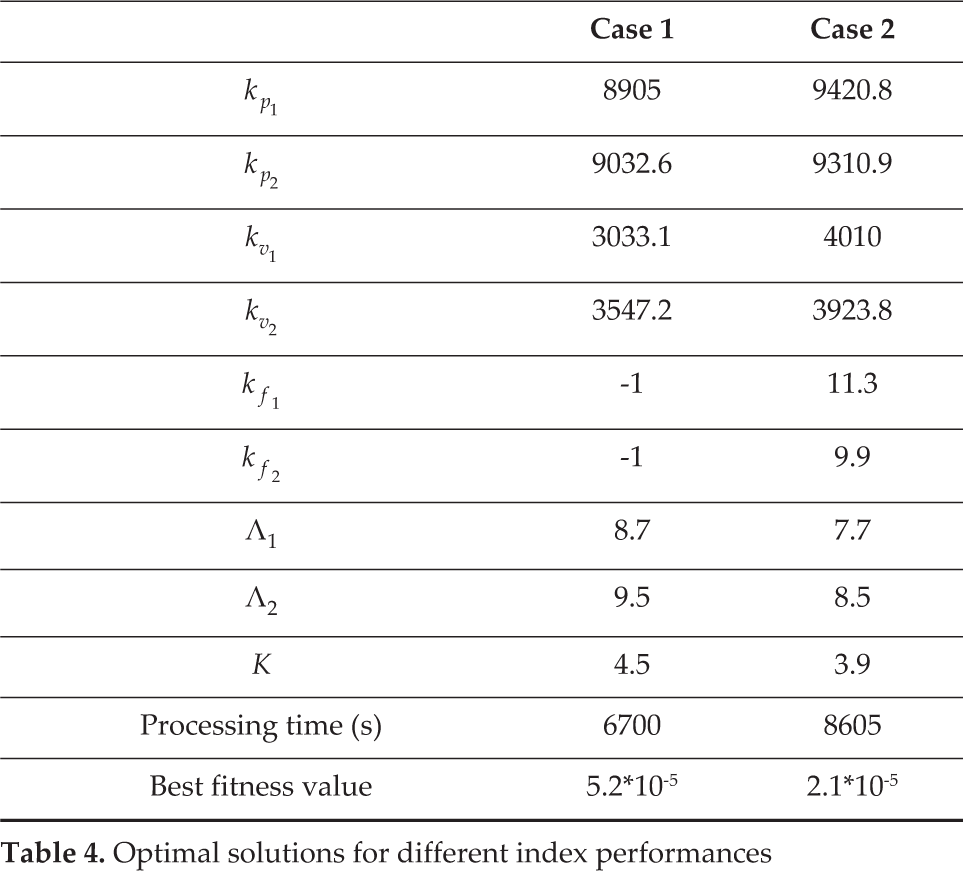

Table 4.

Optimal solutions for different index performances

	Case 1	Case 2
k _{p ₁}	8905	9420.8
k _{p ₂}	9032.6	9310.9
k _{v ₁}	3033.1	4010
k _{v ₂}	3547.2	3923.8
k _{f ₁}	−1	11.3
k _{f ₂}	−1	9.9
Λ₁	8.7	7.7
Λ₂	9.5	8.5
K	4.5	3.9
Processing time (s)	6700	8605
Best fitness value	5.2×10⁻⁵	2.1×10⁻⁵

Figures 3 and 4 illustrate the performances of the constrained robot in reaching the desired positions. Figures 5 and 6 show the shape of the constrained forces. Figure 7 shows the smooth profile of the controller laws. To avoid cluttering the paper with simulation results, only the angular velocity for the first case is shown by Figure 8.

Figure 3.

Cartesian Position on the X-axis: (a) case 1, (b) case 2

Figure 4.

Cartesian Position on the Y-axis: (a) case 1, (b) case 2

Figure 5.

Constrained forces in the X-axis: (a) case 1, (b) case 2

Figure 6.

Constrained forces on the Y-axis: (a) case 1, (b) case 2

Figure 7.

Control laws: (a) case 1, b) case 2

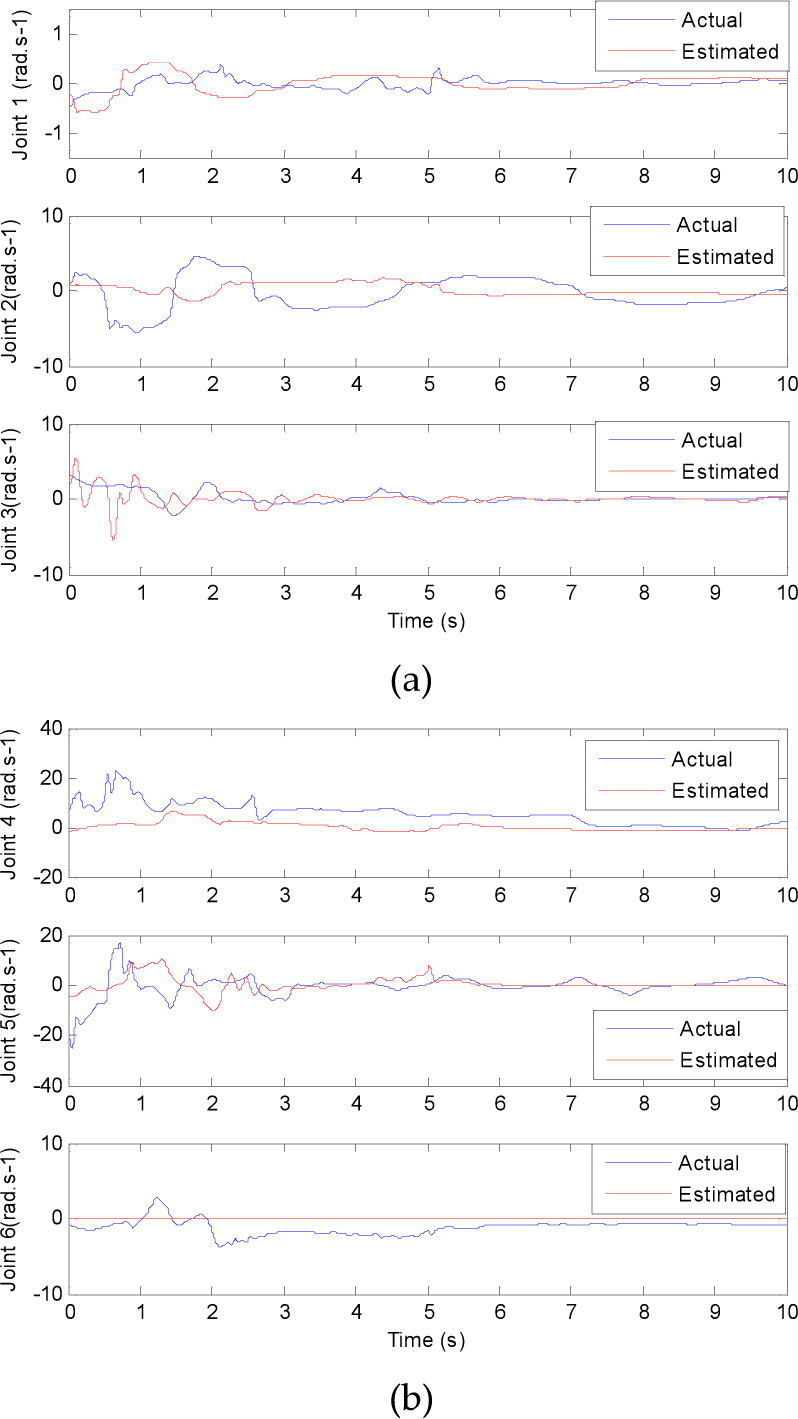

Figure 8.

Angular velocity: case 1

Simulation results prove that the state/parameter observer can yield good performances for force estimation where the control law ensure asymptotic stabilization for position and force stabilization in presence of measurement noise and parameter uncertainties.

8. Conclusion

In this paper, a PSO-robust impedance controller for constrained robots is proposed using a state/parameter observer and an acceleration estimator. New sufficient conditions for asymptotic stability using a Lyapunov-Hamiltonian approach are given. Notwithstanding the high number of the controller parameters, the PSO algorithm used gives satisfactory performances for the ABB-IRB140 industrial robot. The proposed controller allows the constrained robotic manipulator to be stabilized in order to obtain desired Cartesian positions and desired forces, even in the presence of model uncertainties and sensory noises. Simulation results prove the asymptotic stability and robustness of the proposed control scheme.

References

Vukobratovic

Dragoljub

Yury

Dynamics and robust control of robot-environment interaction. 2nd ed. World Scientific Publishing; 2009. 657 p. ISBN: 9814469882, 9789814469883.

Jha

Wettergren

Ray

A: Robot path planning in uncertain environments: a language-measure-theoretic approach. Journal of Dynamic Systems, Measurement, and Control. 2015; 137. DOI: 10.1115/1.4027876.

Jung

Hsia

Bonitz

: Force tracking impedance control of robot manipulators under unknown environment. IEEE Transactions on Control Systems Technology. 2004; 12: 474–483. DOI: 10.1109/TCST.2004.824320.

Mehdi

Boubaker

: New robust tracking control for safe constrained robots under unknown impedance environment. In: Herrmann

Studley

Pearson

Conn

Melhuish

Witkowski

Kim

Vadakkepat

, editors. Advances in Autonomous Robotics. Verlag: Springer; 2012. p. 313–323. DOI 10.1007/978-3-642-32527-4_28.

Mehdi

Boubaker

: Robust tracking control for constrained robots. Procedia Engineering. 2012; 41: 1292–1297. DOI:10.1016/j.proeng.2012.07.313.

Cao

Luo

On energy-based robust passive control of a robot manipulator. IEEE/SICE International Symposium on System Integration (SII); 15–17 December 2013; Kobe, Japan: IEEE. p. 635–640.

Wongratanaphisan

Cole

MOT

: Robust impedance control of a flexible structure mounted manipulator performing contact tasks. IEEE Transactions on Robotics. 2009; 25: 445–451. DOI: 10.1109/TRO.2008.2012340.

Sun

Pei

Pan

Zhang

: Robust adaptive neural network control for environmental boundary tracking by mobile robots. International Journal of Robust and Nonlinear Control. 2013; 23:123–136. DOI: 10.1002/rnc.1816.

Siciliano

Khatib

, Editors. Springer handbook of robotics. 1st ed. Berlin: Springer Heidelberg; 2008. 1611p. DOI: 10.1007/978-3-540-30301-5.

10.

Siciliano

Villani

Robot force control. 1st ed.

Springer

US; 1999. 146 p. DOI: 10.1007/978-1-4615-4431-9.

11.

Whitney

: Historical perspective and state of the art in robot force control. International Journal of Robotics Research. 1987; 6: 3–14. DOI: 10.1109/ROBOT.1985.1087266.

12.

Patarinski

Botev

: Robot force control: A review. Mechatronics. 1993; 3: 377–398. DOI: 10.1016/0957-4158(93)90012-Q.

13.

Vukobratovic

Tuneski

: Contact control concepts in manipulation robotics — an overview. IEEE Transactions on Industrial Electronics. 1994; 41:12–24. DOI: 10.1109/41.281603.

14.

Zeng

Hemami

: An overview of robot force control. Robotica. 1997; 15: 473–482.

15.

Chiaverini

Siciliano

Villani

: A survey of robot interaction control schemes with experimental comparison. IEEE/ASME Transactions on Mechatronics. 1999; 4:273–285. DOI: 10.1109/3516.789685.

16.

Bosheng

Bao

Zhengyi

Shuo

Xiaoqi

: A study of force and position tracking control for robot contact with an arbitrarily inclined plane. International Journal of Advanced Robotic Systems. 2013; 10:69–75. DOI: 10.5772/55086.

17.

Mallapragada

Erol

Sarkar

: A new method of force control for unknown environments. International Journal of Advanced Robotic Systems. 2007; 4:313–322. DOI: 10.1109/IROS.2006.282089.

18.

: Adaptive discrete-time sliding mode impedance control of a piezoelectric microgripper. IEEE Transactions on Robotics. 2013; 29:663–673. DOI: 10.1109/TRO.2013.2239554.

19.

Chan

Naghdy

Stirling

: Extended active observer for force estimation and disturbance rejection of robotic manipulators. Robotics and Autonomous Systems. 2013; 61: 1277–1287. DOI: 10.1016/j.robot.2013.09.003.

20.

Kroger

Kubus

Wahl

. 6D force and acceleration sensor fusion for compliant manipulation control. IEEE/RSJ International Conference on Intelligent Robots and Systems; 9–15 October 2006; Beijing China: IEEE. p. 2626–2631.

21.

Gamez

Garcia J

Robertsson

Gomez

Ortega J

Johansson

Force and acceleration sensor fusion for compliant robot motion control. IEEE International Conference on Robotics and Automation, 15–19 May 2006; Florida, USA: IEEE. p. 2720–2725.

22.

Spong

Vidyasagar

Robot Dynamics and Control. 1st ed. Wiley & Son; 1989. 336 p. ISBN-10: 047161243X.

23.

Weiwei

Shuang

Shilong

Acceleration feedback control of a five-bar parallel manipulator. Proceeding of the 31st Chinese Contol Conference, 25–27 July 2012; Hefei, China. p. 4439–4444.

24.

Chen

: Parameter fine-tuning for robots. IEEE Control Systems Magazine. 1989; 9: 35–40. DOI: 10.1109/37.16769.

25.

Murphy

. Introduction to AI Robotics. 1st ed. Cambridge: MIT Press; 2000. 466 p. ISBN: 0262133830.

26.

Kumar

Neural network based hybrid force/position control for robot manipulators. International Journal of Precision Engineering and Manufacturing. 2011; 12: 419–426. DOI: 10.1007/s12541-011-0054-3.

27.

Singh

Sukavanam

: Stability analysis of robust adaptive hybrid position/force controller for robot manipulators using neural network with uncertainties. Neural Computing and Applications. 2013; 22: 1745–1755. DOI: 10.1007/s00521-012-0966-6.

28.

Shi

Eberhart

. A modified particle swarm optimizer. In Proceeding of IEEE International Conference on Evolutionary Computation, 4–9 May 1998; Anchorage, AK: IEEE. p. 69–73.

29.

Kennedy

Mendes

Population structure and particle swarm performance. In Proceeding of IEEE conference on Evolutionary Computation, 12–17 May 2002; Honolulu, HI: IEEE. p. 1671–1676.

30.

Chatterjee

Pulasinghe

Watanabe

Izumi

: A particle swarm optimized fuzzy-neural network for voice-controlled robot systems. IEEE Transactions on Industrial Electronics. 2005; 52:1478–1489. DOI: 10.1109/TIE.2005.858737.

31.

Kwok

Fang

: Motion coordination for construction vehicles using swarm intelligence. International Journal of Advanced Robotic Systems. 2007; 4: 469–476. DOI: 10.5772/5672.

32.

The Cartesian path planning of free-floating space robot using particle swarm optimization. International Journal of Advanced Robotic Systems. 2008; 5:301–310. DOI: 10.5772/5605.

33.

Wei-Der

Shun-Peng

: PID controller design of nonlinear systems using an improved particle swarm optimization approach. Communications in Nonlinear Science and Numerical Simulation. 2010; 15: 3632–3639. DOI: 10.1016/j.cnsns.2010.01.005.

34.

Jatmiko

Sekiyama

Fukuda

: A PSO-based mobile robot for odor source localization in extreme dynamic advection-diffusion environment with obstacle: Theory, simulation and measurement. IEEE Computational Intelligence Magazine: Special Issue on Biometric. 2007; 2:37–51.

35.

Sahazati

Rahmat

Husain

: Performance comparison of particle swarm optimization and gravitational search algorithm to the designed of controller for nonlinear system. Journal of Applied Mathematics. 2014; 2014: 1–9. DOI: 10.1155/2014/679435.

36.

Mehdi

Boubaker

: Impedance controller tuned by particle swarm optimization for robotic arms. International Journal of Advanced Robotic Systems. 2011; 8: 93–103. DOI: 10.5772/45692.

37.

Kiguchi

Fukuda

: Intelligent position/force controller for industrial robot manipulators application of fuzzy neural networks. IEEE Transactions on Industrial Electronics. 1997; 44: 753–761. DOI: 10.1109/41.649935.

38.

Kiguchi

Fukuda

: Position/force control of robot manipulators for geometrically unknown objects using fuzzy neural networks. IEEE Transactions on Industrial Electronics. 2000; 47: 641–649. DOI: 10.1109/41.847905.

39.

Jung

Hsia

: Robust neural force control scheme under uncertainties in robot dynamics and unknown environment. IEEE Transactions on Industrial Electronics. 2000; 47: 403–412. DOI: 10.1109/41.836356.

40.

Kiguchi

Watanabe

Fukuda

: Generation of efficient adjustment strategies for a fuzzy-neuro force controller using genetic algorithms — Application to robot force control in an unknown environment. Information Sciences. 2002; 145: 113–126. DOI: 10.1016/S0020-0255 (02)00226-8.

41.

Hogan

: Impedance control: An approach to manipulators: Part 1, 2, 3. ASME Journal of Dynamic Systems, Measurement and Control. 1985; 107: 1–24.

42.

Mehdi

Boubaker

: Rehabilitation of a human arm supported by a robotic manipulator: A position/force cooperative control. Journal of Computer Science. 2010; 6: 912–919. DOI: 10.3844/jcssp.2010.912.919.

43.

Aguilar

Freidovich

Orlov

Merida

Performance analysis of relay feedback position regulators for manipulators with coulomb friction. European Control Conference, 17–19 July 2013; Zürich, Switzerland, p. 3754–3759.

44.

Mehdi

Boubaker

: Stiffness and impedance control using Lyapunov theory for robot-aided rehabilitation. International Journal of Social Robotics, International Journal of Social Robotics. 2012; 4:107–119. DOI: 10.1007/s12369-011-0128-5.

45.

Suarez

Heredia

. Kinematics, dynamics and evaluation of energy consumption for ABB IRB-140 serial robots in the tracking of a path. The 2nd International Congress of Engineering Mechatronics and Automation, 23–25 October 2013; Bogota, Colombia.

46.

ABB Robotics. Product specification for IRB 140. Available from: http://daedokwsc.cafe24.com/pdf/abb/IRB140.pdf. Accessed on 01 Jan 2015.

Robust Impedance Control-Based Lyapunov-Hamiltonian Approach for Constrained Robots

Abstract

Keywords

1. Introduction

2. Problem Formulation

3. The State/Parameter Observer Design

4. Angular acceleration estimation

5. Robust Control-based Lyapunov-Hamiltonian Approach

6. PSO Controller Design

7. Application

7.1 The robot arm with model uncertainties

7.2 The constrained optimization problem via PSO

7.3 PSO-robust controller's simulation results

8. Conclusion

References
