Abstract

In this paper, an efficient methodology to generate optimal and/or quasi-optimal sequences of G commands to minimize the manufacturing time is presented. Our solution starts from original G codes provided by application CAD/CAM software. Here, first we tackled the problem of reducing the time of the travel path for drilling of an industrial robotic manufacturing machine. The methodology can be easily implemented for free distribution or commercial CAD/CAM software without achieving any modification to it. Several experiments that demonstrate how this proposal can help to outperform solutions provided by application software are presented, consistent improvements around 62% were obtained. Moreover, for optimizing the time along the travel path, we present a high performance implementation of Ant Colonies (ACO) known as Parallel ACO (P-ACO) that allows achieving the optimization task efficiently by speeding up the original ACO. A Graphical User Interface that integrates the whole process is shown.

Keywords

Manufactoring robot P-ACO G-CODE

1. Introduction

Computer Numerical Control (CNC) refers to the automation of machine tools, which is of primordial importance in any automated industrial process for manufacturing products. Today manual machine tools have been largely replaced by CNC machines, where all movements of the machine tools are programmed and controlled electronically rather than by hand [1], reducing time and avoiding human errors. They are, in essence, manufacturing robots.

The productivity of CNC machine tools is significantly improved by using Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) systems for automated Numerical Control (NC) program generation. Currently, many CAD/CAM packages that provide automatic NC programming have been developed for various cutting processes, one of those processes being the hole cutting operation or drilling.

Several studies published since 1996 are based on reducing the cutting time by optimizing some parameters, such as geometry, material and tool type. Some works on drilling route optimization investigated: [2] a case study with variable hole sizes, in [3] using Tabu search algorithm and an improved algorithm; in [4] the 2-Opt Heuristic Evolutionary algorithm in optimizing the drilling path; in [5] a Genetic Algorithm (GA) to find the optimal sequence for the hole cutting process of the CNC machine tool and in [6] a Particle Swarm Optimization (PSO) approach to Robotic Drill Route Optimization. A survey of the literature shows that much research has been done on minimizing the cutting time [7,8]. In [9] the travel path is formulated as a special case of the travelling salesman problem.

Notwithstanding the importance for industry of reducing the travel path time, there have been few new proposals that face this problem efficiently. In [10] a novel scheme based on an adaptive grid that can produce the optimal tool path based on an iso-parametric tool path was introduced. In [11] a new method for rapid tool movement in CNC machines by using image processing techniques was presented.

With the advent of novel architectures regarding high performance computing [12], several studies about parallel metaheuristics have been developed, e.g., in [13] a synchronous fine grained parallel Ant Colony Optimization (ACO) algorithm in master/slave fashion was presented, combined with local Tabu search, and this algorithm was applied to solve the Quadratic Assignment Problem [14]. In [15] five parallelization strategies and the implementation of one of them, named parallel ants, were shown. By modifying the classical ACO [16], in [17] a parallel ant colony algorithm on reconfigurable processor arrays was proposed. A multicore processors methodologic design for CAD applications proposed to solve the min-cost flow problem was described in [18]. An approach of tool path generation for CNC machining based on CUDA was explained in [19]. New scientific and technological trends show the interest in using bio-inspired algorithms to solve real-world problems, for example, in [20] ACO combined with a Fuzzy Logic controller tuned with the Simple Tuning algorithm [21,22] was used to obtain the optimal route for a mobile robot, in [23] also the parameters of a fuzzy controller were tuned, and ACO was used for a mobile robot, in [24,25] the parameters of fuzzy controllers were optimized using ACO. In [26] the implementation of a methodology that combines Fuzzy Logic and Genetic Algorithms to plan the automatic assembly and disassembly sequence of products was presented.

In this paper, we present an efficient methodology to generate the best sequence of G commands for a set of holes of a printed circuit board, which is important since knowing the optimal sequence makes it possible to reduce production costs. This methodology consists of reading a DXF file to obtain a set of commands and coordinates of any part (section) designed with an application CAD/CAM package; this input file is processed by the Parallel ACO (P-ACO) algorithm to generate an optimal sequence of G commands for a CNC drilling tool path, then the machine is fed with the optimal sequence and the manufacturing task is performed. The path optimization is achieved using Multi Ant Parallel Colonies Metaheuristic which is an efficient parallel implementation of ACO [27]. Several experiments that demonstrate how this proposal can help to outperform solutions provided by application paid software are presented. We propose a strategy for information exchange randomly between processors, updating pheromone values automatically.

This paper is organized in seven sections. Section I discusses the state of the art drilling route optimization problem. Section II presents the route optimization problem focusing on how to optimize the travel time path of the drilling tool; it is viewed as an analogous problem of the Travel Salesman Problem (TSP). In Section III, the mathematical foundation of ACO and its pseudo code are presented. Section IV extends ACO theory to P-ACO, its pseudo code, and the Graphical User Interface (GUI) of this development is also presented. Section V explains the proposed methodology providing the main steps and algorithms that allow duplicating results. In Section VI, we explain how the experiments were conducted and numerical and graphical information that support the results is shown. Finally, in Section VII we give the conclusions of this work.

2. Problem Formulation

The TSP problem [14,28,29] is the problem of a salesman who, starting from his hometown, wants to find a shortest route that takes him through a given set of customer cities and then back home, visiting each customer city exactly once. The TSP can be represented by a complete weighted graph G = (V; E), with V being the set of vertices (nodes) representing the cities and E being the set of arcs, that can be implemented using an adjacency matrix representing the connections between nodes. Each arc (i, j) ∈ E has assigned a value (length) d_ij which is the distance between cities i and j.

Route optimization can be achieved using metaheuristics; ACO is one of the many available algorithms used to optimize routing time; numerous studies on hole drilling optimization do not consider the treatment of the problem using Parallel Ant Colony Optimization (P-ACO) [15].

Ant Colony Optimization (ACO) was introduced by Marco Dorigo [29 -31,34]. Using very simple communication mechanisms, an ant group can find the shortest path between any two points by choosing the paths according to pheromone levels. ACO metaheuristics can be used to solve the TSP, where the pheromone trails are associated with arcs and therefore τ _ij refers to the desirability of visiting city j directly after city i. For Ant Systems (AS), the heuristic information is chosen as η_ij = 1/d_ij; that is, the heuristic desirability of going from city i to city j is inversely proportional to the distance between the two cities. For implementation purposes, pheromone trails are collected into a pheromone matrix whose elements are the τ _ij 's.

Routes are constructed by applying the following simple constructive procedure to each ant:

Each ant chooses, according to some criterion, a start city at which the ant is positioned.

Each ant uses a pheromone and heuristic value to probabilistically construct a tour by iteratively adding cities that the ant has not yet visited, until all cities have been visited.

Each ant goes back to the initial city.

After all ants have completed their route, they may deposit pheromones on the routes they have followed.

ACO can usually converge to an almost optimal solution in a certain number of iterations, but it needs considerable computational time and resources when the complexity of the problem increases [32, 33].

3. Ant System

Consider the general problem of finding the shortest path between two nodes on a graph, G = (V, E) with n_G = |V| nodes. The length, L^k, of the path constructed by ant k is calculated as the number of hops in the path from the origin to the destination node, as is shown in Figure 1, where each edge (i,j) of the graph has a total associated pheromone concentration, τ _ij .

Figure 1.

Graph for Shortest Path Problems.

The main difference between AS and Simple Ant Colony Optimization (S-ACO) [34] is based on the transition probability p_ij^k; AS includes heuristic information and implements a memory capability by the inclusion of a Tabu list.

A small random initial value of pheromone τ _ij (0) and heuristic information η_ij are assigned to each edge; this is indispensable to use (1) because at the first step they do not have any pheromone concentration value. An ant randomly selects which edge to follow next. Using the simple decision logic based on (1).

A number of ants, k = 1,…, n_k, are placed on the source node. For each iteration of AS, each ant incrementally constructs a path (solution) to the destination node. At each node, each ant executes a decision policy to determine the next link of the path; if ant k is currently located at node i, it selects the next node j ∈ N_i^k, based on the transition probability [30]. In AS, the probability of moving from node i to j is given as

p_{i j}^{k} = \frac{{[τ_{i j}]}^{α} {[η_{i j}]}^{β}}{\sum_{l \in N_{i}^{k}} {[τ_{i j}]}^{α} {[η_{i j}]}^{β}}, if j \in N_{i}^{k}

(1)

where η _ij = 1/d_ij is a heuristic value, α and β are two parameters, which determine the relative influence of the pheromone trail and the heuristic information, and N^k_i is the feasible neighbourhood of ant k when being at city i, that is, the set of cities that ant k has not yet visited. The probability of choosing a city outside N^k_i is 0. The role of parameters α and β can be set by the following statements:

If α = 0, the closest cities are more likely to be selected (α is a parameter to regulate the influence of τ_ij).

If β = 0, only pheromone amplification is used, without any heuristic bias (β is a parameter to regulate the influence of η_ij).

The transition probability in Equation (1) differs from that of S-ACO in two aspects [34]:

The transition probability used by AS is a balance between pheromone intensity, τ_ij, and heuristic information (desirability of the move) η_ij. This effectively balances the exploration – exploitation trade-off. The heuristic information adds an explicit bias towards the most attractive solutions and it is, therefore, a problem-dependent function.

The set N^k_i defines the set of feasible nodes for ant k when located on node i. To prevent loops, N^k_i may include all nodes not yet visited by ant k. As the ant visits a new node, that node is added to the ant's Tabu list. Nodes in the Tabu list are removed from N^k_i, ensuring that no node is visited more than once.

3.1 Update of pheromone trails

After all the ants have constructed their routes, the pheromone trails are updated. This is done by first lowering the pheromone value on all arcs by a constant factor and then adding pheromones on the arcs the ants have crossed in their routes.

Pheromone evaporation is implemented by

τ_{i j} \leftarrow (1 - ρ) τ_{i j}, \forall (i, j) \in L,

(2)

where 0 ≤ ρ ≤ 1 is the pheromone evaporation rate [30]. After evaporation, all ants deposit pheromone on the arcs they have crossed, as shown in (3)

τ_{i j} \leftarrow τ_{i j} + \sum_{k = 1}^{m} Δ τ_{i j}^{k}, \forall (i, j) \in L,

(3)

where Δτ^k_ij is the amount of pheromone that ant k deposits on the visited arcs. Algorithm 1 describes the general sequential procedure of the Ant System.

4. Parallel ACO Framework

4.1 Parallelism on the Ant Level

In this research, we use a parallel implementation of ACO (P-ACO) on the ant level [34] proposed initially by Bolondi and Bondanza [35], as shown in Figure 2. A master–slave architecture is used to implement ant level parallelization.

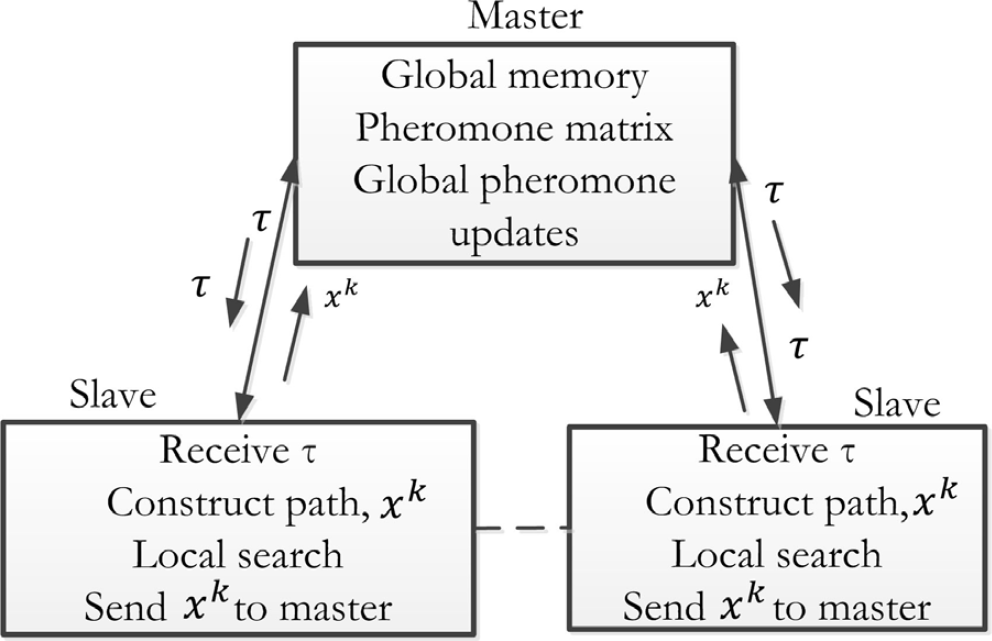

Figure 2.

Ant Level Parallelization by Bolondi and Bondanza.

Algorithm 1 ACO for TSP

Procedure ACO(m. n, S) m : number of ants n : number of cities S : feasible nodes (cities) for ant k Initialize all parameters, i.e., α, β, ρ, τ repeat for each ant k = ∈ (1,…, m) solution construction do S := 1, …, n set of selectable cities Choose city i with probability p_o; repeat Choose city j ∈ S with probability p_ij S: = S – j i : = j until S = 0 end for for all i,j in iteration best solution do τ_i,j := τ_i,j + Δ (intensification) end for until Stopping criterion is met

Algorithm 1. ACO for TSP.

Each ant (slave) is assigned to a separate processor to construct a solution. One processor is assigned as the master, with the responsibility to schedule ants on the different processors, to place ants on the representation graph (in this case, to place ants randomly), to perform global updates, to produce the final solution and to manage user input.

Each slave is responsible for constructing a complete path (solution) and for performing a local search on that solution if applicable. The solution is then sent to the master. Additionally, since each slave maintains its own pheromone structure and updates it, the changed pheromone values are sent to all other processors at the end of each iteration, as shown in Figure 2.

Algorithm 2 represents our P-ACO Framework based on a message passing model. An initial process (master) would spawn a set of processes, one for each ant. After distributing initial information about the problem, each process can generate a single solution for each ant k. After finishing this procedure, the result is sent from each process back to the master process. The master process updates the trail levels by calculating the intensity of the trails and checks for the best route found so far. A new iteration is initiated until stopping criterion is met.

Ignoring any communication overhead, parallel algorithms would imply optimum (asymptotic) speedup [36]; assuming that an infinite number of processing elements is available. The main part of the algorithm is complexity O(m³) and the generation of one solution is complexity O(m²) where n is the number of jobs; these two operations are independent of each ant of a given cycle, so they can be easily parallelized. Asymptotic speedup is based on the relation between sequential and parallel execution times (4), where m is the quantity of ants in the colony, T_seq is the sequential time and T_par is the parallel execution time.

S_{a s u m p t o m i c} (m) = \frac{T_{s e q} (m)}{T_{p a r} (m, \infty)} = \frac{O (m^{3})}{O (m^{2})} = O (m)

(4)

Algorithm 2 Parallel ACO for TSP

Procedure P-ACO(m, n, S, p) m : number of ants n : number of cities S : feasible nodes (cities) for ant k p : number of processors Initialize all parameters, i.e., α, β, ρ, τ repeat for each processor do for each ant k = ∈ (1, …, m) solution construction do S := 1,…, n set of selectable cities Choose city i with probability p_0i repeat Choose city j ∈ S with probability p_ij end for S: = S – j i := j until S = 0 end for for all i,j in iteration best solution do τ_i,j := τ_i,j + Δ (intensification) end for until Stopping criterion is met

Algorithm 2. Parallel ACO for TSP.

In parallel computing, running time depends on the number of processors used, and derived measures are often used to express whether a particular execution time is good or bad considering the amount of resources used. Speedup is used to express how many times our parallel algorithm works faster than a sequential one, where both algorithms (sequential and parallel) are solving the same problem [37].

The parallel algorithm (P-ACO) is written in Visual C#, avoiding some synchronization problems related to parallel programming. The main application software works on single processor machines and dual-processor machines; these experiments have been executed with the following hardware specifications:

Intel™Core™i7 CPU 930 @2.80 GHz processor

6GB RAM memory

5. CNC Tool Path Generation

The TSP and Parallel ACO have been incorporated to find the shortest cutting tool travel path (CTTP) for drilling operations. Figure 3 shows our Graphics User Interface (GUI) developed with Visual C#. A number of commercial CAD/CAD packages that provide automatic NC programming have been developed and applied to various cutting processes. To cut any process using CNC machine tools, a tool path for the CTTP should be determined [9].

Figure 3.

CNC Tool path optimization GUI – note that each hole is treated as if it were a city in the Travel Salesman Problem (TSP).

The total production time to cut any part using CNC machine tools consists of a travel time [9,19], which is the time to move the CNC machine spindle between operations, switch time, which is the time to change the tool for the next operation, and the cutting time, which is the time that the tool moves with cutting speed in the air or on material. Our purpose is to minimize the CTTP based on P-ACO.

5.1 Tool path programming optimization strategy

To exchange files between CAD/CAM packages, a translator is necessary [38,39] which takes place through intermediate files, as shown in Figure 4. These files can be any of the following standard formats: Drawing Exchange Files (DXF), IGES files and STEP files.

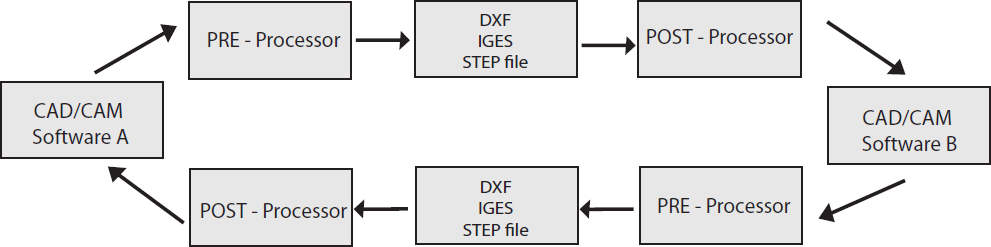

Figure 4.

Exchange files between CAD/CAM packages.

Our system reads an input DXF file to obtain a set of commands and coordinates for any part designed in a CAD/CAM commercial package; this input DXF file is now being processed by the Parallel Ant Colony Optimization Algorithm to generate a sequence of G commands for a CNC drilling tool path. This implementation can be represented as shown in Figure 5.

Figure 5.

Automatic G code sequence generation from DXF files using P-ACO.

5.2 DXF file interpretation

For the input DXF file shown in Figure 6, a translation procedure must be done. This procedure can be represented as in Algorithm 3.

Figure 6.

3D CAD drawing to DXF conversion.

reader: = readFromFile(file.dxf) line1: Reads first line line2: Reads second line while line2 != “EOF” do if line 1 = 0 and line2 = “LINE” then LineModule(reader) else if line1 = 0 and line2 = “CIRCLE” then CircleModule(reader) end if end while GetLineCouple()

Algorithm 3. DXF interpretation procedure.

The ReadFromFile(string filename) method deals with extracting data from the DXF file and forwarding data to the necessary drawing methods. In DXF files, the data is stored in two-line structures, as shown in Figure 7. The first line contains an entity identifier and the second line contains the data value.

Figure 7.

DXF script describing a single hole and its location.

Figure 7 shows a script containing a set of DXF commands that represents a single hole from Figure 6. This hole is located at X = 1:06516 and Y = 1:5176 with a diameter of 1/8”. In order to interpret a DXF file, we must read these lines until an End of File (EOF) command is read. Depending on this dual structure, we can interpret all entities that reside in a DXF file. For a TSP application, only LINE and CIRCLE entities can be recognizable.

5.3 Automatic G – Code Generation for the CTTP

The following procedure represents the generation of a G code sequence for the CTTP:

Step 1: Read the coordinate of each node of the optimized CTTP based on Parallel ACO.

Step 2: Code the traverse motion command G00 and then the X and Y coordinates of the first hole in the CTTP.

Step 3: For each coordinate in solution k, code G00 rapid moves and then X and Y coordinates for the next node.

Step 4: If a change in tool is needed, then code M6 for a tool change and repeat steps 1 to 3. If no change in tool is needed, then proceed with steps 1 to 3 until the tool reaches the last hole in the CTTP.

Our system generates this output file and then the user can save this file with an .NC extension.

6. Experimental Results and Analysis

6.1 Parallel Implementation of ACO Analysis

In this section, we show the test results of our parallel ACO algorithm on some 15in × 15in boards with a different number of holes. We ran our parallel algorithm for 97 holes, 121 holes and 200 holes with the following decision probability control parameters:

ρ = 0.1 Evaporation coefficient.

α = 1, 2, 2, 5 Parameter to regulate the influence of τ_ij.

β = 4, 4.5 Parameter to regulate the influence of η_ij.

The number of ants was equal to the number of iterations and the maximum number of processors was 6. In our experiment we performed 15 trials on each problem. The experimental results are shown in Figures 8, 9 and 10, where three problems were tested based on P-ACO, and they are compared with a classical ACO algorithm by using a single processor.

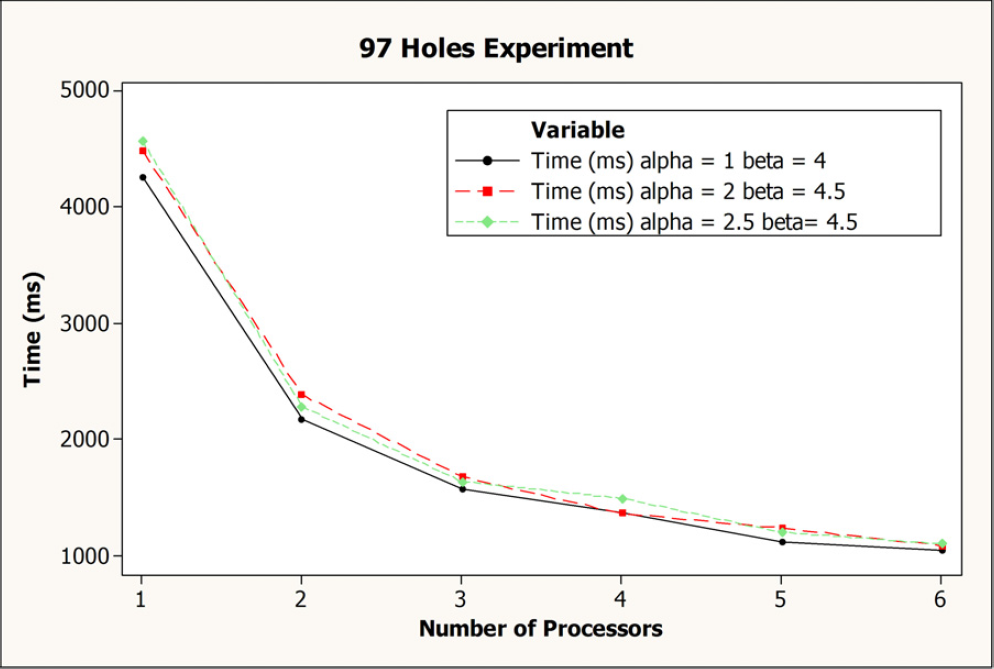

Figure 8.

PCB board with a 97 hole parallel implementation.

Figure 9.

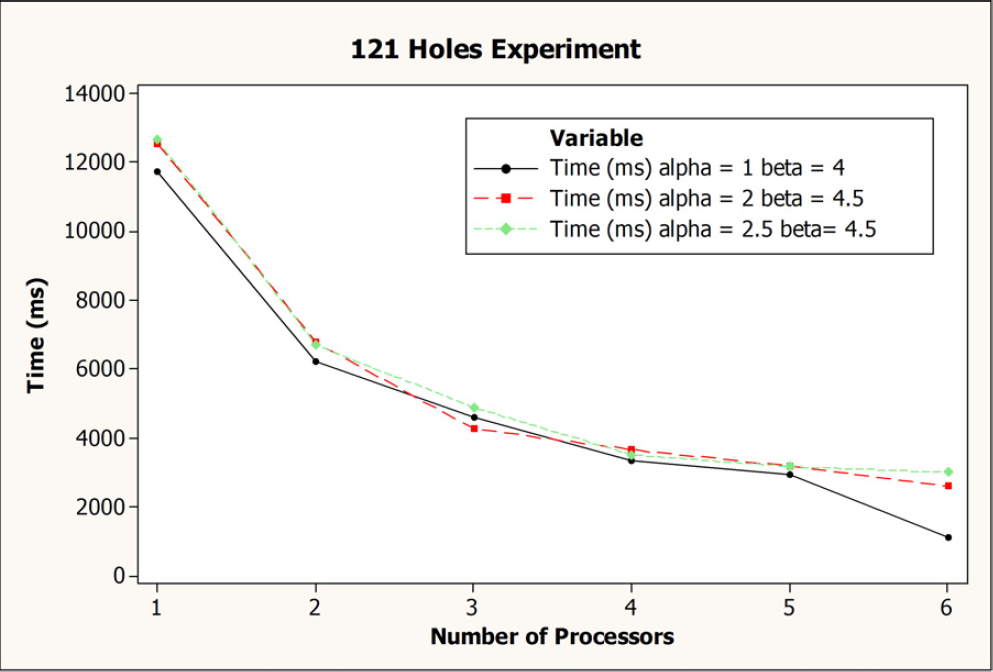

PCB board with a 121 hole parallel implementation.

Figure 10.

PCB board with a 200 hole parallel implementation.

Figures 8, 9 and 10 show the results of our experiments; the number of ants varies from 30 to 50 and the number of iterations is equal to the number of ants. For each processor configuration, the time indicated is the average of 15 independent runs.

The number of processors plays a major role in determining the complexity of a parallel algorithm. In general, we say that the performance of a parallel algorithm is expressed in terms of how fast it is and how many resources it uses when it runs. The sequential and parallel execution times for these three experiments slowly increased as the system size increased, but their complexity is reduced in the parallel algorithms; the execution times for all experiments in Figures 8, 9 and 10 follow the same trends; the execution time consistently decreases as the number of processors used increases.

It can easily be seen from Figures 8, 9 and 10 that P-ACO computation is reduced due to the parallel computation. P-ACO implementation provides good solutions and they are near cost-optimal and scalable. We can observe that when the number of processors is increased, the computing time can be reduced due to the small number of ants assigned to each processor; due to the overhead of communication which increases the total time of an algorithm, the speedup of our algorithm shows a good trend as indicated in Figure 11.

Figure 11.

Speedup analysis for P-ACO.

6.2 Tool Path Optimization Analysis

In this section, we are going to use the same three experiments in section A, with the aim of comparing the generated tool paths using the P-ACO algorithm against the MasterCAM™, the comparisons are shown in Figures 12, 13 and 14. We can observe that the determination of an optimal tool path is a good example of the well-known TSP problem and it can be solved by using a metaheuristic; in this case, we use P-ACO to perform these experiments; here the machining head must meet an optimal set of machining operations.

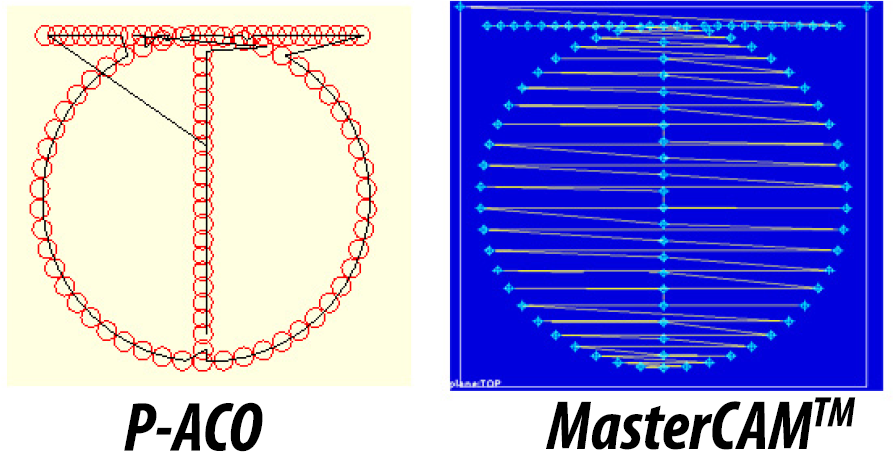

Figure 12.

Cutting tool path for a 97 hole board using P-ACO and MasterCAM.

Figure 13.

Cutting tool path for a 121 hole board using P-ACO and MasterCAM.

Figure 14.

Cutting tool path for a 200 hole board using P-ACO and MasterCAM.

Figure 15 shows a plot of cutting time vs. number of holes; we can observe that for a 97 hole board, there is a difference of 24.6 minutes to travel a tool path between P-ACO and MasterCAM™; for a 121 hole board there is a difference of 27.35 minutes and for a 200 hole board there is a difference of 51.88 minutes. Figure 16 shows a HAAS Automation™ CNC machine used to perform our experiments.

Figure 15.

Manufacturing time analysis.

Figure 16.

HAAS automation CNC machine.

Table 1 shows an estimated travel time comparison between MasterCAM™and P-ACO to perform drilling operations. We can observe that using P-ACO the CNC machine performs better, i.e., 62.27% faster than some paths generated by MasterCAM™. We present an estimate of machine travel times for more boards based on the results obtained with a single board, as shown in Figure 15.

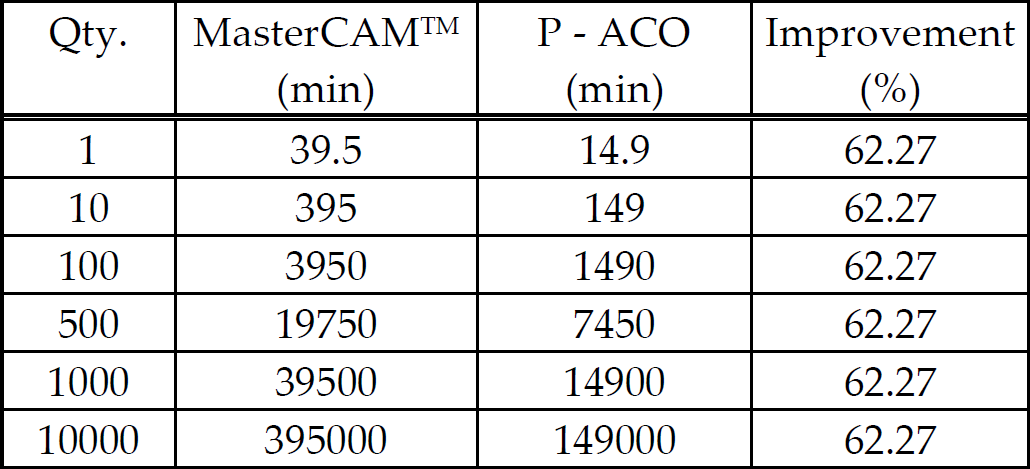

Table 1.

Comparison of machining times for the 97 holes experiment.

Qty.	MasterCAM™ (min)	P – ACO (min)	Improvement (%)
1	39.5	14.9	62.27
10	395	149	62.27
100	3950	1490	62.27
500	19750	7450	62.27
1000	39500	14900	62.27
10000	395000	149000	62.27

7. Conclusion

In this paper, we presented an efficient methodology to improve application software, which can be free or paid software for industry applications. It is based on finding optimal time paths for CNC machines providing optimal G code. The solution takes advantage of high performance computing for implementing the P-ACO metaheuristics. Several experiments were achieved using paid application CAD/CAM software, the results were verified using a professional CNC machine (see Figure 16) and the analysis of numerical results and graphical trends demonstrates utterly that the use of the proposed methodology can offer improvements of around 62% over solutions provided by application software, in this case paid software. This methodology can be easily implemented, as there is no necessity to perform any modification to the application software, since the only thing to do is to feed the CNC machine with the optimal G code sequence instead of the original.
