In Vitro and Ex vivo Analysis of Hyaluronan Supplementation of Integra ® Dermal Template on Human Dermal Fibroblasts and Keratinocytes

Abstract

Purpose

Widespread application of collagen-glycosaminoglycan dermal templates in the treatment of cutaneous defects has identified the interval between initial engraftment and skin graft application as important for improvement. The aim of this study was to evaluate the effect of hyaluronan supplementation of Integra^® dermal template on human dermal fibroblasts and keratinocytes in both in vitro and ex vivo models.

Methods

This study utilized in vitro and ex vivo cell culture techniques to investigate supplementing Integra^® Regeneration Template with hyaluronan (HA), as a strategy to decrease this interval. In vitro, Integra^® was HA supplemented at 0.15, 1, 1.5 and 2 mg/mL⁻¹. Primary human dermal fibroblast (PHDF) and keratinocyte proliferation, PHDF viability, migration and HA-induced signal transduction (phosphor-MAPK Array) were assessed. Ex vivo, wound models (wound diameter 4 mm) were created within 8 mm skin biopsies. Wounds were filled with Integra^® or HA supplemented Integra^®. Re-epithelialization was compared through hematoxylin and eosin-stained cross-sections at 7, 14 and 21 days in culture. Model viability was assessed through lactate dehydrogenase (LDH) assays.

Results

In vitro, PHDF and keratinocyte proliferation were enhanced significantly (p<0.001) when supplemented with HA. S-Phase and G2/M PHDFs in HA supplemented scaffolds increased. PHDF viability was enhanced to 72 hours culture with 1.5 mg/mL⁻¹ HA (p = 0.016). PHDF migration was maximally enhanced at 1 mg/mL⁻¹ and 1.5 mg/mL⁻¹, whilst increased levels of phosphorylated Erk/MAPK proteins indicated increased metabolic activity. In ex vivo models, HA supplementation accelerated re-epithelialization at all concentrations. This ex vivo model provides a robust model for preclinical assessment of skin substitutes.

Conclusions

HA supplementation to Integra^® demonstrates increased in vitro growth, viability and migration. Whilst ex vivo data suggest HA supplementation of Integra^® may increase rapidity of wound closure.

Keywords

Cutaneous wound healing Hyaluronan Primary dermal fibroblasts Skin substitutes

Introduction

The use of artificial dermal substitutes in the treatment of acute and chronic cutaneous injuries, particularly large burn injuries, is becoming increasingly routine. Skin substitutes offer versatile alternatives to the current clinical use of autologous skin grafts, where perhaps there is a paucity of suitable uninjured cutaneous tissue (1).

Integra^® Dermal Regeneration Template (Integra Life Sciences, USA) is an acellular collagen (bovine)-chondroitin-6-sulphate (shark) porous sponge-like substitute that has found application in a wide variety of wounds (2-3-4). Integra^® is available with and without a silicone epidermal barrier, which is removed when cellular in-growth and vascularization of the scaffold is sufficient to support a split thickness autologous skin graft, typically 3-4 weeks after initial application. Recently, interest has increased in the application of Integra^® single-layer (5), when applied to cutaneous injuries in this way, the scaffold supports closure through dermal invasion and epidermal migration whilst attenuating (myo) fibroblastic contraction (6).

Through decreasing the interval period required between application and skin grafting, or by increasing the rate of re-epithelialization, it may be possible to improve healing either directly or through reduced infection risk (7). Importantly, it is likely to also reduce hospital expenses and other costs associated with using skin substitutes. Strategies proposed to decrease this period include negative pressure therapy (8) and combining Integra^® application with direct cell transplantation (9). An alternative approach would be to supplement Integra^® with molecule(s) that increase cell proliferation and substitute vascularization whilst reducing scar formation.

This study investigated the incorporation of hyaluronan (HA) with the Integra^® scaffold. HA, an almost ubiquitous glycosaminoglycan (GAG), interacts directly with cells through its cell surface receptors CD44 and RHAMM (receptor of HA-mediated motility) (10, 11), which may stimulate Akt and ERK1/2 (extracellular signal-regulated kinases) pathways resulting in fibroblast proliferation and protein synthesis (12). High molecular weight HA is present in provisional healing wound matrices (13), during embryonic development (14) and is thought to be central to fetal scarless wound healing (15). HA has been investigated as a biomaterial to promote tissue regeneration but previous reports into the effects of HA supplementation on fibroblast proliferation in collagen matrices are contradictory (See Supplementary Table SI, available online as supplementary material at www.jab-fm.com) (12, 16-17-18).

In normal human skin, large quantities of HA are found in the dermis and it is locally abundant in the basal and spinous strata of the epidermis (19, 20). In the narrow intercellular spaces of the stratums basal and spinosum, concentrations of approximately 2.5 mg/mL⁻¹ are observed. Local concentrations can increase rapidly (up to seven-fold) in response to injury (21). This effect only requires epidermal barrier function disruption, without dermal injury, and occurs in a wide margin around the site of injury – indicating a release of HA synthesis-promoting factors (21). Similarly, full thickness cutaneous injury elicits an upregulation in HA expression in a murine model (22), whilst HA synthase 1 (HAS-1) expression is increased by 5.7-fold when fibroblasts are exposed to a tissue injury mimicking matrikine (22). Exogenous delivery of HA reduces scar formation in adult cutaneous and connective tissue wound healing (23). HA-induced biophysical alterations in peri-cellular environments, can also modulate cell shape, cell-substrate adhesion, cell spreading, cytoskeletal organization and tension (24).

Wound healing and keratinocyte migration have been studied in detail previously through the use of human skin equivalents (organotypic models) and in submerged culture (25, 26). In the clinical situation, keratinocytes must migrate from an intact epidermis over a provisional matrix or grafted substitute. The lack of a suitable model has inhibited the evaluation of epidermal/keratinocyte interaction with dermal substitutes prior to grafting into animal models or human trials. In this paper, an ex vivo wound healing model for the preclinical comparison of dermal substitutes is presented.

Given the importance of HA in the wound environment, and the uniqueness of the Integra^® scaffold, the aim of this study was to carefully reappraise the effect of HA supplementation on adult dermal fibroblasts and epidermal keratinocytes both in vitro and through the implementation of an ex vivo human wound healing assay.

Methods

Preparation and seeding of Integra^® scaffolds

Lyophilized sodium hyaluronate (NovaMatrix, Norway) (MW 1,400,000-1,800,000 g mol⁻¹) was dissolved in DMEM (Dulbecco's modified Eagle medium) (PAA, Germany), supplemented with 10% (v/v) fetal bovine serum (FBS), 2 mmol/mL⁻¹ L-glutamine, 100 U/mL⁻¹ penicillin/streptomycin for fibroblast culture and ex vivo culture, or in EpiLife^® media (Invitrogen, UK) for keratinocyte culture, at 0.15 mg/mL⁻¹, 1 mg/mL⁻¹, 1.5 mg/mL⁻¹ and 2 mg/mL⁻¹. Integra^® scaffolds (Integra LifeSciences, USA) were washed with PBS and cut into 7 mm disks for in vitro assays and 4 mm disks for ex vivo assays using a biopsy punch (Steifel, USA). The HA-supplemented media was added to Integra^® to a final volume of 200 μl for 16 hours prior to performing assays (See Supplementary Fig. S1, available online as supplementary material at www.jab-fm.com). Unsupplemented Integra^® (UI) was soaked in complete DMEM or EpiLife^®.

Primary human dermal fibroblasts (PHDFs) were obtained from the skin of the lower abdomen of three Caucasian males and two female patients undergoing elective abdominoplasty surgery with full ethical approval [North West Research Ethics Committee (Ref11/NW/068)] according to previously established protocols (27) (See supplementary Methods available online at www.jab-fm.com). Human adult epidermal keratinocytes (HEKa) cells were obtained from Invitrogen, UK).

Generation of ex vivo artificial cutaneous wounds

Full thickness lower abdominal skin, obtained as above (Ref11/NW/068), was trimmed of excess adipose tissue and 8 mm punches taken. In the center of these cylindrical skin biopsies, a 4 mm full thickness artificial wound was created by a further punch biopsy. Models were placed into 24-well plate inserts (Corning, USA) and prepared Integra^® inserted into the wound area. Complete DMEM was added so that the epidermis of the ex vivo tissue was air exposed (Supplementary Fig. S2).

In vitro PHDF and HEKa proliferation

The effects of HA supplementation to tissue culture plastic (TCP) and Integra^® on PHDF and HEKa proliferation were compared to UI through MTT assays (Roche). This colorimetric assay provides accurate cell number estimation through the conversion of tetrazolium salt to formazan (Supplementary Fig. S3). Cells were synchronized in the G1/G0 of the cell cycle by incubation in 0.1 % (v/v) serum complete DMEM for 24 hours. After this period, cells were trypsinized and aliquoted for each HA concentration and added at 1 × 10⁴ cells per well. The assay was performed to the manufacturer's instructions. Briefly, the culture media was replaced by 100 μl of complete DMEM. 10 μl of MTT tetrazolium salt dye solution was added in the dark. The covered plates were incubated at 37°C for 4 hours. Insoluble formazan produced by viable cells was solubilised in 100 μl of test mix overnight at 37°C. 100 μl of the dye solution was removed and the optical density measured by a spectrophotometer at wavelength optical density (OD) 550 nm (corrected for OD 690 nm). Proliferation was assessed after 1, 2, 3, 7 and 14 days of culture. Results represent means of three independent assay reactions, for three different cell populations.

Cell cycle analysis

To investigate the influence of HA supplementation on PHDF progression through the cell cycle, flow cytometric analysis was performed on propidium iodide stained cells. Cells were again synchronized as detailed above and seeded onto Integra^® supplemented with HA concentrations as above or onto UI. Cultured cells were harvested from scaffolds by trypsinization after 24, 48, 72 and 96 hours. The collected cells were pelleted, fixed in 70% ethanol (v/v) and stained with propidium iodide solution (50 μg/mL⁻¹ PI; 0.1 mg/mL⁻¹ RNAase A; 0.05% Triton X-100). Dyed cells were analyzed by the C6 Flow Cytometer (Accuri Cytometer Ltd., UK). The percentage of cells in the different stages of the cell cycle was quantified using CFlow^® Plus Analysis software (Accuri Cytometers Ltd., UK). Results represent means of three independent assay reactions pooled together, for three different PHDF populations.

Cell viability

LDH (lactate dehydrogenase) assays (Roche, UK) were used to assess whether HA supplementation influenced cell viability. LDH is released into the cell-culture supernatant when the plasma membrane is damaged. The activity of this enzyme outside of the cell to reduce the tetrazolium salt to formazan is measured and therefore a lower assay absorbance indicates higher cell viability. The assay was performed to the manufacturer's instructions. Briefly, cell culture media was removed from fibroblasts cultured on Integra^® supplemented with HA, UI and TCP. 100 μl of the removed media was aliquoted into new 96-well plates. 100 μl tetrazolium test mix was added and the reaction incubated in the dark with gentle shaking at 20°C for 30 minutes. Absorbance was measured at OD 492 nm (corrected for OD 690 nm). Results represent means of three independent assay reactions, for three different PHDF populations. To assess the viability of ex vivo tissue during the culture period colorimetric LDH assays were also performed through the removal of culture media as above. Results represent means of three independent assay reactions, for three ex vivo cultures.

Analysis of in vitro cell invasion of Integra^®

PHDF movement vertically into, and horizontally across, Integra^® was investigated. The effect of HA supplementation on vertical migration into Integra^® was assessed through hematoxylin and eosin (H&E) staining of paraffin-embedded cross-sections.

Migration horizontally across Integra^® was assessed using CytoSelect™ 24-Well Wound Healing Assay (Cell Biolabs, Inc., USA). Fibroblasts were synchronized and subsequently seeded around a stopper area and left to attach for 24 hours. Cell stoppers were removed and scaffolds gently washed with DMEM to remove unattached cells. Wash medium was replaced with complete DMEM and cells were cultured for 48 and 72 hours. Scaffolds were formalin fixed and washed in PBS. Attached cells were permeabilized in 0.1% (v/v) Triton-X solution, washed with PBS and their nuclei stained with DAPI. Cells that had migrated into the wound area were counted across three wound fields for three PHDF populations and the mean calculated.

Cell signaling activation

HA-induced activation of signaling molecules in PHDFs was assessed by a proteome profiler array (R&D Systems, USA). Cells were cultured on UI or Integra^® supplemented with 1.5 mg/mL-¹ HA for 3 and 7 days. Cells were lysed and total protein quantified through a Non–Interfering™ Protein Assay (Merck Biosciences, UK). Protein was normalized to 200 μg in a final volume of array buffer. Negative controls consisted of PBS. The assay was performed according to the manufacturer's instructions (see Supplementary Methods). The pixel density of each capture antibody spot was analysed through ImageJ software (NIH Image). The average pixel density for each duplicate was adjusted by background subtraction and the relative change in protein phosphorylation compared between HA supplemented Integra^® and UI.

Histology of artificial wound models

Ex vivo wound models were removed from culture at 7, 14 and 21 days for analysis of wound healing through histochemistry of wound cross-sections. Tissue was fixed in 4% (v/v) formalin and processed. Wounds were bisected through the center of the wound and placed en face for paraffin embedding. For wound closure measurement, consecutive cross-sections were taken through the center of the wound (25 μm apart). Sections were routinely de-paraffinized, stained for nuclei with hematoxylin, counterstained with eosin and mounted for microscopic observation.

Statistical Analysis

For comparisons of cell proliferation, cytotoxicity, cell migration and protein phosphorylation, results were expressed as means ± SD. Post-hoc Dunnett's 2-sided t-tests were used to compare the UI (control group) against all HA supplemented Integra^® scaffolds individually at each time point. Data for protein phosphorylation assay was statistically tested using independent t-tests. All data were analyzed using IBM SPSS Statistics Software version 19.0 (SPSS Inc., Chicago, IL, USA). Significant values were considered as those where p<0.05.

Results

Effect of HA supplementation on PHDF and HEKa in vitro proliferation

When HA was supplemented to PHDFs grown on TCP substrates, a significant increase was observed in cell proliferation over two weeks at all test concentrations in comparison to unsupplemented TCP (Fig. 1A). When HA was supplemented to Integra^® a comparable effect was observed. Initial attachment and proliferation between seeding and 1 day culture was enhanced in 0.15 mg/mL⁻¹ HA (p<0.001), 1 mg/mL⁻¹ HA (p≤ 0.05) and 1.5 mg/mL⁻¹ HA (p<0.001) scaffolds in comparison to UI (Fig. 1B). This result suggests that the number of cells attaching to the scaffold and in particular attaching in a manner that facilitates rapid proliferation is increased with HA supplementation at concentrations up to 1.5 mg/mL⁻¹. Cell numbers continue to be elevated with HA supplementation after 7 days in culture, with 1.5 mg/mL⁻¹ HA and 2 mg/mL⁻¹ HA highly significant (p<0.001). After 14 days, proliferation in HA-supplemented scaffolds was elevated in comparison to UI, with cell density approaching a dynamic equilibrium due to confluence.

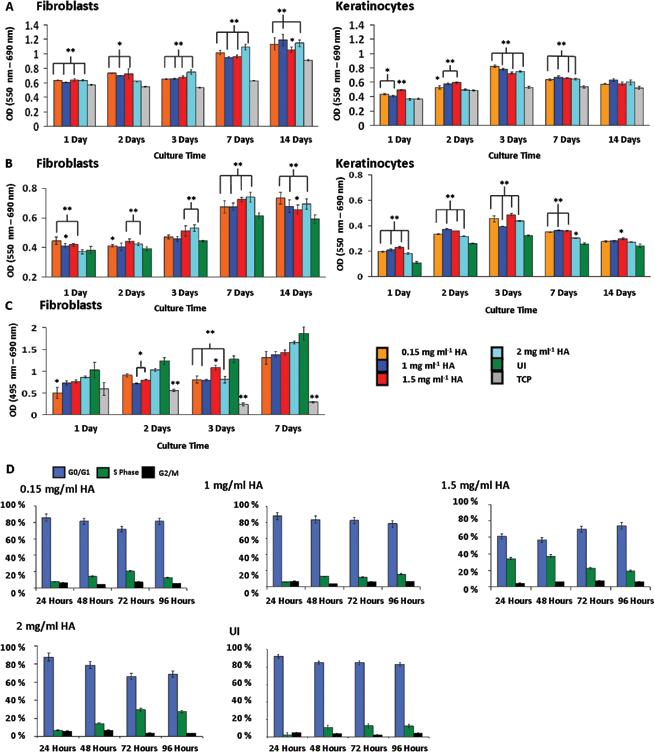

Fig. 1

Effect of HA supplementation on the in vitro proliferation and viability of PHDF and HEKa cultured on Integra^® and TCP. Assessed through MTT assays (A) Effect of HA supplementation on PHDF and HEKa proliferation on TCP (B) Effect of HA supplementation on PHDF and HEKa proliferation on Integra^®. (Optical Densities are means of three independent experimental triplicates. SD) (C) LDH assay. Effect of HA supplementation on PHDF viability on Integra^® (Optical Densities are means of three independent triplicates ± SD). (* = 0.05 >p<0.001; ** p<0.001), HA supplementation increased fibroblast viability over UI at 24 hours for 0.15 mg/mL⁻¹ (p = 0.017), at 48 hours 1 mg/mL⁻¹ (p = 0.007), 1.5 mg/mL⁻¹ (p = 0.001), at 72 hours 0.15 mg/mL⁻¹ (p = 0.09), 1 mg/mL⁻¹ (p<0.001), 1.5 mg/mL⁻¹ (p<0.001) and 2 mg/mL⁻¹ (p<0.001). Significantly higher cell viability was recorded using two dimensional tissue culture plastic, showing statistical significance at 2, 3 and 7 days (p = 0.016, p<0.001 and p<0.001, respectively) (D) Cell Cycle Analysis through flow cytometry of propidium iodide stained cells after culture on Integra^® supplemented with HA or unsupplemented Integra^®. Percentage cells in each stage of the cell cycle (three independent experimental triplicates combined, ± standard error).

HA supplementation to HEKa cultured on TCP and Integra^® also produced elevated proliferation. Keratinocytes cultured on TCP and Integra^® showed similar proliferation profiles, with a proliferation phase up to 3 days followed by stagnation in cell number (Figs. 1A and 1B). During the latter stages of culture (>7 days), differentiated cells were observed in cultures with and without HA, which is likely to be a result of high cell density (28).

LDH-based colorimetric assays (Fig. 1C) demonstrated that there was no cytotoxic effect associated with HA-supplementation. In fact, HA supplementation increased fibroblast viability over UI at 1 day for 0.15 mg/mL⁻¹, at 2 days 1 mg/mL⁻¹, 1.5 mg/mL⁻¹, at 3 days 0.15 mg/mL⁻¹,1 mg/mL⁻¹, 1.5 mg/mL⁻¹ and 2 mg/mL⁻¹. Significantly higher cell viability was recorded using two TCP, showing statistical significance at 2, 3 and 7 days (p = 0.016, p<0.001 and p<0.001, respectively). This could be expected as TCP is a rigid, 2-D surface promoting attachment and providing optimal nutrient transfer conditions.

Cell cycle analysis shows a predominance of PHDFs in G0/G1 phase, especially up to 24 hours in culture, which could be as a result of cell synchronization prior to seeding. With HA, an increased number of PHDFs are in S-phase and in some cases G2/M, particularly in the first 72 hours (Fig. 1D) and is most pronounced following supplementation with 1.5 mg/mL⁻¹ and 2 mg/mL⁻¹.

Effect of HA supplementation of Integra^® on PHDF migration

Horizontal migration into the created wound area on the surface of Integra^® was influenced by HA supplementation (Fig. 2). After 48 hours 1 mg/mL⁻¹ and 1.5 mg/mL⁻¹ HA supplementation significantly increased cell migration into the wound area in comparison to UI. At 72 hours, all HA-supplemented scaffolds showed significantly more cell migration into the wound area compared to UI. A HA-concentration-related increase in cell migration was observed in concentrations up to 1.5 mg/mL⁻¹. However, the highest test concentration of HA (2 mg/mL⁻¹) was found to have an effect similar to 0.15 mg/mL⁻¹ supplementation on migration, though still significantly higher than UI.

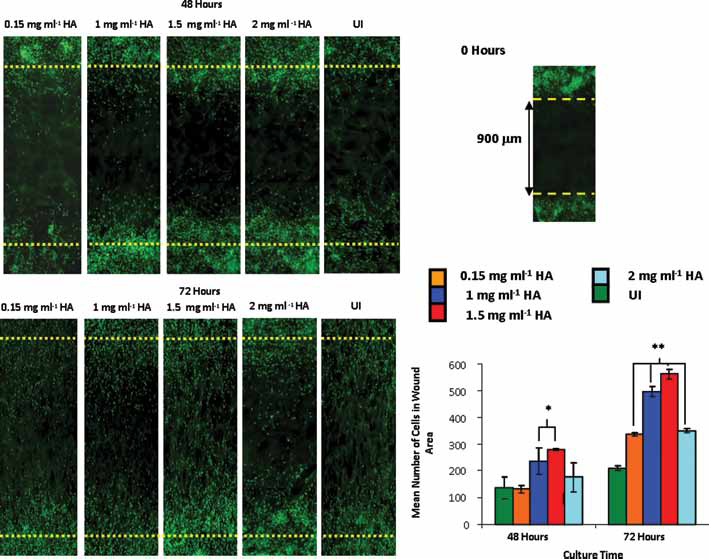

Fig. 2

Effect of HA supplementation on the horizontal migration of primary human dermal fibroblasts across surface of Integra^®. Cell migration into wound healing assay cell free area was assessed at 48 and 72 hours, denoted here by the area within the yellow dashed line. Cells were fixed and nuclei DAPI stained (false colored green for clarity). Images are representative images of three independent experiments. After 48 hours 1 mg/mL⁻¹ HA (p = 0.007) and 1.5 mg/mL⁻¹ HA (p = 0.001) supplementation led to significantly more cell migration into the wound area in comparison to UI. At 72 hours, all HA supplemented scaffolds showed significantly more cell migration into the wound area compared to UI: 0.15 mg/mL⁻¹ (p = 0.009), 1 mg/mL⁻¹ (p<0.001), 1.5 mg/mL⁻¹ (p<0.001) and 2 mg/mL⁻¹ (p<0.001). Cell numbers are means of a minimum of three independent experiments 0 SD (* = 0.05 >p<0.001; ** p<0.001) 48 hours (×10 magnification), 72 hours (×4 magnification).

The vertical migration of cells into the Integra^® scaffold was analyzed through staining of paraffin-embedded cross-sections. H&E staining of the 5 μm sections indicated that cell infiltration was restricted to the upper portions of Integra^® in this system (Supplementary Fig. S4). PHDFs across all substrates remained on the surface of Integra^® often forming layers of several cells.

Effect of HA supplementation on the activation of proliferation/survival MAPK pathway

To investigate the activation of cell signaling pathways Human Phospho-MAPK arrays were performed comparing the apparent most effective HA supplementation concentration (1.5 mg/mL⁻¹) and UI (Fig. 3). After 3 days in culture there are statistically significant increases in the phosphorylation status of several Erk/MAPK pathway proteins involved in growth/proliferation/cell cycle progression (Akt1/2/3, Erk1/2, RSK1/2) and survival (Akt1/2/3, HSP27, JNKs). At 7 days in culture, there remains up-regulated expression, though Akt1/2, JNK1/3/Pan and RSK1 were no longer statistically significant.

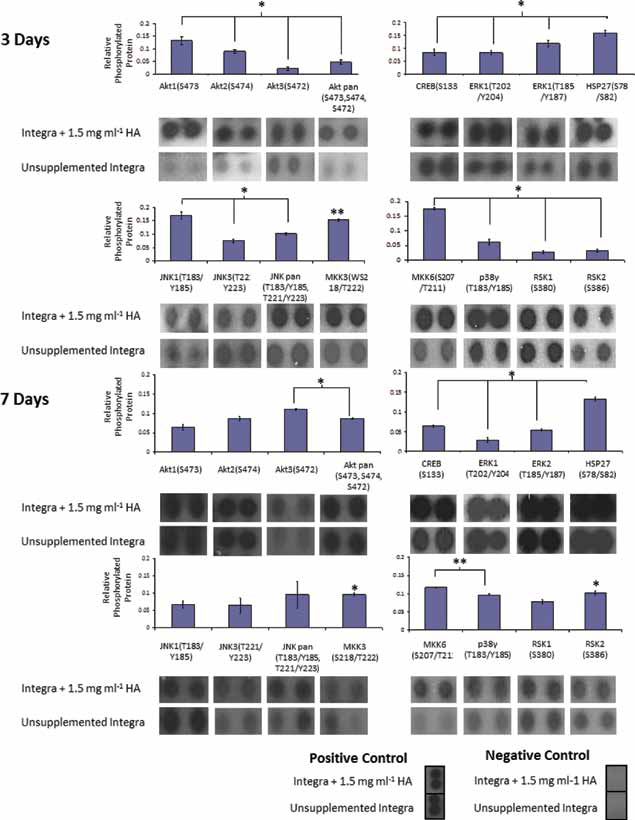

Fig. 3

Relative levels of phosphorylated Erk /MAPK signalling pathway proteins in cells cultured on UI and Integra^® Dermal Substitute supplemented with 1.5 mg/mL⁻¹ HA after 3 and 7 dDays in culture. Extracted protein was collected from scaffolds supplemented with 1.5 mg/mL⁻¹ HA and UI controls. Negative controls consisted of sterile PBS solution. Phosphorylated protein assay pixel intensity was measured and expressed as the mean of assay duplicates (protein extracted from n = 250 culture wells per substrate) SD. Graphs show relative differences in pixel density (amount of protein phosphorylation) between UI and 1.5 mg/mL⁻¹ HA supplemented Integra^®. Protein phosphorylation was up-regulated relative to unsupplemented scaffolds at 3 days and 7 days (* = 0.05>p<0.001; **p<0.001).

Effect of HA supplementation on re-epithelialization of ex vivo wound models

Scaffolds were inserted into artificial wounds and re-epithelialization measured through histochemistry up to 3 weeks in culture (Fig. 4). After 1 week, migration into the wound area was restricted to wound margins and comparable for all scaffolds. After two weeks, keratinocytes in UI models are restricted to the wound margins. Migration in 0.15 mg/mL⁻¹ HA scaffolds comparable to UI though migratory cells are more organized into tongue-like structures. In 1 mg/mL⁻¹ HA scaffolds, migratory keratinocytes close the artificial wound, forming layers several cells thick. The 1.5 mg/mL⁻¹ HA and 2 mg/mL⁻¹ HA scaffolds produced similar migration, with cells penetrating into the scaffold and secreting ECM. After three weeks, migration into wounds that were without scaffold assistance was poor. In UI, cell migration was diffuse and at wound margins epidermal stratification and ECM deposition was increased. The supplemented concentrations of HA produced keratinocyte migratory morphologies of differing cell numbers, ECM production and cell positions within scaffolds following culture. 0.15 mg/mL⁻¹ HA scaffolds promoted keratinocyte migration along scaffold surfaces, closing the wound area. At 1 mg/mL⁻¹ and 1.5 mg/mL⁻¹ HA, migration of keratinocytes became less organized and ECM deposition increased. At 2 mg/mL⁻¹ HA supplementation matrix deposition was decreased but migratory cells were observed throughout scaffolds. Cell viability was maintained, as assessed through LDH assays through the 3 weeks in culture, with HA supplementation decreasing levels of cell death, particularly up to three days (Fig. 5).

Fig. 4

Examination of wound closure through H&E stained wound cross sections after 1, 2 and 3 weeks ex vivo culture. Representative images of keratinocyte migration across Integra^® scaffolds with and without HA supplementation. Integra^®-assisted wounds promoted keratinocyte migration in comparison to unassisted wounds. HA supplementation further increased keratinocyte migration.

Fig. 5

LDH assays of cell viability in ex vivo wound models. Models showed a small, general increase in cell death up to one week and subsequent decrease. Up to three weeks in culture there was no significant increase in cell death for any scaffolds, indicating cell viability is maintained.

Discussion

The aim of the present study was to examine the effects of HA supplementation to Integra^® on PHDFs and HEKa in vitro and subsequently through a human ex vivo wound healing model. The ultimate aim of supplying Integra^® supplemented with HA in clinical applications is the reduction of time between surgical interventions required through increased rate of neo-dermis formation and re-epithelialization.

HA supplementation increased PHDF and HEKa proliferation in monoculture. The increasing proliferation in the presence of more concentrated HA, 1.5 mg/mL⁻¹ and 2 mg/mL⁻¹, indicates there is a lower threshold for HA stimulation of proliferation. Previous conflicting reports of the in vitro effects of HA on fibroblasts in 3D collagen culture may be reflective of the variation in experimental conditions, including collagen concentration, material format and source, cell type and source and perhaps most importantly HA concentration and molecular weight (Supplementary Tab. SI) (12, 17, 18, 29). In previous collagen-HA gel cultures, the presentation or accessibility of HA to cells within matrices may have limited cell receptor-HA association (30), as demonstrated by Kreger and Voytik-Harbin (18). Phosphor-MAPK Array data indicates that a component of the reported cell proliferation is as a result of CD44/RHAMM-mediated activation, as shown by increased pathway protein phosphorylation when HA supplemented (Fig. 3) (31). At 3 days, there is a significant relative increase in the Erk/ MAPK signaling cascade is activated. RSK1/2 isoforms are downstream targets of the ERK/MAPK signaling cascade and are phosphorylated and activated by ERK1/2 in response to extracellular stimuli (32). RSKs then phosphorylate many cytosolic and nuclear targets involved with regulating cell proliferation, survival, growth and motility including CREB and nuclear factor-κB (NF- κB) (33).

In ex vivo wound models, scaffold-assisted wounds re-epithelialized more rapidly than unassisted controls. Exogenous HA supplementation further improved keratinocyte migration in comparison to UI treated wounds. The wound model provided a way to compare the performance of scaffolds within in an architecturally relevant and complex multi-cell environment.

This data supports results from several previous reports indicating that HA promotes proliferation and migration in keratinocytes (34, 35) and is an important contributor in re-epithelialization (35). As with its cellular effects on PHDFs, (12, 16-17-18) the mechanisms of action of HA on keratinocyte behavior remains unresolved. Several reports describe an association between increasing epidermal HA and increasing keratinocyte proliferation and hyperplasia (21, 36, 37). Maytin et al showed that artificial depletion of epidermal HA through hyaluronidase digestion resulted in increased keratinocyte differentiation but did not alter proliferation (36). In contradiction, Bourguignon et al indicate that HA-CD44 interactions promote differentiation (38). Through a human organotypic keratinocytes-fibroblast co-culture, Gu et al demonstrated that exogenously delivered HA enhances epidermal proliferation and basement membrane secretion (39). The latter result indicates that the presence of HA, not necessarily its cellular secretion, is required for this effect (39). Further evidence is provided by observations reporting that factors (e.g. EGF, KGF, retinoic acid) that increase cell proliferation and thickness of the epidermis also increase HA synthesis (40-41-42-43).

The significant differences between the migration of cells in ex vivo models serves to highlight the suitability of this system to assess the interaction of dermal substitutes with the migrating epidermis in a preclinical laboratory setting. Although epidermal responses were slower than in vivo or in organotypic models, morphologically they follow a comparable series of events. In comparison to organotypic models, this system offers more complex cellular composition and architecture, an intact dermal layer and the presence of immune cells. By sampling a number of different patients, as in this case, the variation in response on a person-to-person basis can be investigated, which may be of more relevance for tissue engineered dermal substitutes.

Conclusion

In conclusion, the findings of this study suggest that supplementation of Integra^® with mid-high MW HA at concentrations of 1-2 mg/mL⁻¹ could significantly increase active-cell infiltration from wound edges after application. In ex vivo wound healing assays keratinocyte migration was enhanced into Integra^® with HA supplementation. The employed ex vivo models provided a useful tool for the preclinical evaluation of the dermal substitutes. These results indicate that supplementing Integra^® with HA may be a promising way to improve the performance of Integra^®, particularly when applied as a single layer in an in vivo wound environment and warrants further investigation.

Footnotes

Acknowledgement

The authors acknowledge Integra LifeSciences for financial support and Dr. S. Farhatullah for technical support.

Financial support: The authors declare that this study was partially funded by Integra LifeSciences.

Conflict of interest: No conflict of interest declared.

References

Lee

Porch

Spenler

Garner

Integra in lower extremity reconstruction after burn injury.

Plast Reconstr Surg. 2008; 121(4):1256–1262.

Dantzer

Braye

Reconstructive surgery using an artificial dermis (Integra): results with 39 grafts.

Br J Plast Surg. 2001; 54(8):659–664.

Gonyon

Jr Zenn

Simple approach to the radiated scalp wound using INTEGRA skin substitute.

Ann Plast Surg. 2003; 50(3):315–320.

Jeng

Fidler

Sokolich

et al.

Seven years’ experience with Integra as a reconstructive tool.

J Burn Care Res. 2007; 28(1):120–126.

Todd

Ud-Din

Bayat

Extensive self-harm scarring: successful treatment with simultaneous use of a single layer skin substitute and split-thickness skin graft.

Eplasty. 2012; 12:e23–e23.

Clayman

Mozingo

The Use of Collagen-Glycosaminoglycan Copolymer. The use of collagen-glycosaminoglycan copolymer (Integra) for the repair of hypertrophic scars and keloids. J Burn Care Res. 2006; 27(3):404–409.

Heitland

Piatkowski

Noah

Pallua

Update on the use of collagen/glycosaminoglycate skin substitute-six years of experiences with artificial skin in 15 German burn centers.

Burns. 2004; 30(5):471–475.

Molnar

DeFranzo

Hadaegh

Morykwas

Shen

Argenta

Acceleration of Integra incorporation in complex tissue defects with subatmospheric pressure.

Plast Reconstr Surg. 2004; 113(5):1339–1346.

Wisser

Steffes

Skin replacement with a collagen based dermal substitute, autologous keratinocytes and fibroblasts in burn trauma.

Burns. 2003; 29(4):375–380.

10.

Oliferenko

Kaverina

Small

Huber

Hyaluronic acid (HA) binding to CD44 activates Rac1 and induces lamellipodia outgrowth.

J Cell Biol. 2000; 148(6):1159–1164.

11.

Hall

Wang

Lange

Turley

Hyaluronan and the hyaluronan receptor RHAMM promote focal adhesion turnover and transient tyrosine kinase activity.

J Cell Biol. 1994; 126(2): 575–588.

12.

Huang

Burd

A reappraisal of the biological effects of hyaluronan on human dermal fibroblast.

J Biomed Mater Res A. 2009; 90(4):1177–1185.

13.

Chen

WYJ

Abatangelo

Functions of hyaluronan in wound repair.

Wound Repair Regen. 1999; 7(2):79–89.

14.

Toole

Hyaluronan in morphogenesis.

Semin Cell Dev Biol. 2001; 12(2):79–87.

15.

Longaker

Chiu

Adzick

Stern

Harrison

Stern

Studies in fetal wound healing.

V. A prolonged presence of hyaluronic acid characterizes fetal wound fluid. Ann Surg. 1991; 213(4):292–296.

16.

Boraldi

Croce

Quaglino

et al.

Cell-matrix interactions of in vitro human skin fibroblasts upon addition of hyaluronan.

Tissue Cell. 2003; 35(1):37–45.

17.

Greco

Iocono

Ehrlich

Hyaluronic acid stimulates human fibroblast proliferation within a collagen matrix.

J Cell Physiol. 1998; 177(3):465–473.

18.

Kreger

Voytik-Harbin

Hyaluronan concentration within a 3D collagen matrix modulates matrix viscoelasticity, but not fibroblast response.

Matrix Biol. 2009; 28(6):336–346.

19.

Tammi

Correlations between hyaluronan and epidermal proliferation as studied by [3H]glucosamine and [3H]thymidine incorporations and staining of hyaluronan on mitotic keratinocytes.

Exp Cell Res. 1991; 195(2):524–527.

20.

Wells

Lundin

Michaëlsson

Histochemical localization of hyaluronan in psoriasis, allergic contact dermatitis and normal skin.

Acta Derm Venereol. 1991; 71(3):232–238.

21.

Tammi

Pasonen-Seppänen

Kolehmainen

Tammi

Hyaluronan synthase induction and hyaluronan accumulation in mouse epidermis following skin injury.

J Invest Dermatol. 2005; 124(5):898–905.

22.

Schwarze

Küntscher

Uhlig

et al.

Suprathel, a new skin substitute, in the management of partial-thickness burn wounds: results of a clinical study.

Ann Plast Surg. 2008; 60(2): 181–185.

23.

Gobbi

Kon

Berruto

Francisco

Filardo

Marcacci

Patellofemoral full-thickness chondral defects treated with Hyalograft-C: a clinical, arthroscopic, and histologic review.

Am J Sports Med. 2006; 34(11):1763–1773.

24.

Ghosh

Ingber

Micromechanical control of cell and tissue development: implications for tissue engineering.

Adv Drug Deliv Rev. 2007; 59(13):1306–1318.

25.

El Ghalbzouri

Hensbergen

Gibbs

Kempenaar

van der Schors

Ponec

Fibroblasts facilitate re-epithelialization in wounded human skin equivalents.

Lab Invest. 2004; 84(1): 102–112.

26.

Xie

Rizzi

Dawson

et al.

Development of a three-dimensional human skin equivalent wound model for investigating novel wound healing therapies.

Tissue Eng Part C Methods. 2010; 16(5):1111–1123.

27.

Syed

Ahmadi

Iqbal

Singh

McGrouther

Bayat

Fibroblasts from the growing margin of keloid scars produce higher levels of collagen I and III compared with intralesional and extralesional sites: clinical implications for lesional site-directed therapy.

Br J Dermatol. 2011; 164(1):83–96.

28.

Lee

Y-S

Yuspa

Dlugosz

Differentiation of cultured human epidermal keratinocytes at high cell densities is mediated by endogenous activation of the protein kinase C signaling pathway.

J Invest Dermatol. 1998; 111(5):762–766.

29.

Sorrell

Baber

Caplan

Site-matched papillary and reticular human dermal fibroblasts differ in their release of specific growth factors/cytokines and in their interaction with keratinocytes.

J Cell Physiol. 2004; 200(1):134–145.

30.

Turley

Noble

Bourguignon

LYW

Signaling properties of hyaluronan receptors.

J Biol Chem. 2002; 277(7):4589–4592.

31.

Fujita

Kitagawa

Nakamura

et al.

CD44 signaling through focal adhesion kinase and its anti-apoptotic effect.

FEBS Lett. 2002; 528(1-3):101–108.

32.

Anjum

Blenis

The RSK family of kinases: emerging roles in cellular signalling.

Nat Rev Mol Cell Biol. 2008; 9(10):747–758.

33.

Roux

Blenis

ERK and p38 MAPK-activated protein kinases: a family of protein kinases with diverse biological functions.

Microbiol Mol Biol Rev. 2004; 68(2):320–344.

34.

Tammi

Hyaluronan accumulation in wounded epidermis: a mediator of keratinocyte activation.

J Invest Dermatol. 2009; 129(8):1858–1860.

35.

Tammi

Pasonen-Seppänen

Kolehmainen

Tammi

Hyaluronan synthase induction and hyaluronan accumulation in mouse epidermis following skin injury.

J Invest Dermatol. 2005; 124(5):898–905.

36.

Maytin

Chung

Seetharaman

Hyaluronan participates in the epidermal response to disruption of the permeability barrier in vivo.

Am J Pathol. 2004; 165(4):1331–1341.

37.

Passi

Sadeghi

Kawamura

et al.

Hyaluronan suppresses epidermal differentiation in organotypic cultures of rat keratinocytes.

Exp Cell Res. 2004; 296(2):123–134.

38.

Bourguignon

Ramez

Gilad

et al.

Hyaluronan-CD44 interaction stimulates keratinocyte differentiation, lamellar body formation/secretion, and permeability barrier homeostasis.

J Invest Dermatol. 2006; 126(6):1356–1365.

39.

Huang

Wong

Y-P

Burd

HA modulation of epidermal morphogenesis in an organotypic keratinocyte-fibroblast co-culture model.

Exp Dermatol. 2010; 19(8):e336–e339.

40.

Karvinen

Pasonen-Seppänen

Hyttinen

et al.

Keratinocyte growth factor stimulates migration and hyaluronan synthesis in the epidermis by activation of keratinocyte hyaluronan synthases 2 and 3.

J Biol Chem. 2003; 278(49):49495–49504.

41.

Pasonen-Seppänen

Karvinen

Törrönen

et al.

EGF upregulates, whereas TGF-beta downregulates, the hyaluronan synthases Has2 and Has3 in organotypic keratinocyte cultures: correlations with epidermal proliferation and differentiation.

J Invest Dermatol. 2003; 120(6):1038–1044.

42.

Pasonen-Seppänen

Maytin

Törrönen

et al.

All-trans retinoic acid-induced hyaluronan production and hyperplasia are partly mediated by EGFR signaling in epidermal keratinocytes.

J Invest Dermatol. 2008; 128(4):797–807.

43.

Pienimaki

Rilla

Fulop

et al.

Epidermal growth factor activates hyaluronan synthase 2 in epidermal keratinocytes and increases pericellular and intracellular hyaluronan.

J Biol Chem. 2001; 276(23):20428–20435.

In Vitro and Ex vivo Analysis of Hyaluronan Supplementation of Integra ® Dermal Template on Human Dermal Fibroblasts and Keratinocytes

Abstract

Purpose

Methods

Results

Conclusions

Keywords

Introduction

Methods

Preparation and seeding of Integra® scaffolds

Generation of ex vivo artificial cutaneous wounds

In vitro PHDF and HEKa proliferation

Cell cycle analysis

Cell viability

Analysis of in vitro cell invasion of Integra®

Cell signaling activation

Histology of artificial wound models

Statistical Analysis

Results

Effect of HA supplementation on PHDF and HEKa in vitro proliferation

Effect of HA supplementation of Integra® on PHDF migration

Effect of HA supplementation on the activation of proliferation/survival MAPK pathway

Effect of HA supplementation on re-epithelialization of ex vivo wound models

Discussion

Conclusion

Footnotes

Acknowledgement

References

Preparation and seeding of Integra^® scaffolds

Analysis of in vitro cell invasion of Integra^®

Effect of HA supplementation of Integra^® on PHDF migration
