Abstract

OBJECTIVE:

Try to create a dose gradient function (DGF) and test its effectiveness in reducing radiation induced lung injury in breast cancer radiotherapy.

MATERIALS AND METHODS:

Radiotherapy plans of 30 patients after breast-conserving surgery were included in the study. The dose gradient function was defined as $D G H = \sqrt[3]{\frac{V_{D}}{V p}}$ , then the area under the DGF curve of each plan was calculated in rectangular coordinate system, and the minimum area was used as the trigger factor, and other plans were triggered to optimize for area reduction. The dosimetric parameters of target area and organs at risk in 30 cases before and after re-optimization were compared.

RESULTS:

On the premise of ensuring that the target dose met the clinical requirements, the trigger factor obtained based on DGF could further reduce the V₅, V₁₀, V₂₀, V₃₀ and mean lung dose (MLD) of the ipsilateral lung in breast cancer radiotherapy, P < 0.01. And the D_2cc and mean heart dose (MHD) of the heart were also reduced, P < 0.01. Besides, the NTCPs of the ipsilateral lung and the heart were also reduced, P < 0.01.

CONCLUSION:

The trigger factor obtained based on DGF is efficient in reducing radiation induced lung injury in breast cancer radiotherapy.

Keywords

Radiation induced lung injury dose gradient function trigger factor re-optimization breast-conserving surgery

1 Introduction

Radiotherapy is the most important treatment for breast cancer after breast-conserving surgery, which has significant value in reducing the local recurrence rate and clinical mortality. Many studies have shown that volumetric modulated arc therapy (VMAT) is widely used in breast cancer after breast-conserving surgery, which can increase the target dose, improve the target dose distribution, significantly shorten the treatment time and reduce the dose of normal tissues [1 –5].

Chest wall irradiation can affect the lung by exposing some of them to the radial and do harm to them, resulting various degrees of radiation-induced lung injury. In the era of three-dimensional radiotherapy, V₂₀, V₅ and mean dose of lung are commonly used to predict radiation-induced pneumonitis [6 –9]. A prospective study [10] found that the volume of lung irradiated was closely related to the occurrence of radiation-induced lung injury, and was significantly related to the severity of radiation-induced lung injury. When V₂₀≤20%, no radiation-induced lung injury occurred. Only 8% of the patients had radiation-induced lung injury when V₂₀ is equal to 22% –31%, and no grade 3 radiation-induced lung injury occurred. Lind et al [11]. found that ipsilateral lung V₂₀ < 30% could significantly reduce the incidence of radiation pneumonitis in postoperative radiotherapy for breast cancer. Zeng Yuanyuan et al [12]. found that the incidence of radiation-induced lung injury after radical mastectomy was 9.78%, and most of them were grade 1 injury. The lung volume ratio receiving more than 20Gy (V₂₀) was an independent risk factor for radiation-induced lung injury after radical mastectomy. The V₂₀ value can be used to predict and recommend radiotherapy, which can effectively reduce the incidence of radiation injury. Therefore, the irradiated volume and dose of the lung should be carefully evaluated to minimize the irradiation to the normal lung tissue before radiotherapy.

Doctors and physicists still rely on dose volume histogram (DVH) and traditional layer-by-layer visualization of isodose lines to evaluate plans. It is difficult for doctors to choose different plans that can generate almost the same dose distribution. Physicists are puzzled by how to quantitatively determine whether a parameter in a plan has the space for decline. In order to fully evaluate the quality of the plan, in addition to the commonly used indicators of conformity such as conformity index (CI) and heterogeneity index (HI), it is also necessary to evaluate the dose gradient to ensure an optimal dose attenuation around the target. Some studies [13 –16] have introduced different gradient indices to achieve the degree of dose attenuation near the target. Sung et al. [17] proposed a new dose gradient curve (DGC) suitable for clinical practice, and they believed that DGC was a reasonable method to visualize the dose gradient as the average distance between two isodose planes. The shorter the distance, the steeper the dose gradient. In this study, a dose gradient function (DGF) was defined and a dose gradient evaluation tool based on the relative spatial relationship between isodose lines was introduced, in order to provide a basis for physicists to evaluate and further optimize the plan.

2 Materials and methods

2.1 Patient selection

Thirty patients who had received with Volumetric Modulated Arc Radiotherapy (VMAT) for left breast cancer after breast-conserving surgery were included in this retrospective study. Requirements on cases selection were as follows: enough exercises were carried out on the same side upper limb to meet requirements of body posture in CT localization and treatment; No lymph node metastasis; KPS > 90. The mean age of the study group was 49 (range from 32 to 65). The range of planned target volume (PTV) was from 354.32 to 1615.03 cm³.

2.2 Target region delineation

After computed tomography (CT) simulation, the scanned image was sent to the Monaco treatment planning system (TPS, Version: 5.40.03). Organs at risk (heart, left and right lungs, spinal cord, contralateral breast) were segmented; target region clinical target volume (CTV) was segmented by the clinician. On the basis of CTV, the inside, outside, and back limits were extended 5 mm, respectively, to generated PTV, with the boundary under skin.

2.3 Planning formulation

All plans adopted 6-MV X-ray and Elekta VERSA HD accelerator (Stockholm, Sweden, 5 mm MLC), with prescription doses all set to 2.0Gy * 25 fractions. Monaco TPS (Elekta. Inc, V 5.40.03). was adopted for plan optimization, which utilized Monte Carlo for the dose calculation 1 arc, 150∼260 degree was designed, and according to the shape of target region, corresponding collimator angles were set, table angles all 0°, maximum dose rate 600 MU/min. After providing some optimizing constraints (shown in Table 1), distribution of dose curves was automatically optimized, and through repeated parameters adjustment, the ideal distribution of dose curves was achieved.

Table 1
The optimization constraints of plans

PTV/OARs Constraint conditions Objectives

PTV D₉₉ ≥50 Gy

D_max ≤55 Gy

L-lung V₂₀ < 30%

R-lung V₂₀ < 10%

Heart D_mean < 4 Gy

C-Breast D_mean < 6 Gy

Cord D_max < 30 Gy

PTV/OARs	Constraint conditions	Objectives
PTV	D₉₉	≥50 Gy
	D_max	≤55 Gy
L-lung	V₂₀	< 30%
R-lung	V₂₀	< 10%
Heart	D_mean	< 4 Gy
C-Breast	D_mean	< 6 Gy
Cord	D_max	< 30 Gy

2.4 The definition of dose gradient function (DGF)

VMAT is a multi-field focused radiotherapy technique, which forms the distribution characteristics of isodose lines decreasing outward from the target area. The rate at which the radiation dose decreases outward from the target area determines the range of radiation dose received by the surrounding normal tissues. The faster decay rate, the less normal tissues are irradiated around the target area, and the higher the quality of the radiotherapy plan. In this study, dose gradient function (DGF) was defined and utilized to quantify the decay rate of dose and to guide the re-optimization of the plan, improving the quality of the radiotherapy plan. The DGF was defined as follows: $D G H = \sqrt[3]{\frac{V_{D}}{V p}}$ (1)

where V_D is the volume of isodose line generated structure, V_P is the volume of target (PTV). According to the above definition DGF, the thirty VMAT plans were analyzed. The volume of isodose line (from V₅₀Gy to V₁₅Gy, the step size is 0.25Gy) was generated for each case, and then the DGF was calculated. The Dose-DGF curve was plotted as shown in Fig. 1.

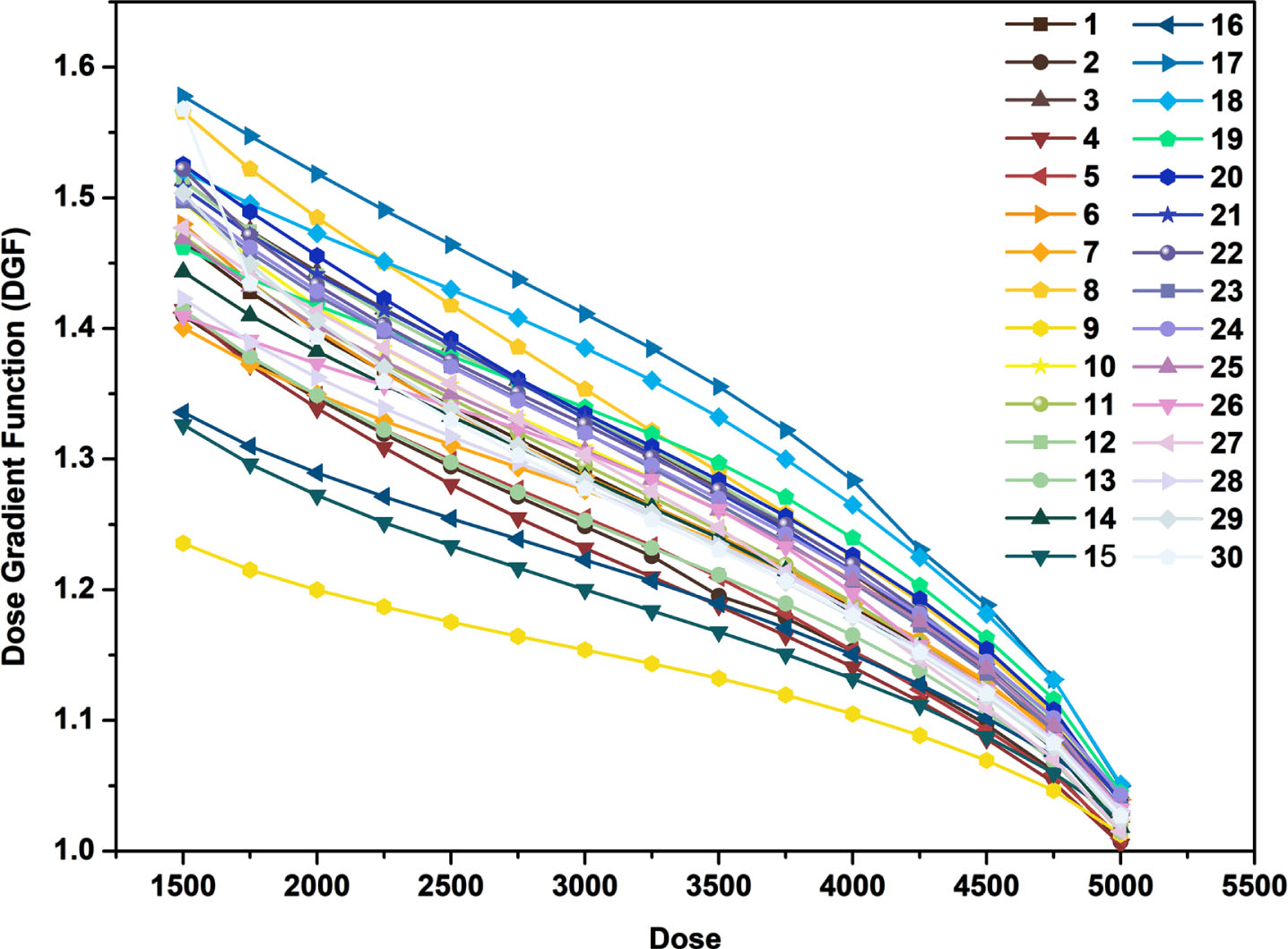

Fig. 1

The Dose-DGF curves of 30 patients.

2.5 The mechanism of DGF guiding radiotherapy plan optimization

2.5.1 A simple example describes the properties of DGF

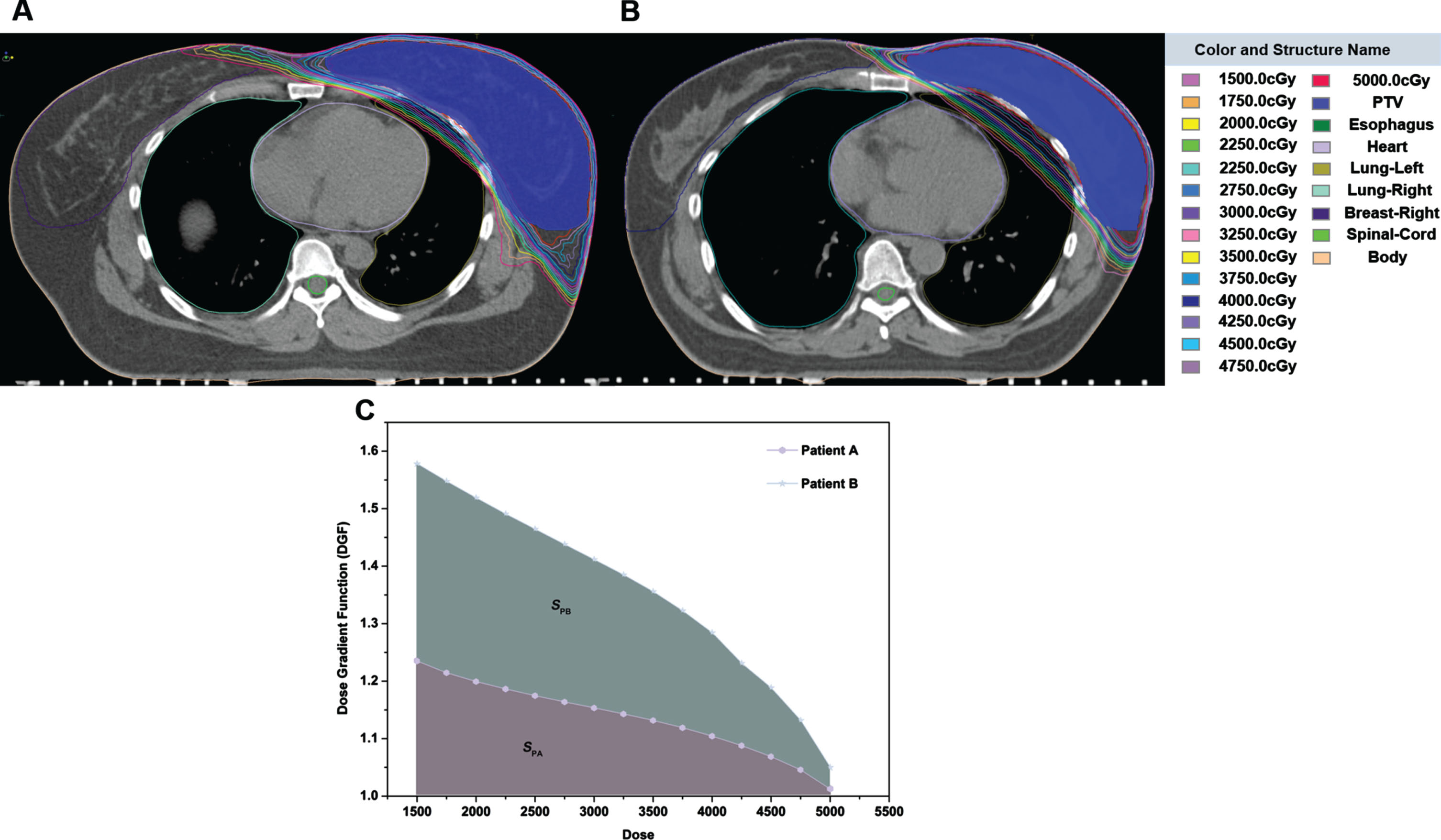

Figure 2 A, B shows two typical DGF examples, indicating the area where the iso-dose line of 5000cGy-1500cGy intersects the left lung. The shorter the distance between the dose lines, the steeper the dose gradient and the faster the dose attenuation, the smaller the volume of the left lung that receives the radiation dose (Fig. 2A). Meanwhile, according to the formula (1), the lower the value of V _D , the less DGF, therefore, the faster the dose attenuation. As shown in Fig. 2C, the smaller the area under the D-DGF curve, the lower the irradiation dose received by organ at risk (OARs, when S_PA < S_PB, we have D_PA,OARs < D_PB,OARs, here S_PA, S_PB were indicated as area under the patient’s A and B D-DGF curve, D_PA; D_PA, D_PB were indicated as the dose of patient A and B). Thus, in this study, the area under the D-DGF curve was used as a trigger factor to guide the optimization of the plan, reducing radiation-induced lung injury in breast cancer postoperative radiotherapy.

Fig. 2

A, B) Two typical DGF examples; C) The area under the D-DGF curve of representative patient A and B.

2.5.2 The mechanism of DGF guiding radiotherapy plan optimization

The area under the D-DGF curve of thirty patients were calculated by GraphPad Prism Software (Table 2). The volume of 2000cGy dose line (V₂₀) of left lung in original plan was statistical. As shown in Table 2, the plan of 9^th patient was considered to be the optimal plan, therefore, select and use the minimum area value (S_min) as the trigger operator to trigger the re-optimization of other patient plans respectively. The plans were triggered to optimize for area reduction.

Table 2
The area under the D-DGF curve and the V20 of left lung of thirty patients

No Area (S, cm²) V₂₀ (%) No Area (S, cm²) V₂₀ (%) No Area (S, cm²) V₂₀ (%)

1 4413 15.6 11 4426 14.8 21 4533 12.26

2 4276 14.5 12 4538 18.4 22 4524 12.78

3 4532 13.4 13 4300 11.4 23 4496 9.76

4 4238 11.6 14 4390 11.9 24 4512 13.47

5 4287 11.9 15 4135 11.9 25 4461 15.48

6 4421 17.2 16 4198 11 26 4413 13.18

7 4355 16 17 4770 22.78 27 4432 20.31

8 4615 17.3 18 4681 20.21 28 4365 10.32

9 3981 10.5 19 4549 17.58 29 4412 5.65

10 4481 11.4 20 4567 15.44 30 4405 20.47

* NO is the number of 30 patients.

No	Area (S, cm²)	V₂₀ (%)	No	Area (S, cm²)	V₂₀ (%)	No	Area (S, cm²)	V₂₀ (%)
1	4413	15.6	11	4426	14.8	21	4533	12.26
2	4276	14.5	12	4538	18.4	22	4524	12.78
3	4532	13.4	13	4300	11.4	23	4496	9.76
4	4238	11.6	14	4390	11.9	24	4512	13.47
5	4287	11.9	15	4135	11.9	25	4461	15.48
6	4421	17.2	16	4198	11	26	4413	13.18
7	4355	16	17	4770	22.78	27	4432	20.31
8	4615	17.3	18	4681	20.21	28	4365	10.32
9	3981	10.5	19	4549	17.58	29	4412	5.65
10	4481	11.4	20	4567	15.44	30	4405	20.47

2.6 Evaluation parameters

On the premise of meeting clinical requirements, the following comparisons among the plans of before and after optimization were conducted using dose-volume histogram (DVH): V₉₅, V₁₀₀, V₁₀₇, V₁₁₀, D₉₈, and D₂, as well as conformity and homogeneity of target; mean dose, V₅, V₁₀, V₂₀, and V₃₀ of L-lung; V₅, V₁₀, V₂₀ and mean dose of right lung; D₂ and mean dose of heart; D₁ and mean dose of contralateral breast; maximum dose of the spinal cord; low dose bath (10% Rx); Monitor Unit (MUs). Among statistical indexes of the target region, V_X represents the target volume wrapped by X% prescription dose. In this research, volume parameters were adopted to evaluate minimum and maximum dose in the target region. The minimum dose is that 98% PTV exceeds (D₉₈), and the maximum dose is that 2% PTV exceeds (D₂).

2.7 Calculation of radiobiological parameters

According to the Lyman-Kutcher-Burman model, NTCP for Vx of an OAR is given by [18]: $NTCP = \frac{1}{\sqrt{2 π}} \int_{- \infty}^{t} e^{- \frac{x^{2}}{2}} dx$ (2)

Where, $t = \frac{V_{20} - V_{20, 50}}{m \cdot V_{20, 50}}$ (3)

Where, V₂₀ represents the volume of the OAR receiving the dose of≥20Gy, and V₂₀, ₅₀ represents the volume received under≥20Gy when the probability of radiotherapy complications is 50%.

In addition, according to literature [19] research results, the probability of radioactive cardiac events will increase by 7.4% when the average cardiac dose increases by 1Gy, that is: $Δ NTC P_{cardiac} = \frac{Δ MHD (cGy)}{100 cGy} \times 7.4 %$ (4)

In this paper, our team selected formulas (2) and (4) to calculate the NTCP of the L- Lung and heart respectively.

2.8 Statistical analysis

The Paired-Samples T-test was used to carry out statistical analysis using SPSS statistical software (V.28.0.1, SPSS, Inc., Chicago, IL), and P < 0.05 was considered statistically significant.

3 Results

3.1 Comparison of target dose

As shown in Table 3, the radiotherapy plans before and after optimization were compared, the evaluation parameters of PTV were not statistically significant (P > 0.05), suggesting that the re-optimization of the plan had no effect on the coverage of the target. Low dose bath (the volume of 500 cGy) and Monitor Unit (MUs) were no statistically significant (P > 0.05).

Table 3
Comparison of tumor target dose between the original plan and the DGF plan in 30 patients

Evaluation parameters Original plan DGF plan P value

V₉₅ (%) 98.91±0.75 98.69±0.50 0.133

V₁₀₀ (%) 95.26±0.56 95.31±0.61 0.332

V₁₀₇ (%) 11.25±18.14 6.26±6.73 0.190

V₁₁₀ (%) 2.24±6.94 0.65±1.20 0.236

D₂ (cGy) 5408.03±87.22 5393.48±72.07 0.527

D₉₈ (cGy) 4848.89±100.85 4853.85±59.84 0.806

10% Rx (cm³) 3809.34±120.34 3656.69±121.23 0.25

MUs 897.94±130.18 935.57±114.11 0.134

Evaluation parameters	Original plan	DGF plan	P value
V₉₅ (%)	98.91±0.75	98.69±0.50	0.133
V₁₀₀ (%)	95.26±0.56	95.31±0.61	0.332
V₁₀₇ (%)	11.25±18.14	6.26±6.73	0.190
V₁₁₀ (%)	2.24±6.94	0.65±1.20	0.236
D₂ (cGy)	5408.03±87.22	5393.48±72.07	0.527
D₉₈ (cGy)	4848.89±100.85	4853.85±59.84	0.806
10% Rx (cm³)	3809.34±120.34	3656.69±121.23	0.25
MUs	897.94±130.18	935.57±114.11	0.134

3.2 Comparison of dose parameters of OARs

3.2.1 Left lung

In the radiotherapy of breast cancer, the ipsilateral lung is one of the important OARs. Figure 3 compares of the V₂₀ of Left lung between the original plan and the DGF plan in 30 patients, the results showed that after optimization, the V₂₀ in the left lung is down (26 of 30 patients). All with statistical significance (P < 0.001) observed through paired comparisons (Table 4).

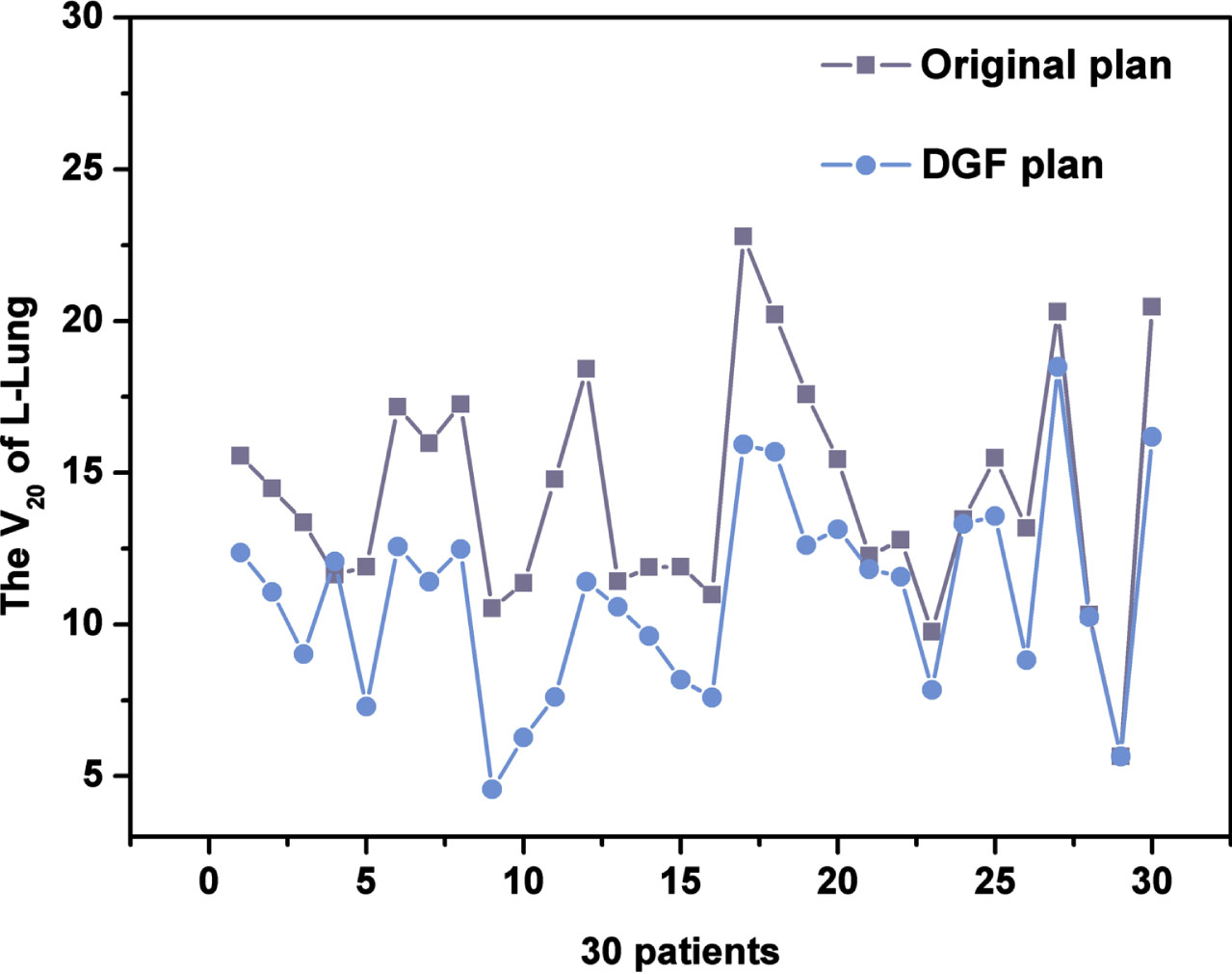

Fig. 3

The V₂₀ of Left lung between the original plan and the DGF plan in 30 patients.

Table 4

Comparison of OARs between the original plan and the DGF plan in 30 patients

Evaluation parameters		Original plan	DGF plan	P value
Lung-L	V₅ (%)	43.01±12.67	35.82±7.54	0.005
	V₁₀ (%)	25.00±5.74	19.74±4.87	< 0.001
	V₂₀ (%)	14.28±3.81	10.96±3.30	< 0.001
	V₃₀ (%)	9.22±3.25	6.45±2.46	< 0.001
	MLD (cGy)	920.61±151.73	763.63±143.65	< 0.001
Heart	D_2cc (cGy)	3261.13±1040.46	2745.45±975.43	0.001
	MHD (cGy)	356.89±69.67	293.84±50.94	< 0.001
LAD	Mean (cGy)	1835.32±69.38	1453.06±57.22	< 0.01
Lung-R	V₅ (%)	15.11±13.03	9.24±8.84	0.023
	V₁₀ (%)	1.90±2.87	0.78±2.15	0.085
	V₂₀ (%)	0.04±0.20	0.00±0.01	0.331
	MLD (%)	265.79±128.17	232.56±82.14	0.146
Breast-R	D_1cc (cGy)	1782.05±824.25	2026.35±1110.95	0.183
	MBD (cGy)	369.99±159.63	323.19±119.36	0.121
Cord	D_Max (cGy)	358.12±230.22	399.45±201.17	0.383

The studies have shown that radiation-induced lung injury after volume-modulated radiotherapy (VMAT) for left breast cancer is correlated with the different dose volumes and mean dose of the ipsilateral lung, and the low dose volume of the ipsilateral lung has a certain degree of influence on the occurrence of radiation-induced lung injury as well as the high dose volume of the ipsilateral lung. In breast cancer radiotherapy, in addition to paying attention to the traditional predictors of radiation-induced lung injury such as V₂₀, the evaluation of V₅, V₁₀, V₃₀ and MLD should be further strengthened. In this study, we found that when V₂₀ decreased, V₅, V₁₀, V₃₀ and MLD also decreased, all with statistical significance (P < 0.01) observed through paired comparisons (Table 4). It was concluded that the introduction of DGF could affect the whole dose curve of the left lung.

3.2.2 Other OARs

Comparison of OARs between the original plan and the DGF plan in 30 patients. As shown in Table 4, compared with the original plan, the D_2cc and D_mean of heart and V₅ of right lung were significantly decreased in the DGF plan guided by dose gradient function, all with statistical significance (P < 0.05). In addition, although the V₁₀, V₂₀, D_mean of the right lung, D_1CC, D_mean of the breast-R and D_Max were not statistically significant (P > 0.05), all met the clinical requirements.

3.3 The DVH and dose distribution of the typical patients

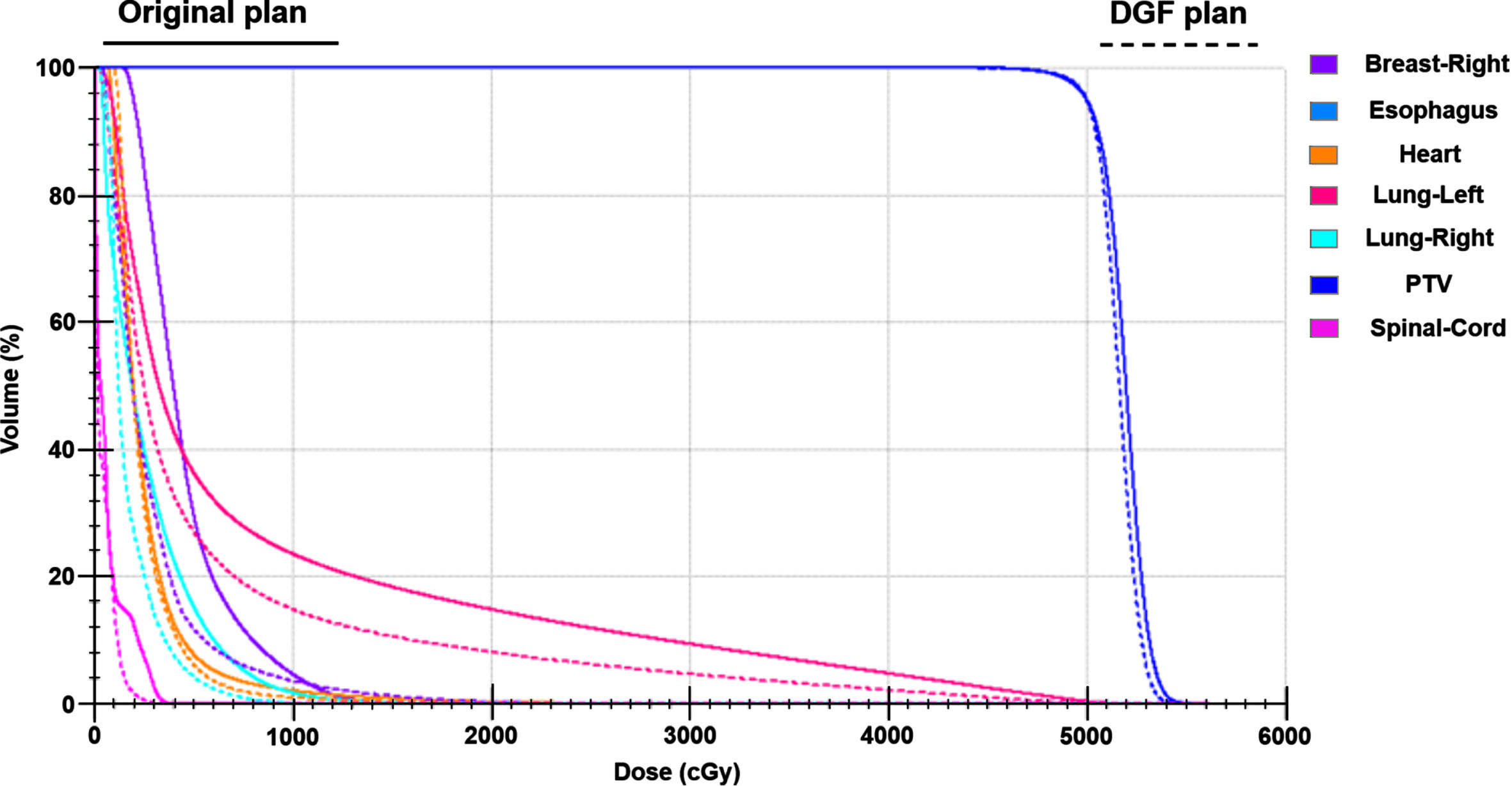

The DVH curves between the original plan and the DGF plan of the typical patient are shown in Fig. 4. The DVH curves illustrate that there was no significant change in the target dose after optimization, however, the doses to OARs were significantly reduced. Figure 5 shows the position relationship between 5000cGy, 2000cGy and the left lung on the patient’s transverse section. After optimization (Fig. 5B), the overlap area between 2000cGy and the left lung was smaller, reduces damage to normal left lung tissue.

Fig. 4

The DVH curves between the original plan and the DGF plan of the typical patient.

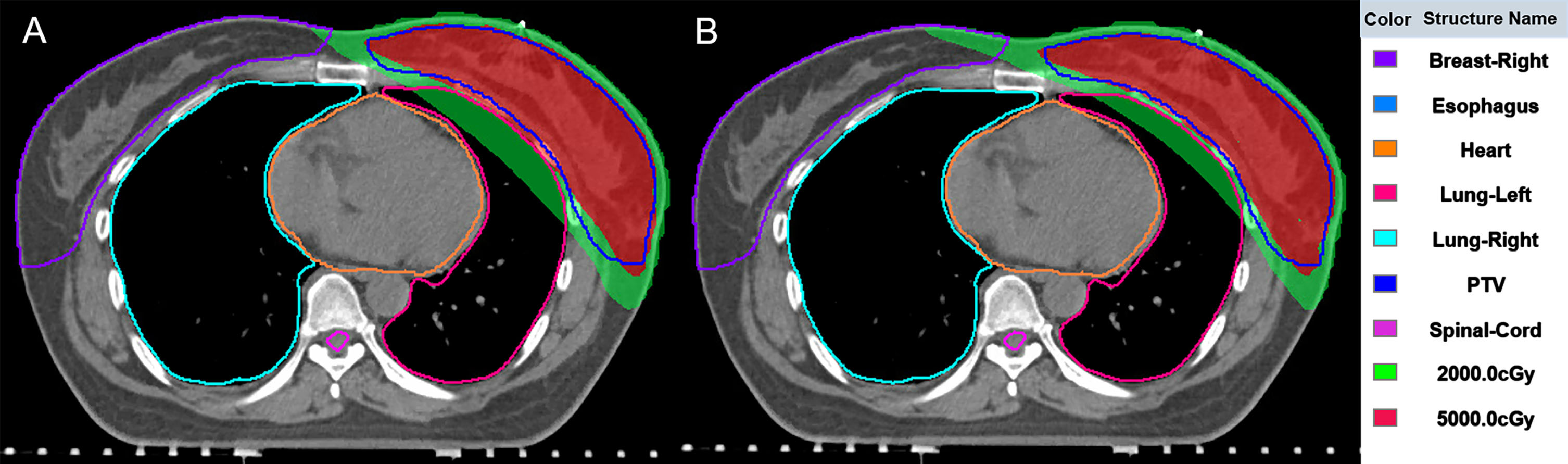

Fig. 5

The dose distribution between the original plan (A) and the DGF plan (B) of the typical patient.

3.4 Radiobiological results for left lung and heart

The results of NTCP of L-Lung were presented in Table 6, the difference of NTC P value of V₂₀ before and after re-optimization was statistically significant (P < 0.001). According to the formulas (4), the magnitude of the risk value was calculated and shown in Table 5, the incidence of major coronary decreased from 2.64 % to 2.17% (P < 0.001).

Table 5
Comparison of NTCP of left lung and percent increase in rate of major coronary events

Parameters Type Original (%) Re-optimized (%) t P

V₂₀ NTCP 15.00±5.90 10.46±3.94 7.33 < 0.001

Heart 2.64±0.51 2.17±0.37 5.73 < 0.001

Parameters	Type	Original (%)	Re-optimized (%)	t	P
V₂₀	NTCP	15.00±5.90	10.46±3.94	7.33	< 0.001
Heart		2.64±0.51	2.17±0.37	5.73	< 0.001

4 Discussions

Breast radiotherapy is challenging and complicated, as the target being located on one side of the body and surrounding organs make this an inherently difficult site to achieve a homogeneous dose distribution. Plane 2D resulted in dose inhomogeneities, particularly in women with larger breasts. An inhomogenous dose may lead to increased normal tissue side effects and poor cosmetic results, which can cause significant psychological morbidity for patients. The introduction and wide application of CT and computer technology in radiotherapy were the beginning of precise radiotherapy. Three-dimensional conformal radiation therapy (3D-CRT) was the beginning technology of the precise radiotherapy. 3D-CRT followed by Intensity modulated radiation therapy (IMRT), and then many sub-technologies were developed based on IMRT. The study of Selvaraj, et al. showed that the reductions of V₁₀₅ and V₁₁₀ for the IMRT compared to 3DCRT were 44.7% and 66.3%, respectively (P < 0.01). The mean dose and V₃₀ for heart with IMRT were 2.3 (SD: 1.1) and 1.05 (SD: 1.5) respectively, which was a reduction by 6.8% and 7.9%, respectively, in comparison with 3D. Similarly, the mean dose and V₂₀ for the ipsilateral lung and the percentage of volume of contralateral volume lung receiving > 5% of prescribed dose with IMRT were reduced by 9.9%, 2.2%, and 35%, respectively [20]. A dosimetric study on radiotherapy for left side breast cancer showed that both VMAT and IMRT led to improved PTV_95 % coverage (95.63±1.82% in VMAT; 93.70±2.16 % in IMRT; 81.40±6.27% in 3D-CRT) and improved CI (0.96±0.02 in VMAT; 0.91±0.06 in IMRT) as compared to 3D-CRT (0.66±0.11) [21]. It can be seen that the dose of peripheral organs at risk can be reduced effectively by selecting better radiotherapy techniques. But when the technique is not optional, how to judge plans can be improved is remaining a problem.

Therefore, many methods have been raised, which can be used to improve the quality of plans. An earlier model for predicting the dose of OARs in radiotherapy for breast cancer was proposed by Oxford and researchers assessed the value of maximum heart distance (MHD) in predicting the dose and biologically effective dose (BED) to the heart and the left anterior descending (LAD) coronary artery for left-tangential breast or chest wall irradiation [22]. With our proposed DGF optimization, the dose gradient at the edge of the target is improved, the dose “diffused” to the LAD is reduced. And then OVH was proposed, and the OVH achieves a new patient’s DVH by comparing the distance of the OARs and targets of the new patient with those of prior patients, whose plans were maintained in a database. The basis for this calculation was r _ v, 1 ⩾ r _ v, 2 ⇒ D_v,1 ⩽ D_v,2. For v > OVH(0), we have r_v_,2 > r_v_,1; then D_v_,2 > D_v_,1 was expected. For v < OVH(0), we have r_v_,1 > r_v_,2; then D_v_,1 < D_v_,2 was expected. For v = OVH(0), we have r_v_,1 = r_v_,2; then D_v_,1 = D_v_,2 was expected. This method is effective in predicting the dose of parotid gland in NPC radiotherapy [23]. Several subsequent studies based on OVH expanded the connotation and application scope of OVH [24 –26]. However, one shortcoming of these method is that the distance r exists between two points, but the edge of the target is three-dimensional-space curved surface, besides the dose variation occurs in a three-dimensional space. So, only considering the distance in one plane is not enough for optimizing plans.

In the paper, the research team obtained DGF based on the continuance of the dose gradient (DF) concept in SBRT [27 –29]. DF’s formula is $DGF = \sqrt[3]{\frac{V_{50 % PD}}{V_{P}}}$ , and the dose “50% PD” is 50% of the prescribed dose. Because every three-dimensional volume has a sphere that has the same volume. It can be seen that DG reflects the ratio of the radius of the “equivalent sphere” formed by 50% prescription dose in three-dimensional space to the radius of the “equivalent sphere” formed by PTV. In a similar way, DGF’s formula is $D G H = \sqrt[3]{\frac{V_{D}}{V p}}$ , which reflects the ratio of the radius of the “equivalent sphere” formed by the dose “D” in three-dimensional space to the radius of the “equivalent sphere” formed by PTV. The larger the value of DGF, the larger the ratio and the slower the rate of dose decline. In addition, since the value of DGF varies with D in each physical plan, this study uses the area obtained by integrating DGF to perform its function instead of DGF. When integrating in the same domain ([1500, 5000], as shown in Fig. 2), the smaller the DGF, the smaller the area. The smaller the DGF, the faster the dose decline, i.e., the smaller the dose “diffused” into the ipsilateral lung and heart adjacent to the PTV. This is the reason that when the minimum area triggers plans reoptimize for area reduction, the dose of lung and heart will be reduced, and these results are shown in Table 5 and Fig. 3. Reading Fig. 3 carefully, it is not difficult to find that most plans (26/30) were triggered and re-optimized to achieve lower V₂₀ of ipsilateral lung, but some plans (4/30) failed to achieve lower V₂₀. The reason may be that $D G H = \sqrt[3]{\frac{V_{D}}{V p}}$ only contains the volume information, but does not contain the shape information of PTV. Experience tells us that the shape of breast cancer PTV, such as the degree of curvature of the PTV, also has some effect on the dose.

The pursuit of lower doses of OARs is essentially an expectation of lower NTCP. So, this study also investigated the change of NTCP caused by the decrease of physical dose, and the results showed that the decrease of physical dose actually resulted in the decrease of NTCP, as shown in Table 6. With the method proposed in this study, the NTCP of the ipsilateral lung can be reduced by about 4.5% and the heart by about 0.5%.

Through the method proposed in this paper, we can review the team’s previous breast-conserving radiotherapy plans to obtain a DGF-curve to guide the design of new plans, or extract a DGF-curve from the plans designed by experienced physicists (dosimetrists) to guide the plan design of entry-level physicists (dosimetrists). Can guarantee continuously improving the quality of plans and keeping the quality level of plans from declining due to the different experiences of the physicist (dosimetrist). In the clinical workflow, the proposed method provides guidance for optimization and, in theory, reduces the number of trial and error in planning. Another potential implication is to programmatically build the recommended methods into TPS to evaluate plans or drive automatic optimization of plans, and our research team will address it in future studies.

5 Conclusion

The dose-gradient function is valid in reducing radiation induced lung injury in breast cancer radiotherapy.
