Generalized sidelobe canceler beamforming combined with Eigenspace-Wiener postfilter for medical ultrasound imaging

Abstract

BACKGROUND:

The beamforming algorithm is key to the image quality of the medical ultrasound system. The generalized sidelobe canceler (GSC) beamforming can improve the image quality in lateral resolution, but the contrast is not improved correspondingly.

OBJECTIVE:

In our research, we try to optimize the generalized sidelobe canceler to obtain images that achieve an improvement in both lateral resolution and contrast.

METHODS:

We put forward a new beamforming algorithm which combines the generalized sidelobe canceler and Eigenspace-Wiener postfilter. According to eigenspace decomposition of the covariance matrix of the received data, the components of the Wiener postfilter can be calculated from the signal matrix and the noise matrix. Then, the adaptive weight vector of GSC is further constrained by the Eigenspace-Wiener postfilter, which make the output energy of the receiving array closer to the desired signal than the conventional GSC output.

RESULTS:

We compare the new beamforming algorithm with delay-and-sum (DS) beamforming, synthetic aperture (SA) beamforming, and GSC beamforming using the simulated and experimental data sets. The quantitative results show that our method reduces the FWHM by 85.5%, 80.5%, and 38.9% while improving the CR by 123.6%, 47.7%, 84.4% on basis of DS, SA, and GSC beamforming, respectively.

CONCLUSIONS:

The new beamforming algorithm can obviously improve the imaging quality of medical ultrasound imaging systems in both lateral resolution and contrast.

Keywords

Adaptive beamforming generalized sidelobe canceler Wiener postfilter eigenspace

1. Introduction

Ultrasonic imaging is an important means of medical diagnosis, which has the advantages of strong penetration and little harm [1, 2]. Thereinto, the beamforming algorithms have the decisive influence on the quality of echo images. The most common beamforming algorithm is delay-and-sum (DS) beamforming [3]. It can achieve receiving focus of the beam. On this basis, synthetic aperture (SA) beamforming [4] further realizes the emission focusing. These algorithms can improve the accuracy of medical ultrasonic systems [5]. However, by only achieving beam focus, the main lobe of the beam is still wide and the sidelobe is high, causing a low resolution and contrast of images [6]. Thus, a more efficient beamforming algorithm is necessary for improving the image quality.

The DS and SA belong to the non-adaptive beamforming, and many researchers pay more attention to the adaptive beamforming field recently. In adaptive algorithms, an adaptive weight vector is introduced to process the received signal [7]. Unlike the preset weights in non-adaptive beamforming methods, this weight vector is updated as the received signal changes, ensuring the best performance of interference suppression at each point [8]. Therefore, with the appropriate weights, the adaptive beamforming algorithm can obtain a narrower main lobe and a lower side lobe, so the image quality is improved. In adaptive beamforming research, Capon first put forward the minimum variance beamforming in 1969 [9]. Then the beamforming is deeply studied by researchers. Holfort extended minimum variance method into frequency domain [10]. Synnevåg applied it to medical ultrasonic imaging [11]. Due to the coherence of medical ultrasound signal, the spatial smoothing is proposed by Evans [12]. Moreover, Synnevåg come up with the diagonal loading approach for the robustness [13].

Though the minimum variance method can bring better image quality, it still suffers signal cancellation. Thus, researchers have tried to find an alternative approach [14]. Griffiths proposed generalized sidelobe canceler (GSC) beamforming [15]. It introduces a block matrix to solve the signal cancellation and changes the constraint structure of adaptive beamforming. In addition, Li introduced the GSC beamforming into medical ultrasonic imaging [16]. Previous studies have shown that GSC can effectively improve resolution, but not contrast which is also important for medical image analysis [17]. Therefore, it is necessary to improve the contrast performance of the GSC beamforming while maintaining the advantage of high resolution.

For the medical ultrasound imaging, the main lobe width of the beam determines the lateral resolution of the system, while the sidelobe level has an influence on the contrast. Moreover, the desired signal concentrates on the main lobe, and the noise signal causes the sidelobe. Therefore, the closer the result of beamforming is to the desired signal, the better the image quality is. Recently, the Wiener postfilter beamforming has been widely studied [18, 19], in which the response of Wiener filter is considered as a coefficient of beamforming. The response of the filter should meet the condition that the mean square error between the beam output and the desired signal is minimized [20]. By using this post-weighting factor, the output power of the beamformer will be closer to the desired signal, so a beam with narrower main lobe and lower sidelobe can be achieved. Thus, a better resolution and contrast could be expected. However, to build a Wiener postfilter, the energy of the desired signal and the noise signal must be obtained first, and some methods to estimate the two components have been proposed [21, 22], but they are always complicated and not accurate enough.

In our study, we design a new beamforming algorithm which combines the GSC beamforming and the Wiener postfilter. Benefiting from the characteristics of covariance matrix, it can be easily divided into signal matrix and noise matrix by eigenspace decomposition method. Then the Wiener postfilter can be constructed by the corresponding matrices and the adaptive weight. Some experiments are conducted using simulated data set and real echo data. The results indicate that the new beamforming (GSC-ESW) can achieve significant improvement in contrast as well as lateral resolution.

The rest part of the manuscript is structured as follows: we describe the imaging model of medical ultrasound system, and the principle of GSC beamforming and Wiener postfilter in Section 2. Then we elaborate on the design of GSC-ESW in Section 3. The experimental results are displayed in Section 4. The performance of the new beamformer is discussed in Section 5. Finally, we give the conclusion of our research in Section 6.

2. Background

2.1 Synthetic aperture (SA)

Synthetic aperture (SA) beamforming is a widely used non-adaptive beamforming algorithm. It can realize transmitting and receiving focusing of beam [23], which provides a good foundation for the adaptive beamforming. Generally, the SA beamforming is implemented as follow: Firstly, in each scan, only one element is used to emit ultrasonic pulses, and all the array elements receive the echo signal. Moreover, the received data are processed by DS beamforming to realize the receiving focus. Then we repeat the above process on each single transmission element in the array and obtain a series of low-resolution images (LRI). Finally, all the low-resolution images are added and averaged to produce a high-resolution image (HRI), which achieves the transmitting focus.

For a linear transducer array, we assume it consists of M elements, the high-resolution image of SA can be expressed as:

$\displaystyle\text{HRI}=\frac{1}{M}\ \sum_{i=1}^{M}\omega_{i}\ \text{LRI}_{i}$ (1)

where $\omega_{i}$ is the weight power. In general, the weight is preset, and we often use window functions for it [24]. Because of the theory of acoustic reciprocity, there is no difference between the transmit (Tx) aperture focusing and receive (Rx) aperture focusing where the weight is applied [25]. And previous researches show that the adaptive beamforming is also effective in the Tx aperture [26]. Therefore, we can introduce a new adaptive beamforming to Eq. (1) to calculate an adaptive weight for the better image quality.

2.2 Sensor signal model

Considering a linear transducer array consisting of M elements, the beamformer output is expressed by [27]:

$\displaystyle y\left(k\right)={\bm{\omega}}^{H}\left(k\right){\bm{X}}\left(k% \right)=\sum_{i=1}^{M}\omega_{i}^{\ast}\left(k\right)x_{i}\left(k\right)$ (2)

where $k$ is time instance and the weight vector ${\bm{\omega}}\left(k\right)=\left[\omega_{1}\left(k\right),\omega_{2}\left(k% \right),\ldots,\omega_{M}\left(k\right)\right]^{T}$ . $\ast$ denotes complex conjugate, $\left(\cdot\right)^{T}$ and $\left(\cdot\right)^{H}$ denote transpose and conjugate transpose, respectively. ${\bm{X}}\left(k\right)$ represents the received signal which has achieved time compensation, ${\bm{X}}\left(k\right)=\left[{x_{1}\left(k\right),x_{2}\left(k\right),\ldots,x% _{M}\left(k\right)}\right]^{T}$ . For the received signal ${\bm{X}}\left(k\right)$ , it mainly consists of the following two components:

$\displaystyle{\bm{X}}\left(k\right)={\bm{S}}\left(k\right)+{\bm{P}}\left(k\right)$ (3)

where ${\bm{S}}\left(k\right)$ denotes the desired signals which contain the useful information of detected points. ${\bm{P}}\left(k\right)$ denotes the interference and noise signals including sidelobe signals and system noise which will cause artifacts and decrease the image quality. Therefore, the vector ${\bm{\omega}}\left(k\right)$ should retain desired signals as much as possible, and filter out interference and noise ${\bm{P}}\left(k\right)$ . Since the adaptive beamforming can adjust the weight vector to changes of signals, the weight for each imaging point is optimal. Thus, the quality of echo images is improved.

2.3 Generalized sidelobe canceler (GSC)

In adaptive beamforming, the weight vector should minimize the interference and noise power while the desired signal can pass without loss. This constraint is formed by [28]:

$\displaystyle\min{\bm{\omega}}^{H}{\bm{R}}{\bm{\omega}},\text{subject to}\ {% \bm{\omega}}^{H}{\bm{a}}=1$ (4)

where ${\bm{R}}$ denotes the covariance matrix of interference and noise signal, and ${\bm{a}}$ represents the direction of arrival of the desired signals. In this paper, ${\bm{a}}$ becomes a unit vector because the echo signal has been delayed and focused.

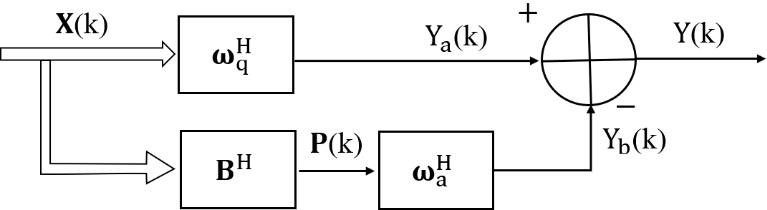

Figure 1.

Structure of generalized sidelobe canceler.

Figure 1 shows the structure of GSC beamforming. It separates weight vector ${\bm{\omega}}$ into two parts ${\bm{\omega}}_{q}$ and ${\bm{\omega}}_{a}$ . According to the constraint of Eq. (4), we set ${\bm{\omega}}_{q}$ parallel to the desired signal ${\bm{S}}\left(k\right)$ , so the desired signal can pass through the road without distortion. In contrast, for the road where ${\bm{\omega}}_{a}$ located, a blocking matrix B is added to isolate desired signal. Thus, ${\bm{\omega}}_{a}$ is only concerned with interference and noise signals ${\bm{P}}\left(k\right)$ . Finally, the desired signal is retained in the beamformer output, and the interference signal is removed. The weight vector ${\bm{\omega}}$ is given by:

$\displaystyle{\bm{\omega}}={\bm{\omega}}_{q}-{\bm{B}\omega}_{a}$ (5)

Through the operations above, the constraints of Eq. (4) can be redefined as:

$\displaystyle{\bm{\omega}}_{a}=\text{arg}\ \mathop{\min}\limits_{{{\bm{\omega}% }}_{a}}\left({\left({{{\bm{\omega}}}_{q}-{\bm{B}}{\bm{\omega}}_{a}}\right)^{H}% {\bm{R}}\left({{\bm{\omega}}_{q}-{\bm{B}}{\bm{\omega}}_{a}}\right)}\right)$ (6) $\displaystyle{\bm{a}}^{H}{\bm{\omega}}_{q}=1$

And the answer of Eq. (2.3) is:

$\displaystyle{\bm{\omega}}_{q}=\left({{\bm{a}}{\bm{a}}^{H}}\right)^{-1}{\bm{a}}$ (7) $\displaystyle{\bm{\omega}}_{a}=\left({\bm{B}}^{H}{\bm{R}}{\bm{B}}\right)^{-1}{% \bm{B}}^{H}{\bm{R}}{\bm{\omega}}_{q}$ (8)

The blocking matrix ${\bm{B}}$ is orthogonal to the desired signal, so it should satisfy [29]:

$\displaystyle{\bm{B}}^{H}{\bm{a}}=0$ (9)

In practice, ${\bm{R}}$ is unavailable because the interference and noise signals is unknown. Thus, the sample covariance matrix $\widehat{\bm{R}}$ is often used instead. To get a reliable matrix, some preprocessing method should be applied including the spatial smoothing and diagonal loading [30]. Through the spatial smoothing, the whole array is divided into several subarrays by overlapping smoothing. Then the sub-covariance matrices are calculated and averaged as the estimation of the sample covariance matrix [31]. Moreover, the diagonal loading adds a tiny white noise to the sample covariance matrix to improve the regularity [32]. With the help of the preprocessing method, the sample covariance matrix is given by:

$\displaystyle\widehat{\bm{R}}=\frac{1}{p}\sum^{P}_{p=1}{\bm{G}}_{p}(k){\bm{G}}% ^{H}_{p}(k)$ (10) $\displaystyle\widehat{\bm{R}}=\widehat{\bm{R}}+\varepsilon{\bm{I}}$ (11) $\displaystyle\varepsilon=\frac{1}{\Delta*L}\text{tr}(\widehat{\bm{R}})$ (12)

where ${\bm{G}}_{p}\left(k\right)$ denotes the subarray and ${\bm{G}}_{p}\left(k\right)=\left[{x_{p}\left(k\right),x_{p+1}\left(k\right),% \ldots,x_{p+L-1}\left(k\right)}\right]$ . P denotes the number of subarrays, and $L$ is the length of each subarray. The relationship between $P$ and $L$ is $P=M-L+1$ ( $L\leqslant M/2)$ . $\varepsilon$ determines the white noise energy added to $\widehat{\bm{R}}$ , and $\Delta$ is an adjustable parameter which ranges from 10 to 100 as usual [33].

2.4 Wiener postfilter

In medical ultrasound imaging, the Wiener postfilter is introduced to minimize the mean square error between the total output power of the beamformer and the desired signal power [34]. The response of the filter is calculated by:

$\displaystyle H=\arg\mathop{\text{min}}\limits_{\bm{\omega}}E\left\{{\left|{S-% H{\bm{\omega}}^{H}{\bm{X}}}\right|^{2}}\right\}$ (13)

The optimal solution Eq. (13) is

$\displaystyle H=\frac{\left|S\right|^{2}}{{\bm{\omega}}^{H}{\bm{R}\omega}}=% \frac{\left|S\right|^{2}}{\left|S\right|^{2}+\left|P\right|^{2}}$ (14)

where ${\bm{\omega}}^{H}{\bm{R}}{\bm{\omega}}$ denotes the beamformer output power, $\left|S\right|^{2}$ is the desired signal power, and $\left|P\right|^{2}$ represents noise signal power. According to Eq. (14), the filter response $H$ could be constructed, if we obtain the desired signal power and noise signal power. Some estimation methods has been proposed [21, 22], but the complexity and accuracy are unsatisfactory.

3. Proposed method

To further improve the performance of GSC beamformer, we propose a new beamformer which introduce an Eigenspace-Wiener postfilter to optimize the conventional GSC. And the new beamformer is called GSC-ESW for short. In this approach, the Wiener filter is constructed using the result of the eigenspace decomposition of $\widehat{\bm{R}}$ , and then the adaptive weight can be further optimized by the post-weighting factor, which will lead to a better imaging quality.

3.1 Eigenspace decomposition

For the GSC beamforming, the sample covariance matrix $\widehat{\bm{R}}$ satisfies the following properties:

$\displaystyle\widehat{\bm{R}}={\bm{E}}\wedge{\bm{E}}^{H}$ (15)

where ${\bm{E}}=\left[{\bm{e}}_{1},{\bm{e}}_{2},\ldots,{\bm{e}}_{L}\right]$ , and $\wedge=\text{diag}\left[{{\lambda}_{1},{\lambda}_{2},\ldots,{\lambda}_{L}}\right]$ , ${\lambda}_{1}\geqslant{\lambda}_{2}\geqslant\ldots\geqslant\lambda_{L}$ . This processing is called the eigenspace decomposition, in which the $\lambda_{i}$ is the eigenvalue, and ${\bm{e}}_{i}$ is the corresponding eigenvector. In medical ultrasound imaging, the desired signal is in the same direction as ${\bm{e}}_{1}$ , so the desired signal power is related to the eigenvector with the largest eigenvalue [35]. Thus, the span of the eigenvectors can be divided into two parts based on the magnitude of eigenvalues. The one consists of the eigenvectors with larger eigenvalues. For it contains the desired signal ${\bm{S}}\left(k\right)$ , we call it the signal space ${\bm{E}}_{s}$ . The other is constructed by the remaining eigenvectors, which is called the noise space ${\bm{E}}_{p}$ . Since the desired signal is related to the eigenvector which has the biggest eigenvalue $\lambda_{1}$ , we introduce a parameter $\delta$ , and the signal space ${\bm{E}}_{s}$ can be constructed by the eigenvectors whose eigenvalues satisfy $\lambda_{i}>\delta\lambda_{1}$ . Then, the rest eigenvectors are used to construct the noise space ${\bm{E}}_{p}$ .

Through the eigenspace decomposition, the sample covariance matrix $\widehat{\bm{R}}$ can be expressed as:

$\displaystyle\widehat{\bm{R}}={\bm{E}}_{s}\wedge_{s}{\bm{E}}^{H}_{s}+{\bm{E}}_% {p}\wedge_{p}{\bm{E}}^{H}_{p}=\widehat{\bm{R}}_{s}+\widehat{\bm{R}}_{p}$ (16)

where $\wedge_{s}$ and $\wedge_{p}$ represent diagonal matrices composed of eigenvalues of signal space and noise space, respectively. $\widehat{\bm{R}}_{s}$ and $\widehat{\bm{R}}_{p}$ denote the covariance matrices of the corresponding space.

3.2 Eigenspace-Wiener postfilter

According to Eq. (2) and (16), the beamformer output is given by:

$\displaystyle\left|{y_{\text{GSC}}\left(k\right)}\right|^{2}=\left[{{{\bm{% \omega}}}^{H}\left(k\right){{\bm{X}}}\left(k\right)}\right]\left[{{{\bm{\omega% }}}^{H}\left(k\right){{\bm{X}}}\left(k\right)}\right]^{H}={\bm{\omega}}^{H}% \widehat{\bm{R}}{\bm{\omega}}={\bm{\omega}}^{H}\widehat{\bm{R}}_{s}{\bm{\omega% }}+{\bm{\omega}}^{H}\widehat{\bm{R}}_{p}{\bm{\omega}}$ (17)

Equation (17) indicates that the output energy of the beamformer can be calculated by the sample covariance and adaptive weight vector. What is more, the output energy can be further decomposed into signal energy ${\bm{\omega}}^{H}\widehat{\bm{R}}_{s}{\bm{\omega}}$ and noise energy ${\bm{\omega}}^{H}\widehat{\bm{R}}_{p}{\bm{\omega}}$ . Based on Eq. (16), the covariance matrices of signal and noise are obtained by the eigenspace decomposition. Thus, we can use ${\bm{\omega}}^{H}\widehat{\bm{R}}_{s}{\bm{\omega}}$ and ${\bm{\omega}}^{H}\widehat{\bm{R}}_{p}{\bm{\omega}}$ as the estimators of $\left|S\right|^{2}$ and $\left|P\right|^{2}$ in Eq. (14), respectively. Then, the Eigenspace-Wiener postfilter can be expressed as:

$\displaystyle H=\frac{{\bm{\omega}}^{H}\widehat{\bm{R}}_{s}{\bm{\omega}}}{{\bm% {\omega}}^{H}\widehat{\bm{R}}_{s}{\bm{\omega}}+{\bm{\omega}}^{H}\widehat{\bm{R% }}_{p}{\bm{\omega}}}$ (18)

3.3 GSC with the Eigenspace-Wiener postfilter

To improve the performance of GSC, the adaptive weight is optimized by the Eigenspace-Wiener postfilter. And the new optimized weight can be expressed as:

$\displaystyle{\bm{\omega}}_{\text{GSC-ESW}}=H\cdot{\bm{\omega}}=\frac{{\bm{% \omega}}^{H}\widehat{{\bm{R}}}_{s}{\bm{\omega}}}{{\bm{\omega}}^{H}\widehat{{% \bm{R}}}_{s}{\bm{\omega}}+{\bm{\omega}}^{H}\widehat{{\bm{R}}}_{p}{\bm{\omega}}% }\cdot\omega$ (19)

With the new adaptive weight, the beamformer output is:

$\displaystyle\left|y_{\text{GSC-ESW}}\left(k\right)\right|^{2}={\bm{\omega}}_{% \text{GSC-ESW}}^{H}\widehat{{\bm{R}}}{\bm{\omega}}^{H}_{\text{CSC-ESW}}=H^{2}% \cdot{\bm{\omega}}^{H}\widehat{{\bm{R}}}{\bm{\omega}}={\bm{\omega}}^{H}% \widehat{{\bm{R}}}_{s}{\bm{\omega}}-\frac{{\bm{\omega}}^{H}\widehat{\bm{R}}_{p% }{\bm{\omega}}}{1+\frac{{\bm{\omega}}^{H}\widehat{\bm{R}}_{p}{\bm{\omega}}}{{% \bm{\omega}}^{H}\widehat{\bm{R}}_{s}{\bm{\omega}}}}$ (20)

Comparing the Eqs (17) and (20), the first terms of the two equations are same, which represent the desired signal power, but the second terms are different which represent noise power. Specifically, for the echo signal from the point targets, the desired signal is much bigger than noise signal, so the noise power in Eqs (17) and (20) are all small, but our method can obtain a smaller result. For the region of anechoic lesion, there are few desired signals in the echo and it is full of noise. Since the noise signal power is much bigger than the desired signal power, a quantity of artifacts and noise will occur in the echo images. However, noise power in GSC-ESW is very small because the denominator of the second term of Eq. (20) is much bigger than 1. Therefore, GSC-ESW can make the output closer to the desired signals no matter how the noise signals change. As the noise is further suppressed, the GSC-ESW can achieve better lateral resolution and contrast.

4. Results

In order to verify the effectiveness of the algorithm, simulated experiments and real data experiments are carried out. Then we compare the beamforming responses of GSC-ESW with DS, SA, and GSC beamforming. Relevant indexes are used to evaluate the quality of the algorithms including the full width at half-maximum (FWHM), peak sidelobe level (PSL), and contrast ratio (CR), which can quantitatively describe the performance of the lateral resolution, sidelobe energy, and contrast, respectively.

The simulated data of point targets and cyst target are obtained by Field II [36, 37]. We simulate a linear array with 64 elements. Its central frequency is 3.33 MHZ and the spacing of elements is 0.2413 mm. In addition, sampling rate of the system is 71.4 MHZ, and the sound velocity is 1540 m/s. The real data is provided by the biomedical ultrasonic laboratory, Biomedical Engineering Department, University of Michigan, and its parameters are consistent with those of the simulated data.

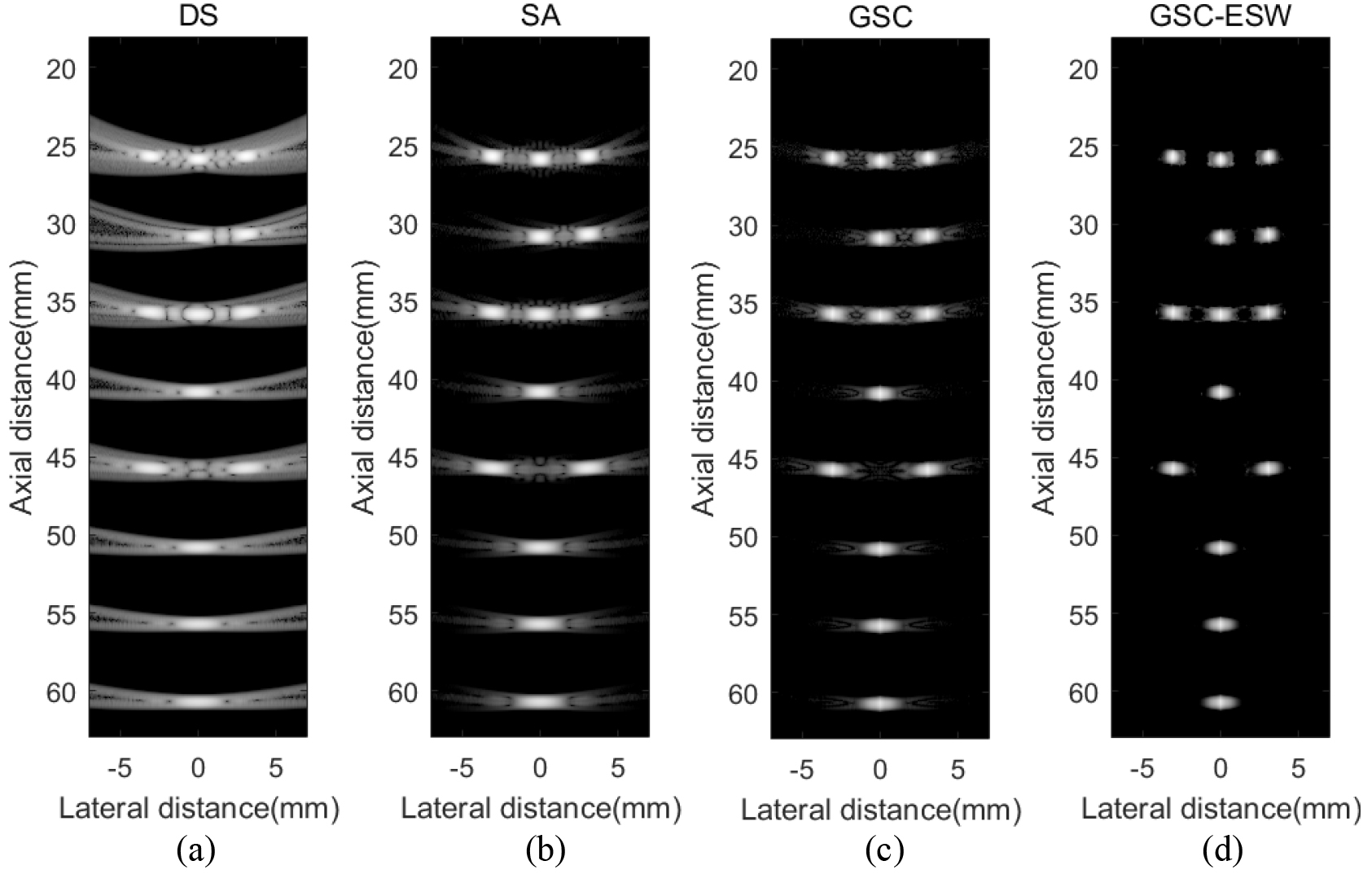

Figure 2.

Simulated point targets images with different algorithms. (a) DS; (b) SA; (c) GSC; (d) GSC-ESW. The dynamic range of image is 60 dB.

4.1 Simulated point targets

In this section, there are several point targets in the detection space, and the simulated data are processed by different algorithms. Figure 2 shows the imaging results. Figure 3 is the lateral variation curve of point targets at the depth of 40 mm and 45 mm. As shown in Fig. 3, GSC-ESW obtains the narrowest main lobe and lowest sidelobe between the four algorithms. Taking $z=$ 40 mm as an example, the FWHM and PSL of different algorithms are listed in Table 1. It shows that GSC-ESW can reduce the FWHM by 85.5%, 80.5%, and 38.9% compared to DS, SA, and GSC beamformer. At the same time, the PSL of GSC-ESW is 75.91, 63.17, and 46.89 dB lower than that of DS, SA, and GSC beamformer. These results show that the GSC-ESW can improve the lateral resolution, and reduce the sidelobe energy level.

Table 1
FWHM ${}^{1}$ and PSL ${}^{2}$ for point target at depth $z=$ 40 mm

Algorithm	FWHM (mm)	PSL (dB)
DS	1.52	$-$ 14.51
SA	1.13	$-$ 27.25
GSC	0.36	$-$ 43.53
GSC-ESW	0.22	$-$ 90.42

${}^{1}$ FWHM: full width at half-maximum ( $-$ 6 dB beam width); ${}^{2}$ PSL: peak value of the first sidelobe.

Table 2

Contrast ratio (CR ${}^{\ast}$ ) of different algorithms

Algorithm	Mean intensity in the cyst region (dB)	Mean intensity in the background (dB)	CR (dB)
DS	$-$ 45.71	$-$ 20.02	25.69
SA	$-$ 60.09	$-$ 21.19	38.90
GSC	$-$ 56.69	$-$ 21.54	31.15
GSC-ESW	$-$ 87.57	$-$ 30.12	57.45

${}^{\ast}$ CR $=$ mean intensity in the background–mean intensity in the cyst region.

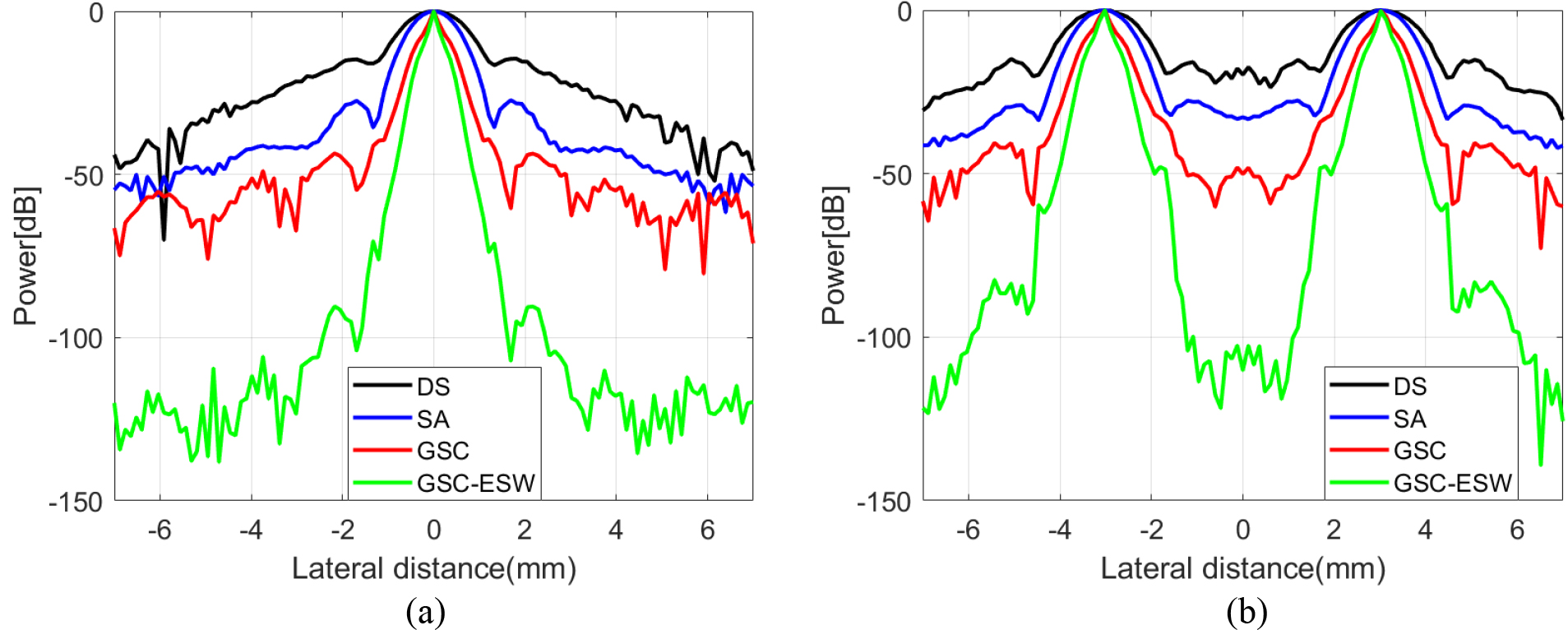

Figure 3.

Lateral variation of different algorithms at (a) $z=$ 40 mm; (b) $z=$ 45 mm.

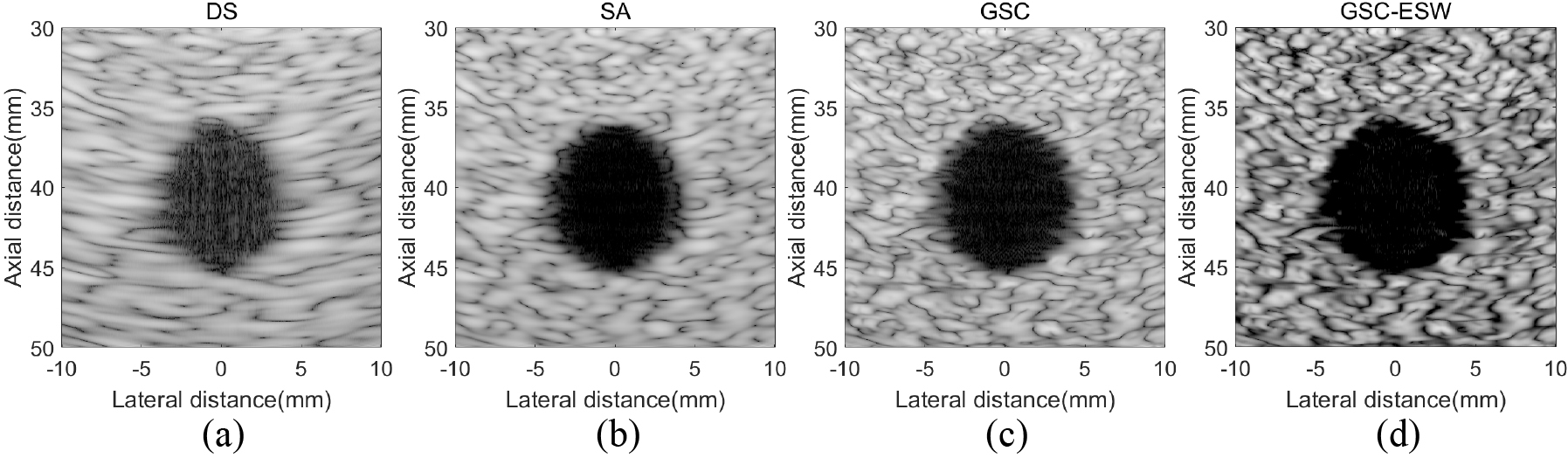

Figure 4.

Simulated circular cyst target images with different algorithms. (a) DS; (b) SA; (c) GSC; (d) GSC-ESW. The dynamic range of image is 60 dB.

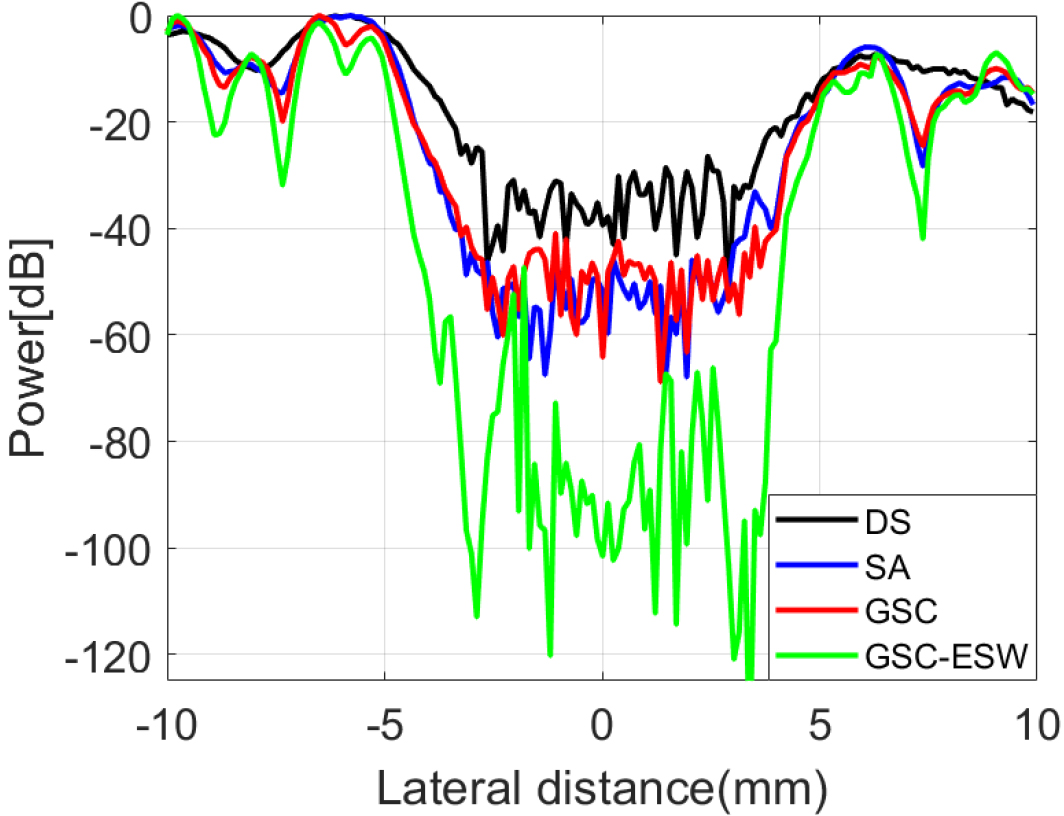

Figure 5.

Lateral variation at $z=$ 40 mm.

4.2 Simulated cyst targets

In this section, the echo data of a circular cyst target in a high speckle noise environment is simulated by Field II. The circular cyst is located at ( $x, z$ ) $=$ (0, 40) mm, and the radius is 5 mm. Within the cyst, there is no scattering point, and several scatterers are put outside the cyst to simulate the background noise. Figure 4 shows the beamforming response of DS, SA, GSC, and GSC-ESW. Figure 5 presents the lateral variation at the center of the cyst. The CR of the images are displayed in Table 2. GSC-ESW leads to 123.6%, 47.7%, 84.4% improvement in CR compared to DS, SA, and GSC. In addition, a lower intensity inside the cyst is achieved by GSC-ESW, indicating that the noise signal is effectively suppressed. This experiment indicates that the GSC-ESW beamformer performs well in contrast enhancement.

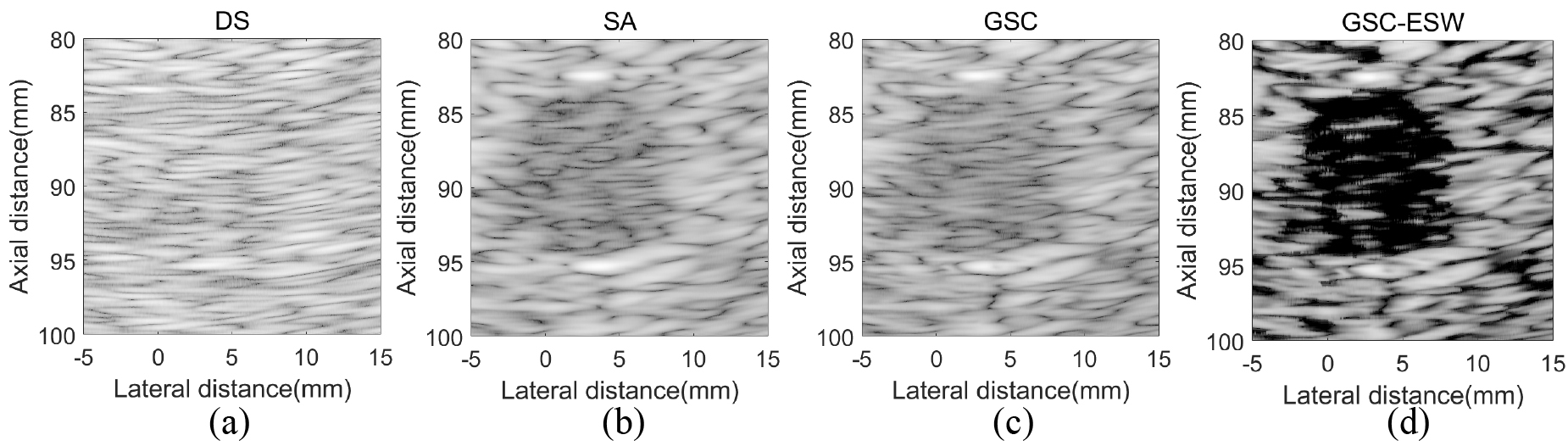

Figure 6.

Real data images with different algorithms. (a) DS; (b) SA; (c) GSC; (d) GSC-ESW. The dynamic range of image is 60 dB.

4.3 Real echo data experiment

In this section, we use the real echo data to test algorithms. Figure 6 shows the beamforming response of different algorithms. Since the actual system is not as ideal as the simulated environment, more noise and errors will appear in the echo data [38], which make it difficult for beamformers to obtain accurate images. From Fig. 6a, we can see that the cyst is completely drowned out by the noise signal, while GSC-ESW leads to a clearly distinguishable results in Fig. 6d. The SA and GSC are also obviously disturbed by noise in Fig. 6b and c. Since the DS is difficult to distinguish the target, we do not carry out quantitative analysis on it. The lateral variation of SA, GSC, and GSC-ESW is shown in Fig. 7. According to quantitative calculation, the CR of SA, GSC and GSC-ESW are 8.56 dB, 6.25 dB, and 31.27 dB, respectively. This experiment shows that the new beamformer can still perform well in practical application.

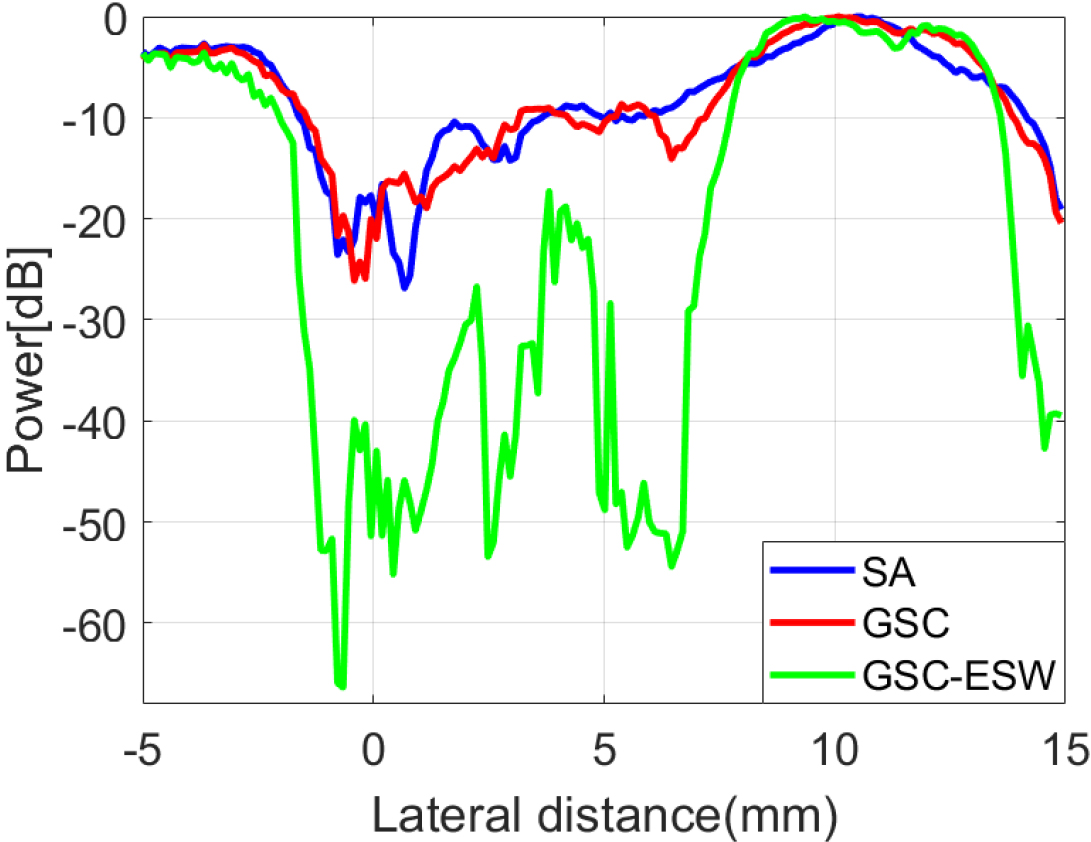

Figure 7.

Lateral variation of real data at $z=$ 88 mm.

5. Discussion

In the present study, we try to use the Wiener postfilter to optimize the GSC beamformer to further improve the quality of images in medical ultrasound imaging. And the eigen structure of covariance matrix provides a good foundation for the application of the Wiener postfilter, which make the construction of Wiener postfilter convenient and accurate. Simulated and experimental results confirm the validity of the new beamforming algorithm.

In point targets experiment, GSC-ESW achieves an obvious improvement over the non-adaptive beamformers DS and SA. GSC-ESW increases the lateral resolution of DS and SA by more than 80%. Compared with the conventional GSC, GSC-ESW also provides a narrower main lobe and lower sidelobe according to Fig. 3. As the desired signal concentrates on the main lobe while the noise signal distributes in sidelobe, GSC-ESW takes 38.9% increase in lateral resolution and 46.89 dB decrease in sidelobe energy, which confirms that output of the new beamformer is closer to the desired signal.

According to cyst target experiment, we find that although the GSC obtains a better the lateral resolution than the non-adaptive beamformer SA, but there is no corresponding enhancement in contrast. This problem limits the application of the GSC beamformer. However, GSC-ESW can improve the contrast by 123.6%, 47.7%, 84.4% compared with DS, SA, and GSC, because more interference and noise is suppressed by the Wiener postfilter. What is more, when processing the real echo data, GSC-ESW shows stronger ability to resist noise and interference. A distinguishable cyst is obtained in Fig. 6d, while others are difficult to be detected.

6. Conclusion

In this research, we come up with a new beamforming algorithm which combines the generalized sidelobe canceler with Wiener postfilter. By means of the eigenspace decomposition of the sample covariance, the Wiener postfilter can be obtained without other estimation processing. Since the beamformer output is closer to the desired signal, the method can achieve a better image quality of the medical ultrasonic system. The significant enhanced FWHM and CR indicate that the new beamformer has achieved 38.9% improvement in lateral resolution and 84.4% improvement in contrast compared with the generalized sidelobe canceler beamformer, which is also far better than the non-adaptive beamforming algorithms. Simulated and experimental results verify the effectiveness of the proposed method.

Footnotes

Acknowledgments

This research was supported by the China National Key R&D Program (NO. 2018YFC0116202, 2017YFC0109702, 2017YFC0109901).

Conflict of interest

The authors declare no conflict of interest.
