Estimation and clinical verification of the effective and skin doses for pediatric and adult patients undergoing the cardiac interventional examination using five PMMA phantoms and TLD/ionization chamber technique

Abstract

BACKGROUND:

Effective and skin doses gain much attention since the cardiac catheterization laboratory (CCL) is a place where both patients and medical staff are exposed to X-ray or fluoroscopy environment and gain a cumulative dose during the cardiac interventional procedure.

OBJECTIVE:

These doses for pediatric and adult patients undergone cardiac interventional examination using five PMMA phantoms and thermoluminescence dosimeter (TLD)/ionization chamber technique were estimated in this work with the further clinical verification.

METHODS:

Five PMMA phantoms (10, 30, 50, 70, and 90 kg) were customized to represent baby, child, adult female, adult male, and overweight adult (by Asian complexion standards), respectively, in accordance with the ICRU-48 report. Each phantom could be disassembled into 31 plates to insert TLD chips for measuring X-ray exposed dose or assisted with an auxiliary plate to insert high-sensitivity ionization chamber for surveying low-energy fluoroscopy dose.

RESULTS:

The data acquired from five phantoms were integrated into four semi-empirical formulas, in order to fit the binary quadratic form “Dose $=$ A $\cdot$ BMI ${}^{\mathrm{2}}$ +B $\cdot$ DAP ${}^{\mathrm{2}}$ +C $\cdot$ BMI+ D $\cdot$ DAP+E”. The latter linked the X-ray and fluoroscopy effective/skin doses, respectively, with a high coefficient of determination $R^2$ (from 0.888 to 0.986).

CONCLUSIONS:

The model refinement with DAP share adjustment is envisaged.

1. Introduction

Effective and skin doses of X-ray and fluoroscopy obtained by patients after the cardiac interventional examination were assessed in this work using five PMMA phantoms and thermoluminescence dosimeter (TLD)/ionization chamber technique with the further clinical verification. These doses gain much attention since the cardiac catheterization laboratory (CCL) is a place where both patients and medical staff are exposed to X-ray or fluoroscopy environment and gain a cumulative dose during the cardiac interventional procedure. The medical staff can be efficiently protected by lead aprons around the X-ray facility and protective clothing for personnel [1], whereas patients are mandatorily exposed to X-ray or fluoroscopy during the interventional examination. Several researchers have addressed this issue and applied different techniques for evaluating the cumulative doses obtained by patients of different age, weight, and size. In particular, McFadden et al. [2] established the reference level, Wu et al. [3] evaluated the exposed dose for the pediatric interventional cardiology, while Ector et al. [4] focused on the possible underestimation of accumulated doses in case of obesity/overweight patients. Chida et al. [5] addressed a surrogate measurement of the total amount of X-ray energy delivered to a patient via the dose area product (DAP) expressed in Gy $\times$ cm ${}^2$ and reported a good correlation between the total entrance skin dose and DAP. However, it is quite problematic to use DAP for the maximum skin dose evaluation, since too many factors, such as field size, focus-to-image intensifier distance, and focus-to-skin distance, have to be accounted for. Hansson and Karambatsakidou [6] studied the relationships between entrance skin dose, effective dose, and DAP for patients in diagnostic and interventional cardiac procedures. This work dealt with measurements of maximum entrance skin dose and effective dose via an anthropomorphic phantom using TLDs placed both on the outside of and inserted in the phantom; and simulating a diagnostic or an interventional clinical procedure. The results [6] provided the local reference level for the patient dose to prevent skin burden. Patient mean DAP were assessed as 73, 120 and 170 Gy ${}^{.}$ cm ${}^2$ and effective doses as 16, 31 and 41 mSv for diagnostic, interventional and combined procedures, respectively.

In contrast to X-ray, the fluoroscopy as frequently adopted in the cardiac interventional procedure draws less attention due to its comparatively low energy. However, the long-time exposure still creates a measurable amount of cumulative dose for patients. Thus, Chida et al. [5], Mettler et al. [7] and Koenig et al. [8] revealed the radiation injuries from fluoroscopy. Therefore, the aim of this study is to accomplish a comprehensive survey of the dose obtained from either X-ray or fluoroscopy by patients of various age and weight (from babies to overweight adult patients) via five respective PMMA phantoms and TLD/ionization chamber technique. The five phantoms are customized to simulate pediatric and adult patients of 10, 30, 50, 70, and 90 kg, respectively, according to the ICRU-48 report [9], whereas the TLD/ionization chamber was also used as a robust technique for converting the medium/low ionization energy into the exposure dose of personnel. Further, the empirical data were integrated altogether by STATISTICA developed by StatSoft, Inc. [10] to fit four semi-empirical formulas, which were defined as a binary quadratic equation to represent the effective or skin doses from X-ray or fluoroscopy by various DAP (dose area product) of facility and BMI (body mass index) of patients. The theoretical estimation of patients’ skin doses was verified by the clinical examination of 30 patients who underwent the cardiac interventional examination from May 2016 to September 2017. The discrepancies between theoretical results and clinical data and the reliability of obtained unique binary quadratic equation are discussed in detail.

2. Materials and methods

2.1 Effective dose

ICRP committees have been quantifying personal radiation dose for several decades. According to the ICRP-60 report published in 1990, the protection quantity for personal dosimetry is termed the effective dose, $E$ , and is defined as

$E={\mathrm{\Sigma }}_T{\omega }_T\times H_T$(1)

where ${\omega }_T$ denotes the weighting factor of particular tissue or organ, while $H_T$ represents the equivalent dose received by an tissue or organ, which is defined as

$H_T={\mathrm{\Sigma }}_{\gamma }{\omega }_{\gamma }\times D_{T,\gamma }$(2)

Here ${\omega }_r$ is the weighting factor of the incident radiation, while $D_{T,r}$ denotes the mean dose of incident radiation of $\gamma$ -type absorbed by the organ or tissue $T$ [11]. The effective dose can be directly determined by the derivation of the equivalent dose for each organ or tissue and further multiplication of the obtained values by the corresponding weighting factors (cf. Eq. (2)). In accordance with ICRP-26, ${\omega }_T$ values were explicitly assigned only to six organs, while five more organs receiving the next highest dose equivalents were jointly analyzed as a pseudo-organ called the “remainder” [12]. The provisions of ICRP-60 envisaged the allocation of ${\omega }_T$ values to more organs than ICRP-26, as well as the refinement of available values of ${\omega }_T$ , in view of more accumulated data concerning the risk of cancer in these organs due to the radiation exposure. The pseudo-organ or “remainder” was also re-defined in ICRP-60 and involved ten specific organs. The values ${\omega }_T$ derived for particular organs were found to be independent of the equivalent dose $H_T$ delivery; therefore, the ICRP-26 definition of $H_E$ can be extended to include updated values of ICRP-60 ${\omega }_T$ , yielding a more accurate estimate of $E$ .

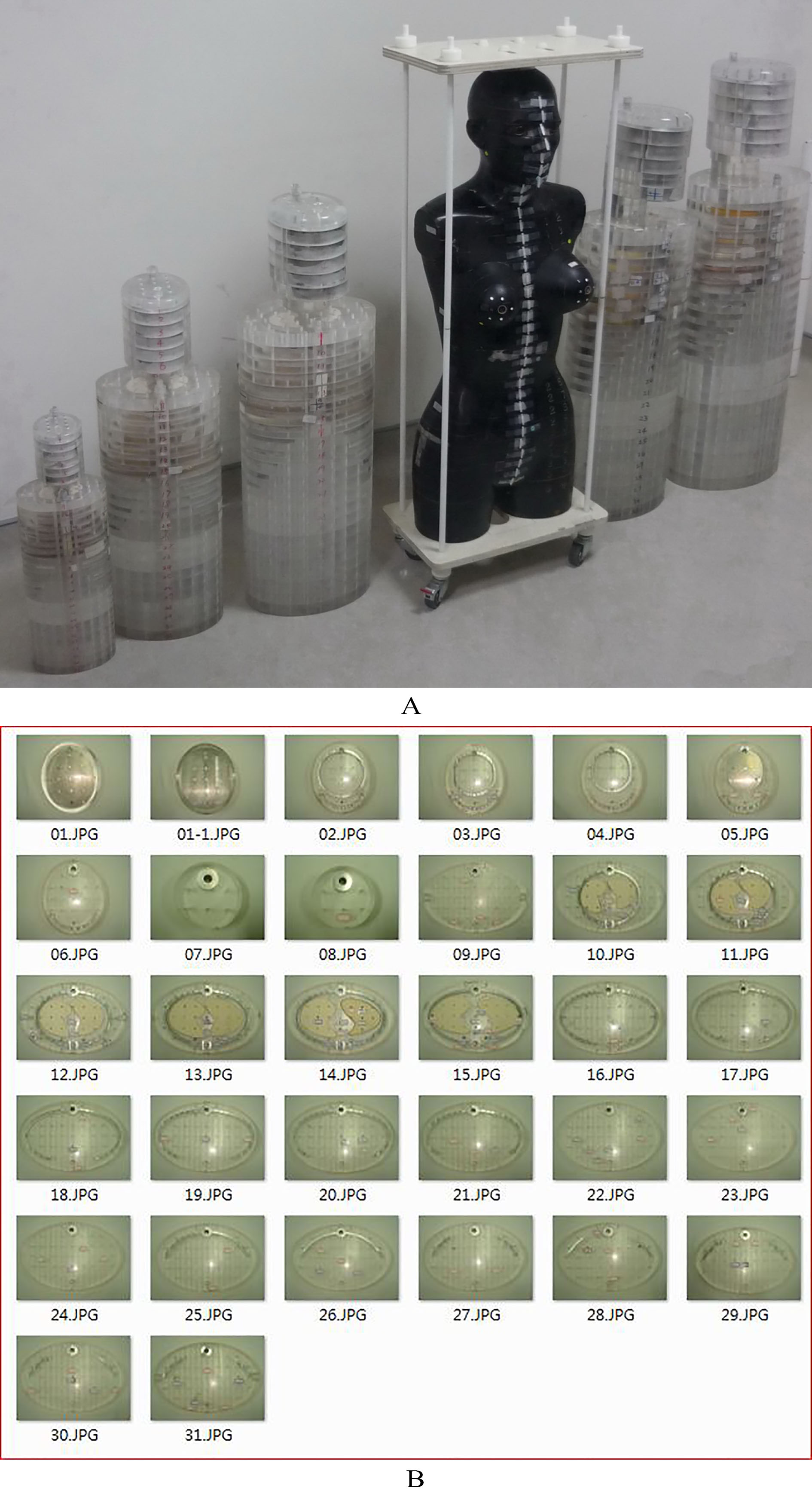

Figure 1.

(A) Five PMMA phantoms were put side by side with Rando phantom to demonstrate the relative geometrical size, (B) each phantom was assembled from 31 plates of various sizes and numbered sequentially from top to bottom as follows: Nos. 1–6 corresponded to head, 7–8 to neck, 9–21 to chest and abdomen, and 22–31 to pelvis.

2.2 Five PMMA phantoms

Five PMMA phantoms (10, 30, 50, 70, and 90 kg, respectively) were customized to represent a baby, child, adult female, adult male, and overweight adult (obesity case), in accordance with ICRU-48 report, as shown in Fig. 1 [9]. Each heterogeneous phantom was assembled from 31 acrylic (PMMA) plates. In addition, the skull, ribs, spine, and pelvis were made of pure aluminum, while the lung was made of high-density polyethylene foamed cotton. Several through holes were drilled into each plate, then 3–5 TLD chips were inserted in these through holes for the dose survey, while acrylic plugs were used to fill empty ones. As shown in Fig. 1A, five PMMA phantoms were put side by side with Rando phantom to demonstrate the relative geometrical size, (B) each phantom was assembled from 31 plates of various sizes and numbered sequentially from top to bottom as follows: Nos. 1–6 corresponded to head, 7–8 to neck, 9–21 to chest and abdomen, and 22–31 to pelvis. The dimensions of five phantoms were designed according to the physical dimensions of linearity, i.e., weight $W$ is directly proportional to the cubed linear dimension $L(W\approx L^3)$ . Therefore, the body mass index (BMI) was 13.52, 16.46, 21.64, 24.22, and 27.78 kg m ${}^{-2}$ for the phantoms of 10, 30, 50, 70, and 90 kg, respectively. Noteworthy is that not only the arrangement of each plate but also the structure of five phantoms were identical to ensure the consistence and varied only by size. Thus, different exposed doses obtained via either X-ray or fluoroscopy can be only correlated to phantoms of different size.

2.3 TLD/ionization chamber setup

One hundred five standard TLD-100 chips consisting of Lithium Fluoride (LiF: Mg, Ti; 3.2 $\times$ 3.2 $\times$ 0.89 mm ${}^3$ ) were obtained from Thermo Fisher Scientific Inc. (formerly Harshaw, Bicron). The TLDs were randomly categorized into 35 packs, each consisting of three TLDs. The TLD assigned dose was calibrated using the Advanced Markus ionization chamber, namely Victoreen Model 4000 with a parallel plate ionization chamber. The irradiated TLD reading was obtained using a Mikro Lab RA94 TLD reader/analyzer and by annealing in furnaces (Barnstead Int. Co., model 47900) coupled with an oven/incubator (model 19200) for 400 ${}^{\circ }$ C 1 h and 100 ${}^{\circ }$ C 2 h. Furthermore, each TLD was cooled for at least 24 hours before the next exposure, in order to efficiently suppress the residual dose. The TLD signal fading and self-absorption of TLD light can be treated as an internal interfering factor and given a negligible contribution, insofar as the exposed TLDs were always read in the same period of cooling time.

An additional high-sensitivity pencil-type ionization chamber (Victoreen, model 6000–100, 3.2 cc) was preset for measuring the fluoroscopy, since TLD had comparatively low detecting efficiency for fluoroscopy. In doing so, an auxiliary PMMA plate was specially made with 3–5 through tunnels. The pencil-type ionization chamber could be inserted into any tunnel to survey the dose, whereas acrylic sticks of the same size were inserted into the remaining 2–4 through tunnels to maintain the plate integrity, yet, the auxiliary plate could be inserted into any layer to replace the original one of the phantom. The pencil-type ionization chamber had a high sensitivity to measure the low-energy fluoroscopy and maintain the dose-response linearity, its only drawback being the inconvenience of its application and larger time required for the dose measurement. The pencil-type ionization chamber could record a single fluoroscopy dose at a time to obtain a single dose position inside the phantom. In contrast, 105 TLDs could be fully inserted into the phantom and then exposed only once to acquire the full empirical data for a single specific task.

Table 1

The tests on X-ray or fluoroscopy of phantoms were verified using real patients undergone the cardiac interventional examination. Here 10- and 30-kg phantoms corresponded to baby or child, respectively, from the pediatric viewpoint. Similarly, 50-, 70-, and 90-kg phantoms were used to simulate the adult female, male, and overweight adult, respectively

	Pediatric		Adult
Phantom	10 kg	30 kg	50 kg	70 kg	90 kg
X-ray
kVp	61	63	66	67	70
mA	135	267	375	430	577
Fluoroscopy
kVp	60	65	68	68	75
mA	3.0	5.7	8.3	8.3	12.4

The phantom was assembled with TLD chips or pencil-type ionization chamber inside, then exposed to the bi-plane X-ray facility that was specifically designed for the cardiac interventional examination (Philips Integris Allura 9 Biplane system) located at the Cardiac Catheterization Laboratory, Taichung Veteran General Hospital, Taiwan (CCL, TVGH). The X-ray and fluoroscopy settings for each phantom were then applied to real patients that underwent the cardiac interventional examination as listed in Table 1. Here 10- and 30-kg phantoms corresponded to baby or child, respectively, from the pediatric viewpoint. Similarly, 50-, 70-, and 90-kg phantoms were used to simulate the adult female, male, and overweight adult, respectively. The recorded DAP could be manipulated by changing the exposure time. Table 2 implies the precise arrangement of well-packed TLDs inside the phantom for X-ray exposure. Each TLD pack had three chips sealed in a PE bag, which were then inserted into specific through holes for the exposure. Also, the tissue weighting factor (cf. Eq. (1), ${\omega }_T$ ) was also listed for reference; the factor was normalized from the original ICRP-60 report to ensure its unity. Figure 2 reveals part of the data acquisition process inside the CCL. As seen in Fig. 2A, a 70 kg phantom was placed between two X-ray emitters, and the focal spots aiming at the back of phantom, (B) a 10 kg phantom, the photo was taken from the opposite side of (A), (C) five auxiliary plates with 3–5 through tunnels to insert the pencil-type ionization chamber for surveying the fluoroscopy dose. The size of an auxiliary plate equaled by the geometrical size to the respective phantom, which allowed one to insert it into any layers to replace the original one, and (D) a 90 kg phantom with auxiliary plate replacing the original 14 ${}^{\mathrm{th}}$ plate to measure the fluoroscopy dose; as is seen, the acrylic stick was extracted from the tunnel, in order to put in the pencil-type ionization chamber from another side, whereas other four through tunnels were filled with sticks to maintain the plate integrity.

Table 2

Implies the precise arrangement of well-packed TLDs inside the phantom for X-ray exposure. Each TLD pack had three chips sealed in a PE bag, which were then inserted into specific through holes for the exposure. Also, the tissue weighting factor (cf. Eq. (1), ${\omega }_T$ ) was also listed for reference; the factor was normalized from the original ICRP-60 report to ensure its unity

Organ or tissue	ICRP-60 ${\omega }_T^{\ast }$	Phantom plate no.	No. of TLD pack	Precise position
Thyroid	0.05	8	2
Esophagus	0.05	9	2
Breast	0.05	15	2	Left side
		15	2	Right side
Lung	0.12	11	2	Left side
		14	2	Right side
Heart	0.05	10	2	Left atrium
		11	2	Right atrium
		14	2	Right ventricle
		15	2	Left ventricle
Liver	0.05	21	2
Stomach	0.12	20	2
Bone surface	0.01	9	1	Clavicle
		9	1	Thoracic vertebra
		11	1
		15	1
		18	1
		11	1	Left side
		17	1	Right side
		16	1	Sternum
Skin	0.01	11	1	X-ray focal spot on patient’s back
		12	1
		13	1
Colon	0.12	24	N/A
Bladder	0.05	28	N/A
Gonads	0.20	31	N/A
Sum	1.00		35

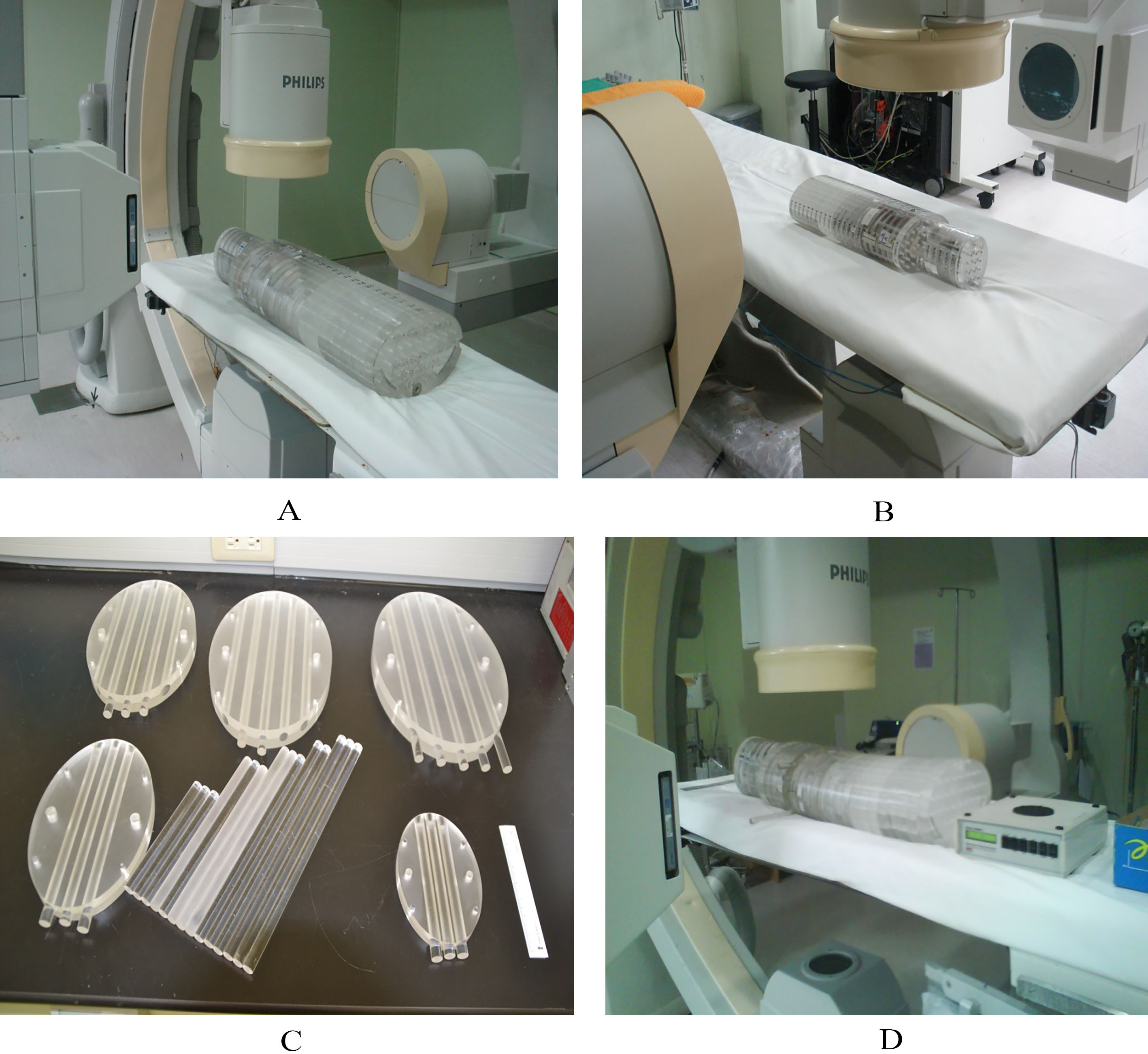

Figure 2.

(A) A 70 kg phantom was placed between two X-ray emitters, and the focal spots aiming at the back of phantom, (B) a 10 kg phantom, the photo was taken from the opposite side of (A), (C) five auxiliary plate with 3-5 through holes to insert the pencil-type ionization chamber for surveying the fluoroscopy dose. The size of an auxiliary plate equaled by the geometrical size to the respective phantom, which allowed one to insert it into any layers to replace the original one, and (D) a 90 kg phantom with auxiliary plate replacing the original 14 ${}^{\mathrm{th}}$ plate to measure the fluoroscopy dose; as is seen, the acrylic plug was extracted from the hole, in order to put in the pencil-type ionization chamber from another side, whereas other four through holes were filled with plugs to maintain the plate integrity.

3. Results

3.1 Effective and skin doses

Table 3 lists the relevant data derived in this work. The reported data for each specific case were averaged from three independent measurements. The TLDs were measured and then averaged to represent the particular assigned organ or tissue. The data were categorized by BMI and exposed time $E_r$ [sec] (cf. Table 3), then the time was converted to different DAP of X-ray or fluoroscopy, in compliance with a preliminary survey that was calibrated using both BMI and exposed time [13]. Figure 3 depicts four correlations between DAP and effective/skin dose for five different phantom weights. Thus, a thorough survey of effective or skin doses for five phantoms exposed to X-ray or fluoroscopy was conducted. The high linearity or consistence among five correlation plots revealed a quite robust fit with a negligible systematic error.

Table 3

The reported data for each specific case were averaged from three independent measurements. The TLDs were measured and then averaged to obtain the values representing the assigned organ or tissue. The data were categorized by BMI and exposed time

PMMA	E ${}_r$	$X$	$Y_1$	$Z_1$ (X-ray)		$Y_2$	Z ${}_2$ (Fluor)
Phantom (kg)	time (sec)	BMI (kg/m ${}^2)$	DAP (mGy cm ${}^2)$	Effective dose ( $\mu Sv)$	Skin dose ( $\mu$ Sv)	DAP (mGy cm ${}^2$ )	Effective dose ( $\mu Sv$ )	Skin dose ( $\mu$ Sv)
10	70	13.52	2606	226	1121	1512	128	220
10	140	13.52	5275	427	1836	3075	191	329
10	210	13.52	7949	605	2529	4547	258	444
10	280	13.52	10555	815	3491	6059	321	553
10	420	13.52	15830	1294	7990	9134	452	780
30	70	16.46	9238	316	3375	2727	152	917
30	140	16.46	18336	444	3690	5402	270	2205
30	210	16.46	27579	669	5781	8113	371	3104
30	280	16.46	36817	1029	8978	10840	458	4278
30	420	16.46	55153	1441	12071	16242	705	6470
50	70	21.64	35325	479	1687	3978	146	1118
50	140	21.64	70773	811	4777	7890	271	2369
50	210	21.64	106233	1084	5715	11886	379	3438
50	280	21.64	141558	1704	10104	15864	526	4638
50	420	21.64	212331	2378	12187	23753	772	6951
70	70	24.22	44415	325	2237	5149	156	1467
70	140	24.22	88314	922	4997	10238	277	3249
70	210	24.22	132351	941	6200	15318	402	4979
70	280	24.22	176766	1638	12118	20467	527	6766
70	420	24.22	265080	2189	18567	30705	776	10302
90	70	27.78	56191	344	1432	6026	143	2659
90	140	27.78	111586	624	3436	12143	253	4892
90	210	27.78	167751	1177	4345	18110	360	7133
90	280	27.78	223942	1867	9780	24136	469	9352
90	420	27.78	335528	2593	12670	36279	688	13848

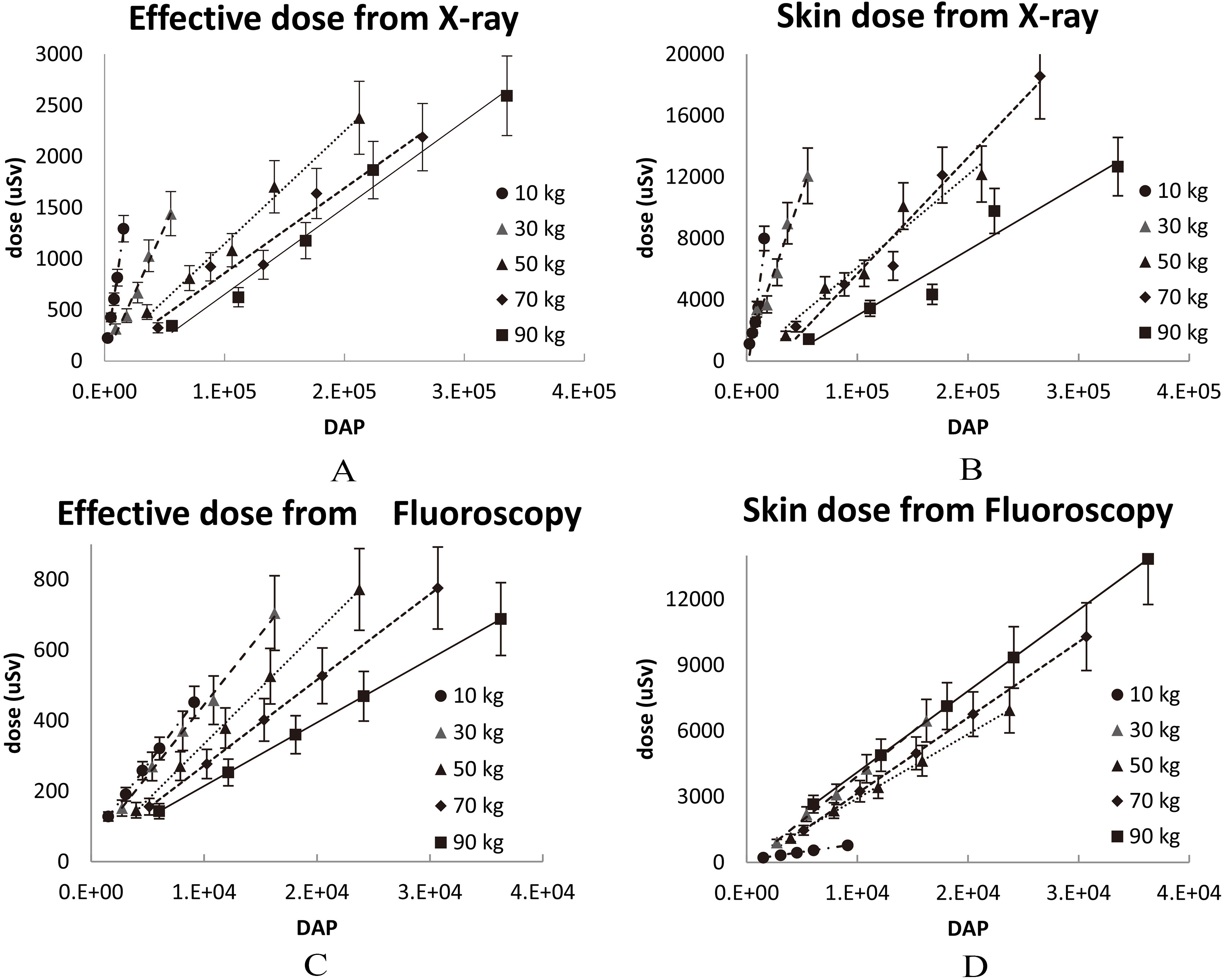

Figure 3.

Four correlations between DAP and dose using five phantoms of different weight. Thus, a thorough survey of effective or skin doses for five phantoms exposed to X-ray or fluoroscopy was accomplished in this work. (A) Effective dose from X-ray exposure, (B) skin dose from X-ray exposure, (C) effective dose from fluoroscopy, and (D) skin dose from fluoroscopy.

3.2 Error treatment

The errors associated with the derived effective or skin doses for various X-ray/fluoroscopy exposure arrangements were calculated as the square root of the sum of squared individual errors, $\mathrm{\Delta }i$ , as listed in Table 4. The uncertainty for ${\omega }_T$ value was set to 5%, since the weighting factor was normalized in this specific measurement. The error for X-ray power fluctuation was based on the monthly clinical quality assurance (QA) at Taichung Veteran Hospital, while the internal normalization errors for TLDs were quoted from the preliminary survey of each specific TLD, as listed in Table 4 [14, 15]. The uncertainty resulting from non-tissue equivalence effect in the acrylic phantom was set to 5%, since the heterogeneous phantom was manufactured from PMMA, aluminum, and high-density polyethylene foamed cotton. Eventually, the total error as indicated in this study was mainly related to the statistical error in counting, which could be efficiently suppressed by repeated measurements. Therefore, all reported data were averaged from three independent trials, and the maximum counting statistical and total errors amounted to 6.2% and 15.4%, respectively.

Table 4

The errors associated with the derived effective or skin doses for various X-ray/fluoroscopy exposure arrangements. The total error was calculated as the square root of the sum of squared individual errors

Source	Error (%)
Systematic
${\omega }_T$ (tissue or organ weighting factor)	5%
Non-tissue equivalent effect	5%
Fluctuation of X-ray or Fluoroscopy	3%
Internal normalization of TLD chip	3% $\sim$ 8%
Pencil type ion chamber dose conversion	1.1% $\sim$ 2.5%
Random
TLD chips reading statistics	2.7% $\sim$ 5.1%
Pencil type ion chamber repeat statistics	3.8% $\sim$ 6.2%
$\mathrm{\Delta }$ ${}_{tot}$	8.9% $\sim$ 15.4%

4. Discussion

4.1 Optimal-fitting of a semi-empirical formula via STATISTICA program

The correlation of DAP versus dose for various phantom weights (reduced to BMI) can be expressed by a semi-empirical formula defined as a binary quadratic equation to predict the exposure dose (effective or skin one) for patients that underwent the cardiac interventional examination (via X-ray or fluoroscopy) in CCL. In doing so, the coefficients of the semi-empirical formula can be derived with the STATISTICA program [10]. The correlations among the variables are determined and defined as nonlinear models, nonlinear estimations, and user-specified regressions with customized loss functions to perform the numerical analysis using the normalized data from the real measurement. The predicted effective or skin doses are the expectation values of the computational results. Therefore, five independent groups of 25 individual datasets each [5 $\times$ 5 $=$ 25] were incorporated into the model to optimize the compromised solution of the predicted dose. Also, five terms, including one constant, were used in the binary quadratic equation to reveal the best correlation among the variables as listed below:

$\text{Dose}=A\cdot X^2+B\cdot Y^2+C\cdot X+D\cdot Y+E$(3)

Table 5

The derived coefficients $A\sim E$ for the four semi-empirical formulas and the coefficient of determination, $r^2$

Source	Dose	Dose $=$ A $\cdot$ BMI ${}^{\mathrm{2}}$ $+$ B $\cdot$ DAP ${}^{\mathrm{2}}$ $+$ C $\cdot$ BMI $+$ D $\cdot$ DAP $+$ E
		A	B	C	D	E	$r^2$
X-ray	Effective	$-$ 0.406	0.000	$-$ 67.16	0.014	1569.4	0.952
	Skin	$-$ 37.050	0.000	897.2	0.087	$-$ 1968.8	0.888
Fluoroscopy	Effective	$-$ 6.3660	0.000	196.5	0.039	$-$ 1278.9	0.977
	Skin	$-$ 9.6960	0.000	711.4	0.293	$-$ 10019.0	0.986

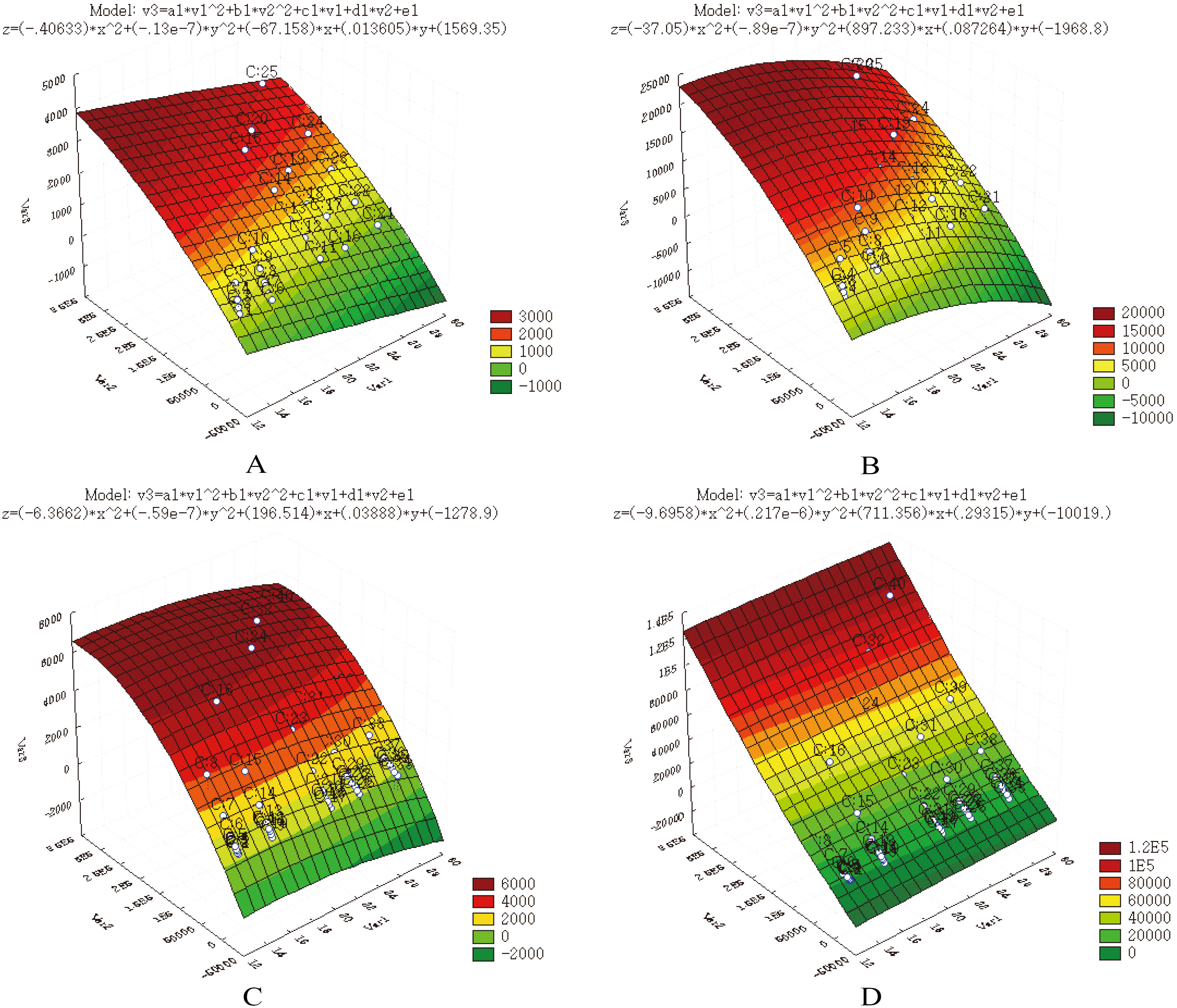

Figure 4.

Plot of the expectation values predicted via the semi-empirical formulas, which was automatically constructed by the STATISTICA default feature. (A) effective dose from X-ray exposure, (B) skin dose from X-ray exposure, (C) effective dose from fluoroscopy, and (D) skin dose from fluoroscopy.

where Dose, $X$ , and $Y$ are the expectation values of effective or skin dose from X-ray or fluoroscopy, BMI, and DAP, respectively, whereas terms $A\sim E$ are the derived coefficients of the formula. The loss function was defined as the total deviation between the predicted and observed doses for all 25 cases, and thus, a small loss function is always preferable in the theoretical computation. Table 5 lists the derived coefficients $A\sim E$ for the four binary quadratic equations and the coefficient of determination $R^2$ , whereas the respective plot for expectation values is depicted in Fig. 4. The latter was automatically plotted by the STATISTICA default feature, and the smooth surface of the expectation values’ domain indicates the lack of conflicts among datasets and the absence of any systematic errors within the computational process. Thus, the coefficient of determination $R^2$ reaches 0.888 $\sim$ 0.986, which implies a high consistence and reliable estimation for the four kinds of exposed doses in CCL. Eventually, the effective or skin doses can be easily derived by including the patient’s BMI and recorded DAP of X-ray or fluoroscopy. Also, the quadratic coefficient of DAP reaches 0.0 in all four equations (cf. Table 5). This prevents too large DAP values to confuse the estimation, since DAP values may vary by several thousand units [mGy $\cdot$ cm ${}^{-2}$ ], whereas the BMI ranges only by several ten units [kg $\cdot$ m ${}^2$ ]. However, this biased estimation can be suppressed by normalizing the respective variable to the same level and reducing its fluctuation to the range from $-$ 1.0 to $+$ 1.0 [16, 17].

4.2 Clinical verification using 30 cardiac interventional patients

The obtained binary quadratic equations were applied to predict the exposed dose for 30 patients who underwent the cardiac interventional examination. This was envisaged to verify the theoretical estimation accuracy. In doing so, thirty patients were asked to place three TLDs on their backs within the X-ray focal spot aiming region during the cardiac examination. The TLD chips had to be put along the cardiac edge to avoid any false imaging being made. The TLD chips were removed immediately after the examination and followed the same process of TLD reading to collect the clinical data. Table 6 lists the derived data and their comparison with the theoretical estimation. As seen in Table 6, these results are widely fluctuated. Only 12 out of 30 cases have a disagreement lower than 100%, whereas others exhibit even worse correlation. The possible reasons of such deviations might be (A) the focal spot aiming of the X-ray is moving according to instant response from the cardiac interventional examination. In contrast, the equation is calculated according to fixed DAP that is exposed by a steady focal spot aiming, thus, the prediction might under- or overestimate the dose on the basis of inappropriate DAP index, (B) the facility can show only combined DAP index rather than individual DAP by X-ray or fluoroscopy, respectively. Thus, the DAP is roughly divided into fifty-fifty contributions of fluoroscopy or X-ray. The assumption is concluded from a long-term in-situ statistics in the CCL from May 2016 to September 2017 and suggested a “fifty-fifty” rule of thumb. The X-ray has higher specific DAP than fluoroscopy (for 70 kg phantom, X-ray and fluoroscopy exhibited approx. 630 and 72 DAP/s, respectively; whereas the time sharing between X-ray and fluoroscopy reached the ratio of 1:9 in the regular CCL diagnosis. Thus, DAP fulfills the “fifty-fifty” rule in reality. In the routine examination, the CCL staff needs to step on the foot pedal of fluoroscopy for acquiring the tentative image and then refine the preset parameters for ensuring a precise image (since the machine operates only when there is pressure on the switch); whereas the X-ray is used to ascertain the cardiac interventional process for the diagnosis or to store the printed imaging for the follow-up study. In some special cases, the fluoroscopy is continuously adopted for the benefit of low-exposure dose, and then the DAP ratio changes to “forty-sixty”. Therefore, from the statistical viewpoint, the exact breakdown of DAP between fluoroscopy and X-ray is a complicated and fuzzy process. Yet, from the clinical viewpoint, the “fifty-fifty” option is always a good compromise. For example, if a 70-kg standard male patient receives 60,000 DAP during the cardiac interventional examination, it is roughly estimated that each source shares 30,000 DAP. Then, the derived values for X-ray effective/skin dose and fluoroscopy effective/skin dose are assessed as 125, 638, 916, and 10313 $\mu$ Sv, respectively. If the DAP breakdown is changed to “forty-sixty” ratio, then the respective doses delivered to the patient will be 41, 116, 1150, and 12071 $\mu$ Sv (cf. Tabl 5). However, these predictions are based on the scenario that the focal spot experiences no shift during the examination process. Otherwise, the skin dose will be distributed along a larger area and, thus, sharply reduced.

Table 6

The derived data according to the semi-empirical formula and compared to clinical data obtained. Only 12 out of 30 cases exhibit a good fit, while the remaining ones disagree by more than 100%

			X-ray		Fluoroscopy		Effective dose	Skin dose
No.	BMI (kg/m ${}^2$ )	$E_r$ Time (sec)	Time	DAP (mGy. cm ${}^2$ )	Time	DAP (mGy. cm ${}^2$ )	Predicted ( $\mu Sv$ )	Predicted [A] ( $\mu Sv$ )	Clinical [B] ( $\mu Sv$ )	AT (%) [A]-[B]/[B] 100%
1	24.57	3132	285	182113	2847	206759	6938	82148	53606	53
2	20.70	402	37	15380	365	20209	1034	8614	5934	45
3	26.31	1686	153	113109	1533	123237	4272	46131	167972	$-$ 73
4	20.90	354	32	13908	322	18084	906	7781	1175	562
5	24.05	54	5	2996	49	3451	342	936	1032	$-$ 9
6	19.05	42	4	1251	38	1829	385	2338	3754	$-$ 38
7	23.12	150	14	7604	136	9017	305	3535	1800	96
8	27.22	1254	114	89991	1140	96303	3108	34539	9027	283
9	21.73	270	25	11759	245	14704	621	6265	1500	318
10	21.10	1746	159	70390	1587	90614	3936	35190	3515	901
11	26.43	990	90	67027	900	72846	2350	25829	6955	271
12	20.64	498	45	18900	453	24913	1260	10355	1921	439
13	22.94	942	86	46883	856	55939	2293	21287	42788	$-$ 50
14	27.68	1188	108	88063	1080	93457	2896	33010	17298	91
15	24.13	66	6	3688	60	4239	318	1177	576	104
16	24.17	168	15	9423	153	10817	330	3594	5321	$-$ 32
17	21.51	288	26	12218	262	15427	689	6612	1406	370
18	20.24	468	43	16799	425	22651	1209	9613	5010	92
19	24.89	78	7	4664	71	5251	420	1041	1329	$-$ 22
20	20.43	228	21	8407	207	11211	648	5406	1179	359
21	23.81	450	41	24408	409	28315	909	10364	2163	379
22	23.53	450	41	23761	409	27803	936	10323	3142	229
23	23.14	210	19	10668	191	12641	400	4866	1290	277
24	21.69	192	17	8323	175	10425	421	4711	2100	124
25	18.91	138	13	4011	125	5932	598	3810	434	778
26	24.15	234	21	13101	213	15048	439	5185	2352	120
27	17.02	228	21	4412	207	8048	899	4606	721	539
28	27.30	336	31	24251	305	25913	554	6894	5832	18
29	23.43	180	16	9412	164	11048	353	4118	1873	120
30	19.43	504	46	15994	458	22732	1315	9769	1010	867

5. Conclusions

The effective and skin dose for patients undergone cardiac interventional examination were assessed in this work using five PMMA phantoms and TLD/ionization chamber technique with the further clinical verification. Five PMMA phantoms (10, 30, 50, 70, and 90 kg) were customized to represent baby, child, adult female, adult male, and overweight adult, in compliance with ICRU-48 report. The data obtained from five phantoms were integrated into four semi-empirical formulas to describe the X-ray and fluoroscopy effective/skin doses with a high coefficient of determination. The predicted dose was later verified by the clinical survey, where 40% (12 cases of 30) revealed a good fit. Possible reasons for high deviations (over 100%) in the remaining 60% of cases could be attributed to the deviated focal spot aiming at patient’s back during the diagnosis or erroneous estimation of DAP shares corresponding to X-ray or fluoroscopy. These factors, as well as other ones reported by other authors (e.g., variations in the field size, focus-to-image intensifier distance, and focus-to-skin distance), have to be accounted for in further research efforts.

Footnotes

Acknowledgments

The authors would like to thank the National Defense-Medical Affairs Bureau (contract no. ND 106-A11) and the Ministry of Science and Technology of the Republic of China (contract no. MOST 106-2221-E-166-002) for the financial support of this research.

Conflict of interest

None to report.
