The impact on human visual performance when viewing 2-D and 3-D movies

Abstract

BACKGROUND AND OBJECTIVE:

To examine the human visual performance (wavefront aberration) and subjective questionnaire (SQ) of visual fatigue when viewing 2-D and 3-D movies.

METHODS:

Thirty healthy adults observed 2-D and 3-D movies on the same television from a 3m distances during 2D, 3D-A (with better 3D glasses), and 3D-B (with poorer 3D glasses) viewing conditions. Visual quality index, including modulation transfer function index (MTFI), higher order aberration root mean square (RMS), vertical coma (VC), horizontal coma (HC) and spherical aberration (SA), were assessed before and after each viewing condition. One-way repeated measures ANOVA was performed to assess the changes of each test variable before and after movie viewing.

RESULTS:

Participants watching movies with 3D-B conditions experienced higher change of MTFI, RMS, VC and HC but smaller SQ, compared with 2D and 3D-A ( $P<$ 0.05). Additionally, higher MTFI but smaller SQ was found for 3D-A compared with 2D viewing condition ( $P<$ 0.05).

CONCLUSIONS:

While prolonged viewing 2-D and 3-D movies would lead to poorer visual performance, 3-D glasses with better quality can play the major role in reducing visual ability for users. The change of human eye wavefront aberration might be useful for the evaluation of visual fatigue in the future.

Keywords

2-D/3-D wavefront aberration visual function visual fatigue

1. Introduction

Television (TV) is one of the most influential media for popular entertainment. As rapid development of high quality of TV content, people, particularly for children, spend more and more time on TV [1]. Recent research suggested that viewing of three-dimensional (3-D) movies is rapidly increasing for better quality of life and would be of higher prevalence, compared with the traditional two-dimensional (2-D) TV and movies [2]. However, it has been concerned that prolonged viewing 3-D TV would be the risk factor of damaging the human visual performance [3]. The authors argued that visual information provided by a 3-D stereoscopic TV introduced the disparity between the overlapped images that allow objects to be located perceptually in front of or behind screen (3-D visual effect) [3]. This may affect the regular visual processing when using in the real world. Therefore, it is important to evaluate the associated effect between 2-D and 3-D displays.

Previous studies suggested that the visual fatigue would alter the regulation of the human eye accommodation response (AC) [4]. Another study developed a questionnaire which can effectively classify the 3D motion images in accordance to subjective visual fatigue using five perception variables: (1) Eye strain, (2) general discomfort, (3) nausea, (4) Focusing difficulty and (5) headache, which were effective for classifying 3D motion images [5]. Ntuen et al. [6] examined the effect of viewing field and illumination on visual performance between 2-D and 3-D autostereoscopic displays. They found higher visual fatigue was complained when viewing 3-D compared with the 2-D counterpart. Additionally, Mun et al. [7] identified 3-D images would be of higher cognitive fatigue, as evident by higher steady-state visually evoked potential (SSVEP) and event-related potential (ERP). Furthermore, prolonged viewing 3-D TV has been suggested to be associated with dizzy, nausea, and visual fatigue [8, 9, 10]. However, most Electroencephalogram (EEG) studies on visual health have required sophisticated laboratory equipment, long data acquisition time, high signal artifact and induced discomfort. Therefore, it is important to develop reliable and accurate visual health and fatigue assessment protocols for 3D displays and related content.

Waveform aberration is the optical imperfections of the eye that prevent light from focus perfectly on the retina, resulting in defects in the visual image. Measuring the orthogonal Zernike polynomial expansion (wavefront technology), which describe eye pupil area optical aberration [11, 12]. In addition, high-order aberration changes are vital for eye visual quality [13]. Furthermore, modulation transfer function (MTF) that is determined by the wavefront aberration can effectively reflect the overall response of space image of human eye [14]. Therefore, the purpose of this study was to evaluate the change of wavefront aberration and subjective perception before and after viewing 2-D and 3-D movies. Additionally, this study was to find the influence of visual performance by wearing different 3D glasses. This information would provide insights of the changes of human visual performance associated with 3-D movies.

2. Materials and methods

2.1 Participants

Thirty healthy adults (15 males and 15 females, mean age: 31.4 $\pm$ 7.1 years, myopic degree: 0-200D), participated in this study. None of the participants reported of any record of cardiovascular disease or neurological disorder and did not have any drugs affecting mental pressure and visual function [15]. All participants were reported to have excellent sleep quality before the testing day. Participants were required to have normal stereoscopic feelings and sign an informed consent prior to the study. The testing protocol was approved by the Institutional Ethics Committee.

Table 1
Manufacturing performance of the tested 3-D glasses

	3D-A		3D-B		National standard range
	Measured value	Evaluation	Measured value	Evaluation
Polarizing efficiency	99.9%	Passed	98.8%	Failed	$\geqslant 99.9$ %
Phase difference (nm)	125–127	Passed	109–112	Failed	$125\pm 5$
Joint angle $(^{\circ})$	45.6	Passed	46.1	Qualified	$45.0\pm 1.5$

Note: The national standard of 3D-A pasted standard requirement was adopted from QB/T 4735-2014 Polarized 3D glasses (in Chinese) [16].

Figure 1.

a) Experimental setup and b) Polarized 3D glasses (left: 3D-A; right: 3D-B).

2.2 Experimental procedure

The participants observed the identical movies at the constant distance of 3 meter in one 2-D and two 3-D viewing sessions over the three consecutive weekends (Fig. 1a). During the 2-D viewing session (2D), participants watched the movies without glasses. During the 3-D viewing sessions (3D-A and 3D-B), participants watched the movies when wearing two different types of 3-D polarized glasses (Fig. 1b). The manufacturing performance of 3D-A (P3D-1, PROSUN, China) and 3D-B (P3D-2, PROSUN, China) are provided in Table 1. The same movie “As The Light Goes Out” (Emperor Entertainment Group Limited, Mandarin, 2014) was presented in all viewing conditions (2D, 3D-A and 3D-B). The participants were informed to focus on the movie only during each viewing session. The 2-D/3-D movies were displayed on a 42 inch LED full HD television (LG 3D TV type 42LW5500-CA, LG Electronics Inc., Korea), with a resolution ratio of 1920 $\times$ 1080 and frequency of 100 Hz. It utilized polarized light (and using polarized 3D glasses) to create stereoscopic depth (i.e., 3D images). The identical protocol and movie were carried out with one-week interval for the subsequent viewing sessions. All viewing sessions were randomly assigned across participants.

Wavefront aberrations of participants were measured with Nidek OPD-Scan (Nidek, Gamagori, Japan) aberrometer before and after each of the viewing conditions (2D, 3D-A, and 3D-B). Additionally, the participants provided their perception of eye fatigue level at the end of each viewing condition (Table 2).

Table 2
Eye fatigue scales (subjective questionnaire, SQ)

Level	Fatigue level	Symptom
0	No fatigue	Without obvious characteristics
1	Mild fatigue	Mild eyestain and gritty
2	Less moderate fatigue	Less moderate eyestrain and dizziness
3	Moderate fatigue	Moderate eyestrain, stinging, dizzy and headache
4	Less severe fatigue	Less severe eyestrain, gritty, dizziness and nausea
5	Severe fatigue	Severe eyestrain, headache, nausea and vomiting

Figure 2.

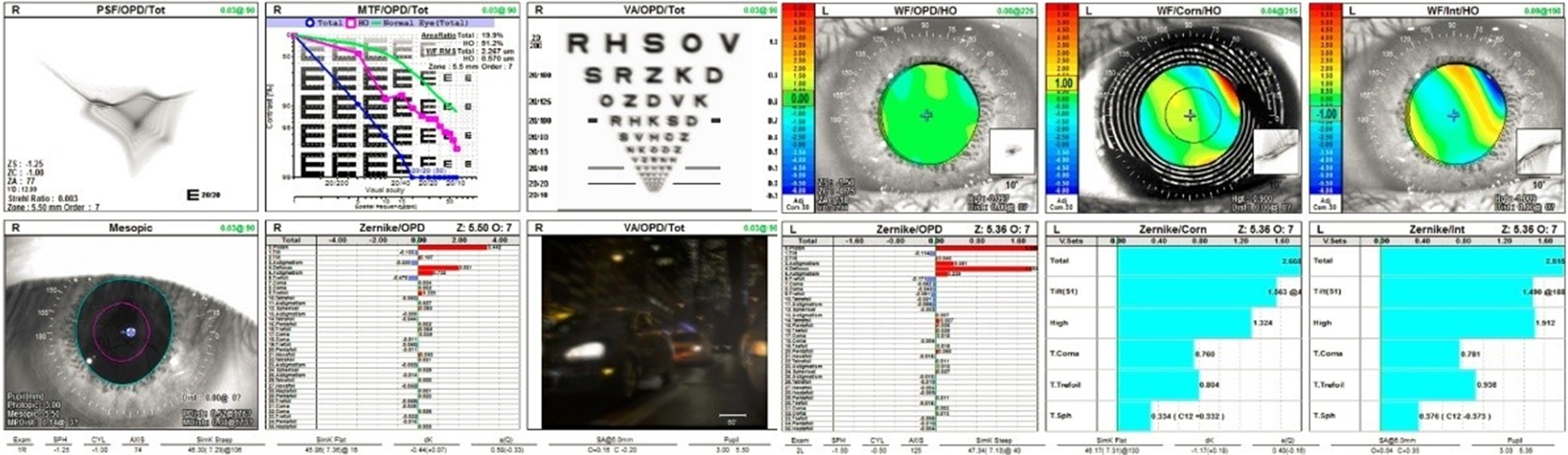

The screenshots of visual quality performance.

2.3 Data processing

The screenshots of visual performance are shown in Fig. 2. Modulation Transfer Function (MTF), higher order Root-Mean-Square (RMS), Vertical Coma (VC), Horizontal Coma (HC), and Spherical Aberration (SA) were determined and before and after viewing movies.

2.3.1 Modulation transfer function (MTF)

MTF was the most important and fundamental evaluation method in visual performance. MTF denoted the transmission of different spatial frequencies (i.e. Optical transfer function, (OTF)). OTF was the Fourier transform of the Point Spread Function (PSF):

$\displaystyle\text{OTF}(\varepsilon,\eta)=\text{MTF}(\varepsilon,\eta)e^{-% \text{iPTF}(\varepsilon,\eta)}$

where $\varepsilon$ and $\eta$ are the spatial frequencies in the $x$ and $y$ directions.

In this study, MTF index (MTFI) was calculated by the integral of all the MTF values within cutoff frequency (spatial frequency when MTF $=$ 0.01). The absolute change of MTFI (MTFI ${}_{c}$ ) was computed the difference before and after viewing movies.

2.3.2 Higher order root-mean-square (RMS)

RMS accurately reflected the dimension of each order wavefront aberration [14]. RMS of higher-order aberration ( $\sigma_{\textit{high}}$ ) were often used to evaluate the good or bad of visual performance [17]. The RMS $\sigma_{\textit{high}}$ was calculated by:

$\displaystyle{\text{RMS}\sigma}_{\textit{high}}=\sqrt{(Z_{3}^{-3})^{2}+{(Z_{3}% ^{-1})}^{2}+{(Z_{n}^{m})}^{2}}$

In this study, the absolute change of RMS 3 ${}^{\rm rd}$ –RMS 7 ${}^{\rm th}$ and the absolute change of RMS ${}_{\textit{after}}$ and RMS ${}_{\textit{before}}$ (RMS ${}_{c}$ ) were computed before and after viewing movies.

2.3.3 Vertical coma (VC), horizontal coma (HC) and spherical aberration (SA)

Three Zerniker coefficient of Wavefront aberrations were selected for vision correction [18], as follows:

$\displaystyle\text{Vertical Coma (VC): }Z_{3}^{-1}=\sqrt{8}(3\rho^{3}-2\rho)\sin\theta$ $\displaystyle\text{Horizontal Coma(HC): }Z_{3}^{1}=\sqrt{8}(3\rho^{3}-2\rho)\cos\theta$ $\displaystyle\text{Spherical Aberration(SA): }Z_{4}^{0}=\sqrt{5}(6\rho^{4}-{6% \rho}^{2}+1)$

2.3.4 Statistical analysis

All statistical analyses were performed using SPSS 18 (IBM Corp., Armonk, NY, USA). Descriptive statistics (means and standard deviation) of wavefront aberrations and perception variables were computed across viewing conditions. A one-way repeated measures ANOVA was performed to examine if there were any significant differences on all variables. LSD post-hoc 2-tailed comparisons were computed using a criterion alpha at 0.05.

Table 3
RMS variables by three viewing conditions ( $\mu$ m, mean $\pm$ SD)

	RMS 3 ${}^{\rm rd}$	RMS 4 ${}^{\rm th}$	RMS 5 ${}^{\rm th}$	RMS 6 ${}^{\rm th}$	RMS 7 ${}^{\rm th}$
2D	$-$ 0.060 $\pm$ 0.012	$-$ 0.062 $\pm$ 0.057	$-$ 0.024 $\pm$ 0.034	$-$ 0.002 $\pm$ 0.025	$-$ 0.005 $\pm$ 0.012
3D-A	$-$ 0.077 $\pm$ 0.093	$-$ 0.060 $\pm$ 0.070	$-$ 0.027 $\pm$ 0.023	$-$ 0.008 $\pm$ 0.016	$-$ 0.005 $\pm$ 0.010
3D-B	$-$ 0.082 $\pm$ 0.078 ${}^{\rm ab}$	$-$ 0.080 $\pm$ 0.079 ${}^{\rm ab}$	$-$ 0.026 $\pm$ 0.034	$-$ 0.016 $\pm$ 0.024	$-$ 0.008 $\pm$ 0.011
$F$	2.930	4.043	0.517	2.683	1.186
$P$	$<$ 0.05	$<$ 0.05	$>$ 0.05	$>$ 0.05	$>$ 0.05

Note: “a” and “b” denoted significant differences from 2D and 3D-A, respectively ( $P<$ 0.05).

Table 4

Vertical Coma (VC), Horizontal Coma (HC) and Spherical Aberration (SA) by three viewing conditions ( $\mu$ m, mean $\pm$ SD)

	VC	HC	SA
2D	$-$ 0.017 $\pm$ 0.425	$-$ 0.036 $\pm$ 0.037	$-$ 0.051 $\pm$ 0.065
3D-A	$-$ 0.020 $\pm$ 0.019 ${}^{\rm a}$	$-$ 0.038 $\pm$ 0.071	$-$ 0.052 $\pm$ 0.059
3D-B	$-$ 0.032 $\pm$ 0.029 ${}^{\rm ab}$	$-$ 0.054 $\pm$ 0.090 ${}^{\rm ab}$	$-$ 0.055 $\pm$ 0.052
$F$	5.205	3.541	0.176
$P$	$<$ 0.05	$<$ 0.05	$>$ 0.05

Note: “a” and “b” denoted significant differences from 2D and 3D-A, respectively ( $P<$ 0.05).

Figure 3.

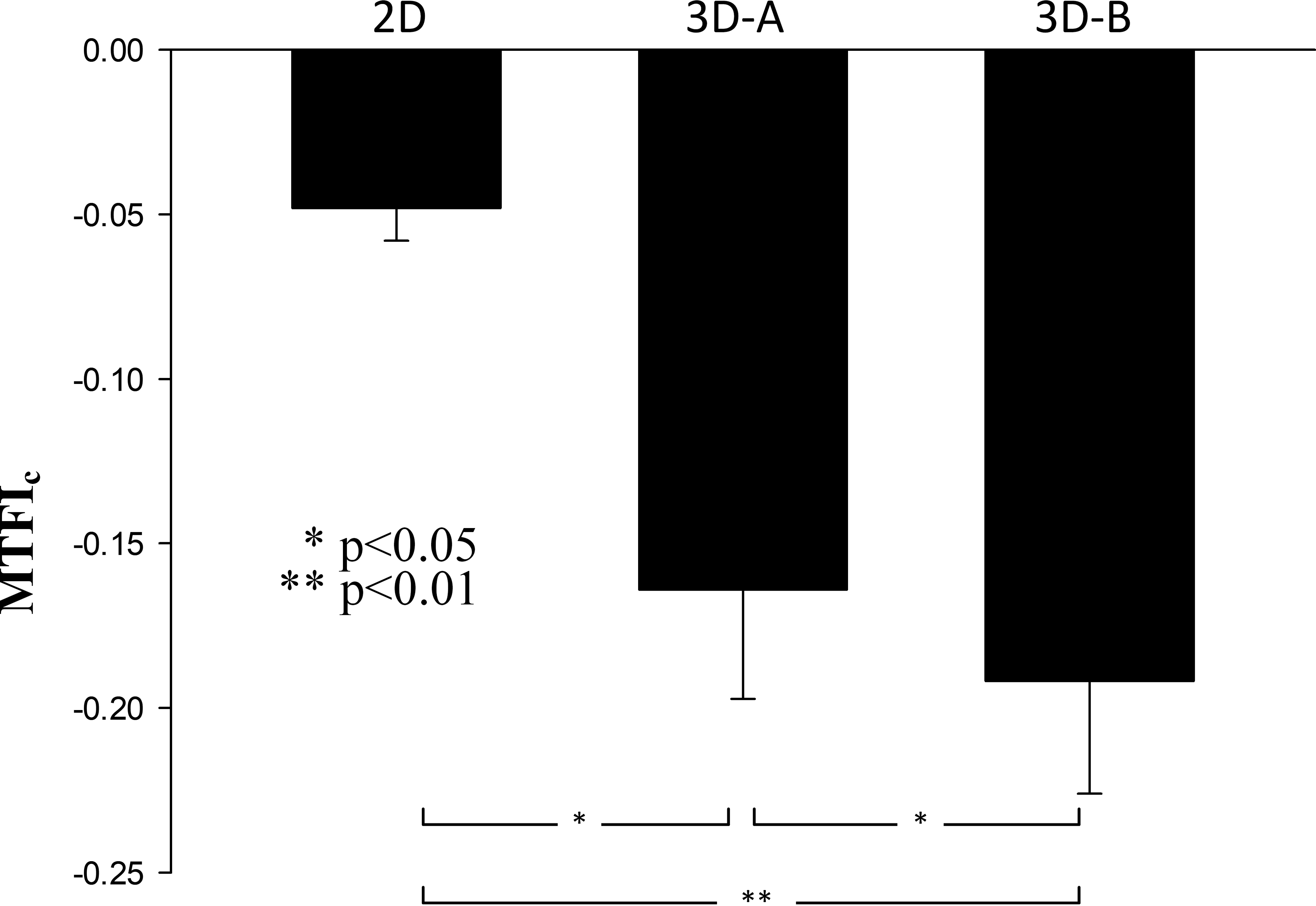

Mean MTFI ${}_{c}$ by three viewing conditions.

3. Result

3.1 Modulation transfer function index (MTFI)

The one-way ANOVA analysis indicated a significant difference of MTFI ${}_{c}$ among 2D, 3D-A, and 3D-B conditions ( $F=$ 3.315, $P=$ 0.031, Fig. 3). A pairwise comparison revealed that significant smaller MTFI ${}_{c}$ were found for 2D compared with 3D-A ( $P<$ 0.05) and 3D-B ( $P<$ 0.01) viewing conditions. Furthermore, 3D-B had larger MTFI ${}_{c}$ than 3D-A ( $P<$ 0.05).

3.2 Higher order aberration – root mean square (RMS)

The ANOVA analysis indicated significant main effects for RMS 3 ${}^{\rm rd}$ and 4 ${}^{\rm th}$ ( $P<$ 0.05, Table 3). A pairwise comparison revealed that participants watching movie in 3D-B condition had significant larger change of RMS (i.e. RMS 3 ${}^{\rm rd}$ and 4 ${}^{\rm th}$ ) compared with 2D and 3D-A ( $P<$ 0.05).

Figure 4.

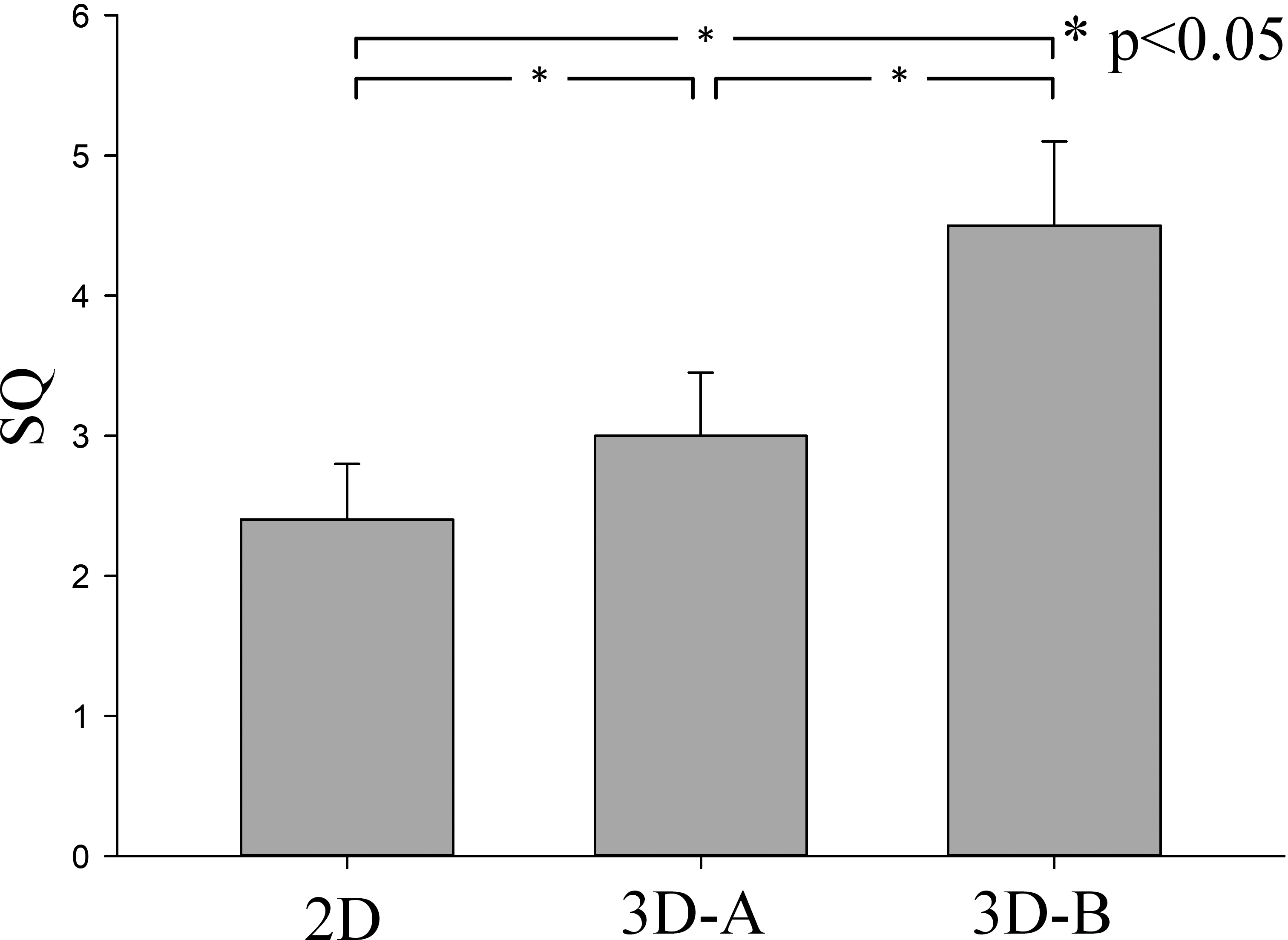

Mean SQ by three viewing conditions.

3.3 Vertical coma (VC), horizontal coma (HC) and spherical aberration (SA)

The ANOVA analysis indicated significant main effects for VC ( $F=$ 5.205, $P<$ 0.05) and HC ( $F=$ 3.541, $P<$ 0.05, Table 4). A pairwise comparison revealed participants watching movie in 3D-B condition had significant larger VC and HC compared with 2D and 3D-A ( $P<$ 0.05). Furthermore, 3D-A had larger VC than 2D ( $P<$ 0.05).

3.4 Eye fatigue score (SQ)

The one-way ANOVA analysis indicated a significant difference of SQ among 2D, 3D-A, and 3D-B conditions ( $F=$ 6.71, $P<$ 0.05, Fig. 4). A pairwise comparison revealed that significant smaller SQ were found for 2D compared with 3D-A and 3D-B viewing conditions ( $P<$ 0.05). Furthermore, 3D-B had larger SQ than 3D-A ( $P<$ 0.05).

4. Conclusions

The present study examined the human eye visual index (wavefront aberration) and subjective score after watching the same movie in three viewing conditions (2D, 3D-A and 3D-B). Overall, our findings indicated that prolonged viewing 3-D movies caused to larger change of MTFI, RMS, VC, and HC of wavefront aberration and poorer fatigue score, compared to the 2-D viewing condition. This supports the hypothesis that prolonged viewing 3-D movies would be of higher risk of damaging the human visual ability [19]. Recent studies on 3-D movies/images [20, 21] has suggested prolonged viewing 3-D television could also cause visual fatigue, brain fatigue, change of pulse and increased of heart rate. Therefore, the applications of 3-D imaging technology could be of concerns to the health issue in the future.

It is suggested that high quality 3D glasses could be high importance to protect the human eyes when watching television in 3-D as their daily entertainment. In our study, the glasses used in 3D-A had better optical qualities (qualified polarizing efficiency and phase difference) than the glasses used in 3D-B viewing session and the present results showed that better qualified 3-D glasses can relief subjective visual fatigue (i.e. lower SQ score) and remain better visual performance (i.e. MTFI, VC, RMS 3 ${}^{\rm rd}$ and RMS 4 ${}^{\rm th}$ ). This is in line with the study of Wenzel et al. [22], which indicated that wearing different shutter 3D glasses can cause influence users’ EEG. These data suggest that good quality control of 3D glasses at the manufacturing process would be helpful and effective to enhance the visual health.

Several wavefront aberration derived variables were selected in this study, as they were considered as reliable indicators of vision performance and fatigue. Modulation transfer function (MTF) and Zernike polynomials (VC, HC and SA, Table 4) index can effectively evaluate the effectiveness of the vision performance rehabilitation/training after refractive surgery [23, 24]. The present study found that a decreased change in MTFI was found after prolonged movies viewing. Moreover, watching 3-D movies would have greater impact on visual performance compared (MTFI, VC and HC) with 2-D movies. RMS of higher order aberrations is another commonly used index of visual ability [25]. The current study found significant difference only exist in two higher order aberration variables (RMS3 ${}^{\rm rd}$ and RMS4 ${}^{\rm th}$ ) but not exist for other aberration variables (RMS 5 ${}^{\rm th}$ to 7 ${}^{\rm th}$ ) between 2-D and 3-D viewing conditions. It seems the RMS variables would be of inferior discriminating power than the MTFI variable for the evaluation and diagnosis of visual performance. Further research on the relationship among subjective visual score, MTFI, Zernike polynomials, and RMS of higher order aberrations is necessary. The limitation of this study is that it primarily focused on the difference between 2-D and 3-D viewing conditions, and did not investigate how 3-D content may lead to visual fatigue. In the future, more research needs to be done on the mechanism of visual fatigue from 3-D content, in order to offer more practical advice to 3-D companies and also protect the visual health of consumers.

In summary, the visual stimulation of 2-D and 3-D movies can influence human visual function after prolonged viewing. Compared to 2-D movies, 3-D movies would be more susceptible to visual fatigue. Better quality of 3-D glasses can play the major role in reducing visual fatigue for users. MTFI and coma aberration in human wavefront aberration variables might provide additional insights to assess the level of human visual fatigue in the future.
