Abstract

In this paper, we study the problem of query rewriting for disjunctive existential rules. Query rewriting is a well-known approach for query answering on knowledge bases with incomplete data. We propose a rewriting technique that uses negative constraints and conjunctive queries to remove the disjunctive components of disjunctive existential rules. This process eventually generates new non-disjunctive rules, i.e., existential rules. The generated rules can then be used to produce new rewritings using existing rewriting approaches for existential rules. With the proposed technique we are able to provide complete $UCQ$ -rewritings for union of conjunctive queries with universally quantified negation. We implemented the proposed algorithm in the Completo system and performed experiments that evaluate the viability of the proposed solution.

Keywords

Disjunctive rules queries with negation backward chaining and query rewriting

1. Introduction

Rules are very important elements in knowledge-based systems and incomplete databases [21]; they allow us to perform query answering over incomplete data and come up with complete answers. There are two main approaches to perform query answering in the presence of rules, which depend on the way we use the rules. The forward chaining approach [26] applies the rules on the facts in order to produce new facts. On the other hand, the backward chaining approach [20] uses the rules to translate the input query into a set of queries (called the rewriting of the initial query) that also encode answers of the initial query. Both approaches allow us to infer answers that cannot be extracted from the initial data.

Example 1.1.
Let us consider a rule that defines the grand-parent relationship between two people based on the parent relationship $\begin{matrix} r = & \forall X \forall Y parent (X, Z) \\ \land parent (Z, Y) \to grand-parent (X, Y) \end{matrix}$ and the information that $\begin{matrix} parent (ana, maria) \land parent (maria, julieta) . \end{matrix}$ Traditional database systems would fail to entail that the query $Q = \exists Z grand-parent (ana, Z)$ holds, because it is not stated explicitly in the data. However, since the hypothesis of the rule r holds, we can infer (by forward application of the rule) that the fact $grand-parent (ana, julieta)$ also holds. Adding this new information allows traditional database systems to conclude that Q holds. Moreover, the rule r can also be applied to Q in a backward manner to derive additional queries that provide answers to the question expressed in the original query, i.e., $\begin{matrix} Q^{'} = \exists Z \exists Y parent (ana, Z) \land parent (Z, Y) . \end{matrix}$

Forward chaining allows efficient query answering in systems where data is constant and queries change frequently. However, the size of the stored data can grow excessively, and the method is not appropriate for frequently changing data. For some ontologies, this approach does not always terminate [26], and may keep generating constantly new data. Backward chaining, on the other hand, is ideal for constant queries and changing data, although the size of the rewriting can be exponential with respect to the size of the initial query [19] or in some cases a finite rewriting may not exist. In both approaches, the application of the rules does not always terminate. Furthermore, having no restriction on the expressivity of the rules or having negated atoms on the query makes the query entailment problem undecidable [7].

In this paper, we focus on the entailment problem of conjunctive queries with negated atoms ( ${CQ}^{\neg}$ ) in the framework of disjunctive existential rules based on first-order logic (FOL) without function symbols.

Disjunctive existential rules allow the representation of very expressive knowledge in FOL, e.g., $\begin{matrix} \forall X \exists Y is-parent (X) \to & father (X, Y) \\ \lor mother (X, Y), \end{matrix}$ where disjunction and existentially quantified variables can appear on the right-hand side of the implication. Conjunctive query entailment is undecidable in the case of existential rules with disjunction. However, under some restrictions the problem can become decidable [7,15]. To the best of our knowledge, existing research on existential rules with disjunction is only based on forward chaining algorithms [13,15] or Disjunctive Datalog rewriting [3,9,11,16].

Conjunctive queries with negation let us define the counterexamples of disjunctive rules, e.g., $\begin{matrix} \exists X \forall Y \forall Z person (X) & \land \neg married (X, Y) \\ \land \neg parent (X, Z) \end{matrix}$ describes when the following rule does not hold $\begin{matrix} \forall X \exists Y \exists Z person (X) \to & married (X, Y) \\ \lor parent (X, Z) . \end{matrix}$ Here we use the open world assumption, where the negation is associated to the “cannot” semantics, and the example query expresses the question of whether there is a person that cannot be married and cannot be a parent. We also consider universally quantified negation [1,27,28], i.e., variables that are only present in negated atoms are universally quantified.

The entailment problem for ${CQ}^{\neg}$ is undecidable even for very simple types of rules [18,28]. On the other hand, the use of guarded negation in queries is proven to be decidable over frontier-guarded existential rules [10]. Yet, the existing query rewriting-based approaches in the literature [14,22,23] that propose implementations and experiments only deal with queries that introduce negation in very limited ways.

Having existential variables, disjunction and queries with negated atoms makes the entailment problem even more difficult. However, by using these expressive resources in a smart way we can get very interesting and useful decidable fragments.

Particularly, in this paper we are interested in solving the entailment of a union of conjunctive queries with universally quantified negation by rewriting it into a union of conjunctive queries without negation ( $UCQ$ ), called a $UCQ$ -rewriting, where each element in it is a rewriting of the initial ${UCQ}^{\neg}$ .

Related work Rosati studies query answering with respect to description logics (DLs) [28] and with respect to relational databases with integrity constraints (ICs) [27]. Extensions that allow safe negation and universally quantified negation are considered. The author provides a set of decidability, undecidability and complexity results for answering different types of queries with respect to various classes of DL knowledge bases and various combinations of ICs. In general, his results show that answering relational queries is unfeasible in many DLs and IC languages. The author considers unions of conjunctive queries with universally quantified negation, and shows that answering queries of this class is undecidable in every DL fragment and even in the absence of ICs.

In [20], König et al. define a generic rewriting procedure for conjunctive queries with respect to existential rules which takes as a parameter a rewriting operator, i.e., a function which takes as input a $CQ$ and a set of existential rules and outputs a set of $CQ$ s. They also define the properties of rewriting operators that ensure the correctness and completeness of their algorithm. The authors prove that piece unification provides a rewriting operator with the desired properties. Finally, they provide an implementation of their algorithm together with some experiments. In this paper, we extend their definition of piece unification to deal also with disjunctive existential rules. We also extend their rewriting algorithm for existential rules into a sound and complete algorithm that also supports disjunctive existential rules and queries with negated atoms. However, the algorithm does not always terminate.

In [12], Bourhis et al. present a study of the complexity of query answering with respect to guarded disjunctive existential rules. The problem is 2Exptime-hard even for the simplest guarded-based class of disjunctive existential rules. Different types of $UCQ$ s are also considered by the authors in order to reduce the complexity of the problem. However, the considered query languages do not have a positive impact on the complexity of the problem. The only significant decrease in the complexity was found for atomic queries and linear disjunctive existential rules. The authors proved that for fixed atomic queries and fixed linear disjunctive existential rules the problem is in the ${AC}_{0}$ complexity class by establishing that the problem is first-order rewritable, i.e., it can be reduced to the problem of evaluating a first-order query over a database. The rewriting algorithm that we propose in this paper terminates for the fragment considered by Bourhis et al. The techniques and results presented in [12] can be used as a generic tool to study the complexity of query answering for several fragments of description logics.

Some other research papers [3,9,11,16] focus on the transformation of the query answering problem with respect to guarded (disjunctive) existential rules into a query answering problem with respect to (disjunctive) Datalog programs by getting rid of existential variables. In [3], Ahmetaj et al. provide a transformation of the problem that yields a polynomial size (disjunctive) Datalog program when the maximal number of variables in the (disjunctive) existential rules is bounded by a constant. The translations proposed by other authors [9,11,16] are of exponential size.

Outline of our contributions We introduce a restricted form of FOL resolution (constraint resolution) that is sound and refutation complete, and where the subsumption theorem holds if the consequences are clauses without positive literals. The number of choices at the moment of selecting clauses to perform constraint resolution steps is reduced with respect to the number of choices we have for the case of unrestricted resolution steps.

Based on the constraint resolution method, we propose an algorithm to compute a $UCQ$ -rewriting for an input $UCQ$ with respect to (disjunctive) existential rules and constraints. The algorithm can also compute $UCQ$ -rewritings for conjunctive queries with universally quantified negation by converting queries with negation into rules. The algorithm is sound, provides a complete $UCQ$ -rewriting, and terminates for the cases where there is a finite and complete $UCQ$ -rewriting of the input query with respect to the (disjunctive) existential rules and the negative constraints. We also present two theorems with sufficient conditions for the termination of the algorithm. One case requires disconnected disjunctive existential rules (rules where the body and the head do not share variables) and existential rules that yield a finite and complete $UCQ$ -rewriting for any $UCQ$ (finite unification set). The other case is based on queries and knowledge bases where all the elements are linear (rules with at most one atom in the body and $CQ$ s with at most one positive atom).

Additionally, we consider unions of conjunctive queries with negated atoms and answer variables (denoted as ${UCQa}^{\neg}$ ) with respect to existential rules and constraints. The proposed algorithm is modified in order to compute only the deterministic $UCQ$ -rewritings, i.e. the $UCQ$ -rewritings that lead to certain answers or that check the consistency of the knowledge base. We prove that the modified algorithm terminates when there is a finite and complete deterministic $UCQ$ -rewriting of the input ${UCQa}^{\neg}$ with respect to the existential rules and constraints of the knowledge base. We also present two theorems with sufficient conditions for the termination of the modified rewriting algorithm. One case requires the existential rules to be a finite unification set and the input queries to have the variables in both the positive and negated atoms as part of the answer variables of the query. The second case requires the queries to have only one positive atom and an arbitrary number of negated atoms; also the existential rules and constraints are required to have only one atom in the body.

Finally, we implemented the proposed algorithm for rewriting conjunctive queries with negated atoms and answer variables with respect to existential rules in the Completo system, and performed experiments to evaluate the viability of the proposed solution.

Paper organization Section 2 introduces the relevant theory needed to understand the rest of the paper. Section 2.1 introduces concepts related to FOL resolution and Section 2.2 presents the disjunctive existential rules framework. Section 3 introduces a novel type of resolution (Section 3.1) and a novel backward chaining rewriting algorithm for disjunctive existential rules (Section 3.2). Additionally, Section 3.3 explores some termination conditions for the proposed rewriting algorithm and Section 3.4 proposes a modification of the algorithm that computes only the deterministic $UCQ$ -rewritings of ${UCQa}^{\neg}$ s. Section 4 describes an implementation of the proposed rewriting algorithm. Experiments describing the performance of our implementation are presented in Section 4.1. Finally, Section 5 presents an overview of the paper with some conclusions.
2. Preliminaries

In this section we introduce the basic concepts related to the FOL resolution process. Resolution is the base of all the reasoning processes we describe in this paper. All steps in high level reasoning processes can be tracked down to sequences of resolution steps that ensure the correctness. We also describe the framework of disjunctive existential rules and present the definition of conjunctive queries with negated atoms.

2.1. First-order logic resolution

We assume the reader is familiar with the standard definition of first-order logic formulas. In this paper, we focus on FOL formulas without function symbols over a finite set of predicate names and a finite set of constant symbols. We also adopt the standard definitions for the entailment and equivalence of formulas, as they are rarely modified in the literature. We refer the reader to [25] in case a background reading is needed.

Because in the following we will often need to modify formulas, in order to make such modifications more compact and easier to understand we introduce the definition of conjunctive (disjunctive) set formulas ( $CSF$ s and $DSF$ s). However, the reader should be familiar with the notation because it is often used in FOL when we write rules and clauses.

Definition 2.1 (Conjunctive (Disjunctive) Set Formula).

A conjunctive (disjunctive) set formula ( $CSF$ and $DSF$ , respectively) is a set of formulas ${F_{1}, \dots, F_{n}}$ , where the set of formulas is interpreted as a conjunction (disjunction) of the formulas in the set, i.e., $F_{1} \land \dots \land F_{n} (F_{1} \lor \dots \lor F_{n})$ .

For a given set of formulas ${F_{1}, \dots, F_{n}}$ , a $CSF$ containing these formulas is denoted as $F_{1}, \dots, F_{n}$ . On the other hand, a $DSF$ is denoted by $[F_{1}, \dots, F_{n}]$ . Finally, an empty $CSF$ is denoted by and is equivalent to ⊤, and an empty $DSF$ is denoted by and is equivalent to ⊥.

Note that in case a $CSF$ is a sub-formula of another set formula we use parenthesis to avoid ambiguity, e.g., $[(A, B), D]$ is equivalent to $(A \land B) \lor D$ .

Set operators can then be used to combine set formulas of the same type and obtain a new set formula. Moreover, elements of a set formula that are equivalent can be collapsed into a single element, e.g., $\begin{array}{l} [\neg A] \cup [A \to ⊥, B] & \equiv [\neg A, A \to ⊥, B] \\ \equiv [\neg A, B] . \end{array}$ The following axioms can be easily proven:

A $DSF$ and a $CSF$ of one element are equivalent: $\begin{matrix} [F] \equiv F . \end{matrix}$

De Morgan’s Laws allow changing a $DSF$ to a $CSF$ , and vice-versa, using negation: $\begin{array}{l} \neg [F_{1}, \dots, F_{n}] \equiv \neg F_{1}, \dots, \neg F_{n} \\ \neg (F_{1}, \dots, F_{n}) \equiv [\neg F_{1}, \dots, \neg F_{n}] . \end{array}$

Let B and F be two $CSF$ s ( $DSF$ s) such that $B \in F$ . Then, $F \equiv (F ∖ {B}) \cup B$ . Replacing F by the equivalent formula $(F ∖ {B}) \cup B$ is referred to as flattening the formula F.

We model the entailment operator in FOL assuming that on the left-hand side of the entailment symbol we have a $CSF$ $A_{1}, \dots, A_{n}$ of axioms $A_{i}$ : $\begin{matrix} A_{1}, \dots, A_{n} ⊧ F . \end{matrix}$

The right-hand side of the entailment operator is assumed to be a $DSF$ . For $CSF$ s B and A (where $B \subseteq A$ ) and $DSF$ s C and F (where $C \subseteq F$ ), we can prove that $A ⊧ F$ if and only if $A ∖ B ⊧ F \cup \neg B$ ; likewise $A ⊧ F$ if and only if $A \cup \neg C ⊧ F ∖ C$ .

In the following, we recall the definitions of some of the concepts that are needed for the theory presented in this paper.

A term is a constant, a variable or an expression $f (t_{1}, \dots, t_{m})$ where f is a function symbol and the arguments $t_{i}$ are terms. However, in this paper we focus only on simple terms, i.e., either variables or constants. We only consider Skolem function symbols internally in order to get rid of existentially quantified variables.

An atom is a formula $a (t_{1}, \dots, t_{n})$ where a is a predicate of arity n (denoted by $a / n$ ). The arguments $t_{i}$ of the atom are terms. A literal is an atom or a negated atom. The complement $\bar{l}$ of a literal l is $\neg a (t_{1}, \dots, t_{n})$ if $l = a (t_{1}, \dots, t_{n})$ , and $a (t_{1}, \dots, t_{n})$ if $l = \neg a (t_{1}, \dots, t_{n})$ . A literal is positive (or of positive polarity) if it is a non-negated atom, and negative (or of negative polarity) if it is a negated atom. Two literals are complementary if one is the complement of the other.

A formula is ground if it contains no variables. In a formula, the variables can be universally quantified, existentially quantified, or free. A formula without free variables is closed. The set of all the variables that appear in an expression F is denoted by $vars (F)$ . We denote a sequence of variables $X_{1}, \dots, X_{n}$ using a boldface character (e.g., X).

A substitution $θ = {X_{1} \leftarrow t_{1}, \dots, X_{n} \leftarrow t_{n}}$ is a finite mapping of variables $X_{i}$ to terms $t_{i}$ . The result of applying a substitution θ on an expression F is the expression $F θ$ obtained by replacing in F every occurrence of every variable $X_{i}$ by the term $t_{i}$ .

Let F be an expression and θ the substitution ${X_{1} \leftarrow Y_{1}, \dots, X_{n} \leftarrow Y_{n}}$ . We say θ is a renaming substitution for F, if each $X_{i}$ occurs in F, and $Y_{1}, \dots, Y_{n}$ are distinct variables such that each $Y_{i}$ is either equal to some $X_{j}$ in θ, or $Y_{i}$ does not occur in F. The composition of two substitutions θ and σ is a new substitution $θ σ$ that when applied to any expression, has the same effect as applying those substitutions in sequence (i.e., first θ and after σ). A substitution θ is more general than another substitution σ if there exists another substitution γ such that $σ = θ γ$ .

A substitution θ is a unifier for a set of expressions $S = {F_{1}, \dots, F_{n}}$ iff $F_{1} θ = F_{2} θ, \dots, F_{n - 1} θ = F_{n} θ$ . The expressions in S are said to be unifiable if there is a unifier for S. The most general unifier (mgu) of the expressions in S is denoted by $mgu (S)$ , and it is a unifier for S that is more general than any other unifier of the expressions in S. Even if it is possible for the same set S to have more than one mgu, they are unique up to variable renaming.

A hypergraph is a tuple $⟨ A, E ⟩$ , where A is a set of elements called nodes or vertices, and E is a set of non-empty subsets of A called hyperedges. We can represent a $CSF$ of atoms as a hypergraph using the set of variables that appear in the arguments of the atoms as nodes. Each atom in the formula represents a hyperedge that connects its variables. Note that hyperedges are defined as sets of nodes and there is no notion of direction between the nodes. With this representation we can define some properties for $CSF$ s of atoms.

The cardinality of a $CSF$ of atoms F is the number of variables in the formula: $card (F) = | vars (F) |$ . Two variables u and v in a $CSF$ of atoms F are connected iff they both belong to the same atom ( $\exists A \in F | {v, u} \subseteq vars (A)$ ), or if there is another variable z in F that is connected to both u and v.

A $CSF$ of atoms F is connected if all the atoms in it contain variables and all the variables are connected to each other. An atom that has only constants in its arguments is a connected formula that is not connected to any other atom and has a cardinality of zero. It is represented by an empty hypergraph. The constants in the formula play no role in their hypergraph representation.

It follows that a $CSF$ F can be partitioned into a set ${U_{1}, \dots, U_{n}}$ of connected $CSF$ s such that if $v \in vars (U_{i})$ is connected to $u \in vars (U_{j})$ , then $i = j$ . If F is connected, this set contains only F. The connected cardinality of F is defined as the maximum cardinality of the connected $CSF$ s in the partition of F and denoted by ${card}^{*} (F) = {max}_{i} (card (U_{i}))$ . The connected cardinality of a $DSF$ $[F_{1}, \dots, F_{m}]$ is the maximum connected cardinality of the formulas $F_{i}$ , i.e., ${card}^{*} ([F_{1}, \dots, F_{m}]) = {max}_{i} ({card}^{*} (F_{i}))$ .

Fig. 1.

Hypergraph corresponding to a $CSF$ .

Example 2.1.

The $CSF$ $\begin{matrix} F = & parent (X, Y), parent (Y, Z), \\ grand-parent (X, Z), person (W) \end{matrix}$ is represented by the hypergraph in Fig. 1. We can split F in two connected components $\begin{matrix} {(person (W)), (parent (X, Y), \\ parent (Y, Z), grand-parent (X, Z))} . \end{matrix}$ The connected cardinality of F is 3, the cardinality of the greatest connected component.

Lemma 2.1.

Let G be a $CSF$ , and let ${U_{1}, \dots, U_{n}}$ be the partition of a given $CSF$ F of atoms into connected $CSF$ s. Then, $\begin{matrix} G ⊧ F iff G ⊧ U_{i} for every U_{i} . \end{matrix}$

Proof.

A detailed proof is given by Tessaris [29]. However, the reader can clearly see that since no variable is shared between the connected components $U_{i}$ , the assignments for the variables that make each $U_{i}$ valid in G can be combined without introducing conflicts on the values that each variable gets. □

Lemma 2.2.

Let k be a natural number. There are a finite number of equivalence classes of $CSF$ s of atoms with connected cardinality of at most k that can be constructed using a finite set of predicates and constants.

Proof.

It is easy to check that two $CSF$ s of atoms are equivalent iff they are unifiable by a renaming substitution. Since we have finitely many predicates and constant symbols, and at most k different variables, we can combine them in a finite number M of ways to form a connected $CSF$ . In a $CSF$ consisting of more than M connected $CSF$ s we know that some of the connected components are renamings of others, and keeping only one of them is enough for the evaluation of F according to Lemma 2.1. Hence, there are at most $2^{M}$ different equivalence classes. □

A clause C is a $DSF$ $[l_{1}, \dots, l_{n}]$ of literals $l_{i}$ , where all the variables are universally quantified. A contradiction is represented by the empty clause ⊥. A formula F is in conjunctive normal form ( $CNF$ ) if it is a $CSF$ of clauses, i.e, $\begin{matrix} F = [l_{1}^{1}, \dots, l_{n_{1}}^{1}], \dots, [l_{1}^{m}, \dots, l_{n_{m}}^{m}] . \end{matrix}$

Every FOL formula can be transformed into an equisatisfiable CNF formula using variable standarization, Skolemization, De Morgan’s laws, and the distributivity of the conjunction and disjunction logical operators.

An instance of a clause C is the result of applying a substitution θ to the clause, i.e., $C θ$ . If two or more literals of the same polarity in a clause C are unifiable and θ is their most general unifier, then the clause $C θ$ is called a factor of C, and the process of applying θ is called factorization.

Definition 2.2 ((Binary) Resolution Rule).

Let $C_{1}$ and $C_{2}$ be two clauses with no variables in common, and let $l_{1} \in C_{1}$ and $l_{2} \in C_{2}$ be complementary literals with respect to a most general unifier $σ = mgu ({l_{1}, {\bar{l}}_{2}})$ . The binary resolvent of $C_{1}$ and $C_{2}$ with respect to the literals $l_{1}$ and $l_{2}$ is the clause: $\begin{matrix} C_{1} \cup_{r} C_{2} = (C_{1} σ ∖ [l_{1} σ]) \cup (C_{2} σ ∖ [l_{2} σ]) . \end{matrix}$ $C_{1}$ and $C_{2}$ are said to be clashing clauses. A resolvent $C_{1} \cup_{r} C_{2}$ of $C_{1}$ and $C_{2}$ is a binary resolvent $C_{1} σ_{1} \cup_{r} C_{2} σ_{2}$ of factors $C_{i} σ_{i}$ of the two clauses.

It is easy to show that resolution is sound, i.e., $C_{1}$ , $C_{2} ⊧ C_{1} \cup_{r} C_{2}$ . Consequently, the resolution rule can be used to deduce new clauses and to prove that a formula is unsatisfiable if we are able to derive the empty clause.

Definition 2.3 (Resolution Derivation (Refutation)).

Let Σ be a set of clauses and C a clause. A (resolution) derivation of C from Σ is a finite sequence of clauses $R_{1}, \dots, R_{k} = C$ , such that each $R_{i}$ is either in Σ, or a resolvent of two clauses in ${R_{1}, \dots, R_{i - 1}}$ . If such a derivation exists, we write $Σ ⊧_{r} C$ , and say that C can be derived from Σ. A derivation of the empty clause ⊥ from Σ is called a refutation of Σ. The steps of a resolution derivation are the resolution operations performed to obtain the resolvents in the sequence.

Sometimes it is useful to know which clauses were used to produce a resolvent $R_{i}$ in a resolution derivation. In such cases, a graph or tree representation can be helpful.

Definition 2.4 (Derivation (Refutation) Graph).

Let Σ be a set of clauses and C a clause such that $Σ ⊧_{r} C$ . A derivation (refutation) graph of C from Σ is a directed graph where the nodes are the clauses from the derivation $Σ ⊧_{r} C$ , and where there is an edge from each resolvent to the clauses used in the resolution step by which it was derived.

If we only include in the graph the last clause C and the clauses that are used in at least one resolution step of the derivation, we can see the derivation graph as a tree, in which the last resolvent C is the root of the tree and the leaves are clauses from Σ. Indeed, by cloning nodes with more than one input edges (i.e., clauses used in several resolution steps) we can transform the derivation graph into a derivation tree. It is more convenient to draw such derivation trees upside-down (Fig. 2).

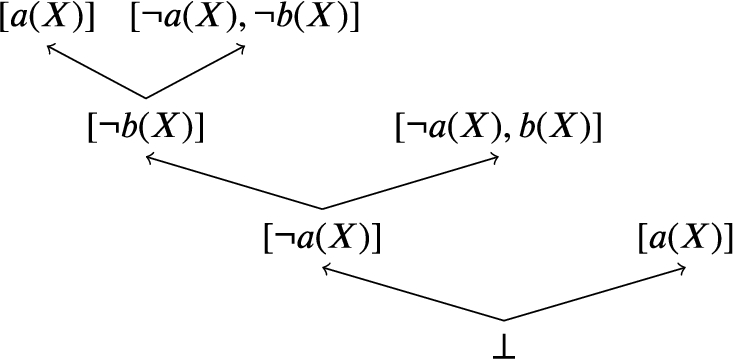

Fig. 2.

A derivation tree.

Theorem 2.1 (Soundness of Derivation).

Let Σ be a set of clauses, and C a clause. If $Σ ⊧_{r} C$ , then $Σ ⊧ C$ .

Proof.
This is a straightforward consequence of the soundness of the resolution rule. □

A clause logically implies any instance of it, possibly extended with more literals. This follows directly from the properties of the disjunction operator and the universal quantification.
Definition 2.5 (Subsumption).

Let C and D be two clauses. We say that C subsumes D if there exists a substitution θ such that $C θ \subseteq D$ .

Definition 2.6 (Deduction).

Let Σ be a set of clauses and C a clause. We say that there exists a deduction of C from Σ, and write $Σ ⊧_{r}^{d} C$ , if C is a tautology, or if there exists a clause D such that $Σ ⊧_{r} D$ and D subsumes C. If $Σ ⊧_{r}^{d} C$ , we say that the clause C can be deduced from Σ.

Resolution steps or derivations involving ground instances of clauses (i.e., clause instances that do not contain variables) ensure that there are corresponding resolution steps or derivations involving the non-ground version of the clauses. This process is known as lifting a resolution step or derivation.

In the text below we recall known theorems taken from the literature [25].

Theorem 2.2 (Lifting Lemma).

Let the clauses $C_{1}^{'}$ , $C_{2}^{'}$ be ground instances of the clauses $C_{1}$ , $C_{2}$ , respectively. Let $C^{'}$ be a ground resolvent of $C_{1}^{'}$ and $C_{2}^{'}$ . Then there is a resolvent of the clauses C of $C_{1}$ and $C_{2}$ such that $C^{'}$ is a ground instance of C.

Theorem 2.3 (Derivation Lifting).

Let Σ be a set of clauses, and $Σ^{'}$ a set of ground instances of clauses from Σ. Suppose $R_{1}^{'}, \dots, R_{k}^{'}$ is a derivation of the clause $R_{k}^{'}$ from $Σ^{'}$ . Then there exists a derivation $R_{1}, \dots, R_{k}$ of the clause $R_{k}$ from Σ, such that $R_{i}^{'}$ is an instance of $R_{i}$ , for each $i \in {1, \dots, k}$ .

Resolution derivations allow us to infer clauses that are logical consequences of an initial knowledge in a complete way.

Theorem 2.4 (Subsumption Theorem).

Let Σ be a set of clauses, and C a clause. Then $Σ ⊧ C$ iff $Σ ⊧_{r}^{d} C$ .

Theorem 2.5 (Refutation Completeness of Resolution).

Let Σ be a set of clauses. Then Σ is unsatisfiable iff $Σ ⊧_{r} ⊥$ .

Performing resolution steps in a breath-first manner ensures that we will find the empty clause for unsatisfiable formulas. However, for satisfiable formulas, we may never stop generating new clauses that are not subsumed by the already generated clauses. In general, resolution allows us to define algorithms that provide sound and complete results, but we cannot ensure termination for all FOL formulas.

The resolution operator $\cup_{r}$ has some useful properties that allow us to transform derivations without affecting the consequence.

Property 2.1 (Symmetry).

If $C_{1}$ and $C_{2}$ are clashing clauses, then their resolvent clause can be computed in a symmetric way: $\begin{matrix} C_{1} \cup_{r} C_{2} \equiv C_{2} \cup_{r} C_{1} . \end{matrix}$

Property 2.2 (Distributivity).

If $C_{1}$ , $C_{2}$ and $C_{3}$ are clauses such that $C_{3}$ resolves with the resolvent of $C_{1}$ and $C_{2}$ using literals from both $C_{1}$ and $C_{2}$ , then the following distributivity property holds: $\begin{matrix} (1) & (C_{1} \cup_{r} C_{2}) \cup_{r} C_{3} \equiv (C_{1} \cup_{r} C_{3}) \cup_{r} (C_{2} \cup_{r} C_{3}) . \end{matrix}$

Note that on right-hand side of (1) the literals used in the resolution steps with respect to $C_{3}$ ( $C_{1} \cup_{r} C_{3}$ and $C_{2} \cup_{r} C_{3}$ ) need to be the same that are used in the left-hand side.

Property 2.3 (Commutativity).

If $C_{1}$ , $C_{2}$ and $C_{3}$ are clauses such that $C_{3}$ resolves with the resolvent of $C_{1}$ and $C_{2}$ using only literals from $C_{1}$ , then the following commutativity property holds: $\begin{matrix} (C_{1} \cup_{r} C_{2}) \cup_{r} C_{3} \equiv (C_{1} \cup_{r} C_{3}) \cup_{r} C_{2} . \end{matrix}$

Proving the above properties is straightforward if we consider them over ground instances of the clauses and track the set operations on ground literals. As a consequence of Theorem 2.3, the properties also hold for general resolution over non-ground clauses.

Example 2.2.
We will illustrate the distributivity property for $C_{1} = [a (X), b (X)]$ , $C_{2} = [a (X), \neg b (X)]$ and $C_{3} = [\neg a (X), c (X)]$ . On the left-hand side of (1) we have the following resolution steps: $\begin{array}{l} (C_{1} \cup_{r} C_{2}) = [a (X)] \\ \begin{matrix} (C_{1} \cup_{r} C_{2}) \cup_{r} C_{3} & = [a (X)] \cup_{r} [\neg a (X), c (X)] \\ = [c (X)] \end{matrix} \end{array}$ and on the right-hand side $\begin{array}{l} (C_{1} \cup_{r} C_{3}) = [b (X), c (X)] \\ (C_{2} \cup_{r} C_{3}) = [\neg b (X), c (X)] \\ (C_{1} \cup_{r} C_{3}) \cup_{r} (C_{2} \cup_{r} C_{3}) \\ = [b (X), c (X)] \cup_{r} [\neg b (X), c (X)] \\ = [c (X)] . \end{array}$ Clearly, $[c (X)] \equiv [c (X)]$ .
2.2. Disjunctive existential rules and conjunctive queries with negation framework

A conjunctive query ( $CQ$ ) is a $CSF$ $l_{1}, \dots, l_{n}$ of positive literals $l_{i}$ where all the variables (which we denote by X) are existentially quantified, i.e., an expression of the form $\exists X l_{1}, \dots, l_{n}$ . Queries that allow negation in the literals $l_{i}$ are called conjunctive queries with negation ( ${CQ}^{\neg}$ ). All the variables X that appear in the positive literals of a ${CQ}^{\neg}$ are assumed to be existentially quantified. In order to avoid domain dependant queries we use universally quantified negation [1,27,28], i.e., all the variables Z that appear only in negative literals are assumed to be universally quantified: $\exists X \forall Z l_{1}, \dots, l_{n}$ . Because the variable quantification rules are straightforward we omit quantifiers, e.g., instead of $\exists X \forall Y person (X)$ , $\neg married (X, Y)$ we write $person (X)$ , $\neg married (X, Y)$ . The set of variables that appear in both positive and negative literals is called the frontier of the query. Note that for now we do not introduce the concept of answer variables. Therefore, the queries we define are normally known as Boolean conjunctive queries. Consequently, throughout the paper by conjunctive query we mean Boolean conjunctive query. A $DSF$ of conjunctive queries (conjunctive queries with negation) is usually referred to as a union of conjunctive queries ( $UCQ$ ) (union of conjunctive queries with negation ( ${UCQ}^{\neg}$ )). For a ${UCQ}^{\neg}$ $Q$ , by $Q^{\neg k}$ we denote the set of ${CQ}^{\neg}$ s in $Q$ that contain exactly k negated atoms, and by $Q^{\neg #}$ the set of ${CQ}^{\neg}$ s in $Q$ that contain two or more negated atoms. We use the term query to refer to either a $CQ$ , ${CQ}^{\neg}$ , $UCQ$ or ${UCQ}^{\neg}$ .

A fact is a $CSF$ $l_{1}, \dots, l_{n}$ of positive literals $l_{i}$ , where all variables are existentially quantified, e.g., $parent (ana, Y)$ , $parent (maria, Y)$ . Existential quantifiers are again omitted.

A closer look at the definition of facts reveals that a fact is equivalent to a Boolean conjunctive query. However, facts are used to express existing knowledge, while queries represent questions, so they have different roles in the process of reasoning.

A rule is a closed formula of the form $\begin{matrix} \forall X \exists Y B \to H, \end{matrix}$ where the body B is a $CSF$ of positive literals, and the head H is a $DSF$ in which all $H^{'} \in H$ are $CSF$ s of positive literals. The set $X = vars (B)$ contains the variables that appear in the body, and they are universally quantified. On the other hand, $Y = vars (H) ∖ vars (B)$ are the variables the appear only in the head. They are existentially quantified, and they are called existential variables. The frontier of a rule is the set of variables that are present in both the body and head of the rule: $vars (B) \cap vars (H)$ . We omit quantifiers when writing a rule.

A disjunctive existential rule is a rule with more than one disjoint in the head, i.e., $‖ H ‖ > 1$ . An existential rule is a rule with exactly one disjoint in the head. For simplicity we write the head of the existential rule as a $CSF$ of atoms. A rule with an empty disjoint in the head is a negative constraint, i.e., $B \to ⊥$ . If it is clear from the context that we refer to a negative constraint, we can omit the “ $\to ⊥$ ” and write only the body B of the negative constraint. Sometimes we also refer to a negative constraint as a constraint.

We say that a $CSF$ of atoms Q depends on a rule r iff there is a $CSF$ of atoms F such that $F ⊭ Q$ and F, $r ⊧ Q$ . A rule $r_{i}$ depends on a rule $r_{j}$ iff the body of $r_{i}$ depends on $r_{j}$ . The concept of rule dependencies allows us to define the graph of rule dependencies (GRD) [4], which is a graph where nodes are rules, and a directed edge between two nodes represents the existence of a dependency between the corresponding rules.

A knowledge base ( $KB$ ) $K = ⟨ R, D ⟩$ is composed by a $CSF$ $R$ of rules and a $CSF$ of facts $D$ . For a given set of rules $R$ , by $R^{⊥}$ we denote the set of constraints in $R$ , by $R^{\exists}$ the set of existential rules and by $R^{\lor}$ the set of disjunctive existential rules. A knowledge base $⟨ R, D ⟩$ is a disjunctive knowledge base ( $DKB$ ) if $R^{\lor} \neq \emptyset$ .

Example 2.3 (Disjunctive Knowledge Base).

Let us define an example $DKB$ about family relationships.

Facts: $\begin{array}{l} (parent (Y, ana), parent (Y, jane)), \\ (2) & sibling (ana, juan) \end{array}$

Existential rules: $\begin{array}{l} (3) & (sibling (X, Y) \to sibling (Y, X)), \\ (4) & \begin{matrix} (sibling (X, Y) \to & parent (Z, X), \\ parent (Z, Y)) \end{matrix} \end{array}$

Negative constraints: $\begin{array}{l} (5) & (sibling (X, Y), parent (X, Y)), \\ (6) & (same-age (X, Y), parent (X, Y)), \\ (7) & (parent (X, Y), parent (Y, X)), \\ (8) & (parent (X, X)) \end{array}$

Disjunctive existential rules: $\begin{matrix} (9) & \begin{matrix} first-deg-relative (X, Y) \\ \to [parent (X, Y), parent (Y, X), \\ sibling (X, Y)] \end{matrix} \end{matrix}$

Note that the existential rule (4) has an existential variable Z, that refers to an anonymous entity that is a parent of both siblings, i.e., if two people are siblings, they share a parent. Rule (3) states that the predicate sibling/2 is symmetric. We could also add symmetry for same-age/2. Fact (2) states that there is an anonymous entity Y that is a parent of both jane and ana. The negative constraints state the impossibility of a person being parent of his sibling (5) and also of a person of the same age (6). Additionally, with the negative constraints we express that parent/2 is asymmetric (7) and irreflexive (8). Finally, the disjunctive existential rule (9) defines the relation that represents the first degree relative concept [24]: a parent, a child (inverse of parent), or a sibling.

In this paper, we study the query entailment problem for disjunctive knowledge bases, i.e., the problem of knowing whether a query $Q$ can be entailed from a disjunctive knowledge base $⟨ R, D ⟩$ : $\begin{matrix} (10) & R, D ⊧_{?} Q . \end{matrix}$

In particular, we solve the entailment problem (10) by reducing it to the entailment of a $UCQ$ $Q^{'}$ with respect to the set of facts $D$ , i.e., to the problem $\begin{matrix} D ⊧_{?} Q^{'} . \end{matrix}$ We say that $Q^{'}$ is a $UCQ$ -rewriting of Q with respect to $R$ if for all set of facts $D$ it holds that $\begin{matrix} (11) & D ⊧ Q^{'} implies R, D ⊧ Q . \end{matrix}$ The $CQ$ s in $Q^{'}$ are called $CQ$ -rewritings of Q with respect to $R$ . If the converse of (11) $\begin{matrix} R, D ⊧ Q implies D ⊧ Q^{'} \end{matrix}$ also holds for all set of facts $D$ , we say that $Q^{'}$ is a complete $UCQ$ -rewriting of $Q$ with respect to $R$ . Note that according to our definition, a $UCQ$ -rewriting may not be complete. In this respect, our definition follows the definition of $UCQ$ -rewriting from [20] because we extend many of the concepts and algorithms proposed by the authors.

Finally, we may be interested in the values that some of the variables in $Q$ take. However, this does not change the semantic definition of conjunctive queries and therefore, we discuss it later in Section 3.4.

3. Backward chaining with disjunctive knowledge

In this section we first present constraint resolution, a novel type of resolution that is sound and refutation complete. Constraint resolution reduces the number of available choices in the resolution process by focusing on producing resolvents with a smaller number of positive literals. Constraint resolution is then translated into backward rewriting steps, allowing the definition of a rewriting algorithm for the framework of disjunctive existential rules that is able to solve the query entailment problem (10).

3.1. Constraint resolution

The entailment problem (10) can be transformed into a consistency check problem $\begin{matrix} (12) & R, D, \neg Q ⊧_{?} ⊥, \end{matrix}$ which can then be solved using resolution refutation. Depending on the expressivity of the queries in $Q$ their negation can yield new facts, negative constraints, existential rules or even disjunctive existential rules.

To apply resolution, we need to convert first the facts $D$ and rules $R$ of the $DKB$ , as well as the negated query $\neg Q$ to a $CNF$ . In what follows, our purpose is to define a restricted resolution strategy in order to control the process of resolution among these clauses, so as to decrease the number of available choices every time we perform a resolution step. This might result in longer derivations, but the algorithm to generate them is simpler. The main goal of the restrictions we introduce is to make the resolution process focus on eventually generating resolvents without positive literals and any number of negative literals. The process can then continue by eliminating those remaining negative literals without introducing again positive literals.

Definition 3.1 (Positive/Negative Charge).

The positive (negative) charge $| C |^{+}$ ( $| C |^{-}$ ) of a clause C is the number of positive (negative) literals in the clause.

According to the above definition, a Horn clause C is a clause with positive charge smaller than or equal to one, i.e., $| C |^{+} ⩽ 1$ . The clause we obtain by converting to $CNF$ a negative constraint or the negation of a $CQ$ has zero positive charge. We call a clause with no positive literals a constraint clause ( $CC$ ). The Skolemized version of an existential rule can produce several clauses with one positive literal, while a disjunctive existential rule can give rise to several clauses with more than one positive literal. We call a clause with only one positive literal a rule clause ( $RC$ ), and a clause with more than one positive literal a disjunctive rule clause ( $DRC$ ). Facts generate ground clauses containing only one literal, which has positive polarity, and we call such clauses fact clauses ( $FC$ s). Note that existential variables in the facts are replaced by Skolem terms. Table 1 summarizes the properties that define the different types of clauses we may encounter when doing resolution on a $DKB$ . As we can see, $RC$ s, $FC$ s and $CC$ s are Horn clauses. Finally, a ${CQ}^{\neg}$ may produce a $FC$ , $RC$ or $DRC$ , depending on its positive and negative charge.

Table 1
Properties of different types of clauses in the disjunctive existential rules framework

Name Properties

Rule clause ( $RC$ ) $| C |^{+} = 1 \land | C |^{-} ⩾ 1$

Fact clause ( $FC$ ) $| C |^{+} = 1 \land | C |^{-} = 0$

Constraint clause ( $CC$ ) $| C |^{+} = 0 \land | C |^{-} ⩾ 1$

Disjunctive $RC$ ( $DRC$ ) $| C |^{+} ⩾ 2 \land | C |^{-} ⩾ 0$

Name	Properties
Rule clause ( $RC$ )	$\| C \|^{+} = 1 \land \| C \|^{-} ⩾ 1$
Fact clause ( $FC$ )	$\| C \|^{+} = 1 \land \| C \|^{-} = 0$
Constraint clause ( $CC$ )	$\| C \|^{+} = 0 \land \| C \|^{-} ⩾ 1$
Disjunctive $RC$ ( $DRC$ )	$\| C \|^{+} ⩾ 2 \land \| C \|^{-} ⩾ 0$

Example 3.1.

From the $DKB$ of Example 2.3 we obtain the following clauses:

Fact clauses: $\begin{array}{l} [parent (f_{0}, ana)] \\ [parent (f_{0}, jane)] \\ [sibling (ana, juan)] . \end{array}$

Rule clauses: $\begin{array}{l} [\neg sibling (X, Y), sibling (Y, X)] \\ [\neg sibling (X, Y), parent (f_{2} (X, Y), X)] \\ [\neg sibling (X, Y), parent (f_{2} (X, Y), Y)] . \end{array}$

Constraint clauses: $\begin{array}{l} [\neg sibling (X, Y), \neg parent (X, Y))], \\ [\neg same-age (X, Y), \neg parent (X, Y)] \\ [\neg parent (X, Y), \neg parent (Y, X)] \\ [\neg parent (X, X)] . \end{array}$

Disjunctive rule clauses: $\begin{array}{l} [\neg first-deg-relative (X, Y), parent (X, Y), \\ parent (Y, X), sibling (X, Y)] . \end{array}$

Table 2 shows the properties of the resolvent for different types of clauses when performing a resolution step. From these properties follows that a resolution refutation should involve resolution steps with respect to fact clauses, because they always produce clauses with a smaller negative charge. Such resolution steps can be arranged so that they are performed in the last part of the resolution derivation. Additionally, this type of resolution steps is generally linked to data retrieval with respect to databases. For this reason, we mainly focus on the initial part of a rearranged resolution derivation, until it reaches a clause that has only negated atoms. Such a process is linked to producing $CQ$ -rewritings, since the resulting clause corresponds to the negation of a conjunctive query.

Table 2

Properties of the resolvent $C_{3}$ for different types of clauses $C_{1}$ and $C_{2}$

$C_{1}$	$C_{2}$

	$CC$	$DRC$	$RC$
$FC$	$\| C_{3} \|^{-} < \| C_{1} \|^{-}$	$\| C_{3} \|^{-} < \| C_{1} \|^{-}$	$\| C_{3} \|^{-} < \| C_{1} \|^{-}$
$RC$	$\| C_{3} \|^{+} = 0$	$1 ⩽ \| C_{3} \|^{+} ⩽ \| C_{2} \|^{+}$	$\| C_{3} \|^{+} = 1$
$DRC$	$\| C_{3} \|^{+} < \| C_{1} \|^{+}$	$\begin{matrix} \| C_{3} \|^{+} \\ > max (\| C_{1} \|^{+}, \| C_{2} \|^{+}) \end{matrix}$
$CC$	does not exist

As we can see from Table 2, in order to get derivations that produce clauses with a non-increasing positive charge, we need to avoid resolutions steps involving two $DRC$ s, i.e., we need to use in every resolution step at least one Horn clause. However, if we focus on resolution steps where one of the clauses used is a $CC$ , the resolvent will always have a smaller positive charge (See $CC$ column on Table 2).

Definition 3.2 (Constraint Derivation).

Let Σ be a set of clauses and C a clause. A resolution derivation (refutation) $Σ ⊧_{r} C$ of a clause C(⊥) from Σ is a constraint derivation (refutation) iff all its resolution steps involve resolution with a constraint clause. A constraint derivation of a clause C from Σ is written as $Σ ⊧_{c} C$ . Similarly, there is a constraint deduction of C from Σ, written as $Σ ⊧_{c}^{d} C$ , if C is a tautology or if there is a clause D such that $Σ ⊧_{c} D$ and D subsumes C.

The subsumption theorem can be formulated using constraint deductions and consequences with no positive literals.

Theorem 3.1 (Constraint Subsumption for Constraint Clause Consequences).

Let Σ be a set of clauses and C a constraint clause. Then $Σ ⊧ C$ iff $Σ ⊧_{c}^{d} C$ .

Proof.
Based on the subsumption theorem for resolution derivations (Theorem 2.4), the fact that $Σ ⊧ C$ implies that we have a deduction of C, i.e., there is a derivation $Σ ⊧_{r} D$ of a clause D that subsumes C. Note that D needs to be a $CC$ in order to subsume another $CC$ . This proof is based on being able to transform every resolution derivation of a $CC$ D into a constraint derivation of D.

The resolution derivation $Σ ⊧_{r} D$ for sure involves resolution steps with respect to some constraint clauses. Let $C_{i_{1}}$ be the closest resolvent to the root (D) of the corresponding derivation tree that is obtained by applying binary resolution without using a constraint clause: $C_{i_{1}} = (C_{i_{0}} \cup_{r} C_{j_{0}})$ . We can assume that on the path to the root of the tree the resolution steps involve always constraint clauses $C_{j_{1}}, \dots, C_{j_{k}}$ : $\begin{matrix} (C_{i_{0}} \cup_{r} C_{j_{0}}) \cup_{r} C_{j_{1}} \cup_{r} \dots \cup_{r} C_{j_{k}} = D . \end{matrix}$ Therefore, we can apply the distributivity property if $C_{j_{1}}$ clashes on literals coming from both clauses $C_{i_{0}}$ and $C_{j_{0}}$ , obtaining $\begin{matrix} ((C_{i_{0}} \cup_{r} C_{j_{1}}) \cup_{r} (C_{j_{0}} \cup_{r} C_{j_{1}})) \cup_{r} \dots \cup_{r} C_{j_{k}} = D . \end{matrix}$ On the other hand, if $C_{j_{1}}$ clashes on literals coming from only one of the clauses (we assume it is $C_{i_{0}}$ without loss of generality) we apply the commutativity property to obtain $\begin{matrix} ((C_{i_{0}} \cup_{r} C_{j_{1}}) \cup_{r} C_{j_{0}}) \cup_{r} \dots \cup_{r} C_{j_{k}} = D . \end{matrix}$ If we continue the same process for all the clauses $C_{j_{1}}, \dots, C_{j_{k}}$ in the same order, we obtain $\begin{matrix} (C_{i_{0}} \cup_{r} C_{j_{1}^{'}} \cup_{r} \dots \cup_{r} C_{j_{k^{'}}^{'}}) \\ \cup_{r} (C_{j_{0}} \cup_{r} C_{j_{1}^{″}} \cup_{r} \dots \cup_{r} C_{j_{k^{″}}^{″}}) = D . \end{matrix}$ Because D is a constraint clause at least one of the clauses used to obtain it is also a constraint clause: $\begin{matrix} {| (C_{i_{0}} \cup_{r} C_{j_{1}^{'}} \cup_{r} \dots \cup_{r} C_{j_{k^{'}}^{'}}) |}^{+} = 0 or \\ {| (C_{j_{0}} \cup_{r} C_{j_{1}^{″}} \cup_{r} \dots \cup_{r} C_{j_{k^{″}}^{″}}) |}^{+} = 0 . \end{matrix}$ This eliminates the resolution step between the two non-constraint clauses. In the same way, we can eliminate the rest of the resolution steps that involve two non-constraint clauses. Thus, transforming the existing deduction of C into a constraint deduction of C. □
Theorem 3.2 (Completeness of Constraint Resolution Derivations).

A set of clauses Σ is unsatisfiable iff there exists a constraint refutation of Σ, i.e., $Σ ⊧_{c} ⊥$ .

Proof.
This follows from Theorem 3.1 by taking as consequence the empty clause that has no positive literals and is only subsumed by itself. □
3.2. Rewriting operations and resolution

Conjunctive query rewriting is a process that mimics the constraint derivations introduced in the previous section. However, resolution steps involving Skolem functions are performed together in order to avoid introducing literals with Skolem functions that will not be able to be removed. For existential rules, the process of query rewriting is well known [20]. However, in most of the existing literature disjunctive rules are mainly used in a forward chaining manner [13,15] or to perform Disjunctive Datalog rewritings [3,9,11,16].

In Example 2.3, one could infer that two first-degree relatives that have the same age have to be siblings: $\begin{matrix} (13) & \begin{matrix} first-deg-relative (X, Y), \\ same-age (X, Y) \to sibling (X, Y) . \end{matrix} \end{matrix}$

This rule can be obtained by a constraint derivation using (9) and the clauses corresponding to: $\begin{matrix} (same-age (X, Y), parent (X, Y) \to ⊥) \\ (same-age (X, Y) \to same-age (Y, X)) \end{matrix}$ expressing respectively that children and their parents cannot have the same age and that the same-age/2 predicate is symmetric.

The new existential rule (13) can then be used in rewriting steps defined for existential rules.

A rewriting step as defined in the existential rules framework [20] corresponds to the resolution steps between $RC$ s corresponding to an existential rule and a $CC$ corresponding to the negation of a $CQ$ .

Definition 3.3 (Rewriting Step).

Let $r = B \to H$ be an existential rule, and Q a conjunctive query. If there is a subset $H^{'} \subseteq H$ that unifies with some $Q^{'} \subseteq Q$ through a mgu θ (i.e., $H^{'} θ = Q^{'} θ$ ) such that

if $v \in vars (Q ∖ Q^{'})$ and $v \neq v θ$ , then $v θ$ is a frontier variable of r or a constant, and

if v is an existential variable of the rule r, then $v θ \notin vars (Q ∖ Q^{'})$ ,

then the query

(B \cup (Q ∖ Q^{'})) θ

is a rewriting of Q using the existential rule r.

If an existential rule r has more than one atoms in its head, it gives rise to more than one $RC$ s. Nevertheless, the resolution steps with such $RC$ s are always performed together in order to avoid unnecessary propagation of Skolemized existential variables. Thus, the resulting clause cannot contain a Skolem term representing an existential variable of r. Hence, existential variables cannot be assigned to a variable that will be part of the result (condition 1 in Definition 3.3) nor should be replaced by a variable that belongs to the result (condition 2 in Definition 3.3).

Definition 3.3 is an adaptation to our framework of the piece-based rewriting step proposed in [20].

For the resolution steps between some $DRC$ s obtained from a disjunctive existential rule and a $CC$ obtained from the negation of a $CQ$ , we define a corresponding rewriting step generalizing Definition 3.3 with the goal to support both existential rules and disjunctive existential rules.

Definition 3.4 (General (Disjunctive) Rewriting Step).

Let $r = B \to H$ be a rule, and Q a conjunctive query. If there is a subset $H^{'} \subseteq H$ , and for each $h_{i} \in H^{'}$ there is a subset $h_{i}^{'} \subseteq h_{i}$ that unifies with some $Q^{'} \subseteq Q$ through a mgu θ (i.e., $h_{1}^{'} θ = \dots = h_{n}^{'} θ = Q^{'} θ$ ) such that

if $v \in vars (Q ∖ Q^{'})$ , then $v θ$ is a frontier variable of r or a constant, and

if v is an existential variable of the rule r, then $v θ \notin vars (Q ∖ Q^{'})$ ,

then

(B \cup (Q ∖ Q^{'}) \to H ∖ H^{'}) θ

is a rewriting of Q using the rule r. A rewriting step is a disjunctive rewriting step if the rule used is a disjunctive existential rule.

A disjunctive rewriting step can yield a disjunctive rule with fewer disjunctive components, an existential rule in case $| (H ∖ H^{'}) θ | = 1$ or a negative constraint (the negation of a conjunctive query) in case $H = H^{'}$ .

Example 3.2.
Consider a disjunctive existential rule: $\begin{matrix} r_{1} & = diabetesRisk (X) \\ \to [(diabetic (Y), sibling (Y, X)), \\ (diabetic (Z), parent (Z, X))] . \end{matrix}$ If we want to rewrite the query $Q = diabetic (X_{1})$ , to learn if there are any diabetic people, we can obtain the $UCQ$ -rewriting $[diabetic (X_{1}), diabetesRisk (X)]$ , using $r_{1}$ with the unifier $θ = {Y \overset{}{\leftarrow} X_{1}, Z \overset{}{\leftarrow} X_{1}}$ .

On the other hand, if we have the negative constraint $singleChild (X_{1})$ , $sibling (Y_{1}, X_{1})$ and the query $Q^{'} = diabetic (Y_{2}), parent (Y_{2}, X_{2})$ asking if there is a diabetic parent, we can derive the existential rule $\begin{matrix} diabetesRisk (X), singleChild (X) \\ \to diabetic (Z), parent (Z, X), \end{matrix}$ by rewriting the constraint using the rule $r_{1}$ and the unifier $θ_{2} = {X_{1} \leftarrow X, Y_{1} \leftarrow Y}$ . Using the new existential rule we obtain the following $UCQ$ -rewriting: $\begin{matrix} [(singleChild (X), sibling (Y, X)), \\ (diabetic (Y), parent (Y, X)), \\ (diabetesRisk (X), singleChild (X))] . \end{matrix}$ Note that the final $UCQ$ -rewriting contains also negated constraints which are possible reasons for which a query can be entailed, i.e., inconsistent knowledge bases. However, sometimes we might want to filter out the negated constraints if we are sure that the knowledge base is consistent.

Using the above-defined rewriting steps, we can now define rewriting for $DKB$ s.
Definition 3.5 (Rewriting).

Let $⟨ R, Q ⟩$ be a tuple consisting of a set $R$ of rules and a $UCQ$ $Q$ . A one-step rewriting $⟨ R^{'}, Q^{'} ⟩$ of $⟨ R, Q ⟩$ can be obtained by adding to $R$ or to $Q$ , as appropriate, the result $f^{'}$ of a general rewriting step that uses one of the conjunctive queries in $Q$ and a rule in $R$ , i.e., $Q^{'} = Q \cup (\neg f^{'})$ if $f^{'}$ is a negative constraint, otherwise $R^{'} = R \cup (f^{'})$ .

A k-step rewriting of $⟨ R, Q ⟩$ is obtained by applying a one-step rewriting to a $(k - 1)$ -step rewriting of $⟨ R, Q ⟩$ . For any k, a k-step rewriting of $⟨ R, Q ⟩$ is a rewriting of $⟨ R, Q ⟩$ .

So far we have dealt with rewritings of conjunctive queries with respect to existential rules and disjunctive existential rules. However, we have not considered negative constraints and conjunctive queries with negated atoms. Negative constraints are transformed into queries in the rewriting process, i.e., $\begin{array}{l} R^{\exists}, R^{\lor}, R^{⊥}, D ⊧ Q iff \\ R, R^{\lor}, D ⊧ \neg R^{⊥}, Q . \end{array}$

In a similar way, if $Q$ is a ${UCQ}^{\neg}$ , the entailment problem can be reduced to the entailment of a $UCQ$ : $\begin{matrix} (14) & \begin{matrix} R^{\exists}, R^{\lor}, R^{⊥}, D ⊧ Q iff \\ (R^{\exists}, \neg Q^{\neg 1}), (R^{\lor}, \neg Q^{\neg #}), \\ D ⊧ \neg R^{⊥}, Q^{\neg 0}, \end{matrix} \end{matrix}$ where $\neg Q^{\neg 1}$ contains existential rules (negations of ${CQ}^{\neg}$ s with one negated atom) and $\neg Q^{\neg #}$ disjunctive existential rules (negations of ${CQ}^{\neg}$ s with more than one negated atom).

Theorem 3.3 (Soundness and Completeness of Rewritings).

Let $⟨ R, D ⟩$ be a $DKB$ and $Q$ a $UCQ$ . Then $R$ , $D ⊧ Q$ iff there is a rewriting $⟨ R^{'}, Q^{'} ⟩$ of $⟨ (R, R^{\lor}), (Q, \neg R^{⊥}) ⟩$ such that $D ⊧ Q_{i}$ for some conjunctive query $Q_{i}$ in $Q^{'}$ .

Proof.
The k-step rewriting of $⟨ (R, R^{\lor}), (Q, \neg R^{⊥}) ⟩$ is based on a constraint derivation. Moreover, such a rewriting can be mapped to a constraint derivation. Since constraint derivations are sound and complete (Theorem 3.2), this theorem also holds. □

Algorithm 1
Function to rewrite $UCQ$ s with respect to existential rules and disjunctive existential rules

Given a set of rules $R$ and a $UCQ$ Q, function ${rewrite}_{k} / 2$ presented in Algorithm 1 computes all the rewritings of $⟨ (R, R^{\lor}), (Q, \neg R^{⊥}) ⟩$ . The algorithm alternates between computing the rewritings of $CQ$ s using existential rules ( ${rewrite}_{k}^{\exists} / 2$ presented in Algorithm 2) and computing the rewritings using disjunctive existential rules ( ${rewrite}^{\lor} / 2$ presented in Algorithm 3). New $CQ$ s are used to generate more rules, and new existential rules are used to generate more $CQ$ s until a fixed point is reached, i.e., until no new rule or query is produced.

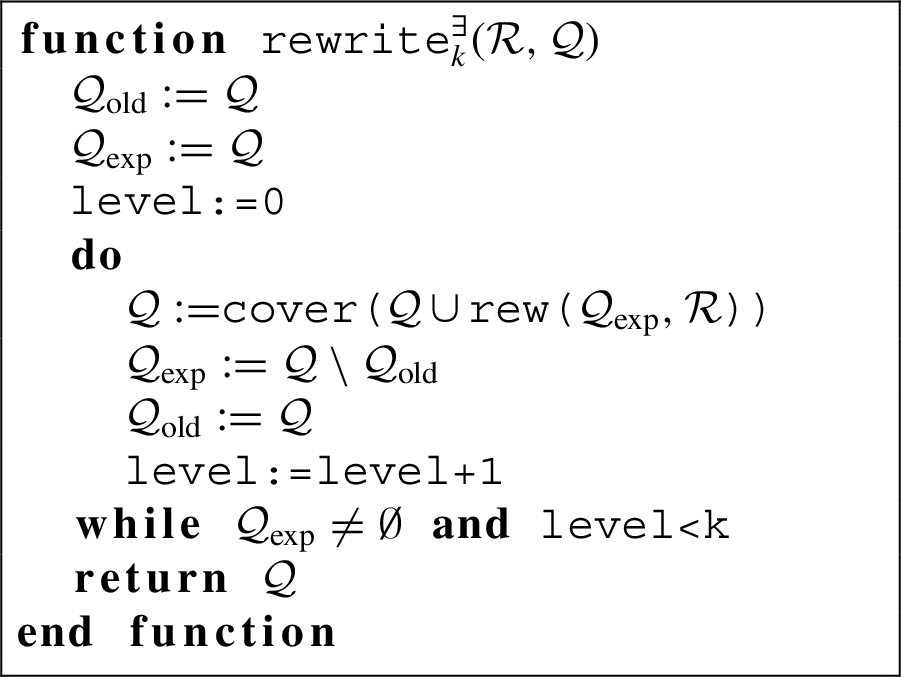

Algorithm 2
Function to rewrite $UCQ$ s using existential rules

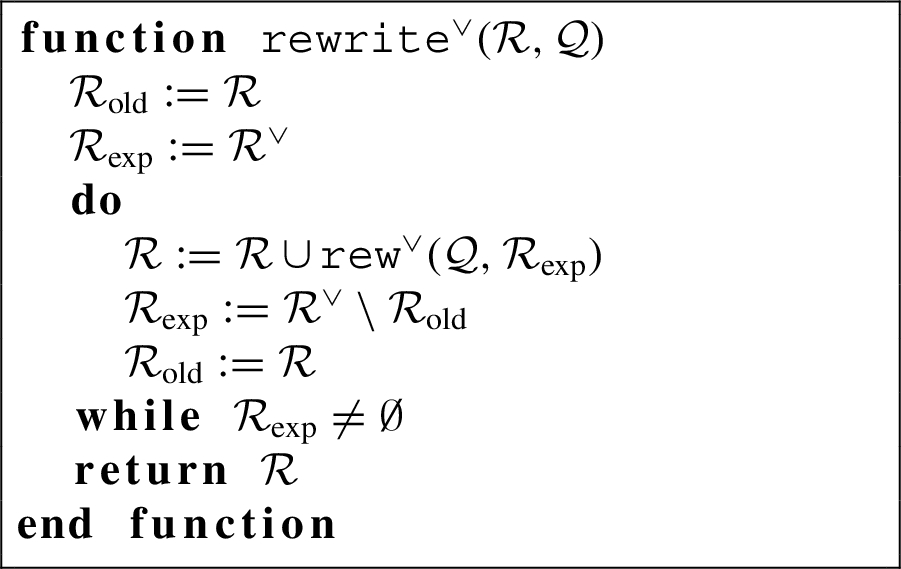

Algorithm 3
Function to rewrite $UCQ$ s using disjunctive existential rules

Function rew/2 (in Algorithm 2) computes the set of the results of all possible rewriting steps for all the combinations of existential rules and $CQ$ s in its arguments. This step is known as the expansion of a query, and it generates more conjunctive queries. On the other hand, function ${rew}^{\lor} / 2$ (in Algorithm 3) computes the expansion of disjunctive existential rules by computing the set of the results of all disjunctive rewriting steps for all the combinations of disjunctive existential rules and $CQ$ s in its arguments that do not yield a conjunctive query. This restriction does not affect completeness because a $CQ$ $Q^{'}$ that can be generated from a $CQ$ Q in a disjunctive rewriting step using rule r can also be generated in two steps. In particular, a disjunctive rewriting step generates first an existential rule $r^{'}$ ( $r^{'} \in {rew}^{\lor} ({Q}, {r})$ ), and then a rewriting step using $r^{'}$ generates the query $Q^{'}$ ( $Q^{'} \in rew ({Q}, {r^{'}})$ ).

The cover/1 function (in Algorithm 2) computes, for a given $UCQ$ Q, the minimal subset $Q^{'} \subseteq Q$ such that for all $q \in Q$ there is a $q^{'} \in Q^{'}$ such that $q^{'}$ subsumes q, i.e., the corresponding clause to $q^{'}$ subsumes the corresponding clause to q.

The cover/1 function allows us to keep always the minimal set of $CQ$ s that can yield the same results. In [20], the authors perform a deeper analysis showing that using the cover computation on the rewriting algorithm they propose ensures that the resulting $UCQ$ -rewriting will be of minimal size (cardinality).

In both ${rewrite}_{k}^{\exists} / 2$ and ${rewrite}^{\lor} / 2$ , all newly generated $CQ$ s and rules are also expanded, unless some $CQ$ s are removed when computing the cover. The process stops when a fixed point is reached.

All $CQ$ s generated by Algorithm 1 are computed according to our definition of a rewriting; this ensures the correctness, i.e., every $CQ$ that is generated is a $CQ$ -rewriting of the input query with respect to the input sets of rules and constraints.

The rewriting function for disjunctive existential rules ( ${rewrite}^{\lor} / 2$ ) generates all the possible rules using an input $UCQ$ rewriting. The fact that new rules have less disjunctive components in the head ensures that the output is always finite. Therefore, the completeness of the result of Algorithm 1 relies totally on the completeness of the result provided by Algorithm 2.

Algorithm 2 describes the rewriting function for existential rules ( ${rewrite}_{k}^{\exists} / 2$ ), and is based on the general rewriting algorithm proposed on [20]. It implements a breath-first expansion process where each iteration of the loop expands a new level of conjunctive queries. We have introduced the parameter k that allows us to control how many levels of $CQ$ s will be expanded and ensures termination of each individual call to Algorithm 2 for $k \neq \infty$ . However, the loop in Algorithm 1 will keep on calling Algorithm 2 as long as new $CQ$ s are generated, without affecting the completeness of the whole rewriting process. The parameter k defines a pause on the existential rules rewriting process in order to generate more rules from the disjunctive existential rules.

König et al. study the completeness of the $UCQ$ -rewriting computed by the rewriting algorithm for existential rules based on different definitions of the query expansion function [20]. Our expansion function (rew/2) ensures that the computed $UCQ$ -rewriting is complete because it corresponds to their piece-based rewriting operator that ensures the completeness. Moreover, if there is a finite and complete $UCQ$ -rewriting of the input $UCQ$ , the function ${rewrite}_{k}^{\exists} / 2$ will find it after a finite number of calls to it.
3.3. Rewritable queries and disjunctive knowledge bases

The termination of Algorithm 1 depends on the termination of Algorithms 2 and 3. Algorithm 3 always terminates because the produced rules contain less disjunctive components in the head. On the other hand, setting $k = \infty$ or executing a possibly infinite number of calls to Algorithm 2 is denoted by ${rewrite}^{\exists} / 2$ and corresponds to the classical rewriting algorithm for existential rules proposed in [20], whose termination is studied in [7]. In general, the problem of knowing if there exists a finite $UCQ$ -rewriting for any $UCQ$ with respect to an arbitrary set of existential rules is undecidable [7]. A set of existential rules that ensures the existence of a finite $UCQ$ -rewriting for any $UCQ$ is called a finite unification set (fus) [6]. There are some classes of existential rules that have the fus property:

Linear existential rules [6]: existential rules with one atom in the body.

Disconnected existential rules [8]: existential rules that do not share variables between the body and the head.

Acyclic graph of rule dependencies (aGRD) [4]: existential rules that do not contain cycles in the graph of rule dependencies.

If a set $R$ of existential rules is a fus and the new existential rules generated by Algorithm 3 are also a fus, combining them could yield a new set of existential rules that is not a fus [7]. Therefore, we need stronger conditions to ensure that we always call Algorithm 2 with a set of existential rules that is a fus.

For a set of existential rules $R$ , a cut is a partition ${R_{1}, R_{2}}$ of $R$ , and it is a directed cut ( $R_{1} ⊳ R_{2}$ ) if none of rules in $R_{1}$ depends on a rule of $R_{2}$ .

Property 3.1.
Let $R$ be a set of existential rules with a directed cut $R_{1} ⊳ R_{2}$ . For any $CQ$ Q and any set of facts $D$ we have that $\begin{matrix} D, R ⊧ Q if there is a CQ Q^{'} such that \\ D, R_{1} ⊧ Q^{'} and Q^{'}, R_{2} ⊧ Q . \end{matrix}$
Proof.
The proof is based on being able to organize the application of the rules of $R$ . The existing dependencies ensure that the rules of $R_{1}$ are never depending on the rules of $R_{2}$ . For a detailed proof check [7]. □

Property 3.1 [7] allows us to study the decidability of entailment when we combine two sets of rules for which the entailment problem is decidable.

In Algorithm 3, even if the resulting set of existential rules $R$ is a fus, the process of generating new rules could potentially continue forever after we obtain new $CQ$ s from Algorithm 2. Therefore, we need ways to ensure that the total number of existential rules generated by Algorithm 3 is bounded, i.e., at some point the algorithm will not produce new rules.

Existential rules with one atom in the body ensure that the $CQ$ -rewritings will never grow in size. Indeed, a rewriting operation will replace one or more atoms for the atomic body.

A rule $B \to H$ is linear if it has only one atom in the body, i.e., $| B | = 1$ .
Theorem 3.4.
Let $R$ be a set of rules and $Q$ a $UCQ$ . If $Q$ contains only atomic queries and $R$ only linear rules, then Algorithm 1 stops for any value of k.
Proof.
Linear existential rules are a fus and rewriting queries with them stops even when $k = \infty$ . The new rules generated by the linear disjunctive existential rules and the atomic queries will also be linear rules, and combining them with $R^{\exists}$ will also produce a fus. Additionally, the number of single atoms that can be built using a finite number of predicates, variables and constants is bounded. Therefore, the number of rules that we can derive from the linear disjunctive existential rules is finite. Consequently, Algorithm 1 stops because at some point no new rules and no new queries can be generated. □

Theorem 3.4 is closely related to Theorem 7.13 and Lemma 7.12 proposed by Bourhis et al. in [12]. However, it is still interesting to prove it considering the algorithm we have proposed so that the technique can be extended to the study of other fragments.

Rules that do not share variables between the head and the body produce rewritings where the introduced body of the rule is not connected to the remaining part of the query.

A rule $B \to H$ is disconnected if no variable from the body is present in the head of the rule, i.e., $vars (B) \cap vars (H) = \emptyset$ . Disconnected rules can still share constants between the body and the head of the rule and this allows us to express knowledge about specific individuals.
Theorem 3.5.
Let $R_{1}$ be a fus and $R_{2}$ a set of disconnected existential rules. The union of both sets $R_{1} \cup R_{2}$ is also a fus.
Proof.
Disconnected rules add atoms to the rewritings that do not share variables with the remaining part of the query. It follows that the connected cardinality of $CQ$ -rewritings produced by rules $B \to H \in R_{2}$ is bounded as follows: $\begin{matrix} {card}^{} (rew (B \to H, Q)) \\ ⩽ max ({card}^{} (B), {card}^{} (Q)) . \end{matrix}$ The rules in $R_{1}$ may produce $CQ$ -rewritings with a larger connected cardinality, but they only produce a finite number of $CQ$ -rewritings because $R_{1}$ is a fus. It follows that the connected cardinality of the $CQ$ -rewritings of an initial query Q is bounded, i.e., $\begin{matrix} {card}^{} ({rewrite}^{\exists} (R_{1} \cup R_{2}, Q)) \\ ⩽ max ({card}^{} ({rewrite}^{\exists} (R_{1}, B)), \\ {card}^{} ({rewrite}^{\exists} (R_{1}, Q))) . \end{matrix}$

Using Lemma 2.2 we conclude that the number of rewritings produced by $R_{1} \cup R_{2}$ cannot be infinite. Thus, $R_{1} \cup R_{2}$ is also a fus. □
Theorem 3.6.
Let $R$ be a set of rules and $Q$ a $UCQ$ . If $R^{\exists}$ is a fus, and $R^{\lor}$ a set of disconnected disjunctive existential rules, then Algorithm 1 stops for any set of constraints $R^{⊥}$ , any $UCQ$ $Q$ and for any value of k.
Proof.
The new existential rules produced by the function ${rewrite}^{\lor}$ are disconnected rules and they can be combined with the rules in $R^{\exists}$ and yield a fus (follows from Theorem 3.5).

Rewritings of disjunctive rules $B_{i} \to H_{i}$ will have the following form: $\begin{matrix} ⋃_{j} B_{j}^{'} \cup ⋃_{j} Q_{j}^{'} \to H^{'}, \end{matrix}$ where $H^{'} \subseteq H_{i} σ$ is a subset of an instance $H_{i} σ$ of the original head of the rule $H_{i}$ , $B_{j}^{'} \subseteq B^{″} σ^{'}$ is a subset of an instance $B^{″} σ^{'}$ of a rewriting of the body $B_{j}$ of a disjunctive existential rule, i.e., $B^{″} \in {rewrite}^{\exists} (B_{j}, R^{\exists})$ , and $Q_{j}^{'} \subseteq Q^{″} σ^{″}$ is a subset of an instance $Q^{″} σ^{″}$ of a rewriting of an input $CQ$ or a negated constraint $Q_{j}$ , i.e., $Q^{″} \in {rewrite}^{\exists} (Q_{j}, R^{\exists})$ . The substitutions $σ^{'}$ and $σ^{″}$ are compositions of the mgus applied in the rewriting steps. None of the $B_{j}^{'}$ or $Q_{j}^{'}$ share variables between them because they are introduced using an atom in the head of the disjunctive rule that does not share variables with the body.

Because $R^{\exists}$ is a fus we have a finite number of rewritings $B_{j}^{'}$ and $Q_{j}^{'}$ . This ensures that there is only a finite number of different bodies $B^{'}$ for the generated existential rules. The number of different heads, $H^{'}$ is obviously finite too. Therefore, there is only a finite number of different existential rules that will eventually be generated by ${rewrite}^{\lor}$ . Thus, Algorithm 1 stops for any value of k. □

For other types of queries and knowledge bases there is no certainty that the algorithm will stop. However, we can still try to compute the rewritings up to a certain depth. Nevertheless, we should point that our algorithm stops if there is a finite and complete $UCQ$ -rewriting of the input query with respect to the rules and the constraints in the knowledge base.
Theorem 3.7.
Let $R$ be a set of rules and $Q$ a $UCQ$ . If a $UCQ$ $Q$ has a finite and complete $UCQ$ -rewriting with respect to $R$ , then Algorithm 1 stops for any finite value of k.
Proof.
The completeness of the definition of rewritings and the fact that we produce rewritings using all possible one-step rewritings ensures that if there is a finite $UCQ$ rewriting $Q_{f}$ , then after a finite number of steps Algorithm 1 (with a finite value of k) will produce a rewriting equivalent to $Q_{f}$ . Because $Q_{f}$ is complete, any further rewriting of $Q_{f}$ using existential rules will not produce new conjunctive queries, i.e., the condition $Q = Q_{old}$ holds for the rest of the iterations in the loop.

The algorithm can still produce new (disjunctive) existential rules, but since no new $CQ$ s are generated, the number of new rules that can be produced is finite due to the fact that new rules are produced with strictly less disjoint components in the head. Consequently, we will reach an iteration of the loop in Algorithm 1 where $R = R_{o l d}$ . Therefore, Algorithm 1 terminates because after a finite number of iterations the condition to continue iterating on the loop will no hold. □

Note that a subset of the existential rules needed to generate the finite and complete $UCQ$ -rewriting of the initial query in Theorem 3.7 could potentially produce an infinite number of rewritings.
Example 3.3.
To illustrate this we can consider the following $DKB$ :
Existential rules: $\begin{array}{l} (r (X, W), r (W, Y) \to r (X, Y)), \\ (b (X) \to a (X)), \\ (c (X) \to a (X)) . \end{array}$

Disjunctive existential rules: $\begin{matrix} s (X) \to [b (X), c (X)] . \end{matrix}$

If we try to rewrite the $UCQ$ $[a (X), (s (X), r (X, f))]$ with respect to $R^{\exists}$ using $k = \infty$ it would produce an infinite set of $CQ$ -rewritings of the form: $\begin{matrix} s (X), r (X, W_{1}), r (W_{1}, W_{2}), \dots, r (W_{n}, f) . \end{matrix}$

However, for $k = 1$ (or any other finite value) the new rules produced by the disjunctive existential rule would eventually generate the conjunctive query $s (X)$ . The application of the cover/1 function would then remove the queries that can produce the infinite set of rewritings and yield the finite and complete $UCQ$ -rewriting $[a (X), s (X), b (X), c (X)]$ of the initial query.

Therefore, the expansion process in Algorithm 2 needs to have a finite depth (i.e., $k \neq \infty$ ) in order to avoid infinite loops.

Theorem 3.7 ensures that Algorithm 1 stops only if there is a finite and complete $UCQ$ -rewriting for the input query otherwise the algorithm may never stop. However, it does not require the fus property for the set of existential rules in the knowledge base. On the other hand, Theorems 3.4 and 3.6 ensure that Algorithm 1 will always terminate if the required conditions are met.
3.4. On queries with answer variables and linear queries

While Theorems 3.4 and 3.6 impose rather strong restrictions on the disjunctive framework, they also suggest the existence of finite $UCQ$ -rewritings for very expressive types of queries with negated atoms and answer variables.

A $CQ$ Q with answer variables ( $CQa$ ) is a $CQ$ of the form $ans (X)$ , B, where B is a $CSF$ of atoms, called the body of the query, and $ans (X)$ is the answer atom of the query. The fresh predicate ans/n is called the answer predicate and X a tuple of variables or constants such that $v a r (X) \subseteq var (B)$ , is called the answer tuple of the query. A $CQa$ Q is often written as $a n s (X) :- B$ . Conjunctive queries without answer variables are called Boolean $CQ$ s and for them the answer tuple is the empty tuple $X = ()$ . A ${CQ}^{\neg}$ with answer variables ( ${CQa}^{\neg}$ ) is defined in the same way, but variables that appear only in negated atoms are not allowed to be part of the answer tuple X. A $UCQ$ ( ${UCQ}^{\neg}$ ) with answer variables ( $UCQa$ or ${UCQa}^{\neg}$ respectively) is a $DSF$ of $CQa$ s ( ${CQa}^{\neg}$ s) with the same answer predicate. In general, a query with answer variables refers to a $CQa$ , ${CQa}^{\neg}$ , $UCQa$ or to a ${CQa}^{\neg}$ .

Given a knowledge base $K$ , a tuple t of constants in $K$ is a certain answer of a query with answer variables Q with respect to $K$ iff $K$ , $ans (t) ⊧ Q$ . The set of certain answers of a query $Q$ with respect to a knowledge base $K$ is denoted by $cert (Q, K)$ . Computing the set $cert (Q, K)$ is known as the query answering problem.

Example 3.4.
Consider the following three $CQa$ s, which have different sets of answer tuples: $\begin{array}{l} Q_{1} = {ans}_{1} () :- sibling (X, Y), \\ Q_{2} = {ans}_{2} (X) :- sibling (X, Y), \\ Q_{3} = {ans}_{3} (X, Y) :- sibling (X, Y) . \end{array}$ We expect the certain answers of $Q_{1}$ to contain the empty tuple if someone has a sibling or otherwise be the empty set, the certain answers of $Q_{2}$ to be the set of people that have siblings, and the certain answers of $Q_{3}$ to be set of pairs of people that are siblings.

Consider also a knowledge base $K$ based on Example 2.3, with a different set of facts: $\begin{array}{l} sibling (pedro, ana) \\ sibling (juan, Y) . \end{array}$ The first fact states that pedro and ana are siblings, while the second fact that juan has a sibling.

The certain answers of the queries with respect to $K$ are the following: $\begin{array}{l} cert (Q_{1}, K) = {()} \\ cert (Q_{2}, K) = {pedro, ana, juan} \\ cert (Q_{3}, K) = {⟨ pedro, ana ⟩, ⟨ ana, pedro ⟩} . \end{array}$ Thus, there are some siblings in $K$ (by $Q_{1}$ ), pedro, ana, and juan have siblings (by $Q_{2}$ ) and ana is a sibling of pedro and pedro a sibling of ana since sibling/2 is symmetric (by $Q_{3}$ ). Note that the sibling of juan has no identity so it is not included in the certain answers of $Q_{3}$ . The answers can be easily verified by solving the corresponding entailment problems, e.g., pedro is a certain answer of $Q_{2}$ because $\begin{matrix} K, {ans}_{2} (pedro) ⊧ {ans}_{2} (X), sibling (X, Y) . \end{matrix}$

For queries with answer variables we focus on the query answering problem instead of the entailment problem. In theory we could try all possible assignments of constants in $K$ to variables in the answer tuple X and check whether the resulting query is entailed. However, computing a $UCQ$ -rewriting for each possible assignment of constants would not be very efficient. We can compute the $UCQ$ -rewritings $Q^{'}$ of a query with answer variables Q with respect to the rules in $R$ and then transform the entailment problem, i.e., $\begin{matrix} (15) & R, D, ans (t) ⊧ Q iff D, ans (t) ⊧ Q^{'} . \end{matrix}$

The answer atoms in the elements of $Q^{'}$ will be affected by the mgus of the rewriting process but the answer variables will never be replaced by an existential variable because of condition 1 in the definition of general (disjunctive) rewriting step.

The entailment of a ${UCQa}^{\neg}$ can be transformed into the entailment of a $UCQ$ (14). However, the presence of answer atoms in ${CQa}^{\neg}$ s will create rules with answer atoms in their body that may produce rewritings with more than one occurrence of answer atoms. Because the set of facts can only contain one answer atom, a rewriting with more than one occurrence of answer atoms $ans (X_{1}), \dots, ans (X_{n}), B^{'}$ can only be entailed in case there is an mgu for ${ans (X_{1}), \dots, ans (X_{n})}$ . A $UCQ$ -rewriting of a query with answer variables is deterministic if the $CQ$ s in it do not contain more than one occurrence of answer atoms. Rewritings without answer atoms correspond to rewritings of the negated constraints. They allow us to check the consistency of the data $D$ with respect to the rules in our knowledge base. However, the query answering problem does not make much sense when one of these rewritings is entailed by the data.

Algorithm 1 needs to be modified in order to avoid unnecessary rewritings of queries with answer variables. In Algorithms 2 and 3 we need to modify the functions rew/2 and ${rew}^{\lor}$ /2 that compute one-step rewritings so that they only give rewritings with no more than one answer atom. More specifically, the resulting $CQ$ s B (rules $B \to H$ ) with more than one answer atom (i.e, ${ans (X_{1}), \dots, ans (X_{n})} \subseteq B$ ) are replaced by the $CQ$ $B θ$ (rule $B θ \to H θ$ ) where $θ = mgu ({ans (X_{1}), \dots, ans (X_{n})})$ . We call these modified functions deterministic one-step rewriting functions. Algorithm 1 with deterministic one-step rewriting functions computes a deterministic $UCQ$ -rewriting that is complete based on the fact that the answer predicate is fresh, i.e., it is not used in the knowledge base. Using deterministic one-step rewriting functions helps with the termination of the rewriting process.
Example 3.5.
Consider a knowledge base without rules and the following ${UCQa}^{\neg}$ $\begin{matrix} Q = & [(ans (X, Z), r (X, Y), r (Y, Z), \neg r (X, Z)), \\ (ans (X, a), r (X, a))] . \end{matrix}$ The query Q has infinitely many $CQ$ -rewritings of the following form: $\begin{matrix} ans (X, a), ans (X, X_{1}), \dots, ans (X, X_{n - 1}), \\ r (X, X_{n}), r (X_{n}, X_{n - 1}), \dots, r (X_{1}, a) . \end{matrix}$ However, there is a finite and complete deterministic $UCQ$ -rewriting of Q: $\begin{matrix} [(ans (X, a), r (X, X_{2}), r (X_{2}, a), r (a, a)), \\ (ans (X, a), r (X, X_{1}), r (X_{1}, a)), \\ (ans (X, a), r (X, a))] . \end{matrix}$

Answer variables play a different role when splitting $CSF$ s on connected components. The super cardinality of a $CSF$ of atoms F with answer variables X is the number of non-answer variables in it: ${card}_{+} (F) = | vars (F) ∖ vars (X) |$ . We say that two non-answer variables u and v in a $CSF$ of atoms F are super connected if they belong to the same atom, or if there is another non-answer variable z in F that is super connected to both u and v.

A $CSF$ of atoms is super connected if all the atoms in it contain non-answer variables super connected to each other. Atoms containing only constants or answer variables in their arguments are super connected formulas with a super cardinality of zero.

A $CSF$ F can be partitioned into a set ${U_{1}, \dots, U_{n}}$ of super connected components such that if $v \in vars (U_{i})$ is super connected to $u \in vars (U_{j})$ , then $i = j$ . The super connected cardinality of F is defined as the maximum super cardinality of the super connected components in the partition of F and denoted as ${card}_{+}^{} (F) = {max}_{i} ({card}_{+} (U_{i}))$ . The super connected cardinality of a $DSF$ $[F_{1}, \dots, F_{m}]$ is the maximum super connected cardinality of the formulas $F_{i}$ , i.e., ${card}_{+}^{} ([F_{1}, \dots, F_{m}]) = {max}_{i} ({card}_{+}^{} (F_{i}))$ .
Lemma 3.1.
Let $K$ be a knowledge base and F a $CSF$ of atoms with answer atom $ans (X)$ partitioned into the super connected components ${U_{1}, \dots, U_{n}}$ . Then, $\begin{matrix} (16) & \begin{matrix} K, ans (t) ⊧ F iff \\ K, ans (t) ⊧ ans (X), U_{i} \\ for every U_{i} . \end{matrix} \end{matrix}$
Proof.
It follows directly from Lemma 2.1 after transforming (16) into: $\begin{matrix} (17) & \begin{matrix} K ⊧ F θ iff K ⊧ U_{i} θ \\ for every U_{i} \neq ans (X), \end{matrix} \end{matrix}$ where $θ = mgu (ans (t), ans (X))$ . Note that θ replaces the answer variables by constants and the resulting connected components will be the same as the super connected components. □
Lemma 3.2.
Let k be a natural number. There are a finite number of equivalence classes of $CSF$ s of atoms with super connected cardinality of at most k that can be constructed using a finite set of predicates and a finite set of constants.
Proof.
Straightforward using Lemma 3.1 and similar arguments to the ones used in the proof of Lemma 2.2. □

Given a set of rules $R$ without disjunctive existential rules (i.e., $R^{\lor} = \emptyset$ ), using reduction (14) we can focus on the disjunctive rules that are obtained from the negation of the ${CQa}^{\neg}$ s: $\begin{matrix} (18) & \begin{matrix} R ⊧ Q iff \\ (R^{\exists}, \neg Q^{\neg 1}), \neg Q^{\neg #} ⊧ \neg R^{⊥}, Q^{\neg 0}, \end{matrix} \end{matrix}$ and study when Algorithm 1 with deterministic one-step rewriting functions terminates.

If all the variables in the frontier of the ${CQa}^{\neg}$ s are also answer variables, then the corresponding disjunctive existential rules will act similarly to disconnected rules if we use deterministic one-step rewriting functions on Algorithm 1.
Theorem 3.8.
Let $R$ be a set of rules without disjunctive existential rules and $Q$ a ${UCQa}^{\neg}$ . If all the variables in the frontier of the ${CQa}^{\neg}$ s in $Q$ are also answer variables and $R^{\exists}$ is a fus, then Algorithm 1 with deterministic one-step rewriting functions, applied on the rules $R \cup Q^{\neg 1} \cup \neg Q^{\neg #}$ , and $UCQ$ $Q^{\neg 0}$ , terminates for any value of k.
Proof.
The variables that appear in negated atoms of the ${CQ}^{\neg}$ s will end up being the variables in the head of the corresponding rules in ${(\neg Q^{\neg i})}_{i > 0}$ . However, the variables that only appear in the negated atoms will be translated to existential variables and only answer variables are going to be frontier variables of the corresponding rules. Therefore, every new existential rule will have the frontier variables included in the set of answer variables.

In the presence of deterministic one-step rewriting functions, existential rules with all the frontier included in the set of answer variables ( $R_{a}$ ) add atoms to the rewritings that do not share non-answer variables with the remaining part of the query. This ensures that when they are combined with a fus, the super connected cardinality of the $UCQ$ -rewritings will be bounded. More specifically for any $UCQ$ $Q^{'}$ , $\begin{matrix} {card}_{+}^{} ({rewrite}^{\exists} (R^{\exists} \cup R_{a}, Q^{'})) \\ ⩽ max ({card}_{+}^{} ({rewrite}^{\exists} (R^{\exists}, B)), \\ {card}_{+}^{} ({rewrite}^{\exists} (R^{\exists}, Q^{'}))), \end{matrix}$ where B is the body of rules in $R_{a}$ .

Using Lemma 3.2 we can also affirm that there are finitely many rewritings that can be obtained. Therefore, every existential rule that is generated from the negated ${CQ}^{\neg}$ s in ${(Q^{\neg i})}_{i > 0}$ together with the rules in $R^{\exists}$ will yield a finite and complete deterministic $UCQ$ -rewriting. Thus, we can ensure the termination of every iteration of the loop in Algorithm 1 for any value of k.

Likewise, every existential rule that is generated from the negated ${CQ}^{\neg}$ s in ${(Q^{\neg i})}_{i > 0}$ will have a body with a bounded super connected cardinality. Thus, we cannot generate infinitely many existential rules from the ${CQ}^{\neg}$ s in ${(Q^{\neg i})}_{i > 0}$ (Lemma 3.2), which ensures the termination of Algorithm 1 with deterministic one-step rewriting functions for any value of k. □

Based on Theorem 3.4, we can also define other restrictions on ${UCQa}^{\neg}$ s that ensure that the rewriting algorithm stops. As in the case of existential rules, we say that a $CQ$ ( ${CQ}^{\neg}$ ) is linear if it contains only one positive literal. Similarly, a $UCQ$ ( ${UCQ}^{\neg}$ ) is linear if all the $CQ$ s ( ${UCQ}^{\neg}$ s) in it are also linear. A $CQa$ ( ${CQa}^{\neg}$ ) is linear if it contains only one positive literal in the body. Likewise, a $UCQa$ ( ${UCQa}^{\neg}$ ) is linear if all the $CQa$ s ( ${UCQa}^{\neg}$ s) in it are also linear.
Theorem 3.9.
Let $R$ be a set of rules without disjunctive existential rules and $Q$ a ${UCQa}^{\neg}$ . If $R$ is a set of linear rules and $Q$ a linear ${UCQa}^{\neg}$ , then Algorithm 1 with deterministic one-step rewriting functions, applied on the rules $R \cup Q^{\neg 1} \cup \neg Q^{\neg #}$ , and $UCQ$ $Q^{\neg 0}$ , stops for any value of k.
Proof.
Because $Q$ is linear the corresponding disjunctive rules ${(\neg Q^{\neg i})}_{i > 1}$ will have two atoms in the body and one of them will be an answer atom. The $CQa$ s will have one atom in the body and the negated constraints will only have one atom. Therefore, the deterministic one-step rewriting functions ensure that the new rules generated from disjunctive rules will contain only two atoms in the body and one of them will be an answer atom. There is a finite number of rules than can be generated with two atoms in the body and a decreasing number of disjoints in the head.

The deterministic $CQ$ -rewritings produced by linear existential rules in $R$ and the existential rules generated from ${(\neg Q^{\neg i})}_{i > 0}$ will have a maximum of two atoms. Thus, there are finitely many deterministic $CQ$ -rewritings that can be generated.

We conclude that Algorithm 2 terminates every time it is called in the main loop and also that the condition to continue executing the loop at some point will not hold because there are a finite number of rules and $CQ$ s rewritings that can be generated. Consequently, Algorithm 1 with deterministic one-step rewriting functions stops for any value of k. □

Finally, if there is a finite and complete deterministic $UCQ$ -rewriting of a ${UCQa}^{\neg}$ $Q$ with respect to a set of rules $R$ that does not contain disjunctive existential rules, we can ensure that Algorithm 1 with deterministic one-step rewriting functions stops. Theorem 3.10.
Let $R$ be a set rules without disjunctive existential rules and $Q$ a ${UCQa}^{\neg}$ . If there is a finite and complete deterministic $UCQ$ -rewriting of $Q$ with respect to $R$ , then Algorithm 1 with deterministic one-step rewriting functions, applied on the rules $R \cup Q^{\neg 1} \cup \neg Q^{\neg #}$ , and $UCQ$ $Q^{\neg 0}$ , terminates for any finite value of k.
Proof.
Deterministic one-step rewriting functions will only discard rewritings that are not deterministic. The algorithm produces rewritings using all possible deterministic one-step rewritings and this ensures that if there is a finite deterministic $UCQ$ rewriting $Q_{f}$ , then after a finite number of iterations (with a finite value of k) a rewriting equivalent to $Q_{f}$ will be generated. The completeness of $Q_{f}$ ensures us that any further rewriting of $Q_{f}$ using existential rules and deterministic one-step rewriting functions will not produce new deterministic $CQ$ s, i.e., the condition $Q = Q_{old}$ holds for the rest of the iterations in the loop. Consequently, after finitely many iterations we also reach the condition $R = R_{old}$ . Therefore, Algorithm 1 terminates because after a finite number of iterations the condition to continue iterating on the loop will not hold. □

4. Implementation and experiments

Completo1

¹
http://image.ntua.gr/~gardero/completo3.0/
is a query rewriting system that focuses on answering ${UCQ}^{\neg}$ s in the framework of existential rules. The first version of Completo [22] answers ${CQ}^{\neg}$ using a resolution-based approach to eliminate negated atoms. The algorithm proposed is complete only for a very restricted type of queries.

In the second version of the system [23], queries with only one negated atom are answered by being transformed into rules. The approach is complete but termination is guaranteed only when the resulting set of rules is a fus.

The current version of Completo implements Algorithm 1 with deterministic one-step rewriting functions and answers queries with answer variables that have an arbitrary number of negated atoms. Algorithm 1 can be seen as a generalization of both algorithms proposed in [22,23]. Indeed, queries with one negated atom are transformed into rules, while the rewriting defined for disjunctive rules is similar to what was presented in [22] as constraint resolution. Furthermore, we take advantage of the termination results for knowledge bases consisting of a fus and ${UCQ}^{\neg}$ s whose frontier is part of the answer variables of the query (Theorem 3.8), as well as for knowledge bases consisting only of linear elements (Theorem 3.9). Choosing $k = \infty$ allows the rewriting with respect to existential rules to be performed by an external rewriter if the are no answer variables in the queries.
4.1. Experiments

To the best of our knowledge there is no other system that produces $UCQ$ -rewritings for ${UCQ}^{\neg}$ s with universally quantified negation. Therefore, the experiments were preformed in order to get a general idea of the performance of Completo producing $UCQ$ -rewritings. We used an Intel(R) Core(TM) i5-7300HQ CPU at 2.50 GHz with 8 GB of RAM running 64-bit Windows 10.

For the experiments we used two ontologies that contain negative constraints and have been used in previous research papers based on queries with negation [22,23]. The first is the Lehigh University Benchmark (LUBM) ontology [17], enriched with 70 additional disjoint classes axioms added for the atomic sibling classes, i.e., for classes asserted to share the same super-class. Secondly, we used the Travel ontology2

²
https://protege.stanford.edu/ontologies/travel.owl
that has 10 disjoint class axioms. The OWL 2 ER [5] fragment of both ontologies was translated into existential rules. We were not able to prove the fus property for the set of existential rules obtained from neither of the two ontologies we used.

We also prepared a query file with 500 ${CQa}^{\neg}$ s for each ontology which we used to let Completo produce finite $UCQ$ -rewritings of the ${UCQa}^{\neg}$ that contains all the queries in the file and also for each separated ${CQa}^{\neg}$ . The queries contain 3 atoms and 2 of them are negated. The queries have one variable in the frontier which is also the answer variable of the query. We generated the queries by performing Association Rule Mining [2] on a dataset obtained from the assertions of the ontologies. The queries and the ontologies we used are publicly available.3 ³
http://image.ntua.gr/~gardero/completo3.0/ontologies/

Table 3
Rewriting experiments results for the ${CQa}^{\neg}$ s from LUBM and Travel ontologies

Ontology Info rew time mem

LUBM ${UCQa}^{\neg}$ 77 6193.12 2138

min 0 104 1129

mean 4 205.58 2069

max 55 466 2237

Travel ${UCQa}^{\neg}$ 18 264.96 2043

min 0 1 123

mean 2 2.12 143

max 76 8 920

Table 3 shows the size of the $UCQ$ -rewriting (rew) for the ${UCQa}^{\neg}$ containing all the ${CQa}^{\neg}$ s in the file and the minimum (min), mean and maximum (max) statistics for the rewriting of each individual ${CQa}^{\neg}$ in the file. The table also shows the time (time) in seconds and the RAM memory (mem) in Mb used by the rewriting process in each of the cases. The results give an idea of the performance of the system with respect to each ${UCQa}^{\neg}$ or individual ${CQa}^{\neg}$ .

For the Travel ontology, the size of the $UCQ$ -rewriting of the ${UCQa}^{\neg}$ is smaller than the biggest $UCQ$ -rewriting for an individual ${CQa}^{\neg}$ . The time that it took to compute the rewriting of the ${UCQa}^{\neg}$ is the time that it takes on average to rewrite 125 individual ${CQa}^{\neg}$ s (5 min). The RAM memory used to rewrite the ${UCQa}^{\neg}$ is approximately the double of the RAM used for rewriting the individual ${CQa}^{\neg}$ that consumed the most RAM memory.

For the LUBM ontology, the size of the rewriting of the ${UCQa}^{\neg}$ has 11 more queries than the biggest rewriting for an individual ${CQa}^{\neg}$ . The time that it took to compute the rewriting of the ${UCQa}^{\neg}$ is the time that it takes on average to rewrite 30 individual ${CQa}^{\neg}$ s (less than 2 hours). The RAM memory used to write the ${UCQa}^{\neg}$ is less than the RAM memory that was used for rewriting the individual ${CQa}^{\neg}$ that consumed the most RAM memory.

For both ontologies the RAM memory consumed to compute the rewritings was approximately 2 GB.

Fig. 3.
Size of the $UCQ$ -rewritings for the Travel ontology.

Fig. 4.
Size of the $UCQ$ -rewritings for the LUBM ontology.

Figures 3 and 4 show information about the $UCQ$ -rewriting size. In both ontologies at least 85% of the queries have zero rewritings. In this cases, the $CQ$ -rewritings of the $CQa$ s are subsumed by the $CQ$ -rewritings of the negative constraints of the $DKB$ .

Fig. 5.
Cumulative distribution of the time needed to compute the $UCQ$ -rewriting for the Travel ontology.

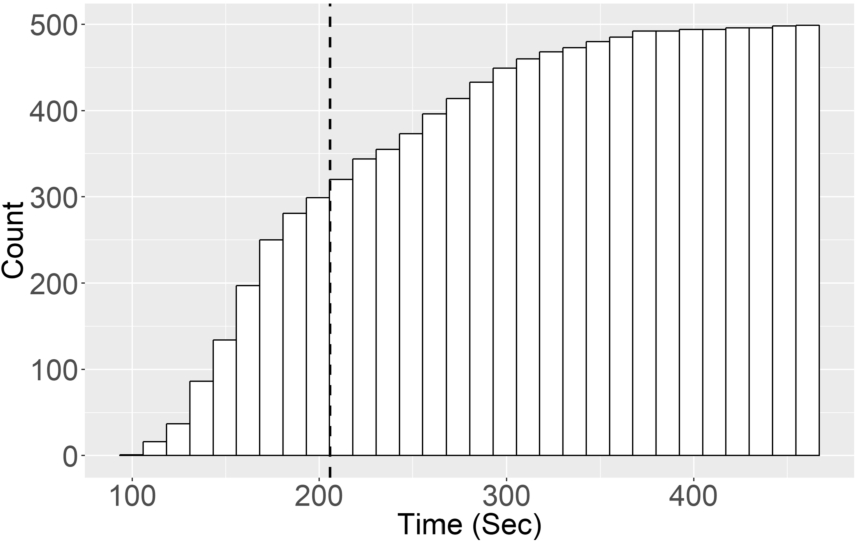

Fig. 6.
Cumulative distribution of the time needed to compute the $UCQ$ -rewriting for the LUBM ontology.

Figures 5 and 6 show the cumulative distribution of the rewriting runtime. Dashed horizontal lines represent the mean runtime. Each bar represents the number of queries that were rewritten in or faster than the corresponding time. Note that in both cases the runtime for more than 60% of the queries was smaller than the mean runtime.

Fig. 7.
Correlation matrix with different performance parameters for the Travel ontology.

Fig. 8.
Correlation matrix with different performance parameters for the LUBM ontology.

Figures 7 and 8 show the correlation matrix with different performance parameters for the Travel and LUBM ontologies. In order to get an idea of the rewriting process we computed the RAM memory used by the system (mem), the time that it takes to compute the $UCQ$ -rewriting (time), the size of the $UCQ$ -rewriting (rew), the number of generated existential rules in the rewriting process (ger), the number of rewritten (expanded) disjunctive existential rules (ecr) and also the number of generated (gcq) and rewritten (ecq) conjunctive queries. For the LUBM ontology we can notice that the number of generated $CQ$ s and the size of the $UCQ$ -rewriting have a correlation coefficient of 0.9. For the Travel ontology we can see that time, ecq, gcq and mem are all correlated with coefficients greater than or equal to 0.94.
Example 4.1.
One of the queries for the Travel ontology was: $\begin{matrix} ans (X) :- & \neg Capital (X), \neg Town (X), \\ Destination (X) . \end{matrix}$ It focuses on destinations that cannot be capitals or towns. The $UCQ$ -rewriting produced by Completo was the following: $\begin{matrix} [ans (X) :- Farmland (X), \\ ans (X) :- NationalPark (X), \\ ans (X) :- RuralArea (X)] . \end{matrix}$ Considering the above interpretation of the query, the answer tells us that only farmlands, national parks and rural areas cannot be town or capital destinations.
5. Conclusions

Ontology	Info	rew	time	mem
LUBM	${UCQa}^{\neg}$	77	6193.12	2138
min	0	104	1129
mean	4	205.58	2069
max	55	466	2237
Travel	${UCQa}^{\neg}$	18	264.96	2043
min	0	1	123
mean	2	2.12	143
max	76	8	920

In this paper, we studied the application of the query rewriting approach on the framework of disjunctive existential rules in order to produce complete $UCQ$ -rewritings that encode the answers of an initial query.

To ensure the completeness of our rewriting approach, we introduced a special case of first-order logic resolution (constraint resolution), where every resolution step involves one clause without positive literals, and the subsumption theorem holds when the consequence is a clause without positive literals. The resolution completeness theorem also holds, allowing constraint resolution to be used in refutation procedures for FOL formulas.

Based on the definition of constraint resolution we proposed an extension of the rewriting approach for existential rules in order to deal with disjunctive existential rules. The rewriting of a disjunctive existential rule produces disjunctive rules with less disjunctions in the head, and eventually produces an existential rule or a conjunctive query. The rules generated from disjunctive rules are then used in order to find additional rewritings of the initial conjunctive query rewriting. The proposed algorithm can be used for general knowledge bases with disjunctive existential rules; it terminates for the cases where there is a finite and complete $UCQ$ -rewriting of the input queries with respect to the (disjunctive) existential rules and the negative constraints. However, there are rather strong conditions that are able to ensure the existence of a finite and complete $UCQ$ -rewriting.

Moreover, we studied some of the sufficient conditions that ensure that the proposed algorithm terminates. One case requires atomic $CQ$ s and all elements of the knowledge base to be linear. The other case, requires a fus and disconnected disjunctive existential rules without imposing restrictions on the input $CQ$ s or the constraints. Both cases impose very strong conditions on the disjunctive existential rules. However, for knowledge bases without disjunctive existential rules, we were able to provide finite and complete deterministic $UCQ$ -rewritings for ${UCQa}^{\neg}$ s with at most one positive atom (with respect to linear existential rules and linear constraints) and for ${UCQa}^{\neg}$ s that include the frontier in the answer variables (with respect to a fus). Both types of ${UCQa}^{\neg}$ s are very expressive.

Using the proposed algorithm and taking advantage of the stopping criteria, we implemented a sound and complete rewriting approach for unions of conjunctive queries with negated atoms and answer variables in the Completo system that specialises in query answering for conjunctive queries with negation. The implementation was evaluated on two ontologies.

The experimental results showed that the implementation is able to provide $UCQ$ -rewritings in reasonable time and using a reasonable amount of RAM memory. Also, rewriting ${UCQ}^{\neg}$ s with a large number of queries takes considerably less time than the time required to rewrite all the ${CQ}^{\neg}$ s individually.

In the future, we would like to focus on implementing the proposed algorithm in a more efficient way and also on studying other sufficient conditions that ensure the termination of our rewriting algorithm.

Footnotes

Acknowledgements

We would like to thank Lida Petrou for providing the queries for the experiments. Also, we thank Stathis Delivorias and Michael Giazitzoglou for their support and comments in the writing process of this paper.

References

Abiteboul,

Hull and

Vianu, Foundations of Databases, Addison-Wesley, 1995.

Agrawal,

Imielinski and

A.N.

Swami, Mining association rules between sets of items in large databases, in: Proceedings of the 1993 ACM SIGMOD International Conference on Management of Data, Washington, DC, USA, May 26–28, 1993,

Buneman and

Jajodia, eds, ACM Press, 1993, pp. 207–216. doi:10.1145/170035.170072.

Ahmetaj,

Ortiz and

Simkus, Rewriting guarded existential rules into small datalog programs, in: 21st International Conference on Database Theory, ICDT 2018, Vienna, Austria, March 26–29, 2018,

Kimelfeld and

Amsterdamer, eds, LIPIcs, Vol. 98, Schloss Dagstuhl – Leibniz-Zentrum für Informatik, 2018, pp. 4:1–4:24. doi:10.4230/LIPIcs.ICDT.2018.4.

Baget, Improving the forward chaining algorithm for conceptual graphs rules, in: Principles of Knowledge Representation and Reasoning: Proceedings of the Ninth International Conference (KR2004), Whistler, Canada, June 2–5, 2004,

Dubois,

C.A.

Welty and

Williams, eds, AAAI Press, 2004, pp. 407–414, http://www.aaai.org/Library/KR/2004/kr04-043.php .

Baget,

Gutierrez,

Leclère,

Mugnier,

Rocher and

Sipieter, Datalog+, ruleml and OWL 2: Formats and translations for existential rules, in: Proceedings of the RuleML 2015 Challenge, the Special Track on Rule-Based Recommender Systems for the Web of Data, the Special Industry Track and the RuleML 2015 Doctoral Consortium Hosted by the 9th International Web Rule Symposium (RuleML 2015), Berlin, Germany, August 2–5, 2015

Bassiliades,

Fodor,

Giurca,

Gottlob,

Kliegr,

G.J.

Nalepa,

Palmirani,

Paschke,

Proctor,

Roman,

Sadri and

Stojanovic, eds, CEUR Workshop Proceedings, Vol. 1417, CEUR-WS.org, 2015, http://ceur-ws.org/Vol-1417/paper9.pdf .

Baget,

Leclère,

Mugnier and

Salvat, Extending decidable cases for rules with existential variables, in: IJCAI 2009, Proceedings of the 21st International Joint Conference on Artificial Intelligence, Pasadena, California, USA, July 11–17, 2009,

Boutilier, ed., 2009, pp. 677–682, http://ijcai.org/Proceedings/09/Papers/118.pdf .

Baget,

Leclère,

Mugnier and

Salvat, On rules with existential variables: Walking the decidability line, Artif. Intell.175(9–10) (2011), 1620–1654. doi:10.1016/j.artint.2011.03.002.

Baget and

Mugnier, Extensions of simple conceptual graphs: The complexity of rules and constraints, J. Artif. Intell. Res.16 (2002), 425–465. doi:10.1613/jair.918.

Bárány,

Benedikt and

ten Cate, Rewriting guarded negation queries, in: Mathematical Foundations of Computer Science 2013 – 38th International Symposium, MFCS 2013, Klosterneuburg, Austria, August 26–30, 2013,

Chatterjee and

Sgall, eds, Proceedings. Lecture Notes in Computer Science, Vol. 8087, Springer, 2013, pp. 98–110. doi:10.1007/978-3-642-40313-2_11.

10.

Bárány,

ten Cate and

Otto, Queries with guarded negation, Proc. VLDB Endow.5(11) (2012), 1328–1339, http://vldb.org/pvldb/vol5/p1328_vincebarany_vldb2012.pdf . doi:10.14778/2350229.2350250.

11.

Bienvenu,

ten Cate,

Lutz and

Wolter, Ontology-based data access: A study through disjunctive datalog, csp, and MMSNP, ACM Trans. Database Syst.39(4) (2014), 33:1–33:44. doi:10.1145/2661643.

12.

Bourhis,

Manna,

Morak and

Pieris, Guarded-based disjunctive tuple-generating dependencies, ACM Trans. Database Syst.41(4) (2016), 27:1–27:45. doi:10.1145/2976736.

13.

Carral,

Dragoste and

Krötzsch, Tractable query answering for expressive ontologies and existential rules, in: The Semantic Web – ISWC 2017 – 16th International Semantic Web Conference, Vienna, Austria, October 21–25, 2017, Proceedings, Part I,

d’Amato,

Fernández,

V.A.M.

Tamma,

Lécué,

Cudré-Mauroux,

J.F.

Sequeda,

Lange and

Heflin, eds, Lecture Notes in Computer Science, Vol. 10587, Springer, 2017, pp. 156–172. doi:10.1007/978-3-319-68288-4_10.

14.

Du and

J.Z.

Pan, Rewriting-based instance retrieval for negated concepts in description logic ontologies, in: The Semantic Web – ISWC 2015 – 14th International Semantic Web Conference, Bethlehem, PA, USA, October 11–15, 2015, Proceedings, Part I,

Arenas,

Ó.

Corcho,

Simperl,

Strohmaier,

d’Aquin,

Srinivas,

P.T.

Groth,

Dumontier,

Heflin,

Thirunarayan and

Staab, eds, Lecture Notes in Computer Science, Vol. 9366, Springer, 2015, pp. 339–355. doi:10.1007/978-3-319-25007-6_20.

15.

Gottlob,

Manna,

Morak and

Pieris, On the complexity of ontological reasoning under disjunctive existential rules, in: Mathematical Foundations of Computer Science 2012 – 37th International Symposium, MFCS 2012, Bratislava, Slovakia, August 27–31, 2012,

Rovan,

Sassone and

Widmayer, eds, Proceedings. Lecture Notes in Computer Science, Vol. 7464, Springer, 2012, pp. 1–18. doi:10.1007/978-3-642-32589-2_1.

16.

Gottlob,

Rudolph and

Simkus, Expressiveness of guarded existential rule languages, in: Proceedings of the 33rd ACM SIGMOD-SIGACT-SIGART Symposium on Principles of Database Systems, PODS ’14, Snowbird, UT, USA, June 22–27, 2014,

Hull and

Grohe, eds, ACM, 2014, pp. 27–38. doi:10.1145/2594538.2594556.

17.

Guo,

Pan and

Heflin, LUBM: A benchmark for OWL knowledge base systems, J. Web Semant.3(2–3) (2005), 158–182. doi:10.1016/j.websem.2005.06.005.

18.

Gutiérrez-Basulto,

Y.A.

Ibáñez-García,

Kontchakov and

E.V.

Kostylev, Conjunctive queries with negation over dl-lite: A closer look, RR 2013, in: Web Reasoning and Rule Systems – 7th International Conference, Mannheim, Germany, July 27–29, 2013,

Faber and

Lembo, eds, Proceedings. Lecture Notes in Computer Science, Vol. 7994, Springer, 2013, pp. 109–122. doi:10.1007/978-3-642-39666-3_9.

19.

Kikot,

Kontchakov,

V.V.

Podolskii and

Zakharyaschev, Long rewritings, short rewritings, in: Proceedings of the 2012 International Workshop on Description Logics, DL-2012, Rome, Italy, June 7–10, 2012,

Kazakov,

Lembo and

Wolter, eds, CEUR Workshop Proceedings, Vol. 846, CEUR-WS.org, 2012, http://ceur-ws.org/Vol-846/paper_41.pdf .

20.

König,

Leclère,

Mugnier and

Thomazo, Sound, complete and minimal UCQ-rewriting for existential rules, Semantic Web6(5) (2015), 451–475. doi:10.3233/SW-140153.

21.

Libkin, Incomplete information and certain answers in general data models, in: Proceedings of the 30th ACM SIGMOD-SIGACT-SIGART Symposium on Principles of Database Systems, PODS 2011, Athens, Greece, June 12–16, 2011,

Lenzerini and

Schwentick, eds, ACM, 2011, pp. 59–70. doi:10.1145/1989284.1989294.

22.

Matos Alfonso and

Stamou, Rewriting queries with negated atoms, in: Rules and Reasoning – International Joint Conference, RuleML+RR 2017, London, UK, July 12–15, 2017,

Costantini,

Franconi,

W.V.

Woensel,

Kontchakov,

Sadri and

Roman, eds, Proceedings. Lecture Notes in Computer Science, Vol. 10364, Springer, 2017, pp. 151–167. doi:10.1007/978-3-319-61252-2_11.

23.

Matos Alfonso and

Stamou, On horn conjunctive queries, in: Rules and Reasoning – Second International Joint Conference, RuleML+RR 2018, Luxembourg, September 18–21, 2018,

Benzmüller,

Ricca,

Parent and

Roman, eds, Proceedings. Lecture Notes in Computer Science, Vol. 11092, Springer, 2018, pp. 115–130. doi:10.1007/978-3-319-99906-7_8.

24.

NCI dictionary of cancer terms: First-degree relative, https://www.cancer.gov/publications/dictionaries/cancer-terms/def/first-degree-relative.

25.

Nienhuys-Cheng and

de Wolf (eds), Foundations of Inductive Logic Programming, Lecture Notes in Computer Science, Vol. 1228, Springer, 1997. doi:10.1007/3-540-62927-0.

26.

Onet, The chase procedure and its applications in data exchange, in: Data Exchange, Integration, and Streams, Dagstuhl Follow-Ups, Vol. 5,

P.G.

Kolaitis,

Lenzerini and

Schweikardt, eds, Schloss Dagstuhl – Leibniz-Zentrum für Informatik, 2013, pp. 1–37. doi:10.4230/DFU.Vol5.10452.1.

27.

Rosati, On the decidability and finite controllability of query processing in databases with incomplete information, in: Proceedings of the Twenty-Fifth ACM SIGACT-SIGMOD-SIGART Symposium on Principles of Database Systems, Chicago, Illinois, USA, June 26–28, 2006,

Vansummeren, ed., ACM, 2006, pp. 356–365. doi:10.1145/1142351.1142404.

28.

Rosati, The limits of querying ontologies, in: Database Theory – ICDT 2007, 11th International Conference, Barcelona, Spain, January 10–12, 2007,

Schwentick and

Suciu, eds, Proceedings. Lecture Notes in Computer Science, Vol. 4353, Springer, 2007, pp. 164–178. doi:10.1007/11965893_12.

29.

Tessaris, Questions and answers: Reasoning and querying in Description Logic, Ph.D. thesis, University of Manchester, 2001.

UCQ -Rewritings for disjunctive knowledge and queries with negated atoms

Abstract

Keywords

1. Introduction

2.1. First-order logic resolution

Definition 2.1 (Conjunctive (Disjunctive) Set Formula).

Definition 2.3 (Resolution Derivation (Refutation)).

Definition 2.4 (Derivation (Refutation) Graph).

Definition 2.6 (Deduction).

Theorem 2.2 (Lifting Lemma).

Theorem 2.3 (Derivation Lifting).

Theorem 2.4 (Subsumption Theorem).

Theorem 2.5 (Refutation Completeness of Resolution).

Property 2.1 (Symmetry).

Property 2.2 (Distributivity).

Property 2.3 (Commutativity).

Example 2.3 (Disjunctive Knowledge Base).

3. Backward chaining with disjunctive knowledge

3.1. Constraint resolution

Definition 3.1 (Positive/Negative Charge).

Theorem 3.1 (Constraint Subsumption for Constraint Clause Consequences).

Proof. This follows from Theorem 3.1 by taking as consequence the empty clause that has no positive literals and is only subsumed by itself. □ 3.2. Rewriting operations and resolution

Definition 3.3 (Rewriting Step).

Definition 3.4 (General (Disjunctive) Rewriting Step).

Theorem 3.3 (Soundness and Completeness of Rewritings).

Footnotes

Acknowledgements

References

Proof.
This follows from Theorem 3.1 by taking as consequence the empty clause that has no positive literals and is only subsumed by itself. □
3.2. Rewriting operations and resolution
