Abstract
BACKGROUND:
DNA methylation balance is an important regulatory mechanism for mammalian and plant development. The fruit ripening and anthocyanin accumulation of Vaccinium corymbosum are complex developmental processes that involve numerous physiological, biochemical, and structural alterations.
OBJECTIVE:
This study aimed to investigate the correlation of DNA methylation balance, DNA methylation and demethylation-related gene expression models and anthocyanin accumulation during blueberry fruit ripening.
METHODS:
The anthocyanin contents during V. corymbosum ‘O’Neal’ fruit development were evaluated. The V. corymbosum DNA methylation- and anthocyanin accumulation-related genes were isolated, and their relative expression patterns were detected during flower bud enlargement and fruit development. Moreover, the relative expression patterns of anthocyanin biosynthetic genes and the dynamic changes in the DNA methylation of the promoter sequences of key anthocyanin biosynthetic genes were evaluated.
RESULTS:
The results showed that the DNA methylation level of V. corymbosum fruit was consistent with anthocyanin accumulation during ripening, and the expression levels of anthocyanin biosynthetic and DNA methylation-related genes.
CONCLUSIONS:
During V. corymbosum fruit ripening, anthocyanin accumulation is regulated partially by DNA methylation balance of VcCHS and VcANS promoters.
Introduction
Epigenetics, first introduced by Conrad Waddington in the early 1940s, refers to the phenomenon of heritable changes in gene function or gene expression that do not change DNA sequences during cell proliferation and ontogenetic development [1–5]. Such effects on cellular and physiological phenotypic traits might be involved in dynamic transcriptional or posttranscriptional regulation mechanisms, including DNA methylation, chromatin remodeling, histone posttranslational modifications, noncoding and coding RNAs [1, 4]. In eukaryotes, DNA methylation primarily refers to the methylation at the fifth carbon of cytosine residues (5mC) and mainly occurs in the CpG island of mammalian genomes, and in the CG, CHG, and CHH motifs (H represents A, T, or C) of plant genomes [6–8]. As an important epigenetic modification, the precise patterns of genomic DNA methylation are essential and conserved for gene regulation, genome defense and maintaining genomic stability [6–8]. In general, most DNA methylated loci are located in the heterochromatin regions, transposable elements, and promoter sequences [3, 44]. Recently, DNA methylation has been reported to be involved in regulating transposon silencing, gene expression, chromosome interactions, plant development, plant responses to biotic and abiotic stimuli, fruit ripening, root nodulation, and other developmental processes [3, 37–43].
The establishment and maintenance of DNA methylation in higher plants is generally catalyzed by DNA methyltransferases that are regulated by complex mechanisms. Four families of DNA methyltransferases, DNA methyltransferases (METs), domains rearranged methyltransferases (DRMs), chromomethylases (CMTs), and histone lysine methyltransferases (HKMTs) regulate the methylation of cytosine residues in symmetrical or asymmetrical contexts. Together with DNA demethylases (DMEs or DMLs), histone-modifying enzymes, chromatin remodeling factors and RNA interference machinery, DNA methylation is regulated precisely, which maintains the dynamic balance of genomic methylation levels, and the responses to developmental signals and environmental stimuli [3, 5–8].
Blueberry (Vaccinium spp.) belongs to the Ericaceae family of deciduous or evergreen shrub plants, and contains numerous important cultivated species, such as V. corymbosum (highbush blueberry), V. ashei (rabbiteye blueberry), V. angustifolium (lowbush blueberry) and hybrid varieties from V. corymbosum×V. angustifolium (half-high blueberry) [11]. Currently, blueberry has become the second abundant berry in the world after strawberry, although its commercial cultivation history is no more than 100 years [12]. Because it is a rich source of bioactive compounds in fruit, such as anthocyanins, flavonols, and proanthocyanidins, blueberry has gathered considerable interests. These bioactive molecules not only supply nutrients, but also play important roles in scavenging free radicals and improving immune activities, such as anti-inflammatory, antimutagenic, antimicrobial, anticancer and antiobesity activities, etc. [13–15].
Anthocyanin content is an important trait for blueberry fruit quality, and affects its nutritional and commercial values. The biosynthesis pathway of anthocyanins has been studied extensively, and several enzymes in the biosynthetic pathway, such as chalcone synthase (CHS), flavanone 3′-hydroxylase (F3′H), dihydroflavonol 4-reductase (DFR), anthocyanidin synthase (ANS), and UDP-glucoside: flavonoid glucosyltransferase (UFGT), have been isolated and identified [16–19]. However, the correlation between DNA methylation changes and anthocyanin accumulation in blueberry fruit was not extensively studied before. In this study, V. corymbosum DNA methylation-related and anthocyanin accumulation-related genes were isolated, and their relative expression patterns were detected during flower bud enlargement and fruit development. In addition, the relative expression patterns of key anthocyanin biosynthetic genes and the dynamic changes in DNA methylation in the promoter sequences of VcCHS and VcANS genes were analyzed.
Materials and methods
Plant materials
6-year-old southern highbush blueberry (V. corymbosum cv. ‘O’Neal’) planted in the orchard at Zhejiang Normal University (119°65′ E and 29°08′ N, Jinhua, Zhejiang Province, China) were used in this experiment. According to Yang et al. [20], 30–100 flower buds or fruits at specific developmental stages (Fig. 1a) were randomly tagged, collected and processed from multiple plants. Excluding the tissues used for physiological analysis, all processed tissues were frozen immediately in liquid nitrogen and stored at –80 °C for further use.

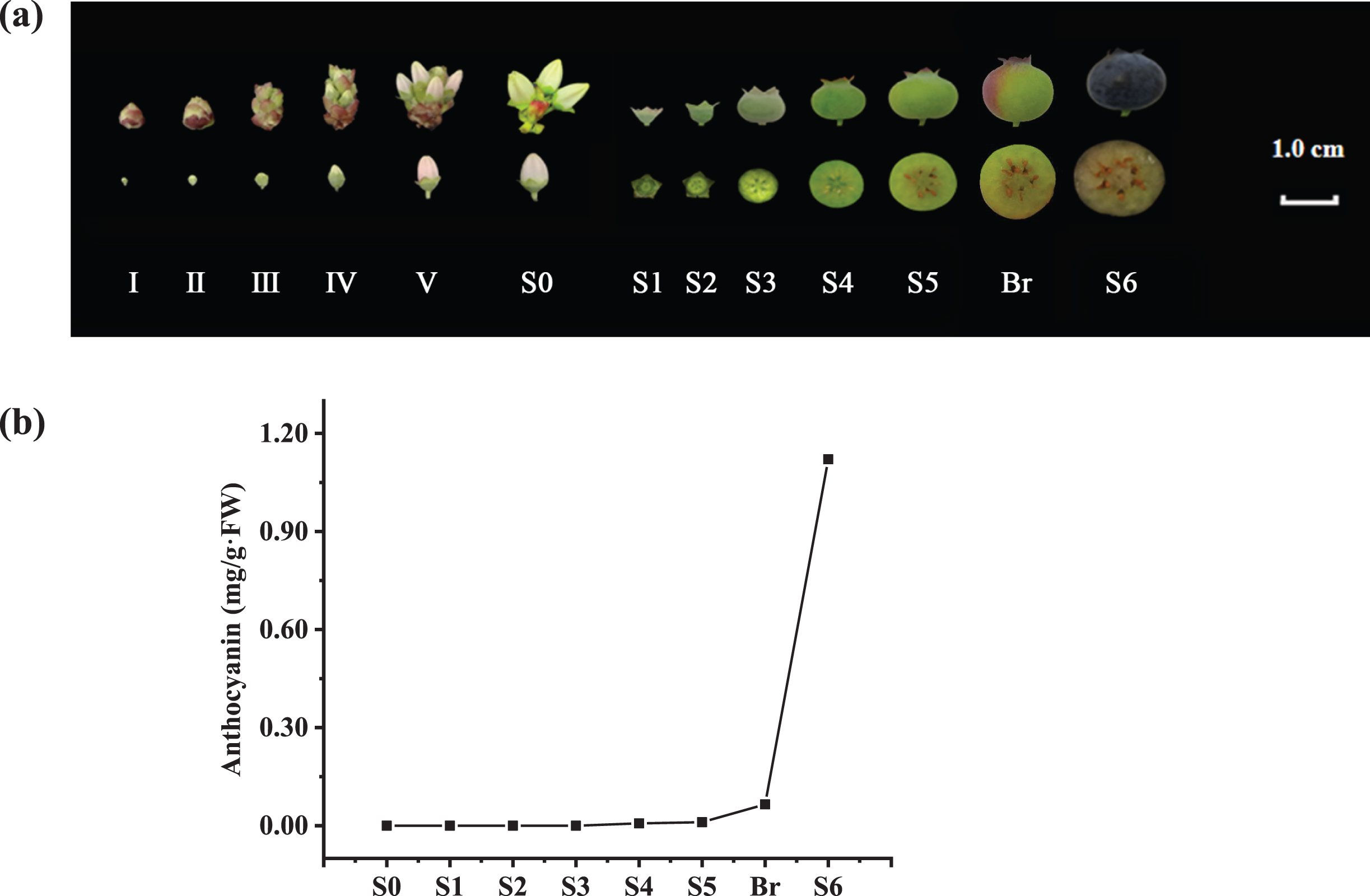

Developmental stages and anthocyanin contents of V. corymbosum (cv. O’Neal) flowers and fruits. a. The flower and berry developmental stages used in this study. b. The total anthocyanin content in the ovaries and fruits throughout development.
Total anthocyanin contents were estimated using the pH differential method [17, 18]. Briefly, flower buds and fruits at different developmental stages were extracted with 60% ethanol solution (pH 3.0, including 0.1% (v/v) HCl) at 52 °C for 145 min. Each extract was diluted with 0.05 M potassium chloride buffer (pH 1.0) and 0.1 M sodium acetate buffer (pH 4.5) to attain the same dilution. After stabilization at room temperature for 20 min, the absorbance of each diluted solution was measured at 524 nm and 700 nm, with a distilled solution without extracts used as the blank. The total anthocyanin content, expressed as the amount (mg) of cyanidin-3-glucoside/100 g.FW was calculated using the following formula: C = (A × Mw × V × n)/(ɛ × b × V0) . Of these parameters, A was the difference of [(A524-A700)(pH 1.0)-(A524-A700)(pH 4.5)], Mw was the molecular weight of cyanidin-3-glucoside (449.2 g/mol), V was the total extract volume of sample, n was the fold dilution, ɛ was the molar absorptivity coefficient of cyanidin-3-glucoside [29,600 L/(mol.cm)], b was path length (1 cm), and V0 was the sample volume used for spectrophotometry.
Genomic DNA, total RNA extraction and cDNA synthesis
Genomic DNA from fruits during anthocyanin accumulation (stages S5, Breaker, S6) was extracted using a modified cetyltrimethylammonium bromide (CTAB) method [21], and residual RNA was removed using RNase A (TaKaRa Biotechnology Co., Ltd., Dalian, China). Total RNA extraction, RNA quality analysis and 1st strand cDNA synthesis were performed according to Yang et al. [22].
Isolation and sequence analysis of VcMET1, VcDRM2, VcCMT3 and VcDME1 cDNAs and the promoters of VcCHS and VcANS
The full-length coding sequences (CDSs) of the possible V. corymbosum MET1, DRM2, CMT3, and DME1 genes and the promoter sequences of VcCHS and VcANS genes were searched and downloaded from Genome Database of Vaccinium (https://www.vaccinium.org/). Specific primers were subsequently designed on the basis of the multiple comparative analysis of nucleotide sequences with other plant homologous genes (Table S1). The isolation and sequence analysis of full-length cDNAs and promoter sequences were performed according to Yang et al. [22].
Relative expression patterns of V. corymbosum DNA methylation-, DNA demethylation- and anthocyanin biosynthesis- related genes during flower bud enlargement and fruit development
Based on isolated or reported cDNA sequences, specific primers for real-time quantitative PCR (qPCR) analysis (Table S1) were designed by online Primer3 Input software (version 0.4.0, http://bioinfo.ut.ee/primer3–0.4.0/), and VcGAPDH was used to normalize the amount of cDNAs among samples [23]. The reagents, reaction system, procedure and data analysis were performed according to Bustin et al. [24] and Yang et al. [22].
Bisulfite conversion and sequencing
Extracted genomic DNA was used for bisulfite conversion according to the manual of EZ DNA Methylation Gold Kit (Zymo 5005, Zymo Research Corp., California, USA). Modified DNA was amplified by PCR using Q5 High-Fidelity DNA Polymerase (New England Biolabs Inc., Beijing, China), and the amplification primers were listed in Table S1. The specific amplicons were inserted into pMD19-T vector (TaKaRa Biotechnology Co., Ltd., Dalian, China), and transformed into Escherichia coli DH5α. 10 to 15 positive clones (obtained from 2 independent replicates) were selected for sequencing and sequence analysis.
Statistical analysis
Each determination was conducted in at least three biological repetitions, unless otherwise indicated. The data were represented as the mean value and standard error (mean±SE, n≥3). Statistical significance was evaluated via one-way analysis of variance (ANOVA) followed by Tukey’s post hoc test using SPSS16.0 software.
Results
Anthocyanin primarily accumulated before and after the Breaker stage in V. corymbosum fruit
Similar to previous studies [15–18], anthocyanin mainly accumulated in the pericarp of ripe blueberry fruits. In this study, the anthocyanin level was too low to be detected during V. corymbosum flower bud enlargement and early fruit development (stages S0–S4). Then, a small amount of anthocyanin (approximately 0.011 mg/g.FW) began to accumulate in the fruit at stage S5, although its pericarp was still light green. Once approximately 1/4 of the fruit exhibited pale red or light purple (stage Breaker), the anthocyanin content was approximately 0.036 mg/g.FW. Subsequently, fruit became dark blue or purple rapidly at stage S6, and the total anthocyanin content increased approximately 24 fold, reaching up to 0.859 mg/g.FW (Fig. 1b).
Structures and characteristics of V. corymbosum DNA methylation- and DNA demethylation-related genes
3 DNA methylation-related cDNAs and 1 DNA demethylation-related cDNA were isolated from V. corymbosum fruit, and were named according to their homologous genes with the highest identity (Table 1). As shown in Table 1, the deduced amino acid sequences of VcMET1, VcDRM2 and VcDME1 had the highest identity (83%, 79% and 69%) with Actinidia chinensis PSS02925.1, PSR87569.1, and PSR92965.1, respectively, while VcCMT3 had the highest identity (69%) with Camellia sinensis XP_028051823.1.
Bioinformatic analysis of isolated V. corymbosum DNA methylation and demethylation related sequences
Bioinformatic analysis of isolated V. corymbosum DNA methylation and demethylation related sequences
Compared with the sequence of VcDME1, the deduced amino acid sequences of VcMET1, VcDRM2 and VcCMT3 were relatively conserved, and consisted of a common conserved site-specific DNA-cytosine methylase (Dcm) domain (Fig. 2). In addition, VcMET1 contained two cytosine-specific DNA methyltransferase replication foci (DNMT1-RFD) domains, and two bromo adjacent homology (BAH) domains. VcDRM2 contained a ubiquitin-associated (UBA) domain, and VcCMT3 contained a BAH domain (Fig. S1). The sequence of VcDME1 was relatively variable, containing only a conserved helix–hairpin–helix domain, a single permuted zf-CXXC (Perm-CXXC) domain and a RRM-DME domain at the 3’ end (Fig. S1).

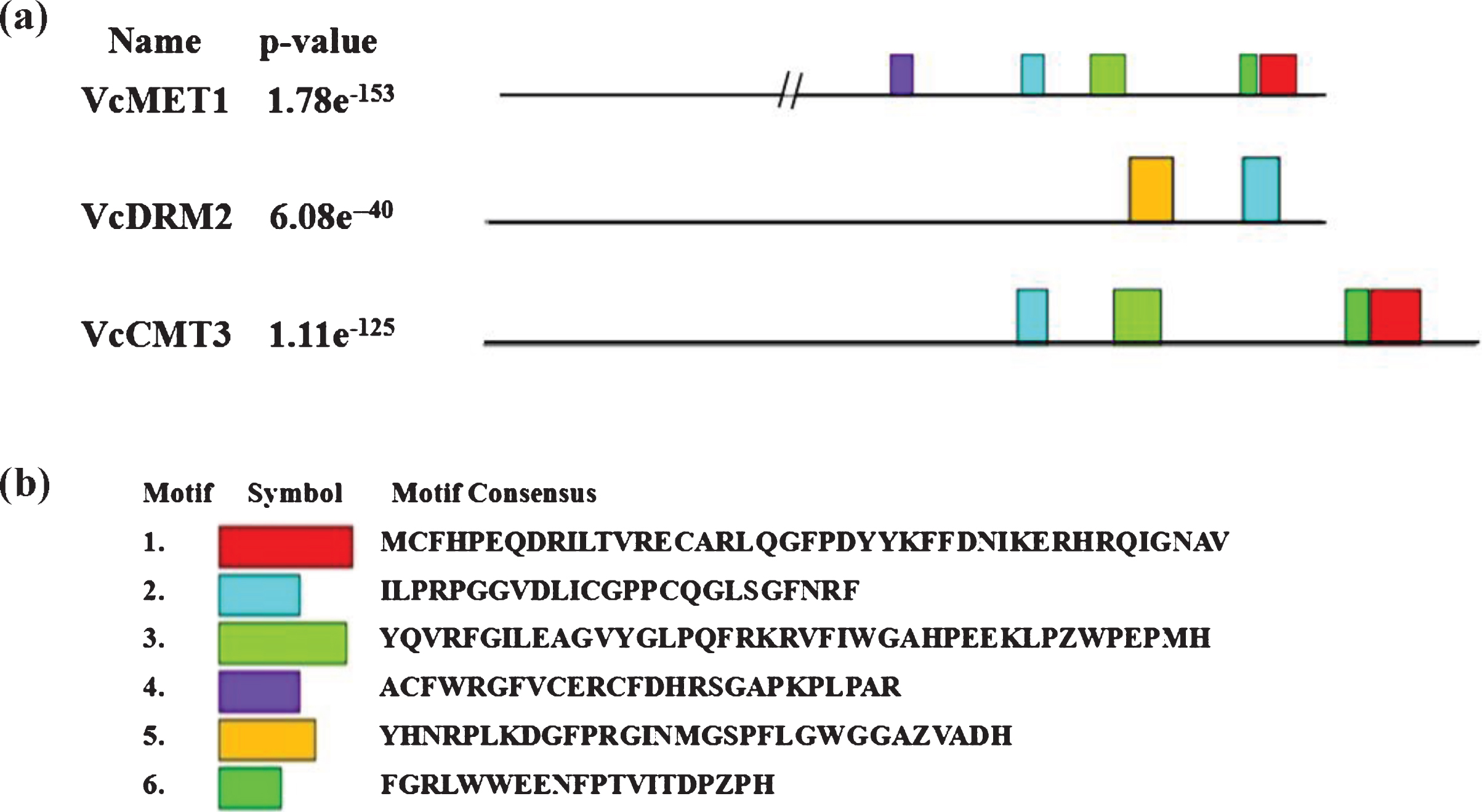

MEME generated conserved structures and sequences from isolated V. corymbosum DNA methylation-related proteins.
CHS is the first enzyme that catalyzes malonyl-CoA and P-coumaroyl-CoA to form anthocyanins and other flavonoids in plants, and ANS is a key enzyme downstream of the anthocyanin biosynthetic pathway [16, 37]. In this study, the isolated VcCHS and VcANS promoters were 1,330 bp and 1,264 bp in length, respectively. The putative regulatory elements in the VcCHS and VcANS promoters (Table 2) were analyzed by the online database PlantCARE (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/). In addition to basal regulatory elements for eukaryotic gene transcription, such as the TATA-box, CAAT-box and other elements, VcCHS promoter contained multiple consensus sequences for Myb protein binding sites, anaerobic induction (ARE), abscisic acid (ABA) responsiveness, light responsiveness, methyl jasmonate (MeJA) responsiveness, auxin responsiveness and core G-box sites. VcANS promoter contained one or more cis-acting regulatory elements for ARE, light responsiveness, ABA responsiveness, MeJA responsiveness, salicylic acid (SA) responsiveness, auxin responsiveness, and Myb protein-binding sites (Table 2). These regulatory elements located in the promoters of VcCHS and VcANS suggested that anthocyanin biosynthesis might be differentially modulated by transcription factors (e.g. Myb), and environmental and physiological factors, such as light, temperature, sugars, and hormones [26, 27].
Predicted cis-acting regulatory elements in VcCHS and VcANS promoter region
Predicted cis-acting regulatory elements in VcCHS and VcANS promoter region
The expression patterns of isolated V. corymbosum DNA methylation- and DNA demethylation-related genes were evaluated throughout flower bud enlargement and fruit development in this study. In addition to the reference gene VcGAPDH, VcMET1 transcripts at anthesis (stage S0) were chosen to normalize other V. corymbosum DNA methylation and demethylation gene expression levels. Interestingly, the highest transcripts of VcMET1, VcDRM2 and VcCMT3 genes were detected at the early stage of blueberry flower bud enlargement (stage I), but then these transcript levels decreased dramatically from stage II and were maintained at relatively lower levels. Specifically, VcMET1 and VcCMT3 genes exhibited similar expression patterns, with a second expression peak at stage S3, and then, the expression levels decreased to an undetectable level from stage S5 until maturity. VcDRM2 transcripts also showed a downward trend throughout flower bud enlargement and fruit development, and the expression abundance of VcDRM2 was much lower than that of VcMET1 and VcCMT3. For VcDME1 gene, its expression abundance decreased gradually from the early stage of flower bud enlargement and then exhibited a fluctuating increasing and decreasing trend during anthesis and late fruit development (Fig. 3).

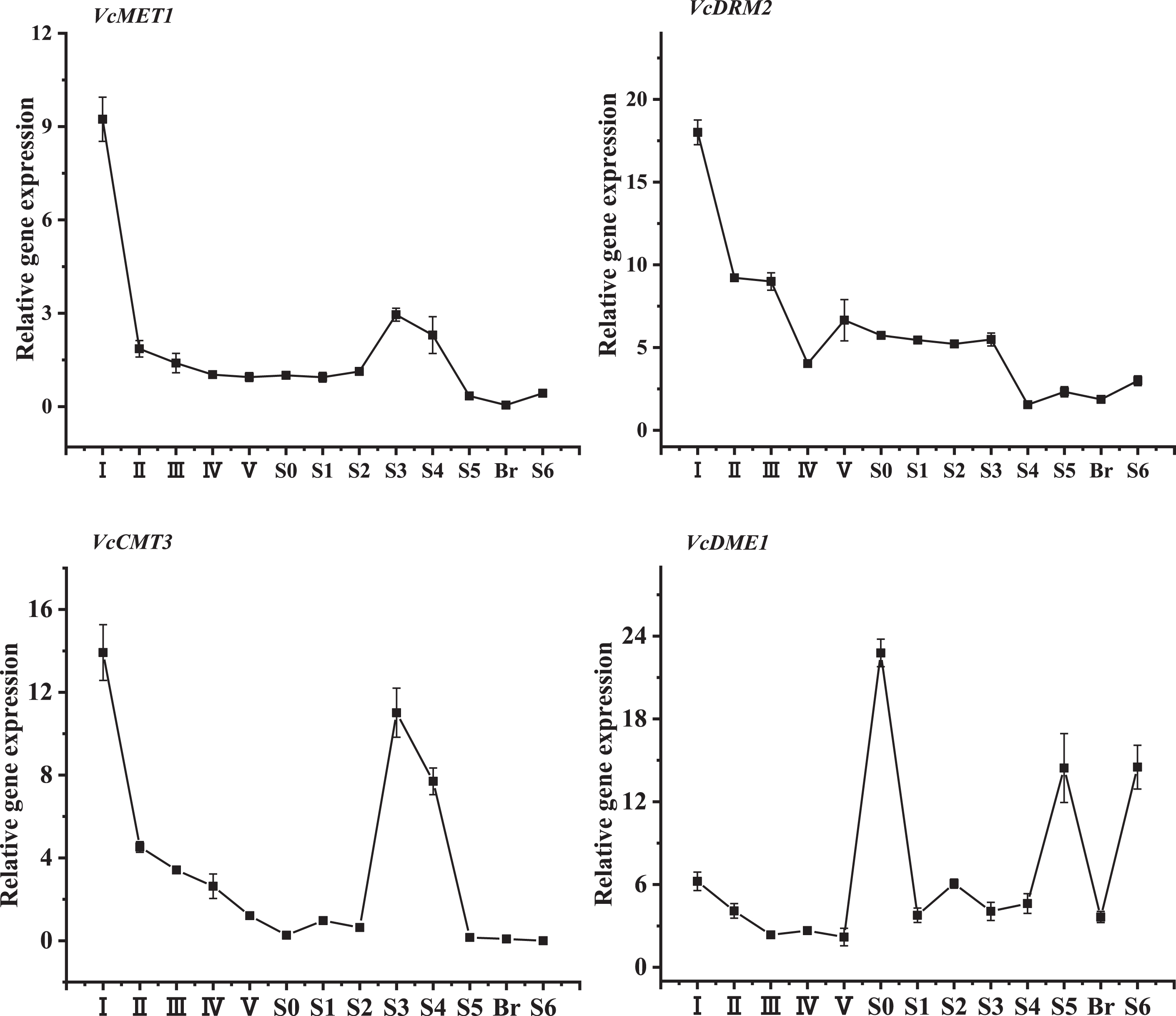

The developmental expression patterns of V. corymbosum DNA methylation- and DNA demethylation-related genes throughout flower bud enlargement and fruit development.
Because anthocyanin accumulation primarily occurred in mature fruit, the expression patterns of selective anthocyanin biosynthetic genes were evaluated during V. corymbosum ‘O’Neal’ fruit development. Besides the reference gene VcGAPDH, Vc ANS transcripts at anthesis (stage S0) were chosen to normalize other V. corymbosum anthocyanin biosynthesis-related gene expression levels. The expression patterns of VcCHS, VcF3’H, and VcANS genes were somewhat similar, and exhibited a biphasic profile, with two peaks during early and late fruit development (Fig. 4). The mRNA levels of VcCHS and VcANS genes were higher than those of VcF3’H gene, and the highest expression peak was present at the early fruit development and the beginning of anthocyanin accumulation. Interestingly, the transcript levels of VcCHS and VcANS genes decreased sharply at the breaker stage, and then increased again till mature. VcDFR gene also exhibited an expression peak during early fruit development and then were maintained at a relatively lower level until anthocyanin accumulated in fruit, while the expression abundance of Vc UFGT gene maintained a relatvie low level at the early stages of fruit development, but gradually increased following fruit anthocyanin accumulation. In addition, the expression levels of VcF3’H, VcDFR and VcANS were relatively higher during early fruit development (stage S1 or stage S2), while the highest expression levels of VcCHS and VcUFGT genes occurred during the breaker stage or mature stage.

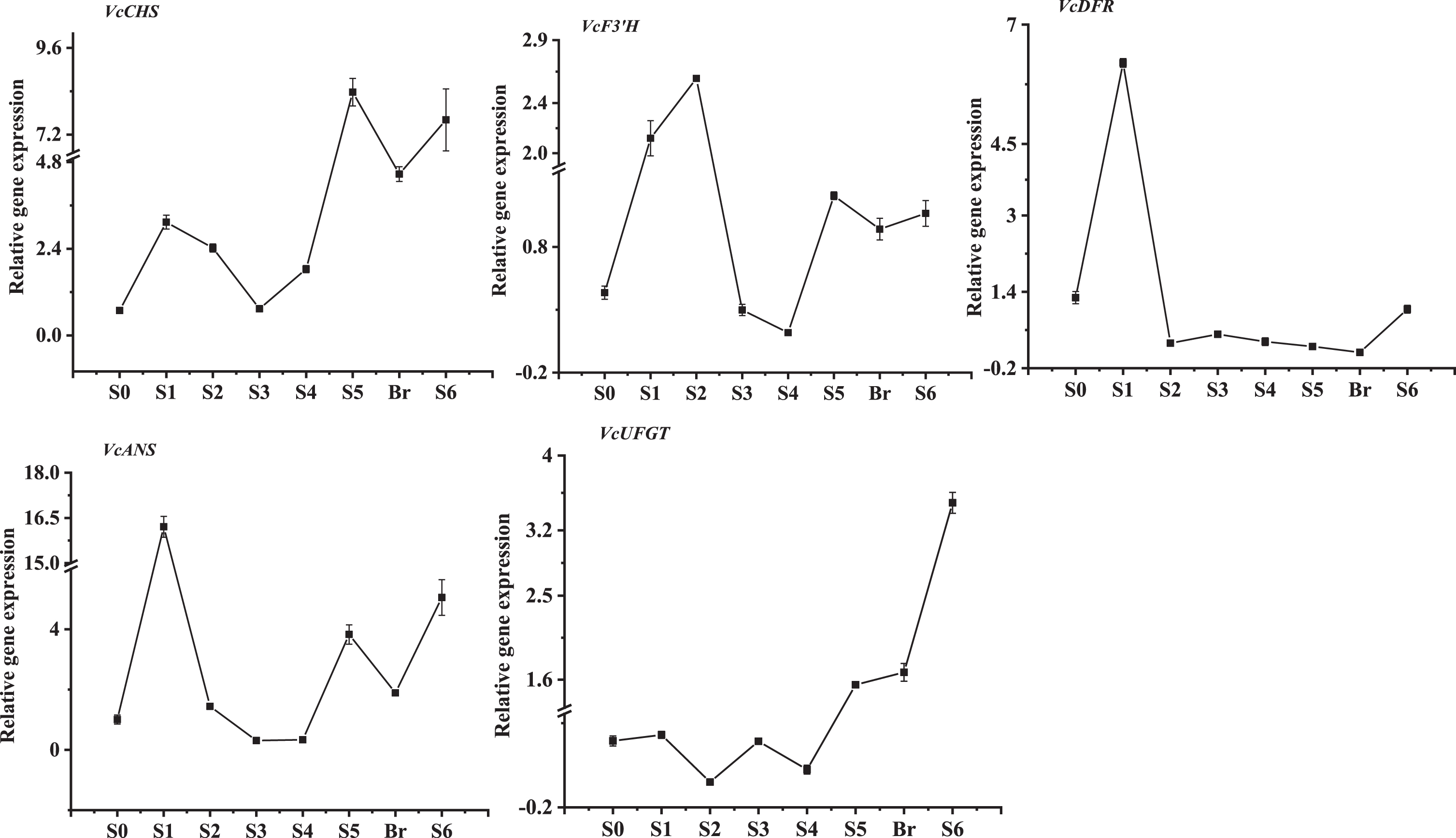

The developmental expression patterns of V. corymbosum anthocyanin biosynthesis-related genes throughout fruit development.
Purified genomic DNA extracted from V. corymbosum fruits during anthocyanin accumulation stages (stages S5, Breaker and S6) was converted by bisulfite, and then the bisulfite-converted genomic DNA was used as a template to isolate the VcCHS and VcANS promoters. After the removal of partially unreliable bases, 1,309-bp VcCHS and 1,206-bp VcANS promoter sequences were selected for the evaluation of DNA methylation changes.
During the anthocyanin accumulation process, the total variable 5mC of blueberry fruits at stages S5 and S6 were weakly lower than those at the breaker stage in the VcCHS bisulfite sequenced promoter loci (Fig. 5a). 5mC at the CHH motifs (54.05%) was dominant followed by CG motifs (35.14%) and CHG motifs (10.81%) (Fig. 5b). In addition, approximately 50 variable methylated/demethylated cytosine sites (3.82%) were detected in all three stages, and 7 sites were located in the important regulatory elements, especially in TATA box, CTCC site, Myb-binding site and ARE site (Fig. S3).

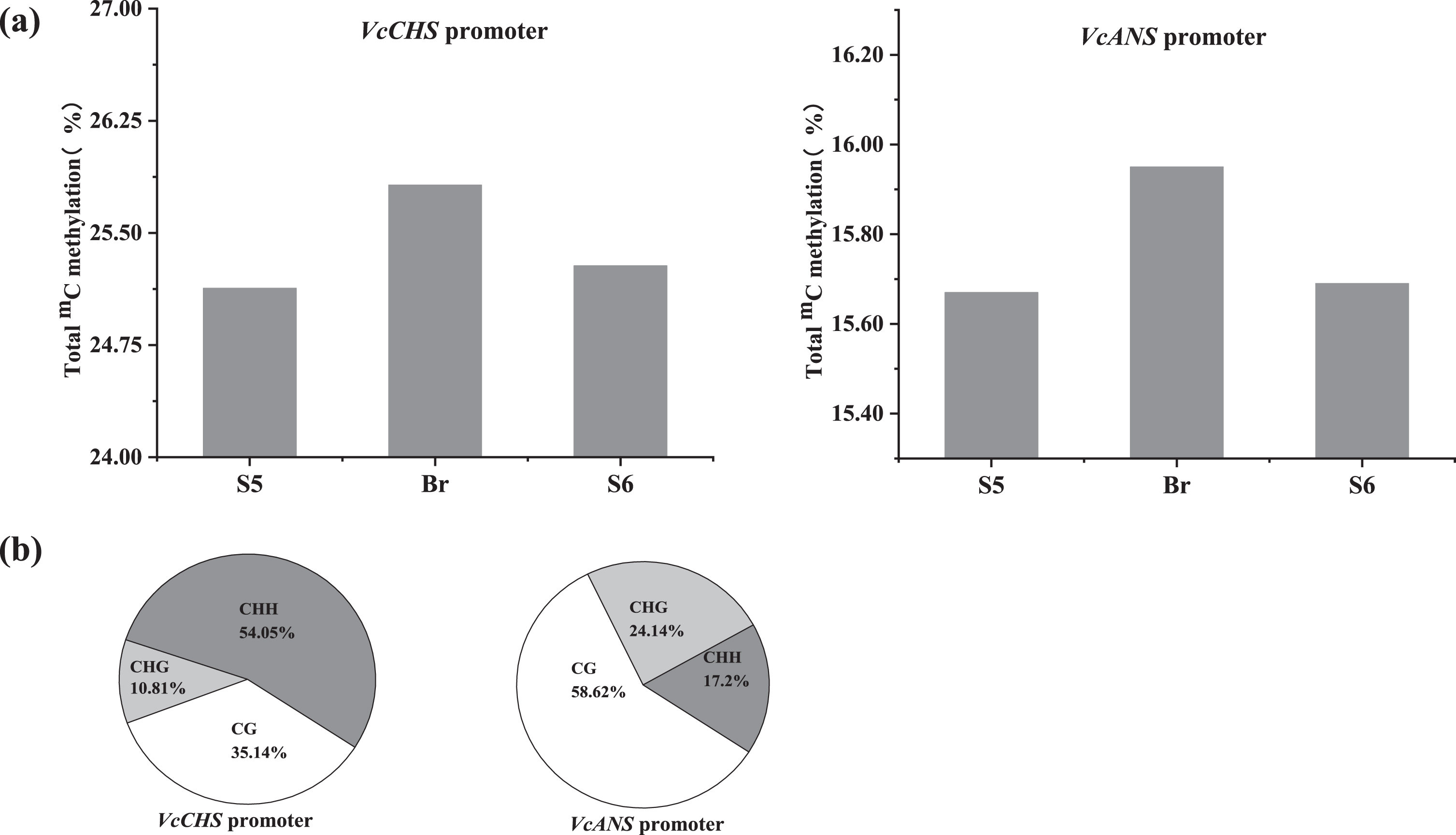

Specific DNA methylation status in the VcCHS and VcANS promoters during anthocyanin accumulation. a. Total cytosine methylation values in the VcCHS and VcANS promoters. b. Cytosine methylation values in percentage of CG, CHG and CHH motifs in the VcCHS and VcANS promoters.
In the VcANS bisulfite sequenced promoter loci, the total variable 5mC in the VcANS promoter at stages S5, breaker and S6 was 25.13%, 25.82% and 25.28%, respectively (Fig. 5a). And the ratio of 5mC at the CHH, CG and CHG motifs was 58.62%, 24.14% and 17.24%, respectively. Similar to the VcCHS promoter, a total of 43 mC variation sites (3.41%) were detected in the VcANS promoter during anthocyanin accumulation, and 4 sites were located in the core regulatory elements, such as CAAT box (enhancer region), box S, and box 4, responsible for light and anaerobic induction (Fig. S3).
V. corymbosum fruit color was positively correlated with the anthocyanin content and anthocyanin biosynthesis-related gene expression
Fruit skin color is an important quality indicator determining its acceptability among blueberry consumer [28]. V. corymbosum fruit is dark blue or purple, which is mainly attributed to the accumulation of abundant anthocyanins in the exocarp before maturation. In fact, immature V. corymbosum fruit is green, at which stages the total anthocyanins content is not detectable. Once V. corymbosum fruit entered veraison and postveraison, the total anthocyanin content could be detected and increased dramatically.
The most selective anthocyanin biosynthetic genes exhibited a biphasic profile, with two peaks during early and late fruit development, while the relative abundance of anthocyanin-specific VcUFGT transcripts gradually increased following fruit anthocyanin accumulation. The latter expression peak of VcCHS, VcF3’H, VcDFR and VcANS genes was unquestionably followed by anthocyanin accumulation in the fruit, and the first expression peak might be involved in the proanthocyanidin biosynthesis, because anthocyanin and proanthocyanidin biosynthesis shared the same upstream biosynthetic enzymes [16, 29]. In our previous studies, the level of total proanthocyanidins peaked at the early stages of fruit development and subsequently declined as the fruit matured (data not shown). Similar results have been found in north highbush blueberry and blackberry fruit [16, 30], and the switch in flavonoid biosynthesis from proanthocyanidins to anthocyanins might be involved in protecting fruit and promoting seed dispersal [16].
Dynamic changes in DNA methylation occurred during V. corymbosum fruit development and fruit ripening
Epigenetic modifications, especially DNA methylation, play very important roles in plant growth and development. The dynamical changes in DNA methylation, is a ‘timing switch’ for specific developmental stages in plants [3, 9]. In sweet orange, DNA methylation gradually increased with a gradual decrease in the expression of DNA demethylase genes during ripening [31]. However, DNA methylation gradually decreased following the upregulation of DNA demethylase expression, and ripening-induced demethylation was abolished in the promoters of several fruit-ripening genes [32]. In this study, the expression of VcMET1, VcDRM2 and VcCMT3 genes was high at the early stages of flower bud enlargement (stages I and II), at the end of the first rapid fruit growth stage (stage S3) and at the beginning of the second rapid fruit growth stage (stage S4). Following the process of fruit ripening and nutrient accumulation, the expression of these DNA methylation maintenance related genes gradually decreased, and even became undetectable. In contrast, VcDME was mainly expressed at anthesis (stage S0) and exhibited a fluctuating increasing and decreasing trend during anthocyanin accumulation and fruit ripening (Fig. 3). These observations suggested that DNA methylation and demethylation worked together to regulate blueberry fruit development and ripening. Recently, the m6A methylation in mRNAs was declined during tomato fruit ripening [33], indicating that not only DNA methylation and demethylation but also other epigenetic mechanisms were involved in fruit growth and development.
DNA methylation changed dynamically in the promoters of VcCHS and VcANS during anthocyanin biosynthesis
DNA methylation is mainly enriched in the heterochromatin regions, transposable elements, and promoter sequences, etc.[3, 44], and DNA methylation level in the promoter regions of special genes could be used for the ‘fine tuning’ of gene expression [5, 32]. In this study, the total variable 5mC levels of VcCHS and VcANS promoters were approximately 25% and 16%, respectively, and weakly increased and then decreased following anthocyanin accumulation and fruit ripening (Fig. 5). This trend was similar to that detected in climacteric fruit, such as tomato, and nonclimacteric fruit such as orange and strawberry [31, 34]. Furthermore, some variable 5mC sites in the VcCHS and VcANS promoters were located in the cis-regulatory elements, such as the CAAT box (enhancer region), box S and box 4, responsible for light and anaerobic induction and gene transcription. In addition to these structural genes, transcription factors, such as Myb and bHLH, were also associated with anthocyanin accumulation regulated by DNA methylation [26, 45].
Conclusions
The dynamic balance of DNA methylation is an important regulatory mechanism for animal and plant development. Fruit ripening, and anthocyanin accumulation in fruit are complex developmental processes that involve in numerous physiological, biochemical, and structural alterations. In this study, DNA methylation and demethylation were involved in anthocyanin accumulation in V. corymbosum fruit by regulating the DNA methylation levels of the promoters of the anthocyanin biosynthetic genes VcCHS and VcANS. Our results may provide a relatively more complete understanding of the regulation of anthocyanin synthesis and fruit ripening.
