COVID-19 is a contagious respiratory illness that can be passed from person to person. Because it affects the lungs, damages blood arteries, and causes cardiac problems, COVID-19 must be diagnosed quickly. The reverse transcriptase polymerase chain reaction (RT-PCR) is a method for detecting COVID-19, but it is time consuming and labor expensive, as well as putting the person collecting the sample in danger. As a result, clinicians prefer to use CT scan and Xray images. COVID-19 classification can be done manually, however AI makes the process go faster. AI approaches include image processing, machine learning, and deep learning. An AI model is required to diagnose COVID-19, and a dataset is necessary to train that model. A dataset consists of the information from which the model is trained. This paper consists of the review of different image processing, machine learning and deep learning papers proposed by different researchers. As well as models based on deep learning and pretrained model using gradient boosting algorithm The goal of this paper is to provide information for future researchers to work with.
Humans have encountered many contagious diseases throughout history, resulting in pandemics and epidemics [1]. There were no advanced answers to these difficulties in the past, which resulted in several negative human consequences. COVID-19 [2] is a novel disease kind that has arisen. It’s a member of the SARS family [3]. According to WHO, there were 198,778,175 confirmed cases of COVID-19 as of mid-August 2021, with 4,235,559 deaths and a total of 3,886,112,928 vaccination doses [4]. However, unlike in the past, there are now significantly more effective methods for detecting and diagnosing COVID-19, including RTPCR [5]. However, RT-PCR is not only time expensive, but it also has a high false negative rate [6]. As the prevalence of covid 19 grows, a better approach is required to address these issues. This is where AI [7] comes in. In the past, AI has proven to be extremely beneficial in the medical field [8]. AI has come a long way. In [147]. Elleuch Mohamed et al. employed a pre-trained VGG-16 architecture to recognise characteristics in plant leaves in agricultural fields. Valappil et al. applied CNN-SVM machine learning method [148] for vehicle detection utilising Unmanned aerial vehicles (UAVs). For Arabic word detection from natural photos, Oulladji et al. used ensemble learning approaches such as Support Vector Machine, Neural Networks, and Adaboost boosting algorithm in [149]. However, because AI alone cannot solve the problem, CT scan and X-ray images are used. Using CT scan images and transfer learning techniques, Souza et al. utilized Mask R-CNN for lung segmentation in 2021 [150]. In the medical industry, CT scan and CXR images are employed for a variety of purposes [9, 10]. Deep Learning [11], Machine Learning [12], and Image Processing [13] are some of the AI technologies that can be utilised to distinguish COVID-19 patients from CAP (Community Acquired Patients) [14].
This paper discusses a few ways for detecting COVID-19 in CT scan and X-ray images utilising Machine Learning, Image Processing, and Deep Learning techniques. The models that we implemented using Deep Learning and Pretrained models are also included in this work [15]. Websites such as IEEE Xplore, SpringerLink, and Arvix were used to choose the papers. Google Scholar was utilised to find papers, and the key words used were COVID-19, CNN, Machine Learning, Image Processing, Deep Learning Techniques, Pretrained model and Datasets. The purpose of this publication is to give future scholars with knowledge about COVID-19 prediction via AI techniques and also predict COVID-19 with different AI technique. To work with these models, there should be a suitable dataset; the dataset should be divided into training and testing sets at a ratio of 10:90, but this might vary depending on the model. ImageNet is one of the datasets which has over 10 million images [112]. The data that is used to train the model, also known as seen data, is data that is processed repeatedly in order to enhance the model’s accuracy. The data used to evaluate whether the model is performing properly or not is known as testing data or unseen data. To minimise overfitting, the dataset is sometimes segregated into validation data, which is used to validate the data after using the testing data to ensure that the model is not becoming accustomed to the testing data. It occurs as a result of the model being trained in the training data for an excessive amount of time. It removes irrelevant data from the training data and adjusts the model’s memory to be as near to it as possible. Overfitting is caused by a low error rate in training data and a high error rate in testing data. Underfitting refers to when a model is unable to create a relationship in the model, resulting in a high error rate in both training and testing data. It is caused by a model that is too simplistic, has been trained insufficiently, or has a dataset with insufficient characteristics. It is also created by forcing the model to end training in order to minimise overfitting. This procedure is known as early stopping. To prevent the issues of underfitting and overfitting, the machine learning algorithm should ensure that the data fits the model perfectly. The first section of this paper consists of Introduction, the second section provides information about different research papers of deep learning techniques, the third section provides information about different studies which have used image processing technique, fourth section mentions the different papers that have been used in this study using machine learning techniques. Fifth section is about our COVID-19 prediction pretrained model. Sixth section is about our deep learning model for COVID-19 prediction, seventh section is the comparison table of different papers. Eight section is conclusion and Ninth Section is References.
Methods for deep learning technique
Neural networks are the most common deep learning method. Deep learning is utilized in image recognition, speech recognition, and other applications. It’s also used to categorize things. Deep learning is a subset of machine learning, in which basic concepts are employed to train the model, whereas artificial neural networks are utilized to mimic human behaviour in deep learning. The number of layers in an ANN indicates how deep the network is. The neural network works in a similar fashion to the brain. Artificial neural networks, like neurons in the brain, include nodes that carry signals. Thousands of these nodes are connected to each other and carry the signals all over the place. Deep learning, as a result, necessitates the use of sophisticated hardware. When there are several output categories, the dataset should be labelled dataset. Because the dataset being used is so enormous, training takes a long time, sometimes even weeks. As a result, several researchers apply transfer learning techniques to overcome the time problem. Transfer learning is the act of taking an existing model that has previously been trained for a short period of time and then inputting new data into the model that the researchers want to model by making modest changes to the network. The time it takes to train the model is reduced to hours or potentially a few days because the model has already been taught for a while and does not have to start from scratch. Deep learning is used for feature extraction, and the performance of deep learning models can be improved by using GPUs.
Convolutional Neural Networks (CNN) [16] – Convolution layers, pooling layers, and fully connected layers are among the building components of the CNN architecture. A typical design comprises of one or more completely linked layers followed by a stack of many convolution layers and a pooling layer. Forward propagation refers to the process of transforming input data into output data using these layers. Because a feature can appear anywhere in the image, CNNs are extremely efficient for image processing. Extracted features can evolve hierarchically and progressively more complicated as one layer feeds its output into the next layer. Training is the process of adjusting parameters like kernels in order to reduce the disparity between outputs and ground truth labels using optimization algorithms like backpropagation and gradient descent, among others.
DenseNet [17] – DenseNets takes advantage of the network’s potential by reusing features, resulting in condensed models that are simple to train and extremely parameter efficient. Concatenating feature-maps learned by distinct layers improves efficiency and enhances variety in the input of following levels.
MobileNet [18] – MobileNets are built on a simplified design that builds light weight deep neural networks using depth-wise separable convolutions. With the exception of the final fully connected layer, which has no nonlinearity and feeds into a softmax layer for classification, all layers are followed by batchnorm and ReLU nonlinearity.
Xception [19] – A linear stack of depthwise separable convolution layers with residual connections makes up the Xception architecture. This makes it very simple to specify and adjust the architecture.
Inception [20] – The Inception module’s goal is to make this process easier and more efficient by breaking it down into a set of operations that look at cross-channel correlations and spatial correlations separately.
ResNet [21] – Residual learning frameworks are simple to train and cope with overfitting concerns in networks that are significantly deeper than those employed in prior techniques. They are used as the backbone of the majority of systems. It is a deep CNN architecture with the idea of layer skipping, also known as identity shortcut connection.
VGG [22] – These are pretrained models i.e., models are already trained, VGG16 has 16 layers (13 convolutional and 3 fully connected layers) and VGG19 which has 19 layers (16 convolutional and 3 fully connected layers).
Lenet-5 [23] – It is a pretrained model which has 5 layers.
EfficientNet [24] – EfficientNets are a family of models that use neural architecture to create a new baseline network and scale it up to achieve considerably greater accuracy and efficiency than prior ConvNets [25].
AlexNet [27] – First architecture that used Convolutional layers.
U-Net [29] – The U-Net design is made up of two paths: a contracting path and an expansive path, with the layers from the contracting path concatenated to the expansive path. It has a U-shape to it.
Zhao et al. suggested [119] in 2020. They provided datasets and used DenseNet to create their model, which had an accuracy of 84.7 and precision of 97 using CT scan pictures. In 2020, Hilmizen et al. proposed [31] for covid 19 detection using CT scan and X-ray images. They used various models such as ResNet, DenseNet, and others, but the best results were obtained by combining ResNet50 and VGG16, as well as by combining Densenet121 and MobileNet. Both methods had a similar accuracy of 99.87 and sensitivity of 99.74. Islam and Matin proposed [32] in 2020 that they employed Lenet CNN for COVID-19 detection and achieved accuracy of 86.06 percent and precision of 85 percent with CT Scan images. Anwar and Zakir proposed [33] in 2020 that they used EfficientNet b4 with CT Scan pictures to detect COVID-19. They employed three learning rates: plateau, cyclic, and constant, however plateau produced the best results, with an accuracy of 0.90. Sari et al. proposed [34] in 2020, using CNN with CT scan pictures to achieve a precision of 98.0 and an accuracy of 97.57. Tabik et al. suggested [37] in 2020, using COVID-SDNET, which combines many approaches such as ResNet, U-Net, FuCiTNET [38], and CNN, to achieve an accuracy of 81.00 percent. In 2020, Khan et al. employed inflated Inception and ResNet50 with CT scan images for COVID-19 detection [39], with an accuracy of 0.84. They used two separate datasets, CC-19 and Covid-CT. In 2020 [40], James and Sunyoto employed CLAHE (Contrast Limited Adaptive Histogram Equalization) [41] in conjunction with CNN to achieve an accuracy of 83.28 percent and precision of 81.57 percent. In 2020, Dastider et al. proposed [42] that they used Otsu Thresholding [43] and CNN in their work for not only COVID-19 detection but also for distinguishing between normal, COVID-19, Viral Pneumonia, Bacterial Pneumonia, and Mycoplasma Pneumonia patients using CT scan images while also working with ResNet152V2 as backbone for their ResCovNet architecture. In 2020, Mohammed et al. applied CNN and updated ResNet in COVID-19 detection using CT scan images, achieving a precision of 0.819 and accuracy of 0.776 [44]. Wang et al. used 3D U-net [45] and 3D ResNet combined with CNN for COVID-19 identification in 2020 [46], achieving 93.3 percent accuracy and 87.6 percent sensitivity. In 2020, Cia et al. proposed [47] using CT scan images to diagnose COVID-19. They utilised CNN and ResNet and obtained an accuracy of 0.94 and precision of 0.97. Tabarisaadi et al. used a Bayesian approach for COVID-19 identification using CT scan in 2020 [48], along with three Bayesian algorithms, CNN and VGG16 in their work, and the results for regularised ensemble learning were 82.6 accuracy and 0.84 precision. Seum et al. proposed [49] in 2020, using several variations of ResNet and DenseNet, as well as VGG16 and VGG19, to detect COVID-19 in CT scan images. In DenseNet201, they had the best overall performance, with an accuracy of 89.92 percent and precision of 92.74 percent. For COVID-19 detection CT scan pictures, Kaya et al. [50] employed a variety of algorithms, including CNN, VGG16, EfficientNetB3, ResNet50, and Mo-bileNetV2, however EfficientNetB3 produced the best results, with an accuracy of 0.97 and sensitivity of 0.97. Padma and Kumari proposed employing CNN for COVID-19 detection using X-ray imaging in 2020 [51]. They achieved a precision of 100 percent and accuracy of 98.3 percent. In 2020, Qaqos and Kareem proposed [52] for COVID-19 detection using X-ray images. They used CNN for their work, and they divided the research into four classes, with the fourth class distinguishing between normal, COVID-19, Pneumonia, and Tuberculosis patients. They obtained an accuracy of 94.53 and precision of 92.67, 95.83, 95.97, and 95.65 for normal, COVID-19, Pneumonia and Tuberculosis patients respectively. Yener and Oktay proposed [53] in 2020 that they employed VGG16, VGG19, and Xception for COVID-19 detection using CT scan pictures, and that VGG16 had the best results with a learning rate of 10-4, accuracy of 0.91, and precision of 0.94. In 2021 Bougourzi et al. used algorithms such as ResneXt-50, Densenet-151, Inception-V3, WideResneXt for patient level and slice level classification for distinguishing normal, COVID-19, and CAP (Community Acquired Pneumonia) patients using CT scan images in 2021 [54], with an overall accuracy of 87.75 percent and sensitivity of 95.83 percent, 96.36 percent, and 52.63 percent. Chaudhary et al. employed EfficientNet to detect COVID-19 and CAP in 2021 [55], with stage 1 accuracy of 97.7% for COVID-19 and 94.7 for CAP, and stage 2 accuracy of 89.3%. In 2021, Wu et al. proposed [56] a Joint Classification and Segmentation (JCS) based diagnosis system to deliver diagnosis findings for COVID-19 detection. They employed ResNet and achieved a sensitivity of 95% and a specificity of 93%. In 2021, Jiang et al. proposed a Siamese network-based model for COVID-19 identification utilising Xception with CT scan images [57], with an accuracy of 0.8040 0356 and an F1 score of 0.7998 0384 in their research. Xue [58] used 3D based learning for COVID-19 diagnosis in 2021, with an accuracy of 86.84 percent and a sensitivity of 87.79 percent using 3DResNet50 and CNN. In 2021 [59], Sanagavarapu et al. employed the CLAHE algorithm for COVID-19 diagnosis, as well as CNN and ResNet, and obtained an accuracy of 0.87 and precision of 0.91. In 2021, Dutta et al. used Deep Neural Network and inception in their CNN model to diagnose COVID-19 using CT scan images [60], with an accuracy of 84 percent. Amran et al. proposed [61] in 2021 utilising CNN and variations of U-Net to distinguish be-tween COVID-19 and CAP, with an accuracy of 87.9 and sensitivity of 90.7. Berrimi et al. proposed [62] in 2021 for creating an automated for assisting doc-tors in COVID-19 diagnosis using X-ray and CT scan images. They used Inception V3 and DenseNet in their work, and they achieved an accuracy of 85% with Inception V3 in CT scan images and 95% with enhanced DenseNet in X-ray images. In 2021, Heidarian et al. introduced the “CT-CAPS” [63] capsule network-based architecture. They employed the R231CovidWeb U-Net model and yielded an accuracy of 89.8% and sensitivity of 95.5 percent. Rodrguez et al. proposed [64] using 3D CNN with CT scan images to diagnose COVID-19. They used LTC (Long Term Convolutional Nets), I3D (Inflated 3D ConvNet), and 2D U-Net for lung segmentation and got a precision of 98 percent for non-Covid and 96 per-cent for Covid in LTC and 96 percent for non-Covid and 100 percent for Covid in I3D. Sharma employed the CNN model with X-ray images in 2021 [65], but they also used VGG16 and VGG19 since they both produced superior accuracy of 0.97 compared to 0.94 for CNN, but their CNN model required less computational resources than VGG16 and VGG19. Kumar et al. proposed [66] in 2021, in which they tested VGG16 and ResNet models for COVID-19 identification using CT scan and X-ray pictures, as well as CLAHE, U-Net, and CNN for image cropping and histogram equalisation. They discovered that VGG16 provided superior accuracy while ResNet was more dependable, resulting in an accuracy of 0.974 and an F1 score of 0.979. In 2021, Nawshad et al. proposed [67], in which they used different approaches such as VGG16, ResNet, and Xception with little variation with X-ray images, which was not only useful for COVID-19 detection but also proved useful for viral pneumonia, but they got the best accuracy in ResNet model 96.79 percent, which had attention module in each block. Garg et al. proposed [68] that they employed CT scan to train three level classifiers (pretrained, patient level, and slice level) using ResNet50 to differentiate between COVID-19, CAP, and normal patients, with an overall accuracy of 88.57. In 2021 Subrato Bharati et al. [146]. used CO-ResNet for COVID-19 detection using X-ray images and they got accuracy of 90.90% and precision of 90.20%.
Methods for image processing technique
This section contains details on the various machine learning and image processing techniques utilized in the research articles presented here. Image processing is a technique for extracting or obtaining usable information from an image, such as characteristic features, by performing operations on it. An algorithm is used to convert the low-resolution image to a higher-resolution image. It was originally implemented in 1960 with the sole objective of improving image quality. In 1972, British engineer EMI Hounsfield invented x-ray computed tomography for head diagnosis utilizing image processing. Feature extraction, categorization, and pattern recognition are the most basic image processing applications. The purpose of image processing is to locate areas of greyscale. There are two types of image classification: supervised classification and unsupervised classification. In supervised categorization, particular training data is used with the use of “training sites” to determine what information is known. The huge unknown data with natural groupings is employed in unsupervised classification.
Ground Level Co-occurrence Matrix (GLCM) [69] – Textural characteristics based on gray tone spatial dependencies are presented, along with examples of their use in three different types of image data categorization tasks.
Local Binary Pattern (LBP) [70] – The texture categorization model LBP was first described in 1990. It divides the image’s pixels by the nearby pixels, yielding a binary number. As LBP, image data for texture classification is represented in a histogram. Uniform patterns are utilized to shorten the length of the feature. In LBP, a pattern is considered a uniform pattern if it has two bitwise transitions from 0 to 1 or vice versa when traversed in a circle. Patterns that are uniform and non-uniform are labeled individually.
Histogram of gradients (HOG) [71] – Robert K. McConnell first described HOG, a feature extraction model used in image processing, in 1996. To evaluate well-normalized local histograms of image gradient orientations, the approach uses a dense grid.
Grey Level Run Length Matrix (GLRLM) [72] – It is similar to Ground Level Co-occurrence Matrix (GLCM). The Gray Level Run Length Matrix is a technique for obtaining statistical texture properties of higher order.
Grey Level Size Zone Matrix (GLSZM) [73] – It is concerned with the total number of grey zones in the given image.
Local Directional Pattern (LDP) [74] – It labels each pixel in a picture by comparing its P-neighbor values to the center value and then converting the result to a binary integer.
Luqy Nailur Rohmah and Alhadi Bustaman [75] proposed a study in 2020 about classification using image processing techniques to identify COVID-19. They utilized various combinations of GLCM, HOG, and LBP, as well as PCA and SVM, and reached accuracy of 99.4 using CT scan pictures and 97 using x-ray images. Zebari et al. proposed a paper in 2020 [76] for detecting COVID-19 by extracting different features from images and then feeding into classifiers. They used FD, GLCM, and LBP for feature extraction and KNN, ANN, and SVM for classifiers, and the best results were obtained using ANN and KNN, with an accuracy of 96.91 and precision of 95.77. Mucahid Barstugan, Umut Ozkaya and Saban Ozturk published a paper [77] in 2020 about classification of COVID-19 using feature extraction and machine learning. They used GLCM, LDP, GLRLM, GLSZM, and DWT [86] for image processing and SVM for machine learning. They divided the dataset into 5 parts in terms of subset while obtaining the results. The findings of the 76 non-infected and 106 infected patients were included in the fifth subset. Using the DWT feature extraction approach, they extracted 1024 features and performed 10-fold cross validation to get a best result of 97.28 2.9 accuracy and 100 precisions. In 2021, Yasar and Ceylan proposed a paper [78] for COVID-19 detection using texture analysis, machine learning, and deep learning. KNN and SVM were used as machine learning techniques, and it was discovered that SVM was more successful. It was also discovered that using GLCM and LE for-feature extraction would improve SVM results, whereas using feature LBP and LE for-feature extraction would improve KNN results. Using CNN and deep learning, it was discovered that MobileNet had the best result, although AlexNet was the fastest in terms of classification time. Using all of these factors, they obtained a mean accuracy of 0.9473 in 2-fold cross validation and 0.9599 in 10-fold cross validation.
Methods for machine learning technique
This Machine learning is a data science approach that improves over time without requiring the usage of computer code. It develops itself by incorporating various user inputs. In general, machine learning in AI is used to replicate human thinking by using data provided by people. Big firms like Facebook and Google build and enhance their apps by asking consumers a variety of questions and incorporating their responses. It takes the inputs and processes them in order to predict new values. supervised machine learning, unsupervised machine learning, semi-supervised machine learning, and reinforcement machine learning are the four types of machine learning. To acquire its findings, supervised machine learning employs labelled datasets; it’s utilized for classification, and some of the methods employed include linear regression, naive bayes, and support vector machines, among others. The employment of algorithms to deal with unlabeled data is known as unsupervised learning. It can be beneficial in locating hidden elements in data. It’s utilized for both picture and voice recognition. Neural networks, KNN, and other approaches are employed in the algorithm. Semi-supervised learning is a combination of supervised and unsupervised learning. The train data used is small labelled data whereas the testing data is used in large unlabeled clustered data, it is sued to solve the problem of the having less training data. Reinforcement learning is like supervised learning but instead of using supervised learning it uses constant trial and error and with each successful outcome it reinforces the data and thus the name reinforcement learning. Machine learning helps in business and provide market. Applications of machine learning include image recognition, speech recognition, whether predictions, etc. Ensemble learning [79] is also a machine learning technique which combines different machine learning techniques in order to make a better model. Ensemble learning increases the performance of the model by achieving greater accuracy also makes the model robust.
Support vector machine (SVM) [80] – Solving a restricted quadratic optimization problem is used to train SVM. This means, among other things, that each set of SVM parameters has a unique optimum solution. This is in contrast to other learning machines, such as backpropagation-trained Neural Networks.
Principal Component analysis (PCA) [81] – PCA is a method for lowering the dimensionality of such datasets, boosting interpretability while minimizing information loss.
K-Nearest Neighbor [82] – The k-Nearest- Neighbors (kNN) technique of classification is a basic yet effective method. The two most significant disadvantages of kNN are (1) its poor efficiency (being a lazy learning approach precludes it from being used in many applications, such as dynamic web mining for a big repository) and (2) its reliance on the selection of a “good value” for k.
Random Forest (RF) [83] – Because it can tolerate missing values and can handle continuous, categorical, and binary data, the Random Forest is ideal for high-dimensional data modelling. Random Forest is robust enough to overcome the concerns of overfitting thanks to the bootstrapping and ensemble technique, therefore there is no need to trim the trees.
Support Vector Clustering (SVC) [84] – Because SVC was created as an expansion of H.264/AVC, the majority of H.264/components AVC’s are employed as stated in the standard. Motion compensation, intra prediction, transform and entropy coding, the deblocking filter, and Network Abstraction Layer (NAL) unit packetization are all included.
Artificial Neural Network (ANN) [85] – The use of artificial neural networks (ANNs) helps researchers to partially overcome some of the constraints of standard statistical approaches in their research. The use of ANNs, for example, does not require specific assumptions about the distributions of the system variables and their reciprocal relationships.
Gradient Boosting Decision Tree (GDBT) [87] – It is a boosting algorithm similar to random forest and xgboosting algorithm.
Adaboost [88] – Without any prior knowledge of learner learning, the Adaboost (adaptive boosting) method operates by altering weight. The AdaBoost method has mostly been studied and applied to classification problems.
Multilayer perceptron (MLP) [89] – The signals are only sent in one way inside the network: from input to output. There is no loop since each neuron’s output has no effect on the neuron itself.
Randaugment [90] – RandAugment’s main purpose is to eliminate the requirement for a separate search phase on a proxy task. RandAugment has a much smaller search field, allowing it to be trained directly on the target job without the requirement for a proxy task.
Long Short-term Memory Model [91] – The LSTM technique is quite similar to the gradient boosting approach. It was created to eliminate back-flow errors.
Logistic Regression [92] – Logistic model outperforms an intercept-only model, it is considered to provide a superior fit to the data (also called the null model). Because it contains no predictors, an intercept-only model is a suitable baseline. As a result, this model predicts that all observations will fall into the greatest out-come category.
Linear Regression [93] – A statistical approach for estimating the value of a dependent variable from an independent variable is linear regression. The relationship between two variables is measured using linear regression. It’s a type of modelling in which one or more independent variables are used to predict a dependent variable.
K-Means [94] – K-means is an iterative, numerical, unsupervised, non-deterministic approach. It is easy and quick; hence it has shown to be a very useful strategy for producing good clustering results in many practical situations. However, it’s ideal for making globular clusters.
Annisa Utama Berliana and Alhadi Bustamam suggested [95] a method for ensemble learning for categorization of COVID-19 in 2020. They employed SVC, KNN, and RF to obtain a 99 percent accuracy. X-rays have a precision of 98 percent and a recall of 100 percent, whereas CT scans have a precision of 97 percent and a recall of 97 percent. Tabrizchi et al. proposed a paper [96] in 2020 for using various machine learning, ensemble learning, and neural networks, such as SVM, Nave Bayes, CNN, MLP, Adaboost, and GDBT, to find an intelligent and accurate solution for COVID-19 detection, and they discovered that SVM and CNN outperformed all of them, with accuracy of 0.9920 and 0.9670, and precision of 0.9819 and 0.9724. Sharma submitted research [97] in 2020 that looked at CT images of 200 infected individuals and utilized machine learning to detect COVID-19. They used ResNet and Gradcam [36] and got a 91 percent accuracy rate. In 2020, Luca Brunese, Fabio Martinelli, Francesco Mercaldo, and Antonella Santona published a study [98] that employed machine learning approaches to detect COVID-19 patients. They used KNN and obtained a precision of 0.968 for COVID-19 patients and 0.955 for other patients. In 2020, Rezaee et al. proposed [99] a hybrid deep transfer approach for COVID-19 identification, which used both machine learning and deep learning. They employed SVM, CNN-CaffeNet, AlexNet, VeggF, KNN, and MLP to achieve a precision of 0.995 and accuracy of 0. 994. An ensemble learning approach for diagnosing COVID-19 using CT scan images was suggested by Bingyang Li, Qi Zhang, Yinan Song, Zhicheng Zhao, Zhu Meng, and Fei Su in a publication [100]. They achieved accuracy of 86.73 percent and sensitivity of 87.27 percent for COVID-19 patients, 68.42 percent for CAP patients, and 100 percent for normal patients using flip-and-shift augmentation, RandAugment, AdaBoost, EfficientNet, K-means, and ImageNet. A review study on machine learning approaches was offered by Siddiqui et al. in 2021 [101]. SVM, KNN, Logistic regression, and LSTM were the machine learning algorithms employed. They discovered that LSTM surpasses them all, with an accuracy of 99.68 percent, whereas SVM, KNN, and logistic regression only managed 96.20 percent, 95.30 percent, and 97.20 percent, respectively. A review study [102] by Ameer Sardar Kwekha Rashid, Heamn N. Abduljabbar, and Bilal Alhayani on covid- analysis of 19 They looked at 14 publications, five of which were about logistic regression, three were about ANN, and two were about CNN. They also looked at one study each about linear regression, K means, and KNN.
Prediction using pretrained model
In this study, a Pretrained model was used to identify COVID-19. Pretrained models are those who have previously been trained by someone else. As a result, rather of creating a model from scratch, one might use an existing model to solve their problem. Transfer learning is commonly used by pretrained models since it relies on prior information to tackle present problems. Feature and parameter transfer are both part of the pretraining process. In feature transfer, pre-train effective feature representations are used to improve the model’s performance. Parameter transfer methods work on the assumption that source and target tasks can exchange model parameters or previous distributions of hyper-parameters. The capacity to work with less data, the removal of the requirement to construct a model because one already exists, and the ability to attain high performance in a short amount of time are all advantages of using a pretrained model. We employed the VGG16 model, which had been pre-trained. Zisserman and Simonyan “VERY DEEP CONVOLUTIONAL NETWORKS FOR LARGE-SCALE IMAGE RECOGNITION” [22] was suggested in 2015. They used the ConvNet (Convolutional Neural Network) Model in that study to improve the model and raise its accuracy. They used their model in the ILSVRC competition. In 2014, they won with a 25.3 percent loss. They implemented VGG Net-D (16 layers) and VGG Net-E (19 layers), and their picture classification results were 89.7 mean AP in VOC-2007, 89.3 mean AP in VOC-2012, 92.7 0.5 mean class recall in Caltech-101, and 86.2 0.3 mean class recall in Caltech-256 [104]. For picture levee classification, we use Xgboost [103], which can also be done using deep learning, however deep learning takes a large amount of data, often millions to thousands of photographs. However, if that much data isn’t accessible, deep learning models produce poor outcomes and underperform. Boosting techniques such as Xgboost, Adaboost, random forest, and others are better to employ at that time. Because employing boosting algorithms instead of a deep learning model will yield far better outcomes.
Model
VGG16 uses a 224 by 224 RGB picture with a fixed size. With the filters set to 33%, the picture is processed through a convolutional (conv.) layer stack. Padding is 1 pixel for 3 3 conv. layers. Spatial pooling is done via five max-pooling layers that follow part of the conv. layers. Stride 2 is used to max-pool over a 2 2 pixel frame.
Because there are 16 layers in total, 13 convolutional layers, and three completely linked layers, it’s called VGG16. In the first and second blocks, there are two convolutional layers followed by a maxpooling layer. In the next three blocks, three convolutional layers are followed by a maxpooling layer, and the last block comprises three fully connected layers.
Dataset
There were a total of 1526 photos utilized, including 700 Covid images and 700 non-COVID-19 images. [105] provided a few photos of COVID-19. A few more COVID-19 patient photos were collected from [106], which also included normal images, so that the model could differentiate between COVID-19 and normal patients. The dataset was split into two parts: 88% for training and 12% for testing. The photographs are organized into two folders: one for training and the other for testing. There are two more folders in those folders that separate Covid and Non-Covid.
Architecture
To import the VGG16 model, we utilized the Keras API in conjunction with the TensorFlow machine learning platform. For plotting, we imported numpy, matplotlib, and seaborn. The image’s size was set to 256 pixels. Later, lists were used to specify training data and labels. Because pictures are utilized, a path should be supplied, followed by converting lists to arrays and repeating the testing/validation data. Importing the sklearn preprocessing so that the photos are encoded in one-to-one values. We divided the data by 255.0 to rescale the pixel values from 0 to 1. One hot encoding is used for dense layers. To load the model, we utilized ImageNet weights with VGG16, and the top value is false since we didn’t use a dense layer and simply used VGG16 for feature extraction. Also provided is a 256 256 3 input size. VGG16 has a size limitation of 224 224 3, however because we were utilizing VGG16 for feature extraction, we were able to use pictures up to 256 pixels in size. However, if we employed thick layers, we had to resize those photos to 224 224 3 pixels. Then we set the model to non-trainable since we needed pre-trained weights and didn’t want to train it because we weren’t using a deep neural network. Then utilizing the features and reshaping them to make them compatible with Xgboost for training. We used the features retrieved with Xgboost to train the models. We used Vgg16 to test the data with the newly trained model.
Performance metrics
For getting the performance of the model and confusion matrix we imported ‘sklearn.metrics’, it shows the results in true positives (TP), true negatives (TN), false negatives (FN) and false positives (FP). Let TN stand for COVID-19 negative photos that have been correctly categorized, TP for COVID-19 positive images that have been correctly classified, FN for COVID-19 positive images that have been wrongly classified, and FP for COVID-19 negative images that have been incorrectly classed.

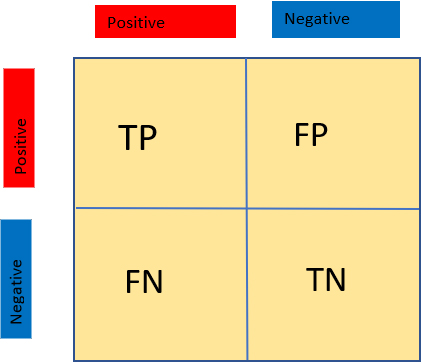

Confusion matrix shows the value in TP, TN, FP and FN (see Fig. 1).
A confusion matrix of true positive, true negative, false positive and false negative.
Accuracy-Accuracy is the how much correct predictions obtained divided by the total prediction.
Accuracy TP FP/TP FP FN TN
Recall (Sensitivity) – is the correct predictions divided by the total prediction of that class i.e., COVID-19 which will include the correct COVID-19 prediction and Incorrect COVID-19 prediction.
Recall TP/TP FN
Precision – is the correct prediction divided by the total positive prediction, which include all the prediction that the model thinks is COVID-19.
Precision TP/TP FP
F1 score – F1 score takes account of both false positive prediction and false negative predictions. Thus, it takes the values of both precision and recall.
F1 Score 2 Precision Recall/Precision Recall
Specificity – is the incorrect predictions divided by the total prediction of that class. Thus, it shows the correct detection on Non COVID-19.
Specificity TN/TN FP
Result
We used Vgg16 model for image classification along with Xgboost boosting algorithm. The results depend on the total number of images used. The higher the number of images the more accurate the results are. For comparison, we compared our model to that of [44], who utilized ResNet, and [46], who used 3D U-Net and 3D ResNet. Results are provided in Table 1. We got overall good results with accuracy, precision and f1 score of 98%. We got 97% of recall and specificity. Model presented the COVID-19 infected patient image (see Fig. 2).
A COVID-19 infected image displayed by the model.
Prediction using deep learning model
We also used a deep learning model based on the U-Net architecture to detect COVID-19. Olaf Ronneberger, Philipp Fischer, and Thomas Brox proposed the U-Net architecture in 2015 [29], which is based on data augmentation. Data augmentation refers to methods for enhancing the amount of data available by adding slightly modified copies of existing data or synthesizing new data from existing data.

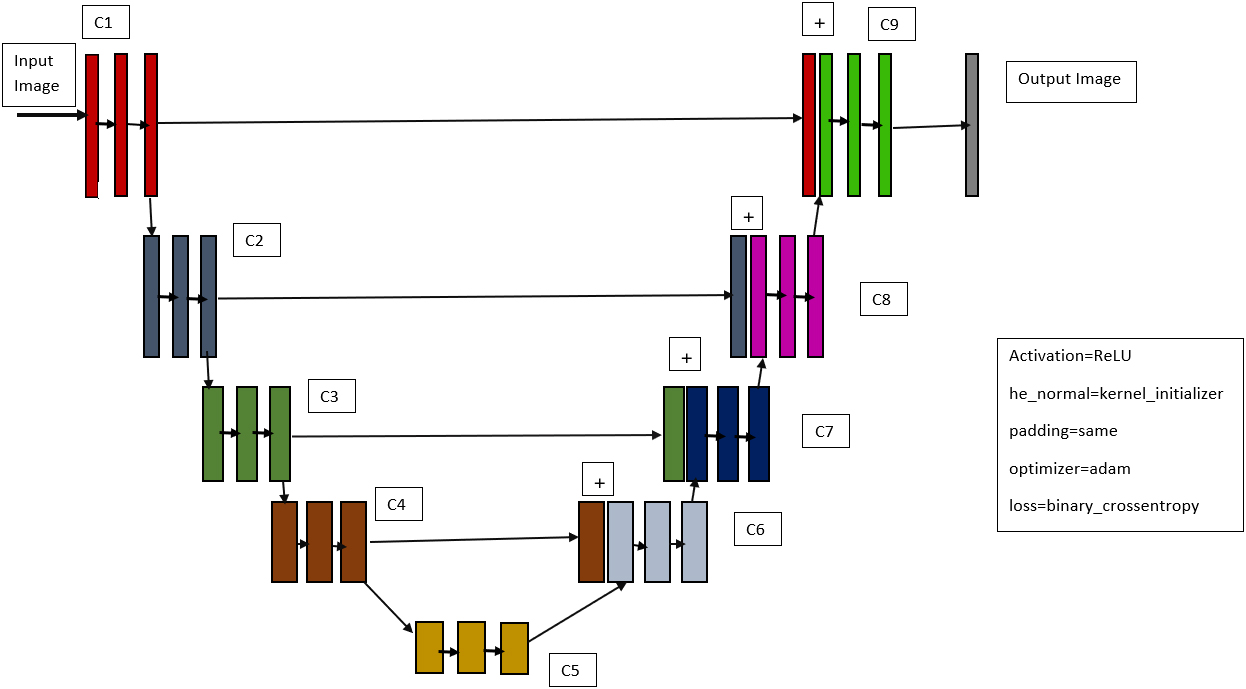

U-Net model that we employed.

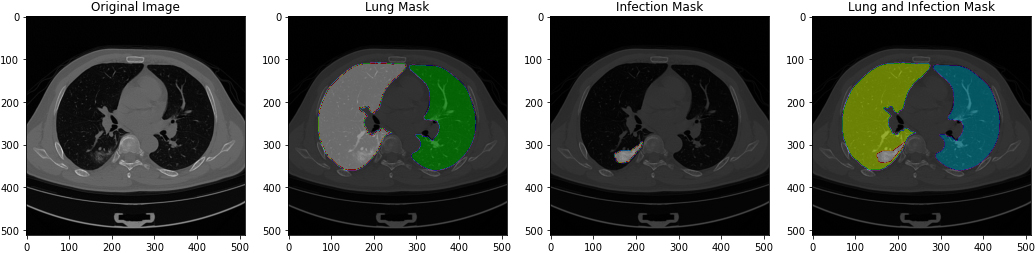

Images when loaded to preview of original image, lung mask, infection mask and lung and infection mask.
Model
U-net is an image segmentation architecture that, like many other deep learning models, consists of a combination of convolutional and maxpooling layers that are structured in such a way that they provide a result. Even though they employ the same layers that are included in all deep learning models, the arrangement and number of layers for each model will be different, resulting in variability in each design. The input layer is processed first, which will have a certain height, width, and channel size, such as 224 224 3. If the image channel is 3, the picture is colored, or more particularly, an RGB image (red, blue, and green), but if it is 1, the image is greyscale. Because of the convolutional filters, which essentially execute matrix multiplication, the image’s dimensions vary as it progresses down the model. The value depends on how much padding is done, among other things. The method of padding involves adding an extra layer of zeros to the image’s border. A tiny matrix determines the value from the picture that will be multiplied farther down the model in the maxpooling layers. As a result of this procedure, the image’s size is reduced, and padding is used to keep the image’s size consistent. U-net is a semantic segmentation tool that is mostly utilized in the field of medicine. The U-net architecture is called after the form of the letter ‘U’ in the alphabet. The contraction/encoder path is the one that goes down sampling path, while the expansion/decoder path is the one that goes up sampling path. The picture is initially sent to the convolution layers, then to the maxpooling layers, and finally to the up-sampling path. The model will have perfect symmetry; therefore, the down sampling path’s convolutional layer will be concatenated with the up-sampling path’s convolutional layer, which is exactly opposite each other. They’ll be the same size, thus adding the layer won’t be a problem. There is a dropout layer between the convolutional layers that randomly chooses certain pixels from the convolutional layer and removes them from the model. To avoid overfitting, dropout layers are employed (see Fig. 3).
Logistic Regression, ANN, CNN, Linear Regression, Naive Bayes, K Means, KNN
Out of 14 articles (86% classification, 7% regression and 7% clustering). Methods used (5 Logistic regession, 3 ANN, 2 CNN, 1 Linear Regression, 1 Naive Bayes, 1 K Means and 1 KNN).
[105] provided the dataset. It was divided into four sections: CT scans, which contained the original CT scan images, lung mask, which contained the same images but divided the left and right lung by color, infection mask, which contained the same images as CT scans but had segmentation that could be COVID-19, and lung and infection mask, which contained the lung segmentation and radiological findings of COVID-19 combined in one image of and lung and infection mask, NifTi format ((*.nii) extension) was used for all of these photos. In a.csv file, all of the photos were combined. Because the data was precisely labelled, there was no need to make any adjustments to the dataset. Images when loaded by the model (see Fig. 4).
Architecture
Basic packages were imported, as well as TensorFlow for training, nibabel for reading NifTi format data, and matplotlib for plotting the graph. To examine the photos and further characterize the images, a list was developed in accordance with the size of the images. Just as with our pretrained model, the lists were allocated to arrays. The dataset was separated into training and testing data using sklearn by setting test size 0.1, partitioning the dataset into 90% training data and 10% testing data. After that, picture dimensions were set to 128, 128 and 1 for height, width, and channel. Because the picture we used is a grey scale image, the image channel is set to 1. As the values in a picture range from 0 to 255, we divided the image by 255 to convert it to a floating-point value. Conv2D with ReLU layer activation function is used to generate the model’s contracting route. In neural networks, activation functions are used to compute the weighted sum of input and biases, which is then used to determine whether or not a neuron can fire [107]. We utilized he normal’s kernal_initializer since the model has to start with some weight, and kernal_initializer is used to establish some initial weights and set the padding value to the same so that the input and output images have the same dimensions. Then, using a 10% dropout, we defined the dropout layer, and finally, with a 2 2 matrix, we defined the maxpooling layer. Throughout the contraction path, we proceeded to define the layers using the same techniques as the initial levels. The values from the previous layer’s maxpooling layer will be transferred to the following layer’s convolutional layer. Conv2DTranspose will be utilized in the up-sampling path instead of Conv2D in the exploratory path. The layers of the expansive path are combined with the layers of the contractive path. We employed the sigmoid activation function in the final output layer. We’ve employed Adam optimizers, which are algorithms that aid in the training of the model. We chose a binary cross entropy loss algorithm because the COVID-19 cells are binary. The model comes to a halt when the loss function’s minimum is found. We used certain checkpoints that only saved the best value. We also employed the callback of earlystopping with a patience of 3 and validation loss monitoring. To prevent the model from overfitting, early stopping is used. We used twenty epochs to train the model that means twenty cycles and then able to make predictions.
Result

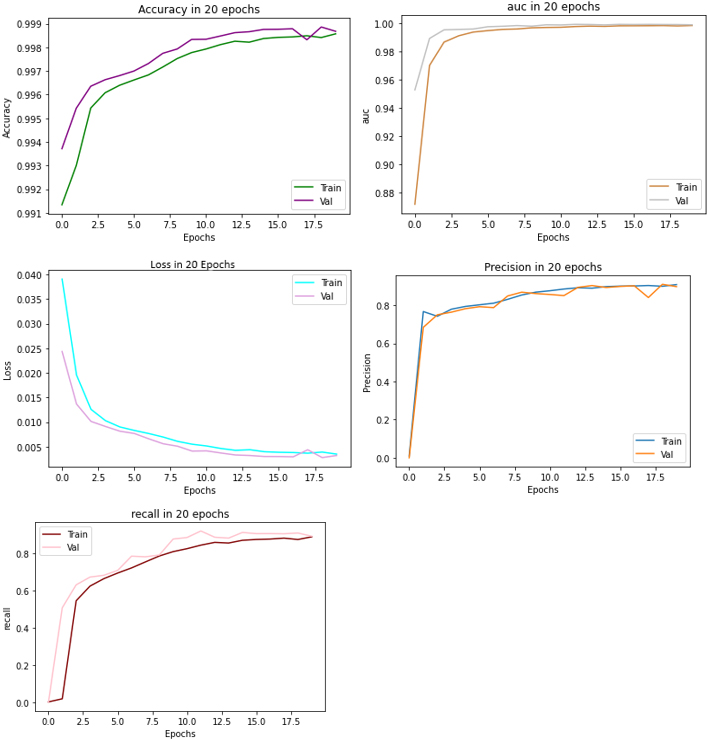

We used U-Net Model for COVID-19 detection with 90% training data and 10% testing data. We compared our model to [44], in which Lenet was employed, and [46], in which CNN was utilized. The results are provided in Table 2. The performance metrics when compared with training and validation data showed very similar results (see Fig. 5).
Comparative study table
Information of the results about different machine learning and image processing papers is provided in Table 3. The purpose of this paper to provide information about the research done on covid-19 diagnosis and provide some help for future researchers to work from the information gathered. The literature review of image processing and machine learning was done in our previous work [108].
Conclusion
SARS-CoV-2 virus that causes COVID-19, a respiratory disorder. It spreads from person to person in close proximity, and people are most vulnerable to contracting COVID-19 in crowded and poorly ventilated areas. As a result, it’s critical to have a quick diagnosis of COVID-19. AI approaches are also being used by researchers to detect COVID-19. This paper summarizes the results of various different researchers that have worked on COVID-19 detection. Because dataset is so crucial, different datasets have been employed for different projects, resulting in a variety of results. As a result, each dataset will provide various outcomes. This paper compiles information from various research papers that have used x-ray and CT scan lung images to study COVID-19. As well as the models for COVID-19 prediction. Image processing, machine learning approaches, and deep learning are the three aspects of the literature review. DenseNet and its variants were utilized in a number of deep learning articles, including [119, 31, 49, 54, 56, 62]. ResNet and its variants were also widely utilized, with articles [97, 31, 39, 44, 46, 47, 49, 50, 54, 55, 58, 59, 66, 67, 68] mentioning them. Researchers that have employed image processing and feature extraction for COVID-19 detection can be found in the image processing section. GLCM has been used in all feature extraction publications since it offers the pixel value of texture images. LBP has also been employed to extract features in [75, 119, 77]. The paper’s machine learning section examines works by researchers who have utilized machine learning techniques to detect covid 19. SVM appeared to be the most widely used technique, as it was utilized in [75, 119, 77, 78, 96, 99, 101]. Many articles [119, 78, 95, 98, 99, 101] used KNN because it produced good results. In addition, we applied our own algorithm to predict COVID-19 in Lung CT scan pictures. For feature extraction in images, we employed a VGG16 pretrained model along with the Xgboost boosting approach to distinguish between COVID-19 and non-Covid. We got an accuracy of 98%, precision of 98%, recall of 97%, specificity of 97% and f1 score of 98% for COVID-19 images. We also implemented our Deep learning model by using U-Net and got an accuracy of 99.86%, precision of 90.90%, recall of 88.88%, Loss of 0.39%, F1 score of 89.82% and AUC (Area under Curve) of 99.87%. The goal of “Soft Computing and Image Processing Techniques for COVID-19 Prediction for COVID-19 in Lung CT Scan Images” paper is to help future researchers to work on COVID-19 diagnosis and also to predict COVID-19 with different AI models. It would make their work easier as the necessary information to start working on COVID-19 is provided.
