Abstract
The General Data Protection Regulation (GDPR) grants all natural persons the right to access their personal data if this is being processed by data controllers. The data controllers are obliged to share the data in an electronic format and often provide the data in a so called Data Download Package (DDP). These DDPs contain all data collected by public and private entities during the course of a citizens’ digital life and form a treasure trove for social scientists. However, the data can be deeply private. To protect the privacy of research participants while using their DDPs for scientific research, we developed a de-identification algorithm that is able to handle typical characteristics of DDPs. These include regularly changing file structures, visual and textual content, differing file formats, differing file structures and private information like usernames. We investigate the performance of the algorithm and illustrate how the algorithm can be tailored towards specific DDP structures.
Introduction
Although the European Union (EU)s General Data Protection Regulation (GDPR) is often known for restricting the possibilities for owners of databases (“data controllers”), Article 15 of the GDPR unexpectedly also provides many opportunities for data analysts [12]. This article grants data subjects the right to receive a copy of all their personal data collected by a data controller in a machine-readable electronic format. Most data controllers currently comply with this article by providing a so called “Data Download Package” (DDP) to the data subjects upon request. The GDPR also grants the data subject the right to share the DDP with third parties, such as researchers. As these DDPs represent the unique digital fingerprint of individuals who use digital platforms, ranging from bank transactions and purchase history to social media interactions and location history, DDPs form a (still undiscovered) treasure trove for research [15].
However, the data present in DDPs can be deeply private and potentially sensitive. This poses a major challenge to using DDPs for scientific research. Participants might not be willing to share this sensitive data. However, researchers are often only interested in a part of the DDP and do not need the sensitive data. Although an interesting solution is to extract relevant features locally on the device of the participant [6], this workflow is not suitable for all research purposes. When, for example, an exploratory approach is of interest, or when the aim is to develop or improve the performance of an extraction algorithm, local extraction would limit the analytic possibilities. In such situations, collection of the complete DDP is desired, which requires challenges caused by the sensitivity of the data to be overcome. An example of such a research project is Project AWeSome [5], which collects complete Instagram DDPs from research participants. The participants’ DDPs are stored in a secured environment where they are de-identified using the de-identification algorithm proposed in this manuscript. Only after the sensitive information is adequately masked, can the DDPs be shared with the applied researchers for substantive analyses.
We argue that in situations where complete DDPs are collected for research, the DDPs should be treated in a similar fashion as any other sensitive data that is collected for research purposes. We therefore follow the guidelines for sensitive research data,1
An automatic de-identification approach is required since a manual approach would by definition violate the privacy of participants. Besides, a manual approach would be prone to errors and too labor intensive due to the potential size of the DDPs. Many different approaches to automatically de-identify data have been developed over the past years for medical documents (e.g., [18,21,29,32]), twitter data (e.g., [8,9]) and relational or tabular data (e.g., [27,31]). De-identification of DDPs poses a challenge because the structure and content of DDPs deviate from the structure and content of the data for which these methods were developed. In addition, DDPs show a wide variety and are collected for different research purposes. In this paper we propose an automatic de-identification algorithm that can handle the structure and content of DDPs and is able to deal with the large variability.
Our contributions are the following:
We give insight in the structure and content of DDPs in general and Instagram DDPs in particular.
We develop an open source de-identification algorithm.
We create an open source evaluation data corpus.
We provide statistics that illustrate the performance of the developed de-identification algorithm.
We provide an open source validation algorithm and ground truth.
In Section 2, we illustrate how DDPs from different platforms can vary greatly in structure and content. In Section 3, we discuss the current state-of-the-art in terms of de-identification methods and illustrate why these current methods do not suffice for our aim. In Section 4 we describe the data used for the development and evaluation of our proposed algorithm, which is extensively discussed in Section 5. The outcome of the evaluation study is presented in Section 6, followed by suggestions for future work in Section 7 and conclusions in Section 8.
Overview of content and structure of DDPs of five data controllers. Note that if a certain object is present in DDPs, this is indicated with +. If it often occurs within the DDP, a -/+ is used. Finally, if said object is not present, a - is used
Overview of content and structure of DDPs of five data controllers. Note that if a certain object is present in DDPs, this is indicated with +. If it often occurs within the DDP, a -/+ is used. Finally, if said object is not present, a - is used
Most large data controllers currently comply with the right of data access by providing users with the option to retrieve an electronic DDP. This DDP typically comes as a compressed folder containing text and/or media files in which all the digital traces left behind by the data subject with respect to the data controller are stored. Table 1 shows that the content and structure of DDPs differs among data controllers. Differences between DDPs from the same data controller can also occur among data subjects and over time. These differences may be caused by data subjects using different features provided by the data controller or by the fact that the DDP is a snapshot of the data collected by the data subject up to that point. However, other important factors also play a role. First, data controllers can develop new features through which new types of data of the data subject are collected. Second, other features may be phased out. Third, some data (for example search history) is only saved for a limited amount of time and is destroyed by the data controller after that period. In that case, it will also not be present in the DDP anymore. Finally, the GDPR is still relatively new and data controllers continue to optimize the processes used to transfer the relevant data to its subjects, leading to changes in the structure of DDPs.
From Table 1 it can be concluded that the Instagram DDP contains many features that can also be found in DDPs of other data controllers. Common features are the presence of both text and/or media files, the presence of both structured and unstructured text and the presence of specific types of personal identifiable information (PII). Therefore, an algorithm that is able to de-identify Instagram DDPs also contains the features needed to de-identify many of the DDPs of other data controllers. To summarize, the developed algorithm is able to handle:
An ever changing file structure,
both visual and textual content,
different file formats,
files ranging from highly structured to highly unstructured formats,
the masking of usernames of natural persons or other users.
De-identification of data in the medical domain has extensively been researched. Medical patient data, like electronic health records and clinical notes, are increasingly used for clinical research. As imposed by privacy legislations such as the US Health Insurance Portability and Accountability Act (HIPAA) [24] and the GDPR, the privacy of patients included in these data has to be protected. Medical data are therefore de-identified by removing all categories of protected health information (PHI) that are defined by the HIPAA. PHI types typically found in medical data are person names and initials, names of institutions, social security numbers and dates [17,21,32,33]. Automatic de-identification approaches in the literature are either rule-based, machine learning based or a combination of both, where machine-learning approaches show the best performance [17,32,33]. Scientific open-source de-identification tools are available such as DEDUCE [21] and Amnesia [25] as well as commercial tools, such as Amazon Comprehend [29] and CliniDeID [13,18]. Most automatic de-identification approaches are constrained to English medical documents and little is known about their generalizability across languages or domains. Although neural networks have shown good generalization performance compared to rule-based and feature-based approaches, a substantial decrease of performance has to be expected when applying these out of the box to new languages or domains [32].
User privacy in social media is an emerging research area and has attracted increasing attention recently. To avoid privacy attacks, like identity disclosure and attribute disclosure, publishers of social media data are obliged to protect users’ privacy by anonymizing these data before they are published publicly [3]. Anonymizing social media data is a challenging task due to their heterogeneous, highly unstructured and noisy nature [3]. Commonly used statistical disclosure control approaches [10,25,27,30,31] are designed for relational and tabular data and cannot be directly applied to social media data. In addition, PHI types that are common in medical data are unlikely to be found in textual social media data. These data rather contain person names, usernames or IDs, email addresses and locations [8,9], but in fact there is limited work on the types of personal identifiable information (PII) that may be present in textual social media data and how these should be removed [4,9]. Yet, removing such information has been shown to be far from sufficient in preserving privacy since users’ identity or attributes may be inferred from the public data available on social media platforms [2,3,19,23]. Finally, social media data may also consist of visual content. Many different types of both open source and commercial software are available to identify and blur faces on images and videos, such as Microsoft Azure [22], and Facenet-PyTorch [11]. However, modern image recognition methods based on deep learning have demonstrated that hidden information in blurred images can be recovered [20].
Like social media data, DDPs are heterogeneous and unstructured and are likely to contain the same types of sensitive information. Yet, the limited de-identification approaches that are available for social media data focus either on textual or visual content and the presence of both types of information within one DDP poses a major de-identification challenge [28]. An important difference is that on social media platforms information on large groups of users is widely available, whereas DDPs are only available for a single individual. The goal of this research is not to prepare the DDPs for public sharing. DDPs will either be stored on the owner’s device or in a shielded (cloud)environment and analyzed using privacy-preserving algorithms. In that sense, handling DDP’s is comparable to handling medical data and we therefore assume that the risk of privacy attacks is very low. However, for ethical reasons and in the unlikely event of a data breach, DDPs should still be de-identified.
To summarize, we need a de-identification procedure that is able to handle unstructured and heterogeneous data, and can de-identify both visual and textual content within one procedure. It should be able to recognize usernames as the primary identifier for natural persons, while other types of PII, such as person names, phone numbers and e-mail addresses, should also be accounted for.
Data
Development set
For the development of this new de-identification procedure, the researchers initially used two DDPs of their own personal Instagram accounts. The functionality of the algorithm was based on the typical Instagram DDP file structure (see Table 2). To ensure that the developed algorithm can adequately handle possible varieties in DDP structures (over different Instagram accounts), a validation data corpus was created. Using this corpus, the de-identification procedure could be tested and improved, maximizing its effectiveness.
The content of a typical Instagram DDP of a Dutch user
The content of a typical Instagram DDP of a Dutch user
A group of 11 participants generated Instagram DDPs by actively using a new Instagram account for approximately a week. The participants were instructed not to share any of their own personal information via the Instagram accounts. Instead, participants were instructed to share either fake or publicly available information by, for example, sharing URLs of news websites, posting images of celebrities, or liking and following verified Instagram accounts. As the final data corpus does not contain any personal information it is publicly available at
Annotating validation corpus

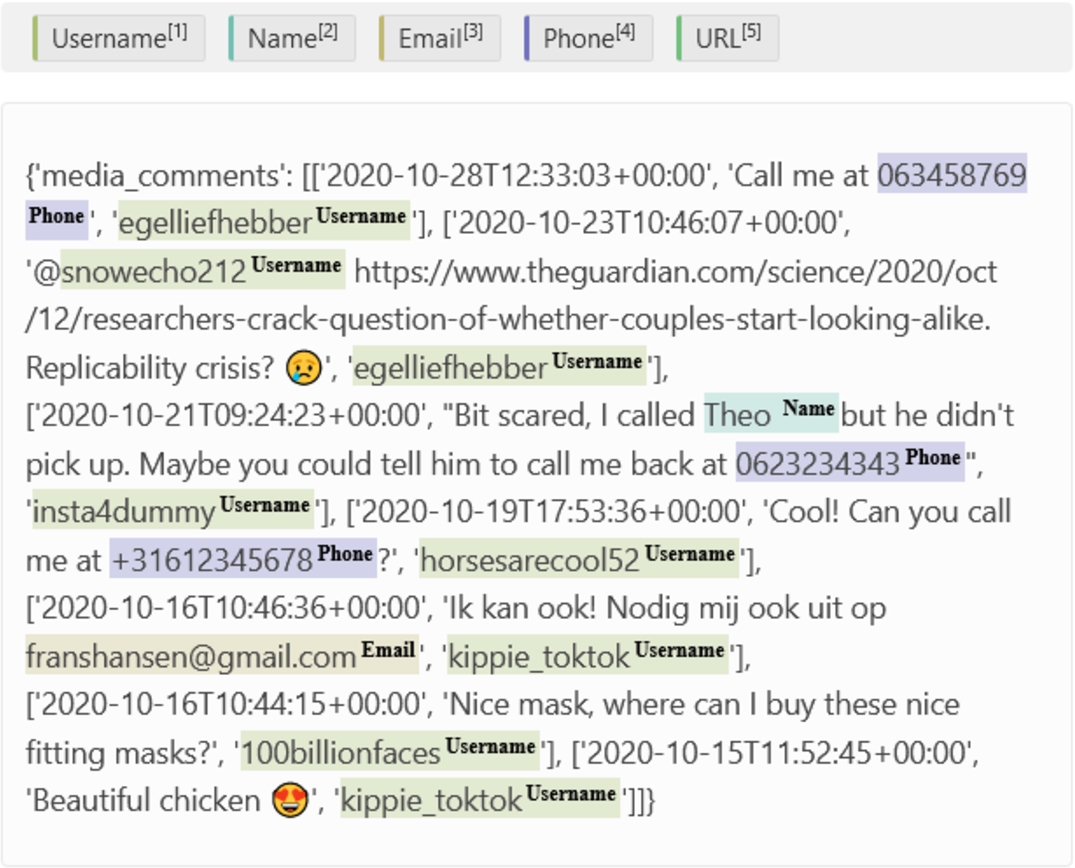

An example of how labeling a comments.json file would look like in Label-Studio.
A human rater manually annotated the text files of the validation corpus, labelling all PII occurrences per DDP.2
N.B. Establishing this ground truth only has to be done once. The labeling output, together with the 11 Instagram DDPs, are publicly available.
After this ground truth was established, the number of PII occurrences per text file, per DDP could be determined. As can be seen in Table 3, the PII frequency varies highly per file. For example, approximately 72% of all first names present in the entire validation corpus were found in messages.json files only.
Descriptive statistics of visual and textual content in the generated Instagram DDP validation corpus
To annotate visual content, a procedure was carried out by hand. For each media file, it was determined whether there were one or multiple identifiable faces present. To determine whether a face was identifiable, we used a pragmatic definition where we defined a face as identifiable if at least three out of five facial landmarks were visible (right eye, left eye, nose, right mouth corner and left mouth corner) [36].
Method

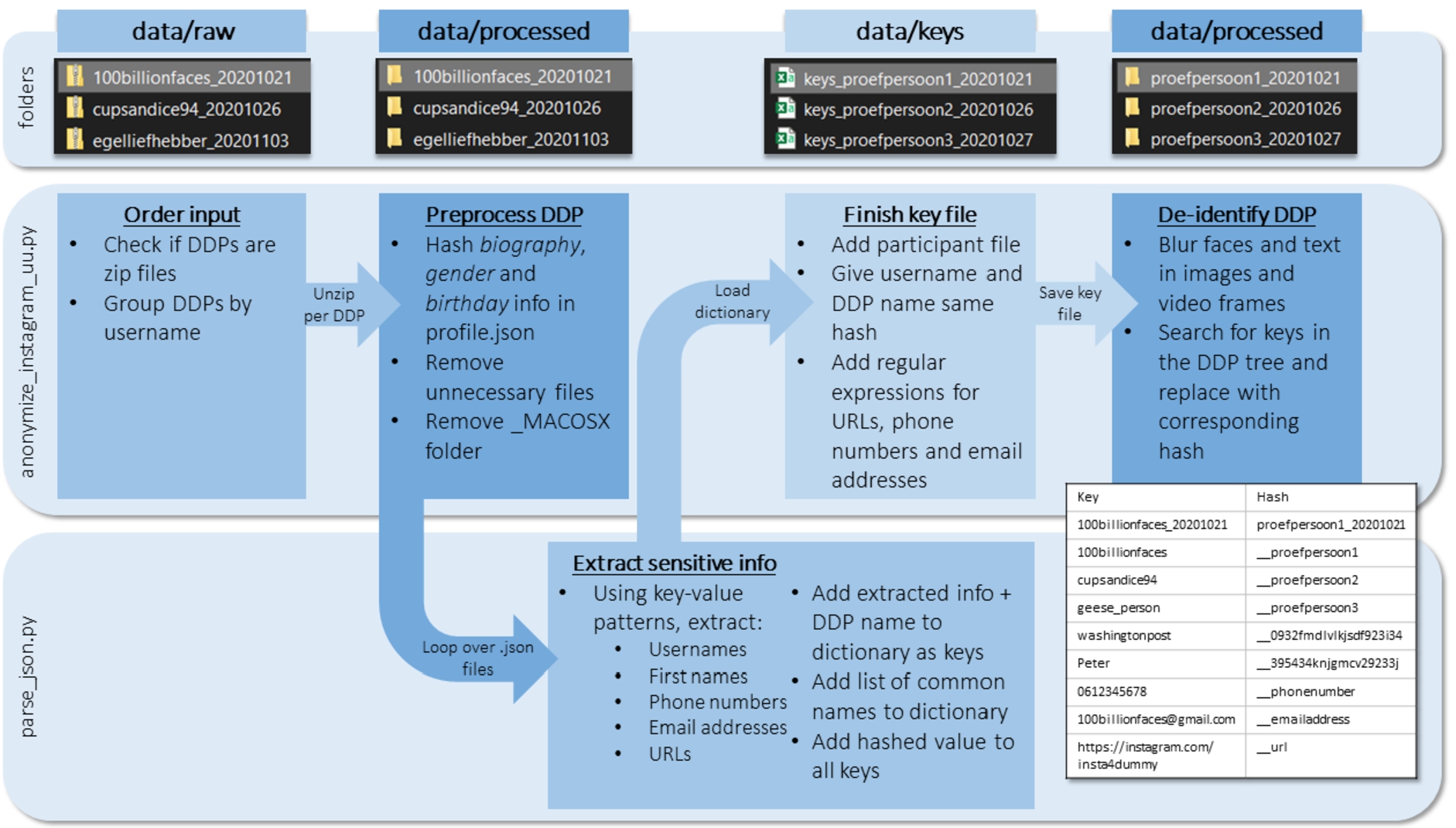

To de-identify a set of collected Instagram DDPs, the algorithm performs three steps on each DDP of the collected set separately (Fig. 2):
Pre-process DDP
De-identify text files:
Detecting PII in (structured) text
De-identify PII with corresponding de-identification codes
De-identify media files by detecting and blurring human faces and text
The algorithm takes a zipped DDP as input. Looping over the text (.json) files, all unique instances of PII are detected in the structured part of the data using pattern- and label recognition. The extracted info, together with the most common Dutch first names and, optionally, the participant file, is added to a key file. All occurrences of the keys in the DDP will be replaced with the corresponding hash. Finally, occurrences of human faces and text in media files are detected and blurred. The algorithm will return a de-identified copy of the DDP in the output folder.
The software consists of a wrapper and de-identification algorithms. The wrapper handles the pre-processing of the DDP and contains steps specific for Instagram. It unpacks the DDP and removes all files that are not considered relevant for social science research, like “autofill.json” and “account history.json”. The user’s profile “profile.json” is de-identified separately in this pre-processing phase, as its content and structure deviate from the other text files in the DDP. After the DDP is cleaned, the PII should be extracted.

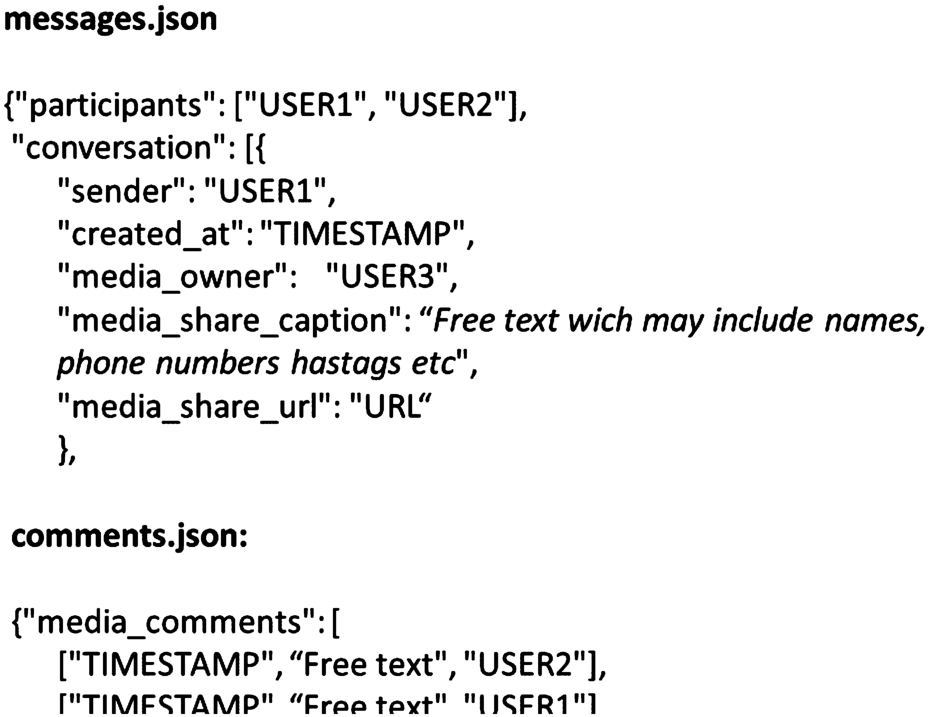

Example of key-value structure in .json files with structured and unstructured text.
Overview of the Personal Identifiable Information (PII) categories and their extraction methods
Detecting PII in (structured) text
All text files in an Instagram DDP contain a nested structure of keys and values (see Fig. 3). To extract PII from these structured parts, we have determined which key-value combinations and which patterns are indicative for each PII category (see Table 4). The algorithm parses over the nested structure in each text file in the DDP. Here, it searches the key-value combinations and patterns. By doing this, it extracts the PII. All detected PII instances are added to the key file.
Part of the PII instances in the DDP are not found in the structured part but do appear in the free text. These PII instances include names, phone numbers, and URLs, but also usernames, for example tagged people ‘@username’. We use regular expressions to detect these PII instances. The free text is parsed to detect individual usernames which are then added to the key file. For email-addresses, phone numbers, and URLs we directly add the regular expression to the key file, as this will increase the performance of the de-identification algorithm.
An important side note is that the regular expressions will only look for Instagram URLs that link to users’ personal pages. The remaining URLs in the DDP are left unchanged, as these represent links to public websites, which cannot be traced to individual users and which may be valuable for social science research.
As (first) names exclusively occur in free text and not in a structured format, it was not possible to systematically extract this type of PII. Therefore, instead of working bottom-up, we apply a top-down approach. After all text files are parsed and the key dictionary is filled, a list of the
De-identifying PII in text files
After all PII are extracted, PII specific pseudonyms are added to the key file. Usernames and names receive a unique hexadecimal code, while email-addresses, phone numbers and URLs will be hashed with the general ‘__emailaddress’, ‘__phonenumber’, and ‘__url’ codes, respectively. Note that the same (user)name will always receive the same code. This way it is still possible to perform a network analysis after de-identification is complete.
Additionally, it is possible to provide the algorithm with a list of (user)names (and/or other information) and your own corresponding pseudonyms. This might be interesting for scientific research in which the (user)names of participants need to be distinguishable from other (user)names.
When the key file is complete, the algorithm will parse over the listed PII, search for any occurrences in the entire DDP and replace them with the corresponding pseudonyms. The replacement is also performed on the file/folder names, resulting in an entirely de-identified DDP. There is also an option to save the key file, making it possible to (partly) decode the DDP.
De-identifying PII in media
Besides being able to link textual data to specific individuals, individuals may also be identified by their presence in the images or videos in a DDP. In addition, the images or videos can contain text which may include usernames, person names or other sensitive information. We detect faces in visual content using multi-task Cascaded Convolutional Networks [36] in Facenet Pytorch [11] and blur all occurrences using the Python Imaging Library [34]. We detect text using a pre-trained [35] EAST text detection model [37] and blur all occurrences using the Gaussian blur option provided by OpenCV [7].

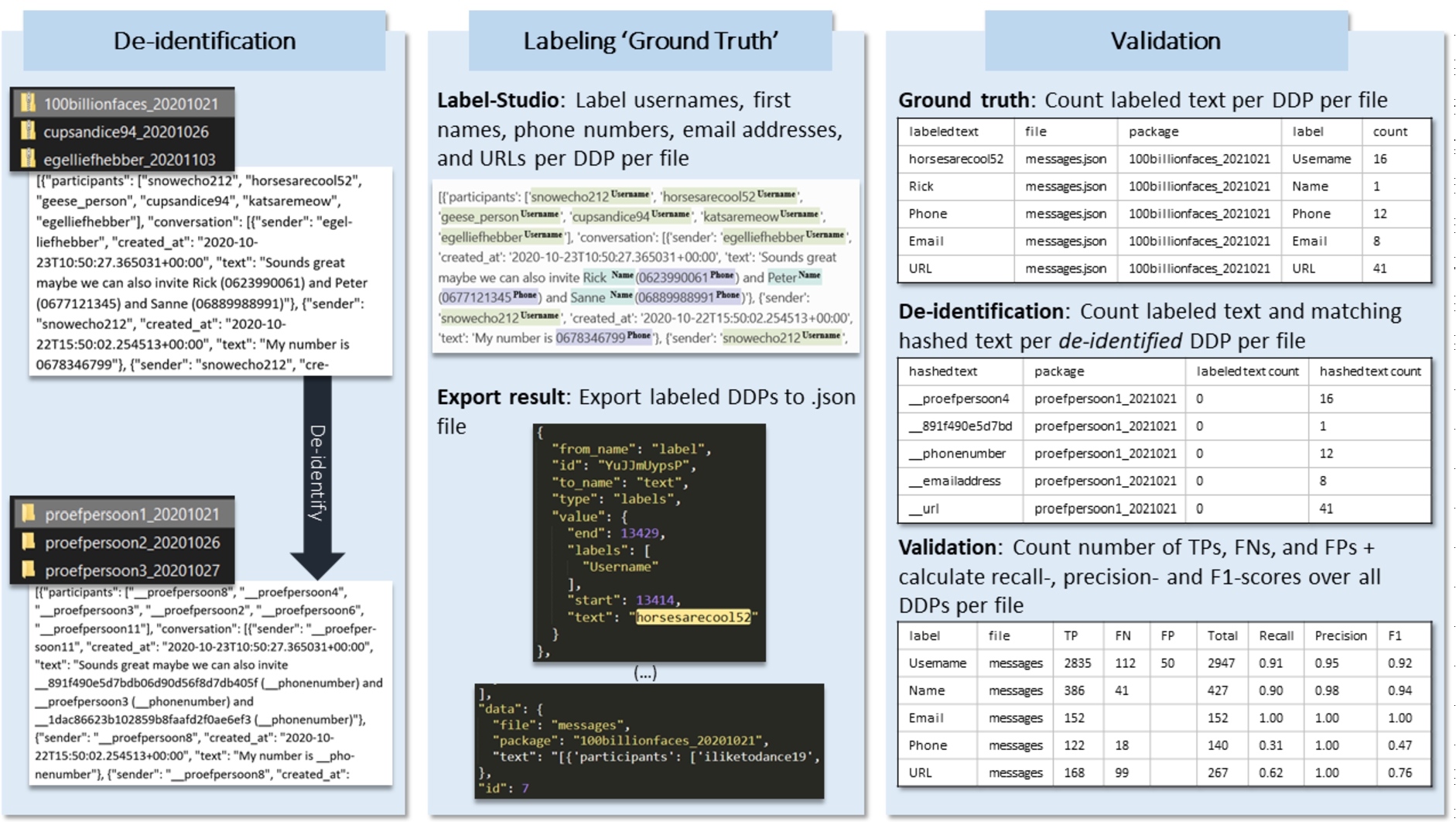

Evaluation approach
The developed de-identification procedure is applied to the annotated validation corpus, using the options of applying participant codes for a selected group of users and capital sensitivity for first names.
Textual content
The raw DDPs in which all PII categories are labeled (i.e., the ground truth) is compared with the de-identified DDPs. The algorithm counts the number of PII categories (total), correctly hashed PII (TP), falsely hashed information (FP), and unhashed PII (FN). Subsequently, a recall-, precision-, and F1-score can be calculated.
The effectiveness of the de-identification performance on textual content is assessed by determining the number of times PII has been correctly de-identified (True Positive, TP), incorrectly de-identified (False Positive, FP), and not de-identified (False Negative, FN) (Fig. 4). Using these statistics, the recall-, precision-, and F1-score are calculated.
The human rater determined for each detected face whether it was indeed de-identified by the algorithm. The definition of identifiable used (i.e., at least three out of five facial landmarks were visible [36]), will not hold if, for example, a person will actively try to identify individuals by combining multiple images where a person is partly visible. However, it is sufficient for the level of de-identification we are currently aiming at.
For each piece of visual content an identified face is considered a single observation which can be either appropriately de-identified (TP) or not (FN). Note that although a video consists of multiple frames in which the possibility arises that a face is identifiable, an instance of one frame showing an identifiable face following our definition results in one FN for this face in the movie.
As the determination of whether a face is defined identifiable or not is performed by a human rater and this distinction is sometimes not straightforward, the questionable cases are independently rated by two raters and classification is performed based on consensus. In addition, a set of 100 .JPEG files and 20 .MP4 files were independently annotated by two separate annotators.
On the .JPEG files, 204 faces were identified and from these, 193 were identified by both raters. On this subset, a Cohen’s κ inter-rater reliability was calculated of 1, so the raters highly agreed on which faces were appropriately de-identified and which were not. For the .MP4 files, 49 faces were identified and from these, 41 were identified by both raters. On this subset, a Cohen’s κ inter-rater reliability was calculated of 0.62. The sample of faces was much smaller for .MP4 compared to .JPEG, and it was apparently also a lot more difficult to determine whether a face was appropriately identified when the image was moving compared to when it was a still image.
In addition, particularly on Instagram, visual content can contain usernames. The algorithm is not able to distinguish between usernames and other types of text. therefore all text is de-identified, without distinctions between text and usernames, or without replacing usernames for their key value. Therefore, de-identified usernames are counted as true positives (TP) and usernames not de-identified are counted as false negatives (FN). False positives cannot be quantified in the current procedure.
Evaluation criteria
We use scikit-learn to further evaluate the performance of the procedure on the different aspects [26]. First, we calculate the recall, or the sensitivity, as
Results
Initial results
A large proportion of faces on images were appropriately detected and blurred (Table 5), while on videos this proportion was substantively lower. Apparently, faces are harder to detect by the algorithm when the images are moving.
Results in terms of TP, FP, FN, recall, precision and F1
Results in terms of TP, FP, FN, recall, precision and F1
Email addresses were appropriately detected and de-identified throughout all files within the DDPs (Table 5), whereas a substantial amount of names were not detected by the algorithm throughout the different files. The quality of the de-identification of usernames differs a lot depending on the file. False positives were only detected in the ‘messages.json’ file. Furthermore, relatively lower recall values were measured for the files ‘media.json’ and ‘saved.json’, although these files have a small number of total observations.
The annotated validation corpus contains both Dutch and English text; some within the same document. We observed no difference between de-identification of PII in English and Dutch text.
By critically examining the results of Table 5 and investigating what coding decisions led to the least optimal results, improvements to the code were made.
First of all, we made some changes to how the ‘profile.json’ file was processed. This change implied adding the entire entry that can be found after the key ‘name’ to the key file, receiving the same pseudonym as used for the DDP username. This way, participants can now be recognized throughout the de-identified DDP by both their masked username and their (first) name. After the adjustment, these ‘profile’ names and DDP usernames are labeled as ‘DDP_id’, resulting in a shift in the initial username and name frequencies (see Table 6).
Descriptive statistics of textual content in the generated Instagram DDP data corpus after adjustment of the script
Descriptive statistics of textual content in the generated Instagram DDP data corpus after adjustment of the script
A second improvement has been made after further inspecting the relatively large amount of false positives in the ‘seen_content.json’ file. Based on this, the list of labels that should be exempted from hashing has been extended.
Third, based on a more thorough inspection of the type of usernames that were not detected by the algorithm, the username format has been adjusted in such a way that usernames are detected as such when they contain at least three characters. The minimum limit in the previous version of the code was six characters.
After further inspecting the false positive first names, the names ‘Van’, ‘Door’ and ‘Can’ were removed from the list with the
At last, the hash function for usernames became case insensitive, as Instagram does not distinguish between lower cases and upper cases in usernames. Initially, the algorithm generated a different hash as an uppercase was used somewhere in the username compared to when the same username was used without an uppercase.
The adjusted algorithm was applied to the annotated validation corpus and the de-identification performance on textual was again evaluated. The adjusted algorithm produces fewer false negatives regarding names, phone numbers and URLs (Table 7). Regarding usernames, both the number of false negatives and false positives decreased substantively.
Results in terms of TP, FP, FN, recall, precision and F1 after improvements to the script have been made
Results in terms of TP, FP, FN, recall, precision and F1 after improvements to the script have been made
The evaluation results show that the developed algorithm is well-suited to de-identify usernames, e-mail addresses and phone numbers in both structured and unstructured text files. In addition, the algorithm appropriately de-identifies faces on .jpg files. Appropriate de-identification of first names appears more challenging, particularly because some first names are also used as words in free text and vice versa. However, when applying the algorithm, researchers can decide if their focus is on precision or on recall and take measures to accommodate this. Furthermore, de-identifying faces on .mp4 files was more difficult compared to .jpg files. This reduced performance can be explained by the fact that in moving image different parts of faces can be visible at different moments, which provide sufficient information to identify a face when combined. Another reason can be that Instagram provides so-called ‘filters’, which also make it more difficult for the software to detect a face for de-identification.
In terms of generalizability of the developed algorithm, an important first discussion point is the fact that the algorithm has been developed and tested using Instagram DDPs only. As we illustrate in Table 1, the Instagram DDP contains a set of specific features that can be found in DDPs of several other data controllers. Our de-identification approach is designed for these features and therefore we consider it plausible that it can also be applied to DDPs of other data controllers. In general, we think that with small adjustments to the algorithm, high performance levels can be reached relatively straightforwardly when applying the algorithm to DDPs of other data controllers. Such adjustments to the algorithm can be further investigated in future research.
A second point for discussion in terms of generalizability is the fact that data controllers such as social media platforms constantly update their features and develop new ones. Although our algorithm is able to deal with variance in structure and content of DDPs, we envision that small updates may be required when being used on later versions of Instagram DDPs. Third, the de-identification showed good performance on a data-set that was diverse, but limited in size and therefore it is less representative. The algorithm has also been applied in practice to a set of 104 Instagram DDPs as part of the previously described Project AWeSome [5]. Since our method is designed for recognizing text patterns that are specific to DDPs rather than language, it performed well on both English and Dutch text. We believe our approach can easily be applied to DDPs in other languages, which only requires adding a list of common names and possibly adjusting some labels.
Besides generalizability in terms of applications to other data types, the particular research goal should also be considered. For example, if a researcher is interested in the emotions that can be detected on the faces of images in the DDP. This is currently not possible because faces are blurred. In this situation, the researcher can for example replace the blurring algorithm with an algorithm that replaces a face with a deepfake of that face [16]. Alternatively, if a researcher is interest in the type of accounts that are followed and liked by the research participant, it is not desirable to de-identify all usernames in the DDP. In a third example, if a researcher is interested in the text that is written on the images and videos posted on Instagram, the currently implemented text detection algorithm should be further refined. At this moment, the algorithm does not distinguish between usernames and other types of information written in text and blurs it all. In a last example, a researcher can also be interested in the sound that accompanies videos. In the current version of the algorithm the sound is completely removed.
A last point of discussion considers the safety standards that are currently adhered. We have clearly stated that the algorithm aims to prepare the DDPs in such a way that they can be processed as any other type of sensitive research data, supplemented with other measures such as using shielded (cloud) environments. If researchers want to share data more publicly, not all aspects of the current de-identification algorithm provide sufficient safety. For example, the currently used blurring algorithm can be prone to re-identification [20].
Conclusion
Data Download Packages (DDPs) contain all data collected by public and private entities during the course of citizens’ digital life. Although they form a treasure trove for social scientists, they contain data that can be deeply private. The privacy of research participants should be protected while they let their DDPs be used for scientific research, as is the case for all type of sensitive data collected for research. Therefore, we first of all provided an overview of the structure and content of DDPs, both in general and for Instagram in particular, which can serve as a valuable reference for researchers interested using DDPs for future research. For them, our generated DDPs are publicly available. In addition, we developed the first algorithm that is able to de-identify data with DDP structure. Furthermore, we evaluated the performance of this algorithm, which appeared to be of very high level. At last, we provide the algorithm, the validation corpus and the evaluation code open source. Thanks to the GDPR, researchers have the opportunity to collect DDPs with consent from research participants. Now, we have developed an algorithm that also allows researchers to process this data in such a way that is in line with that same GDPR.
Supplementary material
The de-identification algorithm is available at 10.5281/zenodo.5211335. The validation set containing 11 Instagram DDPs is available at 10.5281/zenodo.4472606.
Footnotes
Acknowledgements
The authors would like to thank the researchers from the Utrecht University Human Data Science Group, the Utrecht University Research Engineers and Project AWeSome for their input and comments on earlier versions of this manuscript and for their participation in the generation of the validation corpus. In addition, the authors would like to thank the reviewers for their useful comments.
