Recent advances in LA-ICP-MS for biomedical applications

Abstract

The applications of laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) in biomedical research are progressively increasing in the last decade. The main advantage of this powerful analytical technique is the ability to perform multi-elemental analysis directly from biological samples, such as tissues, organs, and single cells, with minimal sample preparation. This feature is particularly important for studies regarding disease biomarkers and mechanism of action of drugs. In this mini-review, the recent advances in the use of LA-ICP-MS for the analysis of biological samples will be discussed, as well as representative biomedical applications.

Keywords

Laser ablation mass spectrometry tissue analysis single cell analysis biomedicine

1. Introduction

Laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) is an analytical technique that enables direct multi-elemental analysis and isotope ratio measurements at the trace and ultra trace level in solid samples [3]. Nowadays, it is the most employed technique for mass spectrometry imaging (MSI) of metals, semimetals, and non-metals in biological samples, such as tissues and organs, with a spatial resolution usually in the micrometer range [32].

LA-ICP-MS employs a focused laser beam to ablate material from the surface of a solid sample with a thickness of 5–30 μm [41]. The laser scans the sample line by line, and the material is transported by a continuous flow of argon (or other inert gas, such as helium) to the ICP source [4,14]. The formed ions are continuously extracted from the ion source and further separated according to their mass-to-charge ratio (m/z) in a mass spectrometer, usually equipped with a quadrupole (Q) or double-focusing sector field (SF) mass analyzer. The signal intensities of each ion are thereafter correlated to their concentration. Figure 1 illustrates the major components of a LA-ICP-MS instrument.

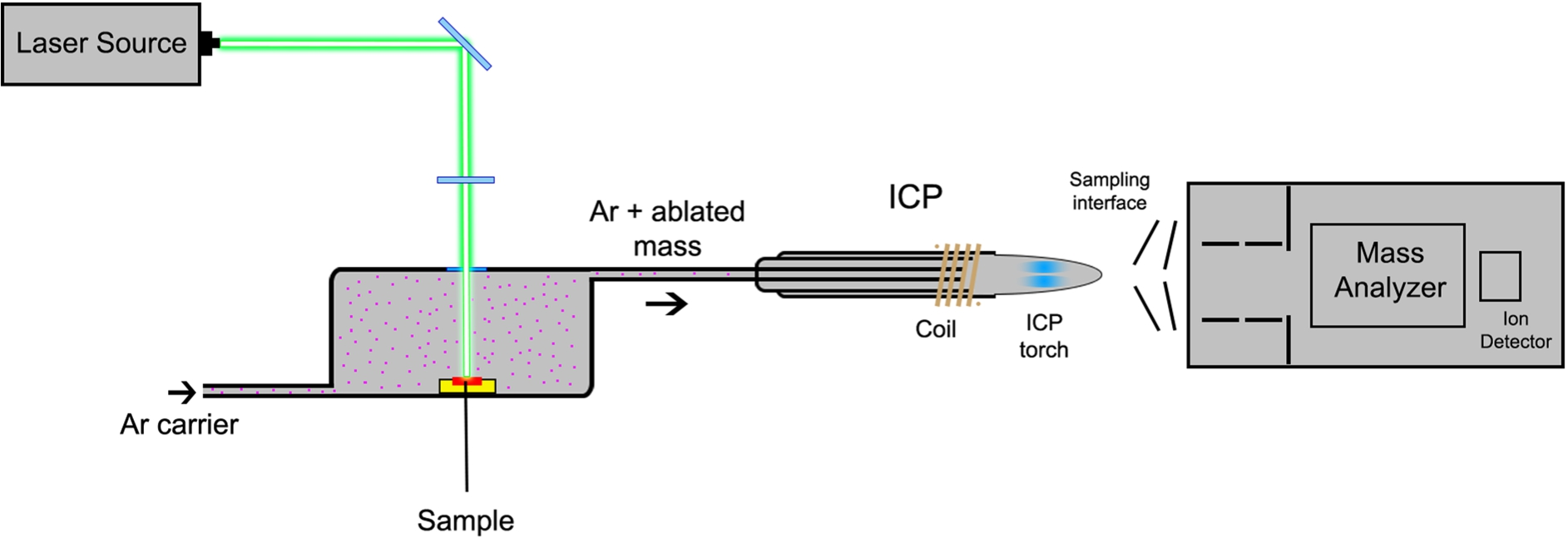

Fig. 1.

Schematic diagram of a LA-ICP-MS instrument.

The key parameters that have to be optimized in a LA-ICP-MS experiment are laser spot size, scan speed, and repetition frequency. These parameters influence the ablation efficiency and therefore the sensitivity of the measurements [32].

The precision and accuracy of LA-ICP-MS measurements are directly dependent on the calibration, standardization, and normalization steps. In the case of biological samples, certified reference standards are usually not commercially available, which requires the preparation of laboratory prepared matrix-matched standards (a homogenized tissue spiked with different concentrations of aqueous standards from the analytes) for calibration and standardization [35]. For signal normalization, the measurement of surrogate markers of slice thickness, such as carbon or sulfur, or internal standards is necessary. The most common normalization strategies are based on the measurement of one isotope, the total ion current (TIC), or selected isotopes that represent the ion current related to the sample matrix (extracted ion current, EIC) [17].

LA-ICP-MS can be operated in three different modes: imaging, line scan, and micro local analysis of selected spots [33]. When LA-ICP-MS is used in the imaging mode, the reconstruction of images for visualization of elemental distribution in the analyzed sample is also an important step that will guide the interpretation of the biological question under investigation. Different software tools can be used with this purpose, from commercial to open source ones, such as ELAI [36] and LA-iMageS [27].

LA-ICP-MS has been applied to obtain quantitative images of regionally specific element distributions in sections of different biological tissues, such as mouse brain, kidneys, among others [28,34] as reviewed in the literature [5,6,32]. In the following sections, the recent developments in LA-ICP-MS technique and selected biomedical applications will be discussed.

2. Developments in LA-ICP-MS for bioanalysis

Multimodal imaging, combining LA-ICP-MS with other imaging techniques, is an analytical strategy of growing interest, since it combines the elemental distribution information with structural features, thus improving data that support unraveling complex biological processes.

Recently, Ackerman et al. [1] combined rapid metal profiling by LA-ICP-MS with high-resolution metal imaging by nanoSIMS and with electron and fluorescence confocal microscopies in order to identify tissues and structures with altered copper levels in the Calamitygw71 zebrafish model of Menkes disease. LA-ICP-MS identified reduced copper levels in the brain, neuroretina, and liver of Menkes fish, while high-resolution nanoSIMS imaging of the neuroretina, combined with electron and confocal microscopies, identified the megamitochondria of photoreceptors as loci of copper accumulation in wildtype fish, with lower levels of megamitochondrial copper in the Menkes fish. Niedzwiecki et al. [29] developed another interesting multimodal imaging application, where LA-ICP-MS elemental imaging was combined with multiplexed immunohistochemistry (IHC) to measure element and protein distributions within tissues in order to assess the spatial associations between metals and markers of inflammation in the placenta. These works demonstrate that the complementary information provided by different imaging approaches are important to a broader understanding of the pathophysiology of diseases.

Direct biofluid analysis by LA-ICP-MS is also a topic being continuously explored. A recent approach for serum analysis by LA-ICP-MS using dried serum spot (DSS) sampling, using only 20 μL of serum, was proposed by Chantada-Vázquez et al. [9]. Direct multi-element determination (Al, Be, Ca, Cu, Fe, K, Li, Mg, Mn, Mo, Na, P, Rb, Se, V, and Zn) in DSS sampled in filter paper discs with 2.7 mm diameter and employing acetic acid as an oxidizing agent (used to remove organic matter from the biological matrix) was achieved at low limits of detection levels. Kysenius et al. [25] developed a microdroplet elemental imaging method, which was optimized for the analysis of only 1 μL of mouse spinal cord lysates. This approach for biofluid analysis is particularly relevant for biomedical applications, especially when the samples are rare and obtained in very small volumes.

In terms of instrumentation, recent improvements in the development of low dispersion ablation cells have significantly enhanced throughput and sensitivity for high-resolution LA-ICP-MS imaging, thus increasing the scope of LA-ICP-MS applications, mainly for single cell analysis and sub-cellular imaging [37,38]. The development of these LA cells combined with the use of time-of-flight (TOF) mass analyzers, instead of the common quadrupole, are indeed relevant for the advance of high-resolution LA-ICP-MS imaging [8].

Nowadays, the current hot topic in the use of LA-ICP-MS in biomedical applications is the analysis of single cells, which will be detailed in the following section.

2.1. Single cell analysis

LA-ICP-MS is being proposed as an elemental microscopy technique, since it has quantitative features when matrix-matched calibration standards are used, besides the ease of sample preparation and multi-elemental detection capabilities with high sensitivity and spatial resolution. For co-localization of cells and analytes, LA-ICP-MS profiles are usually correlated with a bright field image of the cell sample [20] or other imaging approaches, such as fluorescence confocal microscopy [37]; thus, multimodal imaging is widely applied for single cell elemental analysis.

The elemental analysis of single cells can be performed using the cells in solution (SC-ICP-MS); however, this type of analysis normally requires at least thousands of single cells in a sample, which is different from the analysis of single cells by LA-ICP-MS. Nevertheless, LA-ICP-MS presents a limitation due to the insufficient analytical speed of quadrupole mass analyzers, which separate the ions with basis on the sequential scanning of isotopes, thus impeding the determination of more than two isotopes during a transient signal from a single cell [7].

Currently, microscopic targets can be in situ analyzed by LA-ICP-MS with spatial resolution from 100 micrometers to sub-micrometers, which enables single cell analysis on a substrate [38]. Commercial laser-ablation cells usually produce a signal response to a shot in the range from several hundred milliseconds to one second, which allows the determination of several elements in single cells by modern quadrupole ICP-MS under optimal conditions [43].

A limiting point of using LA-ICP-MS at micrometer scale is the reduced laser spot size, which leads to a reduction of ablated sample material and therefore to a decreased number of detectable ions in the analyzed area, thus resulting in a compromise between sensitivity and spot size [20]. Another limitation of the single cell LA-ICP-MS imaging is the depth resolution, since the laser beam penetrates through the entire cell, and the signal from the cytosol is monitored together with the nucleus [39].

In order to overcome this issue, Herrmann et al. [20] optimized staining procedures for single cell analysis by LA-ICP-MS. An iridium intercalator was utilized to stain the cell nuclei and the whole cell was stained by the use of maleimido-mono-amide-DOTA (mDOTA) complexing lanthanide (III) ions. The determination of introduced metals per cell was performed using a matrix-matched calibration approach based on cellulose membranes.

Recently, van Malderen et al. [39] obtained a three-dimensional elemental distribution profile in human cervical carcinoma cells (HeLa). The suspended cells underwent a series of fixation/embedding protocols and were stained with uranyl acetate and an Ir-based DNA intercalator to identify the nuclei of single cells. Micro-computed tomography (μ-CT) was applied to acquire a reference frame of the morphology of the cells and their spatial distribution, allowing LA-ICP-MS 3D imaging at the intracellular level.

Precision, accuracy, and efficiency of current calibration strategies are also an important point to be considered in a single cell LA-ICP-MS experiment [21]. Van Malderen et al. [40] proposed the use of high-density microarray plates for multiple matrix-matched standards. The system was applied for the quantification at the single cell level of copper in the marine microalgae Scrippsiella trochoidea after exposure to this metal.

Single cell analysis by LA-ICP-MS is being widely used for studies involving the exposure to metal nanoparticles. Zheng et al. [2] performed the analysis of silver nanoparticles (AgNPs) in human bronchial epithelial (16HBE) single cells. In this case, single cells were trapped by a polydimethylsiloxane (PDMS) microwell array, where 60% of the microwells contained one single cell and 4% of the microwells contained two cells or more. Then, the cells in the array were analyzed by LA-ICP-MS.

3. Applications to biomedicine

Table 1 summarizes biomedical applications of LA-ICP-MS technique in the last 5 years. The authors would like to apologize for any relevant work not included in this mini-review. As can be noticed from this table, an important number of applications involves neurodegenerative disorders, the distribution of metallodrugs and exposure to nanoparticles. Therefore, some of these applications will be discussed in the following sections.

Table 1
Recent LA-ICP-MS biomedical applications

Case study Biological sample Analyzed elements Reference

Biodegradation of magnesium alloys Bone tissue Mg, Mn, Zn, Zr, Yb Draxler et al., 2015 [13]

Distribution of gold nanoparticles Mouse spleen, liver, kidney and lung tissue Au Elci et al., 2016 [15]

Exposure to gold nanoparticles Single cells Mg and Au Zhang et al., 2016 [42]

Fetal metal exposure Placenta Fe, Mn, Pb, Zn Niedzwiecki et al., 2016 [29]

Posttraumatic stress disorder Rat hippocampus Zn Sela et al., 2017 [30]

Gadofluorine P distribution in myocardial infarction Myocardium Gd Lohöfer et al., 2018 [26]

Liver iron overload disease Liver tissue Mn, S, Fe, Cu, Zn Kim et al., 2018 [22]

Menkes disease Zebrafish Cu Ackerman et al., 2018 [1]

Gadolinium deposition Human brain Gd, P Fingerhut et al., 2018 [16]

Exposure to silver nanoparticles Single cells Ag Zheng et al., 2019 [43]

Amyotrophic lateral sclerosis (ALS) Mouse embryos Mg, P, S, Mn, Fe, Cu, Zn Kysenius et al., 2019 [24]

Interaction of cisplatin with serum albumin Human serum Pt Sullivan et al., 2019 [31]

Pt distribution after antitumor administration Mouse tibia bone tissue Pt Crone et al., 2019 [11]

Determination of membranous receptors Single cells Y, Tm, Ho, Ir Van Acker et al., 2019 [37]

Alzheimer’s disease Human brain tissue Fe, Au Cruz-Alonso et al., 2019 [12]

Metallodrug analysis Dried blood spot Gd Kröger et al., 2019 [23]

Case study	Biological sample	Analyzed elements	Reference
Biodegradation of magnesium alloys	Bone tissue	Mg, Mn, Zn, Zr, Yb	Draxler et al., 2015 [13]
Distribution of gold nanoparticles	Mouse spleen, liver, kidney and lung tissue	Au	Elci et al., 2016 [15]
Exposure to gold nanoparticles	Single cells	Mg and Au	Zhang et al., 2016 [42]
Fetal metal exposure	Placenta	Fe, Mn, Pb, Zn	Niedzwiecki et al., 2016 [29]
Posttraumatic stress disorder	Rat hippocampus	Zn	Sela et al., 2017 [30]
Gadofluorine P distribution in myocardial infarction	Myocardium	Gd	Lohöfer et al., 2018 [26]
Liver iron overload disease	Liver tissue	Mn, S, Fe, Cu, Zn	Kim et al., 2018 [22]
Menkes disease	Zebrafish	Cu	Ackerman et al., 2018 [1]
Gadolinium deposition	Human brain	Gd, P	Fingerhut et al., 2018 [16]
Exposure to silver nanoparticles	Single cells	Ag	Zheng et al., 2019 [43]
Amyotrophic lateral sclerosis (ALS)	Mouse embryos	Mg, P, S, Mn, Fe, Cu, Zn	Kysenius et al., 2019 [24]
Interaction of cisplatin with serum albumin	Human serum	Pt	Sullivan et al., 2019 [31]
Pt distribution after antitumor administration	Mouse tibia bone tissue	Pt	Crone et al., 2019 [11]
Determination of membranous receptors	Single cells	Y, Tm, Ho, Ir	Van Acker et al., 2019 [37]
Alzheimer’s disease	Human brain tissue	Fe, Au	Cruz-Alonso et al., 2019 [12]
Metallodrug analysis	Dried blood spot	Gd	Kröger et al., 2019 [23]

3.1. Wilson’s disease

Wilson’s disease (WD) is a rare genetic disorder where copper concentration in body tissues, particularly in liver, brain and corneas, becomes excessive. Some common symptoms associated to this disorder include vomiting, weakness and yellowish skin [2]. The treatment of this disorder includes medications like penicillamine (Cuprimine), which remove copper from the body (chelation therapy) by urinary excretion and zinc salts, which prevent the gut absorbing copper from the diet.

LA-ICP-MS has been applied successfully in studies about Wilson’s disease. Hachmöller et al. [18] have developed a method for imaging analysis of paraffin-embedded liver needle, where copper and iron were quantified using an external calibration based on matrix-matched gelatin standards. This method has offered low limits of quantification of 1 and 5 μg g⁻¹ and the samples could be differentiated by the inhomogeneous copper distribution and high copper concentration in the samples with WD. Hachmöller et al. [19] have studied the concentration level of copper, iron and zinc in rat liver samples treated with d-penicilamine (DPA). This study indicates that LA-ICP-MS analysis is an efficient method to monitor the chelation therapy in WD patients.

3.2. Gadolinium distribution

Gadolinium-based contrast agents are widely used for magnetic resonance imaging (MRI) examinations and are recognized for being rapidly excreted and not metabolized. However, recent studies showed that Gd traces persists in human brain. Fingerhut et al. [16] confirmed these reports by using LA-ICP-MS to analyze a human brain sample from a patient that received an enhanced MRI examination using gadodiamide. Gd was detected in the cerebellum, the dentate nucleus (the region with highest gadolinium concentration), the basal ganglia, and in the frontal lobe and pons. Clases et al. [10] studied Gd deposition in a nephrogenic systemic fibrosis (NSF) skin sample and in a cancerous brain sample by LA-ICP-MS/MS using a triple quadrupole (QqQ) as the mass analyzer, which improved image resolution and the limits of detection.

Other approaches for the study of Gd deposition were developed by Löhofer et al. [26], which combined MRI and LA-ICP-MS for the detection and quantification of Gadofluorine P deposition in scar formation and myocardial remodeling in the heart after myocardial infarction. Kröger et al. [23] employed a dried blood spot method to quantify the metallodrugs gadopentetate and gadoterate.

4. Conclusion

LA-ICP-MS has been extensively used in biomedical research, providing multi-elemental information in a diversity of biological samples. Due to the improvement in the instrumentation, notably in the newly developed low dispersion LA cells and the use of TOF or QqQ as mass analyzers, LA-ICP-MS is able to enhance the information regarding the mechanisms of diseases, as well as the biological effects of metallodrugs and metal nanoparticles in a variety of tissues and also in single cells. Multimodal imaging, direct biofluid analysis, and single cell analysis by LA-ICP-MS have been improved in the last few years, which is particularly interesting for biomedical studies.
