FTIR spectroelectrochemistry combined with a light-induced difference technique: Application to the iron-quinone electron acceptor in photosystem II

Abstract

Photosystem II (PSII) in plants and cyanobacteria performs light-driven water oxidation to obtain electrons necessary for CO₂ fixation. In PSII, a series of electron transfer reactions take place from the Mn₄CaO₅ cluster, the catalytic site of water oxidation, to a plastoquinone molecule via several redox cofactors. Light-induced Fourier transform infrared (FTIR) difference spectroscopy has been extensively used to investigate the structures and reactions of the redox cofactors in PSII. Recently, FTIR spectroelectrochemistry combined with the light-induced difference technique was applied to study the mechanism of electron-transfer regulation in PSII involving the quinone electron acceptors, Q_A and Q_B, and the non-heme iron that bridges them. In this mini-review, this combined FTIR method is introduced, and obtained results about the redox reactions of the non-heme iron and Q_B, involving the long-range interaction of the Mn₄CaO₅ cluster with the electron-acceptor side, are summarized.

1. Introduction

Photosystem II (PSII), one of the major protein complexes that work in oxygenic photosynthesis, has a unique function of light-induced water oxidation [67]. Electrons from water are ultimately used for CO₂ reduction and released protons generate a proton gradient across the thylakoid membrane to synthesize ATP. In addition, molecular oxygen, a byproduct of water oxidation, makes an oxygenic atmosphere, which is essential for sustenance of life on the earth. In photosystem II, light absorption triggers charge separation between the chlorophyll dimer (P680) and the pheophytin (Pheo) electron acceptor to produce P680⁺Pheo⁻ [51]. On the electron-acceptor side, an electron on Pheo⁻ is transferred to the primary quionone electron acceptor (Q_A) and then to the secondary quinone electron acceptor (Q_B) [16,38,48], while on the electron donor side, the electron hole on P680⁺ is transferred to the redox-active tyrosine (Y_Z) then to the Mn₄CaO₅ cluster, at which water oxidation takes place via a cycle of five intermediates called ${\mathrm{S}}_{\mathit{i}}$ states ( $\mathit{i}=0\text{–}4$ ) (Fig. 1) [23,36,52]. Q_A and Q_B both consist of a plastoquinone-9 (PQ) molecule and are structurally linked by a non-heme iron though His ligands (D2-His214 and D1-His215) (Fig. 1) [18,21,63]. In spite of the same chemical species and similar molecular interactions, Q_A and Q_B have rather different functions [16,38,48]; Q_A performs only a single-electron reaction and relays an electron from Pheo⁻ to Q_B, whereas Q_B can be doubly reduced to become plastoquinole (PQH₂) by binding two protons and leaves the binding site of PSII.

Fig. 1.

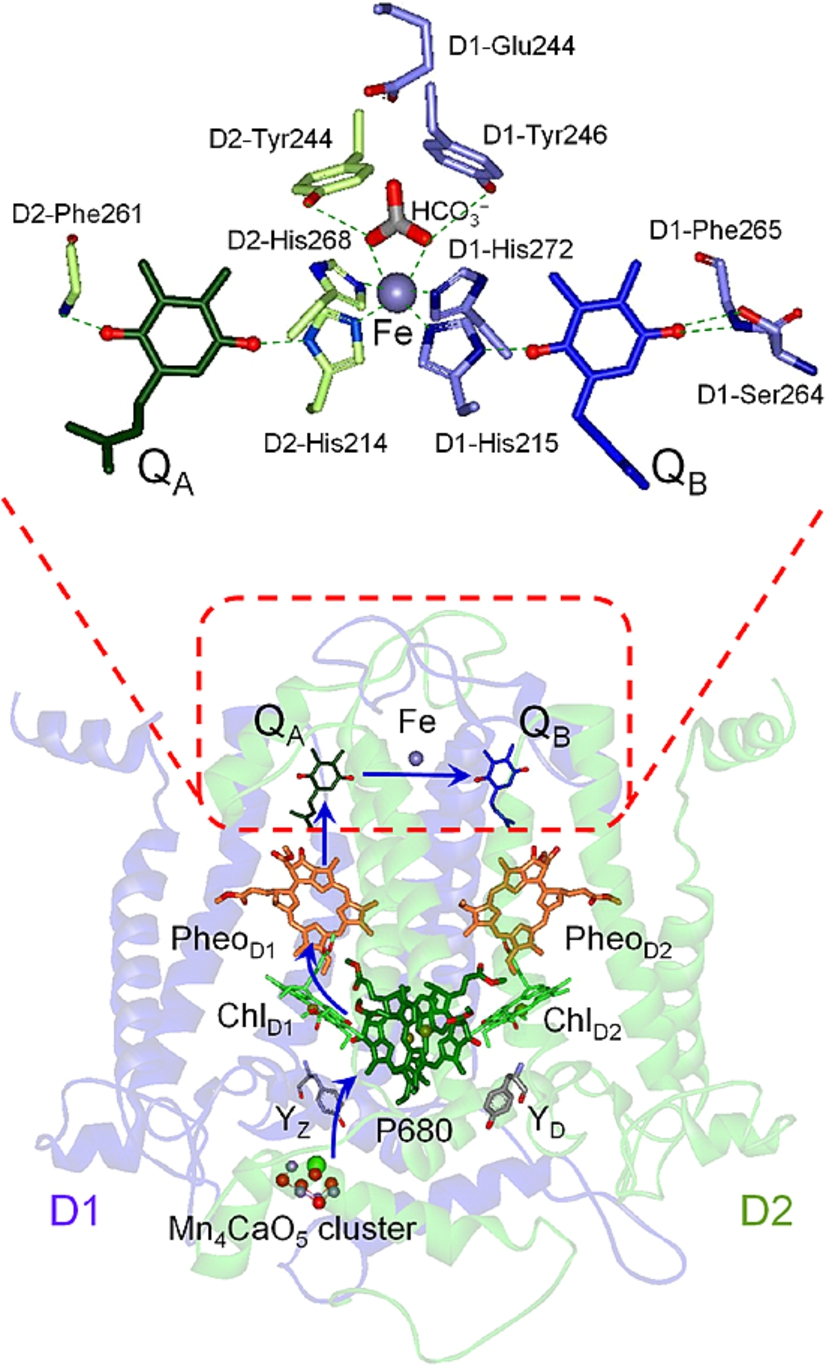

Redox cofactors and the electron transfer pathway (blue arrows) in PSII. For the PSII structure, the X-ray crystallographic structure at 1.9 Å resolution (PDB code: 3ARC) [63] was used. The expanded view of the electron-acceptor side shows the arrangements of Q_A, Q_B, and the non-heme iron with their molecular interactions.

The electron transfer reaction between Q_A and Q_B is controlled by the gap of their redox potentials ( $\mathrm{\Delta }{\mathit{E}}_{\mathrm{m}}$ ). A larger $\mathrm{\Delta }{\mathit{E}}_{\mathrm{m}}$ provides a driving force to promote an efficient forward electron transfer from Q_A to Q_B, whereas a smaller or negative $\mathrm{\Delta }{\mathit{E}}_{\mathrm{m}}$ promotes a backward electron transfer. The backward electron transfer, which seems non-productive in photosynthesis, also plays an important role in the photoprotection mechanism [10,54,66]. The $\mathrm{\Delta }{\mathit{E}}_{\mathrm{m}}$ value between Q_A and Q_B, however, has not been determined exactly and only indirectly predicted from kinetic and thermodynamic data [12,15,53]. The ${\mathit{E}}_{\mathrm{m}}$ value of Q_A, ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}\mathrm{)}$ , has been extensively estimated using chemical and electrochemical titration and determined to be approximately −100 mV in oxygen-evolving intact PSII [1,24,26,30,31,56,57]. In contrast, the ${\mathit{E}}_{\mathrm{m}}$ of Q_B, ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}$ , has not been directly measured mainly because of the absence of spectroscopic methods that provide specific Q_B signals. It has also been demonstrated that the ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}\mathrm{)}$ value is shifted by about +150 mV by depletion of the Mn₄CaO₅ cluster from PSII [1,24,26,30,31,56,57]. This phenomena was argued in the context of a photoprotection mechanisms, in which when the Mn₄CaO₅ cluster is inactivated, the electron on the quinone electron acceptors is thermally relaxed by direct recombination with P680⁺ [10,26,32,54,65,66]. However, the effect of inactivation of the Mn₄CaO₅ cluster on the ${\mathit{E}}_{\mathrm{m}}$ of Q_B in addition to its absolute value in intact PSII was still unknown. Therefore, the full mechanism of photoprotection by regulation of the electron transfer between Q_A and Q_B has not been established. Another important question here is how inactivation of the Mn₄CaO₅ cluster influences the ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}\mathrm{)}$ through the long distance of about 40 Å between the Mn₄CaO₅ cluster and Q_A. A possible hypothesis for this long-range interaction is that the structural change on the electron-donor side by Mn depletion is transferred to the Q_B site through the transmembrane helices of the D1 subunit and then to the Q_A site via the molecular bridge of the non-heme iron [10,28,31]. If this were the case, the donor-side perturbation would influence the redox properties of the non-heme iron and Q_B as well as ${\mathrm{Q}}_{\mathrm{A}}$ [10].

Light-induced Fourier transform infrared (FTIR) difference spectroscopy has been extensively used to investigate the structures and reactions of the redox cofactors in PSII [5,11,13,14,39–43]. In this method, photoreactions are initiated by illumination of continuous-wave light or flashes from a pulse laser, and the structural changes of the cofactors and surrounding protein moieties are studied by detecting small infrared absorption changes. On the other hand, an FTIR spectroelectrochemical method has been used to investigate redox reactions of biomolecules and proteins [3,6,7,20,34,35,37]. In these studies, the redox reactions were triggered by changing the electrode potential and FTIR difference spectra were measured. Spectroelectrochemistry utilizing UV-Vis and fluorescence spectroscopies has been used to determine the ${\mathit{E}}_{\mathrm{m}}$ values of redox cofactors [17,29,56–58]. The merit of FTIR spectroelectrochemistry over such conventional methods is that it provides additional information of structural changes coupled to the redox reactions. In this mini-review, we introduce our recent approaches using FTIR spectroelectrochemistry combined with light-induced FTIR difference technique to investigate the redox and structural properties of the non-heme iron and ${\mathrm{Q}}_{\mathrm{B}}$ [27,28]. In particular, the ${\mathit{E}}_{\mathrm{m}}$ of Q_B was directly measured for the first time using FTIR signals specific to ${\mathrm{Q}}_{\mathrm{B}}$ [27]. The results provided a clear view on the regulation mechanism of electron transfer in PSII upon inactivation of the Mn₄CaO₅ cluster and an insight into the long-range interaction between the electron donor and acceptor sides of the PSII protein complex.

2. Instrumental setup of FTIR spectroelectrochemistry combined with light-induced FTIR difference spectroscopy

Figure 2A shows a schematic view of an optically transparent thin-layer electrode (OTTLE) cell used in our FTIR spectroelectrochemical measurements. This cell is similar to the ones previously reported [7,37]. Because strong infrared absorption of water interferes with the bands of proteins, a very thin-layer metal mesh, for example 6 µm in thickness, is used as a working electrode. When an Au working electrode is used, the surface of the electrode is modified with thiols to prevent irreversible adsorption and denaturation of proteins [62]. A commercially obtained Ag/AgCl/3 M KCl reference electrode (Cypress Systems Inc., 66-EE009; +208 mV vs. SHE) with a diameter of 2 mm and a Pt black wire as a counter electrode are arranged in the Teflon body (Fig. 2A).

Fig. 2.

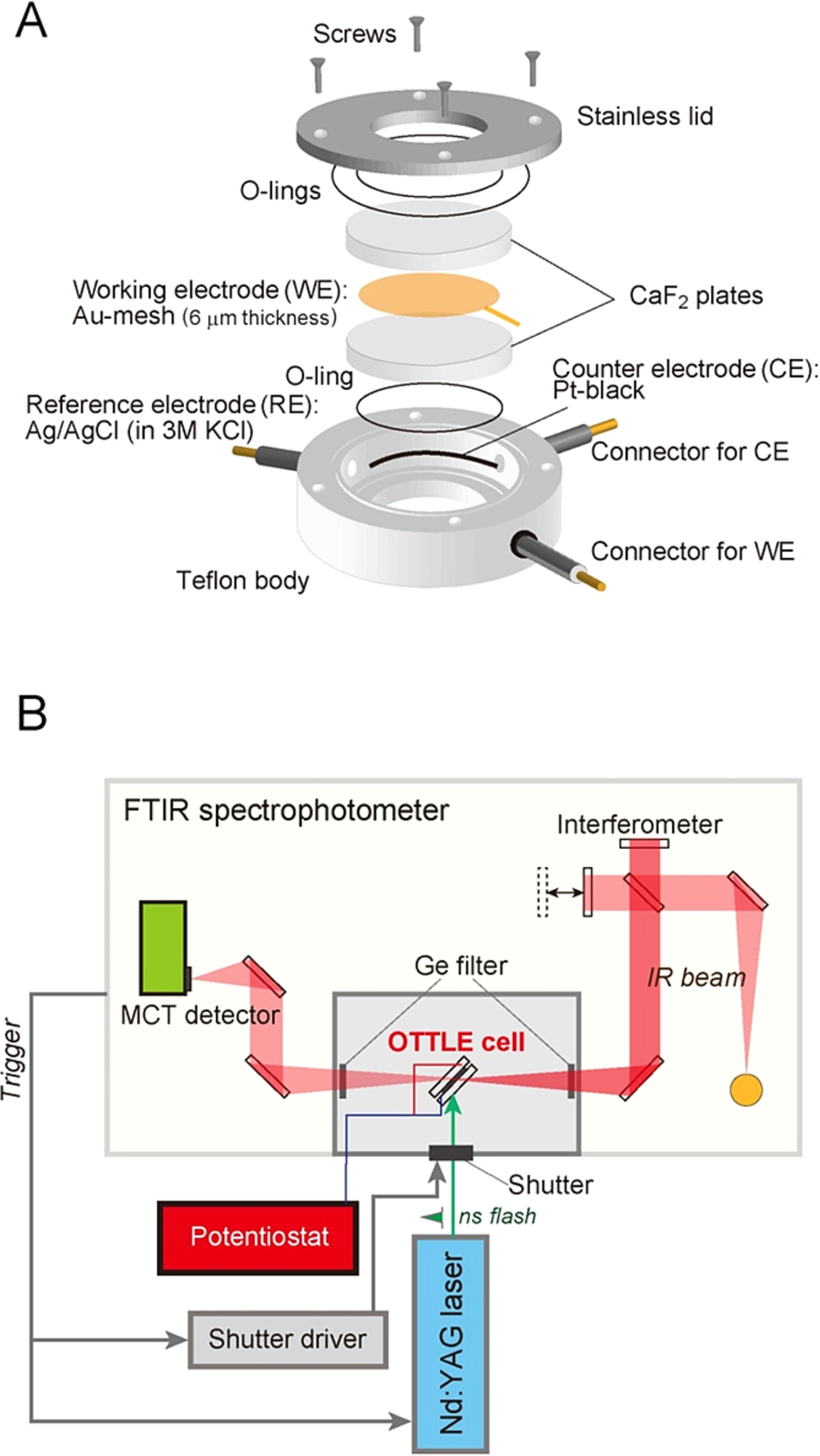

(A) An optically transparent thin-layer electrode (OTTLE) cell designed for light-induced difference FTIR spectroscopy. (B) Instrumental setup for measurements of flash-induced FTIR difference spectra of a sample in an OTTLE cell, in which the potential of the working electrode is controlled by a potentiostat.

Because redox cofactors located inside a protein are difficult to interact with an electrode directly, redox mediators are necessary for electrochemical measurements. Several mediators are used to cover the potential regions of target cofactors. For example, for the measurement of the non-heme iron in PSII, Ru(NH₃)₆Cl₂ ( ${\mathit{E}}_{\mathrm{m}}=+51\text{mV}$ ), K₃Fe(CN)₆ ( ${\mathit{E}}_{\mathrm{m}}=+430\text{mV}$ ), and ferreocenylmethyl trimetyl ammonium ( ${\mathit{E}}_{\mathrm{m}}=+627\text{mV}$ ) were used [28], while for Q_B, 1-methoxy-5-methylphanazinium methosulfate (methoxy-PMS; ${\mathit{E}}_{\mathrm{m}}=+63\text{mV}$ ), N,N,N′,N′-tetramethyl-p-phenylenediamine (TMPD; ${\mathit{E}}_{\mathrm{m}}=+260\text{mV}$ ), and K₃Fe(CN)₆ ( ${\mathit{E}}_{\mathrm{m}}=+430\text{mV}$ ) were used [27]. A sample containing the mediators is sandwiched between a pair of CaF₂ plates together with an Au mesh. The interspace between the CaF₂ plates and the Teflon body is filled with a buffer solution containing mediators to achieve an electric contact between the working electrode and the counter and reference electrodes.

For photosensitive proteins like PSII, there is a merit to combine the spectroelectrochemistry and a light-induced difference technique for studies of redox cofactors. The $\mathrm{\Delta }\mathit{A}$ values for the redox reactions of cofactors in PSII are very small, usually in the level of 10⁻⁵–10⁻⁴ [5,11,13,14,39–43], and hence electrochemically-induced FTIR difference spectra of the redox cofactors are not easy to measure with a high quality due to baseline changes during the period in which a redox equilibrium is reached (sometimes tens of minutes). In contrast, high-quality difference spectra can be obtained by utilizing the light-induced difference method for a sample that is equilibrated at a certain redox potential controlled by a potentiostat. Using this combined FTIR method of spectroelectrochemistry and light-induced difference spectroscopy, the redox properties like ${\mathit{E}}_{\mathrm{m}}$ values and the structural changes upon redox reactions are obtained simultaneously.

For light-induced FTIR difference measurements of electrochemically controlled samples, the OTTLE cell wired with a potentiostat is set in the sample room of FTIR spectrophotometer (Fig. 2B), and light illumination is performed, for example by flashes from a Q-switched Nd:YAG laser (532 nm; ∼7 ns width), which are synchronized to FTIR scans by triggers from the spectrophotometer [39]. The temperature of the OTTLE cell is controlled by circulating cold water in a copper holder. Details of the methodology of light-induced FTIR difference spectroscopy and application to PSII have been described in previous review articles [5,11,13,14,39–43].

3. FTIR spectroelectrochemical study on the non-heme iron

The non-heme iron connects Q_A and Q_B by a molecular bridge, Q_A-His214(D2)-Fe-His215(D1)-Q_B (Fig. 1) [18,21,63]. In addition to these His ligands, other two His residues, D1-His272 and D2-His268, and a bicarbonate ion function as ligands to the non-heme iron [18,21,63]. Under physiological conditions, the non-heme iron is not involved in the electron transfer reaction from Q_A to Q_B [16,38,48], because of its high ${\mathit{E}}_{\mathrm{m}}$ value of about +400 mV at pH 7.0 with a pH dependence of −60 mV/pH [8,25,44,49]. However, under oxidative conditions, e.g., in the presence of ferricyanide, the non-heme iron is oxidized to Fe³⁺ and serves as an endogenous electron acceptor, and hence Fe³⁺ is re-reduced to Fe²⁺ by light illumination. This photoreaction allows the measurement of a light-induced FTIR difference spectrum of the non-heme iron to investigate the structures of the nearby protein moieties involving the Q_B binding site [4,22,44,60,61]. Utilizing the light-induced Fe²⁺/Fe³⁺ measurement in combination with the spectroelectrochemical method, we recently studied the effects of the depletion of the Mn₄CaO₅ cluster on the redox and structural properties of the non-heme iron [28].

Figure 3 shows flash-induced FTIR difference spectra of the O₂-evolving (a, black line) and Mn-depleted (c, red line) PSII membranes of spinach at pH 6.5 measured in an electrolytic solution at +600 mV (vs. SHE) [28]. Bands at 1339, 1258, 1229, 1109, and 1101 cm⁻¹, which were observed in both spectra, are typical of the Fe²⁺/Fe³⁺ difference signals [4,22,44,60,61]. The 1339(+)/1229(−) cm⁻¹ bands were attributed to the symmetric CO stretching vibrations of the bicarbonate ligand [22], while the positive band at 1258 cm⁻¹ and a part of the 1229 cm⁻¹ negative band were assigned to the CO stretching vibration of a Tyr side chain (either D1-Tyr246 or D2-Tyr244) structurally coupled to the non-heme iron using [4-¹³C]Tyr labeling [60]. In addition, the 1109(+)/1101(−) peaks were assigned to the CN stretching vibrations of the imidazole ring of the His ligands [4]. In the difference spectrum of intact PSII, signals were also observed at 1439, 1419, 1404 and 1365 cm⁻¹, which arise from the transition from the dark-stable ${\mathrm{S}}_1$ state to the ${\mathrm{S}}_2$ state in the Mn₄CaO₅ cluster [11,13,14,39–43]. Indeed, a spectrum of intact PSII measured at pH 5.5 at +430 mV, which reflects a pure ${\mathrm{S}}_2\mathrm{/}{\mathrm{S}}_1$ difference without the contribution of the electron-acceptor side in PSII (Fig. 3a, green line), showed the same signals. These bands were assigned to the symmetric stretching vibrations of carboxylate groups surrounding the Mn₄CaO₅ cluster [45,46]. Because there are some minor peaks in the ${\mathrm{S}}_2\mathrm{/}{\mathrm{S}}_1$ difference spectrum overlapping the non-heme iron signals (e.g., bands at 1260/1244 and 1113 cm⁻¹), the ${\mathrm{S}}_2\mathrm{/}{\mathrm{S}}_1$ spectrum (Fig. 3a, green line) was subtracted from the ${\mathrm{S}}_2{\mathrm{Fe}}^{2+}\mathrm{/}{\mathrm{S}}_1{\mathrm{Fe}}^{3+}$ difference spectrum (Fig. 3a, black line) to estimate the pure contribution of Fe²⁺/Fe³⁺ signals in intact PSII (Fig. 3b).

Fig. 3.

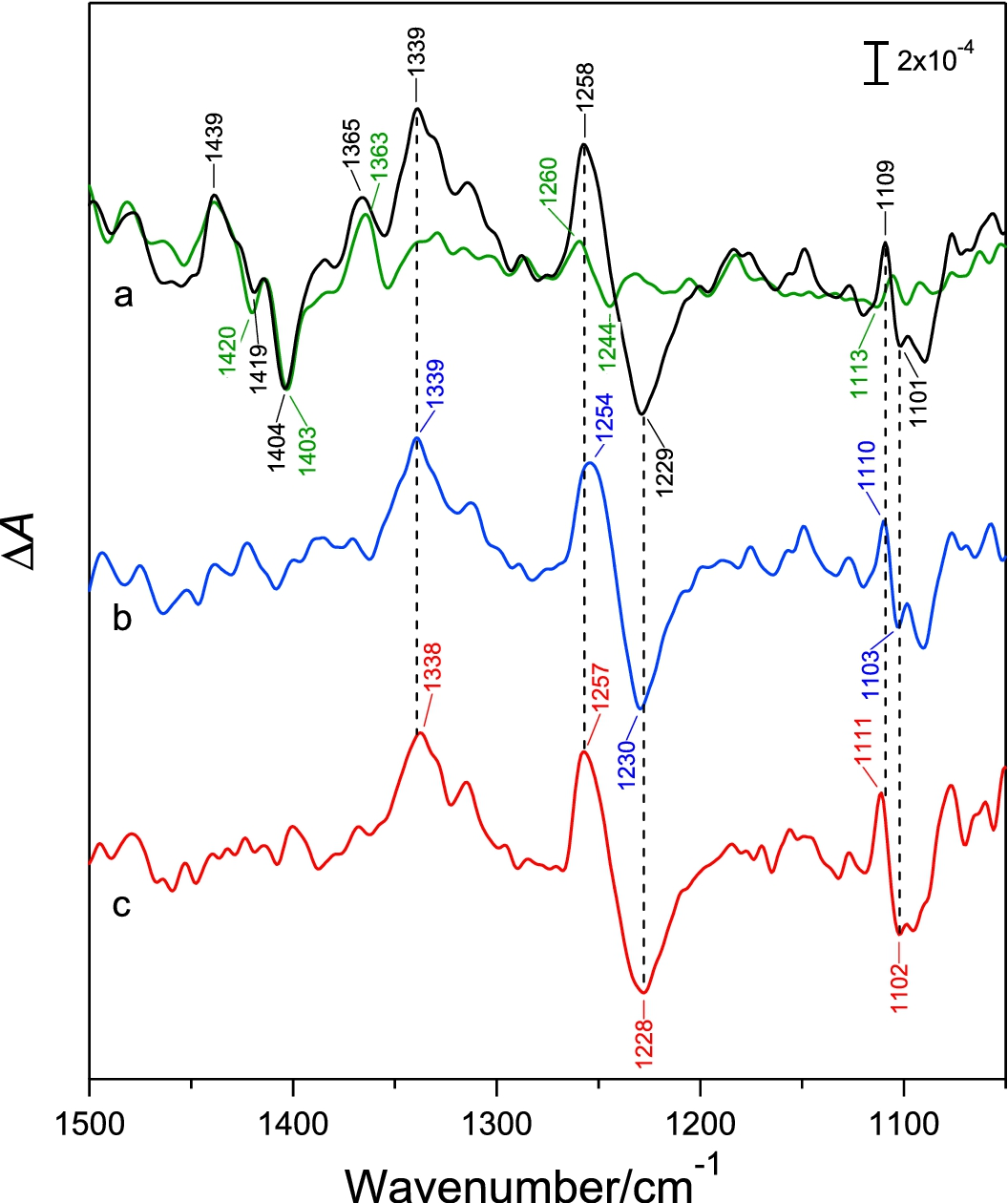

(a) ${\mathrm{S}}_2{\mathrm{Fe}}^{2+}\mathrm{/}{\mathrm{S}}_1{\mathrm{Fe}}^{3+}$ (black line) and ${\mathrm{S}}_2\mathrm{/}{\mathrm{S}}_1$ (green line) FTIR difference spectra of the intact PSII membranes isolated from spinach. (b) An Fe²⁺/Fe³⁺ difference spectrum of the intact PSII membranes obtained by subtraction of the ${\mathrm{S}}_2\mathrm{/}{\mathrm{S}}_1$ spectrum from the ${\mathrm{S}}_2{\mathrm{Fe}}^{2+}\mathrm{/}{\mathrm{S}}_1{\mathrm{Fe}}^{3+}$ spectrum in (a). (c) An Fe²⁺/Fe³⁺ difference spectrum of the Mn-depleted PSII membranes. The ${\mathrm{S}}_2{\mathrm{Fe}}^{2+}\mathrm{/}{\mathrm{S}}_1{\mathrm{Fe}}^{3+}$ difference spectrum of the intact PSII (a, black line) and the Fe²⁺/Fe³⁺ difference spectrum of the Mn-depleted PSII (c, red line) were measured at +600 mV at pH 6.5. The ${\mathrm{S}}_2\mathrm{/}{\mathrm{S}}_1$ difference spectrum of the intact PSII (a, green line) was measured at +430 mV at pH 5.5. Reproduced from the data in Ref. [28].

Fig. 4.

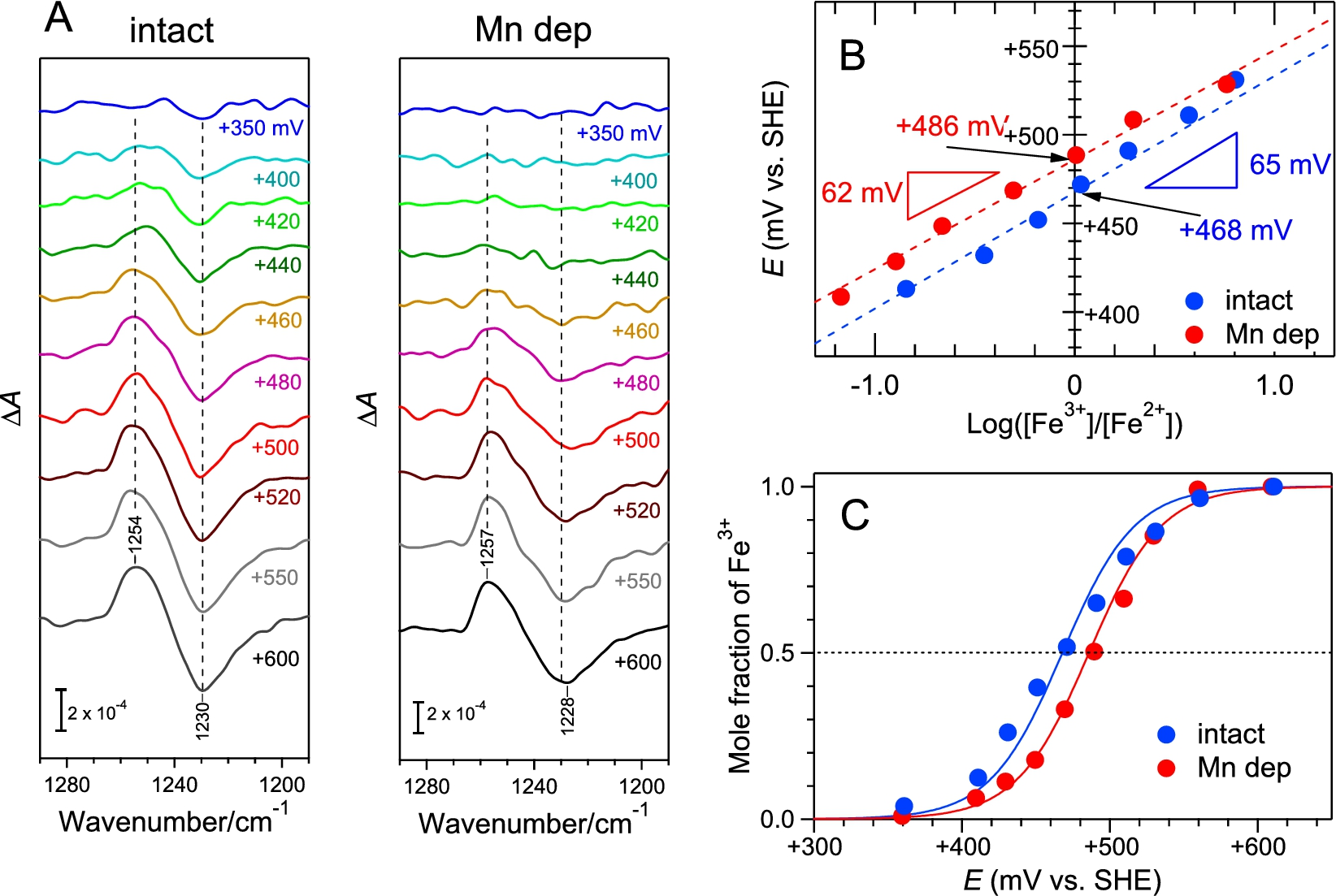

(A) Major signals around 1240 cm⁻¹ in the Fe²⁺/Fe³⁺ difference spectra of the intact (left panel) and Mn-depleted (right panel) PSII membranes at a series of electrode potentials. (B) Semilogarithmic Nernst plots of the redox reaction of the non-heme iron in the intact (blue circles) and Mn-depleted (red circles) PSII membranes. The regression lines (dashed line) with slopes and intercepts are also shown. (C) Plots with theoretical Nernstian curves assuming one-electron redox processes with ${\mathit{E}}_{\mathrm{m}}=+468\text{mV}$ (intact) and +486 mV (Mn-depleted). Reproduced from the data in Ref. [28].

From the intensities of the major signals around 1240 cm⁻¹ in the thus-obtained Fe²⁺/Fe³⁺ spectra at a series of electrode potentials between +350 and +600 mV (Fig. 4A), the molar ratios of Fe³⁺ and Fe²⁺ were estimated and analyzed in a semilogarithmic Nernst plot (Fig. 4B) [28]. A linear relationship with slopes of 65 and 62 mV was obtained for the intact and Mn-depleted PSII samples, respectively; These slopes are similar to the theoretical value of 56 mV at 10°C (measuring temperature). The data from both PSII samples well followed the theoretical one-electron Nernstian curves (Fig. 4C), and the ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{Fe}}^{2+}\mathrm{/}{\mathrm{Fe}}^{3+}\mathrm{)}$ values were determined to be +468 ± 3 and +486 ± 4 mV for intact and Mn-depleted PSII samples, respectively [28]. Thus, the FTIR spectroelectrochemical measurements revealed that Mn depletion induces a relatively small shift of ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{Fe}}^{2+}\mathrm{/}{\mathrm{Fe}}^{3+}\mathrm{)}$ by +18 mV [28]. This value is about ∼8 times smaller than the shift of ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}\mathrm{)}$ ( $\sim +150\text{mV}$ [1,24,26,30,31,56,57]).

Fig. 5.

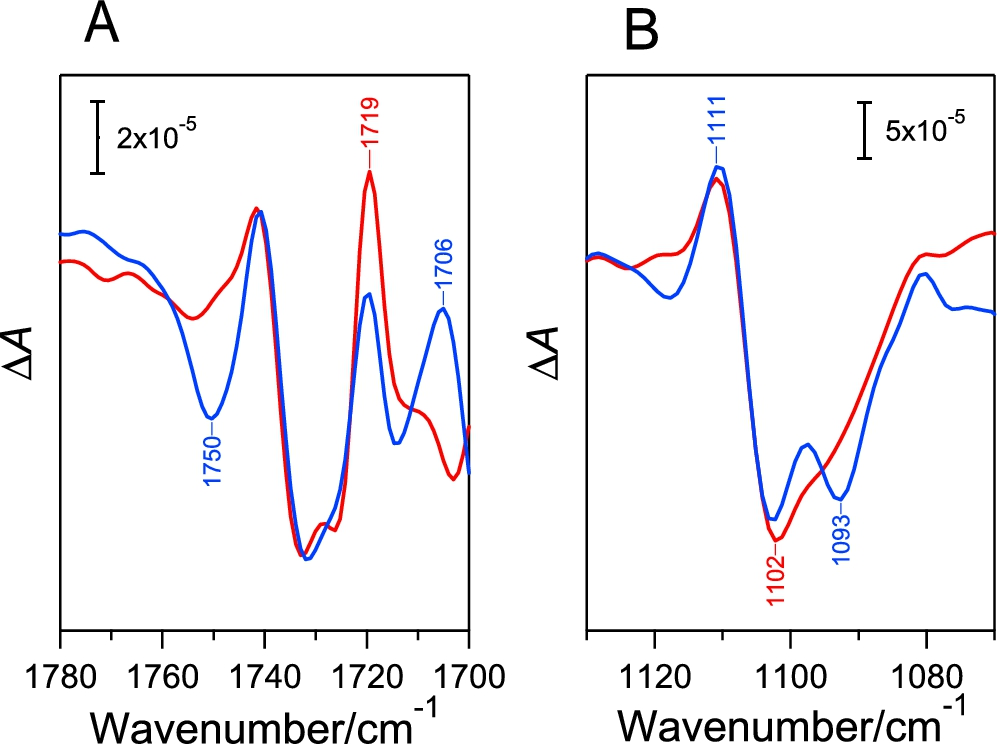

Fe²⁺/Fe³⁺ difference spectra of the intact (blue line) and Mn-depleted (red line) PSII membranes in the regions of the C=O stretch of COOH (A), and the CN stretch of His (B). Reproduced from Ref. [28].

The Fe²⁺/Fe³⁺ difference spectra also showed some changes in the COOH and His CN regions upon Mn depletion (Fig. 5). A negative peak at 1750 cm⁻¹ was observed in the region of the C=O stretching vibration of COOH in intact PSII, whereas this band was not detected in Mn-depleted PSII (Fig. 5A). It was suggested that the $\mathrm{p}{\mathit{K}}_{\mathrm{a}}$ of a COOH group near the non-heme iron is upshifted upon Mn depletion [28]. One of several Glu residues (D1-Glu226, D1-Glu242, D1-Glu243, D1-Glu244, D2-Glu241, and D2-Glu242) located on the stromal side will be responsible for this band; The best candidate is D1-Glu244 that is coupled to the non-heme iron through bicarbonate (Fig. 1). In the His CN region, two negative peaks were observed at 1102 and 1093 cm⁻¹ in intact PSII, whereas the lower-frequency peak diminished upon Mn depletion (Fig. 5B). This peak has been assigned to the deprotonated anion form of His, most probably D1-His215 interacting Q_B [4,22]. Thus, it was suggested that the $\mathrm{p}{\mathit{K}}_{\mathrm{a}}$ of D1-His215 increased upon Mn depletion. These $\mathrm{p}{\mathit{K}}_{\mathrm{a}}$ changes of the Glu and His residues as well as a small shift of ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{Fe}}^{2+}\mathrm{/}{\mathrm{Fe}}^{3+}\mathrm{)}$ by Mn depletion should results from the long-range interaction between the electron-donor and acceptor sides of PSII.

4. FTIR spectroelectrochemical study on Q_B

In contrast to many reports of the measurement of ${\mathit{E}}_{\mathrm{m}}$ of Q_A [1,24,26,30,31,56,57], there has been no report of direct measurement of ${\mathit{E}}_{\mathrm{m}}$ of Q_B. The main reason for this is the difficulty in spectroscopic detection of the Q_B reaction. It is well known that fluorescence measurement is useful to monitor the redox states of Q_A because reduction of Q_A increases the level of fluorescence [9,33,47,48]. However, the fluorescence method is not applicable to the Q_B reaction. Although UV-Vis absorption and electron spin resonance have also been applied to the redox titration of Q_A (summarized in [30]), these spectroscopic methods have not been used in Q_B titration probably due to the similar signals of ${{\mathrm{Q}}_{\mathrm{A}}}^{-}$ and ${{\mathrm{Q}}_{\mathrm{B}}}^{-}$ [19,50,55,64]. On the other hand, it was shown that FTIR difference spectroscopy provided signals specific to the Q_A and Q_B reactions [59]; A sharp positive peak was observed at 1721 and 1745 cm⁻¹ in the ${{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}$ and ${{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}$ difference spectra, respectively (Fig. 6A, B). These peaks were assigned to the 13²-ester C=O vibrations of nearby Pheo molecules (Pheo_D1 and Pheo_D2 for Q_A and Q_B, respectively; Fig. 6C), which are affected by reduction of the quinone electron acceptors [59]. The frequency of the 1721 cm⁻¹ peak in the ${{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}$ spectrum lower than that of the 1745 cm⁻¹ peak in the ${{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}$ spectrum is consistent with the presence of a hydrogen bond at the 13²-ester C=O of Pheo_D1 with D1-Tyr126 (Fig. 6C) [18,21,63]; The corresponding residue on the D2 side is D2-Phe125, which does not form a hydrogen bond with Pheo_D2. These peaks at 1721 and 1745 cm⁻¹ are thus good markers to discriminate the Q_A and Q_B reactions.

Fig. 6.

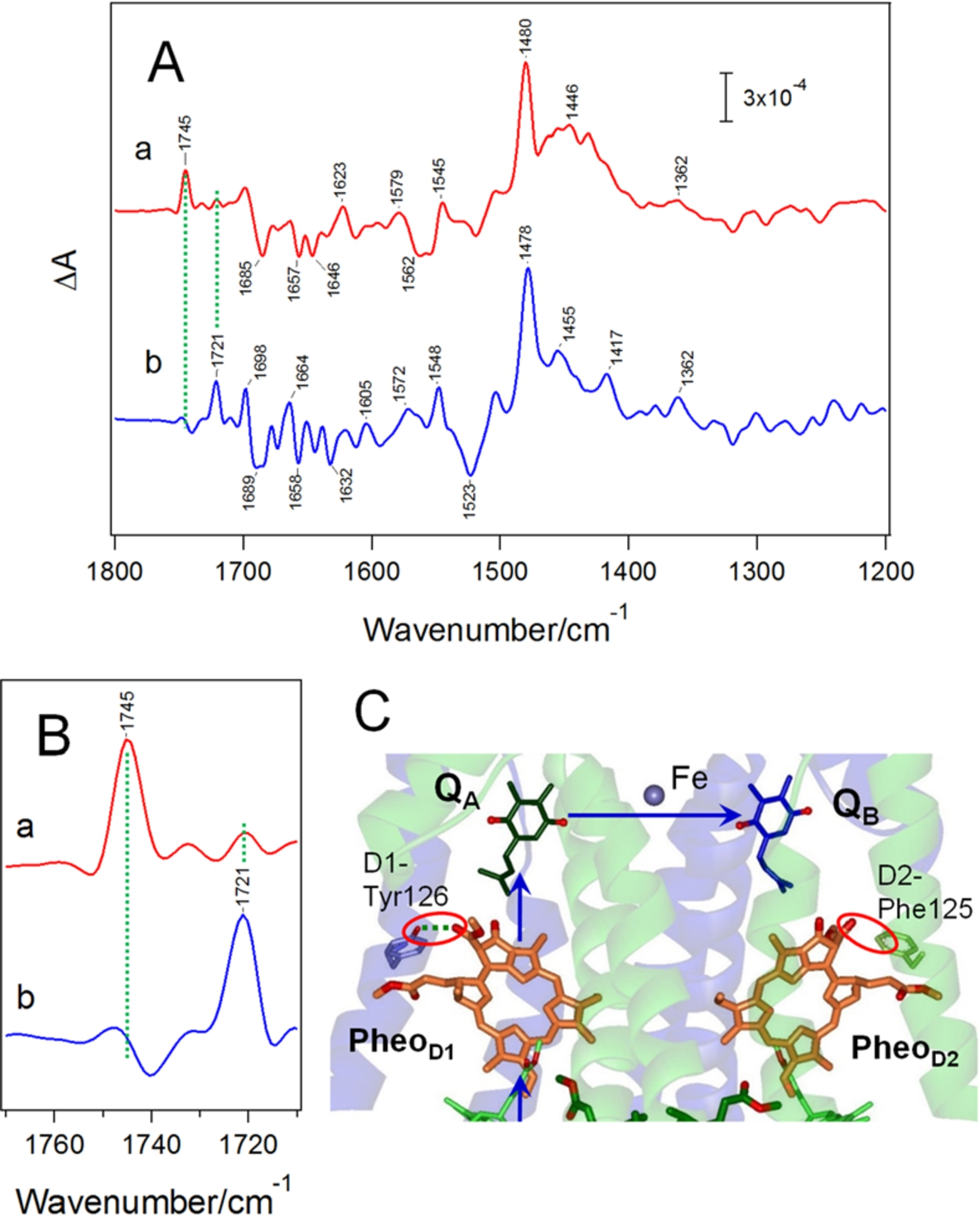

(A) Light-induced FTIR difference spectra upon single reduction of Q_B (a) and Q_A (b) of Mn-depleted PSII core complexes isolated from Thermosynechococcus elongatus. (B) Expanded spectra of the ester C=O region of the ${{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}$ (a) and ${{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}$ (b) difference spectra. (C) Hydrogen-bond interactions of pheophytin electron acceptors located near Q_A and Q_B in PSII (PDB code: 3ARC [63]). Spectra in panels A and B are reproduced from Ref. [59].

Fig. 7.

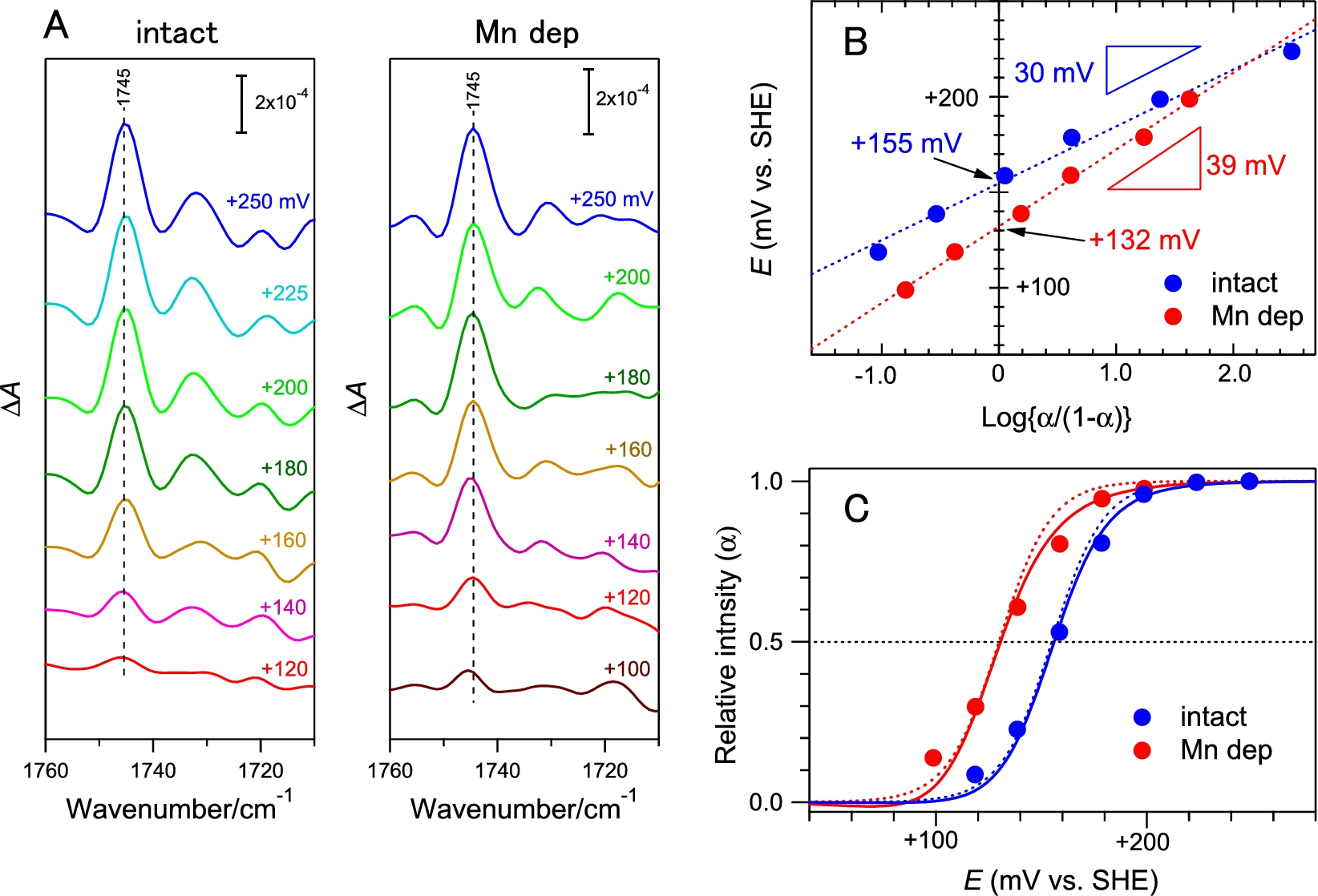

(A) The 1745 cm⁻¹ band specific to ${{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}$ at a series of the electrode potentials for the intact (left panel) and Mn-depleted (right panel) PSII core complexes from T. elongatus. The contribution of the ${{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}$ signal (typically at 1721 cm⁻¹) was eliminated by subtraction of the ${{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}$ difference spectrum measured at +50 mV from each spectrum. (B) Semi-logarithmic Nernst plots of the redox reactions of Q_B in the intact (blue circles) and Mn-depleted (red circles) PSII core complexes. α indicates the intensity ratio of the 1745 cm⁻¹ peak at each electrode potential relative to the intensity at +250 mV, at which Q_B is fully oxidized. The regression lines (dashed lines) with slopes and intercepts are also shown. (C) Fitting of the experimental intensity ratios (α) with theoretical Nernst curves for the intact (blue lines) and Mn-depleted (red lines) PSII samples. Dashed lines reveal the theoretical curves of two-electron reactions with ${\mathit{E}}_{\mathrm{m}}$ of +155 (intact) and +132 (Mn-depleted) mV, while solid lines reveal the simulated curves with ${\mathit{E}}_{\mathrm{m}}$ values of the first and second reduction of Q_B as fitting parameters: ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}=+93\text{mV}$ and ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{PQH}}_2\mathrm{/}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{)}=+213\text{mV}$ for intact PSII, and ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}=+87\text{mV}$ and ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{PQH}}_2\mathrm{/}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{)}=+157\text{mV}$ for Mn-depleted PSII. Reprinted from Ref. [27].

This marker peak of Q_B at 1745 cm⁻¹ was used to examine the redox state of Q_B at a series of the electrode potentials (Fig. 7A) [27]. Note that in this method, the Q_B signal is obtained as a light-induced change of Q_B, typically one electron reduction of Q_B, after reaching equilibrium of electrochemical reactions, and hence electrochemically-induced changes are not directly detected in FTIR spectra. The semilogarithmic Nernst plots of the relative intensities of this peak against the electrode potential (Fig. 7B) showed virtually linear relationships with slopes of 30 ± 2 and 39 ± 1 mV for intact and Mn-depleted PSII, respectively. These slopes are closer to 28 mV, the theoretical value of a two-electron reaction at 10°C (measurement temperature), than 56 mV, that of a one-electron reaction. The apparent redox potentials ( ${\mathit{E}}_{\mathrm{m}}^{\mathrm{app}}$ ) were obtained from the intercepts of the plots to be +155 and +132 mV for intact and Mn-depleted PSII, respectively (Fig. 7B). The data closer to a two-electron reaction indicates that the redox potential of the second reduction of Q_B, ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{PQH}}_2\mathrm{/}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{)}$ , is higher than that of the first reduction, ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}$ , and hence that Q_B was electrochemically doubly reduced to PQH₂ without forming singly reduced ${{\mathrm{Q}}_{\mathrm{B}}}^{-}$ as a major component. However, an ideal two-electron process with the slope value of 28 mV is realized unless ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}$ is at least 180 mV more negative than ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{PQH}}_2\mathrm{/}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{)}$ [2] (see also SI in [27]). Thermodynamic simulation of the experimental Nernst plots with ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}$ and ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{PQH}}_2\mathrm{/}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{)}$ as fitting parameters (Fig. 7C) yielded the following ${\mathit{E}}_{\mathrm{m}}$ values at pH 6.5: ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}=+93\pm 27\text{mV}$ and ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{PQH}}_2\mathrm{/}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{)}=+213\pm 36\text{mV}$ for intact PSII; ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}=+87\pm 16\text{mV}$ and ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{PQH}}_2\mathrm{/}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{)}=+157\pm 36\text{mV}$ for Mn-depleted PSII. These are the ${\mathit{E}}_{\mathrm{m}}$ values of Q_B directly measured for the first time (to our knowledge).

Fig. 8.

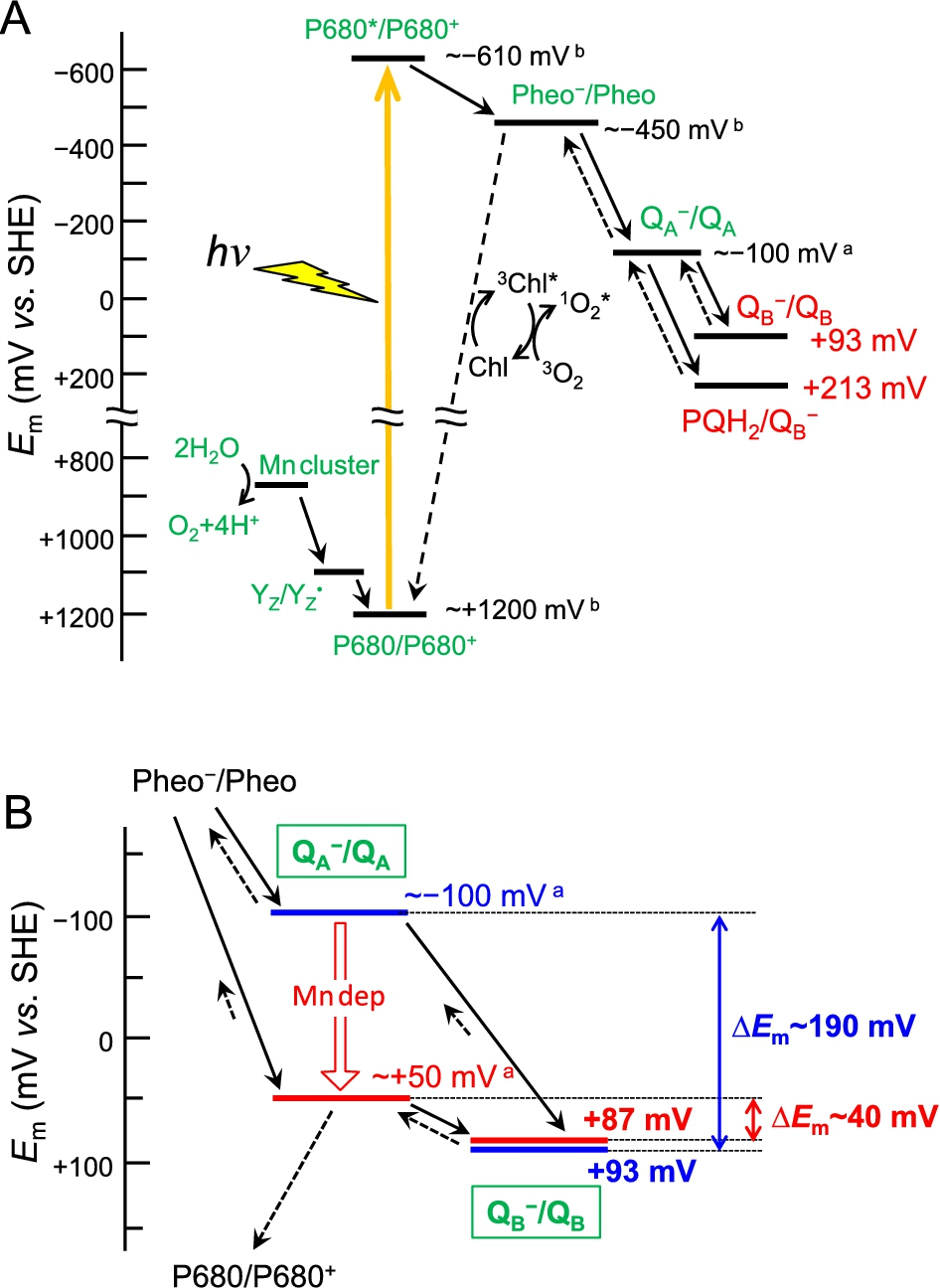

(A) Diagram of the redox potentials of the electron transfer components in PSII. (B) The effect of Mn depletion on the redox potentials of single reduction of Q_A and Q_B. Solid and dashed black arrows indicate forward and backward electron transfer, respectively. The redox potential levels of intact and Mn-depleted PSII are expressed by blue and red bars, respectively, in (B). ^aValues from Refs [1,24,26,30,31,56,57]. ^bValues from Refs [29,51]. Reprinted from Ref. [27].

By determining the ${\mathit{E}}_{\mathrm{m}}$ values of Q_B in intact and Mn-deleted PSII samples, the mechanism of photoprotection when the Mn₄CaO₅ cluster is inactivated is now clear (Fig. 8). The ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}$ together with the reported ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}\mathrm{)}$ (approximately −100 mV [1,24,26,30,31,56,57]) provided the $\mathrm{\Delta }{\mathit{E}}_{\mathrm{m}}$ between Q_A and Q_B as approximately 190 mV in intact PSII [27]. Mn depletion induces a negative shift of ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}$ by only 6 mV [27], which is in sharp contrast to a large positive shift ( $\sim +150\text{mV}$ ) of ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}\mathrm{)}$ by the same treatment [1,24,26,30,31,56,57]. Thus, $\mathrm{\Delta }{\mathit{E}}_{\mathrm{m}}\sim 190\text{mV}$ for the first reduction of Q_B in intact PSII decreases to ∼40 mV (Fig. 8B). This large decrease in $\mathrm{\Delta }{\mathit{E}}_{\mathrm{m}}$ plays a significant role in photoprotection. The $\mathrm{\Delta }{\mathit{E}}_{\mathrm{m}}$ decrease accelerates backward electron transfer from ${{\mathrm{Q}}_{\mathrm{B}}}^{-}$ to Q_A to facilitate direct charge recombination of ${{\mathrm{Q}}_{\mathrm{A}}}^{-}$ with P680⁺, preventing oxidative damage by P680⁺ [10,54]. In addition, the large positive shift of ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}\mathrm{)}$ increases $\mathrm{\Delta }{\mathit{E}}_{\mathrm{m}}$ between Pheo_D1 and Q_A and hence prevents charge recombination via Pheo_D1 ⁻, which otherwise leads to generation of harmful singlet oxygen via a chlorophyll triplet state [10,26,32,54,65,66].

5. Concluding remarks

The combined method of thin-layer electrochemistry and light-induced FTIR difference spectroscopy was applied to study the redox properties of the non-heme iron and the terminal quinone Q_B on the electron-acceptor side of PSII. In particular, the FTIR signal specific to Q_B reduction enabled the first direct measurement of the ${\mathit{E}}_{\mathrm{m}}$ of Q_B [27], which has not been achieved by other spectroscopic methods. This success demonstrated that this combined FTIR method is a very powerful tool to investigate redox reactions in photosensitive proteins. The determination of ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}$ and its shift upon depletion of the Mn₄CaO₅ cluster showed a clear view of electron transfer regulation in PSII (Fig. 8), which functions as a photoprotection mechanism when the Mn₄CaO₅ cluster is impaired. Another merit of FTIR spectroelectrochemistry is that structural information can be obtained in addition to the redox property. It was shown that Mn depletion affected the protonation states of amino acid residues near the non-heme iron, which may cause the shift of the ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{Fe}}^{2+}\mathrm{/}{\mathrm{Fe}}^{3+}\mathrm{)}$ [28].

Although the mechanism of electron transfer regulation in PSII was clarified by determination of the ${\mathit{E}}_{\mathrm{m}}$ of Q_B, the molecular mechanism of the long-range interaction between the Mn₄CaO₅ cluster on the electron-donor side and the quinone molecules on the electron-acceptor side remains unclear. First it was predicted that the structural change by Mn depletion is transferred to the Q_B site via the membrane-spanning helices of the D1 protein and then to Q_A via the non-heme iron bridge (Fig. 1) [10], resulting in a large ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}\mathrm{)}$ shift by +150 mV. However, this prediction was not consistent with the observations of relatively small shifts of ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{B}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{B}}\mathrm{)}$ and ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{\mathrm{Fe}}^{2+}\mathrm{/}{\mathrm{Fe}}^{3+}\mathrm{)}$ (+6 and +18 mV, respectively) upon Mn depletion (Figs 4 and 7) [28]. Thus, there could be other pathways of long-range interaction to affect ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}\mathrm{)}$ without using the α-helices of the D1 protein. Meanwhile, it was suggested that the $\mathrm{p}{\mathit{K}}_{\mathrm{a}}$ of a Glu residue near the non-heme iron is changed upon Mn depletion [28]. It is possible that such a Glu residue together with other several Glu residues located on the stromal side of PSII electrostatically controls the ${\mathit{E}}_{\mathrm{m}}\mathrm{(}{{\mathrm{Q}}_{\mathrm{A}}}^{-}\mathrm{/}{\mathrm{Q}}_{\mathrm{A}}\mathrm{)}$ by changing the protonation state. Further FTIR studies using spectroelectrochemical and light-induced difference methods in combination with site-directed mutagenesis at these amino acid residues are necessary to clarify the whole mechanism of electron transfer regulation and the donor- and acceptor-side communication in PSII.
