Abstract

The use of ontologies to model human behaviours that affect health is challenging since this process involves data from multiple inter-related domains that unfold and evolve over time. However, while current ontology development methodologies are generic enough to model any domain of interest, they do not provide design guidelines for modelling time-related aspects. This paper proposes a methodology for ontology development that entails the requirements for behaviours modelling based on passive temporal data. Its main focus is on temporal representations of classes and their holistic relations since no other methodology approaches ontology design from its temporal perspective. We exemplify these ideas by modelling the sleep behaviour domain, its relations to other behavioural aspects, and its effects on health.

Keywords

Ontology engineering temporal reasoning health informatics

1. Introduction

Human behaviour is a frequent research theme in the physical, psychological, and social areas because it is known that daily life behaviours influence individuals’ health and life quality in the long term Mokdad et al. (2004); Ng et al. (2020). Behaviour definitions differ according to the perspective used to analyse such a phenomenon. Levitis et al. (2009), for example, define behaviour as “the internally coordinated responses (actions or inactions) of whole living organisms (individuals or groups) to internal and/or external stimuli, excluding responses more easily understood as developmental changes (e.g., ageing)”. Fassnacht (1982) complements this definition saying that these actions can be “externally perceived” and, consequently, measured.

One of the interests in modelling behaviours is understanding how their elements (constructors) jointly affect aspects of individuals’ physical, physiological state, and social life. For example, the study of Pereira et al. (2020) tries to understand how personal behaviours affect the learning process. Similarly, Carmeli et al. (2009) discuss how personal behaviours affect productivity in workplaces, while Funk et al. (2010) investigate the influence of human behaviour in the spread of infectious diseases and how spreading models incorporate these behaviours.

These studies rely on different domains of human behaviour. However, they share the same idea of identifying constructors for behaviours that are important to the domain of discussion and relating these constructors to a conclusion. Ontologies Guarino et al. (2009) are appropriate resources to support the representation of these domains because they can simplify such domains in terms of classes, properties, and rules. Moreover, ontologies are forms of knowledge representation that rely on Description Logic (i.e., a decidable fragment of First-Order Logic) as their formal basis Baader et al. (2008). Thus, representations can be used together with reasoning mechanisms to generate new knowledge.

While these examples involve simple properties, some domains require more complex holistic relations to support conclusions. This is the case when we try to understand the health of individuals by considering their daily behaviours that influence each other. According to studies such as the WHOQOL research program Kim (2020), from the World Health Organisation, most repetitive behaviours of individuals influence their quality of life and, in the long term, affect their health. For example, sleep behaviour (e.g., sleep duration Hirshkowitz et al. (2015)), a routine of physical activities (duration and intensity Wang and Boros (2021)), personal relationships (e.g., time dedicated to these relationships Carmeli et al. (2009)), negative feelings (e.g., exposition to stressful situations Stewart et al. (2011)), and others contribute to the probability of expression of chronic diseases in the long term Ng et al. (2020). Mokdad et al. (2004) also highlight the effects of behaviour on health. Overall, the literature indicates the importance of holistically monitoring our behaviours in order to manage the emergence of chronic illnesses Ng et al. (2020).

Besides the holistic nature of behaviour assessments, temporal aspects are also usually present in the health domain. For example, isolated behavioural episodes (e.g., sleeping for only two hours in one night) do not significantly interfere with health. However, experiencing this as a repetitive behaviour may be the reason for serious health problems. Thus, the representation of the behavioural influences on health must incorporate temporal aspects. This representation is not trivial to model using ontologies. Current methodologies assist in the task of developing ontologies. However, while the definition of their steps gives a good notion about what must be done, they do not specify ways to conduct these steps, specifically concerning the modelling of temporal aspects. Thus, they are proper guidelines for creating representations of concrete and static domains. However, further directions and details could better assist developers in covering more dynamic domains, such as behavioural modelling.

This paper describes a methodology, called Onto-mQoL, that relies on the approach of Noy et al. (2001) as a starting point, extending its steps with pragmatical actions and modelling details to cover the requirements for behaviour domains that rely on passive temporal data. This means data that are mainly assessed through ubiquitous personal devices. As a case example, we apply this methodology to model individuals’ sleep and rest behaviour, adding practical aspects and design details to each step. Therefore, this paper contributes by supporting any knowledge engineer or project that intends to create models involving multiple inter-related domains that unfold and evolve over time.

2. Related work

This paper relies on two main definitions. Firstly, Fassnacht (1982) defines behaviour as an occurrence that emanates from an organism or may be detected by an observer outside of an organism. These occurrences (behaviours) are given, for example, in terms of sleep routines, tobacco and alcohol consumption, dietary behaviours, physical activity, and sexual practices. Moreover, such observable occurrences can be measured and generate data. For example, total sleep time and awakenings are features that characterise sleep routines, while the amount of ingested macronutrients characterises dietary behaviours.

Levitis et al. (2009) give an important second definition. Their work consolidated the results of a comprehensive study on published definitions for behaviour, together with survey responses from 174 members of three behaviour-focused scientific societies, for coining the behaviour definition as “the internally coordinated responses (actions or inactions) of whole living organisms (individuals or groups) to internal and/or external stimuli.”. This second definition emphasises the existence of internal and/or external stimuli, which can also be measured and generate data. Emotional states are instances of internal stimuli that can heavily influence behaviours Davis et al. (2015) and can be measured by psychology instruments (e.g., Daily Stress Inventory – DSI for stress assessment).

Observable occurrences and internal/external measurable stimuli associated with behaviours are referenced in our research as behaviour-related terms that characterise behaviours. Most ontologies that model behavioural aspects use subsets of these terms, such as the 15 ontologies identified in the scoping review of Norris et al. (2019). For example:

Health Behaviour Change Ontology (HBCO) Bickmore et al. (2011): specifies the conceptualisation of the conversational agent-based behaviour change interventions. It is a domain and theory-driven ontology since it only includes emotional states and therapeutic actions sanctioned by a theory or method of health behaviour change.

Neuro-Behaviour Ontology (NBO) Gkoutos et al. (2012): is designed to integrate behavioural observations in animal and human organisms. It also understands behavior as an organism’s response to external or internal stimuli.

Mental Functioning Ontology (MF) Hastings et al. (2012): domain ontology aimed at representing all aspects of mental functioning, including mental processes such as cognitive processes and qualities such as intelligence.

Cognitive Paradigm Ontology (COGPO) Turner and Laird (2012): represents experimental conditions focused on the presented stimuli, the instructions, and the responses requested.

The review of Norris et al. (2019) concluded that none of these 15 identified ontologies captures the full breadth and detail required to adequately describe and explain temporal events, such as human behaviour changes. The main problem is the need for expressive temporal representations. HBCO Bickmore et al. (2011), for example, relies on the OWL-time ontology to include temporal references. However, apart from the language constructs for the representation of time in ontologies, this standard does not contain mechanisms to represent the evolution of concepts (e.g., events) in time. Moreover, OWL-Time does not propose inference rules to infer new temporal data automatically. NBO Gkoutos et al. (2012) and MF Hastings et al. (2012) were structured using the Basic Formal Ontology (BFO) Spear et al. (2016), which is an upper-level ontology that provides a structure for development by dividing entities into two categories of ‘continuants’ (representing objects and spatial regions) and ‘occurrents’ (representing processes extending over time). Indeed, 10 of the 15 ontologies discussed in Norris et al. (2019) align their concepts to BFO. According to such works, BFO facilitates ontology development because one does not have to reinvent the wheel concerning basic categories and relations, and it improves the overall quality and interoperability. However, these ontologies did not take advantage of the abstract definitions of the BFO categories or their hierarchical components to detail or extend temporal representations. This limitation in modelling more expressive temporal representations is an important motivation for our research.

3. Requirements for behaviour modelling

Consider the following example in the mHealth area. A wearable device is used to collect data about the sleep and physical activity behaviours of an individual and represent such data using a ontology. Therefore, a deductive system that relies on this ontology could infer if this individual has some type of sleep disorder, such as insomnia, and the causes of this disorder. Considering this scenario, an ontology for behaviours modelling should be able to represent descriptions such as the example below:

She sleeps five hours per night [precise interval]. She always runs for 5 km starting at 20:30 before going to bed [qualitative relation between moments]. She goes to bed at 22:00 [precise moment] but stays awake for around two hours before sleep [uncertain quantitative relation between interval and moment]. She wakes up three times during the night [precise quantitative relation between moments and interval] and wakes up around 5:00 [uncertain moment] in the morning. These bad nights have occurred daily during the last month [precise qualitative relation between intervals].

A methodology that guides the creation of an ontology, which aims at representing such a behavioural description, should detail the design of four particular requirements:

Passive and personal data representations and their temporal contexts: so far, the characterisation of behaviours mostly relies on self-reported tools. However, the passive assessment of observable and measurable events (e.g., wake-up time, running periods) is a trend. Methodologies should consider the data associated with these events as the basis of a bottom-up modelling strategy.

Holistic representations based on temporal relations: if we intend to investigate, for example, if the physical behaviour (e.g., running 5 km before sleeping) is affecting the sleep routine, then the methodology must indicate strategies to create object properties that relate the classes of these domains. These holistic representations differ from most of the current domain-specific ontologies.

Broad temporal representations: as indicated in the previous example, behaviour modelling requires the representation of a generic set of time concepts (moments and intervals), time concept properties (precise and uncertain), time relations (interval-interval, interval-moment, and moment-moment), and time relation properties (qualitative and quantitative). Current methodologies only approach static rather than temporal representations.

Space representations: while behaviours occur over time, they also occur in space. Moreover, space is an important part of the behaviour study since it affects the routine of individuals. For example, individuals usually present different sleep behaviours when they are at home and in a hotel. Like time, space representations for behaviours also require the use of tertiary relations. The literature describes solutions for such representations, but they present limitations. For example, reification Noy et al. (2006) is commonly used to represent n-ary (e.g., tertiary) relations. However, it restricts the OWL capabilities since relations are described as the object of a property. Thus, the OWL semantics properties, such as inverse, cannot be applied. As the requirements and design approach for modelling the time and space semantics are completely different, our current paper focuses only on the former, leaving the latter one as a future research area.

Temporal representations are inherently embedded in behavioural domains. Thus, inferences and their refinements can only be managed by using broad and expressive temporal modelling. Temporal representations also affect the passive data representation, since data are assessed inside a temporal context, and the representation of holistic relations since several relations between classes of different domains are given in terms of time. For example, physical activities may improve sleep quality if conducted 90 minutes before sleep time. Thus, the relation “improves” has an associated temporal constraint.

Recent proposals Michie et al. (2020) already consider the importance of these requirements in the context of their behavioural representations. Our efforts contribute to that and provide a more concrete approach to managing the requirements, followed by the design and implementation of the ontologies in that domain. However, traditional ontology development methodologies do not discuss practical ways to guide the definition of these requirements. The analysis of the attributes described in Table 1 emphasises this limitation. This table is part of our review that captured the main aspects of well-known methodologies from the perspective of their pragmatic use. We selected these methodologies for analysis since they have evolved for a long time and, thus, used and evaluated in different projects, providing diverse examples and documentation Aminu et al. (2020); Sattar et al. (2020).

Table 1
Summary of the main existing methodologies

Methodology No. steps Tool Scope Main methodology feature Time model

Methontology Fernández-López et al. (1997) 11 WebODE Generic Granular description of elements No

Gruninger and Fox Fox and Gruninger (1998) 6 No Generic Strong use of competency questions No

Uschold and King Uschold and King (1995) 4 No Generic Process adaptability to formal needs No

FAO-Based Zheng et al. (2012) 5 No Specific Integration to domain specific resources No

Noy and McGuiness Noy et al. (2001) 7 Protégé Generic Strong support of a tool No

Methodology	No. steps	Tool	Scope	Main methodology feature	Time model
Methontology Fernández-López et al. (1997)	11	WebODE	Generic	Granular description of elements	No
Gruninger and Fox Fox and Gruninger (1998)	6	No	Generic	Strong use of competency questions	No
Uschold and King Uschold and King (1995)	4	No	Generic	Process adaptability to formal needs	No
FAO-Based Zheng et al. (2012)	5	No	Specific	Integration to domain specific resources	No
Noy and McGuiness Noy et al. (2001)	7	Protégé	Generic	Strong support of a tool	No

The number of steps indicates the level of detail that a methodology presents. However, even Methontology, which contains 11 steps, still presents abstract descriptions for its steps. For example, step 1: “builds a glossary of terms that includes all the relevant terms of the domain, their natural language descriptions, and their synonyms and acronyms”, and step 2: “build concept taxonomies to define the concept hierarchy when the glossary of terms contains a sizable number of terms”. Regardless of the methodology, their steps refer to what activities someone needs to do when building ontologies.

The third column (Tool) indicates that two methodologies are directly linked to tools that support their use. While WebODE Corcho et al. (2005) supports the Methontology approach, Protégé Noy et al. (2003) supports the development of ontologies that use the Noy and McGuinness methodology. However, such tools are mostly editors that also offer strategies for identifying consistency problems in their axioms (e.g., same individual as instances of two disjoint classes). Thus, the use of tools does not mean that a methodology indicates “how” (rather than “what”) their steps should be conducted.

The fourth column shows that most of the methodologies were defined as generic. This is certainly the main reason for their level of abstraction. In other words, they cannot be specific regarding how to identify ontology components since such a task may be domain specific. Differently, as the FAO-based methodology tries to define a more concrete process for the agriculture area, it presents a more detailed approach that uses a multilingual agricultural thesaurus as part of its process to construct agriculture-related ontologies.

The fifth column identifies the most prominent feature of each methodology, considering their practical use. We did not find, for example, a discussion of strategies that support the previous three requirements, apart from the FAO-based approach that integrates its steps to domain-specific resources. Moreover, the last column emphasises that no methodology embraces the representation of temporal models. This result was expected since ontologies do not naturally support this kind of tertiary-based representation, which requires extensions in the ontology semantics Wang and Uz (2019).

Our proposal, in particular, considers the Noy and McGuinness approach as the basis for our extensions. Two main reasons support this choice. First, their methodology considers the traditional sequence of steps (scope definition, terms identification, specification of concepts, concepts hierarchy, properties, and individuals), which is mainly adequate for initial ontology developers. The steps are neither too granular as Methontology, nor too abstract as Uschold and King. Moreover, Noy and McGuinness create an adequate division between concepts and properties. In other words, one can create a complete hierarchy of concepts and afterward think about the properties (divide and conquer principle). This division is clear in Protégé, which has different environments to cover the concepts and properties specifications. The second reason is the ample support for Protégé regarding plugins, community, documents, tutorials, and reasoners. Apart from these advantages, the Noy and McGuinness approach is still abstract, mainly when the domain requires advanced representations, such as temporal notions and relations. Onto-mQoL, a project that intends to develop knowledge representations for the mobile quality of life domain, tackles this issue.

4. Methodology extensions

This section refines each of the Noy and McGuinness steps using strategies that support the three main requirements defined in Section 3. Moreover, we align the core parts of our upper-level design ontologies to BFO, clarifying the distinction of concepts, such as processes and states. Figure 1 illustrates the methodological steps and their flow.

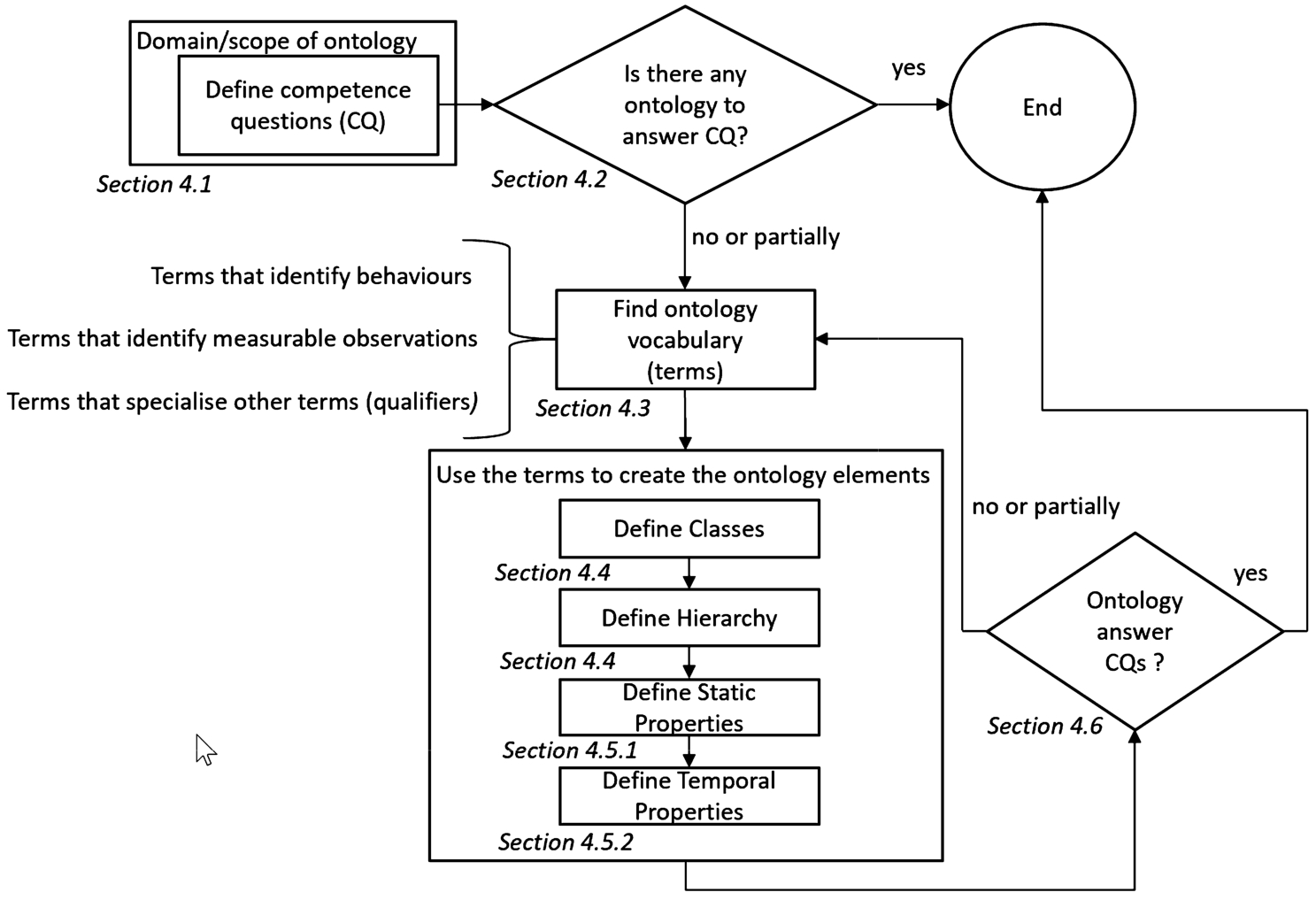

Fig. 1.

Onto-mQoL methodology, indicating the sections where each of its steps is detailed.

4.1. Determining the domain and scope of the ontology

Consider the following question: How does behaviour X affect my health? For this paper, in particular, X is a behavioural routine that can be associated, for example, with physical activities, sleep, intake of specific foods, and social interactions. The instantiation of X defines a domain. In other words, Onto-mQoL considers each domain as a subset of correlated decisions transformed into actions (e.g., running three times a week) that affect our health. In order to scope this domain, our study only considers the representation of knowledge that can semantically augment the behaviour representation. For example, rather than only modelling that someone is running three times a week, this modelling should also represent the duration and intensity of this physical activity since several recommendations (e.g., WHO Bull et al. (2020)) define values for these parameters in their definitions.

After defining the domain, the next step is to define the scope of knowledge using competence questions Wiśniewski et al. (2019). This set of questions is a strategy to scope the ontology since they will support the identification of concepts that should be considered in the ontology. For example, consider that someone intends to answer the following competency question “Is the individual X performing an appropriate amount of physical exercise per week?”. Then, apart from using data such as the number of steps and travelled distance, the ontology must represent concepts about the semantics of moderate and vigorous activities and their scientific recommendations (appropriate amount of physical activity). Thus, as already discussed in other studies Fox and Gruninger (1998), competency questions are an adequate resource to support the scope definition of ontologies.

4.2. Reusing existing ontologies

Reusing previous ontologies is mainly important to identify ontological elements (classes and properties) already well-established in the literature. NESTORE Mastropietro et al. (2021), IEEE P1752 Open Mobile Health Bent et al. (2021), and SNOMED CT El-Sappagh et al. (2018) are examples of useful ontologies for the context of behaviour modelling based on mHealth data. These ontologies can be found in ontology repositories, such as the Behavioural and Social Sciences Ontology (BSSO) Foundry (2022) and BioPortal Algergawy and König-Ries (2019). Alignment with upper ontologies, such as Basic Formal Ontology (BFO) Spear et al. (2016), is also useful to improve interoperability and early make agreements on semantics (e.g., states and processes).

4.3. Enumerating the ontology terms

The next step of this methodology is to find important terms that are part of the domain of discussion and support the process of answering CQs. A term is defined given the mHealth data perspective to model behaviours. Thus, in the context of Onto-mQoL, natural sources of terms to compose ontologies are research papers derived from studies on mobile applications that assess data associated with the domain of interest (e.g., sleep or physical activity). The use of textual documents (e.g., research papers) as knowledge sources for ontological specifications is not new, and recent studies are currently investigating the automation of this task. The work of Al-Aswadi et al. (2020) reviews several techniques in such a direction. However, automation techniques are still limited. Consequently, this step requires a guide for the manual gathering and classification of terms. The Onto-mQoL strategy relies on four actions that guide the search of terms to support answering each of the CQs. These actions are:

$A_{1}$ : for each CQ, identify terms associated with human behaviours or characterisations of these human behaviours. These terms will compose the ontology vocabulary.

$A_{2}$ : find one or more definitions for the previous terms. These definitions must rely on measurable observations, which are potential terms to compose the ontology vocabulary.

$A_{3}$ : verify which measurable observations can be assessed using the mHealth technology. These observations are terms that compose the ontology vocabulary.

$A_{4}$ : identify possible qualifiers for the current terms. Indeed, every assessment is an observation or measurement that can be qualified into some categorical scale (e.g., vigorous and moderate are terms that qualify the running activity). These qualifiers also compose the ontology vocabulary.

These actions are valid for identifying terms of any behavioural domain. Examples of such actions are given in Section 5.

4.4. Defining classes and classes hierarchy

The bottom-up strategy is the adequate approach to organise the hierarchy of classes when the modelling process starts from the perspective of health data assessed from mHealth sources. This strategy defines the most specific classes while clustering these classes into more general upper classes. In other words, the process creates sub-trees that compose a tree. Therefore, health data represent the leaves of the hierarchy, and they support the construction of other classes, according to the information collected from the previous step. A typical and general hierarchy for behaviour modelling is illustrated in Fig. 2, which also shows the alignment of classes using BFO Spear et al. (2016).

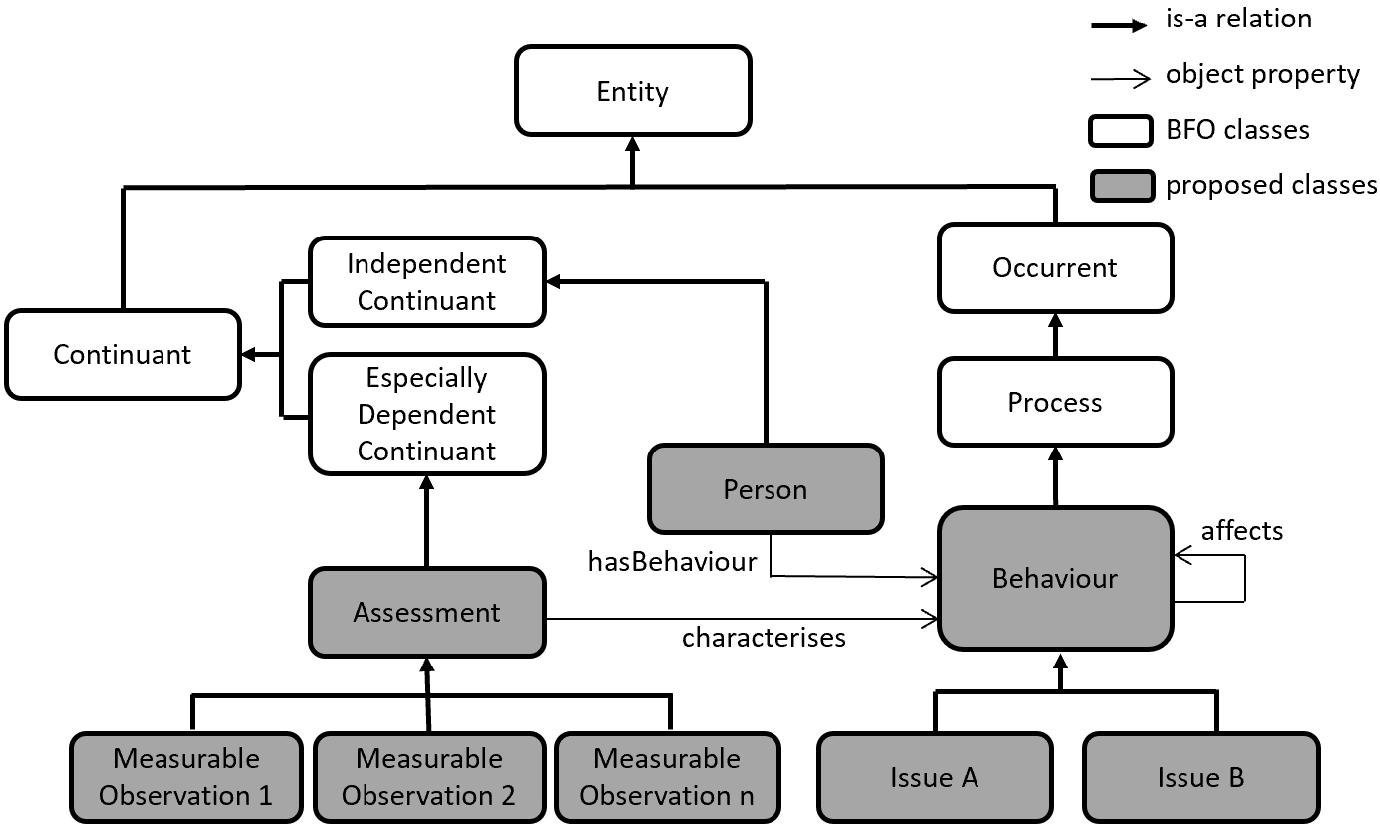

Fig. 2.

Example of template for bottom-up modelling strategy: from data to person.

This schema has measurable observations (e.g., heart rate or the number of steps) at its bottom. These measurable observations are modelled as sub-classes of assessment that characterise a behaviour. For example, assessments of the number of steps and heart rate characterise a behaviour regarding the physical activities domain. Issues are derived from specific behaviours that attend predefined axioms. For example, a low amount of steps may characterise a relaxed or disease-impaired behaviour. Observe that behaviours from different domains can mutually affect each other. The definition of these relations ensures the holistic property of the representation. Finally, at the top level, the schema presents the concept of Person, which has several types of behaviours in different domains. This schema works as the representation backbone of behaviours, and several other concepts can be integrated according to the applications’ requirements. Section 5.4 exemplifies the instantiation of this template using Description Logic sentences Baader et al. (2008).

4.5. Defining properties

The definition of properties is divided into two parts: static and temporal. We give special attention to this latter type of property since temporal-based modelling is not part of other methodologies (see Table 1), and it is a major contribution of Onto-mQoL.

4.5.1. Defining static properties

The modelling of static object properties follows the method defined in Noy et al. (2001). However, over their modelling, we must consider that object properties can define relations between two concepts of different domains, and these relations may rely on temporal aspects. The definition of these relations is the main strategy to configure holistic representations. Rather than only identifying the influences between domains, we must also understand how these influences semantically work to justify their relations. A simple strategy is to obtain the assistance of a specialist in the domain that is the object of study. For example, the specialist in physical activities can indicate the main correlations of this domain with others, such as dietary behaviour Gillman et al. (2001), sexual activity behaviour Dekker et al. (2020), and sleep behaviour Vanderlinden et al. (2020). Therefore, we could focus our investigation on these related domains and find a body of knowledge that supports the properties’ representation.

4.5.2. Defining temporal properties

Temporal relations compose a particular type of object property. They are common in health domains due to their dynamic representations (e.g., diseases, treatment) that unfold and evolve over time. However, as indicated previously, time representations are underused in ontologies since this form of representation uses Description Logic (DL) Baader et al. (2008) as its formal basis. DL is a decidable fragment of the first-order logic that only uses unary and binary predicates. Therefore, ontologies do not naturally support representations for inputs such as “I slept well from 23:00 to 04:00”, “I had a post-traumatic stress disorder after my car accident”, and “I had a heart attack in 1999”. These temporal relations are difficult to represent, requiring ontological extensions, as proposed in Siebra and Wac (2022). While the work in Siebra and Wac (2022) provides the semantics for this type of extension, this section describes the ontological engineering to use its ideas in our methodology. Indeed, as knowledge engineering may be a complex process, including temporal notions tends to create further modelling challenges.

Onto-mQoL proposes the following strategy to reduce this complexity. The modelling process initially specifies the static version of the ontology. After that, apply one by one the following actions to transform the static version into its temporal version:

Action 1. Given the initial set of competency questions, identify the subset of such questions that require temporal notions to be answered.

For example, consider the simplified model below (Fig. 3), which indicates that a person performs a physical activity and drinks liquid, and the following competency questions: (1) What was the duration of the physical activity performed by a person? (2) Has a person drunk liquids during the physical activity? Note that this model is not able to answer such questions. Thus, it must be extended.

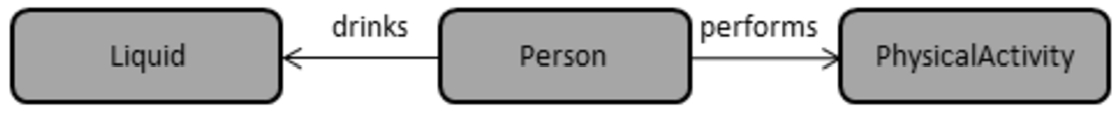

Fig. 3.

A simple example of representation, indicating that a person drinks liquids and performs physical activities. This type of representation does not directly allow the representation of the activities sequence.

Action 2. Create new temporal classes and properties that support the generation of answers for the previous questions.

As an example, two new classes are defined and included in the previous model: HydrationEvent and ActivityEvent. The first class refers to the moment when a person drinks liquid, while the second refers to the interval of the physical activity. Using these two new classes, we can state, via object properties (e.g., after, during, before), if a HydrationEvent occurs during an ActivityEvent, and also indicate the duration of the ActivityEvent. Thus, the ontology can answer the previous competency questions.

Action 3. Integrate the new classes into the original static ontology modifying the domain and range of the object property that connects the classes involved into the temporal relation.

Following the temporal framework in Siebra and Wac (2022), we use the N-ary approach to integrate the new classes into the original ontology (Fig. 4).

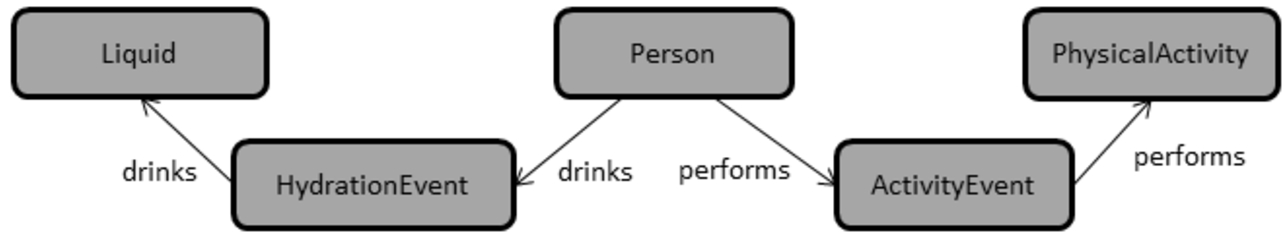

Fig. 4.

Extension of the previous model (Fig. 3) with two new temporal concepts. In this case, the inclusion of a temporal property between these two new concepts can directly represent the activities sequence.

The domain and range of the object properties were updated as follows: drinks (domain: Person ∪ HydrationEvent, range: HydrationEvent ∪ Liquid) and performs (domain: Person ∪ ActivityEvent, range: ActivityEvent ∪ PhysicalActivity). The discussion about the semantics of this approach is out of the scope of this paper, but its details can be seen in Siebra and Wac (2022).

Action 4. Connect the temporal structure to each new temporal event using the “occurs” object property.

Concepts such as HydrationEvent and ActivityEvent inherit from the Event concept. This event has an object property called occurs, which relates events to their temporal notion, which can be a moment or an interval (Fig. 5). Moments are time points and do not present a duration. Intervals have initial and final moments. Thus, a duration can be derived from their definitions. Considering the previous model (Fig. 4), the class ActivityEvent will be connected to an interval, i.e., occurs(ActivityEvent,Interval-X). Meanwhile, such an interval will be defined using two moments, i.e., hasBeginning(Interval-X,PreciseMoment-A) and hasEnd(Interval-X,PreciseMoment-B). In this example, precise moments define the interval. However, the proposed representation is very flexible since it also allows the representation of uncertain time notions. Details of this representation, such as its semantics, are found in Siebra and Wac (2022).

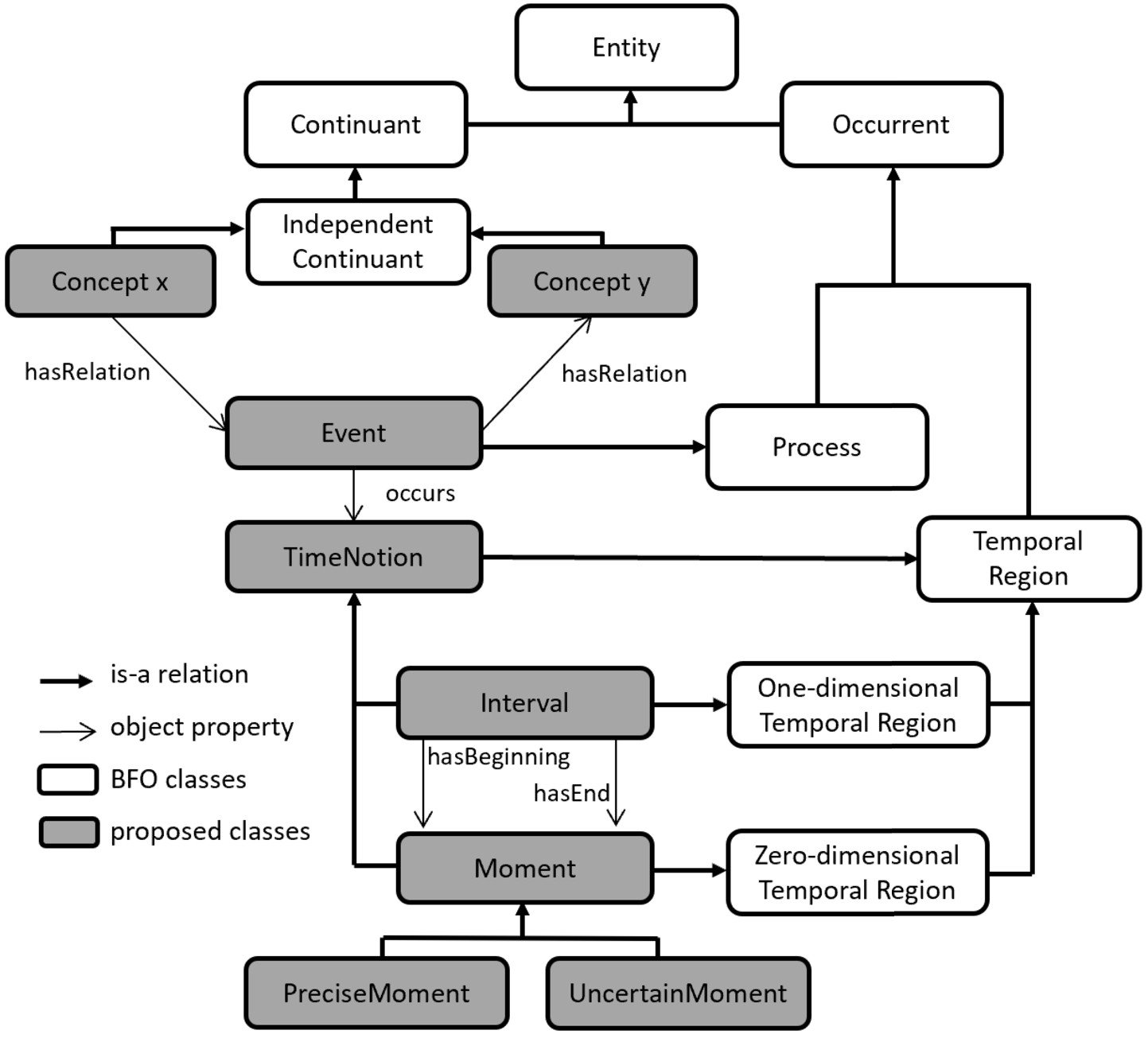

Fig. 5.

Template for temporal classes and properties representations of an event, and their alignment with BFO classes.

Action 5. Update the knowledge base with the individuals (instances) and correspondent values for their object and data properties.

For example, when an instance of the HydrationEvent class is included (from Fig. 3 to Fig. 4), other instances representing the interval of this event and its initial and final moments must also be included. As a general rule, temporal versions of static ontologies have additional classes and properties (moments and intervals associated with events), and we must include their instances (individuals) in the ontology description.

4.6. Ontology evaluation

Evaluation of ontologies should be performed against a frame of reference, which can be represented by a set of predefined competency questions (CQ) Gómez-Pérez (1995); Bezerra et al. (2013); Fernández-López et al. (1997). According to this strategy, the questions defined in natural language during the initial step of the methodology are now considered as demands to verify requirements’ satisfiability by either knowledge retrieval or by entailment on its axioms and answer checking Bezerra et al. (2013). Such evaluation also requires a set of individuals (instances) to populate the knowledge base and criteria to qualify the ontology. The criteria commonly used are accuracy, clarity, relevance, and completeness. A deeper discussion on these and other criteria can be found in Amith et al. (2018).

5. Onto-mQoL methodology case example: The sleep and rest domain

5.1. Determining the domain and scope of the ontology

This case example considers the sleep and rest domain as the object of study. According to several papers Daza et al. (2020), Buysse (2014), repetitive behaviours of individuals regarding their sleep and rest actions/decisions (e.g., interval dedicated to sleep, time to wake up, time to go to bed and sleep) have a strong influence on their health in the long term and can be the main reason for physical and mental disorders. Considering our passive and personal data requirement, we are using mHealth data that can support outcomes for the competency questions (CQ) below:

( ${CQ}_{1}$ ): Who were the participants with poor night’s sleep quality?

( ${CQ}_{2}$ ): Who are the participants with insomnia indications? Guillodo et al. (2020)

( ${CQ}_{3}$ ): Who were the participants that executed at least 30 minutes of moderate physical activities and had poor sleep quality the following night? Wang and Boros (2021)

( ${CQ}_{4}$ ): Were there older adults with a poor sleep quality after executing at least 30 minutes of moderate physical activities? Wang and Boros (2021)

( ${CQ}_{5}$ ): Who were the participants with poor sleep quality that executed moderate physical activities 90 minutes before bedtime? Miller et al. (2020)

( ${CQ}_{6}$ ) What were the negative feelings on the day before experienced by individuals with poor sleep quality? Stewart et al. (2011)

( ${CQ}_{7}$ ) Who were the participants with poor sleep quality that repetitively experienced negative feelings (e.g., anger)? Stewart et al. (2011)

These questions were based on hypotheses regarding the sleep quality domain. The codification of ${CQ}_{1}$ returns the participants with poor sleep behaviour, creating a reference for the following analysis. ${CQ}_{2}$ returns the participants that present indications of insomnia, according to the definition in Guillodo et al. (2020). The codification of ${CQ}_{3}$ relies on the results discussed in Wang and Boros (2021), which indicate that moderate physical activity seems to be effective in improving sleep quality. Therefore, ${CQ}_{3}$ tries to verify this hypothesis, looking for the exceptions. ${CQ}_{4}$ considers a possible explanation for exceptions regarding ${CQ}_{3}$ since, according to the experiments in Wang and Boros (2021), moderate activities do not present significant effects on improving the sleep quality of older adults. The codification of ${CQ}_{5}$ relies on Miller et al. (2020), which argues that 30 minutes of moderate-intensity aerobic or resistance physical activities completed 90 minutes before bedtime does not impair sleep. Otherwise, the activities can negatively affect sleep quality. ${CQ}_{6}$ and ${CQ}_{7}$ rely on Stewart et al. (2011), which indicates correlations between negative feelings and sleep quality. Section 5.6.3 presents the results for such CQs.

5.2. Reusing existing ontologies

We are reusing the IEEE P1752 Open Mobile Health Bent et al. (2021) standard since it presents a specific vocabulary for mHealth data in the sleep domain. For example, this standard defines semantic schemes to the following sleep terms:

sleep-onset-latency: the amount of time between when a person starts to want to go to sleep and sleep onset.

total-sleep-time: duration after sleep onset in an entire sleep episode minus the duration of all awakenings.

wake-after-sleep-onset: duration summary of all awakenings (i.e., minimum 15 secs) after sleep onset in a sleep episode.

NESTORE ontology Mastropietro et al. (2021) is another source for reuse since it presents a specific package to model sleep aspects. Its schemes are used for representing terms that are not described in the P1752 standards. Indeed, the scope of NESTORE is ampler and also involves concepts of clinical-based measuring instruments (e.g., actigraphy, polysomnography) and questionnaire types (e.g., pittsburgh_sleep_quality and karolinska_sleep_diary). However, we are only interested in sleep quality concepts that mobile sensors can assess, mainly because they are enough to answer the above stated CQs. Thus, these other concepts are not part of our representation. Both IEEE P1752 standard and NESTORE do not cover sleep disorders terminologies and, consequently, they do not offer support for answer CQs such as ${CQ}_{2}$ . In this case, we use SNOMED-CT, which formalises terms for sleep disorders such as Insomnia (SCTID: 193462001), Sleep apnea (SCTID: 73430006), and Rapid Eye Movement (SCTID: 415238003).

5.3. Enumerating the ontology terms

As discussed in the methodology, this step aims to identify the main terms that compose the ontology and support the inference of answers for CQs. This process is conducted using the four actions introduced in Section 4.3. As an example, the next Section 5.3.1 details the process of enumerating terms for one of the CQs ( ${CQ}_{2}$ ). Then, Section 5.3.2 summarises the results for all CQs.

5.3.1. Enumerating the ontology terms for ${CQ}_{2}$

The first action ( $A_{1}$ ) requires that we mark (bold text) the keyword(s) of ${CQ}_{2}$ that represent behaviors or characterisation of behaviours. For example: $\begin{matrix} {CQ}_{2} : Who are the participants with ⟨ insomnia ⟩ indications? \end{matrix}$

In this case, insomnia (disease) is a term that characterises a set of observable behavioral patterns (e.g., short total sleep time). After that, we must find definitions for the marked terms and also mark measurable observations that are constructors of such definitions ( $A_{2}$ ). Two examples of definitions are given below. Note that they may differ regarding some aspects. However, this step focuses only on finding the terms that compose such definitions.

“The American Academy of Sleep Medicine defines the disorder as a ⟨perceived difficulty⟩ with ⟨sleep initiation⟩, ⟨consolidation⟩, ⟨duration⟩, or ⟨quality⟩, despite an adequate opportunity to sleep, coupled with subsequent daytime impairment, and as chronic when lasting at ⟨least 3 months⟩.” Sogol and Redline (2017)

“The term insomnia will be used as a disorder with the following diagnostic criteria: (1) ⟨difficulty falling asleep⟩, ⟨staying asleep⟩ or ⟨nonrestorative sleep⟩; (2) this difficulty is present despite adequate opportunity and circumstance to sleep; (3) this impairment in sleep is associated with daytime impairment or distress; and (4) this sleep difficulty occurs at least 3 times per week and has been a problem for ⟨at least 1 month⟩.” Roth (2007)

These definitions present several measurable observations (e.g., sleep initiation, sleep duration, sleep quality), and some of these observations (terms) have the same semantics (e.g., sleep initiation and falling asleep). Therefore, at this point, it is also important to unify the vocabulary using standard terms (reuse – IEEE P1752 Open Mobile Health and NESTORE ontology). Table 2 presents some terms used as constructors of the definitions, the standard term for such terms, and their semantics.

Table 2
Measurable observations used as constructors of the insomnia definitions

Measurable observations Standard term Semantics

Sleep initiation, falling asleep Sleep Onset Latency (SOL) Long periods of sleep onset latency indicates difficulties with sleep initiation or falling asleep.

Sleep duration Total Sleep Time (TST) Duration after sleep onset in an entire sleep episode minus the duration of all awakenings

Sleep consolidation, staying asleep Wake After Sleep Onset (WASO), and awakenings These terms have the same function of indicating if individuals can maintain themselves in a state of sleep.

Sleep quality, nonrestorative sleep Sleep Quality Derived measure that relies on other attributes. Non-restorative sleep is a type of sleep quality.

Measurable observations	Standard term	Semantics
Sleep initiation, falling asleep	Sleep Onset Latency (SOL)	Long periods of sleep onset latency indicates difficulties with sleep initiation or falling asleep.
Sleep duration	Total Sleep Time (TST)	Duration after sleep onset in an entire sleep episode minus the duration of all awakenings
Sleep consolidation, staying asleep	Wake After Sleep Onset (WASO), and awakenings	These terms have the same function of indicating if individuals can maintain themselves in a state of sleep.
Sleep quality, nonrestorative sleep	Sleep Quality	Derived measure that relies on other attributes. Non-restorative sleep is a type of sleep quality.

The next action ( $A_{3}$ ) verifies which constructors from the definition can be assessed using the mHealth technology. Therefore, these constructors are used to instantiate a search string template, such as (“(assessment OR measurement OR detection OR identification) AND (app OR application) AND (mobile OR smartphone OR wearable) AND X”). The next points instantiate the value X and present excerpts of resultant papers that describe the possibility of measuring these constructors.

X = (“sleep onset latency” OR “sleep initiation” OR “falling asleep”):

“Devices that measured behavioural aspects of sleep onset consistently overestimated PSG-determined sleep onset latency, but to a comparatively low degree.” Scott et al. (2020)

X = (“total sleep time” OR “sleep duration”):

“The sleep-latency and sleep-duration models accounted for 42% and 84% of the variance in the data, respectively, and yielded acceptable average prediction errors for planning sleep schedules (4.0 min for sleep latency and 0.8 h for sleep duration).” Vital-Lopez, Balkin and Reifman (2021)

X = (“wake after sleep onset” OR “awakenings” “sleep consolidation” OR “staying asleep”):

“In conclusion, we found moderate agreement for total sleep time (TST) and WASO measured by six different commercial activity monitors (CAMs) as compared to an Actiwatch Spectrum (AW). Of the six CAMs, Samsung, followed by Fitbit and Jawbone, had the highest agreement with the AW across various indices when considering both TST and WASO.” Kubala et al. (2020)

X = (“sleep quality” OR “nonrestorative sleep”):

“Sleep efficiency (SE) is an overall measurement of a person’s sleep quality and is simply ratio of the time spent asleep (TST) to the amount of time spent in bed (SOL + WASO + TST). SE is normally 85 to 90% or higher for people who do not suffer sleep problems.” Lawson et al. (2013)

The next action ( $A_{4}$ ) accounts for identifying qualifiers for the current terms. We characterise the assessed data using comparisons with reference values indicated in the literature. Table 3 presents these values, and their respective qualifiers, which are also terms mapped to new concepts. For example, the number of awakenings during a night is considered normal if this number is less than six. Otherwise, this number may represent some indication regarding a sleep issue. These values may have slight variations according to age, gender, weight, and height. For example, according to Guillodo et al. (2020), “The duration of normal sleep varies between 6 and 10 hours depending on several factors, the most important of which are age and genetics”.

Table 3

Terms of sleep measures according to their value/ranges

Measurable observations	Value/range terms	Ref
TotalSleepTime (TST)	7 to 9 RecommendedTST, 6 to <7 or >9 to 10 MayBeAppropriateTST, <6 VeryShortTST, >10 VeryLongTST	Hirshkowitz et al. (2015)
Awakenings	<6 NormalAwakenings, otherwise AnormalAwakings	Hirshkowitz (2004)
WakeAfterSleepOnSet (WASO)	<24 NormalWASO, otherwise AnormalWASO	Hirshkowitz (2004)
SleepOnsetLatency (SOL)	<10 ShortSOL, 10 to 20 NormalSOL, >20 LongSOL	Hwang et al. (2013)

5.3.2. Summary of core terms for CQs

Table 4 shows the terms identified for the sleep and rest domain using $A_{1}$ to $A_{4}$ actions, and their relations with the CQs. In the flow of actions, $A_{3}$ works as a filter for the terms found in $A_{2}$ . For example, some definitions of sleep quality also involve other measures such as the sleep cycle, also called sleep epoch, and their stages. Thus, these terms could be part of the resultant list of $A_{2}$ . However, studies show that current mobile apps and wearables Kang et al. (2017), Tal et al. (2017), aimed at assessing this measure, are not yet reliable enough to be used as professional clinical tools. $A_{3}$ identifies such situations and filters out these measures.

Table 4
Terms of sleep domain and their relations to CQs

CQs $A_{1}$ (behaviours-related terms) $A_{2}$ / $A_{3}$ (measurable observations) $A_{4}$ (qualifiers)

${CQ}_{1}$ sleep quality total sleep time, awakenings, wake after sleep onset, sleep onset latency recommended TST, very long TST, very short TST, maybe appropriate TST, normal awakenings, abnormal awakenings, normal WASO, abnormal WASO, short SOL, normal SOL, long SOL

${CQ}_{2}$ insomnia same data attributes than ${CQ}_{1}$ same qualifiers than ${CQ}_{1}$

${CQ}_{3}$ physical activity, sleep quality physical activity intensity and same data attributes than ${CQ}_{1}$ resting, low intensity, moderate intensity, vigorous intensity, same qualifiers than ${CQ}_{1}$

${CQ}_{4}$ physical activity, sleep quality same data attributes than ${CQ}_{3}$ same qualifiers than ${CQ}_{3}$

${CQ}_{5}$ physical activity, sleep quality same data attributes than ${CQ}_{3}$ same qualifiers than ${CQ}_{3}$

${CQ}_{6}$ negative feelings, stress, anger, anxiety, sleep quality stress measure, anger measure, anxiety measure, and same data attributes than ${CQ}_{1}$ low or no anxiety, average anxiety, high level of anxiety, low or no anger, average anger, high anger, low or no stress, average stress, high stress, and same qualifiers than ${CQ}_{1}$

${CQ}_{7}$ negative feelings, stress, anger, anxiety, sleep quality same data attributes than ${CQ}_{5}$ same qualifiers than ${CQ}_{5}$

CQs	$A_{1}$ (behaviours-related terms)	$A_{2}$ / $A_{3}$ (measurable observations)	$A_{4}$ (qualifiers)
${CQ}_{1}$	sleep quality	total sleep time, awakenings, wake after sleep onset, sleep onset latency	recommended TST, very long TST, very short TST, maybe appropriate TST, normal awakenings, abnormal awakenings, normal WASO, abnormal WASO, short SOL, normal SOL, long SOL
${CQ}_{2}$	insomnia	same data attributes than ${CQ}_{1}$	same qualifiers than ${CQ}_{1}$
${CQ}_{3}$	physical activity, sleep quality	physical activity intensity and same data attributes than ${CQ}_{1}$	resting, low intensity, moderate intensity, vigorous intensity, same qualifiers than ${CQ}_{1}$
${CQ}_{4}$	physical activity, sleep quality	same data attributes than ${CQ}_{3}$	same qualifiers than ${CQ}_{3}$
${CQ}_{5}$	physical activity, sleep quality	same data attributes than ${CQ}_{3}$	same qualifiers than ${CQ}_{3}$
${CQ}_{6}$	negative feelings, stress, anger, anxiety, sleep quality	stress measure, anger measure, anxiety measure, and same data attributes than ${CQ}_{1}$	low or no anxiety, average anxiety, high level of anxiety, low or no anger, average anger, high anger, low or no stress, average stress, high stress, and same qualifiers than ${CQ}_{1}$
${CQ}_{7}$	negative feelings, stress, anger, anxiety, sleep quality	same data attributes than ${CQ}_{5}$	same qualifiers than ${CQ}_{5}$

This table also includes terms from the negative feelings (supporting ${CQ}_{6}$ and ${CQ}_{7}$ ) and activities of daily living (supporting ${CQ}_{3}$ to ${CQ}_{5}$ ) domains since their elements affect the sleep quality. However, in this paper, we do not intend to demonstrate all the modelling processes of these two domains. For example, the data that characterises the negative feelings are only indicated in a high level of abstraction (“stress measure”, “anger measure”, and “anxiety measure”). As discussed in Boukhechba et al. (2018), passively sensed location, activity levels, and communication patterns may reveal key markers that can indicate levels of negative feelings. The references Van Ameringen et al. (2017), Silva et al. (2020) are review papers that discuss mobile applications aimed at assessing data and characterising these domains.

5.4. Defining classes and classes hierarchy

The hierarchical organisation of the previous terms uses the Description Logic (DL) as representation language. Therefore, a parent concept must be created to cluster children concepts that present the same nature or have similar data or object properties. This strategy is used in object-oriented programming when classes and super classes are defined. Figure 6 shows a visual representation of the DL sentences – (1) to (4) – that organise the terms of Table 3. $\begin{array}{l} (1) & RecommendedTST, \dots, MaybeAppropriateTST ⊑ TotalSleepTime \\ (2) & NormalAwakenings, AnormalAwakenings ⊑ Awakenings \\ (3) & NormalWASO, AnormalWASO ⊑ WakeAfterSleepOnset \\ (4) & ShortSOL, NormalSOL, LongSOL ⊑ SleepOnsetLatency \end{array}$

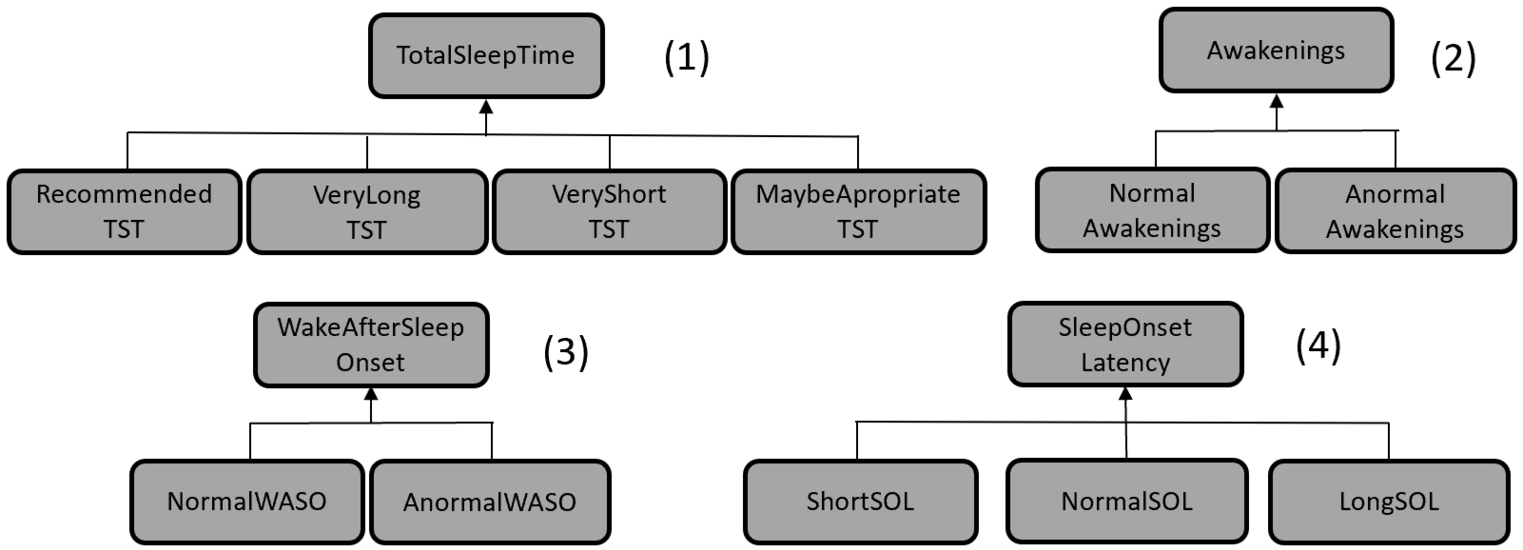

Fig. 6.

Visual representations of Description Logic (DL) sentences for classes hierarchies (1) to (4).

The parent classes in Fig. 6 (e.g., SleepOnSetLatency) are types of sleep measures. Therefore, we create a new class called SleepMeasure (type of assessment) (5), which works as the parent class of these measures (Fig. 7). $\begin{matrix} (5) & \begin{matrix} SleepOnSetLatency, WakeAfterSleepOnset, \\ SleepOffset, SleepOnset, Awakening, \\ TotalSleepTime ⊑ SleepMeasure \end{matrix} \end{matrix}$

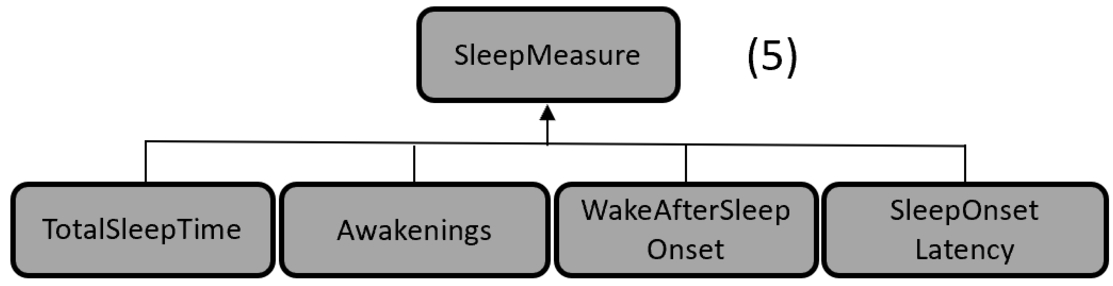

Fig. 7.

Visual representation of DL sentence (5).

These measures characterise sleep behaviour (or quality of sleep behaviour). Thus, these two classes SleepBehaviour and SleepMeasure hold the following property (6): $\begin{matrix} (6) & \begin{matrix} SleepMeasure (x), SleepBehaviour (y), (⟨ x, y ⟩ | characterises (x, y)) \end{matrix} \end{matrix}$

Finally, the root concept of the Sleep and Rest domain is SleepBehaviour, which can be further associated with an enumeration of values (Very dissatisfied, Dissatisfied, Neither satisfied nor dissatisfied, Satisfied, Very Satisfied), which qualify this behaviour. This concept of quality in sleep behaviours is mainly represented in Kim (2020) and Mastropietro et al. (2021).

5.5. Defining properties

5.5.1. Static properties

This step identifies relations between classes (Section 4.5) according to the semantics provided in the competence questions. For example, all competence questions try to relate a person (e.g., participant, older adult, individual) to some type of sleep behaviour. Thus, Person must be defined as a class, and a property called hasSleepBehaviour must be specified to relate the SleepBehaviour and Person classes.

The answers still limited when we try to explain the causes of low-quality sleep behaviours using only sleep measures. For example, the WHOQOL instrument brings the following question as part of its survey: “How satisfied are you with your sleep?”. Consider that the answer is “Very dissatisfied”. The current representation can show that the reason may be the short sleep time or the high number of awakenings. However, we can ask for more details, such as: what could be the reasons for this short sleep time? In this case, the reason could be a simple individual decision or other non-controlled factors related to daily life circumstances. According to the specialists and grounded in the current literature, two domains are closely related to sleep behaviour: negative feelings Stewart et al. (2011) ( ${CQ}_{6}$ and ${CQ}_{7}$ ) and activities of daily living Kredlow et al. (2015) ( ${CQ}_{4}$ and ${CQ}_{5}$ ). For example, the study described in Stewart et al. (2011) determines which aspects of negative feelings are most strongly associated with poor sleep behaviour. It demonstrates and references feelings such as depression, anxiety, anger, and stress. We employed these three latter negative feelings in our case example (the dataset of our experiments does not have data on depression). The relation between activities of daily living and sleep behaviour is better analysed in Kredlow et al. (2015), which discusses the relationship between sleep quality and daily activity domains supported by several references. Moreover, it gives special attention to the influence of activity intensity on sleep. For example, one of their conclusions says that moderate exercises showed a more promising outcome on sleep quality than vigorous exercises.

As discussed before, it is not our intention in this paper to demonstrate all the modelling processes of the negative feelings and activities of daily living domains. At the moment, we give a simple description of these domains (7)–(8) based on the attributes presented in the dataset of our case example Rossi et al. (2020a). $\begin{array}{l} (7) & Resting, LowIntensity, ModerateIntensity, VigorousIntensity, ⊑ DailyActivity \\ (8) & Anxiety, Anger, Stress ⊑ NegativeFeeling \end{array}$

According to the respective instruments Rossi et al. (2020a) to assess Anxiety (State-Trait Anxiety Inventory), Anger (Positive and Negative Affect Schedule), and Stress (Daily Stress Inventory); these concepts can be further classified as (9)–(11): $\begin{array}{l} (9) & LowOrNoAnxiety, AverageAnxiety, HighLevelOfAnxiety ⊑ Anxiety \\ (10) & LowOrNoAnger, AverageAnger, HighAnger ⊑ Anger \\ (11) & LowOrNoStress, AverageStress, HighStress ⊑ Stress \end{array}$

Finally, sleep measures that characterise a sleep behaviour can also characterise a sleep disorder or issue (e.g., insomnia in ${CQ}_{2}$ ). Thus, we can consider the concept of SleepDisorder as a specialisation of SleepBehaviour (sleep behaviour that is particularly poor in some sense). This relation is commonly found in review papers, such as in the following excerpts:

Sleep applications of all kinds are currently available in the market, offering diverse functionality features, …and even aiding healthcare professionals in screening patients for sleep disorders Fino and Mazzetti (2019);

As sleep is a risk factor for many chronic diseases, the momentary tracking of everyday sleep quality of patients may be very useful for a wide range of clinical conditions Guillodo et al. (2020);

Mobile health (mHealth) apps offer a scalable option for treating sleep disturbances at a population level Aji et al. (2021);

These merits of commercial sleep trackers have attracted proactive attention from sleep-disorder patients as well as healthy individuals Kang et al. (2017);

Note that the semantics of these verbs (screening, tracking, or treating) always refer to the possibility of collecting data and characterising the existence of some disorder. A complete graphic view of all components, and their source file (owl), is available as a supplementary online resource (see appendix).

5.5.2. Temporal properties

The analysis of the competence questions also emphasises that sleep behaviours are associated with a period whose standard term is SleepEpisode Bent et al. (2021). Therefore, the analysis of several sleep episodes can indicate the presence of sleep disorders, such as insomnia. The classical solution for this representation is to create a data property (e.g., sleepEpisodeData) for SleepBehaviour (Fig. 8a).

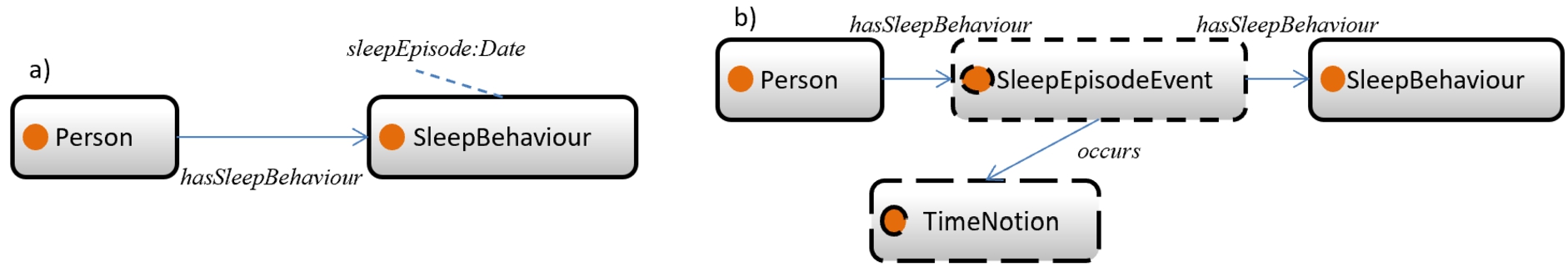

Fig. 8.

Two different approaches to represent time using data property (a), and temporal classes (b).

However, this strategy limits the reasoning process since ontologies do not support the specification of relations (e.g., before or during) between data properties. Therefore, we employed the strategy described in Section 4.5.2, creating the SleepEpisodeEvent class (Fig. 8b), which occurs at some TimeNotion. This strategy allows the specification of temporal relations between this concept (SleepEpisodeEvent) and other temporal elements of the domain. The following schema (Fig. 9) shows the relations between Person and both DailyActivity and NegativeFeeling. Note the inclusion of the DailyActivityEvent and NegativeFeelingAssessmentEvent classes, which give the temporal notions for these relations. For example, this strategy enables explicitly representing negative feelings assessments and relating them and other events using temporal object properties such as before or during. This type of relationship is important for the reasoning process, as demonstrated in Section 5.6.

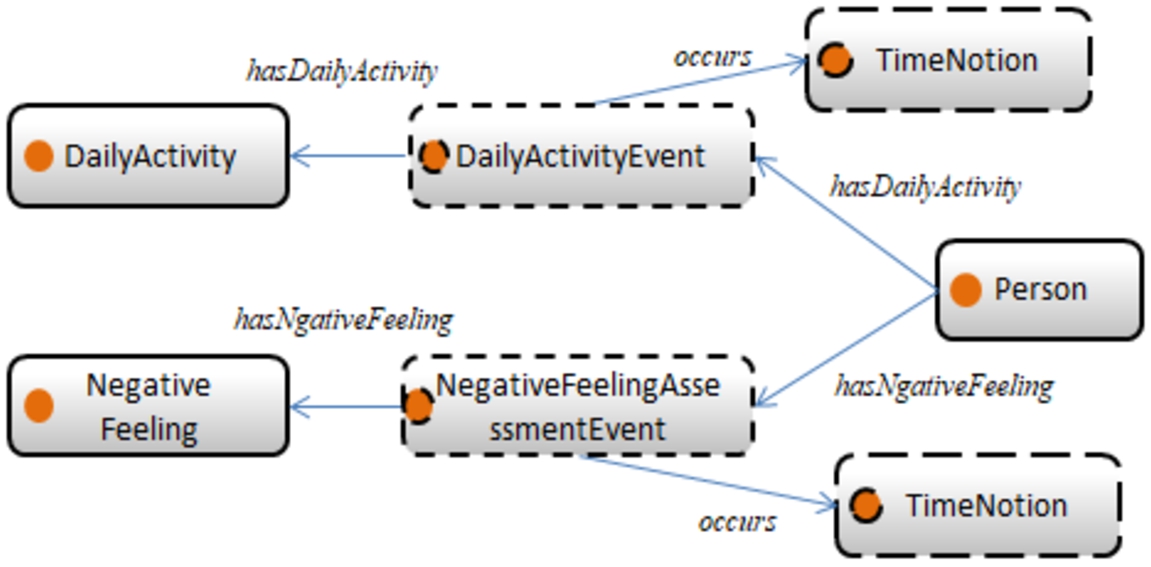

Fig. 9.

Relations between the Person, DailyActivity, and NegativeFeeling concepts.

5.6. Evaluation

5.6.1. Source of individuals

The ontology population with individuals is essential to its evaluation. There are two common strategies to create these individuals: conducting a longitudinal assessment and using a predefined dataset. This second approach is used in this section. Therefore, this case example relies on the Multilevel Monitoring of Activities and Sleep in Healthy people (MMASH) dataset Rossi et al. (2020a,b) since it covers a significant part of our ontology. That means MMASH provides the required data to answer the CQs. The MMASH dataset organises the data of 22 healthy participants in seven files according to the type of information (e.g., questionnaire answers, actigraph). During the test, participants wore two devices continuously for 24 hours (starting at about 10:00 am): a heart rate monitor (Polar H7 heart rate monitor – Polar Electro Inc., Bethpage, NY, USA) to record heartbeats and beat-to-beat interval, and an actigraph (ActiGraph wGT3X-BT – ActiGraph LLC, Pensacola, FL, USA) to record actigraphy information such as accelerometer data, sleep quality, and physical activity.

Regarding the ethical aspects, the MMASH data assessment is under the Helsinki Declaration, as revised in 2013. MMASH protocol was also approved by the Ethical Committee of the University of Pisa (#0077455/2018), and it is under the General Data Protection Regulation: Regulation – EU 2016/679 of the European Parliament and of the Council 27/04/2016 – on the protection of private persons concerning the processing of personal data and on the free movement of such data. We consolidated a subgroup of the MMASH data in a unique file as described below:

Five personal data, which are biological gender (M or F), height (cm), weight (Kg), age (years), smokeDailyFrequency.

Four sleep related assessment data, which are TotalSleepTime (time unit), Awakenings, WakeAfterSleepOnset (time unit), and SleepOnsetLatency (time unit).

Seven psychological assessment data, which are two Anxiety states values (integer from 20 to 80) before and after sleeping, one daily stress values (integer from 0 to 406), and four Anger values (integer from 5 to 50) at the time units 600, 1080, 1320 and 1980. The assessment values are defined according to the respective instruments used in Rossi et al. (2020a).

Activities assessment data with several entries (activities) that summarises the physical DailyActivity executed over the assessment period.

Sleep quality assessment, which represents the sleep quality defined by the individual.

The timeline considers continuous values in minutes, starting from zero (00:00, first day). This data is available in the supplementary online material as an excel datasheet, which the Protégé ontology editor can import and automatically transform into ontology individuals using the cellfie plugin.

5.6.2. Evaluation framework

As discussed in Section 4.6 and in Noy et al. (2001), CQs serve as a qualitative resource to test ontologies. Therefore, our case example verified if our ontology covers the required knowledge to answer the set of CQs defined in Section 5.1 ( ${CQ}_{1}$ to ${CQ}_{7}$ ), which can typically be employed over the analysis of the sleep behaviour domain. We mapped these questions to the SQWRL format. SQWRL is a query language for OWL that uses the strong semantic foundations of Semantic Web Rule Language (SWRL) O’Connor and Das (2009) as its formal basis. For example, consider CQ3: “Who were the participants that executed at least 30 minutes of moderate physical activities and had poor sleep quality the following night?”. A simplified codification of this CQ in SQWRL is:

Person(?person) ^ hasSleepBehaviour(?person, ?e1) ^ hasSleepBehaviour(?e1, ?sq) ^ hasSleepQuality(?sq, "poor") ^ hasDailyActivity(?person, ?e2) ^ hasDailyActivity(?e2, ?da) ^ ModerateIntensity(?da) ^ before(?e2,?e1) -> sqwrl:selectDistinct(?person)

This example shows that a SQWRL query has two parts. The antecedent rule (before the symbol “→”) is composed of a conjunction of unary (concepts) and binary (object properties) atoms. SQWRL treats this part as a pattern specification for a query. In this case, the rule says that the variable ?person must be an individual of the class Person with the quality of his/her sleep behaviour classified as poor. Meanwhile, this rule also verifies if this ?person carried out a physical activity ?da during the interval ?e2, and if its intensity was moderate (ModerateIntensity(?da)). Finally, the rule verifies if this physical activity occurred before the sleep episode. SQWRL returns all distinct individuals (instances) of Person that satisfy this pattern.

We suggest the paper of O’Connor and Das (2009) as a gentle and easy-to-follow introductory tutorial for the SQWRL syntax. The complete set of rules for this case example is available as a supplementary material.

5.6.3. Evaluation criteria

We employed accuracy as the evaluation criterion. Therefore, we verify if the ontology supports correct answers for each of the CQs. Table 5 shows the results of the SQWRL queries for each competency question.

The codification of ${CQ}_{1}$ returns the correct set of participants with poor sleep behaviour. We use the PSQG (poor sleep quality group) acronym to represent this set. The results of ${CQ}_{2}$ show that the PSQG participants do not present evidence that they have insomnia. Thus, they may only have isolated sleep issues. This result was expected since the dataset description indicates that all the participants are healthy adults and do not have sleep diseases.

Table 5
SPARQL queries results

CQ Answer

${CQ}_{1}$ [:user02, :user03, :user05, :user06, :user07, :user09, :user11]

${CQ}_{2}$ []

${CQ}_{3}$ [:user02, :user03, :user05, :user06, :user07, :user09, :user11]

${CQ}_{4}$ []

${CQ}_{5}$ [:user03]

${CQ}_{6}$ Stress[:user05, :user06, :user07, :user09], Anxiety[:user05]

${CQ}_{7}$ [:user02, :user09]

CQ	Answer
${CQ}_{1}$	[:user02, :user03, :user05, :user06, :user07, :user09, :user11]
${CQ}_{2}$	[]
${CQ}_{3}$	[:user02, :user03, :user05, :user06, :user07, :user09, :user11]
${CQ}_{4}$	[]
${CQ}_{5}$	[:user03]
${CQ}_{6}$	Stress[:user05, :user06, :user07, :user09], Anxiety[:user05]
${CQ}_{7}$	[:user02, :user09]

The following questions verify if the ontology supports identifying the causes or the understanding of these potential sleep issues. The codification of ${CQ}_{3}$ relies on the results discussed in Wang and Boros (2021), which indicate that moderate physical activity seems to be effective in improving sleep quality. However, the ${CQ}_{3}$ results show that PSQG participants have performed moderate activities but still experience poor sleep quality. Thus, the lack of activities or a “lazy day” is not the cause of this poor quality. ${CQ}_{4}$ considers a possible explanation for this exception. According to the experiments in Wang and Boros (2021), moderate activities do not present significant effects on improving the sleep quality of older adults. However, ${CQ}_{4}$ shows that the participants in PSQG are not in this age category.

The codification of ${CQ}_{5}$ relies on Miller et al. (2020), which argues that moderate-intensity aerobic or resistance physical activities completed 90 minutes before bedtime does not impair sleep. Otherwise, the activities can negatively affect sleep quality. Thus, we need to verify if the activities intervals of the SPQG participants present intersections with this interval of 90 minutes. To answer this question, we needed to extend our original ontology with the PreSleepEpisodeEvent class, which represents the interval of 90 minutes of each participant considering his/her bedtime, and an object property called hasPreSleepEpisodeEvent that relates Person with this new concept. After that, the temporal framework of our project already identifies the intersections (during or overlaps relations). For this dataset, the query only returns one participant (user03) as a result, so this may explain his poor sleep quality.

${CQ}_{6}$ relies on Stewart et al. (2011), which indicates correlations between negative feelings and sleep quality. The results for this question, for example, show that the high level of stress may cause the poor sleep quality of four participants (Table 5). The temporal feature of our ontology also supports the generation of outcomes for questions such as ${CQ}_{7}$ , also based on Stewart et al. (2011). Therefore, we could codify this question to identify that user02 and user09 are the participants that continuously increase their anger values. This fact may explain the poor sleep quality of user02, while the combination of this feature with the high stress of user09 may explain the lowest sleep quality (absolute value) of this participant when compared to the others.

The inference results (Table 5) demonstrate that the ontology supports accurate answers for the CQs used in this evaluation. We could create several other competency questions to explain or better understand the causes of poor sleep quality of individuals. These questions must always rely on knowledge captured from experts or specialised literature, while the role of ontologies is to bring the constructors to answer these questions. If the ontology fails to provide such a representation, this becomes an opportunity to extend it, as we did for ${CQ}_{5}$ .

6. Other behaviours domains

The previous case (Section 5) detailed the use of our modelling methodology to represent behaviour that could affect the sleep quality of individuals and support the reasoning using such knowledge. However, other behaviour-related domains can also make use of this methodology. Consider two of the ontologies discussed in Section 2, which are (Health Behaviour Change Ontology (HBCO) Bickmore et al. (2011) and Cognitive Paradigm Ontology (COGPO) Turner and Laird (2012)). The following schemes (Fig. 10) represent parts of these ontologies.

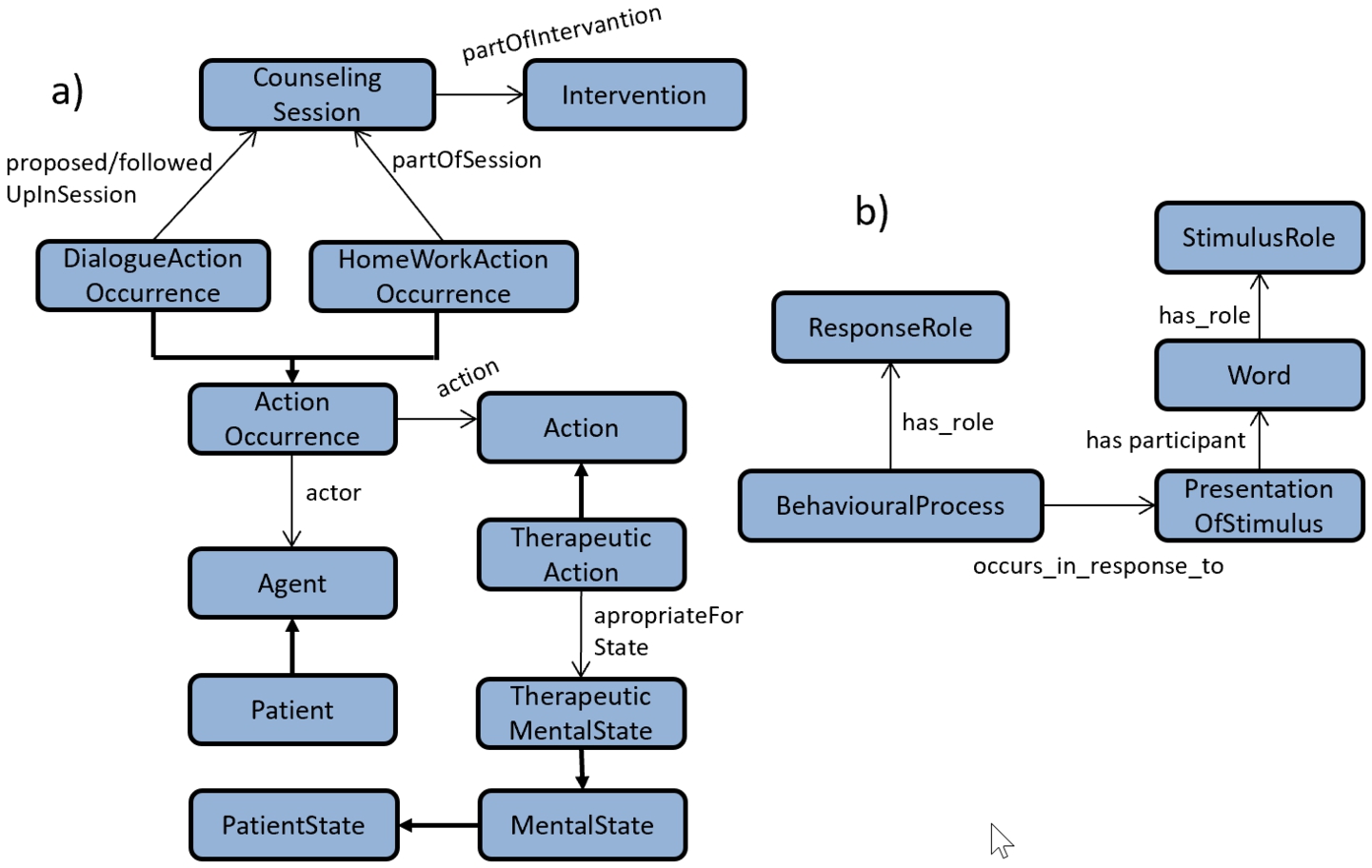

Fig. 10.

Fragments of the HBCO (a) and COGPO (b) ontologies.

This HBCO ontology fragment (Fig. 10a) represents therapeutic actions that are part of a counseling session and are appropriate for a specific mental state treatment. Such sessions compose an intervention that aims at, for example, changing the behaviour of patients. Suppose the following competence questions: Which is the sequence of therapeutic actions that provides the fastest result as a part of an intervention? and Which were behavioural changes observed during the intervention? Our methodology could be used to extend this ontology and answer these questions, including: (1) data-centric observations and their temporal notions to characterise the behavioural changes; (2) holistic representations for extending the patient state concept and verifying if these states evolve at the same pace for a given intervention, and; (3) temporal relations to support the inference of answers for the first question.

The COGPO fragment (Fig. 10b) represents behavioural processes that are responses to some stimuli, which are given, for example, in the forms of words delivered to trigger some reaction. A possible competence question in this domain is: Which features characterise the behavioural processes and their relative reaction times? Again, the use of our methodology could extend this representation with data-centric observations and their temporal notions to compare the time and duration of reactions. For example, stimuli could present real-time or later effects, or later long-term consequences in different behaviour domains (e.g., sleep quality, psychological disturbers).

Apart from their different aims, both examples emphasise the importance of temporal representations to support more expressive questions. Thus, using a methodology that guides the development or extensions of ontologies, from the perspective of such representations, may be an important resource for promoting new forms of inferences in health support systems.

7. Conclusion

This paper presented a proposal for creating ontological representations of human behaviours in the context of human health. It brings four main contributions. First, it provides a more pragmatic but still general approach to this type of modelling. This approach differs from current methodologies, which maintain a high level of abstraction. Then, rather than only indicating what developers must do, we also explain strategies to conduct these steps. Second, we rely on the current trend of using personal health mobile technology (smartphones and wearable devices) as an assessment resource, instead of relying on self-reports. Therefore, we start modelling from the data types assessed using a bottom-up modelling strategy. Third, we include temporal aspects in this modelling. The lack of a time notion is one of the main limitations of current ontologies, which usually do not model such aspects, limiting the reasoning abilities of ontology-based systems. Finally, we show the importance of holistic representations, using knowledge of different domains, and how we could specify these representations. For example, using temporal relations between typical events of diverse life domains (e.g., physical health, psychological, social interactions, and environmental ones).

A further particular aspect of this approach is its strong reuse of existing knowledge. Our approach encourages the study of previous ontologies and terminologies, which could facilitate the future integration of systems. Indeed, this lack of reuse leads to several syntactically diverse terms that refer to the same semantics, as we have observed in our studies. Apart from reusing ontologies, we also encourage using previous knowledge when we rely on searching for terms and, consequently, concepts and properties, using specialised literature and reviews. Reviews, in particular, summarise domains and are the root of a tree of primary references or body of knowledge.

Deeper research on the ontology validation process is not part of our studies, and this aspect is a limitation of this paper. We recommended the use of competency questions as the basis for validation. However, using these questions is not straightforward regarding the evaluation criteria. For example, the clarity criterion requires a more systematic validation with the final users of the ontology Espinoza et al. (2021). On the other hand, the relevance criterion should be analysed by domain experts. The completeness criterion is especially hard to evaluate since it depends on the quality of the competency questions in terms of their coverage. This issue is similar to the traditional test coverage problem in the software testing area, where strategies include gathering information about which parts of a program are executed when running the test suite to determine which branches of conditional statements have been taken Malaiya et al. (2002). In the context of ontologies, a strategy to ensure the coverage is to create competency questions related to ontological elements (e.g., classes/concepts, relations, properties, axioms) as soon as these elements are included in the specification. Thus, very simple competency questions are initially defined and tend to become more complex as the representation evolves.

The lack of forms to guide the representation of space and its integration with time are limitations of our study. Indeed, behaviours may be affected by the place (space) where individuals are at a certain moment. For example, someone may present different levels of sleep quality if she/he is sleeping at home or in an unfamiliar place. The importance of the space to contextualise the analysis of events is already foreseen, for example, in upper-level ontologies such as BFO, which defines the class “spatiotemporal region” to represent occurrent entities (e.g., events, processes) that are part of spacetime. For example, the spatiotemporal region occupied by an evolving cancer tumor. Thus, these limitations are also opportunities for future research.

Finally, while the focus of our case example was on the sleep domain, modelling other behaviours in other domains can follow the same process. For example, we intend to extend this study using this process to model the psychological states and physical activities (quality of life) of cancer patients during treatment.

Footnotes

Acknowledgement

This project has received funding from the European Union’s Horizon 2020 research and innovation programme under the Marie Sklodowska-Curie grant agreement H2020-MSCA-IF2020-101024693. The authors would like to thank Dr. Pascale Gaudet, from the Swiss Institute of Bioinformatics, and Dr. Natasha Lino, from the Applied Artificial Intelligence Lab (UFPB), for the reviews and comments about this paper.

Online resources

The supplementary online material supports the understanding and replications of this study. It is composed of: (1) OWL file representing the ontology without the individuals; (2) OWL file representing the ontology with the individuals; (3) Excel datasheet with the individuals; (4) Rules in the json format to upload the individual in the ontology using the Cellfie plugin; and (5) the text file with the SQWRL queries.

References

Aji, M., Gordon, C., Stratton, E., Calvo, R.A., Bartlett, D., Grunstein, R. & Glozier, N. (2021). Framework for the design engineering and clinical implementation and evaluation of mhealth apps for sleep disturbance: Systematic review. Journal of medical Internet research, 23(2), e24607. doi:10.2196/24607.

Al-Aswadi, F.N., Chan, H.Y. & Gan, K.H. (2020). Automatic ontology construction from text: A review from shallow to deep learning trend. Artificial Intelligence Review, 53(6), 3901–3928. doi:10.1007/s10462-019-09782-9.

Algergawy, A. & König-Ries, B. (2019). Partitioning of bioportal ontologies: An empirical study. In SWAT4HCLS (pp. 84–93).

Aminu, E.F., Oyefolahan, I.O., Abdullahi, M.B. & Salaudeen, M.T. (2020). A review on ontology development methodologies for developing ontological knowledge representation systems for various domains. International Journal of Information Engineering & Electronic Business, 12(2).

Amith, M., He, Z., Bian, J., Lossio-Ventura, J.A. & Tao, C. (2018). Assessing the practice of biomedical ontology evaluation: Gaps and opportunities. Journal of biomedical informatics, 80, 1–13. doi:10.1016/j.jbi.2018.02.010.

Baader, F., Horrocks, I. & Sattler, U. (2008). Description logics. Foundations of Artificial Intelligence, 3, 135–179. doi:10.1016/S1574-6526(07)03003-9.

Bent, B., Wang, K., Grzesiak, E., Jiang, C., Qi, Y., Jiang, Y., Cho, P., Zingler, K., Ogbeide, F.I., Zhao, A., et al. (2021). The digital biomarker discovery pipeline: An open-source software platform for the development of digital biomarkers using mhealth and wearables data. Journal of clinical and translational science, 5(1).

Bezerra, C., Freitas, F. & Santana, F. (2013). Evaluating ontologies with competency questions. In 2013 IEEE/WIC/ACM International Joint Conferences on Web Intelligence (WI) and Intelligent Agent Technologies (IAT) (Vol. 3, pp. 284–285). IEEE.

Bickmore, T.W., Schulman, D. & Sidner, C.L. (2011). A reusable framework for health counseling dialogue systems based on a behavioral medicine ontology. Journal of biomedical informatics, 44(2), 183–197. doi:10.1016/j.jbi.2010.12.006.

10.

Boukhechba, M., Daros, A.R., Fua, K., Chow, P.I., Teachman, B.A. & Barnes, L.E. (2018). Demonicsalmon: Monitoring mental health and social interactions of college students using smartphones. Smart Health, 9, 192–203.

11.

BSSO Foundry (2022). The Behavioural and Social Sciences Ontology (BSSO) Foundry. https://www.bssofoundry.org/ .

12.

Bull, F.C., Al-Ansari, S.S., Biddle, S., Borodulin, K., Buman, M.P., Cardon, G., Carty, C., Chaput, J.-P., Chastin, S., Chou, R., et al. (2020). World health organization 2020 guidelines on physical activity and sedentary behaviour. British journal of sports medicine, 54(24), 1451–1462. doi:10.1136/bjsports-2020-102955.

13.

Buysse, D.J. (2014). Sleep health: Can we define it? Does it matter? Sleep, 37(1), 9–17. doi:10.5665/sleep.3298.

14.

Carmeli, A., Brueller, D. & Dutton, J.E. (2009). Learning behaviours in the workplace: The role of high-quality interpersonal relationships and psychological safety. Systems Research and Behavioral Science: The Official Journal of the International Federation for Systems Research, 26(1), 81–98. doi:10.1002/sres.932.

15.

Corcho, O., Fernández-López, M., Gómez-Pérez, A. & López-Cima, A. (2005). Building legal ontologies with methontology and webode. In Law and the Semantic Web (pp. 142–157). Springer.

16.

Davis, R., Campbell, R., Hildon, Z., Hobbs, L. & Michie, S. (2015). Theories of behaviour and behaviour change across the social and behavioural sciences: A scoping review. Health psychology review, 9(3), 323–344. doi:10.1080/17437199.2014.941722.

17.

Daza, E.J., Wac, K. & Oppezzo, M. (2020). Effects of sleep deprivation on blood glucose, food cravings, and affect in a non-diabetic: An n-of-1 randomized pilot study. In Healthcare (Vol. 8, p. 6). Multidisciplinary Digital Publishing Institute.

18.

Dekker, A., Matthiesen, S., Cerwenka, S., Otten, M. & Briken, P. (2020). Health, sexual activity, and sexual satisfaction: Selected results from the German health and sexuality survey (gesid). Deutsches Ärzteblatt International, 117(39), 645.

19.

El-Sappagh, S., Franda, F., Ali, F. & Kwak, K.-S. (2018). Snomed ct standard ontology based on the ontology for general medical science. In BMC Medical Informatics and Decision Making (Vol. 18, pp. 1–19).

20.

Espinoza, A., Del-Moral, E., Martínez-Martínez, A. & Alí, N. (2021). A validation & verification driven ontology: An iterative process. Applied Ontology, Preprint, 1–41.

21.

Fassnacht, G. (1982). Theory and Practice of Observing Behaviour. Behavioural Development: A Series of Monographs.

22.

Fernández-López, M., Gómez-Pérez, A. & Juristo, N. (1997). Methontology: From Ontological Art Towards Ontological Engineering.

23.

Fino, E. & Mazzetti, M. (2019). Monitoring healthy and disturbed sleep through smartphone applications: A review of experimental evidence. Sleep and Breathing, 23(1), 13–24. doi:10.1007/s11325-018-1661-3.

24.

Fox, M.S. & Gruninger, M. (1998). Enterprise modeling. AI magazine, 19(3), 109–109.

25.

Funk, S., Salathé, M. & Jansen, V.A. (2010). Modelling the influence of human behaviour on the spread of infectious diseases: A review. Journal of the Royal Society Interface, 7(50), 1247–1256. doi:10.1098/rsif.2010.0142.

26.

Gillman, M.W., Pinto, B.M., Tennstedt, S., Glanz, K., Marcus, B. & Friedman, R.H. (2001). Relationships of physical activity with dietary behaviors among adults. Preventive medicine, 32(3), 295–301. doi:10.1006/pmed.2000.0812.

27.

Gkoutos, G.V., Schofield, P.N. & Hoehndorf, R. (2012). The neurobehavior ontology: An ontology for annotation and integration of behavior and behavioral phenotypes. International review of neurobiology, 103, 69–87. doi:10.1016/B978-0-12-388408-4.00004-6.

28.

Gómez-Pérez, A. (1995). Some ideas and examples to evaluate ontologies. In Proceedings the 11th Conference on Artificial Intelligence for Applications (pp. 299–305). IEEE. doi:10.1109/CAIA.1995.378808.

29.

Guarino, N., Oberle, D. & Staab, S. (2009). What is an ontology? In Handbook on Ontologies (pp. 1–17). Springer.

30.

Guillodo, E., Lemey, C., Simonnet, M., Walter, M., Baca-García, E., Masetti, V., Moga, S., Larsen, M., HUGOPSY Network, Ropars, J., et al. (2020). Clinical applications of mobile health wearable–based sleep monitoring: Systematic review. JMIR mHealth and uHealth, 8(4), e10733. doi:10.2196/10733.

31.

Hastings, J., Smith, B., Ceusters, W., Jensen, M. & Mulligan, K. (2012). The mental functioning ontology. In Proc. 3rd International Conference on Biomedical Ontology (ICBO’12) (pp. 1–5).

32.

Hirshkowitz, M. (2004). Normal human sleep: An overview. Medical Clinics, 88(3), 551–565.

33.

Hirshkowitz, M., Whiton, K., Albert, S.M., Alessi, C., Bruni, O., DonCarlos, L., Hazen, N., Herman, J., Adams Hillard, P.J., Katz, E.S., et al. (2015). National sleep foundation’s updated sleep duration recommendations. Sleep health, 1(4), 233–243. doi:10.1016/j.sleh.2015.10.004.

34.

Hwang, S.H., Chung, G.S., Lee, Y.-J., Jeong, D.-U., Park, K.S., et al. (2013). Estimation of sleep onset latency based on the blood pressure regulatory reflex mechanism. IEEE journal of biomedical and health informatics, 17(3), 539–544. doi:10.1109/JBHI.2013.2256920.

35.

Kang, S.-G., Kang, J.M., Ko, K.-P., Park, S.-C., Mariani, S. & Weng, J. (2017). Validity of a commercial wearable sleep tracker in adult insomnia disorder patients and good sleepers. Journal of psychosomatic research, 97, 38–44. doi:10.1016/j.jpsychores.2017.03.009.

36.

Kim, S. (2020). World health organization quality of life (whoqol) assessment. Encyclopedia of quality of life and well-being research, 1–2.

37.

Kredlow, M.A., Capozzoli, M.C., Hearon, B.A., Calkins, A.W. & Otto, M.W. (2015). The effects of physical activity on sleep: A meta-analytic review. Journal of behavioral medicine, 38(3), 427–449. doi:10.1007/s10865-015-9617-6.

38.

Kubala, A.G., Barone Gibbs, B., Buysse, D.J., Patel, S.R., Hall, M.H. & Kline, C.E. (2020). Field-based measurement of sleep: Agreement between six commercial activity monitors and a validated accelerometer. Behavioral sleep medicine, 18(5), 637–652. doi:10.1080/15402002.2019.1651316.

39.

Lawson, S., Jamison-Powell, S., Garbett, A., Linehan, C., Kucharczyk, E., Verbaan, S., Rowland, D.A. & Morgan, K. (2013). Validating a mobile phone application for the everyday, unobtrusive, objective measurement of sleep. In Proceedings of the SIGCHI Conference on Human Factors in Computing Systems (pp. 2497–2506). doi:10.1145/2470654.2481345.

40.

Levitis, D.A., Lidicker, W.Z.Jr. & Freund, G. (2009). Behavioural biologists do not agree on what constitutes behaviour. Animal behaviour, 78(1), 103–110. doi:10.1016/j.anbehav.2009.03.018.

41.

Malaiya, Y.K., Li, M.N., Bieman, J.M. & Karcich, R. (2002). Software reliability growth with test coverage. IEEE Transactions on Reliability, 51(4), 420–426. doi:10.1109/TR.2002.804489.

42.

Mastropietro, A., Palumbo, F., Orte, S., Girolami, M., Furfari, F., Baronti, P., Candea, C., Roecke, C., Tarro, L., Sykora, M., et al. (2021). A multi-domain ontology on healthy ageing for the characterization of older adults status and behaviour. Journal of Ambient Intelligence and Humanized Computing, 1–19.

43.

Michie, S., West, R., Finnerty, A.N., Norris, E., Wright, A.J., Marques, M.M., Johnston, M., Kelly, M.P., Thomas, J. & Hastings, J. (2020). Representation of behaviour change interventions and their evaluation: Development of the upper level of the behaviour change intervention ontology. Wellcome open research, 5. doi:10.12688/wellcomeopenres.15908.3.

44.

Miller, D.J., Sargent, C., Roach, G.D., Scanlan, A.T., Vincent, G.E. & Lastella, M. (2020). Moderate-intensity exercise performed in the evening does not impair sleep in healthy males. European journal of sport science, 20(1), 80–89. doi:10.1080/17461391.2019.1611934.

45.

Mokdad, A.H., Marks, J.S., Stroup, D.F. & Gerberding, J.L. (2004). Actual causes of death in the United States, 2000. Jama, 291(10), 1238–1245. doi:10.1001/jama.291.10.1238.

46.

Ng, R., Sutradhar, R., Yao, Z., Wodchis, W.P. & Rosella, L.C. (2020). Smoking, drinking, diet and physical activity – modifiable lifestyle risk factors and their associations with age to first chronic disease. International journal of epidemiology, 49(1), 113–130. doi:10.1093/ije/dyz078.

47.

Norris, E., Finnerty, A.N., Hastings, J., Stokes, G. & Michie, S. (2019). A scoping review of ontologies related to human behaviour change. Nature human behaviour, 3(2), 164–172. doi:10.1038/s41562-018-0511-4.

48.

Noy, N., McGuinness, D.L., et al. (2001). Ontology Development 101. Knowledge Systems Laboratory. Stanford University.

49.

Noy, N., Rector, A., Hayes, P. & Welty, C. (2006). Defining n-ary relations on the semantic web. w3c working group note. https://www.w3.org/TR/swbp-n-aryRelations/

50.

Noy, N.F., Crubézy, M., Fergerson, R.W., Knublauch, H., Tu, S.W., Vendetti, J. & Musen, M.A. (2003). Protégé-2000: An open-source ontology-development and knowledge-acquisition environment. In AMIA... Annual Symposium Proceedings. AMIA Symposium (pp. 953–953).

51.

O’Connor, M.J. & Das, A.K. (2009). Sqwrl: A query language for owl. In OWLED (Vol. 529).

52.

Pereira, F.D., Oliveira, E.H.T., Oliveira, D.B.F., Cristea, A.I., Carvalho, L.S.G., Fonseca, S.C., Toda, A. & Isotani, S. (2020). Using learning analytics in the amazonas: Understanding students’ behaviour in introductory programming. British journal of educational technology, 51(4), 955–972. doi:10.1111/bjet.12953.

53.

Rossi, A., Da Pozzo, E., Menicagli, D., Tremolanti, C., Priami, C., Sirbu, A., Clifton, D., Martini, C. & Morelli, D. (2020a). Multilevel monitoring of activity and sleep in healthy people.

54.

Rossi, A., Da Pozzo, E., Menicagli, D., Tremolanti, C., Priami, C., Sîrbu, A., Clifton, D.A., Martini, C. & Morelli, D. (2020b). A public dataset of 24-h multi-levels psycho-physiological responses in young healthy adults. Data, 5(4), 91. doi:10.3390/data5040091.

55.

Roth, T. (2007). Insomnia: Definition, prevalence, etiology, and consequences. Journal of clinical sleep medicine, 3(suppl 5), S7–S10.

56.

Sattar, A., Surin, E.S.M., Ahmad, M.N., Ahmad, M. & Mahmood, A.K. (2020). Comparative analysis of methodologies for domain ontology development: A systematic review. Int. J. Adv. Comput. Sci. Appl., 11(5), 99–108.

57.

Scott, H., Lack, L. & Lovato, N. (2020). A systematic review of the accuracy of sleep wearable devices for estimating sleep onset. Sleep Medicine Reviews, 49, 101227. doi:10.1016/j.smrv.2019.101227.

58.

Siebra, C. & Wac, K. (2022). Engineering uncertain time for its practical integration in ontologies. Knowledge-based Systems. In press.

59.

Silva, A.G., Simões, P., Queirós, A., Rodrigues, M. & Rocha, N.P. (2020). Mobile apps to quantify aspects of physical activity: A systematic review on its reliability and validity. Journal of medical systems, 44(2), 1–19.

60.

Sogol, J. & Redline, S. (2017). Insomnia and risk of cardiovascular disease. Chest, 152(2), 435–444. doi:10.1016/j.chest.2017.01.026.

61.

Spear, A.D., Ceusters, W. & Smith, B. (2016). Functions in basic formal ontology. Applied Ontology, 11(2), 103–128. doi:10.3233/AO-160164.

62.

Stewart, J.C., Rand, K.L., Hawkins, M.A. & Stines, J.A. (2011). Associations of the shared and unique aspects of positive and negative emotional factors with sleep quality. Personality and Individual Differences, 50(5), 609–614. doi:10.1016/j.paid.2010.12.004.

63.

Tal, A., Shinar, Z., Shaki, D., Codish, S. & Goldbart, A. (2017). Validation of contact-free sleep monitoring device with comparison to polysomnography. Journal of Clinical Sleep Medicine, 13(3), 517–522. doi:10.5664/jcsm.6514.

64.

Turner, J.A. & Laird, A.R. (2012). The cognitive paradigm ontology: Design and application. Neuroinformatics, 10(1), 57–66. doi:10.1007/s12021-011-9126-x.

65.

Uschold, M. & King, M. (1995). Towards a methodology for building ontologies. Citeseer.

66.

Van Ameringen, M., Turna, J., Khalesi, Z., Pullia, K. & Patterson, B. (2017). There is an app for that! The current state of mobile applications (apps) for dsm-5 obsessive-compulsive disorder, posttraumatic stress disorder, anxiety and mood disorders. Depression and Anxiety, 34(6), 526–539. doi:10.1002/da.22657.

67.

Vanderlinden, J., Boen, F. & Van Uffelen, J.G.Z. (2020). Effects of physical activity programs on sleep outcomes in older adults: A systematic review. International Journal of Behavioral Nutrition and Physical Activity, 17(1), 1–15. doi:10.1186/s12966-019-0902-6.

68.

Vital-Lopez, F.G., Balkin, T.J. & Reifman, J. (2021). Models for predicting sleep latency and sleep duration. Sleep, 44(5), zsaa263.

69.

Wang, F. & Boros, S. (2021). The effect of physical activity on sleep quality: A systematic review. European Journal of Physiotherapy, 23(1), 11–18. doi:10.1080/21679169.2019.1623314.

70.

Wang, H.-T. & Uz, A. (2019). Tansel. Temporal extensions to rdf. Journal of Web Engineering, 18(1), 125–168. doi:10.13052/jwe1540-9589.18134.

71.

Wiśniewski, D., Potoniec, J., Ławrynowicz, A. & Keet, C.M. (2019). Analysis of ontology competency questions and their formalizations in sparql-owl. Journal of Web Semantics, 59, 100534. doi:10.1016/j.websem.2019.100534.

72.

Zheng, Y.-L., He, Q.-Y., Ping, Q.I.A.N. & Ze, L.I. (2012). Construction of the ontology-based agricultural knowledge management system. Journal of Integrative Agriculture, 11(5), 700–709. doi:10.1016/S2095-3119(12)60059-8.

Designing ontologies for behaviours based on temporal passive data
