Abstract
INTRODUCTION
The major hallmark of Alzheimer’s disease (AD) is progressive cognitive decline. Gait disturbance has been considered to occur only in advanced stages of the disease. However, quantitative gait analysis has shown that there are abnormalities in gaitperformance in patients with AD even early in the disease course or the preclinical stage (mild cognitive impairment, MCI). Gait disturbances reported in early AD include slower gait with shorter stride length, lower cadence (longer stride time/gait cycle), and greater stride-to-stride variability [1–3]. These gait changes become apparent as cognitive decline progresses [3, 4]. Recently, gait analysis using a dual task paradigm, i.e., walking while simultaneously performing second task (cognitive task or motor task), has been widely used to evaluate cognitive involvement in gait control in patients with cognitive decline. It has been reported that dual task walking causesfurther decreases in gait velocity and stride length, and an increase in stride time and stride-to-stride variability when compared with usual walking in patients with AD [4–7]. Some previous reports have shown that dual-task related changes in those gait parameters are associated with global cognition, memory, and executive function [5, 7–10].
Although a dual task paradigm is used in gait performance tests to mimic walking in daily living, the subjects in the tests concentrate specifically on prescribed walking and cognitive tasks and environment is predictably arranged and their walking is supervised. Moreover, short-distance gait analyses might represent only limited aspects of gait in daily living, which demands a well-functioning ability to adapt walking behavior to much more complex environments. Therefore, long-time monitoring of gait can be useful to evaluate how people with dementia actually walk in their daily lives, and how cognitive function is associated with gait control under the circumstances of daily living.
The portable gait rhythmogram (PGR) is a recently developed acceleration sensor that detects tri-axial acceleration generated by movement of the trunk and limbs, and is capable of long-term monitoring of gait for up to 40 consecutive hours [11]. PGR quantifies gait acceleration (i.e. floor reaction force) and stride time of each stride from acceleration data. Gait assessments using the PGR have been reported in patients with Parkinson’s disease (PD) [11–13] and in patients with cognitive decline [14]. Notably, consistency of mean gait cycle and mean gait acceleration obtained by the PGR over the course of 24 hours has been reported by a study that conducted 3 days of gait recording in a small number of patients with PD [13].
In this study, we measured gait cycle and gait acceleration using the PGR in 24 patients with AD and healthy controls, and also assessed their cognitive function. The purpose of this study was to investigate whether gait characteristics in daily living is different between patients with AD and healthy elderly, and whether gait parameters in patients with AD are also related to cognitive function in the daily living environment.
MATERIALS AND METHODS
Subjects
All patients with AD were recruited for this cross-sectional study from the outpatient memory clinic of the Department of Neurology at Tokyo Medical and Dental University Hospital from July 2012 toFebruary 2015. The diagnosis of probable AD was based on the National Institute of Neurologic and Communicative Disorders and the Alzheimer’s Disease and Related Disorders Association (NINCDS-ADRDA) criteria. The inclusion criteria were as follows: (1) age≥65 years; (2) Mini Mental State Examination (MMSE) score≥15; (3) ability to walk without assistance or a walking aid in their daily living; (4) no other neurological diseases or orthopedic conditions affecting gait, major depression, or a concomitant cause of dementia. Twenty-four patients completed gait analysis and neuropsychological examination. Clinical diagnosis of AD has been not changed in any patients after mean follow up of 22.5±13.4 months. Nine age-matched cognitive healthy subjects (healthy controls: HC) were also recruited from the same outpatient clinic. The years of education and history of medication with drugs against dementia were recorded. History of falls during the past one year was also collected retrospectively from medical record.
The local ethical review board of Tokyo Medical and Dental University approved this study (approval number 982), and written informed consent was provided by all participants or their legal guardians.
Gait analysis
The PGR (Mimamori-gait system, LSI Medience Corporation, Tokyo, Japan) is a small device (size: 75×50×20 mm, weight: 120 g) that measures three-dimensional acceleration signals (ax, ay, az) from voluntary movements of the trunk and limbs, and step-in and kick-off motion during gait [11]. The PGR was attached to the waist of the subjects, and subjects were instructed to wear this device all day (24 hours), except when changing clothes or taking a bath, and to perform their usual daily activities during gait recording.
The acceleration signals were recorded continuously at a sampling rate of 10 ms. The data were automatically stored to a micro-SD card, and absolute values of the acceleration vectors (a : a2 = ax2 + ay2 + az2) were calculated and graphically displayed on a personal computer [11, 15]. “The amount of overall movements per 24 hour” was calculated as previously described [16]. Briefly, the accelerations induced by all truncal movement was averaged every 10 min, and probability distribution of the acceleration was displayed graphically. “The amount of overall movement” was defined by the mean value of this distribution, and have the dimension of m/s2 [16].The acceleration vector generated by stepping was distinguished from those generated by other voluntary movements or artifacts based on mathematical methods of “template-matching (pattern matching)”; the exact analytical procedure has been described elsewhere [13, 15]. In this study, the mean duration of the gait cycle (the time period from the contact of one foot with the ground to the next contact of the same foots) and the mean amplitude of gait acceleration, which is correlated with floor reaction force [11], throughout the 24 hours were used for analysis.
Neuropsychological examination
Cognitive function was assessed by the MMSE and Japanese version of the Wechsler Memory Scale-revised (WMS-R). The index scores (verbal memory, visual memory, attention and concentration, and delayed recall) were calculated from subtest scores of the WMS-R according to the manual [17]. Because the Japanese WMS-R has not been standardized for subjects over 75 years old, and 23 (69.7%) of our subjects were over 75 years, we used the raw score of each index for analysis. Neuropsychological examinations were performed within 6 months of gait analysis.
Statistics
Results are reported as mean±SD. Because of the small number of the subjects, non-parametric statistics (Fisher’s exact test, Mann-Whitney U-test) were used for comparisons between two groups, and Kruskal-Wallis ANOVA by ranks with Steel-Dwass
Because some of the cognitive parameters (MMSE, verbal memory, delayed recall) in the AD group did not follow a normal distribution, Spearman rank-order correlation was used to explore the relationship between gait parameters and each cognitive measure. Multivariate analysis adjusted for age or sex, history of falls and medication was performed when significant relationships between gait parameters and age (by Spearman correlation) or sex, history of falls, medication (by U-test) were observed. All statistical analyses were performed using EZR (Saitama Medical Center, Jichi Medical University), which is a graphical user interface for the R software environment (The R Foundation for Statistical Computing). A
RESULTS
Subjects
There were no significant differences in age, sex, and education between the AD and HC groups (Table 1). All cognitive measures of MMSE and WMS-R were significantly lower in the patients with AD. Ten of 24 AD patients underwent gait and neuropsychological examinations before the prescription of anti-dementia medication. Information about history of falls was obtained from 17 patients with AD, and 5 HC subjects, and not different between two groups (Table 1).
Clinical features and cognitive characteristics of patients with AD and healthy controls (HC)
MMSE, Mini-Mental State Examination; WMS-R, Wechsler Memory Scale-Revised. The range of raw index scores is shown in parentheses. aAcetylcholine esterase inhibitor or NMDA receptor antagonist (memantine).
Gait parameters
The mean gait cycle was 1.24±0.08 s in the AD group and 1.21±0.06 s in the HC group (

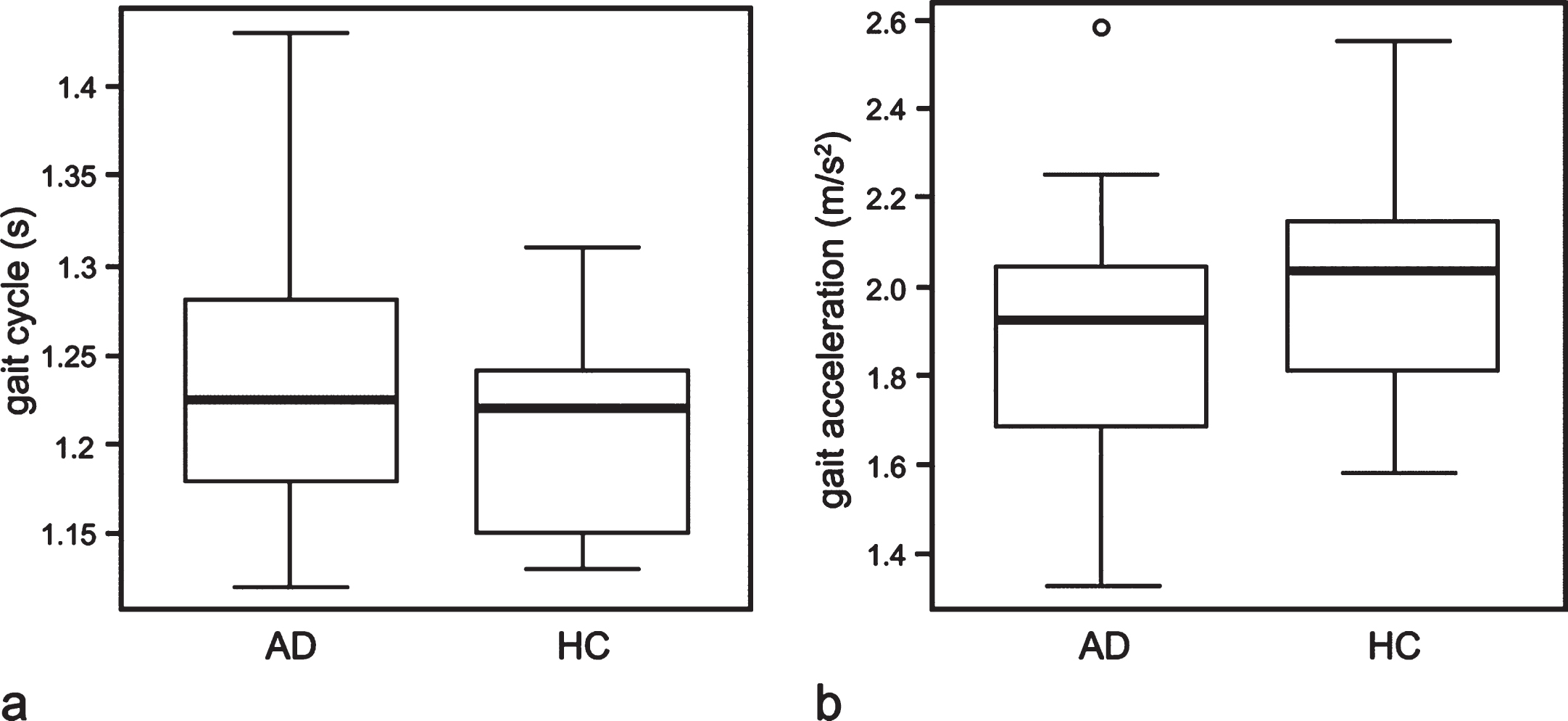

Boxplots illustrating the comparison of gait cycle (a) and gait acceleration (b) among patients with Alzheimer disease (AD) and healthy controls (HC). The horizontal line inside the box indicates the median, and the length of the box is the interquartile range (IQR). The extremes of the whiskers contain the data within 1.5 IQR from the upper or lower quartile. The open circles indicate an outlier.
Relationship between gait parameters and cognitive function
In the AD group, gait cycle was significantly correlated with the index score for attention/concentration (
Six patients had high attention/concentration scores corresponding to a healthy score, but this was different from other cognitive parameters. Therefore, we divided the patients with AD into two groups (Table 3): an “AD-high-att” group in which attention/concentration scores were comparable with HC (i.e. within 1.5 SD of the mean HC score), and an “AD-low-att” group comprising patients with lower attention/concentration scores than HC. We compared gait cycle among these 3 groups using a Kruskal-Wallis ANOVA. The gait cycle in the AD-high-att group was significantly longer than that in the AD-low-att (

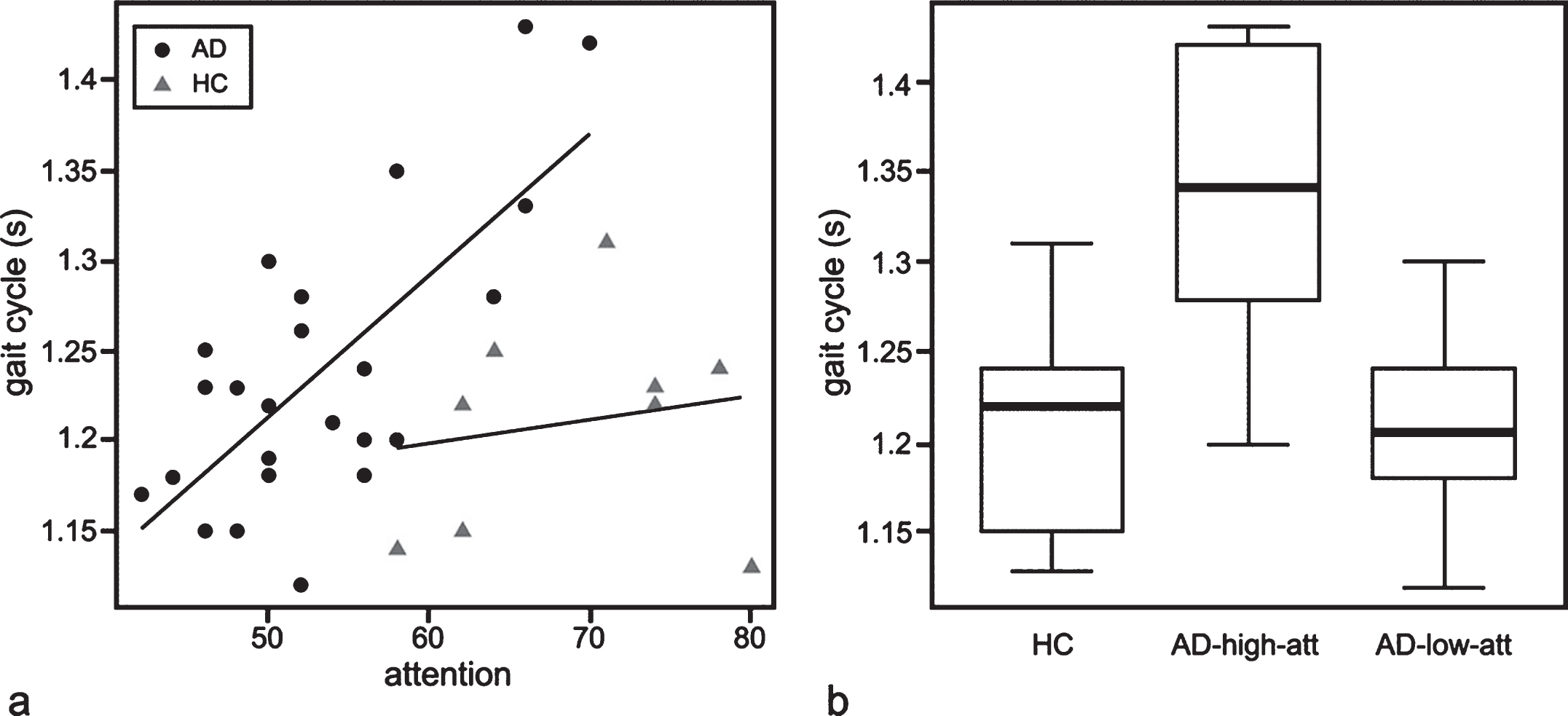

(a) Scatter plots indicating the relationship between attention/concentration and gait cycle in patients with AD and healthy controls. Gait cycle and attention/concentration was moderately correlated in patients with AD, but not correlated in HC (
Correlation between gait parameters and cognitive measures
The Spearman correlation coefficients (r), with associated
Differences in gait cycle and attention score in patients with AD
aComparison among three groups were conducted by Kruskal-Wallis ANOVA by ranks with
Steel-Dwass
DISCUSSION
In this study, we carried out long-term recordings of gait in patients with AD using PGR, and verified the possible relationship between gait and cognitive function. In spite of many previous reports that describe gait differences between patients with AD and healthy subjects, we did not find any difference in mean gait parameters between the two groups in this study. However, we found that gait cycle in patients with AD significantly correlated with attention/concentration function; the patients with attentional deficit walked with shorter gait cycle than the patients without discernible attentional deficit and the gait cycle of patients with attentional deficit was comparable to that of cognitively healthysubjects.
Involvement of attention/executive function in gait control has been reported in many correlation studies in patients with MCI and AD [5, 7–10], and in functional brain imaging studies related to gait performance [18, 19]. Attentional dysfunction also correlates with increased risk of future falling in older adults [20]. Walking during a dual task paradigm test necessitates an ability to appropriately allocate attentional resources between walking and additional tasks. Therefore, subjects with lower attentional function exhibit deterioration of gait performance in dual tasking scenarios that generally manifests as slower gait speed, shorter stride length, longer stride time, and greater gait variability [5, 10]. In a complicated external environment, these changes in gait pattern are observed even in healthy young people [21]. Therefore, it is natural to speculate that gait slowing in patients with lower attentional function would be more prominent than in subjects with normal attentional function in complex external environments encountered in daily living. However, the results of this study were in contrast to previous observations; indeed, we found that patients with AD with impaired attention walked at a faster pace in daily living than patients with preserved attention.
We suggest two possible explanations for this discrepancy from the viewpoint of attentional function. Firstly, in patients with significant attentional deficit, the manner in which limited attentional resources are allocated to gait, external environment, or other stimuli in testing situations might be much different than in daily living. In a testing environment, patients likely have high arousal and concentrate on prescribed tasks with supervision, while in daily living patients are more relaxed and not fully conscious of the information or stimuli to which they should divide their attention. Subjects with relatively preserved attention are able to adopt their gait pattern according to the environment, even in complex contexts of daily living, just as they can in undertaking a dual-task gait test. Although we could not find any correlation between attention and gait cycle in our small number of HC subjects (
Another, but more minor, possibility is the effect of so-called “cautious gait” [24]. Cautious gait is a form of higher-level gait disorder, and is characterized by a slowing of gait, shortened steps, mild widening of the base, and, according to recent quantitative gait analysis, longer gait cycle [25, 26]. About 20% of the patients with AD and about 10% of healthy elderly individuals display this type of gait change [27].Patients with AD often show increasing posturalsway [28] and balance impairment [29]. Cautious gait is thought to be an appropriate adaptation of gait pattern to a consciously or subconsciously perceived instability or fear of falling [24, 25]. This adaptation of walking is considered to require various cortical functions including attention/executive function and integration of visual and sensory information [19, 30]. It is possible that patients with AD with preserved attention can appropriately perceive their impaired balance, and adapt to their instability by taking cautious gait to avoid falling. On the contrary, patients with impaired attention may not be aware of instability in their gait, resulting in a faster gait cycle, which may even be as fast as healthy control individuals. A similar possibility was previously reported by van Iersel et al., who determined that the walking speed of elderly patients with dementia was disproportionally fast when adjusted for their overall degree of physical impairment. This phenomenon was attributed to frontal lobe disinhibition or lack of insight in demented subjects, and interpreted as an inappropriate adaptation to the environment [31]. Taken together, our study indicates that patients with AD with impaired attention tend to walk rather “carelessly”, because of inappropriate allocation of limited (i.e. decreased) attentional resources to the external environment and/or poor self-awareness of their physical limitations or unsteadiness.
There may be various factors other than cognitive function that influence gait in daily living: physical condition, activity range, personal characteristics, supervision or guidance of activity by a caregiver, and so on. There was no significant difference in the total amount of movement between the two groups, although the specific activities that the subjects engaged in on the recording day were not assessed. How supervision and guidance of activity by others may have influenced gait pattern in our subjects is not clear; however, the impact of such biases on mean gait cycle throughout the day would not be expected to be very significant, as patients with severe dementia who always need help in daily living were not included in this study. Moreover, how individuals respond (e.g. change activity or gait) to intervention by others may to some extent depend on cognitive function.
Continuous gait monitoring in daily living in patients with AD has been performed in only few studies and seems to be difficult to interpret because gait disorder in AD may become apparent in only certain contexts of walking and other circumstances in daily living, which are complex and unpredictable. Nevertheless, we did observe a meaningful correlation between gait and cognitive function. To our best knowledge, this is the first study to show a relationship of a possibly inappropriately faster gait in patients with AD with impaired attention. This result may also bring new insights into fall risk in patients with AD. Previous studies showed that impairment in attention and executive function is related to fall risk in elderly people and patients with dementia [18, 32]. The fall risk in subjects with impaired attention/executive function is generally discussed in relation to gait instability in dual-task paradigms[20, 34]. We consider another possibility with respect to patients with AD: fall risk in those patients with attentional impairment may be attributable to their lack of ability to adapt their gait according to the environment and a resulting inappropriately faster gait in daily living. However, a prospective follow up study assessing linkage between falling risk, gait recording, and assessment of attentional function will be needed to verify this possibility. More generally, our study further demonstrates how long-term gaitanalysis is a useful tool for understanding real gait pattern in patients and how it is affected by different disease states.
In this study, we could not find differences in gait cycle between the AD group and the HC group. This mainly owes to the wide range of gait cycles in the AD group and relatively faster gait cycle in AD patients with declines in attentional capacity, as detailed above. Another factor is that the gait cycle of the HC group (1.2±0.06 s) was longer than that of healthy subjects in the clinical gait test (about 1.0∼1.15 s in single or dual-task walking)[2, 23]. This may also be explained by the effect of gait adaptation of HC subjects to various environments in daily living, but the change of gait cycle is smaller than in patients with AD with preserved attention, as indicated by clinical gait tests.
This study has some limitations. First, the number of subjects in our study was small especially for multiple subgroup analysis, thus necessitates caution.. Second, patients with AD in this study were limited to mild-to-moderate stages of disease, partly because only patients who could continuously wear the PGR for recording of gait for 24 hours and walk without any help or walking aid in daily living were selected. Another reason was that the patients with severe dementia were reported to show other types of gait impairment such as frontal gait [27]. Third, the cognitive batteries used in this study were mainly focused on memory function, and the indices for attention/concentration in the WMS-R reflect only a limited aspect of attention/executive function. Finally, we could not measure other gait parameters such as gait speed or stride length. Usually the gait cycle changes with gait speed and stride length in a regular pattern (i.e., as the gait become slower, the gait cycle become longer and stride length became shorter) [35, 36]; however, the discrete effect of gait cycle and stride length on gait speed under different circumstances can vary. Thus, further evaluation is needed to verify the results of our study.
In conclusion, this study showed a correlation between attention and gait in daily living of patients with AD; the correlation was opposite to the result of previous gait studies conducted under a conditioned environment. Gait slowing in daily living was observed in patients with preserved attention as expected. However, patients with impaired attention did not show significant gait slowing in daily living, implying that they walked with an inappropriately faster gait pattern in complex environments in daily living. Long-term gait analysis may give us further insight into understanding gait activity in actual daily living of patients with cognitive decline.
