Abstract
Objective
Recurrent nasopharyngeal carcinoma (rNPC) can be salvaged with re-irradiation, open nasopharyngectomy, and more recently endoscopic nasopharyngectomy. However, long-term outcomes of endoscopic approaches are lacking. Thus, we report 5-year outcomes following endoscopic nasopharyngectomy for rNPC.
Methods
Patients who underwent endoscopic nasopharyngectomy for rNPC between January 2000 and January 2012 were retrospectively reviewed. Patients were included if they had their first endoscopic nasopharyngectomy at least 5 years prior to this study. Presenting (cTNM) status and recurrent (rTNM) status for each recurrence was determined. Outcomes included margin status, disease recurrence, death, and complication rates.
Results
Thirteen patients were included. Four patients had a prior open nasopharyngectomy. Mean time follow-up was 74.3 months (range = 56.4–96 months). Negative margins were achieved in 77% of initial cases. Positive margins were associated with higher rT stages. Re-recurrence was seen in 6 patients, which was also associated with a higher cStage and rStage. All patients with positive margins had re-recurrence. Four patients required repeat endoscopic nasopharyngectomy and two received chemoradiation. All four with a second endoscopic procedure had further disease recurrence. Five-year local disease-free and overall survival rates were 53.9 and 84.6%, respectively. The minor complication rate was 52.6%, major operative complication rate was 0.0%, and late complication rate was 23.1%.
Conclusion
Endoscopic nasopharyngectomy demonstrates promising 5-year overall survival rate for rT1 and rT2 cases of rNPC with favorable complication rates. Lower rStages were associated with a higher disease-free rate, and lower cStages were associated with improved overall prognosis. Close surveillance and prompt management of recurrences can be associated with favorable long-term tumor control.
Level of evidence
4
Graphical Abstract
Keywords
Introduction
Surgical management of local, recurrent nasopharyngeal carcinoma (rNPC) has gained favor as a treatment alternative to re-irradiation. Traditional surgical options such as trans-palatal, trans-infratemporal fossa, trans-cervical, mid-face degloving, and maxillary swing approaches have been associated with 5-year overall survival (OS) ranging from 30 to 62%, favorable to reirradiation [1–3]. However such surgical techniques have been associated with a high degree of morbidity such as palatal defects, trismus, dysphagia, and nasal regurgitation [1, 3, 4].
A surgical approach that is gaining popularity for rNPC is the endoscopic nasopharyngectomy. With improved trans-nasal visualization provided by endoscopes, along with advances in endonasal instrumentation and a better understanding of endoscopic sinonasal anatomy, a number of sinonasal malignancies can now be managed endoscopically, including rNPC. For lower staged rNPC, this approach can potentially allow for similar outcomes as open nasopharyngectomy while limiting the morbidity associated with open surgical techniques. Based on a recent systematic review [5], the early survival outcomes of endoscopic nasopharyngectomy are quite favorable. There are six studies that report a 2-year OS of 59.4 to 100% [5–10], of which one was previously reported from our institution. However, given that endoscopic nasopharyngectomy is a relatively new approach, published long term outcomes are lacking, with only two studies from southern China and Malaysia that has reported 5-year OS of 78.1 and 50%, respectively [11, 12]. We now update our previously reported series with 5-year outcomes following endoscopic nasopharyngectomy for rNPC in North America.
Methods
Approval was first obtained from the Stanford University Institutional Review Board (IRB). The Stanford Translational Research Integrated Database Environment (STRIDE), a standards-based informatics platform developed at Stanford that supports clinical and translational research, was utilized to collect a list of eligible patients [13]. We retrospectively reviewed all adult patients (≥ 18 years) with rNPC undergoing salvage endoscopic nasopharyngectomy at Stanford Medical Center from January 2000 to January 2012. Patients were included if they had their first endoscopic nasopharyngectomy at least 5 years prior to this study. The surgical approach is well described in our original study [6]. Patients with regional neck metastasis underwent concurrent neck dissection. Any additional adjuvant therapy following surgical management was also recorded. Post-operatively, patients underwent endoscopic surveillance every 1 to 2 months in the first 2 years and then every 3 to 6 months thereafter. Any suspicious lesions were biopsied. Patients also had yearly PET-CT or MRI scans to assess for local recurrence and distant metastasis.
In addition to the information obtained from the original study [6], to better characterize our cohort, the presenting TNM (cTNM) and recurrent TNM (rnTNM) status at each recurrence, along with their correlating presenting stage (cStage) and recurrent stage (rnStage) were determined according to the 8th edition of the American Joint Committee on Cancer (AJCC) TNM classifications and stage groups. The World Health Organization (WHO) pathologic classification of NPC was also determined for each patient. Although most patients’ first recurrence after their initial radiation ± chemotherapy treatment was salvaged with an endoscopic nasopharyngectomy, a few patients presented to us with a 2nd recurrence after having had their first recurrence treated in the past with an open nasopharyngectomy. These patients who presented with recurrence after prior open nasopharyngectomy were offered an endoscopic procedure. As the goal of this study was to track disease recurrence after endoscopic surgery, we defined the recurrence status of patients prior to their first endoscopic nasopharyngectomy as r0TNM and r0Stage. Subsequent recurrence after the first endoscopic nasopharyngectomy was deemed the “first recurrence,” (r1TNM and r1Stage). Recurrence after a second nasopharyngectomy, if performed in applicable patients, was deemed the “second recurrence,” (r2TNM and r2Stage). All endoscopic procedures were performed with the intention to cure and improve overall survival. Surgery was offered to patients if the surgical team believed the tumor could be completely and safely resected.
Additional attention to the location of each recurrence and subsequent treatment (surgery and/or adjuvant therapy) are also reported. We report on the 5-year disease-free rate, overall-survival rate, and complications experienced by patients in this time frame. Minor complications were defined as crusting, epistaxis, purulence, pharyngitis, sinusitis, xerostomia, otitis media with effusion (OME), and eustachian tube dysfunction. Major operative complications were defined as carotid injury, cranial nerve injury, CSF leak, and velopharyngeal insufficiency. In addition, late complications due to comprehensive treatment were recorded including osteoradionecrosis (ORN), carotid rupture, temporal lobe necrosis, cranial neuropathy, dysphagia requiring a feeding tube, or trismus.
Results
Patient characteristics and presenting status

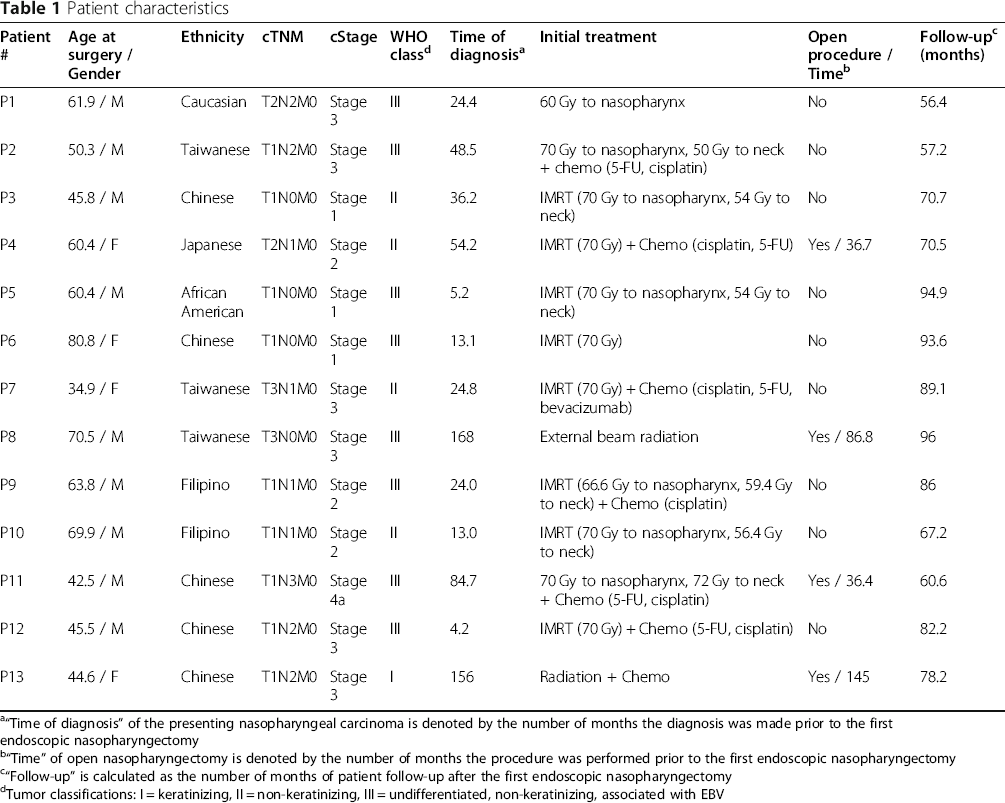

Patient characteristics
a“Time of diagnosis” of the presenting nasopharyngeal carcinoma is denoted by the number of months the diagnosis was made prior to the first endoscopic nasopharyngectomy
b“Time” of open nasopharyngectomy is denoted by the number of months the procedure was performed prior to the first endoscopic nasopharyngectomy
c“Follow-up” is calculated as the number of months of patient follow-up after the first endoscopic nasopharyngectomy
dTumor classifications: I = keratinizing, II = non-keratinizing, III = undifferentiated, non-keratinizing, associated with EBV
Recurrence status (r0) prior to endoscopic nasopharyngectomy
Recurrence status (r0) prior to endoscopic nasopharyngectomy
First recurrence (r1) after endoscopic nasopharyngectomy
Six patients (P1, P2, P4, P8, P10, P11) had a recurrence despite initial endoscopic nasopharyngectomy. All six patients had a cStage of 2 or greater and five (83%) had an r0Stage of 2 or greater. However, in regards to local T staging, only 1 (17%) had cT status of T3 or greater and 2 (33%) had a r0T of T3 or greater. Also, of all patients with r0Stage 2 and r0Stage 3, 100% had a second recurrence. All three patients with previous positive margins also had a second recurrence, despite adjuvant radiation therapy.
First recurrence (r1) after endoscopic nasopharyngectomy

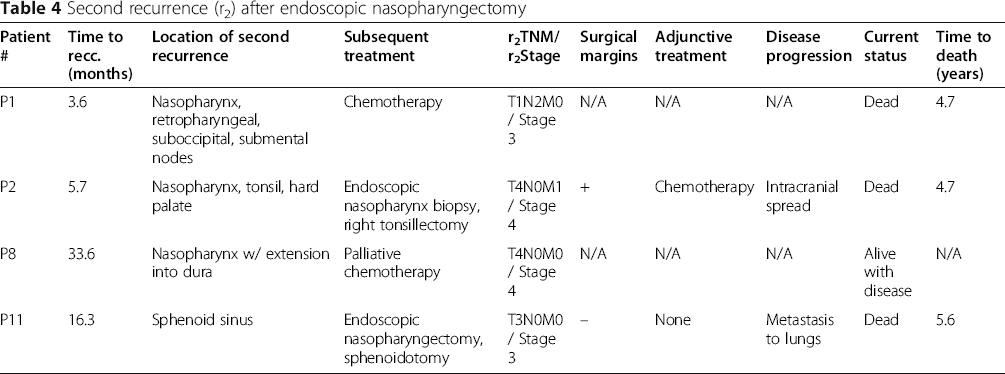

Second recurrence (r2) after endoscopic nasopharyngectomy
Second recurrence (r2) after endoscopic nasopharyngectomy
Local control, disease free and overall survival rates
Local control of tumor was achieved in eight patients (P3, P5, P6, P7, P9, P11, P12, P13) after their first endoscopic nasopharyngectomy to their latest follow-up for a 5-year local control rate of 61.5% (Fig. 1). Seven of these patients remain disease-free for a 5-year disease free rate of 53.9%. Although one patient (P11) achieved local control of tumor, he developed distant metastases to the lungs. Of the disease-free cohort, 3 were cStage 1 (43%), 1 was cStage 2 (14%), and 3 were cStage 3 (43%). In regards to their r0Stage, all 7 were r0Stage 1 (100%).
The Kaplan-Meier survival curve for patients undergoing salvage endoscopic nasopharyngectomy for recurrent NPC is illustrated. Two patients (P1 & P2) died at 4.7 years, just prior to the 5-year mark, with an additional death (P11) shortly after at 5.6 years
In addition to the seven patients described above, six patients had disease (P1, P2, P4, P8, P10, P11) of which a total of three patients (P1, P2, P11) died due to disease progression (Fig. 2). Two of these patients (P1, P2) died 4.7 years after their initial endoscopic nasopharyngectomy. P11 died 5.6 years after their initial endoscopic and thus was not included in the 5-year rate. Of the patients that died, all were cStage 3 or cStage 4. Therefore, for the entire cohort, the 5-year OS was 84.6%.
The Kaplan-Meier local tumor control curve for patients undergoing salvage endoscopic nasopharyngectomy for recurrent NPC is illustrated. Local control is defined as no evidence of disease after resection or if positive margins, no evidence of disease or tumor size change after adjuvant therapy. Five patients underwent local disease progression for a 5-year local control rate of 61.5%
The 5-year disease free and 5-year OS rates were also analyzed based on whether the stage at initial surgery or at recurrence was early or advanced. For patients with early cStages [1, 2], the disease-free rate was 67% and overall survival rate was 100%. For patients with early r0Stages [1, 2], the disease-free rate was 64% and overall survival rate was 82%. On the contrary, for advanced cStages [3, 4], the disease-free rate was 43% and the overall survival rate was 71%. For advanced r0Stages [3, 4], the disease-free rate was 0% and overall survival rate was 50%.
Complications
There were no additional operative complications experienced by our patients after the 2-year follow-up as previously reported in our original study [6]. All patients had some degree of post-operative crusting that resolved within a month with debridements and saline rinses. The most common side effects were otitis media with effusion (OME) seen in 4 (30.8%) cases. Purulence was seen in three (23.1%) patients, which was adequately treated with antibiotics. Mild epistaxis occurred after one (7.7%) procedure and was controlled with silver nitrate application. There were no major operative complications. The total minor complication rate was 52.6% and the major complication rate was 0.0%.
Among late complications secondary to comprehensive treatment, osteoradionecrosis developed in three (23.1%) patients. One case of ORN involving the external auditory canal occurred in P2, eight months after his second endoscopic nasopharyngectomy. The second case of ORN involving the posterior inferior turbinate occurred in P5, 7 months after his initial endoscopic procedure. The third case of ORN involving the skull base and sphenoid sinus occurred in P11, one year after his third endoscopic procedure. All cases were managed with saline irrigations, routine debridement, and antibiotics if secondary infection developed. One new case of trismus (7.7%) developed in P11. Temporal lobe necrosis occurred in P2 (7.7%), although no cognitive deficits were seen. Carotid rupture occurred secondary to progressive skull base ORN in P11. Other than P2, P5, and P11, all other patients experienced no late complications. The total late complication rate was thus 23.1%.
Discussion
In the last decade with further familiarity and advancement of endoscopic techniques, the endoscopic nasopharyngectomy has been increasingly utilized for local recurrences of NPC, providing potentially fewer complications compared to open surgery or reirradiation. However, this endoscopic approach is still relatively new with limited information and experience in North America [14]. Due to the location of our institution on the west coast of North America, the majority of patients seen at our center are first- or second-generation immigrants from Asia. Though the majority of current studies regarding endoscopic nasopharyngectomy report favorable 2-year OS rates, no studies from North America report on 5-year OS in order to properly establish this approach.
Endoscopic nasopharyngectomy shows favorable 5-year overall survival rates. The previous study on 5-year outcomes reports a 78% OS, and we report an 84.6% 5-year OS. Similarly, our surgical cohort contained patients primarily with rT1–2 staged rNPC, with 61.5% being rT1. We did have two patients with rT3 but they were staged higher because of sphenoid sinus involvement. Comparing these findings to those for similarly staged rT1–2 tumors treated by IMRT (mean 5-year OS = 71%, range = 58–80% [15–17]) and open surgical techniques (mean 5-year OS = 56%, range = 47–65% [1, 2]) may suggest that patients with low rT staged rNPC treated by endoscopic nasopharyngectomy have comparable 5-year OS to reirradiation with IMRT and open procedures [18, 19]. However, it is important to acknowledge that inherent selection bias exists in selecting patients for an open versus endoscopic nasopharyngectomy that may not be reflected in the rT staging alone. In addition, a study by You et al. [20], performed a case-control study to determine if endoscopic nasopharyngectomy was beneficial compared to IMRT in patients with similarly staged rNPC. The study by You et al. showed that endoscopic nasopharyngectomy is more effective in maximizing survival and quality of life benefits while minimizing treatment related complications and medical costs compared to IMRT. Given this, and the survival outcomes demonstrated by this study, appropriately chosen rT1-T2 staged rNPC should be considered for endoscopic surgical dissection versus reirradiation. Patients with rT3 staged rNPC due to sphenoid sinus involvement may also be feasibly treated with an endoscopic approach, however more data is required to assess how these patients do in the long-term.
Historically, the American Joint Committee on Cancer (AJCC) rTNM staging system has been used to guide both treatment and prognosis with rT1–2 tumors often treated surgically and rT3–4 tumors treated with chemoradiation. However, it is becoming evident that the staging system does not encompass the evolving surgical techniques of our current generation. You et al. suggested a revised non-validated TNM staging system for rNPC based on surgical resectability that may better stratify patients as surgical versus IMRT candidates [21]. They proposed some rT3 cancers with current surgical technique and tools can be managed surgically. Ultimately, the resectability of a tumor should drive management, which is imperfectly defined by the TNM staging system. While previously only open nasopharyngectomies could allow access to areas such as the orbit (T4) and masticator space (T4), the endoscope can also reach certain T3 and T4 tumors, such as those with extension into the sphenoid sinus, the infratemporal fossa, and the orbit. Thus, T staging alone also does not dictate when an open versus endoscopic approach would be appropriate. In cases where the endoscope can achieve the same gross total resection as open, we advocate that oncological teams consider the endoscopic approach, in lieu of open approaches, which may be associated with morbidities such as cosmetic scars, palatal defect, nasal regurgitation, and trismus [1]. In our endoscopic case-series, we found no major perioperative complications and only minimal, transient complications such as crusting and OME. Other groups reporting on endoscopic nasopharyngectomy also report similar findings [5, 8, 22, 23].
TNM staging has also been used to help guide patient prognosis, and historically the presenting tumor stage has best predicted overall survival for head and neck cancers. In our study, a total of two patients with cStage 3 died due to disease progression before 5-year follow-up and one patient with cStage 4 succumbed to his disease just after the 5-year mark. For patients with presenting early (cStages 1–2), the disease-free rate was 67% and overall survival rate was 100%, whereas advanced cStages [3, 4], the disease-free rate was 43% and the overall survival rate was 57%. However, it is important to note, four other patients with cStage 3 did well over their 5-year surveillance without evidence of disease suggesting that advanced cStages did not necessarily predict increased mortality. As for the rStage, the three patients that died presented with varying stages, r0Stage 2, r0Stage 1 and r0Stage 3 respectively, and it is also difficult to conclude from this data whether the rStage plays a significant predictive role in patients’ overall survival. However, in regards to disease status, r0Stage may be more predictive than cStage. Of patients with known disease at 5-year follow up, 83% were r0Stage 2 or greater and of patients that were disease free, 100% were r0Stage 1.
Ultimately, it is important to acknowledge that the presenting or recurrent staging may not be the only important prognostic factors. Histological subtypes are independent prognostic factors, with non-keratinizing tumors having improved outcomes compared to keratinzing tumors [24, 25]. EBV positivity, which is associated with non-keratinizing carcinomas, is also associated with improved OS [26]. These findings may be due to the fact that non-keratinizing tumors are more radiosensitive than keratinizing types [27]. Consequently, our study did not include histologic subtypes, and it is difficult to conclude if this factor played a prognostic role in the outcomes of our salvage nasopharyngectomies.
This study also shows that among those who recur following salvage endoscopic nasopharyngectomy, local and regional control can still be achieved if patients receive close endoscopic surveillance with prompt initiation of re-resection or adjuvant therapies for recurrence. In our series, patients underwent endoscopic surveillance every 1 to 2 months in the first 2 years after initial radiation therapy and then every 3 to 6 months thereafter. Patients also had yearly PET-CT or MRI scans to assess for occult local recurrences and distant metastasis with a very low threshold to biopsy suspicious lesions. In our cohort, subsequent endoscopic nasopharyngectomies were offered for patients with recurrent, local disease in which complete surgical resection was both safe and possible. Of the 6 recurrences seen, 4 were deemed safely resectable and negative margins were achieved in 3 of 4 (75%) cases. Despite the high rate of negative margins in these recurrent cases and adjuvant chemo-radiation therapies, all 4 patients experienced disease progression with death in 3 cases, likely representing a more aggressive, treatment resistant tumor nature. Although these repeat resections did not prevent ultimate mortality in these patients, two died just prior to 5 years (both at 4.7 years) and one died after 5 years of follow-up. This finding may suggest value in repeat operations by helping limit local disease progression and thus extending overall survival. Close surveillance plus prompt management with a combination of surgery, radiation, or chemotherapy can allow for satisfactory 5-year local control of disease (61.5%) and overall survival rates (84.6%) (Figs. 1, 2 and 3).
The number of recurrences, timing to each subsequent recurrence, and overall survival time after initial endoscopic nasopharyngectomy for each patient is illustrated
As this study includes the same patient cohort as our previous publication on 2-year outcomes after endoscopic nasopharyngectomy, we were also able to discern longer-term trends in disease progression not reflected in the 2-year study alone. Our cohort suggests that patients without recurrence in the first 2 years after endoscopic nasopharyngectomy are more likely to remain disease free at 5 years. Patients who recur within 2 years despite negative margins at initial endoscopic nasopharyngectomy are more likely to continue to recur again despite re-resection, with disease progression and/or death by 5 years. Patients with positive margins at initial surgery (associated with higher r0T stages) are likely to experience disease progression and/or death over 5 years despite adjuvant chemoradiation.
It is important to acknowledge some limitations of our study. First, our study design is a retrospective case series and direct comparison to other surgical techniques or reirradiation was not assessed. Additionally, the disease characteristics of our cohort were heterogeneous. Some had open surgery prior to receiving their endoscopic nasopharyngectomy, while others had chemoradiation only; furthermore, presenting and recurrent tumor stages for each patient, as well as pathologic classifications were variable. However, despite these limitations, this study achieves its goal by adding to the much lacking literature on 5-year outcomes of endoscopic nasopharyngectomy.
Conclusions
Endoscopic nasopharyngectomy shows an excellent 5-year overall survival rate of 84.6% for rT1 and rT2 cases of rNPC with a favorable complication rate. Lower rStages were associated with a higher disease-free rate, and early cStages were associated with improved overall prognosis. Patients who are candidates for endoscopic nasopharyngectomy have by nature a more treatment-resistant tumor that may recur multiple times within the first 5 years after surgery. Nevertheless, close surveillance and identification/resection of recurrences at an early stage can be associated with favorable long-term control of tumor.
