Abstract
Background
Defects following resection of tumors in the head and neck region are complex; more detailed and defect-specific reconstruction would likely result in better functional and cosmetic outcomes. The objectives of our study were: 1) to improve the understanding of the two- and three-dimensional nature of oral cavity and oropharyngeal defects following oncological resection and 2) to assess the geometric dimensions and the shapes of fasciocutaneous free flaps and locoregional tissue flaps required for reconstruction of these defects.
Methods
This study was an anatomic cadaveric study which involved creating defects in the oral cavity and oropharynx in two cadaveric specimens. Specifically, partial and total glossectomies, floor of mouth excisions, and base of tongue excisions were carried out. These subsites were subsequently geometrically analyzed and their volumes measured. The two-dimensional (2D) assessment of these three-dimensional (3D) structures included measures of surface area and assessment of tissue contours and shapes.
Results
The resected specimens all demonstrated unique dimensional geometry for the various anatomic sites. Using 2D analysis, hemiglossectomy defects revealed right triangle geometry, whereas total glossectomy geometry was a square. Finally, the base of tongue defects exhibited a trapezoid shape.
Conclusions
Customizing the geometry and dimensions of fasciocutaneous free flaps so that they are specific to the confronted head and neck defects will likely result in better functional and cosmetic outcomes.
Background
Fasciocutaneous free flaps, such as radial forearm and anterolateral thigh, are commonly used to reconstruct oral and oropharyngeal anatomy following cancer extirpation surgery [1–7]. Most reconstructive surgeons design these free flaps by visually estimating the size of the defect and using basic geometric shapes, such as rectangles, squares or fusiform shapes, to translate the soft tissue flap into the desired form. However, defects following resection of tumors in the head and neck region are considerably more complex. A more detailed and defect-specific reconstruction would likely result in better functional and cosmetic outcomes.
This study endeavors to improve the understanding of the two-dimensional (2D) and three-dimensional (3D) geometric nature of oral cavity and oropharyngeal defects. An enhanced understanding of the dimensional geometry of surgical defects following cancer extirpation surgery will undoubtedly benefit the reconstructive efforts that utilize free and locoregional tissue transfer.
Methods
Institutional Research Ethics Board approval was obtained prior to commencement of the project. This study was conducted at a tertiary-care centre, the University of Alberta Hospital. Two fresh cadavers, one being an 82-year old, 72 kg male and the other being a 90-year old, 60 kg female underwent total glossectomies (Fig. 1). The specimens were then sectioned into specific subsites: floor of mouth, anterior tongue, and base of tongue. Each specimen was subsequently measured for dimensions, volume, and surface area. De-mucosalizing the tissues and spreading them out on a corkboard allowed us to analyze the 2D shape of each specimen (Fig. 2). The component lengths for each resultant geometric shape were measured (Fig. 3). The volume of each subsite was estimated by placing the specimen in a container filled with water and measuring the amount of displaced liquid (Fig. 4).
Fresh cadaver pre- and post- total glossectomy: oral tongue, BOT and FOM. *FOM = Floor of mouth; BOT = base of tongue
Cadaver total glossectomy specimen was divided into subsites: FOM, anterior tongue and BOT, then de-mucosalized*. *FOM = Floor of mouth; BOT = base of tongue
Lengths (cm) of the FOM, anterior tongue, and BOT subsites were measured*. *FOM = Floor of mouth; BOT = base of tongue
Specimen volumes were measured by amount of water displacement
Results

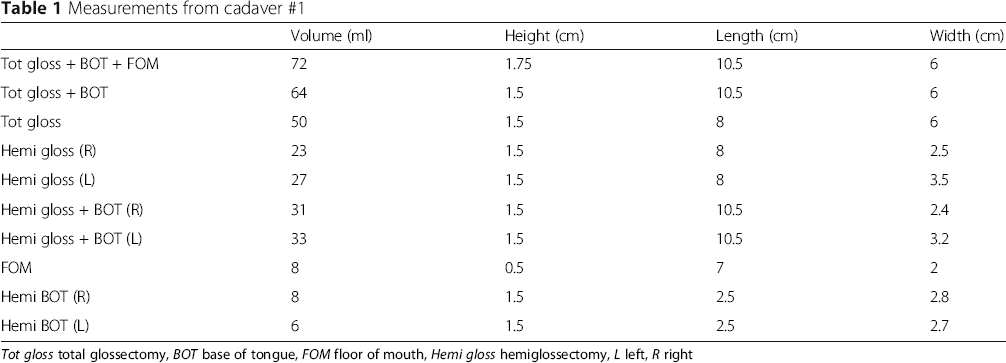

Measurements from cadaver #1
Tot gloss total glossectomy, BOT base of tongue, FOM floor of mouth, Hemi gloss hemiglossectomy, L left, R right
Measurements from cadaver #2
Tot gloss total glossectomy, BOT base of tongue, FOM floor of mouth, Hemi gloss hemiglossectomy, L left, R right
Discussion
Reconstruction of head and neck defects following oncologic resection can be challenging. The surgeon must consider both functional and cosmetic outcomes when planning the reconstruction. Swallowing and speech are the chief physiological functions affected by oral and oropharyngeal defects [1, 2, 4, 5, 8, 9]. Numerous reports have been published describing various techniques available to reconstruct these defects [1–3, 10, 11]. Most authors agree that the transfer of a fasciocutaneous free flap is the optimal method for oral cavity and oropharyngeal defect reconstruction. However, considerable debate remains regarding the choice of the donor site and the shape of the flap required for optimal reconstruction. To our knowledge, there are no published anatomical studies that investigate the shape and size of defects and resected tissue following oral and oropharyngeal cancer extirpation surgery.
The results of our study support the practice of creating customized, defect-specific, shaped flaps for oral cavity and oropharyngeal reconstruction after cancer extirpation surgery. For example, the ideal shape to reconstruct a hemiglossectomy defect is a triangle, as we have shown that the 2D defect with this resection is a right triangle. Similarly, a total glossectomy defect would ideally involve the use of a square free flap, and a base of tongue defect would employ a trapezoid-shaped flap for optimal reconstruction. This study is limited by its study size, involving only two cadavers; it is difficult to draw definitive conclusions regarding exact measurements and volumes necessary for these reconstructions. This should be evaluated on a case-by-case basis, depending largely on amount of tissue resected and the size and weight of the patient. Creation of enough bulk and volume for propulsion of the food bolus, while simultaneously protecting the airway, remains of utmost importance when planning the reconstruction of oral and oropharyngeal defects.
Conclusion
Designing customized fasciocutaneous free flaps that are specifically tailored for the different defects of the oral cavity and oropharynx would likely results in better functional and cosmetic outcomes after reconstruction. For example, an anterior hemiglossectomy defect should be reconstructed with a triangular shaped free flap, such as shown in Fig. 5.
Left anterior hemiglossectomy defect reconstructed with a customized triangular vascularized ulnar free flap
