Abstract
Background
Piriform sinus fistulas occur due to developmental abnormalities of the third and fourth branchial arches, and almost always occur unilaterally. They generally present as recurrent abscesses in the anterior-inferior neck, with concurrent thyroiditis. They have conventionally been managed with complete removal of the sinus tract, and thyroidectomy if required; however, endoscopic approaches have been increasingly favored. Herein we describe a case of bilateral piriform sinus fistulas, and present a review of the literature concerning their endoscopic management.
Case presentation
Our patient was determined to have bilateral piriform sinus fistulas based on computer tomography, magnetic resonance imaging and microlaryngoscopy. We performed electrocauterization of the proximal fistula tracts, followed by injection of fibrin sealent. Our patient has not had a recurrence in the ten months since his procedure. There were no complications.
Twenty-three articles describing an endoscopic approach to these fistulas were identified through PubMed, and a search through the references of related articles was completed.
Conclusion
Of one hundred and ninety-five patient cases we reviewed, an endoscopic procedure success rate of 82% and complication rate of 5.6% was determined. Piriform sinus fistulas that occur bilaterally are a rare congenital abnormality of the neck. Endoscopic approaches are an acceptable alternative option to open procedures, with similar success and a lower rate of complications.
Keywords
Background
Third and fourth branchial apparatus anomalies, commonly referred to as piriform sinus fistulas (PSFs), are sinus tracts and fistulas that develop from the piriform sinus. They occur more commonly on the left side, and typically present in childhood with recurrent acute suppurative thyroiditis and neck abscess often following an upper respiratory tract infection [1–3]. Infants and neonates may have respiratory distress, stridor, dysphagia and feeding difficulties due to tracheal compression from the abscess [3, 4]. Thyroid function is usually normal [1].
PSFs are uncommon and can be difficult to diagnose, due in part to their non-specific presentations [1]. Furthermore, bilateral PSFs are extremely rare, with a thorough literature search revealing only four other patients described with this condition [5–7]. Herein, we present a case of a patient with bilateral piriform sinus fistulas, and review their management.
Case presentation
Our patient initially presented at 10 months of age with rapid development of a mass in the left neck that was tender, firm and erythematous. It was associated with fever as well as dysphagia, and decreased oral intake. The patient had no significant past medical history, nor family history. A lateral neck x-ray suggested a retropharyngeal infectious process. After 48 h of antibiotic treatment, there was minimal clinical improvement; a computer tomography (CT) scan of the neck demonstrated a 5.4 × 3.5 × 4.2 cm left neck abscess extending to left parapharyngeal and retropharyngeal spaces (Fig. 1). Following imaging, the patient underwent incision and drainage. The wound culture grew Streptococcus viridans and Hemophilus parainfluenzae.
Axial enhanced CT showing involvement of the thyroid gland with surrounding multiloculated abscess
For 6 months after the surgery, the wound persisted to drain intermittently, culminating in a submandibular cellulitis. A CT neck and wound culture at that time were unremarkable, and the patient improved after 5 days of IV antibiotics.
At 8 years of age, the patient again presented with a 4 day history of sore throat, fever, drooling, and neck stiffness and swelling; IV antibiotic therapy was initiated. A CT neck confirmed a bilobed right-sided retropharyngeal abscess measuring 2.3 × 2.9 × 3.3 cm and 2.0 × 2.1 × 2.8 cm in the superior and anterior lobes, respectively. The thyroid gland was noted to be intimately involved with this inflammatory process (Fig. 2). The patient was brought to the operating room for incision and drainage of the abscess. The wound culture was positive for Streptococcus anginosis.
Axial enhanced CT illustrating involvement of the abscess with the right lobe of the thyroid gland
Shortly following the resolution of the infection, magnetic resonance imaging (MRI) was performed identifying bilateral communications between the piriform sinuses and thyroid lobes (Fig. 3). Direct laryngoscopy confirmed the diagnosis of bilateral piriform sinus fistula with the passage of 4 Fr ureteric catheters though tracts originating in the piriform sinuses, on both the left and right sides (Fig. 4).
Coronal MRI identifying bilateral tracts from the piriform sinus to the thyroid gland
Left piriform sinus fistula seen in (
After lengthy discussions and deliberation and review of the relevant literature, the family opted for endoscopic electrocauterization with fibrin sealant management (Fig. 5). We favoured this approach as the PSFs were bilateral, and therefore a total thyroidectomy may have been required for definitive surgical management.
Right piriform sinus fistula following electrocauterization (left) and fibrin sealant into the fistula tract (right)
Cauterization and obliteration of the bilateral PSFs was performed without complication. First, a flexible catheter was passed into the piriform sinus to confirm its location. With the location confirmed, a Bugbee catheter was inserted into the fistula and the edges were cauterized at a setting of 8 W. Once adequate cauterization was achieved, Tisseel was injected into the fistula tract. This procedure was performed in both the left and right PSFs. A follow-up 6 months with direct laryngoscopy confirmed closure of both tracts. There has been no recurrence 10 months following the procedure, at the time of writing of this manuscript.
Discussion and conclusions

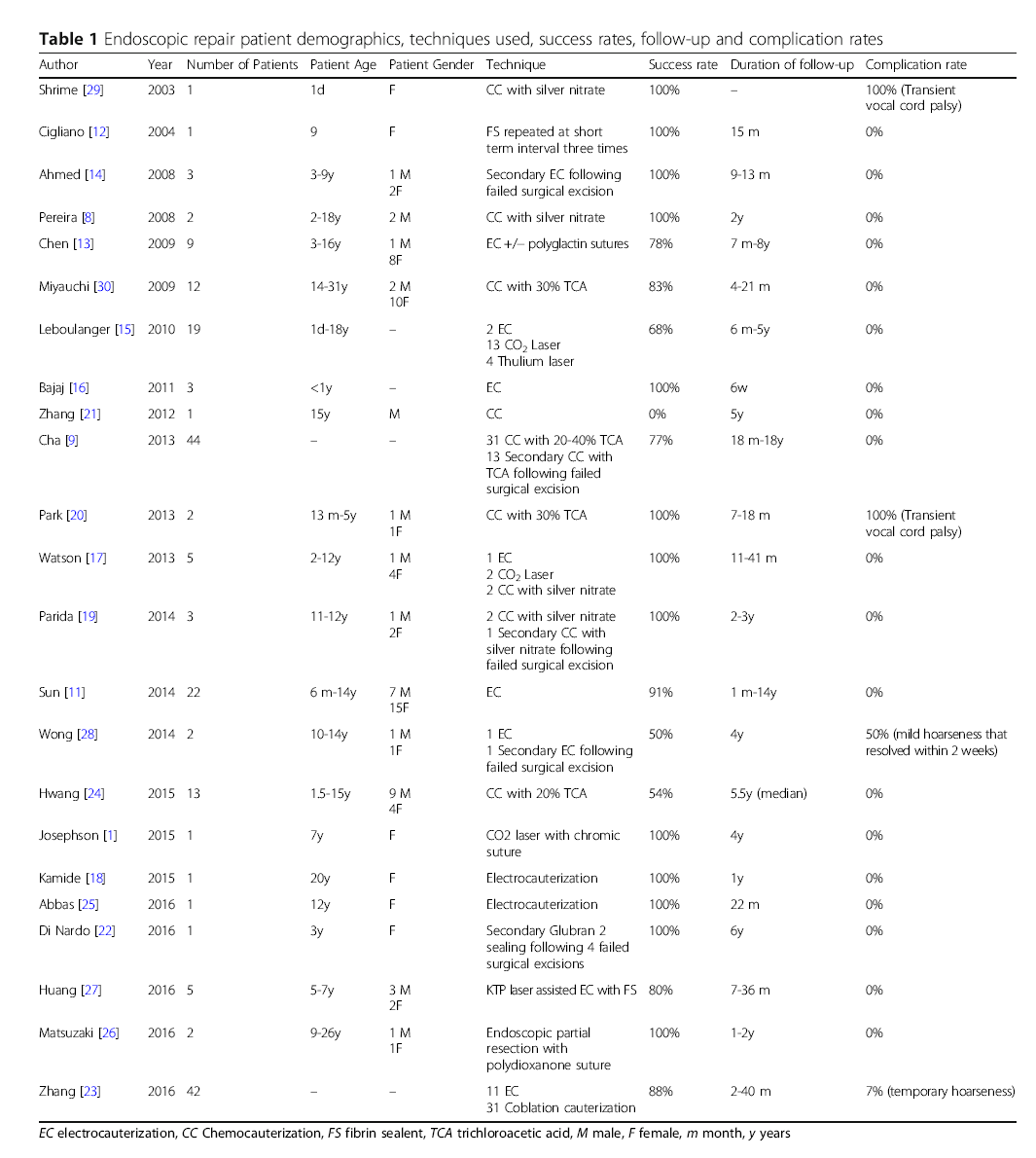

Endoscopic repair patient demographics, techniques used, success rates, follow-up and complication rates
EC electrocauterization, CC Chemocauterization, FS fibrin sealent, TCA trichloroacetic acid, M male, F female, m month, y years
A PubMed search was also used to find cases of bilateral piriform sinus fistulae. No filters were used. Four cases were found from three publications.
From one hundred and ninety-five cases of piriform sinus fistulas, based on 23 studies, we calculated an endoscopic success rate average of 82% and complication rate of 5.6%. Post-operative follow-up times ranged from 6 weeks to 18 years with an average of 35.5 months. Patient ages ranged from newborns to 31 years, and there was a gender distribution of 1.8 females to 1 male (56 females, 31 males). However, the gender and ages of the patients in the studies could not be identified for 55% of patient cases presented. All the studies were published from 2003 to 2016.
PSFs are notoriously difficult to diagnose. While neck abscesses are a common entity in pediatric otolaryngology patients, PSFs are rare. With a repeated history of anterior neck abscesses, or when imaging identifies thyroid gland involvement, this diagnosis should be considered. Confirmation is typically done with direct laryngoscopy, which has a positive predictive value (PPV) of 90%, or barium swallow (PPV 88%) [1, 2]. Management of a piriform sinus fistula involves antibiotics and incision and drainage for acute infections, and observation, followed by surgery or endoscopic techniques for long-term management.
In the acute setting, the choice of antibiotic should reflect typical oral flora as well as Staphylococcus aureus [2]. Surgical drainage for source control is indicated where there is abscess formation [1].
Considering long-term management, observation may be considered, especially for asymptomatic PSFs; however, 89-94% of patients will continue to have recurrent infections [2, 3]. Therefore, further treatment is usually necessary.
Surgical removal of the sinus tract, and the thyroid gland if required, is typically curative, and has been the standard of care for many years [1, 9]. However, excising the entire fistula tract can be very technically challenging, especially if the patient has significant scarring from repeated infections and prior surgical drainages. Incomplete excision may lead to recurrence [1]. In addition, the recurrent laryngeal nerve is at risk for injury leading to potential vocal cord paralysis. Salivary fistulas, hemorrhage, wound infection, cicatrises, Horner syndrome and injury to branches of the facial nerve are other possible complications. Reported success rates range from 85 to 100% [2–4, 6] with a complication rate of 5-6% [2, 3].
An alternative to surgery is endoscopic electrocautery or chemocauterization, followed by fibrin sealing or endoscopic suture ligation if necessary. This closes off the proximal portion of the tract, preventing leakage of pharyngeal contents into the sinus. Endoscopic techniques have recently been shown to be safe and effective [9, 10], and can be performed as an outpatient procedure, thereby reducing hospitalization and associated costs. The associated risks are lower compared to an external technique, also with the advantage of lacking a surgical incision and consequent scar [9, 11]. However, this is a newer procedure, and data regarding long-term results is scarce. Recent studies suggest the success rate is equivalent to, or slightly less than surgery, with success rate average of 82% (Table 1) [1–3, 8–29].
In summary, piriform sinus fistulas are uncommon developmental anomalies in children. The presentation of repeated anterior neck abscesses, particularly if the thyroid gland is involved should prompt the clinician to consider this entity, and trigger an appropriate work-up. As the fistulas may occur bilaterally, a careful inspection of both sides is required during laryngoscopy. Definitive management has classically been performed through an excision of the tract. Endoscopic electrocautery of the tract may be an acceptable alternative, with comparable success and a lower rate of complications.
