Abstract
Background:
Inflammation-induced sensitization of primary afferents is associated with a decrease in K+ current. However, the type of K+ current and basis for the decrease varies as a function of target of innervation. Because glabrous skin of the rat hindpaw is used often to assess changes in nociception in models of persistent pain, the purpose of the present study was to determine the type and extent to which K+ currents contribute to the inflammation-induced sensitization of cutaneous afferents. Acutely dissociated retrogradely labeled cutaneous dorsal root ganglion neurons from naïve and inflamed (3 days post complete Freund's adjuvant injection) rats were studied with whole cell and perforated patch techniques.
Results:
Inflammation-induced sensitization of small diameter cutaneous neurons was associated with an increase in action potential duration and rate of decay of the afterhyperpolarization. However, no changes in voltage-gated K+ currents were detected. In contrast, Ca2+ modulated iberiotoxin sensitive and paxilline sensitive K+ (BKCa) currents were significantly smaller in small diameter IB4+ neurons. This decrease in current was not associated with a detectable change in total protein levels of the BKCa channel α or β subunits. Single cell PCR analysis revealed a significant change in the pattern of expression of α subunit splice variants and β subunits that were consistent, at least in part, with inflammation-induced changes in the biophysical properties of BKCa currents in cutaneous neurons.
Conclusions:
Results of this study provide additional support for the conclusion that it may be possible, if not necessary to selectively treat pain arising from specific body regions. Because a decrease in BKCa current appears to contribute to the inflammation-induced sensitization of cutaneous afferents, BKCa channel openers may be effective for the treatment of inflammatory pain.
Background
Peripheral inflammation is associated with pain and hyperalgesia that reflects, at least in part, the sensitization of primary afferents innervating the site of inflammation [1]. This increase in excitability reflects both acute (i.e., phosphorylation) and persistent (i.e., transcription) changes in a variety of ion channels [1] that control afferent excitability. Results from a series of studies on afferents innervating glabrous skin of the rat suggest that the impact of inflammation on the underlying mechanisms of sensitization is complex. Analysis of afferents in vivo indicate that the inflammation-induced increase in excitability is associated with changes in axon conduction velocity, [2] as well as changes in the action potential waveform invading the cell soma in a subpopulation of afferents [3]. Evidence from a relatively small subpopulation of acutely dissociated cutaneous sensory neurons in vitro, suggest that at least some of the changes observed in vivo are due to changes intrinsic to the sensitized afferents [4]. This observation is consistent with the suggestion that changes in the density, distribution and/or expression of ion channels contributes to the inflammation-induced increase in excitability. Persistent inflammation is also associated with at least two changes in Ca2+ signaling in cutaneous neurons which include an increase in the magnitude and duration of depolarization-induced Ca2+ transients [5] and a decrease in the density of high threshold voltage-gated Ca2+ current [6]. In the latter study, there is a subpopulation of neurons in which a decrease in high threshold Ca2+ current resulted in an increase in excitability, presumably secondary to a decrease in Ca2+-modulated K+ current, and a second population in which a decrease in Ca2+ current was associated with a decrease in excitability. These results were consistent with the observation that Ca2+ modulated iberiotoxin (IbTx) sensitive and paxilline sensitive K+ (BKCa) currents are differently distributed among subpopulations of cutaneous afferents [7,8]. Furthermore, because multiple splice variants of the α subunit and 3 of the 4 β subunits of the BKCa channel underlying this current was detected in mRNA extracted from L4 and L5 dorsal root ganglia (DRG) [8], the impact of inflammation-induced changes in Ca2+ signaling on afferent excitability will therefore depend on BKCa channel splice variants and β subunits as well as the proximity of these channels to the sources of intracellular Ca2+. Finally, we and others have demonstrated that persistent inflammation of other tissues including the masseter muscle [9], colon [10], bladder [11] and stomach [12] is associated with a decrease in voltage-gated K+ current. Thus, there is the possibility that a decrease in at least two K+ currents contributes to persistent inflammation-induced sensitization of cutaneous afferents.
Nevertheless, because of evidence that the specific K+ current changes associated with persistent inflammation depend on the target of innervation [9] and because of the changes in Ca2+ signaling in cutaneous afferents associated with persistent inflammation, we hypothesize that changes in a Ca2+-dependent K+ current is primarily responsible for the sensitization of cutaneous afferents. To test this hypothesis, we have analyzed changes in K+ currents in cutaneous afferents obtained from naïve and inflamed rats.
Results
Sensitization
Based on our previous data indicating the inflammation-induced changes in the regulation of intracellular Ca2+ [5] and in voltage-gated Ca2+ currents [6] is restricted to small and medium diameter cutaneous neurons as well as in vivo data suggesting that nociceptive afferents innervating cutaneous tissue tend to have a small cell body diameter [13], we focused on neurons with a cell body diameter <30 μm in the present study. Consistent with results of our previous study, cutaneous neurons from inflamed rats were significantly more excitable than those from naïve rats, where the increase in excitability was manifest with a small but significant decrease in action potential threshold (from −32 ± 0.8 to −34.9 ± 1.0 mV, p = 0.03: n = 53 and 38 for naïve and inflamed groups, respectively), decrease in rheobase (3.7 ± to 2.3 pA/pF, p <0.05) and increase in the response to suprathreshold current injection (i.e., the number of action potentials evoked in response to current injection 3x rheobase increased from 2.5 ± 0.3 to 6.9 ± 0.9, p<0.01).
Closer inspection of this dataset, suggested that there were at least two populations of small diameter neurons that could be defined by their response to inflammation: in one there was a clear increase in excitability while in the other, the increase was less apparent. Data suggest that sensory neurons defined by their binding to the lectin IB4 may play a differential role in the hypersensitivity that develops in the presence of inflammation [14,15], We therefore repeated the excitability experiments on neurons incubated in FITC-labeled IB4 10 minutes prior to current clamp recording. The passive electrophysiological properties of the neurons in this dataset were analyzed with a two way ANOVA where IB4 binding and inflammation were the main factors. This analysis revealed a significant (p<0.01, Table 1) influence of inflammation on membrane capacitance which was increased in cutaneous neurons from inflamed rats. There was also a significant interaction between inflammation and IB4 binding with respect to resting membrane potential where post-hoc analysis indicated that the difference between IB4+ and IB4-neurons in the inflamed group was significant (p = 0.03, Table 1), and the difference between IB4-neurons from the naïve and inflamed groups was also significant (p<0.05, Table 1).

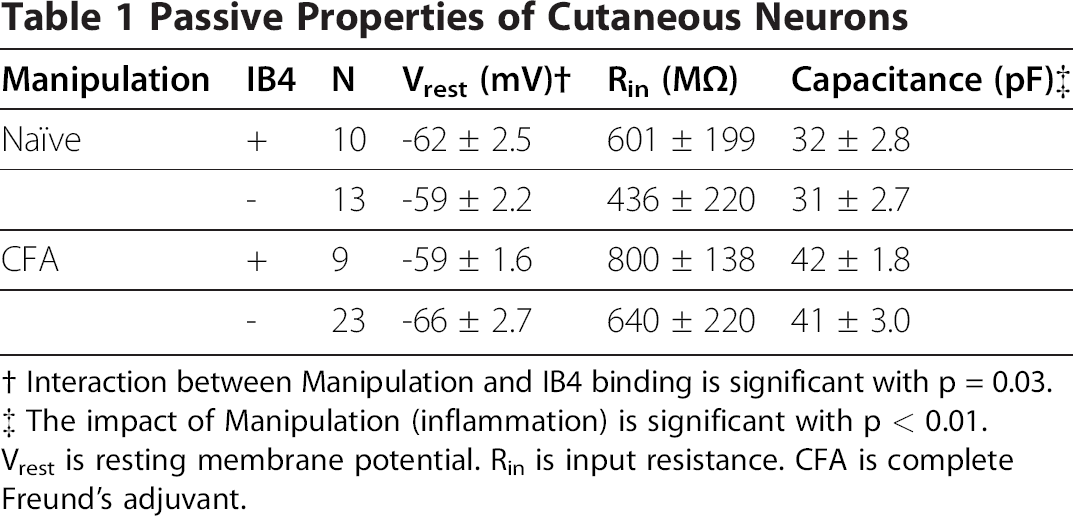

Passive Properties of Cutaneous Neurons
Interaction between Manipulation and IB4 binding is significant with p = 0.03.
The impact of Manipulation (inflammation) is significant with p < 0.01.
Vrest is resting membrane potential. Rin is input resistance. CFA is complete Freund's adjuvant.
Results of the analysis of the excitability data indicated that there were not only differences between IB4+ and IB4-neurons with respect to baseline excitability, but the changes in excitability 3 days after the induction of inflammation. That is, while the IB4-neurons from naïve rats were more excitable than IB4+ neurons, there were no detectable inflammation-induced changes in the excitability of IB4-neurons: action potential threshold was −35.8 ± 2.3 mV (n = 13) in neurons from naïve rats and −29.0 ± 2.8 mV (p>0.05, n = 9) in neurons from inflamed rats; rheobase was 4.2 ± 1.4 pA/pF and 6.9 ± 1.6 pA/pF (p>0.05) in neurons from naïve and inflamed rats, respectively; and the slope of the stimulus response function to suprathreshold current injection was 0.52 ± 0.4 and 0.51 ± 0.5 (p>0.05) in neurons from naïve and inflamed rats, respectively. In contrast, there was a significant increase in the excitability of IB4+ neurons with a significant decrease in action potential threshold (Figure 1A), decrease in rheobase (Figure 1B), and increase in the response to suprathreshold current injection (Figure 1C and D). Because persistent changes in excitability appeared to be restricted to IB4+ neurons, we focused on IB4+ neurons for the remainder of the study. As there were no significant differences between IB4+ neurons from naïve and inflamed rats with respect to resting membrane potential or input resistance (Table 1) and the increase in membrane capacitance, would work to attenuate excitability, we next assessed active electrophysiological properties to begin to identify mechanisms that may have contributed to the inflammation-induced increase in the excitability of IB4+ neurons. Of the active properties assessed, the action potential duration was the only property that was significant different between groups, and it was significantly longer in neurons from inflamed rats (Figure 1E, p<0.01). There was also a trend toward an increase in the decay rate of the afterhyperpolarization (AHP) (Figure 1F, p = 0.06) in cutaneous neurons from inflamed rats. Given the role of K+ currents in both the action potential duration and the afterhyperpolarization (AHP), these changes in active electrophysiological properties are consistent with a decrease in a K+ current.
Inflammation has no detectable influence on Kv currents in cutaneous DRG neurons

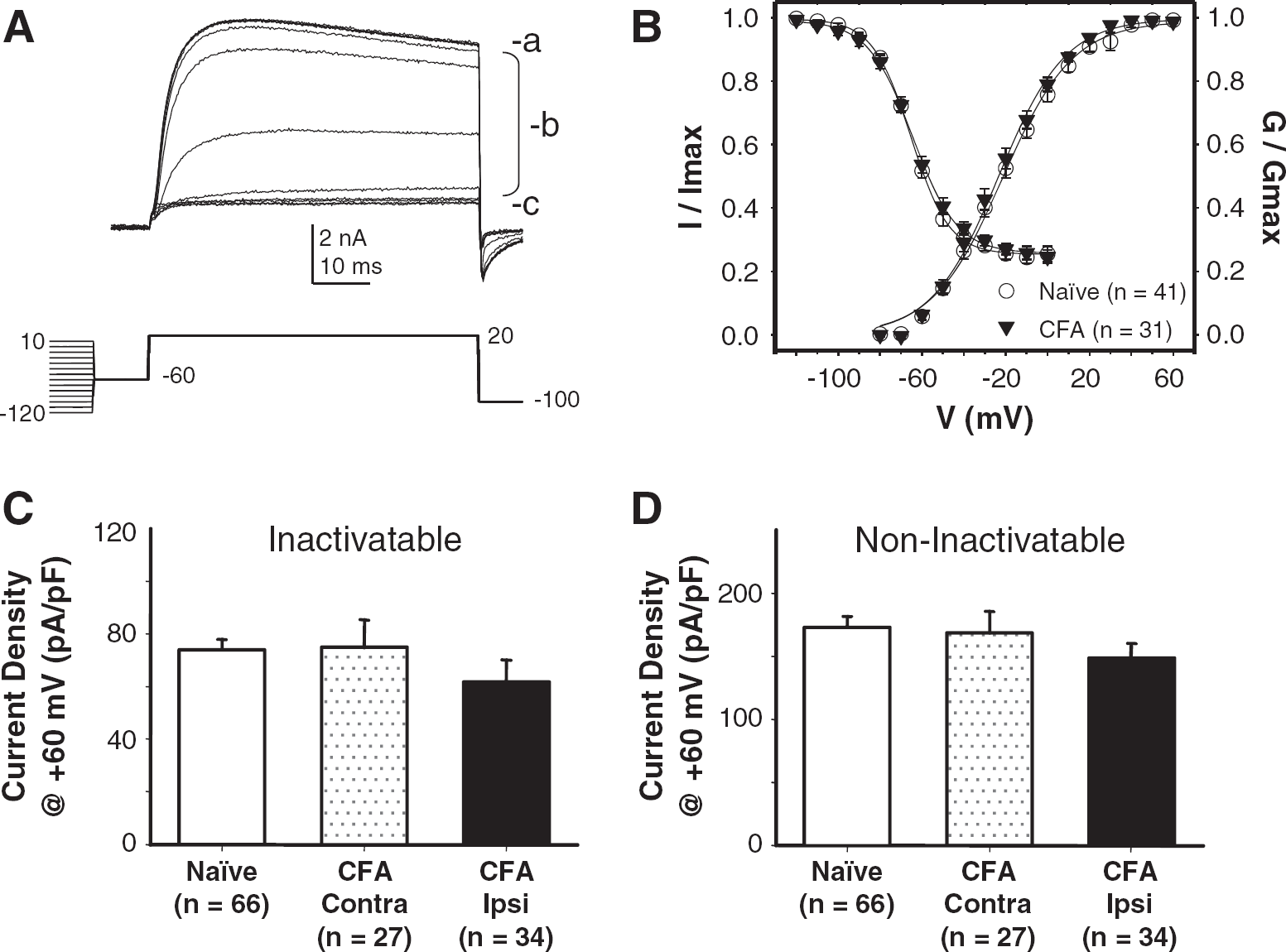

To determine whether a decrease in voltage-gated K+ (Kv) current contributed to the increase in excitability of cutaneous IB4+ neurons, we assessed the biophysical properties of Kv currents in cutaneous neurons from inflamed and naïve rats. Kv currents were recorded in Ca2+ free bath solution containing 2.5 mM Co2+ to eliminate contribution from BKCa channels. Based on previous data indicating that there are Kv currents both subject, and resistant, to steady-state inactivation [16], we first assessed steady-state inactivation of Kv currents in each neuron studied (Figure 2A, B). With this protocol, it was possible to determine the total current available for activation, as well as the fractions of total current subject to (inactivatable), or resistant to (non-inactivatable), steady-state inactivation. There was no detectable influence of inflammation on either the voltage-dependence of steady of inactivation or the fraction of current resistant to steady-state inactivation (Figure 2B, Table 2). Nor was there a detectable influence of inflammation on the voltage-dependence of current activation (Figure 2B). Furthermore, analysis of the peak current density of the total (not shown), inactivatable (Figure 2C) and non-inactivatable (Figure 2D) current in cutaneous neurons from naïve rats as well as both ipsilateral and contralateral to the site of inflammation revealed no significant differences between groups (p>0.05). Finally, there were no significant differences between cutaneous neurons from naïve and inflamed rats with respect to the rate of Kv current activation, inactivation, or deactivation (data not shown). Despite evidence for inflammation-induced changes in Kv current in other populations of neurons [9], results of this series of experiments suggest that this is not the case for cutaneous neurons.
Kv Current Properties
N is the number of neurons studied with the number of animals indicated in parenthesis. Cap is capacitance. Imax is maximal current estimated from steady-state inactivation data fitted with a Boltzmann function. Slope, V0.5 and a are parameters determined from the same Boltzmann function where Slope is the slope of the I-V curve, V0.5 is the potential at which half of the inactivatable current is inactivated, and “a” is the percentage of total current resistant to steady state inactivation.
Inflammation results in a decrease in BKCa currents in cutaneous DRG neurons
Based on evidence that large conductance Ca2+-modulated K+ (BKCa) currents contribute to action potential duration as well as the decay of the AHP [7,8,17], as well as evidence that inflammation results in a decrease in high threshold voltage-gated Ca2+ channels in cutaneous DRG neurons, we next assessed the impact of inflammation on BKCa currents in cutaneous neurons. Iberiotoxin (IbTx, 100 nM) or paxilline (10 μM) were used to isolate BKCa currents from the total current evoked in IB4+ cutaneous neurons from naïve and inflamed rats (Figure 3). The IbTx sensitive current was significantly smaller in cutaneous neurons from inflamed rats than from naïve rats (Figure 3), at voltage steps to potentials≥–10 mV. Comparable results were obtained with paxilline, where peak paxilline sensitive current in IB4+ neurons from naïve rats (153.3 ± 28.07 pA/pF, n = 17) was significantly (p<0.01) larger than that in cutaneous neurons from inflamed rats (49.5 ± 18.04 pA/pF, n = 10).
As previously described [8], BKCa currents in cutaneous neurons from naïve rats were in general, rapidly activating, with a variable degree of inactivation during sustained depolarization (Figure 4A). BKCa currents evoked in neurons from inflamed rats appeared to activate more slowly and demonstrated little, if any detectable inactivation during a 500 ms depolarizing voltage step (Figure 4B). Consistent with this impression, the average time constant for IbTx sensitive current activation was significantly larger in neurons from inflamed rats than in neurons from naïve rats (Figure 4C, D). Comparable results were obtained with paxilline. Deactivation of toxin sensitive currents was assessed with a tail current protocol evoked before and after toxin application (Figure 4E inset). While there was no influence of inflammation on the deactivation of IbTx sensitive currents, paxilline sensitive currents in cutaneous neurons from inflamed rats deactivated significantly more slowly than those from naïve rats (Figure 4E, F).
Inflammation was associated with no detectable change in BKCa channel subunits expression
While the decrease in high threshold voltage-gated Ca2+ current previously described [6] could be sufficient to account for the inflammation-induced decrease in BKCa current density, two experiments were performed to begin to assess the possibility that a decrease in channel protein also contributed to the decrease in current. The first was a real time PCR analysis of BKCa subunit mRNA levels in L4/5 ganglia. GAPDH was used as an internal comparator as Ct values for amplification of GAPDH were comparable for ganglia from naïve (17.0 ± 0.2, n = 4) and inflamed (17.5 ± 0.3, n = 4) rats. No significant changes in mRNA levels were detected for either total α subunit or a splice variant of the α subunit containing the STREX insert, nor were there significant changes detected in mRNA levels for β2, 3 or 4: values for 2ΔΔCt were all close to 1.
Inflammation was associated with no detectable change in total protein levels of BKCa channel subunits
Given evidence for inflammation-induced changes in protein in the absence of detectable changes in mRNA [18], the second experiment was to assess changes in BKCa subunit protein levels. Total protein from L4 and L5 ganglia from naïve (n = 4) and inflamed (n = 5) rats was recovered, processed for Western blot analysis, and probed with antibodies specific to the α and β2-4 BKCa channel subunits. The multiple bands present in the blots of the α subunit are consistent with the results of our previous PCR analysis of the BKCa channel in DRG which indicated that a number of splice variants of the α subunit are expressed [8]. Nevertheless, there was no detectable influence of inflammation on relative BKCa subunit protein levels (Figure 5).
Inflammation was associated with a change in the pattern of expression of BKCa α-subunit splice variants and β-subunits
In our previous analysis of BKCa currents in cutaneous DRG neurons, we noted the presence of considerable heterogeneity in the biophysical properties of currents between neurons, with variability in the rate of current activation as well as in the rate and extent of current inactivation [8]. In neurons from inflamed rats, the currents were considerably more homogeneous with properties similar to those illustrated in Figure 3. Given the influence of both splice variants in the α-subunit [19], and β-subunits [20] on the biophysical properties of BKCa currents, this change raised the possibility that the changes in biophysical properties were due to changes in the subunit expression pattern. Subunit expression in cutaneous neurons was assessed with single cell RT-PCR (Figure 6). Results of this analysis indicated that there was a significant increase in the proportion of neurons in which all 4 splice variants (Figure 6, zero insert, as well as all 3 higher molecular weight species) were detected at the X4 splice site. This site corresponds to the stress-axis regulated exon (STREX) site previously described by others [20]. There was also a significant decrease in the proportion of neurons in which β2 and β3 subunits were detected.
Discussion
Summary of major findings
Consistent with previous studies, persistent inflammation results in an increase in the excitability of sensory neurons innervating the site of inflammation that is detectable in acutely isolated sensory neurons. This increase in excitability was restricted to the IB4+ subpopulation of neurons and was associated with a significant increase in action potential duration with no additional changes in any other passive or active electrophysiological property. These changes in excitability and action potential waveform were not associated with any detectable change in Kv current. However, they were associated with a significant decrease in IbTx- and paxilline-sensitive current. This decrease in current was not associated with a change in total BKCa subunit mRNA or protein as assessed at the whole ganglion level. Furthermore, the decrease in IbTx-and paxilline-sensitive current was associated with changes in the biophysical properties of the current as well as changes in the pattern of splice variant expression of the BKCa channel α subunit and a decrease in the proportion of neurons in which the β2 and 3 subunits were detected. These results are consistent with the suggestion that a decrease in BKCa current contributes to the inflammation-induced sensitization of cutaneous afferents.
The pattern of changes in excitability observed in cutaneous neurons were comparable to patterns observed in afferents innervating other target tissue including muscle [9], joint [21] and bladder [11]. However, there appear to be subtle, yet potentially important differences in the associated changes in passive and active electrophysiological properties. For example, the only significant change in the passive or active electrophysiological properties associated with the inflammation-induced sensitization of temporomandibular joint afferents is a decrease in the duration of the AHP [21], while in bladder afferents, there is an increase in membrane capacitance with no change in action potential duration [11]. Because passive and active properties reflect the actions of ion channels, these differences suggest differences in underlying ionic mechanisms. These differences also highlight the fact that comparable increases in excitability can be achieved through a number of different mechanisms.
Persistent inflammation has no detectable influence on Kv currents in cutaneous neurons
Changes in passive and active electrophysiological properties assessed in current clamp can be used to predict the ion channels that contribute to the inflammation-induced increase in excitability. For example, the absence of a detectable change in Vrest or Rin argues against a channel active at the resting membrane potential such as the Cl− conductance activated by inflammatory mediators we recently described in dural afferents [22]. Similarly, the increase in action potential duration and trend toward a decrease in duration of the AHP in association with a decrease in rheobase and action potential threshold are consistent with a decrease in a K+ current activated with membrane depolarization that contributes to membrane repolarization on the falling phase of the action potential as well as the duration of the AHP. However, in contrast to masseter muscle [9] and bladder [9] afferents, where an inflammation-induced decrease in Kv current subject to steady-state inactivation was readily detectable, no changes in Kv currents were detected in cutaneous neurons. These results suggest that a decrease in a Ca2+ dependent K+ current is likely to contribute to the inflammation-induced increase in the excitability of cutaneous neurons.
Persistent inflammation is associated with a reduction in BKCa currents in cutaneous neurons
Consistent with the prediction based on the negative results obtained with Kv currents, we observed significant decrease in IbTx and paxilline sensitive current. The observation that the paxilline sensitive currents were larger than the IbTx sensitive currents is consistent with our single cell PCR data suggesting that the β4 subunit is present in the majority of IB4+ cutaneous neurons and previous data suggesting that the β4 subunit confers resistance to IbTx [23] but not paxilline [24]. It is important to point out that a decrease in BKCa current was not necessarily a foregone conclusion. That is, in addition to the inflammation-induced decrease in voltage-gated Ca2+ currents recently described in cutaneous neurons [6], there is also an inflammation-induced increase in the magnitude and decrease in the decay of the depolarization-evoked increase in the concentration of intracellular Ca2+ ([Ca2+]i) in cutaneous neurons [5]. BKCa channels coupled to the latter process would have resulted in an increase in channel activity and a decrease in excitability [17]. However, the observed decrease in BKCa current suggests that the activation of these channels in cutaneous afferents is tightly coupled to an increase in intracellular Ca2+ mediated via Ca2+ influx through voltage-gated Ca2+ channels. Consistent with this suggestion is the observation that a decrease in high threshold Ca2+ current alone is sufficient to increase excitability, at least in a subpopulation of cutaneous afferents [8]. The observation that BKCa channels are largely restricted to IB4+ small diameter cutaneous neurons [8] is also consistent with this suggestion given the observation that the inflammation-induced increase in excitability was restricted to this subpopulation of neurons despite our previous observation that the inflammation-induced decrease in voltage-gated Ca2+ currents is detectable in both IB4+ and IB4-neurons [6].
The absence of a detectable inflammation-induced change in BKCa channel subunit mRNA or protein at the whole ganglia level is also consistent with the suggestion that the decrease in BKCa current was largely secondary to the decrease in voltage-gated Ca2+ current rather than a decrease in BKCa channels. This suggestion is made with caution, however, given that afferents innervating the site of inflammation constitute far less than half of the neurons in L4 and L5 ganglia and as a result, a decrease in mRNA or protein in a subpopulation of these neurons may not have been detectable.
Changes in BKCa subunit expression are associated with inflammation-induced changes in the biophysical properties of BKCa currents in cutaneous neurons
Changes in the biophysical properties of the BKCa currents in neurons from inflamed rats suggest that a decrease in high threshold voltage-gated Ca2+ current alone is insufficient to account for all of the changes in BKCa currents. At least some of the changes in biophysical properties appear to reflect changes in the pattern of BKCa channel subunit expression. That is, β3 subunits confer rapid channel activation, and β2 confers both rapid channel activation and channel inactivation [20]. Thus, a decrease in the number of cutaneous neurons in which these subunits were detected is consistent with the more slowly activating persistent currents observed in neurons from inflamed animals. However, at least two of the inserts at the X4 site of the BKCa α subunit result in a dramatic leftward shift in the voltage-dependence of channel activation [19], an increase in the rate of channel activation as well as a decrease in the rate of channel deactivation. The decrease in rate of paxilline-sensitive, but not IbTx-sensitive current deactivation suggests there may be preferential assembly of channels with an X4 insert in the α-subunit and a β4 subunit (resulting in a channel with a slower deactivation rate that is resistant to IbTx), but additional biochemical data would be needed to confirm this prediction. Several possibilities could account for the failure to detect a larger influence of the splice variants on the whole cell current. These include: 1) that the larger α subunit transcripts are not translated as efficiently, 2) that the larger α subunits are not assembled in inflamed neurons, or 3) that the trafficking of these larger channels is also altered such that they are targeted to other parts of the afferent than the cell soma. These latter two possibilities are predicated on the assumption that at least some of the variability in biophysical properties of BKCa currents observed in neurons from naïve animals [8] is due to the presence of splice variants of the α subunit.
Conclusions
A decrease in K+ current is a general mechanism found throughout the nervous system to increase in neuronal excitability. The ubiquity of this mechanism begs the question as to why there should be diversity in the specific channels that are reduced in primary afferent neurons as a function of the target of innervation and or the type of injury [1]. It is certainly possible that because the mediators such as prostaglandin E2, TNFα and nerve growth factor, that drive the changes in K+ channels have specific intracellular targets, and that different K+ currents are suppressed in different populations of afferents because the pattern of mediators varies with target of innervation and type of injury. This possibility does not account for the fact that the net result in each case is an increase in excitability. Given the impact of subtle differences in K+ channels properties on spiking behavior, the primary impact of this diversity is likely to be net differences in neuronal activity with some channels favoring one type of output such as sustained or bursting activity, whereas other channels favoring irregular activity. Of course the context in which these changes take place will also be critical for the net change in output [25], where the biophysical properties, density and distribution of other ion channels in the neuron will also impact the net change in afferent output. Minimally, this level of diversity serves as a reminder as to why it has been so difficult to identify more effective therapeutics for the treatment of pain devoid of deleterious consequences. This is also additional support for the suggestion that the most effective therapeutic interventions may ultimately need to be tailored to the specific site and type of injury.
Methods
Adult male Sprague–Dawley rats (Harlan Sprague Dawley, Indianapolis IN) were used for all experiments. Rats were housed in an AAALAC approved animal facility with a 12:12 light/dark cycle (lights off at 7 PM) with food and water available ad libitum. All procedures were approved by the University of Pittsburgh Institutional Animal Care and Use Committee and performed in according with the recommendations of the National Institutes of Health and the Committee for Research and Ethical Issues of the International Association for the Study of Pain. All efforts were employed to minimize the number of animals used in this study.
Retrograde labeling and inflammation
Cutaneous afferents were retrogradely labeled with DiI as previously described [5,8]. Briefly, rats were anesthetized with isofluorane and 10 μl of 1,1′-dioctadecyl-3,3,3′,3′-tetramethylindocarbocyanine perchlorate (DiI, Invitrogen, Carlsbad CA, 17 mg/ml in saline diluted from a stock of 170 mg/ml in DMSO) was injected at 3–5 sites (with 1.5 – 2 μl per site) with a 30 g needle directed into the epidermis. Rats were studied 14 to 17 days post DiI injection. Inflammation was induced in a subgroup of rats with a 100 μl subcutaneous injection of complete Freund's adjuvant (CFA, mixed 1:1 in saline) into the same site previously labeled with DiI. This injection was also made under isofluorane-induced anesthesia. This group of rats was studied 3 days after CFA injection.
Preparation of isolated cutaneous neurons
Acutely dissociated cutaneous neurons were obtained as previously described [5,8]. Briefly, rats were deeply anesthetized with 1 ml/kg rat cocktail (55 mg/ml ketamine, 5.5 mg/ml xylazine and 1.1 mg/ml acepromazine) and L4 and L5 dorsal root ganglion (DRG) were harvested, enzymatically treated, mechanically dissociated and plated onto laminin-ornithine coated cover slips. After 2 hrs of incubation at 37°C/3% CO2, cover-slips were flooded with HEPES buffered L-15 media and stored at room temperature during the period of recording (< 8 hrs after removal from the animal).
Patch clamp recording
Isolated cutaneous neurons were studied with conventional whole-cell and perforated patch configurations with an Axopatch 200B (Medical Devices Sunnyvale CA) controlled with pClamp (v 8.2, Molecular Devices) or a HEKA EPC9 amplifier (HEKA Electronik, Lambrecht/Pfalz Germany) controlled with Pulse software (V8.8, HEKA). The conventional whole cell configuration was used for current clamp recording and for voltage-clamp analysis of Kv currents while the perforated patch configuration was used for the analysis of BKCa currents. For current clamp recording, the bath solution contained (in mM): NaCl, 130; KCl, 5; CaCl2, 2.5; MgCl2, 0.6; HEPES, 5; and glucose, 10; pH adjusted to 7.4 with Tris-Base, and osmolality adjusted to 320 mOsm with sucrose. For voltage-clamp recording of Ca2+ dependent K+ currents, NaCl was replaced with choline-Cl to eliminate voltage-gated Na+ currents. This same solution was used for voltage clamp recording of voltage-gated K+ currents, except that CaCl2 was replaced with CoCl2 to eliminate voltage-gated Ca2+ currents. The electrode solution used for current clamp and to record voltage-gated K+ currents contained (in mM): KCl, 30; K-methanesulfonate (MES), 110; MgCl2,1; CaCl2, 0.1; EGTA, 1; HEPES, 10; ATP-Mg, 2; GTP, 1; pH adjusted to 7.2 with Tris-Base, and osmolality adjusted to 310 mOsm with sucrose. The electrode solution used for perforated patch clamp recordings contained (in mM): KCl, 30; K-MES, 110; MgCl2, 1; HEPES, 10; EGTA, 0.1; pH adjusted to 7.2 with Trisbase, and osmolality adjusted to 310 mOsm with sucrose. Amphotericin B, used to obtain whole cell access for perforated patch recording, stock solution was prepared in DMSO (90 mg/ml) then diluted to a final concentration (600 μg/ml) in electrode solution immediately prior to use. All salts used for electrophysiology were obtained from Sigma-Aldrich (St Louis MO).
Semi-quantitative RT-PCR (sqRT-PCR)
Dorsal root ganglia (DRG) from anesthetized male rats were harvested in a manner identical to that used for neuron isolation and plating. mRNA was extracted and cDNA synthesis performed as previously described [6], except that that random hexomers were used to prime the reverse transcription reaction. SYBR Green was used to monitor amplification of template with primers on a real-time thermal cycler (Life Technologies, Grand Island NY) controlled by a PC running Prism 7000 SDS software. A melting curve was generated at the end of each experiment to assess for the presence of contamination. Amplification efficiency was determined for each target gene. The ΔΔCT method was used to assess differences in relative expression levels. Primers for amplification of the core BKCa α subunit were: F - TGTCATGATGACGTCACAGATCC, R -TTTT TTTGGTGACAGTGTTGGC; those for amplification of the BKCa α subunit with the STREX insert were: F - AGCCGAGCATGTTGTTTTGAT, R-ACGCACACGGC CTGACA; while those for GAPDH were: F - GGCCTAC ATGGCCTCCAA, R -TGGAATTGTGAGGGAGATGCT. Commercially available primer sets were used for the amplification of β2, 3 and 4 (Qiagen).
Single cell PCR
Single cell PCR was performed as previously described [26]. Because perforated patch recording is relatively slow and many neurons are needed from a single animal to obtain a reasonable estimate of the proportion of neurons from a single animal, a different set of neurons was used for single cell PCR analysis. Following identification of cutaneous neurons under epifluorescence illuminations, neurons were collected with large bore (∼30 μm) glass pipettes and expelled into microcentrifuge tubes containing reverse transcriptase (RT) mix. RT-PCR was performed as described previously [26] utilizing an anchored primer (5′-ttttttttttttttttttvn-3′; v=a, c, or g; n = a, c, g, or t, from Life Technologies) for the RT reaction and a nested PCR amplification strategy for the PCR reaction. rslo primer sequences were identical to those described previously [8]. For each cell preparation, at least two tubes were run in which no cell was collected (although the electrode was manipulated in a manner identical to that used for cell collection) and at least two additional tubes were run in which no reverse transcriptase was added to the RT mix prior to the RT reaction. Cyclophillin (0.5 μl of cDNA) was used to monitor the success of the cell collection/RT reaction: only neurons in which cyclophillin was detected were used for further analysis. 5 μl of PCR products were loaded onto 2% agorase/TAE gel.
Western Blot
DRG (L4/L5) were rapidly removed from deeply anesthetized rats and homogenized in solubilization buffer (50 mM Tris.HCl, pH8.0; 150 mM NaCl, 1 mM EDTA, 1% NP40, 0.5% deoxycholic acid, 0.1% SDS, 1 mM Na3VO4, 1 U/ml aprotinin, 20 μg/ml leupetin, 20 μg/ml pepstatin A). The homogenate was centrifuged at 20,000 × g for 10 min at 4°C. The supernatant was removed. Protein (50–120 μg) was separated on a 7.5-10% SDS-PAGE gel and blotted to nitrocellulose membrane (Amersham) with a Trans-Blot Transfer Cell system (Bio-Rad). Blots were blocked with 5% milk in TBS buffer (20 mM Tris, 150 mM NaCl pH 7.4) at room temp for 1 hour. After decanting the blocking buffer, the blots were incubated with primary antibodies. These included: the α subunit of the BKCa channel (AKA slo1, NeuroMab clone L6/60, NeuroMab, Davis CA: 1:200), BKCa β2 (NeuroMab clone N53/32: 1:200), BKCa β3 (NeuroMab clone N40B/18: 1:200), BKCa β4 (NeuroMab clone L18A/3: 1:200), and GAPDH (sc-25778, Santa Cruz Biotechnology: 1:1000). The specificity of all BKCa subunit antibodies has been confirmed in heterologous expression systems where there was no evidence of cross reactivity with other BKCa subunits or KV2.1. Membranes were incubated with BKCa subunit antibodies overnight at 4°C, and GAPDH for 1 hour at room temperature. Membranes were washed with TBS buffer and incubated for 1 hour with anti-goat IgG horseradish peroxidase (1:3000, Santa Cruz) in 5% milk/TBS. Membranes were then washed with TBS buffer. The immunoreactivity was detected using Enhanced Chemiluminescence (ECL, Amersham). Chemiluminescence was captured with a CCD camera (Las-3000, Fujifilm) and analyzed with Fuji software Multi Gauge. The relative protein levels were obtained by comparing target protein to loading control (GAPDH) in the same membrane.
Statistical analysis
Data are expressed as mean ± S.E.M unless otherwise stated. Student's t test, one- and two-way ANOVA with the Holm-Sidak post hoc test were used for comparisons of parametric data between groups. For single cell PCR analysis, between 30 and 40 cutaneous neurons were collected from each animal, although only 29 neurons were collected for one of the 4 naïve animals used to assess changes in α-subunit splice variants. The proportion of the total number of neurons from each animal in which a splice variant or β-subunit was detected was used as the “statistic” for that animal, where the mean proportion of expression in naïve animals was compared to that in inflamed animals. Statistical significance was assessed at p<0.05.
