Abstract
Background:
Tissue-specific gene deletion has proved informative in the analysis of pain pathways. Advillin has been shown to be a pan-neuronal marker of spinal and cranial sensory ganglia. We generated BAC transgenic mice using the Advillin promoter to drive a tamoxifen-inducible CreERT2 recombinase construct in order to be able to delete genes in adult animals. We used a floxed stop ROSA26LacZ reporter mouse to examine functional Cre expression, and analysed the behaviour of mice expressing Cre recombinase.
Results:
We used recombineering to introduce a CreERT2 cassette in place of exon 2 of the Advillin gene into a BAC clone (RPCI23-424F19) containing the 5' region of the Advillin gene. Transgenic mice were generated using pronuclear injection. The resulting AvCreERT2 transgenic mice showed a highly specific expression pattern of Cre activity after tamoxifen induction. Recombinase activity was confined to sensory neurons and no expression was found in other organs. Less than 1% of neurons showed Cre expression in the absence of tamoxifen treatment. Five-day intraperitoneal treatment with tamoxifen (2 mg per day) induced Cre recombination events in ≈90% of neurons in dorsal root and cranial ganglia. Cell counts of dorsal root ganglia (DRG) from transgenic animals with or without tamoxifen treatment showed no neuronal cell loss. Sensory neurons in culture showed ≈70% induction after 3 days treatment with tamoxifen. Behavioural tests showed no differences between wildtype, AvCreERT2 and tamoxifen-treated animals in terms of motor function, responses to light touch and noxious pressure, thermal thresholds as well as responses to inflammatory agents.
Conclusions:
Our results suggest that the inducible pan-DRG AvCreERT2 deleter mouse strain is a useful tool for studying the role of individual genes in adult sensory neuron function. The pain phenotype of the Cre-induced animal is normal; therefore any alterations in pain processing can be unambiguously attributed to loss of the targeted gene.
Background
Transgenic mice continue to be an important tool for the study of gene function in pain research. By 2007, over 400 papers had already been published with statistically significant behavioural pain phenotypes in transgenic knockout mice [1]. While these papers demonstrate the usefulness of transgenic knockout studies, some also reveal the drawbacks to this method. Ablation mutations introduced in the germ line may result in complications including early lethality, developmental compensatory mechanisms, and complex phenotypes when working with a pleiotropic gene [2,3]. Tissue-specific gene targeting may prevent early lethality, but temporal control would clarify the issue of compensation by other genes and negate confounding developmental roles the gene may play. Inducible tissue-specific gene targeting would thus be of great use in studies of gene function. Such a system has been previously developed using a version of the Cre-loxP system [4–7].
The Cre-loxP system can excise or invert DNA segments when flanked with 34-bp loxP sites. Bacteriophage-produced Cre recombinase recognizes loxP sites and catalyzes molecular recombination between those sites. When a tissue-specific promoter drives Cre recombinase, the DNA recombination is restricted to that tissue [8].
In a modification of the Cre-loxP system Cre recombinase is fused to a mutated ligand-binding domain of the human estrogen receptor (ER) producing CreER, which is inducible in the presence of an estrogen agonist [9]. A more efficient version of the CreER fusion protein is CreERT2, which contains 3 mutations in the human ER such that the complex is activated by the synthetic estrogen-like agonist tamoxifen, but not by endogenous estrogens [5].
While transgenic, linkage mapping and microarray studies have put forward many pain-relevant gene candidates [1,10,11], these genes are often widely expressed in both neuronal and non-neuronal tissues, making their specific function in pain pathways particularly challenging to ascertain. Peripheral sensory neuron specific gene deletion would therefore help to clarify the role of specific genes in pain pathways. To accomplish this, a peripheral sensory neuron specific promoter was used to drive CreERT2 expression. Advillin (also known as Pervin) is an actin-binding protein of gelsolin family found almost exclusively in peripheral sensory neurons [12–14] making it particularly relevant to nociception and pain research [15–17]. An Advillin knock-in Cre has been generated and is capable of deleting genes in all sensory neurons [18]. By placing CreERT2 under the control of the Advillin promoter, one can manipulate genes specifically in peripheral sensory neurons. Here, we describe the production and characterisation of Advillin-CreERT2 (AvCreERT2) mice in terms of expression patterns and the efficiency of recombination. AvCreERT2 and tamoxifen treatment are also shown to have no behavioural effects in various pain models.
Results and discussion
Generation of AvCreERT2 transgenic mice
We generated AvCreERT2 transgenic mice using a construct obtained by recombineering protocol [19] (Figure 1A). BAC clone RPCI23-424F19 containing part of the Advillin gene was used as a template to prepare a targeting construct. The shuttle vector for recombineering was made by inserting the 5'-homology arm (0.45 kb) and the 3'-homology arm (0.3 kb) flanking exon 2 of the Advillin gene into a vector containing CreERT2 and a Kanamycin cassette. The Kanamycin resistance gene in the cassette was flanked by FRT sites (recognition sites for Flp-recombinase). In the resulting shuttle vector we fused the CreERT2 sequence with the start codon in the exon 2 of the Advillin gene. The completed shuttle construct was sequenced and the targeting cassette was isolated from the plasmid by AscI/PacI digest.
EL250 E. coli cells transformed with the BAC clone were co-transformed with the shuttle targeting construct and recombination was induced by heat-shock. The induced bacterial clones were isolated by growing them on Kanamycin-containing plates. The Kanamycin resistance cassette was removed by inducing Flp-recombinase expression by arabinose. The final construct was verified by PCR and analytical restriction digests by NotI and PacI. The resulting BAC containing the targeting cassette was used for pronucleus injection.
We obtained 8 founders verified by PCR analysis that transmitted CreERT2 to their offspring. Primers for PCR analysis are described in Materials and Methods and their verification is presented in Figure 1B. The offspring of the founders was crossed with ROSA26RLacZ mice and their various tissues were stained with X-gal following tamoxifen injections. The offspring of the founder A displayed the most profound staining in the DRG and was used for all the subsequent experiments.
To estimate the copy number of the transgenes in the offspring of founder A, we performed a Southern blot on genomic DNA from isolated from tail snips. The DNA was digested with HindIII and hybridized with the 5' homology arm probe. This probe recognizes both the wildtype and transgene variants. The resulting wildtype band was 7.4 kb and the transgene band was 3.6 kb (Figure 1C). We scanned the relative densities of the bands using ImageJ software and found that after background subtraction the value of transgene band is roughly 5 times higher than the wildtype band. Given that the wildtype band corresponds to 2 copies of Advillin per genome, we estimate that the offspring of founder A had about 10 copies of BAC integrated into the genome.
Expression pattern of AvCreERT2 in DRG neurons
To determine whether the Advillin promoter driven Cre expression pattern recapitulates the expression pattern of wildtype Advillin we crossed AvCreERT2 mice with the Rosa26LacZ mouse strain [20]. In the Rosa26LacZ strain floxed polyadenylation signal blocks the expression of β-galactosidase. Introduction of Cre in a tissue-specific manner leads to the synthesis of functional β-galactosidase, which is detectable with X-gal staining [20].

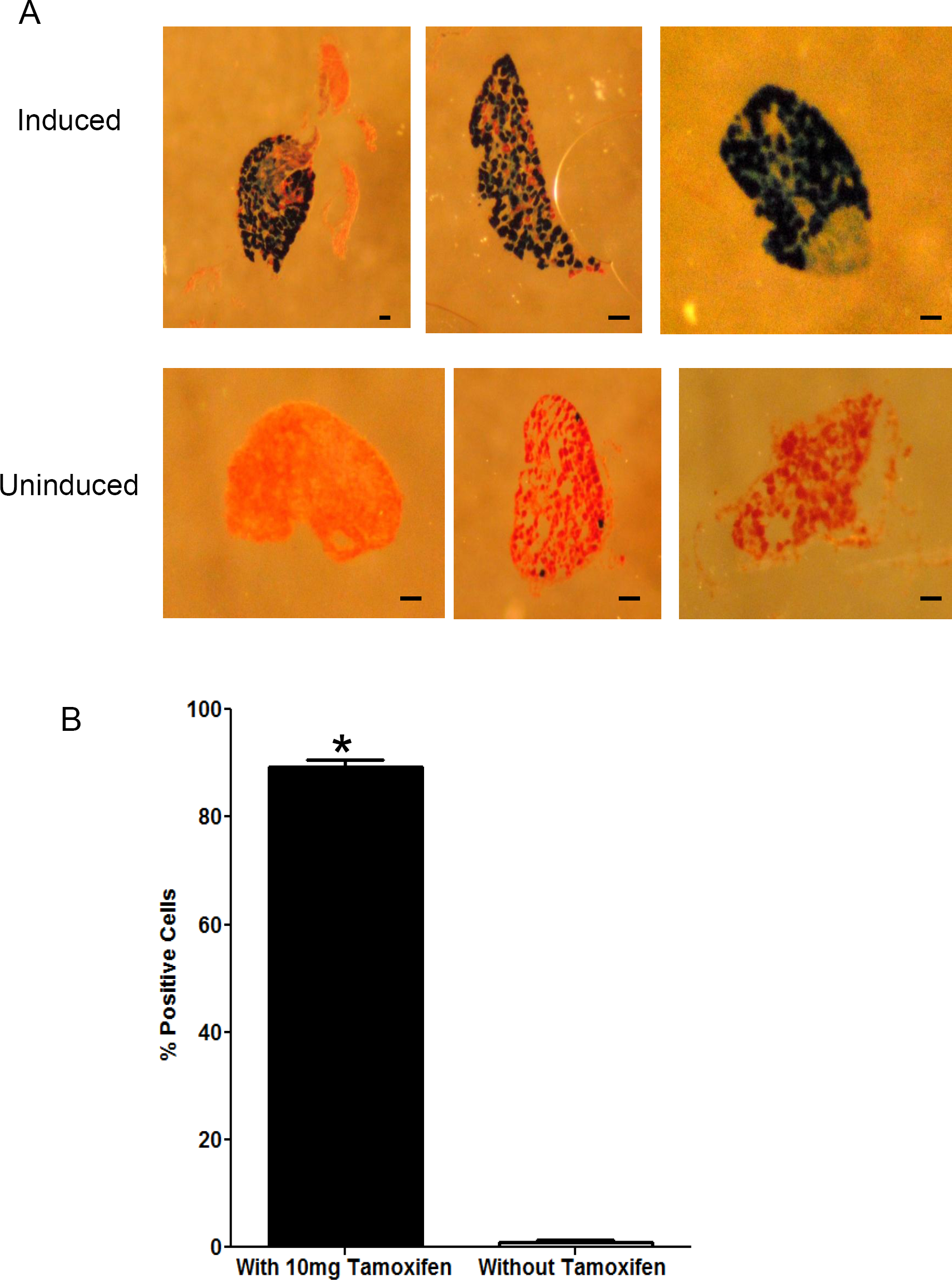

Tamoxifen was injected intraperitoneally (ip) for 5 consecutive days, 2 mg per day (10 mg total dose). The control animals were injected with vehicle only. Animals were euthanized and perfused with 4% paraformaldehyde. DRG were isolated and sectioned. The sections were stained with X-gal. Figure 2A shows DRG sections from tamoxifen-treated mice, where most neurons show positive blue staining whilst DRG sections from control mice show less than 1% Cre positive staining. This is probably due to spontaneous Cre activation. Quantification of results from three independent experiments is shown in Figure 2B. DRG sections from tamoxifen injected mice show on average 89% of Cre positive staining whereas control animals show 0.95% Cre positive blue staining. It is important to note that in all DRG sections from tamoxifen-treated mice, the percentage of cells with Cre positive staining was never lower than 82% and the maximum recorded staining was 99.2%. These results demonstrate that AvCreERT2 transgenic mice are a useful pan-DRG inducible deleter strain.

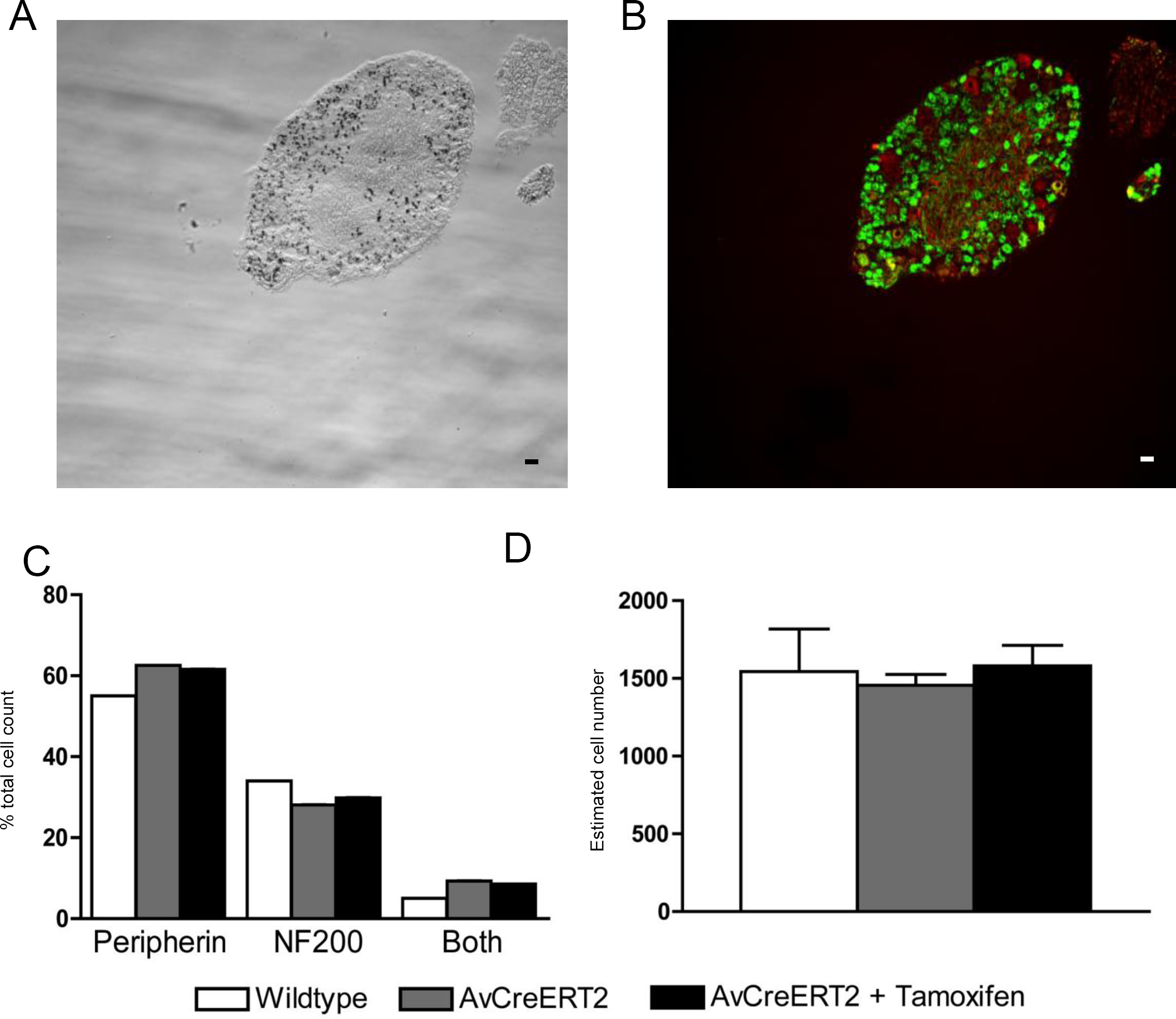

To assess the types of sensory neurons that express the transgene we labelled DRG sections with antibodies against peripherin (Figure 3B in green) and neurofilament-200 (Figure 3B in red). The same sections were stained with X-gal to characterize Cre-recombinase activity (Figure 3A). The number of peripherin and neurofilament-200 expressing neurons in tamoxifen-treated AvCreERT2/Rosa26LacZ mice correlates to historical data from wildtype mice [21] (Figure 3C). This indicates that transgene insertion and/or tamoxifen treatment does not change the relative proportion of sensory neurons. We further investigated the actual numbers of sensory neurons per DRG and compared it to historical data from wildtype mice (Figure 3D). No differences were found in the actual numbers of neurons in the DRG of wildtype animals, untreated and tamoxifen-treated AvCreERT2 transgenic animals.
Our data suggest that the insertion of the AvCreERT2 transgene and tamoxifen treatment does not alter the number or the relative proportion of sensory neurons in DRG.
We also performed X-gal staining on a variety of tissue sections from tamoxifen-treated mice (results not shown). These tissues included brain, liver, lungs, kidney, olfactory epithelium, adrenal glands, skin etc. No positive Cre staining was observed. These results prove that AvCreERT2 transgene expression recapitulates the previously reported expression pattern of wildtype Advillin [13,22].
Tamoxifen induces Cre-expression during embryonic development
To assess the possibility of Cre induction during embryonic development we set up timed matings of AvCreERT2/ROSA26LacZ mice. It has been shown that expression of Advillin starts at day E11.5 in trigeminal ganglia. In DRG neurons Advillin staining is clearly visible at day E12.5 [22]. We started to inject pregnant mice at day E12.5 for 5 consecutive days with 2 mg of tamoxifen per day. Embryos were harvested at E18.5 and stained with X-gal. Embryos from tamoxifen-treated mice displayed clear positive staining in DRG and trigeminal ganglia (Figure 4). All other organs showed no positive Cre staining. Untreated embryos displayed no positive Cre staining. These data are in agreement with the previously published data on the Advillin gene expression [22].
4-Hydroxytamoxifen induces Cre-expression in cell culture
We also investigated the ability of tamoxifen to induce Cre recombination in cultured DRG neurons from AvCreERT2/ROSA26LacZ mice. Cell cultures were treated with 4-Hydroxytamoxifen (4-OHT) for 3 consecutive days. The cell cultures were treated with 1 μM 4-OHT on the first day and with 2 μM of 4-OHT on the two subsequent days (Figure 5A). We also tried 10 μM 4-OHT treatment but found it to be toxic. The neurons were fixed and stained with X-gal and antibodies against peripherin and neurofilament-200. The results were quantified and are presented in Figure 5B. Tamoxifen induces Cre recombination in about 70% of cultured DRG neurons. Virtually no Cre positive staining was observed in the untreated cultures.
AvCreERT2 expressing mice and tamoxifen-treated show normal acute and inflammatory pain behaviour

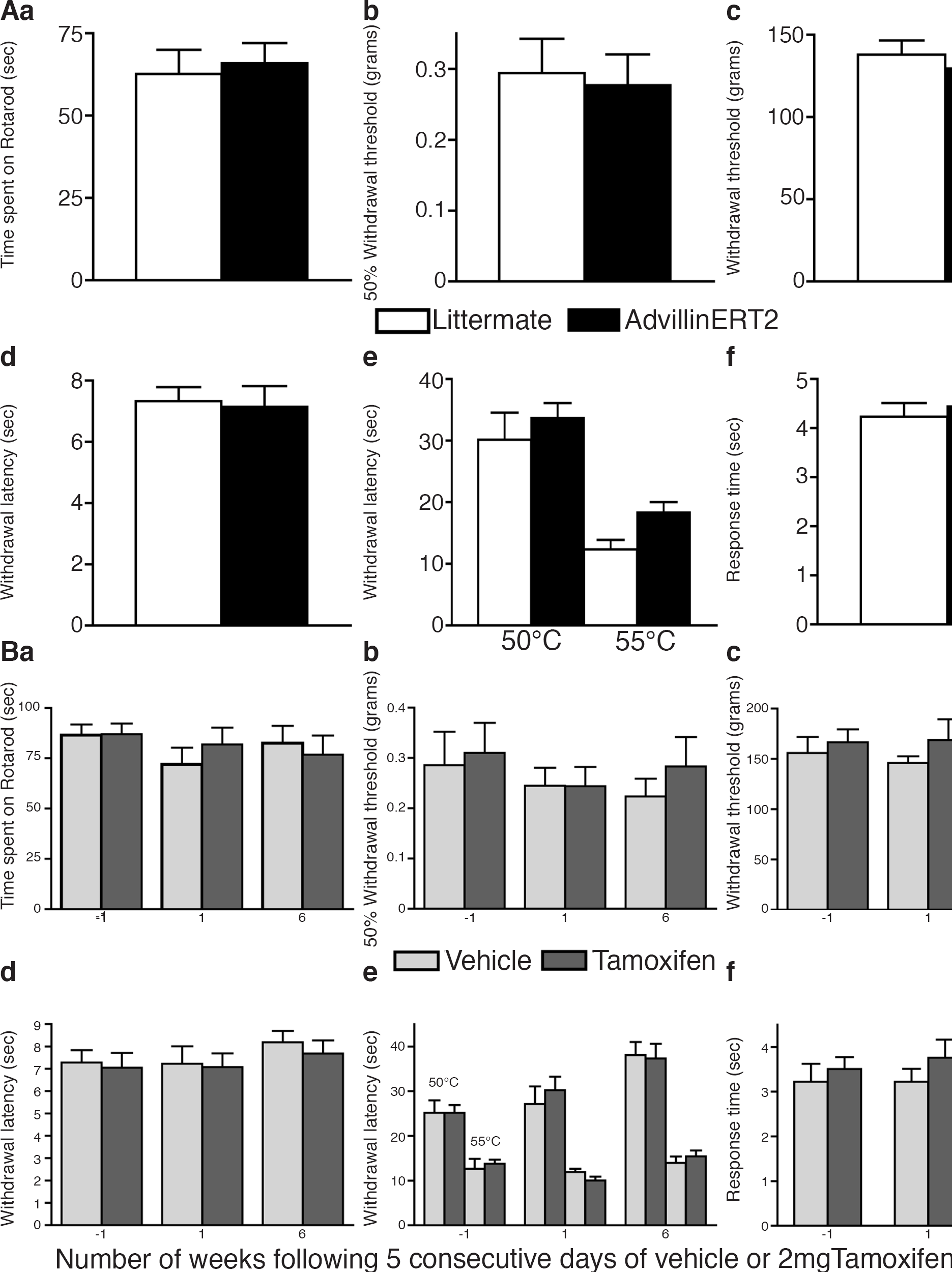

Motor function was assessed using the Rotarod test. The mean time spent on the apparatus was not significantly different for AvCreERT2 mice (Figure 6Aa) or following tamoxifen treatment (Figure 6Ba). Mechanical thresholds were assessed using the von Frey and Randall-Selitto tests. The mean response thresholds for both tests were not significantly different for AvCreERT2 mice (Figure 6Ab&6Ac) or following tamoxifen treatment (Figure 6Bb&6Bc). This suggest both responses to light touch and noxious pressure are unaffected by AvCreERT2 or tamoxifen. Thermal thresholds were assessed using the Hargreaves', hot plate (50°C & 55°C) and acetone test. The mean withdrawal latencies to both the Hargreaves' and hot plate tests were not significantly different for AvCreERT2 mice (Figure 6Ad&6Ae) or following tamoxifen treatment (Figure 6Bd&6Be). This suggests that both spinal reflexes and supra-spinal processing of noxious heat are unaffected by AvCreERT2 or tamoxifen [23]. Similarly the mean response times to the acetone test was not significantly different for AvCreERT2 mice (Figure 6Af) or following tamoxifen treatment (Figure 6Bf). This suggests that processing of noxious cooling stimuli are unaffected by AvCreERT2 or tamoxifen. Finally, the behavioural responses to both 5% formalin and CFA intraplantar injection were not significantly different for AvCreERT2 mice or following tamoxifen treatment (Figure 7).
Conclusions
We generated a transgenic AvCreERT2 mouse line that displays functional expression of Cre recombinase after tamoxifen induction. We described molecular and behavioural characterization of this line. The Advillin promoter drives the expression of Cre recombinase with the same characteristics as the wildtype Advillin gene. The expression of this gene is specific to sensory neurones making it very useful for creating pan-DRG deleter mouse strains.
The results described in this paper show that we are able to induce Cre expression in 89% of DRG neurons in vivo (5 injections, 2 mg per day) and in 70% of neurons in vitro (4-OHT treatment for 3 days). We compared the proportion of anti-peripherin and anti neuropfilament-200 stained neurons in AvCreERT2 DRG sections with wildtype DRG sections and found no differences. We also found no differences in the actual numbers of DRG neurons in wildtype animals, and untreated and tamoxifen treated AvCreERT2 transgenic animals.
These results suggest that the neuronal composition of AvCreERT2 DRG mice is the same as wildtype mice. Behavioural studies of wildtype, untreated and tamoxifen treated and AvCreERT2 mice show that motor function, responses to light touch and noxious pressure, as well as thermal thresholds do not differ significantly between these animals.
Our results suggest that we generated an inducible pan-DRG deleter mouse strain that can be used to study the role of individual genes in pain transduction in vivo and their role in cell excitability in vitro. Thus this mouse strain may provide mechanistic insights that identify new therapeutic pain targets.
Methods
Animals
All tests were approved by the United Kingdom Home Office Animals (Scientific Procedures) Act 1986. Experiments were conducted using both male and female littermate mice, all of which were at least 6 weeks old when tested. The same observer performed all experiments and was blind to the genotype of the animals.
Generation of transgenic construct
To create the construct for production of the transgenic AvCreERT2 mouse line we used a recombineering technique [19]. The CreERT2 containing plasmid which also contained a FRT flanked Kanamycin selection cassette was a gift from Prof Chambon [9].
Briefly, the start codon of Advillin is located in exon 2 of the gene. The 5' homologous arm of the construct (0.45 kb) was amplified from a BAC containing exon 2 of the Advillin gene and cloned into the AscI/SalI restriction sites of the CreERT2 vector. The 3'homologous arm (0.3 kb) was amplified from the same BAC and cloned into the PacI/EagI restriction sites of the CreERT2 vector. The completed shuttle construct was sequenced and the targeting cassette was isolated from the plasmid by AscI/PacI digest.
EL250 E. coli cells were transformed with the BAC containing the Advillin gene. Isolated BAC DNA from the individual clones was checked by restriction analysis followed by pulse-field gel electrophoresis. Only the clones displaying the correct pattern of the restriction fragments were used for the recombineering procedure. The correct bacterial clones were co-transformed by shuttle construct and recombination was induced by incubating the bacteria at 42°C for 15 minutes. The induced bacterial clones were isolated by growing them on Kanamycin containing plates. The Kanamycin resistance cassette was removed by inducing Flp-recombinase expression by arabinose. The final construct was verified by PCR and analytical restriction digests using NotI and PacI.
Transgenic mouse production and screening
The resulting BAC was isolated, digested by Not I, gel purified and used for the oocyte microinjection. The founders were screened by PCR and Southern blot. The primers for PCR are as follows:
AdF:GACAGATTATCTGCAATCTCTCTAAG, AdR: AGAGCACAGAGCCACCCTCGAGAC, CREF:GGCCT GGTCTGGCCACTCTGCCAG, CRER:GTTCCTGA TGTCCTGGCATCTGTC.
The products of PCR reactions are AdF/AdR − 0.95 kb (wt) and 3.39(tg), AdF/CreR − 1.027 kb and CreF/AdR − 1.99 kb. The products were resolved on 1% agarose gel, stained with ethidium bromide and photographed.
Southern blot analysis
Genomic DNA was extracted from tail snips [24]. The 5' probe which recognizes both the wildtype gene and transgene was amplified from BAC using the following primers Avil5HS: GACGGCGCGCCCTCAGGAATATG TGTTGCCTTTC; Avil5HAS: TCTGTCGACCATAG TGGCTGTCTTCCTGGAAC.
Southern blot analysis with HindIII digested genomic DNA produced a 7.4 kb wildtype band and a 3.6 kb transgene band (Figure 1C).
Tamoxifen treatment
Tamoxifen (Sigma T5648) and 4-OHT (Sigma H7904) solutions were prepared according to a previously described protocol [9]. Eight week old AvCreERT2/ROSA26LacZ mice were injected with 2 mg of tamoxifen (ip) daily for 5 consecutive days. Two days after the last injection mice were euthanized and DRG were collected for further analysis. To characterize Cre induction during embryonic development, pregnant AvCreERT2/ROSA26LacZ mice were injected with either 2 mg of tamoxifen or vehicle daily for 5 consecutive days starting at day E12.5. On day E18.5 the mice were euthanized and the embryos were collected for further analysis. All embryos were genotyped.
Cultured DRG neurons were treated with 4-OHT for 3 days (1 μM on the first day and 2 μM the following two days). The neurons were fixed and analyzed the day after the final treatment.
DRG cell culture
AvCreERT2/ROSA26LacZ animals were killed by inhalation of a rising concentration of CO2 followed by cervical dislocation, and 30-40 DRG were dissected from each. Ganglia were digested in collagenase (Type XI, 0.6 mg/ml, Sigma), dispase (3.0 mg/ml, Sigma), and glucose (1.8 mg/ml) in Ca2+, Mg2+ free PBS for 40 min prior to mechnical trituration. Cells were then resupended in Dulbecco's modified Eagle's medium (Gibco) containing 10% fetal bovine serum (Gibco), 10,000 i.u./ml penicillin-streptomycin (Gibco), and 100 ng/ml nerve growth factor (Sigma), and plated on 13-mm cover slips coated with poly-L-lysine.
Immunohistochemistry
The staining was performed as previously described [25]. Briefly, following the tamoxifen treatment, the DRGs were isolated and immediately frozen in OCT (O.C.T. Compounds, BDH) on dry ice. 12 μm cryosections were dried at room temperature for 30 min and then fixed with 4% PBS-buffered paraformaldehyde solution for 10 min on ice. After three washes in PBS, sections were incubated for 30 min in 10% goat serum diluted in PBS containing 0.3% Triton X-100 (PBST), and for 1 h at room temperature in a 1:500 dilution of an anti peripherin monoclonal antibody (P5117, Sigma) and 1:200 dilution of an anti N-200 polyclonal antibody (N4142, Sigma). Following three washes in PBST, the sections were incubated for 1 h in a 1:500 dilution of Alexa Fluor 488 goat anti-mouse IgG (A-11017, Molecular Probes) and 1:1,000 dilution of Alexa Fluor594 goat anti-rabbit IgG (A-11037, Molecular Probes). After three washes in PBST, the sections were mounted in CITI-Flour solution and analysed using a fluorescent microscope.
X-gal staining
After fixation with 4% PBS-buffered paraformaldehyde or after immunohistochemistry, DRG sections were washed three times with PBS and then incubated overnight in X-gal solution at 35°C. For cultured DRG neurons, the slides were fixed with 2% PBS-buffered formaldehyde containing 0.25% glutaraldehyde for 15 min at room temperature, and then stained with X-gal solution at 35°C overnight. Sections or slides (cultured DRG neurons) were counterstained with 1% neutral red, dehydrated with ethanol, and cleared with Histo-ClearII and mounted with DePex mounting medium (BDH). The X-gal staining in freshly frozen sections is usually punctate in appearance, but homogeneous in perfused DRG sections and in cultured DRG neurons.
The staining of the E18.5 embryos was performed as follows. The embryos were isolated from pregnant females killed by CO2 inhalation and cervical dislocation. The embryos were placed immediately into 1:40 dilution of sodium pentobarbitone in PBS for 5 min at room temperature. This was followed by 3 washes with PBS and the embryos were skinned to allow better penetration of staining solutions. Tail biopsies were taken for genotyping. The embryos were fixed at room temperature for 2 hours, washed and left over night in the LacZ staining solution at room temperature. The next day embryos were washed with PBS and were cleared by incubating for 24 hours at 4°C in the following solutions: 70% ethanol, 100% methanol, fresh 100% methanol and benzyl benzoate:benzyl alcohol (2:1). Cleared embryos were photographed and analyzed.
Behavioural studies
The motor coordination of transgenic and wildtype mice was assessed using the Rotarod test [26] before testing nociceptive responses.
Thermal nociception
Thermal nociceptive thresholds were measured using the paw-withdrawal latency according to the method described by [27], with minor modifications. As well as the hot-plate test (50 & 55°C) originally described by [28] and later modified by [29]. Behavioural responses to cooling (approx. 10-15°C) were assessed using the acetone test, as described by [30].
Mechanical nociception
Mechanical nociceptive thresholds were measured using a modified version of the Randall-Selitto test [31] that applies pressure to the tail via a 3 mm2 blunt probe [32]. Touch perception thresholds were measured using the up-down method for obtaining the 50% threshold using von Frey hairs as described by [33].
