Abstract
Background:
Ecto-5-nucleotidase (NT5E, also known as CD73) hydrolyzes extracellular adenosine 5′-monophosphate (AMP) to adenosine in nociceptive circuits. Since adenosine has antinociceptive effects in rodents and humans, we hypothesized that NT5E, an enzyme that generates adenosine, might also have antinociceptive effects in vivo.
Results:
To test this hypothesis, we purified a soluble version of mouse NT5E (mNT5E) using the baculovirus expression system. Recombinant mNT5E hydrolyzed AMP in biochemical assays and was inhibited by α,β-methylene-adenosine 5′-diphosphate (α,β-me-ADP; IC50 = 0.43 μM), a selective inhibitor of NT5E. mNT5E exhibited a dose-dependent thermal antinociceptive effect that lasted for two days when injected intrathecally in wild-type mice. In addition, mNT5E had thermal antihyperalgesic and mechanical antiallodynic effects that lasted for two days in the complete Freund's adjuvant (CFA) model of inflammatory pain and the spared nerve injury (SNI) model of neuropathic pain. In contrast, mNT5E had no antinociceptive effects when injected intrathecally into adenosine A1 receptor (A1R, Adora1) knockout mice.
Conclusion:
Our data indicate that the long lasting antinociceptive effects of mNT5E are due to hydrolysis of AMP followed by activation of A1R. Moreover, our data suggest recombinant NT5E could be used to treat chronic pain and to study many other physiological processes that are regulated by NT5E.
Background
Ecto-5′-nucleotidase (NT5E) is a glycosyl phosphatidylinositol (GPI)-anchored membrane protein that catalyzes the hydrolysis of extracellular AMP to adenosine [1]. NT5E regulates diverse physiological processes that are modulated by adenosine, including hypoxia, inflammation and epithelial ion transport [2–8]. Recently, we found that NT5E is expressed in peptidergic and nonpeptidergic nociceptive (pain-sensing) neurons and their axon terminals in spinal cord and skin [9]. Based on experiments with Nt5e−/− mice, we established that NT5E accounts for ∼50% of all AMP hydrolytic activity in nociceptive neurons [9].
In addition, we observed that NT5E was extensively co-localized with Prostatic acid phosphatase (PAP, also known as ACPP, Fluoride-resistant acid phosphatase or thiamine monophosphatase) in nociceptive neurons. Like NT5E, PAP functions as an ectonucleotidase in nociceptive neurons by hydrolyzing AMP to adenosine [10,11]. Both Pap−/− and Nt5e−/− mice show enhanced thermal hyperalgesia in animal models of inflammatory pain and neuropathic pain as well as enhanced mechanical allodynia following inflammation [9,10]. Interestingly, A1R−/ mice also show enhanced sensitization following inflammation and nerve injury [12]. Thus, deficiencies in adenosine production or A1R signaling cause similar behavioral phenotypes.
In support of an A1R-dependent mechanism, we found that intrathecal (i.t.) injection of secretory PAP protein (from mouse or human) into wild-type mice had long lasting antinociceptive, antihyperalgesic and antiallodynic effects that were entirely dependent on A1R activation [10,11]. These data suggested that spinal delivery of PAP protein could be used therapeutically to generate adenosine and activate A1R over an extended time period. Likewise, direct activation of A1R with adenosine or selective A1R agonists had antinociceptive effects in rodents and humans [13–31].
Considering that both PAP and NT5E generate adenosine, we hypothesized that NT5E protein might also have A1R-dependent antinociceptive effects. However, we were unable to test this hypothesis because mammalian NT5E protein was not available. As emphasized in a recent review by Colgan and colleagues, this lack of a reliable source of purified protein has hindered studies with NT5E [2]. Others used 5′-nucleotidase protein purified from rattlesnake (Crotalus atrox) venom instead [4,32,33]. Crotalus 5′-nucleotidase had no deleterious effects when injected intraperitoneally and rescued phenotypes in Nt5e−/− mice; however, possible toxicity from venom contaminants remains a concern–especially if this venom-derived protein were to be used in the nervous system.
To overcome these toxicity concerns, we purified and characterized (in vitro and in vivo) a secretory version of recombinant mouse NT5E. Our present study builds upon work by Servos and colleagues who purified a recombinant but non-secretory version of rat NT5E using the baculovirus expression system [34].
Results
Purification of soluble mouse NT5E using the baculovirus expression system

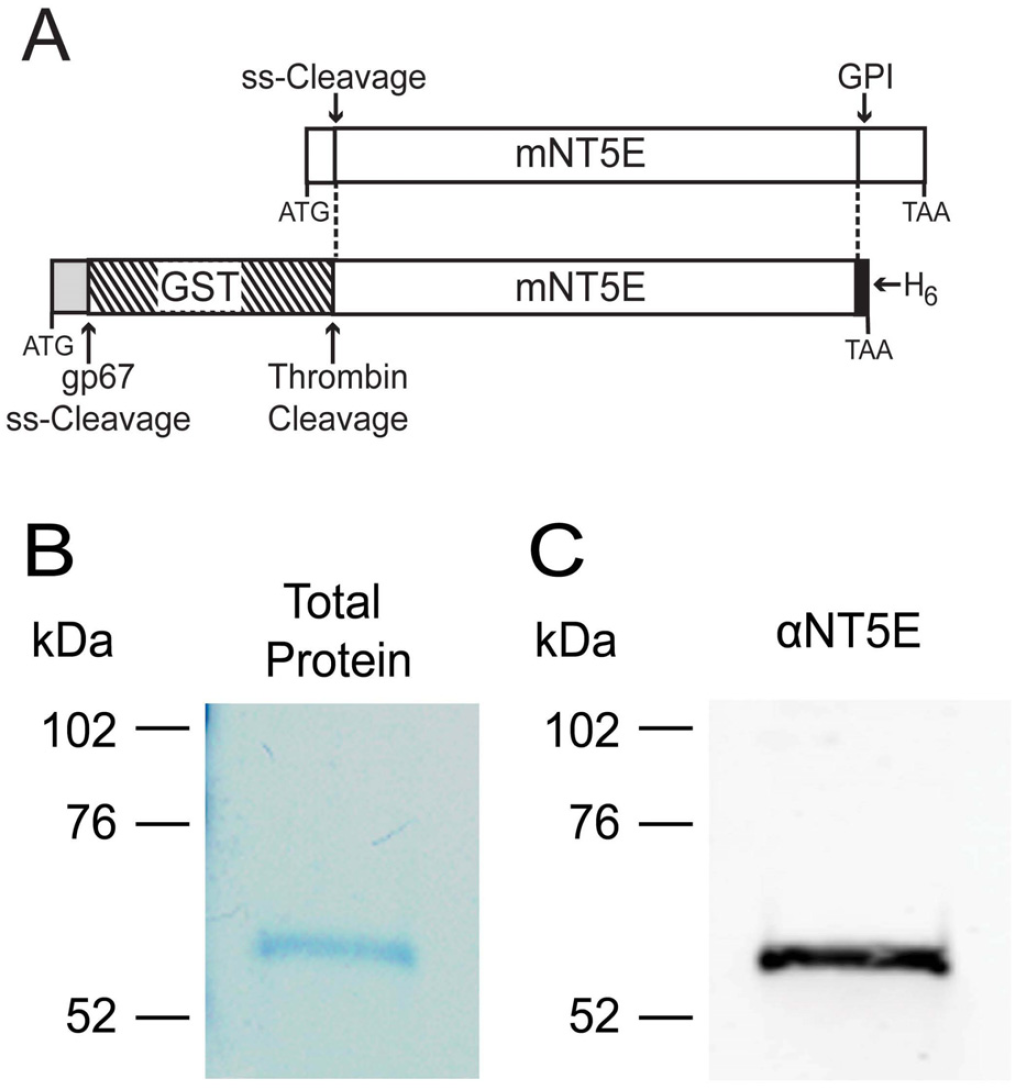

NT5E is anchored to the membrane via a GPI linkage on Ser523 [35]. In an effort to produce a secreted and soluble (non-membrane anchored) version of NT5E, Servos and colleagues generated a baculovirus expression construct of rat NT5E that reportedly lacked the GPI-anchor at Ser523 [34]. While Servos and colleagues successfully used their construct to purify a catalytically active version of rat NT5E, they did not detect NT5E in the tissue culture medium as would be expected if the protein were secreted and soluble. Instead, NT5E was only present in cell lysates. Upon re-examination of the cloning strategy used by Servos and colleagues we noticed that their expression construct included Ser523 but excluded neighboring Ser526. Using GPI prediction software [36], we confirmed that Ser523 (but not Ser526) was the most likely GPI anchor site. Inclusion of this GPI anchor sequence could explain why Servos and colleagues did not detect NT5E in the culture medium. We thus generated a mouse NT5E (Trp29-Phe522) expression construct that was truncated just before Ser523 (Figure 1A). Our construct was otherwise identical to the one used by Servos and colleagues–our construct contained a gp67 signal peptide, glutathione S-transferase (GST), a thrombin cleavage site to permit removal of GST and a C-terminal hexahistidine (His)6 tag (Figure 1A).
Two days after infecting Hi5 insect cells with recombinant baculovirus we detected GST-mNT5E protein in the tissue culture supernatant at approximately 10 mg/L. This observation suggested that exclusion of Ser523 was important for producing a soluble version of NT5E. Additionally, based on SDS-PAGE and western blotting, the GST-mNT5E found in the medium was largely intact whereas cell lysates contained truncated and intact versions of mNT5E-GST (data not shown). We next purified mNT5E from the culture supernatant in two steps (see Methods). We reasoned that GST, a protein that binds glutathione, might interfere with physiological or behavioral studies if administered in vivo. So as part of our purification procedure, the GST fusion was removed by thrombin cleavage. Protein purity was analyzed under denaturing conditions with GelCode Blue protein stain (Figure 1B) and western blotting with an anti-NT5E antibody (Figure 1C). We observed a single band at ∼62 kDa, corresponding to the calculated molecular weight of unglycosylated mNT5E with a (His)6 tag (61.7 kDa). No additional bands were observed, indicating that mNT5E protein was intact.
The activity of secreted mNT5E was initially determined in vitro. Purified recombinant mNT5E protein dephosphorylated AMP with a K M of 26 μM (Figure 2A). This K M value is in agreement with the previously reported range of 1–50 μM using AMP as substrate at pH 7.0 [8,34]. Recombinant mNT5E was also inhibited by α,β-me-ADP (IC50 = 0.43 μM; Figure 2B), a commonly used inhibitor of NT5E [1]. Although recombinant NT5E was not used, others obtained a slightly higher IC50 value of 3.6 μM with this inhibitor [37]. For comparison, we found that α,β-me-ADP (0.01–500 μM) did not inhibit recombinant mouse PAP when AMP was used as substrate (data not shown). Production of recombinant mouse PAP was described previously [11].
mNT5E has long lasting antinociceptive effects that are A1R dependent

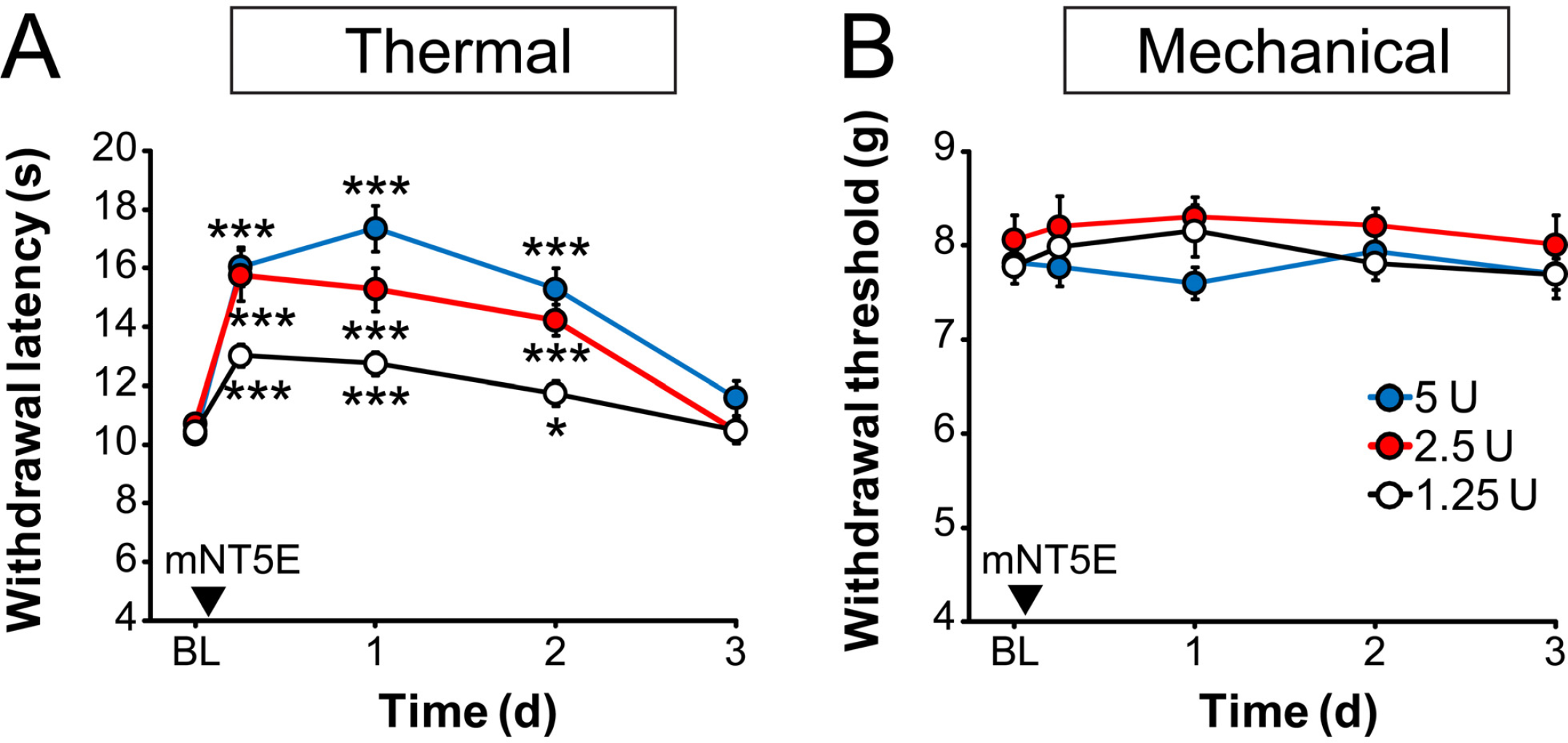

We previously found that a single intrathecal injection of PAP had antinociceptive, antihyperalgesic and antiallodynic effects that lasted for three days and that were dependent on A1R activation [10,11]. To empirically identify an effective dose of mNT5E for in vivo studies and to determine if mNT5E had long lasting antinociceptive effects, we intrathecally injected wild-type mice with increasing doses of recombinant mNT5E protein (Figure 3). Time points were based on our previous studies with PAP [10,11]. We then measured noxious thermal and mechanical sensitivity before (baseline, BL) and after mNT5E injection. Six hours post i.t. injection, paw withdrawal latency to the noxious thermal stimulus was significantly increased relative to controls and remained elevated for two days at all doses tested (Figure 3A). Intrathecal injection of mNT5E did not alter mechanical sensitivity (Figure 3B) nor did it cause paralysis or sedation at any of the doses tested. We previously found that PAP (from human, cow and mouse) also had selective thermal but not mechanical antinociceptive effects in naïve mice and had no obvious motor side effects [10,11]. We next evaluated the antinociceptive effects of mNT5E in the CFA model of inflammatory pain and the SNI model of neuropathic pain. We used wild-type (WT) and A1R−/− mice, to evaluate dependence on A1R activation. We used the contralateral (non-inflamed/non-injured) paw as a control. As seen previously [9,10,12], A1R−/− mice displayed enhanced thermal hyperalgesia after CFA injection and after nerve injury relative to WT mice (Figure 4A, C). In both chronic pain models, a single i.t. injection of mNT5E had long lasting (at least 2 days) thermal antihyperalgesic and mechanical antiallodynic effects in the inflamed/injured paw of WT mice but not A1R−/− mice (Figure 4A-D). Indeed, thermal sensitivity transiently returned to baseline levels in the injured/inflamed paws following mNT5E injection whereas mechanical sensitivity approached but did not reach baseline levels. Consistent with our dose-response study above, mNT5E had thermal but not mechanical antinociceptive effects in the control (non-inflamed/non-injured) paws of WT mice. mNT5E had no antinociceptive effects in A1R−/− mice, highlighting a critical dependence on A1R activation. We previously found that control injections had no effect on thermal or mechanical sensitivity in these mouse models [10,11]. When combined with numerous studies of NT5E by others (reviewed by [2]), our data suggest that all the antinociceptive effects of mNT5E are due to production of adenosine and activation of A1R on DRG neurons and/or spinal neurons [38,39].
Discussion
Adenosine and selective A1R agonists have well-studied antinociceptive effects in rodents and humans [26,40,41]. These agonists are often delivered intrathecally to avoid side effects associated with peripheral A1R activation [42]. However, A1R agonists do have side effects when delivered intrathecally at high doses, including overt motor paralysis [10,43]. These motor side effects are likely due to activation of A1R on motor neurons [39]. Our present study indicates that NT5E, an ectonucleotidase that hydrolyzes AMP to adenosine, provides an alternative means of activating A1R for therapeutic purposes without causing overt motor paralysis. Although PAP also has A1R-dependent antinociceptive effects when injected intrathecally [10,11], PAP shares no sequence similarity to NT5E. This lack of similarity made it impossible for us to determine a priori if recombinant mNT5E would be catalytically active, stable and effective when tested in live animals.
As previously discussed [11], ectonucleotidases are catalytically restricted in that they generate adenosine in proportion to substrate availability. Catalytic restriction limits the amount of adenosine produced and could explain why saturating doses of PAP or NT5E protein do not paralyze mice. Moreover, adenosine can be eliminated from the extracellular space by nucleoside transporters and metabolic enzymes, including adenosine deaminase and adenosine kinase [40,44]. These competing processes of adenosine production and elimination place an upper limit on how much extracellular adenosine is available to activate A1R in animals. In support of this, adenosine deaminase inhibitors and adenosine kinase inhibitors prolong the extracellular bioavailability of adenosine and have antinociceptive effects in animals [17,21,45,46].
Unexpectedly, our studies revealed that two molecularly distinct ectonucleotidases (PAP and NT5E) have pronounced antinociceptive effects that persist for an extended time period (2–3 days). This long duration of action in vivo could not have been predicted from the biochemical properties of these enzymes alone. More importantly, our findings suggest ectonucleotidases represent a new class of antinociceptive drugs with potential therapeutic advantages over adenosine, A1R agonists and inhibitors of adenosine metabolism. For example, the long duration of action of ectonucleotidases could be useful in situations where there is a need to provide a sustained level of A1R activation. Moreover, recombinant NT5E could be used to further study the role of NT5E in pain mechanisms and to study many other physiological processes that are regulated by NT5E [2,9].
Methods
Molecular biology
The GST-mNT5E baculovirus expression plasmid was generated by PCR amplification of mouse NT5E (nt 131–1696 from GenBank accession #
mNT5E protein purification
The GST-mNT5E plasmid was used to generate recombinant mNT5E protein using the BD BaculoGold Expression System (BD Biosciences). Briefly, we infected Hi5 insect cells with high-titer recombinant baculovirus, incubated the cells for 48 hours at 27°C and then removed the cells from the supernatant by centrifugation. The supernatant containing secreted GST-mNT5E was filtered (0.45 μm pore size, Millipore) and concentrated in PBS (10 mM sodium phosphate, 140 mM NaCl, pH 7.4) using a Millipore cartridge with a 10 k retention cutoff. The concentrated supernatant was loaded onto a 5 mL GSTrap FF column (GE Healthcare) using a peristaltic pump at 4°C. Loading was performed overnight at a slow flow rate (0.4 mL/min. for 14–16 hours) to optimize binding of the GST-tagged protein. The column was then washed with 50 mL PBS. Purified thrombin (GE Healthcare, Cat. # 27-0846-01) was added to 2 mL of PBS (250 U thrombin/L of expression culture) and loaded onto the GSTrap column using a syringe. The on-column cleavage reaction proceeded for 16 hours at room temperature. The pre-loaded GSTrap column was then attached to an ÄKTA Explorer chromatography system with UV monitoring. Cleaved mNT5E and thrombin were eluted in PBS while the GST tag remained bound to the column. Fractions were monitored by SDS-PAGE to estimate purity, mNT5E concentration and cleavage efficiency (∼80%). The cleaved mNT5E was separated from thrombin using a Superdex75 10/300 GL column attached to the ÄKTA Explorer system. Proteins were eluted in PBS at a flow rate of 0.5 mL/min. A maximum of 500 μL was injected per run. Fractions containing cleaved mNT5E were pooled, concentrated and then dialyzed against 0.9% saline. Protein purity was confirmed by SDS-PAGE, staining for total protein with GelCode Blue (Pierce/Thermo Scientific, Cat. # 24590) and western blotting with anti-NT5E antibody (R&D Systems, AF4488). Amersham full-range rainbow molecular weight markers (GE Healthcare) were used for SDS-PAGE and western blots. Recombinant mNT5E was kept at 4°C for short-term (1–2 months) use and at −80°C for long term storage.
Enzyme assays
Enzymatic reactions (50 μL final) were carried out with recombinant mNT5E at 37°C for 3 minutes in 100 mM HEPES, pH 7.0, 4 mM MgCl2 with adenosine 5′-monophosphate disodium salt (Fluka, 01930) as substrate. Reactions were terminated by adding 950 μL of the malachite green color reagent [0.03% (w/v) malachite green oxalate, 0.2% (w/v) sodium molybdate, 0.05% (v/v) Triton X-100, dissolved in 0.7 M HCl] followed by incubation at room temperature for 30 minutes. Inorganic phosphate was quantified by measuring OD650 and comparing to an inorganic phosphate (KH2PO4) standard curve [47]. Unit (U) definition: 1 U hydrolyzes 1 nmol of AMP per minute at 37°C at pH 7.0. α,β-me-ADP was purchased from Sigma (M3763).
Behavior
All behavioral experiments involving vertebrate animals were approved by the Institutional Animal Care and Use Committee at the University of North Carolina at Chapel Hill. C57BL/6 mice, 2–4 months old, were purchased from Jackson Laboratories. A1R−/− mice were backcrossed to C57BL/6J mice for 12 generations [48,49]. Male mice were used for all behavioral studies and were acclimated to the testing room, equipment and experimenter for at least three days before testing. To further reduce variability in behavioral studies, mice were almost exclusively tested when in the resting or light sleep behavioral state [50]. The experimenter was blind to genotype during behavioral testing.
Thermal sensitivity was measured by heating one hind-paw with a Plantar Test apparatus (IITC) following the Hargreaves method [51]. The radiant heat source intensity was calibrated so that a paw withdrawal reflex was evoked in ∼10 s., on average, in wild-type C57BL/6 mice. Cutoff time was 20 s. One measurement was taken from each paw per time point to determine paw withdrawal latency. Mechanical sensitivity was measured using a semi-flexible tip attached to an Electronic von Frey apparatus (IITC) as described elsewhere [52,53]. The force values obtained with this apparatus are higher than the force values obtained using calibrated von Frey filaments [53]. Three measurements were taken from each paw then averaged to determine paw withdrawal threshold in grams. To induce inflammatory pain, 20 μL complete Freund's adjuvant (MP Biomedicals) was injected into one hindpaw, centrally beneath glabrous skin, with a 30G needle. We performed spared nerve injury surgeries as described by Shields and colleagues [54]. mNT5E protein was diluted in 0.9% saline for intrathecal injection (5 μL/mouse) using the direct lumbar puncture method [55]. None of the mNT5E-injected mice displayed reduced mobility or paralysis following injection, as assessed by visually observing motor activity following injections.
Footnotes
The authors declare that they have no competing interests.
NAS carried out the behavioral studies and drafted figure legends, MKV carried out molecular and biochemical studies and drafted portions of the manuscript, MJZ designed the mNT5E expression construct, conceived of and designed the study and wrote the manuscript. All authors read and approved the final manuscript.
