Abstract
Background:
There is growing evidence supporting a role for TRPA1 receptors in the neurotransmission of peripheral mechanical stimulation. In order to enhance understanding of TRPA1 contributions to mechanotransmission, we examined the effects a selective TRPA1 receptor antagonist, A-967079, on spinal neuronal activity following peripheral mechanical stimulation in uninjured, CFA-inflamed, and osteoarthritc (OA) rats.
Results:
Systemic injection of A-967079 (30 μmol/kg, i.v.) decreased the responses of wide dynamic range (WDR), and nociceptive specific (NS) neurons following noxious pinch stimulation of the ipsilateral hind paw in uninjured and CFA-inflamed rats. Similarly, A-967079 reduced the responses of WDR neurons to high-intensity mechanical stimulation (300 g von Frey hair) of the knee joint in both OA and OA-sham rats. WDR neuronal responses to low-intensity mechanical stimulation (10 g von Frey hair) were also reduced by A-967079 administration to CFA-inflamed rats, but no effect was observed in uninjured rats. Additionally, the spontaneous activity of WDR neurons was decreased after A-967079 injection in CFA-inflamed rats but was unaltered in uninjured, OA, and OA-sham animals.
Conclusions:
Blockade of TRPA1 receptors disrupts transmission of high-intensity mechanical stimulation to the spinal cord in both uninjured and injured rats indicating that TRPA1 receptors have an important role in noxious mechanosensation in both normal and pathological conditions. TRPA1 receptors also contribute to the transmission of low-intensity mechanical stimulation, and to the modulation of spontaneous WDR firing, but only after an inflammatory injury.
Background
The transient receptor potential (TRP)A1 receptor is part of a larger family of TRP ion channels that includes TRPV, TRPM, TRPC, TRPN, TRPP, and TRPML [1–3]. TRPA1 is expressed in small and medium-sized peptidergic primary afferent sensory neurons that also express TRPV1 [4–8]. A recent report has also demonstrated localization of TRPA1 to a subclass of large diameter primary afferent sensory neurons and epidermal kerantinocytes [8]. TRPA1 is activated by a variety of chemical irritants that include allyl isothiocyanate (mustard oil), allicin, gingerol, cinnamaldehyde, eugenol, and methysalicylate [5,6,9,10]. Local application of these TRPA1 agonists induces spontaneous pain in humans [11], as well as nocifensive behaviors and hypersensitivity to peripheral stimulation in animals [10,12].
There is now growing evidence demonstrating an important role for TRPA1 receptors in mechanotransmission [13–15]. TRPA1 ablated mice (TRPA1−/−) were less sensitive to low-intensity mechanical stimuli compared to wild-type mice, and responses to high-intensity mechanical stimulation were appreciably impaired [13]. Using the skin-nerve preparation, it was found that TRPA1 receptors in normal skin are necessary for mechanotransmission in several type of primary afferent fibers including slowly adapting C-fibers (all ranges of intensity), Aδ-fiber mechanonociceptors (only high-intensity), and slowly adapting Aβ-fibers (all ranges of intensity) [8]. Additionally, application of the TRPA1 antagonist, HC-030031 attenuated C-fiber responses to high-intensity mechanical stimulation of normal skin [16]. After an inflammatory injury, there is an increase in TRPA1 expression as well as a decrease in mechanical thresholds of TRPA1-containing primary afferent neurons [17,18]. Furthermore, mechanical sensitivity of inflamed animals was significantly decreased by systemic (HC-030031) or intraplantar (AP18) administration of TRPA1 receptor antagonists [19,20].
In order to further delineate the role of TRPA1 receptors in normal and pathological mechanotransmission, we administered a selective TRPA1 receptor antagonist, A-967079 (Figure 1), to examine its effects on spinal nociceptive neurons in uninjured, inflamed, and osteoarthritic (OA) rats. Systemic delivery of A-967079 has been shown to decrease mechanical sensitivity in several rat models of pathological nociception [21]. We also examined the actions of A-967079 on the spontaneous firing of spinal wide dynamic range (WDR) neurons in each of the animal models examined. Spontaneous activity of WDR neurons is heightened following a chronic injury and is an indication of central sensitization and possibly non-evoked or ongoing pain [22–27].
Structure of A-967079.
Methods
All animal handling and experimental protocols were approved by Abbott's Institutional Animal Care and Use Committee (IACUC), and were conducted in accordance with the ethical principles for pain-related animal research of the American Pain Society. Male Sprague-Dawley rats (Charles River, MA, 250–400 g) were used for all experiments and were housed in a temperature controlled room with a 12/12-hr day/night cycle. Food and water were available ad libitum.
Compound
A-967079 was synthesized at Abbott Laboratories (Abbott Park, IL). A-967079 is a TRPA1 receptor antagonist with IC50's of 67 nM and 289 nM at human and rat TRPA1 receptors, respectively, and has good penetration into the CNS [21]. A-967079 (10 μM) is weak (ED50 > 5 μM) or not active at 89 different G-protein-coupled receptors, enzymes, transporters, and ion channels including other TRP channels (CEREP, Poitiers, France; and unpublished data), and thus is selective for TRPA1 receptors.
Animal models
Uninjured, inflamed, osteoarthritic and sham osteoarthritic animals were used for the experiments. Osteoarthritis was induced 21 days prior to electrophysiological testing by injecting 3 mg Monoiodoacetate (MIA, 50 μl) i.a. through the infrapatella ligament of the right knee. Animals were anesthetized with 5% isoflurane followed by 2.5% maintenance during the MIA injection procedure. MIA was dissolved in 0.9% sterile saline and administered using a 29-gauge needle. Sham OA animals received an i.a injection of saline 21 days prior to testing. Chronic inflammation was induced by injecting complete Freund's adjuvant (CFA, 50%, 150 μl) into the plantar surface of the rat's right hindpaw 48 hours prior to the electrophysiology experiments.
Electrophysiological protocol
On the day of neuronal recording, all animals were initially anesthetized with pentobarbital (50 mg/kg, i.p.). Catheters were placed into the left and right external jugular veins. A laminectomy was performed to remove vertebral segments T12-L3 for uninjured and CFA rats, and T9-L2 for OA and OA-sham rats to record from spinal neurons that receive input from either the right paw or knee, respectively. All animals were then secured in a stereotaxic apparatus (Kopf Instruments, Tujunga, CA) supported by clamps attached to the vertebral processes on either side of the exposure site. The exposed area of the spinal cord was first enveloped by agar and then filled with mineral oil. A stable plane of anesthesia was maintained throughout the experiment by a continuous infusion of propofol at a rate of 8–12 mg/kg/hr (i.v.). Body temperature was kept at approximately 37°C by placing the animals on a circulating water blanket.
Platinum-iridium microelectrodes (Frederick Haer, Brunswick, ME) were used to record extracellular activity of spinal dorsal horn neurons. The activity of WDR neurons was recorded from all groups of rats. WDR neurons were defined as those neurons that respond in a graded manner to both low- and high-intensity stimulation. The firing of nociceptive specific (NS) neurons was also recorded from CFA and uninjured rats. NS neurons were defined as those neurons that respond only to high-intensity (noxious) stimulation. Spike waveforms were monitored on an oscilloscope throughout the experiment, digitized (32 points), and then stored for off-line analysis (SciWorks, Datawave Technologies, Longmont, CO) to ensure that the unit under study was unambiguously discriminated throughout the experiment.
Each neuron was characterized to confirm WDR or NS response patterns. For CFA and uninjured animals, the neuronal receptive field (RF) on the ipsilateral hind paw was (in order) gently tapped, brushed, given a noxious pinch with forceps, and stimulated with a 10-g von Frey hair for 2–3 sec. In OA and OA-sham rats, neurons were characterized by responses to manual gentle rubbing, and a 300-g von Frey applied to the knee for 2–3 sec. Only neurons that specifically responded to knee joint stimulation, without responding to stimulation of the surrounding skin/tissue, were kept for recordings in OA and OA-sham rats.
After characterization, three baseline responses, separated by 5 min each, to specific stimulation (see below) of the neuronal RF were recorded. Spontaneous and evoked neuronal activity was then measured 5, 15, 25, and 35 min after systemic injection of A-967079 (30 μmol/kg, i.v.) or vehicle (polyethylene glycol). The intravenous injection of A-967079 or vehicle was completed over a 6–7 min period. The i.v. dose of A-967079 was selected based on extrapolated plasma levels that were effective in behavioral studies (data not shown). Except for 2 experiments in which two easily distinguished neurons were simultaneously recorded on one electrode, only one neuron was studied per rat. Since only one vehicle was used in these experiments, vehicle data was combined when a clear “no effect” was observed in at least 2–3 animals from a particular subset of groups (e.g. OA and sham OA).
Only one form of test stimulation was given in each specific experiment. In uninjured and CFA-inflamed rats, WDR responses to either low-intensity (10 g von Frey hair for 15 s) or high-intensity (noxious pinch with 22 mm mini bulldog clamp for 10 s) mechanical stimulation of the RF on the right hindpaw were recorded. Responses of NS neurons to noxious pinch (22 mm mini bulldog clamp for 10 s) of the RF were also recorded in uninjured and CFA-inflamed rats. Finally, in OA and OA-sham rats, a 300 g von Frey hair test stimulus was applied to the right knee joint for 10 s to evoke WDR activity.
Data analysis
At the onset of each experiment, spontaneous neuronal firing was counted for 5 min to determine baseline levels (prior to characterization). Post-drug spontaneous firing was measured in the 5 min leading up to each stimulus at 5, 15, 25 and 35 min after injection. Evoked activity was measured by counting the spikes during the time of stimulus presentation. Thus, the total number of spikes was counted for 10 s during pinch and 300 g von Frey stimulation, and for 15 s during the 10 g von Frey stimulation. A mean of the three pre-drug evoked stimuli was calculated to represent baseline evoked activity. For each neuron, the post-drug spontaneous and evoked activity was calculated as a percent of the respective baseline levels.
Statistical analysis was performed on baseline levels of neuronal spontaneous activity for uninjured, CFA, OA and OA-sham rats by conducting a one-way ANOVA followed by a Fisher's LSD. Baseline levels of evoked firing for a particular stimulus were compared by using t-tests. For comparisons to baseline firing levels, statistical significance of post-drug activity was established by using a repeated-measures ANOVA followed by a Fisher's least significant difference (LSD) test. A two-way ANOVA followed by a Fisher's LSD was used for comparison of drug and vehicle groups. Post-hoc tests were only performed if the relevant parameter was significant in the ANOVA. All data are presented as mean ± SEM, and a difference was considered significant if it reached a p-value of less than 0.05.
Results
Baseline neuronal activity
Discharge activity was recorded from 63 WDR and 17 NS neurons from the deep dorsal horn with a mean depth of 704.7 ± 23.8 μm, and 814.7 ± 45.9 μm, respectively, from the surface of the spinal cord. Rates of spontaneous and evoked firing for WDR neurons under baseline (pre-drug) conditions in uninjured, CFA-in-flamed, OA and OA-sham rats are shown in Table 1. NS neuronal activity was also examined in uninjured and CFA-inflamed rats. The mean rate of spontaneous firing for NS neurons in uninjured and CFA-inflamed rats was 0.03 ± 0.02 and 0.18 ± 0.06 spikes/sec, respectively. However, no spontaneous firing was observed in 6 of 9 NS neurons recorded from uninjured rats and in 1 of 8 neurons recorded from CFA-inflamed rats. Thus, due to the very low levels of spontaneous firing of NS neurons, this measure was not used for subsequent analysis. The mean number of baseline discharges from NS neurons following noxious pinch stimulation in uninjured and CFA rats was, 15.64 ± 5.02 and 16.42 ± 2.58 spikes/sec, respectively.
Baseline discharge rates of WDR neurons
significant vs. uninjured group +p < 0.05, and ++p < 0.01 (Fisher's LSD), *p < 0.05 (t-test).
Effects of A-967079 on WDR and NS neuronal activity in uninjured and CFA-inflamed rats
Systemic administration of A-967079 (30 μmol/kg, i.v.) reduced the responses of WDR neurons to high-intensity (pinch), but not low-intensity (10 g von Frey hair) stimulation of the RF in uninjured rats (Figure 2A, C, D). The reduction in WDR responses to pinch was significant compared to both baseline levels (p = 0.02, repeated-measures ANOVA), and the vehicle group (p = 0.0002, two way ANOVA). A-967079 decreased the evoked pinch responses of WDR neurons by approximately 30% from baseline levels. This effect was observed 15 min after injection and remained at this level for the duration of recording period (35 min post-injection). Spontaneous firing of WDR neurons was not altered by the injection of A-967079 to uninjured rats (Figure 2B).

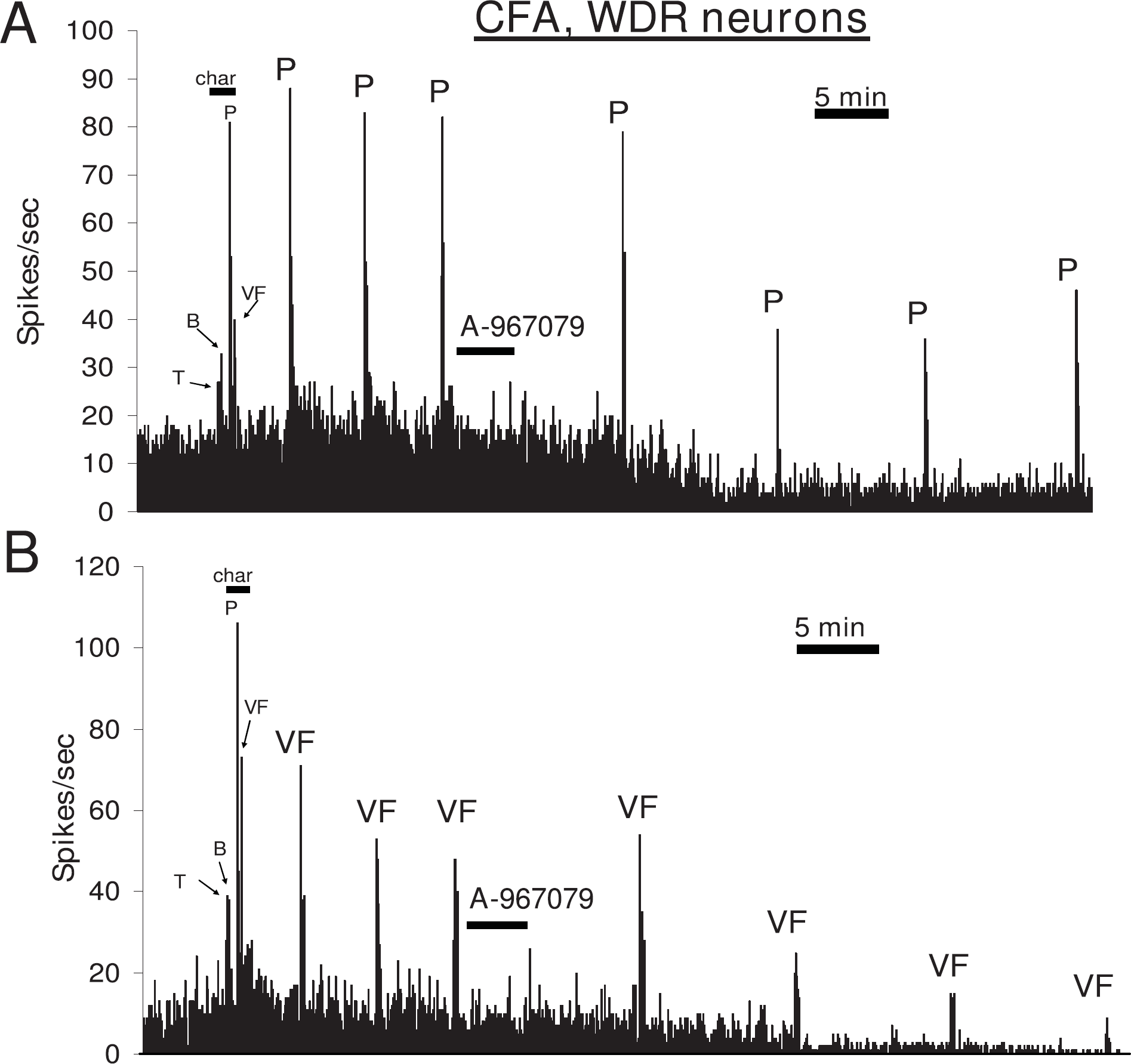

Similar to its actions in uninjured rats, administration of A-967079 (30 μmol/kg, i.v.) to CFA-inflamed rats significantly reduced WDR neuronal responses to noxious pinch stimulation (Figures 3A and 4A) compared to baseline firing (p = 0.0013, repeated-measures ANOVA) and the vehicle group (p = 0.0001, two-way ANOVA). The maximum observed effect (61.1 ± 10.97% decrease from baseline levels) on pinch-evoked activity in inflamed rats occurred 35 min after injection. In contrast to uninjured rats, injection of A-967079 to CFA-in-flamed rats also significantly (p = 0.0004, and p = 0.0001 for the repeated-measures and two-way ANOVA's, respectively) reduced responses of WDR neurons to 10-g von Frey hair stimulation (Figures 3A and 4B). The maximal observed decrease in von Frey-evoked activity was 67.69 ± 18.39% from baseline levels (35 min post-injection), and was thus comparable to the effects of A-967079 on pinch-evoked activity in inflamed rats.
Also in contrast to the effects in uninjured rats, systemic injection of A-967079 significantly attenuated the spontaneous firing of WDR neurons in CFA-inflamed rats (Figures 3B and 4A, B) compared to both baseline levels (p = 0.001, repeated-measures ANOVA) and the vehicle group (p = 0.04, two-way ANOVA). This effect of A-967079 on spontaneous firing was detected by 25 min after injection, and reached a maximally observed reduction (59.27 ± 13.65% from baseline levels) 35 min post-injection.
NS neuronal activity in both uninjured and CFA-inflamed rats was substantially decreased by A-967079 (30 μmol/kg, i.v.) (Figure 5) compared to baseline levels (p = 0.0001 for both groups, repeated-measures ANOVA) as well as the vehicle group (p = 0.0004 and p = 0.0001, two-way ANOVA for uninjured and CFA rats, respectively). The pinch-evoked firing of NS neurons was significantly (p < 0.05, Fisher's LSD) reduced 5 min after injection of A-967079, and was nearly eliminated by 25 min post-injection in both groups of rats. Responses of NS neurons to noxious pinch stimulation were maximally decreased by 82.09 ± 17.55%, and 92.49 ± 3.79% from baseline levels in uninjured and inflamed rats, respectively.
Effects of A-967079 on WDR neuronal activity in OA and sham OA rats

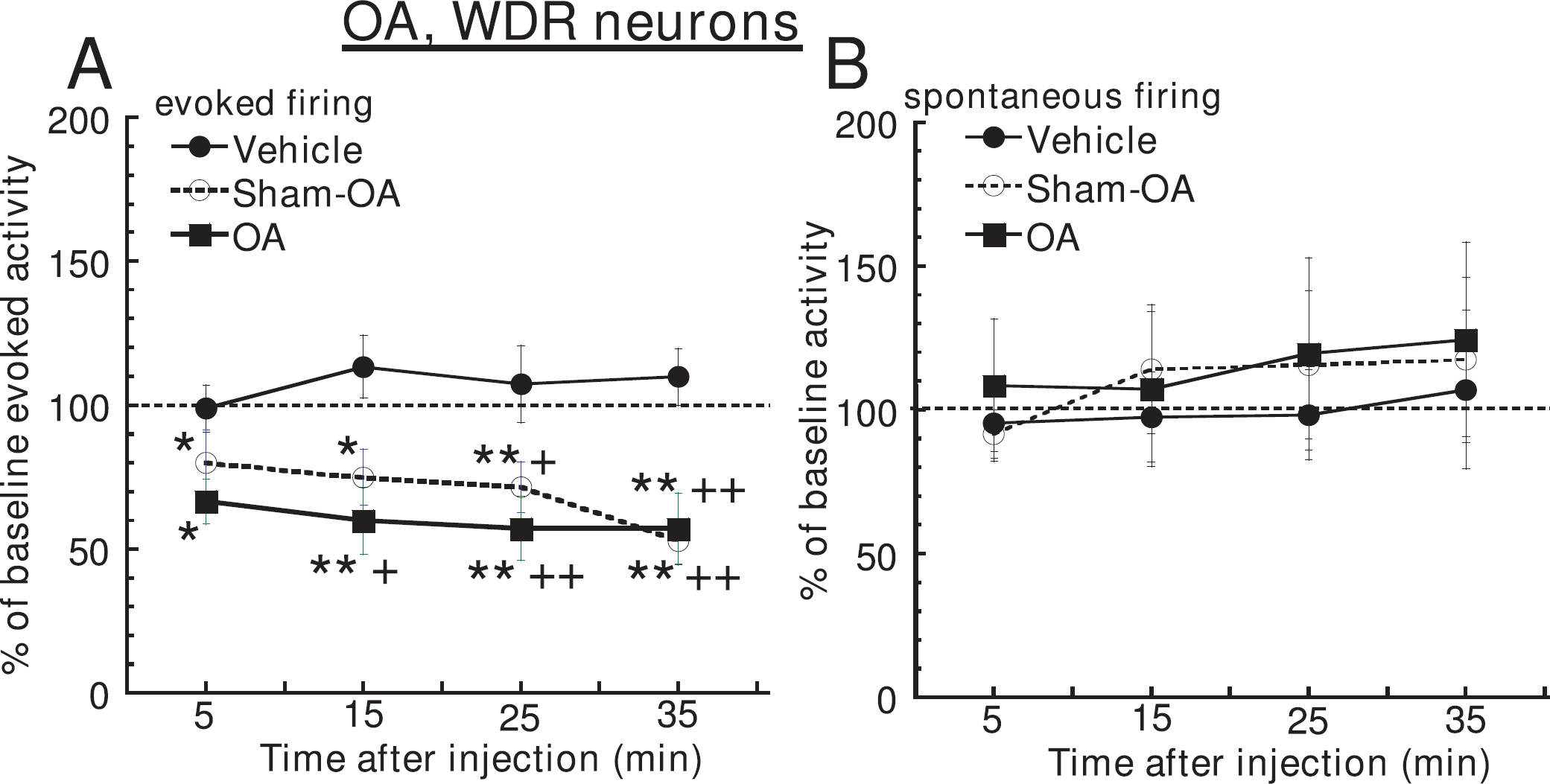

The firing of WDR neurons was also examined in MIA-induced OA and sham OA rats. The testing parameters in these two groups of rats were limited to high-intensity stimulation due to the difficulty and questionable reliability of stimulating the knee joint through its surrounding tissue with a low-intensity stimulus. Responses of WDR neurons to a 300-g von Frey were significantly reduced from baseline levels of firing (p = 0.015 and p = 0.0009, repeated measure ANOVA, respectively) after injection of A-967079 (30 μmol/kg, i. v.) to both OA and sham OA rats (Figures 6A and 7). This evoked response was also significantly reduced compared to the vehicle group (p = 0.0001 for both groups, two-way ANOVA). The effects of A-967079 in these models were similar, as evoked firing of WDR neurons from OA rats was maximally reduced by 42.92 ± 12.3% from baseline levels, while the same stimulation was maximally decreased by 47.35 ± 8.06% in OA-sham rats at 35 min post-injection. Spontaneous firing of WDR neurons was not altered by A-967079 in either OA or OA-sham rats (Figures 6B and 7).
Discussion
Systemic administration of the selective TRPA1 receptor antagonist, A-967079, reduced the responses of spinal WDR and NS neurons to high-intensity mechanical stimulus in both uninjured rats and in rats with OA or an inflammatory injury. These in vivo effects add to the growing evidence confirming that TRPA1 receptors have an important role in the transmission of noxious mechanical signals to the spinal cord under both normal and pathological conditions [8,13,16,19,20]. In contrast, the transmission of low-intensity mechanical stimulation was impeded by A-967079 only following an inflammatory injury, and was not altered in uninjured animals. Clearly, the contributions of TRPA1 to mechanosensation shift to include lower intensity stimulation following the inflammatory insult, and this data appears to be consistent with other reports demonstrating an enhanced role for TRPA1 during inflammation [17–20,28].
The neuronal responses to high-intensity peripheral stimulation were attenuated by injection of A-967079 in each of the animal models examined (uninjured, CFA-inflamed, OA, and OA-sham). The intensity of the two stimuli, a clamp-inflicted pinch and 300-g von Frey hair, would certainly be considered in the noxious range. It is likely that A-967079 acted on a similar set of pathways into the spinal cord to modulate the high-intensity stimulation across the different animal models. Furthermore, since both NS and WDR neuronal activity was modulated by A-967079, these pathways likely influence both of these classes of nociceptive neurons. Since A-967079 was administered systemically we cannot determine its exact site(s) of action, but expression of TRPA1 has been localized to different sized primary afferent sensory neurons as well as epidermal kerantinocytes [4–8]. In studies using the skin-nerve preparation, it was reported that application of a TRPA1 antagonist (HC-030031) did not alter the responses of C- and A-fibers to low-intensity mechanical stimulation of normal skin [16]. However, HC-030031 reduced the responsiveness of C-fibers once the stimulus force was increased into the high-intensity range, but Aδ-fiber activity was still unaffected. Thus, TRPA1 receptors on C nociceptors, particularly the slow-adapting subtype [13], appear to play a significant role in high-intensity mechanotransmission. Input to the spinal cord from these TRPA1-containing C-fibers was likely impeded by A-967079 administration in each of the animal models examined, and highlights the importance of this subclass of afferent neurons in transferring noxious mechanical stimulation from the periphery to the spinal cord in both normal and pathological states. It is interesting to note that while WDR neuronal responses to high-intensity stimuli were significantly attenuated by injection of A-967079, the responses of NS neurons to the same simulation were almost completely eliminated. WDR neuronal activity is influenced by a diversity of afferent fibre types, including non-TRPA1-containing fibers. Thus, it is not surprising that the responses of WDR neurons to high-intensity mechanical stimulation were not totally blocked by the injection of A-967079. When combined with the localization data, the almost complete suppression of NS neuronal firing after administration of A-967079 suggests that the mechanical responses of this neuronal class are greatly influenced by input from a specific set of C-fibers that contain TRPA1 receptors.
The transmission of low-intensity mechanical stimulation to WDR neurons was also reduced by A-967079 administration, but only in the CFA-inflamed rats. This additional action of A-967079 in CFA-injected rats indicates that TRPA1 has a role in mechanical hypersensitivity during inflammation. Consistent with this data, injection of TRPA1 receptor antagonists, HC-030031 and AP18, reduced behavioral mechanical hypersensitivity in CFA-inflamed animals [19,20]. The mechanical thresholds of TRPA1-containing primary afferent neurons have been shown to shift lower following CFA-induced inflammation [18], and may be the means through which A-967079 attenuated WDR responses to low-intensity stimulation. There are several factors that may contribute to the lowering of mechanical thresholds for TRPA1-containing neurons after CFA injection, including TRPA1 upregulation in the dorsal root ganglion [17,18], and direct activation or indirect sensitization of the receptor by bradykinin, prostaglandins, and other endogenous agents released during inflammation [8,10,28–32]. We did not examine the effects of A-967079 on low-intensity stimulation in OA rats due to the difficulty in reproducibly stimulating the knee joint through surrounding skin/tissue with a low force stimulus. Nonetheless, antagonism of TRPA1 receptors reduces mechanical allodynia in neuropathic rats [19], demonstrating that TPRPA1 receptors may have a role in pathological mechanotransmission in a model other than inflammatory injury.
A-967079 also reduced the “heightened” spontaneous firing of WDR neurons in CFA-inflamed rats. As we and others have observed previously, the spontaneous firing of WDR neurons is elevated following CFA-induced inflammation [23,24,33–35], and likely reflects injury-related sensitization of this class of spinal neurons [22–27]. Given that WDR neurons are an integral component of the ascending nociceptive pathway, and that higher levels of WDR firing generally code for increased somatosensory intensity, the observation that WDR neurons in inflamed rats spontaneously discharge at rates higher than normal may indicate that there is unevoked or “nagging” discomfort in the animal. Unevoked pain is observed in the majority of patients with chronic pain, and is a primary reason for seeking medical care [36,37]. Suzuki and Dickenson [27] have reported that heightened spontaneous discharges of WDR neurons are either reduced, or unaltered by drugs that are effective or ineffective, respectively, in treating unevoked pain in humans. Since accurate assessment of unevoked pain in animals is difficult [38], examining the ongoing firing of WDR neurons in animal models of pathological pain may provide some insight into this undesirable condition. The current data would suggest that antagonism of TRPA1 receptors may be an effective means to alleviate unevoked pain or discomfort following an inflammatory injury.
Spontaneous firing of WDR neurons was also elevated in OA rats, but unlike in CFA-inflamed rats, this increase in ongoing discharges was not altered by injection of A-967079. One difference between these models was the site of neuronal recording since input from the knee (OA) and hind paw (CFA) arrive at different sections of the lumbar spinal cord. However, both of these sections are likely influenced by fibers containing TRPA1 receptors since injection of A-967079 decreased evoked neuronal firing in both OA and CFA rats. Albeit speculative, the differential effect of A-967079 on spontaneous firing in CFA and OA rats may be more related to the degree of inflammation on the days of neuronal recording. In the MIA-induced model of OA, inflammation of the knee region has mostly dissipated by day 7 after the MIA insult [39]. Thus, inflammation would not factor into the neuronal activity recorded on day 21 in OA rats. In contrast, the release of inflammatory mediators in the CFA assay may be an important component to the augmented contributions of TRPA1 in this model [28,30,31]. These mediators probably not only factored into the effects of A-967079 on low-intensity mechanical stimulation, but also on the antagonist-related reduction of heightened spontaneous firing.
Conclusions
The TRPA1 receptor has a significant role in the transmission of high-intensity mechanical stimulation to different classes of spinal nociceptive neurons in uninjured, inflamed and osteoarthritic animals. Additionally, there is an enhanced role for TRPA1 receptors following an inflammatory injury that includes modulation of low-intensity mechanical input to the spinal cord, and reducing elevated levels of spontaneous WDR neuronal firing. Thus, blockade of TRPA1 receptors is likely to be an effective means to alleviate pain associated with intense mechanical stimulation in both normal and pathological conditions, as well as reducing mechanical allodynia and “nagging” or unevoked pain after an inflammatory injury.
