Abstract
A growing body of evidence indicates that P2X receptors (P2XRs), a family of ligand-gated cation channels activated by extracellular ATP, play an important role in pain signaling. In contrast to the role of the P2X3R subtype that has been extensively studied, the precise roles of others among the seven P2XR subtypes (P2X1R-P2X7R) remain to be determined because of a lack of sufficiently powerful tools to specifically block P2XR signaling in vivo. In the present study, we investigated the behavioral phenotypes of a line of mice in which the p2rx4 gene was disrupted in a series of acute and chronic pain assays. While p2rx4−/− mice showed no major defects in pain responses evoked by acute noxious stimuli and local tissue damage or in motor function as compared with wild-type mice, these mice displayed reduced pain responses in two models of chronic pain (inflammatory and neuropathic pain). In a model of chronic inflammatory pain developed by intraplantar injection of complete Freund's adjuvant (CFA), p2rx4−/− mice exhibited attenuations of pain hypersensitivity to innocuous mechanical stimuli (tactile allodynia) and also of the CFA-induced swelling of the hindpaw. A most striking phenotype was observed in a test of neuropathic pain: tactile allodynia caused by an injury to spinal nerve was markedly blunted in p2rx4−/− mice. By contrast, pain hypersensitivity to a cold stimulus (cold allodynia) after the injury was comparable in wild-type and p2rx4−/− mice. Together, these findings reveal a predominant contribution of P2X4R to nerve injury-induced tactile allodynia and, to the lesser extent, peripheral inflammation. Loss of P2X4R produced no defects in acute physiological pain or tissue damaged-induced pain, highlighting the possibility of a therapeutic benefit of blocking P2X4R in the treatment of chronic pain, especially tactile allodynia after nerve injury.
Findings
The purinergic P2X receptors, of which seven subtypes (P2X1–P2X7) have been cloned, are a family of ligand-gated cation channels activated by extracellular ATP. They have important roles in regulating neuronal and glial functions in the nervous system under physiological and pathological conditions [1–3]. There has been much recent attention paid to their roles in generating and modulating pain signaling [1–3]. Various attempts to block P2XRs pharmacologically or to suppress their expression molecularly and genetically have demonstrated that these receptors make a major contribution to pain responses evoked by tissue damage, chronic peripheral inflammation and nerve injury [4–6]. While the role of P2X3R (and P2X2+3R) has been studied extensively, recent evidence from our and other studies indicates that the P2X4R subtype critically contributes to neuropathic pain, a highly debilitating pain condition that commonly occurs after nerve damage [7–13]. However, the precise role of P2X4R in neuropathic pain remains to be fully determined because, in stark contrast to P2X3R [14–16] and P2X7R [17, 18], there is a lack of sufficiently powerful pharmacological and genetic tools to selectively block P2X4R signaling in vivo. Recently, several groups have independently developed lines of mice in which the p2rx4 gene is disrupted [19–21]. It is of particular importance to study the phenotypes of these mice to determine the in vivo functions of P2X4R in pain signaling [22]. In the present study, we sought to characterize behavioral phenotypes in a wide range of assays of acute and chronic pain, including neuropathic pain, using a line of P2X4R-deficient mice [19].
To examine acute physiological pain responses, the withdrawal responses from a noxious range of heat and mechanical stimuli applied by von Frey filaments were measured in both wild-type and p2rx4−/− mice. In tail- and paw-flick tests, the latencies for animals to flick their tails and hindpaws away from radiant heat at either 30 V or 50 V were not different between wild-type and p2rx4−/− mice (Fig. 1A, B). In a test of mechanical pain, p2rx4−/− mice were indistinguishable from wild-type mice in terms of their paw withdrawal thresholds (Fig. 1C). Abdominal writhing behavior in response to intraperitoneal injection with acetic acid, a model of chemical-induced visceral pain, was also comparable between the two lines of mice (Fig. 1D). To determine the role of P2X4R in tissue injury-induced acute and persistent pain, we assessed the pain response following the injection of formalin into the hindpaw. In wild-type mice, injection of formalin elicited biphasic biting and licking behaviors: the first phase started immediately after the injection and lasted for 5 min, and the second phase lasted for 60 min (Fig. 1E). Neither the pattern nor the magnitude of biphasic behaviors was altered in p2rx4−/− mice (Fig. 1E). The amount of swelling of the formalin-injected hindpaw, as indicated by an increase in the weight of the hindpaw 60 min after the injection, was not significantly different between the two lines of mice (contralateral hindpaw: wild-type 0.137 ± 0.008 g, p2rx4−/− 0.130 ± 0.004 g; ipsilateral: wild-type 0.173 ± 0.005 g, p2rx4−/− 0.181 ± 0.005 g). These results indicate that pain signaling elicited by acute noxious stimuli and tissue damage is intact in p2rx4−/− mice.
Next, to investigate the role of P2X4R in pain hypersensitivity under chronic pain conditions, we employed two distinct models of chronic pain, namely inflammatory and neuropathic pain. Wild-type mice with peripheral inflammation induced by intraplantar injection of complete Freund's adjuvant (CFA), used as a model of inflammatory pain, displayed decreased paw withdrawal thresholds in their ipsilateral hindpaws (Fig. 2A). By contrast, the peripheral inflammation-induced decrease in paw withdrawal threshold was significantly smaller in p2rx4−/− mice than wild-type mice. The paw withdrawal thresholds for the contralateral hindpaws in both genotypes of mice did not change (Fig. 2A). In wild-type mice, a marked swelling of the ipsilateral hindpaw was observed, and the weight of the hindpaw was increased on day 14 (Fig. 2B). In p2rx4−/− mice, however, the CFA-induced increase in the weight of the ipsilateral hindpaw was significantly suppressed (p < 0.05, Fig. 2B).

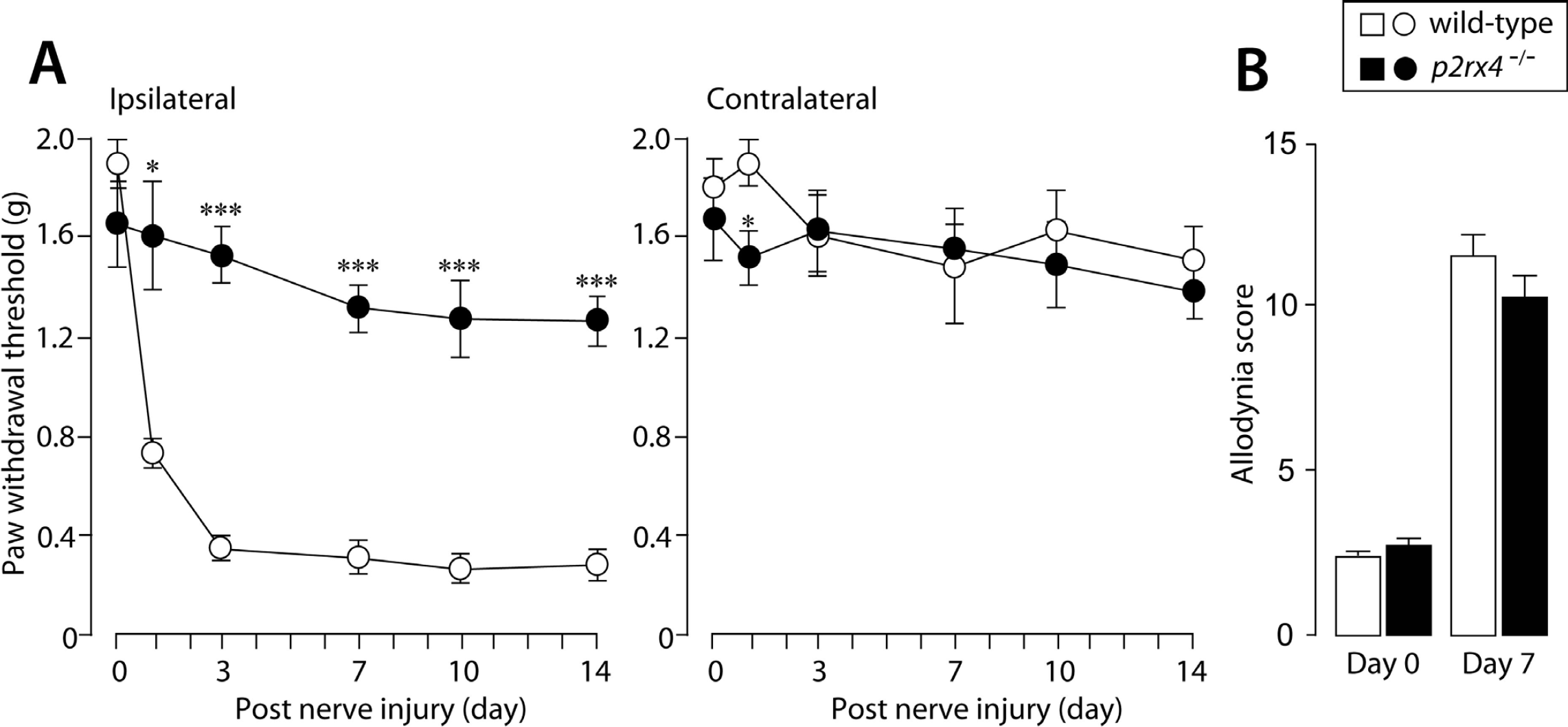

To determine the role of P2X4R in tactile allodynia under neuropathic pain conditions, we injured the forth lumbar spinal nerves of wild-type and p2rx4−/− mice; this approach has been used to generate an animal model of neuropathic pain. While wild-type mice showed a decrease in paw withdrawal threshold after nerve injury (Fig. 3A), this effect was markedly blunted in p2rx4−/− mice. The attenuated tactile allodynia was observed until the last time point tested (day 1, p < 0.05; day 3, 7, 10 and 14, p < 0.001; Fig. 3A). The loss of P2X4R did not change the paw withdrawal threshold of the contralateral hindpaw after nerve injury (Fig. 3A) as seen in wild-type mice (except on day 1, p < 0.05 vs. wild-type, Fig. 3A). A reduction in pain behaviors is occasionally misinterpreted as a result of non-specific motor dysfunction, but the rotarod performance test demonstrated no significant difference in the time on the rotarod between the two genotypes (data not shown). We further tested whether P2X4R deficiency also suppresses nerve injury-induced hypersensitivity to cold stimulation, a phenomenon known as cold allodynia. In striking contrast to the lack of nerve injury-induced tactile allodynia in p2rx4−/− mice (Fig. 3A), both wild-type and p2rx4−/− mice showed markedly enhanced responsiveness to a cold stimulus evoked by applying acetone to the ipsilateral hindpaw after nerve injury (Fig. 3B). There was no difference in the behavioral response to acetone in the contralateral hindpaw between the two lines of mice (wild-type, 3.2 ± 0.3; p2rx4−/−, 3.2 ± 0.4). These results indicate that P2X4R deficiency leads to a striking reduction in the tactile allodynia caused by nerve injury and, to the lesser extent, peripheral inflammation, without any defects in motor function.
By using P2X4R-deficient mice, we revealed that P2X4R is not required for all forms of pain responses, but rather is crucial for specialized pain states, namely chronic inflammatory and, in particular, neuropathic pain. Our present results showing the striking reduction of tactile allodynia after an injury to spinal nerves in p2rx4−/− mice together with our previous findings in rats [7] and recent findings in a line of p2rx4−/− mice after an injury to the sciatic nerve [22] provide compelling evidence for an essential role of P2X4R in nerve injury-induced tactile allodynia. To elucidate the mechanisms underlying the blunted neuropathic allodynia in p2rx4−/− mice requires further investigations, but it may involve a lack of microglial P2X4Rs in the spinal cord, expression of which is markedly upregulated after nerve injury [7, 22]. Stimulation of P2X4R in microglia induces release of brain-derived neurotrophic factor [9, 22, 23], a factor that is crucial for producing aberrant excitability of dorsal horn neurons [9, 24]. Therefore, the attenuated neuropathic allodynia in p2rx4−/− mice may be associated with a reduction in the amount of pathologically altered neurotransmission in dorsal horn neurons caused by microglia-derived BDNF [22].
An interesting finding in the present study was that nerve injury-induced cold allodynia was retained in p2rx4−/− mice, indicating that P2X4R may have distinct roles in mechanical and cold hypersensitivities after nerve injury. In a recent study it was shown that inhibition of Src-family kinases (SFKs), whose activity is enhanced in spinal microglia after nerve injury, results in suppression of tactile allodynia without affecting cold allodynia [25]. Our previous study has implicated Lyn (microglial SFK) as a critical kinase causing P2X4R upregulation [13]. It is thus conceivable that P2X4R-dependent microglial signaling in the dorsal horn may participate predominantly in allodynia evoked by mechanical rather than cold stimulation after peripheral nerve injury.
Our present study showed a reduction in the level of CFA-induced inflammatory pain in p2rx4−/− mice. In contrast to the neuropathic pain model, neither the upregulation of P2X4R expression [7] nor activation of Lyn tyrosine kinase [13] has been demonstrated in spinal microglia following peripheral inflammation caused by CFA. The mechanisms underlying the reduction in the amount of inflammatory pain remain unknown, but the phenotype may be related to a reduction in hindpaw inflammation in p2rx4−/− mice. This notion is supported by evidence of expression of functional P2X4Rs in peripheral inflammatory cells, including macrophages [21, 26].
In conclusion, by employing a series of acute and chronic pain tests using mice lacking P2X4R, we demonstrated that the loss of P2X4R leads to a marked reduction in the degree of tactile allodynia caused by nerve injury and, to a lesser extent, in peripheral inflammation, without any defects in motor function. By contrasting the roles of P2X4R in distinct types of nerve injury-induced pain hypersensitivities, namely tactile and cold allodynia, the present study demonstrates a predominant contribution of P2X4R to tactile allodynia rather than cold allodynia. The fact that acute physiological pain and tissue damage-induced pain were normal in p2rx4−/− mice highlights the possibility of a therapeutic benefit of blocking P2X4R in the treatment of chronic pain, especially tactile allodynia after nerve injury.
Methods
Animals
All experimental procedures were performed under the guidelines of Kyushu University. Male mice lacking P2X4R (p2rx4−/−) that were backcrossed to C57BL/6J (Clea Japan) for more than 10 generations were kindly provided by Prof. Joji Ando (The University of Tokyo) [19], and we used C57BL/6J as the corresponding control mice. All mice were used at age of 9~11-week-old (at the start of each experiment). Mice were housed in groups of 2~3 per cage at a temperature of 22 ± 1°C with a 12-h light-dark cycle (light on 8:30 to 20:30), and fed food and water ad libitum.
Behavioral assays for acute and chronic pain
Noxious heat-evoked tail and hindpaw withdrawal responses were detected by the application of radiant heat (Ugo Basile, Italy) to the tail and the plantar surface of hindpaw, respectively [27, 28]. The intensity of the heat stimulus was adjusted to 30 or 50 V, and the latency of the paw withdrawal response (sec) was measured. The sensitivity to mechanical stimulus was assessed using von Frey filaments (0.02~2.0 g, Stoelting, Wood Dale, Illinois, USA), and the mechanical stimulus producing the 50% paw withdrawal threshold was determined using the up-down method [29, 30]. In the tests of formalin-induced pain, mice were injected intraplantarly with formalin (5%, 20 μL), and then the duration of the licking and biting responses to the injected hindpaw was recorded at 5 min intervals for 60 min after the injection (formalin pain) [31, 32]. For the measurement of hindpaw swelling by formalin, the weights of the hind feet amputated at the ankle were measured 60 min and 14 days after the injection of formalin and CFA, respectively [32]. In the chemical visceral pain test, mice were injected intraperitoneally with acetic acid (0.8%), and the number of abdominal writhes was counted for 5 min starting from 5 min after the injection [32]. Motor coordination was assessed using the rotarod performance test [31]. For the inflammatory pain model, CFA (0.01 mg/20 μL) was injected into the plantar surface of the left hindpaw [13]. For the neuropathic pain model, the left L4 spinal nerve of mice was transected under isoflurane (2%) anesthesia [33–35]. To assess the tactile allodynia, mice were placed individually in an opaque plastic cylinder which was placed on a wire mesh and habituated for 1 hr to allow acclimatization to the new environment. After that, calibrated von Frey filaments (0.02–2.0 g, Stoelting) were applied to the plantar surface of the hindpaw from below the mesh floor, and the 50% paw withdrawal threshold was determined. To assess cold allodynia [36], a drop (50 μL) of acetone was placed against the centre of the plantar surface of the hindpaw and a stopwatch was started. The mouse's response was monitored in the first 20 sec after acetone application. If the mouse did not withdraw, flick or stamp its hindpaw within this 20-sec period then no response was recorded for that trial (0). However, if within this 20 sec period the animal responded to the cooling effect of the acetone, then the animal's response was assessed for an additional 20 sec (a total of 40 sec from initial application). Responses to acetone were graded according to the following four-point scale: 0, no response; 1, quick withdrawal, flick or stamp of the paw; 2, prolonged withdrawal or repeated flicking (more than 2 times) of the paw; 3, repeated flicking of the paw with licking directed at the plantar surface of the hindpaw. Acetone was applied alternately five times to each hindpaw and the responses were scored categorically. Cumulative scores were then generated for each mouse.
Statistical Analysis
The statistical analyses of the results were evaluated by using the Student's t test or the Mann-Whitney U test.
Competing interests
The authors declare that they have no competing interests.
Authors' contributions
MT designed, performed and supervised the experiments, analyzed the data, and wrote the manuscript; KK and TI performed the experiments; KN, HST. analyzed the data; KI coordinated the project, helped to interpret the data, and edited the manuscript. All authors have read and approved the final manuscript.
