Pain-Related Anxiety-Like Behavior Requires CRF1 Receptors in the Amygdala

Abstract

Corticotropin-releasing factor receptor CRF1 has been implicated in the neurobiological mechanisms of anxiety and depression. The amygdala plays an important role in affective states and disorders such as anxiety and depression. The amygdala is also emerging as a neural substrate of pain affect. However, the involvement of the amygdala in the interaction of pain and anxiety remains to be determined. This study tested the hypothesis that CRF1 receptors in the amygdala are critically involved in pain-related anxiety. Anxiety-like behavior was determined in adult male rats using the elevated plus maze (EPM) test. The open-arm preference (ratio of open arm entries to the total number of entries) was measured. Nocifensive behavior was assessed by measuring hindlimb withdrawal thresholds for noxious mechanical stimulation of the knee. Measurements were made in normal rats and in rats with arthritis induced in one knee by intraarticular injections of kaolin/carrageenan. A selective CRF1 receptor antagonist (NBI27914) or vehicle was administered systemically (i.p.) or into the central nucleus of the amygdala (CeA, by microdialysis). The arthritis group showed a decreased preference for the open arms in the EPM and decreased hindlimb withdrawal thresholds. Systemic or intraamygdalar (into the CeA) administration of NBI27914, but not vehicle, inhibited anxiety-like behavior and nocifensive pain responses, nearly reversing the arthritis pain-related changes. This study shows for the first time that CRF1 receptors in the amygdala contribute critically to pain-related anxiety-like behavior and nocifensive responses in a model of arthritic pain. The results are a direct demonstration that the clinically well-documented relationship between pain and anxiety involves the amygdala.

Background

Pain, including arthritis pain, has a negative affective component and is closely related to anxiety and depression [1 –3]. The neural pathways and mechanisms involved in pain-related anxiety remain to be determined, but the amygdala is known to play a key role in emotional-affective behavior and anxiety disorders [4 –6]. Importantly, the amygdala is emerging as an important element of the brain network involved in the emotional-affective component of pain [7 –11]. The amygdala is also believed to be a key substrate of the reciprocal relationship between pain and affective states and disorders such as anxiety [3,10,12,13].

Our previous studies demonstrated central sensitization [14 –19] and synaptic plasticity [14,20–23] in the central nucleus of the amygdala (CeA) in the kaolin/carrageenan-induced arthritis pain model. The CeA integrates affect-related information from the fear-anxiety circuitry in the lateral-basolateral amygdala with purely nociceptive inputs from the spino-parabrachio-amygdaloid pain pathway [7,9,10]. Pain-related synaptic plasticity in the CeA has also been confirmed in a model of chronic neuropathic pain [24]. It has become clear now that reversal of pain-related plasticity by pharmacologic deactivation of the CeA decreases nocifensive and affective pain responses in animal models of arthritic pain [14,25], visceral pain [26] and neuropathic pain [11] and in the prolonged phase of the formalin test [27].

The present study focused on the role of corticotropin-releasing factor receptor 1 (CRF1) in the CeA in pain-related anxiety. The CeA is a major site of extrahypothalamic expression of CRF and a key element of the extrahypothalamic circuits through which CRF contributes to anxiety-like behavior and affective disorders [28 –32]. CRF1 receptors have emerged as drug targets for depression and anxiety disorders in preclinical studies [29–31,33–36]. A CRF1 receptor antagonist has been used successfully in humans to reduce depression and anxiety scores [37,38]. Finally, the presence of CRF-containing neurons in the parabrachial area [39] links the CRF system in the amygdala to the spino-parabrachio-amygdaloid pain pathway and implicates CRF in the transmission of nociceptive information to the amygdala.

Findings

The behavioral and pharmacological studies reported here tested the hypothesis that CRF1 receptors in the amygdala (CeA) are critically involved in pain-related anxiety-like behavior. Adult male Sprague-Dawley rats (250–350 g) were used. All experimental procedures were approved by the Institutional Animal Care and Use Committee (IACUC) at the University of Texas Medical Branch (UTMB) and conform to the guidelines of the International Association for the Study of Pain (IASP) and of the National Institutes of Health (NIH).

Anxiety-like behavior was determined using the elevated plus maze (EPM) test [40] (Figure 1). The open-arm preference (ratio of open arm entries to the total number of entries expressed as %) was measured for 45 min using a computerized recording and analysis system (Multi-Varimex v1.00; Columbus Instruments, OH, USA). Each rat was tested once on day 1 (normal baseline) and again on day 2 5–6 hours after intraarticular injection of sterile saline (control group) or kaolin and carrageenan (arthritis group) as previously described in detail [14,25,41,42]. In the control group (n = 5 rats), the percentage of open-arm choices (preference) was not significantly different between day 1 (normal baseline) and day 2 (intraarticular saline; P > 0.05, paired t-test; Fig. 1A). These data show that repeating the EPM test on day 2 does not per se alter baseline behavior. In the arthritis group (n = 7 rats), the open-arm preference decreased significantly (P < 0.05, paired t-test) 5–6 hours after arthritis induction (day 2) compared to normal baseline behavior (day 1), suggesting increased anxiety-like behavior (Fig. 1A).

Figure 1

Increased anxiety-like behavior in the arthritis pain model (A) is decreased by a CRF1 receptor antagonist (B). Anxiety-like behavior of adult male rats was determined by measuring the open-arm preference (ratio of open arm entries to the total number of entries expressed as %) in the elevated plus maze (EPM) test. (A) Open-arm choice did not change in control rats (n = 5) after intraarticular saline injections on day 2 compared to normal baseline on day 1. Rats with arthritis (n = 7; 5–6 h postinjection of kaolin/carrageenan into the knee on day 2) showed a significantly decreased open-arm preference compared to normal baseline on day 1 (P < 0.05, paired t-test), suggesting increased anxiety-like behavior. (B) A CRF1 receptor antagonist (NBI27914) administered systemically (5 mg/kg i.p.; n = 5) or into the CeA by microdialysis (100 μM, concentration in microdialysis fiber, 2 μl/min; n = 5) increased the open-arm preference significantly (P < 0.05, compared to vehicle groups; Newman-Keuls Multiple Comparison Test). Systemic (i.p.) application of saline (n = 5) or intra-amygdalar administration of ACSF (n = 5) as vehicle controls had no significant effect on open-arm choices compared to arthritic rats without any interventions (n = 6; P > 0.05; Newman-Keuls Multiple Comparison Test). Bar histograms show the mean ± SEM. ^* P < 0.05.

Next we determined the effects of a selective CRF1 receptor antagonist (5-chloro-4-(N-(cyclopropyl)methyl-N-propylamino)-2-methyl-6-(2,4,6-trichlorophenyl) amino-pyridine, NBI 27914 [43]; purchased from Tocris Bioscience, Ellisville, MO). NBI27014 was administered either systemically (intraperitoneally, i.p.) or locally into the amygdala (CeA) by microdialysis in rats with arthritis (Fig. 1B). For drug application by microdialysis a guide cannula was implanted stereotaxically on the dorsal margin of the CeA as previously described in detail using the following coordinates [14,25]: 1.8–2.0 mm caudal to bregma, 4.0 mm lateral to midline, depth 7.0 mm. On the day of the experiment a microdialysis probe (CMA/Microdialysis 11; membrane diameter: 250 μm, membrane length: 2 mm) was inserted into the CeA through the guide cannula so that the probe protruded by 2 mm. The probe was connected to a Harvard infusion pump and perfused with ACSF (2 μl/min) for at least 1 h to establish equilibrium in the tissue.

Anxiety-like behavior was measured in 5 groups of rats to determine the role of CRF1 receptors: arthritic rats without any additional intervention; arthritic rats that received systemic administration of vehicle (saline); arthritic rats with systemic administration of NBI27014 (5 mg/kg, i.p.); arthritic rats with vehicle (ACSF) administration into the CeA; and arthritic rats with intra-CeA administration of NBI27014 (100 μM; concentration in microdialysis probe which is 100-fold that predicted to be needed based on data from our previous studies [15]). The open-arm preferences of arthritic rats without any interventions (n = 6) and of arthritis rats with systemic saline (n = 5) or intra-amygdala ACSF (n = 5) were not significantly different (P > 0.05, Newman-Keuls Multiple Comparison Test; GraphPad Prism software 3.0; Fig. 1B). Systemic application of NBI27914 30 min before the EPM test in increased the open-arm preference significantly (n = 5; P < 0.05, compared to saline group; Newman-Keuls Multiple Comparison Test). Administration of NBI27914 into the CeA for 30 min also increased the open-arm preference significantly (n = 5; P < 0.05, compared to ACSF control group; Newman-Keuls Multiple Comparison Test). The effects of systemic and intra-CeA administration of NBI27914 were not significantly different (P > 0.05; Newman-Keuls Multiple Comparison Test), suggesting that CRF1 receptors in the amygdala (CeA) account for the anxiolytic effect of CRF1 receptor antagonists.

We also determined the effects of a CRF1 antagonist on nocifensive responses (Fig. 2). Thresholds of hindlimb withdrawal reflexes evoked by mechanical stimulation of the knee joint were measured as previously described in detail [41,42]. Animals were paced in a custom-designed recording chamber that ensured stable and reproducible stimulations of the knee. Mechanical stimuli (compression) of continuously increasing intensity were applied to the knee joint using a calibrated forceps with a force transducer whose output was digitized and recorded on a computer. Measurements were made before (normal baseline) and 5–6 hours after arthritis induction. Arthritic rats received either systemic (n = 5; Fig. 2A) or intra-CeA (n = 7; Fig. 2B) administrations of NBI27914. Both groups of arthritic animals had significantly decreased hindlimb withdrawal thresholds indicating mechanical hypersensitivity (P < 0.001; repeated measures ANOVA followed by Newman-Keuls Multiple Comparison Test). Systemic administration of NBI27914 (5 mg/kg; n = 5) significantly increased the hindlimb withdrawal thresholds at 45 min (P < 0.05) and 60 min (P < 0.01) after i.p. injection (repeated measures ANOVA followed by Dunnett's post-hoc test; Fig. 2A). Intra-CeA administration of NBI27914 (100 μM; concentration in microdialysis fiber; Fig. 2B) also increased the hindlimb withdrawal thresholds significantly (P < 0.05; repeated measures ANOVA followed by Newman-Keuls Multiple Comparison Test).

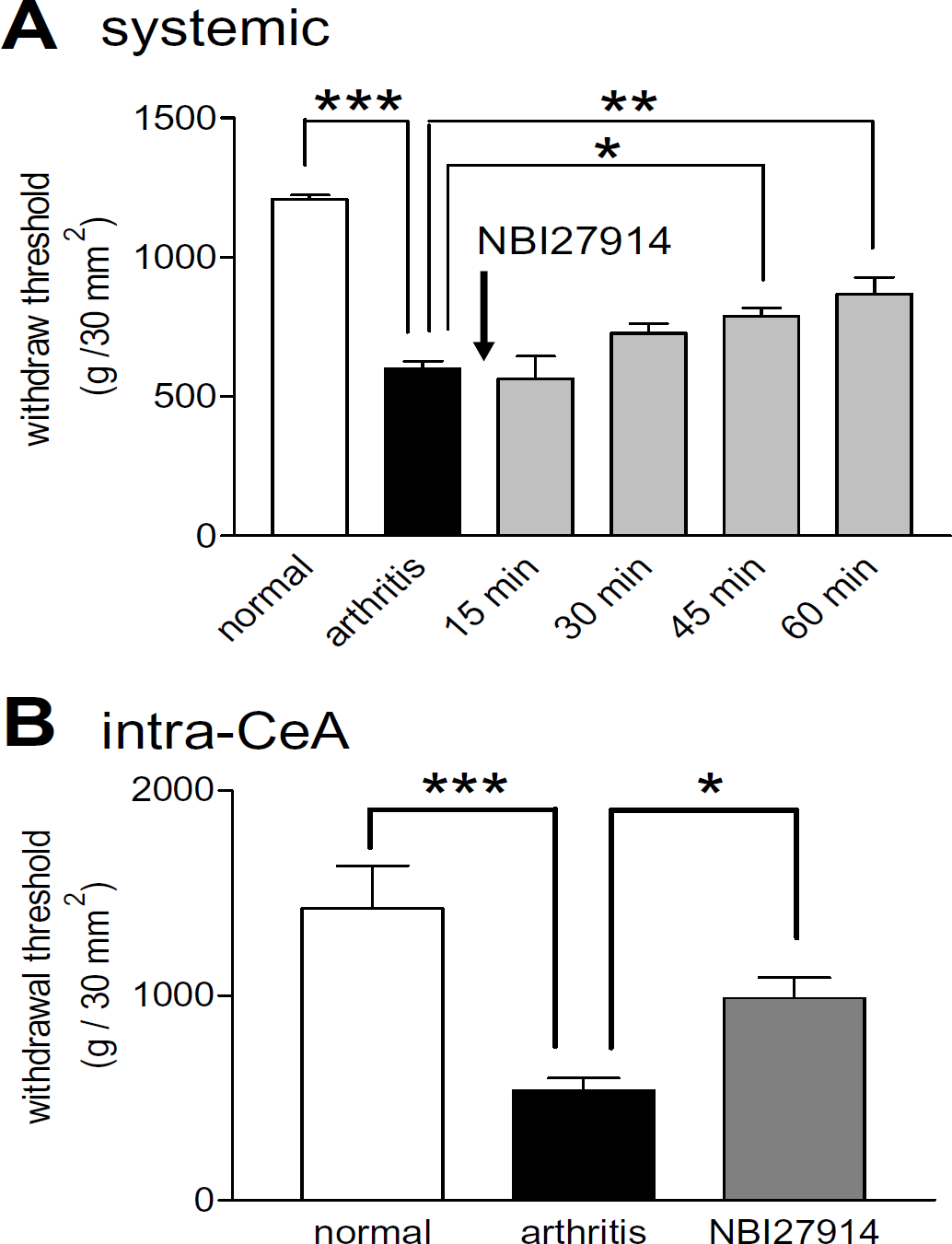

Figure 2

Increased nocifensive behavior in the arthritis pain model is decreased by systemic (A) or intra-amygdala (B) administration of a CRF1 receptor antagonist. Mechanical stimuli (compression) of continuously increasing intensity were applied to the knee joint of adult male rats to measure hindlimb withdrawal thresholds. (A) Thresholds decreased 5–6 h postinduction of arthritis in the knee by intraarticular injections of kaolin/carrageenan (n = 5; P < 0.001, repeated measures ANOVA followed by Newman-Keuls Multiple Comparison Test). Systemic administration of NBI27914 (5 mg/kg i.p.; n = 5) significantly increased the hindlimb withdrawal thresholds at 45 min (P < 0.05) and 60 min (P < 0.01) after drug injection (repeated measures ANOVA followed by Dunnett's posthoc test). (B) Intra-CeA administration of NBI27914 (100 μM; concentration in microdialysis fiber; n = 7) also increased the hindlimb withdrawal thresholds of arthritic rats significantly (P < 0.05; repeated measures ANOVA followed by Newman-Keuls Multiple Comparison Test). Bar histograms show the mean ± SEM. ^* P < 0.05.

Conclusion

In summary, this study showed that systemic or intra-amygdalar administration of a CRF1 receptor antagonist decreased anxiety-like behavior and nocifensive reflex responses in a model of arthritis pain, suggesting a key role of CRF1 receptors in the amygdala (CeA) in the modulation of pain-related anxiety. The novelty of this study is that it directly links the amygdala, through CRF1 receptors in the CeA, to pain-related anxiety, which is clinically well-documented but mechanistically not well understood.

Although the amygdala is known to play a key role in anxiety-like behavior through mechanisms that appear to involve CRF [28–32,44], its contribution to pain-related anxiety remains to be determined. Recent biochemical [45 –47] and behavioral [48 –51] studies point to the amygdala as an important site for the pain-modulatory effects of CRF. Increased expression of CRF1 receptor mRNA was detected in the amygdala in a model of somato-visceral pain induced by intra-peritoneal acetic acid [46]. CRF mRNA increased in the CeA in models of colitis pain [45] and chronic neuropathic pain [47]. Intracerebroventricular or intra-CeA administration of a broad-spectrum CRF receptor antagonist (alpha-hCRF9-41) had antinociceptive effects on hyperalgesic behavior associated with opiate withdrawal [50]. Systemic administration of a CRF1 receptor antagonist nearly reversed colon hypersensitivity (visceromotor response) induced by stereotaxic delivery of corticosterone to the CeA [49]. On the other hand, intra-CeA administration of a non-selective CRF receptor antagonist (alpha-hCRF9-41) produced hyperalgesic behavior (decreased mechanical and thermal withdrawal thresholds) and attenuated the antinociceptive effects of CRF administered into the CeA in normal animals [48]. The reason for these conflicting findings is unclear at this time. Our recent electrophysiological data show that administration of a CRF1 receptor antagonist (NBI27914) into the CeA clearly inhibits the sensitization of CeA neurons in the arthritis pain model. Taken together with the present study, these findings suggest that CRF1 receptors critically contribute to pain-related sensitization that results in increased pain responses and anxiety-like behavior.

Authors' contributions

GJ and YF contributed equally to the paper by performing the experiments and data analysis. GJ provided the first draft of the manuscript. KAR also performed experiments and assisted with the data analysis. VN conceptualized the hypothesis, designed and supervised the experiments, directed the data analysis, and revised the manuscript. All authors read and approved the final manuscript.

Footnotes

Acknowledgements

This work was supported by NIH grants NS38261 and NS11255.

References

Gallagher

Verma

: Mood and anxiety disorders in chronic pain. Progress in Pain Res and Management 2004, 27:139–178.

Grachev

Fredickson

Apkarian

: Dissociating anxiety from pain: mapping the neuronal marker N-acetyl aspartate to perception distinguishes closely interrelated characteristics of chronic pain. Mol Psychiatry 2001, 6:256–258.

Rhudy

Meagher

: Negative affect: effects on an evaluative measure of human pain. Pain 2003, 104:617–626.

Maren

: Synaptic Mechanisms of Associative Memory in the Amygdala. Neuron 2005, 47:783–786.

Kalin

Shelton

Davidson

: The Role of the Central Nucleus of the Amygdala in Mediating Fear and Anxiety in the Primate. J Neurosci 2004, 24:5506–5515.

Phelps

Ledoux

: Contributions of the Amygdala to Emotion Processing: From Animal Models to Human Behavior. Neuron 2005, 48:175–187.

Neugebauer

Bird

Han

: The amygdala and persistent pain. The Neuroscientist 2004, 10:221–234.

Baliki

Chialvo

Geha

Levy

Harden

Parrish

Apkarian

: Chronic Pain and the Emotional Brain: Specific Brain Activity Associated with Spontaneous Fluctuations of Intensity of Chronic Back Pain. J Neurosci 2006, 26:12165–12173.

Gauriau

Bernard

: Pain pathways and parabrachial circuits in the rat. Exp Physiol 2002, 87:251–258.

10.

Neugebauer

: Subcortical processing of nociceptive information: basal ganglia and amygdala. In Handbook of Clinical Neurology Volume 81. Edited by: Cervero

Jensen

. Amsterdam, Elsevier; 2006:141–158.

11.

Pedersen

Scheel-Kruger

Blackburn-Munro

: Amygdala GABA-A receptor involvement in mediating sensory-discriminative and affective-motivational pain responses in a rat model of peripheral nerve injury. Pain 2007, 127:17–26.

12.

Heinricher

McGaraughty

: Pain-modulating neurons and behavioral state. In Handbook of Behavioral State Control Edited by: Lydic

Baghdoyan

. New York, CRC Press; 1999:487–503.

13.

Fields

: State-dependent opioid control of pain. Nat Rev Neurosci 2004, 5:565–575.

14.

Han

Neugebauer

: Critical role of calcitonin gene-related peptide 1 receptors in the amygdala in synaptic plasticity and pain behavior. J Neurosci 2005, 25:10717–10728.

15.

Neugebauer

: Differential effects of CRF1 and CRF2 receptor antagonists on pain-related sensitization of neurons in the central nucleus of the amygdala. J Neurophysiol 2007.

16.

Neugebauer

: Differential roles of mGluR1 and mGluR5 in brief and prolonged nociceptive processing in central amygdala neurons. J Neurophysiol 2004, 91:13–24.

17.

Neugebauer

: Block of NMDA and non-NMDA receptor activation results in reduced background and evoked activity of central amygdala neurons in a model of arthritic pain. Pain 2004, 110:112–122.

18.

Neugebauer

: Differential changes of group II and group III mGluR function in central amygdala neurons in a model of arthritic pain. J Neurophysiol 2006, 96:1803–1815.

19.

Neugebauer

: Differential sensitization of amygdala neurons to afferent inputs in a model of arthritic pain. J Neurophysiol 2003, 89:716–727.

20.

Neugebauer

Bird

Bhave

Gereau

: Synaptic plasticity in the amygdala in a model of arthritic pain: differential roles of metabotropic glutamate receptors 1 and 5. J Neurosci 2003, 23:52–63.

21.

Bird

Lash

Han

Zou

Willis

Neugebauer

: Protein kinase A-dependent enhanced NMDA receptor function in pain-related synaptic plasticity in rat amygdala neurones. J Physiol 2005, 564:907–921.

22.

Han

Bird

Neugebauer

: Enhanced group III mGluR-mediated inhibition of pain-related synaptic plasticity in the amygdala. Neuropharmacology 2004, 46:918–926.

23.

Han

Bird

Neugebauer

: Enhanced group II mGluR-mediated inhibition of pain-related synaptic plasticity in the amygdala. Mol Pain 2006, 2:18.

24.

Ikeda

Takahashi

Inoue

Kato

: NMDA receptor-independent synaptic plasticity in the central amygdala in the rat model of neuropathic pain. Pain 2007, 127:161–172.

25.

Han

Neugebauer

: mGluR1 and mGluR5 antagonists in the amygdala inhibit different components of audible and ultrasonic vocalizations in a model of arthritic pain. Pain 2005, 113:211–222.

26.

Tanimoto

Nakagawa

Yamauchi

Minami

Satoh

: Differential contributions of the basolateral and central nuclei of the amygdala in the negative affective component of chemical somatic and visceral pains in rats. Eur J Neurosci 2003, 18:2343–2350.

27.

Carrasquillo

Gereau

: Activation of the extracellular signal-regulated kinase in the amygdala modulates pain perception. J Neurosci 2007, 27:1543–1551.

28.

Gray

: Amygdaloid CRF pathways. Role in autonomic, neuroendocrine, and behavioral responses to stress. Ann N Y Acad Sci 1993, 697:53–60.

29.

Bale

Vale

: CRF and CRF receptors: role in stress responsivity and other behaviors. Annu Rev Pharmacol Toxicol 2004, 44:525–557.

30.

Reul

Holsboer

: Corticotropin-releasing factor receptors 1 and 2 in anxiety and depression. Curr Opin Pharmacol 2002, 2:23–33.

31.

Steckler

Holsboer

: Corticotropin-releasing hormone receptor subtypes and emotion. Biological Psychiatry 1999, 46:1480–1508.

32.

Asan

Yilmazer-Hanke

Eliava

Hantsch

Lesch

Schmitt

: The Corticotropin-Releasing Factor (CRF)-system and monoaminergic afferents in the central amygdala: Investigations in different mouse strains and comparison with the rat. Neuroscience 2005, 131:953–967.

33.

Charney

: Neuroanatomical circuits modulating fear and anxiety behaviors. Acta Psychiatr Scand Suppl 2003:38–50.

34.

Takahashi

: Role of CRF(1) and CRF(2) receptors in fear and anxiety. Neurosci Biobehav Rev 2001, 25:627–636.

35.

Chalmers

Lovenberg

Grigoriadis

Behan

De Souza

: Corticotrophin-releasing factor receptors: from molecular biology to drug design. Trends in Pharmacological Sciences 1996, 17:166–172.

36.

Dautzenberg

Hauger

: The CRF peptide family and their receptors: yet more partners discovered. Trends Pharmacol Sci 2002, 23:71–77.

37.

Kunzel

Ising

Zobel

Nickel

Ackl

Sonntag

Holsboer

Uhr

: Treatment with a CRH-1-receptor antagonist (R121919) does not affect weight or plasma leptin concentration in patients with major depression. J Psychiatr Res 2005, 39:173–177.

38.

Zobel

Nickel

Kunzel

Ackl

Sonntag

Ising

Holsboer

: Effects of the high-affinity corticotropin-releasing hormone receptor 1 antagonist R121919 in major depression: the first 20 patients treated. J Psychiatr Res 2000, 34:171–181.

39.

Merchenthaler

Vigh

Petrusz

Schally

: Immunocytochemical localization of corticotropin-releasing factor (CRF) in the rat brain. Am J Anat 1982, 165:385–396.

40.

Olivier

Miczek

: Fear and anxiety: mechanisms, models, and molecules. In Psychopharmacology of animal behavior disorders Edited by: Dodman

Shuster

Malden, MA, Blackwell Sciences; 1998:105–121.

41.

Han

Bird

Neugebauer

: Computerized analysis of audible and ultrasonic vocalizations of rats as a standardized measure of pain-related behavior. Neurosci Meth 2005, 141:261–269.

42.

Neugebauer

Han

Adwanikar

: Techniques for assessing knee joint pain in arthritis. Mol Pain 2007, 3:8.

43.

Chen

Dagnino

Jr. De Souza

Grigoriadis

Huang

Kim

Liu

Moran

Webb

Whitten

Xie

McCarthy

: Design and synthesis of a series of non-peptide high-affinity human corticotropin-releasing factor1 receptor antagonists. J Med Chem 1996, 39:4358–4360.

44.

Rainnie

Bergeron

Sajdyk

Patil

Gehlert

Shekhar

: Corticotrophin releasing factor-induced synaptic plasticity in the amygdala translates stress into emotional disorders. J Neurosci 2004, 24:3471–3479.

45.

Greenwood-Van Meerveld

Johnson

Schulkin

Myers

: Long-term expression of corticotropin-releasing factor (CRF) in the paraventricular nucleus of the hypothalamus in response to an acute colonic inflammation. Brain Research 2006, 1071:91–96.

46.

Sinniger

Porcher

Mouchet

Juhem

Bonaz

: c-fos and CRF receptor gene transcription in the brain of acetic acid-induced somato-visceral pain in rats. Pain 2004, 110:738–750.

47.

Ulrich-Lai

Xie

Meij

JTA

Dolgas

Herman

: Limbic and HPA axis function in an animal model of chronic neuropathic pain. Physiology & Behavior 2006, 88:67–76.

48.

Cui

Lundeberg

: Role of corticotropin-releasing factor and its receptor in nociceptive modulation in the central nucleus of amygdala in rats. Brain Research 2004, 995:23–28.

49.

Myers

Gibson

Schulkin

Greenwood Van-Meerveld

: Corticosterone implants to the amygdala and type 1 CRH receptor regulation: effects on behavior and colonic sensitivity. Behav Brain Res 2005, 161:39–44.

50.

McNally

Akil

: Role of corticotropin-releasing hormone in the amygdala and bed nucleus of the stria terminalis in the behavioral, pain modulatory, and endocrine consequences of opiate withdrawal. Neuroscience 2002, 112:605–617.

51.

Lariviere

Melzack

: The role of corticotropin-releasing factor in pain and analgesia. Pain 2000, 84:1–12.
