Abstract

This study focuses on the thermal behavior of tunnel boring machines (TBMs) through an in-depth investigation into the temperature distribution of their disc cutters. Utilizing the differential quadrature method (DQM), the research conducts a comprehensive numerical analysis to assess the impact of excavation and geological parameters on disc cutter temperature and wear. The accuracy of the DQM model is validated against the finite difference method (FDM), demonstrating comparative results with reduced computational requirements. The findings indicate a significant correlation between disc cutter temperature and various factors, such as rotational speed, spacing, geological conditions, and material strength. Notably, increased spacing or cutter speed leads to higher temperatures and accelerated cutter wear. Moreover, geological factors, particularly rock strength, influence friction coefficients, affecting disc cutter temperatures significantly. For instance, even a slight increase in cutter spacing results in a substantial 65% rise in cutter consumption, underscoring the relevance of these findings for life cycle assessment (LCA) evaluations across diverse geological and environmental conditions in TBM operations.

Keywords

thermal analysis differential quadrature method TBM disc cutter excavation geological parameters

Introduction

Rock cutting is one of the most appropriate construction and tunnel engineering technologies. Tunnel boring machines (TBMs) are well-known as high-efficiency excavators and the highly safety-allocated engineering machines commonly used in tunnelling (Huo et al., 2011; Qi et al., 2016). In the TBM excavation process, disc cutters are commonly employed with a specific pattern in hard rock formations to ensure optimal excavation by rotation (Bilgin et al., 2012; Rostami, 2013). During tunnelling, a rock and a disc cutter interact directly through the rotation of the TBM cutter head (Cho et al., 2013; Huo et al., 2015). The trust and rolling forces in excavation make a large amount of energy between the rock and the rotating disk. A portion of this energy is utilised to break down rock chips, and the rest of this energy is passed to the disc cutters and causes to wear the disc cutter over time (Kalayci Sahinoglu and Ozer, 2020; Wang et al., 2012; Wang et al., 2015).

Excessive and persistent cutting heat generation is a significant factor in cutter wear, considerably impacting cutter consumption calculations. If the cutter wears out, the TBM needs more input power to brick the rock. The cutter head of TBM gets damaged in the long-term operation, and the excavation costs will be increased significantly. On the other hand, replacing disc cutters is costly, takes a long time and adversely influences the overall performance of the TBM. Undoubtedly, severe wear of the cutter ring affects its service life, cutting force distribution, excavation efficiency and even cutter head failure. Therefore, as an essential matter of disc cutter life, temperature distribution must be investigated and appropriately controlled (Song et al., 2015).

The friction of disc cutters with rock and environmental factors significantly impact the heat transfer process and temperature distribution, which is often ignored in cutter wear studies. The distributed temperature also directly affects the geomechanical properties of rock (Smithies et al., 2011), which in turn influences the disc cutter's excavation characteristics.

Analyzing the temperature distribution on the disc cutter is the primary step to finding the optimal cooling pipes arrangement and disc cutter layout, which is introduced as a practical solution for temperature control (Song et al., 2015).

Life cycle assessment and thermal analysis for disc cutters have been studied theoretically, experimentally and numerically (Bieniawski et al., 2009; Frenzel, 2011; Maidl et al., 2008). Wijk (1992) provided a theoretical model for calculating TBM cutter wear based on the Cerchar Abrasively Index (CAI), rock strength index, dimensional parameters of disc cutter, cutter head thrust and TBM axial boring distance. Hassanpour et al. (2014) derived several experimental correlations for cutter life estimation and consumption based on data from mechanised excavation operations in Iran. Komatsu (1998) presented an experimental curve for estimating cutter wear conditions based on cutter size, head angular velocity and TBM drilling speed. Yang and Huang (2005) performed a numerical simulation using ANSYS to determine the thermal stress of the disc cutter through the excavation. The effect of angular velocity and cutter front angle on the cutting temperature distribution has been studied. Lan et al. (2019) conducted experimental research using an online monitoring setup to monitor disc cutter wear in real-world conditions. They observed that the energy generated for disc cutter wear is proportional to the heat formed on TBM. They compared it to commonly used models in the literature that conduct predictions based on CAI. Kumar et al. (2020) conducted a statistical analysis to investigate the thermal effects at the pick-rock interface using several methods, including an artificial neural network.

Kalayci Sahinoglu and Ozer (2020) conducted experimental research demonstrating a correlation between temperature and cutter wear. Their study showed that the material properties of the cutters would deteriorate if they got overheated.

Based on the literature survey, few studies have been conducted on investigating, measuring and assessing cutter heat in TBMs (Song et al., 2015). Although limited experimental research is available to investigate and measure the change in cutter temperatures, no comprehensive numerical approach is established to predict the temperature distribution in detail. As a result, research on temperature distribution over a TBM disc cutter is still in its infancy.

In the present study, a numerical approach is proposed to investigate the thermal analysis of a TBM disc cutter and evaluate the influence of excavation and geological parameters on temperature distribution and disc cutter consumption. Hence, a numerical model is employed to study the nonlinear two-dimensional transient heat transfer through the TBM disc cutter. An efficient and accurate numerical method should be chosen because of the nonlinearities of equations, complex geometry and boundary conditions. This article employs the differential quadrature method (DQM) to solve the governing heat transfer equation. DQM is an effective computational method and rapid convergence solution for nonlinear problems. The mentioned method has a wide range of mechanical, civil and aerospace engineering applications due to its potential for solving nonlinear partial differential equations (Gorji et al., 2017; Kalayci Sahinoglu and Ozer, 2020; Malekzadeh et al., 2006; Nowamooz et al., 2015; Öztuna, 2007; Tornabene et al., 2015; Trinh et al., 2021; Wang et al., 2021). The DQM approximates the derivative of a function at each grid point as a weighted linear summation of the function values in the whole discrete domain. DQM is used to discretize both spatial and temporal domains. Due to the high accuracy of the procedure, the results can be used as a benchmark solution for future research.

Mathematical model

A typical disc cutter model is shown in Figure 1. The 2D transient heat transfer model is assumed on the disc cutter geometric. Due to contact and friction between the disc cutter and the rock during the TBM excavation process, a heat generation source is applied to the model. The disc cutter is in the ambient air with a constant temperature and convective heat transfer coefficient. Some assumptions have been made for deriving the governing equations and presented in the following:

During friction, the ideal contact occurs at the interface between the disc cutter and the rock. This presumption posits that both sides of the contact interface maintain identical temperatures, and the total heat flux between the disc cutter and the rock corresponds precisely to the heat flux generated due to the friction between the disc cutter and the rock. The influence of the heat source on the temperature field of the disc cutter cannot be ignored. It is assumed that the material properties of the disc cutter and the rock remain constant and exhibit no alterations in response to temperature variations. Convective cooling with the surrounding air occurs on the outer surface of the cutter ring, characterised by a consistent convective heat transfer coefficient. In contrast, the inner surface of the cutter ring is stipulated as adiabatic. The effect of radiation on the disc cutter's surface temperature is ignored.

The rock is a homogeneous and uniform medium.

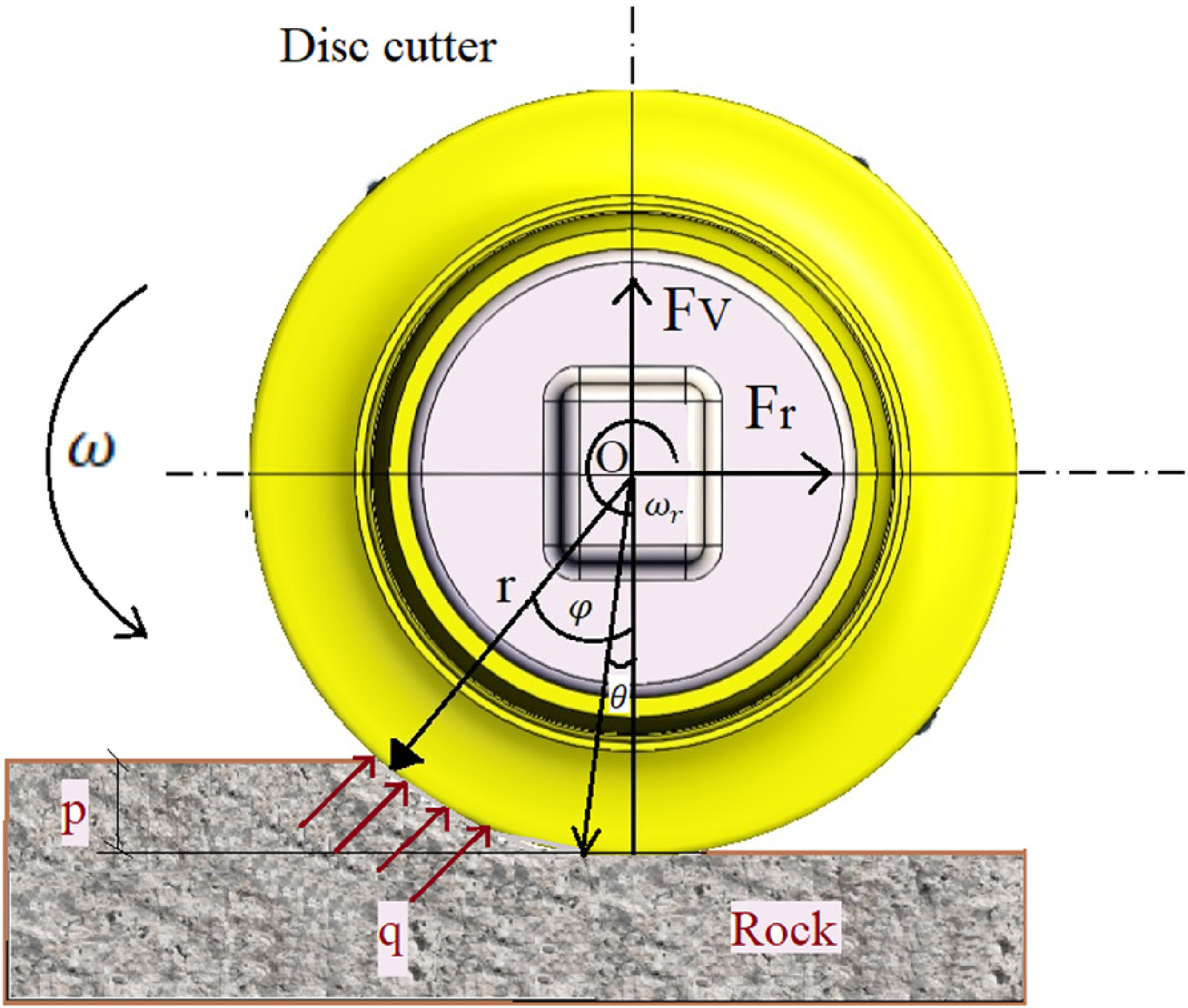

Figure 1.

Disc cutter geometric dimensions and boundary conditions.

The predominant heat transfer mechanism through the disc cutter is heat conduction, based on the abovementioned assumptions. If the thermal conductivity of the disc cutter is assumed to be a function of temperature, its energy balance can be written as:

k (t) (\frac{1}{r} \frac{\partial T}{\partial r} + \frac{\partial^{2} T}{\partial r^{2}} + \frac{1}{r^{2}} \frac{\partial^{2} T}{\partial φ^{2}}) + (ρ c_{p} ω_{r}) \frac{\partial T}{\partial φ} = ρ c_{p} \frac{\partial T}{\partial t}

(1)

where k,

ρ

c_{p}

, T and t are the thermal conductivity, density, specific heat capacity, temperature and time, respectively.

Initial and boundary conditions

The boundary and initial conditions must be specified to solve the partial differential equation. The disc cutter is initially in thermodynamic equilibrium with a specific temperature at $t = 0$ . Therefore, the initial conditions may be represented as follows:

T (r, φ, 0) = T_{0} (r, φ)

(2)

The boundary conditions can be introduced in the following general form:

\begin{aligned} \begin{matrix} T (R_{i}, φ, t) = G (φ, t) \\ - k (T) \frac{\partial T}{\partial r} + h_{a} (T - T_{a}) = 0 \end{matrix}} r = R_{i}, 0 \leq φ \leq 2 π \\ \begin{matrix} T (R_{o}, φ, t) = F (φ, t) \\ - k (T) \frac{\partial T}{\partial r} + q_{0} = 0 \end{matrix}} r = R_{o}, 0 \leq φ \leq 2 π \end{aligned}

(3)

where

q_{0}

is the heat source intensity transferred through the disc cutter and is assumed to be constant.

h_{a}

is the convection heat coefficient of ambient air.

T_{a}

represents the ambient temperature.

Based on the literature, the Colorado School of Mines (CSM) model, which is the most popular model of a cutter life (Rostami et al., 1996), the disc cutter path consumed friction energy has been defined as:

W_{μ} = μ F_{t} L

(4)

Thus, heat source intensity

q_{0}

is taken into account as follows:

q_{0} = \frac{W_{μ}}{S_{r} t} = \frac{μ c \frac{ε w b}{1 + φ} {(\frac{s σ_{c}^{2} σ_{t}}{ε \sqrt{w b}})}^{\frac{1}{3}} ω_{r} w}{2 w π (2 h \tan ψ + b)}

(5)

where

μ

is the friction coefficient, C is a dimensionless coefficient

C \approx 2.12

ε

is the constant for the pressure distribution function (typically 0.2), w is the radius of the disc, b is the width of the disc,

φ

is the angle of contact between the rock and disc cutter, s is the spacing between the cuts,

σ_{c}

is the uniaxial compressive strength of the rock,

σ_{t}

is the tensile strength of the rock,

ω_{r}

disc cutter rotational speed, t time, h is the penetration depth and

ψ

is cutting edge angle.

In the present work, thermal conductivity is assumed to be a linear function of temperature (Chen et al., 2001; Lee et al., 2004; Su and Hwang, 1999).

k (t) = k_{0} [1 + β (T - T_{a})]

(6)

where

β

is the slope of the thermal conductivity-temperature divided by the intercept

k_{0}

and

k_{0}

denotes the thermal conductivity at ambient temperature.

An important step in the DQM numerical technique explained in Appendix 1 is determining the weighting coefficients and the spatial discretisation method. Since the computational domain of DQM is rectangular, the following non-dimensional variables are defined to simplify the governing variables.

r_{0} = \frac{r}{R_{0}}; θ = \frac{T}{T_{a}}; γ = β T_{a}; β_{i a} = \frac{h_{a} R}{k_{a}}; τ = \frac{k_{a} t}{ρ c_{p} L^{2}}; λ = \frac{R^{2} ρ c_{p} ω_{r}}{k_{a}}

(7)

By using the non-dimensional variables and with respect to chain progress for partial derivatives, the governing equation (equation (1)), initial (equation (2)) and boundary condition (equations (3) and (4)) become equations (7)–(10):

\begin{aligned} [1 + γ (θ - 1)] [\frac{1}{r_{0}} \frac{\partial θ}{\partial r_{0}} + (\frac{\partial^{2} θ}{\partial r_{0}^{2}} + \frac{1}{r_{0}^{2}} \frac{\partial^{2} θ}{\partial φ^{2}})] \\ + (\frac{R^{2} ρ c_{p} ω_{r}}{k_{a}}) \frac{\partial θ}{\partial φ} = \frac{\partial θ}{\partial τ} \end{aligned}

(8)

Initial condition:

θ (r, φ, 0) = θ_{0} (r, φ)

(9)

And boundary conditions

\begin{aligned} \begin{matrix} θ (0, φ, τ) = G * (φ, τ) \\ - [1 + γ (θ - 1)] \frac{\partial θ}{\partial r_{0}} + β_{i a} (θ - 1) = 0 \end{matrix}} r_{0} = 0, \\ 0 \leq φ \leq 2 π \\ \begin{matrix} θ (1, φ, τ) = F * (φ, τ) \\ - [1 + γ (θ - 1)] \frac{\partial θ}{\partial r_{0}} + [\frac{R q_{0}}{T_{a} k_{a}}] = 0 \end{matrix}} r_{0} = 1, \\ 0 \leq φ \leq 2 π \end{aligned}

(10)

Numerical method

This section derives the differential quadrature (DQ) analogy of the governing equation and the initial and boundary conditions. The spatial domain is discretised into $N_{r}$ and $N_{φ}$ grid points in r and $φ$ direction, respectively. The temporal domain is also divided into $N_{T}$ grid points. Based on the previous DQ studies, uniform or non-uniform grid points can be employed to discretize the temporal and spatial domain. According to the literature and authors’ experiences (Haghighi et al., 2008a, 2008b; Hashemi et al., 2006; Hashemi et al., 2007; Malekzadeh et al., 2006; Malekzadeh and Rahideh, 2007), non-uniform grid points give more accurate results with the same number of grid points. In this research, the spatial domain is divided into non-uniform subintervals based on the Chebyshev–Gauss–Lobatto distribution scheme (Tornabene et al., 2015), as presented in the following.

r_{i} = \frac{1}{2} [1 - \cos (\frac{i - 1}{N_{r} - 1} π)] i = 1 \dots N_{r}

(11)

φ_{j} = \frac{1}{2} [1 - \cos (\frac{j - 1}{N_{φ} - 1} π)] j = 1 \dots N_{φ}

(12)

Moreover, the temporal domain is divided based on non-uniform distribution:

τ_{k} = \frac{k - 1}{N_{t} - 1} k = 1 \dots N_{t}

(13)

By employing the DQ rule for both the spatial and the temporal derivatives (Appendix 1), the governing equation can be rewritten as follows:

[1 + γ (θ - 1)] [(\frac{1}{r_{o i}} \sum_{m = 1}^{N_{r}} A_{i m} θ_{m j k}^{e}) + \dots]

(14)

Results and discussion

This section investigates the accuracy and convergence behaviour of the proposed model. Afterward, the study results of thermal analysis and parametric study for the described model are presented in detail. In the first step, the accuracy and effectiveness are confirmed by contrasting them with those obtained through the finite difference method (FDM), thereby substantiating its applicability. Then, the influence of excavation parameters such as disc cutter spacing, cutting speed, various geological conditions and thermophysical specifications on the disc cutter temperature are studied. The results are also validated by an experimental study conducted by Kalayci Sahinoglu and Ozer (2020). Based on the available experimental correlation, the disc cutter consumption is determined regarding the temperature increment in the last part.

Model validation

Table 1 represents the density, specific heat capacity and thermal conductivity coefficient of a V-shaped disc cutter manufactured using three materials as input parameters for solving the transient heat transfer model. Other inputs for solving the heat transfer equation depend on the rock characteristics presented in Table 2. This research studied three rock types and the results are discussed in later sections.

Table 1.

Disc cutter parameters (Song et al., 2015).

Cutter material	Cutter type	Specific heat capacity ( $J k g^{- 1} K^{- 1}$ )	Thermal conductivity coefficient ( $W m^{- 1} K^{- 1}$ )	Density ( $kg m^{- 3}$ )
42 CrMo	V-shape 216 mm	461	43.2	7500
Steel 316	V-shape 216 mm	450	14	8000
Tungsten Carbide	V-shape 216 mm	240	69	15,700

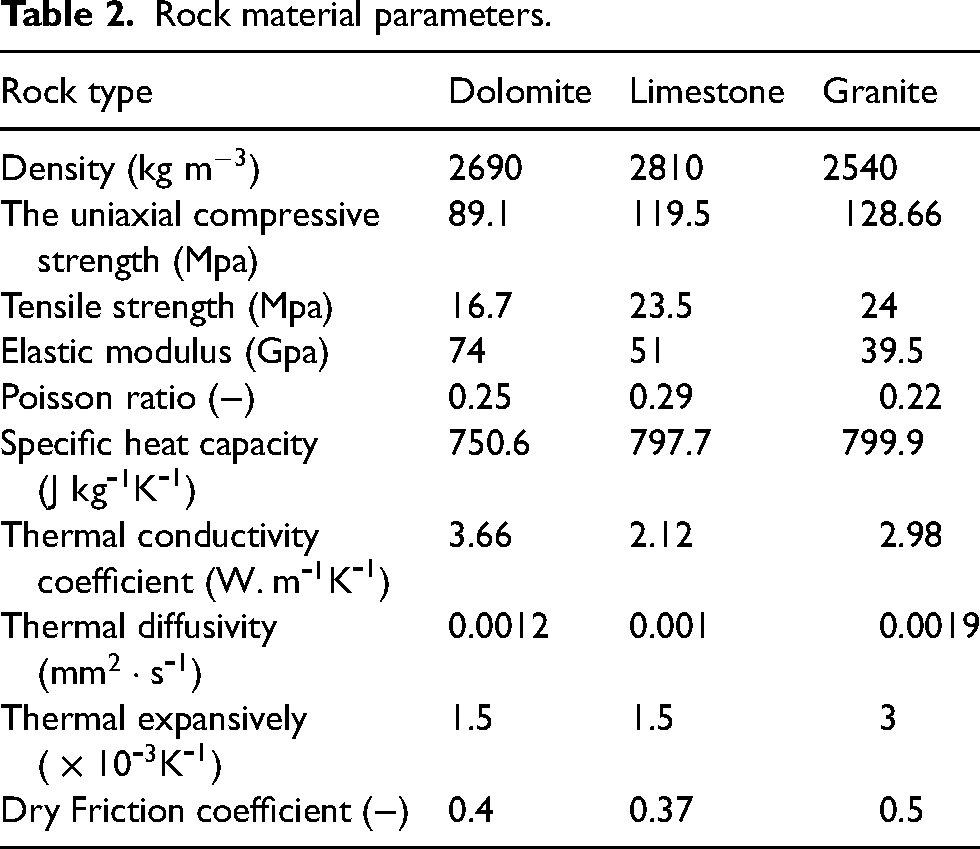

Table 2.

Rock material parameters.

Rock type	Dolomite	Limestone	Granite
Density ( $kg m^{- 3}$ )	2690	2810	2540
The uniaxial compressive strength (Mpa)	89.1	119.5	128.66
Tensile strength (Mpa)	16.7	23.5	24
Elastic modulus (Gpa)	74	51	39.5
Poisson ratio (−)	0.25	0.29	0.22
Specific heat capacity ( $J k g^{- 1} K^{- 1}$ )	750.6	797.7	799.9
Thermal conductivity coefficient ( $W . m^{- 1} K^{- 1}$ )	3.66	2.12	2.98
Thermal diffusivity ( ${mm}^{2} \cdot s^{- 1}$ )	0.0012	0.001	0.0019
Thermal expansively ( $\times 1 0^{- 3} K^{- 1}$ )	1.5	1.5	3
Dry Friction coefficient (−)	0.4	0.37	0.5

Three rocks, including granite, limestone and dolomite, were sampled from one Tehran-Shomal freeway tunnel complex project to investigate their thermophysical and mechanical properties. Various experimental tests, including uniaxial compressive strength and Brazilian tests, were conducted on these samples to determine the characteristics, as shown in Figure 2.

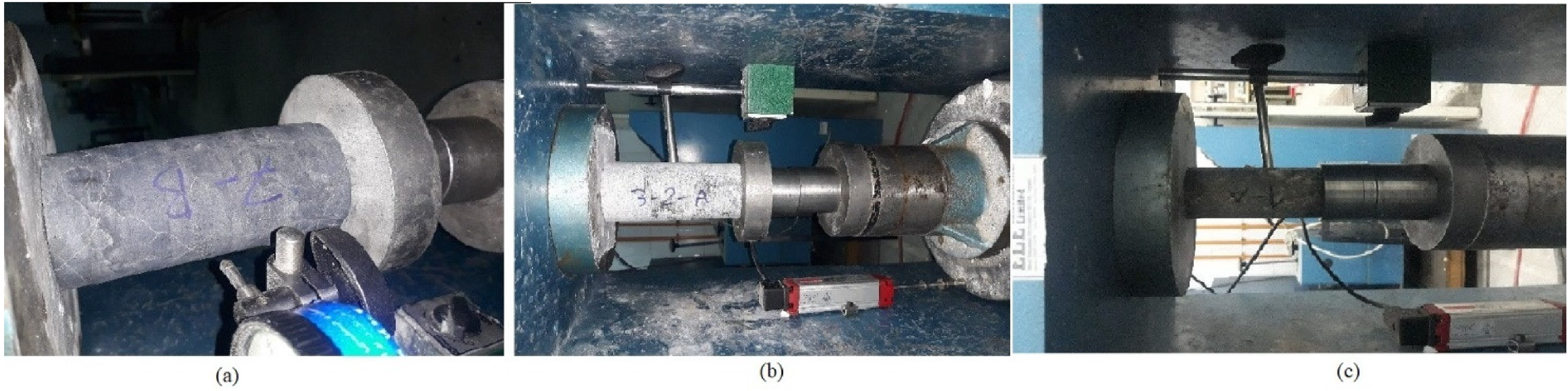

Figure 2.

Three different rock samples prepared for testing: (a) granite, (b) limestone, (c) dolomite.

The present DQM model's accuracy and convergence are investigated. Table 3 illustrates how the number of grid points in the spatial and temporal domains affects the results considering the non-dimensional temperature at r = $R_{o}$ (the disc-cutter surface) and $τ = 2$ for various rock properties. Table 3 includes the study results obtained using the FDM. Remarkable concurrence is observed between the two approaches, with the DQM displaying notably accelerated convergence rates in contrast to FDM. Furthermore, a comprehensive examination of the required CPU time for both DQM and FDM reveals the significantly reduced computational effort associated with DQM compared to FDM. The grid independence study was carried out on the model and is shown in Figure 3. The figure illustrates the non-dimensional temperature across three distinct rock types as the number of spatial domain grid points varies. Both Table 3 and Figure 3 collectively emphasise that the utilisation of the DQM enables the generation of precise spatial domain results with a minimal requirement of just 100 grid points. The results show that by increasing the number of grid points from 36 to 100, the non-dimensional temperature decreases by 16% for granite, 5% for limestone and 3% for dolomite, enabling the generation of precise spatial domain results with a minimal requirement of just 100 grid points.

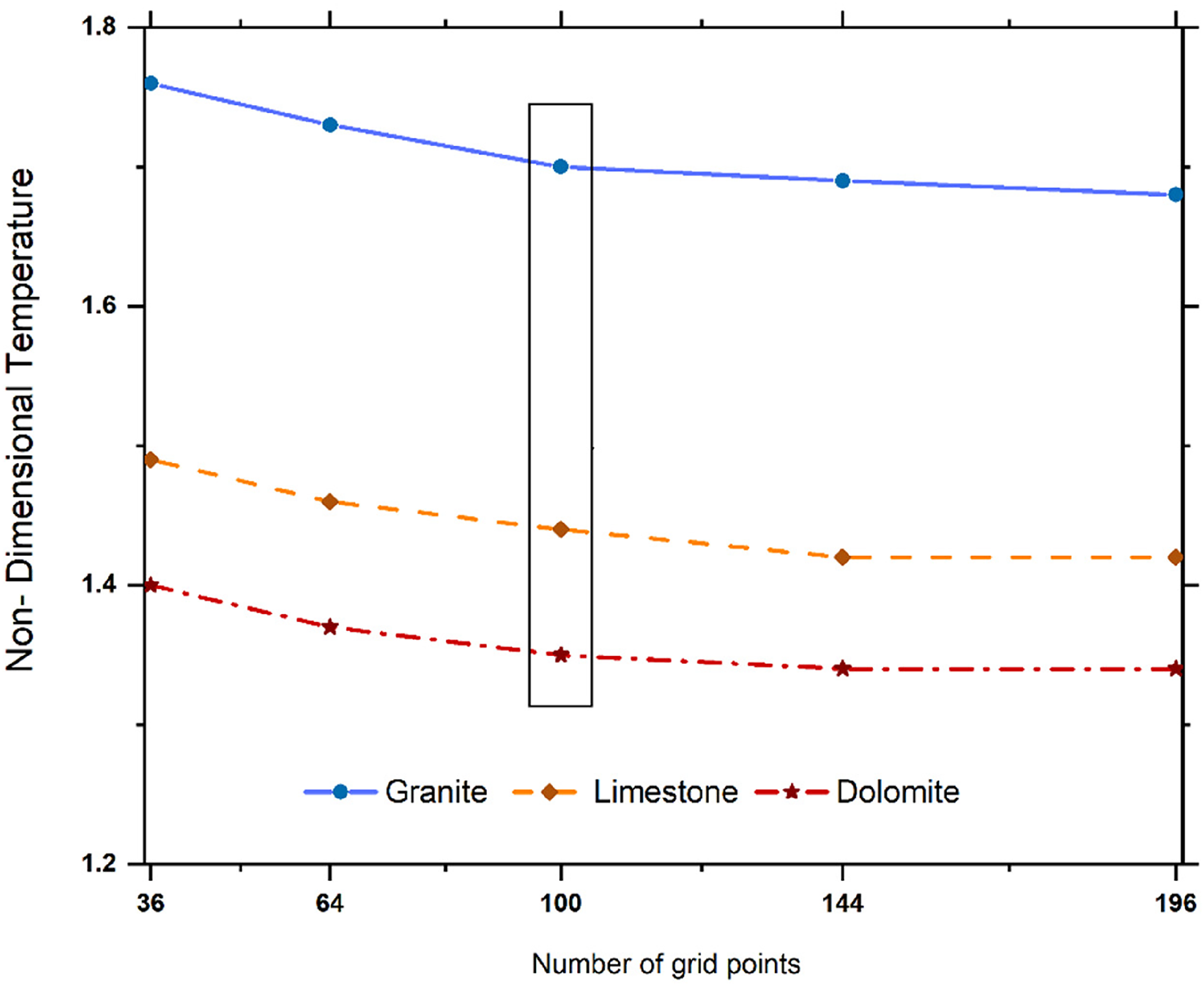

Figure 3.

Grid independence graph according to the non-dimensional temperature of disc cutter surface for different rock type.

Table 3.

Comparisons of DQM and FDM computational properties. (r = $R_{o}$ and $τ = 2$ ).

Method	$N_{φ}$	$N_{R}$	Granite	Limestone	Dolomite	CPU-Time(s)
DQM	6	6	1.76	1.49	1.4	2.12
	8	8	1.73	1.46	1.37	2.83
	10	10	1.7	1.44	1.35	4
	12	12	1.69	1.42	1.34	6.2
	14	14	1.68	1.42	1.34	19.9
FDM	20	10	1.78	1.51	1.42	188.16
	25	15	1.71	1.49	1.40	1129.28
	30	15	1.62	1.47	1.39	1898.17

Figure 4 presents the outcomes for the non-dimensional temperature at r = $R_{o}$ at various non-dimensional times. The results show a direct correlation between non-dimensional time and non-dimensional temperature. A comparison of obtained solutions using DQM and FDM is performed to validate the DQM results. The investigation into the geological and excavation factors affecting the temperature of disc cutters demonstrates that in diverse geological environments, increased geomaterial strength is associated with higher friction coefficients, consequently leading to elevated temperature increments within the disc cutter. Under heat conduction and heat convection, the temperature of the disc cutter rises rapidly at the initial stage of rock breaking. The results quantify that by increasing non-dimensional times from $τ = 1$ to $τ = 4$ , the disc temperature increases by 58% for the dolomite, 61% for the limestone and 93% for the granite.

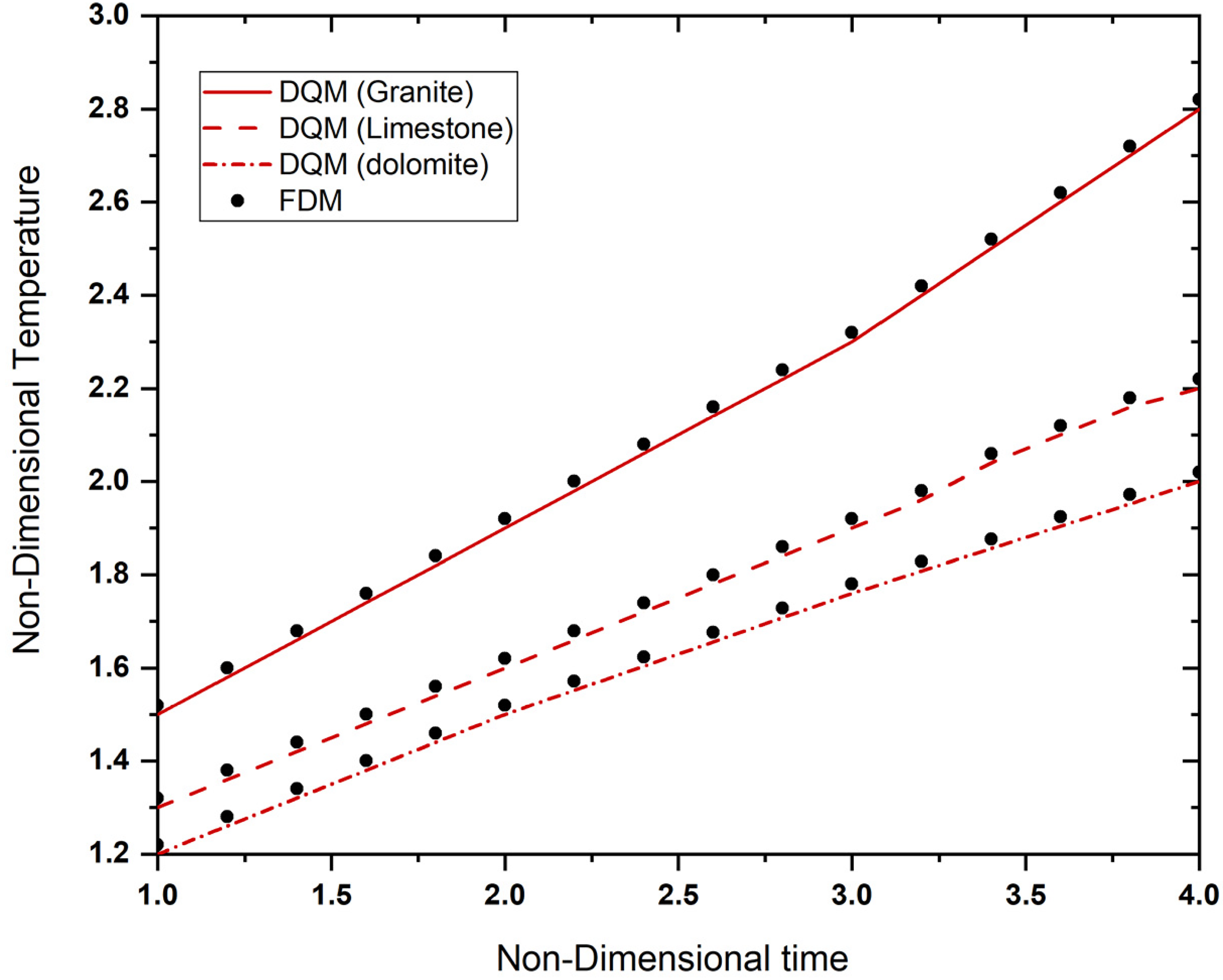

Figure 4.

A comparison of non-dimensional temperature for different geological conditions at different non-dimensional times.

Effect of geological characteristic parameters on disc cutter temperature distribution

Assuming disc cutter material 42CrMo, disc penetration 0.01 m, spacing 0.11 m, disc velocity 30 rad/min, the impact of different geological conditions (granite, limestone and dolomite) and impact of different non-dimensional times ( $τ = 1$ , $τ = 2$ and $τ = 5$ ) on disc cutter temperature distribution is shown in Figures 5–7.

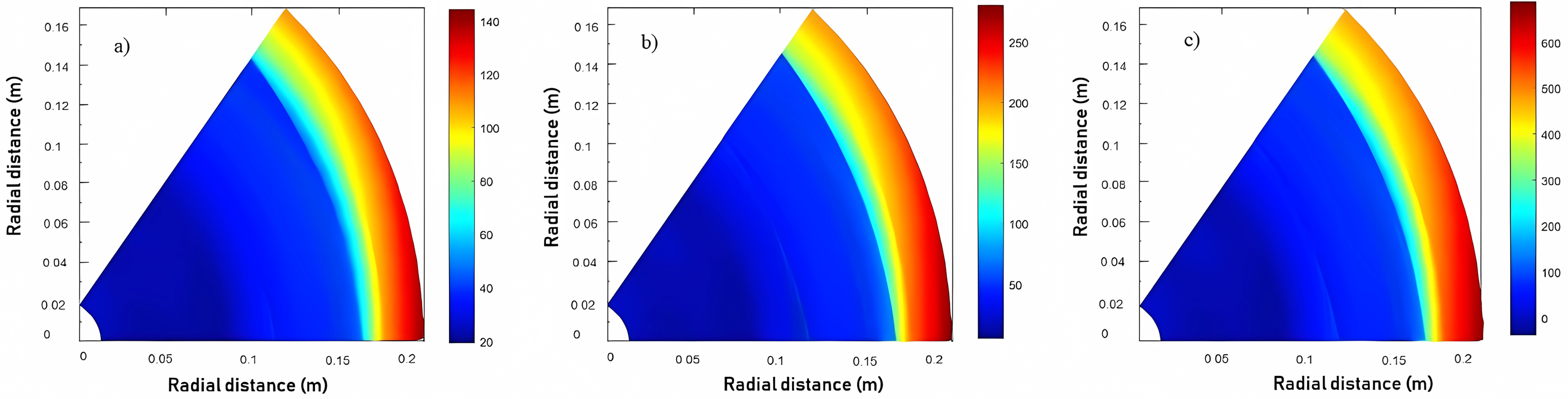

Figure 5.

Disc cutter temperature distribution characteristics in granite environment for (a) τ = 1,, (b) τ = 2 and (c) τ = 5.

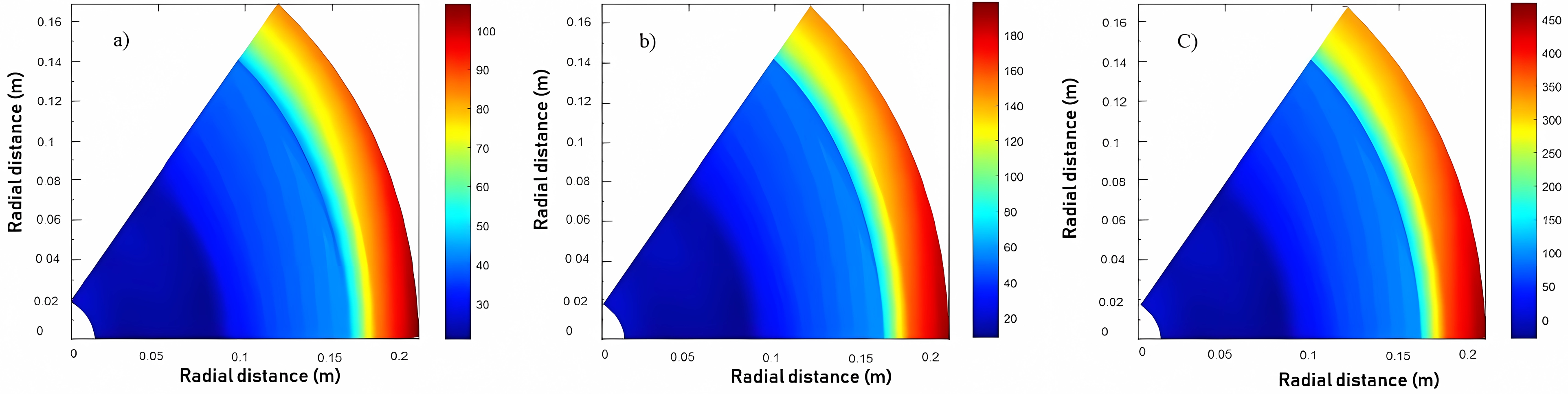

Figure 6.

Disc cutter temperature distribution characteristics in limestone environment for (a) τ = 1, (b) τ = 2 and (c) τ = 5.

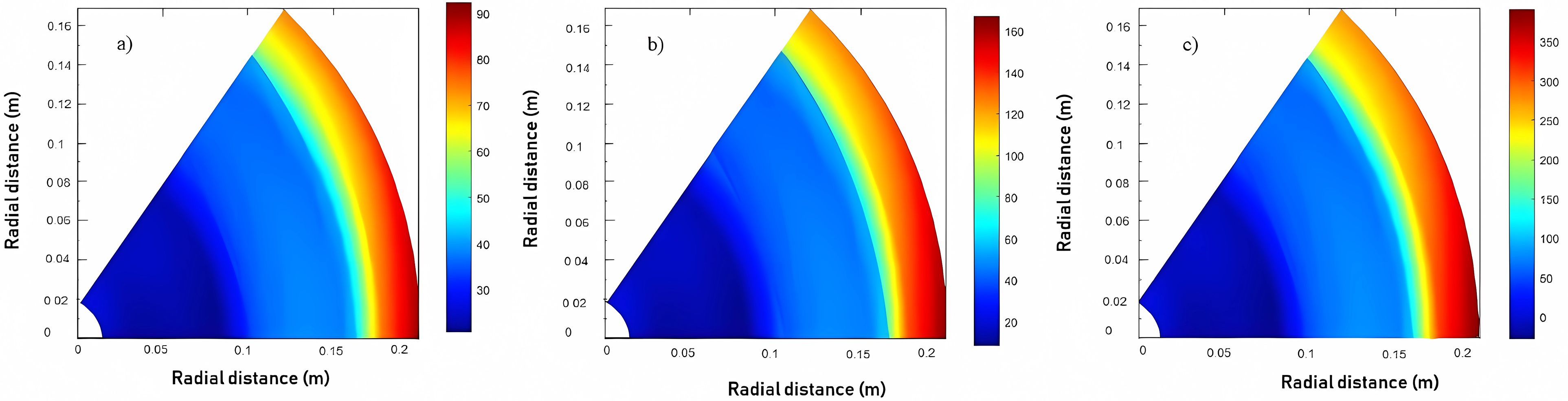

Figure 7.

Disc cutter temperature distribution characteristics in the dolomite environment for (a) τ = 1, (b) τ = 2 and (c) τ = 5.

The contours demonstrate temperature distribution in the granite, limestone and dolomite. It can be realised that the maximum amount of distributed temperature belongs to the condition at which non-dimensional time is τ = 5. It can be evident that themaximum and minimum distributed temperatures belong to granite and dolomite circumstances, respectively. The principal reason for explaining this phenomenon might be under different geological construction conditions; disc cutter temperature follows characteristic geological parameters (the uniaxial compressive strength and tensile strength), friction coefficient (dry) and the time factor.

From Figures 5 to 7, the maximum amount of distributed temperature observed close to the disc cutter edge can be found in the three geological construction conditions. This amount of temperature for granite is $140 \circ C$ in $τ = 1$ , $250 \circ C$ in $τ = 2$ and $600 \circ C$ in $τ = 5$ , for limestone $100 \circ C$ in $τ = 1$ , $180 \circ C$ in $τ = 2$ and $450 \circ C$ in $τ = 5$ and dolomite $90 \circ C$ in $τ = 1$ , $160 \circ C$ in $τ = 2$ and $350 \circ C$ in $τ = 5$ . That is because the temperature near the edge of the disc cutter, which works on the rock, is significantly closer to the heat source, where friction generates heat due to rock excavating.

Effect of excavation parameters on distributed temperature

The effects of excavation parameters, including spacing and disc cutter speed, are shown in Figures 8 and 9. According to the disc cutter and rock parameters, assuming the disc cutter material is 42 CrMo when the disc cutter velocity is ω_r = 30 rad/min, penetration is 0.01 m and non-dimensional time τ = 1. Considering the disc cutter space varying from 0.08 to 0.14 m, the relationship between disc cutter temperature and disc spacing in three different excavation circumstances (granite, limestone and dolomite) is shown in Figure 8. The results demonstrate that geomaterials and disc cutter spacing have an impact on temperature increase since the cutters require more energy to cut the beneath rocks when disc cutters are spaced farther apart. When taking into account the disc cutter spacing of 0.08 (m) to 0.14 (m), the temperature increased by 6, 8.5 and 10% for the granite, limestone and dolomite, respectively.

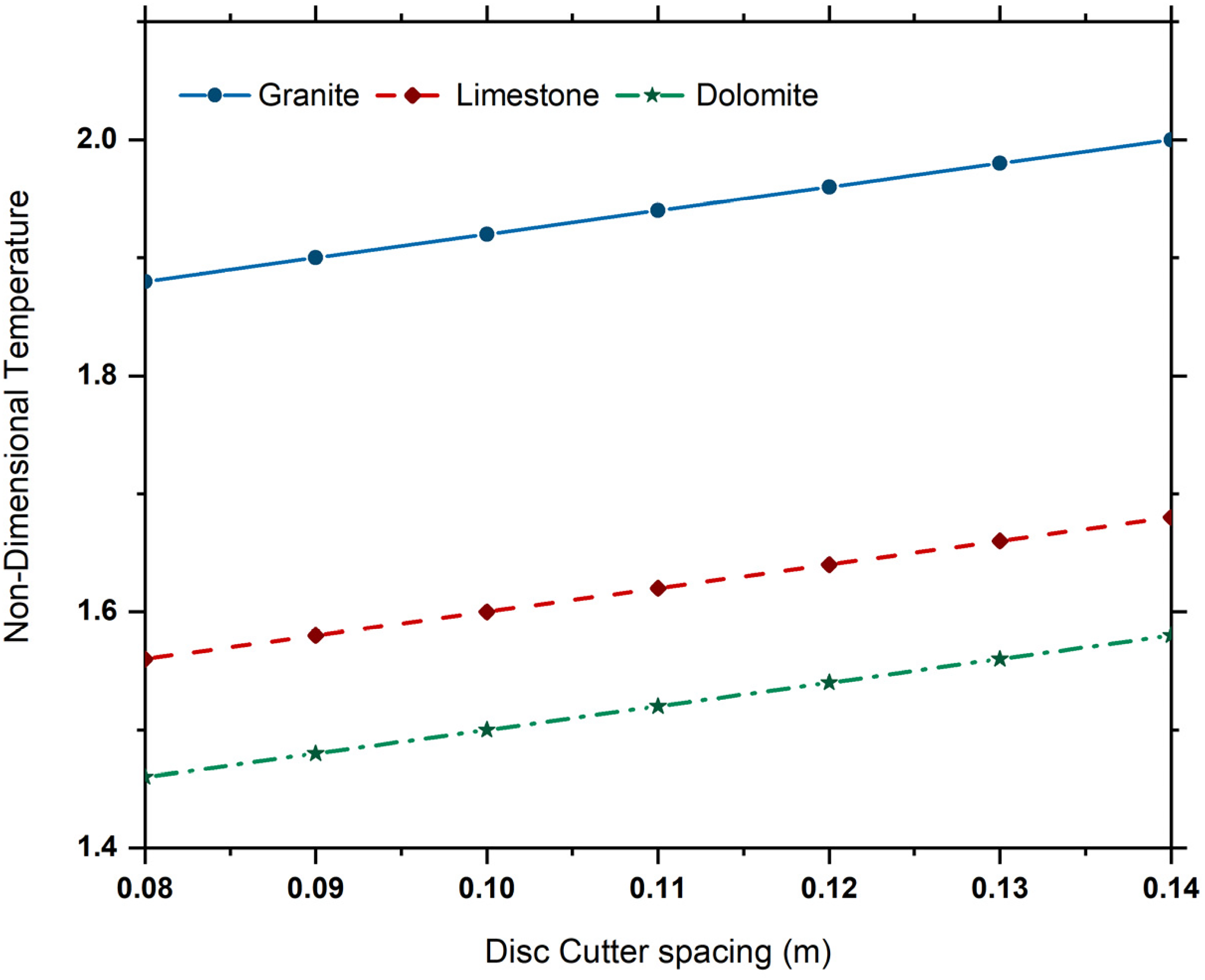

Figure 8.

The relationship between disc cutter non-dimensional temperature and disc cutter spacing.

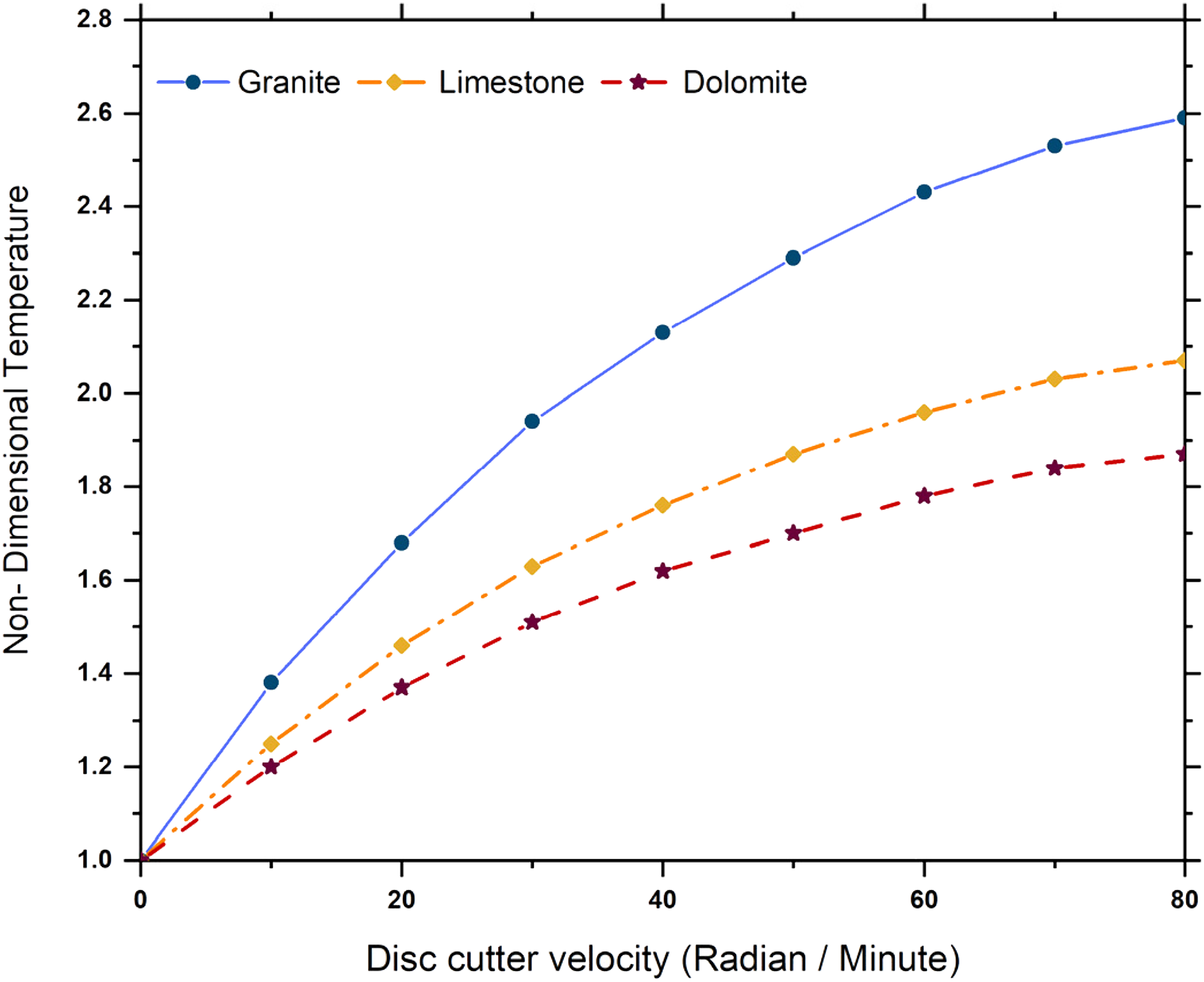

Figure 9.

The relationship between disc cutter non-dimensional temperature and disc cutter velocity.

With the same disc cutter material (42 CrMo), when disc cutter penetration is 0.01 m, disc cutter spacing is 0.11 m and non-dimensional time τ = 1. Disc cutter velocity varies from 0 to 80 rad/min; the relationship between disc cutter temperature and disc cutter velocity in three different excavation environments (granite, limestone and dolomite) is shown in Figure 9.

In general, the provided results in Figures 8 and 9 show a significant temperature in disc cutters while excavating in granite circumstances. A reasonable explanation for this is that apart from the effects of different excavation parameters and time factors, based on equation (5), as rock strength is stronger and the friction coefficient is larger, the heat source ( $q_{0}$ ) is larger and as a result, the disc cutter temperature is higher. Therefore, geomechanical characteristics considerably affect distributed temperature through the disc cutters.

Furthermore, for validation of this paper, the results are compared with the experimental study conducted by Kalayci Sahinoglu and Ozer (2020). In this study, the temperature measurement was recorded manually using a handy infrared thermometer for each cutter for three different formations after each ring.

Given a temperature reference point of 27°C, which closely corresponds to the formation temperature, there is a remarkable concurrence between the temperature values computed by the DQM model, as depicted in Table 4, and the manually measured temperature data collected by Kalayci Sahinoglu and Ozer (2020). In the context of their empirical investigation, the mean recorded temperature stands at 44.1°C, a value that notably approximates the temperature outcomes furnished by the DQM model.

Table 4.

Relative error between numerical and experimental results.

	Disc cutter speed (m/h)	TBM temperature (°C) Present study	TBM temperature (°C)Kalayci Sahinoglu et al. (Kalayci Sahinoglu and Ozer, 2020)	Relative error (%)
	5.4	30.8	37.5	17.5
	10.8	34.1	38.2	10.8
	13.5	35.6	38.9	8.5
	16.2	37.1	42.5	12.8
	18.9	38.5	41.7	7.7
	24.4	41.2	37.2	10.8
	27.1	42.5	68.5	37.9
	35.2	45.9	45.8	0.25
	40.6	47.9	40.3	18.9
Mean	22	39.3	43.4	8.1

Figure 10 shows the disc cutter temperature with increasing cutter speed. The simulated results show good agreement with empirical data, meaning that the proposed model could resealably describe this temperature of the TBM disc cutter through the operational condition. The numerical results indicate that the average error of the highest temperature of the disc cutter obtained by simulation and experiment (without considering outlier data for cutter speed 27.1) is less than 19%, representing the workability of the present DQM model.

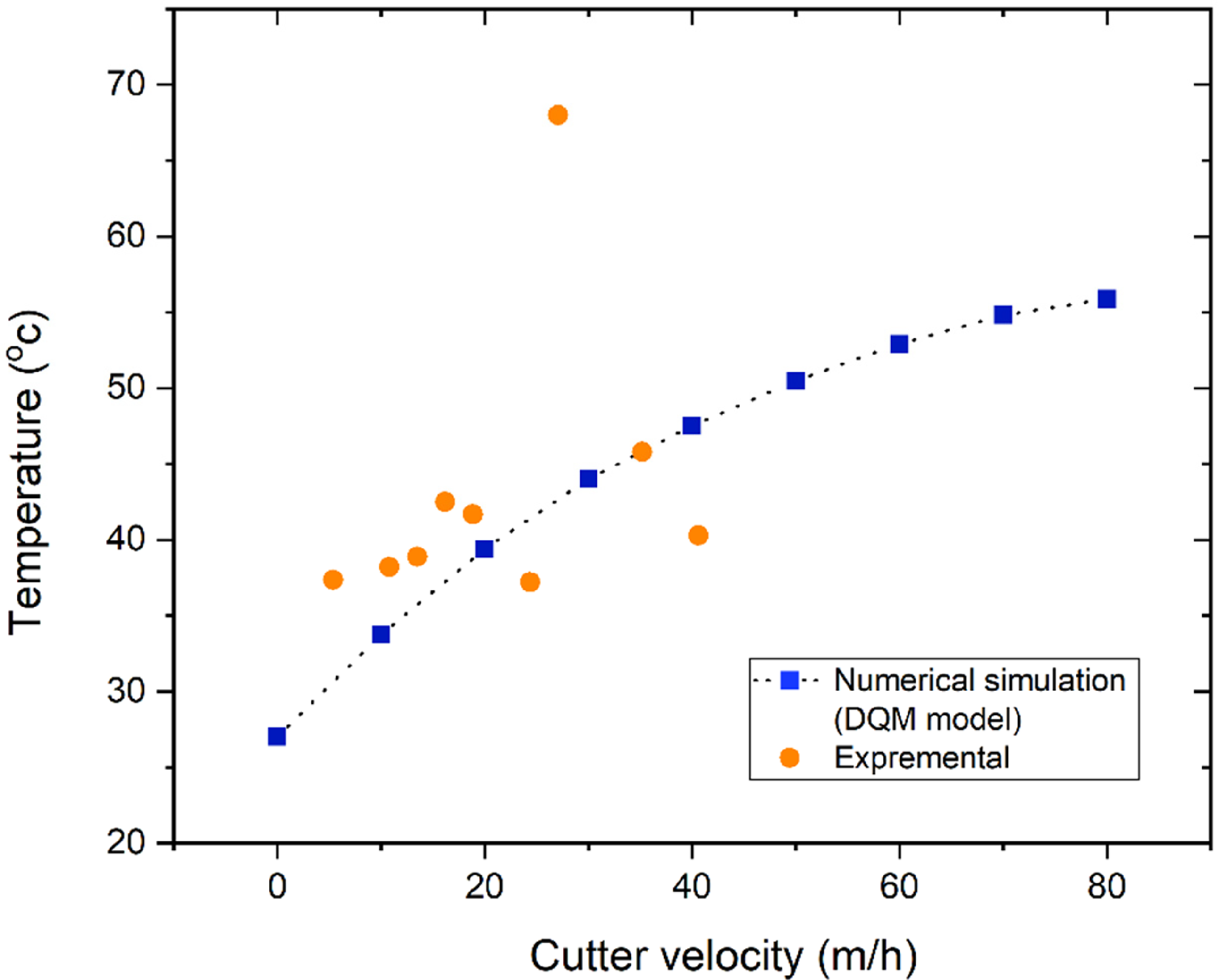

Figure 10.

Comparison of disc cutter temperature versus disc cutter speed between results from numerical simulation (DQM method) and empirical data by Kalayci Sahinoglu and Ozer (2020).

Effect of disc cutter's thermophysical characteristics on disc cutter temperature

Assuming disc penetration of 0.01 m, spacing 0.11 m, disc velocity 30 rad/min and non-dimensional time τ = 3, the impact of different disc cutter materials (42 CrMo, Steel 316 and Tungsten Carbide) in different geological conditions (granite, limestone and dolomite) on disc cutter temperature is provided in Table 5.

Table 5.

The average disc cutter temperature of different cutter materials in different geological conditions.

Cutter Material	Granite (°C)	Limestone (°C)	Dolomite (°C)
42 CrMo	314	221.2	185.5
Steel 316	498	346	287.2
Tungsten carbide	225.90	159.83	136.90

It is clear that, apart from excavation parameters and geomaterials characteristics, the disc manufacturing materials also influence the temperature distribution of disc cutters. The maximum temperature is related to the disc manufactured of Steel 316 (498°C) in the presence of granite. In comparison, the minimum amount temperature belongs to the disc made up of tungsten carbide (136.90°C) in the presence of dolomite. Generally, the maximum and minimum generated temperature in every three excavation circumstances belongs to Steel 316 and tungsten carbide cutters, respectively.

Disc cutter consumption

The disc cutter consumption per cutter, impacted by temperature rise, is described as if cutter A is worn after excavating X m; the associated consumption is computed as X m/cutter (Kalayci Sahinoglu and Ozer, 2020). Equation (17) is the regression analysis equation used to compare cutter consumption and temperature data.

K_{t} = 3506.6 \times S^{- 1.547}

(17)

where

K_{t}

Is the cutter consumption (m/cutter) and S is the temperature increment values of the cutters (°C).

The amount of disc cutter consumption based on temperature increment influenced by disc cutter spacing, various geological conditions (granite, limestone, dolomite) and different disc cutter manufacturing materials (42 CrMo, Steel 316 and tungsten carbide) are shown in Figures 11–13.

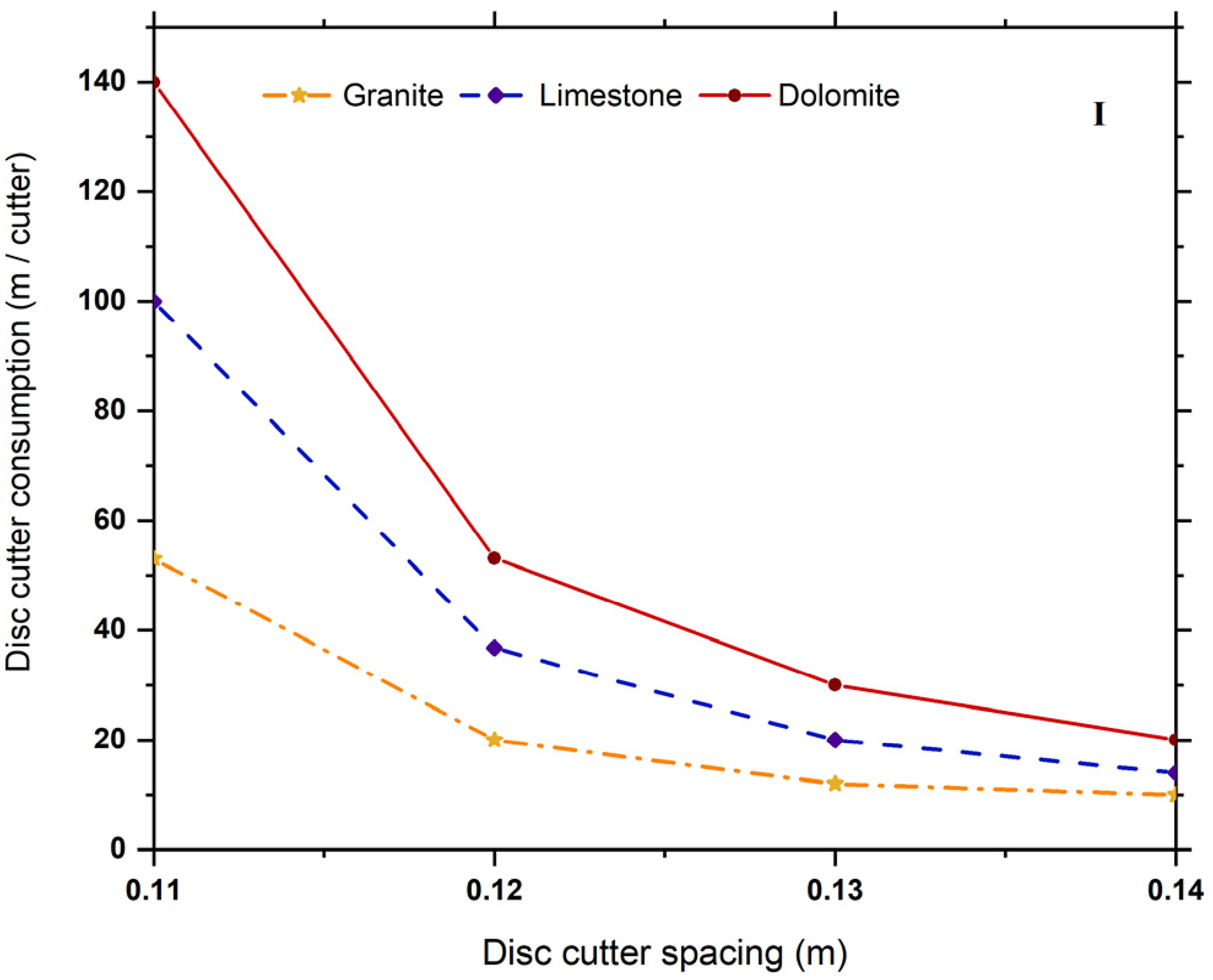

Figure 11.

Relationship between disc cutter consumption due to temperature increment using disc cutter material steel 316.

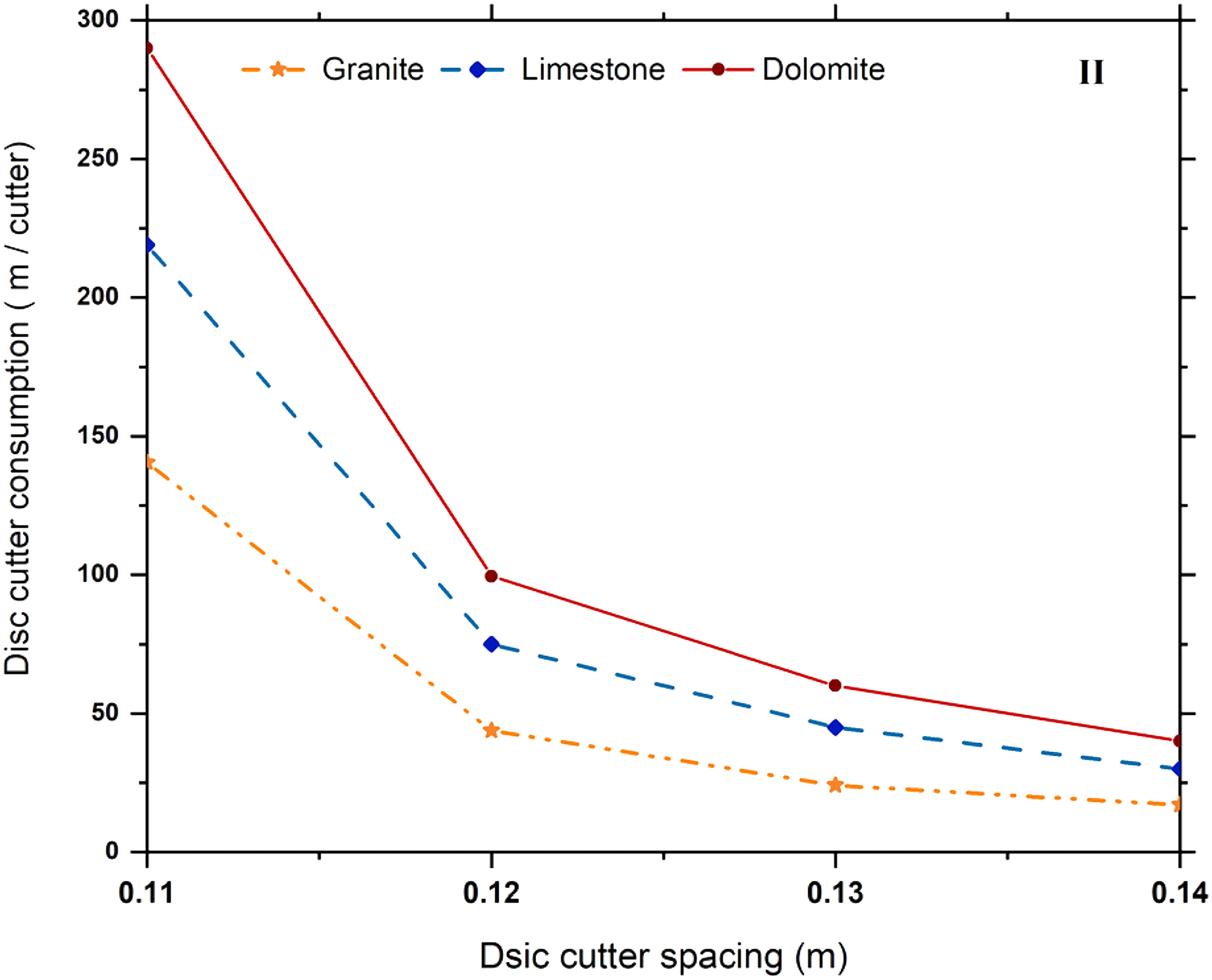

Figure 12.

Relationship between disc cutter consumption due to temperature increment using disc cutter material 42 crMo.

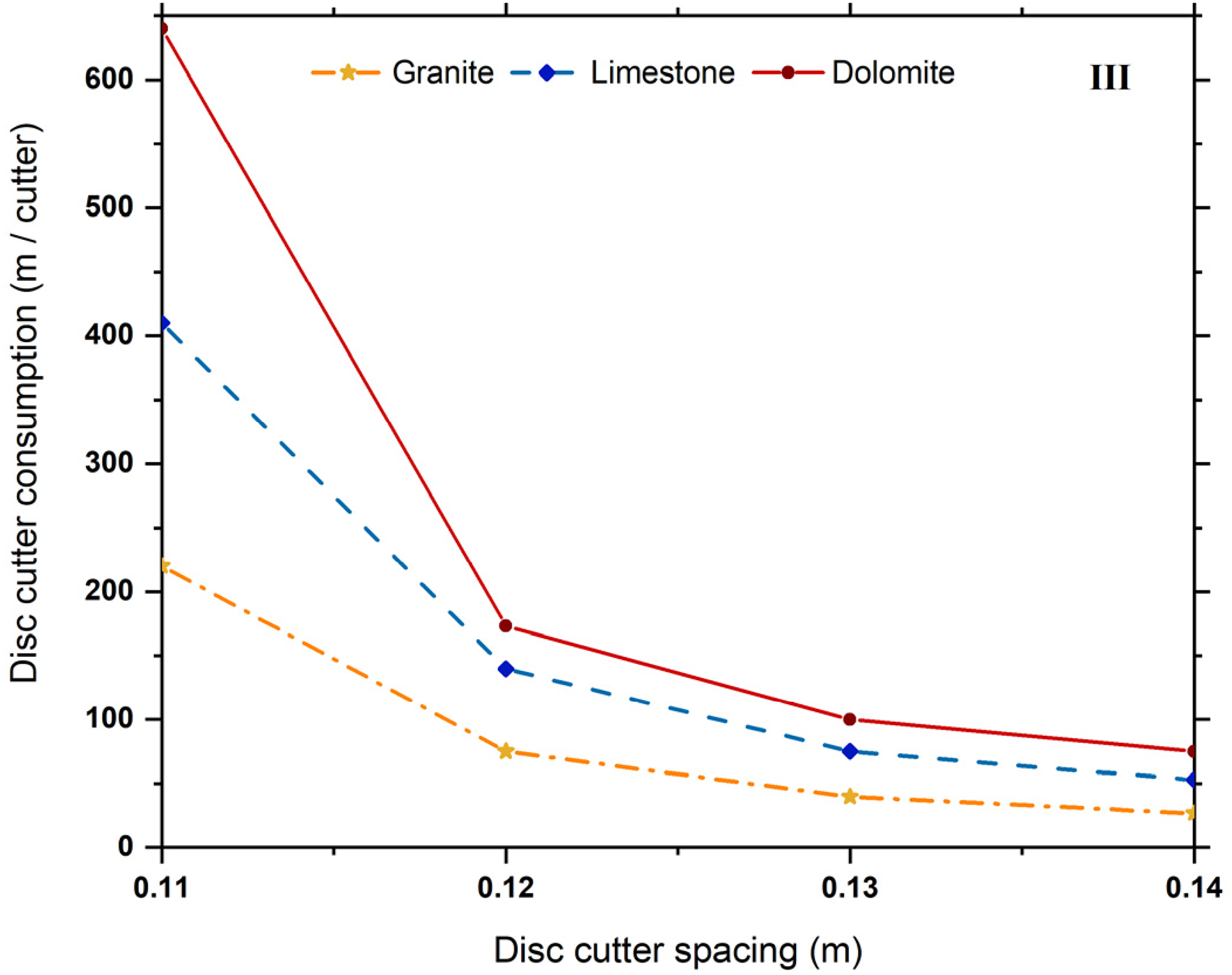

Figure 13.

Relationship between disc cutter consumption due to temperature increment using disc cutter material tungsten carbide.

As shown in Figures 11–13, the rate of disc cutter consumption increases by temperature increment (caused by disc cutter spacing increasing). It is also evident that once the disc cutter spacing increases from 0.11 to 0.12 m, the disc cutter consumption (manufactured of three different materials) increases significantly by about 65% under three different geological conditions. Figure 11 denotes that the maximum amount of disc cutter consumption belongs to the disc manufactured of Steel 316, which is approximately two times and four times more than discs manufactured of 42 CrMo and tungsten carbide, respectively (Figures 12 and 13) in three different geological conditions. The main reason for this issue is disc cutter materials, which affect disc cutter temperature distribution (Table 5). Life assessment of any disc cutter shows that the disc cutter consumption increases by increasing the strength of the rocks (granite, limestone, dolomite), the friction coefficient of host materials and disc cutter spacing. In general, according to equation (17), temperature increment influences the lifelong of disc cutters. Therefore, based on thermal analysis of disc cutters, it is shown that different parameters, including excavation factors, geological conditions and manufacturing disc materials, can influence temperature increment significantly. Therefore, it can be concluded that there is a direct correlation between temperature increment and disc cutter consumption.

Conclusion and remarks

In this research paper, a numerical model based on the DQM was developed to investigate the thermal analysis of a V-shape TBM disc cutter during the rock-breaking process. The friction heat generated by the disc cutter and the rock was placed on the surface of the disc cutter and rotated at a constant speed to evaluate the disc cutter's temperature. Besides the thermal analysis, the numerical method evaluates the influence of excavation and geological parameters on temperature distribution and disc cutter consumption. Validation of the results is also carried out by comparing the achievements of this study with previous experimental studies. The accuracy of the DQM method has been shown by comparing its results with the FDM. Comparing present DQM results with FDM as a well-known method indicates a satisfactory agreement and reveals the following conclusions:

The rise in disc cutter temperature is directly proportional to the disc cutter spacing, the angular velocity of the disc cutter and the duration of exposure to these conditions. The average error of the highest temperature of the disc cutter obtained by simulation and experiment is less than 19%, proving the correctness of the heat source and the numerical simulation models.

The investigation into the geological and excavation factors affecting the temperature of disc cutters demonstrates that in diverse geological environments, increased geomaterial strength is associated with higher friction coefficients, consequently leading to elevated temperature increments within the disc cutter.

Under heat conduction and heat convection, the temperature of the disc cutter rises rapidly at the initial stage of rock breaking. The results quantify that by increasing non-dimensional times from $τ =$ 1 to $τ =$ 4, the disc temperature increases by 58% for the dolomite, 61% for the limestone and 93% for the granite. According to the thermal transient model applied in this study, the numerical results revealed that When taking into account the disc cutter spacing of 0.08 (m) to 0.14 (m), the temperature increased by 6, 8.5 and 10% for the granite, limestone and dolomite, respectively.

The relationship between temperature increments (caused by increasing disc cutter spacing) and cutter consumption shows that increasing temperature can increase disc cutter consumption. It is observed that once the disc cutter spacing increases from 0.11 to 0.12 m, the disc cutter consumption increases significantly by about 65%.

The method's accuracy by comparing the results with those generated by the FDM shows that by employing DQM, accurate spatial domain results may be produced with fewer (only 100) grid points, resulting in excellent agreements with those of FDM obtained. A comparison of the computational characteristics of DQM and FDM indicates that the DQM requires significantly less computational effort than the FDM.

A scaled-down model for wear testing of TBM disc cutters is a practical and cost-effective approach. The findings of this study demonstrate that scaled models can provide valuable insights into cutter wear, which can be applied to full-scale TBM operations.

Analysis of different manufacturing materials for disc cutters suggests that material selection and optimisation play a critical role in cutter durability and efficiency, which can significantly impact the overall success of TBM projects.

It is essential to highlight that our study was conducted under the assumption of perfect contact. We only analysed the question of a moving heat source on a rigid body without considering the thermal contact resistance (TCR) between the disc cutter and the rock. While our analysis focused on the transient aspects of the rock-breaking process by the disc cutter, it is noteworthy that TCR can potentially influence the outcomes. Future investigations should consider delving into the impact of TCR and the heat partition coefficient between the disc cutter and the rock to provide a more comprehensive understanding of the phenomenon. Moreover, further research is necessary to expand experimental validation by conducting in-site tests to verify the results of numerical simulations. This will further enhance the credibility of the findings and their applicability to practical TBM operations and perform multi-parameter analysis to provide a comparative study for different working areas. This could include the presence of water in the excavation areas compared to dried or semi-dried formations; furthermore, the influence of different cooling liquids and cooling techniques can be included in future analysis.

Nomenclature

A_{i j}

Spatial first-order weighting coefficients

B_{i j}

Spatial second-order weighting coefficients

B i_{a}

Transversal Biot number $(\frac{h_{a} R}{k_{a}})$

C

Non-dimensional coefficient $(C \approx 2.12)$

C_{p}

Specific heat capacity (J kg⁻¹ K⁻¹)

h_{a}

Convection heat transfer coefficient for ambient air (W m⁻² K⁻¹)

k

Thermal conductivity (W m⁻¹ K⁻¹)

k_{a}

Thermal conductivity ambient temperature (W m⁻¹ K⁻¹)

L

Disc cutter linear breaking rock path (m)

q_{0}

Volumetric heat source (W m⁻³)

R

Base disc cutter radius (m)

r

Radial position (m)

T

Temperature (°C, K)

T_{a}

Ambient temperature (°C, K)

t

Time (s)

θ

Non-dimensional temperature $(\frac{T}{T_{a}})$

ρ

Density (kg m⁻³)

τ

Non-dimensional time $(\frac{k_{a} t}{ρ C_{p} L^{2}})$

β

Slope of the thermal conductivity-temperature divided by the intercept $k_{a}$

μ

Friction coefficient

ε

Constant for pressure distribution function (typically 0.2)

φ

Angle of contact between the rock and disc cutter (degree)

σ_{c}

Uniaxial compressive strength of the rock (Mpa)

σ_{t}

Tensile strength of the rock (Mpa)

ω_{r}

Disc cutter rotational speed (rad min⁻¹)

ψ

Cutting edge angle (degree)

Footnotes

Declaration of conflicting interests

The authors declared no potential conflicts of interest with respect to the research, authorship, and/or publication of this article.

Appendix 1. Differential quadrature method

The general concept behind the differential quadrature approach is that the derivative of a function at a particular sample point concerning a space variable is estimated as a weighted linear sum of the sampling points in the domain of that variable. To illustrate the DQ approximation, a one-dimensional function is taken into account. According to the DQ method, the first derivative of a function f (r, t) can be provided as: (A1)

{\frac{\partial f (r . t)}{\partial r} |}_{r = r_{i}} = \sum_{j = 1}^{N_{r}} A_{i j}^{r} f (r_{j} . t) = \sum_{j = 1}^{N_{r}} A_{i j}^{r} f_{j} (t) For i = 1. 2 . \dots . N_{r}

According to this equation, the weighting factors and sample point selection are the most necessary aspects of DQ approximation. Equation (A1) should employ a set of test functions to calculate the weighting coefficients. Using the Lagrange polynomials as the test functions, the weighting coefficients of the first-order derivatives in the x-direction are determined as: (A2)

A_{i j}^{r} = {\begin{matrix} \frac{M (r_{i})}{(r_{i} - r_{j}) M (r_{j})} f o r i \neq j \\ - \sum_{j = 1. i \neq j}^{N_{r}} A_{i j}^{r} f o r i = j \end{matrix} i . j = 1.2. \dots . N_{r}

where

M (r_{j}) = \prod_{j = 1. i \neq j}^{N_{r}} (r_{i} - r_{j})

. To evaluate the weighting coefficients of the second-order derivatives, recurrence relations are used as (A3)

B_{i j}^{r} = 2 [{(A_{i j}^{r})}^{2} - \frac{A_{i j}^{r}}{r_{i} - r_{j}}] f o r i . j . \dots . N_{r} i \neq j

(A4)

B_{i j}^{r} = - \sum_{j = 1 . i \neq j}^{N_{r}} B_{i j}^{r} f o r i = 1.2. \dots . N_{r}

A similar procedure can be used to obtain the weighting coefficients of the time dimensions, but equation (A2) should be modified as follows: (A5)

A_{i j}^{r} = {\begin{matrix} \frac{M (τ_{i})}{(τ_{i} - τ_{j}) M (τ_{j})} f o r i \neq j \\ - \sum_{j = 1. i \neq j}^{N_{r}} A_{i j}^{t} f o r i = j \end{matrix} i . j = 1.2. \dots . N_{t}

References

Bieniawski

Celada

Galera

, et al. (2009) Prediction of cutter wear using RME. In: ITA-AITES world tunnel congress, Budapest.

Bilgin

Copur

Balci

(2012) Effect of replacing disc cutters with chisel tools on performance of a TBM in difficult ground conditions. Tunnelling and Underground Space Technology 27(1): 41–51.

Chen

Chang

Hsu

(2001) Two-dimensional inverse problem in estimating heat flux of pin fins. International Communications in Heat and Mass Transfer 28(6): 793–801.

Cho

J-W

Jeon

Jeong

H-Y

, et al. (2013) Evaluation of cutting efficiency during TBM disc cutter excavation within a Korean granitic rock using linear-cutting-machine testing and photogrammetric measurement. Tunnelling and Underground Space Technology 35: 37–54.

Frenzel

(2011) Disc cutter wear phenomenology and their implications on disc cutter consumption for TBM. In: 45th US rock mechanics/geomechanics symposium. OnePetro.

Gorji

Karimi

Rahimi Larki

, et al. (2017) Theoretical modeling of thermal stress imposed by selective permeation membranes reinforced with graphene oxide. Journal of Applied Polymer Science 134(17): 1–10.

Haghighi

Eghtesad

Malekzadeh

(2008a) A coupled differential quadrature and finite element method for 3-D transient heat transfer analysis of functionally graded thick plates. Numerical Heat Transfer, Part B: Fundamentals 53(4): 358–373.

Haghighi

Eghtesad

Malekzadeh

(2008b) Coupled DQ–FE methods for two dimensional transient heat transfer analysis of functionally graded material. Energy Conversion and Management 49(5): 995–1001.

Hashemi

Abedini

Malekzadeh

(2006) Numerical modeling of long waves in shallow water using incremental differential quadrature method. Ocean Engineering 33(13): 1749–1764.

10.

Hashemi

Abedini

Malekzadeh

(2007) A differential quadrature analysis of unsteady open channel flow. Applied Mathematical Modelling 31(8): 1594–1608.

11.

Hassanpour

Azali

Rostami

(2014) TBM performance and tool wear prediction along two lots of Dyaaba Headrace Tunnel (Uma-Oya Project, Sri Lanka). In: North American tunneling: 2014 proceedings.

12.

Huo

J-Z

Sun

X-L

G-Q

, et al. (2015) Multi-degree-of-freedom coupling dynamic characteristic of TBM disc cutter under shock excitation. Journal of Central South University 22(9): 3326–3337.

13.

Huo

Sun

Chen

, et al. (2011) Disc cutters plane layout design of the full-face rock tunnel boring machine (TBM) based on different layout patterns. Computers & Industrial Engineering 61(4): 1209–1225.

14.

Kalayci Sahinoglu

Ozer

(2020) The prediction of cutter wear from temperature measurements on TBM discs and cutting face. Arabian Journal of Geosciences 13(5): 207.

15.

Komatsu (1998) Wear detecting method for disc cutter and wear detecting equipment. Japan.

16.

Kumar

Kumaraswamidhas

Murthy

VMSR

, et al. (2020) Experimental investigations on thermal behavior during pick-rock interaction and optimization of operating parameters of surface miner. International Journal of Rock Mechanics and Mining Sciences 133: 104360.

17.

Lan

Xia

, et al. (2019) Online monitoring device of disc cutter wear–design and field test. Tunnelling and Underground Space Technology 89: 284–294.

18.

Lee

H-L

Chou

H-M

Yang

Y-C

(2004) The function estimation in predicting heat flux of pin fins with variable heat transfer coefficients. Energy Conversion and Management 45(11-12): 1749–1758.

19.

Maidl

Schmid

Ritz

, et al. (2008) Hardrock Tunnel Boring Machines. Germany: John Wiley & Sons.

20.

Malekzadeh

Rahideh

(2007) IDQ two-dimensional nonlinear transient heat transfer analysis of variable section annular fins. Energy Conversion and Management 48(1): 269–276.

21.

Malekzadeh

Rahideh

Karami

(2006) A differential quadrature element method for nonlinear transient heat transfer analysis of extended surfaces. Numerical Heat Transfer, Part A: Applications 49(5): 511–523.

22.

Nowamooz

Nikoosokhan

Lin

, et al. (2015) Finite difference modeling of heat distribution in multilayer soils with time-spatial hydrothermal properties. Renewable Energy 76: 7–15.

23.

Öztuna

(2007) A differential quadrature solution of natural convection in an enclosure with a partial partition. Numerical Heat Transfer, Part A: Applications 52(11): 1009–1026.

24.

Zhengying

Hao

, et al. (2016) Numerical and experimental research on the rock-breaking process of tunnel boring machine normal disc cutters. Journal of Mechanical Science and Technology 30: 1733–1745.

25.

Rostami

(2013) Study of pressure distribution within the crushed zone in the contact area between rock and disc cutters. International Journal of Rock Mechanics and Mining Sciences 57: 172–186.

26.

Rostami

Ozdemir

Nilson

(1996) Comparison between CSM and NTH hard rock TBM performance prediction models. In: Proceedings of annual technical meeting of the institute of shaft drilling technology, Las Vegas, pp.1–10.

27.

Smithies

Howard

Evins

, et al. (2011) High-temperature granite magmatism, Crust–Mantle interaction and the mesoproterozoic intracontinental evolution of the Musgrave Province, Central Australia. Journal of Petrology 52(5): 931–958.

28.

Song

L-W

Guo

Zhu

D-H

(2015) Heat conduction model of TBM disc cutter cutting temperature and its solution. In: Proceedings of the 14th IFToMM world congress, pp.48–53. 國立臺灣大學機械系.

29.

Hwang

(1999) Transient analysis of two-dimensional cylindrical pin fin with tip convective effects. Heat Transfer Engineering 20(3): 57–63.

30.

Tornabene

Fantuzzi

Ubertini

, et al. (2015) Strong formulation finite element method based on differential quadrature: a survey. Applied Mechanics Reviews 67(2): 020801.

31.

Trinh

Ojo

Groh

, et al. (2021) A mixed inverse differential quadrature method for static analysis of constant-and variable-stiffness laminated beams based on Hellinger-Reissner mixed variational formulation. International Journal of Solids and Structures 210-211: 66–87.

32.

Wang

Kang

Cai

, et al. (2012) The energy method to predict disc cutter wear extent for hard rock TBMs. Tunnelling and Underground Space Technology 28: 183–191.

33.

Wang

Kang

Zhao

, et al. (2015) Disc cutter wear prediction for a hard rock TBM cutterhead based on energy analysis. Tunnelling and Underground Space Technology 50: 324–333.

34.

Wang

Feng

Yang

, et al. (2021) Nonlinear vibration of FG-GPLRC dielectric plate with active tuning using differential quadrature method. Computer Methods in Applied Mechanics and Engineering 379: 113761.

35.

Wijk

(1992) A model of tunnel boring machine performance. Geotechnical and Geological Engineering 10: 19–40.

36.

Yang

Huang

H-W

(2005) Application of rock mass classification in cutter life prediction of TBM. Chinese Journal of Underground Space and Engineering 1(5): 721–724.

Numerical investigation of temperature distribution on a tunnel boring machine disc cutter affected by geomechanically and excavation parameters

Abstract

Keywords

Introduction

Mathematical model

Initial and boundary conditions

Numerical method

Results and discussion

Model validation

Effect of geological characteristic parameters on disc cutter temperature distribution

Effect of excavation parameters on distributed temperature

Effect of disc cutter's thermophysical characteristics on disc cutter temperature

Disc cutter consumption

Conclusion and remarks

Footnotes

Declaration of conflicting interests

Appendix 1. Differential quadrature method

References
