Prognostic factors affecting macular hole closure types

Abstract

Purpose:

In this study, we aimed to evaluate the relationship between macular hole closure types assessed by optical coherence tomography (OCT) and the preoperative prognostic factors.

Materials and methods:

In total, 183 patients who underwent pars plana vitrectomy and internal limiting membrane peeling for idiopathic macular hole between August 2014 and August 2019 were reviewed retrospectively. The preoperative measurements of the macular hole including minimum linear diameter (MLD), basal hole diameter (BHD) and hole height (HH) were measured on OCT images. The patients were divided into two closure types on the basis of postoperative OCT findings (type 1 closure: retinal edges were flat and there was no defect of the neurosensory retina on the fovea; type 2 closure: retinal edges were flat and there was a defect of the neurosensory retina on the fovea). The difference of prognostic factors such as age; duration of symptoms; preoperative best-corrected visual acuity (BCVA); preoperative macular hole measurements, including MLD, BHD and HH; and rate of reopening between two types were statistically analysed.

Results:

The mean age of patients was 66.33 ± 8.09 years (range: 48–88 years). According to OCT imaging, 117 eyes (63.9%) were classified into the type 1 closure group, and 66 eyes (36.1%) were classified into the type 2 closure group. There were no significant differences between two groups in age, duration of symptoms and preoperative BCVA (p = 0.694, p = 0.092 and p = 0.15). MLD and BHD were significantly larger, and reopening was significantly more common in type 2 group (p < 0.05, p = 0.04 and p < 0.005); however, there was no significant difference in HH between two groups (p = 0.239).

Conclusion:

Preoperative horizontal measurements of macular hole may help to determine postoperative visual expectations and anatomical success, and predict the possibility of reopening.

Keywords

macular hole macular hole measurements optic coherence tomography pars plana vitrectomy

Introduction

The macular hole is a full thickness opening or dehiscence of the retinal tissue involving the fovea. The pathogenesis of macular hole formation is not clear; however, the tangential or anteroposterior vitreofoveal traction has been suggested as the most probable mechanism.¹ Surgery for macular hole involves pars plana vitrectomy (PPV), core vitrectomy, removal of the posterior cortical hyaloid and obvious epiretinal membranes, and filling of the vitreous cavity with a tamponade since 1991.^2,3

Since the development of optical coherence tomography (OCT), which can show high-resolution cross-sectional images of the retina, a lot of information such as the pathogenesis, classification and diagnosis of macular hole, measuring hole size and postoperative improvement, might be determined easily.⁴

Tornambe and colleagues⁵ categorized the macular hole closure types, in terms of the postoperative anatomical status of retinal edges as elevated and open, flat and open, or flat and closed. Kang and colleagues⁶ classified macular hole closure types according to postoperative OCT in two types: complete sealing of the macular hole without bare retinal pigment epithelium (RPE) and incomplete sealing of the macular hole with bare RPE.

In this study, we aimed to evaluate the relationship between macular hole closure types assessed by OCT and the preoperative prognostic factors like age, duration of symptoms, preoperative best-corrected visual acuity (BCVA), preoperative glaucoma and preoperative macular hole measurements, including minimum linear diameter (MLD), basal hole diameter (BHD) and hole height (HH).

Materials and methods

The records of the patients who underwent PPV for idiopathic macular hole in the retina department of Beyoğlu Eye Training and Research Hospital between August 2014 and August 2019 were reviewed retrospectively. The study was approved by Prof. Dr. Cemil Taşçıoğlu City Hospital Ethics Committee with number of 48670771-514.10, and written informed consent was obtained from each participant in accordance with the principles of the Declaration of Helsinki.

Patients with a history of trauma, more than 6 diopters of myopia, diabetes, age-related macular degeneration, previous vitreoretinal surgery and who were younger than 18 years were excluded from the study. All patients underwent detailed ophthalmological examination, including refraction, BCVA with a Snellen chart, slit-lamp biomicroscopy, intraocular pressure (IOP) measurements, fundus examination after dilatation and OCT imaging (SPECTRALIS; Heidelberg Engineering) at baseline and follow-up visits. The measurements of the macular hole including MLD, BHD and HH were measured on OCT images. We measured MLD as the minimum inner diameter between the macular hole edges, BHD as the diameter of the hole at the level of the RPE and HH as the distance from the RPE to the upper level of the retinal edges (Figure 1).

Figure 1.

The measurements of the macular hole including MLD, BHD and HH were measured on OCT images. BHD, basal hole diameter; HH, hole height; MLD, minimum linear diameter; OCT, optical coherence tomography.

All patients underwent same surgical procedure. Surgical technique included a standard three-port PPV, then posterior adherent cortical vitreous was removed, internal limiting membrane (ILM) was peeled after staining with brilliant blue and the vitreous cavity was filled with 15% perfluoropropane (C3f8) gas tamponade. If patients had lens opacity resulting in poor visualization of fundus, phacoemulsification and intraocular lens implantation were combined with PPV. All of the patients took a facedown position for more than 10 days postoperatively. The anatomic and functional outcomes of surgery were evaluated at postoperative third month.

We classified the closure type on the basis of postoperative OCT findings. If retinal edges were flat and there was no postoperative defect of the neurosensory retina on the fovea, it was named as type 1 closure (Figure 2); if retinal edges were flat and there was a postoperative defect of the neurosensory retina on the fovea, it was named as type 2 closure (Figure 3).⁶ If retinal edges remained elevated postoperatively, it was evaluated as unsuccessful closure.

Figure 2.

The OCT image of type 1 closure. OCT, optical coherence tomography.

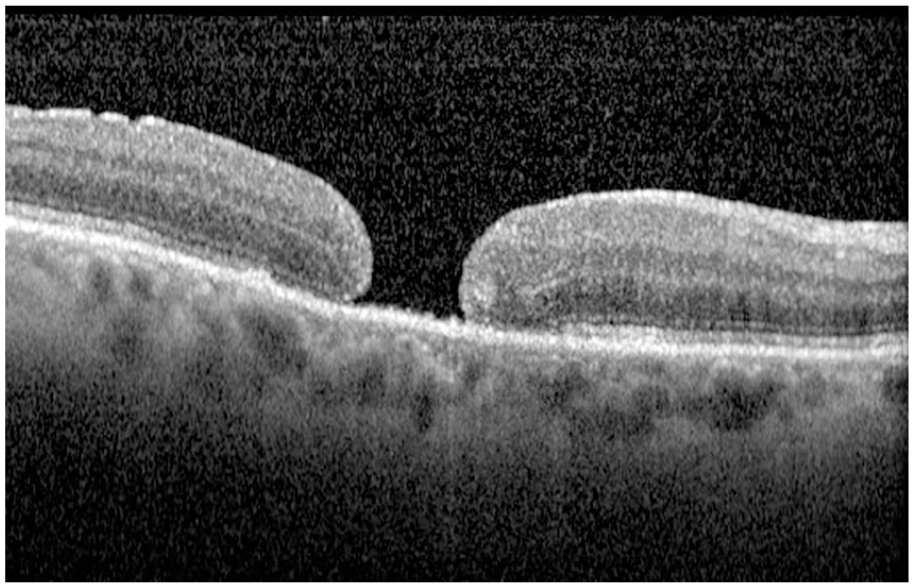

Figure 3.

The OCT image of type 2 closure. OCT, optical coherence tomography.

The difference of possible prognostic factors such as age; duration of symptoms; preoperative BCVA; preoperative macular hole measurements, including MLD, BHD and HH; and rate of reopening between two types was statistically analysed.

Statistical analysis

All statistical analyses were performed using Statistical Package for the Social Sciences (SPSS), version 20.0, for Windows. Descriptive statistics included mean values ± standard deviation (SD), percentage, minimum (min) and maximum (max) for normally distributed variables. Visual acuity values were converted to logarithm of the minimal angle of resolution (logMAR) units. Distribution of variables was measured by Kolmogorov–Smirnov test. For quantitative analysis, paired-sample t-test was used for normally distributed variables, and Wilcoxon signed-rank test was used when the measurements did not fit the normal distribution. The variables were compared between two study groups using independent t-test (parametric data) and Mann–Whitney test (nonparametric data). A p value <0.05 was considered significant. In correlation analysis, the Pearson correlation analysis was used for normally distributed variables, and the Spearman correlation analysis was used when the measurements did not fit the normal distribution.

Results

The study included 183 eyes of 183 participants [98 females (53.6%) 85 males (46.4%)], and the mean age of patients was 66.33 ± 8.09 years (range: 48–88 years); 99 cases (54.1%) were right eyes, and 84 cases (45.9%) were left eyes. The mean duration of symptoms was 1.71 ± 1.64 months (range: 1–11 months), and the mean postoperative follow-up period was 11.88 ± 5.37 months (range: 6–48 months). Ten cases (5.5%) had glaucoma preoperatively.

According to OCT imaging at postoperative third month, 117 eyes (63.9%) were classified into type 1 closure group, and 66 eyes (36.1%) were classified into type 2 closure group.

The mean age was 65.73 ± 8.11 years (range: 48–75 years) in type 1 group and 68.36 ± 7.89 years (range: 59–88 years) in type 2 group, and there was no significant difference between two groups (p = 0.694). The mean duration of symptoms was 1.8 ± 1.78 months (range: 1–11 months) in type 1 group, 1.4 ± 0.99 months (range: 1–5 months) in type 2 group, and the mean postoperative follow-up period was 11.60 ± 7.75 months (range: 6–48 months) in type 1 group, 12.88 ± 10.37 months (range: 6–39 months) in type 2 group (Table 1). There were no significant differences between two groups in duration of symptoms and postoperative follow-up period (p = 0.092 and p = 0.516, respectively).

Table 1.

Comparison of preoperative and postoperative variables between two closure types.

	Type 1	Type 2	p value
The mean age	65.73 ± 8.11 years (range: 48–75 years)	68.36 ± 7.89 years (range: 59–88 years)	p = 0.694
The mean duration of symptoms	1.8 ± 1.78 months (range: 1–11 months)	1.4 ± 0.99 months (range: 1–5 months)	p = 0.092
Postoperative follow-up period	11.60 ± 7.75 months (range: 6–48 months)	12,88 ± 10,37 months (range: 6–39 months)	p = 0.516
Phacoemulsification and intraocular lens application with PPV	6 (5.1%)	6 (9.1%)	p = 0.433
Preoperative glaucoma	6 (5.1%)	4 (6.1%)	p = 0.599
The mean preoperative BCVA (logMAR)	0.94 ± 0.37 (range: 0.15–1.8)	1.04 ± 0.43 (range: 0.30–1.8)	p = 0.15
The mean postoperative third-month BCVA (logMAR)	0.83 ± 0.36 (range: 0.10–1.30)	0.98 ± 0.33 (range: 0.10–1.30)	p < 0.05
The mean preoperative MLD	384.24 ± 173.12 µm (range: 70–1226)	573.24 ± 185.80 µm (range: 183–971)	p < 0.05
The mean preoperative BHD	924.72 ± 341.58 µm (range: 118–2148)	1153.58 ± 399.86 µm (range: 401–2303)	p = 0.04
The mean preoperative HH	464.5 ± 92.86 µm (range: 276–934)	506.67 ± 196.27 µm (range: 308–1506)	p = 0.239
Reopening in postoperative period	3 (2.6%)	10 (15.2%)	p < 0.005

BCVA, best-corrected visual acuity; BHD, basal hole diameter; HH, hole height; logMAR, logarithm of the minimal angle of resolution; MLD, minimum linear diameter; PPV, pars plana vitrectomy.

Phacoemulsification and intraocular lens implantation combined with PPV were performed in six (5.1%) patients in type 1 group and six (9.1%) patients in type 2 group, and there was no significant difference between two groups (p = 0.433). Six (5.1%) patients in type 1 group and four (6.1%) patients in type 2 group had preoperative glaucoma, and there was no significant difference (p = 0.599; Table 1).

The mean preoperative BCVA was 0.94 ± 0.37 logMAR (range: 0.15–1.80) in type 1 group and 1.04 ± 0.43 logMAR (range: 0.3–1.80) in type 2 group, and there was no significant difference of preoperative BCVA between two groups (p = 0.15). The mean postoperative third-month BCVA was 0.83 ± 0.36 logMAR (range: 0.10–1.30) in type 1 group and 0.98 ± 0.33 logMAR (range: 0.10–1.30) in type 2 group, and postoperative BCVA was found to be higher in type 1 group than type 2 group (p < 0.05; Table 1). The postoperative BCVA changes were significant in both groups (p < 0.05). There was a moderate correlation between preoperative BCVA and postoperative BCVA in both groups (Table 2). However, there was no correlation between age and postoperative BCVA and between duration of symptoms and postoperative BCVA in both types (Table 2).

Table 2.

Correlations between continuous variables.

	Type 1	Type 2
Preoperative BCVA–postoperative BCVA
r value	0.397	0.345
Age–postoperative BCVA
r value	0.097	0.068
Duration of symptoms–postoperative BCVA
r value	0.089	0.121

BCVA, best-corrected visual acuity.

The mean preoperative MLD was 384.24 ± 173.12 µm (range: 70–1226), BHD was 924.72 ± 341.58 µm (range: 118–2148) and HH was 464.5 ± 92.86 µm (range: 276–934) in type 1 group, and the mean preoperative MLD was 573.24 ± 185.80 µm (range: 183–971), BHD was 1153.58 ± 399.86 µm (range: 401–2303) and HH was 506.67 ± 196.27 µm (range: 308–1506) in type 2 group. MLD and BHD were significantly larger in type 2 group (p < 0.05 and p = 0.04); however, there was no significant difference in HH between two groups (p = 0.239; Table 1).

No postoperative complication such as endophthalmitis, retinal detachment or epiretinal membrane was observed in either group.

Three (2.6%) cases of type 1 group and 10 (15.2%) cases of type 2 group reopened in postoperative period, and reopening was observed more common in type 2 group (p < 0.005; Table 1). After reoperation, four reopened cases in type 2 group showed type 1 closure, and in these four cases, the mean MLD was 278.5 ± 98.33 µm (range: 183–392), BHD was 630.25 ± 179.31 µm (range: 401–810) and HH was 113.67 ± 56.83 µm (range: 277–524). Six reopened cases in type 2 group showed type 2 closure again, and in these six cases, the mean MLD was 572.83 ± 136.83 µm (range: 507–820), BHD was 1456.83 ± 446.17 µm (range: 1125–1549) and HH was 543.17 ± 99.69 µm (range: 418–690). There was a significant difference in MLD and BHD between these groups (p = 0.03 and p = 0.04; Table 3).

Table 3.

Difference of mean preoperative minimum linear diameter, base diameter and hole height between secondary closure types in reopened cases in type 2 closure group.

	Type 1	Type 2	p value
The mean preoperative MLD	278.5 ± 98.33 µm (range: 183–392)	572.83 ± 136.83 µm (range: 507–820)	p = 0.03
The mean preoperative BHD	630.25 ± 179.31 µm (range: 401–810)	1456.83 ± 446.17 µm (range: 1125–1549)	p = 0.04
The mean preoperative HH	113.67 ± 56.83 µm (range: 277–524)	543.17 ± 99.69 µm (range: 418–690)	p = 0.393

BD, base diameter; HH, hole height; MLD, minimum linear diameter.

Discussion

The anatomical closure rate of macular holes with vitrectomy has been reported as more than 90% in the literature.^7–9 Macular hole closure types were first described by Tornambe as three types; however, one of them was regarded as unsuccessful closure.⁵ Imai and colleagues¹⁰ described the macular hole closure types into three types depending on postoperative OCT: normal foveal contour as U pattern, steep foveal contour as V pattern and foveal defect of neurosensory retina as W pattern. We evaluated postoperative hole closure type in two types, according to sensory retinal status on OCT imaging. Some studies consider the presence of a foveal defect as unsuccessful closure;^11,12 however, we evaluated the cases as unsuccessful closure if the postoperative retinal edges remained elevated. We also considered the cases with flat retinal edges and a postoperative defect of the neurosensory retina on the fovea, as type 2 closure.

The postoperative visual function does not only depend on anatomical closure of macular hole, but it is also predicted by sensory retinal status.⁵ Imaging of sensory retinal status by OCT would help us to predict postoperative visual improvement. A number of possible prognostic factors on postoperative success such as the duration of symptoms, preoperative macular hole size, preoperative visual acuity, axial length, age and sex have been reported.^13–15 However, there are different results in the literature. In this study, we aimed to analyse the difference of possible prognostic factors like age; duration of symptoms; preoperative BCVA; preoperative macular hole measurements, including MLD, BHD and HH; and rate of reopening between two types with a larger group of patients.

In this study, we found postoperative BCVA was better in type 1 closure group. Kang and colleagues⁶ reported that postoperative BCVA was correlated with the type of closure. Tornambe and colleagues⁵ reported that visual acuity was better in postoperative flat and closed macula status than flat and opened macula status. Imai and colleagues¹⁰ reported BCVA correlation with closure patterns as U > V > W. The U pattern and V pattern in their study correspond to type 1 closure in ours. It has been reported in the literature that restoration of outer retinal layers is important for visual improvement after macular hole surgery.¹⁶ This may explain the better visual acuity in type 1 group.

The correlation of preoperative macular hole size with anatomical success and visual improvement has been reported in many studies in the literature.^13,17–20 There have been several studies with different types of macular hole measurements like macular hole index, hole form factor, diameter hole index, tractional hole index and macular hole closure index.^13,21–23 We measured horizontal hole size as the MLD and BHD, and vertical hole size as HH. In our study, we found that MLD and BHD were smaller in type 1 closure group, and postoperative visual improvement was better with smaller MLD and BHD. Kang and colleagues⁶ reported that hole closure type depends on preoperative hole diameter stronger than other prognostic factors. Our results indicate that preoperative horizontal measurements of macular hole may help to determine postoperative visual expectations and anatomical success.

Reopening of macular hole after surgery has been reported between 2% and 10% in the literature.²⁴ Ip and colleagues¹⁹ reported that reopening was seen in macular holes, which was larger than 400 µm. Kang and colleagues⁶ reported two reopened cases in type 2 closure group in postoperative second and fourth months. We found that reopening rate was significantly higher in type 2 closure group (2.6% in type 1 group and 15.2% in type 2 group; p < 0.005). Tornambe and colleagues⁵ reported that if the edges of macular hole were visible and separated (flat and open pattern), it may be caused by incomplete removal of epiretinal membrane, which may result in macular dehiscence. Closure of the macular hole has been reported to occur with termination of tangential vitreous traction, reattachment of the hole edges to the neurosensor retina and closure of the residual photoreceptor defect with glial proliferation.^25–27 Histological examinations showed that photoreceptor defect varied between 16 and 250 µm after macular hole repair.^25–27 There is one case in the literature without histologic glial proliferation sign.¹⁵ This might show that glial proliferation varies according to neurosensory retinal defect size, and it may not occur in some eyes after macular hole repair. Kumar and Yadav¹⁶ reported that ILM peeling may help ending tangential traction and reactive gliosis; however, it is not enough for large holes. This may indicate that wider neurosensory retinal defect may cause interruption of glial proliferation, which may cause reopening of repaired macular hole and that other surgical techniques such as inverted ILM flap technique may be needed in large holes. The restoration of foveal microstructure and the closure rate of macular hole have been reported higher in studies evaluating the inverted ILM flap technique in large macular holes.^11,12

Rishi and colleagues²⁸ reported two macular hole cases which underwent reoperation after type 2 closure and showed type 1 closure after reoperation. Kang and colleagues⁶ reported two cases in type 2 closure group which have reopened and showed subretinal fluid after PPV and ILM peeling. We observed reopening more common in type 2 closure group. Type 2 closure was observed more commonly in initial type 2 closure group after reoperation, and there was a significant difference between secondary closure types in preoperative MLD and BHD (p = 0.03 and p = 0.04). This result shows that initial MLD and BHD may predict the possibility of reopening and the success rate after reoperation.

Many studies reported that shorter duration of symptoms is correlated with better visual acuity.^6,7,17–20 We found no correlation between visual acuity and the duration of symptoms in both types of closure. Kang and colleagues⁶ also reported no correlation between visual acuity and duration of symptoms in their study. We believe that this difference was caused by the fact that most of our elderly patients may not exactly determine when their symptoms started, and their admission to our tertiary clinic was delayed due to referrals from other hospitals.

There have been different results about the correlation between preoperative and postoperative visual acuity in macular hole cases in the literature.^2,6,17 Kang and colleagues⁶ found no correlation between preoperative and postoperative visual acuity. In contrary, we found a moderate correlation between preoperative and postoperative visual acuity in both types (r = 0.397 in type 1 group, r = 0.345 in type 2 group). We also found no correlation between age and postoperative visual acuity in both types. Similar to our findings, Kang and colleagues6 also found no correlation between them.

The limitation of our study is that we classified the type of closure according to OCT in the postoperative third month, but it is known that recovery may take longer.

In conclusion, preoperative horizontal macular hole measurements such as MLD and BHD may provide foresight to the type of hole closure, the visual improvement, the possibility of reopening after surgery and the success of second surgery in reopened cases.
