Abstract
Category:
Trauma; Ankle
Introduction/Purpose:
Weber-B ankle fractures represent an increasingly common injury world-wide, and the decision for operative fixation often hinges on the stability and congruency of the ankle. While tibiotalar displacement is typically evaluated using the medial clear space on plain radiographs, this method remains prone to inaccuracy because of x-ray beam rotation and manual measurement errors. Furthermore, the influence of these fractures on the mechanical environment of the ankle remains unknown. The recent advent of weightbearing cone-beam CT (WBCT) overcomes these drawbacks by imaging during bipedal stance, allowing a 3D anatomical and mechanical analysis. Therefore, the aim of this study was to analyze the 3D mortise displacement and contact mechanics in weber B ankle fractures by use of WBCT in comparison to their healthy contralateral side.
Methods:

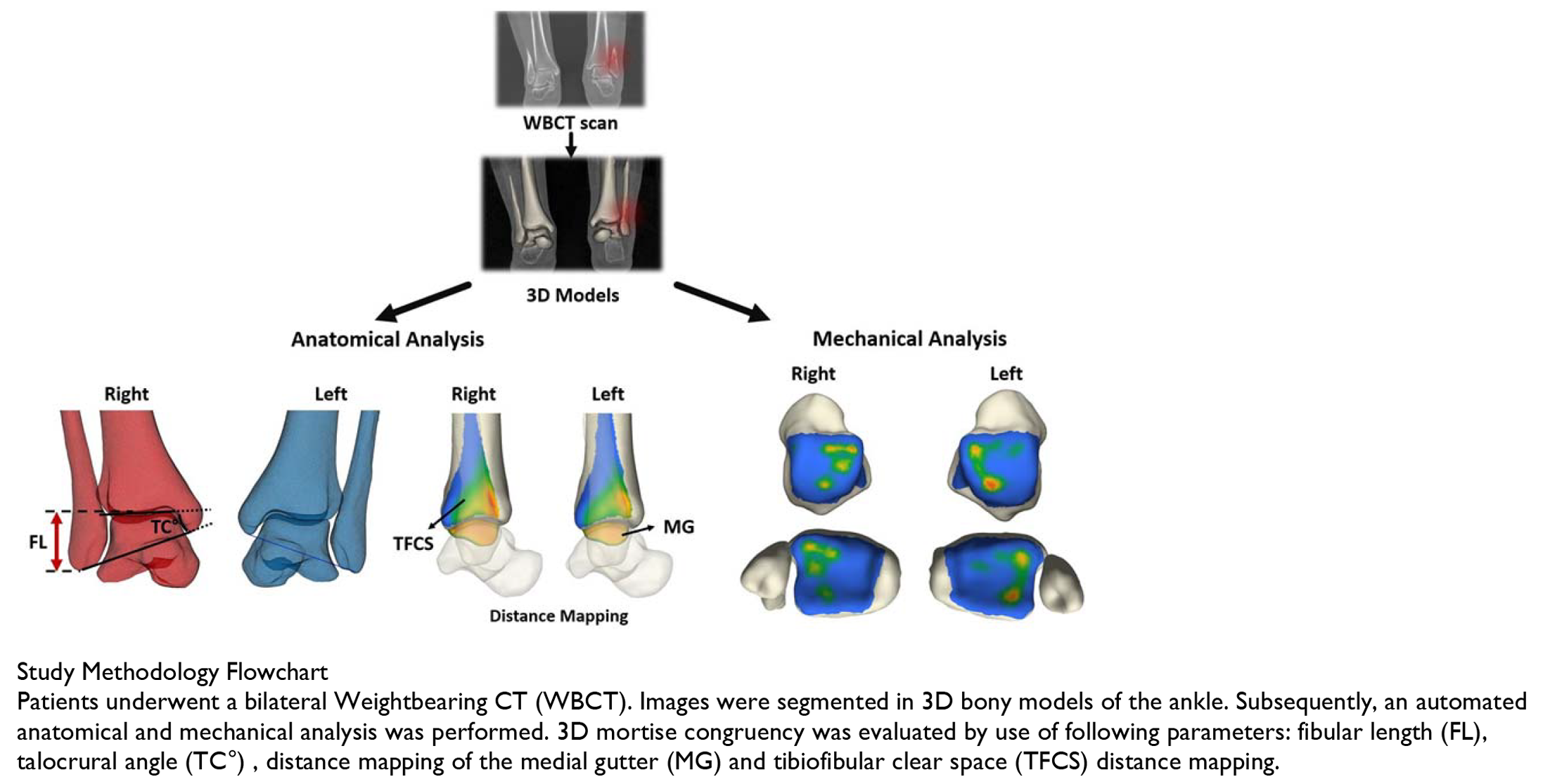

In this retrospective study, our ankle trauma database was searched for Weber-B ankle fractures imaged by bilateral WBCT imaging between 2015 and 2022. Exclusion criteria consisted of metal or motion artifacts, presence of ankle osteoarthritis, and an age less than 18 years or more than 75 years. Segmentation into 3D models of bone was performed semi-automatically, while personalized cartilage layers were modeled based on a previously validated methodology. Bilateral ankle models were imported in custom-made Matlab® script for an automated anatomical and mechanical analysis. 3D mortise congruency was evaluated by use of following parameters: fibular length, talocrural angle, distance mapping of the medial gutter and tibiofibular clear space distance mapping. Contact mechanics were evaluated by the mean and maximum contact stress of the tibia and talus, as well as the contact area (Figure 1). A student’s T-test was performed to investigate the difference between the fractured and healthy side.
Results:
Thirty-two patients, with mean age 38.50 years (SD = 15.81 ) and weight 79.12 kg (SD = 16,24), were confirmed eligible for analysis. Statistical analysis revealed that there were no significant differences for all anatomical parameters (P > 0.05). The mean contact stress of the fractured and healthy side was 2.10 (SD = 0.42) MPa and 2.10 (SD = 0,41) MPa, respectively, whereas the maximum stress was 7.67 MPa (SD = 1.55) and 7,47 MPa (SD = 1,67), respectively. No statistical significant differences were found between all mechanical parameters (P > 0.05).
Conclusion:
This study demonstrates that contact mechanics are not affected in Weber-B fractures with a congruent mortise. Therefore, non-operative treatment could be considered, as there will theoretically be no increased risk for the patients to develop posttraumatic osteoarthritis in the long term. In clinical practice, WBCT could prove useful to determine the 3D anatomical and mechanical environment of ankle fractures and guide patients towards (non-) operative treatment. However, further studies should focus on the minimal clinical important difference/rehabilitation factors associated with mortise malalignment based on concomitant contact stress increase, which would warrant and identify which cases need surgical reduction.
