Abstract
Category:
Ankle; Trauma
Introduction/Purpose:
The term ‘quadrimalleolar fracture’ (QMF) describes a trimalleolar (TM) ankle fracture with an associated Chaput or Wagstaffe fracture. Optimal fixation of these injuries not only allows for bone-to-bone healing but also facilitates syndesmotic reduction. However, this is a relatively new concept, and the literature on QMFs is limited to a few case series.
Hence, we conducted this study to determine the epidemiology, patterns, and clinicoradiologic correlations of QMFs. The primary objective of this study was to describe the prevalence and patterns of QMFs. The secondary objective was to determine if certain clinical or radiological parameters were associated with different types and patterns of QMFs.
Methods:

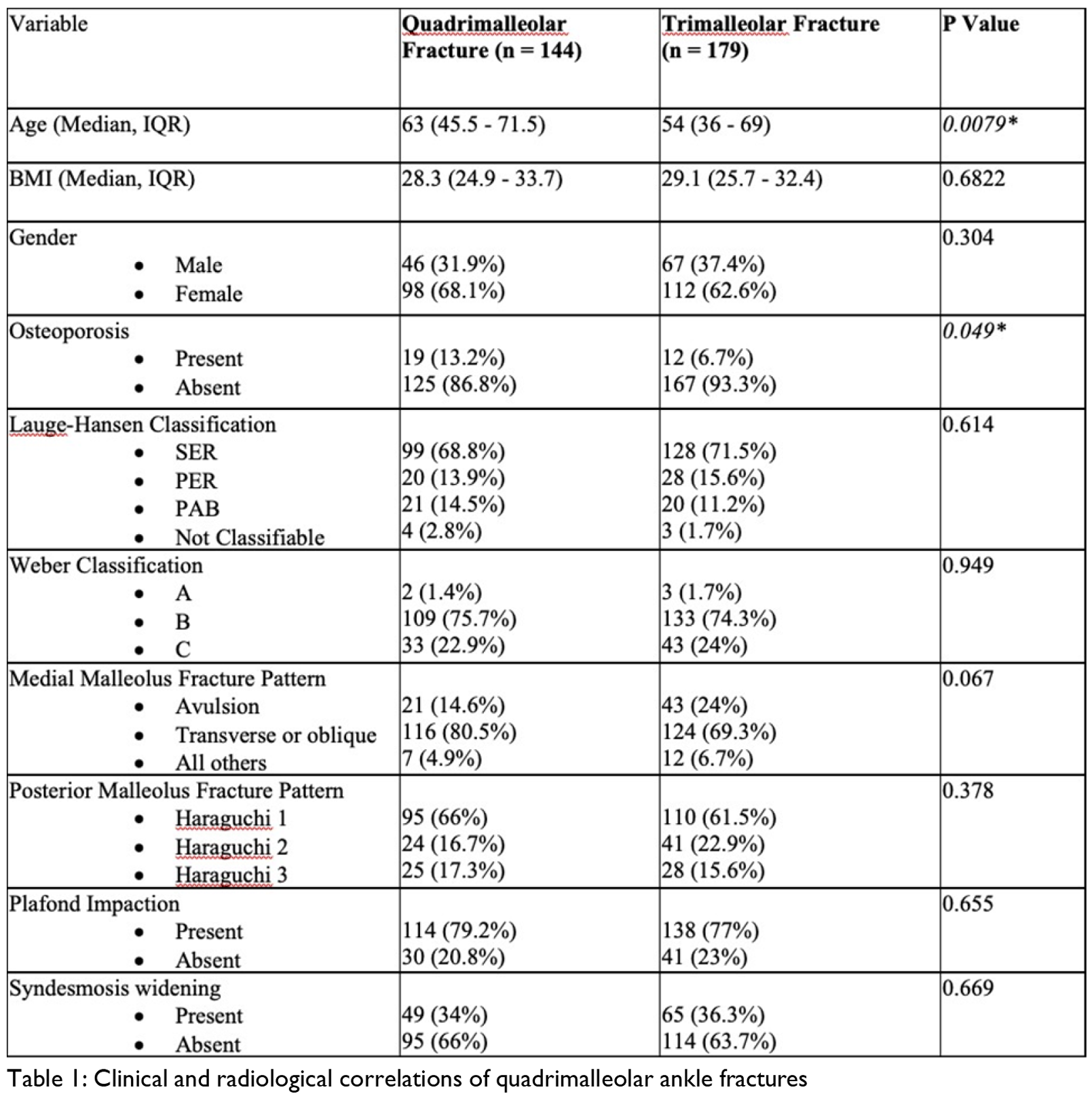

A retrospective analysis of ankle fractures presenting to three tertiary referral hospitals was undertaken. Adult patients (≥18 years) presenting with an acute, traumatic TM ankle fracture over 3 years (July 2018 to July 2021) were included. Isolated medial and lateral malleolar fractures, bimalleolar ankle fractures, pediatric patients, pilon fractures, pathological fractures, and those with delayed presentation or (≥3 weeks of injury) were excluded. Clinical demographic variables were obtained from the patients’ medical records. AP, lateral, and mortise ankle radiographs, and CT scans, (axial, coronal, and sagittal sections along with 3D volume reconstructed models) whenever available, were evaluated in detail. Demographics and radiological parameters were compared between TM and QMF, as well as between different types of QMFs. Odds ratios with 95% confidence intervals were determined to test the strength of association.
Results:
A total of 876 adult patients with ankle fractures were included after the screening, of which 323 had a TM ankle fracture for which a CT scan had been performed. A total of 159 AITFL avulsions were identified, yielding a prevalence of 18.2% amongst all ankle fractures and 26.1% in ankle fractures where a CT scan had been performed. TMFs had the significantly highest proportion of CT-confirmed AITFL avulsions (44.4%) in comparison to unimalleolar (4.4%) and bimalleolar fractures (6.4%) (P < 0.0001). Age and osteoporosis were significant associations of QMFs. Avulsion of the medial malleolus, Weber B fibular fracture, and supination external rotation mechanism were significantly associated with Wagstaffe fractures. Size of the Chaput fracture was inversely related to that of the posterior malleolar fracture.
Conclusion:
Quadrimalleolar ankle fractures account for a significant proportion of ankle fractures. The strengths of this study include a large sample size, which was derived from three different hospitals, consecutive inclusion (or exclusion) of cases, strict adherence to the STROBE guidelines, and the fact that only CT-confirmed cases were used to determine clinic-radiological associations. Wagstaffe and Chaput fractures have distinct clinical and radiological correlations. However, further research is needed to determine the optimal fixation protocols for these injuries.
