The Effect of Chilled vs Room-Temperature Irrigation on Thermal Energy Dissipation During Minimally Invasive Calcaneal Osteotomy of Cadaver Specimens

Abstract

Background:

Minimally invasive (MIS) calcaneal osteotomy has grown in popularity in recent years to address hindfoot deformity. A potential complication is thermal bone necrosis secondary to heat generation from the burr that may lead to osteotomy nonunion. Irrigation is commonly employed to reduce this risk. The effect of irrigation on reducing heat accumulation remains an understudied area. The purpose of this study was to evaluate the effect of cooled vs room-temperature irrigation on thermal energy dissipation during calcaneal osteotomy using a Shannon burr.

Methods:

Fourteen cadaveric limbs at room temperature (68 °F) were randomized to receive either cooled saline (7 limbs) or room-temperature (7 limbs) irrigation during MIS calcaneal osteotomy. Two thermocouple probes were inserted 5 mm away from the plane of the osteotomy, on the proximal and distal sides, respectively. A 3 × 30-mm Shannon burr was used to perform the osteotomy. The burr was run continuously with continuous irrigation using either room-temperature (68 °F) or chilled (37 °F) irrigation, until the osteotomy was completed. Temperature was recorded at 0, 15, 30, 45, and 60 seconds for the 2 groups and used as a measure of thermal energy accumulation.

Results:

Both room-temperature and chilled irrigation were effective in minimizing temperature change. On the proximal side, an overall mean increase of 2.5 °F with room-temperature irrigation and a mean decrease of 1.0 °F with chilled irrigation were observed at the 60-second interval (P = .004). On the distal side, there was a mean increase of 1.3 °F with room-temperature irrigation and a mean increase of 0.5 °F with chilled irrigation (P = .05).

Conclusion:

For the duration of an MIS calcaneal osteotomy, both continuous room-temperature and chilled irrigation can minimize temperature increases and potentially reduce the risk of an osteotomy nonunion.

Clinical Relevance:

Both room-temperature and chilled irrigation can minimize bone temperature increases during MIS calcaneal osteotomy.

Introduction

A calcaneal sliding osteotomy is a commonly employed technique to address hindfoot deformity to restore alignment.^10,16,18 It has traditionally been performed through an open approach. Although it is a safe and reliable procedure, concerns regarding wound healing, infection, and neurovascular injury are present, with rates as high as 25% being reported.^9,15 Furthermore, it is often performed in conjunction with other procedures to address pes cavus or pes planus deformities. A large open incision along the lateral heel can often compromise or affect the ability to perform concomitant procedures.^1,7,15

For these reasons, a minimally invasive (MIS) approach has been adopted and increasingly employed to perform a sliding calcaneal osteotomy, using a high-torque, low-speed burr under fluoroscopic guidance.^9,13 Results have demonstrated fewer wound complications, infections, and nerve injury relative to the open group.^7,9,15 When using the burr to perform the osteotomy, irrigation is used to reduce the risk of heat necrosis that could potentially lead to a nonunion of the osteotomy.^2-4,12 In a series of 160 patients who underwent an MIS medial displacement calcaneal osteotomy, Coleman et al ⁴ noted a case cluster of nonunions of the osteotomy thought to be related to heat osteonecrosis from the burr. In an animal arthrodesis model, use of chilled irrigation led to a higher fusion rate and improved fusion mass strength. ⁸ Although irrigation is commonly employed, an understudied area involves the temperature of the irrigation used when performing the osteotomy. The purpose of this study was to compare the effect of chilled vs room-temperature irrigation on thermal energy dissipation, as measured on a temperature curve, during an MIS calcaneal osteotomy using a high-torque, low-speed burr. The hypothesis was that chilled irrigation is superior to room-temperature irrigation in minimizing temperature change during the osteotomy.

Methods

Fourteen unpaired fresh frozen below-knee cadaveric limbs were collected from a tissue bank. Specimens were stored in a freezer at –10 °C and thawed to allow specimens to come to room temperature (68 °F) prior to use. They were screened for prior surgery, injury, anatomical deficiency, and overt pathology prior to use. The limbs were randomized to receive either chilled (37 °F) saline (7 limbs) or room-temperature (7 limbs) irrigation during MIS calcaneal osteotomy. Chilled saline was created by refrigerating intravenous saline bags to 37 °F prior to use. Two thermocouple probes (EL-USB-TC-LCD; Lascar Electronics, Whiteparish, England) were inserted into 3-mm-diameter, 2-cm-depth holes that are 5 mm away from the plane of the osteotomy, on the distal (labeled T1) and proximal (labeled T2) sides, respectively (Figure 1). The skin and subcutaneous tissue were resected on the lateral aspect of the calcaneus only in the plane of the osteotomy itself for the purpose of accurately positioning the probes and also to ensure consistency via direct visualization when performing the osteotomy. A 3 × 30-mm Shannon burr (Novastep Inc, Englewood Cliffs, NJ) was used to perform the osteotomy, with the burr set at 6000 rpm using a 4:1 reducer attachment. The uniplanar osteotomy was oriented from proximal-posterior to distal-anterior in the fashion of a sliding calcaneal osteotomy. The burr was run continuously with continuous irrigation using either room-temperature (68 °F) or chilled (37 °F) irrigation, until the osteotomy was completed. Irrigation for both groups was provided via saline bags suspended on an intravenous (IV) pole connected to intravenous tubing opened fully that allowed for continuous irrigation.

Figure 1.

Osteotomy setup with a Shannon burr, saline tube, and 2 thermal couples.

All osteotomies were performed by 2 foot and ankle fellowship-trained orthopaedic surgeons. The burr was changed after each osteotomy to eliminate instrument wear as a potential variable. Temperature was recorded at 0, 15, 30, 45, and 60 seconds for the 2 groups and used as a measure of thermal energy accumulation.

Statistical Analysis

Descriptive data were described as mean temperature ± SD. Normality of the data was confirmed using the Shapiro Wilk test using SAS software (SAS, Cary, NC). A t test was used to analyze the temperature curves recorded at the specified time points for each probe during the osteotomy. Statistical significance was set at P ≤.05.

Results

Figures 2 and 3 show the temperature curves of specimens from the room-temperature irrigation group and the chilled irrigation group. Both room-temperature and chilled irrigation were effective in minimizing temperature change for the duration of the osteotomy. On the proximal (T2) side, an overall mean increase of 2.5 °F with room-temperature irrigation and a mean decrease of 1.0 °F with chilled irrigation were observed over the course of 60 seconds (P = .004). On the distal (T1) side, there was a mean increase of 1.3 °F with room-temperature irrigation and a mean increase of 0.5 °F with chilled irrigation (P = .05) (Figure 4; Table 1). No significant differences when comparing room-temperature vs chilled irrigation were noted at the T1 probe until the 60-second interval, whereas for the T2 probe, a notable difference was noted at the 45- and 60-second intervals. There was no observable difference between the recordings of the proximal and distal probes under room-temperature irrigation, whereas there was a notable difference in the temperature recorded at the 60-second interval between the probes under chilled irrigation, with the proximal probe recording a lower temperature by 1.5 °F (Table 1).

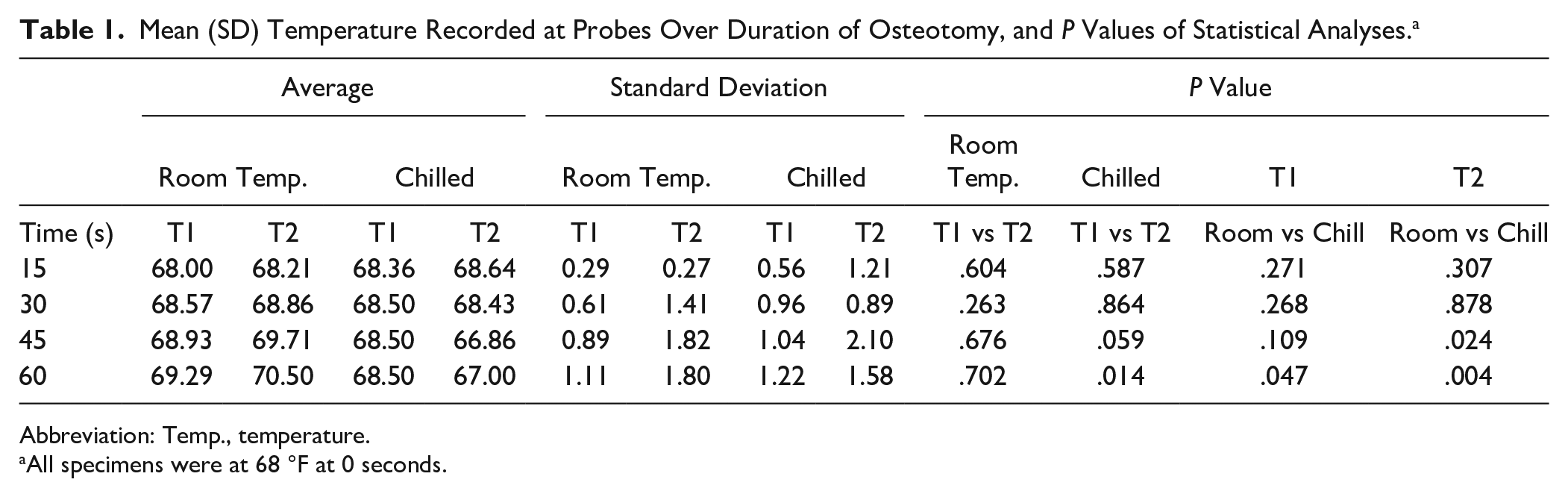

Table 1.

Mean (SD) Temperature Recorded at Probes Over Duration of Osteotomy, and P Values of Statistical Analyses. ^a

	Average				Standard Deviation				P Value
	Room Temp.		Chilled		Room Temp.		Chilled		Room Temp.	Chilled	T1	T2
Time (s)	T1	T2	T1	T2	T1	T2	T1	T2	T1 vs T2	T1 vs T2	Room vs Chill	Room vs Chill
15	68.00	68.21	68.36	68.64	0.29	0.27	0.56	1.21	.604	.587	.271	.307
30	68.57	68.86	68.50	68.43	0.61	1.41	0.96	0.89	.263	.864	.268	.878
45	68.93	69.71	68.50	66.86	0.89	1.82	1.04	2.10	.676	.059	.109	.024
60	69.29	70.50	68.50	67.00	1.11	1.80	1.22	1.58	.702	.014	.047	.004

Abbreviation: Temp., temperature.

a

All specimens were at 68 °F at 0 seconds.

Figure 2.

Temperature curve during minimally invasive osteotomy performed with room-temperature saline irrigation. Individual lines represent temperature probes for each specimen.

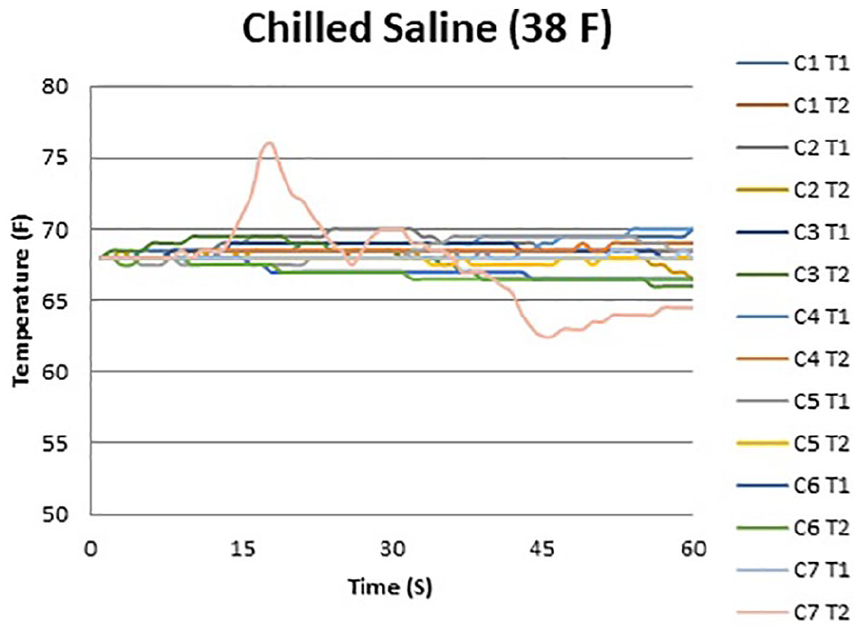

Figure 3.

Temperature curve during minimally invasive calcaneal osteotomy performed with chilled saline irrigation. Individual lines represent temperature probes for each specimen.

Figure 4.

Average interval temperature for T1 and T2 probes under room vs chilled irrigation with SD.

Discussion

Concerns regarding wound healing and damage to surrounding neurovascular structures with a traditional open method led to the development of the MIS calcaneal osteotomy.^6,7,9 Various methods have been employed to perform the osteotomy, including the use of a Gigli saw, microsagittal saw, and more recently, the use of a low-speed, high-torque burr.^4,5,9,14,15 Favorable clinical and radiographic outcomes have been in achieved in comparison to the traditional open sliding calcaneal osteotomy, with fewer complications. In particular, a low osteotomy nonunion rate has been observed when the burr is used in conjunction with sterile saline to minimize the risk of thermal necrosis.^7,9 Without the use of irrigation, increases of 30 to 60 °C can be observed in human tissue with the use of burrs, drills, and K-wires, increasing the risk of nonunion, wound complications, and infection because of the heat generated from friction during the process of removing bone.^11,12 Factors such as operational time of the burr, manual pressure applied by the surgeon, and speed all play a critical role in thermogenesis. ¹² Using a thermal imaging camera, Robinson et al ¹² evaluated the temperature increase using either a 2.0- or 4.3-mm MIS burr on specimens removed during total hip arthroplasty and found that the mean temperature was 28 °C (82.4 °C) with room-temperature irrigation and 43 °C (109 °F) without irrigation from a baseline temperature of 18.6 °C. ¹² In this particular study, the burr was used in an interval fashion of 20 seconds at an rpm of 800 to 1500 rpm. They concluded that burr temperature is dependent on several factors including the duration of burr activation time, use of irrigation, ambient temperature, and overall burr usage. ¹² Additionally, in the clinical setting, lowering the ambient temperature of the room and avoiding the use of a tourniquet can also reduce temperature at the osteotomy site.^4,12 Despite its use, little attention has been devoted to analyzing the use of irrigation and its impact on osseous healing. In an ulnohumeral rabbit arthrodesis model, use of continuous chilled (43 °F) saline irrigation led to higher fusion rates and greater fusion mass strength compared to when no irrigation was used. ⁸

The present study sought to compare the use of continuous chilled vs room-temperature irrigation on thermal energy generation when performing an MIS calcaneal osteotomy using a low-speed, high-torque burr. Both were effective in minimizing temperature change, with slightly lower temperatures observed with the use of chilled irrigation. It is interesting to note that an observable difference in temperature did not occur until the later stages of the osteotomy (45- and 60-second time points). This can be particularly important with osteotomies in denser bone that may take longer to perform and generate more heat, especially given the stronger quality of bone encountered in the tuberosity. ¹⁷ There was a greater temperature difference observed at the proximal probe, which could be a reflection of the orientation of the osteotomy in relation to the probes as well as potential greater exposure of the proximal probe to the chilled irrigation.

Limitations of the study include its biomechanical nature. There were several deviations made from clinical practice when performing the MIS osteotomy in order to isolate the effect of irrigation on temperature changes. First, the burr was operated continuously until the osteotomy was completed, whereas in the clinical setting the burr is often operated in an interval fashion to allow for heat dissipation. The frequency and duration of pauses are operator-dependent and a source of variability that can affect heat generation. ¹² Second, the skin and subcutaneous tissue was resected at the plane of the osteotomy in order to ensure accuracy when placing the temperature probes 5 mm away from the osteotomy. This minimized the potential dampening effect that different skin and subcutaneous thicknesses can have on the irrigation, and it also maintained consistency of the osteotomy in spatial relation to the probes. An additional limitation is the placement of the probes. We chose 5 mm as we felt it was as close as possible to place the probe without risking damage to it or breaching the hole containing the probe. We used a 3-mm drill bit and a 3-mm burr, which left a 2-mm bridge between the burr and the probe once the osteotomy was complete. Robinson et al ¹² noted that the heat generated from burr use is primarily concentrated within 3 mm of the osteotomy, and the placement of our probes fall within this range. Furthermore, although there was no significant difference in temperature recording at the proximal and distal probes with room-temperature irrigation, there was a significant difference observed when chilled irrigation was used, with the proximal probe recording a lower average temperature than the distal probe at the 60-second time point, which could reflect a greater amount of irrigation reaching the proximal probe. A strength of the study was the fact that the osteotomies were performed by 2 separate surgeons, which improves the overall generalizability of the findings.

Conclusion

For the duration of an MIS calcaneal osteotomy, both continuous room-temperature and chilled irrigation can minimize bone temperature increases and potentially reduce the risk of osteotomy nonunion.
